LC-32/37M43U

SERVICE MANUAL

No. S77L7LC32M43U

LCD COLOR TELEVISION

LC-32M43U

MODELS

In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its original condition and only parts identical to those specified should be used.

LC-37M43U

OUTLINE

This model is based on the LC-32/37D42U and is changed some parts. This Service Manual covers the modifications alone. For the other points, refer to the LC-32/37D42U (No. S06X9LC32D42U) Service Manual.

CONTENTS

OUTLINE AND DIFFERENCES FROM BASE MODEL

OUTLINE.................................................................... i

LIST OF CHANGED PARTS...................................... i

SAFETY PRECAUTION

IMPORTANT SERVICE SAFETY

PRECAUTION........................................................... ii

PRECAUTIONS A PRENDRE LORS DE LA

REPARATION ...........................................................iii

PRECAUTIONS FOR USING LEAD-FREE

SOLDER .................................................................. iv

PRECAUTIONS IN SERVICING THE HDCP-

KEY ROM.................................................................. v

CHAPTER 4. PRINTED WIRING BOARD ASSEMBLIES

[1] MAIN Unit...............................................................4-1

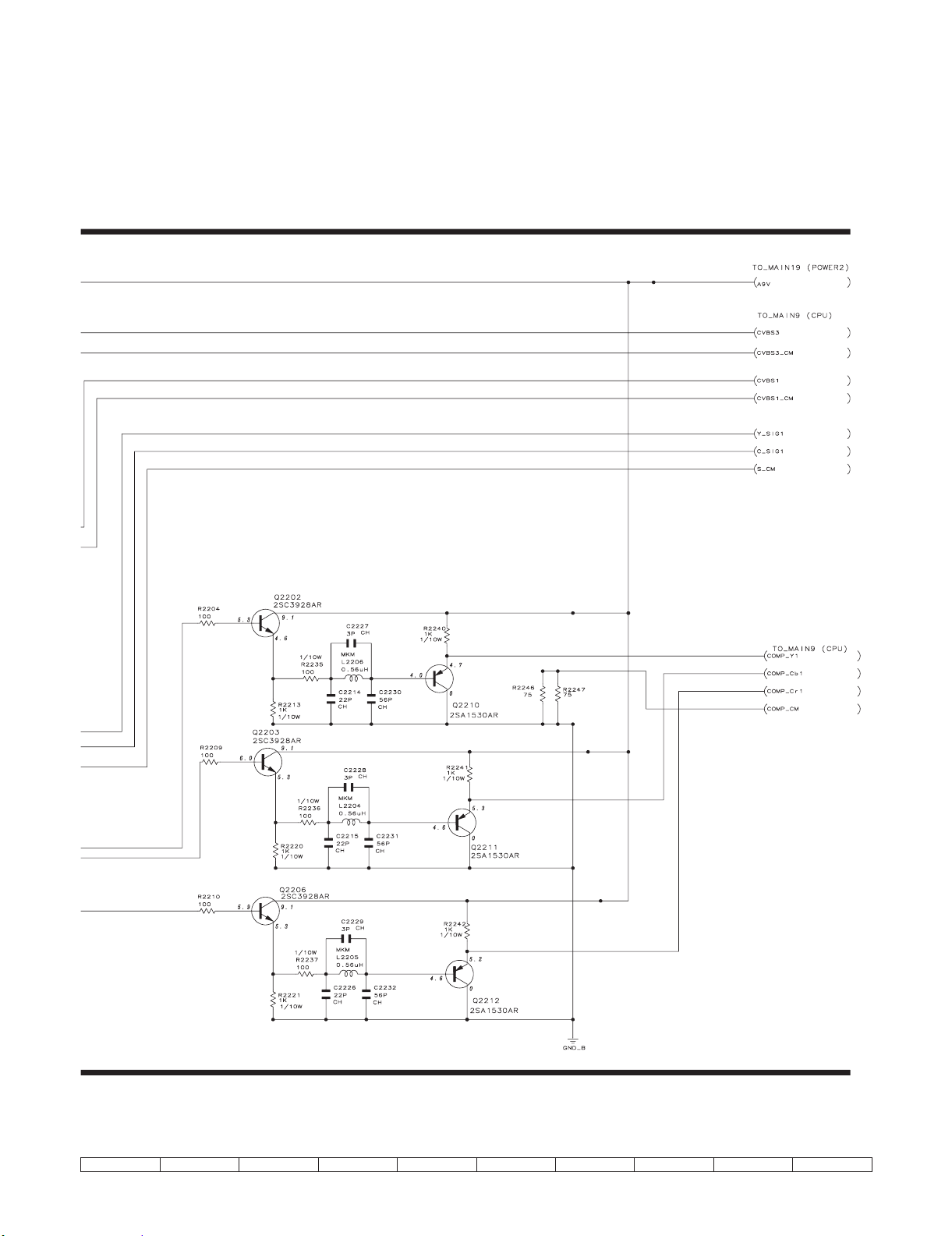

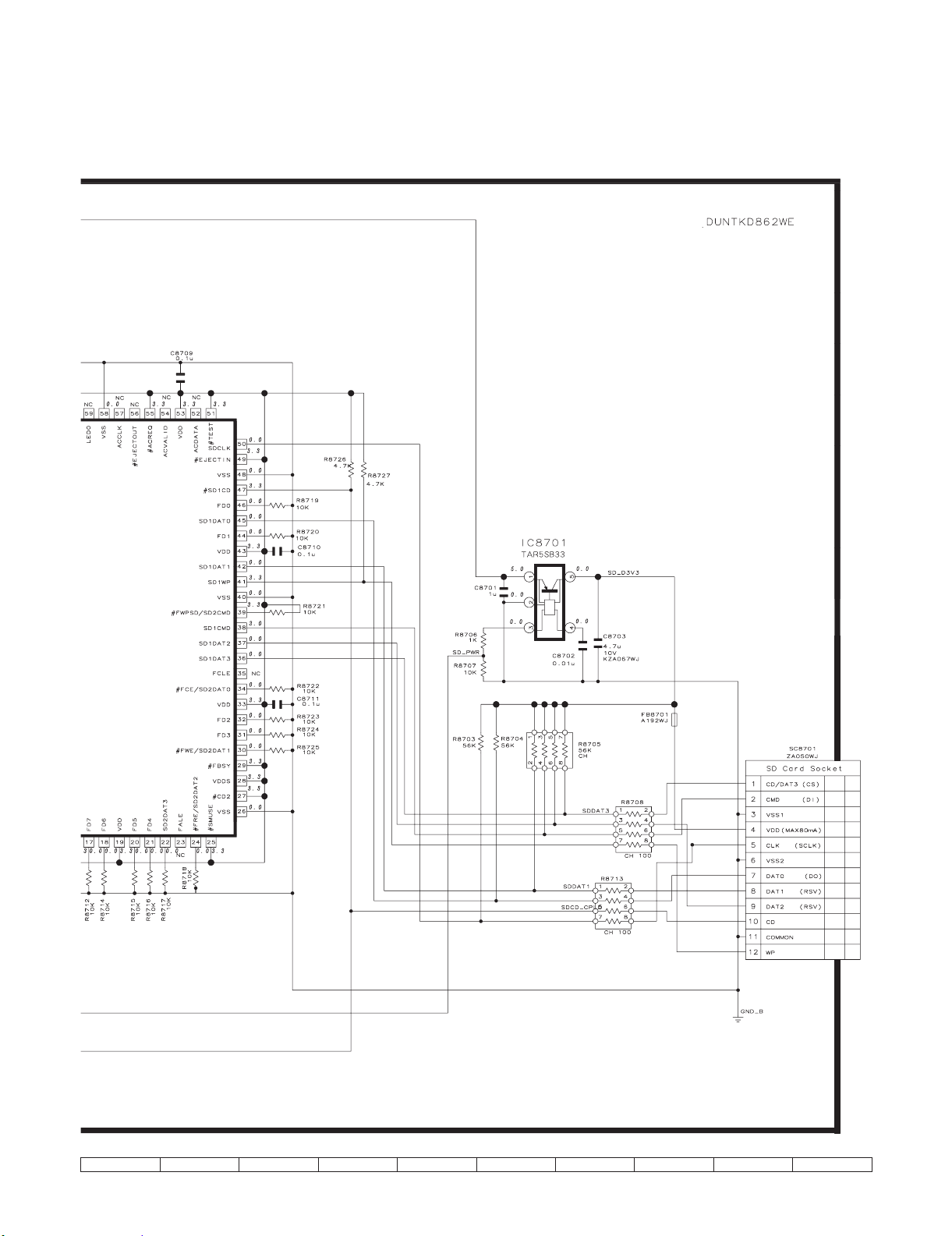

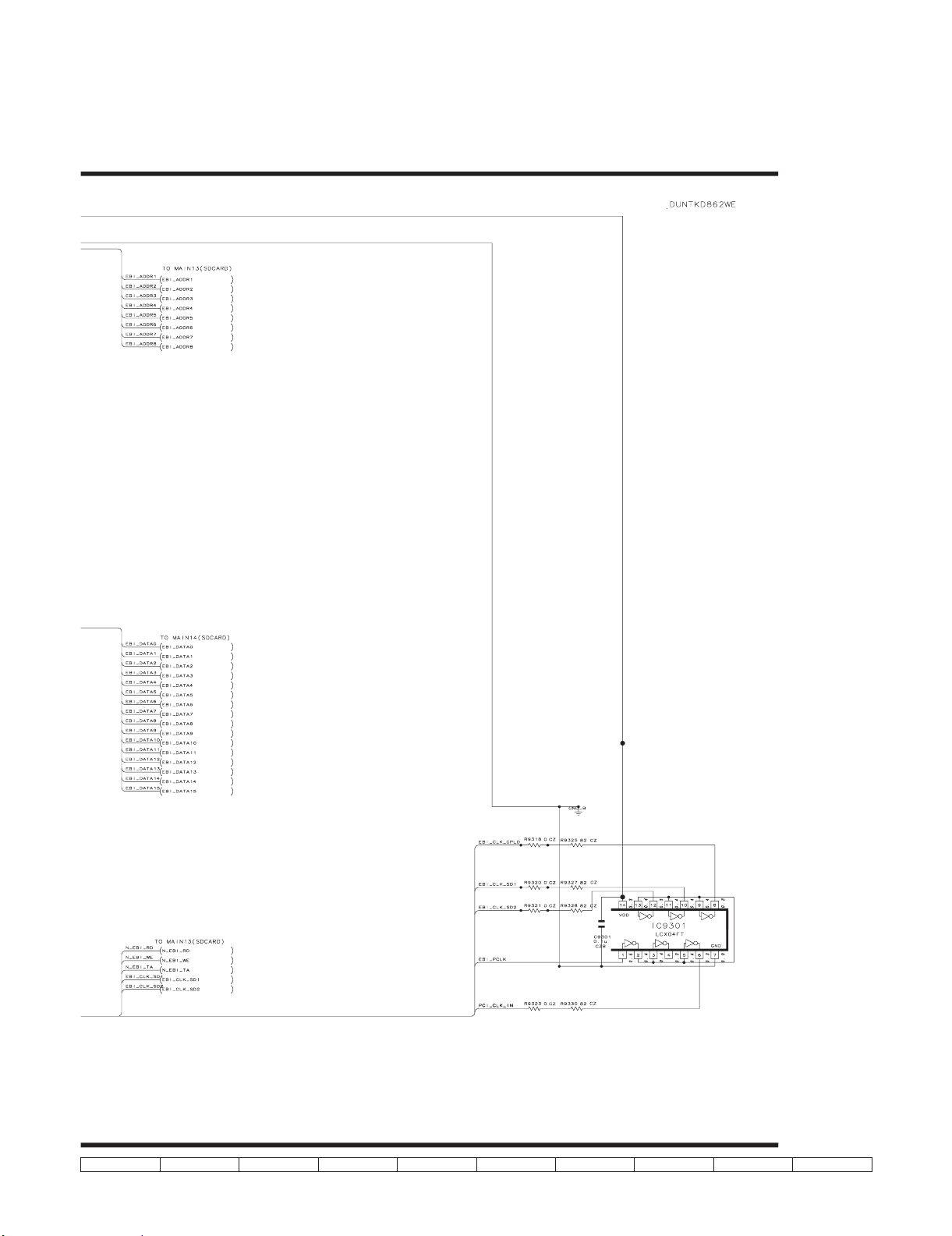

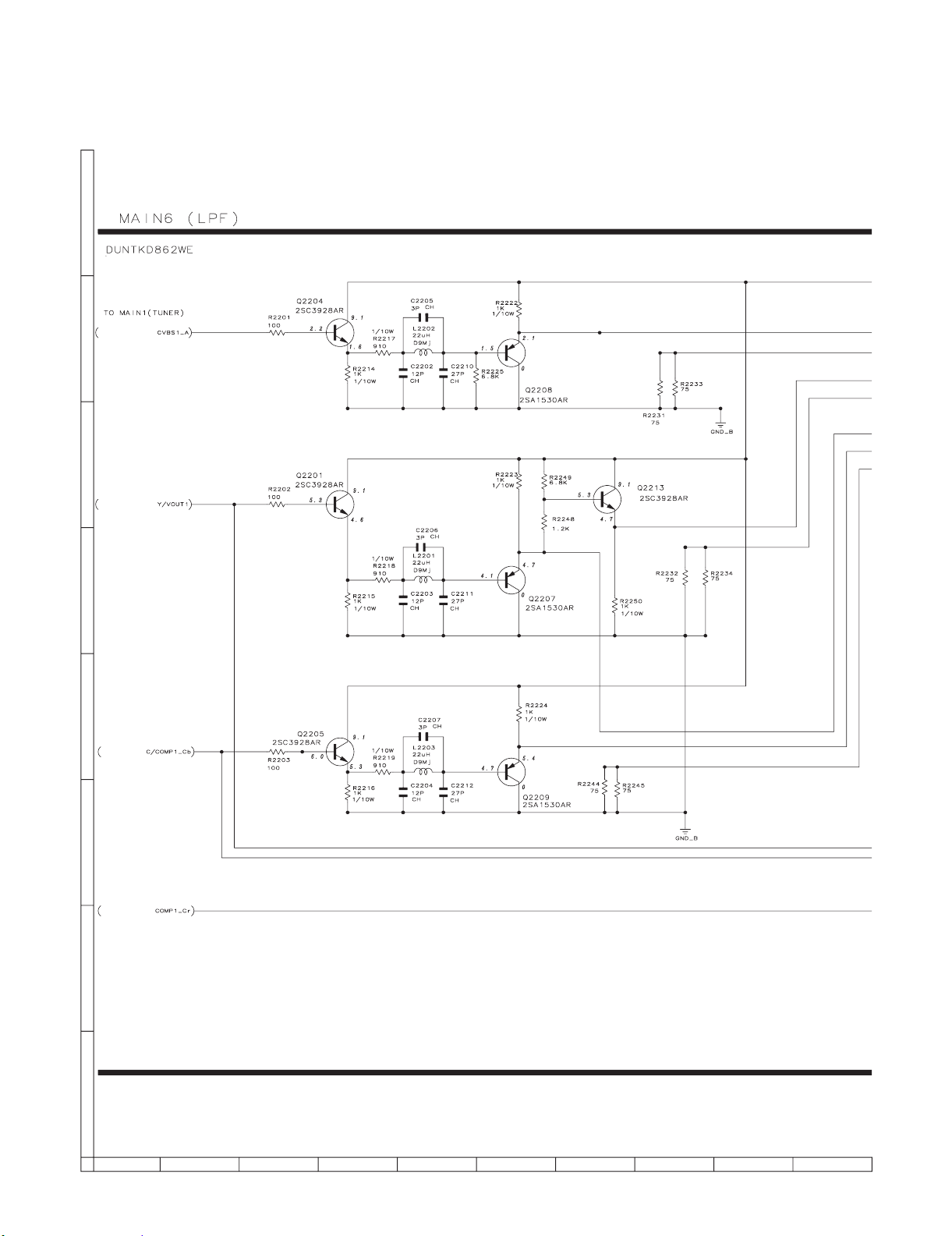

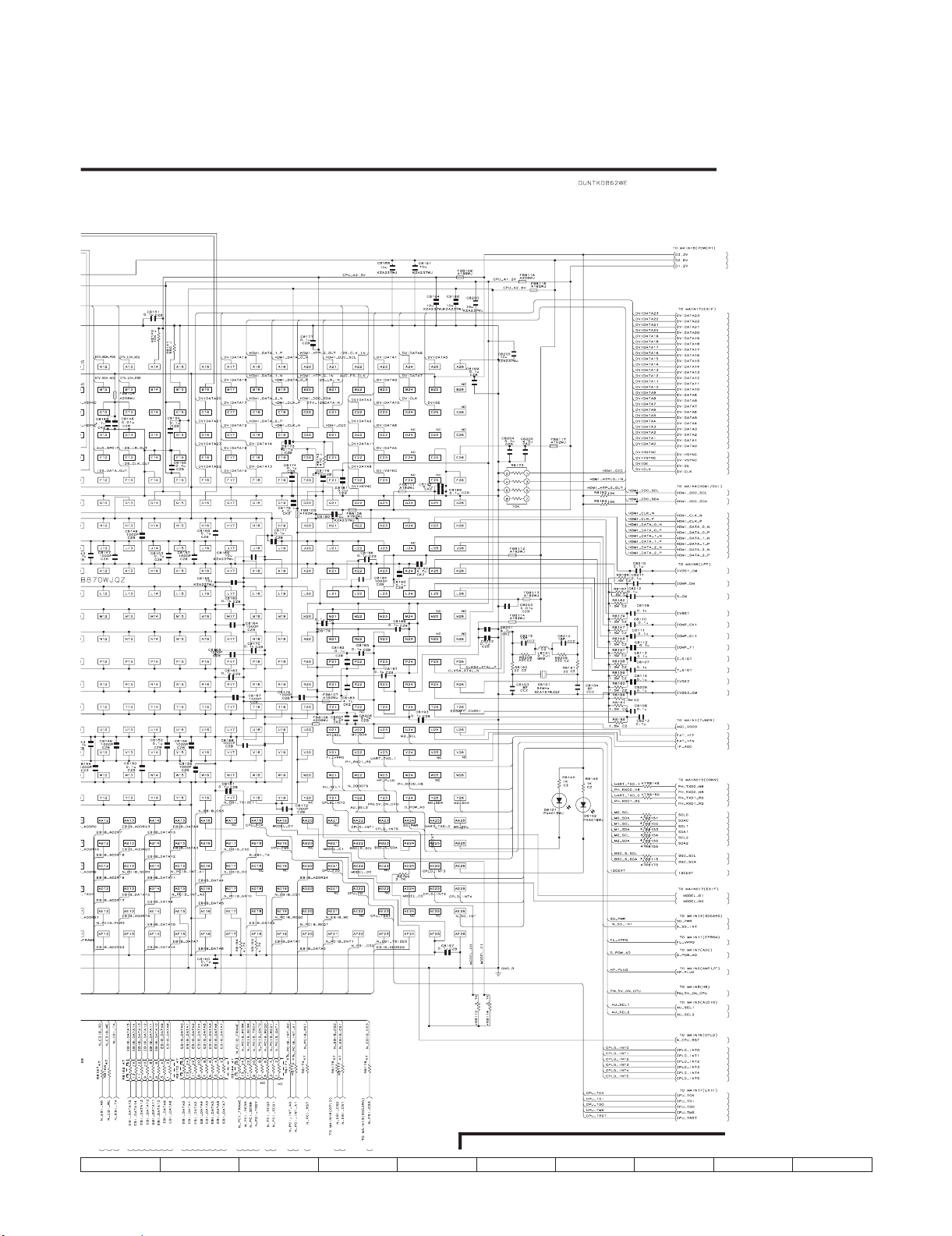

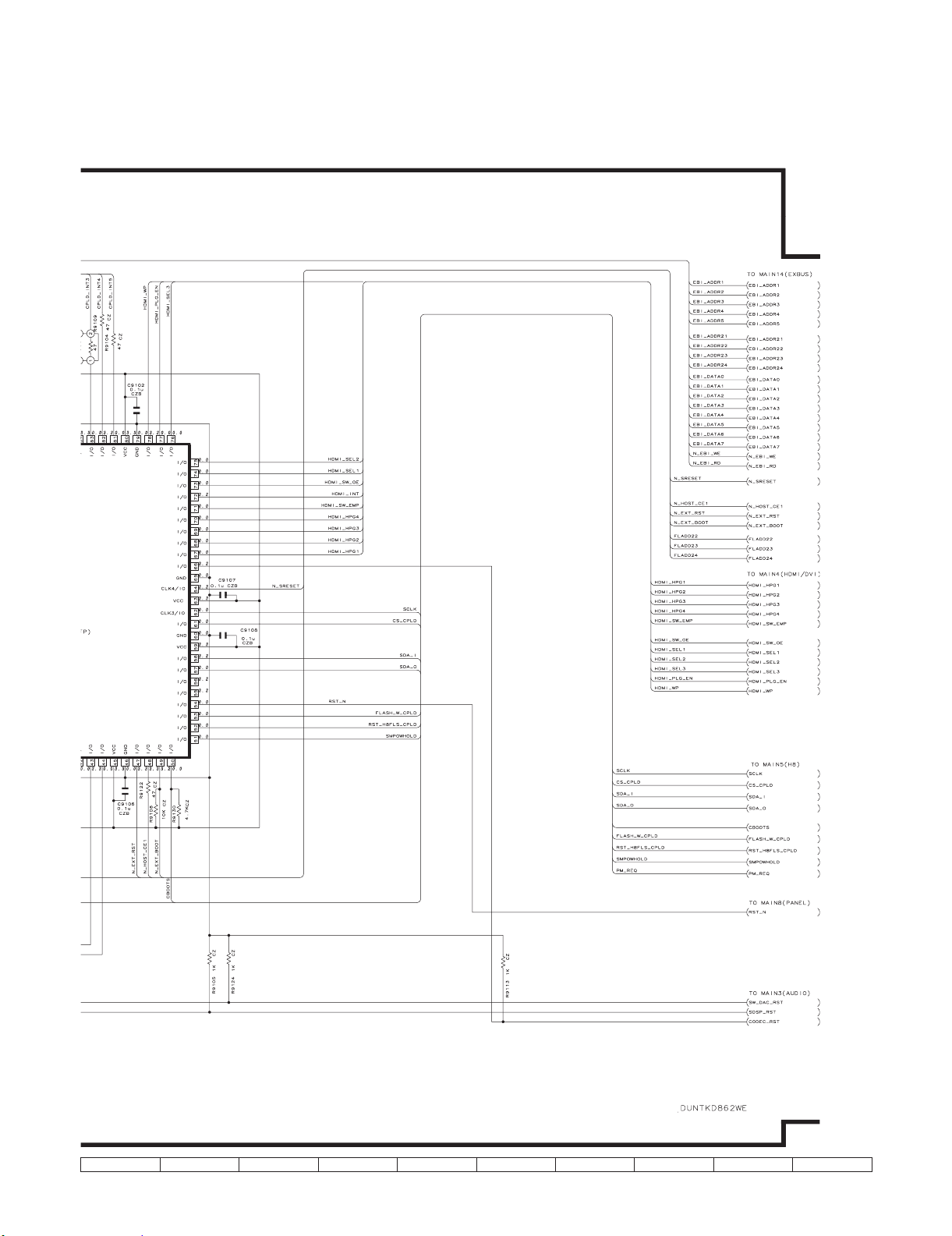

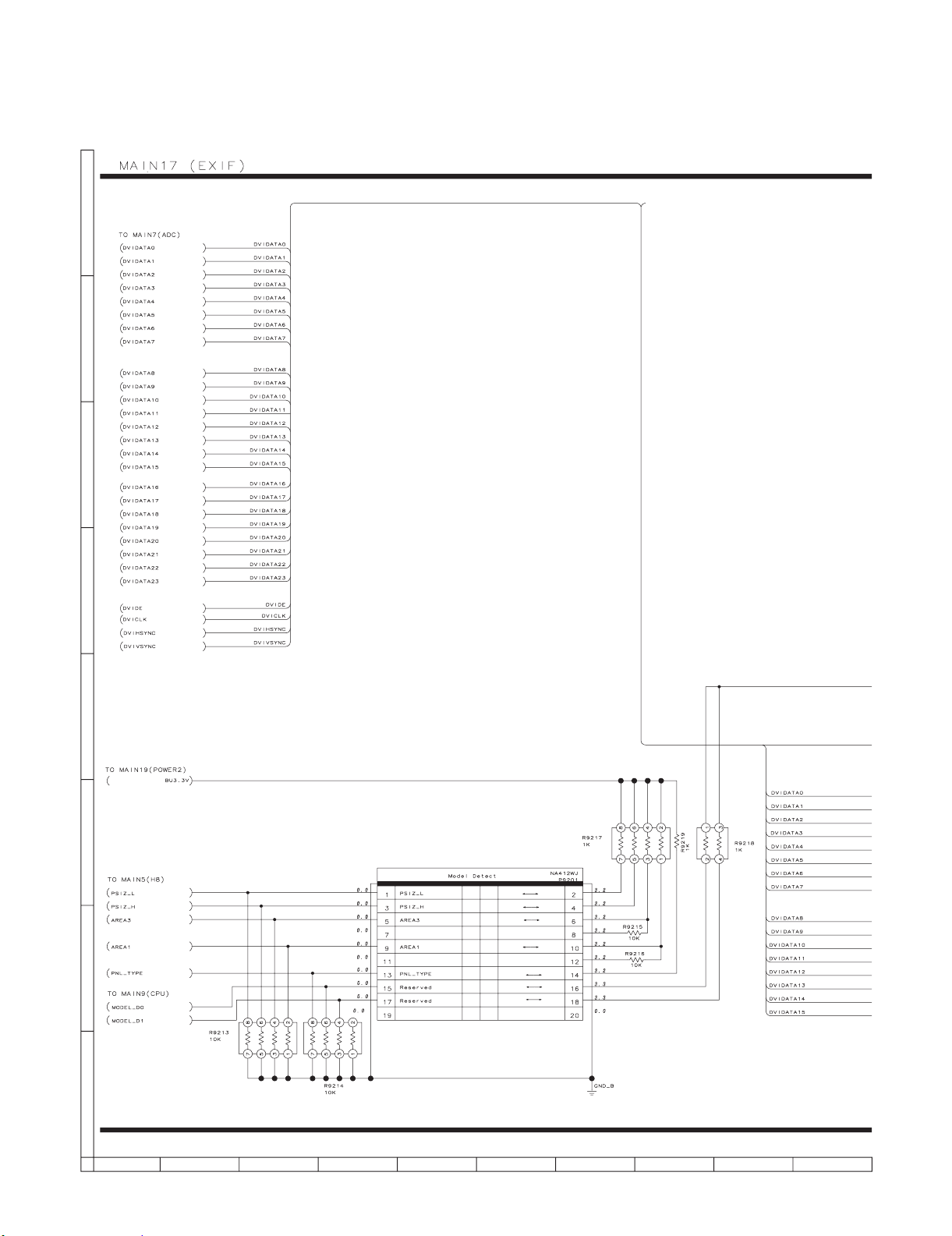

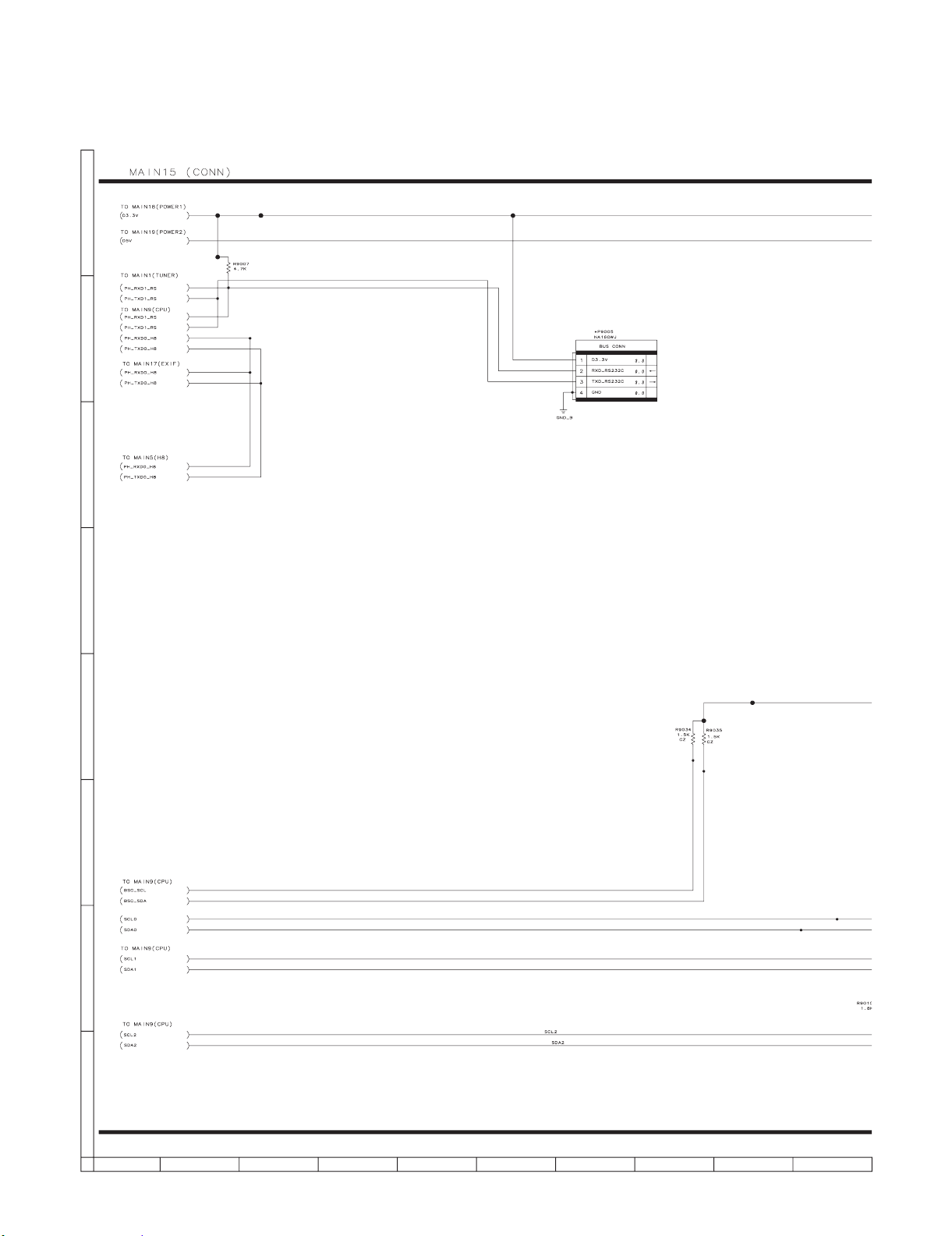

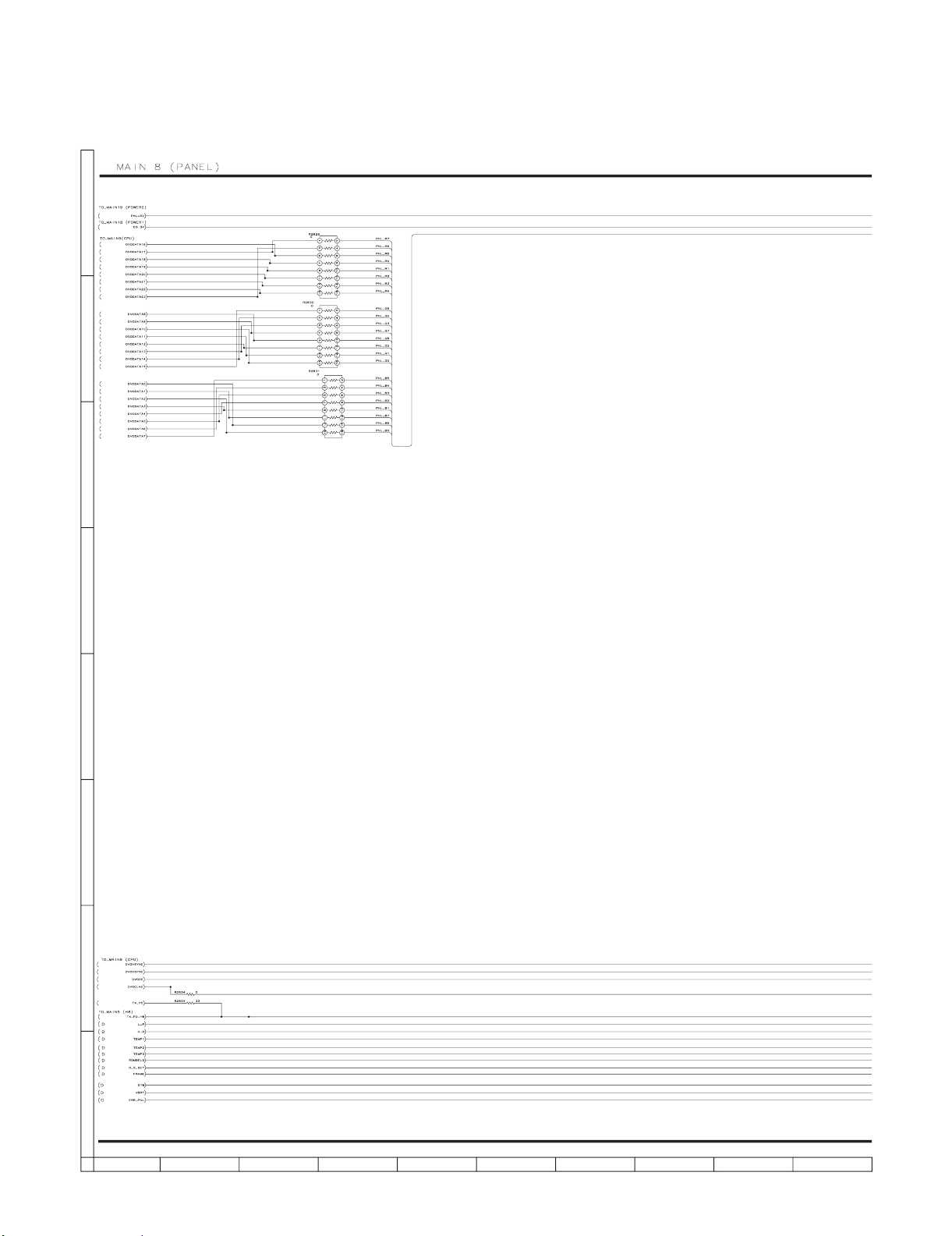

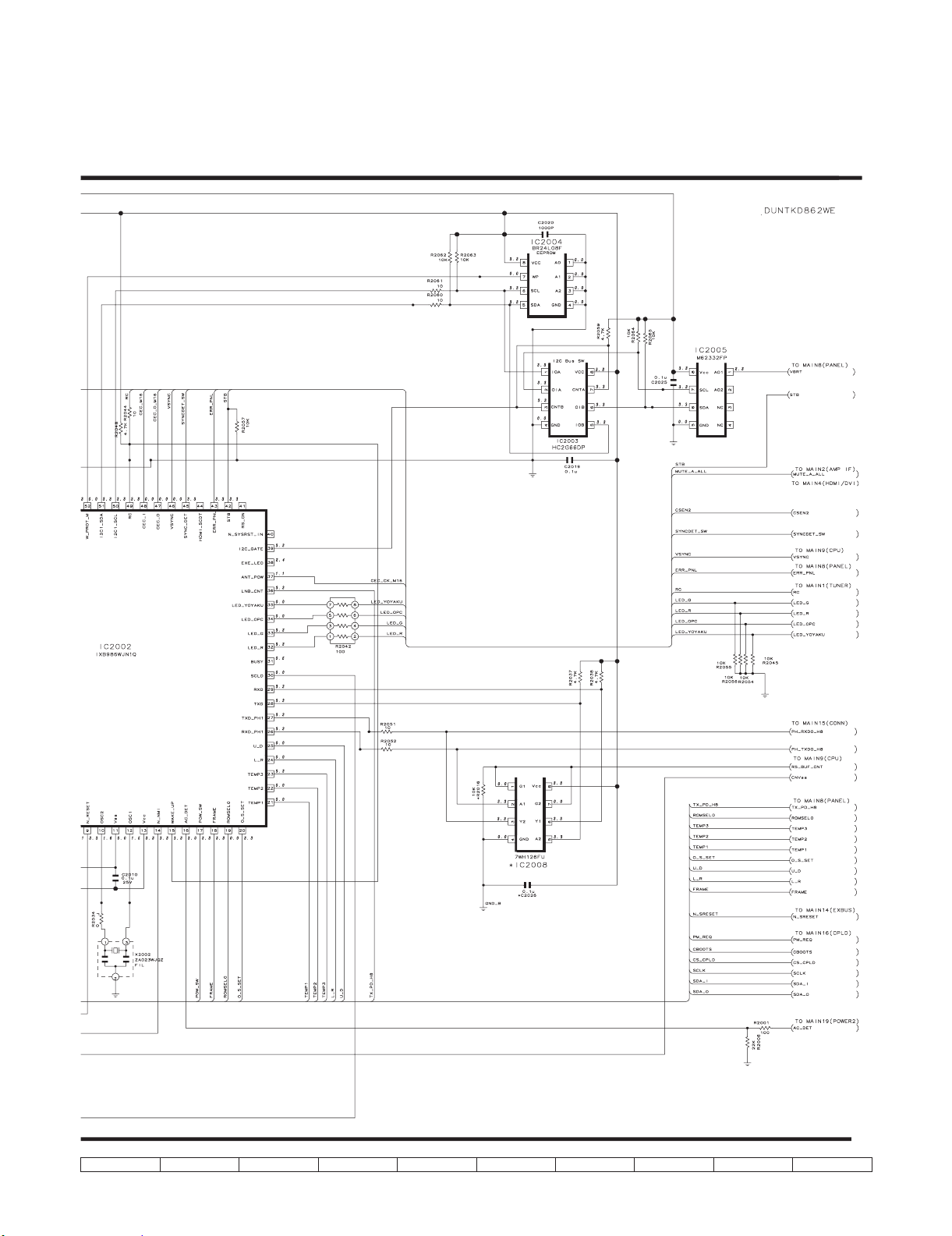

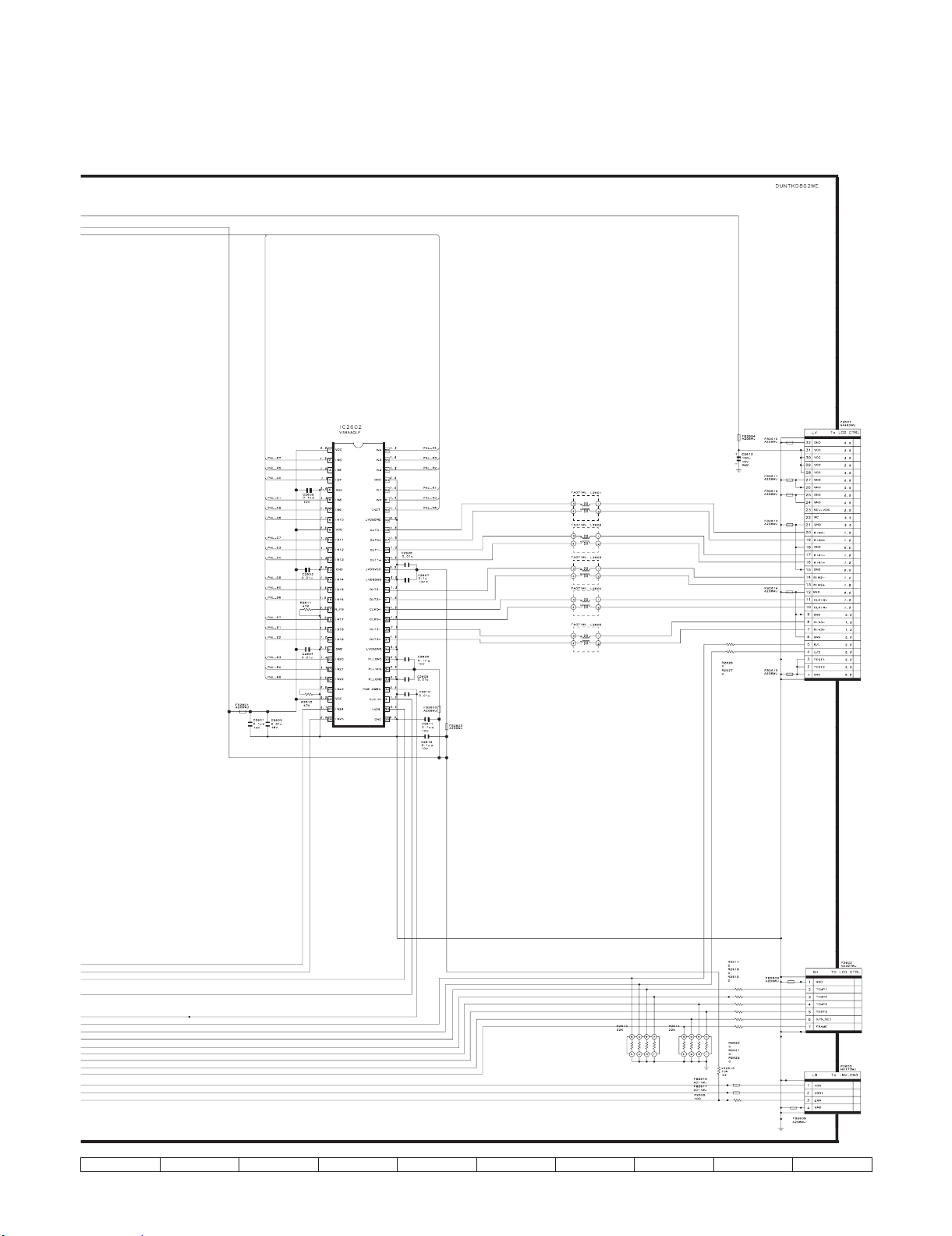

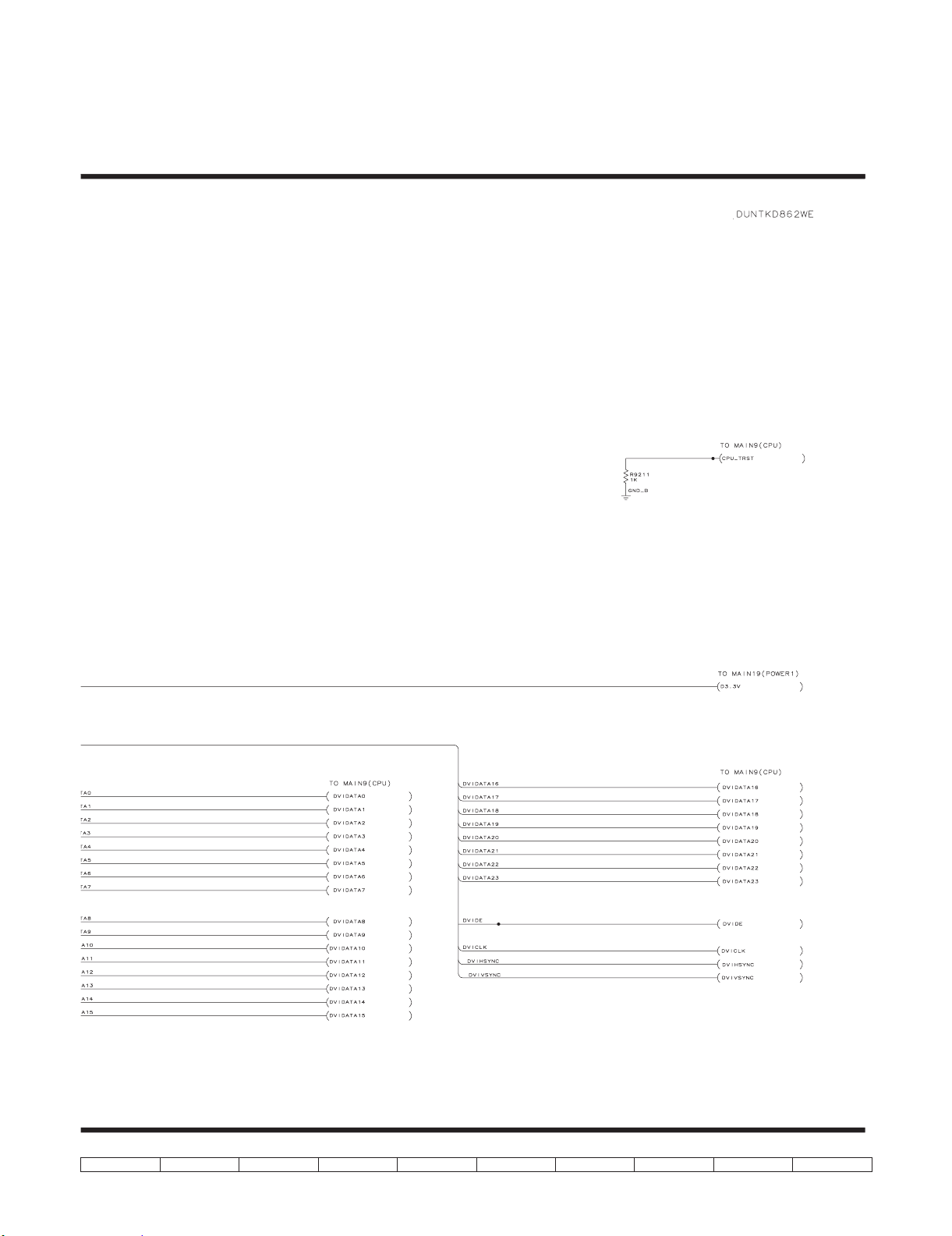

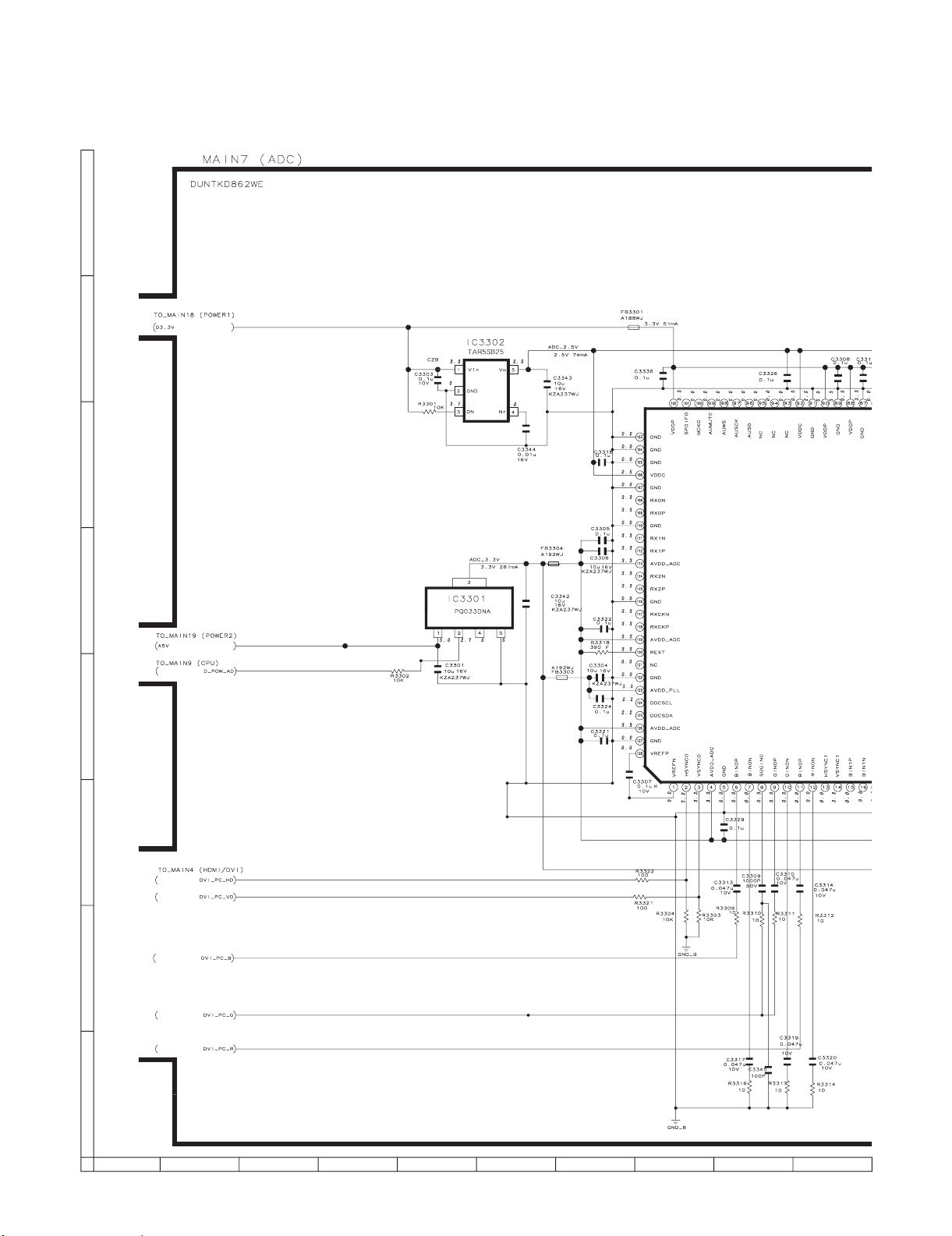

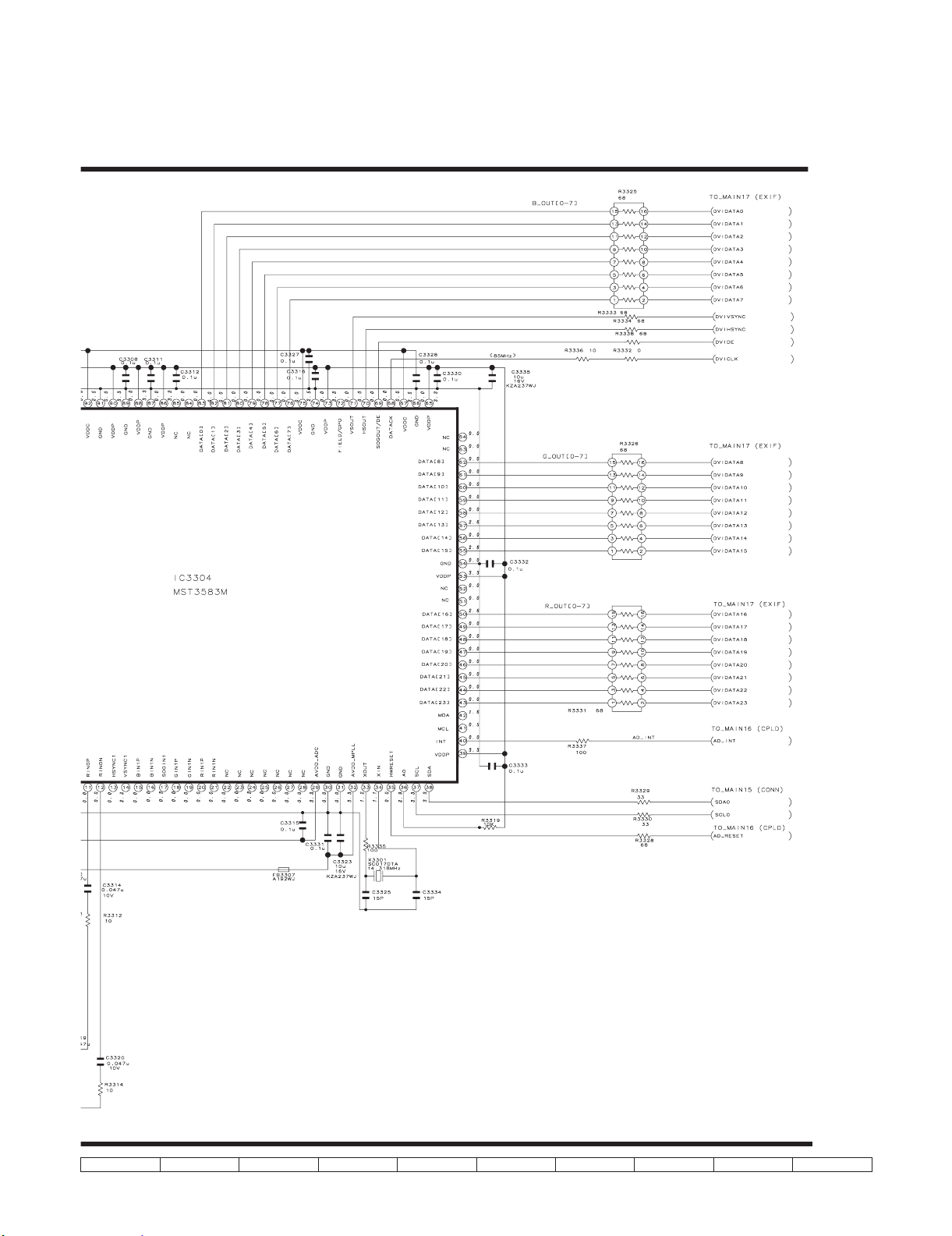

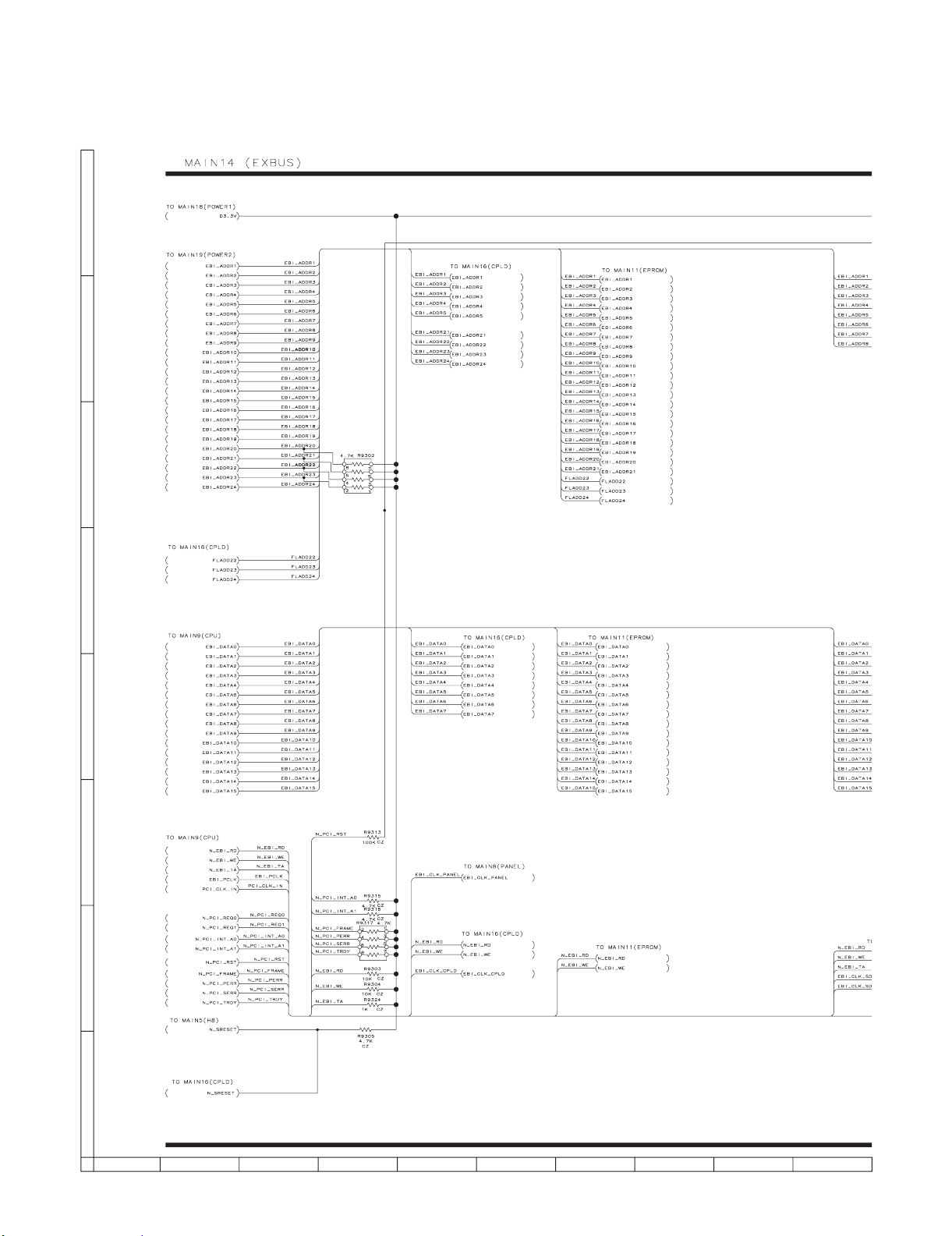

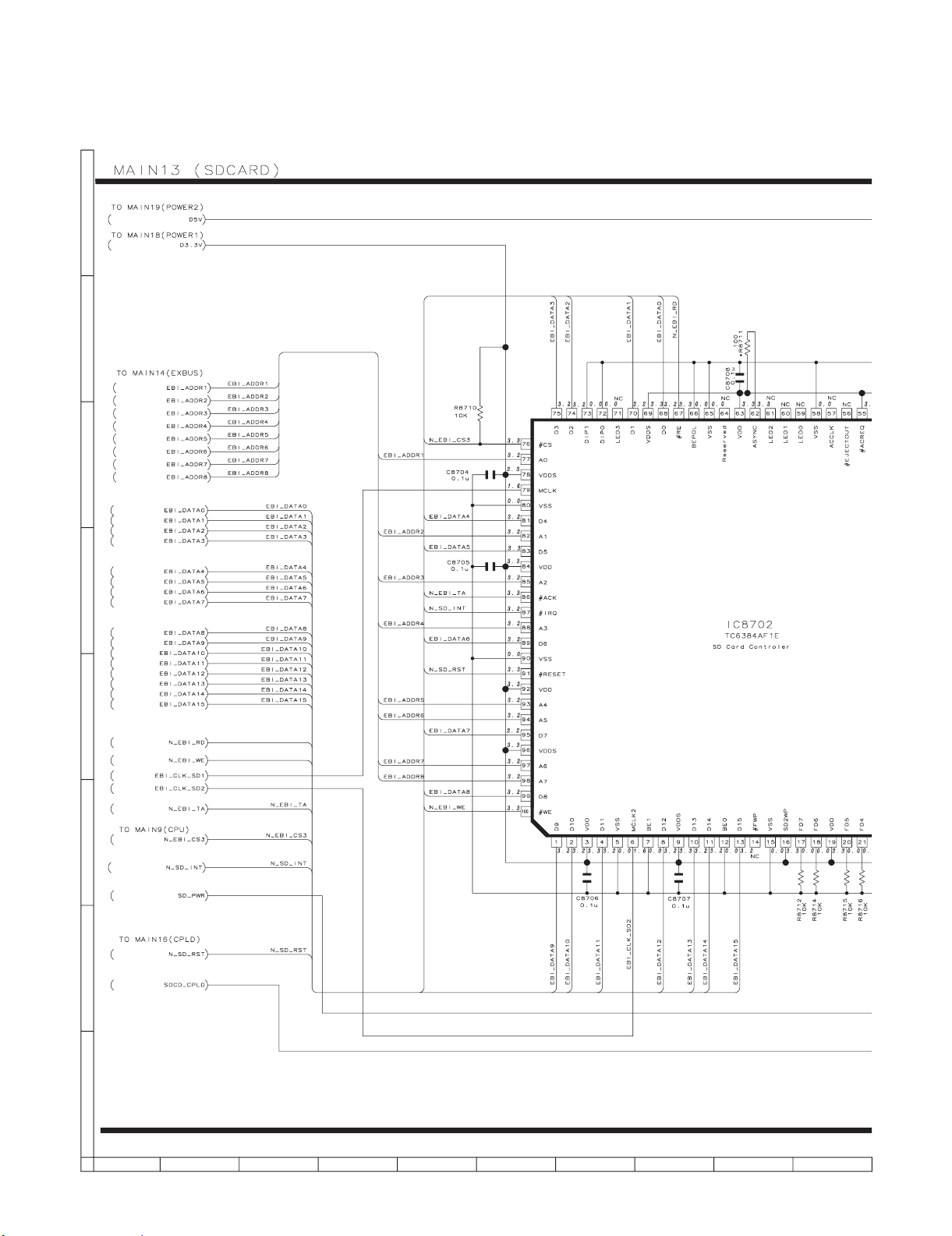

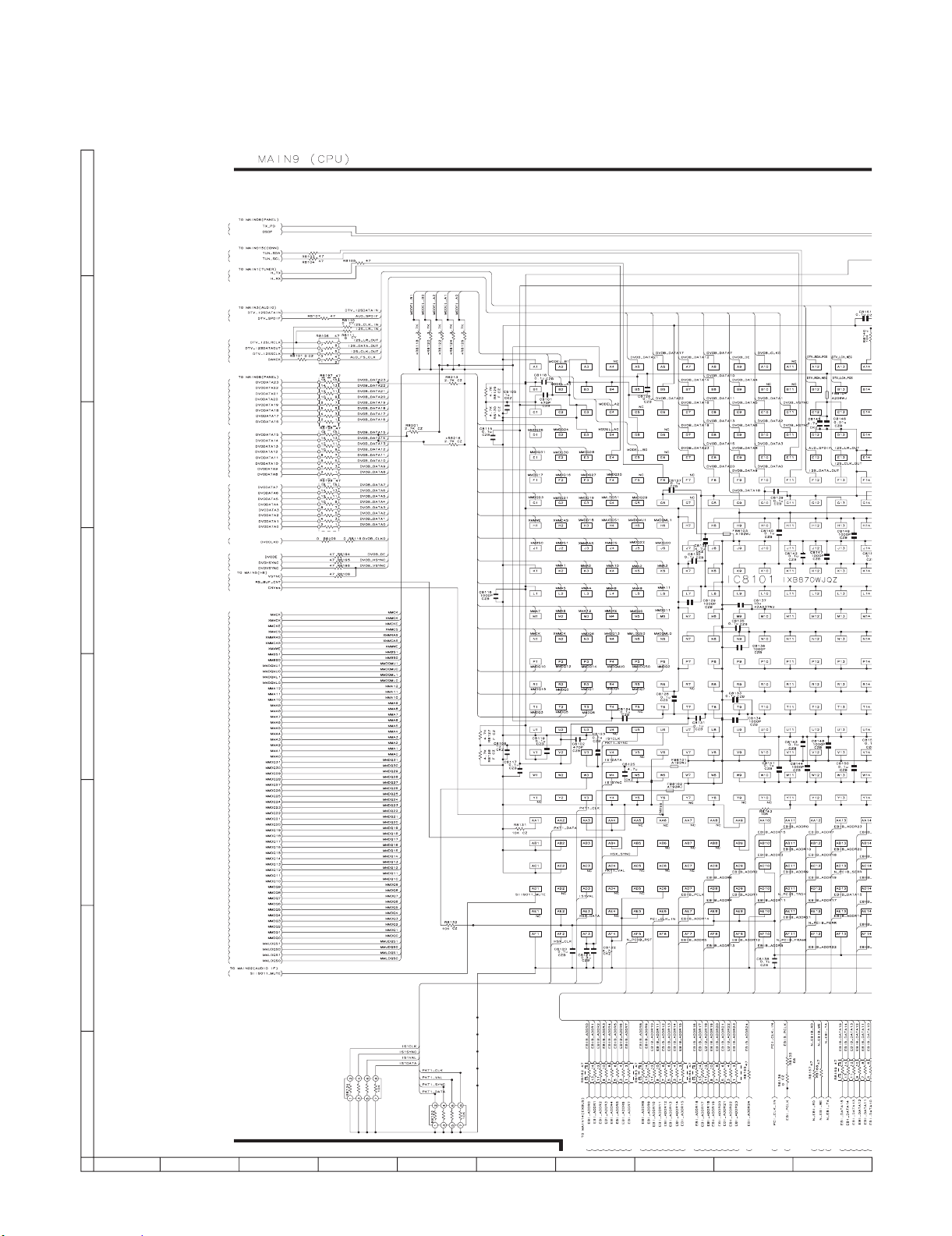

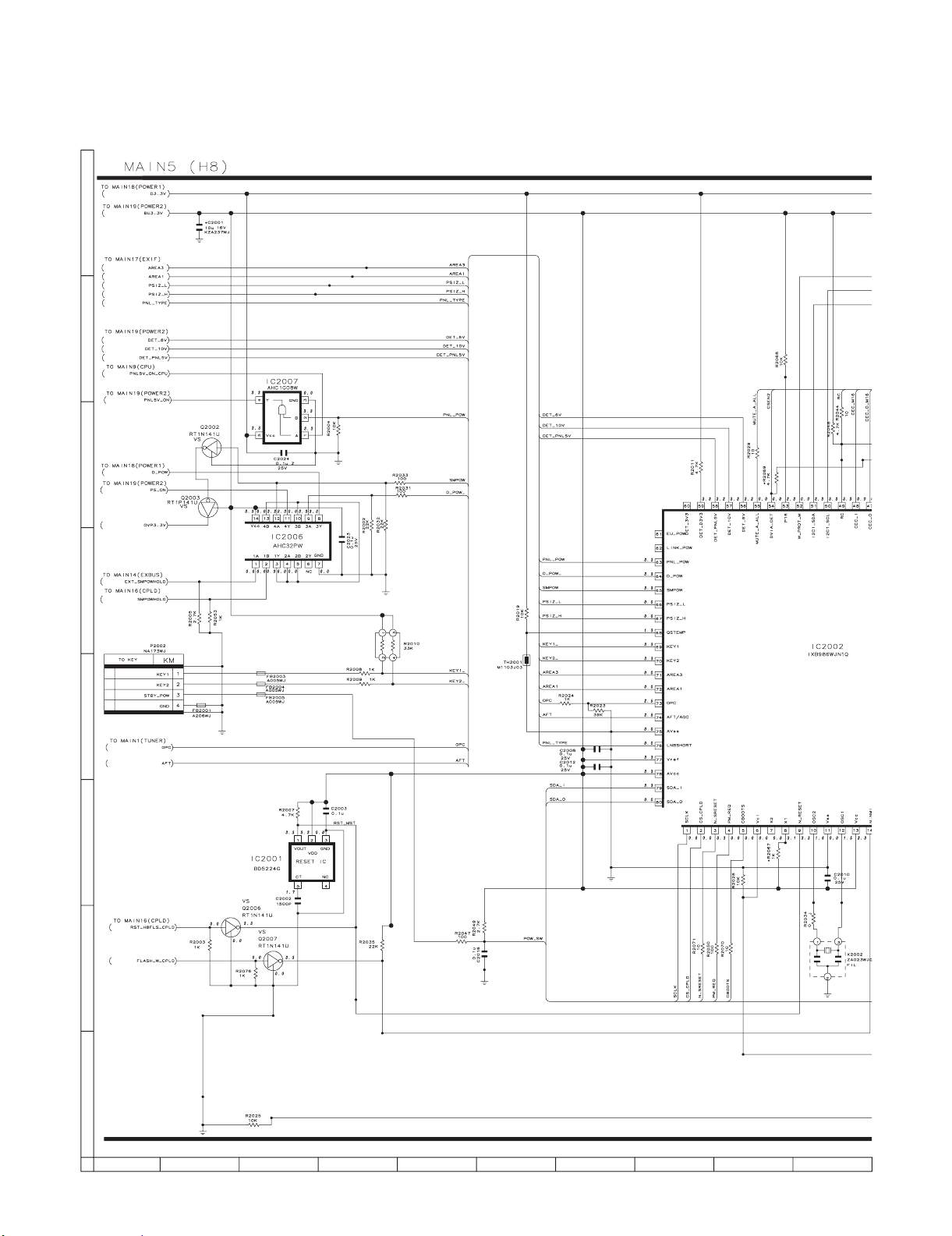

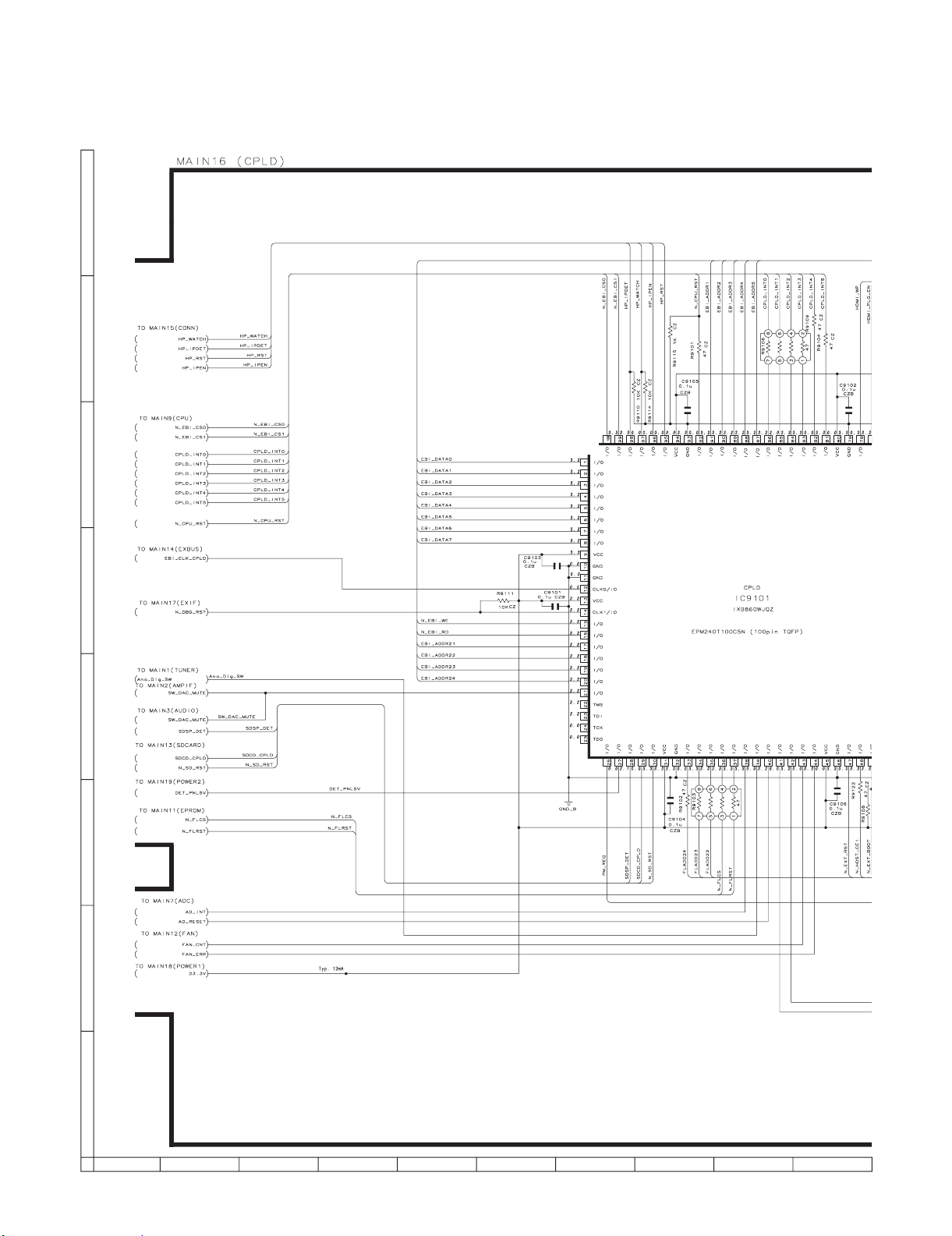

CHAPTER 5. SCHEMATIC DIAGRAM

[1] DESCRIPTION OF SCHEMATIC DIAGRAM.........5-1

[2] MAIN Unit...............................................................5-2

Parts Guide

CHAPTER 1. SPECIFICATIONS

[1] SPECIFICATIONS .................................................1-1

CHAPTER 2. OPERATION MANUAL

[1] OPERATION MANUAL ..........................................2-1

CHAPTER 3. DIMENSIONS

[1] DIMENSIONS ........................................................3-1

Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the safety and performance of the set.

This document has been published to be used for after sales service only. The contents are subject to change without notice.

LC-32/37M43U

OUTLINE AND DIFFERENCES FROM BASE MODEL

Service Manual

OUTLINE

This model is based on the LC-32/37D42U and is changed some parts. This Service Manual covers the modifications alone. For the other points, refer to the LC-32/37D42U (No. S06X9LC32D42U) Service Manual.

LIST OF CHANGED PARTS

Ref. No. Description LC-32/37D42U LC-32/37M43U Note

PRINTED WIRING BOARD ASSEMBLIES

R/C, LED Unit DUNTKD909FM02 ← — KEY Unit DUNTKD910FM02 ← — MAIN Unit DUNTKD862FM04 DUNTKD862FM10 Some parts changed AV TERMINAL Unit DUNTKD999FM04 ← — POWER Unit RDENCA198WJQZ RDENCA252WJQZ —

LCD PANEL

32” LCD Panel Module Unit R1LK315T3LZ4BX R1LK315T3LZ50Z — 37” LCD Panel Module Unit R1LK370T3LZ5BW R1LK370T3LZ6CZ —

MAIN Unit Please refer to a Parts list

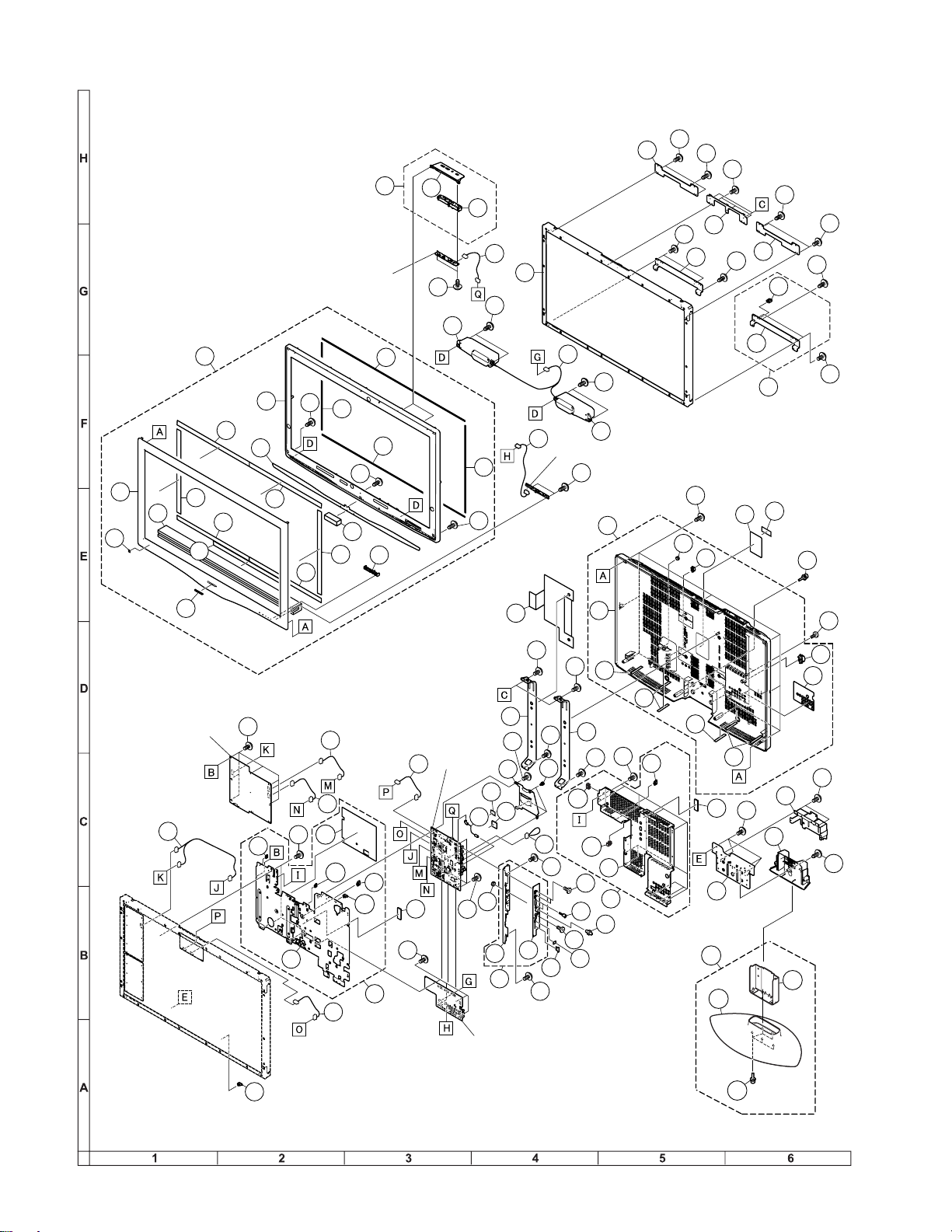

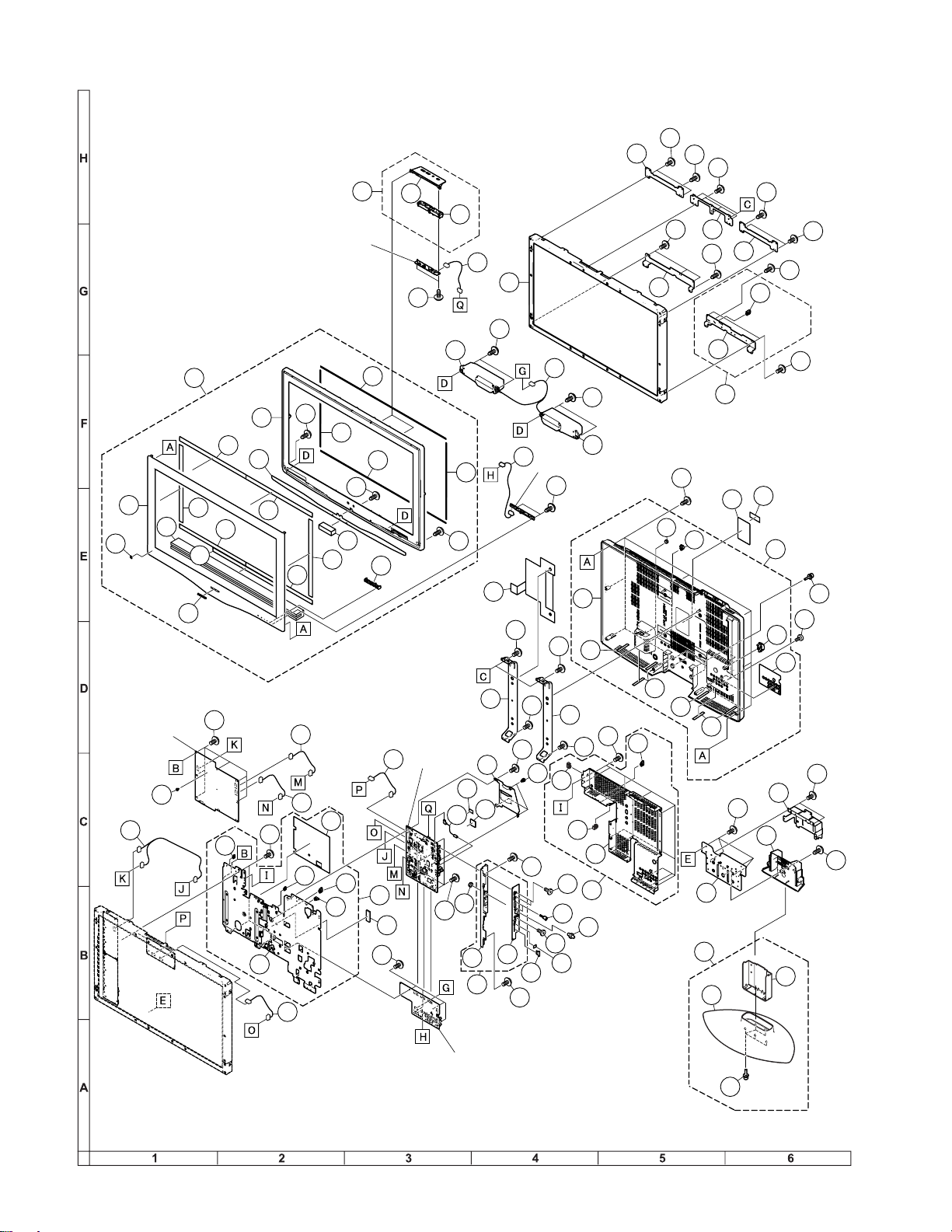

CABINET AND MECHANICAL PARTS Please refer to a Parts list

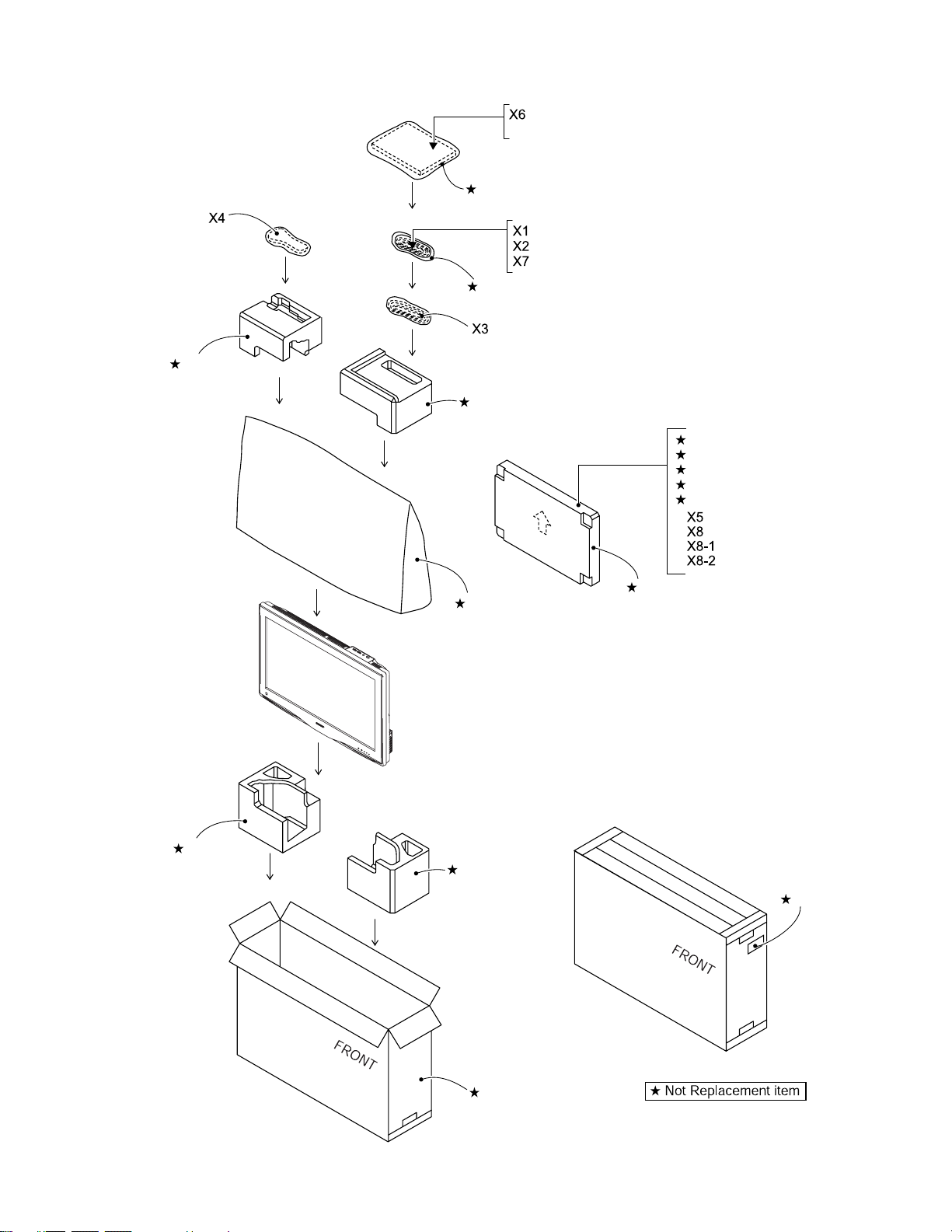

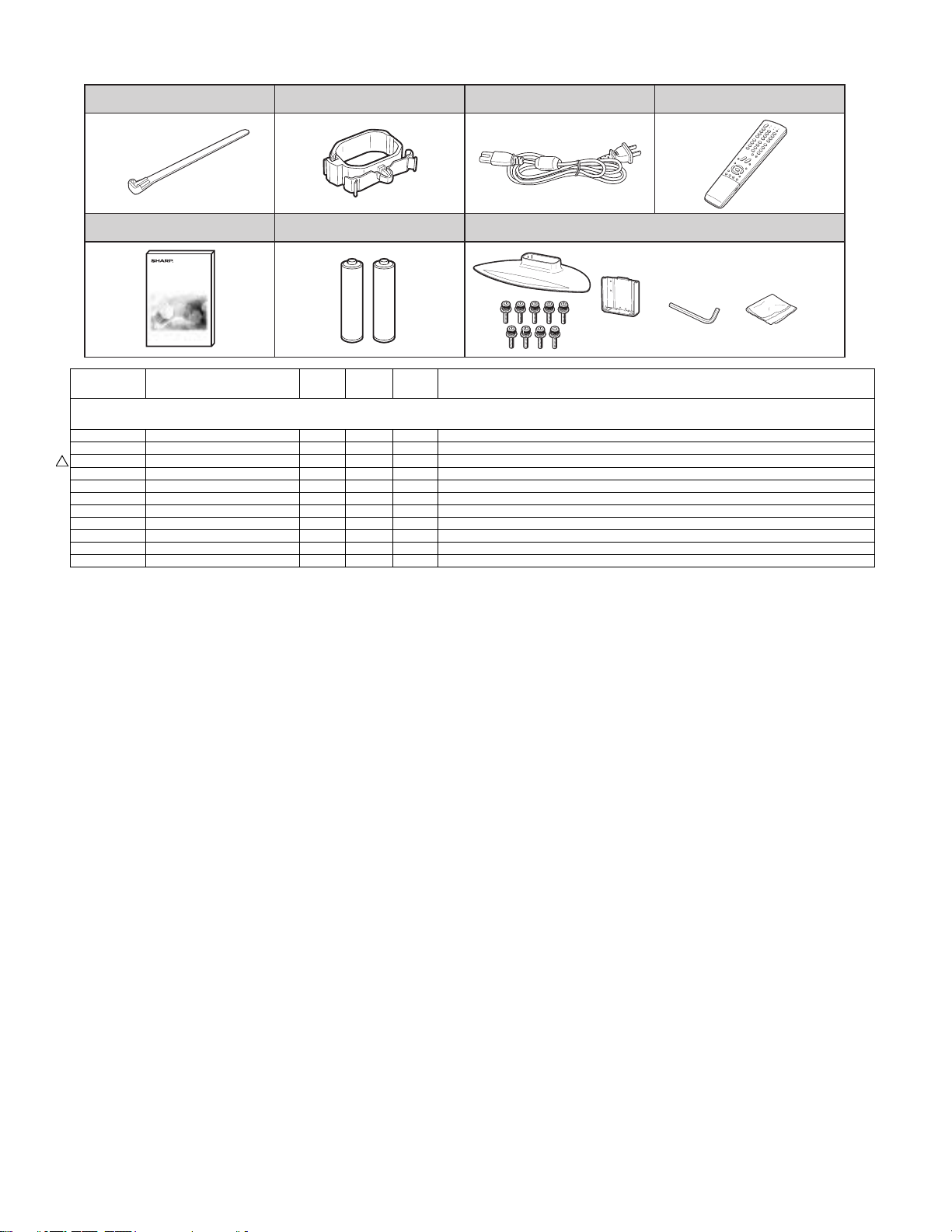

PACKING PARTS AND ACCESSORIES Please refer to a Parts list

i

LC-32/37M43U

SAFETY PRECAUTION

Service Manual

IMPORTANT SERVICE SAFETY PRECAUTION

Service work should be performed only by qualified service technicians who are thoroughly familiar with all safety checks and the servicing guidelines which follow:

WARNING

1. For continued safety, no modification of any circuit should be attempted.

2. Disconnect AC power before servicing.

CAUTION: FOR CONTI N U E D PROTECTION AGAINST A RISK OF FIRE REPLACE ONLY WITH SAME TYPE FUSE.

F001 (250V 4A)

• Use an AC voltmeter having with 5000 ohm per volt, or higher, sensitivity or measure the AC voltage drop across the resistor.

• Connect the resistor connection to all exposed metal parts having a return to the chassis (antenna, metal cabinet, screw heads, knobs and control shafts, escutcheon, etc.) and measure the AC voltage drop across the resistor.

All checks must be repeated with the AC cord plug connection reversed. (If necessary, a nonpolarized adaptor plug must be used only for the purpose of completing these checks.)

Any reading of 0.75 Vrms (this corresponds to 0.5 mA rms AC.) or more is excessive and indicates a potential shock hazard which must be corrected before returning the monitor to the owner.

DVM

BEFORE RETURNING THE RECEIVER (Fire & Shock Hazard)

Before returning the receiver to the user, perform the following safety checks:

3. Inspect all lead dress to make certain that leads are not pinched, and check that hardware is not lodged between the chassis and other metal parts in the receiver.

4. Inspect all protective devices such as non-metallic control knobs, insulation materials, cabinet backs, adjustment and compartment covers or shields, isolation resistor-capacitor networks, mechanical insulators, etc.

5. To be sure that no shock hazard exists, check for leakage current in the following manner.

• Plug the AC cord directly into a 110 ~ 240 volt AC outlet.

• Using two clip leads, connect a 1.5k ohm, 10 watt resistor paralleled by a 0.15µF capacitor in series with all exposed metal cabinet parts and a known earth ground, such as electrical conduit or electrical ground connected to an earth ground.

///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

TO EXPOSED METAL PARTS

AC SCALE

1.5k ohm 10W

0.15µF

TEST PROBE

CONNECT TO KNOWN EARTH GROUND

SAFETY NOTICE

Many electrical and mechanical parts in LCD color television have special safety-related characteristics.

These characteristics are often not evident from visual inspection, nor can protection afforded by them be necessarily increased by using replacement components rated for higher voltage, wattage, etc.

Replacement parts which have these special safety characteristics are identified in this manual; electrical components having such features

are identified by " " and shaded areas in the Replacement Parts List and Schematic Diagrams.

///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

For continued protection, replacement parts must be identical to those used in the original circuit.

The use of a substitute replacement parts which do not have the same safety characteristics as the factory recommended replacement parts shown in this service manual, may create shock, fire or other hazards.

ii

LC-32/37M43U

PRECAUTIONS A PRENDRE LORS DE LA REPARATION

Ne peut effectuer la réparation qu' un technicien spécialisé qui s'est parfaitement accoutumé à toute vérification de sécurité et aux conseils suivants.

•

AVERTISSEMENT

1.

N'entreprendre aucune modification de tout circuit. C'est dangereux.

2.

Débrancher le récepteur avant toute réparation.

PRECAUTION: POUR LA PROTECTION CONTINUE CONTRE LES RISQUES D'INCENDIE, REMPLACER LE FUSIBLE

F001 (250V 4A)

VERIFICATIONS CONTRE L'INCEN-DIE ET LE CHOC ELECTRIQUE

Avant de rendre le récepteur à l'utilisateur, effectuer les vérifications suivantes.

Inspecter tous les faisceaux de câbles pour s'assurer que les fils

3. ne soient pas pincés ou qu'un outil ne soit pas placé entre le châssis et les autres pièces métalliques du récepteur.

4.

Inspecter tous les dispositifs de protection comme les boutons de commande non-métalliques, les isolants, le dos du coffret, les couvercles ou blindages de réglage et de compartiment, les réseaux de résistancecapacité, les isolateurs mécaniques, etc.

S'assurer qu'il n'y ait pas de danger d'électrocution en vérifiant la

5. fuite de courant, de la facon suivante:

Brancher le cordon d'alimentation directem-ent à une prise de cou-

• rant de 110 ~ 240V. (Ne pas utiliser de transformateur d'isolation pour cet essai).

A l'aide de deux fils à pinces, brancher une résistance de 1.5 kΩ 10 watts en parallèle avec un condensateur de 0.15µF en série avec toutes les pièces métalliques exposées du coffret et une terre connue comme une conduite électrique ou une prise de terre branchée à la terre.

•

Utiliser un voltmètre CA d'une sensibilité d'au moins 5000Ω/V pour mesurer la chute de tension en travers de la résistance.

•

Toucher avec la sonde d'essai les pièces métalliques exposées qui présentent une voie de retour au châssis (antenne, coffret métallique, tête des vis, arbres de commande et des boutons, écusson, etc.) et mesurer la chute de tension CA en-travers de la résistance. Toutes les vérifications doivent être refaites après avoir inversé la fiche du cordon d'alimentation. (Si nécessaire, une prise d'adpatation non polarisée peut être utilisée dans le but de terminer ces vérifications.) La tension de pointe mesurèe ne doit pas dépasser 0.75V (correspondante au courant CA de pointe de 0.5mA). Dans le cas contraire, il y a une possibilité de choc électrique qui doit être supprimée avant de rendre le récepteur au client.

DVM

ECHELLE CA

1.5k ohm 10W

µ

F

0.15

SONDE D'ESSAI

AUX PIECES METALLIQUES EXPOSEES

/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

BRANCHER A UNE TERRE CONNUE

AVIS POUR LA SECURITE

De nombreuses pièces, électriques et mécaniques, dans les téléviseur ACL présentent des caractéristiques spéciales relatives à la sécurité, qui ne sont souvent pas évidentes à vue. Le degré de protection ne peut pas être nécessairement augmentée en utilisant des pièces de remplacement étalonnées pour haute tension, puissance, etc. Les pièces de remplacement qui présentent ces caractéristiques sont identifiées dans ce manuel; les pièces électriques qui présentent ces particularités sont identifiées par la marque " " et hachurées dans la liste des pièces de remplacement et les diagrammes schématiques.

/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

Pour assurer la protection, ces pièces doivent être identiques à celles utilisées dans le circuit d'origine. L'utilisation de pièces qui n'ont pas les mêmes caractéristiques que les pièces recommandées par l'usine, indiquées dans ce manuel, peut provoquer des électrocutions, incendies, radiations X ou autres accidents.

iii

LC-32/37M43U

PRECAUTIONS FOR USING LEAD-FREE SOLDER

Employing lead-free solder

• “PWBs” of this model employs lead-free solder. The LF symbol indicates lead-free solder, and is attached on the PWBs and service manuals. The alphabetical character following LF shows the type of lead-free solder.

Example:

Indicates lead-free solder of tin, silver and copper. Indicates lead-free solder of tin, silver and copper.

Using lead-free wire solder

• When fixing the PWB soldered with the lead-free solder, apply lead-free wire solder. Repairing with conventional lead wire solder may cause damage or accident due to cracks.

As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40 °C, we recommend you to use a dedicated soldering bit, if you are not familiar with how to obtain lead-free wire solder or soldering bit, contact our service station or service branch in your area.

Soldering

• As the melting point of lead-free solder (Sn-Ag-Cu) is about 220 °C which is higher than the conventional lead solder by 40 °C, and as it has poor solder wettability, you may be apt to keep the soldering bit in contact with the PWB for extended period of time. However, Since the land may be peeled off or the maximum heat-resistance temperature of parts may be exceeded, remove the bit from the PWB as soon as you confirm the steady soldering condition.

Lead-free solder contains more tin, and the end of the soldering bit may be easily corroded. Make sure to turn on and off the power of the bit as required.

If a different type of solder stays on the tip of the soldering bit, it is alloyed with lead-free solder. Clean the bit after every use of it.

When the tip of the soldering bit is blackened during use, file it with steel wool or fine sandpaper.

• Be careful when replacing parts with polarity indication on the PWB silk.

Lead-free wire solder for servicing

PARTS CODE

ZHNDAi123250E BL J φ0.3mm 250g (1roll) ZHNDAi126500E BK J φ0.6mm 500g (1roll) ZHNDAi12801KE BM J φ1.0mm 1kg (1roll)

PRICE RANK

PART

DELIVERY

DESCRIPTION

iv

LC-32/37M43U

PRECAUTIONS IN SERVICING THE HDCP-KEY ROM

Applied part: HDCP-KEY ROM

IC8451 RH-iXB979WJQZY (updated ROM)

The HDCP-KEY ROM shall be protected and managed for its information inside. In servicing this ROM, therefore, take the following information protection/management measures.

1) When disposing of the component parts and PWBs, destruct the IC itself in a proper way.

(For repairing or replacing the component parts and PWBs as well as clearing those in stock)

2) In storing the component parts, protect and manage them against theft and disclosure.

(For storing the service parts, service units, etc.)

v

LC-32/37M43U

CHAPTER 1. SPECIFICATIONS

[1] SPECIFICATIONS

Item Model: LC-32M43U Model: LC-37M43U

LCD panel 32" Advanced Super View & BLACK TFT

Number of dots 3,147,264 dots (1366 768 3 dots)

TV Function

TV-standard (CCIR) American TV Standard ATSC/NTSC System

Receiving Channel

VHF/UHF VHF 2-13ch, UHF 14-69ch

CATV 1-135ch (non-scrambled channel only)

Digital Terrestrial Broadcast (8VSB)

Digital cable (64/256 QAM)

Audio multiplex BTSC System

Audio out 10W 2

Terminals Rear INPUT 1 AV in, COMPONENT in

INPUT 2 S-VIDEO in, AV in

INPUT 3 Audio in, COMPONENT in

INPUT 4 HDMI in with HDCP

INPUT 5 Audio in, HDMI in with HDCP

INPUT 6 15 pin mini D-sub, Audio in (Ø 3.5 mm jack)

ANTENNA 75 Unbalance, F Type 1 for Analog (VHF/UHF/CATV) and Digital (AIR/CABLE)

DIGITAL AUDIO OUTPUT

OUTPUT Audio out

OSD language English/French/Spanish

Power Requirement AC 110-240 V, 50/60 Hz

Power Consumption 148 W (0.9 W Standby) 172 W (0.9 W Standby)

Weight TV + stand 43.0 lbs./19.5 kg 50.7 lbs./23.0 kg

TV only 36.4 lbs./16.5 kg 43.0 lbs./19.5 kg

Dimension (W H D)

*2



TV + stand 31

TV only 31

Operating temperature 32°F to 104°F (0°C to 40°C)

*1

Emergency alert messages via Cable are unreceivable.

*2

The dimensional drawings are shown on the inside back cover.

As part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

LCD (Screen size 31

2-69ch

*1

1-135ch (non-scrambled channel only)

Optical Digital audio output 1 (PCM/Dolby Digital)

11

/322313/64937/64inch 3561/642527/321135/64inch

11

/322059/64353/64inch 3561/642337/64353/64inch

++ +



Service Manual

1

/2" measured diagonally)



LC-32/37M43U

37" Advanced Super View & BLACK TFT LCD (Screen size 37" measured diagonally)







1 – 1

LC-32/37M43U

CHAPTER 2. OPERATION MANUAL

[1] OPERATION MANUAL

Part names

TV (Front)

TV (Rear/Top)

Service Manual

Remote control sensor OPC sensor

OPC indicator SLEEP indicator POWER indicator

HDMI terminal (INPUT 4)

HDMI terminal (INPUT 5)

PC IN terminals (INPUT 6)

Antenna/Cable in

AUDIO terminals (INPUT 5)

DIGITAL AUDIO OUTPUT terminal

INPUT 3 terminals

INPUT 2 terminals

INPUT 1 terminals

Channel buttons

(CH /)

Volume

buttons

(VOL /)

INPUT button

POWER button

AUDIO OUTPUT terminals

2 – 1

AC INPUT terminal

Part names

LC-32/37M43U

Remote control unit

114

2 3

4

5

6

7

8

9

10

11 23

12

13 27

15

16

17

18

19

20

21

22

24

25

26

1 TV POWER: Switch the TV power on or enters

standby.

2DISPLAY:Display the channel information. 3 SOURCE POWER: Turns the power of the external

equipment on and off.

4 External equipment operational buttons: Operate

the external equipment.

50_9: Set the channel. 6 (DOT): 7INPUT:Select a TV input source. (TV, INPUT 1,

INPUT 2, INPUT 3, INPUT 4, INPUT 5, INPUT 6)

8 VOL / : Set the volume. 9 SURROUND: Select Surround settings.

10 FREEZE: Set the still image. Press again to return to

normal screen.

11 EXIT: Turn off the menu screen. 12 SLEEP: Set the sleep timer. 13 AUDIO: Selects the MTS/SAP or the audio mode

during multi-channel audio broadcasts.

14 FUNCTION: Switches the remote control for TV,

CBL/SAT, VCR, DVD and AUDIO operation. Indicator lights up for the current mode.

* To enter the code registration mode, you need to press FUNCTION and DISPLAY at the same time.

15 LIGHT : When pressed all buttons on the remote

control unit will light. The lighting will turn off if no operations are performed within about 5 seconds. This button is used for performing operations in lowlight situations.

16 VIEW MODE: Select the screen size.

17 ENT:

18 FLASHBACK: Return to the previous channel or

19 CH / : Select the channel. 20 MUTE: Mute the sound. 21 MENU: Display the menu screen. 22 ////ENTER: Select a desired item on the

23 RETURN: Return to the previous menu screen. 24 FAVORITE CH

25 FAVORITE: Set the favorite channels. 26 CC: Display captions from a closed-caption source.

Jumps to a channel after selecting with the 0_9

buttons.

external input mode.

screen.

A, B, C, D: Select 4 preset favorite channels in 4 different categories.

While watching, you can toggle the selected channels by pressing A, B, C and D.

NOTE

When using the remote control unit, point it at the TV.

27 AV MODE: Select an audio or video setting.

(When the input source is TV, INPUT 1, 2 or 3: STANDARD, MOVIE, GAME, USER, DYNAMIC (Fixed), DYNAMIC. When the input source is INPUT 4, 5 or 6: STANDARD, MOVIE, GAME, PC, USER, DYNAMIC (Fixed), DYNAMIC)

2 – 2

LC-32/37M43U

QUICK REFERENCE

Attaching the stand

Before attaching (or detaching) the stand, unplug the AC cord from the AC INPUT terminal. Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being damaged.

CAUTION

Attach the stand in the correct direction. Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.

Confirm that there are 9 screws (all the same 

1 3

size) supplied with the TV.

2

Set the post for the stand unit onto the box.

Attach the base to the post. Insert and tighten the 5 screws into the 5

holes on the bottom of the base.

Hex key

Screw

Insert the stand into the openings on the bottom of the TV.

Insert and tighten the 4 screws into the 4 holes on the rear of the TV.

Hex key

Screw

Soft cushion

NOTE

To detach the stand, perform the steps in reverse order.

2 – 3

Basic adjustment settings

Menu items for TV/INPUT 1/2/3 Menu items for HDMI/PC-IN

LC-32/37M43U

OPC Backlight Contrast Brightness Color Tint Sharpness Advanced

Color Temp. Black I/P Setting Film Mode 3D-Y/C Monochrome Range of OPC

Reset

Treble Bass Balance Surround Reset

No Signal Off No Operation Off


Audio

Power Contr ol


OPC Backlight Contrast Brightness Color Tint Sharpness Advanced

Color Temp. Black I/P Setting Film Mode Monochrome Range of OPC

Reset

Audio

Treble Bass Balance Surround Reset

Power Contr ol

No Signal Off No Operation Off

EZ Setup CH Setup Antenna Setup-DIGITAL Input Skip Input Label Parental CTRL Position Language Reset

Audio Only Digital Noise Reduction Input Select Output Select Color System Caption Setup Program Title Display Favorite CH

Audio Setup

Setup

Option

Digital Setup

Setup

Input Skip Input Signal Auto Sync. Input Label Fine Sync. Position Language Reset

Option

Audio Only Digital Noise Reduction HDMI Setup Output Select

NOTE

Some menu items may not be displayed depending on the selected input source.

2 – 4

LC-32/37M43U

CHAPTER 3. DIMENSIONS

[1] DIMENSIONS

Service Manual

LC-32M43U

(589)

64

/

13

23

(200)

8

/

7

59

9

23

(531)2

64

/

20

(58)3

32

/

(85)

64

/

31

279/16(700.0)

19

11

/32(796)

45

/64(500)

77/8(200)

(394.6)

64

/

35

15

(343)

2

/

1

13

45

19

/64(500)

9

/32(83) 353/64(97)

3

Unit: inch/(mm)

LC-37M43U

(656)

32

/

27

25

(200)

8

/

7

(599)

64

/

37

23

(57)

4

/

1

2

(85)

64

/

23

3

32

25

/64(822.6)

61

35

/64(913)

2135/64(547)

77/8(200)

(463.8)

64

/

17

18

(377)

32

/

27

14

5

4

/8(117)

37

/64(243)

9

2135/64(547)

353/64(97)

3 – 1

11

35

/64(293)

MEMO

LC-32/37M43U

3 – 2

LC-32/37M43U

MAIN Unit (Side-A)

LC-32/37M43U

CHAPTER 4. PRINTED WIRING BOARD ASSEMBLIES

Service Manual

[1] MAIN Unit

H

G

F

E

D

C

B

A

12345678910

4 – 1

LC-32/37M43U

10 11 12 13 14 15 16 17 18 19

4 – 2

LC-32/37M43U

MAIN Unit (Side-A Chip)

LUG1104

SC8703

L1501

L1502

L1504

L1503

D1525

Q1517

R1501

R1585

D1528

Q1521 Q1519

R1582

Q1506

R1555

Q1516

Q1508

R1558

R1544

D1514

D1526

R1633R1559

R1604

R1572

R1605

R1580

R1502

SC1501

C1596 R1616

L1506

C1551

C1599 R1611

L1507

C1543

L1508

R1636

R1632

C1544

R1607

L1509

R1608

IC1507

R1583

C1549

C1550

R1551

R1618

Q1505

D1511

R1505

R1606

Q1520

Q1507

R1595

Q1518

R1601

R1557

R1598

R1584

Q1525

R1519

D1523

D1527

R1599

SC1502

L1510

R1597

Q1524

L1511

L1512

L1513

IC1506

R2043

C2030

C1537

R1576

IC2009

Q1502

R1634

D1501

R1520

R1527

R1530

R1533

Q1501

R1516

R1531

C1536

R1524

R1523

IC1504

R1511

R1522

C1531

R1513

D1519

L1505

C1523

R1521

D1512

D1508

C1524

C1522

R1571

IC1503

FB1509

R1529

R1561

R1526

R1525

FB1505

C1641

SC1503

R1528

D1507

C1521

C1640

FB1506

C1529

R1566

Q1511

R1575

R1567

R1550

C1530

R1570

R1579

C1639

FB1508

C1527

R1564

Q1510

R1574

R1565

R1549

C1528

R1569

R1578

C1638

FB1507

C1525

R1562

Q1509

R1573

R1563

R1548

C1526

R1568

R1577

J1502

FB1502

FB1501

C1502

C1501

R1504

C1505

R1503

C1507

R1515 R1508 R1514 R1509

C

R

R9322

FL9305

R9329

IC9301

SC8101

R9330

FL9306

R9323

C8323

C8251

C8259

C8258

R8328

IC8301

R8329

C8257

R8331

C8256

C8255

C8254

R8314

R8315

C8260

C8324

C8252

C8265

C8264

R8313

R8332

IC8302

R8334

C8266

C8263

C8262

C8261

C8253

C9005

R9034

D9604

P9001

R9035

C9616

C9626

R1182

R1181

L9603

Q1513

C3344

C9615

IC3302

R3301

LUG1109

P2002

kame5

R3333

R3334

R3338

C3335

KOU1

C3336

C3326

C3308

C3311

C3312

C3327

C3316

C3328

C3330

kame1

FB3301

C3303

C3318

C3343

R3326

C3305

C3306

C3332

C3322

IC3304

R3331

R9002

R3318

C3324

C3304

R9001

C3321

R3337

C3337

C3333

C3307

C3338

R3335

C3334

C3315

R3319

C3313

C3309

C3310

C3314

C3329

R3320

R3312

C3345

R3309

R3310

R3311

X3301

R3306

C3302

FB3302

C3325

R3308

Q3301

R8137

R8138

R8140

R8139

R8173

R8120

R8118

R8124

R8122

R9033

R9032

R8197 R8198 R8199

R8141

C8210

C8109

C8110

C8111

C8112

C8211

C8113

C8107

C8212

C8104

C8214

R8209

R8191

X8101

R8185

IC8101

C8103

L8101

C8215

R8208

R8190

C8114

C1144

C8209

L1107

C1140

C1139

L1106

C1141

R1173

R1172

C1146

TP8110

R8155

R8156

TP8107

R8152

R8151

D8102

D8101

R8146

R8145

TP8102

TP8109

TP8104

TP8105

TP8112

TP8103

R8174

R9313

R8177

R8181

R8184

R8183

TP8101

TP8111

R9316

R9315

R9303

R9324

R8102

R8112

R9302 R9301

R8171

R8144

R8169

R9310

R9314

R9212

R9202

P9202

TP9201

R9

R

TP8116

R2625

FB2617

P2603

FB2616

P8601

R8189

R8161

FB2603

C2611

C2612

R2637

R2636

R2645

R2644

FB2601

L2605

FB2602

C2601

C2602

C2604

R2654

R2612

C2608

C2609

L2604

C2635

R2631

R2611

L2603

IC2602

C2606

C2607

L2602

C2603

P2601

R2630

L2601

C2644

C2605

R2629

FB2604

C2613

R9011

FL2604

R2618

R2613

R2620

R9010

FL2611

P2602

FL2606

R2614

R2621

R1169

kame2

R1168

LUG1106

H

G

F

E

D

C

B

A

12345678910

4 – 3

LC-32/37M43U

J1502

FB1502

FB1501

C1502

C1501

R1504

C1505

R1503

C1507

R1515 R1508 R1514 R1509

C1510

C1509

LUG1108

R1180

R1179

FB1504

C1504

R1507

R1518

C1512

C1506

R1510

C1508

R1512

J1501

C1511

C1503

R1506

R1517

FB1503

P9003

R9016

R9017

R9027

R9028

R9029

P1103

R1311

IC1304

D1306

C1310 R1333

C1313

Q1312

L1301

TP9108

R9113

C1312

C1311

D9002

C9102

R9104

R9109

R9106

P9005

D9003

R9007

D9004

R9101

C9105

R9004

R9114

R9110

SC8701

P9704

R8719

R8720

R8704

R8703

R8705

SC8401

FB8401

C8405

C8406

P8401

VA8401

R8405

R8404

VA8402

IC8402

FB8402

C8404

R8403

LUG1101

SC1102

R1102

R9015

C8707

R8730

C8706

P9101

R9107 R9112

C9101

C9103

R2025

R9111

R9131

P2001

R2068

C9104

R9102

R9103

R9105

IC9101

R9124

TU1101

TP2002

C9106

R9122

R9108

TP2001

R9130

TP2003

C9107

C9108

R2010

R9305

TP9110

TP2004

TP9111

TP2009

TP2005

R9215

R9216

P9201

R9309 R9308

P9301

D2003

R2041

R9311

R9312

R9320

R9321

FL9303

FL9304

R9318

R9327

R9328

FL9301

R9325

C9301

R9322

FL9305

R9329

IC9301

SC8101

R9330

FL9306

R9323

R8169

R9310

R9314

R9212

R9202

P9202

TP9201

R9211

R9204

R9207

R9208

TP8116

R9115

R9818

TP2204

C2233

R2231

R2222

R2233

R2238

Q2208

C1145

R2225

C2205

R1171

C2210

L2202

R1115

C1135

C2202

C1155

C1156

R2217

R1122

Q2204

R2214

R1127

R2201

R2206

C1122 Q1102

R1132

Q1103

R1196

R1129

TP2203

R2260

R1133

R1106

C1127

R1131

R1160

R1130

R2234

R2232

R2250

R2258

TP2202

Q2213

C2216

R1165

R2249

R2245

R2257

TP8115

R2248

R2244

TP8119

R1110

R2223

TP8114

R2224

TP8117

R2243

R2239

R1105

Q2207

R2226

Q2209

R1111

C2206

R2228

C2211

L2201

C2207

C2203

C2212

L2203

C2204

R2218

R2219

Q2201

R2215

Q2205

R2216

R2202

R2207

R2203

R2208

TP1101

R1414

R1426

C1420

L1401

C1463

C1421

C1464

R1470

C1465

R1472

C1467

C1462

R1413

C1466

C1432

C1403

R1425

C1405

R1417

Q1401

Q1402

R1424

R1431

R1429

R1433

R1430

R1428

C1430

R1432

C1431

R1447

C1450

C1451

C1474

Q1311

C9003

IC9002

R1332

Q1308

R1317

R9014

C1106

C1119

C1109

C1410

Q1314

R1329

R1342

C1124

SC1101 SC1301

FD1

R1336

D1309

C1306

D1310

LUG1102

D1308

D1312

D1314

D1303

R1448

D1307

R1323

D1313

Q1304

C1302

R1310

R1309

C1425

R1434

C1426

R1401

P1401

R1409

FB1401

FB9707

C1460

C1459

R1469

X1402

R1463

C1458

C9713

R1462

IC1407

C1461

R1461

IC9703

C9718

P9702

C9614

Q9602

C9617

L9602

C9613

C9620

C9621

C9622

R9617

D9605

R9628

D9607

D9606

R9624

D9603

P9701

R9615

D9602

C9631

L9601

C9619

C9618

R1178

LUG1105

LUG1107

R1177

FB2608

R2625

FB2617

P2603

FB2616

4 – 4

10 11 12 13 14 15 16 17 18 19

LC-32/37M43U

MAIN Unit (Side-B)

H

G

F

E

D

C

B

A

12345678910

4 – 5

LC-32/37M43U

10 11 12 13 14 15 16 17 18 19

4 – 6

LC-32/37M43U

MAIN Unit (Side-B Chip)

TL1128

TL1129

TL1131

TL1133

TL1135

TL1130

TL1132

TL1134

TL1136

TL8402

R8407

Q8401

TL8409

C8403

C8402

TL8406

IC8401

R8402

TL8408

R8406

R8401

TL8401

R8409

TL8411

TL8404

TL8412

C8401

R8408

TL8403

TL8405

C8711

R8722

R8723

R8724

R8725

R8727

R8721

C8710

R8726

C8709

TL8709

R8708R8713

TL8714

R8728

IC8702

R8711

TL8701

C8708

TL8702

FB8702

TL8703

FB8701

TL8704

C8702

R8710C8704

TL8705

C8703

C8705

IC8701

R8707

TL8713

TL8706

TL9104

R8706

C8701

TL8707

TL8708

TL8710

TL8711

TL8712

TL9042

TL9041

TL9040

TL9039

TL1543

TL1303

TL1304

C1107

FB1101

FB1102

FB1103

TL1120

TL1302

TL1178

TL1124

TL1125

Q8451

R8451

D8451

TL1177

FL9001

FL9002

FL9003

FL9004

FL9005

FB9006

FB9007

Q8452

TL9025

TL9027

TL9029

TL9031

TL1538

R8452

TL9024

TL9026

TL9028

TL9030

TL9032

R8453R8469

FB9005

TL1540

TL9332

TL1539

TL9333

TL9334

C8454

TL9335

R9306

TL9354

TL9355

TL9353

TL9352

TL9351

TL9350

TL9349

TL934

TL9

T

TL9

IC8

TL932

TL9319

TL9318

TL9382

TL9310

TL8457

TL8452

C2009C2011

TL9232

TL9233

TL9218

R9218

TL9217

R9214

TL9231

TL9219

TL9216

TL9215

R9219R2018

TL9230

TL9229

TL9214

R2020

TL9228

TL9213

X2001

TL9227

TL9212

R2079

TL9226

TL9211

R9217

R9213

TL9225

R2078

X2002

TL9220

TL9209

TL9210

R2026

R2027R2028

R2034

R2036

R2049

TL2009

R2067

TL2006

R2047

C2016

R2046

R2048

R2003

R2071

R2050

R2070

R2016

C2010

Q2006

Q2001

C2002

C2001

R2007

R2052

Q2007

R2035

IC2001

C2014

C2012

R2051

IC2008

R2076

C2003

R2023R2024

C2015

C2008

TL2007

C2026

R2072

C2005

R2009

R2038

R2037

R2056

C2004

TL2012

TL2001

R2008

R2019

IC2002

R2055

TL2008

R2022

R2015

R2054

R2021

R2042

R2014

R2045

R2032

R2033

R2002

R2031

Q2002

C1102

R2057

IC2007

R2058

TL2010

C2023

R2004

Q2003

TL2014

R2029

R2069

C2024

R2011

R2012

C2018

TL2013

R2063

C2017

R2005

IC1105

R2059

R2062

R2053

TL2011

R2066

C2022

IC2006

IC2003

R2060

R2061

C1104

R2064

C2019

C1108

C2021R2065

R2044

C2013

C2020

TL8456

TL8451

C2025

IC2004

TL9105

IC2005

IC1101

TL9103

TL9102

TL9101

C1103

C1105

R2006

R2001

TL1102

R8712

R8714

R8715

R8716

R8717

R8718

R1136

TL1144

TL1138

TL1140

TL1142

TL1127

TL1147

TL1151

TL1156

TL1158

TL1160

TL1162

TL1168

TL1171

TL1173

TL1170

TH2001

TL1137

TL1139

TL1141

TL1143

TL1145

TL1149

TL1153

TL1155

TL1157

TL1159

TL1161

TL1163

TL1169

TL1172

TL1174

TL1301

TL1305

TL1321

TL1326

TL1324

TL1319

TL1176

TL1320

TL1318

TL1329

TL1327

TL1325

TL1331

TL1316

TL1175

TL1323

TL1322

TL1330

TL1328

R1330

C1309

R1318

TL1150

Q1313

R1466

Q1307

Q1310

R1331

R1327

Q1303

TL1146

TL1148

TL1152

TL1154

Q1306

R1457

R1328

C1472

C1307

R1315R1314

R1334

R1326

C1303

R1325

R1450

R1455

IC1408

R1439

R1458R1460

R1440

C1439

C1449

C1437

C1440

C1441

C1443

C1444

C1447

IC1104

R1452

C1436

R1451

C1473

R1454

R1108

C1115

R1135

R1465

R1456

C1471

R1446

C1116

R1107

TL1101

C1433

TL1166

R1125

C1435

C1434

IC1403

R1453

C1438

TL1164

C1118

R1449

IC1103

C1424

C1470

R1443

R1422

C1427

R1423

C1469

R1441

C1448

R1442

R1438

C1101

R1101

R1437

C1468

C1429

IC1404

R1435

R1436

C1442

C1452

R1427

C1428

TP1402

IC1405

R1420

TP1401

R1421

C1422

R1467

C1446

R1415

C1423

R1416

C1402

C1406

C1401

TL1103

C1404

R1464

C1407

TL1104

R1404

C1408

R1405

C1409

IC1401

TL1105

R1408

R1406

R1459

C1411

C1453

TL1106

R1471

R1410

C1412

C1414

C1454

R1445

C1415

TL1107

IC1406

R1444

C1417

R1411

C1445

C1456

C1419

TL1108

C1413

C1418

C1455

C1416

TL1109

C1457

TL1110

R2204

R2210

R2212

R2205

TL1111

R2221

Q2202

TL1112

Q2206

R2237

R2213

TL1113

C2229

C2226

R2235

R9606

C2214

L2205

C2232

C2201

TL1114

R9604

C9602

C2209

C2227

C2230

R2227

Q2212

C9603

L2206

TL1115

R9605

Q9604

Q9601

R9602

R9601

R9626

TL9604

C9605

TL1116

R2251

R2252

R2242

R2230

R9627

Q2210

R9607

R9619

C9606

R9608

C9601

R9603

TL1117

Q9705

R9609

R2266

R2240

R9622

TP2201

R2247

R2246

TL1118

Q9603

D9601

R2211

R2209

TL1119

C9629

R2262

R2220

C9624

TL1121

Q2203

R2236

IC9602

TL1122

C2228

R9625

L2204

TL1123

C2215

R9611

C2231

R2253

R9610

Q2211

R2229

C9604R9612

C2213

R2241

C2208

TL9720

R2265

C9707

R9702

R9701

FB9703

TL9705

C9607

TL9709

TL8407

IC9701

TL9701

FB9704

TL9710

TL9716

C9708

FB9712

R9712

D9703

TL9715

FB9705

TL9601

TL9717

C9611

TL9711

FB9711

IC9601

TL9702

C9609

FB9713

TL9708

C9610

C9612

R9613

FB9701

TL9718

TL9712

IC9705

C9714

R9705

C9717

FB9708

TL9706

FB9709

TL9723

D9701

TL9713

R9714

TL9703

Q9701

FB9710

R9715

C9711

R9704

TL9719

FB9702

D9702

Q9702

TL9707

TL9714

C9710

TL9722

FB9706

IC1402

R1407

TL1401

TL1405

R1402

TL1402

TL1403

TL1404

C1301

R1301

R1322

R1324

IC1301

Q1305

R1302

X1401

R1306

R1304

Q1301

R1303

R1307

D1305

D1304

C1308

R1305

R1339

IC1302

R1308

R1338

R1341

Q1309

Q1302

R1340

D1301

D1302

D1311

R1335

R1312

R1313

R1337

C1304

IC1303

R1319

C1314

R1320

C1305

R1316

R1321

TL1315

FD2

H

G

F

E

D

C

B

A

12345678910

4 – 7

LC-32/37M43U

TL1540

9332

TL1539

TL9334

C8454

TL9335

R9306

TL9354

TL9355

TL9353

TL9352

TL9351

TL9350

TL9349

TL9348

TL9347

TL9346

TL9345

TL9344

TL9379

C8458

TL9336

TL1542

TL1541

TL1501

TL1531

TL1518

R1552

TL1507

TL1532

D1516

TL1506

R1553

TL1533

D1517

TL1515

TL1505

R1554

TL1504

TL1503

D1518

C1534

TL1502

R1591

C1535

R1590

Q1512

TL1514

TL1516

FB1512

D1520

C1533

R1588

D1504

R1587

R1589

C1532

R1586

TL1545

D1522

TL1547

IC1505

D1521

C1520

C1518

R1556

Q1504

TL1517

TL1510

TL1511

R1547

R1537

R1534

R1538

R1542

R1543

FB1511

TL1513

D1515

IC1502

D1506

D1510

C1514

C1516

D1502

FB1515

TL1535

TL1521

C1608

C1582C1591

C1538

C1583

C1589

Q1515

C1592

C1597

C1517

C1616

C1615

C1519

C1548

C1547

R1546

C1613

C1614

R1594

TL1508

Q1514

R1545

Q1503

C1545

C1546

TL1509

R1593

TL1522

C1578

C1579

C1586

C1587

TL1520

TL1523

R1536

TL1534

TL1524

TL9002

TL1512

C1515

R1532

R1539

R1540

D1513

R1535

R1560

C1513

D1524

R1541

TL9005

D1509

IC1501

D1505

TL1519

VA1506

VA1507

VA1508

VA1505

R1581

FB1510

TL1528

VA1501

VA1502

VA1504

VA1503

TL1530

TL1526

TL1544

TL1546

TL1548

TL1525

D1503

TL1536

TL1529

TL1537

TL1527

D1529

Q1522

Q1523

R1596

R1592

C9623

TL2002

TL2003

TL2004

TL2005

C2027C2028C2029

TL3303

TL3301

FB2003

FB2004

FB2005

FB2001

IC9603

TL9603

C9608

R9616

FB3304

TL9003

C9628

R9618

R9623

Q9606

FB3307

R9621

R9620

TL3302

IC3301

FB3303

FB3306

C9625

C3340

TL9001

C3342

TL3317

R3304

R3303

IC3303

C3341

C3301

R3322

R3321

R3302

R3305

C3339

R3315

R3313

TL9605

R8119

R8117

R8123

R8121

R8333

R8105

R8213

R8252

C8118

C8115

R8126

R8129

R8130

R8125

R8326

R8319

R8322

R8325

R8251

R8320

C8126

C8105

C8101

R8311

R8312

R8301

R8302

R8304

C8116

R8305

R8306

R8330

R8128

C8106

C8102

R8254

R8310

R8127

C8119

C8117

FB8101

R8253

C8123

FB8102

R8131

C8125

R8134

C8122

R8327

C8120

C8121

R8323

FL8105

R8321

R8318

R8303

R8324

R8162

R8133

TL9381

TL9341

TL9338

TL9343

TL9340

TL9342

TL9357

C8456

TL9378

TL9380

TL9337

TL9339

TL9331

TL9330

TL9316

TL9329

TL9317

TL9314

TL9328

TL9327

TL9315

TL9313

TL9311

TL9359

TL9302

TL9326

TL9384

TL9301

TL9325

TL9312

TL9375

TL9324

TL9383

TL9323

TL9322

TL9321

IC8452

TL9320

TL9319

TL9318

TL9382

TL9310

53

R2241

C2208

TL9720

R2265

C9707

R9702

R9701

TL9201

TL9241

TL9223

TL9239

R9317

TL9207

TL9222

TL9224

TL9240

TL9221

TL9208

TL8410

R9209

TL9206

TL9203

TL9202

R9005

TL9205

R9006

R8149

TL9204

R8150

R8163R8164

R8170

R9304

C8197

R8168

R8188

R8172

TL8113

R8167

R8176

TL8115

R8115

C8160

R8136

R8135

R9307

TL8102

R8165

R8175

TL8114

TL8119

C8138

R8143

TL8108

C8172

TL8101

TP8108

C8213

C8108

C8161

TP8118

R8153

R8154

R8114

R8178

R8180

R8113

C8168

C8169

R8132

C8141

C8144

C8150

C8158

C8167

C8143

C8148

C8152

C8156

FB8106

C8188

C8165

R8166

C8208

C8163

C8134

C8176

C8185

C8200

C8207

C8131

C8205

FB8116

C8124

C8191

C8193

C8133

R8160

C8187

TL2623

C2624C2623

C8202

C8201

C8128

C8179

C8182

C8164

FB8114

C8198

C8183

C8136

C8162

FB8115

FB8113

X2601

C8129

C8166

C8135

C8189

FB8105

FB8112

TL2626

C8170

C8137

C8190

C8192

R2638

R2639

C8203

C8142

C8147

C8153

C8157

C8171

FB8107

C2632

C8184

C8130

R8182

C8149

C8175

FB8109

FB8108

C2630

C8186

R2643

C8159

C8180

C8195

R8159

C8174

C8196

FB8111

FB8103

C8140

C8194

C8178

C8127

R2655

R2635

R8158

FB8117

C8151

C2628

C8181

C8132

R8142

R8187

C8204

C8155

C8139

C8177

C8206

C8173

R8157

C2620

R8148

C8154

C8145

R8147

C8199

C8146

FB8104

R8179

C2619

TL8120

R8186

TL9258

R8207

C2622

R8203

C2621

R8201

R8211

R8218

R8219

R8205

R8206

R8104

R8103

R8107

R8106

R2633

R8195

R8215

R8216

R8220

R8192

R8194

R8116

TL9257

R2634

R8193

FL8104

R8109

R2604

R8111

R8110

R2641

R2642

TL8112

FL8101

TL9256

R8101

C2629

TL8109

TL9255

R2602

R2603

TL8111

TL8110

R8108

R8196

C8461

R8475

R8474

C8462

R8470

C8460

R9018

TL3308

TL3312

TL3316

TL8453

TL8455

TL3310

TL3314

R3328

R3327

R8457

C8452

TL3309

TL3313

TL8454

C3317

C3319

C3320

TL9247

TL9248

C3331

C8453

TL3311

TL3315

TL3307

R8456

R3316

R3317

R3314

C3323

TL9243

TL9249

C8451

C9004

TL9244

IC9001

R3330

R3329

TL9246

TL3306

TL9242

TL9245

TL9266

R9013

R9012

TL9265

TL9264

TL9252

TL9262

TL9259

TL9254

TL9263

TL9253

TL9261

R3325

TL9260

TL9251

TL3304

TL3305

R3336R3332

TL9267

FL3301

TL9269

kame4

TL9268

TL9250

kame3

FL2607

TL2608

R2622

TL2607

R2619

TL2606

FL2605

TL2605

TL2604

IC8451

TL2603

FL2603

TL2602

R2617

FB2609

TL2601

IC8454

TL2618

FB2610

TL2617

R2601

FB2611

TL2611

FB2612

R2646

R2647

C2636

C2633

R2605

R2650

R2657

R2628

R2656

TL2612

R2649

L2606

C2641

R2648

FB2613

TL2613

L2607

C2642

IC9706

L2608

L2609

C2639

FB2614

TL2614

L2610

R2651

C2638

C2640C2634C2643C2631

R2652

FL2601

R2626

R2653

TL2615

C2637

C2610

TL2616

R2627

TL2624

FL2602

FB2615

IC2601

C2626

C2627

TL2609

R2640

FB2605

C2617

C2625

FB2607

FB2606

C2618

TL8107

TL8116

TL8103

TL8106

TL8105

FB8601

TL8104

TL8118

TL8601

TL8117

R8603

R8604

FL8601

D8601

TL8602

FL8602

R8601

R8606

C8601

R8602

IC8601

TL8604

C8602

FB8602

TL8608

TL8603

R8610

R8611

R8612

R8605

TL8606

IC8602

TL8605

C8604

FB8603

TL8609

R8615

R8614

R8613

TL2610

FL2608

TL2619

C2614

FL2609

TL2620

C2615

FL2610

TL2621

C2616

R2616

R2615

TL2622

10 11 12 13 14 15 16 17 18 19

4 – 8

LC-32/37M43U

MEMO

4 – 9

LC-32/37M43U

CHAPTER 5. SCHEMATIC DIAGRAM

Service Manual

[1] DESCRIPTION OF SCHEMATIC DIAGRAM

1. VOLTAGE MEASUREMENT CONDITION:

1) The voltages at test points are measured on exclusive AC adaptor and the stable supply voltage of AC 120V. Signals are fed by a color bar signal generator for servicing purpose and the above voltages are measured with a 20k ohm/V tester.

2. INDICATION OF RESISTOR & CAPACITOR:

RESISTOR

1) The unit of resistance "Ω" is omitted.

(K=kΩ=1000Ω, M=MΩ).

2) All resistors are ± 5%, unless otherwise noted.

(K= ± 10%, F= ± 1%, D= ± 0.5%)

3) All resistors are 1/16W, unless otherwise noted.

CAPACITOR

1) All capacitors are µF, unless otherwise noted.

(P=pF=µµF).

2) All capacitors are 50V, unless otherwise noted.

CAUTION:

This circuit diagram is original one, therefore there may be a slight difference from yours.

SAFETY NOTES:

1) DISCONNECT THE AC PLUG FROM THE AC OUTLET BEFORE REPLACING PARTS.

2) SEMICONDUCTOR HEAT SINKS SHOULD BE REGARDED AS POTENTIAL SHOCK HAZARDS WHEN THE CHASSIS IS OPERATING.

IMPORTANT SAFETY NOTICE:

PARTS MARKED WITH " " ( ) ARE IMPORTANT FOR MAINTAINING THE SAFETY OF THE SET. BE SURE TO REPLACE THESE PARTS WITH SPECIFIED ONES FOR MAINTAINING THE SAFETY AND PERFORMANCE OF THE SET.

AVIS DE SECURITE IMPORTANT:

LES PIECES MARQUEES " " ( ) SONT IMPORTANTES POUR MAINTENIR LA SECURITE DE L'APPAREIL. NE REMPLACER CES PIEDES QUE PAR DES PIECES DONT LE NUMERO EST SPECIFIE POUR MAINTENIR LA SECURITE ET PROTEGER LE BON FONCTIONNEMENT DE L'APPAREIL.

5 – 1

LC-32/37M43U

[2] MAIN Unit

•MAIN Unit-1/19

H

G

F

E

D

C

B

A

12345678910

5 – 2

LC-32/37M43U

10 11 12 13 14 15 16 17 18 19

5 – 3

LC-32/37M43U

•MAIN Unit-2/19

H

G

F

E

D

C

B

A

12345678910

5 – 4

LC-32/37M43U

10 11 12 13 14 15 16 17 18 19

5 – 5
