Sharp LC-37HV4M Operating Manual
LC-37HV4M
LCD COLOUR TELEVISION
ENGLISH
OPERATION MANUAL
Printed on post-consumer recycled paper.
Printed in Japan
TINS-A642WJZZ
LC-37HV4M
LCD COLOUR TELEVISION
ENGLISH
OPERATION MANUAL
Contents
Contents …………………………………………………… 1
Dear SHARP customer …………………………………… 2
Important Safety Precautions ………………………… 2
Supplied accessories …………………………………… 4
Preparation ………………………………………………… 5
Attaching the speakers ……………………………… 5
Securing from overturning …………………………… 6
Where to place the System…………………………… 7
Setting the System …………………………………… 8
Setting the Display on the wall ……………………… 10
Setting the AVC System with the stand …………… 10
Inserting the batteries ………………………………… 11
Using the remote control unit ………………………… 11
Cautions regarding remote control unit ……… 11
Part names ………………………………………………… 12
Display ………………………………………………… 12
AVC System …………………………………………… 13
Remote control unit …………………………………… 14
Watching TV ……………………………………………… 15
Basic connection ……………………………………… 15
Connecting to an antenna ……………………… 15
Connecting to the power outlet ………………… 15
Turning on the power ………………………………… 16
Turning off the power ………………………………… 16
Simple button operations for changing channels … 17
Using Flashback (A) on the remote control unit … 17
Simple button operation for changing
volume/sound …………………………………… 18
Basic adjustment settings ……………………………… 21
AV input mode menu items …………………………… 21
PC input mode menu items ………………………… 21
Auto installation ……………………………………… 22
Programme setup……………………………………… 24
Auto search ……………………………………… 24
Manual setting for each channel ……………… 25
Search tuning………………………………… 26
Fine tuning …………………………………… 26
Colour system ……………………………… 27
Sound system (Broadcasting system) …… 27
Labelling channels ………………………… 27
Skipping channels ………………………… 28
Setting the child lock ……………………… 28
Sort ………………………………………………… 29
Language setting for on-screen display …………… 30
Picture adjustments …………………………………… 31
C.M.S. (Colour Management System) ………… 32
Colour temperature ……………………………… 33
Black ……………………………………………… 33
Monochrome ……………………………………… 34
Film mode ………………………………………… 34
I/P setting ………………………………………… 35
DNR (Digital Noise Reduction) ………………… 35
Audio adjustment ……………………………………… 36
Sound adjustment ……………………………… 36
ENGLISH
Surround…………………………………………… 36
Power Control ………………………………………… 37
Power Control for AV source …………………… 37
Power Control for PC source …………………… 39
Using external equipment ……………………………… 40
Watching a DVD image ……………………………… 41
Connecting a DVD player ……………………… 41
Displaying a DVD image ………………………… 41
Watching a VCR image ……………………………… 42
Connecting a VCR ……………………………… 42
Displaying a VCR image ………………………… 42
Watching broadcasts via an HDTV tuner …………… 43
Connecting an HDTV tuner ……………………… 43
Displaying broadcasts via an HDTV tuner …… 43
Enjoying a game console and viewing camcorder
images …………………………………………… 44
Connecting a game console or camcorder …… 44
Displaying an image of the game console or
camcorder …………………………………… 44
Viewing an image from a PC ………………………… 45
Connecting a PC ………………………………… 45
Displaying an image from a PC ………………… 45
Connecting external speakers ……………………… 46
Selecting speakers ……………………………… 47
Useful adjustment settings ……………………………… 48
Image position (AV input mode only) ……………… 48
Moving the picture on the screen …………………… 49
Auto Sync. adjustment (PC input mode only) ……… 50
Fine Sync. adjustment (PC input mode only) ……… 50
Input signal source …………………………………… 51
Colour system setting (AV input mode only) ……… 52
AV mode selection …………………………………… 52
WIDE mode (for AV input mode) …………………… 53
WIDE mode (for PC input mode) …………………… 54
Input signal (PC input mode only) …………………… 55
Wide screen signalling (WSS)
(AV input mode only) …………………………… 56
Picture aspect ratio (AV input mode only) ………… 56
Rotate …………………………………………………… 57
Audio out ……………………………………………… 58
Sleep timer …………………………………………… 58
Cool climate …………………………………………… 59
Password setting for child lock (TV mode only) …… 60
Useful features …………………………………………… 61
Dual screen functions ………………………………… 61
Teletext language setting …………………………… 62
Teletext function ……………………………………… 63
Appendix ………………………………………………… 66
Troubleshooting ……………………………………… 66
PC compatibility chart ………………………………… 67
RS-232C port specifications ………………………… 68
Specifications ………………………………………… 70
Optional accessories ………………………………… 70
Dimensional drawings …………………………………… 71
1
Dear SHARP customer
Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of troublefree operation of your product, please read the Important Safety Precautions carefully before using this product.
Important Safety Precautions
Electricity is used to perform many useful functions, but it can also cause personal injuries and property
damage if improperly handled. This product has been engineered and manufactured with the highest
priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential
danger, please observe the following instructions when installing, operating and cleaning the product. To
ensure your safety and prolong the service life of your LCD colour TV product, please read the following
precautions carefully before using the product.
1. Read instructions—All operating instructions must be read and understood before the product is operated.
2. Keep this manual in a safe place—These safety and operating instructions must be kept in a safe place for
future reference.
3. Observe warnings—All warnings on the product and in the instructions must be observed closely.
4. Follow instructions—All operating instructions must be followed.
5. Attachments—Do not use attachments not recommended by the manufacturer. Use of inadequate attachments
can result in accidents.
6. Power source—This product must operate on a power source specified on the specification label. If you are
not sure of the type of power supply used in your home, consult your dealer or local power company.
7. AC cord protection—The AC cords must be routed properly to prevent people from stepping on them or
objects from resting on them. Check the cords at the plugs and product.
8. Overloading—Do not overload AC outlets or extension cords. Overloading can cause fire or electric shock.
9. Entering of objects and liquids—Never insert an object into the product through vents or openings. High
voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts. For
the same reason, do not spill water or liquid on the product.
10. Servicing—Do not attempt to service the product yourself. Removing covers can expose you to high voltage
and other dangerous conditions. Request a qualified service person to perform servicing.
11. Repair—If any of the following conditions occurs, unplug the AC cord from the AC outlet, and request a
qualified service person to perform repairs.
a. When the AC cord or plug is damaged.
b. When a liquid was spilled on the product or when objects have fallen into the product.
c. When the product has been exposed to rain or water.
d. When the product does not operate properly as described in the operating instructions.
Do not touch the controls other than those described in the operating instructions. Improper adjustment
of controls not described in the instructions can cause damage, which often requires extensive adjustment
work by a qualified technician.
e. When the product has been dropped or damaged.
f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates
that the product needs servicing.
12. Replacement parts—In case the product needs replacement parts, make sure that the service person uses
replacement parts specified by the manufacturer, or those with the same characteristics and performance as
the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.
13. Safety checks—Upon completion of service or repair work, request the service technician to perform safety
checks to ensure that the product is in proper operating condition.
14. Wall or ceiling mounting—When mounting the product on a wall or ceiling, be sure to install the product
according to the method recommended by the manufacturer.
15. Unplug the AC cord from the AC outlet before installing the speakers.
2
Important Safety Precautions
• Cleaning—Unplug the AC cord from the AC outlet before cleaning the product.
Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol
cleaners.
• Water and moisture—Do not use the product near water, such as bathtub,
washbasin, kitchen sink, laundry tub, swimming pool and in a wet basement.
• Do not place vases or any other water-filled containers on this product.
The water may spill onto the product causing fire or electric shock.
• Stand—Do not place the product on an unstable cart, stand, tripod or table. Doing
so can cause the product to fall, resulting in serious personal injuries as well as
damage to the product. Use only a cart, stand, tripod, bracket or table recommended
by the manufacturer or sold with the product. When mounting the product on a
wall, be sure to follow the manufacturer’s instructions. Use only the mounting
hardware recommended by the manufacturer.
• When relocating the product placed on a cart, it must be moved with utmost care.
Sudden stops, excessive force and uneven floor surface can cause the product to
fall from the cart.
• Ventilation—The vents and other openings in the cabinet are designed for ventilation.
Do not cover or block these vents and openings since insufficient ventilation can
cause overheating and/or shorten the life of the product. Do not place the product
on a bed, sofa, rug or other similar surface, since they can block ventilation openings.
This product is not designed for built-in installation; do not place the product in an
enclosed place such as a bookcase or rack, unless proper ventilation is provided
or the manufacturer’s instructions are followed.
• The LCD panel used in this product is made of glass. Therefore, it can break when
the product is dropped or applied with impact. Be careful not to be injured by
broken glass pieces in case the LCD panel breaks.
• Heat sources—Keep the product away from heat sources such as radiators, heaters,
stoves and other heat-generating products (including amplifiers).
The LCD panel is a very high technology product with 3,147,264 thin film transistors, giving you fine picture
details.
Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green or red.
Please note that this does not affect the performance of your product.
Precautions when transporting the Display
When transporting the Display, never carry it by holding onto the speakers. Be sure to always carry the
Display by two people holding it with two hands—one hand on each side of the display.
3
Supplied accessories
Make sure the following accessories are provided with the product.
Remote control unit (g1)
Page 11 Page 11 Page 9
Stand unit (for AVC System) (g1)
LR6 (“AA” size) Alkaline battery (g2)
Speaker unit (g1)
Speaker (Lg1, Rg1)
Cable clamp (Large g1, Small g2)
Stand stability unit (g1)
(To prevent from overturning)
Stand (g1)
Stand cushion (g4)
Stand spacer (g4)
Stand screw (g2)
Page 10
AC cord (g2)
Page 8
Operation manual
LC-37HV4M
Speaker screw (g4)
Page 5
System cable (g1)
Page 8
Clamp (g2)
Clamp screw (g2)
Clamp band (g1)
Clamp band screw (g1)
Page 6
Antenna cable (g1)
Page 15
4
Preparation
Attaching the speakers
The supplied speaker unit can be attached to or detached from the Display. It must be attached unless you use
external amplifier/speakers.
Before attaching (or detaching) speakers, unplug the AC cord from the AC outlet.
Be sure to attach or detach the speakers with two or more people.
Example: Attaching right speaker.
123
Speaker
plug
Insert the speaker plug into the
terminal on the Display.
• Make sure that the speaker plug
is inserted completely.
CAUTION
• The speaker terminals on the Display are only for the supplied speaker unit. Do not connect any third party plug to the
terminal or speaker to the Display.
• Do not handle or move the Display by the speakers.
NOTE
• Perform the same steps for both left and right speakers.
• To detach the speakers, perform the above steps in reverse order.
• You can connect your own amplifier/speakers to the Display. See page 46 for connecting external speakers.
Take hold of the speaker and
slowly slide it to the Display.
• Make sure that the two bulges of
the speaker align with the holes
on the Display.
Hole
Hole
BulgeBulge
Fasten the screws to secure the
speaker in place.
• Use a screwdriver.
• Perform the same steps for
attaching left speaker.
5
Preparation
Securing from overturning
How to secure from overturning
1
Attach the supplied clamp for securing from
overturning (g2) using the clamp screws.
2
Use a strong cord (commercially available)
to secure to a wall or pillar.
Secure the stand on a platform or the floor.
1
Spread a thick soft cloth over the base area
and place the Display over it with the screen
face down.
Top view
Cushion
Hook (commercially
available)
Cord (commercially
available)
Clamps (supplied)
Clamp screws (supplied)
Clamp band (supplied)
Be sure to use a
strong cord and
wall hooks. Both
are commercially
available.
Screw (supplied)
2
3
4
Attach the supplied clamp band using the
supplied screws to the base of the stand.
Lift up the Display, place it on a secure
platform or floor and align the position.
Use wooden screws (commercially available)
to secure the metal fixtures to the platform
or floor.
Stand
Screw (commercially
available)
Clamp band
(supplied)
NOTE
The Display is heavy so be sure when placing on a platform strong enough to bear the weight. Also be sure the platform
width and depth is big enough so that the Display cannot be easily overturned.
6
Preparation
Where to place the System
“System” means the Display and AVC System. First select the location where to place the System.
1
2
Selecting the location of the System
• Select a place with no direct sunlight and good ventilation.
• The Display and the AVC System are connected by the system cable.
(See page 8 for details.)
System cable
If you want to keep a longer distance between the
Display
Display and AVC System, please purchase the
optional system cable AN-07SC1 (about 7 meters).
(See page 70.)
Setting the System in place
Handling the Display
CAUTION
• The Display is very heavy. Move it with two or more people.
• Do not remove the stand from the Display unless using an
optional bracket to mount it.
• When moving, put your hands on the Display, but never on the
Display speakers.
• Keep enough space above and behind the Display.
AVC System
Handling the AVC System
CAUTION
• Do not put a VCR or other device on the AVC System.
• Keep enough space above and on the sides of the AVC System.
• Do not block the ventilation openings on the top and left side,
and the exhaust fan on the right side.
• Do not spread a thick cloth beneath the AVC System, or cover it
with one, as this can cause overheating and result in malfunction.
10 cm
or more
Keep enough space
5 cm or more
CAUTION
Adjust the screen with both
hands. Put one hand on the
Display and tilt the screen
while steadying the stand
with your other hand.
You can adjust the screen
vertically up to 4 degrees
forward or 6 degrees backward, or rotate 10 degrees
horizontally.
5 cm or more
on both sides
There is an exhaust fan
on the right side.
7
Preparation
Setting the System
After putting the Display and the AVC System in place, connect the system cables and AC cords. Use the
cable clamps for bundling the cables.
1
2
Removing the terminal cover
Display (rear view)
Connecting the system cable and the AC cord to the Display
AC INPUT
110V–240V
DISPLAY INPUT1 DISPLAY INPUT2
Press the two hooks
toward the centre of the
Display and remove the
cover toward you.
Press down the two
upper hooks to remove
the cover toward you.
3
Connect the plug into
AC cord System cable
the terminal and secure
it by tightening the
(WHITE)
thumb screws.
Connecting the system cable and the AC cord to the AVC System
System cable
(GREY) (WHITE)
AVC System (rear view)
AC cord
(GREY)
Connect the plug firmly
until the hooks on both
sides click.
CAUTION
• TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT TOUCH UN-INSULATED PARTS OF ANY CABLES WITH THE
AC CORD CONNECTED.
8
Preparation
4
Attaching the clamps and bundling the cables with the clamp
Cable clamp (Large)
Insert the cable
clamp in the hole
on the Display leg
as shown.
Cable clamp (Small)
Peel off the seal
on the back and
attach as shown.
Display (rear view)
5
NOTE
• The small clamp on the right is used for
bundling external speakers. (See page 46.)
Closing the terminal cover
Cables come out
from the small
opening.
9
Preparation
Setting the Display on the wall
Using an optional bracket to mount the Display
• You can ask a qualified service personnel about using an optional AN-37AG1 bracket to mount the Display
to the wall.
• Carefully read the instructions that come with the bracket before beginning work.
Hanging on the wall
AN-37AG1 wall mount bracket. (See the bracket instructions for details.)
Vertical mounting Angular mounting
CAUTION
• Installing the LCD Colour TV requires special skill that should only be performed by qualified service personnel.
Customers should not attempt to do the work themselves. SHARP bears no responsibility for improper mounting or
mounting that results in accident or injury.
Setting the AVC System with the stand
How to install the AVC System vertically using the stand unit.
• Use the supplied stand unit for installing the AVC System vertically in an upright position.
Stick each spacer to the
stand as shown.
1
Peel each spacer
away from the
paper and attach
to the four bulging
areas on the stand.
Bulge
Attach the stand using the
stand screws as shown.
4
Stand
spacer
Bulge
Stand screw
Attach each cushion to
the stand as shown.
2
Peel each cushion
away from the
paper and attach
to the four areas at
the bottom.
Attaching point
Stand cushion
Attaching point
The AVC System installed
vertically with the stand.
Fit the stand to the AVC
System.
3
Insert the stand into the AVC
System, making sure that the
thick and thin bulges of the
stand align with the big and
small holes on the AVC
System.
Small
hole
Big hole
Thin bulge
Thick
bulge
NOTE
• When mounting the AVC System vertically, always use the supplied stand. Be careful not to block vent holes when
standing up directly on the floor or a flat surface as this can result in equipment failure.
10
Preparation
Inserting the batteries
Before using the System for the first time, insert two LR6 (“AA” size) Alkaline batteries (supplied). When the
batteries become depleted and the remote control fails to operate, replace the batteries with new LR6 (“AA”
size) Alkaline batteries.
1 Open the battery cover. 2 Insert two supplied LR6 (“AA” size)
Alkaline batteries.
+
_
• Place batteries with their terminals
corresponding to the (e) and (f)
indications in the battery compartment.
CAUTION
Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.
• Do not use manganese batteries. When you replace the batteries, use alkaline ones.
• Place the batteries with their terminals corresponding to the (e) and (f) indications.
• Do not mix batteries of different types. Different types of batteries have different characteristics.
• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause
chemical leakage in old batteries.
• Remove batteries as soon as they have worn out. Chemicals that leak from batteries can cause a rash. If you
find any chemical leakage, wipe thoroughly with a cloth.
• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
• If you will not be using the remote control unit for an extended period of time, remove the batteries from it.
_
+
3 Close the battery cover.
Using the remote control unit
Use the remote control unit by pointing it towards the remote sensor window.
Objects between the remote control unit and sensor window may prevent proper
operation.
Cautions regarding remote control unit
• Do not expose the remote control unit to shock.
In addition, do not expose the remote control unit to liquids, and do not place
in an area with high humidity.
• Do not install or place the remote control unit under direct sunlight.
The heat may cause deformation of the unit.
• The remote control unit may not work properly if the remote sensor window of
the Display is under direct sunlight or strong lighting. In such case, change
the angle of the lighting or Display, or operate the remote control unit closer to
the remote sensor window.
11
Part names
Display
i buttons
( VOLl/k )
CHANNEL buttons
(CHs/r)
INPUT
button
B (STANDBY/ON)
button
X (MAIN POWER)
button
12
Remote control sensor
OPC sensor
STANDBY/ON indicator
OPC indicator*
*OPC: Optical Picture Control
(See Pages 37 and 39.)
Part names
AVC System
Front view
PC INPUT terminal (AUDIO)
INPUT 4 terminal (VIDEO)
Headphone
(When connecting headphones,
the sound from the speakers is
muted.)
STANDBY/ON indicator
X (POWER) button
PC INPUT terminal
(ANALOG RGB)
CLEAR*
INPUT 4 terminals (AUDIO)
INPUT 4 terminal (S-VIDEO)
(How to open the door)
* If the AVC System is switched on but it does not appear to be operating correctly, it may need resetting. In this
case, press CLEAR, shown in the diagram, lightly with the end of a ballpoint pen or other pointed object.
This will reset the System as shown below.
• AV MODE resets to USER.
• TV channel resets to channel 1.
• Dual screen resets to normal.
• Audio setting initialises.
• SRS resets to OFF.
• Image position is initialised.
NOTE
• Pressing CLEAR will not work if the System is in standby mode (indicator lights red).
• Pressing CLEAR will not delete channel preset or password. See page 60 for clearing the password when you know it.
See page 73 for initialising to the factory preset values when you forget your password.
INPUT 3
Rear view
ANTENNA INPUT
terminal
COMPONENT
VIDEO terminals
INPUT 3
terminal
INPUT 3
terminal
(S-VIDEO)
(VIDEO)
(Y, P
INPUT 3 terminals
(AUDIO)
B, PR)
INPUT 1 terminal
(S-VIDEO)
INPUT 1 terminal
(VIDEO)
INPUT 1 COMPONENT
VIDEO terminals (Y, P
INPUT 1 terminals
(AUDIO)
DISPLAY OUTPUT-1
RS-232C terminal
B, PR)
terminal
MONITOR OUTPUT terminal
(S-VIDEO)
MONITOR OUTPUT terminal (VIDEO)
MONITOR OUTPUT terminals (AUDIO)
INPUT 2 terminals (AUDIO)
INPUT 2 terminal
(VIDEO)
INPUT 2 terminal (S-VIDEO)
terminal
AC INPUT terminalDISPLAY OUTPUT-2
DC OUTPUT terminal (Terminal for
expanded functionality in the near future.)
13
Part names
Remote control unit
13
1
2
3
14
15
16
4
5
17
6
7
8
18
19
9
20
10
11
12
21
22
23
24
25
NOTE
• When using the remote control unit, point it
at the Display.
*
is a trademark of SRS Labs, Inc.
FOCUS technology is incorporated under
license from SRS Labs, Inc.
1 B (STANDBY/ON)
To switch the power on and off. (See page 16.)
2 du (FREEZE/HOLD for TELETEXT)
TV/External input mode: Change the still image mode.
TELETEXT mode: Freeze a multi-page on screen while other
pages are automatically updated. Press d again to return to the
normal image. (See pages 62 and 63.)
3 c (DUAL screen)
Set the dual picture mode. Press c again to return to normal view.
(See page 61.)
4 fv (WIDE MODE/ T/B/F)
TV/External input mode: Change the wide image mode. (See pages
53 and 54.)
TELETEXT mode: Set the area of magnification. (full/upper half/
lower half) (See page 63.)
5 AV MODE
Select a video setting: AV MODE (STANDARD, DYNAMIC, MOVIE,
GAME, USER), PC MODE (STANDARD, USER) (See page 52.)
6 SOUND
Select the sound multiplex mode. (See page 20.)
7 h (SRS and FOCUS)*
Select SRS and FOCUS sound system. (See page 19.)
8 A (Flashback)
Press to return to the previous channel in normal viewing mode.
Press to return to the previous page in TELETEXT mode. (See page
17.)
9 il/ik (VOLUME)
Set the volume. (See page 18.)
10 k (Reveal hidden for TELETEXT)
TELETEXT mode: Display hidden characters. (See page 63.)
11 j (SUBPAGE for TELETEXT)
TELETEXT mode: Change the picture mode for sub-page selecting.
(See page 64.)
12 MENU
Display the MENU screen.
13 C (CHANNEL INFORMATION)
Display the channel information and time. (See page 65 for details
on the time display.)
14 b (INPUT SOURCE)
Select an input source. (TV, INPUT 1, INPUT 2, INPUT 3, INPUT 4,
PC) (See pages 41-45 and 51.)
15 SLEEP
Set the Sleep timer. (See page 58.)
16 e (MUTE)
Mute the sound. (See page 18.)
17 0 – 9
TV/External input mode: Set the channel.
TELETEXT mode: Set the page.
18 o (Digit for channel select)
Change the digits of the selected TV channel. (See page 17.)
19 Colour (RED/GREEN/YELLOW/BLUE)
TELETEXT mode: Select a page. (See page 63.)
20 CHa/CHb(w/x )
TV/External input mode: Select the channel.
TELETEXT mode: Set the page. (See page 63.)
21 l (TOP Overview for TELETEXT)
TELETEXT mode: Display an index page for CEEFAX/FLOF
information. TOP Overview for TOP programme. (See page 64.)
22 m (TELETEXT)
Select the TELETEXT mode. (all TV image, all TEXT image, TV/TEXT
image) (See pages 63 and 64.)
23 RETURN
MENU mode: Return to the previous menu screen.
24 ENTER
Execute a command.
Return to the initial image position after moving with a/b/c/d.
25 a/b/c/d (Cursor)
Select a desired item on the setting screen.
Move the picture on the screen.
14
Watching TV
Simple operations for watching a TV programme
Basic connection
Connecting to an antenna
To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections
that are used for coaxial cable.
Standard DIN45325 plug (IEC169-2)
75-ohm coaxial cable (round cable)
Antenna cable
If your outdoor antenna uses a 75-ohm coaxial cable with a standard DIN45325
plug (IEC 169-2), plug it into the ANTENNA INPUT terminal at the rear of the
AVC System.
Connecting to the power outlet
Display (rear view)
AVC System (rear view)
Plug in to wall outlet.
Plug in to wall outlet.
NOTE
• Always turn off the main power of Display and AVC System when connecting the AC cords.
• Disconnect the AC cords from the AC outlet, Display and AVC System if the System will not be used for a long period of
time.
15
Watching TV
Display
B (STANDBY/ON) button
STANDBY/ON indicator
AVC System
STANDBY/ON indicator
X (POWER)
X (MAIN POWER)
Turning on the power
1
2
When turning the AVC System on first
1
2
Press X (MAIN POWER) on the Display.
• The STANDBY/ON indicator on the Display flashes red.
Press X (POWER) on the AVC System.
• The System turns the power on.
• The STANDBY/ON indicator on the Display lights up
green and the one on the AVC System lights up green.
• If the STANDBY/ON indicators still light up red, press
B on the remote control unit or B (STANDBY/ON)
button on the Display to turn the System on.
Press X (POWER) on the AVC System.
• The STANDBY/ON indicator on the AVC System lights
up red.
Press X (MAIN POWER) on the Display.
• The System turns the power on.
• The STANDBY/ON indicator on the Display lights up
green and the one on the AVC System lights up green.
• If the STANDBY/ON indicators still light up red, press
B on the remote control unit or B (STANDBY/ON)
button on the Display to turn the System on.
Display status indicator
Off
Flashing red
Red
Green
Power off
AVC System does not turn on or its AC cord is disconnected.
The System is in standby mode.
The System is on.
Turning off the power
1
2
3
• If you are not going to use this System for a long period of time, be
sure to remove the AC cords from the power outlet.
• Weak electric power is still consumed even when both X (MAIN
POWER) and X (POWER) are turned off.
• When the STANDBY/ON indicator lights up red, it takes about 10
to 15 seconds for the indicator to turn off if X (POWER) on the
AVC System is turned “Off” or the AC cord is unplugged from the
AC outlet.
Press B on the remote control unit or B
(STANDBY/ON) button on the Display.
• The System enters standby mode and the image on the
screen disappears.
• Both STANDBY/ON indicators change from green to red.
Press X (POWER) on the AVC System.
• The STANDBY/ON indicator on the AVC System turns
off and the one on the Display flashes red.
Press X (MAIN POWER) on the Display.
• The STANDBY/ON indicator on the Display gradually
turns off.
NOTE
AVC System status indicator
Power off
Only the AVC System is in standby mode or the System is in standby mode.
The System is on.
16
Off
Red
Green
Watching TV
Simple button operations for
changing channels
You can change channels in several ways.
aa
Using CH
• Press CH
• Press CH
NOTE
• CHs/r on the Display operates the same as CH
the remote control unit.
bb
a/
bon the remote control unit
aa
bb
aa
a to increase channel number.
aa
b b
b to decrease channel number.
b b
bb
b/
bb
aa
aon
aa
Channel display
Channel display changes approximately after 3
seconds as shown below.
SAT.1
12
PAL
B/G
(Example)
SAT.1
12
MONO
Using Flashback (A) on the remote
control unit
CHs/r
Using 0 – 9 on the remote control unit
Select the channels directly by pressing buttons 0 to
9.
a
To select a 1-digit channel (e.g. channel 2):
• Press 2. If “2” is indicated and the picture does not
change, press o to switch over to the 1-digit select
mode and press 2 again.
To select a 2-digit channel (e.g. channel 12):
• Press o to set the 2-digit select mode. Press 1,
followed by 2.
Press A to switch the currently tuned channel to the
previously tuned channel.
Press A again to switch back to the currently tuned
channel.
NOTE
• Complete this procedure within 3 seconds, otherwise the
selection will not be made on the 2-digit channel mode.
When viewing Teletext information
View a page directly which is 3-digit page number from
100 to 899 by pressing buttons 0 to 9. With Teletext,
you do not use o. (See page 64).
17
Watching TV
0
Simple button operation for changing
volume/sound
Changing the volume
You can change the volume on the Display or on the
remote control unit.
ll
l/
ll
kk
k
kk
k k
k.
k k
ll
l.
ll
i
• To increase the volume, press i
• To decrease the volume, press i
Using e on the remote control unit
e mutes the current sound output.
1
Press e.
•“e” has been displayed on the screen for 30
minutes, and the sound is silenced.
20
NOTE
• “TV”, “INPUT1”, “INPUT2”, “INPUT3”, “INPUT4” and “PC”
modes can each store volume adjustment values
separately.
When “Audio Out” is set to “Variable”, the indicator on
the screen changes as shown below.
20
Audio status
Output device
Speaker
MONITOR
OUTPUT
Variable sound
Constant as
specified
Audio out
VariableFixed
Mute
Variable sound
Mute
NOTE
• Within 30 minutes of pressing e, mute can be cancelled
by using one of the two methods below.
• Pressing i
A can also cancel the mute.
• Changing channels can also cancel the mute.
• Mute will be cancelled after 30 minutes have elapsed.
However, the System will not suddenly output a loud
sound as the volume level is set to 0 automatically.
2
ff
f/i
ff
ee
e, SOUND, CH
ee
aa
bb
a/CH
b, 0 – 9, b or
aa
bb
Within 30 minutes, Press e again to cancel
the mute.
• Before 30 minutes, the volume level returns to
the previous setting.
• After 30 minutes, increase the volume level by
pressing ie.
NOTE
• See page 58 for details on the audio out function.
18
Watching TV
Using h on the remote control unit
h produces SRS and FOCUS effect from the
speakers.
Each time you press h, the mode changes among
SRS, FOCUS, FOCUSeSRS and OFF.
SRS sound options
• SRS (Sound Retrieval System): Creates more a
natural sound retrieving the spatial information from
any stereo recording and restoring the original threedimensional sound field.
• FOCUS: Repositions a sound image from two
speakers to a more optimal listening position or
height without moving them.
• FOCUSeSRS: Produces both SRS and FOCUS
effects.
• OFF: Outputs the normal sound.
: OFF
: FOCUS+SRS
NOTE
• You can have the same settings by choosing “Surround”
on the menu items. (See page 36.)
: SRS
: FOCUS
19
Watching TV
Using SOUND on the remote control unit
In the NICAM TV broadcasts
When receiving a stereo signal
Each time you press SOUND, the mode switches
between NICAM STEREO and MONO.
Stereo mode
BBC2
99
NICAM
STEREO
BBC2
99
MONO
When receiving a bilingual signal
Each time you press SOUND, the mode switches
among NICAM CH A, NICAM CH B, NICAM CH AB
and MONO.
Bilingual mode
BBC2
99
NICAM
CH A
BBC2
99
NICAM
CH B
BBC2
99
NICAM
CH AB
BBC2
99
In the TV mode of IGR TV broadcasts
When receiving a stereo signal
Each time you press SOUND, the mode switches
between STEREO and MONO.
Stereo mode
BBC2
99
STEREO
BBC2
99
MONO
When receiving a bilingual signal
Each time you press SOUND, the mode switches
among CH A, CH B and CH AB.
Bilingual mode
BBC2
99
CH A
BBC2
99
CH B
BBC2
99
CH AB
When receiving a monaural signal
When you press SOUND, “MONO” displays.
Monaural mode
BBC2
99
MONO
NOTE
• When no signal is input, the sound mode will display
“MONO”.
• “BBC2” and “99” are tentative network name and channel.
MONO
When receiving a monaural signal
Each time you press SOUND, the mode switches
between NICAM MONO and MONO.
Monaural mode
BBC2
99
NICAM
MONO
BBC2
99
MONO
20
Basic adjustment settings
AV input mode menu items
List of AV menu items to help you with
operations
Contrast ......................................... Page 31
Brightness ..................................... Page 31
Colour ............................................ Page 31
Tint ................................................. Page 31
Sharpness ...................................... Page 31
Advanced
C.M.S. ................................... Page 32
Colour Temp ........................ Page 33
Black .................................... Page 33
Monochrome ....................... Page 34
Film Mode ............................ Page 34
I/P Setting ............................ Page 35
DNR ...................................... Page 35
Audio
PC input mode menu items
List of PC menu items to help you with
operations
Contrast ......................................... Page 31
Brightness ..................................... Page 31
Red ................................................. Page 31
Green .............................................. Page 31
Blue ................................................ Page 31
C.M.S. ............................................. Page 32
Audio
Treble.............................................. Page 36
Bass ............................................... Page 36
Balance .......................................... Page 36
Surround ........................................ Page 36
Speaker .......................................... Page 47
Power Control
Power Save .................................... Page 37
No Signal Off ................................. Page 38
No Operation Off ........................... Page 38
Setup
Auto Installation ..................... Pages 22-23
Programme Setup .................. Pages 24-29
Child Lock ...................................... Page 60
Position .......................................... Page 48
WSS ................................................ Page 56
4:3 Mode ........................................ Page 56
Rotate ............................................. Page 57
Language ....................................... Page 30
Text Lang. ...................................... Page 62
Treble.............................................. Page 36
Bass ............................................... Page 36
Balance .......................................... Page 36
Surround ........................................ Page 36
Speaker .......................................... Page 47
Power Control
Power Save .................................... Page 39
Power Management ...................... Page 39
Setup
Input Signal ................................... Page 55
Auto Sync. ..................................... Page 50
Fine Sync. ...................................... Page 50
Rotate ............................................. Page 57
Language ....................................... Page 30
Option
Input Select.................................... Page 51
Audio Out ....................................... Page 58
Cool Climate .................................. Page 59
Colour System............................... Page 52
Option
Audio Out ....................................... Page 58
Cool Climate .................................. Page 59
21

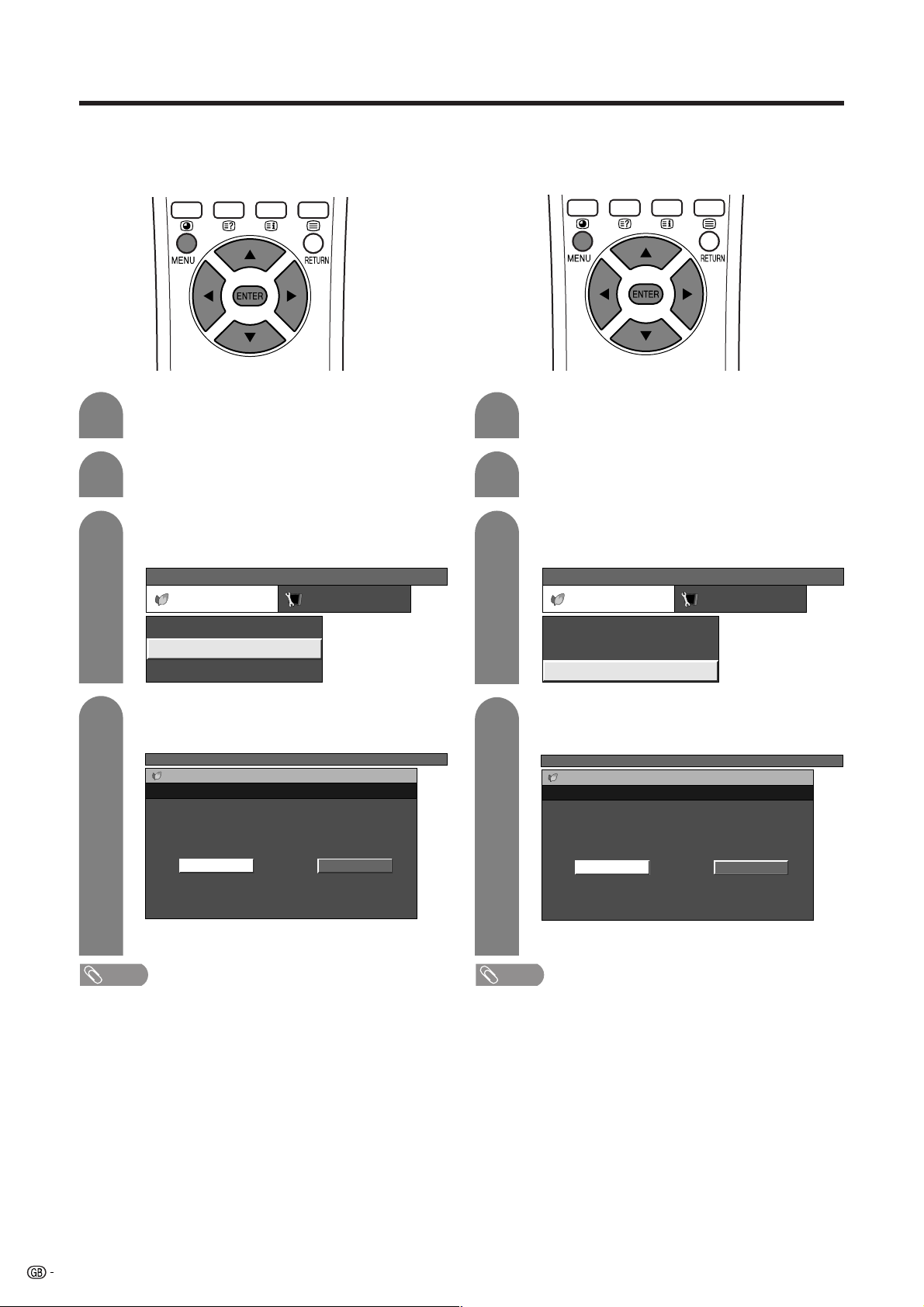

Basic adjustment settings
Auto installation
You can run auto installation, even after setting up the
preset channels.
4
5
Press a/b to select “Auto Installation”, and
then press ENTER.
TV MENU
Setup Option
Auto Installation
Programme Setup
Child Lock
Position
WSS
4:3 Mode [Normal]
Rotate
Language
[West Europe]Text Lang.
[Off]
[Normal]
[English]
Press c/d to select “Yes”, and then press
ENTER.
TV MENU
Setup
Auto Installation
1
2
3
Press MENU and the TV MENU screen
displays.
Press c/d to select “Setup”.
If you already set the password for child lock,
go to step 3. If not, skip to step 4.
• See page 60 for setting password.
TV MENU
Setup Option
Password
Press a/b to select “Password”, and then
press ENTER.
Child Lock Password
––––
NoYes
6
Press a/b to select the desired language
listed on the screen, and then press ENTER.
TV MENU
Setup
Auto Installation-Language
English
After this setting, auto search starts with the
following order.
1 Automatic channel searching
2 Automatic channel labelling
3 Automatic channel sorting
You do not need to do anything during the
auto search. (Go to the next page.)
NOTE
• The illustrations and on-screen displays in this manual
are for explanation purposes and may vary slightly from
the actual operations.
22
Enter your 4-digit password with 0 - 9 on the
remote control unit.
Loading...
