Page 1

LC-32D64U LC-37D64U

LIQUID CRYSTAL TELEVISION TÉLÉVISEUR ACL TELEVISOR CON PANTA LL A

DE CRISTAL LÍQUIDO

OPERATION MANUAL MODE D'EMPLOI MANUAL DE OPERACIÓN

ENGLISHFRANÇAISESPAÑOL

IMPORTANT : Please read this operation manual before starting operating the equipment. IMPORTANTE : Lea este manual de operación antes de comenzar a operar el equipo.

Page 2

Page 3

LC-32D64U LC-37D64U

LIQUID CRYSTAL TELEVISION

ENGLISH

OPERATION MANUAL

• The illustrations and on-screen displays in this operation manual are for explanation purposes and may vary slightly from the actual operations.

• Menu items that are not selectable are grayed out.

• The examples used throughout this manual are based on the LC-32D64U model.

• To avoid scratching the frame or screen, please use a soft, lint free cloth for cleaning. Approved cleaning cloths are available directly from Sharp in single (00Z-LCD-CLOTH) or triple (00Z-LCD-CLOTH-3) packs. Call 1-800 BE SHARP for ordering, or VISIT www.sharpusa.com/SharpDirect.

IMPORTANT: To aid reporting in case of loss or theft, please record the TV's model and serial numbers in the space provided. The numbers are located at the rear of the TV.

ENGLISH

Model No.:

Serial No.:

IMPORTANT INFORMATION

WARNING:

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

CAUTION:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

The lightning ﬂash with arrow-head symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product's enclosure that may be of sufﬁcient magnitude to constitute a risk of electric shock to persons.

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

Page 4

IMPORTANT INFORMATION

CAUTION:

DO NOT PLACE THIS PRODUCT ON AN UNSTABLE CART, STAND, TRIPOD, BRACKET, OR TABLE. THE PRODUCT MAY FALL CAUSING SERIOUS PERSONAL INJURY AND SERIOUS DAMAGE TO THE PRODUCT. USE ONLY WITH A CART, STAND, TRIPOD, BRACKET, OR TABLE RECOMMENDED BY THE MANUFACTURER OR SOLD WITH THE PRODUCT. FOLLOW THE MANUFACTURER'S INSTRUCTIONS WHEN INSTALLING THE PRODUCT AND USE MOUNTING ACCESSORIES RECOMMENDED BY THE MANUFACTURER. A PRODUCT AND CART COMBINATION SHOULD BE MOVED WITH CARE. QUICK STOPS, EXCESSIVE FORCE, AND UNEVEN SURFACES MAY CAUSE THE PRODUCT AND CART COMBINATION TO OVERTURN.

WARNING: FCC Regulations state that any unauthorized changes or modiﬁcations to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment.

CAUTION:

This product satisﬁes FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections.

DECLARATION OF CONFORMITY:

SHARP LIQUID CRYSTAL TELEVISION, MODEL LC-32D64U/LC-37D64U This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

RESPONSIBLE PARTY:

For Business Customers: URL http://www.sharpusa.com

SHARP ELECTRONICS CORPORATION Sharp Plaza, Mahwah, New Jersey 07430-2135 TEL: 1-800-BE-SHARP

INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

“Note to CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the National Electrical Code that provides guidelines for proper grounding and, in particular, speciﬁes that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.”

This product utilizes tin-lead solder, and ﬂuorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities, the Electronic Industries Alliance: www.eiae.org, the lamp recycling organization: www.lamprecycle.org or Sharp at 1-800-BE-SHARP (For U.S.A. only)

Trademarks

• Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

• “HDMI, the HDMI logo and High-Deﬁ nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.”

• Products that have earned the ENERGY STAR® are designed to protect the environment through superior energy efﬁ ciency.

Page 5

DEAR SHARP CUSTOMER

Thank you for your purchase of the Sharp Liquid Crystal Television. To ensure safety and many years of trouble-free operation of your product, please read the Important Safety Instructions carefully before using this product.

IMPORTANT SAFETY INSTRUCTIONS

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or ﬁre. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your Liquid Crystal Television, please read the following precautions carefully before using the product.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories speciﬁed by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table speciﬁed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Additional Safety Information

15) Power Sources—This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

16) Overloading—Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of ﬁre or electric shock.

17) Object and Liquid Entry—Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a ﬁre or electric shock. Never spill liquid of any kind on the product.

18) Damage Requiring Service—Unplug this product from the wall outlet and refer servicing to qualiﬁed service personnel under the following conditions:

a) When the AC cord or plug is damaged, b) If liquid has been spilled, or objects have fallen into the product, c) If the product has been exposed to rain or water, d) If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment

of other controls may result in damage and will often require extensive work by a qualiﬁed technician

to restore the product to its normal operation, e) If the product has been dropped or damaged in any way, and f) When the product exhibits a distinct change in performance - this indicates a need for service.

19) Replacement Parts—When replacement parts are required, be sure the service technician has used replacement parts speciﬁed by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in ﬁre, electric shock, or other hazards.

20) Safety Check—Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

21) Wall or ceiling mounting—When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer.

Page 6

IMPORTANT SAFETY INSTRUCTIONS

• Outdoor Antenna Grounding — If an outside antenna is connected to the television equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges.

Article 810 of the National Electrical Code, ANSI/NFPA 70,

provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE, ANSI/NFPA 70

ANTENNA LEAD IN WIRE

ELECTRIC SERVICE EQUIPMENT

GROUND CLAMP

NEC — NATIONAL ELECTRICAL CODE

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

• Turn off the main power and unplug the AC cord from the wall outlet before handling.

• Use a soft cloth and gently wipe the surface of the display panel. Using a hard cloth may scratch the panel surface.

• Use a soft damp cloth to gently wipe the panel when it is really dirty.

(It may scratch the panel surface when wiped strongly.)

• If the panel is dusty, use an anti-static brush, which is commercially available, to clean it.

• To protect the panel, do not use a dirty cloth, liquid cleaners or chemical cloth to clean it, such materials may damage the panel surface.

• To clean the outer cabinet, use the same method. Do not use liquid or aerosol cleaners.

• Water and Moisture — Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

• Stand — Do not place the product on an unstable cart, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer's instructions. Use only the mounting hardware recommended by the manufacturer.

• Selecting the location — Select a place with no direct sunlight and good ventilation.

• Ventilation — The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufﬁ cient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions are followed.

• The Liquid Crystal panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the panel breaks.

• Heat — The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including ampliﬁ ers) that produce heat.

• The Liquid Crystal panel is a very high technology product with 2,073,600 thin ﬁ lm transistors, giving you ﬁ ne picture details.

Occasionally, a few non-active pixels may appear on the screen as a ﬁ xed point of blue, green or red. Please note that

this does not affect the performance of your product.

• Lightning — For added protection for this television equipment during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the equipment due to lightning and power-line surges.

• Power Lines — An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

• To prevent ﬁ re, never place any type of candle or ﬂ ames on the top or near the TV set.

• To prevent ﬁ re or shock hazard, do not place the AC cord under the TV set or other heavy items.

• Do not display a still picture for a long time, as this could cause an afterimage to remain.

• To prevent ﬁ re or shock hazard, do not expose this product to dripping or splashing.

No objects ﬁ lled with liquids, such as vases, should be placed on the product.

Precautions when transporting the TV

• Be sure to always carry the TV by two people holding it with two hands — one hand on each side of the TV.

Page 7

QUICK REFERENCE

Attaching/Detaching the Stand

• Before attaching (or detaching) the stand, unplug the AC cord from the AC INPUT terminal.

• Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being damaged.

CAUTION

• Attach the stand in the correct direction.

• Do not remove the stand from the TV unless using an

optional wall mount bracket to mount it.

• Be sure to follow the instructions. Incorrect installation

of the stand may result in the TV falling over.

1 Conﬁ rm that there are 9 screws supplied with the

stand unit.

2 Attach the supporting post for the stand unit onto

the base using the box for the stand unit as shown below.

Screws

Hex key

Setting the TV on the Wall

CAUTION

• This TV should be mounted on the wall with both the AN-37AG2 (SHARP) wall mount bracket and the AN-37P30 (SHARP) attachment of the wall mount bracket. The TV cannot be mounted when with only the AN-37AG2 wall mount bracket. The use of other wall mount brackets may result in an unstable installation and may cause serious injuries.

• Installing the TV requires special skill that should only be performed by qualiﬁ ed service personnel. Customers should not attempt to do the work themselves. SHARP bears no responsibility for improper mounting or mounting that results in accident or injury.

Using an optional bracket to mount the TV

•

You can ask a qualiﬁ ed service professional about using an optional AN-37AG2 bracket to mount the TV to the wall.

• Carefully read the instructions that come with the bracket before beginning work.

Hanging on the wall

AN-37AG2 wall mount bracket. (See the bracket instructions for details.)

3 1 Insert the stand into the openings on the bottom

of the TV.

Insert and tighten the 4 screws into the 4 holes

on the rear of the TV.

Hex key

Screws

Soft cushion

• To detach the stand, perform the steps in reverse order.

Vertical mounting

About setting the TV angle

Angular mounting

LC-32D64U

•

The center of the display:

/16

inch (17.3 mm) under

the “A” position.

LC-37D64U

The center of the display:

•

3/4

inch (44.1 mm) under

the “A” position.

• Refer to the operation manual of AN-37P30 for details.

• Detach the cable clamp on the rear of the TV when using the optional mount bracket.

• Due to the terminal conﬁ guration on this TV, when you wall-mount this model, make sure there is enough space between the wall and the TV for the cables.

• To use this TV mounted on a wall, ﬁ rst remove the adhesive tape at the 4 locations on the rear of the TV, and then use the screws supplied with the wall mount bracket to secure the bracket to the rear of the TV.

Page 8

QUICK REFERENCE

QUICK INSTALLATION TIPS

Attach your antenna to the back of the AQUOS

television. (See page 7.)

Connect the AC plug for the AQUOS television into

the AC outlet.

AC outlet

• Place the TV close to the AC outlet, and keep the power plug within reach.

• TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT

TOUCH UN-INSULATED PARTS OF ANY CABLES WITH THE AC CORD CONNECTED.

Place the Ferrite core in the space indicated in the

below ﬁ gure and bundle the cords properly with the cable clamp and the cable tie.

Ferrite core

How to turn on the AQUOS television for the ﬁ rst time.

A) Press POWER on the AQUOS television.

B) The POWER indicator on the front of the

AQUOS television lights GREEN.

• Speakers cannot be detached from the TV.

• TV angle cannot be adjusted.

POWER

indicator

Using the Remote Control Unit

Use the remote control unit by pointing it towards the remote control sensor on the TV. Objects between the remote control unit and the remote control sensor may prevent proper operation.

Cautions regarding the remote control unit

■

• Do not expose the remote control unit to shock. In addition, do not expose the remote control unit to liquids, and do not place in an area with high humidity.

• Do not install or place the remote control unit under direct sunlight. The heat may cause deformation of the remote control unit.

• The remote control unit may not work properly if the remote

Remote Control sensor

17´ (5 m)

30º 30º

IMPORTANT:

The POWER indicator on the AQUOS television should light GREEN indicating you have power to the AQUOS television. If the POWER indicator on the AQUOS television still does not light up, press TV POWER on the remote control to turn the power on.

IMPORTANT:

IF THE UNIT DOES NOT POWER ON - UNPLUG THE AQUOS TELEVISION FROM THE OUTLET AND REPEAT THE INSTALLATION STEPS.

IF YOU STILL ENCOUNTER NO POWER, PLEASE CONTACT US AT 1-800-BE-SHARP.

30º

control sensor on the TV is under direct sunlight or strong lighting. In such cases, change the angle of the lighting or the TV, or operate the remote control unit closer to the remote control sensor.

Page 9

Preparation

Antennas

To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections that are used for a coaxial cable. If your outdoor antenna uses a 75-ohm coaxial cable with an F-type connector, plug it into the antenna terminal at the rear of the TV set.

1. A 75-ohm system is generally a round cable with F-type connector that can easily be attached to a terminal without tools (Commercially available).

2. A 300-ohm system is a ﬂ at “twin-lead” cable that can be attached to a 75-ohm terminal through a 300/75-ohm adapter (Commercially available).

NOTICE

F-type connector should be ﬁ nger-tightened only.

When connecting the RF cable to the TV set, do not tighten F-type connector with tools. If tools are used, it may cause damage to your TV set. (The breaking of internal circuit, etc.)

300-ohm twin-lead cable (ﬂ at)

F-type connector

75-ohm coaxial cable (round)

F-type connector

75-ohm coaxial cable

Connecting Antenna

• Connect the antenna cable to the TV using one of the methods in the illustration as shown (1, 2, 3 or 4).

Cable without a CATV

converter

VHF/UHF antenna

Combination VHF/

UHF antenna

Separate VHF/UHF

antenna

Cable

VHF

NTENNA

Cable TV lead-In

75-ohm coaxial cable (round)

300-ohm twin-lead cable (ﬂat)

UHF ANTENNA

300-ohm twin-lead cable

75-ohm coaxial cable

Home Antenna terminal (75-ohm)

Coaxial cable (commercially available)

Home Antenna terminal (75-ohm)

Coaxial cable (commercially available)

300/75-ohm adapter

(commercially available)

IN OUT

Combiner (commercially available)

To TV antenna terminal

Installing Batteries in the Remote Control Unit

If the remote control fails to operate TV functions, replace the batteries in the remote control unit.

1 Open the battery cover.

2 Insert two “AAA” size batteries

(supplied with the product).

3 Close the battery cover.

• Place the batteries with their terminals corresponding to the (e) and (f) indications in the battery compartment.

CAUTION

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

• Do not mix batteries of different types. Different types of batteries have different characteristics.

• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries.

• Remove batteries as soon as they are worn out. Chemicals that leak from batteries that come in contact with skin can cause a rash. If you ﬁ nd any chemical leakage, wipe thoroughly with a cloth.

• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.

• If you will not be using the remote control unit for an extended period of time, remove batteries from it.

Page 10

IMPORTANT INFORMATION ..................................1

Trademarks ..............................................................2

DEAR SHARP CUSTOMER .....................................3

IMPORTANT SAFETY INSTRUCTIONS ..................3

QUICK REFERENCE ................................................5

Attaching/Detaching the Stand ............................5

Setting the TV on the Wall ....................................5

QUICK INSTALLATION TIPS ................................6

Using the Remote Control Unit ............................6

Preparation ..............................................................7

Antennas .............................................................7

Installing Batteries in the Remote Control Unit ......7

Contents ...................................................................8

Supplied Accessories..............................................8

Part Names ..............................................................9

TV (Front) .............................................................9

TV (Top/Side/Rear) ..............................................9

Remote Control Unit ..........................................10

Connecting to External Equipment ......................11

Watching TV ...........................................................12

Turning On/Off the Power ..................................12

Initial Setup ........................................................12

Direct Button Operation ........................................13

On-Screen Display Menu ......................................17

Menu Items .......................................................17

On-Screen Display Menu Operation ...................18

Menu Operation Buttons ....................................18

Picture Menu .....................................................19

OPC Setting ..................................................19

Advanced Picture Setting ..............................19

Audio Menu .......................................................20

Surround .......................................................20

Bass Enhancer ..............................................20

Power Control Menu ..........................................21

No Signal Off .................................................21

No Operation Off ...........................................21

Setup Menu .......................................................21

EZ Setup .......................................................21

CH Setup ......................................................22

Antenna Setup-DIGITAL ................................22

Input Skip ......................................................22

Input Label ....................................................22

Input Signal (for Analog PC Input Mode Only) Auto Sync.

(for Analog PC Input Mode Only) .................22

...22

Fine Sync. ....................................................22

Position .........................................................23

Language ......................................................23

Reset ............................................................23

Parental CTRL (Parental Control Setting) .......23

Option Menu ......................................................26

Audio Only ....................................................26

Digital Noise Reduction .................................26

Input Select ...................................................26

HDMI Setup ..................................................26

Output Select ................................................26

Color System ................................................26

Caption Setup ...............................................27

Digital Caption Info.

(Digital Caption Information) ........................27

Program Title Display ....................................27

Favorite CH (Favorite Channel Setting) ..........27

Game Play Time ............................................27

Operation Lock Out .......................................27

Digital Setup Menu ............................................28

Audio Setup ..................................................28

Identiﬁ cation ..................................................28

Software Update ...........................................28

Other Viewing Options ..........................................30

Presetting Remote Control Function ..................30

Operating the Connected Equipment .................30

Using AQUOS LINK ...............................................32

Controlling HDMI Equipment Using AQUOS LINK

AQUOS LINK Menu ...........................................34

Appendix ................................................................35

Troubleshooting .................................................35

Troubleshooting-Digital Broadcasting ................35

RS-232C Port Speciﬁ cations .............................36

Speciﬁ cations ....................................................37

Optional Accessory ............................................37

PC Compatibility Chart ......................................38

Information on the Software License for This

Product ...........................................................38

Calling for Service .................................................39

LIMITED WARRANTY ............................................39

Dimensional Drawings

• The dimensional drawings for the LCD TV set are shown on the inside back cover.

...32

Supplied Accessories

Make sure the following accessories are provided with the product.

Remote control unit

(g1)

Page 6

• Always use the AC cord supplied with the TV.

“AAA” size battery

(g2)

Page 7

AC cord

(g1)

Page 6

Cable clamp (g1)

Cable tie (g1)

Page 6

Stand unit

(g1)

Page 5

Operation manual

(g1)

Page 11

Part Names

TV (Front)

Remote control sensor

OPC sensor

(See page 19.)

TV (Top/Side/Rear)

Channel buttons (CHV/U)

Volume buttons (VOLl/k)

MENU button

INPUT button

POWER button

OPC indicator SLEEP indicator POWER indicator

INPUT 4 terminal (HDMI)

DIGITAL AUDIO OUTPUT terminal

INPUT 6 terminals (PC-IN)

(See page 19.)

(See page 13.)

(See page 12.)

AC INPUT terminal

INPUT 3 terminals

SERVICE terminal

RS-232C terminal

INPUT 5 terminals (HDMI)

Antenna/Cable in

INPUT 2 terminals

INPUT 1 terminals

AUDIO OUTPUT terminals

Page 12

Part Names

Remote Control Unit

116

2 3

12 13

• When using the remote control unit, point it at the TV.

1 TV POWER: Switch the TV power on or enters standby. (See

page 12.)

2 DISPLAY: Display the channel information.

3 SOURCE POWER: Turns the power of the external equipment

on and off.

4 External equipment operational buttons: Operate the external

equipment.

5 0–9: Set the channel. (See page 13.)

6 • (DOT): (See pages 13 and 30.)

7 INPUT: Select a TV input source. (TV, INPUT 1, INPUT 2, INPUT 3,

INPUT 4, INPUT 5, INPUT 6) (See page 13.)

8 VOLk/l: Set the volume. (See page 13.)

9 SURROUND: Select Surround settings. (See page 13.)

10 FREEZE: Set the still image. Press again to return to normal

screen. (See page 13.)

11 EXIT: Turn off the menu screen.

12 OPTION: Display the AQUOS LINK MENU screen. This button

will function only when AQUOS LINK is used. (See pages 32 to 34 for details.)

13 REC STOP: Stops one touch recording. This button will function

only when AQUOS LINK is used. (See pages 32 to 34 for details.)

14 SLEEP: Set the sleep timer. (See page 13.)

15 AUDIO: Selects the MTS/SAP or the audio mode during multi-

channel audio broadcasts. (See page 14.)

16 FUNCTION: Switches the remote control for TV, CBL/SAT, VCR,

DVD and AUDIO operation. Indicator lights up for the current mode. (See pages 30 to 31 for details.)

* To enter the code registration mode, you need to press

FUNCTION and DISPLAY at the same time.

17 LIGHT D: When this button is pressed, some buttons (for

example, VOLk/l and CH light. The lighting will turn off if no operations are performed within about 5 seconds. This button is used for performing operations in low-light situations.

18 VIEW MODE: Select the screen size. (See page 16.)

19 ENT: Jumps to a channel after selecting with the 0–9 buttons.

20 FLASHBACK: Return to the previous channel or external input

mode. (See page 13.)

21 CHr/s: Select the channel. (See page 13.)

22 MUTE: Mute the sound. (See page 13.)

23 MENU: Display the menu screen.

24 a/b/c/d,ENTER: Select a desired item on the screen.

25 RETURN: Return to the previous menu screen.

26 FAVORITE CH

A, B, C, D: Select 4 preset favorite channels in 4 different

categories. (See page 27.)

While watching, you can toggle the selected channels by pressing

A, B, C and D.

27 FAVORITE: Set the favorite channels. (See page 27.)

28 CC: Display captions from a closed-caption source. (See page

15.)

29 AV MODE: Select an audio or video setting.

(When the input source is TV, INPUT 1, 2 or 3: STANDARD, MOVIE, GAME, USER, DYNAMIC (Fixed), DYNAMIC. When the input source is INPUT 4, 5 or 6: STANDARD, MOVIE, GAME, PC, xvYCC (INPUT 4/5 only), USER, DYNAMIC (Fixed), DYNAMIC) (See page 14.)

/s) on the remote control unit will

Page 13

Connecting to External Equipment

You can connect many types of external equipment to your TV like a Blu-ray disc player, HD-DVD player, DVD player, VCR, Digital TV tuner, HDMI equipment, game console or camcorder. To view external source images, select the input source from INPUT on the remote control unit or on the TV. (See page 13.)

CAUTION

• To protect equipment, always turn off the TV before connecting any external equipment.

• Please read the relevant operation manual (Blu-ray disc player, etc.) carefully before making connections.

Connecting a Blu-ray disc player, HD-DVD player, DVD player, Digital TV STB (Air or Cable), VCR, game console or camcorder

Terminal on the TV

INPUT 1, 2 or 3

Cable

AV cable (commercially available)

Terminal on external

equipment

INPUT 1 or 3

INPUT 2

INPUT 4 or 5

DIGITAL AUDIO OUTPUT

Component video cable (commercially available)

Audio cable (commercially available)

S-VIDEO cable (commercially available)

Audio cable (commercially available)

HDMI-certiﬁed cable (commercially available)

Optical ﬁber cable (commercially available)

*1 • To enjoy the AQUOS 1080p display capability, connect your external equipment using a component cable and set the

equipment to 1080p output. *2 • The S-VIDEO terminal takes priority over the video terminals. (INPUT 2 only) *3 • When using an HDMI-DVI conversion cable, input the audio signal to AUDIO terminal of INPUT 5.

• To enjoy the AQUOS 1080p display capability, connect your Blu-ray disc player, HD-DVD player or other external

equipment using an HDMI-certiﬁ ed cable and set the equipment to 1080p output. *4 • Depending on the connected equipment, audio will not output from the DIGITAL AUDIO OUTPUT terminal in HDMI

connection. In this case, set the audio formats of the connected equipment to PCM, 32/44.1/48 kHz and 16 bits.

Connecting a PC

Terminal on the TV

INPUT 6

INPUT 4 or 5

RGB cable (commercially available)

Ø 3.5 mm stereo minijack cable (commercially available)

HDMI-certiﬁed cable (commercially available)

Cable

• The HDMI terminals only support digital signal.

• Refer to page 38 for a list of PC signals compatible with the TV.

Terminal on PC

Page 14

Watching TV

Turning On/Off the Power

POWER

Press POWER on the TV, or TV POWER on the remote control unit to turn the power on.

• POWER indicator (Green): The TV is on. (After a few seconds, a window appears with sound.)

TV POWER (On/Standby)

• The initial setup starts when the TV powers on for the ﬁ rst time. If the TV has been turned on before, the EZ Setup will not be invoked. See page 21 for performing EZ Setup from the Setup menu.

Press POWER on the TV, or TV POWER on the remote control unit again to turn the power off.

• The TV enters standby and the image on the screen disappears.

• The POWER indicator on the TV turns off.

• If you are not going to use this TV for a long period of time, be sure to remove the AC cord from the AC outlet.

• Weak electric power is still consumed even when the TV is turned off.

Initial Setup

When you turn on the TV for the ﬁ rst time, it will automatically memorize the broadcasting channels available in the region where you live. Perform the following steps before you press TV POWER on the remote control unit.

1. Insert the batteries into the remote control unit. (See page 7.)

2. Connect the antenna cable to the TV. (See page 7.)

3. Plug in the AC cord to the AC outlet. (See page 6.)

Language (Language setting)

Select from among 3 languages: English, French and Spanish.

Press a/b to select the desired language listed on the

screen, and then press ENTER.

Language

TV Location

Air/Cable

CH Search

English

Français

Español

Air/Cable (Antenna setting)

Make sure what kind of connection is made with your TV when selecting "Air" or "Cable".

Press c/d to select "Air" or "Cable".

Press ENTER to enter the setting.

Language

TV Location

Air/Cable

CH Search

Example

Air

Cable

CH Search (Channel search)

Channel auto search makes the TV look for all channels viewable in the set area.

When "Air" is selected in Antenna setting:

Press c/d to select "Start", and then press ENTER.

Language

TV Location

Air/Cable

CH Search

Start

Cancel

TV Location

Select "Home" or "Store" for the location where you plan to install the TV.

Press c/d to select "Home" or "Store".

Press ENTER to enter the setting.

Language

TV Location

Air/Cable

CH Search

Example

Home

Store

• If you select "Home", AV MODE is set to "STANDARD".

• If you select "Store", AV MODE is set to "DYNAMIC (Fixed)". In case no remote control signal is received within 30 minutes, AV MODE will change to "DYNAMIC (Fixed)" automatically.

• For changing the TV Location after the setting, see "EZ Setup" on page 21.

When "Cable" is selected in Antenna setting: Press a/b to select "Analog & Digital Search Start" to

search both analog and digital broadcasts, or to select “Analog Search Start” to search only analog broadcasts, and then press ENTER.

Language

TV Location

Air/Cable

CH Search

Analog & Digital Search Start

Analog Search Start

Cancel

• The Channel search will start automatically.

• To exit the Channel search screen, select "Cancel", and

then press ENTER.

• If no channel is found, conﬁ rm the type of connection made with your TV and try EZ Setup again.

(See page 21.)

Page 15

Direct Button Operation

Changing Channels

You can change channels by pressing CH

• (DOT).

Examples:

To select a 1 or 2-digit channel number (e. g., Channel 5): Press 5 ENT. To select a 3-digit channel number (e. g., Channel 115): Press 1 1 5 ENT. To select a 4-digit channel number (e. g., Channel 22.1):

Press 2 2 • (DOT) 1 ENT.

•

When selecting a 1-digit channel number, it is not necessary to press 0 before the number.

•

When you enter 0-9 only, channel selection will be made if there is no operation within a few seconds.

•

If you push "0" by itself, nothing will happen.

•

Complete the above steps within a few seconds.

•

When you enter 0-9 and • (DOT), channel selection will be made if there is no operation within a few seconds.

Changing Volume

You can change the volume by pressing VOLk/l on the TV or on the remote control unit.

•

To increase the volume, press VOLk.

•

To decrease the volume, press VOLl.

Audio status

Output device

Speaker Variable sound Mute

•

When "Output Select" is set to "Variable", the indicator on the screen changes as shown below.

Output Select

Fixed Variable

•

See page 26 for details on the Output Select function.

MUTE

Mutes the current sound output. Press MUTE.

•

" " will be displayed on the screen for 30 minutes, and the sound is silenced.

•

Within 30 minutes of pressing MUTE, mute can be canceled by using one of the methods below.

- Mute will be canceled if you press VOLk/l or MUTE.

•

Mute will be canceled after 30 minutes have passed. However, the TV will not suddenly output a loud sound as the volume level is set to 0 automatically.

r/s

or 0-9,

Sleep Timer

Allows you to set a time when the TV automatically switches to standby. Press SLEEP.

The remaining time displays when the sleep timer has been set.

• Each time you press SLEEP, the remaining time switches

• as shown below.

Off 30 60 90 120

When set, the time automatically starts counting down.

• If you want to adjust the sleep timer, you can press SLEEP

• twice then change the time setting. Five minutes before the time expires, the remaining time

• displays every minute.

Select "Off" by pressing SLEEP to cancel the sleep timer.

• The TV will enter standby when the remaining time reaches zero.

• When the sleep timer is set, its indicator on the TV lights red.

•

FLASHBACK

Press FLASHBACK to switch to the previously tuned channel.

•

Press FLASHBACK again to switch back to the currently tuned channel.

•

FLASHBACK will not work if no channel has been changed

after the TV is turned on.

SURROUND

The surround function produces Surround effect from the speakers. Each time you press SURROUND, the mode changes between On and Off.

On: Makes it possible to enjoy natural, realistic surround

sound.

Off: Outputs the normal sound.

•

You can have the same settings by choosing "Surround" on the menu items. (See page 20.)

FREEZE

Allows you to capture and freeze a moving image that you are watching. Press FREEZE.

A moving image is captured.

• Press FREEZE again to cancel the function.

•

When this function is not available, "No displaying still

• image available." will display. The still image automatically goes out after 30 minutes.

• If you are using the freeze function and a broadcast

• activates the V-CHIP BLOCK, the freeze function will be canceled and a V-CHIP BLOCK message will appear.

INPUT

To view external source images, select the input using INPUT on the remote control unit or on the TV.

Press INPUT.

A list of selectable sources appears.

•

Press INPUT again or press a/b to select the

input source.

An image from the selected source automatically displays.

•

Each time INPUT is pressed, the input source toggles.

• If the corresponding input is not plugged in, you cannot change

• the input. Be sure to connect the equipment beforehand.

See page 11 for external equipment connection.

•

source

Page 16

Direct Button Operation

AV MODE

AV MODE gives you 8 viewing options to choose from to best match the surrounding environment of the TV, which can vary due to factors like room brightness, type of program watched or the type of image input from external equipment.

Press AV MODE. Current AV MODE displays.

Press AV MODE again before the mode displayed on the

• screen disappears. The mode changes as shown below:

Example: When the input source is TV, INPUT 1, 2 or 3 terminals

STANDARD MOVIE GAME USER [TV]

DYNAMIC DYNAMIC (Fixed)

Example: When the input source is INPUT 4, 5 or 6 terminals

STANDARD MOVIE GAME PC xvYCC*

DYNAMIC DYNAMIC (Fixed) USER[ ]

"xvYCC" can only be selected when an xvYCC signal is

input using INPUT 4 and 5.

STANDARD: For a highly deﬁ ned image in a normal

lighting.

[Enhanced Picture Contrast: on] MOVIE: For a movie. [Enhanced Picture Contrast: off] GAME: Lowers image brightness for easier viewing. [Enhanced Picture Contrast: off] PC: For PC. [Enhanced Picture Contrast: off] xvYCC: Supports the xvYCC international standard

for wide color space. The xvYCC signal allows you to experience colors that conventional color signals cannot reproduce.

[Enhanced Picture Contrast: off] USER: Allows the user to customize settings as desired.

You can set the mode for each input source.

[Enhanced Picture Contrast: off] DYNAMIC (Fixed): Changes the image and sound

settings to the factory preset values. No adjustments are allowed.

[Enhanced Picture Contrast: on] DYNAMIC: For a clear-cut image emphasizing high

contrast, useful for sports viewing. [Enhanced Picture Contrast: on]

You can select a different AV MODE item for each input

• mode. (For example, select STANDARD for TV input and DYNAMIC for INPUT 1.) When you play games, "GAME" is recommended for AV

• MODE. "Enhanced Picture Contrast" technology detects the source

• video characteristics and smoothly adjusts the screen brightness accordingly to realize deeper black levels.

AUDIO

MTS/SAP stereo mode

■

The TV has a feature that allows reception of sound other than the main audio for the program. This feature is called Multi-channel Television Sound (MTS). The TV with MTS can receive mono sound, stereo sound and Secondary Audio Programs (SAP). The SAP feature allows a TV station to broadcast other information, which could be audio in another language or something completely different like weather information.

You can enjoy Hi-Fi stereo sound or SAP broadcasts where available.

•

Stereo broadcasts: View programs like live sporting

events, shows and concerts in dynamic stereo sound.

•

SAP broadcasts: Receive TV broadcasts in either MAIN or

SAP sound. MAIN sound: The normal program soundtrack (either in mono or stereo). SAP sound: Listen to a second language, supplementary commentary or other information. (SAP is mono sound.)

If stereo sound is difﬁ cult to hear.

Obtain a clearer sound by manually switching to ﬁ xed

• mono-sound mode.

You can change MTS as shown below to match the television broadcast signal.

Press AUDIO to toggle between audio modes.

Examples: when receiving MTS and SAP

STEREO mode: STEREO + SAP mode:

MAIN + SAP mode: MONO mode: MONO

Digital broadcasting audio mode

■

The types of audio transmitted in a digital broadcast include SURROUND as well as MONO and STEREO. In addition, it is possible for multiple audio tracks to accompany a single video track.

Press AUDIO to toggle between audio modes.

Example: when receiving Digital broadcasting

STEREO (Audio1) STEREO (Audio2) SURROUND (Audio3)

MTS only operates while in TV mode.

•

STEREO MONO

ST(SAP) SAP(ST) MONO

MAIN SAP

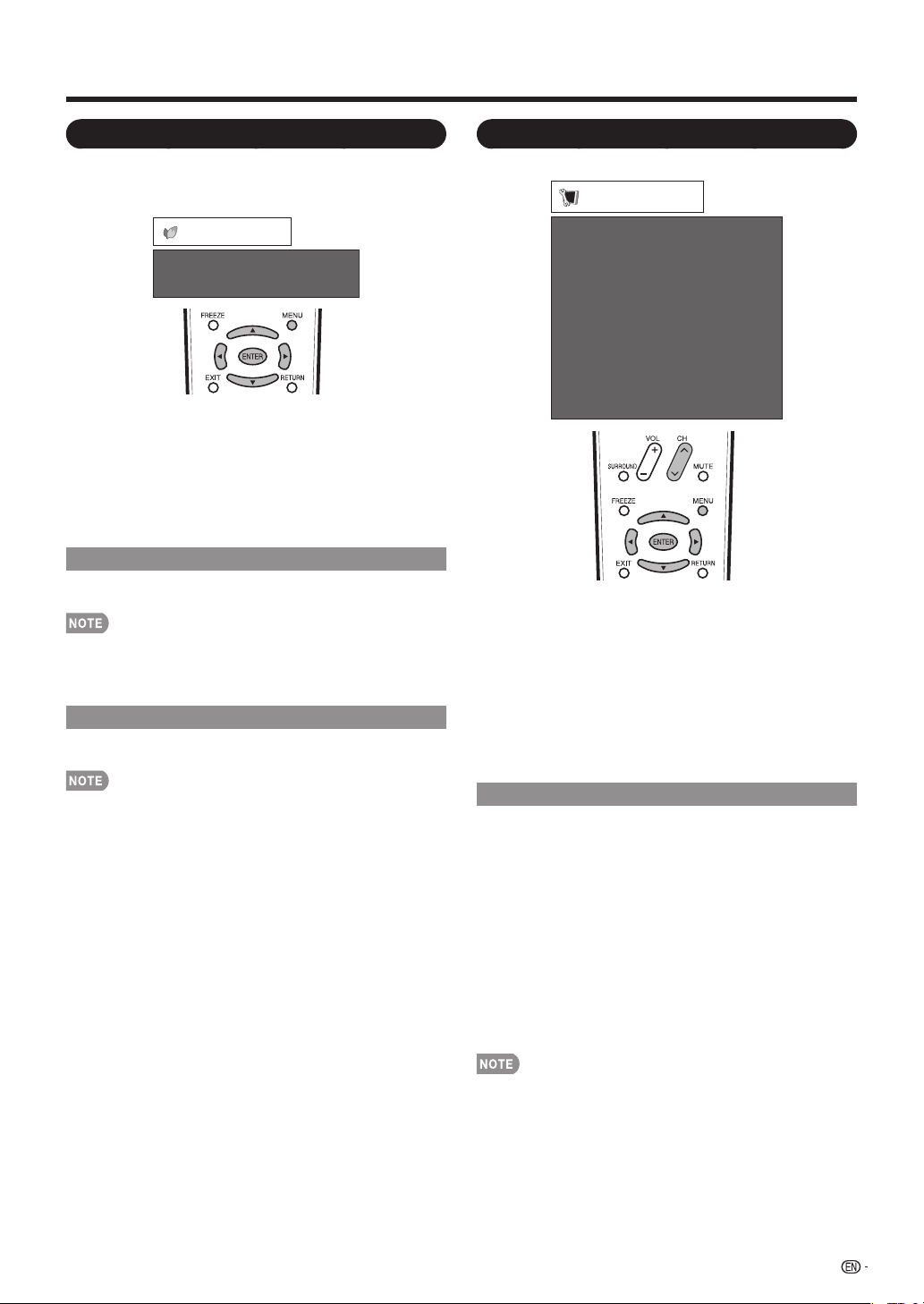

Page 17

Direct Button Operation

Closed Captions and Digital Closed Captions

Your TV is equipped with an internal Closed Caption decoder. It allows you to view conversations, narration and sound effects as subtitles on your TV. Closed Captions are available on some TV programs and on some VHS home video tapes at the discretion of the program provider.

Digital Closed Caption service is a new caption service available only on digital TV programs (also at the discretion of the service provider). It is a more ﬂ exible system than the original Closed Caption system, because it allows for a variety of caption sizes and font styles. When the Digital Closed Caption service is in use, it will be indicated by the appearance of a 3-letter abbreviation that also indicates the language of the Digital Closed Captions: ENG (English), SPA (Spanish), FRA (French) or other language codes.

Not all programs and VHS videotapes offer closed captions. Please look for the “N” symbol to ensure that captions will be shown.

In the Closed Caption system, there can be more than one caption service provided. Each is identiﬁ ed by its own number. The “CC1” and “CC2” services display subtitles of TV programs superimposed over the program's picture.

In the Closed Caption system, the “Text1” or “Text2” services display text that is unrelated to the program being viewed (e.g., weather or news). These services are also superimposed over the program currently being viewed.

Press CC.

This will present the Closed Caption information

• display.

Press CC while the Closed Caption information is

still on the screen.

Press repeatedly until you select the desired closed

• caption service.

Air ANALOG

Audio : MONO

CC : 1/2 CC1

Ratings : NONE

Depending on the number of caption services in the

• signal being received, you will see information such as 1/2 or 1/4 displayed. 1/2 means “the ﬁ rst of two services”.

Example:

If a program has three services (Digital CC(ENG), CC1 and Text1), the closed caption display will toggle in this sequence:

1/3 ENG 2/3 CC1 3/3 Text1 Off

•

The CC button keeps a record of the last service selected in its memory. If the last closed caption mode (e.g. 1/3ENG) you selected is not available for the next program, or on another channel, the closed caption service that is available is automatically selected, and this service appears in parentheses, e.g. “1/3(CC1)”. Closed Caption services that appear in parentheses will not be stored in the CC button's memory as your last selected service. Only services that you have selected with the CC button are stored.

Closed Caption information

Examples:

In a case where there are two closed caption services provided (for instance, Digital CC(ENG) and CC1), and Digital CC(ENG) is displayed as your current selection, if Digital CC(ENG) is not broadcast for the next program, the other closed caption service, CC1, will be displayed in parentheses. A closed caption service appears in parentheses because the service you selected is not available and a different service is displayed on your screen. “1/1(CC1)” is displayed instead of “1/2/ENG”.

See page 27 for detailed closed caption settings.

• When the program contains no closed caption, “--” displays

• in the closed caption information. If the language code, e.g. “ENG”, is not found on Digital TV

• programs, “--” will be shown. Four kinds of closed caption service (CC1, CC2, Text1,

• Text2) are potentially available, but a broadcast may contain none or only some of these services at the discretion of the program provider.

Page 18

Direct Button Operation

VIEW MODE

You can select the screen size.

Press VIEW MODE.

•

The View Mode menu displays.

•

The menu lists the View Mode options selectable for the type of video signal currently being received.

Press VIEW MODE or a/b while the View Mode menu is displayed to select a desired item on the menu.

•

You can sequentially select a View Mode that has its own aspect ratio.

For 4:3 programs

■

Example: Screen size images

Side Bar S.Stretch (Smart stretch) Zoom Stretch

Suitable for viewing conventional 4:3 programs in their normal format.

For HD programs

■

Stretch: Suitable for viewing wide-screen 1.78:1 aspect ratio program, stretch mode will still show very thin black bands at

the top and bottom of the screen.

Dot by Dot (1080i/p only): Detects the resolution of the signal and displays an image with the same number of pixels on

the screen.

Full Screen (720p only): You can select "Full Screen" only when receiving a 720p signal. S.Stretch (Smart stretch): Suitable for stretching 4:3 programs to ﬁ ll the screen. Zoom: Suitable for viewing wide-screen 2.35:1 aspect-ratio programs in full screen.

•

When using Dot by Dot, it is possible to see noise or bars around different outer portions of the screen. Please change view mode to correct this.

For PC input mode

■

•

Connect the PC before making adjustments. (See page 11.)

•

Selectable screen size may vary with input signal type.

Example: Screen size images

Input signal Normal Zoom Stretch Dot by Dot

Suitable for stretching 4:3 programs to ﬁ ll the screen.

Suitable for viewing widescreen 2.35:1 anamorphic DVDs in full screen.

This mode is useful for 1.78:1 DVDs. When viewing 1.85:1 DVDs, stretch mode will still show very thin black bands at the top and bottom of the screen.

4:3

Input signal Stretch Dot by Dot

16:9 An image fully ﬁ lls the

Keeps the original aspect ratio in a full screen display.

screen.

For viewing widescreen programs. The top and bottom of the image is cropped.

Detects the resolution of the signal and displays an image with the same number of pixels on the screen.

An image fully ﬁ lls the screen.

Detects the resolution of the signal and displays an image with the same number of pixels on the screen.

Page 19

On-Screen Display Menu

Menu Items

For TV/INPUT 1/2/3 Mode

Picture Menu

OPC ..................................................................................... Page 19

Backlight .............................................................................. Page 19

Contrast .............................................................................. Page 19

Brightness .......................................................................... Page 19

Color ................................................................................... Page 19

Tint ...................................................................................... Page 19

Sharpness .......................................................................... Page 19

Advanced

C.M.S.-Hue ............................................................. Page 19

C.M.S.-Saturation ................................................... Page 19

Color Temp. ............................................................ Page 19

Active Contrast ........................................................ Page 19

I/P Setting ................................................................ Page 20

Film Mode ............................................................... Page 20

3D-Y/C .................................................................... Page 20

Monochrome ........................................................... Page 20

Range of OPC ......................................................... Page 20

Reset .................................................................................. Page 19

Audio Menu

Treble ................................................................................. Page 20

Bass ..................................................................................... Page 20

Balance ................................................................................ Page 20

Surround .............................................................................. Page 20

Bass Enhancer .................................................................... Page 20

Reset .................................................................................. Page 20

Power Control Menu

No Signal Off ....................................................................... Page 21

No Operation Off ................................................................. Page 21

Setup Menu

EZ Setup .............................................................................. Page 21

CH Setup ............................................................................. Page 22

Antenna Setup-DIGITAL ...................................................... Page 22

Input Skip ............................................................................ Page 22

Input Label .......................................................................... Page 22

Parental CTRL .............................................................. Pages 23-25

Position ................................................................................ Page 23

Language ............................................................................. Page 23

Reset ................................................................................... Page 23

For HDMI/PC-IN Mode
