Products that have earned the ENERGY STARb are designed to protect the environment through superior energy efficiency.

LC-26GA4U

LIQUID CRYSTAL TELEVISION

ENGLISH

OPERATION MANUAL

• The illustrations and on-screen displays in this operation manual are for explanation purposes and may vary slightly from the actual operations.

• Some items may be grayed out. They are not selectable.

ENGLISH

IMPORTANT: To aid reporting in case of loss or theft, please record the TV’s model and serial numbers in the space provided. The numbers are located at the rear of the TV.

Model No.:

Serial No.:

IMPORTANT INFORMATION

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO

NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

The lightning flash with arrow-head

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

IMPORTANT INFORMATION

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO

WIDE SLOT, FULLY INSERT.

CAUTION:

DO NOT PLACE THIS PRODUCT ON AN UNSTABLE CART, STAND, TRIPOD, BRACKET, OR TABLE. THE PRODUCT MAY FALL CAUSING SERIOUS PERSONAL INJURY AND SERIOUS DAMAGE TO THE PRODUCT. USE ONLY WITH A CART, STAND, TRIPOD, BRACKET, OR TABLE RECOMMENDED BY THE MANUFACTURER OR SOLD WITH THE PRODUCT. FOLLOW THE MANUFACTURER’S INSTRUCTIONS WHEN INSTALLING THE PRODUCT AND USE MOUNTING ACCESSORIES RECOMMENDED BY THE MANUFACTURER. A PRODUCT AND CART COMBINATION SHOULD BE MOVED WITH CARE. QUICK STOPS, EXCESSIVE FORCE, AND UNEVEN SURFACES MAY CAUSE THE PRODUCT AND CART COMBINATION TO OVERTURN.

WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment.

CAUTION:

This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections.

DECLARATION OF CONFORMITY

SHARP LIQUID CRYSTAL TELEVISION, MODEL LC-26GA4U This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

RESPONSIBLE PARTY:

For Business Customers: URL

SHARP ELECTRONICS CORPORATION Sharp Plaza, Mahwah, New Jersey 07430-2135 TEL: 1-800-BE-SHARP

http://www. sharpusa. com

INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.

“Note to CATV system installer: This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electrical Code that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.”

This product utilizes tin-lead solder, and fluorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eia.org

Trademarks

• Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.

• Manufactured under license from BBE Sound, Inc. Licensed by BBE Sound, Inc. under USP4638258, 5510752 and 5736897. BBE and BBE symbol are registered trademarks of BBE Sound, Inc.

• “HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.”

DEAR SHARP CUSTOMER

Thank you for your purchase of the Sharp Liquid Crystal Television. To ensure safety and many years of trouble-free operation of your product, please read the Important Safety Precautions carefully before using this product.

IMPORTANT SAFETY INSTRUCTIONS

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your Liquid Crystal Television, please read the following precautions carefully before using the product.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with

one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the

point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the

apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged

in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) Power Sources — This product should be operated only from the type of power source indicated on the

marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

16) Overloading — Do not overload wall outlets, extension cords, or integral convenience receptacles as this can

result in a risk of fire or electric shock.

17) Object and Liquid Entry — Never push objects of any kind into this product through openings as they may

touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

18) Damage Requiring Service — Unplug this product from the wall outlet and refer servicing to qualified service

personnel under the following conditions:

a) When the AC cord or plug is damaged, b) If liquid has been spilled, or objects have fallen into the product, c) If the product has been exposed to rain or water, d) If the product does not operate normally by following the operating instructions.

Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to

restore the product to its normal operation, e) If the product has been dropped or damaged in any way, and f) When the product exhibits a distinct change in performance – this indicates a need for service.

19) Replacement Parts — When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

20) Safety Check — Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

21) Wall or ceiling mounting — When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer.

IMPORTANT SAFETY INSTRUCTIONS

• Water and Moisture — Do not use this product near water – for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

• Stand — Do not place the product on an unstable cart, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer’s instructions. Use only the mounting hardware recommended by the manufacturer.

• Ventilation — The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s instructions are followed.

• The Liquid Crystal panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the panel breaks.

• Heat — The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

• The Liquid Crystal panel is a very high technology product with 3,147,264 thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green or red. Please note that this does not affect the performance of your product.

Precautions when transporting the TV

When transporting the TV, never carry it by holding onto the speaker. Be sure to always carry the TV by two people holding it with two hands—one hand on each side of the TV.

• Lightning — For added protection for this television equipment during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the equipment due to lightning and power-line surges.

• Power Lines — An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

IMPORTANT SAFETY INSTRUCTIONS

• Outdoor Antenna Grounding — If an outside antenna is connected to the television equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, Iocation of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE, ANSI/NFPA 70

ANTENNA LEAD IN WIRE

GROUND CLAMP

ANTENNA

ELECTRIC SERVICE EQUIPMENT

NEC —NATIONAL ELECTRICAL CODE

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

• To prevent fire, never place any type of candle or flames on the top or near the TV set.

• To prevent fire or shock hazard, do not expose this product to dripping or splashing. No objects filled with liquids, such as vases, should be placed on the product.

• To prevent fire or shock hazard, do not place the AC power cord under the TV set or other heavy items.

• Turn off the main power and unplug the AC cord from the wall outlet before handling.

• Use a soft cloth and gently wipe the surface of the display panel. Using a hard cloth may scratch the panel surface.

• Use a soft damp cloth to gently wipe the panel when it is really dirty. (It may scratch the panel surface when wiped strongly.)

• If the panel is dusty, use an anti-static brush, which is commercially available, to clean it.

• To protect the panel, do not use a dirty cloth, liquid cleaners or chemical cloth to clean it, such materials may damage the panel surface.

It is the intent of Sharp that this product be used in full compliance with the copyright laws of the United States and that prior permission be obtained from copyright owners whenever necessary.

Contents

IMPORTANT INFORMATION ………………………1 Trademarks …………………………………………… 2 DEAR SHARP CUSTOMER …………………………3 IMPORTANT SAFETY INSTRUCTIONS ……………3 COPYRIGHT …………………………………………5 Contents ……………………………………………… 6 Supplied accessories ……………………………… 7 Preparation …………………………………………… 8

Setting the TV …………………………………… 8 Removing speakers ……………………………… 9 Removing the stand …………………………… 10 Setting the TV on the wall …………………… 10 Inserting the batteries ………………………… 11 Using the remote control unit ………………… 11

Cautions regarding remote control unit … 11

Part names ………………………………………… 12

Display ………………………………………… 12 Remote control unit …………………………… 14

Watching TV ……………………………………… 15

Antennas ……………………………………… 15 Cable converter/VCR connection …………… 15 Outdoor antenna connection ………………… 17 Turning on the power ………………………… 18 Turning off the power ………………………… 18 Initial setup ……………………………………… 19 Simple button operations

for changing channels …………………… 20

Simple button operations

for changing volume/sound ……………… 21

Setting MTS/SAP stereo mode ……………… 22

Basic adjustment settings ……………………… 23

AV input mode menu items …………………… 23 PC input mode menu items …………………… 23 EZ setup ………………………………………… 24 Channel setup ………………………………… 25 Favorite channel setting ……………………… 27 Language setting ……………………………… 27 Picture adjustments …………………………… 28

OPC setting ………………………………… 29 C.M.S. (Color Management System) …… 29 Color temperature ………………………… 30 Black ……………………………………… 30 3D-Y/C ……………………………………… 30 Monochrome ……………………………… 31 Film Mode (3:2 pull-down) ……………… 31

I/P Setting ………………………………… 31 Sound adjustment ……………………………… 32 Dolby virtual …………………………………… 32 Power control …………………………………… 33

Power control for AV source ……………… 33

Power control for PC source……………… 33

Using memory card ……………………………… 34

Important notes on using memory cards …… 34 Card Setup mode menu items ……………… 36 Recording a still image ……………………… 38 Displaying a still image ……………………… 38 Displaying slide show ………………………… 38 Setting Slide Show …………………………… 39 My Program …………………………………… 39 Audio Select …………………………………… 39 Protecting/unprotecting still image files …… 40 Deleting a still image file ……………………… 40 Deleting all still image files …………………… 40 Recording a motion picture …………………… 41

Displaying a motion picture ………………… 41 Rec. Mode ……………………………………… 42 Pre Record ……………………………………… 42 Repeat Play …………………………………… 42 Protecting/unprotecting motion picture files… 43 Deleting a motion picture file ………………… 43 Deleting all motion picture files ……………… 43 Format …………………………………………… 44

Using external equipment ……………………… 45

Displaying an external equipment image 45 Connecting a DVD player ………………… 46 Connecting a VCR ………………………… 47 Connecting a game console

or camcorder ………………………… 47 Connecting a Digital TV STB …………… 48 Connecting HDMI equipment …………… 49 Displaying an image from HDMI

equipment……………………………… 49 Connecting a PC ………………………… 50

Useful adjustment settings ……………………… 51

Image position (AV input mode only) ……… 51 Moving the picture on the screen …………… 51 Connecting external speakers ……………… 52 Audio Quality Control ………………………… 53 Auto Sync. adjustment (PC input mode only) … 54 Fine Sync. adjustment (PC input mode only) … 54 Input Select …………………………………… 55 Input Label ……………………………………… 56 Picture flip ……………………………………… 56 AV MODE ……………………………………… 57 View mode for 4:3 Programs ………………… 57 View mode (for PC input mode) ……………… 58 Input signal (for PC input mode) …………… 59 Digital Noise Reduction ……………………… 59 Audio only ……………………………………… 59 Output Select …………………………………… 60 Quick shoot …………………………………… 60 Sleep timer ……………………………………… 60 Closed caption ………………………………… 61

Caption Size ……………………………… 62 Font Style …………………………………… 62 Foreground Color ………………………… 63 Foreground Opacity ……………………… 63 Background Color ………………………… 63 Background Opacity ……………………… 64 Character Edge …………………………… 64

Secret number setting for parental control

(AV input mode only) ……………………… 65

Parental control (setting V-CHIP level) ……… 67 How to temporarily release

the V-CHIP BLOCK ……………………… 71

Reactivating the temporarily released

V-CHIP BLOCK …………………………… 71

Center Channel Input ………………………… 72

Other viewing options …………………………… 73

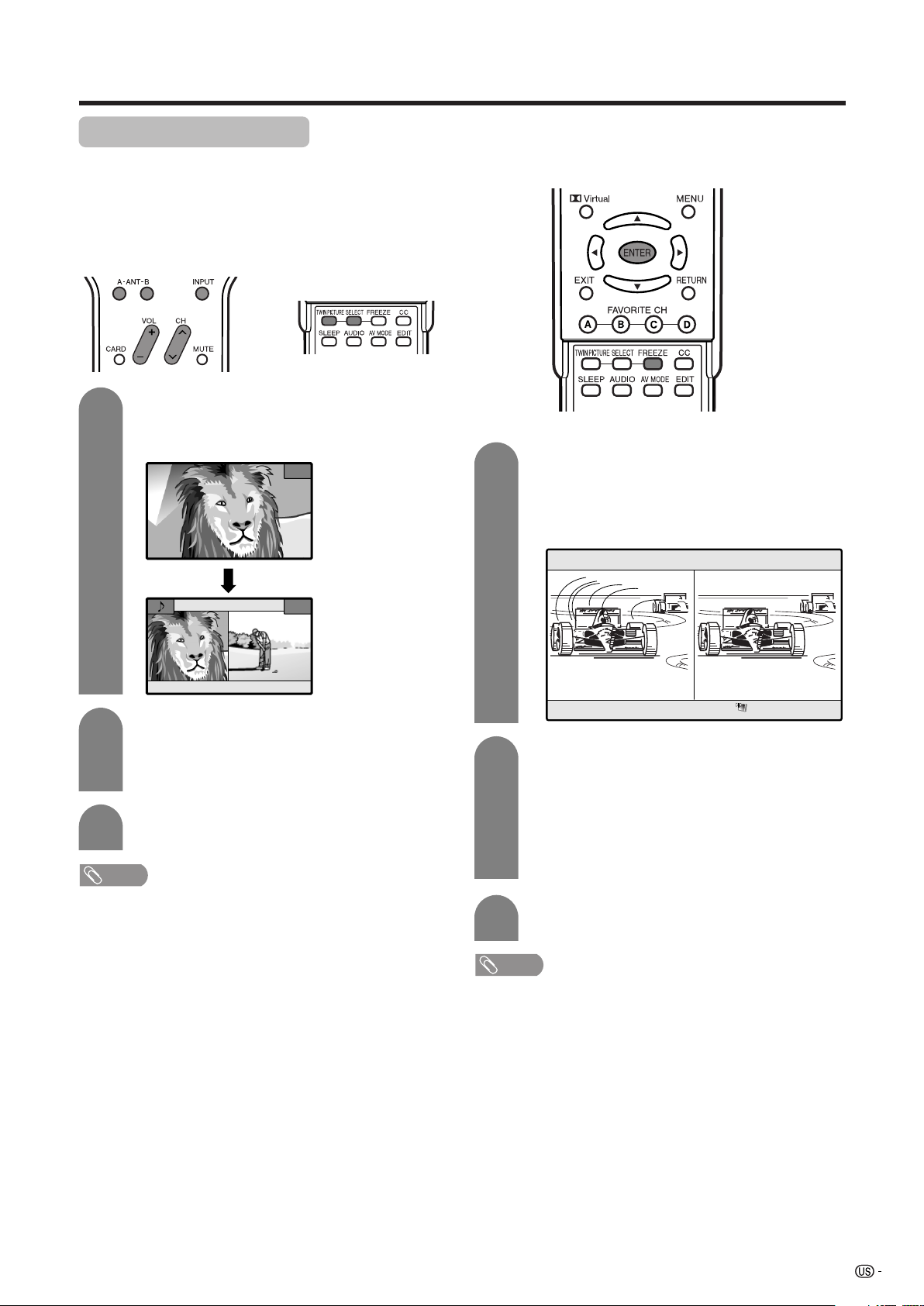

Twin picture functions ………………………… 73 Presetting remote control function …………… 74

Appendix ………………………………………… 78

Troubleshooting ………………………………… 78 PC compatibility chart ………………………… 79 RS-232C port specifications ………………… 80 Specifications ………………………………… 82 Optional accessory …………………………… 82

Dimensional drawings …………………………… 83

Supplied accessories

Make sure the following accessories are provided with the product.

Remote control unit (g1) “AAA” size battery (g2)

RRMCGA263WJSA

Page 11 Page 11

RF cable (g1)

Operation manual (g1)

LC-26GA4U

AC cord (g1)

QACCDA019WJPZ

Page 8

QCNW-A342WJZZ

Pages 16 and 17

NOTE

• Always use the AC cord supplied with the TV.

• AC cords enclosed in this product are for 110-125V. When using this product on the 220-240V, please order and use “QACCZA036WJPZ” as an option in this manual.

SHARP ELECTRONICS CORPORATION 6100 Blue Lagoon Drive, Suite 230, Miami, Florida 33126, U.S.A.

TINS-B242WJN1

Preparation

Setting the TV

After putting the TV in place, connect the AC cord.

Removing the terminal cover

TV (rear view)

Press down the hooks to remove the cover toward you.

Connecting the AC cord to the TV

AC cord (with ferrite core)

• TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT TOUCH UN-INSULATED PARTS OF ANY CABLES WITH THE AC CORD CONNECTED.

Bundling the cables

CAUTION

Adjust the screen with both hands. Put one hand on the Display and tilt the screen while steadying the stand with your other hand.

You can adjust the screen vertically up to 5 degrees forward or 10 degrees backward, or rotate 50 degrees horizontally.

Preparation

Removing speakers

CAUTION

• Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being damaged.

Unfasten the screw used to secure the speaker bracket.

Unfasten the screws.

Take off the speaker terminal cover.

Disconnect the cable from the speaker.

CAUTION

• Do not remove the speakers from the TV unless using an optional bracket to mount it.

NOTE

• Perform the same steps for right speaker.

• To attach the speakers, perform the steps in reverse order.

Preparation

Removing the stand

Before detaching (or attaching) stand, unplug the AC cord from the AC INPUT terminal.

CAUTION

• Do not remove the stand from the TV unless using an optional wall mount bracket to mount it.

Before attaching/detaching stand

• Before performing work make sure to turn off the TV.

• Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being damaged.

Unfasten the four screws used to secure the stand in place.

NOTE

• To attach the stand, perform the above steps in reverse order.

Detach the stand from the TV. (Hold the stand so it will not drop from the edge of the base area.)

Setting the TV on the wall

CAUTION

• Installing the TV requires special skill that should only be performed by qualified service personnel. Customers should not attempt to do the work themselves. SHARP bears no responsibility for improper mounting or mounting that results in accident or injury.

Using an optional bracket to mount the TV

• You can ask a qualified service personnel about using an optional bracket to mount the TV to the wall.

• Carefully read the instructions that come with the bracket before beginning work.

Hanging on the wall

Wall mount bracket. (See the bracket instructions for details.)

Vertical mounting Angular mounting

Preparation

Inserting the batteries

If the remote control fails to operate TV functions, replace the batteries in the remote control unit.

1 Open the battery cover. 2 Insert two “AAA” size batteries

3 Close the battery cover.

(supplied with the product).

• Place the batteries with their terminals corresponding to the (e) and (f) indications in the battery compartment.

CAUTION

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

• Place the batteries with their terminals corresponding to the (e) and (f) indications.

• Do not mix batteries of different types. Different types of batteries have different characteristics.

• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries.

• Remove batteries as soon as they are worn out. Chemicals that leak from batteries can cause a rash. If you find any chemical leakage, wipe thoroughly with a cloth.

• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.

• If you will not be using the remote control unit for an extended period of time, remove batteries from it.

Using the remote control unit

Use the remote control unit by pointing it towards the remote control sensor on the TV. Objects between the remote control unit and the remote control sensor may prevent proper operation.

Cautions regarding remote control unit

• Do not expose the remote control unit to shock. In addition, do not expose the remote control unit to liquids, and do not place in an area with high humidity.

• Do not install or place the remote control unit under direct sunlight. The heat may cause deformation of the remote control unit.

• The remote control unit may not work properly if the remote control sensor on the TV is under direct sunlight or strong lighting. In such cases, change the angle of the lighting or the TV, or operate the remote control unit closer to the remote control sensor.

30°

7 m

23 feet

30°

Remote

control sensor

Part names

Display

PC CARD slot

VOLUME buttons

(VOLl/k )

CHANNEL buttons

(CHs/r)

INPUT button

POWER (On/Off) button

Remote control sensor

OPC sensor

POWER indicator

Headphone jack

CARD indicator

OPC indicator

SLEEP timer indicator

*OPC: Optical Picture Control

(See page 29.)

Part names

Display

MONITOR OUTPUT terminals

INPUT 3 terminals

INPUT 2 terminals

INPUT 1 terminals

AC INPUT terminal

SYSTEM RESET**

DC OUTPUT

terminal

(Terminal for expanded

functionality in the near future.)

SPEAKER terminals

CENTER CHANNEL INPUT terminal

Antenna (A) input terminal

RS-232C terminal

RESET*

INPUT 5 terminals

Antenna (A) output terminal

Antenna (B) input terminal

INPUT 4 terminal

* Press RESET if the TV cannot return to its original state after performing various operations.

• AV MODE resets to DYNAMIC (Fixed)

• TV channel returns to initial channel setting (Air:2ch, Cable:1 or 2ch)

• Twin picture resets to normal

• Audio setting initializes

• Dolby virtual resets to Off

• Image position initializes

** Press SYSTEM RESET if the TV does not operate after starting up.

NOTE

• Pressing RESET will not work if the TV is in standby mode (indicator lights red).

• Pressing RESET will not delete channel preset or secret number. See page 66 for clearing the secret number when you know it. See page 84 for initializing to the factory preset values when you forget your secret number.

Part names

Remote control unit

115

2 3

922

10 24

11 12

14 29

25 26 27

1TV POWER: Switch the TV power on or standby. (See

page 18.)

2 DISPLAY: Display the channel information. 3 SOURCE POWER: Turns the power of the external

equipment on and off.

4 External equipment operational buttons: Operate the

external equipment.

50 – 9: Set the channel. 6 ANT-A/B: Select between ANT-A and B to watch

broadcasts via the two tuners.

7VOL 8 CARD: Switch to card mode. 9

page 21.)

10 EXIT: Turn off the menu screen. 11 SELECT: Select the active screen. (See page 73.) 12 TWIN PICTURE: Set the twin picture mode.

Press again to return to normal screen. (See page

73.)

13 SLEEP: Set the sleep timer. (See page 60.) 14 AUDIO: Select the MTS/SAP. (See page 22.) 15 FUNCTION: Switches the remote control for TV, CBL/

SAT, VCR, DVD and AUDIO operation. Indicator lights up for the current mode. (See page 74 to 77 for details.)

will light. The lighting will turn off if no operations are performed within about 5 seconds. This button is used for performing operations in dark places.

17 VIEW MODE: Select the screen size. (See pages 57

and 58.)

18 FLASHBACK: Return to the previous channel or input

external mode. (See page 20.)

19 INPUT: Select a TV input source. (TV, INPUT 1, INPUT

2, INPUT 3, INPUT 4, INPUT 5, Card) (See pages 45 and 55.)

20 CH 21 MUTE: Mute the sound. (See page 21.) 22 MENU: Display the menu screen. 23 a/b/c/d/ENTER: Select a desired item on the screen. 24 RETURN: Return to the previous menu screen. 25 FAVORITE CH

A, B, C, D: Select four preset favorite channels in four

different categories. (See page 27 for details.)

l: Set the volume. (See page 21.)

Virtual: Select Virtual Dolby Surround settings. (See

: When pressed all buttons on the remote control unit

s: Select the channel.

NOTE

• When using the remote control unit, point it at the TV.

While watching, you can toggle the selected channels by pressing A, B, C and D.

26 FREEZE: Set the still image. Press again to return to

normal screen. (See page 73.)

27 CC: Display captions during closed-caption source.

(See page 61.)

28 EDIT: Register favorite channel. 29 AV MODE: Select an audio or video setting. (See

page 57.) (AV mode: STANDARD, MOVIE, GAME, USER, DYNAMIC (Fixed), DYNAMIC. PC mode: STANDARD, USER.)

• (DOT) (See page 76.)

Watching TV

Simple operations for watching a TV program

Antennas

To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections that are used for a coaxial cable. If your outdoor antenna uses a 75-ohm coaxial cable with an F-type connector, plug it into the antenna terminal at the rear of the TV.

NOTE

• The antenna and the cable converter cannot be connected at the same time.

1. A 75-ohm system is generally a round cable with F-type connector that can easily be attached to a terminal without tools (Commercially available).

75-ohm coaxial cable (round)

2. A 300-ohm system is a flat “twin-lead” cable that can be attached to a 75-ohm terminal through a 300/75-ohm adapter (Commercially available).

300-ohm twin-lead cable (flat)

F-type connector

Cable converter/VCR connection

• Be sure to connect the antenna or the cable converter as follows. Signal reception may fail if improperly connected.

• Be sure to remember what kind of connection is made with your TV.

• The connection type will determine whether to select “Air” or “Cable” for both ANT-A and B when configuring “Air/Cable” settings.

A-1. Connecting with Converter/Descrambler Box and VCR

Coaxial Antenna Cable (commercially available)

2-way signal splitter (commercially available)

VCR

Cable lead-in

Coaxial Antenna Cable (commercially available)

Audio Cable (commercially available)

Video Cable (commercially available)

OUT IN

Cable TV converter

(commercially available)

VIDEO AUDIO OUT IN

NOTE

• Be sure to remember what kind of connection is made with your TV.

• Shown here is the preferred method of connecting a VCR and CATV Converter to your TV if you are in an area with good signal reception. This way you can view either TV programs or VCR tapes and not be concerned about the position of the VCR’s TV/VCR switch and you can enjoy stereo tape playback from a stereo VCR.

• While in STANDBY, no signal outputs from ANT-A OUT.

Watching TV

Cable converter/VCR connection (continued)

A-2. Connecting with cable converter using AUX terminals for audio and video output.

(If your cable TV converter has both RF OUTPUT and AUX terminals, it is recommended to connect it as shown in example A-1.)

Coaxial Antenna Cable (commercially available)

OUT

VIDEO AUDIO

2-way signal splitter (commercially available)

Cable lead-in

RF Cable (Supplied)

Audio Cable (commercially available)

Video Cable (commercially available)

VCR

VIDEO AUDIO OUT IN

NOTE

• Be sure to remember what kind of connection is made with your TV.

B. Connecting with Converter/Descrambler Box without VCR

Coaxial Antenna Cable (commercially available)

2-way signal splitter

OUT IN

Cable TV converter

(commercially available)

Cable lead-in

Coaxial Antenna Cable (commercially available)

NOTE

• Be sure to remember what kind of connection is made with your TV.

• Switching between Antenna-A and Antenna-B is possible by pressing the ANT-A/B button on the remote control.

• A good color picture depends on a good TV signal. So does good multi-channel sound. Ask your dealer for advice on how to install your outdoor antenna to receive the best possible signal.

• If you subscribe to Cable TV or have a central antenna for your building, you may not need an outdoor antenna.

Watching TV

C. Connecting Antenna Cable with VCR

2-way signal splitter

Coaxial Antenna Cable (commercially available)

RF Cable (Supplied)

Audio Cable (commercially available)

Video Cable (commercially available)

VIDEO AUDIO OUT IN

NOTE

• Be sure to remember what kind of connection is made with your TV.

• Shown here is the preferred method of connecting a VCR to your TV if you are in an area with good signal reception. This way you can view either TV programs or VCR tapes and not be concerned about the position of the VCR’s TV/VCR switch and you can enjoy stereo tape playback from stereo VCR.

• If your lead cable is a 300-ohm twin-lead cable or UHF/VHF separate cable, use a 300/75-ohm adapter or combiner (output side is 75-ohm coaxial) to connect to the TV (see below).

(commercially available)

VCR

Cable lead-in

Outdoor antenna connection

Connecting Antenna Cable

Cable without a CATV

Cable TV lead-In

converter

Combination

VHF/UHF antenna

75-ohm coaxial cable (round)

300-ohm twin-lead (flat)

VHF

UHF

ANTENNA

Separate VHF/UHF

antenna

300-ohm twin-lead

75-ohm coaxial cable

NOTICE

F-type connector

75-ohm coaxial cable

Home Antenna

terminal (75-ohm)

Coaxial cable

(commercially

300/75-ohm adapter (commercially available)

300-ohm twin-lead

Combiner (commercially available)

IN OUT

available)

RF Cable (Supplied)

F-type connector should be finger-tightened only.

When connecting the RF cable to the TV set, do not tighten F-type connector with tools. If tools are used, it may cause damage to your TV set. (The breaking of internal circuit, etc.)

Watching TV

POWER indicator

TV POWER (On/Standby)

Display

POWER

Turning on the power

Press POWER on the Display.

• POWER indicator (Green): The TV is on. (After a few seconds, a window appears with sound.)

• POWER indicator (Red): The TV is in standby. Press TV POWER on the remote control.

NOTE

• The initial setup starts when the TV powers on for the first time. If the TV has been turned on before, the EZ setup will not be invoked. See page 24 to try EZ setup from the Setup menu.

Turning off the power

Press TV POWER on the remote control.

• The TV enters standby mode and the image on the screen disappears.

• The POWER indicator on the Display changes from green to red.

Press POWER on the Display.

• The POWER indicator on the Display gradually turns off.

• When the TV is turned off by POWER, you cannot turn on the power by pressing TV POWER on the remote control.

NOTE

• If you are not going to use this TV for a long period of time, be sure to remove the AC cord from the power outlet.

• Weak electric power is still consumed even when POWER is turned off.

Display status indicator

Off

Red

Green

Power off

The TV is in standby mode.

The TV is on.

Watching TV

Initial setup

When you turn on the TV for the first time, it will automatically memorize the broadcasting channels where you live. Perform the following steps before you press TV POWER on the remote control unit.

1. Insert the batteries into the remote control unit. (See page 11.)

2. Connect the antenna cable to the TV. (See pages 15 to 17.)

3. Plug in the AC cord to the AC outlet. (See page 8.)

Language setting

Select from among 3 languages: English, French and Spanish.

Press a/b to select the desired language listed on the screen, and then press ENTER.

Language

Air/Cable

CH Search

English

Français

Español

Antenna setting

Make sure what kind of connection is made with your TV when selecting “Air” or “Cable” for both ANT-A and B.

Press c/d to select “Air” or “Cable” for ANT- A, then press a/b to move down. Press c/d to select “Air” or “Cable” for ANT- B. Press ENTER to enter the setting.

• This operation makes the TV search for both ANT-A and B.

• There are 3 kinds of CATV system, including Standard, HRC and IRC. Select the one matches to your TV. Select Auto when you do not know which one to select.

Example

Language

Air/Cable

CH Search

ANT-A

ANT-B

Air

Cable (Auto)

Channel search

Channel auto search makes the TV look for all channels viewable in the set area.

Press c/d to select “Yes” for ANT-A, then press a/b to move down. Press c/d to select “Yes” for ANT-B, then press a/b to move down to select “Search Start” , and press ENTER.

Language

Air/Cable

CH Search

ANT-A Yes

ANT-B

Search Start

Yes No

Example

CH Search

ANT-A [ ]25Air [ ]20Found

Language

Air/Cable

CH Search

ANT-A

ANT-B

Air

Cable (Auto)

CH Search

ANT-B [ ]25Cable [ ]20Found

ANT-A Air

Audio : MONO

NOTE

• Make sure what kind of connection is made with your TV when selecting “Air” or “Cable” for both ANT-A and B.

• If no channel is found, make sure what kind of connection is made with your TV and try EZ setup again (see page

24).

Watching TV

Simple button operations for changing channels

You can change channels in several ways.

NOTE

• While watching a broadcast, press ANT-A/B to view the

image received from the other tuner.

■ Using FLASHBACK on the remote control

unit

Press FLASHBACK to switch the currently tuned channel to the previously tuned channel. Press FLASHBACK again to switch back to the currently tuned channel.

Press FLASHBACK to toggle between the currently selected input source and the previously selected one.

NOTE

• FLASHBACK will not work if no channel has been changed after the TV is turned on.

■ Using 0 – 9 on the remote control unit

Select the channels directly by pressing buttons 0 to

• The TV allows you to select up to 125 channels (1 to 125). To select a channel, enter a 2 or 3-digit number.

To select a 1 or 2-digit channel number (e.g., Channel 5):

Complete the following steps within 3 seconds.

■ Using CHr/s

• Press CH

NOTE

• CH s/r on the Display operates the same as CH ss

s on the remote control unit.

r to increase the channel number.

rr ss

s to decrease the channel number.

on the remote control unit

Display

CH s/r

■ Changing channels with CH r/s on the

remote control unit or CH s/r on the Display

Air: Press CH r and the channel change in the

order shown below: 2s3s...s68s69s2s3... Press CH s and the channel change in the order shown below: 3s2s69s68s...s3s2...

Press the 0 button.

• Complete the step 2 within 3 seconds after the step 1.

Press the 5 button.

• When selecting a 1-digit channel number, do not fail to

press the 0 button.

To select a 3-digit channel number (e.g., Channel 115):

Complete the following steps within 3 seconds.

Press ENTER to enter the setting.

• Channel selection will be made if there is no operations for 3 seconds.

NOTE

Press the 1 button.

• Complete the step 2 within 3 seconds after the step 1.

Press the 1 button again.

• Complete the step 3 within 3 seconds after the step 2.

Press the 5 button.

Cable:Press CH r and the channel change in the

order shown below: 1s2s3s...s125s1s2s3... Press CH s and the channel change in the order shown below: 3s2s1s125s...s3s2s1s...

115

Press ENTER to enter the setting.

• Channel selection will be made if there is no operations for 3 seconds.

Watching TV

Simple button operations for changing volume/sound

■ Changing the volume

You can change the volume on the Display or on the remote control unit.

Display

VOL l/k

■ Using VOL

• To increase the volume, press VOL

• To decrease the volume, press VOL

NOTE

• VOL l/kon the Display operates the same as VOL k/l

on the remote control unit.

Volume adjustment

■ Using MUTE on the remote control unit

Mutes the current sound output.

Press MUTE.

•“M” has been displayed on the screen for 30 minutes, and the sound is silenced.

Mute

NOTE

• Within 30 minutes of pressing MUTE, mute can be

canceled by using one of the methods below.

• Mute will cancel if you press VOL l/k or MUTE.

• Mute will be canceled after 30 minutes have passed.

However, the TV will not suddenly output a loud sound as the volume level is set to 0 automatically.

■ Using Virtual on the remote control unit

Audio status

specified

Output Select

VariableFixed

Mute

Variable sound

Output device

Speaker

MONITOR OUT

* When “Output Select” is set to “Variable”, the indicator on

the screen changes as shown below.

Variable sound

Constant as

NOTE

• See page 60 for details on the output select function.

Virtual produces Dolby virtual effect from the

speakers. Each time you press Virtual, the mode changes between On and Off.

Dolby Virtual sound options

• On: Makes it possible to enjoy natural, realistic surround sound.

• Off: Outputs the normal sound.

Dolby Virtual : Off

NOTE

• You can have the same settings by choosing “Dolby

Virtual” on the menu items. (See page 32.)

Dolby Virtual : On

Watching TV

ANT-A Air

Audio : MONO

ANT-A Air

Audio : ST(SAP)

ANT-A Air

Audio : SAP(ST)

Setting MTS/SAP stereo mode

The TV has a feature that allows reception of sound other than the main audio for the program. This feature is called Multi-channel Television Sound (MTS). The TV with MTS can receive mono sound, stereo sound and Secondary Audio Programs (SAP). The SAP feature allows a TV station to broadcast other information, which could be audio in another language or something completely different like weather information.

You can enjoy Hi-Fi stereo sound or SAP broadcasts where available.

• Stereo broadcasts

View programs like live sporting events, shows and concerts in dynamic stereo sound.

• SAP broadcasts

Receive TV broadcasts in either MAIN or SAP sound. MAIN sound: The normal program soundtrack (either in mono or stereo). SAP sound: Listen to second language, supplementary commentary and other information. (SAP is mono sound.)

If stereo sound is difficult to hear.

• Obtain a clearer sound by manually switching to fixed mono-sound mode.

NOTE

• MTS only operates while in TV mode.

You can change MTS as shown below to match the television broadcast signal.

Examples: when receiving MTS and SAP

STEREO mode MAINkSAP mode

ANT-A Air

Audio : STEREO

ANT-A Air

Audio : MONO

ANT-A Air

Audio : MAIN

ANT-A Air

Audio : SAP

STEREOkSAP mode MONO mode

ANT-A Air

Audio : MONO

Basic adjustment settings

AV input mode menu items

List of AV menu items to help you with operations


OPC ................................................ Page 29

Backlight ........................................ Page 28

Contrast ......................................... Page 28

Brightness ..................................... Page 28

Color ............................................... Page 28

Tint ................................................. Page 28

Sharpness ...................................... Page 28

Advanced

C.M.S. ................................... Page 29

Color Temp. ......................... Page 30

Black .................................... Page 30

3D-Y/C .................................. Page 30

Monochrome ....................... Page 31

Film Mode ............................ Page 31

I/P Setting ............................ Page 31

Audio

PC input mode menu items

List of PC menu items to help you with operations


OPC ................................................ Page 29

Backlight ........................................ Page 28

Contrast ......................................... Page 28

Brightness ..................................... Page 28

Red ................................................. Page 28

Green .............................................. Page 28

Blue ................................................ Page 28

Advanced

C.M.S. ................................... Page 29

Audio

Treble .............................................. Page 32

Bass ............................................... Page 32

Balance .......................................... Page 32

Dolby Virtual .................................. Page 32

Power Control

No Signal Off ................................. Page 33

No Operation Off ........................... Page 33

Setup

EZ Setup ........................................ Page 24

CH Setup ................................. Pages 25-26

Speaker Setup ............................... Page 53

Input Label ..................................... Page 56

Parental CTRL ........................ Pages 65-71

Position .......................................... Page 51

Picture Flip .................................... Page 56

Language ....................................... Page 27

Treble .............................................. Page 32

Bass ............................................... Page 32

Balance .......................................... Page 32

Dolby Virtual .................................. Page 32

Power Control

Power Management ...................... Page 33

Setup

Speaker Setup ............................... Page 53

Input Signal ................................... Page 59

Auto Sync. ..................................... Page 54

Input Label ..................................... Page 56

Fine Sync. ...................................... Page 54

Picture Flip .................................... Page 56

Language ....................................... Page 27

Option

Audio Only ..................................... Page 59

Digital Noise Reduction ............... Page 59

HDMI Setup .................................... Page 49

Input Select.................................... Page 55

Output Select................................. Page 60

Quick Shoot ................................... Page 60

Center Channel Input ................... Page 72

Caption Setup......................... Pages 62-64

Option

Audio Only ..................................... Page 59

Input Select.................................... Page 55

Output Select................................. Page 60

Quick Shoot ................................... Page 60

Center Channel Input ................... Page 72

Basic adjustment settings

EZ setup

You can run EZ Setup again, even after setting up the preset channels.

Language setting

Select from among 3 languages: English, French and Spanish.

Antenna setting

Make sure what kind of connection is made with your TV when selecting “Air” or “Cable” for both ANT-A and B.

Press c/d to select “Air” or “Cable” for ANTA, then press a/b to move down. Press c/d to select “Air” or “Cable” for ANTB. Press ENTER to enter the setting.

• This operation makes the TV search for both ANTA and B.

• There are 3 kinds of CATV system, including Standard, HRC and IRC. Select the one matches to your TV. Select Auto when you do not know which one to select.

Example

Language

Air/Cable

CH Search

Language

Air/Cable

CH Search

ANT-A

ANT-B

ANT-A

ANT-B

Air

Cable (Auto)

Air

Cable (Auto)

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “EZ Setup”, and then press ENTER.

• If you already set the Secret No., go to step 4. If not, skip to step 5.

Input the 4-digit secret number by using 0 – 9.

...

[

Secret No.

Setup

Setup Option

EZ Setup

]

––––

Press a/b to select the desired language listed on the screen, and then press ENTER.

Language

Air/Cable

CH Search

English

Français

Español

Channel search

Channel auto search makes the TV look for all channels viewable in the set area.

Press c/d to select “Yes” for ANT-A, then press a/b to move down. Press c/d to select “Yes” for ANT-B, then press a/b to move down to select “Search Start” , and press ENTER.

Language

Air/Cable

CH Search

ANT-A Yes

ANT-B

Search Start

Yes No

Searching TV channels

Example

...

[

Setup

[

Setup

EZ Setup

...

EZ Setup

ANT-A [ ]25Air [ ]20Found

ANT-B [ ]2Cable [ ]20Found

...

CH Search

...

CH Search

]

NOTE

• If no channel is found, make sure what kind of connection is made with your TV and try EZ setup again.

• Make sure what kind of connection is made with your TV when selecting “Air” or “Cable” for both ANT-A and B.

Basic adjustment settings

Channel setup

If initial setup does not memorize all the channels in your region, follow the instructions below to manually memorize the channels.

Antenna setting

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “CH Setup”, and then press ENTER.

• If you already set the Secret No., input the 4digit secret number here. See page 65 for setting a secret number.

Air/Cable

CH Search

CH Memory

ANT-A

ANT-B

Air

Channel search

Channel auto search makes the TV look for all channels viewable in the set area.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “CH Setup”, and then press ENTER.

• If you already set the Secret No., input the 4digit secret number here. See page 65 for setting a secret number.

Press a/b to select “CH Search”, and then press ENTER.

Press c/d to select “Yes” for ANT-A, then press a/b to move down. Press c/d to select “Yes” for ANT-B, then press a/b to move down to select “Search Start” , and press ENTER.

Air/Cable

CH Search

CH Memory

ANT-A Yes

ANT-B

Search Start

Yes No

Press a/b to select “Air/Cable”, and then press ENTER.

Press c/d to select “Air” or “Cable” for ANT- A, then press a/b to move down. Press c/d to select “Air” or “Cable” for ANT- B. Press ENTER to enter the setting.

Example

Air/Cable

CH Search

CH Memory

ANT-A

ANT-B

NOTE

• Make sure what kind of connection is made with your TV when selecting “Air” or “Cable” for both ANT-A and B.

• There are 3 kinds of CATV system, including Standard, HRC and IRC. Select the one matches to your TV. Select Auto when you do not know which one to select.

Air

Cable (Auto)

Example: CH Search

...

[

Setup

[

Setup

EZ Setup

...

EZ Setup

ANT-A [ ]25Air [ ]20Found

ANT-B [ ]2Cable [ ]20Found

NOTE

• Make sure what kind of connection is made with your TV.

...

CH Search

...

CH Search

]

Basic adjustment settings

Channel memory setting

Press MENU and the MENU screen displays.

Press a/b to select “Skip”, and press c/d to select “On” or “Off”.

• On: Skips channels. (Channel selection disabled using

b.)

• Off: Does not skip channels. (Channel selection enabled

using CH

• Make sure what kind of connection is made with your TV.

NOTE

b.)

Press c/d to select “Setup”.

Press a/b to select “CH Setup”, and then press ENTER.

• If you already set the Secret No., input the 4digit secret number here. See page 65 for setting a secret number.

Press a/b to select “CH Memory”, and then press ENTER.

Example

Air/Cable

CH Search

CH Memory

[

Setup

]

CH Setup

Antenna ANT-A

Cable [2] 2 125

Skip

On Off

...

Press c/d to select ANT-A or B.

Press a/b and press c/d to select the channel you want to skip or not.

Basic adjustment settings

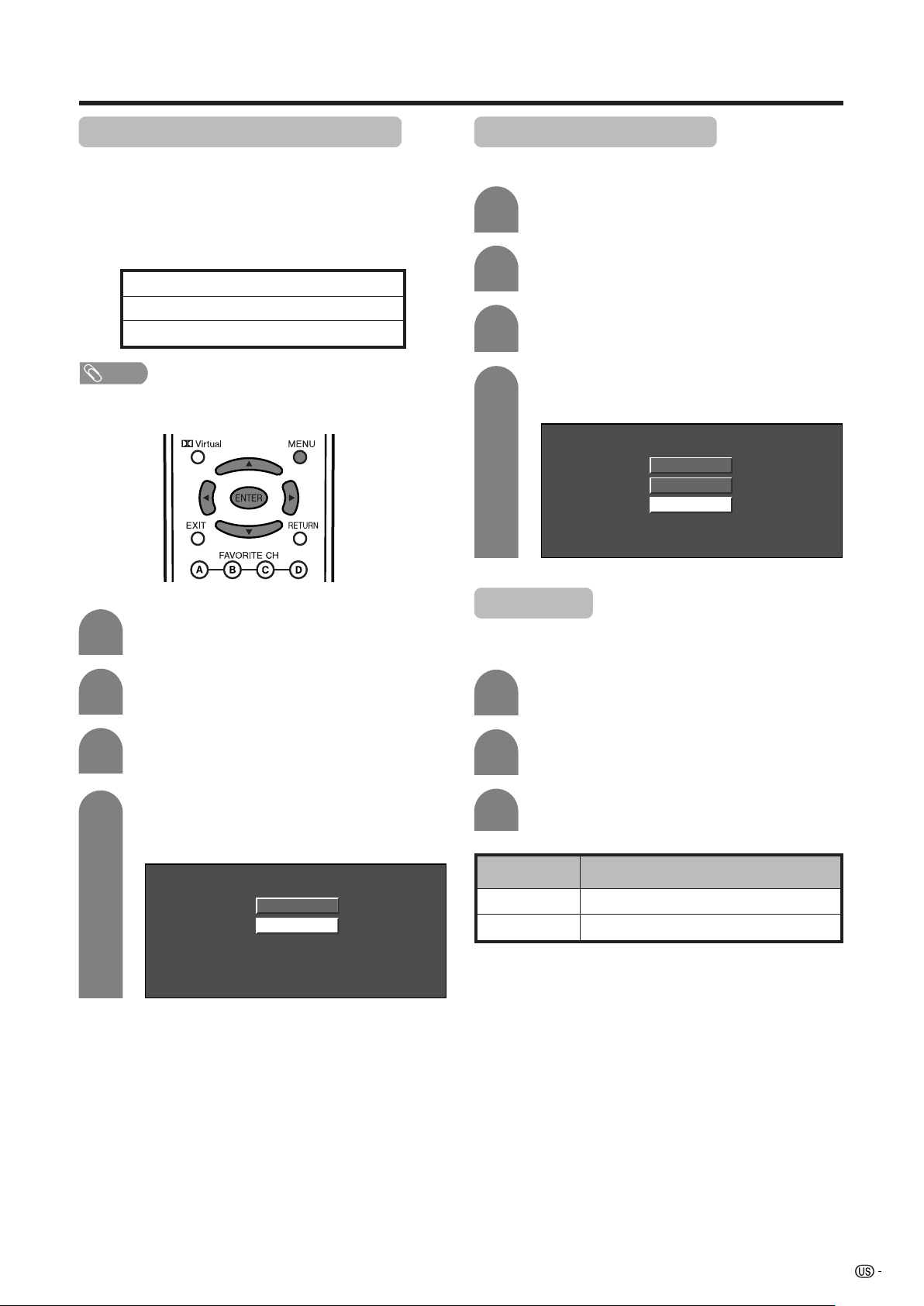

Favorite channel setting

This function allows you to program 4 favorite channels, in 4 different categories. By setting the favorite channels in advance, you can select your favorite channels easily.

Select the channel you want to register as a favorite channel.

Press EDIT.

Press a/b to select “Register”, and then press ENTER.

Press a/b/c/d to select the channel you want to delete, and then press ENTER.

ABCD

ANT-A

ANT-B

Press c/d to select “Yes”, and then press

ANT-A

125

ANT-B

ENTER.

Yes No

ABCD

ANT-A

125

ANT-B

NOTE

• You can delete all the favorite channels by selecting “All Data Clear” at step 2 in Delete favorite channel.

ANT-B

Press a/b/c/d to select the position in the area, and then press ENTER to register.

ABCD

ANT-A

Delete favorite channel

Press EDIT and the favorite channel screen displays.

1 Data Clear

All Data Clear

Language setting

You can also select a language from the Setup menu. Select from among 3 languages: English, French and Spanish.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Language”, and then press ENTER.

Press a/b to select the desired language listed on the screen, and then press ENTER.

English

Français

Español

Press a/b to select “1 Data Clear”, and then press ENTER.

Basic adjustment settings

Picture adjustments

Adjusts the picture to your preference with the following picture settings.

Adjustments items for AV source

[

]


Picture Audio

OPC

Backlight [+8] –8

Contrast

Brightness

Color

Tint

Sharpness

Advanced

Reset

[+30]

[0]

Off On

–30

–10

On : Display

+40

+30

+10

Press MENU and the MENU screen displays.

Press c/d to select “Picture”.

Press a/b to select a specific adjustment item.

Press c/d to adjust the item to your desired position.

NOTE

• For resetting all adjustment items to factory preset values, press a/b to select “Reset”, press ENTER, press c/d to select “Yes”, and then press ENTER.

Adjustments items for PC source

[

]


Picture Audio

OPC

Backlight [+8] –8

Contrast

Brightness

Red

Green

Blue

Advanced

Reset

Off On

[+30]

[0]0–30

[0]

–30

[0]

–30

[0]

–30

On : Display

+40

+30

Selected item

Backlight

Contrast

Brightness

Color

Tint

Sharpness

cbutton

The screen dims

For less contrast

For less brightness

For less color intensity

Skin tones become purplish

For less sharpness

dbutton

The screen brightens

For more contrast

For more brightness

For more color intensity

Skin tones become greenish

For more sharpness

NOTE

• Select “Advanced” and then press ENTER to set “C.M.S-

Hue”, “C.M.S-Saturation”, “C.M.S-Value”, “Color Temp.”, “Black”, “3D-Y/C”, “Monochrome”, “Film Mode” or “I/P Setting”. See pages 29 to 31.

Selected item

Backlight

Contrast

Brightness

Red

Green

Blue

cbutton

The screen dims

For less contrast

For less brightness

For weaker red

For weaker green

For weaker blue

dbutton

The screen brightens

For more contrast

For more brightness

For stronger red

For stronger green

For stronger blue

NOTE

• Select “Advanced” and then press ENTER to set “C.M.SHue”, “C.M.S-Saturation” and “C.M.S-Value”.

Basic adjustment settings

OPC setting

Automatically adjusts the brightness of the screen.

Selected item

Off

On: Display

• When set to “On”, senses the surrounding light and automatically adjusts the backlight brightness. Make sure no object obstructs the OPC sensor, which could affect its ability to sense surrounding light.

• When set to “On: Display”, OPC effect displays on the screen while OPC is adjusting the screen brightness.

Press MENU and the MENU screen displays.

Press c/d to select “Picture”.

Press a/b to select “OPC”.

Press c/d to select “On” or “On: Display”.

OPC

Backlight [+8] –8

Contrast

Brightness

Color

Tint

Sharpness

Advanced

Reset

NOTE

Off On On : Display

[+30]

[0]

–30

[0]

–30

[0]

–30

[0]

–10

Description

No adjustment

Automatically adjusts

Displays the OPC effect on the screen while adjusting the brightness of the screen.

+40

+30

+10

C.M.S. (Color Management System)

Color tone is managed using the six-color adjustment setting.

Selected item

C.M.S-Hue

C.M.S-Saturation

C.M.S-Value

Press MENU and the MENU screen displays.

Press c/d to select “Picture”.

Press a/b to select “Advanced”, and then press ENTER.

Press a/b to select “C.M.S-Hue”, and then press ENTER.

• You can select “C.M.S-Saturation” or “C.M.SValue” here instead of selecting “C.M.S-Hue”.

Press a/b to select a specific adjustment item. Press c/d to adjust the item to your desired position.

C. M. S-Hue

C. M. S-Saturation

C. M. S-Value

Changing reds

closer to

magenta or yellow.

Reset

–30

[ 0]

–30

[ 0]

–30

[ 0]

–30

[ 0] –30

Description

This is a standard to adjust the color either more reddish or more bluish in tone.

Increases or decreases the saturation of a selected color.

A higher value makes the image brighter. A lower value makes the image darker.

+30

NOTE

• For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, and then press

ENTER.

Basic adjustment settings

Color temperature

For a better white balance, use color temperature correction.

Selected item

Press MENU and the MENU screen displays.

Press c/d to select “Picture”.

Press a/b to select “Advanced”, and then press ENTER.

Press a/b to select “Color Temp.”, and then press ENTER.

C. M. S-Hue

C. M. S-Saturation

C. M. S-Value

Color Temp.

Black

3D-Y/C

Monochrome

Film Mode

I/P Setting

High

Mid-High

Middle

Mid-Low

Low

Press a/b to select the desired level, and then press ENTER.

Description

Black

For easier viewing, change the viewing depth by selecting a level for automatically adjusting the dark portion of an image.

Repeat steps 1 to 3 in Color temperature.

Press a/b to select “Black”, and then press

ENTER.

Press c/d to select “On”, and then press

ENTER.

Selected item

Off On

No adjustment

For high detail in black portions

Description

3D-Y/C

Provides high quality images with minimal dot crawl and cross color noise.

Repeat steps 1 to 3 in Color temperature.

Press a/b to select “3D-Y/C”, and then press ENTER.

High Mid-High Middle Mid-Low Low

White with Bluish tone

White with Reddish tone

Press a/b to select the desired level, and then press ENTER.

Selected item

Standard Fast Slow

NOTE

• 3D-Y/C is not available for S-video, Component, DVI,

HDMI, or CARD inputs.

Normal adjustment

For movie image

For still image

Description

Basic adjustment settings

Monochrome

For viewing a video in monochrome.

Press MENU and the MENU screen displays.

Press c/d to select “Picture”.

Press a/b to select “Advanced”, and then press ENTER.

Press a/b to select “Monochrome”, and then press ENTER.

C. M. S-Hue

C. M. S-Saturation

C. M. S-Value

Color Temp.

Black

3D-Y/C

Monochrome

Film Mode

I/P Setting

On Off

I/P Setting

Adjusting the image and input signal can give you a more beautiful picture.

• I/P Setting is set to Progressive when Film Mode is “On”.

• “I/P Setting” is not selectable when channel display shows

an input resolution of 480P, 720P or 1080I.

Repeat steps 1 to 3 in Monochrome.

Press a/b to select “I/P Setting”, and then press ENTER.

Press c/d to select “Interlace” or “Progressive”, and then press ENTER.

NOTE

Press c/d to select “On”, and then press

ENTER.

Selected item

Off On

Normal color

For viewing in monochrome

Description

Film Mode (3:2 pull-down)

Automatically detects a film-based source (originally encoded at 24 frames/second), analyzes it then recreates each still film frame for high-definition picture quality.

Repeat steps 1 to 3 in Monochrome.

Press a/b to select “Film Mode”, and then press ENTER.

Press c/d to select “On”, and then press

ENTER.

Selected item

Off On

Description

Normal viewing mode

Detects, analyzes, converts film source

Basic adjustment settings

Sound adjustment

You can adjust the sound quality to your preference with the following settings.

Selected item

Treble

Bass

Balance

Press MENU and the MENU screen displays.

Press c/d to select “Audio”.

[

]

Treble

Bass

Balance

Dolby Virtual

Reset

Audio

Audio Power Control

[0] –15

[0]

–15

[0]

+15

[Off]

Press a/b to select a specific adjustment item.

Press c/d to adjust the item to your desired position.

cbutton

For weaker treble

For weaker bass

Decrease audio from the right speaker

dbutton

For stronger treble

For stronger bass

Decrease audio from the left speaker

Dolby virtual

You can enjoy the SURROUND 2ch stereo with Dolby Pro Logic II technology.

VIRTUAL DOLBY SURROUND is a technology certified by Dolby Laboratories that creates a virtualized surround sound experience from two speakers using Dolby Pro Logic or Dolby Pro Logic II.

VIRTUAL DOLBY SURROUND retains all the original multichannel audio information and provides the listener with the sensation of being surrounded by additional speakers.

• You can choose Dolby Virtual by pressing Virtual on

the remote control unit. See page 21 for Dolby Virtual.

• Audio menu is grayed out when Output Select is set to

“Variable” or when headphones are in use.

• Balance and Audio Quality Control are grayed out when

Dolby Virtual is set to “On”.

• For some discs, setup may be required on your DVD. In

this case, please refer to the operation manual of your DVD player.

• You may not get the Dolby Virtual Surround effect if you

adjust “Treble” or “Bass” setting.

Press MENU and the MENU screen displays.

Press c/d to select “Audio”.

Press a/b to select “Dolby Virtual”, and then press ENTER.

...

[

Audio

Audio Power Control

Treble

Bass

Balance

Dolby Virtual

Reset

Dolby Virtual

[0] –15

[0]

–15

[0]

]

Press c/d to select “On”, and then press

ENTER.

NOTE

+15

[Off]

NOTE

• Audio menu is grayed out when Output Select is set to “Variable” or when headphones are in use.

• Balance and Audio Quality Control are grayed out when Dolby Virtual is set to “On”.

• For resetting all adjustment items to factory preset values, press a/b to select “Reset”, press ENTER, press c/d to select “Yes”, and then press ENTER.

Basic adjustment settings

Power control

Power control setting allows you to save energy.

Power control for AV source

No signal off

When set to “Enable”, the power will automatically shut down if no signal inputs for 15 minutes.

Press MENU and the MENU screen displays.

Press c/d to select “Power Control”.

Press a/b to select “No Signal Off”, and then press ENTER.

Press c/d to select “Enable”, and then press ENTER.

Power control for PC source

Power control setting allows you to save energy.

Power management

When set, the power will automatically shut down.

Repeat steps 1 and 2 in No signal off.

Press a/b to select “Power Management”, and then press ENTER.

Press a/b to select “Mode1” or “Mode2”, and then press ENTER.

Off

Mode1

Mode2

DisableEnable

• Five minutes before the power shuts down, remaining time displays every minute.

NOTE

• “Disable” is factory preset value.

• When a TV program finishes, this function may not operate.

No operation off

When set to “Enable”, the power will automatically shut down if there is no operation for 3 hours.

Repeat steps 1 and 2 in No signal off.

Press a/b to select “No Operation Off”, and then press ENTER.

Press c/d to select “Enable”, and then press ENTER.

• Five minutes before the power shuts down, remaining time displays every minute.

Selected item

Off

Mode1

Mode2

NOTE

• When using a digital PC and setting “Mode2” in Power management, the power may not turn back on automatically even if the signal inputs again.

• If you turn off the power by disconnecting AC cord when setting “Mode2” in power management, the TV may not function properly after turning the power on again. In such case, press TV POWER on the remote control unit.

• No power management

• Factory preset value.

• If no signal inputs for 8 minutes, the power shuts down.

• Even if you start using the PC and the signal inputs again, the TV stays off.

• The TV turns on again by pressing TV POWER on the remote control unit. (See page 18).

• If no signal inputs for 8 seconds, the TV enters standby mode.

• When you start using the PC and the signal inputs again, the TV turns on.

Description

NOTE

• “Disable” is factory preset value.

Using memory card

Important notes on using memory cards

• We will not be liable for misuse of the TV set, any troubles during use, or other problems, or any damages arising out of the use of the TV set, except for the cases for which we are liable by statute.

• If you or other people misuse the TV set, or the TV set is affected by static electricity or electrical noise, the recorded data may be in danger of being changed or lost.

• If you are making a record of importance, run a test in advance to ensure that the recording would be performed correctly in terms of picture or sound quality.

• We do not capture responsibility nor compensate even if pictures or sound could not be recorded correctly because of troubles.

Duplicating images and music by copying and/or editing from videocassettes and/or TV programs that are subject to copyrights is only permitted when the edited or copied versions are used for personal pleasure. With the exception of cases when the user personally is the owner of the copyrights of the object in question or when specific and written permission has been obtained from the owner(s) of the object in question, the user is not permitted to make copies and/or duplications and/or edited versions as this constitutes a violation of the copyright laws, possible exposing the user to demands for compensation for damages. Therefore, strictly adhere to the existing copyright laws.

In addition when using image data that includes third parties, the use without prior permission of these images may constitute an intrusion on the privacy of third parties, so strictly refrain from such usage.

The recording formats

Still picture

Motion Picture

Recording/Playback file format

Size of a captured still picture

Recording file format

Size of a recorded motion picture/number of frames

Playback file format

JPEG (DCF compliant) 640g480 dots

SP/LP... ASF (Motion Picture: MPEG-4 compliant, Sound: WMA-compliant)

EP........ ASF (Motion Picture: MPEG-4 compliant, Sound: G.726-compliant)

SP ... Size: 320g240 dots, Frame: approx. 30 frames/sec LP ... Size: 320g240 dots, Frame: approx. 30 frames/sec EP ... Size: 320g240 dots, Frame: approx. 15 frames/sec

ASF (Motion Picture: MPEG-4 compliant, Sound: WMA-compliant) ASF (Motion Picture: MPEG-4 compliant, Sound: G.726-compliant)

Approximate number of recordable pictures/time

Still Pictures

Picture size

Still picture

* Recordable numbers may vary depending on the receiving condition of the TV set and/or content of images.

640g480

Approx. 300 pictures

32MB

Memory card

128MB

Approx. 1000 pictures

Motion pictures

Memory card capacity

256MB

Approx. 1h.

5GB

Approx. 4h.

Approx. 10h.

Approx. 25h.

Recordable time

Picture size

320g240 320g240

320g240

Recording mode

Approx. 10 min.

Approx. 30 min.

• Recordable time may vary depending on receiving condition of the TV set or content of images.

• The maximum amount of data you can record on a memory card is 1,024 pictures in total including still and motion pictures.

Using memory card

You can use memory cards (commercially available) for recording and playing back pictures.

• Please use an appropriate PC card adapter (commercially available) for each memory card.

• Following memory cards are available. (Note that names for memory cards vary depending on manufacturers.)

Memory card name

SD Memory Card

mini SD™ Card

CompactFlash

MultiMediaCard

SmartMedia

Memory Stick

Memory Stick PRO

Microdrive

xD Picture Card

PC Card Hard Disk

Storage capacity

512 MB or less

32 MB or less

2 GB or less

128 MB or less

1 GB or less

2 GB or less

128 MB or less

5 GB or less

* Each memory card name is a trademark. * The capacity of memory card is approximate. The

capacity varies depending on the manufacturer.

• To read picture files recorded with digital cameras, use the PC card adapter recommended by the corresponding manufacturer. (The names for PC card adapters vary depending on manufacturers.)

• For directions for use of digital cameras or PC card adapters, please refer to the operation manual provided for each product.

You can playback DCF compliant JPEG pictures captured with other devices in the card playback mode.

• DCF (Design rule for Camera File system) is a standard of the Japan Electronics and Information Technology Industries Association (JEITA). This standard specifies the image file format used for images shot with a digital camera.

• Some motion pictures recorded with other devices may not be played back correctly.

Commercially available memory cards

SD Memory

Card

miniSD™ Card

MultiMediaCard

CompactFlash

SmartMedia

• Please use an appropriate PC card adapter (commercially available) for each memory card.

Preparing a memory card

Insert a memory card (commercially available) into a PC card adapter (commercially available).

Example: Inserting the SD memory card into a PC card adapter.

PC card adapter

Memory Stick

PRO

PC Card Hard Disk

xD Picture Card

Microdrive

Notes on using memory cards and PC card adapter

Please note the following when using memory cards and PC card adapters to avoid corruption of data or malfunction of the TV set.

• If you use memory cards other than those shown above, recording or playing back pictures are not guaranteed.

• Some PC card adapters have restrictions of memory card capacity. Refer to the relevant operation manual for such restrictions.

• Some pictures which have been created, modified, or copied on your PC may not be played back.

• Do not bend, drop or apply a shock to memory cards or PC card adapters.

• Keep memory cards or PC card adapters away from heat, water or direct sunlight.

• Do not dismantle or modify memory cards or PC card adapters.

• Refer to the appropriate operation manuals for details on using or keeping memory cards or PC card adapters.

• Do not turn the TV set off while a memory card is in operation (e.g. playing back, recording or displaying a slideshow).

Using memory card

Card Setup mode menu items

Card Setup

CARD

Still Setup Slide Show

Interval

Order

Repeat

Video Setup

Format

My Program

Audio Select

File Operation

Rec. Mode

Pre Record

Repeat Play

File Operation

Yes/No

Setup/Delete All

Off/TV/Input1-Input5

Protect/Delete File/ Delete All

SP/LP/EP

On/Off

Off/File/All

Protect/Delete File/Delete All

Slide show operation panel Motion picture operation panel

12345

...

CARD

Play

Mode : SP

00:15:25

VIDEO

PLAY

0001/0045 REPEAT:OFF

...

STILL

SLIDE SHOW

0001/0045 ORDER:NORMAL REPEAT:OFF

PREV.

1-10/15/20/25/30/ 45/60 s.

15/30/60 Min.

Normal/Random/ My Program

On/Off

345 6

1 Rotate the image 2 Pause 3 Go to previous image 4 Start slide show 5 Stop slide show 6 Go to next image

6 7 8 9 10 11 12 13

1 Action 2 Go back to the beginning of the file 3 Pause 4 Repeat playback setting 5 Go to the beginning of the next file 6 Recording mode 7 Counter 8 Current action 9 Reverse 10 Playback 11 Stop 12 Fast forward 13 Slow playback

Precautions when playing back PC image data on the TV

Recording formats of image data:

When recording image data on the TV, the recording formats are as follows.

• When recording motion pictures: The SD_VIDEO folder is created and the data is stored in. When playing the card,

• When recording still pictures: The DCIM folder is created and the data is stored in. When playing the card, the

When playing the card, record PC data in a recording format the TV can recognize.

1. When copying motion pictures from a PC to a card recorded with the TV, only play these pictures after placing them in the SD_VIDEO folder.

2. When copying still pictures from a PC to a card recorded with the TV, only play these pictures after placing them in the DCIM folder.

3. When using a new card for copying motion pictures, first format the card and create an SD_VIDEO folder before placing the data in the folder for playback.

4. When using a new card for copying still pictures, first format the card and create a DCIM folder before placing the data in the folder for playback.

When creating, revising, or copying images using your PC, the edited images may not playback correctly.

the SD_VIDEO recording format is recognized.

DCIM recording format is recognized.

Using memory card

Ejecting the card

• Make sure the card indicator lights up green.

Inserting a PC card adapter

• Press in the EJECT button if it is popped out.

• Insert a memory card to a PC card adapter beforehand. (See page 35.)

• Insert the PC adapter card slowly.

PC CARD slot

Reverse side

CARD indicator

• When “Please insert a PC card” is displayed, eject the PC card adapter, and then insert the PC card adapter slowly all the way to the end.

• When over a thousand files are in a card, it takes several minutes to load. (approx. 5 minutes.)

• Even if the green light is on, you can not record on a card right after you inserted it.

• Make sure the CARD indicator lights green when you take out a card. Never take out a card when the CARD indicator lights red. This may damage the card.

Press EJECT button.

• EJECT button is popped up.

EJECT button

Press EJECT button again.

NOTE

• CARD indicator lights up green when the card is inserted.

Selecting Still and Video mode

Press CARD and the card mode screen displays.

Press c/d to select “Still” or “Video”, and then press ENTER.

• When in CARD mode, press 0-9 or INPUT to

switch either TV or AV input mode.

Using memory card

Recording a still image

You can record a still image on the card.

Press FREEZE.

Cooking Time

Onion

Tomato

Potato

Still

x 1

Displaying a still image

Press CARD and the card mode screen displays.

Press c/d to select “Still”, and then press ENTER.

Press a/b/c/d to select a file you want to display, and then press ENTER.

Still Video

File 1 File 2 File 3

File 4 File 5 File 6

File 7 File 8 File 9

• To display the files that are in the previous or

next page, select c/d on the index screen and press ENTER.

• When viewing a still image, by pressing VIEW MODE the image size changes. Normal – Full. This function does not work when displaying the index screen.

Displaying slide show

Press REC.

Cooking Time

Still image captured on card.

Onion

Tomato

Potato

Still

x 1

• “Still image captured on card” displays.

Press ENTER to update the still image.

Still

Cooking Time

NOTE

The list of broadcasting type or input signal not available for recording:

1 COMPONENT input 2 HDMI input 3 DVI-I input 4 Card picture 5 Copy guarded signal 6 V-chip blocked program

Repeat steps 1 to 3 in Displaying a still image above.

• The operation panel displays.

SLIDE SHOW

0001/0045 ORDER:NORMAL

PREV.

CARD

...

STILL

Press a/b/c/d to select d, and then press

REPEAT:OFF

ENTER.

• Slide show starts.

• Operate slide show with the operation panel appears on the screen.

• To turn off the operation panel, press CARD on the remote control.

NOTE

• See page 36 for operation panel function.

• You can not rotate the image during slide show. Stop slide show to rotate the image.

Using memory card

Setting Slide Show

You can adjust the interval, order and repeat settings.

Press CARD and the card mode screen displays.

Press MENU and the MENU screen displays.

Press c/d to select “Card Setup”.

Press a/b to select “Still Setup”, and then press ENTER.

Press a/b to select “Slide Show”, and then press ENTER.

Slide Show

My Program

Audio Select

File Operation

Interval

Order

Repeat

5 s.

Normal

Off

My Program

You can select up to thirty-two pictures and specify the order for displaying in slide show.

Repeat steps 1 to 4 in Setting Slide Show.

Press a/b to select “My Program”, and then press ENTER.

Press c/d to select “Setup”, and then press ENTER.

Press a/b/c/d to select the files, and then press ENTER.

Repeats the operation in step 4. (You can select up to 32 files.)

After selecting all the files you want, press

RETURN to return to MENU.

To cancel My Program setting

Selected item

Interval

Order

Repeat

Press a/b/c/d to select the desired slide show setting, and then press ENTER.

Description

Set the frame interval for a slideshow.

Set the frame order for a slideshow. See the right column for My Program setting.

If set to On, the slideshow will play again after showing the last frame.

Performs step 1 and 2 in My Program.

Press c/d to select “Delete All”, and then press ENTER.

Press c/d to select “Yes”, and then press ENTER.

• All the registered numbers are cleared.

Audio Select

You can enjoy the audio from TV or other external equipment during the still image playback.

Repeat steps 1 to 4 in Setting Slide Show.

Press a/b to select “Audio Select”, and then press ENTER.

Press a/b/c/d to select the desired sound output, and then press ENTER.

Using memory card

Protecting/unprotecting still image files

You can protect any file you do not want to delete.

Repeat steps 1 to 4 in Setting Slide show.

Press a/b to select “File Operation”, and then press ENTER.

Slide Show

My Program

Audio Select

File Operation

Press a/b to select “Protect”, and then press ENTER.

Press a/b/c/d to select the file you want to protect, and then press ENTER.

• Protect mark ( ) displays.

• Select the file with a protect mark and press

ENTER to unprotect it.

Protect

Delete File

Delete All

Deleting all still image files

• You cannot delete a protected file on the card.

• Do not turn off the power or take out a card when deleting a file. The card may malfunction.

Repeat steps 1 to 2 in Protecting/ unprotecting still image files.

Press a/b to select “Delete All”, and then press ENTER.

Press c/d to select “Yes”, and then press

ENTER.

NOTE

• You cannot delete a protected file on the card.

Repeats the operation in step 4.

After setting the files you want to protect, press RETURN to return to MENU.

NOTE

Deleting a still image file

Repeat steps 1 to 2 in Protecting/ unprotecting still image files.

Press a/b to select “Delete File”, and then press ENTER.

Press a/b/c/d to select the file you want to delete, and then press ENTER.

Press c/d to select “Yes”, and then press

ENTER.

• You cannot delete a protected file on the card.

• Do not turn off the power or take out a card when deleting a file. The card may malfunction.

Repeat the operations in steps 3 and 4 above.

After deleting the images you no longer need, press RETURN to return to MENU.

NOTE

Using memory card

Displaying a motion picture

Recording a motion picture

Use this setting to record images you are currently watching. Record with the settings made in “Rec. Mode” and “Pre Record”.

Press CARD and the card mode screen displays.

Press c/d to select “Video”, and then press ENTER.

Press a/b/c/d to select the file you want to play, and then press ENTER.

• Video playback starts.

Press CARD again to display the operation panel.

• See page 36 for the operation panel information.

• When viewing a motion picture, by pressing VIEW MODE the picture size changes. Small – Medium – Large.

The list of broadcasting type or input signal not available for recording:

1 COMPONENT input 2 HDMI input 3 DVI-I input 4 Card picture 5 Copy guarded signal 6 V-chip blocked program

Press REC to start recording.

• CARD indicator lights up red.

• Recording information displays in the lower right corner of the screen.

Press H to stop recording.

NOTE

To display the remaining record time.

Press DISPLAY while not recording.

• Remaining record time displays in the lower right corner of the screen.

NOTE

• Do not press POWER on the display while recording. Recording cannot finish properly and may damage the file.

• Recording stops if you press POWER on the remote control while recording.

• When card has no capacity for recording, “Card is full” displays and stops recording.

• You cannot change the channel or switch the input source while recording.

Using memory card

Rec. Mode

Use this setting for recording images you are currently watching. You can select the recording mode (picture quality) for a motion picture.

Press CARD and the card mode screen displays.

Press MENU and the MENU screen displays.

Press c/d to select “Card Setup”.

Press a/b to select “Video Setup” and then press ENTER.

Press a/b to select “Rec. Mode”, and then press ENTER.

Rec. Mode

Pre Record

Repeat Play

File Operation

Pre Record

You can record the picture slightly before the point where you pressed the record button, enabling you to record just the scene you wanted.

Repeat steps 1 to 4 in Rec. Mode.

Press a/b to select “Pre Record”, and then press ENTER.

Rec. Mode

Pre Record

Repeat Play

File Operation

On Off

Press c/d to select “On”, and then press

ENTER.

Repeat Play

You can specify one file or all files to replay repeatedly.

Press a/b to select the desired mode, and then press ENTER.

Repeat steps 1 to 4 in Rec. Mode.

Press a/b to select “Repeat Play”, and then press ENTER.

Press a/b to select desired setting, and then press ENTER.

Selected item

Off

File

All

Description

No playback or repeat.

Plays back and repeats one file.

Plays back all movie files on the card then repeats.

Using memory card

Protecting/unprotecting motion picture files

You can protect any file you do not want to delete.

Press CARD and the card mode screen displays.

Press MENU and the MENU screen displays.

Press c/d to select “Card Setup”.

Press a/b to select “Video Setup”, and then press ENTER.

Press a/b to select “File Operation”, and then press ENTER.

Press a/b to select “Protect”, and then press ENTER.

Press a/b/c/d to select the file you want to protect, and then press ENTER.

• Protect mark ( ) displays.

• Select the file with a protect mark and press

ENTER to unprotect it.

Deleting a motion picture file

• You cannot delete a protected file on the card.

• Do not turn off the power or take out a card when deleting a file. The card may malfunction.

Deleting all motion picture files

Repeat step 1 to 5 in Protecting/ unprotecting motion picture files.

Press a/b to select “Delete File”, and then press ENTER.

Press a/b/c/d to select the file you want to delete, and then press ENTER.

Press c/d to select “Yes”, and then press ENTER.

Repeat the operations in steps 3 and 4 above.

After deleting the images you no longer need, press RETURN to return to MENU.

NOTE

Repeat the operation in step 7.

After setting the files you want to protect, press RETURN to return to MENU.

• You cannot delete a protected file on the card.

• Do not turn off the power or take out a card when deleting a file. The card may malfunction.

Repeat step 1 to 5 in Protecting/ unprotecting motion picture files.

Press a/b to select “Delete All”, and then press ENTER.

Press c/d to select “Yes”, and then press

ENTER.

NOTE

Using memory card

Format

• Formatting a card deletes all files including the ones which set to protect.

Press MENU and the MENU screen displays.

Press c/d to select “Card Setup”.

Press a/b to select “Format” and then press ENTER.

Press c/d to select “Yes”, and then press ENTER.

NoYes

NOTE

Using external equipment

You can connect many types of external equipment to your TV, like a DVD player, VCR, Digital TV tuner, PC, HDMI equipment, game console and camcorder. To view external source images, select the input source from

INPUT on the remote control unit or on the Display.

Displaying an external equipment image

Explanation here is for the setting when connecting DVD to INPUT1 terminal.

INPUT button

To watch a DVD image, select “INPUT1” from “INPUT SOURCE” menu using INPUT on the remote control unit or on the Display. (See page 55.)

INPUT SOURCE

INPUT1

INPUT2

INPUT3

INPUT4

INPUT5

Selecting the INPUT signal

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Input Select”, and then press ENTER.

...

[

Audio Only

Digital Noise Reduction

Input Select

Output Select

Quick Shoot

Center Channel Input

Caption Setup

Option

Input Select

[Fixed]

Select the desired signal type.

For INPUT1 signal

...

COMPONENT

[

Option

Auto

Video

Input Select

]

[Low]

[Auto]

[Off]

CARD

NOTE

• If the image does not come in clearly, you may need to change the input signal type setting on the “Input Select” menu.

The setting is stored and can be selected on the “INPUT SOURCE” menu.

CAUTION

• To protect all equipment, always turn off the TV before connecting to a DVD player, VCR, Digital TV tuner, PC, HDMI equipment, game console, camcorder or other external equipment.

NOTE

• See pages 46 to 50 for external equipment connection.

• Please refer to the relevant operation manual (DVD player, PC, etc.) carefully before making connections.

• Each time INPUT is pressed, the input source toggles.

• Refer to your external equipment operation manual for the signal type.

Using external equipment

Connecting a DVD player

You can use the INPUT 1, INPUT 2, INPUT 4 or INPUT 5 terminals when connecting to a DVD player and other audiovisual equipment.

When using component cable.

Component video cable

(commercially

available)

DVD player

When using composite cable.

Audio cable (commercially available)

AV cable (commercially

available)

DVD player

When using DVI cable. (INPUT 5)

ø 3.5 mm stereo minijack cable

(commercially available)

DVI cable (Commercially available)

DVD player

NOTE

• See page 49 for connecting a DVD player to HDMI terminal.

Using external equipment

Connecting a VCR

You can use the INPUT 3 terminal when connecting a VCR and other audiovisual equipment.

NOTE

• The S-video terminal has priority over the video terminals.

S-video cable

(commercially

available)

AV cable (commercially available)

VCR

Connecting a game console or camcorder

A game console, camcorder and some other audiovisual equipment are conveniently connected using the INPUT 3 terminals.

NOTE

• The S-video terminal has priority over the video terminals.

S-video cable (commercially

available)

AV cable (commercially available)

Game console/Camcorder

Using external equipment

Connecting a Digital TV STB

You can use the INPUT 1, INPUT 2, INPUT 4 or INPUT 5 terminals when connecting a Digital TV STB and other audiovisual equipment.

When using component cable.

Component video cable

(commercially available)

Digital TV STB

When using composite cable.

Audio cable (commercially available)

(commercially available)

AV cable

Digital TV STB

When using DVI cable. (INPUT 5)

ø 3.5 mm stereo minijack cable

(commercially available)

DVI cable (Commercially available)

Digital TV STB

NOTE

• See page 49 for connecting a Digital TV STB to HDMI terminal.

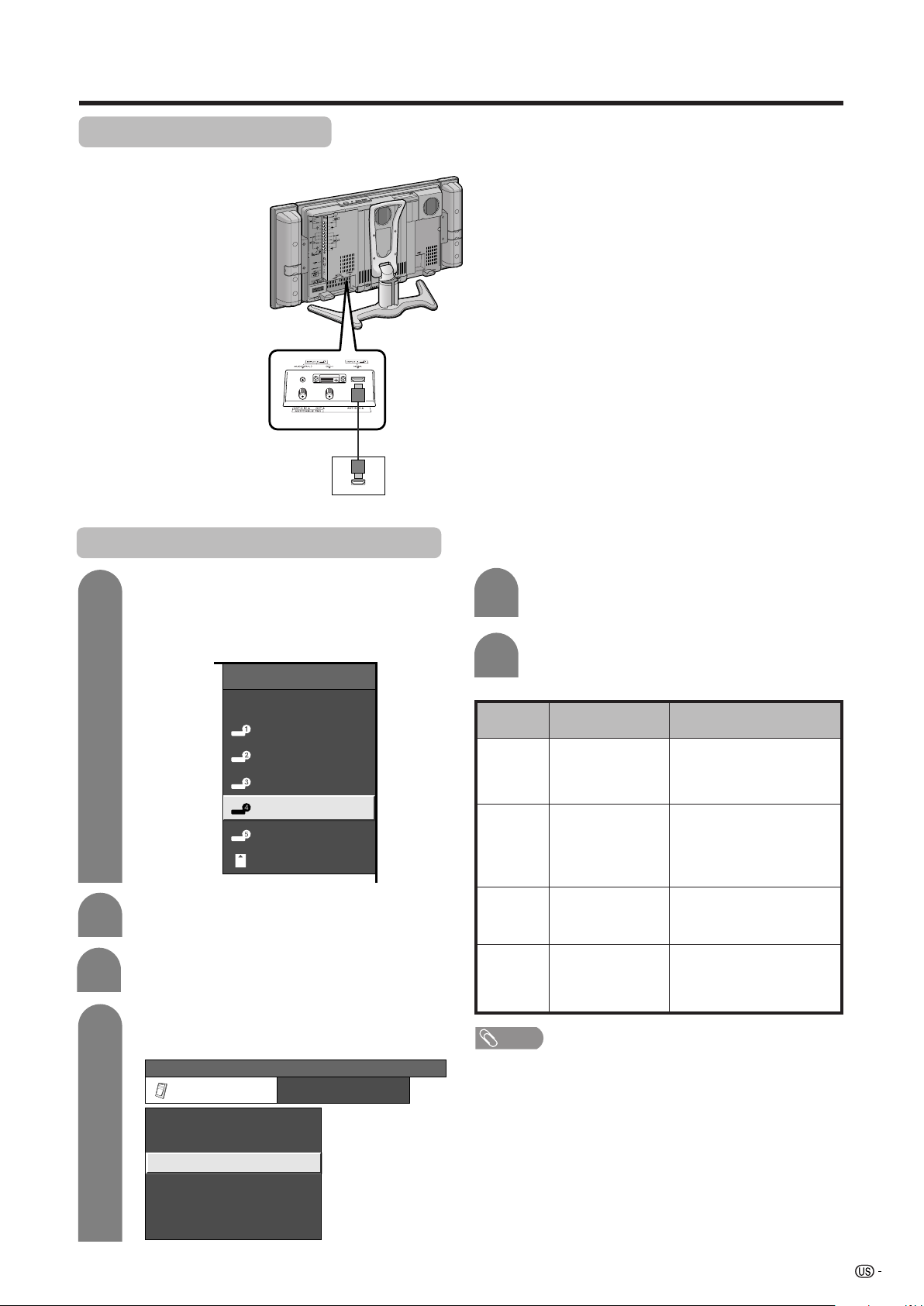

Using external equipment

Connecting HDMI equipment

You can use the INPUT 4 terminal when connecting an HDMI equipment.

HDMI cable (Commercially available)

HDMI equipment

Displaying an image from HDMI equipment

To watch an HDMI equipment image, select “INPUT4” from “INPUT SOURCE” menu using INPUT on the remote control unit or on the TV. (See page 55.)

INPUT SOURCE

INPUT1

INPUT2

INPUT3

INPUT4

INPUT5INPUT5

CARD

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

HDMI Setup items

Signal Type

Color Matrix

Dynamic Range

Auto View

Press a/b to select the desired item and press ENTER.

Press a/b/c/d to select the desired setting and press ENTER.

Selectable items

Auto/RGB/YCbCr 4:4:4/YCbCr 4:2:2

Auto/ITU601/ ITU709

Standard/ Out of standard

Enable/Disable

Description

Select the signal type from an HDMI terminal. Unless the image quality looks obviously poor, select Auto.

Select the internal color space conversion method when an RGB signal is input. Normally, select Auto.

Select the signal amplitude range. Normally, select Standard.

Set whether or not to use VIEW MODE based on signal recognition, including an HDMI signal.

Press a/b to select “HDMI Setup”, and then press ENTER.

...

[

Audio Only

Digital Noise Reduction

HDMI Setup

Output Select

Quick Shoot

Center Channel Input

Option

HDMI Setup

]

[Low]

[Fixed]

[Off]

NOTE

• Refer to your external equipment operation manual for the signal type.

Using external equipment

Connecting a PC

Use the INPUT 5 terminal to connect a PC.

NOTE

• Refer to page 79 for a list of PC signals compatible with the TV.

ø 3.5 mm stereo minijack cable

(commercially available)

PC with DVI terminal

DVI cable (Commercially available)

RGB/DVI conversion cable (Commercially available)

ø 3.5 mm stereo minijack cable (commercially available)

PC with analog RGB terminal

Useful adjustment settings

Image position (AV input mode only)

For adjusting a picture’s horizontal and vertical position.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Position”, and then press ENTER.

Moving the picture on the screen

You can move the picture around on the screen.

Press a/b/c/d to move an image on the screen to the desired position. Press ENTER to return to the original image position.

NOTE

• While pressing a /b/c/ d , an on-screen image, “Adjusting Position” displays to the desired position.

• This setting cannot be stored. Once the TV shuts down or enters standby mode, the setting is erased. To move the picture around the screen again, you must perform the above procedure again.

• The image position setting using the steps on this page can be stored. Select either according to your objectives.

• “TV”, “INPUT1”, “INPUT2”, “INPUT3”, “INPUT4” and “INPUT5” can each adjust the image position setting on this page. The same for view modes.

• An on-screen image from PC and card cannot be moved around.

• Even when the image fills the screen, its position can be adjusted with this function.

• Press ENTER to reset the image to original positions.

Press a/b to select “H-Pos.” or “V-Pos.”.

H-Pos. [0] –10 +10

V-Pos. [0] –20

Reset

+20

Press c/d to adjust the item to your desired position.

NOTE

• For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, and then press ENTER.

• Adjustments are stored separately according to input

source.

• You can easily move the image position as shown on this page, but when the power is switched off the image will return to the previously memorized position.

Selected item

H-Pos.

Centers the image by moving it to the left or right.

Description

V-Pos.

Centers the image by moving it up or down.

Useful adjustment settings

Connecting external speakers

Rear view

How to connect the

speaker cable

Pull up the

lid.

Insert the

edge of the cable.

Put the lid

back down.

Make sure to disconnect the connected speaker cables in advance when connecting external speakers.

Make sure to connect the speaker terminal and cable polarity (L, +) properly

• The speaker terminals have plus (L) and minus (+) polarity.

• Plus is red and minus is black.

• The cables are also divided into plus and minus.

• When connecting the left/right speakers, be sure to connect the plus/minus terminals with the correct cables.

CAUTION

• Make sure external speakers have 4 ohm and 10 watt specifications.

• Connect the plus/minus terminals with the correct cables. Incorrect connection may cause a short.

NOTE

• Unplug the AC cord from the AC outlet before installing the speakers.

Useful adjustment settings

Audio Quality Control

Audio Quality Control automatically optimizes the audio quality to suit internal (supplied) speakers.

Selected item

Equalizer

Flat

• When DOLBY Virtual is on, Audio Quality Control automatically sets to Flat.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Speaker Setup”, and then press ENTER.

Press a/b to select “Audio Quality Control”, and then press ENTER.

Press c/d to select “Equalizer” or “Flat”, and then press ENTER.

Description

Sets the optimum Audio Quality Control for the attached speakers.

When you are using your own speakers, output the original sound without using Audio Quality Control.

NOTE

Useful adjustment settings

Auto Sync. adjustment (PC input mode only)

For automatically adjusting the PC image.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Auto Sync.”, and then press ENTER.

Press c/d to select “Yes”, and then press ENTER.

• Auto Sync. starts and “Now adjusting the image” displays.

...

[

Setup

Auto Sync.

]

Fine Sync. adjustment (PC input mode only)

Ordinarily you can easily adjust the picture as necessary to change image position using Auto Sync. In some cases, however, manual adjustment is needed to optimize the image.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Fine Sync.”, and then press ENTER.

Press a/b to select the specific adjustment item.

H-Pos. [90] – +

V-Pos.

Clock

Phase

Reset

[39]

[90]

[20]

–

NoYes

30%

NOTE

• When Auto Sync. is successful, “Auto Sync completed successfully” displays. If not, Auto Sync. failed.

• Auto Sync. may fail even if “Auto Sync completed successfully” displays.

• Auto Sync. may fail if the computer image has low resolution, has unclear (black) edges, or is moved while executing Auto Sync.

• Be sure to connect the PC to the TV and switch it on before starting Auto Sync.

Press c/d to adjust the item to your desired position.

NOTE

• For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, and then press

ENTER.

Selected item

H-Pos.

V-Pos.

Clock

Phase

Centers the image by moving it to the left or right.

Centers the image by moving it up or down.

Adjust when the image flickers with vertical stripes.

Adjust when characters have low contrast or when the image flickers.

Description

Useful adjustment settings

Input Select

Display

INPUT button

Selecting input source

Use this menu to select the input source.

Press INPUT.

• A list of selectable sources appears.

Press INPUT again to select the input source.

• An image from the selected source automatically displays.

• You can also select the input source by pressing a/b.

• If the corresponding input is not plugged in, you cannot change the input. Be sure to connect the equipment beforehand.

DVI input signal setting

Press INPUT to select INPUT5.

INPUT SOURCE

INPUT1

INPUT2

INPUT3

INPUT4

INPUT5INPUT5

CARD

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Input Select”, and then press ENTER.

Selecting input signal type

For setting the signal type of external equipment connected to INPUT 1, Input 2 or 5 terminals.

• If you set INPUT1 and INPUT2 to Auto, the TV will automatically select the input signal.

• Check the operation manual of the external equipment for the signal type.

• Setting INPUT 1 and INPUT 2 signal selection to “Auto” when other equipment is connected will result in the following connectivity priority.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Input Select”, and then press ENTER.

Press a/b to select a signal type you want to set, and then press ENTER.

• If the selected signal type is incorrect, an image does not display or no color image displays.

NOTE

Press a/ b to select the equipment connected to INPUT 5 terminal, and then press ENTER.

...

DIGITAL PC

ANALOG PC

DIGITAL AV

ANALOG AV

[

Option

Input Select

]

INPUT 1 and INPUT 2

1. COMPONENT VIDEO

2. VIDEO

Useful adjustment settings

Input Label

Lets you set the input terminal displayed using the INPUT SOURCE menu or channel display.

Press INPUT to select INPUT1.

Press MENU and the MENU screen displays.

Picture flip

You can set the orientation of the picture.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Picture Flip”, and then press ENTER.

Press a/b to select the desired mode, and then press ENTER.

[Standard]: normal image.

ABC

• You cannot change labels if the INPUT SOURCE is TV or CARD.

Press c/d to select “Setup”.

Press a/b to select “Input Label”, and then press ENTER.

Press a/b/c/d to select the new name for the channel, and then press ENTER.

INPUT SOURCE

DVD

INPUT2

INPUT3

INPUT4

INPUT5INPUT5

CARD

(Example)

NOTE

[Mirror]: mirror image.

ABC

[Upside Down]: upside down image.

ABC

[Rotate]: rotated image.

ABC

Useful adjustment settings

AV MODE

AV MODE gives you six viewing options to choose from the best match environment of the TV, which can vary due to factors like room brightness, type of program watched or the type of image input from external equipment.

AV MODE: STANDARD

Press AV MODE.

• Present AV MODE displays.

Press AV MODE again before the mode displayed on the screen disappears.

• The mode changes as shown below.

Mode selection for TV, INPUT 1 to 5 terminals and

CARD mode (Example)

AV MODE: MOVIE

View mode for 4:3 Programs

Press VIEW MODE.

• The View mode menu displays.

• The menu lists the view mode options selectable for the type of video signal currently received.

Press VIEW MODE or a/b while the View mode menu is still on the screen.

• You can sequentially select a view mode that has its own aspect ratio.

AV MODE: DYNAMIC

AV MODE: DYNAMIC (Fixed)

AV MODE: GAME

AV MODE: USER TV-ANT-A

Mode selection for the PC terminal

(Example)

AV MODE: STANDARD

Selected item

STANDARD

MOVIE

GAME

USER

DYNAMIC (Fixed)

DYNAMIC

For a highly defined image in a normally bright room

For a movie

Lowers image brightness for easier viewing

Allows the user to customize settings as desired. You can set the mode for each input source.

Changing image and sound settings to factory preset values. No adjustments are allowed.

For a clear-cut image emphasizing high contrast for sports viewing

AV MODE: USER PC

Description

NOTE

• You can select a different AV MODE item for each input mode. (For example, select STANDARD for TV input and DYNAMIC for VIDEO input.)

View Mode

Side Bar

S. Stretch

Zoom

Stretch

Side Bar: Suitable for viewing

S.Stretch: Suitable for stretching (Smart stretch)

Zoom: Suitable for viewing

Stretch: This mode is useful

conventional 4:3 programs in their normal format.

4:3 programs to fill the screen.

wide-screen 2.35:1 anamorphic DVDs in full screen.

for 1.78:1 DVDs. When viewing 1.85:1 DVDs, stretch mode will still show very thin black bands at the top and bottom of the screen.

Useful adjustment settings

Screen size images.

Input signal

(640m480)

View Mode

Normal

Zoom Stretch

Dot by Dot

Input signal (1024m768)

View Mode

Zoom

Stretch

Dot by Dot

View mode (for PC input mode)

You can select the screen size.

NOTE

• Connect the PC before making adjustments. (See page

50.)

• Selectable screen size may vary with input signal type.

Press VIEW MODE.

• The View mode menu displays.

Press VIEW MODE or a/b to select a desired item on the menu.

Input signal

ex. 640g480 Keeps the original

Input signal

1024g768

Normal Zoom Stretch Dot by Dot

aspect ratio in a full screen display.

Normal Zoom Stretch Dot by Dot

Keeps the original aspect ratio in a full screen display. The top and bottom of the image is slightly cropped.

An image fully fills the screen.

Detects the resolution of the signal and displays an image with the same number of pixels on the screen.

Useful adjustment settings

Input signal (for PC input mode)

• Some input signals may have to be registered manually to display properly.

• The pairs of input signals (resolutions) in the list below are not distinguishable when received. In such case, you have to set the correct signal manually. After setting once, it will display when the same signal (resolution) is input again.

640g400

640g480

1024g768

NOTE

• You can only select the “Input Signal” on the Setup menu when receiving one of the 6 input signals listed above.

720g400

848g480

1280g768

Digital Noise Reduction

Produces a clearer video image.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Digital Noise Reduction”, and then press ENTER.

Press a/b to select the desired level, and then press ENTER.

Off

High

Low

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Input Signal” and then press ENTER.

Press a/b to select the desired input signal on the display.

Example

640 x 480

848 x 480

Audio only

When listening to music from a music program, you can set the display off and enjoy audio only.

Selected item

Off

Repeat steps 1 and 2 in Digital Noise Reduction.

Press a/b to select “Audio Only”, and then press ENTER.

Press c/d to select “On”, and then press

ENTER.

Description

Audio is output without screen image.

Both screen images and audio are output.

Useful adjustment settings

Output Select

Allows you to select what controls the audio output.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Output Select”, and then press ENTER.

Press c/d to select “Fixed” or “Variable”, and then press ENTER.

Selected item

Fixed

Variable

• Sound via speaker is adjusted with VOL

k/l on the remote control unit or VOL l/ k on the Display.

• Sound via the MONITOR OUTPUT terminal is not adjustable and constantly outputs.

• Sound via the MONITOR OUTPUT terminal is adjusted with VOL k/l on the remote control unit or VOL l/k on the Display.

• Sound via speaker is muted.

Description

Quick shoot

Use Quick Shoot Operation to record action video more clearly.

Sleep timer

Allows you to set a time when the TV automatically switches to standby.

Press SLEEP.

• Remaining time displays when sleep timer has been set.

Sleep Timer: Remaining

Each time you press SLEEP, the remaining time switches as shown below.

• When set, the time automatically starts counting down.

• If you want to adjust the sleep timer, you can press SLEEP twice then change the time setting.

• Five minutes before time expires, the remaining time displays each minute.

Sleep Timer: Off

• Quick Shoot may cause image noise. If this occurs turn the function “Off”.

Repeat steps 1 and 2 in Output Select.

Press a/b to select “Quick Shoot”, and then press ENTER.

Press c/d to select “On”, and then press

ENTER.

NOTE

Sleep Timer:

NOTE

• Select “Off” by pressing SLEEP to cancel the sleep timer.

• If the sleep timer is activated when set to zero, the TV will enter STANDBY mode.

120

Useful adjustment settings

Closed caption

• Your TV is equipped with an internal closed caption decoder. Closed caption is the system which allows you to view conversations, narration, and sound effects in TV programs and home videos as subtitles on your Display.

• Not all programs and videos offer closed caption. Please look for the “N” symbol to ensure that captions will be shown.

• “CC1” or “CC2” displays subtitles of TV dramas and news programs while allowing a full view of the picture.

• “Text1” or “Text2” superimposes on the picture other information (e.g. TV guide, weather) that is independent of the TV in progress.

Press CC.

• Present CC mode displays.

Press CC again before the mode displayed on the screen displays.

• The Closed Caption toggles.

ANT-A Air

Audio : MONO

CC : 1/2 CC1

• Depending on the signal, information such as 1/4 or 1/2 will appear. 1/2 shows the first of two services. Example: If a program has two services (CC1 and Text 1), closed caption toggles like below.

1/2 CC1 2/2 Text1 OFF

NOTE

• See page 62 to 64 for the detailed closed caption settings.

• When using Twin Picture functions (see page 73), Closed Caption on the program of the active screen is displayed.

• When using Twin Picture functions, the right screen (still image) cannot display Closed Caption.

• When the program contains no closed caption, “ – –” displays in the closed caption information.

• Four kinds of closed caption information is available. However, selectable item depends on the information program contains.

Closed caption information

Useful adjustment settings

Caption Size

Select a caption size.

• Default: The caption size specified by broadcasting station or default size.

• For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, and then press ENTER.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Caption Setup”, and then press ENTER.

Press a/b to select “Caption Size”, and then press ENTER.

Caption Size Default

Font Style

Foreground Color

ABC 123

Foreground Opacity

Background Color

Background Opacity

Character Edge

Reset

Press c/d to select the desired size, and then press ENTER.

NOTE

Default

Font Style

Select a font style.

Selected item

Default

Type 0 Type 1

Type 2 Type 3

Type 4 Type 5

Type 6

Type 7

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Caption Setup”, and then press ENTER.

Press a/b to select “Font Style”, and then press ENTER.

Press c/d to select the desired style, and then press ENTER.

The font specified by broadcasting station or default font.

Proportional font used in the MENU screen.

Monospaced with serifs.

Proportionally spaced with serifs.

Monospaced without serifs.

Proportionally spaced without serifs.

Casual font type.

Cursive font type.

Small capitals.

Description

NOTE

• For resetting all adjustment items to the factory preset

values, press a/b to select “Reset”, and then press

ENTER.

Useful adjustment settings

Foreground Color

Select a character foreground color.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Caption Setup”, and then press ENTER.

Press a/b to select “Foreground Color”, and then press ENTER.

Caption Size Default

Font Style

Foreground Color

ABC 123

Foreground Opacity

Background Color

Background Opacity

Character Edge

Reset

Default

Foreground Opacity

Select a foreground opacity value.

Repeat steps 1 to 3 in Foreground Color.

Press a/b to select “Foreground Opacity”, and then press ENTER.

Press c/d to select the desired value, and then press ENTER.

NOTE

• Default: The foreground opacity value specified by broadcasting station or default opacity value.

• For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, and then press

ENTER.

Background Color

Select a character background color.

Press c/d to select the desired color, and then press ENTER.

NOTE

• Default: The foreground color specified by broadcasting station or default color.

• For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, and then press

ENTER.

Repeat steps 1 to 3 in Foreground Color.

Press a/b to select “Background Color”, and then press ENTER.

• Default: The background color specified by broadcasting station or default color.

• For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, and then press ENTER.

Press c/d to select the desired color, and then press ENTER.

NOTE

Useful adjustment settings

Background Opacity

Select a background opacity value.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Caption Setup”, and then press ENTER.

Press a/b to select “Background Opacity”, and then press ENTER.

Caption Size Default

Default

ABC 123

Font Style

Foreground Color

Foreground Opacity

Background Color

Background Opacity

Character Edge

Reset

Press c/d to select the desired value, and then press ENTER.

NOTE

• Default: The background opacity value specified by broadcasting station or default opacity value.

• For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, and then press

ENTER.

Character Edge

Select a character edge.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Caption Setup”, and then press ENTER.

Press a/b to select “Character Edge”, and then press ENTER.

Press c/d to select the desired setting, and then press ENTER.

NOTE

• Default: The character edge specified by broadcasting station or default edge.

• For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, and then press

ENTER.

Useful adjustment settings

Secret number setting for parental control (AV input mode only)

Allows you to use a secret number to protect certain settings from being accidentally changed.

IMPORTANT:

Three conditions must be met to enable V-Chip (see pages 67 to 71):

1 Secret No. is registered. 2 V-Chip settings have been made. 3 “Status” is set to “On”.

Select “New Secret No.”, and then press ENTER. Input the new 4-digit secret number by using 0 – 9.

New Secret No.

Input Secret No.

New Secret No.

Reconfirm

––––

Input the same 4-digit number on the “Reconfirm” screen as in step 5 to confirm.

New Secret No.

Input Secret No.

New Secret No.

Reconfirm

––––

****

––––

Press RETURN to start configuring V-Chip settings. (See pages 68 and 70 for details.)

Setting a secret number

Press MENU and MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Parental CTRL”, and then press ENTER.

Press a/b to select “Secret No.”, and then press ENTER.

...

[

Setup

Parental CTRL

Setting parental control status

Used to enable or disable the parental control function.

]

Repeat steps 1 to 3 in Setting a secret number.

• Secret number setting menu displays.

Input the 4-digit secret number by using 0 –

Press a/b to select “Status”, and then press ENTER.

Press c/d to select “On” or “Off”, and then press ENTER.

• Select “On” to enable and “Off” to disable Parental CTRL.

V-Chip

Secret No.

Status

On Off

Secret No.

NOTE

• You can skip step 1 and 2 above while in Parental CTRL screen.

Useful adjustment settings

New Secret No.

Secret No. Clear

Yes No

Clearing the secret number

Allows you to clear your secret number.

Changing the secret number

Allows you to change your current secret number.

Repeat steps 1 to 3 in Setting a secret number.

• Secret number setting menu displays.

Input the 4-digit secret number by using 0 –

Press a/b to select “Secret No.”, and then press ENTER.

Press a/b to select “New Secret No.”, and then press ENTER.

Input the old 4-digit number you have set using 0 – 9.

...

[

Setup

Parental CTRL

]

Repeat steps 1 to 3 in Setting a Secret Number.

• Secret number setting menu displays.

Input the 4-digit secret number by using 0 –

Press a/b to select “Secret No.”, and then press ENTER.

Press a/b to select “Secret No. Clear”, and then press ENTER.

Press c/d to select “Yes”, and then press ENTER.

• Your secret number is cleared.

New Secret No.

Secret No. Clear

Input Secret No.

New Secret No.

Reconfirm

––––

Input the new 4-digit number using 0 – 9.

New Secret No.

Secret No. Clear

Input Secret No.

New Secret No.

Reconfirm

––––

Input the same 4-digit number on the “Reconfirm” screen as in step 6 to confirm.

New Secret No.

Secret No. Clear

Input Secret No.

New Secret No.

Reconfirm

––––

****

––––

NOTE

• See page 65 for re-registering with a new secret number after being cleared.

• As a precautionary measure, make a note of your

secret number and keep it in a familiar place. If you lose or forget your secret number, initialize the TV to return all settings except for the TV channel settings to factory preset values. (See page 84.)

• If the secret number is cleared the Status setting automatically sets to “Off”. “V-Chip” and “Status” will not be selectable from the menu.

Useful adjustment settings

Parental control (setting V-CHIP level)

V-CHIP is an electronic filtering device built into your TV. This tool gives parents a great degree of control over broadcasts accessed by their children. It allows parents to select programs judged suitable for child viewing while blocking ones judged not suitable. It does so automatically once you activate the V-CHIP feature in your TV.

“V-Chip” and “Status” will not be selectable from the menu if you do not first configure your secret number. (See page 65 for Secret number setting for parental control.)

• The U.S. has two rating systems for viewing content: TV Parental Guidelines and movie ratings.

• The TV Parental Guidelines work in conjunction with the V-CHIP to help parents screen out inappropriate television shows from their children.

• Movie ratings are used for original movies rated by the Motion Picture Association of America (MPAA) as watched on cable TV and not edited for television. The V-CHIP can also be set to block MPAA-rated movies.

Voluntary movie rating system (MPAA)

Rating

PG-13

Age

NC-17

...

[

Setup

MPAA

TV Guidelines

Can. English Ratings

Can. French Ratings

Parental CTRL

]

TV Parental Guidelines

Description

General audiences. All ages admitted.

Parental guidance suggested. Some material may not be suitable for children.

Parents strongly cautioned. Some material may be inappropriate for children under 13.

Restricted. Under 17 requires accompanying parent or adult guardian (age varies in some jurisdictions).

No one 17 and under admitted.

X is an older rating that is unified with NC-17 but may be encoded in the data of older movies.

• If you select “PG-13”, this will automatically block the higher ratings “R”, “NC-17” and “X”.

PG-13

NC-17

NONE

NOTE

• Voluntary movie rating system only uses an age-based rating.

Content

Rating

TV-Y (All children)

TV-Y7 (Directed to older children)

Suggested age

TV-G (General audience)

TV-PG (Parental Guidance suggested)

TV-14 (Parents strongly cautioned)

TV-MA (Mature audience only)

X: Content rating can be set.

(Fantasy

violence)

(Violence)S(Sexual

situation)

(Adult

language)

(Sexually

suggestive

dialog)

Useful adjustment settings

TV Parental Guidelines (TV Guidelines)

Voluntary movie rating system (MPAA)

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Parental CTRL”, and then press ENTER.

• Secret number setting menu displays only when “Secret No.” is set. (See page 65.)

• “V-Chip” and “Status” will not be selectable from the menu if you do not first configure your secret number. (See page 65.)

Input the 4-digit secret number by using 0 –

Press a/b to select “V-Chip”, and then press ENTER.

V-Chip

Secret No.

Status

[

Setup

Parental CTRL

]

...

Press a/b to select “MPAA”, and then press

ENTER.

Repeat steps 1 to 5 in Voluntary movie rating system (MPAA).

Press a/b to select “TV Guidelines”, and then press ENTER.

Press a/b to adjust the item to your desired position. “ ” indicates the item is blocked.

• The setting automatically enters “Block” for any ratings below your selection.

Example

MPAA

TV Guidelines

Can. English Ratings

Can. French Ratings

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

NONE

When setting an individual content-based rating item, do as follows: 1 Press d to access block content items from

the currently selected age-based rating item.

2 Press a/b to select an individual item, and

then press ENTER to unblock (“

” is removed). Repeat the same steps for other items.

3 Press c or RETURN to register after all

individual content rating items are set.

Example

MPAA

TV Guidelines

Can. English Ratings

Can. French Ratings

• If Status is not set to “On” the configuration settings will not work. (See page 65.)

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

NONE

Press a/b to adjust the item to your desired position. “ ” indicates the item is blocked.

Press RETURN.

• The setting automatically enters “Block” for any ratings below your selection.

• If Status is not set to “On” the configuration settings will not work. (See page 65.)

Example

MPAA

TV Guidelines

Can. English Ratings

Can. French Ratings

PG-13

NC-17

NONE

Useful adjustment settings

Canadian Rating Systems

• The TV rating systems in Canada are based on the Canadian Radio-Television and Telecommunications Commission (CRTC) policy on violence in television programming.

• While violence is the most important content element to be rated, the structure developed takes into consideration other program content like language, nudity, sexuality and mature themes.

• When setting the V-CHIP on the Canadian system you can choose either the Canadian English ratings or the Canadian French ratings.

Canadian English ratings

Rating

Exempt: Includes news, sports, documentaries and other information programming; talk shows, music videos, and variety programming.

Children: Intended for younger children under the age of 8 years. Pays careful attention to themes that could threaten their sense of security and well-being.

Children over 8 years old: Contains no portrayal of violence as the preferred, acceptable, or only way to resolve conflict; nor encourage children to imitate dangerous acts which they may see on the screen.

General: Considered acceptable for all age groups. Appropriate viewing for the entire family, contains very little violence, physical, verbal or emotional.

Parental Guidance: Intended for a general audience, but may not be suitable for younger children (under the age of 8) because it could contain controversial themes or issues.

Over 14 Years: Could contain themes where violence is one of the dominant elements of the storyline, but it must be integral to the development of plot or character. Language usage could be profane and nudity present within the context of the theme.

Adults: Intended for viewers 18 years and older and might contain depictions of violence, which while related to the development of plot, character or themes, are intended for adult viewing. Could contain graphic language and portrayals of sex and nudity.

Age

C8e

14e

18e

Canadian French ratings

Description

Age

Rating

8anse

13anse

16anse

18anse

Description

Exempt programming.

General: All ages and children, contains minimal direct violence, but may be integrated into the plot in a humorous or unrealistic manner.

General but inadvisable for young children: May be viewed by a wide public audience, but could contain scenes disturbing to children under 8 who cannot distinguish between imaginary and real situations. Recommended for viewing with parent.

Over 13 years: Could contain scenes of frequent violent scenes and therefore recommended for viewing with parent.

Over 16 years: Could contain frequent violent scenes and intense violence.

Over 18 years: Only for adult viewing. Could contain frequent violent scenes and extreme violence.

Useful adjustment settings

MPAA

TV Guidelines

Can. English Ratings

Can. French Ratings

C8+

14+

18+

NONE

Canadian English ratings

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Parental CTRL”, and then press ENTER.

• Secret number setting menu displays only when “Secret No.” is set. (See page 65.)

• “V-Chip” and “Status” will not be selectable from the menu if you do not first configure your secret number. (See page 65.)

Input the 4-digit secret number by using 0 –

...

[

Setup

Setup Option

Secret No.

Parental CTRL

Press a/b to select “V-Chip”, and then press ENTER.

V-Chip

Secret No.

Status

Press a/b to adjust the item to your desired position. “ ” indicates the item is blocked.

• The setting automatically enters “Block” for any ratings below your selection.

• If Status is not set to “On” the configuration settings will not work. (See page 65.)

Example

Canadian French ratings

]

––––

Repeat steps 1 to 5 in Canadian English ratings.

Press a/b to select “Can. French Ratings”, and then press ENTER.

Press a/b to adjust the item to your desired position. “ ” indicates the item is blocked.

• The setting automatically enters “Block” for any ratings below your selection.

• If Status is not set to “On” the configuration settings will not work. (See page 65.)

Example

MPAA

TV Guidelines

Can. English Ratings

Can. French Ratings

8ans+

13ans+

16ans+

18ans+

NONE

Press a/b to select “Can. English Ratings”, and then press ENTER.

Useful adjustment settings

How to temporarily release the V-CHIP BLOCK

• The V-CHIP BLOCK is working and censors a broadcast, “V-CHIP HAS BEEN ACTIVATED.” displays.

Press ENTER while the V-CHIP is working and then the secret number setting menu displays.

Enter your 4-digit secret number with 0 – 9 and then press ENTER. At this time V-CHIP BLOCK temporarily releases.

Reactivating the temporarily released V-CHIP BLOCK

• You can reactivate the temporarily released V-CHIP BLOCK as shown below.

Method 1:

Select “Status” setting from the Parental CTRL menu to reactivate BLOCK. See page 65.

Method 2:

Select “V-Chip” setting (“MPAA”, “TV Guidelines”, “Can. English Ratings” or “Can. French Ratings”) from the Parental CTRL to reactivate BLOCK. See pages 68 and 70.

Method 3:

Switch off the TV power.

NOTE

• Performing any of the three above will activate the V-CHIP BLOCK.

Useful adjustment settings

Center Channel Input

You can use the speakers as center speaker when using 5.1ch surrounding sound system.

Press MENU and the MENU screen displays.

Press c/d to select “Option”, and then press ENTER.

Press a/b to select “Center Channel Input”, and then press ENTER.

* Connect to external audio equipment

which supports 5.1ch surround sound system. Refer to your external equipment operation manual for details.

Press c/d to select “On” , and then press ENTER.

OffOn

NOTE

• Sound from Center Channel Input terminal is output from the speakers.

Other viewing options

Twin picture functions

Allows you to display two pictures on the screen at one time.

Twin picture in all cases

You can display two same-sized pictures except when inputting from INPUT 4 (HDMI) and INPUT 5 (DVI-I) terminals and CARD.

Press TWIN PICTURE.

• Twin picture displays and a selected input source image displays.

Picture and still image

You can display two same-sized pictures – one moving and one still.

Press FREEZE.

• A moving image displays on the left screen and a still image displays on the right screen. The still image is one frame captured from a moving image at the moment you press FREEZE.

Press SELECT to set either screen to be active.

•“z” displays on the active screen, which has

sound output.

• This function does not work under the following input conditions:

1 INPUT 4 (HDMI), 2 INPUT 5 (DVI-I), 3 CARD, 4 Two pictures from the same source (e.g. INPUT 1 and

5 An image will appear on the right side only if it is a

* An SDTV image has a 480p signal, so it will not appear

• When this function is not available, “No dual screen display available” will display.

• Pressing ANT-A/B while viewing in Twin Picture mode (TV image and video image) with TV selected will display the TV image of the other tuner.

• A message "Cannot switch screens" will appear.

Press TWIN PICTURE to exit twin picture.

NOTE

INPUT 1),

480i signal.

either.

FREEZE

• This function does not work in INPUT 4 (HDMI), INPUT 5 (DVI-I) and CARD.

• When this function is not available, “No still image display available.” will display.

• Another image can be saved if a PC card with enough capacity is inserted in the card slot.

• The still image automatically goes out after 30 minutes.

• If you are using FREEZE and a broadcast activates the VCHIP BLOCK, FREEZE will cancel and a block message will appear.

Update the still image by pressing ENTER.

• Each time you press ENTER, the image on the

right screen updates.

• If a PC card with enough capacity is inserted in the card slot, a message will appear on the screen asking you whether to save the image. Press REC on the remote control if you want to save.

Press FREEZE to exit still image.

NOTE

Other viewing options

Presetting remote control function

You can operate the connected AV products (AV Receiver, Cable Box, SAT tuner, DTV, VCR, DVD, LD) using the presetting manufacturer function for your remote control unit.

Presetting manufacturer codes

Press FUNCTION until the LED for your device lights up.

After the LED for your device lights up, if you press FUNCTION for three seconds and enter the code registration mode, the LED will blink.

Press 0 – 9 to enter the manufacturer code. (See page 75.)

• Preset mode is finished once the LED no longer lights up.

After registering the code, the LED will stop blinking then turn off after one second. (If you perform an incorrect operation, the LED will blink quickly then turn off.)

Other viewing options

Manufacturer codes

VCR BRAND

Akai Audio Broksonic Canon Capehart Craig Curtis Mathis Daewoo DBX Dynatech Emerson Fisher Funai G.E. Goldstar Hitachi Instant Replay JC Penney JVC Kenwood Lloyds Magnavox Magnin Marantz Memorex Minolta Mitsubishi Montgomery Ward Multitech NEC Panasonic Pentax Philco Philips RCA Realistic Samsung Sanyo Scott Sears Sharp Shintom Sony Sound Design Sylvania Symphonic Tatung Teac Teknika Thomas TMK Toshiba Video Concepts Yamaha Zenith

REMOTE CONTROL

CODE NUMBER

25, 26, 37 15, 22, 30 32 04 34 10, 31 04 34 15, 22, 30 29 21, 32, 35 09, 10, 11 28, 29 04 24 06, 47 04 04, 06, 24, 30 15, 41, 42, 53 14, 15 29 04, 05, 08 31 30 04, 10, 24, 29 06 17, 18, 39, 40 02, 43 29 15, 22, 30 44, 45 05, 06 05 05, 08 06, 07, 33, 51 01, 02, 10, 24 23, 31 10, 14, 52 20 06, 11, 24 01, 02, 03 36 12, 13, 38 29 05, 08 29 15 15, 29 27, 29 29 21 19, 20 30 15, 29, 30 16

DVD/LD BRAND

Denon JVC Kenwood Magnavox Marantz Mitsubishi Panasonic Philips Pioneer Proscan RCA Samsung Sharp Sony Toshiba Yamaha Zenith

CATV CONVERTER

BRAND

Anvision Cable Star Eagle General Instrument

Jerrold

Magnavox

Oak Sigma Panasonic Philips

Pioneer Randtek RCA Scientific Atlanta Sony Viewstar

Zenith

AUDIO BRAND

Sharp

REMOTE CONTROL

CODE NUMBER

02 09, 13 21 04 04 06 02, 22 04, 23 08, 11, 20 03 03, 24 07, 12 01, 10 05, 25 04 02 04

REMOTE CONTROL

CODE NUMBER

04, 05 04, 05 05 02, 03, 07, 12, 13, 14, 19, 22 02, 03, 07, 12, 13, 14, 19, 22, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40 04, 05, 09, 14, 17, 18, 20, 21, 24, 25 8 16, 23 04, 05, 09, 15, 17, 18, 20, 21, 24, 25 08, 10, 29, 30, 46 04, 05 16, 27, 44, 45 01, 26 28 04, 05, 09, 15, 17, 18, 20, 21, 24, 25 06, 14

REMOTE CONTROL

CODE NUMBER

Other viewing options

Cable control buttons

When the FUNCTION is set to CBL/SAT the cable converter connected to the Display can operate using

1 to 4.

1 SOURCE POWER

Turns the cable converter power on and off.

20 – 9

Press a button (or buttons) that corresponds to the channel that you wish to watch.

3 FLASHBACK *

Press to switch between the current channel and the channel you were watching immediately before.

4 CH a/b

Press CH a or CH b to tune in a higher or lower channel.

* Some manufacturers do not preset FLASHBACK.

NOTE

• CABLE and SAT cannot be selected at the same time.

SAT control buttons

1 SOURCE POWER

Turns the Satellite broadcast tuner power on and off.

20 – 9,

3 ENTER, a/b/c/d

• CABLE and SAT cannot be selected at the same time.

• (DOT)

Press a button (or buttons) that corresponds to the channel that you wish to watch.

ENTER: Press to activate the selected function. a/b/c/d: Press the button to select items on the SAT

GUIDE screen or SAT MENU screen.

NOTE

Other viewing options

2 4

7 3

VCR control buttons

The remote control unit button will function as follows when the FUNCTION of the remote control unit is set to VCR.

• When the input selector button having the same number as the input terminal connecting the VCR is pressed, the VCR can operate using 1 to 8.

1 CH a/b

Press to select the channel of the TV tuner on the VCR.

2 SOURCE POWER

Turns the power of the VCR on and off.

3 F

Sets pauses and still pictures.

4 G

Rewinds the tape and allows picture search.

5 H

Stops the tape transport.

6 REC

Starts recording.

7 J

Rapidly advances the tape and allows picture search.

8 I

Starts playback.

5 6 2 1

103

9 4

DVD control buttons

The remote control unit button will function as follows when the FUNCTION of the remote control unit is set to DVD.

• When the input selector button having the same number as the input terminal connecting a DVD player is pressed, these players can operate using

1 to 10.

1 U

Pressing quickly once takes you to the start of the next chapter. Each time you press it, you move ahead to the start of the next chapter.

2 T

Pressing quickly once takes you to the start of the chapter currently playing. Each time you press it, you move back to the start of the previous chapter.

3 SOURCE POWER

Turns the power of the DVD player on and off.

4 F

Set pauses and still pictures.

5 G

Continue pressing to go backward.

6 H

Playback stops when pressing once. With some DVD players, pressing the button twice may open the disc tray.

7 MENU

When this button is pressed, the DVD menu will display.

8 ENTER, a/b/c/d

ENTER: Press to activate the selected function. a/b/c/d: Press the button to select items on the DVD

MENU screen.

9 J

Continue pressing for fast forward.

10 I

Starts playback.

Appendix

Troubleshooting

Problem Possible Solution

• No power

• Unit cannot be operated.

• Remote control unit does not operate.

• Picture is cut off/with sidebar screen.

• When playing back video in card mode, a part of the image is missing or the image is out of position.

• Strange color, light color, or color misalignment

• Check if you pressed TV POWER on the remote control unit. (See page 18.) If the indicator on the Display lights up red, press TV POWER on the remote control unit.

• Is the AC cord disconnected? (See page 8.)

• Has the power been turned on? (See page 18.)

• External influences such as lightning, static electricity, may cause improper operation. In this case, operate the unit after first turning on the power of the Display or unplugging the AC cord and replugging it in after 1 or 2 minutes.

• Is the FUNCTION set correctly? Set it to the TV setting position.

• Are batteries inserted with polarity (e, f) aligned? (See page 11.)

• Are batteries worn out? (Replace with new batteries.)

• Are you using it under strong or fluorescent lighting?

• Is a fluorescent light illuminated near the remote control sensor?

• Is the image position correct? (See page 51.)

• Are screen mode adjustments such as picture size made correctly? (See pages 57 and 58)

• The video playback setting has been affected as a result of moving the image position when playing back a still image in card mode. It is recommended not to move the image position when playing back images from a card.

• Adjust the picture tone. (See pages 28 to 31.)

• Is the room too bright? The picture may look dark in a room that is too bright.

• Check the input signal setting. (See page 59.)

• Power is suddenly turned off.

• No picture

• No sound

• Is the sleep timer set? (See page 60.)

• Check the power control settings. (See page 33.)

• The unit’s internal temperature has increased. Remove any objects blocking vent or clean.

• Is connection to other components correct? (See pages 46 to 50.)

• Is correct input signal source selected after connection? (See page 55.)

• Is the correct input selected? (See page 55.)

• Is a non-compatible signal being input? (See page 79.)

• Is picture adjustment correct? (See pages 28 to 31.)

• Is “On” selected in “Audio Only”? (See page 59.)

• Is the volume too low? (See page 21.)

• Is “Variable” selected in “Output Select”? (See page 60.)

• Is “On” selected in “Center Channel Input”? (See page 72.)

Cautions regarding use in high and low temperature environments

• When the unit is used in a low temperature space (e.g. room, office), the picture may leave trails or appear slightly delayed. This is not a malfunction, and the unit will recover when the temperature returns to normal.

• Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a heater, as this may cause the cabinet to deform and the Liquid Crystal panel to malfunction. Storage temperature: –4°F to +140°F (–20°C to +60°C)

Appendix

PC compatibility chart

PC/MAC Resolution Horizontal Frequency

MAC13" MAC16" MAC19"

640 x 400

720 x 400

VGA

640 x 480

WVGA 848 x 480

SVGA

800 x 600

1024 x 768XGA

WXGA

SXGA

VGA

SVGA

XGA

1280 x 720 1280 x 768

1280 x 1024

640 x 480 832 x 624

1024 x 768

31.5 kHz

37.9 kHz

31.5 kHz

37.9 kHz

31.5 kHz

37.9 kHz

37.5 kHz

43.3 kHz

31.5 kHz

35.1 kHz

37.9 kHz

48.1 kHz

46.9 kHz

53.7 kHz

48.4 kHz

56.5 kHz

60.0 kHz

68.7 kHz

45.0 kHz

48.1 kHz

64.0 kHz

34.9 kHz

49.7 kHz

60.2 kHz

Vertical Frequency

60 Hz 85 Hz 60 Hz 85 Hz 60 Hz 72 Hz 75 Hz 85 Hz 60 Hz 56 Hz 60 Hz 72 Hz 75 Hz 85 Hz 60 Hz 70 Hz 75 Hz 85 Hz 60 Hz 60 Hz 60 Hz 67 Hz 75 Hz 75 Hz

VESA Standard

O O O O O

O O O O O O O O O

Apple and Macintosh are registered trademarks of Apple Computer, Inc. DDC is a registered trademark of Video Electronics Standards Association. Power Management is a registered trademark of Sun Microsystems, Inc. VGA and XGA are registered trademarks of International Business Machines Co., Inc.

Appendix

RS-232C port specifications

PC Control of the TV

• When a program is set, the TV can be controlled from the PC using the RS-232C terminal. The input signal (PC/AV) can be selected, the volume can be adjusted and various other adjustments and settings can be made, enabling automatic programmed playing.

• Attach an RS-232C cable cross-type (commercially available) to the supplied Din/D-Sub RS-232C for the

connections.

NOTE

• This operation system should be used by a person who is accustomed to using computers.

Communication conditions

Set the RS-232C communications settings on the PC to match the display’s communications conditions. The TV’s communications settings are as follows:

Baud rate: Data length: Parity bit:

Stop bit:

Flow control:

9,600 bps

8 bits None 1 bit None

Communication procedure

Send the control commands from the PC via the RS-232C connector. The TV operates according to the received command and sends a response message to the PC. Do not send multiple commands at the same time. Wait until the PC receives the OK response before sending the next command.

Command format

Eight ASCII codes e CR

C1 C2 C3 C4 P1 P2 P3 P4

Parameter

Input the parameter values, aligning left, and fill with blank(s) for the remainder. (Be sure that 4 values are input for the parameter.) When the input parameter is not within an adjustable range, “ERR” returns. (Refer to “Response code format”.) No problem to input any numerical value for “x” on the table.

Command 4-digits:Command. The text of four characters. Parameter 4-digits:Parameter 0 – 9, x, blank, ?

Return codeCommand 4-digits Parameter 4-digits

0009

⫺ 30

100

0055

When “?” is input for some commands, the present setting value responds.

????

Appendix

Response code format

Normal response

Return code (0DH)

Problem response (communication error or incorrect command)

ERR

Return code (0DH)

Command table

• About the command except being indicated here, it is outside the guarantee range of operation.

CONTROL ITEM COMMAND

POWER SETTING It shifts to standby. INPUT SELECTION A TOGGLE

INPUT SELECTION B

AV MODE SELECTION

VOLUME POSITION

VIEWMODE

MUTE

Dolby Virtual

AUDIO SELECTION

SLEEP TIMER

CHANNEL

ANT-A/B CC

TV INPUT1-5 CARD INPUT 1

INPUT 2

INPUT 5

H-POSITIONH-POSITION

V-POSITION

CLOCK PHASE

DIRECT CHANNEL

CH UP CH DOWN

POWR

ITGD ITVD IAVD ICRD INP1

INP5

AVMD

VOLM HPOS

VPOS

CLCK PHSE

WIDE

MU T E 0

ACDV

ACHA x _ _ _ OFTM

DCCH

CHUP CHDW ANT S CLCP

PARAMETER

2 3

5 6

_ _

1 23_____

(Toggle)

Input terminal number (1–5)

AUTO

AUTO VIDEO COMPONENT AUTOINP2

AUTO VIDEO COMPONENT DIGITAL PC ANALOG PC DIGITAL AV ANALOG AV (Toggle) STANDARD MOVIE GAME USER DYNAMIC (Fixed) DYNAMIC Volume (0–60) AV mode. (Ⳳ10) PC mode. (0–180) AV mode. (Ⳳ20) PC mode. (0–100) Only PC mode. (0–180) Only PC mode. (0–40) (Toggle) [AV] Side Bar [AV] S.Stretch [AV] Zoom [AV] Stretch [AV] Normal [PC] Zoom [PC] Stretch [PC] Dot by Dot [PC] (Toggle) On Off (Toggle) On Off (Toggle) OFF OFF TIMER – 30 MIN. OFF TIMER – 60 MIN. OFF TIMER – 90 MIN. OFF TIMER – 120 MIN. 4___ The channel number of TV (1–125)

The channel number of TV Ⳮ1 The channel number of TV ⳮ1 (Toggle) (Toggle)

CONTROL CONTENTS

It input-switches by the toggle. (It is the same as an input change key) It input-switches to TV. (A channel remains as it is. (Last memory)) It input-switches to INPUT1~INPUT5. It shifts to CARD mode. An input change is also included.

Although it can choose now, it is toggle operation in inside.

An input change is included if it is not TV display. In Air, 2–69ch is effective. In Cable, 1–125ch is effective. If it is not TV display, it will input-switch to TV. If it is not TV display, it will input-switch to TV. Change toggle operation of tuner A/B. Toggle operation of a closed caption.

NOTE

• If an underbar (_) appears in the parameter column, enter a space.

• If an asterisk (*) appears, enter a value in the range indicated in brackets under CONTROL CONTENTS.

• As long as that from which the parameter (g) in the table is a numerical value, it may write anything.

Appendix

Specifications

Item 26o LIQUID CRYSTAL TELEVISION,

Model: LC-26GA4U

LCD panel 26o Advanced Super View & BLACK TFT LCD

Number of dots 3,147,264 dots (1366 m 768 m 3 dots)

TV Function

TV-standard (CCIR)

Receiving Channel

VHF/UHF

CATV 1-125ch

American TV Standard NTSC System

VHF 2-13ch, UHF 14-69ch

Audio multiplex BTSC System

Brightness 450 cd/m

Backlight 60,000 hours (at Backlight Standard position)

Viewing angles H : 170° V : 170°

Audio amplifier 10W m 2

Speakers Ø 8cm 2pcs, Ø 2.5cm 2pcs

Terminals AV in, COMPONENT in

Rear INPUT 1

INPUT 2

INPUT 3

INPUT 4

AV in, COMPONENT in

S-VIDEO in, AV in

HDMI in

INPUT 5 Audio in, DVI-I in

ANTENNA 75 q Unbalance, F Type for VHF/UHF/CATV in m 2, out m 1

MONITOR OUTPUT

S-VIDEO out, AV out

4 q 10W (L/R)SPEAKER

CENTER CHANNEL INPUT

Front

Headphones Ø 3.5mm jack

RCA pin

OSD language English/French/Spanish

Power Requirement

AC 120 V, 60 Hz (FOR NORTH AMERICA) AC 110-240 V, 50/60 Hz(FOR OTHERS)

Power Consumption

Weight

139W (0.4W Standby with AC 120 V)

26.5 lbs./12 kg (Display only), 34.2 lbs./15.5 kg (with Display and speaker),

40.8 lbs./18.5 kg (with Display, speaker and stand)

Accessories Operation manual (m1), Remote control unit (m1), AC cord (m1), “AAA” size

battery (m2), RF cable (m1)

• As part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

No.

Part name Part number

Optional accessory

The listed optional accessory is available for the TV. Please purchase it at your nearest shop.

• Additional optional accessories may be available in the near future. When purchasing, please read the newest catalogue for compatibility and check the availability.

1 QACCZA036WJPZ

AC cord

Dimensional drawings

Display

/64 (407)

/32 (493)

/64 (95)

/32 (201) 7

/64 (206) 8

2223/64 (568)

2023/64 (517)

333/8 (848)

267/64 (663)

Unit: inch/(mm)

243/64 (68)

/8 (321) 12

/16 (151)

/16 (100) 5 3

1015/16 (278)

315/16 (100)

HOW TO SET THE FACTORY PRESETS

Turn off the TV by pressing POWER. Press and hold down RESET and press POWER on the Display to turn on the TV. All setting items (except TV channel) return to the factory presetting.

NOTE

• Running the factory presetting operation also clears the secret number.

You can run the EZ Setup again by using the following steps.

1 Turn on the power of the Display. 2 Press MENU. (Make sure the menu screen displays.) 3 Press c/d to select “Setup”. 4 Press a/b to select “EZ Setup”. 5 Press ENTER.

NOTE

• If the secret number setting screen displays, you need to enter your secret number.

• If you forget your secret number, refer to HOW TO SET THE FACTORY PRESETS above.

The secret number is .

NOTE

• As a precautionary measure, make a note of your secret number above, scissor it from this manual, and keep it in a familiar place.

Calling for Service

For location of the nearest Sharp Authorized Service, or to obtain product literature, accessories, supplies, or customer assistance, please call 1-800-BE-SHARP.

LIMITED WARRANTY

CONSUMER LIMITED WARRANTY

SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below.

This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction.

In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer.

The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp.

The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

Model Specific Section

Your Product Model Number & Description:

Warranty Period for this Product:

Additional Item(s) Excluded from Warranty Coverage (if any):

Where to Obtain Service:

What to do to Obtain Service:

TO OBTAIN PRODUCT INFORMATION, CALL 1-800-BE-SHARP OR VISIT www.sharpusa.com

LC-26GA4U LCD Color Television (Be sure to have this information available when you need service for your Product.)

One (1) year parts and labor from the date of purchase.

Non-rechargeable batteries.

From a Sharp Authorized Servicer located in the United States. To find the location of the nearest Sharp Authorized Servicer, call Sharp toll free at 1-800-BE-SHARP.

Ship prepaid or carry in your Product to a Sharp Authorized Servicer. Be sure to have Proof of Purchase available. If you ship the Product, be sure it is insured and packaged securely.

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430-2135

SHARP CORPORATION

VALID IN CANADA ONLY

LIMITED WARRANTY

Consumer Electronics Products

Congratulations on your purchase!

Sharp Electronics of Canada Ltd. (hereinafter called “Sharp”) gives the following express warranty to the first consumer purchaser for this Sharp brand product, when shipped in its original container and sold or distributed in Canada by Sharp or by an Authorized Sharp Dealer:

Sharp warrants that this product is free, under normal use and maintenance, from any defects in material and workmanship. If any such defects should be found in this product within the applicable warranty period, Sharp shall, at its option, repair or replace the product as specified herein.

This warranty shall not apply to: (a) Any defects caused or repairs required as a result of abusive operation, negligence, accident, improper installation or inappropriate

use as outlined in the owner’s manual.

(b) Any Sharp product tampered with, modified, adjusted or repaired by any party other than Sharp, Sharp’s Authorized Service Centres

or Sharp’s Authorized Servicing Dealers.

(c) Damage caused or repairs required as a result of the use with items not specified or approved by Sharp, including but not limited to

head cleaning tapes and chemical cleaning agents.

(d) Any replacement of accessories, glassware, consumable or peripheral items required through normal use of the product including but

not limited to earphones, remote controls, AC adapters, batteries, temperature probe, stylus, trays, filters, belts, ribbons, cables and

paper. (e) Any cosmetic damage to the surface or exterior that has been defaced or caused by normal wear and tear. (f) Any damage caused by external or environmental conditions, including but not limited to transmission line/power line voltage or liquid

spillage. (g) Any product received without appropriate model, serial number and CSA/cUL markings. (h) Any products used for rental or commercial purposes. (i) Any installation, setup and/or programming charges.

Should this Sharp product fail to operate during the warranty period, warranty service may be obtained upon delivery of the Sharp product together with proof of purchase and a copy of this LIMITED WARRANTY statement to an Authorized Sharp Service Centre or an Authorized Sharp Servicing Dealer. In home warranty service may be provided at Sharp’s discretion on any Sharp television with the screen size of 27” or larger and on any Sharp Over-the-Range Microwave Oven.

This warranty constitutes the entire express warranty granted by Sharp and no other dealer, service centre or their agent or employee is authorized to extend, enlarge or transfer this warranty on behalf of Sharp. To the extent the law permits, Sharp disclaims any and all liability for direct or indirect damages or losses or for any incidental, special or consequential damages or loss of profits resulting from a defect in material or workmanship relating to the product, including damages for the loss of time or use of this Sharp product or the loss of information. The purchaser will be responsible for any removal, reinstallation, transportation and insurance costs incurred. Correction of defects, in the manner and period of time described herein, constitute complete fulfillment of all obligations and responsibilities of Sharp to the purchaser with respect to the product and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise.

WARRANTY PERIODS:

Audio Products 1 year Camcorder 1 year DVD Products 1 year Projector 1 year (lamp 90 days) LCD & Plasma Display TV 1 year Microwave Oven 1 year (magnetron component-4 additional years) Television Products 1 year (picture tube component-1 additional year) VCR Products 1 year Vacuum Cleaner 1 year

To obtain the name and address of the nearest Authorized Sharp Service Centre or Dealer, please contact:

SHARP ELECTRONICS OF CANADA LTD. 335 Britannia Road East, Mississauga, Ontario L4Z 1W9

Parts & Labour (exceptions noted)

For more information on this Warranty, Sharp Extended Warranty

Offers, Sharp Canada Products, Accessory Sales, Dealer or Service

Locations, please call (905) 568-7140

Visit our Web site: www.sharp.ca

Revision 04/22/03

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430-2135

SHARP CORPORATION

Printed on 100% post-consumer recycled paper. Imprimé sur 100% de papier recyclé. Impreso en 100% de papel reciclado de postconsumo. Papel 100% Reciclado - Cuidado do Meio Ambiente.

Printed in Japan Imprimé au Japon Impreso en Japón Impresso no Japão TINS-B242WJN1 04P06-JOG

Sharp LC26GA4U User Manual [pt]

Specifications and Main Features

Frequently Asked Questions

User Manual
