LC-26DV20U

COMBINATION LIQUID CRYSTAL TELEVISION

AND DVD/CD PLAYER

OPERATION MANUAL

• The illustrations and on-screen displays in this operation manual are for explanation purposes and may vary

slightly from the actual operations.

• Menu items that are not selectable are grayed out.

IMPORTANT: To aid reporting in case of loss or theft, please record the

TV/DVD's model and serial numbers in the space provided. The numbers are located at the rear of the TV/DVD.

Model No.:

Serial No.:

IMPORTANT INFORMATION

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

The lightning flash with arrow-head

symbol, within an equilateral triangle, is intended to alert the user to the

RISK OF ELECTRIC SHOCK DO NOT OPEN

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within a triangle is intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the literature accompanying the product.

]

Q-I

iMPORTANT iNFORMATiON

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO

WIDE SLOT, FULLY INSERT,

CAUTION:

DO NOT PLACE THIS PRODUCT ON AN UNSTABLE CART, STAND, TRIPOD, BRACKET, OR TABLE. THE PRODUCT MAY FALL CAUSING SERIOUS PERSONAL INJURYAND SERIOUS DAMAGE TO

TH E PRODUCT. USE ONLY WITH A CART, STAND, TRIPOD, BRACKET, OR TABLE RECOMMENDED BY THE MANUFACTURER OR SOLD WITH THE PRODUCT. FOLLOW THE MANUFACTURER'S

INSTRUCTIONS WHEN INSTALLING THE PRODUCT AND USE MOUNTING ACCESSORIES RECOMMENDED BYTHE MANUFACTURER. A PRODUCTAND CART COMBINATION SHOULD BE

MOVED WITH CARE. QUICK STOPS, EXCESSIVE FORCE, AND UNEVEN SURFACES MAY CAUSE THE PRODUCTAND CART COMBINATION TO OVERTURN.

WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly

approved by the manufacturer could void the user's authority to operate this equipment.

CAUTION:

This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded

cables and connectors for connections.

"Note to CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the National Electrical Code that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical."

This product utilizes tin-lead solder, and fluorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eia.org

CAUTION:

THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM. TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS USER'S GUIDE CAREFULLY AND RETAIN

FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT AN AUTHORIZED SERVICE LOCATION SEE SERVICE PROCEDURE.

USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE ENCLOSURE. VISIBLE LASER

RADIATION MAY BE PRESENT WHEN THE ENCLOSURE IS OPENED. DO NOT STARE INTO BEAM.

. Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby

Laboratories.

. "HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI

Licensing LLC."

. WOW, SRS and (0) symbol are trademarks of SRS Labs, Inc.

WOW technology is incorporated under license from SRS Labs, Inc.

(_)=2

. "DTS" and "DTS Digital Out" are trademarks of Digital Theater Systems, Inc. i

DEAR SHARP CUSTOMER

Thank you for your purchase of the Sharp Combination Liquid Crystal Television and DVD/CD Player. To ensure safety and many years of trouble-free operation of your product, please read the important

Safety instructions carefully before using this product.

iMPORTANT SAFETY iNSTRUCTiONS

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your Combination Liquid Crystal Television and DVD/CD Player, please read the following precautions carefully before using the product.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the

apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid

injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in

any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Additional Safety information

15) Power Sources--This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power

company. For products intended to operate from battery power, or other sources, refer to the operating

instructions.

16) Overloading--Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

17) Object and Liquid Entry--Never push objects of any kind into this product through openings as they may touch

dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any

kind on the product.

18) Damage Requiring Service--Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a) When the AC cord or plug is damaged, b) If liquid has been spilled, or objects have fallen into the product, c) If the product has been exposed to rain or water, d) If the product does not operate normally by following the operating instructions.

Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the

product to its normal operation, e) If the product has been dropped or damaged in any way, and f) When the product exhibits a distinct change in performance - this indicates a need for service.

19) Replacement Parts--When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized

substitutions may result in fire, electric shock, or other hazards.

20) Safety Check--Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

21 ) Wall or ceiling mounting--When mounting the product on a wall or ceiling, be sure to install the product according

to the method recommended by the manufacturer.

Q-3

iMPORTANT SAFETY iNSTRUCTiONS

wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

. ater and Moisture -- Do not use this product near water - for example, near a bath tub,

product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer's instructions. Use only the mounting hardware

. tand -- Do not place the product on an unstable cart, stand, tripod or table. Placing the

recommended by the manufacturer.

Selecting the location -- Select a place with no direct sunlight and good ventilation.

Ventilation -- The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions are followed.

it can break when . \ ' / z '_

| the product is dropped or applied with impact. Be careful not to be injured

_f" The Liquid Orystal panel used in this pr°duct is made °f glass Theref°re' by br°ken glass _iii _

pieces in case the panel breaks.

. Heat -- The product should be situated away from heat sources such as radiators, heat

registers, stoves, or other products (including amplifiers) that produce heat. _ _J'__I ",'__._

details. Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green or red. Please note that|

. he Liquid Crystal panel is a very high technology product with 3,147,264 thin film transistors, giving you fine picture |

this does not affect the performance of your product.

Precautions when transporting the product

• When transporting the product, never carry it by holding onto the speaker. Be sure to always carry the product by two people holding it with two hands -- one hand on each

side of the product. /_

-. Lightning -- For added protection for this television equipment during a lightning storm, or [_ _. _ "_ when it is left unattended and unused for long periods of time unplug it from the wall outlet .;=t_'_-- _-_ _ |

| and disconnect the antenna. This will prevent damage to the equipment due to lightning [_,_"41| I1_/ "_/ | / and power-line surges. "_]LL- __/

k )

(_)=4

overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be

fatal.

iMPORTANT SAFETY iNSTRUCTiONS

• Outdoor Antenna Grounding -- If an outside antenna is connected to the television equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding

electrode.

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE, ANSl/NFPA 70

GROUND,z//_ kX__-INTENNA

'] _S:_ GROUNDING CONDUCTORS _GG R O U (NNDEcCLS###ION 810-21)

"" POWER SERVICE GROUNDING

ELECTRODE SYSTEM

NEC -- NATIONAL ELECTRICAL CODE (NEC ART 250, PART H)

. o prevent fire, never place any type of candle or flames on the top or near the product. __ 7

No objects filled with liquids, such as vases, should be placed on the product.

I o prevent fire or shock hazard, do not expose this product to dripping or splashing.

To prevent fire or shock hazard, do not place the AC cord under the product or other heavy items.

• Turn off the main power and unplug the AC cord from the wall outlet before handling.

• Use a soft cloth and gently wipe the surface of the display panel. Using a hard cloth may scratch the panel surface.

• Use a soft damp cloth to gently wipe the panel when it is really dirty. (It may scratch the panel surface when wiped strongly.)

• If the panel is dusty, use an anti-static brush, which is commercially available, to clean it.

• To protect the panel, do not use a dirty cloth, liquid cleaners or chemical cloth to clean it, such materials may damage the panel surface.

Do not still for

_,. display a picture a long as cause an afterimage

• CONDENSATION: Moisture will form in the operating section of the player if the player is brought from cool

surroundings into a warm room or if the temperature of the room rises suddenly. When this happens, player's performance will be impaired. To prevent this, let the player stand in its new surroundings for about an hour before switching it on, or make sure that the room temperature rises gradually. Condensation may also form during the summer if the player is exposed to the breeze from an air conditioner. In such cases, change the location of the player.

• DISC SLOT: Keep your fingers well clear of the disc slot as it is closing. Failure to do so may cause serious personal

injury.

• LASER BEAM: Do not look into the opening of the disc slot or ventilation opening of the product to see the source of the laser beam. Doing so may cause sight damage.

• DISC: Do not use a cracked, deformed, or repaired disc. These discs are easily broken and may cause serious

personal injury and product malfunction.

time,

this could to remain.

(_=5

Disc

In this unit, use only discs that meet the standard, such as those bearing the below logo marks on the disc label

surface. If you use a non-standard disc, we cannot guarantee playback. Even if such a disc can be played

back, we cannot guarantee the image or sound quality. The DVD logo is a registered trademark.

Media type Logo mark

DVD-Video

video

DVD-R/RW (Video format only) _

R4R7

Audio CD*

DIGITAL AUO[O

CD-R/CD-RW (CD-DA, MP3, WMA

or JPEG format) I)_]_@ _@

• This unit is designed to playback music Compact Discs (CD) that conform to the CD standard. CDs that contain (copy-restriction) signals to protect copyrights cannot be played back.

• Some CD-R/RWs and DVD-R/RW can not be played back depending on the recording conditions.

• 8 cm discs can be played without an adapter.

Region management information This unit is designed and manufactured to support the

region management information that is recorded on a DVD disc. If the region number written on the DVD disc

does not correspond to the region number of this unit, this unit cannot play that disc.

• The region number of this unit is "1".

• The unit will play DVD-Video discs marked with labels containing "1" or "ALL".

The discs listed below cannot be played back in general. Even if one of these can be played back, it may not be

played back correctly. If a disc is played back by mistake, extensively loud sounds may blow the speakers or may

damage the hearing of those in hearing range. Do not playback the discs listed below.

CDG, Photo-CD, CD-ROM, CD-TEXT, CD-EXTRA, SACD, PD, DVD-ROM, SVCD, CVD, VCD, DVD-RAM, DVD+R/RW, DVD audio, etc.

The following DVD-Video discs may not be played back on this unit:

• DVD-Video that do not have the region number "1" or "ALL".

• PAL or SECAM DVD-Video.

• Prohibited or business-use DVD-Video.

CD-R/CD-RWs cannot be played back for the following reasons,

• Compatibility of the disc and this unit.

• Compatibility of the disc and the recorder used.

• Unfinalised discs.

Never use the following discs or accessories. It may cause serious damage to the TV/DVD.

• Irregular shaped discs such as card shaped, heart shaped

• The ring protector or other disc accessories

• The 8cm disc adapter

• Stickered or papered discs

• Discs with scotch tape, glue or other remains of labels

A DVD-Video has large partitions called "Titles", and

smaller partitions within them called "Chapters".

(_)=6

Operating DVD-Video

• Some operations of DVD-Video may be prohibited by the manufacturer, or some operation methods or functions of the DVD-Video may be different from the description in

this manual.

• If you attempt an operation that is prohibited by either the disc or the unit, a ",_'" mark will appear on the TV

screen. For operations prohibited by the disc, see the information that came with the disc.

• When the menu screen or the operation guide appears during disc playback, follow the displayed information.

A audio CD has other partitions called "Tracks". A number

is allotted to each partition and these numbers are called "title numbers", "chapter numbers" or "track numbers".

Audio CD

TRACK 1 TRACK 2 TRACK 3 TRACK 4 TRACK 5 i

Disc

Removing the Disc from its case Be sure to hold the edge of disc. Do not touch the surface

of the disc. Pick up the disc gently from the case.

• Do not scratch the disc.

• Do not get dirt on the surface of the disc.

• Do not stick a label or adhesive tape on the disc.

• Do not drop or bend the disc.

Storing discs

• Store the disc in the case to avoid any risk of scratches,

dirt or damage.

• Do not leave the disc exposed to direct sunlight or in hot

or humid places.

Cleaning discs Wipe the disc with a clean, dry cloth from the center outward toward the edges.

• Do not wipe the disc in a circular motion around the center.

• Do not use liquid or aerosol cleaners.

Notes on copyright

• This product incorporates copyright protection technology

that is protected by U.S. patents and other intellectual

property rights. Use of this copyright protection

technology must be authorized by Macrovision, and is

intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse

engineering or disassembly is prohibited.

• Unauthorized recording of copyrighted television programs, films, video cassettes and other materials may infringe the rights of copyright owners and be contrary to

(_=7

Supplied accessories

Make sure the following accessories are provided with the product.

Page 10 Page 10 Page 9

Page 9

• Always use the AC cord supplied with the TV/DVD.

Page 8

QUICK REFERENCE

• Before attaching (or detaching) stand, unplug the AC cord from the AC input terminal.

• Before performing work spread cushioning over the base area to lay the TV/DVD on. This will prevent it from being damaged.

• Attach the stand in the correct direction.

• The "REAR" label should be visible from the back of the TV/DVD.

• incorrect installation of the stand may result in the TV/DVD falling over.

• Be sure to follow the instructions.

1. Confirm the 8 screws supplied with the TV/DVD.

This side faces the rear

Short screws (X4)

(used in step 2)

Attach the two parts of the stand unit to each other using the 4 short screws and the hex key (supplied with the product) as shown.

Long screws (X4)

(used in step 3)

[ REAR

Insert the stand into the opening on the bottom of the TV/DVD.

Insert and tighten the 4 long screws into the 4 holes on the rear of the TV/DVD.

_ hex key

_)_t _# dl % Long screw

Short screw

_hex key

(_) = 8 " To detach the stand, perform the steps in reverse order.

Soft cushion

QUICK REFERENCE

STOP! To safely remove the TV/DVD from the box It's best to use 2 people to remove the television for stability.

1. Use the cardboard holders on either side of the television to remove it from the box.

2. Remove the cardboard; however, keep the wrapping on the television to protect it while moving.

3. Lift onto installation location as the diagram illustrates.

Ventilation & Cleaning Tips i_ _'" i'

KeepyourTV/DVDinawellventilatedareaandmakesurenottoplaceitbyaheatsource _- _q_

or use near water. The TV/DVD is designed for AC use only and should be used with supplied ,< ®

----_ ,_

AC cord.

Clean the screen by spraying a soft lint free cloth with water to lightly moisten. Gently wipe and avoid pressing on the screen. To clean the outer cabinet, use the same method. Do not use liquid or aerosol cleaners.

The screen is glass and can be scratched or broken when dropped or impacted.

QUICK iNSTALLATiON TiPS 1, Attach your antenna to the back of the TV/DVD.

(See page 15.)

Connect the AC plug for the TV/DVD into the wall outlet.

4. How to turn on the TV/DVD for the first time.

A) Press POWER on TV/DVD.

b'pLAY =STOP _SKIP_ &EJECT

00000

VOg + V CH /_ INPUT POWER

__ o_

B) POWER indicator on the front of the TV/DVD lights

GREEN.

'/; _ IAC outlet]

Place the TV/DVD close to the AC outlet, and keep the power plug within reach.

\ \ I //

POWER

• TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT

TOUCH UN-INSULATED PARTS OF ANY CABLES WITH THE AC CORD CONNECTED.

3. Bundle the cords properly with a cable clamp.

POWER indicator

• Speaker cannot be detached from the TV/DVD.

• TV/DVD angle cannot be adjusted.

Q-9

QUICK REFERENCE

If the remote control fails to operate TV/DVD functions, replace the batteries in the remote control unit, 1 Open the battery cover.

2 Insert two "AA" size batteries

3 Close the battery cover.

(supplied with the product).

Place the batteries with their terminals corresponding to the (+) and (-)

indications in the battery compartment.

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

• Do not mix batteries of different types. Different types of batteries have different characteristics.

• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries.

• Remove batteries as soon as they are worn out. Chemicals that leak from batteries that come in contact with skin can cause a rash. If you find any chemical leakage, wipe thoroughly with a cloth.

• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.

• If you will not be using the remote control unit for an extended period of time, remove batteries from it.

L I

16'4" (5 m)

Remote control

sensor

30° 30 °

IMPORTANT: The POWER indicator on the television should light GREEN indicating you have power to the TV/DVD.

If the POWER indicator on the television still does not light up, press POWER on the remote control to turn the power on.

IMPORTANT: IF THE UNIT DOES NOT POWER ON - UNPLUG THE TELEVISION FROM THE OUTLET AND REPEAT THE INSTALLATION STEPS,

Q=I0

IF YOU STILL ENCOUNTER NO POWER, PLEASE CONTACT US AT 1-800-BE-SHARP. Please refer to the BASIC ADJUSTMENT SETTINGS SECTION and basic Initial setup functions and USING

EXTERNAL EQUIPMENT SECTION for other device connections (DVD, VCR, AUDIO, etc) in your operation manual.

Contents

iMPORTANT iNFORMATiON ................................... i

Trademarks .............................................................. 2

DEAR SHARP CUSTOMER ..................................... 3

iMPORTANT SAFETY iNSTRUCTiONS .................. 3

DiSC .......................................................................... 6

Discs which can be played back ......................... 6

Discs which cannot be played back .................... 6

Title/Chapter/Track .............................................. 6

Handling discs ..................................................... 7

Supplied accessories .............................................. 8

QUICK REFERENCE ................................................ 8

Attaching the stand .............................................. 8

Contents ................................................................. 11

Part names ............................................................. 12

TV/DVD (Front) ................................................. 12

TV/DVD (Right) ................................................. 12

TV/DVD (Rear) .................................................. 13

Remote control unit ........................................... 14

Preparation ............................................................. 15

Using the remote control unit ............................ 15

Cautions regarding remote control unit ............. 15

Antennas ........................................................... 15

Watching TV ........................................................... 16

Preparation ........................................................ 16

Turning on the power ........................................ 16

Select the TV mode ........................................... 16

Turning off the power ........................................ 16

Initial setup ........................................................ 17

Simple button operations for

changing channels ......................................... 18

Simple button operations for

changing volume/sound ................................. 19

Display the channel information ........................ 19

Sleep timer ........................................................ 20

Setting MTS/SAP stereo mode ......................... 20

Basic adjustment settings .................................... 21

Menu operation buttons ..................................... 21

Menu items ........................................................ 21

Labeling channels ............................................. 22

Input label ............................................................

Picture adjustments ........................................... 23

Color temperature ............................................. 23

Cinema mode .................................................... 23

Back lighting ...................................................... 23

Sound adjustment ............................................. 24

Digital audio output ............................................ 24

Using external equipment ..................................... 25

Displaying an external equipment image .......... 25

Connecting a digital TV STB (Air or Cable) ....... 26

Connecting a VCR, game console or camcorder, 26

Using digital audio output .................................. 26

Connecting HDMI equipment ............................ 27

Displaying an image from HDMI equipment ...... 27

Selecting HDMI audio input source ................... 27

Useful adjustment settings ................................... 28

Reset ................................................................. 28

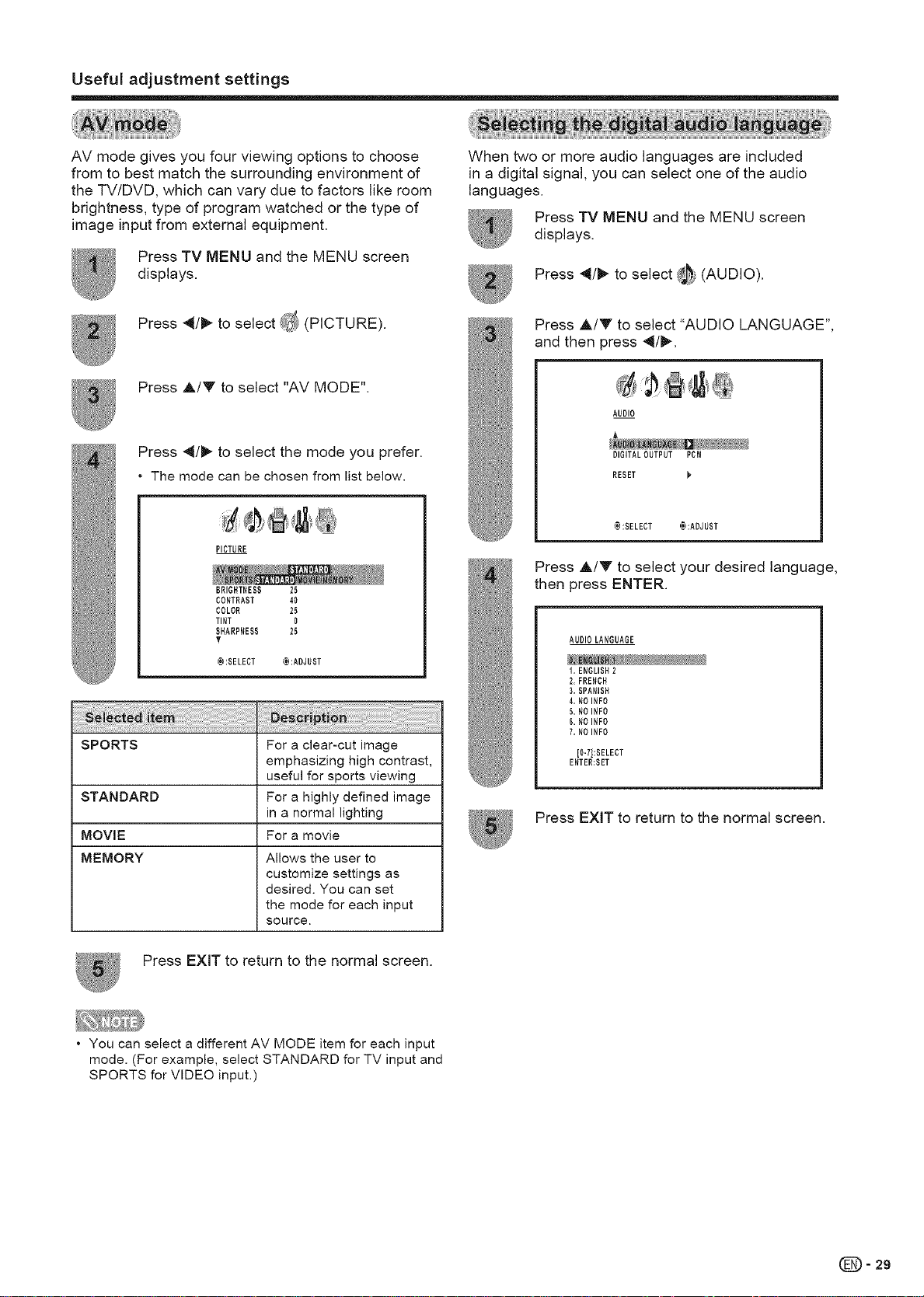

AV mode ............................................................ 29

Selecting the digital audio language .................. 29

View mode for 4:3 programs ............................. 30

View mode for HD programs ............................. 30

Picture scroll ...................................................... 30

Aspect ............................................................... 30

Audio output select ............................................ 31

Setting WOW TM surround sound ........................ 31

Closed captions and digital closed captions ...... 32

Caption setup .................................................... 33

Password setting for parental control ................ 34

Parental control (V-CHIP) .................................. 35

TV Parental Guidelines (TV Guidelines) ........... 36

Voluntary movie rating system (MPAA) ............. 36

Canadian rating systems ................................... 37

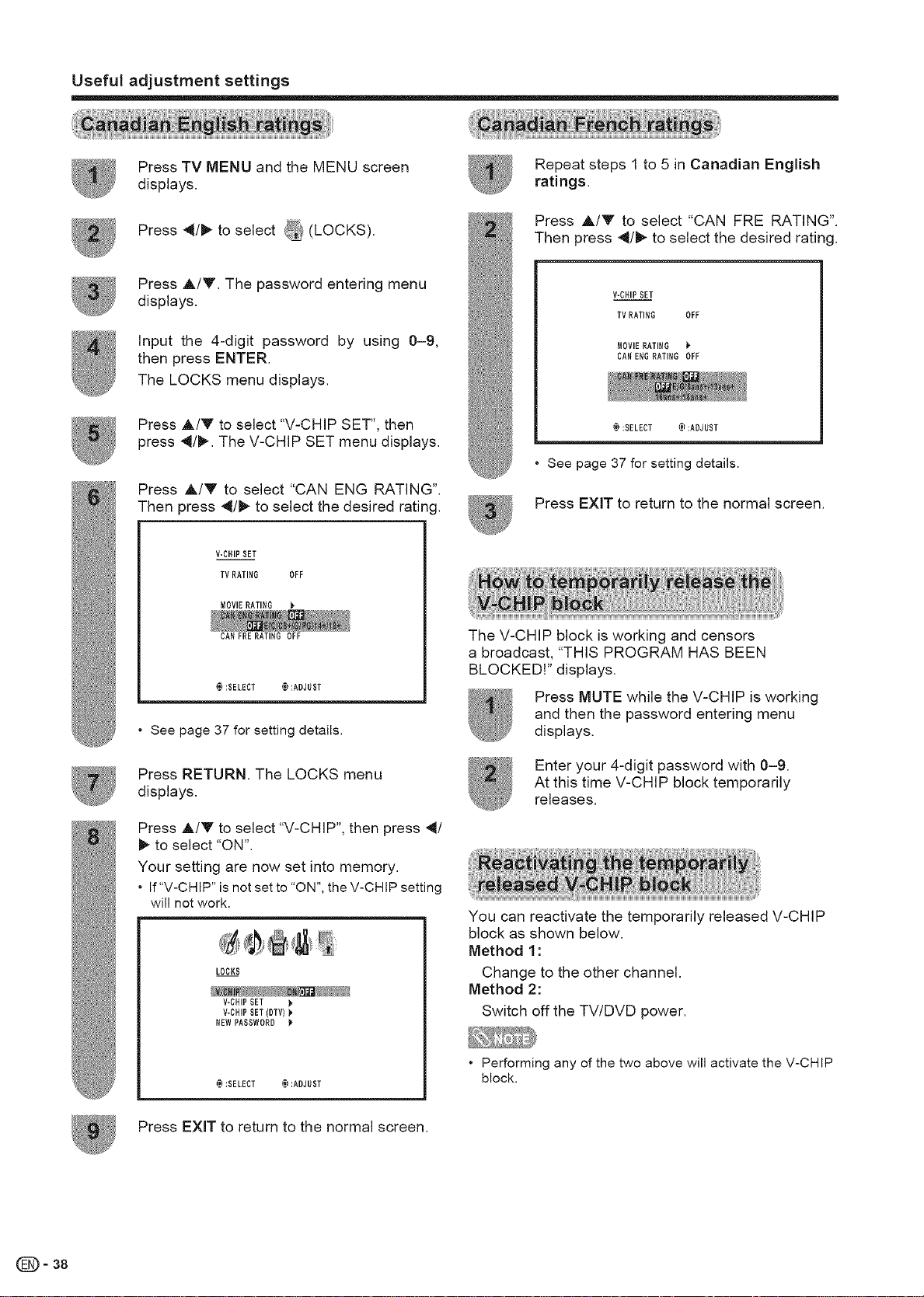

Canadian English ratings .................................. 38

Canadian French ratings ................................... 38

How to temporarily release the V-CHIP block,,, 38 Reactivating the temporarily released V-CHIP

block................................................................. 38

Other viewing options ........................................... 39

Signal meter ...................................................... 39

Watching the DVD ................................................. 40

Preparation ........................................................ 40

Turning on the power ........................................ 40

Select the DVD mode ........................................ 40

Turning off the power ........................................ 40

Playback procedure ........................................... 41

Status display of disc ......................................... 41

Special playback ............................................... 42

Zooming ............................................................ 42

Locating desired scene ..................................... 42

Repeat playback ................................................ 43

A-B Repeat playback ......................................... 43

Marking desired scenes .................................... 43

Program playback (only CD) ............................. 44

Random playback (only CD) ............................. 44

Changing angles ............................................... 44

Title selection .................................................... 44

DVD menu ......................................................... 44

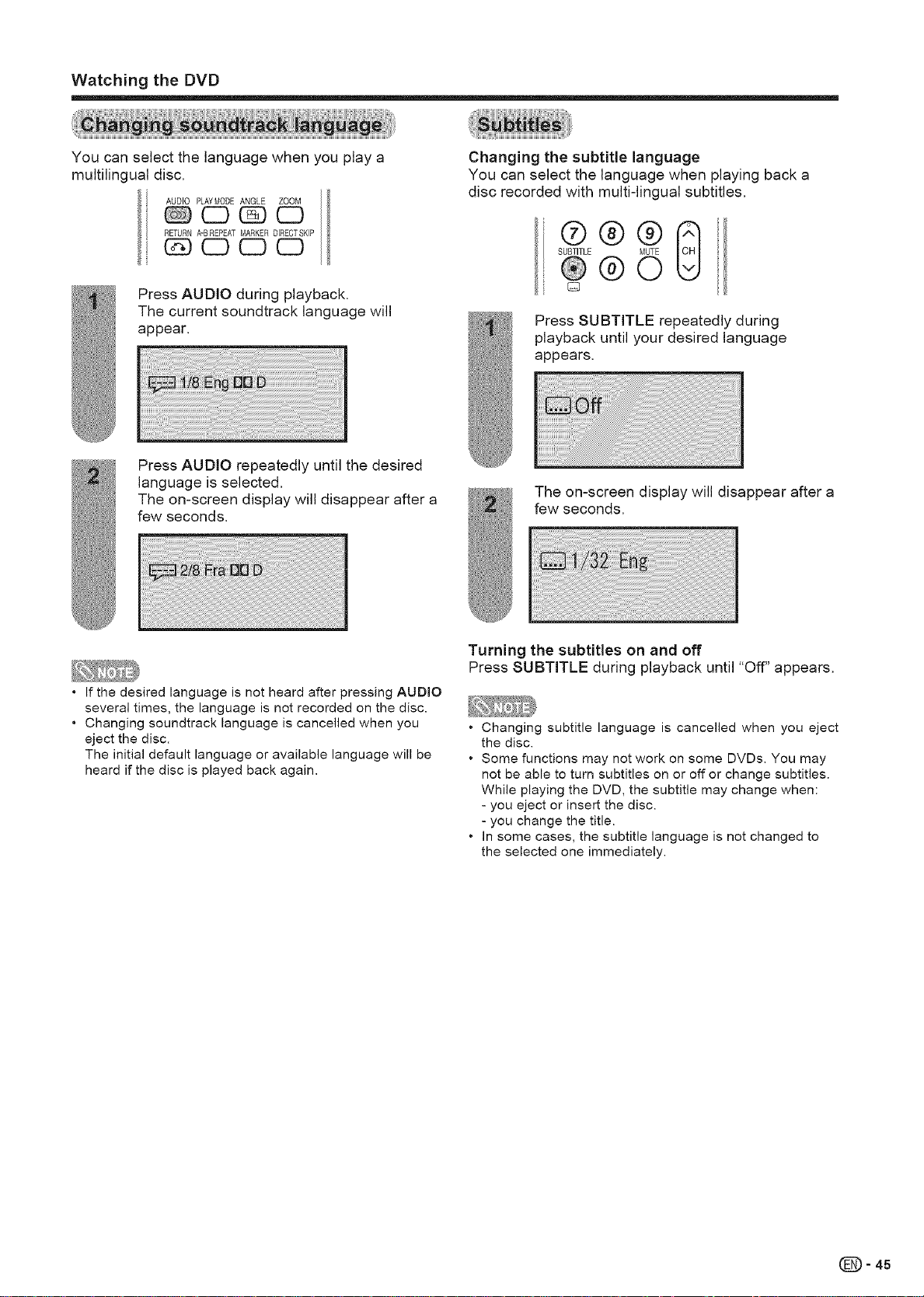

Changing soundtrack language ......................... 45

Subtitles ............................................................. 45

MP3/WMA/JPEG CD playback .............................. 46

MP3/WMA/JPEG CD information ...................... 46

MP3/WMA CD playback .................................... 47

JPEG CD playback ............................................ 47

About file menu ................................................. 47

Setting the JPEG interval .................................. 48

Setting the select files ....................................... 48

Function setup ....................................................... 49

Basic operation buttons ..................................... 49

Menu items ........................................................ 49

Setting the language ......................................... 50

Setting the aspect ratio of TV screen ................ 50

Setting on screen display .................................. 51

Setting the picture mode ................................... 51

Dynamic Range Control .................................... 51

Parental control setting ...................................... 52

To change the parental level ............................. 52

Temporary disabling of rating level by DVDdisc ..... 53

Appendix ................................................................ 54

Language code list ............................................ 54

Removing the stand .......................................... 55

Setting the TV/DVD on the wall ......................... 55

Troubleshooting ................................................. 56

Troubleshooting-Digital broadcasting ................ 56

Troubleshooting-DVD ........................................ 57

Specifications .................................................... 58

Optional accessories ......................................... 58

Dimentional drawings ........................................... 59

(_=11

Part names

PLAY (p) button SKiP (|44/_,-_) buttons

STOP (m) button EJECT (_,) button

-- VOL 4- V CR /N iNPUT POWER

Volume _ = ' __[_

button s (VO L-l+ _ _NtPtoUT

Channel buttons (CH v/A)

SKiP

Disc slot

POWER button

Q-12

POWER

Remote control sensor

POWER indicator*

*See page 16 for TV/DVD status indicator.

Part names

AC INPUT terminal

COAXIAL DIGITAL AUDIO OUTPUT Terminal

AUDIO OUT Terminals

INPUT2 terminals

r 1

INPUT1 terminals

INPUT3 terminals

ANTin

INPUT4 terminals

Q-13

Part names

14 15 16

17 18

19 20

1 POWER: Switch the power on or enters standby mode.

(See page 16.) 2 0 - 9: Set the channel. (See page 18.) 3 • (DOT) / SUBTITLE: To select 4-digit channel number.

(See page 18.) / Set subtitle. (See page 45.) 4 REV : Review playback. (See page 42.) 5 SKIP i44/_1,1:Skip chapter to reverse or forward

direction. (See page 42.) 6 STILL/PAUSE: Still picture of DVD / Pause CD sound.

(See page 42.) 7 SETUP/TV MENU: TV mode - Display menu of TV /

DVD mode - Call up initial setup mode. (See pages 21,

49.)

8 A/V/_/Ib-/ENTER: Select a desired item on the

screen.

SLOW .,4I/l_,- : Reverse/Forward -slow motion. (See

page 42.) 9 EXIT/CANCEL: Turn off the menu screen / Reset

information in the menu. 10 PLAY MODE: Select playback mode. (See page 44.) 11 AUDIO: Switch the sound of TV / Change sound track

language. (See page 45.) 12 RETURN: Turn off the DVD setup menu screen. 13 A-B REPEAT: Repeat playback between A and B. (See

page 43.) 14 DISPLAY: Display the information. (See pages 19, 41) 15 TV/DVD: Switch between TV/AV and DVD. (See pages

16, 40.)

16 EJECT: Eject the disc. (See page 41.) 17 SLEEP: Set the sleep timer. (See page 20.)

18 INPUT: Select input source. (TV, INPUT1~4) 19 VIEW MODE: Select the screen size. (See page 30.) 20 VOL +/-: Set the volume. (See page 19.) 21 CHA/v : Select the channel. (See page 18.) 22 MUTE: Mute the sound. (See page 19.)

23 FWD: Fast forward playback. (See page 42.) 24 PLAY: Playback. (See page 41.) 25 STOP: Stop. (See page 41.) 26 DVD MENU: Display DVD menu. (See page 44.) 27 TOP MENU: Select title. (See page 44.) 28 ANGLE: Change playback channel. (See page 44.)

29 ZOOM: Zoom. (See page 42.) 30 DIRECT SKIP: Locating desired scene of DVD. (See

page 42.) 31 MARKER: Index (DVD). (See page 43.)

Q-14

• When using the remote control unit, point it at the TV/DVD. (See page 10.)

Preparation

Use the remote control unit by pointing it towards the remote control sensor on the IILL%_--.,#_._ TV/DVD. Objects between the remote control unit and the remote control sensor

may prevent proper operation.

• Do not expose the remote control unit to shock. In addition, do not expose the remote control unit to liquids, and do not place in an area

with high humidity.

• Do not install or place the remote control unit under direct sunlight. The heat may cause

deformation of the remote control unit.

• The remote control unit may not work properly if the remote control sensor on the TV/DVD is under direct sunlight or strong lighting. In such cases, change the angle of the lighting

or the TV/DVD, or operate the remote control unit closer to the remote control sensor.

To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections that are used for a coaxial cable. If your outdoor antenna uses a 75-ohm coaxial cable with an

F-type connector, plug it into the antenna terminal at the rear of the TV/DVD.

1. A 75-ohm system is generally a round cable with F-type connector that can easily be attached to a terminal without tools (Commercially available).

2. A 300-ohm system is a flat "twin-lead" cable that can be attached to a 75-ohm terminal through a 300/75-ohm adapter (Commercially available).

75-ohm coaxial cable (round)

300-ohm twin-lead cable (flat)

F-type connector

75-ohm coaxial cable _.\

Connecting Antenna Cable

Cable without a CATV

converter

Combination VHF/UHF

antenna

Separate VHF/UHF

antenna

Cable TV leadqn _

o 75_ohm coaxial cable (round)

VHF UHF ANTENNA ANTENNA

F-type connector should be finger-tightened only. When connecting the RF cable to the TV/DVD, do not tighten

F-type connector with tools. If tools are used, it may cause damage to your TV/DVD. (The breaking of internal circuit, etc.)

Home Antenna

terminal (75-ohm)

Coaxial came

(commercially

300/75-0hm adapter

available;

Q-15

Watching TV

Simple operations for watching a TV program.

_PLAY mSTOP =_SKIP_ dEJECT

00000

VOL + _v" CIE /_ INPUT POWZR

CI3E3Z30

POWER

POWER indicator

TV/DVD status indicator (POWER)

ON Lighting (Green) OFF/Standby Lighting (Red)

Perform the following steps before you press POWER on the remote control unit.

1. Insert the batteries into the remote control unit. (See page 10.)

2. Connect the antenna cable to the TV/DVD. (See page 15.)

3. Plug in the AC cord to the AC outlet. (See page 9.)

Press POWER on the TV/DVD, or POWER on the remote control.

• POWER indicator (Green): The TV/DVD is on. ("PLEASE

WAIT" will appear for a few seconds on the screen.)

Press TV/DVD to select the TV mode.

• The LANGUAGE setup menu will appear automatically

when TV MENU is pressed on for the first time. (See page 17.)

POWER

TV MENU --

On/Standby)

TV/DVD

CD CD CD

@@@

®@0

SKIP REV FWD SKIP

STILL/PAUSE PLAY STOP

CSD

S[TUP/TVMENU DVDMENU

Press POWER on the TV/DVD, or POWER on the remote control.

• The TV/DVD enters standby mode and the image on the

screen disappears.

• The POWER indicator on the TV/DVD changes to Red.

• if you are not going to use this TV/DVD for a long period

of time, be sure to remove the AC cord from the power outlet.

• Weak electric power is still consumed even when

POWER is turned off.

• if a station being viewed stops broadcasting, the TV/DVD

will automatically shut itself off after 15 minutes. (TV

mode only.)

(_)- 16

Watching TV

Language setting

When you press TV MENU for the first time, the

LANGUAGE setup menu will appear

automatically.

Select from among 3 languages: English, French and Spanish.

Press "_/_ to select the desired language

from the list.

SETUP

CLOCKSET

AIR/CABLE CABLE AUTO CH MEMORY ADDJDELETE

L_):SELECT ;_):ADJUST

Channel search

AUTO CHANNEL MEMORY makes the TV/DVD look for all channels viewable in the set area.

Press A/Y to select "AUTO CH MEMORY"

SETUP

LANGUAGE ENGLISH

CLOCKSET

AIRJCABLE CABLE

ADD/DELETE

_):SELECT I_):ADJUST

Press 4/_. The TV/DVD will begin memorizing all the channels available in

your area.

Clock setting Please set correct date and time manually.

Press A/Y to select "CLOCK SET", then press "_/_. The CLOCK SET menu screen displays.

CLOCKSET

DAY I (BUR}

YEAR 2D06

TIME 12:DDAM

=_I:SELECT ¢_I:ADJUST

EXIT:END

Press 4/_ to set the MONTH, then press

V to move to the next. Set the DAY, YEAR and TIME (hour and

minute) as above step. After setting the date and time correctly,

press ENTER.

Antenna setting Make sure what kind of connection is made with your

TV/DVD when selecting "AIR" or "CABLE".

AUTO OHMEMORY

EXIT:CANCEL

PROGRAMMINGNOW PLEASEWAIT

• Depending on the reception condition, it may take approximately 10 minutes to complete memorizing digital cable channels, please be patient,

Skipping stored channel You can set channel selection disabled using CN/,,Iv.

Press TV MENU and the MENU screen

displays.

Press 4/_ to select _ (SETUP).

Press A/Y to select "ADD/DELETE", and

then press 4/_.

Press A/Y to select "ADD/DELETE", and

then press 4/1_. Now, the channel list

becomes selectable.

Press A/V to select "AIR/CABLE", then

press 4/_ to select "AIR" or "CABLE".

SETUP

LANGUAGE ENGLISH

CLOCKSET

AUTO CH MEMORY ADD/DELETE

L_:SELECT L_qADJUST

Press A/Y to select the channel which you

want to skip.

Press _/_ to select "DELETE" for selected channel.

Press EXIT to return to the normal screen. Now, skipping channel is applied.

• To add a digital channel you are watching: Select a channel you want to add. Then select "ADDING

CHANNEL" in step 4, press 4/_'.

• To release the skipping channel: Select "ADD" in step 6.

• To remove all the channels from channel memory: Select "CLEAR ALL" after step 3, and the press 4/_'.

Q"17

Watching TV

You can change channels in several ways.

POWER

CD_

DISPLAY TV/DVD EJECT

SLEEP VIEWMODE INPUT

CD CD CD

®®®@

®®®

SUBTITLE MUTE

®®O

SKIP REV FWD SKIP

(E_ (:_D (ED (EE)

STILL/PAUSE PLAY STOP

CSD K?K)

SETUP/TVMENU DVDMENU

Method 1 Using CH ^/v on the remote control unit or on the

TV/DVD. Method 2

Using remote control buttons 0-9, • (DOT) to select channels for VHF/UHF/CATV/DIGITAL

To select a I or 2-digit channel number

(e. g., Channel 5):

Press 5

• When selecting a 1-digit channel number, it is not necessary to press 0 before the number.

• When you enter 0-9, channel selection will be made if

there is no operation within a few seconds.

To select a 3-digit channel number (e. g., Channel 115):

Press 1->1->5

To select a 4-digit channel number (e. g., Channel 22.1):

AUDIO PLAYMOSEANGLE ZOOM

O@DO

RETURNA-BREPEATMARKERDIRECTSNIP

SHA, RP

Press 2->2-> • (DOT) ->1

• When you enter 0-9, channel selection will be made if there is no operation within a few seconds.

• If you push "0" by itself, nothing will happen.

• Complete the above steps within a few seconds.

• When you enter 0-9 and • (DOT), channel selection will be made if there is no operation within a few seconds.

(_)- 18

Watching TV

Changing the volume You can change the volume on the TV/DVD or on the

remote control unit.

Using VOL +/- * To increase the volume, press VOL+.

* To decrease the volume, press VOL-.

Press DISPLAY to display the current channel (or input source) information on the screen.

When the TV/DVD receives a digital signal, press once, the digital information will appear.

• Broadcast program name

• Station name • Remaining time

• Audio language • Program name

• V-CHIP RATING • HD or SD mark

• Closed Caption mark • V-Chip mark

VOLUME 25

• VOL+/- on the TV/DVD operates the same as VOL+/- on the remote control unit.

Using MUTE on the remote control unit Mutes the current sound output.

®@@

@@@

A®®8

(9@@

Press MUTE.

• "MUTE" will be displayed on the screen, and the sound is silenced.

Press DISPLAY again, the analog information will appear.

Clock Channel number or VIDEO mode selected

Channel label (if preset) Stereo or SAP (second audio program) audio status Content rating

View mode

STEREO SAP TV-PG L V SLEEP TIMER 2hOOm

SIDE BAR CABLE

CLOCK 12:00AM SUN 7

Press DISPLAY again to clear the display.

• Analog channel status will display on the screen for approx. 4 seconds. Digital channel status will display for approx.

10 seconds.

ABCD

• Mute can be canceled if you press VOL+/- or MUTE.

(_=19

Watching TV

Allows you to set a time when the TV/DVD

automatically switches to standby.

POWER

DISPLAY TV/DVD EJECT

SLEEP VIEWMODE INPUT

CDCD

Each time you press SLEEP, the remaining

time setting switches as shown below.

0h00m

SLEEP 1_

(Sleeptimeroff)

0hl0m

SLEEP ]

step up by 10 minutes

lh50m

SLEEP 1

2h00m

SLEEP 1

The TV/DVD has a feature that allows reception of sound other than the main audio for the program.

This feature is called Multi-channel Television Sound (MTS). The TV/DVD with MTS can receive mono

sound, stereo sound and Secondary Audio Programs (SAP). The SAP feature allows a TV/DVD station to broadcast other information, which could be audio in another language or something completely different

like weather information.

You can enjoy Hi-Fi stereo sound or SAP broadcasts where available.

• Stereo broadcasts View programs like live sporting events, shows and

concerts in dynamic stereo sound.

• SAP broadcasts

Receive TV broadcasts in either MAIN or SAP sound. MAIN sound: The normal program soundtrack (either in

mono or stereo).

SAP sound: Listen to a second language, supplementary commentary or other information. (SAP is mono sound.)

if stereo sound is difficult to hear.

• Obtain a clearer sound by manually switching to fixed mono-sound mode.

• MTS only operates while in TV mode.

• When the TV receives a stereo or SAP broadcast, the word "STEREO" or "SAP" displays on-screen every time you turn the TV/DVD on, change the channel, or press

DISPLAY.

This display will disappear after a few seconds, the sleep timer automatically

starts counting down.

• If you want to adjust the sleep timer again, you can press SLEEP repeatedly then change the

time setting.

Press SLEEP.

• The remaining time displays when the sleep timer has been set.

OhO7rn

SLEEP 1

• Select "0h00m" by pressing SLEEP repeatedly to cancel the sleep timer.

• The TV/DVD will enter the standby mode when the

remaining time reaches zero.

SETUP/TVMENU DVDMENU

AUDIO PLAYMODEANGLE ZOOM

Changing MTS

You can change MTS as shown below to match the television broadcast signal.

Press AUDIO and the #_

(AUDIO)

screen displays. "MTS" Will be highlighted.

Press AUDIO again or _/_ to select "STR

'STEREO)", "SAP" or "MONO".

AUDIO

BASS 25

TREBLE 25

BALANCE O

SPEAKERS ON

(_)- 20

{_:SELECT _LADJUBT

Press EXIT to return to the normal screen.

Basic adjustment settings

Use the following buttons on the remote control to operate the menu.

POWER

C] CD C?O

DISPLAY TV/UVS EJEC]

SLEEP VIEWMODE INPUT

(2D CD CD

®®®0

@@@

£®®8

(9@O

SKIP REV FWD SKIP

STILL/PAUSE PLAY STOP

5D GD C_

SETVP/TVMENU DVOMENU

AUDIO PLAYMODEANGLE ZOOM

(:Z9C:) CE:)C:)

RETURN A-BREPEAT MARKERDIRESTSKIP

_ CD CD C}

List of menu items to help you with operations

i PICTURE

AV MODE .................................................... Page 29

BRIGHTNESS ............................................. Page 23

CONTRAST ................................................. Page 23

COLOR ........................................................ Page 23

TINT ............................................................. Page 23

SHARPNESS .............................................. Page 23

COLOR TEMPERATURE ........................... Page 23

RESET (Picture adjustments) ................... Page 28

I®AUO,O

MTS ............................................................. Page 20

BASS ........................................................... Page 24

TREBLE ....................................................... Page 24

BALANCE ................................................... Page 24

SPEAKERS ................................................. Page 31

WOW

SRS 3D ............................................... Page 31

FOCUS ................................................ Page 31

TruBass .............................................. Page 31

HDMI ........................................................... Page 27

AUDIO LANGUAGE ................................... Page 29

DIGITAL OUTPUT ...................................... Page 24

RESET (Sound adjustments) .................... Page 28

SHARP

TV MENU:

AIVI41_:

ENTER:

RETURN: EXIT:

l I_I:SEL ECT I_ :ADJUST J

The lower part of the menu screen is an operational guide for the remote control.

It will change in accordance with each menu

setting screen.

Press to open the menu screen. Press to select a desired item on the

screen or adjust a selected item.

Press to go to the next step or complete

the setting.

Press to return to the previous step. Press to exit from the menu screen.

All changed settings will be saved.

ENTER:SET EXIT:END

LANGUAGE ................................................. Page 17

CLOCK SET ................................................. Page 17

AIR/CABLE ................................................. Page 17

AUTO CH MEMORY ................................... Page 17

ADD/DELETE ............................................... Page 17

CLOSED CAPTION ..................................... Page 32

CC ADVANCED ........................................... Page 33

VIEW MODE ................................................ Page 30

PICTURE SCROLL ..................................... Page 30

CINEMA MODE ........................................... Page 23

ASPECT ....................................................... Page 30

SIGNAL METER .......................................... Page 39

BACK LIGHTING ......................................... Page 23

oPt,o,lii

CH LABEL ................................................... Page 22

VIDEO LABEL ............................................. Page 22

LOCKSlii

V-CHIP SET ................................................. Page 36

NEW PASSWORD ....................................... Page 34

(_=21

Basic adjustment settings

To create channel labels

Select a channel you want to label.

Press TV MENU, then press 4/1_ to select

i_i(OPTION).

Press A/V to select "CH LABEL", then press 4/_'. The CH LABEL menu will appear.

Press A/V to select "SET/CLEAR". Press 4/1_ to select "SET" then press ENTER.

Press 4/_- to enter a character in the first

space. Press the button repeatedly until the character you want appears on the screen.

CBLABEL :OH 12

SET

RETURN _*

_) :SELECT _ :ADJUST

The characters rotation as follows:

ENTER:SET

Let you set the input terminal displayed when using the

"SOURCE SELECTION" menu or channel display,

SETUP/TVMENU DVD/vlENU

Press TV MENU and the MENU screen displays.

Press 4/_ to select _

(OPTION).

Press A/V to select "VIDEO LABEL", and then press 4/1_.

The VIDEO LABEL menu screen displays. Press A/V to select the specific input source

which you want to change.

Press 4/_ to select the new label for the selected input source.

F_-0 9---Azq

"_ + _ SPACE _"

If the character which you desire appears, press

ENTER. Repeat this step to enter the rest of the characters.

When you finish inputting the label name, press ENTER.

Press EXIT to return to the normal screen.

Repeat steps 1-5 for other channels. You

can assign a label to each channel.

To erase channel labels

Select a channel with a label which you want to remove.

Press TV MENU, then press "_/1_ to select

_(OPTION).

Press A/Y to select "CH LABEL", then

press "_/1_ to display the CH LABEL menu.

Press A/V to select "SET/CLEAR". Press 4/_- to select "CLEAR", then press ENTER.

VIDEOLABEL

3.INPUT3

4. INPUT4

{_=:SELECT I_qADJUST

- Uses the default label name VCR Video cassette recorder DVD DVD video

DTV Digital TV set-top box SAT Satellite box

CBL Cable box

HD HDMI equipment

Press EXIT to return to the normal screen.

(_)- 22

Press EXIT to return to the normal screen.

Repeat steps 1-4 to erase other channel

labels.

• You cannot change label for "TV" input.

Basic adjustment settings

Adjusts the picture to your preference with the following

picture settings,

Press TV MENU and the MENU screen

displays.

Press "_/l_ to select (PICTURE).

Press A/V to select a specific adjustment item (BRIGHTNESS, CONTRAST, COLOR, TINT, SHARPNESS).

Press 4/1_ to adjust the item to the desired level.


AV MODE STANDARD

CONTRAST 4_ COLOR 25

TINT 0 SHARPNESS 25 V

I__l:SELECT _I:ADJUST

BRIGHTNESS

CONTRAST COLOR

TINT

SHARPNESS

For less brightness For less contrast

For less color intensity Skin tones

become purplish For less

sharpness

For more brightness For more contrast

For more color intensity Skin tones

become greenish For more

sharpness

For a better white balance, use color temperature correction.

Press TV MENU and the MENU screen

displays.

Press 4/1_ to select _} (PICTURE).

Press A/Y to select "COLOR

TEMPERATURE".

Press 4/1_ to select the mode you prefer.

COOL White with Blueish tone MEDIUM Neutral WARM White with Reddish tone

Press EXIT to return to the normal screen,

A smoother motion may be obtained by setting the

CINEMA MODE to FILM when you view a DVD from the DVD player connected with the component input,

Press TV MENU and the MENU screen

displays,

Press 4/1_ to select _ (SETUP).

Press A/V to select "CINEMA MODE".

Press 4/_ to select "FILM" or "VIDEO".

Press EXIT to return to the normal screen.

For resetting all Picture adjustment items to the factory preset values, press A/V to select "RESET", and then press 4/_" (see page 28 for further information).

FILM Film content viewing mode

VIDEO Video content viewing mode

BACK LIGHTING adjusts the screen brightness for improved picture clarity,

Press TV MENU and the MENU screen

displays.

Press 4/1_ to select @_ (SETUP).

Press A/V to select "BACK LIGHTING".

Press 4/1_ to adjust the screen brightness.

Press EXIT to return to the normal screen.

Q" 23

Basic adjustment settings

You can adjust the sound quality to your preference

with the following settings,

SETUP/TVMENU DVDMENU

Press TV MENU and the MENU screen displays,

Press 4/1_ to select _ (AUDIO).

AUDIO

MTS STEREO

TREBLE 25

BALANCE D

SPEAKERS ON V

You can output digital audio to an AV amplifier or similar device whose DIGITAL AUDIO INPUT

terminal is connected to the COAXIAL DIGITAL

AUDIO OUTPUT terminal on the TV/DVD. Please

select an audio output format compatible with the audio format of the program you are watching and the equipment connected.

Press TV MENU and the MENU screen

displays.

Press "_/1_ to select #_ (AUDIO).

Press A/V to select "DIGITAL OUTPUT".

Press 4/_ to select "PCM" or "DOLBY DIGITAL".

AUDIO

AUDIO LANGUAGE

=_qSELECT _qADJUST

Press ,&/V to select a specific adjustment item (BASS, TREBLE, BALANCE).

Press 4/1_ to adjust the item to the desired level.

BASS For weaker bass For stronger

bass

TREBLE For weaker For stronger

treble treble

BALANCE Decrease audio Decrease audio

from the right from the left

speaker speaker

Press EXIT to return to the normal screen.

For resetting all Audio adjustment items to the factory preset values, press A/V to select "RESET", and then press _/_. (see page 28 for further information).

PCM

DOLBY DIGITAL

Press EXIT to return to the normal screen.

RESET

{_:SELECT ,_:ADJUST

The coaxial digital audio output terminal outputs audio signal in PCM form. If your digital audio system does not support Doiby Digital, select "PCM".

The coaxial digital audio output terminal outputs audio signal in Dolby Digital form. It reproduces sound from surround program of digital.

(_)= 24

Using external equipment

You can connect many types of external equipment to your TV/DVD like a VCR, Digital TV tuner, HDMI equipment, game console or camcorder. To view external source images, select the input source from INPUT on the remote control unit or on the TV/DVD.

• To protect equipment, always turn off the TV/DVD before connecting a VCR, Digital TV tuner, HDMI equipment,

This explanation is for the setting when connecting a VCR to the INPUT1 terminal.

POWER

CDCD_

DISPLAY TV/DVD EJECT

SLEEP VIEWMODE INPUT

CDCD

®®®0

@@@

A®@ 8

®®0

SKIP REV FWD SKIP

game console, camcorder or other external equipment.

• See pages 26 and 27 for external equipment connection.

• Please read the relevant operation manual (VCR, etc.) carefully before making connections.

• Refer to your external equipment operation manual for the signal type.

STILL/PAUSE PLAY STOP

CSD

SETUP/TVMENU DVDMENU

C_ _ENU

_-pLAY =STOP I_SKIP_I _EJECT

OOO00

vot + v CH /% INPUT POWER

\\ oC3

To watch VCR, select "INPUT1" from "SOURCE SELECTION" menu using 0-4 on the remote control.

SOURCE SELECTION

O. TV

2. INPUT2

3. INPUT3

4. INPUT4

[0-4] : SELECT

• Each time INPUT is pressed, "SOURCE SELECTION" item toggles.

• You can also select "SOURCE SELECTION" item by pressing A/V.

Q= 25

Using external equipment

You can use the INPUT1, INPUT2 or INPUT3 terminals when connecting to a Digital TV STB (Air or Cable) and other audiovisual equipment.

When using component cable.

When using composite cable. (INPUT1 or 2)

(INPUT3)

Component video

cable (commercially

available)

Audio cable (commercially

available)

Digital TV STB

• See page 27 for connecting a Digital TV STB to the HDMI terminal.

It is possible to output audio through the COXlAL

A VCR, game console, camcorder and other

audiovisual equipment can be conveniently connected

DIGITAL AUDIO OUTPUT terminal. (See page 24 for details.) PCM audio outputs from the terminal.

using the INPUT1 or 2 terminals.

AV cable (commercially available)

@@@

Digital TV STB

• The S-video terminal takes priority over the video

terminals.

AV cable

(commercially

available)

S-video cable (commercially

available)

VCR/Game console/ Camcorder

Coaxial digital cable

To coaxial digital input of external audio devices

(_)= 26

Using external equipment

You can use the INPUT4 terminal when connecting HDMI equipment.

HDMI cable (Commercially available'

When using an HDMI-DVI conversion cable, use INPUT4

and AUDIO terminal.

HDMI equipment

To watch an HDMI equipment image, select "INPUT4" from "SOURCE SELECTION"

menu using iNPUT on the remote control unit or on the TV/DVD. (See page 25.)

SOURCE SELECTION

O. TV

1. INPUT1

2. INPUT2

3. INPUT3

[O-4]:SELECT

Refer to your external equipment operation manual for

the signal type.

Press TV MENU and the MENU screen

displays,

Press 4/1_ to select #_ (AUDIO).

Press ,tk/V to select "HDMI".

Press "_/1_ to select "HDMI" or "DVI".

AUDIO

WOW SR$3D OFF

FOCUS OFF TruBass OFF

_._:SELEOT I_:ADJUST

HDMi: When you connect the HDMI device to

the TV/DVD, select this setting.

DVi: When you connect the DVl device to

the TV/DVD with analog audio cords, select this setting.

Press EXiT to return to the normal screen.

Q= 27

Useful adjustment settings

If complex adjustments are made and the settings cannot be restored to normal, you can reset the settings to the factory preset values.

Resetting picture adjustments Each picture adjustments return to the following

factory settings:

AV MODE ..................................................... STANDARD

BRIGHTNESS / COLOR / SHARPNESS ..... center (25)

CONTRAST .................................................. (40)

TINT .............................................................. center (0)

COLOR TEMPERATURE ............................. MEDIUM

Press TV MENU and the MENU screen

displays.

Press "_/1_ to select (_{ (PICTURE).

Press A/Y to select "RESET", and then oress 4!1/_.


COLOR

TEMPERATURE MEDIUM

The TV screen return to the normal screen, and "RESET" will be displayed a few

seconds.

Resetting audio adjustments Each audio adjustments return to the following factory

settings:

BASS .................. center (25) BALANCE ...... center (0)

TREBLE .............. center (25)

Press TV MENU and the MENU screen

displays.

Press 4/1_ to select _ (AUDIO).

Press ,&/V to select "RESET", and then

3ress _/_.

AUDIO

A AUDIO LANGUAGE _.

DIGITALOUTPUT PCM

The TV screen return to the normal screen, and "RESET" will be displayed a few

seconds.

• The channel setup settings will not be changed.

• The language settings will not be changed.

• The password number setting will not be changed.

(_)= 28

Useful adjustment settings

AV mode gives you four viewing options to choose from to best match the surrounding environment of

the TV/DVD, which can vary due to factors like room brightness, type of program watched or the type of image input from external equipment.

Press TV MENU and the MENU screen

displays.

Press 4/_ to select '_#_(PICTURE).

Press A/V to select "AV MODE".

Press 4/_ to select the mode you prefer,

• The mode can be chosen from list below.


BRIGHTNESS 25 CONTRAST 4D

COLOR 25

TINT O

SHARPNESS 25 V

I_:SELECT L_I:ADJUST

SPORTS

STANDARD

MOVIE MEMORY

For a clear-cut image emphasizing high contrast, useful for sports viewing

For a highly defined image in a normal lighting

For a movie Allows the user to

customize settings as desired. You can set

the modefor each input

SOUrCe.

When two or more audio languages are included in a digital signal, you can select one of the audio languages.

Press TV MENU and the MENU screen

displays.

Press 4/_ to select @_ (AUDIO).

Press A/V to select "AUDIO LANGUAGE",

and then press "_/1_.

AUDIO

DIGITALOUTPUT PCM

RESET

{_qSELECT I_I:ADJUST

Press A/V to select your desired language,

then press ENTER.

AUDIOLANGUAGE

1, ENGLISH2 2, FRENCH

3, SPANISH 4, NOINFO

5. NOINFO

6. NOINFO 7, NO INF0

[0-71:SELECT

ENTER:SET

Press EXIT to return to the normal screen.

• You can select a different AV MODE item for each input mode. (For example, select STANDARD for TV input and SPORTS for VIDEO input.)

Q- 29

Useful adjustment settings

Press ViEW MODE.

• The View mode menu displays.

• The menu lists the view mode options selectable for the type of video signal currently

being received.

Press 0-3 to select each view mode directly

while the View mode menu is still on the screen.

• Each time VIEW MODE is pressed, VIEW MODE item toggles.

• You can also select VIEW MODE item by pressing A/V.

• You can sequentially select a view mode that has its own aspect ratio.

VIEW MODE

I.S,STRETCH

2, ZOOM

3.STRETCH

[O-31:SELECT

SiDE BAR: Suitable for viewing conventional 4:3

programs in their normal format.

For adjusting a picture's vertical position in ZOOM mode.

Press TV MENU and the MENU screen

displays,

Press 4/1_ to select _ (SETUP).

Press A/Y to select "PICTURE SCROLL",

and then press 4/11_.

SCROLL ADJUSTMENT screen displays.

To raise the picture, press A To lower the

picture, press V.

The scroll amounts are as follows:

• 480i/480p signal source: ZOOM: -10 to +20

S.STRETCH (Smart stretch): Suitable for stretching 4:3 programs

to fill the screen.

ZOOM:

Suitable for viewing wide-screen

2.35:1 anamorphic DVDs in full screen.

STRETCH:

This mode is useful for 1.78:1 DVDs. When viewing 1.85:1 DVDs, stretch

mode will still show very thin black bands at the top and bottom of the

screen.

• You can enter to the same menu screen from @ (SETUP)

menu.

• In ZOOM mode, some of the on-screen display items may be positioned off the visible portion of the screen. You can use Picture Scroll, as explained on the right, to view off

screen items.

• When this function is not available, "NOT AVAILABLE"

will display.

Press EXiT to return to the normal screen.

• In SIDE BAR, S.STRETCH and STRETCH mode, PICTURE SCROLL will not work.

When the ASPECT is set to ON and the TV recieves a 480i signal, the picture size is automatically

selected (as described in the following table).

Press TV MENU and the MENU screen

displays.

Press 4/1_ to select G (SETUP).

Press ,&/Y to select "ASPECT", and then press 4/1_ to select "ON" or "OFF".

Press EXiT to return to the normal screen.

(_)= 30

Stretch mode is available for HD programs. Suitable for viewing wide-screen 1.78:1 aspect-ratio programs. When viewing 1.85:1 programs, the stretch mode will still show very thin black bands at the top

and bottom of the screen.

4:3 Normal SIDE BAR

16:9 Full STRETCH

4:3 Letter box ZOOM Not defined User-set mode

Useful adjustment settings

Allows you to select what controls the audio output.

Press TV MENU and the MENU screen

displays,

Press 4/1_ to select #_

(AUDIO),

Press ,tk/V to select "SPEAKERS".

Press "_/1_ to select "ON" or "OFF".

AUDIO

MTS STEREO BASS 25

TREBLE 25

BALANCE 0

_):SELECT t_):ADJUST

STILL/PAUSE PLAY STOP

SBTUP/TVMENU DVOMENU

SRS WOW is a special combination of SRS Labs audio technologies that creates a thrilling surround

sound experience with deep, rich bass from stereo sound sources. Your TV/DVD's audio will sound

fuller, richer, and wider. SRS WOW consists of three features; SRS 3D, FOCUS, and TruBass.

Select STEREO mode (see "Setting MTS/ SAP stereo mode" on page 20).

Press TV MENU and the MENU screen

displays.

ON , Sound via speaker is adjusted with

OFF , Sound via the AUDIO OUTPUT

VOL ÷/- on the remote control unit or VOL -/+ on the TV/DVD.

, Sound via the AUDIO OUTPUT

terminal is not adjustable and outputs at a consistent level.

terminal is adjusted with VOL +/- on the remote control unit or VOL -/+ on

the TV/DVD.

* Sound via speaker is muted.

Press EXIT to return to the normal screen.

Press 4/_, to select _ (AUDIO).

Press A/Y to select the desired WOW

feature you want to adjust.

AUDIO

FOCUS OFF TruBass OFF

NDMI NDMI V

_.$qSELECT (_):ADJUST

SRS 3D: Press _/_" to turn on or off the

surround sound effect.

FOCUS: Press ,_/_, to turn on or off the vocal

emphasis effect.

TruBass: Press 4/_ to select the bass

expansion effect high, low or off.

After your desired setting, press EXIT to

return to the normal screen.

Q-31

Useful adjustment settings

Tune the TV to the desired program.

Your TV/DVD is equipped with an internal Closed Caption decoder. It allows you to view conversations, narration and sound effects as subtitles on your TV/DVD. Closed Captions are available on some TV programs and on some VHS home video tapes at the discretion of the program provider.

Digital Closed Caption service is a new caption service available only on digital TV programs (also at the discretion of the service provider). It is a more

flexible system than the original Closed Caption

system, because it allows a variety of caption sizes and font styles. When the Digital Closed Caption service is in use, it will be indicated by the appearance of a 3-letter abbreviation that also indicates the language of the Digital Closed Captions: ENG (English), SPA (Spanish), FRA (French) or other language codes.

Not all programs and VHS videotapes offer closed captions. Please look for the "_" symbol to ensure that captions will be shown.

In the Closed Caption system, there can be more than one caption service provided. Each is identified by its own number. The "C1" and "C2" services display subtitles of TV programs superimposed over the program's picture. Generally, Closed Captions in English are transmitted on Cl and Closed Captions in other languages are transmitted on C2.

In the Closed Caption system, the "Text1" or "Text2" services display text that is unrelated to the program being viewed (e.g., weather or news). These services are also superimposed over the program currently being viewed.

SETUP/TVMENU DVDMENU

Press TV MENU and the MENU screen

displays,

Press 4/1_ to select (_ (SETUP).

Press ,tk/V to select "CLOSED CAPTION".

Press _/1_ to select your desired Closed Caption mode.

• When an Analog signal is received, you can choose C1, C2, T1, T2 and OFF.

SETUP

CCADVANCED VIEW MODE

PICTURERCROLL T

_:SELECT I_I:ADJUST

• When a Digital signal is received, you can choose from CS1, CS2, CS3, CS4, CS5, CS6,

C1, C2, C3, C4, T1, T2, T3, T4 and OFF.

SETUP

CCADVARCED VIEW MODE PICTURESCROLL

{_=:SELECT I_:ADJURT

(_)- 32

• Depending on the broadcast signal, some Analog Captions will function with a Digital broadcast signal.

Press EXiT to return to the normal screen.

• To turn the Closed Caption feature off, select "OFF".

If the program or video you selected is not closed-captioned, no captions will display on-screen. If text is not available in your viewing area, a black rectangle may appear on-screen. If this happens, set the Closed Caption feature to "OFF".

When selecting Closed Captions, the captioning will be delayed approx. 10 seconds.

If no caption signal is received, no captions will appear, but the television will remain in the Caption Mode. Misspellings or unusual characters may occasionally appear during Closed Captioning. This is normal with Closed Captioning, especially with live programs. This is because during live programs, captions are also entered live. These

transmissions do not allow time for editing.

When Captions are being displayed, on-screen displays, such as volume and mute may be seen but may interfere with

Closed Captions. Some Cable TV systems and copy protection systems may interfere with the Closed Captioned signal.

If using an indoor antenna or if TV reception is very poor, the Closed Caption Decoder may not appear or may appear with

strange characters or misspelled words. In this case, adjust the antenna for better reception or use an outdoor antenna.

Useful adjustment settings

This function allows you to adjust the closed caption screen appearance to suit your preference,

Press TV MENU and the MENU screen

displays.

Press 4/_ to select (_ (SETUP).

Press A/V to select "CC ADVANCED", and

then press 4/_. The CC ADVANCED menu displayed.

• You can adjust 5 items here.

CCADVANCED

TEXTTYPE TEXT COLOR

TEXT EDGE

BACKGROUNDCOLOR

Selectable parameters available in each adjustment item,

TEXT SIZE:

TEXT TYPE:

TEXT COLOR:

TEXT EDGE:

BACKGROUND COLOR:

AUTO, SMALL,

STANDARD, LARGE

AUTO, DEFAULT, MONO

W. SERIF, PROP. W. SERIF, MONO W/O SERIF, PROP. W/O SERIF, CASUAL, CURSIVE,

SMALL CAPITALS

AUTO, BLACK, WHITE,

RED, GREEN, BLUE, YELLOW, MAGENTA, CYAN

AUTO, NONE, RAISED,

DEPRESSED, UNIFORM, LEFT DROP SHADOW,

RIGHT DROP SHADOW

AUTO, BLACK, WHITE,

RED, GREEN, BLUE, YELLOW, MAGENTA,

CYAN

=_qSELECT L_qADJUST

Press ,&IV to select a specific adjustment item, then press 4/_. The selectable parameter of each items will appear.

TEXT SIZE

SMALL

STANDARD LARGE

=_:SELECT ENTER:SET

Press ,tk/V to select the desired parameter.

Press EXIT to return to the normal screen.

• This feature is designed to customize Digital Captions only.

• The "AUTO" value depends on the broadcasting station.

Q= 33

Useful adjustment settings

Changing the password

Allows you to change your current password.

Allows you to use a password to protect certain

settings from being accidentally changed. IMPORTANT: Three conditions must be met to enable the V-Chip

O Password is registered. ® V-CHIP settings have been made.

® "V-CHIP" is set to "ON".

Setting a password

Press TV MENU and the MENU screen

displays.

Press "_/1_ to select _ (LOCKS).

Press A/Y. The password entering menu

displays.

Select and enter a password (4 digits) using the number buttons (0-9}, then press

ENTER.

Repeat steps 1 to 3 in setting a password,

* The password entering menu displays.

Input the 4-digit password by using 0-9,

then press ENTER.

Press A/V to select "NEW PASSWORD",

then press "_/I_.

LOCKS

V=CNIP OFF

V-CHIPSET F

(_I:SELECT _l :ADJUST

Enter a new password using 0-9, then

)ress ENTER.

LOCKS

[D-S]:SELECT ENTER:SET

EXIT:END

"appears instead of the number.

Enter the same password again to confirm, then press ENTER, the password is now registered and the LOCKS menu will appear

on the screen.

LOCKS

[S-S]:SELECT ENTER:SET

EXIT:END

LOCKS

[O-S]:SELECT ENTER:SET

EXIT:END

Enter the same password again to confirm,

then press ENTER.

LOCKS

[O-S]:SELECT ENTER:SET

EXIT:END

The screen returns to LOCKS menu. Your new password has been set.

(_)- 34

* As a precautionary measure, make a note of your

password and keep it in a familiar place.

* The "V-CHIP SET (DTV)" will only be selectable when

a new rating system can be downloaded via digital broadcasting in the U.S.

Useful adjustment settings

V-CHIP is an electronic filtering device built into your TV. This tool gives parents a great degree of control over broadcasts accessed by their children. It allows parents to select programs judged suitable for child viewing

while blocking ones judged not suitable. It does so automatically once you activate the V-CHIP feature in your

TV.

V-CHIP SET menu will not be selectable from the menu if you do not first configure your password.

(See page 34 for password setting for parental control.)

• The U.S. has two rating systems for viewing content: movie ratings and TV Parental Guidelines.

• The TV Parental Guidelines work in conjunction with the V-CHIP to help parents screen out inappropriate television shows from their children.

• Movie ratings are used for original movies rated by the Motion Picture Association of America (MPAA) as watched on cable TV and not edited for television. The V-CHIP can also be set to block MPAA-rated movies.

TV Parental Guidelines

Content

TV-Y (All children)

TV-Y7 (Directed to older children)

Suggested TV-G (General audience)

age

X: Content rating can be set.

TV-PG (Parental Guidance suggested)

TV-14 (Parents strongly cautioned)

TV-MA (Mature audience only)

Voluntary movie rating system (MPAA)

G General audiences. All ages admitted.

PG Parental guidance suggested. Some material may not be suitable for children.

PG-13 Parents strongly cautioned. Some material may be inappropriate for children under 13.

Age

R Restricted. Under 17 requires accompanying parent or adult guardian (age varies in some

jurisdictions).

FANTASY

VIOLENCE

SEXUAL

SITUATIONS

ADULT

LANGUAGE

SEXUAL

DIALOG

NC-17 No one 17 and under admitted.

X X is an older rating that is unified with NC-17 but may be encoded in the data of older movies.

If you select "PG-13", this will automatically block the higher ratings "R", "NC-17" and "X".

• Voluntary movie rating system only uses an age-based rating.

Q- 35

Useful adjustment settings

Press TV MENU and the MENU screen

displays.

Press 4/_ to select _ (LOCKS).

Press A/Y. The password entering menu

displays.

Input the 4-digit password by using 0-9,

then press ENTER. The LOCKS menu displays.

Press A/Y to select "V-CHIP SET", then

press 4/_. The V-CHIP SET menu displays.

Press ,&/Y to select "TV RATING". Then

press 4/_'- to select the desired rating.

V-CHIPSET

MOVIERATING I* CAN ENGRATING OFF

CAN FRERATING OFF

Repeat steps 1 to 5 in TV Parental Guidelines (TV Guidelines).

Press A/Y to select "MOVIE RATING".

Then press 4/_. The RATING SET menu displays.

Press ,&/Y to select desired setting, then press 4/1_ to select the settings "ON" or

"OFF".

RATINGSET

PG : OFF PG-13 : OFF R : OFF

NC-17 : OFF X : OFF

t_ :SELECT _.$J:ADJUST

• See page 35 for setting details.

Press EXIT to return to the normal screen.

I_ :SELECT =.$1:ADJUST

• When you select TV-Y7, TV-PG, TV-14 or TV-MA, "DISPLAY TO SET CONTENTS"

will appear on the screen. Press DISPLAY to explain the rating. Press &/V to select

the desired rating you want. Press 4/_- to select the setting "ON" or "OFF". Then press

RETURN.

• See page 35 for setting details.

Press RETURN. The LOCKS menu

displays.

Press A/V to select "V-CHIP', then press 4/ I_ to select "ON".

Your setting are now set into memory.

• If "V-CHIP" is not set to "ON", the V-CHIP setting will not work.

LOCKS

V-CHIPSET V-CHIPSET (DTV}

NEWPASSWORD

(_)- 36

I_ :SELECT _1:ADJUST

Press EXIT to return to the normal screen.

Useful adjustment settings

* The TV rating systems in Canada are based on the Canadian Radio-Television and Telecommunications

Commission (CRTC) policy on violence in television programming.

* While violence is the most important content element to be rated, the structure developed takes into

consideration other program content like language, nudity, sexuality and mature themes.

* When setting the V-CHIP on the Canadian system you can choose either the Canadian English ratings or the

Canadian French ratings.

Canadian English ratings

C8+

Age

14+

18+

Exempt: Includes news, sports, documentaries and other information programming; talk shows music videos, and variety programming.

Children: Intended for younger children under the age of 8 years. Pays careful attention to themes that could threaten their sense of security and well-being.

Children over 8 years old: Contains no portrayal of violence as the preferred, acceptable, or only way to resolve conflict; nor encourage children to imitate dangerous acts which they may see on

the screen. General: Considered acceptable for all age groups. Appropriate viewing for the entire family,

contains very little violence, physical, verbal or emotional. Parental Guidance: Intended for a general audience, but may not be suitable for younger children

Over 14 Years: Could contain themes where violence is one of the dominant elements of the storyline, but it must be integral to the development of plot or character. Language usage could be

_rofane and nudity present within the context of the theme.

Adults: Intended for viewers 18 years and older and might contain depictions of violence, which while related to the development of plot, character or themes, are intended for adult viewing. Could contain graphic language and portrayals of sex and nudity.

Canadian French ratings

E Exempt programming.

under the age of 8) because it could contain controversial themes or issues.

Sans+ contain scenes disturbing to children under 8 who cannot distinguish between imaginary and real

Age situations. Recommended for viewing with parent.

13ans+ Over 13 years: Could contain scenes of frequent violent scenes and therefore recommended for

General: All ages and children, contains minimal direct violence, but may be integrated into the

_lot in a humorous or unrealistic manner.

General but inadvisable for young children: May be viewed by a wide public audience, but could

viewing with parent.

16ans+ Over 16 years: Could contain frequent violent scenes and intense violence.

18ans+

Over 18 years: Only for adult viewing. Could contain frequent violent scenes and extreme violence.

Q= 37

Useful adjustment settings

Press TV MENU and the MENU screen

displays.

Press 4/1_ to select _ (LOCKS).

Press A/Y. The password entering menu

displays.

Input the 4-digit password by using 0-9,

then press ENTER. The LOCKS menu displays.

Press A/V to select "V-CHIP SET", then

press 4/_. The V-CHIP SET menu displays.

Press A/Y to select "CAN ENG RATING".

Then press _1/1_to select the desired rating.

V-CHIPSET

TV RATING OFF

MOVIERATING

Repeat steps 1 to 5 in Canadian English ratings.

Press A/V to select "CAN FRE RATING".

Then press "_/1_to select the desired rating.

V-CHIPSET

TV RATING OFF

MOVIERATING CARENGRATING OFF

t_ :SELECT L$_:ADJUST

• See page 37 for setting details.

Press EXIT to return to the normal screen.

CAN FRERATING OFF

I_1:SELECT {_ :ADJUST

• See page 37 for setting details.

Press RETURN, The LOCKS menu

displays,

Press A/Y to select "V-CHIP", then press 4/ I_ to select "ON".

Your setting are now set into memory.

• If"V-CHIP" is not set to "ON", the V-CHIP setting will not work.

LOCKS

V-CHIPSET V-CHIPSET(DTV}

NEWPASSWORD

t._:SELECT i_ :ADJUST

The V-CHIP block is working and censors a broadcast, "THIS PROGRAM HAS BEEN BLOCKED!" displays.

Press MUTE while the V-CHIP is working and then the password entering menu displays.

Enter your 4-digit password with 0-9. At this time V-CHIP block temporarily

releases.

You can reactivate the temporarily released V-CHIP block as shown below.

Method 1:

Change to the other channel.

Method 2:

Switch off the TV/DVD power.

• Performing any of the two above will activate the V-CHIP block.

(_)= 38

Press EXIT to return to the normal screen.

Other viewing options

In order to receive digital air broadcasts, you need a digital broadcast antenna, You can confirm the antenna configuration through the "SIGNAL METER" menu,

If necessary, adjust the direction of the antenna to obtain the maximum signal strength.

Signal strength

Press TV MENU and the MENU screen

displays,

Press "_/1_ to select _ (SETUP).

Press A/V to select "SIGNAL METER".

Press _/_-,

• The strength of the digital signal is displayed. The signal information is based on the current

channel.

SIGNALMETER

CHANNELIDIGITAL) 23,002

__ 40

Press EXIT to return to the normal screen.

Q= 39

Watching the DVD

Simple operations for watching a DVD.

_PLAY mSTOP I_SKIP_ dEJECT

00000

VOL + v Cll A

IN[_UT POWER

CZD E3Z3

POWER

POWER indicator

TV/DVD status indicator (POWER)

ON Lighting (Green) OFF/Standby Lighting (Red)

Perform the following steps before you press POWER on the remote control unit.

1. Insert the batteries into the remote control unit. (See page 10.)

2. Connect the antenna cable to the TV/DVD. (See page 15.)

3. Plug in the AC cord to the AC outlet. (See page

9.)

Press POWER on the TV/DVD, or POWER on the remote control.

• POWER indicator (Green): The TV/DVD is on. ("PLEASE

WAIT" will appear for a few seconds on the screen.)

Press TV/DVD to select the DVD mode.

Press POWER on the TV/DVD, or POWER on the remote control.

• The TV/DVD enters standby mode and the image on the

screen disappears.

• The POWER indicator on the TV/DVD changes to Red.

POWER (On/Standby)

TV/DVD

)OWER

TV/DVD EJECT

SLEEP VIEWMODE INPUT

C3 CD CD

®®®8

®®®

®@©

SKIP REV FWD SKIP

STILL/PAUSE PLAY STOP

CSD

SETUP/TVMENU DVD MENU

• If you are not going to use this TV/DVD for a long period

of time, be sure to remove the AC cord from the power outlet.

• Weak electric power is still consumed even when

POWER is turned off.

• If a station being viewed stops broadcasting, the TV/DVD

will automatically shut itself off after 15 minutes. (TV

mode only.)

(_)= 40

Watching the DVD

Place the disc in the disc slot with the label side facing forward.

(If the disc has a label.) Hold the disc without touching its surface, align it with the guides, and place it in position.

On the screen, "A" changes to "Reading" and then playback will commence.

• A menu screen appear on the TV screen, if the

disc has a menu feature. In this case, press A/ Y/_/_. or ENTER to operate a menu feature.

Press STOP to end playback.

• The unit memorizes the stopped point,

depending on the disc. "_" appears on the screen. Press PLAY to resume playback (from the scene point).

• If you press STOP again ("l" appears on the

screen) or unload the disc, the TV/DVD will clear the stopped point.

Press DISPLAY. The status display of the disc will appear on the screen in order like the figure below,

DVD

_' Title elapsed playing time

Play

status

Title

number

Chapter No _'

Subtitle language _' Type of audio

Display Off

Audio language

time

angle

Audio CD

Track elapsed playing time

Disc

Track

number

total time

total

Press EJECT.

Remove the disc and then press POWER. The TV/DVD turns off.

• When you play a CD disc, the status display will appear and remain on the screen.

When you eject the disc, you may hear mechanism noise, but it is not malfunction.

If the TV/DVD does not operate properly: Static electricity, etc., may affect the player's operation. Disconnect the AC power cord once, then connect it again.

• If a non-compatible disc is loaded, "incorrect Disc", "Region Code Error" or "Parental Error" will appear on the TV screen according to the type of loaded disc. If these appear, check your disc again (see pages 6 and 52).

• Some discs may take a minute or so to start playback.

• When an 8 cm disc is placed into the disc slot, and the playback picture or menu display does not appear, press PLAY.

• A "Prohibition" symbol "'_" may appear at the upper left of the screen. This symbol means either the feature you tried is

not available on the disc, or the TV/DVD cannot access the feature at this time. This does not indicate a problem with the

TV/DVD.

• When you set a single-faced disc label downwards (i.e. the wrong way up) "Reading" will appear on the display and then "incorrect Disc" will be displayed.

• Some playback operations of DVDs may be intentionally fixed by software producers. Since this TV/DVD plays DVDs according to the disc content recorded, some playback features may not be available. Also refer to the instructions

supplied with the DVDs.

Q- 41

Watching the DVD

SKIP REV FWD SKIP

STILL/PAUSE PLAY STOP

SETUP/TVMENU DVDMENU

Fast Forward Playback Press FWD during normal playback. Each press of FWD will increase the speed of the search

(x2), _ (x4), _(x 8), _(x 15).

(CD: _ (x 2), _ (x 4), _ (x 8), I_'_ (x 20))

• To resume normal playback, press PLAY.

• The above figure shown in parentheses indicates the

average speed multiplier.

Review Playback Press REV during normal playback. Each press of REV will increase the speed of the search

(x 2), _ (x4), 4NIN_ (x 8), ,_41141,4_(x 15).

(CD: _ (x 2), _ (x 4), 4_4(x 8), 4_1_ (x 20))

• To resume normal playback, press PLAY.

• The above figure shown in 3arentheses indicates the

average speed multiplier.

Still Playback Press STILL/PAUSE during normal playback to pause playback.

• To resume normal playback, press PLAY.

AUDIO PLAYMODEANGLE ZOOM

@C3CD

RETURNA-BREPEATMARKERDIREOTSKIP

This TV/DVD will allow you to zoom in on the frame image. You can then make selections by switching the position of the frame.

Press ZOOM during playback.

The center part of the image will be zoomed

in.

Each press of ZOOM will change the ZOOM magnification Q,1 (x 1.3), O_2 (x 1.5) and Q, 3 (x 2.0).

Press A/v/_/I_ to view a different part of

the frame. You may move the frame from the center

position UP, DOWN, LEFT or RIGHT. In the zoom mode press ZOOM repeatedly

to return to a 1:1 view (O_off).

• You can select the Still Playback or Fast Forward (Review) Playback in the zoom mode.

• Some discs may not respond to zoom feature.

(_)- 42

Frame Advance Press STILL/PAUSE during still playback.

One frame is advanced each time you press STILL/ PAUSE.

• To resume normal playback, press PLAY.

Slow-motion Playback Press SLOW (1_) or SLOW (41) during normal playback or still playback. Each press of SLOW will change the speed of the slow x1/2, x1/4, x1/6, x1/7.

• To resume normal playback, press PLAY.

• To resume the still playback, press PAUSE/STILL.

Locating a chapter or track Press SKIP(_,_|) Forward or SKIP(|4_) Reverse during playback to locate a chapter that you want to

watch.

Each time you press the button, a chapter or track is skipped.

The TV/DVD is capable of holding a still video image or On screen display image on your television screen indefinitely. If you leave the still video image or On screen display image displayed on your TV for an extended period of time, you risk permanent damage to your television screen.

Use the title, chapter and time recorded on the disc to locate the desired point to play back.

Press DIRECT SKIP during playback.

Press 41/1_to select the "[]" (Time), "[_" (Title) or "[_" (Chapter).

Press Number buttons (0-9) to input the number.

• If you input a wrong number, press CANCEL.

• Refer to the package supplied with the disc to check the numbers.

Press ENTER.

• Playback starts.

• When you change the title, playback starts from Chapter 1 of the selected title.

• Some discs may not work in the above operation.

Watching the DVD

AUDIO PLAYMODEANGLE ZOOM

Press PLAY MODE during playback or stop

mode.

Press ENTER to select "Chapter" or "Title".

• In case of Audio-CD, first press _ to select "Repeat" and then press ENTER to select "Track" or "All".

DVD Audio-CD

Press PLAY MODE again to make the

screen disappear.

• Press PLAY to start Repeat playback.

• To resume normal playback, select Repeat "Off".

The TV/DVD stores the points that you want to watch again up to 3 points.

You can resume playback from each scene. Marking the scenes

s s,,ow

AUDIO PLAYMODEANGLE ZOOM

0 GD CZ}

RETURNA-BREPEATMARKERDIRECTSKIP

(Zi) (C3 (E3

Press MARKER during playback.

Select the blank Marker using _/_', then press ENTER at the desired scene.

• Up to 3 scenes can be selected.

• Repeat this procedure to set the other 2 scenes.

• Some discs may not be compatible with the repeat operation.

A-B repeat playback allows you to repeat material

between two selected points.

AUDIO PLAYMODEANGLE ZOOM

@ CD (;D

RETURNA'BREPEATMARKERDIRECTSNIP

@ 0@

Press A-B REPEAT during playback.

The start point is selected.

Press A-B REPEAT again.

The end point is selected.

Playback starts at the point that you selected. Playback stops at the end point, returns to Point A automatically, then starts again.

• To resume normal playback press A-B

REPEAT again.

,...._Off appears on the screen.

Press MARKER to return to the normal screen.

Returning to the scenes

Press MARKER during playback or stop mode.

Press _/_ to select the Marker 1-3.

Press ENTER, Playback starts from the marked scene.

To cancel the Marker Follow the above steps 1~2, then press CANCEL.

• Some discs may not work with the marking operation.

• The marking is cancelled when you eject the disc or turn the power off.

• Some subtitles recorded around the marker may fail to appear.

• In A-B Repeat mode, subtitles near the A or B locations may not be displayed.

• You cannot set the A-B Repeat for the scenes that include multiple angles.

• You may not be able to set A-B Repeat during certain

scenes of the DVD.

• A-B Repeat does not work with an interactive DVD, MP3/

WMA/JPEG-CD.

Q- 43

Watching the DVD

You can arrange the order of tracks on the disc.

®®® ®@O

AUDIO PLAYMODEANGLE ZOOM

@ (2DCD

Press PLAY MODE in the stop mode.

Press 4/_, to select "Play Mode", then

press ENTER to select "Program".

Example: In case you wish to program in order of 7, 3, 11 :

Enter as 7 Y, 3 Y, 11. * If you input a wrong

number, press CANCEL.

Press A/V!,_/_ to select "Program

Playback" and press ENTER. "Program

Playback" will appear on the screen. The program you selected will begin to playback

in the order set. To return to normal playback, select "Play

Mode: Off" at step 2 above.

• To cancel program play, select "Clear" at step 4 and press ENTER.

• The program is cancelled when you eject the disc or turn

the power off.

When playing back a disc recorded with multi-angle

facility, you can change the view angle.

Press ANGLE during playback.

The current angle will appear.

Press ANGLE repeatedly until the desired

angle is selected.

* In case of JPEG-playback, the JPEG-image is rotated

90 degrees to the right.

* Depending on the DVD, you may not be able to change

the angles even if multi-angles are recorded on the DVD.

Two or more titles are recorded on some discs. If the title menu is recorded on the disc, you can select the

desired title.

Press TOP MENU during playback.

Title menu appears on the screen.

Press A/T/4/_" to select the desired title.

Press ENTER or PLAY.

The playback of the selected title will start.

Some DVDs allow you to select the disc contents using the menu. When you play back these DVDs, you can select the subtitle language and soundtrack language, etc. using the DVD menu.

Press DVD MENU during playback.

The DVD menu appears on the screen.

* Press DVD MENU again to resume playback

at the scene when you pressed DVD MENU.

• Random playback cannot be combined with Repeat

(_)- 44 playback.

Press PLAY MODE during playback or stop

mode.

Press 4/_, to select "Play Mode", then

press ENTER to select "Random".

Press PLAY.

"Random Play" will appear on the screen and Random playback will start. To return to normal playback, select "Play

Mode : Off" at step 2 above.

Press A/_'/_/i_ to select the desired item.

Press ENTER.

The menu continues to another screen.

Repeat steps 2 and 3 to set additional items if any.

* Depending on the DVD, you may not be able to select the

title. Depending on the DVD, a "title menu" may simply be called a "menu" or "title" in the instructions supplied with

the disc.

Watching the DVD

You can select the language when you play a multilingual disc.

AUDIO PLAYMODEANGLE ZOOM

RETURNA'BREPEATMARKERDIRECTSKIP

@ @ CD CD

Press AUDIO during playback,

The current soundtrack language will appear,

Press AUDIO repeatedly until the desired

language is selected. The on-screen display will disappear after a few seconds.

Changing the subtitle language You can select the language when playing back a

disc recorded with multi-lingual subtitles,

Press SUBTITLE repeatedly during playback until your desired language

appears,

The on-screen display will disappear after a few seconds,

• If the desired language is not heard after pressing AUDIO

several times, the language is not recorded on the disc.

• Changing soundtrack language is cancelled when you

eject the disc. The initial default language or available language will be

heard if the disc is played back again.

Turning the subtitles on and off Press SUBTITLE during playback until "Off" appears.

• Changing subtitle language is cancelled when you eject the disc.

• Some functions may not work on some DVDs. You may

not be able to turn subtitles on or off or change subtitles.

While playing the DVD, the subtitle may change when:

- you eject or insert the disc.

- you change the title.

• In some cases, the subtitle language is not changed to the selected one immediately.

(_- 45

MP3/WMA/JPEG CD playback

This TV/DVD can playback the MP3/WMA/JPEG-data which has been recorded on CD-R or CD-RW. To produce the MP3/WMA/JPEG-data, you need a Windows-PC with CD-R/RW drive and a MP3/WMA/JPEG-

encoding Software (not supplied). The Apple-HFS-System cannot be played.

This TV/DVD requires discs/recordings to meet certain technical standards in order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3/WMA files). Given the fact that technology in this area is still maturing, This unit cannot

guarantee that all genre of recordable discs will produce optimal playback quality. The technical criteria set out in this owner's manual are meant as a guide only.

Please be advised that you must obtain permission from the applicable copyright owners to download copyrighted content, including music files, in any format, including the MP3 and WMA formats, prior to the downloading thereof.

Limitations on MP3/WMA/JPEG CD playback

• MP3/WMA/JPEG CD is the disc that is standardized by ISO9660, its file name must include 3-digits extension letters, "mp3", "wma", "jpg".

• MP3/WMA/JPEG CD must be correspond to the ISO standardized files.

• This TV/DVD can read 600 files per disc. If one directory has more than 600 files, it reads up to 600 files, the remaining files will be omitted.

• The unit is able to recognize up to a maximum of 50 directories per disc.

• MP3/WMA/JPEG CDs cannot be used for the purpose of recording.

• If the CD has both audio tracks and MP3/WMA/JPEG files, only audio tracks are played.

• It may take more than one minute for this unit to read MP3/WMA/JPEG files depending on its structure.

• Music recorded by "Joliet Recording Specification" can be played back, the file name is displayed (within 16 letters) on the screen. Long file names will be condensed.

• The music files recorded by "Hierarchical File System" (HFS) cannot be played.

Limitations on display

• The maximum number for display is 16 letters. Available letters for display are the following: capital or small alphabets of A through Z, numbers of 0 through 9, and _ (under score).

• Other letters than those above are replaced in hyphen.

Notes on MP3/WMA/JPEG files To playback MP3/WMA/JPEG CD in the recorded order,

1. Use MP3/WMA/JPEG software that records data alphabetically or numerically.

2. Name each file including two-digit or three-digit number (ex. "01" "02" or "001" "002").

3. Refrain from making too many sub-folders.

CAUTION:

• Some MP3/WMA/JPEG CDs cannot be played back depending on the recording conditions.

• The CD-R/RW that has no music data or non MP3/WMA/JPEG files cannot be played back.

Standard, sampling frequency, and the bit rate: MP3 CD

MPEG-1 Audio

32kHz, 44.1 kHz, 48kHz 32kbps ~ 320kbps (constant bit rate or variable bit rate) The recommend recording setting for a high-quality sound is 44.1 kHz of sampling frequency and 128kbps of constant bit

rate.

WMA CD

WMA version 7, and 8

32kHz, 48kbps

44.1 kHz, 48kbps ~ 192kbps 48kHz, 128kbps ~ 192kbps The file recorded by mono, 48kHz, 48 kbps is not available to this unit.

(_)= 46

Microsoft, Windows Media, and the Windows Logo are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

MP3/WMA/JPEG CD playback

Load a disc on which MP3 or WMA files

have been recorded in the disc slot.

"Reading" will appear on the TV screen.

Reading time will depend on the number of

files on the disc.

A file menu screen will appear on the TV

screen.

Press _/1_ to select a folder.

i!i

Press AI_Yl41_, or a Number button (0-9)

to select the desired file.

• In case the folder includes more than 15 files, press 4/_- to display next file list.

• When PLAY has been pressed after displaying the file menu, playback begins automatically starting from the first file. In this case, if the first file is an MP3/WMA file, only MP3/WMA files are played back in order. If the first file is a JPEG file, the first JPEG file is played back.

Press ENTER,

The selected file starts playing back.

Press STOP to end playback.

• The TV/DVD records the stopped point. "illl" appears on the screen. Press PLAY to resume playback (from the scene point).

• If you press STOP again or unload the disc, the unit will clear the stopped point.

• During MP3/WMA/JPEG-Playback, you cannot use SEARCH, or A-B Repeat functions.

• You can use Repeat (Track or All), Random functions

and Program playback for MP3/WMA/JPEG CD Playback

(see page 44).

Insert a disc to play same method as step 1-2 left column.

A file menu screen will appear on the TV screen.

Press 4/li, to select a folder.

Press AITI'_I_" or Number buttons (0-9) to

select the desired file.

• When PLAY has been pressed after displaying the file menu, playback begins automatically starting from the first file. In this case, if the first file is a JPEG file, the first JPEG file is played back. If the first file is an MP3/WMA file, only MP3/WMA files are played back in order.

Press ENTER,

The selected picture appears on the screen.

Press STOP to end playback.

The file menu appears on the screen.

If you want to watch the other file, repeat

steps 3-4.

• MP3 or WMA files on the KODAK Picture CD are not recognized on this unit.

• In case of JPEG-playback, the JPEG-image is rotated 90 degrees to the right.

Operation

Elapsedtime

Filenumber /

Media_

Folder--

CD_

- m Pops 1 fr% 8 t_ flower

2 _# BayBridge 9 t_ LiesandTruth-

3 _ CLOSEMYEYES10_ Pic-1

4 $_ DIVETOBLUE 11_ Pic-2

5 _ Honey 12[] Pic-3

6 t# BLUEEYES 13i_ Pic-4

7 _. BlurryEyes 14[] Pic-5

_1I_T/0-9/Enter/Play Mode

.I-_t IndicatesMP3file

Ifll_l!l

,l-.ft Indicates WMA file

Ill_ll

L !_

1/94 02:%

[] IndicatesJPEGfile

Q- 47

MP3/WMA/JPEG CD playback

You can continuously playback all JPEG files automatically.

SETUP/TVMENU DVDMENU

AUDIO PLAYMODEANGLE ZOOM

CD (D CD

RETURNA'BREPEATMARKERDIRECTSKIP

Press SETUP and the SETUP screen

displays.

Press 4/1_ to select [] (PICTURE), then

press T or ENTER.

Press A/T to select "JPEG Interval".

Press ,q/l_ to select your desired time.

When playing back a CD containing a mixture of MP3, WMA and JPEG files, only MP3/WMA or JPEG

files can be displayed on the file menu.

Press SETUP and the SETUP screen

displays.

Press ,_/1_to select [] (SETUP), then press v or ENTER.

Press A/T to select "Select Files".

Press 4/1_ to select your desired file type.

off 5 seconds

10 seconds

15 seconds

All Displays all files. Music Only Displays only MP3/WMA files. Pictures Only Displays only JPEG files.

Press RETURN to return to the normal

screen.

• You cannot display DVD SETUP screen when disc is playback.

Plays back one file at a time.

Displays images in the form of a slide show. Every 5 seconds the image changes.

Displays images in the form of a slide show. Every 10 seconds the image changes.

Displays images in the form of a slide show. Every 15 seconds

Press RETURN to return to the normal

screen.

(_)= 48

• You cannot display DVD SETUP screen when disc is playback.

Function setup

Use the following buttons on the remote control to operate the menu.

POWER

_CD_

DISPLAY TV/DVD EJECT

SLEEP VIEWMODE INPUT

CD CD CD

®®®8

®®®

®®©

SKIP REV EWD SKIP

STILL/PAUSE PLAY STOP

SETUPiTVMENU DVDMENU

List of menu items to help you with operations

LANGUAGElii

Menu ............................................................Page 50

Subtitle ........................................................ Page 50

Audio ........................................................... Page 50


TV Screen .................................................... Page 50

Display ......................................................... Page 51

Picture Mode ............................................... Page 51

JPEG Interval .............................................. Page 48

AUD,Oii

AUDIO PLAYMODEANGLE ZOOM

@_ CD @D£D

RETURNA-BREPRATMARKERDIRECTSKIP

CD CD CD

SETUP: Press to open the menu screen. A/V/4/_: Press to select a desired item on the

screen or adjust a selected item.

ENTER:

RETURN: Press to exit from the menu screen.

The lower part of the menu screen is an operational guide for the remote control.

It will change in accordance with each menu

setting screen.

Press to go to the next step or complete

the setting,

All changed settings will be saved.

S.TUP

Password ..................................................... Page 52

Parental ....................................................... Page 52

Select Files .................................................. Page 48

• You cannot display DVD SETUP screen when disc is playback.

Q = 49

Function setup

You can select the language of the disc menu messages of DVDs.

The same language can always be selected even if you replace the disc or turn the power off.

Press SETUP and the SETUP screen

displays.

Press ,q/_ to select [] (LANGUAGE), then

press v or ENTER.

Press A/_' to select desired option.

Press 4/_ to select your desired language

(e.g. English).

English,

Francais, Espanol:

Other Other language can be selected (see

Off (Subtitle) Subtitles do not appear. Original The unit will select the first priority

(Audio) language of each disc.

The selected language will be heard or seen.

the "Language code list" on page 54).

Press SETUP and the SETUP screen

displays.

Press 4/_ to select [] (PICTURE), then

press T or ENTER.

Press A/v to select "TV Screen".

Press _/_ to select your desired screen

type.

4:3 (Letter box)

4:3 (Pan Scan)

16:9 (Wide)

Select this mode when connecting to a conventional TV.

When playing back a wide screen-DVD disc, it displays the wide picture with black bands at the top and bottom of screen.

It displays the wide picture on the whole

screen with left and right edges automatically cut off.

Select this mode when connecting to a wide-screen TV.

A wide screen picture is displayed full size.

Press RETURN to return to the normal

screen.

If the selected language is not recorded on the disc, the

first priority language is selected.

Press RETURN to return to the normal

screen.

• If the DVD disc is not formatted in the pan & scan style, it displays 4:3 style.

(_)- 50

Function setup

On screen display can be switched on or off when you press the DISPLAY button.

Press SETUP and the SETUP screen

displays.

Press 4/1_ to select [] (PICTURE), then

press v or ENTER.

Press A/T to select "Display".

Press 4/1_ to select "On" or "Off".

• If "TV Screen" is not set to "On" on screen displays do not appear when you press any

buttons except SUBTITLE, PLAY MODE, MARKER, DIRECT SKIP and DISPLAY.

Press RETURN to return to the normal

screen.

There are two types of source content in pictures recorded in DVD video discs: film content (pictures recorded from films at 24 frames per second) and video content (video signals recorded at 30 frames per second). Make this selection according to the type of content being viewed.

Press SETUP and the SETUP screen

displays.

Press 4/1_ to select [] (PICTURE), then

press v or ENTER.

DRC (Dynamic Range Control) enables you to control the dynamic range so as to achieve a suitable sound

for your equipment.

Press SETUP and the SETUP screen

displays.

Press 4/1_ to select [] (AUDIO), then press v or ENTER.

Press A/T to select "DRC".

Press _/1_ to select "On" or "Off".

off

Loud sound such as explosion or

similar is toned down slightly when played back. This makes it suitable for

when it is connected to a stereo.

It plays back at the recording level on

the disc.

Press RETURN to return to the normal

screen.

Press A/T to select "Picture Mode".

Press ,q/l_ to select your desired picture

mode.

Auto Select this position normally. The DVD

player automatically detects source content, film or video, of playback

source.

Film Suitable for playback of film content

pictures.

Video Suitable for playback of video content

pictures.

Press RETURN to return to the normal

screen.

• This function works only during playback of Dolby Digital recorded discs.

• The level of Dynamic Range Reduction may differ

depending on DVD video disc.

(_- 51

Function setup

Some discs are specified as not suitable for children. Playback of such discs can be restricted with this

TV/DVD.

Press SETUP and the SETUP screen

displays.

Press 4/1_ to select [] (SETUP), then

press v or ENTER.

Press A/v to select "Parental".

Press 4/_ until the level you require

appears.

LevelOff The parental control setting does not

function.

Level 8 Virtually all DVD software can be

played back.

Level 1 DVD software for adults cannot be

played back.

• Select from level 1 to level 8. The limitation will be more severe as the level number decreases.

Press SETUP and the SETUP screen

displays.

Press 4/1_ to select [] (SETUP), then press v or ENTER.

Press A/v to select "Password".

Press Number buttons (0-9) to enter the password you have stored.

• If you input a wrong number, press CANCEL.

Press ENTER.

The rating is now unlocked.

Press v to select "Parental", then press 4

or I_ to change the parental level.

Press A to select "Password", then press Number buttons (0-9) to enter the password.

You can change the password at this time if you want.

Press ,L to select "Password". Press Number buttons (0-9) to input a

4-digit password.

Be sure to remember this number!

• if you input a wrong number, press CANCEL.

Press ENTER to store the password.

After the rating is locked, the setting cannot be changed unless you enter the correct password.

Press RETURN to return to the normal

screen.

• Depending on the discs, the TV/DVD may not be able to

limit playback.

• Some discs may not be encoded with specific rating level

information though its disc jacket says "adult." For those

discs, the parental control feature will not work.

Press ENTER.

The parental level is changed and locked.

Press RETURN to return to the normal

screen.

If you forget the password...

1. Press EJECT to remove the disc.

2. While holding STOP down on the front panel, press 7 on the remote control.

"PASSWORD CLEAR" appears on the screen.

3. Enter a new password again.

(_)- 52

Function setup

Depending on the DVD disc, the disc may try to temporarily cancel the rating level that you have set.

It is up to you to decide whether to cancel the rating level or not.

Load a DVD disc. (See page 41.)

If the DVD disc has been designed to

temporarily cancel the rating level, the screen which follows the "Reading" screen

will change, depending on which disc is played. If you select "YES" with pressing

ENTER, "Your disc exceeds the parental

control level 1." (e.g.) screen will then appear.

If you wish to cancel the set rating level temporarily, select "Parental Control Level" with A/_', then press ENTER. If the 4-digits password at step 5 on page 52 has been set, the password entering screen will appear as shown in step 4 below. Alternatively, if the password has not been set, playback will commence. If you don't know (or have forgotten) the password,

select "Cancel Picture". The setting screen will disappear. Press

EJECT to remove the disc.

Enter the password with Number buttons

(0-9).

Then press ENTER.

* if you interrupt the entering, press RETURN.

Playback will commence if the entered password was correct.

• This temporary cancellation of the rating level will be kept until the disc is ejected,

When the disc is ejected, the original rating level will be set again automatically.

Q- 53

Appendix

Enter the appropriate code number for the initial settings "Menu", "Subtitle" and/or "Audio" (see page 50).

LanguageName Code Abkhazian 1112 Afar

Afrikaans Albanian 2927

Amharic 1123 Arabic 1128 Armenian 1835

Assamese 1129 Aymara 1135

Azerbaijani 1136

Bashkir 1211

Basque 1531

Bengali; Bangla 1224

Bhutani 1436

Bihari 1218

Breton 1228

Bulgarian 1217

Burmese 2335

Byelorussian 1215

Cambodian 2123

Catalan 1311

Chinese 3618

Corsican 1325

Croatian 1828

Czech 1329

Danish 1411

Dutch 2422

English

Esperanto

Estonian

Faroese 1625

1111 Finnish 1619 1116 French 1628

1524 Kurdish 2131 1525 Laothian 2225

1530 Latin 2211

Language Name Code Fiji 1620

Frisian 1635 Galician 1722

Georgian 2111 German 1415 Greek 1522

Greenlandic 2122 Guarani 1724

Gujarati 1731 Hausa 1811

Hebrew 1933 Hindi 1819

Hungarian 1831 Icelandic 1929 Indonesian 1924

Interlingua 1911 Irish 1711 Italian 1930

Japanese 2011 Javanese 2033

Kannada 2124 Kashmiri 2129 Kazakh 2121

Kirghiz 2135 Korean 2125

Latvian, Lettish 2232

LanguageName Code Lingala 2224

Lithuanian 2230 Macedonian 2321

Malagasy 2317 Malay 2329

Malayalam 2322 Maltese 2330 Maori 2319

Marathi 2328 Moldavian 2325

Mongolian 2324 Nauru 2411

Nepali 2415 Norwegian 2425

Oriya 2528 Panjabi 2611

Pashto, Pushto 2629 Persian 1611

Polish 2622 Portuguese 2630

Quechua 2731 Rhaeto-R0mance 2823

Romanian 2825 Russian 2831 Samoan 2923

Sanskrit 2911 Scots Gaelic 1714 Serbian 2928

Serbo-Croatian 2918 Shona 2924 Sindhi 2914

LanguageName Code

Singhalese 2919 Slovak 2921

Slovenian 2922 Somali 2925

Spanish 1529 Sundanese 2931

Swahili 2933 Swedish 2932

Tagalog 3022 Tajik 3017

Tamil 3011 Tatar 3030

Telugu 3015 Thai 3018

Tibetan 1225 Tigrinya 3019

Tonga 3025 Turkish 3028

Turkmen 3021 Twi 3033

Ukrainian 3121 Urdu 3128

Uzbek 3136

Vietnamese 3219 Volap0k 3225

Welsh 1335 Wolof 3325 Xhosa 3418

Yiddish 2019 Yoruba 3525 Zulu 3631

(_)- 54

Appendix

Before detaching (or attaching) stand, unplug the AC cord from the AC INPUT terminal.

• Do not remove the stand from the TV/DVD unless using an optional wall mount bracket to mount it.

Before attachingldetaching stand

* Before performing work make sure to turn off the TV/DVD. * Before performing work spread cushioning over the base area to lay the TV/DVD on. This will prevent it from

being damaged.

1 t"_ hex key 2

Soft cushion

Unfasten the four screws used to secure the stand in place.

• To attach the stand, perform the above steps in reverse order.

• Installing the TV/DVD requires special skill that should only be performed by qualified service personnel. Customers should not attempt to do the work themselves, SHARP bears no responsibility for improper mounting or mounting

that results in accident or injury.

Detach the stand from the TV/DVD. (Hold the stand so it will not drop from the edge of the

base area.)

Using an optional bracket to mount the TV/DVD

• You can ask a qualified service professional about using an optional AN-26AG1 bracket to mount the TV/DVD to the wall,

• Carefully read the instructions that come with the bracket before beginning work,

Hanging on the wall About setting the TV/DVD angle

Wall mount bracket. (See the bracket instructions for details.)

Angle of TV/DVD : up to 20 °

Vertical mounting

Angular mounting

DETACH THE CABLE CLAMP ON THE REAR OF THE TV/DVD WHEN USING THE OPTIONAL MOUNT BRACKET.

(_= 55

Appendix

Problem Possible Solution

• No power • Check if you pressed POWER on the remote control unit. (See page 16.) If the indicator on the TV/DVD does not light up, press POWER on the TV/DVD.

• Is the AC cord disconnected? (See page 9.)

• Has the power been turned on? (See page 16.)

• Unit cannot be operated. • External influences such as lightning, static electricity, may cause improper operation. In this case, operate the unit after first turning on the power of the

TV/DVD or unplugging the AC cord and replugging it in after 1 or 2 minutes.

• Remote control unit does not • Are batteries inserted with polarity (+, -) aligned? (See page 10.)

operate. • Are batteries worn out? (Replace with new batteries.)

• Are you using it under strong or fluorescent lighting?

• Is a fluorescent light illuminated near the remote control sensor?

• Picture is cut off screen. • Are screen mode adjustments such as view mode choose made correctly? (See page 30.)

• Strange color, light color, or color • Adjust the picture tone. (See page 23.)

misalignment • Is the room too bright? The picture may look dark in a room that is too bright.

• Power is suddenly turned off. • Is the sleep timer set? (See page 20.)

• Check the power control settings. (See page 16.)

• The TV/DVD's internal temperature has increased. Remove any objects blocking vent or clean.

• No picture • Is connection to other components correct? (See pages 26 to 27.)

• Is correct input signal source selected after connection? (See page 25.)

• Is the correct input selected? (See page 25.)

• Is picture adjustment correct? (See page 23.)

• No sound • Is the volume too low? (See page 19.)

• Is "OFF" selected in "SPEAKERS"? (See page 31 .)

The example of an error message Possible Solution displayed on a screen

• DIGITAL CHANNEL SIGNAL • Check the antenna cable. Check that the antenna is correctly setup. STRENGTH IS LOW

• DIGITAL CHANNEL IS • It is subscription channel. Contact the service provider. SCRAMBLED

• AUDIO ONLY • The channel has audio contents only.

Cautions regarding use in high and low temperature environments

• When the TV/DVD is used in a low temperature space (e.g. room, office), the picture may leave trails or appear slightly delayed. This is not a malfunction, and the TV/DVD will recover when the temperature returns to normal.

• Do not leave the TV/DVD in a hot or cold location. Also, do not leave the TV/DVD in a location exposed to direct sunlight or near a heater, as this may cause the cabinet to deform and the Liquid Crystal panel to malfunction. Storage temperature: -4°F to +140°F (- 20°C to +6O°C)

(_)= 56

Appendix

Problem Possible Solution

• Playback doesn't start. • No disc is inserted. (See page 41 .)

• The disc may be dirty. Clean up the disc. (See page 7.)

• The TV/DVD cannot play CD-ROMs, etc. (See page 6.)

• No picture. • TV/DVD selector is not set correctly. (See page 40.)

• No sound. • Check the input selector of the amplifier is set properly.

• The TV/DVD is in the special playback mode. (See page 42.)

• Select the correct Audio Output position on AV amplifier.

• Picture is distorted during fast • The picture will be distorted occasionally. reverse/forward playback.

• Stopping playback, search, • Some discs may not do some of the functions. slowmotion play, repeat play, or program play, etc. cannot be performed.

• No on-screen display. • Select Display to On. (See page 51.)

• No surround sound. • The setup does not match your stereo system.

• The TV/DVD or remote operation • Turn off the TV/DVD and unplug the AC power cord for several minutes, then key is not functioning, replug it.

• Playback does not start when the • Check the Parental setup. (See page 52.) title is selected.

• Audio soundtrack andtor subtitle • Multilingual language is not recorded on the DVD disc. (See page 50.) language is not changed when you playback a DVD.

• No subtitle. • Some discs have no subtitles. (See page 45.)

• Subtitles are cleared. Press SUBTITLE. (See page 45.)

• Angle cannot be changed. • Multi-angles are not recorded on the DVD disc. (See page 44.)

• " ,_ " appears on the screen. • The function is prohibited with the TV/DVD or the disc. (See page 41.)

Q- 57

Appendix

Item Model: LC-26DV20U

LCD panel TFT LCD Number of dots 3,147,264 dots (1366 x 768 x 3 dots)

TV-standard (CCIR) American TV Standard ATSC/NTSC System

TV Receiving VHF/UHF VHF 2-13ch, UHF 14-69ch

Function Channel

CATV 1-125ch (non-scrambled channel only.)

DigitalTerrestrial 2-69ch Broadcast(8VSB)

Digital Cable* (64/256 QAM)

Audio multiplex BTSC System

Backlight 60,000 hours (at Backlight Standard position)

Audio out 10W x 2 Terminals Rear INPUT 1 AV in, S-VIDEO in

INPUT 2 AV in, S-VIDEO in INPUT 3 COMPONENT in, Audio in

INPUT 4 HDMI in with HDCP, Audio in

ANT/CABLE 75 £_)Unbalance, F Type x 1 for Analog (VHF/UHF/CATV) and Digital (AIR/CABLE)

DIGITALAUDIOOUTPUT Coaxial Digital audio output x 1 (PCM/Dolby Digital)

OUTPUT Audio out

26" Advanced Super View & BLACK

1-125ch (non-scrambled channel only.)

OSD language English/French/Spanish Power Requirement AC 120 V, 60 Hz

Power Consumption 155 W (Standby 1W)

Weight

Dimension w/o stand 26W16 x 19_9/64x 439/64inch (W x H x D) with stand 26W16 x 221/4 x 119/64 inch DVD section Signal system NTSC

Applicable disc DVD (12 cm, 8 cm), CD (12 cm, 8 cm)

Frequency response DVD: 4Hz - 22KHz/CD: 4Hz - 20KHz Wow and flutter Below Measurable Level

Pickup CD : Wavelength: 780 - 790 nm

Accessories

Operating temperature +41°F to +104°F (+5°C to +40°C)

Emergency alert messages via Cable are unreceivable.

• As part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

w/o stand 26.7 Ibs./12.1 kg with stand 30.5 Ibs./13.8 kg

Maximum output power: 7 mW

DVD : Wavelength: 652 - 662 nm

Maximum output power: 5 mW

Remote control unit (xl), AC cord (xl), "AA" size battery (x2), Cable clamp (xl), Stand unit (xl), Operation manual (xl)

(_)= 58

The listed optional accessories are available for the LCD colour TV. Please purchase them at your nearest shop.

• Additional optional accessories may be available in near

future. When purchasing, please read the newest catalogue for compatibility and check the availability.

Wall mount bracket AN-26AG1

Dimensional drawings

Unit: inch/(mm)

26W64(684)

., 2223/64(567.9)

cq 36_/64(1OO)

_ llllI II

345/64(94) 43%4(117)

119/6,,(283)

Q= 59

CLEARING THE PASSWORD If you forget the password, clear the password using the following procedure.

_-pLAy =STOP _'_SKIP_'{ -_EJECT

00000

®®O

VOL V CH _ I_PUT POWER

c_ oD

Press and hold both VOL - on the TV/DVD and press 0 on the remote control simultaneously for a few seconds until ,_ (LOCKS) menu appears on the screen,

Now the old password was cleared. You can set the new password.

SKIP REV FWD SKIP

(EE)(E_)(EE)(EE)

STILL/PAUSE PLAY STOP

OD OK3KK3

Thopa..worO,.I:iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiill

* As a precautionary measure, make a note of your password above, cut it from this manual, and keep it in a safe place.

(_)- 60

Calling for Service

For location of the nearest Sharp Authorized Service, or to obtain product literature, accessories, supplies, or customer assistance, please call 1-800-BE-SHARP.

LIMITED WARRANTY

CONSUMER LiMiTED WARRANTY

SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the "Product"), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured

equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below.

This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper

voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction.

In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and

provide proof of purchase to the servicer.

The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE

ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of

Sharp.

The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described

herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which

were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

Model Specific Section Your Product Model Number & Description:

Warranty Period for this Product:

Additional Item(s) Excluded from Warranty Coveraqe (if any):

Where to Obtain Service:

What to do to Obtain Service: Ship prepaid or carry in your Product to a Sharp Authorized

TO OBTAIN PRODUCT INFORMATION, CALL 1-800-BE-SHARP OR VISIT www.sharpusa.com

LC-26DV20UCombinationLiquidCrystalTelevisionAnd DVD/CDPlayer

(Be sure to have this information available when you need service for your Product.)

One (1) year parts and ninety (90) days labor from the date of purchase.

Non-rechargeable batteries.

From a Sharp Authorized Servicer located in the United

States. To find the location of the nearest Sharp Authorized Servicer, call Sharp toll free at 1-800-BE-SHARP.

Servicer. Be sure to have Proof of Purchase available. If you ship the Product, be sure it is insured and packaged securely.

Please use two persons to carry the Product, transport it in its original packaging, and ensure that the Product is covered to avoid scratches and damage.

SHARR

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430-2135

SHARP CORPORATION

Q=61

VAHO,NCANADAONLY

LiMiTED WARRANTY

Consumer Electronics Products

Congratulations on your purchase!

Sharp Electronics of Canada Ltd. (hereinafter called "Sharp") gives the following express warranty to the first consumer purchaser for this Sharp brand product, when shipped in its original container and sold or distributed in Canada by Sharp or by an Authorized Sharp Dealer:

Sharp warrants that this product is free, under normal use and maintenance, from any defects in material and workmanship. If any such defects should be found in this product within the applicable warranty period, Sharp shall, at its option, repair or replace the product as

specified herein.

This warranty shall not apply to: (a) Any defects caused or repairs required as a result of abusive operation, negligence, accident, improper installation or inappropriate

use as outlined in the owner's manual.

(b) Any Sharp product tampered with, modified, adjusted or repaired by any party other than Sharp, Sharp's Authorized Service Centres

or Sharp's Authorized Servicing Dealers.

(c) Damage caused or repairs required as a result of the use with items not specified or approved by Sharp, including but not limited to

head cleaning tapes and chemical cleaning agents.

(d) Any replacement of accessories, glassware, consumable or peripheral items required through normal use of the product including but

not limited to earphones, remote controls, AC adapters, batteries, temperature probe, stylus, trays, filters, belts, ribbons, cables and

paper. (e) Any cosmetic damage to the surface or exterior that has been defaced or caused by normal wear and tear. (f) Any damage caused by external or environmental conditions, including but not limited to transmission line/power line voltage or liquid

spillage. (g) Any product received without appropriate model, serial number and CSA/cUL markings. (h) Any products used for rental or commercial purposes. (i) Any installation, setup and/or programming charges.

Should this Sharp product fail to operate during the warranty period, warranty service may be obtained upon delivery of the Sharp product together with proof of purchase and a copy of this LIMITED WARRANTY statement to an Authorized Sharp Service Centre or an Authorized Sharp Servicing Dealer. In home warranty service may be provided at Sharp's discretion on any Sharp television with the screen size of 27" or larger and on any Sharp Over-the-Range Microwave Oven.

This warranty constitutes the entire express warranty granted by Sharp and no other dealer, service centre or their agent or employee is authorized to extend, enlarge or transfer this warranty on behalf of Sharp. To the extent the law permits, Sharp disclaims any and all liability for direct or indirect damages or losses or for any incidental, special or consequential damages or loss of profits resulting from a defect in material or workmanship relating to the product, including damages for the loss of time or use of this Sharp product or the loss of information. The purchaser will be responsible for any removal, reinstallation, transportation and insurance costs incurred. Correction of defects, in the manner and period of time described herein, constitute complete fulfillment of all obligations and responsibilities of Sharp to the purchaser with respect to the product and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise.

WARRANTY PERIODS:

Audio Products Camcorder

DVD Products Projector

LCD & Plasma Display TV Microwave Oven

Television Products VCR Products Vacuum Cleaner

To obtain the name and address ol the nearest Authorized Sharp Service Centre or Dealer, please contact:

SHARP ELECTRONICS OF CANADA LTD. 335 Britannia Road East, Mississauga, Ontario L4Z lW9

Parts & Labour (exceptions noted) 1 year 1 year 1 year 1 year (lamp 90 days) 1 year 1 year (magnetron component-4 additional years) 1 year (picture tube component-1 additional year) 1 year 1 year

For more information on this Warranty, Sharp Extended Warranty

Offers, Sharp Canada Products, Accessory Sales, Dealer or Service S_ARP

Locations, please call (905) 568=7140 ._

Visit our Web site: www,sharp,ca _.

--c

SERVICE

(_= 62

Revision 04/22/03

Sharp LC-26DV20U Owner’s Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
