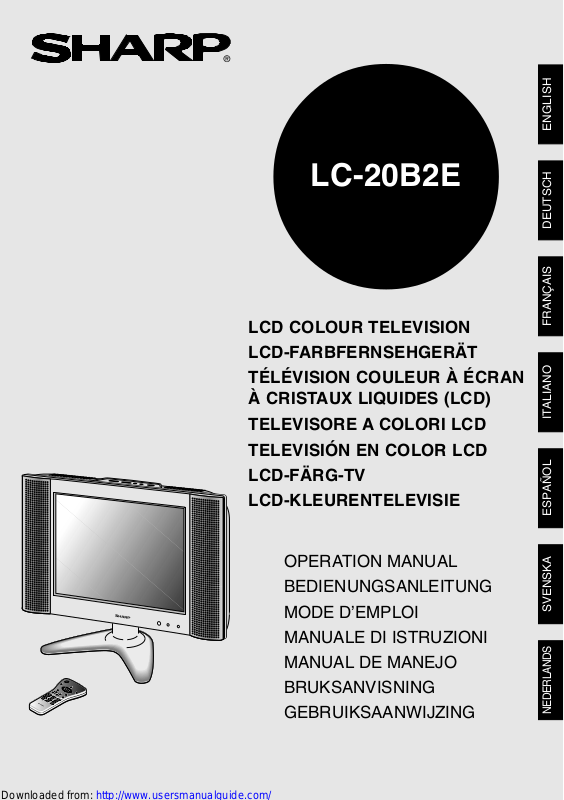

SHARP LC-20B2E User Manual [en, de, fr, sv, nl, es]

LC-20B2E

ENGLISH

DEUTSCH

LCD COLOUR TELEVISION LCD-FARBFERNSEHGERÄT TÉLÉVISION COULEUR À ÉCRAN

À CRISTAUX LIQUIDES (LCD) TELEVISORE A COLORI LCD TELEVISIÓN EN COLOR LCD

LCD-FÄRG-TV LCD-KLEURENTELEVISIE

OPERATION MANUAL BEDIENUNGSANLEITUNG MODE D’EMPLOI MANUALE DI ISTRUZIONI

FRANÇAIS

ITALIANO

ESPAÑOL

SVENSKA

MANUAL DE MANEJO BRUKSANVISNING GEBRUIKSAANWIJZING

NEDERLANDS

This equipment complies with the requirements of Directive 89/336/EEC and 73/23/EEC as amended by 93/68/EEC.

Dieses Gerät entspricht den Anforderungen der EG-Richtlinien 89/336/EWG und 73/23/EWG mit Änderung 93/68/EWG.

Ce matériel répond aux exigences contenues dans les directives 89/336/CEE et 73/23/CEE modifiées par la directive 93/68/CEE.

Dit apparaat voldoet aan de eisen van de richtlijnen 89/336/EEG en 73/23/EEG, gewijzigd door 93/68/ EEG.

Dette udstyr overholder kravene i direktiv nr. 89/336/EEC og 73/23/EEC med tillæg nr. 93/68/EEC. Quest’apparecchio è conforme ai requisiti delle direttive 89/336/EEC e 73/23/EEC come emendata

dalla direttiva 93/68/EEC.

Η εγκατάσταση αυτή ανταποκρίνεται στις απαιτήσεις των οδηγιών της Ευρωπαϊκής Ενωσης 89/336/ΕΟΚ και 73/23/ΕΟΚ, #πως οι κανονισµοί αυτοί συµπληρώθηκαν απ# την οδηγία 93/68/ ΕΟΚ.

Este equipamento obedece às exigências das directivas 89/336/CEE e 73/23/CEE, na sua versão corrigida pela directiva 93/68/CEE.

Este aparato satisface las exigencias de las Directivas 89/336/CEE y 73/23/CEE, modificadas por medio de la 93/68/CEE.

Denna utrustning uppfyller kraven enligt riktlinjerna 89/336/EEC och 73/23/EEC så som kompletteras av 93/68/EEC.

Dette produktet oppfyller betingelsene i direktivene 89/336/EEC og 73/23/EEC i endringen 93/68/ EEC.

Tämä laite täyttää direktiivien 89/336/EEC ja 73/23/EEC vaatimukset, joita on muutettu direktiivillä 93/ 68/EEC.

SPECIAL NOTE FOR USERS IN THE U.K.

The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 3A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked the same rating as above, which is also indicated on the pin face of the plug, must be used. Always refit the fuse cover after replacing the fuse. Never use the plug without the fuse cover fitted. In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut off the mains plug and fit an appropriate type. DANGER: The fuse from the cut-off plug should be removed and the cut-off plug destroyed immedi-

ately and disposed of in a safe manner.

Under no circumstances should the cut-off plug be inserted elsewhere into a 13A socket

outlet, as a serious electric shock may occur. To fit an appropriate plug to the mains lead, follow the instructions below: IMPORTANT: The wires in the mains lead are coloured in accordance with the following code:

Blue : Neutral Brown : Live As the colours of the wires in the mains lead of this product may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows;

• The wire which is coloured blue must be connected to the plug terminal which is marked N or coloured black.

• The wire which is coloured brown must be connected to the plug terminal which is marked L or coloured red.

Ensure that neither the brown nor the blue wire is connected to the earth terminal in your three-pin plug. Before replacing the plug cover make sure that:

• If the new fitted plug contains a fuse, its value is the same as that removed from the cut-off plug.

• The cord grip is clamped over the sheath of the mains lead, and not simply over the lead wires.

IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.

ASA

and of

Contents

ENGLISH

LC-20B2E

LCD COLOUR TELEVISION

ENGLISH

OPERATION MANUAL

Page Page

Dear SHARP Customer .......................................... 2

Important Safety Precautions ................................. 2

Supplied Accessories ............................................. 4

Preparation ............................................................. 5

Installing Batteries in the Remote Control ...... 5

Using Remote Control ..................................... 5

Power Connection ........................................... 6

Antenna Connection ........................................ 6

First Installation................................................ 7

Part Names of Main Unit ........................................ 9

Part Names of Remote Control ............................ 11

Basic Operation .................................................... 12

Turning On and Off the Main Power ............. 12

Switching the TV/VIDEO (AV1/AV2/AVS/TV)

Mode ........................................................... 12

Sound Volume ............................................... 13

ON/OFF Standby ........................................... 13

Changing Channels ....................................... 14

Useful Features .................................................... 15

Adjusting Picture Settings ............................. 15

Adjusting Sound Settings .............................. 16

Using Programme Table................................ 17

Selecting Menu Items .................................... 18

Standard Settings .......................................... 20

Programmes .................................................. 21

AV Connections ............................................. 28

Child Lock ...................................................... 31

On-screen Display ......................................... 36

Timer Functions ............................................. 37

Setting Time and Date (Manual) ................... 38

NICAM Broadcast Selection .......................... 39

IGR (German stereo system) Broadcasts ..... 40

Teletext ................................................................. 41

Connecting External Devices ............................... 46

Examples of external devices that can be

connected ................................................... 46

21-pin Euro-SCART (RGB) ........................... 47

How to fix the cables ..................................... 49

Troubleshooting .................................................... 50

Specifications........................................................ 52

Dimensional Drawings .......................................... 53

Dear SHARP Customer

Thank you for your purchase of the SHARP LCD Colour TV product. To ensure safety and many years of trouble-free operation of your product, please read the Important Safety Precautions carefully before using this product.

Important Safety Precautions

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your LCD colour TV product, please read the following precautions carefully before using the product.

■ Read instructions—All operating instructions must be read and understood before the product is operated.

■ Keep this manual in a safe place—These safety and operating instructions must be kept in a safe place for

future reference.

■ Observe warnings—All warnings on the product and in the instructions must be observed closely.

■ Follow instructions—All operating instructions must be followed.

■ Attachments—Do not use attachments not recommended by the manufacturer. Use of inadequate attach-

ments can result in accidents.

■ Power source—This product must operate on a power source specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company. For units designed to operate on batteries or another power source, refer to the operating instructions.

■ Power cord protection—The power cords must be routed properly to prevent people from stepping on them or objects from resting on them. Check the cords at the plugs and product.

■ If you plan to use a DC power supply unit other than the AC adapter supplied with the product, make sure the power supply unit provides stable voltage with minimum fluctuations. Unstable power supply can cause problems in the product.

■ Overloading—Do not overload AC outlets or extension cords. Overloading can cause fire or electric shock.

■ Entering of objects and liquids—Never insert an object into the product through vents or openings. High

voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the product.

■ Servicing—Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. Request a qualified service person to perform servicing.

■ Repair—If any of the following conditions occurs, unplug the power cord from the AC outlet, and request a qualified service person to perform repairs: a. When the power cord or plug is damaged. b. When a liquid was spilled on the product or when objects have fallen into the product. c. When the product has been exposed to rain or water. d. When the product does not operate properly as described in the operating instructions.

Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjust-

ment work by a qualified technician. e. When the product has been dropped or damaged. f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates

that the product needs servicing.

■ Replacement parts—In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.

■ Safety checks—Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition.

■ Wall or ceiling mounting—When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer.

Important Safety Precautions (Continued)

■ Cleaning—Unplug the power cord from the AC outlet before

cleaning the product. Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners.

■ Water and moisture—Do not use the product near water, such

as bathtub, washbasin, kitchen sink and laundry tub, swimming pool and in a wet basement.

■ Stand—Do not place the product on an unstable cart, stand,

tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer’s instructions. Use only the mounting hardware recommended by the manufacturer.

■ When relocating the product placed on a cart, it must be moved

with utmost care. Sudden stops, excessive force and uneven floor surface can cause the product to fall from the cart.

■ Ventilation—The vents and other openings in the cabinet are

designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s instructions are followed.

■ The LCD panel used in this product is made of glass. Therefore,

it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the LCD panel breaks.

■ Heat sources—Keep the product away from heat sources such

as radiators, heaters, stoves and other heat-generating products (including amplifiers).

The LCD panel is a very high technology product with 921,600 thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green or red. Please note that this does not affect the performance of your product.

Supplied Accessories

Make sure the following accessories are provided with the product.

Operation manual (×1) Wireless remote control (×1)

AC adapter (×1)

R-03 dry battery (×2)

AC cord (×1)

* Product shape varies in some countries.

Cable clamp (×2)

Preparation

Installing Batteries in the Remote Control

Before using the LCD TV set for the first time, install the two R-03 batteries supplied in the remote control. When the batteries become depleted and the remote control fails to operate, replace the batteries with new R-03 batteries.

1 Open the battery cover. 2 Insert two R-03 batteries. 3 Replace the battery cover.

■ Raise the cover while

pressing the ([) part.

■ Position the positive and negative ends of the batteries as indicated in the compartment.

■ Engaging the lower claw with the remote control, close the cover.

Caution!

Precautions regarding batteries

■ Improper use of batteries can result in a leakage of chemicals and/or explosion. Be sure to follow the instructions below.

• Place batteries with their terminals corresponding to the (+) and (–) indications.

• Different types of batteries have different characteristics. Do not mix batteries of different types.

• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries and/ or cause old batteries to leak chemicals.

• Remove batteries as soon as they are depleted. Chemicals that leak from batteries can cause a rash. If chemical leakage is found, wipe it off with a cloth.

• The batteries supplied with the product may have a shorter life expectancy due to storage conditions.

• If the remote control is not to be used for an extended period of time, remove the batteries from the remote control.

Using Remote Control

■ Use the remote control by pointing it towards the remote sensor window of the main unit. Objects between the remote control and sensor window may prevent proper operation.

Remote sensor window

Power/Standby indicator

Cautions regarding use of remote control

■ Do not expose the remote control to shock. In addition, do not expose the remote control to liquids, and do not place it in an area with high humidity.

■ Do not install or place the remote control under direct sunlight. The heat may cause deformation of the unit.

■ The remote control may not work properly if the remote sensor window is under direct sunlight or strong lighting. In such a case, change the angle of the lighting or main unit, or operate the remote control closer to the remote sensor window.

Preparation (Continued)

Power Connection

Connect to the DC input terminal of the product.

Household

power outlet

Plug into an AC outlet.

AC cord*

* Product shape varies in some countries.

Notes:

■ Always turn the MAIN POWER switch of the LCD TV set to OFF when connecting the AC adapter.

■ Unplug the AC adapter from the LCD TV set and power outlet when the LCD TV set is not to be used for a long

period of time.

AC adapter

To POWER INPUT DC 13 V terminal

Antenna Connection

To enjoy a clearer picture, we recommend that you use an outdoor antenna. The following is a brief explanation of the types of connection that are used for coaxial and feeder cables:

(1)If your outdoor antenna uses a 75-ohm coaxial

cable, change this for a new standard DIN45325 (IEC169-2) plug and plug it into the antenna terminal at the back of TV set via the antenna cable (not supplied).

(2)If your outdoor antenna uses a 300-ohm twin-lead

flat feeder, change this for a 300-ohm to 75-ohm impedance converter and plug it into the antenna terminal at the back of TV set via the antenna cable (not supplied).

75-ohm coaxial cable (round cable)

300-ohm twin-lead flat feeder

To antenna input terminal (

)

Please en ter t he TV s et lo cat ion f o r t he co r rect TV st anda rd and the appropriate programme c lass i f i cat i on fo r the count r y:

Locat ion o f TV set

Other . . . GB

I NL PL HU SL Other countr ies

Great Br i t a in Italy Net he r l ands Pol and Hungar y Slovenia

(

PAL- I

)

(

PAL- BG

)

(

PAL- BG

)

(

PAL- DK

)

(SECAM-DK) (

PAL- DK

)

(Auto , -BG)

Se l ec t and pro ceed wit h OK

Back End

Preparation (Continued)

First Installation

When you turn on the LCD TV set for the first time, the First Installation routine, which makes installation easier, is activated. Using this routine, you can select the on-screen display language, and automatically search for and store all the receivable channels.

MAIN POWER

SOUND

INFO

(

RED)(GREEN)(YELLOW)(CYAN

TV/VIDEO

END

]/[

MENUTEXT

)

1 Press the MAIN POWER switch

located on the upper part of the main unit. The “First installation” screen with a list of the languages for the on-screen display appears.

2 Press ]/[ to select the desired

language, and then press OK. The “Location of TV set” screen appears in the language selected.

Note:

■ You can change the on-screen display language after the First Installation routine by selecting “Language” on the TV menu (see pages 18 and 19).

3 Press ]/[ to select the TV set

location, and then press OK. The “Autom. programme search” screen appears.

First installation

Whi ch l angua ge do you wan t

to use for operat ion?

Deutsch Engl i sh Français Español

Italiano

Neder lands

Svenska

Select and proceed

wi t h OK

4 Press ]/[ to select “Start

search.”

Autom. programme search

Your TV set sear ches wi t h the

following sett ings:

Ex ten t of sear ch A l l progr . Sto re pr ogr . f rom Progr amme 001 Locat ion o f TV se t Ot her coun t r i

Change se t t i ngs

Star t search

Back End

Preparation (Continued)

First Installation (Continued)

SOUND

INFO

(

RED)(GREEN)(YELLOW)(CYAN

END

MENUTEXT

)

TV/VIDEO

END

5 Press OK to begin the automatic

programme search. The bar on the screen shows the progress.

When the search is completed, the number of the programmes found is displayed. The new programmes found are displayed in blue on the programme list.

6 Press END to exit.

Sta r t search

Search is ac t i ve. Pl ease wait !

001 MHz Auto -BG

0 1 2 3 4 5 6 7 8 9

Sta r t search

Search is complet ed.

19 Progr ammes f ound.

S01

S08

S10

S11

E03

E05

E06

E09

E10

10 11 12 13 14 15 16 17 18 19

E11

E36

E37

E38

E50

E53

E54

E56

E57

20 21 22 23 24 25 26 27 28 29

Cancel

End

Part Names of Main Unit

Main unit (front view)

Upper control panel

CH MENU TV/VIDEO

Volume (+)/(–) CH (

)/( ) MENU TV/VIDEO

(MAIN POWER)

Speaker

To change the vertical angle of the LCD TV set, tilt the screen up to 10 degrees forward or 20 degrees backward. The TV set can also be rotated 90 degrees horizontally. Please adjust the angle so that the TV set can be watched most comfortably.

Remote sensor indicator

A red indicator blinks when the TV set receives the remote control signal.

Remote sensor window

(The actual location is not visible.)

Note:

■ TV/VIDEO, CH( )/( ), and Volume (+)/(–) on the main unit have the same functions as the same buttons on the remote control. Fundamentally, this operation manual provides a description based on operation using the remote control.

POWER/STANDBY indicator

A green indicator lights when the power is on and a red indicator lights when in the standby mode (the indicator will not light when the main power is off).

Part Names of Main Unit (Continued)

Terminals

Antenna

AV-IN 1

RGB

AUDIO OUT

POW

INPUT DC13V

AV-IN 1 (21-pin EuroSCART)

AUDIO OUT (L)

AUDIO OUT (R)

HEADPHONES

POWER INPUT DC 13 V

Rear view

Carrying handle

AV-IN 2

VIDEO

AUDIO

S-VIDEO

VIDEO

AUDIO (L)

AUDIO (R) S-VIDEO

Part Names of Remote Control

(Power)

SOUND

OK, Programme Table

Turns on the menu

INFO

information when

the menu is displayed.

TEXT

GREEN, Sound Menu

RED, Picture Menu

Volume (+)/(–)

INFO

(

)(

RED

GREEN)(YELLOW)(CYAN

END

MENUTEXT

)

SOUND

Switches the sound mode.

END, Status Display

Turns on the status display when the menu is not displayed.

Upward / Downward Selection

Right / Left Selection

CYAN, Teletext Subtitle

YELLOW, Standard Value

Mute

Flashback

Returns to the

previous channel.

CH ( )/( )

Channel Select

TV/VIDEO

Basic Operation

Turning On and Off the Main Power

MAIN POWER

Press the MAIN POWER switch

located on the upper side of the main unit. The Power/Standby indicator instantaneously changes from red to green and the main unit is turned on.

Note:

■ The display time of the on-screen indicators can be selected with “Onscreen time” for the “On-screen display” menu item in the TV menu

Power/Standby indicator

(see page 36).

To turn off the main power, press

the MAIN POWER switch.

Switching the TV/VIDEO (AV1/AV2/AVS/TV) Mode

1 Turn on the power of the

SOUND

INFO

(

RED)(GREEN)(YELLOW)(CYAN

END

MENUTEXT

)

TV/VIDEO

TV/ VIDEO

connected video equipment.

2 Press TV/VIDEO to select the

applicable input source. The screen displays AV1, AV2, AVS or TV mode each time TV/VIDEO is pressed.

Note:

■ About the video modes

• AV1: Select this when viewing the

signals from the video equipment connected to the AV-IN 1 terminal.

• AV2: Select this when viewing the

signals from the video equipment connected to the AV-IN 2 terminals using the VIDEO terminal for video input.

• AVS: Select this when viewing the

signals from the video equipment connected to the AV-IN 2 terminals using the S-VIDEO terminal for video input.

On-screen display

1 S08

AV1 mode

199 AV1

AV2 mode

198 AV2

AVS mode

197 AVS

TV mode

1 S08

Sound Volume

SOUND

INFO

(

RED)(GREEN)(YELLOW)(CYAN

END

MENUTEXT

)

Mute

Volume (+)/(–)

TV/VIDEO

Basic Operation (Continued)

To adjust the volume

Press Volume (+) to increase the

sound volume. The numerical value increases.

Press Volume (–) to decrease the

sound volume. The numerical value decreases.

To mute the sound

Press Mute to temporarily turn off

the sound. “Sound off” is displayed.

Press Mute to turn off the Mute

function. “Sound on” is displayed.

Notes:

■ When Volume (+)/(–) is pressed in the Mute mode, the sound turns on and the volume indicator is displayed.

■ The Mute function is cancelled when is pressed.

Volume

Sound off

Sound on

ON/OFF Standby

To turn off the LCD TV

SOUND

INFO

(

RED)(GREEN)(YELLOW)(CYAN

END

MENUTEXT

)

Press indicator will turn red.

To turn the LCD TV back on

Press again. The Power/Standby indicator will turn green.

TV/VIDEO

. The Power/Standby

Basic Operation (Continued)

Changing Channels

You can select channels using Channel Select or CH ( )/( ).

• To handle the increasing number of channels available, this LCD TV set allows you to select up to 200 channels (0 to 199).

Using Channel Select

When selecting the channel using Channel Select, finish inputting the channel number by holding down the button for the last digit for a moment.

To select a one-digit channel

SOUND

INFO

(

RED)(GREEN)(YELLOW)(CYAN

END

MENUTEXT

)

(e.g. Channel 5):

1 Hold down the

button.

Channel

TV/VIDEO

Select

To select a two/three-digit channel (e.g. Channel 15):

1 Press the 2 Hold down the button.

Using CH ( )/( )

Press CH (

) and the channels change in the order shown below:

1 → 2 → 3 → . . . → 198 → 199 → 0 → 1 → 2 → 3 → . . .

) and the channels change in the order shown below:

3 → 2 → 1 → 0 → 199 → 198 → . . . → 3 → 2 → 1 → . . .

button.

Note:

■ Channel “0” is prepared for RF output of VCR.

Cont rast

Picture menu

Co lou r

Black level

Shar pnes s

Green co l our ing

Red - b l ue c o l o u r i ng

Other .. .

Back End

Useful Features

Adjusting Picture Settings

SOUND

INFO

(

RED)(GREEN)(YELLOW)(CYAN

END

MENUTEXT

)

TV/VIDEO

Adjustment item

Contrast

</>

END

]/[

RED

Decrease contrast

1 Press RED to display the Picture

menu.

Note:

■ The Picture menu can also be displayed by selecting “Picture” in the TV menu (see pages 18 and

19).

2 Press ]/[ to select the desired

adjustment item.

• Select “Other...” to display the

other part of the Picture menu.

3 Press </> to make the

adjustment.

4 Press END to exit.

Press Left (<)

Choice/Value range

0 – 60

Pi c t u re menu

Cont rast

Co lou r

Blac k level

Sharpness

Green co l our ing

Red - b l ue c o l o u r i ng

Other .. .

Press Right (>)

Increase contrast

Back End

Colour

Black level

Sharpness

Green colouring

Red-blue colouring

Tint

Brightness

Rotate horizontally

Rotate vertically

Lower colour intensity

Less bright

Soft picture

Less green

More red

Toward purple

–

Note:

■ When you use RGB mode (AV1), the image colour is not adjustable.

-30 – 30

0 – 5

-5 – 5

-15 – 15

dark medium bright

off on

Higher colour intensity

More bright

Sharp picture

More green

More blue

Toward green

–

Useful Features (Continued)

So un d v i a

Sound menu

Headph. vol.

Loudsp. sound

Headph. so und

AV au d i o s i g .

Other .. .

TV Hi -f i

Back End

So un d v i a

Sound menu

Headph. vol.

Loudsp. sound

Headph. so und

AV aud io sig.

Other .. .

Back End

Adjusting Sound Settings

SOUND

INFO

(

RED)(GREEN)(YELLOW)(CYAN

END

MENUTEXT

)

TV/VIDEO

Adjustment item

Sound via

</>

END

]/[

GREEN

1 Press GREEN to display the

Sound menu.

Note:

■ The Sound menu can also be displayed by selecting “Sound” in the TV menu (see pages 18 and

19).

2 Press ]/[ to select the desired

adjustment item.

• Select “Other...” to display the

other part of the Sound menu.

3 Press </> to make the

adjustment.

4 Press END to exit.

Press Left (<)

–

Choice/Value range

TV Hi-fi

Press Right (>)

–

Headph. vol.*

Decrease headphones volume

0 – 60

Increase headphones volume

Mono Mono!/Sound1

Loudsp. sound

–

Headph. sound*

AV audio sig.

Maximum volume*

Decrease maximum volume

Sound wide*

Balance*

* These items are not displayed when the “Sound via” item is set to “Hi-fi”.

Note:

■ In the “AV audio sig.” item, mono-video recorders should select “Sound1” or “Sound2”. Stereo-video recorders should select “Sound1+2” so that the desired sound can be selected when playing back the video.

Increase the volume of the left speaker

–

Sound2 Sound1+2 Mono!/

Stereo Mono!/Nicam Mono!

(* The choices differ depending on

whether or not a NICAM or IGR signal is received.)

Sound1 Sound2 Sound1+2

10 – 60

off on

-15 – 15

–

Increase maximum volume

–

Increase the volume of the right speaker

Useful Features (Continued)

Using Programme Table

The Programme table shows a list of all receivable programmes. They are located in channels 0 to 199. The currently selected programme is displayed in blue, and the child-locked programmes are displayed in red.

SOUND

INFO

(

RED)(GREEN)(YELLOW)(CYAN

END

MENUTEXT

)

TV/VIDEO

</>

]/[

To select the desired programme

1 Press OK to display the

Programme table.

2 Press ]/[ and/or </> to select

the desired programme.

• To display the next or previous list of the Programme table, press ]/[ when the cursor is at a programme in the lower-right or upper-left position, or press </> when the cursor is at a programme in the right or left column.

3 Press OK to display the selected

programme.

Programme table

197

AVS

198

AV2

199

AV1

S01

S08

S10

S11

E03

E05

E06

E09

E10 E11

Se l ec t a nd pro ceed wit h OK

E36

E37

E38 E50

14 15

E53

E54 E56

17 18

E57 19 20 21 22 23 24

25 26 27 28 29 30 31 32 33 34 35 36 37 38

Back End

Useful Features (Continued)

Standard set tings

TV menu


Sound

Programmes

AV connec t ion s

Ch i l d l oc k

Back End

Other .. .

Selecting Menu Items

• The menus can be used to adjust the various settings of your LCD TV set. Select the desired menu item by following the steps below.

■ Using TV Menus

SOUND

INFO

(

RED)(GREEN)(YELLOW)(CYAN

TV/VIDEO

END

MENUTEXT

)

]/[

■ Using Direct Control Menu

Upper control panel

of the main unit

CH MENU TV/VIDEO

Volume (+)/(–)

CH (

)/( )

1 Press MENU on the remote

control to display the TV menu.

2 Press ]/[ to select the desired

menu item.

• The cursor moves up or down.

• The cursor indicates the selected menu item.

• Select “Other...” to display the other part of the menu.

3 Press OK to display the setting

screen for the selected menu item.

• See the next page for a table of the setting screens.

4 Press MENU to return to the

previous screen or END to return to the normal screen.

1 Press MENU on the main unit to

display the Direct Control menu.

2 Press CH (

)/( ) to select the

desired menu item.

• The cursor moves up or down.

• The cursor indicates the selected menu item.

3 Press Volume (+)/(–) to make the

adjustment.

• See page 15 for details on the use of each item.

TV menu

Other .. .

On-screen di splay

Timer functions

Time and date

Fi rst instal lat ion

Language

Back End

Direct control at TV

Black level

Cont r as t

Col o ur

: Selec t

: Change

M: Back

E: End

4 Press MENU to turn off the Direct

Control menu.

Notes:

■ The items displayed differ depending on the setting conditions.

■ The item selected is displayed in blue.

■ The adjustment values and settings which were changed before the screen is restored are saved as is in the

memory.

Useful Features (Continued)

Selecting Menu Items (Continued)

■ TV Menu Setting Screens

For details on using each setting screen, refer to the page number indicated.

TV menu

Standard sett ings


Sound

Programmes

AV connect i ons

Ch i l d l oc k

Other .. .

Back End

(Page 20)

Standard set tings

User pref erences

Sto re

Factory setting

(Page 15)

Pi c tu re menu

Cont rast

Col ou r

Black level

Shar pness

Green co l our ing

Red - b l ue c o l ou r i ng

Other .. .

(Page 16)

Sound menu

Sou nd v i a

Headph. vol.

Loudsp. sound

Headph. sound

AV a u d i o s i g .

Other .. .

(Pages 21 – 27)

Programmes

Automatic search

Manual adj us tment

Sor t

Er ase programme range

Ent er / change name

Decoder programmes

(Pages 28 – 30)

AV connect i ons

(programme

At AV1

(programme

At AV2

(programme

At AVS

Decoder prog r ammes

For progr ammes 1.. . 196

TV Hi - f i

)

199

)

198

)

197

TV menu

Other .. .

On- s c r een di sp l a y

Timer functions

Time and date

Fi rst installa tion

Language

Back End

(Page 36)

On-screen display

On-sc reen

Posi t i on

Sound inf o

Time

Alarm t ime

Sleep time

time

(Page 37)

Timer func t i ons

Swi t ch o f f

Alarm

Al arm vol ume

(Page 38)

Time and date

Time

Da t e

--:--:--

(Page 7)

First installation

Whi ch l angua ge do y ou want

t o us e f o r o pe r a t i o n?

Deutsch Engl i sh Français Español Italiano Neder l ands Svenska

(Page 7)

Language

Deutsch Engl i sh Français Español Italiano

Neder l ands

Svenska

no 00:00

(Pages 31 – 35)

Chi ld l ock

Please def ine your PIN.

Chi ld l oc k

Please memor i ze your PIN bef ore p roceeding wi t h OK .

????

Useful Features (Continued)

St andar d set t i ngs

TV menu


Sound

Programmes

AV connect i ons

Ch i l d l ock

Back End

Other .. .

Standard Settings

You can optionally set the standard settings for the following adjustments. You can also easily call up those standard settings or factory-preset settings.

• Mute

• Picture menu item: Contrast, Colour, Sharpness, Tint, Brightness

• Sound menu item: Volume, Hi-fi volume, Headph. vol., Balance

SOUND

INFO

(

RED)(GREEN)(YELLOW)(CYAN

END

MENUTEXT

)

TV/VIDEO

END

]/[

1 Press MENU to display the TV

menu.

2 Press ]/[ to select “Standard

settings”, and then press OK to display the “Standard settings” screen.

3 Press ]/[ to select the desired

function.

■ User preferences: The standard settings are retrieved.

■ Store: The currently selected settings are stored as the standard settings.

■ Factory setting: The factory-preset settings are retrieved.

4 Press OK to execute the selected

function.

5 Press END to exit.

TV menu

Standard sett ings

User pref erences

Sto re

Factory sett ing

Ca l l wi t h OK

TV menu

Standard sett ings

User pref erences

Sto re

Factory sett ing

Back End

Note:

■ You can also call up the standard settings by pressing YELLOW with the normal screen displayed.

Val ue s c al l ed!

Back End

Useful Features (Continued)

TV menu

Programmes

Automatic search

Manual adj us tment

Sor t

Erase programme range

Ent er / chan ge name

Decoder programmes

Back End

Programmes

[1] Automatic search

Perform the procedure below to search for and store new programmes after the First Installation routine.

SOUND

INFO

(

RED)(GREEN)(YELLOW)(CYAN

TV/VIDEO

END

MENUTEXT

)

]/[

1 Press MENU to display the TV

menu.

2 Press ]/[ to select

“Programmes”, and then press OK to display the “Programmes” screen.

3 Press ]/[ to select “Automatic

search”, and then press OK to display the “Autom. programme search” screen.

4 Press ]/[ to select “Change

settings”, and then press OK to display the “Extent of search” screen.

TV menu

Standard set t ings


Sound

Programmes

AV connect i ons

Ch i l d l oc k

Other .. .

Back End

Autom. programme search

Your TV set sear ches wi th t he

following sett ings:

Ext ent of search New pr . only Store progr. from Programme 019 Locat ion o f TV se t Ot her c ount r i

Change se t t in gs

Star t search

5 Press ]/[ to select the extent of

the programmes to be searched, and then press OK to display the “Store progr. from” screen.

Autom. programme search

Extent of search

Please def ine the ex tent of programmes for search:

Al l prog rammes New programmes onl y

Sel e c t and proceed wi th OK

Back End

Useful Features (Continued)

Programmes (Continued)

[1] Automatic search (Continued)

SOUND

INFO

(

RED)(GREEN)(YELLOW)(CYAN

END

MENUTEXT

)

TV/VIDEO

</>

END

]/[

6 Press ]/[ and/or </> to select the

programme position from which the programmes are to be stored, and then press OK to display the “Location of TV set” screen.

7 Press ]/[ to select the TV set

location.

• Select “Other...” to display the other part of the country list.

8 Press OK. The selected settings are

displayed.

9 Press ]/[ to select “Start search”,

and then press OK to begin the automatic programme search.

Note:

■ See pages 7 and 8 for details of the

search process.

10 After the search is completed, press

END to exit.

A u t om. p r o g r amme se a r c h

Stor e pr ogr . f rom

Please sel ect the programme position from which the programmes are to be stored:

S01 S02

1 2

S10

S11

E03

E05

E06

E09

E10

Sel ec t an d

proceed wi t h OK

Autom. programme search

Locat ion o f TV set

Please en ter t he TV s et locat i on f o r t he co r r ect TV st andar d and the appropr i ate programme c lass i f i cat i on fo r t he count ry:

A Aust r i a

B Bel gi um

CH Swi tzer land

CZ Czech Republ i c D Germany E Spai n

F France

Other .. .

Sel ec t an d

proceed wit h OK

Autom. programme search

Your TV set sear ches wi th t he following sett ings:

Ext ent of search Al l progr . Stor e pr ogr . f rom Progr amme 000 Locat ion o f TV se t D (PAL- BG)

Change se t t in gs

Star t search

E11

10 11

E36

E37

E38 E50

14 15

E53

E54 E56

E57

18 19

(

PAL- BG

(

PAL- BG

(

PAL- BG

(

PAL-DK

(

PAL- BG

(

PAL- BG

(

SECAM-L

20 21 22 23 24 25 26 27 28 29

) ) ) ) ) )

Back End

)

Back End

Programmes (Continued)

[2] Manual adjustment

Individual settings of programmes can be adjusted.

Useful Features (Continued)

SOUND

INFO

(

RED)(GREEN)(YELLOW)(CYAN

</>

END

MENUTEXT

]/[

)

RED

TV/VIDEO

Channel Select

1 Perform steps 1 and 2 in [1]

Automatic search to display the

“Programmes” screen.

2 Press ]/[ to select “Manual

adjustment”, and then press OK to display the “Manual adjustment” screen.

3 Press ]/[ to select the item, and

then press </> to make the adjustment. (See the table on the next page for details.)

• You can also use Channel Select to adjust the “Channel” and “Frequency” items.

• To adjust “Name”, first press OK to activate the text input mode. Press </> to select the input position and press ]/[ to select the desired character. When you finish inputting, press OK to set the name.

TV menu

Programmes

Automatic search

Manual adj u stment

Sor t

Erase programme range

En t er / c hange name

Decoder pr ogrammes

Back End

Manual ad justment

Range VHF UHF Cab l e

Channel E36

Frequency 591.25 MHz

Name E 36

TV s tand. B/G

Col. st . Autom.

Search Store

Back End

4 Press RED to store the adjusted

channel. The “Store” screen appears.

5 Press ]/[ and/or </> to select

the desired programme position to insert the channel.

Store

S01

0 1

S08

S10

S10 S11

4 5

E03

E05

E06 E09

8 9

E10

Insert Overwri te

E11

10 11

E36

E37

E38 E50

14 15

E53

E54 E56

17 18

E57

20 21 22 23 24 25 26 27 28 29

Back End

Useful Features (Continued)

Programmes (Continued)

[2] Manual adjustment (Continued)

6 Press YELLOW to insert a free

SOUND

INFO

(

RED)(GREEN)(YELLOW)(CYAN

END

MENUTEXT

)

END

RED

YELLOW

programme position for the channel, or press RED to overwrite the existing channel on the marked programme position.

• If you press YELLOW, all subsequent programmes including the marked one move one programme position back.

7 Press END to exit.

TV/VIDEO

Adjustment item

Range

Channel

Frequency

Name

TV stand.

Col. st.

Choice/Value range

VHF, UHF, Cable

E02 – E12 (VHF, B/G)

E21 – E69 (UHF)

S01 – S41 (Cable, B/G)

A – K (VHF, I), etc.

044 – 859 (MHz)

A – Z, +, -, ., !, /, 0 – 9

B/G, I, L, D/K, M, N

Autom., PAL, SECAM,

NTSC-V, PAL-V

NTSC, PAL(Norm

M), etc.

Description

Receivable ranges depending on TV norm and installation site

Receivable channels depending on TV norm, installation site, and range

Receivable frequencies depending on TV norm, installation site, and range

Programme name (up to five characters)

TV norm

Colour norm

Useful Features (Continued)

TV menu

Programmes

Automatic search

Manual adj us tment

Sor t

Er ase programme range

Ent e r / chan ge name

Decoder programmes

Back End

Programmes (Continued)

[3] Sort

The programme positions for individual programmes can be freely changed.

END

MENUTEXT

)

</>

END

]/[ CYAN

YELLOW

SOUND

INFO

(

RED)(GREEN)(YELLOW)(CYAN

TV/VIDEO

RED

1 Perform steps 1 and 2 in [1]

Automatic search to display the

“Programmes” screen.

2 Press ]/[ to select “Sort,” and

then press OK to display the “Sort” screen.

3 Press ]/[ and/or </> to select

the desired programme, and then press YELLOW, RED, or CYAN to sort.

• When YELLOW is pressed, a free programme position is inserted at the current cursor position. All subsequent programmes including the marked one move one programme position back.

• When RED is pressed, the currently marked programme is erased. All subsequent programmes move one programme position up.

• When CYAN is pressed, the Move mode is activated. Press ]/[ to move the currently marked programme to the desired programme position. The marked programme is swapped with the programme at the selected programme position. Press CYAN to leave the Move mode.

Sor t

0 1 2 3 4

5 6 7 8 9

S01 S08 S10 S10 S11 E03 E05 E06 E09 E10

Move

Insert

Erase

E11

10 11

E36

E37

E38 E50

14 15

E53

E54 E56

17 18

E57

20 21 22 23 24 25 26 27 28 29

Back End

4 Press END to exit.

Useful Features (Continued)

TV menu

Programmes

Automatic search

Manual adj u st ment

Sor t

Er ase programme range

En t er / change n ame

Decoder pr ogrammes

Back End

Programmes (Continued)

[4] Erase programme range

The individual programmes or programmes in a connected range can be erased.

SOUND

INFO

(

RED)(GREEN)(YELLOW)(CYAN

END

MENUTEXT

)

TV/VIDEO

</>

END

]/[

1 Perform steps 1 and 2 in [1]

Automatic search to display the

“Programmes” screen.

2 Press ]/[ to select “Erase

programme range,” and then press OK to display the “Erase programme range” screen.

3 Press ]/[ and/or </> to select

the programme to be erased, and then press OK. The selected programme is shown in blue.

• If you want to erase programmes in a connected range, select the programme at the beginning of the desired range.

4 If you are erasing programmes in

a connected range, press ]/[ and/or </> to select the programme at the end of the range. The selected programmes are shown in blue.

Erase p rogr amme r ange

S01

0 1

S08

S10

S10 S11

4 5

E03

E05

E06 E09

8 9

E10

Star t wi t h OK,

select end and er as e wi t h OK

Erase p rogr amme r ange

S01

0 1

S08

S10

S10 S11

4 5

E03

E05

E06 E09

8 9

E10

Star t wi t h OK, select end and er as e wi t h OK

E11

10 11

E36

E37

E38 E50

14 15

E53

E54 E56

17 18

E57

E11

10 11

E36

E37

E38 E50

14 15

E53

E54 E56

17 18

E57

20 21 22 23 24 25 26 27 28 29

Back End

20 21 22

24 25 26 27 28 29

Back End

5 Press OK to erase the selected

programme(s). All the subsequent programmes move up.

6 Press END to exit.

Erase programme range

E03

E05 E06

2 3

E09 E10

4 5

E11 E36

E37

E38

8 9

E50

Star t wi t h OK,

select end

and er as e wi t h OK

E53

10 11

E54

E56

E57 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29

Back End

Useful Features (Continued)

TV menu

Programmes

Automatic search

Manual adjustment

Sor t

E ras e p rog ramme ra nge

En t er / change n ame

Decoder pr ogrammes

Back End

Programmes (Continued)

[5] Enter/change name

The name of an individual programme can be entered or changed.

SOUND

INFO

(

RED)(GREEN)(YELLOW)(CYAN

</>

END

MENUTEXT

]/[

)

TV/VIDEO

1 Perform steps 1 and 2 in [1]

Automatic search to display the

“Programmes” screen.

2 Press ]/[ to select “Enter/

change name,” and then press OK to display the “Enter/change name” screen.

3 Press ]/[ and/or </> to select

the desired programme, and then press OK. An underscore and question marks are displayed as an input prompt.

4 Press </> to select the input

position, and then press ]/[ to select the desired character.

Ent er /c hange name

19 7 AVS

AV2

198

AV1

199

S01

?08

S10

S11

E03

E05

Star t wi t h OK

then enter/change and end wit h OK

Ent er /c hange name

197 AVS

AV2

198

AV1

199

S01

S02

S10

S11

E03

E05

Star t wi t h OK

then enter/change and end wi t h OK

10 11 12 13 14 15 16

E56

E06 E09

E10

E11 E36 E37 E38 E50 E53 E54

E06

E09 E10

E11 E36 E37 E38 E50 E53 E54

E57

18 19

20 21 22 23

24 25 26

Back End

E56

E57

Back End

5 Press OK to accept the name

entered, and then press END to exit.

Note:

■ See page 29 for information on how to use the “Decoder programmes” item.

Ent er /c hange name

19 7 AVS

AV2

198

AV1

199

S01

S02

S10

S11

E03

E05

Star t wi t h OK

then enter/change and end wit h OK

10 11 12 13 14 15 16

E56

E06 E09

E10

E11 E36 E37 E38 E50 E53 E54

E57

Back End

AV connect i ons

Back End

At AV1 (programme 199)

Signal :

Sel ec t and proc eed wi th OK

Autom. -VHS/SVHS VCR, camcorder

Aut om.- CVBS/YC. DVD,SAT,decoder

Standard component (s) :

VHS/8mm.. . . .. . . VCR, camco rder

SVHS/Hi8....... VCR, camcorder

CVBS........... DVD,SAT,decoder

YC............. DVD,SAT,decoder

Useful Features (Continued)

At AV1

(programme

199

)

AV connect i ons

At AV2

( p r o g r amme

198

)

Decoder prog r ammes

For progr ammes 1.. . 196

Back End

At AVS

( p r o g r amme

197

)

AV Connections

It is possible to manually adjust various settings for connections with external devices on the AV connections screen.

[1] At AV1 (programme 199)/AV2 (programme 198)/AVS (programme 197)

Select the appropriate signal type and colour standard for the signals from the video equipment

connected to the AV1, AV2, or AVS terminal.

SOUND

INFO

(

RED)(GREEN)(YELLOW)(CYAN

END

MENUTEXT

)

TV/VIDEO

END

]/[

1 Press MENU to display the TV

menu.

2 Press ]/[ to select “AV

connections,” and then press OK to display the “AV connections” screen.

3 Press ]/[ to select “At AV1

(programme 199),” “At AV2 (programme 198),” or “At AVS (programme 197),” and then press OK to display the signal type selection screen.

4 Press ]/[ to select the desired

signal type, and then press OK. The colour standard selection screen appears.

TV menu

Standard set t ings


Sound

Programmes

AV connect i ons

Ch i l d l oc k

Other .. .

Back End

5 Press ]/[ to select the desired

colour standard, and then press

OK.

6 Press END to exit.

AV connect i ons

At AV1 ( progr amme 199)

Col our st anda rd :

Aut omat i c PAL SECAM NTSC NTSC-V PAL- V PAL-M PAL- N

Se l ec t

and acce pt

wi th OK

Back End

+ 351 hidden pages
