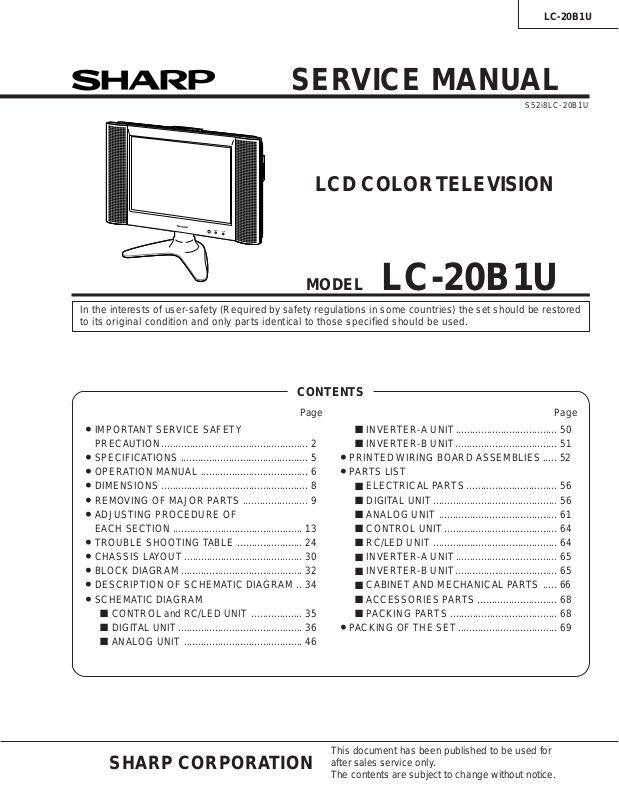

SHARP LC-20B1U Service Manual

LC-20B1U

SERVICE MANUAL

S52i8LC-20B1U

LCD COLOR TELEVISION

P

O

W

E

R

S

L

E

E

P

MODEL

LC-20B1U

In the interests of user-safety (Required by safety regulations in some countries) the set should be restored
to its original condition and only parts identical to those specified should be used.

CONTENTS

Page Page

» IMPORTANT SERVICE SAFETY

PRECAUTION.................................................... 2

» SPECIFICATIONS ............................................. 5

» OPERATION MANUAL ...................................... 6

» DIMENSIONS .................................................... 8

» REMOVING OF MAJOR PARTS ....................... 9

» ADJUSTING PROCEDURE OF

EACH SECTION.............................................. 13

» TROUBLE SHOOTING TABLE ....................... 24

» CHASSIS LAYOUT.......................................... 30

» BLOCK DIAGRAM........................................... 32

» DESCRIPTION OF SCHEMATIC DIAGRAM .. 34
» SCHEMATIC DIAGRAM

Ë

CONTROL and RC/LED UNIT .................. 35

Ë

DIGITAL UNIT............................................ 36

Ë

ANALOG UNIT .......................................... 46

Ë

INVERTER-A UNIT.................................... 50

Ë

INVERTER-B UNIT.................................... 51

» PRINTED WIRING BOARD ASSEMBLIES..... 52

» PARTS LIST

Ë

ELECTRICAL PARTS ................................ 56

Ë

DIGITAL UNIT............................................ 56

Ë

ANALOG UNIT .......................................... 61

Ë

CONTROL UNIT........................................ 64

Ë

RC/LED UNIT ............................................ 64

Ë

INVERTER-A UNIT.................................... 65

Ë

INVERTER-B UNIT.................................... 65

Ë

CABINET AND MECHANICAL PARTS ..... 66

Ë

ACCESSORIES PARTS ............................ 68

Ë

PACKING PARTS ...................................... 68

» PACKING OF THE SET................................... 69

SHARP CORPORATION

This document has been published to be used for
after sales service only.
The contents are subject to change without notice.

LC-20B1U

2

2

IMPORTANT SERVICE SAFETY PRECAUTION

Ë

Service work should be perfomed only by qualified ser vice technicians who are thor­oughly familiar with all safety checks and the servicing guidelines which follow:

WARNING

1. For continued safety, no modification of any circuit
should be attempted.

2. Disconnect AC power before servicing.

CAUTION: FOR CONTINUED
PROTECTION A GAINST A RISK OF
FIRE REPLACE ONLY WITH SAME
TYPE F3701 (2A, 125V), F3702
(1.6A, 125V), F6700 (1A, 125V),

A V

F6701 (1A, 125V), F6702 (1A,
125V), F6703 (1A, 125V) , F6704
(1A, 125V) FUSE.

BEFORE RETURNING THE RECEIVER
(Fire & Shock Hazard)

Before returning the receiver to the user, perform
the following safety checks:

1. Inspect all lead dress to make certain that leads are
not pinched, and check that hardware is not lodged
between the chassis and other metal parts in the
receiver.

2. Inspect all protective devices such as non-metallic
control knobs, insulation materials, cabinet backs,
adjustment and compartment covers or shields,
isolation resistor-capacitor networks, mechanical
insulators, etc.

3. To be sure that no shock hazard exists, check for
leakage current in the following manner.

• Plug the AC cord directly into a 110~240 volt A C outlet,
and connect the DC power cable into the receiver's
DC jack. (Do not use an isolation transformer for this
test).

• Using two clip leads, connect a 50k ohm, 10 watt
resistor paralleled by a 0.15µF capacitor in series with
all exposed metal cabinet parts and a known earth

ground, such as electrical conduit or electrical ground
connected to an earth ground.

• Use an AC voltmeter ha ving with 5000 ohm per volt, or
higher, sensitivity or measure the AC voltage drop
across the resisor.

• Connect the resistor connection to all exposed metal
parts having a return to the chassis (antenna, metal
cabinet, screw heads, knobs and control shafts,
escutcheon, etc.) and measure the AC voltage drop
across the resistor.
All checks must be repeated with the AC cord plug
connection reversed. (If necessary, a nonpolarized
adaptor plug must be used only for the purpose of
completing these checks.)
Any reading of 0.75V peak (this corresponds to 0.5
milliamp. peak A C .) or more is e xcessive and indicates
a potential shock hazard which must be corrected
before returning the monitor to the owner .

DVM

AC SCALE

50k ohm

10W

0.15 F

TEST PROBE

TO EXPOSED
METAL PARTS

CONNECT TO
KNOWN EARTH
GROUND

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

SAFETY NOTICE

Many electrical and mechanical parts in LCD television
have special safety-related characteristics.
These characteristics are often not evident from visual
inspection, nor can protection afforded by them be
necessarily increased by using replacement components
rated for higher voltage , w attage , etc.
Replacement parts which have these special safety
characteristics are identified in this manual; electrical

and shaded areas in the

Schematic Diagrams

For continued protection, replacement parts must be
identical to those used in the original circuit.
The use of a substitute replacement parts which do not
have the same safety characteristics as the factory
recommended replacement parts shown in this service
manual, may create shock, fire or other hazards.

components having such features are identified by “ å”

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

2

Replacement Parts Lists

.

and

LC-20B1U

2

2

2

PRECAUTIONS A PRENDRE LORS DE LA REPARATION

Ë

Ne peut effectuer la réparation qu' un technicien spécialisé qui s'est parfaitement
accoutumé à toute vérification de sécurité et aux conseils suivants.

AVERTISSEMENT

conduite électrique ou une prise de terre branchée à
la terre.

1. N'entreprendre aucune modification de tout circuit.
C'est dangereux.

2. Débrancher le récepteur avant toute réparation.

• Utiliser un voltmètre CA d'une sensibilité d'au moins
5000ohm/V pour mesurer la chute de tension en travers
de la résistance.

• Toucher avec la sonde d'essai les pièces métalliques

A V

PRECAUTION: POUR LA

PRO TECTION CONTINUE CONTRE
LES RISQUES D'INCENDIE,
REMPLACER LE FUSIBLE PAR UN
FUSIBLE DE MEME TYPE F3701 (2A,
125V), F3702 (1.6A, 125V), F6700(1A,
125V), F6701(1A, 125V), F6702(1A,
125V), F6703(1A, 125V), F6704(1A,
125V).

exposées qui présentent une voie de retour au châssis
(antenne, coffret métallique, tête des vis, arbres de
commande et des boutons, écusson, etc.) et mesurer
la chute de tension CA en-travers de la résistance.
Toutes les vérifications doivent être refaites après avoir
inversé la fiche du cordon d'alimentation. (Si nécessaire,
une prise d'adpatation non polarisée peut être utilisée
dans le but de terminer ces vérifications.)
Tous les courants mesurés ne doivent pas dépasser
0,5 mA.

VERIFICATIONS CONTRE L'INCEN-DIE ET
LE CHOC ELECTRIQUE

Dans le cas contraire, il y a une possibilité de choc
électrique qui doit être supprimée avant de rendre le
récepteur au client.

Avant de rendre le récepteur à l'utilisateur, effectuer
les vérifications suivantes.

1. Inspecter tous les faisceaux de câbles pour s'assurer
que les fils ne soient pas pincés ou qu'un outil ne soit
pas placé entre le châssis et les autres pièces
métalliques du récepteur.

2. Inspecter tous les dispositifs de protection comme les
boutons de commande non-métalliques, les isolants,
le dos du coffret, les couvercles ou blindages de réglage

VTVM

ECHELLE CA

50k ohm

10W

et de compartiment, les réseaux de résistance­capacité, les isolateurs mécaniques, etc.

3. S'assurer qu'il n'y ait pas de danger d'électrocution en
vérifiant la fuite de courant, de la facon suiv ante:

• Brancher le cordon d'alimentation directem-ent à une

0.15 F

SONDE D’ESSAI

prise de courant de 110-240V. (Ne pas utiliser de
transformateur d'isolation pour cet essai).

• A l'aide de deux fils à pinces, brancher une résistance
de 50 kohm 10 watts en parallèle a vec un condensateur
de 0,15µF en série avec toutes les pièces métalliques
exposées du coffret et une terre connue comme une

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

AUX PIECES
METALLIQUES
EXPOSEES

BRANCHER A UNE
TERRE CONNUE

AVIS POUR LA SECURITE

De nombreuses pièces, électriques et mécaniques, dans
les téléviseurs présentent des caractéristiques spéciales
relatives à la sécurité, qui ne sont souvent pas évidentes
à vue. Le degré de protection ne peut pas être
nécessairement augmentée en utilisant des pièces de
remplacement étalonnées pour haute tension,
puissance, etc.
Les pièces de remplacement qui présentent ces
caractéristiques sont identifiées dans ce manuel; les
pièces électriques qui présentent ces particularités sont

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

identifiées par la marque " å " et hachurées dans la
liste des pièces de remplacement et les diagrammes
schématiques.
Pour assurer la protection, ces pièces doivent être
identiques à celles utilisées dans le circuit d'origine.
L'utilisation de pièces qui n'ont pas les mêmes
caractéristiques que les pièces recommandées par
l'usine, indiquées dans ce manuel, peut provoquer des
électrocutions, incendies, radiations X ou autres
accidents.

3

LC-20B1U

Precautions for using lead-free solder

1 Employing lead-free solder

"Digital PWB" of this model employs lead-free solder . The LF symbol indicates lead-free solder, and is attached
on the PWBs and service manuals. The alphabetical character following LF shows the type of lead-free solder.
Example:

L Fa

Indicates lead-free solder of tin, silver and copper.

2 Using lead-free wire solder

When fixing the PWB soldered with the lead-free solder, apply lead-free wire solder. Repairing with conventional
lead wire solder may cause damage or accident due to cracks.
As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40°C, we recommend
you to use a dedicated soldering bit, if you are not familiar with how to obtain lead-free wire solder or soldening
bit, contact our service station or service ranch in your area.

3 Soldering

As the melting point of lead-free solder (Sn-Ag-Cu) is about 220°C which is higher than the conventional lead
solder by 40°C, and as it has poor solder wettabillty, you may be apt to keep the soldering bit in contact with the
PWB for extended period of time. However, Since the land may be peeled off or the maximum heat-resistance
temperature of parts may be excoeded, remove the bit from the PWB as soon as y ou conurm the steady soldering
condition.
Lead-free solder contains more tin, and the end of the soldering bit may be easily corroded. Make sure to tum on
and off the power of the bit as required.
if a different type of solder stays on the tip of the soldering bit, it is alloyed with lead-free solder. Clean the bit after
every use of it.
When the tip of the soldering bit is blackened during use, file it with steel wool or fine sandpaper.

Be careful when replacing parts with polarity indication on the PWB silk.

Lead-free wire solder for servicing

Part No, ★ Description Code
ZHNDAi123250E J φ0.3mm 250g(1roll) BL
ZHNDAi126500E J φ0.6mm 500g(1roll) BK
ZHNDAi12801KE J φ1.0mm 1kg(1roll) BM

4

Specifications

LC-20B1U

Items

LCD panel 19.7" Advanced Super View & BLACK TFT LCD
Number of dots 921,600 dots VGA
Video color systems N358, N443, PAL, PAL-M, PAL-N, SECAM, PAL-60

Destination USA/Latin A/Twn
TV Standard (CCIR) NTSC/PAL-M/PAL-N

TV function TV Tuning System PLL 181 ch.

STEREO MTS+SAP

CATV 125 ch.
3 Dimensional Y/C separation circuit Yes (N358 only)
Digital comb filter Yes
Brightness 430 cd/m
Lamp life 60,000 hours
Viewing angles H: 170° V: 170°
Audio amplifier 2.5 W × 2
Speakers ø 2 in. (5 cm), 2 pcs.

AV1 AV-IN1, S-VIDEO-IN

AV2 AV-IN2/AV-OUT
Terminals COMPONENT COMPONENT-IN, AUDIO-IN

Antenna F-Type

Headphone Mini-jack for stereo (3.5 ø)

PC Card slot PC Card Type II (PC card adapter)
Image File Format JPEG files complying with DCF format
OSD language English/French/Spanish
Power consumption AC 67 W (with AC adapter), DC 58 W (DC 13 V)
Power supply DC 13 V, AC 110
Weight 19 lbs (8.6 kg), w/o accessories
Accessories

Enviromental conditions

Model

2

Remote control, Batteries, Antenna cable, AC adapter,
AC cord, Cable clamps

0-40°C

LC-20B1U

- 240 V, 50/60 Hz

As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for
product improvement without prior notice. The performance specification figures indicated are nominal values of
production units. There may be some deviations from these values in individual units.

Specifications are subject to change without notice.

5

LC-20B1U

Operation Manual

AV-IN2/OUT

AUDIO (L)

AUDIO (R)

VIDEO

T

O

IO

U

L

R

E

D

/O

ID

U

2

V

A

-IN
V
A

Main unit (rear view)

Y

T

N

B

E

Y

P

N
O

P
M

O
C

COMPONENT

RPB

AUDIO (L)

AUDIO (R)

P

R

IO

L

R

P

D

U
A

AV-IN1

VIDEO

L

VIDEO

AUDIO (L)

R

AUDIO

AUDIO (R)

S-VIDEO

S-VIDEO

HEAD

PHONE

ANT.

HEADPHONE

INPUT

DC13V

POWER

POWER INPUT

(DC 13V)

Antenna terminal

AV-IN1

V
O
L

C
H

M
E
N
U
T
V
/
V
I
D
E
O
M

A
I
N
P
O
W
E
R

PC Card slot

PC CardPC Card

Main unit (front view)

MENU

TV/VIDEO

MAIN POWER

MENU TV/VIDEO MAIN POWER

CH

VOL

Upper control panel

)/( )

CH (

-

VOL ( )/(+)

Speaker

Speaker

PC Card slot

To change the vertical angle of the LCD

TV set, tilt the screen up to 5 degrees

forward or 10 degrees backward. The

TV set can also be rotated 50 degrees

horizontally. Please adjust the angle so

that the TV set can be watched most

comfortably.

P
E
E
L
S

R
E
W
O
P

The SLEEP indicator lights up red when

the SLEEP TIMER is set to on.

SLEEP indicator

POWER indicator

Remote sensor window

(The actual location is not visible.)

6

A green indicator lights when the power is

on and a red indicator lights when in the

standby mode (the indicator will not light

when the main power is off).

on the remote control. Fundamentally, this operation manual provides a description based on operation with the

remote control.

TV/VIDEO, CH ( )/( ), VOL ( )/(+), and MENU on the main unit have the same functions as the same buttons

Note

C
H

| \

|

/ / / (Cursor control)

|

ENTER/

DISPLAY

POWER

SLEEP CARD

2

CARD*

ENTER

3

MENU

FLASHBACK*

TV/VIDEO

FLASHBACK

CHVOL

MUTE BRIGHT MENU TV/VIDEO

LC-20B1U

CH ( )/( )

Channel Select

3

6

9

2

5

8

1

4

7

Displays the receiving

channel for 10 seconds.

Turns on CARD mode to play

back a memory card.

1

*

Returns to the previous

2

3

*

*

100

0

MTS

channel.

Selects audio settings.

4

*

1

POWER

DISPLAY*

VO
L

C
H

M
ENU

T
V
/
V
ID
EOM

A
IN
P
O
WE
R

SLEEP

MUTE

BRIGHT

)

-

VOL(+)/(

4

MTS*

On-screen display

60

VOLUME

Headphones

Rear terminal

V
O
L

Headphones are not included in the supplied accessories.

No sound will be heard from the main unit speakers when a headphone mini-plug is connected into the

Before connecting a connection cord into the rear

terminal, remove the back cover. Push in the tab and

Removing the Back Cover

pull out the back cover carefully.

To mount the cover, insert the 2 hooks on the

bottom of the cover into the cabinet and press on

the upper part of the back cover until the tab locks

in place with a click.

Plug the headphone mini-plug into the HEADPHONE jack located on the rear of the TV set.

Listening with Headphones

HEADPHONE jack.

Note

7

LC-20B1U

Dimensions

/ 473.5

64

/

41

18-

/ 381.5

64

/

1

15-

/ 1887-

32

/

13

7-

/ 193.5

8

/

5

CHVOL TV/VIDEOMENU MAIN POWER

9

/

16

12-

24-51/

51

/

64

15-

/ 319

64

/ 630

/ 401.3

/ 40

64

/

37

1-

/ 298.8

64

/

49

11-

/ 66.6

8

/

5

2-

/ 72.6

64

/

55

2-

1-37/

14-59/

64

/ 379

4-7/

32

/ 107.3

2-55/

64

/ 72.6

64

/ 40

VIDEO

AV-IN1
L

AUDIO

R

S-VIDEO

HEAD

PHONE

ANT.

POWER

INPUT

DC12V

Unit: inch/mm

1-13/

6-

/ 87.5

16

/

7

3-

/ 468.8

64

/

29

18-

64

/ 30.5

29

/

64

/ 163.9

1

9-

/

32

/ 229.4

37

/

64

/ 65.5

2-

VIDEO

AV-IN 2/OUT

AUDIO

COMPONENT

AUDIO

L

R

Y

P

B

R

P

L

R

/ 100

16

/

15

3-

3-15/

/ 1.5

16

/

1

16

/ 100

8

REMOVING OF MAJOR PARTS

V

O

LC

H

M

E

N

U

T

V

/

V

I

D

E

O

M

A

I

N

P

O

W

E

R

Front Cabinet

Rear Cabinet

Table Stand

Back Cover

Back Cover

1

1

2

3

3

3

3

3

3

1. Remove the two back covers.

2. Remove the table stand fixing screws (4 pcs.).

3. Rear cabinet is detached opening some rear cabinet and shifting to a PC card slot side,
where a card release button is pushed in.

4. Remove the reinforcement angle fixing screws (4 pcs.).

5. Remove the PC card unit.
5-1. Detach the connector.
5-2. Remove the PC card frame angle

fixing screws (2 pcs.).

5-3. Remove the ground cable

fixing screws (3 pcs.).

6. Detach the connector from each PWB.

LC-20B1U

5-3

5-2

5-2

PC CARD Unit

PC Card Frame Angle

5-3

5-1

5-3

66

6

6

[CAUTION]

When you attach FFC, a
black dot mark should be
on a card unit side.

6

6

DIGITAL PWB

6

6

6

CONTROL PWB

6

6

INVERTER-A
PWB

Reinforcement Angle

6

6

6

4

ANALOG PWB

6

6

6

6

6

6

6

RC/LED PWB

6

INVERTER-B PWB

9

LC-20B1U

7. Remove the digital PWB fixing screws (1 pcs.).

8. Remove the inverter-A PWB fixing screws (2 pcs.).

9. Remove the inverter-B PWB fixing screws (1 pc.).

10. Undo the hooks and slide the chassis frame cover out of position.

11. Remove the analog PWB fixing screws (3 pcs.).

12. Remove the RC/LED PWB fixing screws (2 pcs.).

13. Remove the control PWB fixing screws (2pcs.).

8

Chassis Frame

DIGITAL PWB

7

11

INVERTER-A
PWB

ANALOG
PWB

10

9

INVERTER-B
PWB

CONTROL PWB

RC/LED PWB

12

Chassis Frame Cover

13

10

» Precautions in handling the LCD panels

1. Work in a clean room (with humidities below 50%).

2. Be sure to wear an anti-static armband.

3. Handle the panels on an electroconductive mat.

4. Be careful not to fall, shake and shock the panels.

14.Remove the four screws and open the LCD display unit.

15.Remove the ITO earth angle fixing screw (1 pcs.).

16.Detach the reflection/deflection, prism, diffusion, ITO sheets and diffusion plate.

17.Remove the lamp holder fixing screws (6 pcs.).

18.Detach the lamp set A/B.

19.Remove the reflection plate fixing screws (6 pcs.).

Shielding plate
(CSLDM4685CE02)

Lamp holder
(LHLDZ2176CEZZ)

Diffusion plate
(PCOVU0107CEZZ)

ITO sheet
(PSHEP0289CEZZ)

LC-20B1U

o

Prism sheet
(PSHEP0287CEZZ)

20" LCD panel unit

r

Reflection/deflection sheet

Ground cable
(QCNW-A548WJZZ)

(PSHEP0286CEZZ)

u

y

ITO earth angle

t

Diffusion sheet
(PSHEP0288CEZZ)

(MSPRP1220CEFW)

u

i

Lamp holder
(LHLDZ2176CEZZ)

Lamp set-A
(KLMP-0124CEZZ)

Lamp set-B
(KLMP-0125CEZZ)

Reflection plate
(PMiR-0296CEZZ)

11

LC-20B1U



Notes at the time of the side B(back) service of a digital unit

1. Remove PC card slot attachment angle fixed screws(2 pcs.).

2. Remove the FFC from a PC card unit.

3. Remove the grounding cable fixed screws(2 pcs.).

4. Remove the FFC for connection between digital unit (SC2001) and analog unit (SC3403), and connect the exten­sion FFC for service(QCNW-A324WJZZ).

5. Remove the cable for connection between digital unit (P2004) and analog unit (P3702), and connect the extended
cable for service(QCNW-A323WJZZ).

6. Remove the chassis frame fixed screws(4 pcs.), it shifts to right-hand side, and remove the double-sided tape (for
digital unit (SC1203) - LCD panel connection FFC fixation) under a chassis frame.

7. Remove the RC/LED unit.
7-1. Open a wire holder.
7-2. Remove the RC/LED unit fixed screws(2 pcs.).

8. Remove the digital unit fixed screw(1 pc.), a substrate is reversed.

1

1

3

3

PCcard
slot

DIGITALUnit

(sideB)

8

2

SC901

DIGITAL
Unit

SC1203

P2003

P2004

6



4



SC2001

5

ANALOGUnit

SC3403

P3702

8



RC/LEDUnit

7-2

7-1

WireHolder

12

LC-20B1U

ADJUSTING PROCEDURE OF EACH SECTION

The best adjustment is made before shipping. If any position deviation is found or after part replace is performed, adjust
as follows.

1.Preparation for Adjustments

(1)Use the exclusive-use AC adapter or stable DC power supply.

AC adapter: UADP-0243CEPZ
DC power supply: 13 ± 0.5V

2.Special mode setting procedure

(1)After initialization of E2PROM the mode is changed to the adjustment mode.

[Procedure]
Connect TP2001 and TP2002 to GND, and turn on the power.

[Description]

» The initialization of microprocessor is as follows.
» AV position, DAC data, G/A data, sound processor data, and video chroma data adjustment values are taken as

defaults.

(2)Adjustment mode

[Procedure]
Short-circuit TP2001 to GND, and turn on the power.
Or short-circuit TP2002 to GND, and turn on the power.
Or holding down the [TV/VIDEO] key and [MENU] key, turn on the main power, and simultaneously press the
(inspection process) [CH "] key and [VOL– ] key to change the mode to the adjustment mode.

[Description]
The manual adjustment or adjustment through communication with the automatic machine is performed.

(3)Shipping setting mode

[Procedure]
Holding down the [TV/VIDEO] key and [MENU] key, turn on the main power, and simultaneously press the
(inspection process) [CH '] key and [VOL+] key to change the mode to the shipping setting mode.
Note: Keep it in mind to turn off the power immediately. If any key-in is accidentally made, the setting will be

canceled.

[Description]
User adjustment and other values are taken as defaults.
If TV is indicated as SETTING COMPLETE, setting has been completed.

3.Cancel of special mode

Turn off the main unit power.

13

LC-20B1U

4.Adjustments

Adjustment Adjusting conditions Adjusting method

1 B+ Adjustment

(R3760)

1. Connect the DC voltmeter to
pin 2 of P3702.

1. Adjust the "B+ Adj" value to

5.0 ±0.02V with R3760. Make exact
adjustment of the 5.00 V level be­cause it will be the reference for all
the other supply voltages. Be sure to
make this adjustment together with
the main PWB (digital PWB). During
the adjustment, be also careful not to
allow the voltage at pin (2) of P3702
to go above 5.3 V.

2 Inch Size setup

(If E2PROM is replaced)
(IC2004)

3 Common-bias adjustment

4 TAMP adjustment

1. Go to the adjustment mode.

1. Receive a B/W channel.

2. Go to the adjustment mode.

3. Select the "COM BIAS" with
[MENU] key.

1. Receive a half color bar signal in the
TV mode so that the top left zone
should turn white 75% as shown be­low . Other signal can be fed instead
of the half color bar signal, howev er,
if the point at the vertical 180th line
and horizontal 46th pixel is of white
75%. (Make the adjustment based
on the setting of this point.)

2. Adjust the “NTSC TAMP” setting on
page 2 of adjustment process mode
so that the “Y” reading on the same
page should be BB - CA.

3. Make the same setting for the PAL­M TAMP and PAL-N TAMP data.

1. Select "INCH SIZE" and adjust to
"20" with [VOL+] or [VOL-] key.

* The color of "INCH SIZE" must be

yellow.

1. Adjust "COM BIAS" to the darkest
screen with [VOL+] and [VOL-] key.

* The color of "COM BIAS" must be

yellow.

White 75% at
top left zone

Page 2 of adjustment process mode

2
| COM BIAS 90

NTSCTAMP 20
PAL-M TAMP 20
PAL-N TAMP 20
RCUTOFF -1
GCUTOFF 0
BCUTOFF -1
G3 B3 R3 00 00 00
G1 B4 Y EF C7 C2
TAMP H CA
TAMP L BB

Vertical 180th line and
horizontal 46th pixel

640 pixels

GAIBU VER0.000

480 lines

“Y” data
(white 75%)

5 White balance adjustment

1. Receive the monoscope pattern sig­nal.

2.Adjust the “RCUTOFF” and
“BCUTOFF” settings on page 2 of
adjustment process mode to achieve
an optimum white balance.

14

1. Do not change the “GCUTOFF” setting
because otherwise the black le v el ma y
fluctuate.

5.Shipping setting list

Channel............................................................................................................................................... 2ch

Air/Cable ............................................................................................................................................. Air

Skip Data_CATV................................................................................................................................. All Skip

Skip Data_AIR .................................................................................................................................... All Skip

Volume................................................................................................................................................ 20

Picture................................................................................................................................................. 30

Tint ...................................................................................................................................................... 0

Color ................................................................................................................................................... 0

Black Level ......................................................................................................................................... 0

SHARPNESS...................................................................................................................................... 0

RED-BLUE.......................................................................................................................................... 0

GREEN ............................................................................................................................................... 0

TV Color System................................................................................................................................. N358

AV Color System ................................................................................................................................ N358

Language ............................................................................................................................................ English

Blue Screen ........................................................................................................................................ Off

EZ Setup Auto Start............................................................................................................................ On

Sleep Timer ........................................................................................................................................ None

MTS .................................................................................................................................................... Stereo

Brightness........................................................................................................................................... Bright

Auto Power Off ................................................................................................................................... Off

Upside................................................................................................................................................. Normal

Right/Left ............................................................................................................................................ Normal

AV2 IN/OUT........................................................................................................................................ In

Closed Caption (Mode) ...................................................................................................................... OFF

(Data) ....................................................................................................................... CH1

V Chip block (MPAA)..................................................................................................................... None

(TV Guideline) .......................................................................................................... None

(Block Content) ........................................................................................................ All Unblock

(Status)..................................................................................................................... Off

(Input Secret No.)..................................................................................................... Clear

CARD Last Card Mode ................................................................................................................... CARD

SLIDE SHOW SETTING INTERVAL .................................................................................. 5SEC

ORDER TO SHOW..................................................................... NORMAL

REPEAT ..................................................................................... OFF

MY PROGRAM SET PROGRAM ......................................................................... NONE

SOUND SETTING TV ............................................................................................... —(OFF)

AV1 ............................................................................................. —(OFF)

AV2 ............................................................................................. —(OFF)

COMPONENT ............................................................................ —(OFF)

LC-20B1U

15

LC-20B1U

Test patterns in adjustment process mode

[1] IC801 (Video decoder) test patterns

1-1. Getting the test patterns displayed

Put the screen in AV1, AV2 or COMPONENT but keep out any signal. Call the adjustment process mode,
select “TEST PATTERN” in the 3rd line of page 7, make the settings 1 thru 6, and the following test patterns
show up.

1-2. Test patterns

» Setting 1

The color bars are displayed as shown at left.

Yellow

Green

Cyan

Magenta

Green

Red

Blue

greengreen

» Setting 2

Finer vertical stripes than Setting 1 are displayed.

» Setting 3

Green

Bright BrightDark

» Setting 4

A rather dark green-only pattern is displayed.

» Setting 5

A half-tone green-only pattern is displayed.

» Setting 6

A rather bright green-only pattern is displayed.

[2] IC1201 (LCD controller) test pattern

2-1. Getting the test pattern displayed

Put the screen in AV1, AV2 or COMPONENT but keep out any signal. Call the adjustment process mode,
select “G/A TEST PATTERN” in the 13th line of page 16, turn on the setting, and the following test pattern
shows up.

2-2. Test pattern

The following test pattern appears.

Yellow

Cyan

Magenta

The green pattern is displayed as shown at left.

W

h

i

t

gradation

e

Dark
Dark
Dark

Black

0-level

Gray scale

Gray

16-level

gradation

Red

Green

Blue

Gray

32-level

gradation

Bright

Bright
Bright
Bright

Gray

48-level

gradation

DarkDark

Dark
Dark
Dark

White

63-level

gradation

Note: When the IC801 and IC1201 test pattern display commands are both turned on at the same time, the IC1201

test pattern is given priority.

16

Pin functions of microprocessor IC (IC2001) RH-iXA276WJZZQ

No

. Pin name Function
1 V HOLD
2 HLF
3 MAIN SW
4 TIMELED
5 M/S OUT
6 CSYNC
7 IREMI
8 GND
9 GND

10 XCIN
11 XOUT
12 RESET
13 XOUT
14 GND
15 XIN
16 VCC
17 OSCIN
18 OSCOUT
19 PSWIN
20 SUBREADY
21 BLK
22
23 DAC1CS
24 DAC2CS
25 D SW
26 DTV
27 MRDY
28 SCL2
29 SCL1
30 SDA1
31 SDA2
32 R
33 G
34 B
35 SUBD OUT
36 SUBDIN
37 SUBCLK
38
39 MRDY OUT
40 FCH
41 IREM OUT
42 L_ERR
43 S IN/OUT
44 N443
45 PAL
46 SECAM
47 PAL_M
48 N358
49 PXOE
50 VSH OUT

Closed caption
Closed caption
Main switch ON[H]/OFF[L]
Off timer LED light-up
Sub-microprocessor master/slave output
Composite sync signal
Remote control
Grounding
Grounding
32kHz oscillation input
32kHz oscillation output
Reset at “L” level
Microprocessor oscillator connection
Grounding
Microprocessor oscillator connection
Power
OSD clock input
OSD clock output
Main power input
Sub-microprocessor ready input
OSD blanking output

DAC1 chip select
DAC2 chip select
D terminal connection detect
D terminal control line
I2C bus open/closed select input
I2C bus serial clock line 2
I2C bus serial clock line 1
I2C bus serial data line 1
I2C bus serial data line 2
R signal output
G signal output
B signal output
Sub-microprocessor data output
Sub-microprocessor data input
Sub-microprocessor clock input

I2C bus open/closed output
No-signal field ID signal output
Not used
Fluorescent lamp error detect input
Audio input/output select

“H” for N443, “L” for others
“H” for PAL, “L” for others
“H” for SECAM, “L” for others
“H” for PAL-M, “L” for others
“H” for N358, “L” for others

Card (Card mode at “L” level)
Panel gate driver voltage control

No

. Pin name Function
51 REQ
52 AV/SY/DY2
53 FSMUTE
54 RSMUTE
55 HPDET
56 SSTBY
57 VSH IN
58 LMUTE
59 V IN/OUT
60 SRESET
61 DENKA
62 VCC
63 CARDPOW
64 VSS
65 TV/AV1
66 AV/AV2
67 VIS/3DS
68 AV1/VISY
69 AV/SY/DY1
70 STD
71 PMUTE
72 POWOUT
73 AD POW
74 IREM 2
75 MPRCS
76 MPRDA
77 MPCS
78 MPDA
79 MPCLK
80 DDCRESET
81 KEY4
82 KEY5
83 CARDRESET
84 SAW SW
85 MODE1
86 MODE2
87 SSYSTEM
88 SSW
89 AFT
90 AGC
91 KEY1
92 KEY2
93 KEY3
94 POWIN
95 VSYNC
96 AVSS
97 HSYNC
98 TVSETB
99 AVCC

100

CVIN

LC-20B1U

Adjustment process
US CCD input select
Front mute
Rear mute
Headphone detect at “L” level
Speaker standby (at “H” level)
Panel gate driver voltage check
Line out audio mute
Video input/output select
Multiplex reset at “L” level
Electric charge prevention
Power
Card (ON/OFF)
Grounding
Analog switch 1
Analog switch 2
Analog switch 3
Analog switch 4
US CCD input select 2
Microprocessor power off output
P mute
DC/DC control output
Adaptor ON/OFF input
Reception at slave
G/A read enable
G/A data input
G/A chip select
G/A data output
G/A clock
Digital decoder reset
Key input 4
Key input 5
Card reset (at “H” level)
Tuner select (at “H” level)
Tuner select (at “H” level)
Tuner select (at “H” level)
S system switching detect
S terminal connect input at “L” level
AFT voltage input
AGC voltage input
Key input 1
Key input 2
Key input 3
DC/DC start-up detect
OSD vertical sync signal
Analog power input (GND)
OSD vertical sync signal
Closed caption (GND)
OSD power input
Closed caption signal input

17

LC-20B1U

Adjustment process mode menus at a glance

Page Item

Initial setting

Function Adjust/modify

Basic settings

1 INCH SIZE 20 Inch size select Adjustment

MODEL B1U Model number
CARD ON
SYSTEM N358 Color system select
NTSC PWN FREQ OCO Dimmer frequency setting
PAL PWM FREQ OBD Dimmer frequency setting
NTSC PWM DUTY 0 Dimmer duty setting
PAL PWM DUTY 0 Dimmer duty setting
TV GAIN OFF Auto gain setting in TV mode
ERROR NO RESET 0 Lamp error count & reset No. of lamp error detections
V-CHIP 1 VCHIP line mute setting
CANADIAN VCHIP OFF Canadian VCHIP setting

Note: Microprocessor’s Version is displayed on the bottom of a screen.

Video adjustments

2 COM BIAS 90 Counter bias adjustment Adjustment

NTSC TAMP 20 TAMP adjustment Adjustment
PAL-M TAMP 20 TAMP adjustment
PAL-N TAMP 20 TAMP adjustment
RCUTOFF -1 Red cutoff adjustment Adjustment
GCUTOFF 0 Green cutoff adjustment
BCUTOFF -1 Blue cutoff adjustment Adjustment
G3 00 Data read value
B3 00 Data read value
R3 00 Data read value
G1 00 Data read value
B4 00 Data read value
Y 00 Data read value at TAMP adjustment
TAMP H CA Y upper limit setting at TAMP adjustment
TAMP L BB Y lower limit setting at TAMP adjustment

3 TV NTSC CONT 51 Video contrast setting (TV NTSC)

TV PAL-M CONT 51 Video contrast setting (TV PAL-M)
TV PAL-N CONT 51 Video contrast setting (TV PAL-N)
AV N358 CONTRAST 49 Video contrast setting (Composite, S Video)
AV PAL CONTRAST 49 Video contrast setting (Composite, S Video)
AV SECAM CONTRAST 49 Video contrast setting (Composite, S Video)
AV PAL-M CONTRAST 49 Video contrast setting (Composite, S Video)
AV PAL-N CONTRAST 49 Video contrast setting (Composite, S Video)
AV PAL60 CONTRAST 49 Video contrast setting (Composite, S Video)
G3 00 Data read value
B3 00 Data read value
R3 00 Data read value
G1 00 Data read value
B4 00 Data read value
Y 00 Data read value

Adjustment (Same setting as for NTSC TAMP)
Adjustment (Same setting as for NTSC TAMP)

Audio adjustments (MSP settings)

4 TV GEQ BAND1 +0.5 Equalizer setting 1 (TV)

TV GEQ BAND2 +0.5 Equalizer setting 2 (TV)
TV GEQ BAND3 +1.0 Equalizer setting 3 (TV)
TV GEQ BAND4 +0.5 Equalizer setting 4 (TV)
TV GEQ BAND5 –1.0 Equalizer setting 5 (TV)
EXT GEQ BAND1 +0.5 Equalizer setting 1 (external input)
EXT GEQ BAND2 +0.5 Equalizer setting 2 (external input)
EXT GEQ BAND3 +1.0 Equalizer setting 3 (external input)
EXT GEQ BAND4 +0.5 Equalizer setting 4 (external input)
EXT GEQ BAND5 –1.0 Equalizer setting 5 (external input)
AVC OFF AVC setting
CARRIER MUTE ON Audio output setting out of sync with TV
IGR THR 12D IGR THRESH LEVEL

5 MSP DATA 0 Audio IC MSP data write & read

MSP DATA WAIT Write & read execution
PRESCALE FM/AM-M 17 Pre-scale setting (TV)
PRESCALE SCART 15 Pre-scale setting (external input)
FSP TEST OFF Audio test (FS mute ON/OFF)

18

LC-20B1U

Page Item

Initial setting

Function Adjust/modify

Video adjustments (VPC settings)

6 I2C DATA 0 I2C bus control IC data write & read

IC2 DATA WAIT Write & read execution
CBW 1 Chroma band pass setting
NOSEL 3 Comb filter setting
DDR 1 Comb filter setting
HDG 3 Comb filter setting
VDG 0 Comb filter setting
VPK 0 Comb filter setting
KILVL 08 08 Color killer level setting
KILHY 05 05 Color killer hysteresis setting
VSYNC DELAY 29 V sync phase setting
DVCO -720 DVCO setting
AUTO LCK 1 Line lock mode setting

Video adjustments (component)

7 VPC DATA 0 Video IC VPC data write & read

VPC DATA WAIT Write & read execution
TEST PATTERN 0 PVC test pattern select Video IC test pattern
AUTO LDLY 0 Y/C phase setting
DVD NTSC CR 25 Color density setting (component)
DVD NTSC CB 25 Color density setting (component)
DVD NTSC TINT +7 Color tone setting (component)
DVD NTSC BRIGHTNESS +68 Brightness setting (component)
DVD NTSC CONTRAST 26 Video setting (component)
DVD NTSC P FILTER 1 Peaking filter setting (component)
DVD NTSC H-PEAKING 3 Picture quality setting (component)
DVD NTSC BRIGHT2 +8 Brightness setting 2 (component)
DVD NTSC CONTRAST2 48 Video setting 2 (component)

8 DVD PAL CR 24 Color density setting (component)

DVD PAL CB 24 Color density setting (component)
DVD PAL TINT +9 Color tone setting (component)
DVD PAL BRIGHTNESS +68 Brightness setting (component)
DVD PAL CONTRAST 26 Video setting (component)
DVD PAL P FILTER 1 Peaking filter setting (component)
DVD PAL H-PEAKING 4 Picture quality setting (component)
DVD PAL BRIGHT2 +8 Brightness setting 2 (component)
DVD PAL CONTRAST2 48 Video setting 2 (component)

Video adjustments (TV, composite & S video)

9 N358 TV COLOR 2500 Color density setting (TV)

N358 AV COLOR 2500 Color density setting (composite, S video)
N358 TV TINT +40 Color tone setting (TV)
N358 AV TINT +56 Color tone setting (composite, S video)
N358 BRIGHTNESS +8 Brightness setting (TV, composite, S video)
N358 PEAKING FILTER 1 Peaking filter setting (TV, composite, S video)
N358 TV H-PEAKING 4 Picture quality setting (TV)
N358 AV H-PEAKING 4 Picture quality setting (composite, S video)
N358 AVO START 152 Horizontal position setting
N358 SFIF 0 Horizontal position setting
N358 SCINC1 1623 Roundness setting
N358 TV LDLY 0 Y/C phase setting (TV)
N358 AV LDLY 0 Y/C phase setting (composite, S video)

10 N443 AV COLOR 2500 Color density setting (composite, S video)

N443 AV TINT +56 Color tone setting (composite, S video)
N443 BRIGHTNESS +8 Brightness setting (TV, composite, S video)
N443 PEAKING FILTER 1 Peaking filter setting (TV, composite, S video)
N443 AV H-PEAKING 4 Picture quality setting (composite, S video)
N443 AVO START 152 Horizontal position setting
N443 SFIF 0 Horizontal position setting
N443 SCINC1 1623 Roundness setting
N443 AV LDLY 0 Y/C phase setting (composite, S video)

19

LC-20B1U

Page Item

Initial setting

Function Adjust/modify

Video adjustments (TV, composite & S video)

11 PAL AV COLOR 2500 Color density setting (composite, S video)

PAL AV TINT +56 Color tone setting (composite, S video)
PAL BRIGHTNESS +8 Brightness setting (TV, composite, S video)
PAL PEAKING FILTER 1 Peaking filter setting (TV, composite, S video)
PAL AV H-PEAKING 4 Picture quality setting (composite, S video)
PAL AVO START 152 Horizontal position setting
PAL SFIF 0 Horizontal position setting
PAL SCINC1 1623 Roundness setting
PAL AV LDLY 0 Y/C phase setting (composite, S video)

12 SECAM AV COLOR 2500 Color density setting (composite, S video)

SECAM AV TINT +56 Color tone setting (composite, S video)
SECAM BRIGHTNESS +8 Brightness setting (TV, composite, S video)
SECAM
SECAM AV H-PEAKING 4 Picture quality setting (composite, S video)
SECAM AVO START 152 Horizontal position setting
SECAM SFIF 0 Horizontal position setting
SECAM SCINC1 1623 Roundness setting
SECAM AV LDLY 0 Y/C phase setting (composite, S video)

13 PAL-M TV COLOR 2500 Color density setting (TV)

PAL-M AV COLOR 2500 Color density setting (composite, S video)
PAL-M TV TINT +40 Color tone setting (TV)
PAL-M AV TINT +56 Color tone setting (composite, S video)
PAL-M BRIGHTNESS +8 Brightness setting (TV, composite, S video)
PAL-M PEAKING FILTER 1 Peaking filter setting (TV, composite, S video)
PAL-M TV H-PEAKING 4 Picture quality setting (TV)
PAL-M AV H-PEAKING 4 Picture quality setting (composite, S video)
PAL-M AVO START 152 Horizontal position setting
PAL-M SFIF 0 Horizontal position setting
PAL-M SCINC1 1623 Roundness setting
PAL-M TV LDLY 0 Y/C phase setting (TV)
PAL-M AV LDLY 0 Y/C phase setting (composite, S video)

14 PAL-N TV COLOR 2500 Color density setting (TV)

PAL-N AV COLOR 2500 Color density setting (composite, S video)
PAL-N TV TINT +40 Color tone setting (TV)
PAL-N AV TINT +56 Color tone setting (composite, S video)
PAL-N BRIGHTNESS +8 Brightness setting (TV, composite, S video)
PAL-N PEAKING FILTER 1 Peaking filter setting (TV, composite, S video)
PAL-N TV H-PEAKING 4 Picture quality setting (TV)
PAL-N AV H-PEAKING 4 Picture quality setting (composite, S video)
PAL-N AVO START 152 Horizontal position setting
PAL-N SFIF 0 Horizontal position setting
PAL-N SCINC1 1623 Roundness setting
PAL-N TV LDLY 0 Y/C phase setting (TV)
PAL-N AV LDLY 0 Y/C phase setting (composite, S video)

15 PAL60 AV COLOR 2500 Color density setting (composite, S video)

PAL60 AV TINT +56 Color tone setting (composite, S video)
PAL60 BRIGHTNESS +8 Brightness setting (TV, composite, S video)
PAL60 PEAKING FILTER 1 Peaking filter setting (TV, composite, S video)
PAL60 AV H-PEAKING 4 Picture quality setting (composite, S video)
PAL60 AVO START 152 Horizontal position setting
PAL60 SFIF 0 Horizontal position setting
PAL60 SCINC1 1623 Roundness setting
PAL60 AV LDLY 0 Y/C phase setting (composite, S video)

PEAKING FILTER

1 Peaking filter setting (TV, composite, S video)

20

LC-20B1U

Page Item

Initial setting

Function Adjust/modify

Search AFT reference & LCD controller settings

16 AFT UP 2.7 AFT reference voltage

AFT DOWN 1.8 AFT reference voltage
NTSC 01 8C Initial settings
NTSC 02 C0 Various settings
NTSC 03 81 RCUTOFF
NTSC 04 00 GCUTOFF
NTSC 05 81 BCUTOFF
NTSC 06 0C Horizontal display position
NTSC 07 10 Vertical display position
NTSC 08 00 UV data phase delay
NTSC 09 4C Panel clock adjustment
NTSC 0A 4B Display screen top/bottom mask position
NTSC 10 80 Test pattern display
NTSC 11 00 Test pattern data
NTSC 12 00 Horizontal display mask (left) position
NTSC 13 00 Horizontal display mask (right) position
NTSC E0 00 FIFO TEST
NTSC E1 03 Sync polarity reversal
NTSC F0 07 OFL terminal operation setting
NTSC F1 00 Inverter frequency setting
NTSC F2 00 Inverter duty setting
NTSC F3 C0 Dimmer frequency setting, lower level
NTSC F4 00 Dimmer frequency setting, upper level
NTSC F5 00 Dimmer PWM setting, lower level
NTSC F6 00 Dimmer PWM setting, upper level
NTSC F7 00 OFL 1/2 phase
NTSC 14 02 System clock setting
G/A TEST PATERN OFF Gradation test pattern display LCD controller IC test pattern

17 PAL 01 8E Initial settings

PAL 02 C8 Various settings
PAL 03 81 RCUTOFF
PAL 04 00 GCUTOFF
PAL 05 81 BCUTOFF
PAL 06 14 Horizontal display position
PAL 07 18 Vertical display position
PAL 08 O2 UV data phase delay
PAL 09 4C Panel clock adjustment
PAL 0A 4A Display screen top/bottom mask position
PAL 10 80 Test pattern display
PAL 11 00 Test pattern data
PAL 12 00 Horizontal display mask (left) position
PAL 13 00 Horizontal display mask (right) position
PAL E0 00 FIFO TEST
PAL E1 03 Sync polarity reversal
PAL F0 07 OFL terminal operation setting
PAL F1 00 Inverter frequency setting
PAL F2 00 Inverter duty setting
PAL F3 BD Dimmer frequency setting, lower level
PAL F4 00 Dimmer frequency setting, upper level
PAL F5 00 Dimmer PWM setting, lower level
PAL F6 00 Dimmer PWM setting, upper level
PAL F7 00 OFL 1/2 phase
PAL 14 02 System clock setting
CLOSED CAPTION 15 Closed caption threshold level
CCD ISO 16 Closed caption phase setting
AIR SEARCH 1.6 Last sync ID frequency at air ON search

21

LC-20B1U

Page Item

Initial setting

Function Adjust/modify

Gradation & COM settings

18 V255 255 Gradation power reference voltage

V255 BIAS 127 Gradation power reference voltage
V235 222 Gradation power reference voltage
V235 BIAS 127 Gradation power reference voltage
V176 130 Gradation power reference voltage
V176 BIAS 150 Gradation power reference voltage
V112 96 Gradation power reference voltage
V112 BIAS 170 Gradation power reference voltage
V64 65 Gradation power reference voltage
V64 BIAS 40 Gradation power reference voltage
V32 72 Gradation power reference voltage
V32 BIAS 100 Gradation power reference voltage

19 V21 45 Gradation power reference voltage

V21 BIAS 50 Gradation power reference voltage
V17 52 Gradation power reference voltage
V17 BIAS 145 Gradation power reference voltage
V7 27 Gradation power reference voltage
V7 BIAS 65 Gradation power reference voltage
V0 0 Gradation power reference voltage
V0 BIAS 80 Gradation power reference voltage
VGL ADJ 27 VGL bias setting
VGL COM 215 VGL COM setting
COM 179 COM amplitude setting
G/A READDATA 00 00 Controller read data setting
G/A READDATA WAIT Read execution

3-dimensional settings & sync ID settings

20 3D Y/C 2 3D ON/OFF setting

3D Y/C DATA 000000 3D YC data write & read
3D Y/C DATA WAIT Write & read execution
LSYNC 625 Sync ID threshold level (TV)
HSYNC 655 Sync ID threshold level (TV)
AVSYNC 5000 Sync ID threshold level (external input)
VPC FP20H DATA0000 VPC data read value
VPC FP21H DATA0000 VPC data read value
VPC FP13H DATA0000 VPC data read value
MSP DEMO200H DATA0000 MSP data read value
L ERROR WAIT 15s Lamp error detect wait time
L ERROR H TIME 1.0s Lamp error detect time
VPC I2C 20H 24 Sync control setting

Power off mode / V jitter correspondence / Card settings

21 DENKA PORT OFF Power off mode setting

DENKA TESTP 00 Power off mode setting
DENKA TESTP2 30ms Power off mode setting
CARD FLASH WAIT Card side FLASH reflesh (Not used)
RETRY 1 Card data transmission count setting
REMOCON CODE 000 Received remote control code display

22

LC-20B1U

Page Item

Initial setting

Function Adjust/modify

Card mode LCD controller setting

22 VPC SYNC 0D8 Card mode sync setting

OSD -30 Card mode OSD position setting
CARD 01 8C Initial setting
CARD 02 C4 Various setting
CARD 03 81 RCUTOFF
CARD 04 00 GCUTOFF
CARD 05 81 BCUTOFF
CARD 06 0B Horizontal display position
CARD 07 14 Vertical display position
CARD 08 00 UV data phase delay
CARD 09 4C Panel clock adjustment
CARD 0A 4B Display screen top/bottom mask position
CARD 10 80 Test pattern display
CARD 11 00 Test pattern data
CARD 12 00 Horizontal display mask (left) position
CARD 13 00 Horizontal display mask (right) position
CARD E0 00 FIFO TEST
CARD E1 03 Sync. polarity reversal
CARD F0 07 OFL terminal operation setting
CARD F1 00 Inverter frequency setting
CARD F2 00 Inverter duty setting
CARD F3 C0 Dimmer frequency setting, lower level
CARD F4 00 Dimmer frequency setting, upper level
CARD F5 00 Dimmer PWM setting, lower level
CARD F6 00 Dimmer PWM setting, upper level
CARD F7 00 OFL 1/2 phase
CARD 14 03 System clock setting

23

LC-20B1U

No

No Power (Power LED indicator still in red)

Go to the adjustment process mode.

Move the cursor to ERROR NO RESET

and click on it (to reset to zero).

Turn off the power.

Is the power turned on again?

1

INCH SIZE 20

MODEL B1U

CARD ON

SYSTEM N358

NTSC PWM FREQ OCO

PAL PWM FREQ OBD

NTSC PWM DUTY 0

PAL PWM DUTY 0

TV GAIN OFF

ERROR NO RESET 5

V-CHIP 1

CANADIAN VCHIP OFF

B1U VER 1.xx

Note:

This model is equipped with the lamp error detection function that detects the current

flowing into the fluorescent lamp and protects the backlight lamp drive circuit.

If a lamp error is detected, the microprocessor interrupts the unit and the ERROR NO

RESET setting will go up.

When the ERROR NO RESET setting has reached "5", the microprocessor turns and

keeps off the unit's power. To resume the power, take the above procedure to clear the

ERROR NO RESET setting.

Check the following points.

(1) Backlight lamp

(2) Inverter circuit (inverter PWB and main PWB)F6700, F6701, F6702, F6703,

F6704, D6700, D6701, Q6700, Q6701, Q6702, Q6703, Q6704, Q6705, Q6706,

Q6707, Q6708, Q6709, Q6710, Q6711, Q6712, Q6713, Q6714 and their

peripheral parts as well as pin (34) of IC1201

(3) Lamp error detection circuit (terminal PWB and main PWB)D3600, D3601,

D3602, D3603, D3604, D3605, D3606, D3607, Q3600, Q3601, Q3602, Q3603,

Q3604 and their peripheral parts as well as pin (42) of IC2001

No or Wrong


Does the IC801

test pattern appear

properly?

Does the IC1201 test

pattern appear

properly?

Check the IC801 signal

output line, IC801 itself

and its peripheral

circuits.

Are the waveforms at

pins (10), (11), (13),

(15) and (17) of IC1201

as specified?

Check IC1201 and its

peripheral circuits as

well as the LCD panel

voltage and waveform.

Check the related lines,

IC801 itself and its

peripheral circuits.

Are the waveforms at the signal

input pins of IC801 as specified?

TV/Composite … Pin (73)

S Video … Pins (71) and (72)

Component … Pins (4), (5), (6)

and (75)

Check the IC801 signal

input line.

Check IC801 and its

peripheral circuits.

No

No

No

No

Yes

Yes

Yes

Yes

TROUBLE SHOOTING TABLE

24

Check all the settings on the microprocessor

’s adjust process menu.

No picture

No picture

at all

Yes

No

Are inputs

and outputs

of IC801 as

specified?

Does the LCD

controller test

pattern

appear?

Does the

video decoder

test pattern

appear?

Check IC402

and its

peripheral

parts.

Check

IC1201, its

peripheral

circuits and

the LCD

panel.

Check IC801

and its

peripheral

circuits.

Yes

No

No

No VIDEO

1 or 2

output

Yes

No

Are inputs

and outputs

of IC402 as

specified?

Check IC402

and its

peripheral

parts.

Check

IC7001 and

its peripheral

parts.

No

Is input at Pin

(73) of IC801

as specified?

Check IC801,

AV1 line and

their

peripheral

parts.

Yes

No

Are input and

output of

IC7001 as

specified?

Check

IC7202 and

its peripheral

parts.

Yes

No

Are input and

output of

IC7202 as

specified?

No

Are pin

(67) of

IC2001

at “H”?

No S

VIDEO

output

Yes

Yes

Are pins (2)

and (12) of

IC7101 60th

at “H”?

No

Are inputs at

Pins (71) and

(72) of IC801

as specified?

Check

SC3405, SY

line, SC line

and peripheral

parts.

No

COMPONENT

output

No

Is input at

Pins (4), (5),

(6) and (75)

of IC801 as

specified?

Check J3404,

DVD-Y line,

PB line, PR

line and

peripheral

parts.

No TV

output

Yes

No

Are voltages

at Pins (6),

(7) and (9) of

tuner as

specified?

Check the

power line.

Yes

No

Is output at

Pin (19) of

tuner as

specified?

Check the

tuner and its

peripheral

parts.

No

Is input at Pin

(3) of IC402

as specified?

Check the

line in

question.

Yes

Check IC402

and its

peripheral

parts.

Yes

No

Are Pins (2)

and (4) of

IC402 at “H”

and “L”

respectively?

Are Pins (65)

and (66) of

IC2001 at “H”

and “L”

respectively?

Yes

Check the

line in

question.

Check pin

(88) of

IC2001 or the

SSW line.

LC-20B1U

25

LC-20B1U

No picture and sound

Yes

No

Do F3701and F3702

function?

Check all the settings on the microprocessor

’s adjust process menu.

No

Are secondary outputs

(+38V, +9V, +5V, -8V, -20V)

of T3701 as specified?

Yes

Are the oscillation waveform

at T3701’s primary side as

specified?

Yes

No

Disconnect F3701and

F3702. Is the load side

short-circuited?

Yes

No

Is any of T3701

’s primary

side, Q3700 and S4701 short-

circuited?

Check J3701, its peripheral

parts and connection cable.

Replace F3701 and F3702.

Check S4701 and

connection cable.

Check the secondary-side

load of T3701.

Fluorescent lamp

Yes

No

Does F6700, F6701,

F6702, F6703, and

F6704 function?

Yes

No

Is Pin (34) of IC1201 at

“H”?

Yes

No

Are the oscillation waveforms

at the primary side of T6700,

T6702, T6704, T6706, and

T6708 as specified?

Yes

Replace F6700, F6701,

F6702, F6703, and F6704.

Yes

Check the line, IC1201 and

its peripheral parts.

Check Q6700 - 6714, T6700

- 6709 and their peripheral

parts.

Replace the fluorescent lamp

and check the oscillation

waveform again.

26

LC-20B1U

No color

No TV color

No S-VIDEO color

No

Is input at Pin (71) of IC801

as specified?

Check SC3405, SC line and

peripheral parts.

No VIDEO color

Check all the settings on the microprocessor

’s adjust process menu.

No COMPONENT color

No

Is input at Pins (4) and (6) of

IC801 as specified?

Check J3404, PB line, PR line

and peripheral parts.

27

LC-20B1U

No sound

from

speakers

Yes

No

Is Pin (53) of

IC2001 at “L”?

Check all the settings on the microprocessor

’s adjust process menu.

No sound

No

Are outputs at

Pins (1) and (7)

of IC3301/

IC3302/ IC3303

as specified?

Yes

No

Are inputs at

Pins (2) and (4)

as well as

outputs at Pins

(8) and (12), all

of IC3305, as

specified?

Muting effect is

on. Check the

FSMUTE line.

Check IC3301,

IC3302, IC3303

and their

peripheral parts.

Yes

No

Are input and

output of

IC3304 as

specified?

Check IC3304

and its

peripheral parts.

Check the line

in question,

IC3301 and its

peripheral

parts.

Yes

Check the

speakers and

their peripheral

parts.

No sound

from

headphone

Yes

No

Is Pin (55) of

IC2001 at “L”?

Check the

headphone and

its peripheral

parts.

Check Q2007,

J3500 harness

and their

peripheral parts.

No sound

from output

line

Yes

No

Is Pin (58) of

IC2001 at “L”?

No

Are outputs at

Pins (14) and

(15) of IC3501

as specified?

Yes

Check the line

in question.

Check the

LMUTE line.

Check IC3501,

IC3304 and its

peripheral

parts.

TV sound

failure

Yes

No

Is output at Pins

(15) and (16) of

tuner as

specified?

No

Is input at Pin

(67) of IC3304

as specified?

Yes

Check IC3304,

X3301 and

their peripheral

parts.

Check the

tuner and its

peripheral

parts.

Check Q3201,

Q3202 and

their peripheral

parts.

28

LC-20B1U

Chek all the setting on the microprocessor's adjustment process menu.

Card does not playback

Yes

Yes

No

No

Is "PC card does not insert"

displaed on OSD?

Yes

File format is not correct.

Check input/output of IC901,

IC7102 and their peripheral parts.

Is each terminal voltage of pins

(46) and (40) of SC901 normal?

pin(46)....3.3V

pin(40)....5.0V

Is pin(49) of IC2001 at "L"?

Check the line in question.

Yes

Yes

No

Are input and output of each

terminal of pins (15) and (28) of

IC801 normal?

Check the PC card unit.

Check the line in question.

29

LC-20B1U

CHASSIS LAYOUT

H

CONTROL UNIT

DIGTAL UNIT

G

F

E

ANALOG UNIT

D

C

B

A

87109654321

30

RC/LED UNIT

INVERTER-A UNIT

LC-20B1U

INVERTER-B UNIT

1716 1918151413121110

31

LC-20B1U

N

C

N

V

S

I

BLOCK DIAGRAM

H

G

I2C

TUNER
TU3201

AV1

S-VIDEO

INPUT

AV2

INPUT

OUTPUT

TV-V
SIF

SY, SC

V1

L1, R1

L2, R2

AUDIO

IN/OUT

SWITCH

IC3501

Q3500

SIF-AMP.

Q3201
Q3202

V2/VO

VIDEO

IN/OUT

SWITCH

Q3501-Q3505

F

Y, PB, PR

COMPONEN

INPUT

E

D

DC IN

DC13V

DC/DC

T3701

IC3701

Q3700
Q3701
Q3702

C

T

DL, DR

38V

9V

5V

-8V

-20V

AUDIO

DECODER

(MSP)

IC3304

REGULATOR

IC3702

I2C

31V

Q3707

29V

Q3704

8V

Q3706

ANALOG UNIT

V2

VOUT

AUDIO

FILTER

IC3301
IC3302
IC3303

AUDIO

AMPLIFIE

PHONE

R

IC3305

HEAD

JACK

TV-V
V1
V2

6d B AMP.

SYNC

SEPARATER.

Q401
IC401

VIDEO

SWITC

IC402

IC7201

H

CVI

CSYN

L_ER

LAMP

CHECK

B

D

COL

6 LAMPS

(UP)

HOT

A

INVER TER A UNIT

INVERTER

Q6700, Q6701
T6700, T6701

Q6703, Q6704
T6702, T6703

Q6706, Q6707
T6704, T6705

SP-RSP-L

COL

D

LAMPS

4

(DOWN)

HOT

INVER TER B U

INVERTER

Q6709, Q6710

T6706, T6707

Q6712, Q6713

T6708, T6709

87109654321

32

LC-20B1U

EO

TC

02

MP.

01

I2C

SYOUT, SCOUT

SY, SC

H

SWITC

CVIN

CSYNC

L_ERR

VIDEO

IC7202

5V REG.

IC703

DY

H

V1SY

MPU

IC2001

AV1 V

VOUT

DY

D Y, PB, PR

CK, VD, HD, OSD-RGB

IREMI, POWOUT,

RESET
IC2002

3WIRE

Y and C

SWITC

IC7101

V1SY, V1SC

VIDEO

DECODER

(VPC)
IC801

3.3V REG.
IC702

SWITCH

BUS-

IC2003

E2PRO

IC2004

KEY1, KEY2

H

I2C

M

TIMED

YO, CO

I2C

,

PSWIN

3D Y/C

SEPARATOR

IC7001
IC7002

SUBDIN,SUBDOUT

C
Y

FIFO

IC1202

IC1101

IC1111

BUFFER IC903

CONTROLLER

DAC

LCD

IC1201

GRADUATION

POWER FOR

IC1102-IC1108

COMMON

IC1109

DIGITAL UNIT

REGULATOR

IC7102

REGULATOR

IC7701

RESET
IC7004

LCD

IC1110
IC1112
IC1114
IC1115

IC1113

Q1101
Q1102
Q1108
Q1109

3.3V

REG.

IC901

CK,HBLK,VBL
FLD,

LCD
POWER
TIMING

IC1116

Q1103
Q1104
Q1105

PC CARD

UNIT

K

LCD

ANEL

P

R TER B UNIT

INVERTER

6709, Q6710
6706, T6707

6712, Q6713
6708, T6709

LED
D4014
D4015

RECEIVE

RMC4002

LED UNIT

R/C

R

POWER

SWITC

H

CONTROL

KEYS

CONTROL UNIT

1716 1918151413121110

33

LC-20B1U

DESCRIPTION OF SCHEMATIC DIAGRAM

VOLTAGE MEASUREMENT CONDITION:

1. Voltages at test points are measured on exclusive
AC adapter or the stable supply v oltage of AC 120V.
Signals are fed by a color bar signal generator for
servicing purpose and the above voltages are
measured with a 20k ohm/V tester.

INDICATION OF RESISTOR & CAPACI­TOR:

RESISTOR

1. The unit of resistance “Ω” is omitted.
(K=kΩ=1000 Ω, M=MΩ).

2. All resistors are ± 5%, unless otherwise noted.
(J= ± 5%, F= ± 1%, D= ± 0.5%)

3. All resistors are 1/10W, unless otherwise noted.

4. All resistors are Carbon type, unless otherwise
noted.

C

: Solid
S : Oxide Film T : Special
N : Metal Coating

CAPACITOR

1. All capacitors are µF, unless otherwise noted.
(P=pF=µµF).

2. All capacitors are 50V, unless otherwise noted.

3. All capacitors are Ceramic type, unless otherwise
noted.

(ML): Mylar (TA): Tantalum
(PF): Polypro Film (ST): Styrol

W

: Cement

CAUTION:

This circuit diagram is original one, therefore there may be a
slight difference from yours.

IMPORTANT SAFETY NOTICE:

PARTS MARKED WITH “å” ( ) ARE
IMPORTANT FOR MAINTAINING THE SAFETY OF
THE SET. BE SURE TO REPLACE THESE PARTS
WITH SPECIFIED ONES FOR MAINTAINING THE
SAFETY AND PERFORMANCE OF THE SET.

AVIS DE SECURITE IMPORTANT:

LES PIECES MARQUEES “å” ( )SONT
IMPORTANTES POUR MAINTENIR LA SECURITE
DE L'APPAREIL.
NE REMPLACER CES PIEDES QUE PAR DES
PIECES DONT LE NUMERO EST SPECIFIE POUR
MAINTENIR LA SECURITE ET PROTEGER LE BON
FONCTIONNEMENT DE L'APPAREIL.

34

SCHEMATIC DIAGRAM

Ë

CONTROL and RC/LED Unit

H

G

F

LC-20B1U

E

D

C

B

A

654321

35

LC-20B1U

Ë

DIGITAL Unit-1/5

H

G

F

E

D

C

B

A

87109654321

36

LC-20B1U

37

1716 1918151413121110

LC-20B1U

Ë

DIGITAL Unit-2/5

H

G

F

E

D

C

B

A

87109654321

38

LC-20B1U

39

1716 1918151413121110

LC-20B1U

Ë

DIGITAL Unit-3/5

H

G

F

E

D

C

B

A

87109654321

40

LC-20B1U

41

1716 1918151413121110

LC-20B1U

Ë

DIGITAL Unit-4/5

H

G

F

E

D

C

B

A

87109654321

42

LC-20B1U

43

1716 1918151413121110

LC-20B1U

Ë

DIGITAL Unit-5/5

H

G

F

E

D

C

B

A

87109654321

44

LC-20B1U

45

1716 1918151413121110

LC-20B1U

Ë

ANALOG Unit-1/2

H

G

F

E

D

C

B

A

87109654321

46

LC-20B1U

47

1716 1918151413121110

LC-20B1U

Ë

ANALOG Unit-2/2

H

G

F

E

D

C

B

A

87109654321

48

LC-20B1U

49

1716 1918151413121110

LC-20B1U

Ë

INVERTER-A Unit

H

G

F

E

D

C

B

A

654321

50

LC-20B1U

Ë

INVERTER-B Unit

H

G

F

E

D

C

B

A

654321

51

LC-20B1U

PRINTED WIRING BOARD ASSEMBLIES

H

G

F

CONTROL Unit (Side-A)

E

D

C

B

A

DIGITAL Unit (Side-A)

654321

52

LC-20B1U

H

G

F

CONTROL Unit (Side-B)

E

D

C

B

A

DIGITAL Unit (Side-B)

654321

53

LC-20B1U

H

G

F

INVERTER-A Unit (Side-A)

E

D

C

INVERTER-B Unit (Side-A)

B

A

RC/LED Unit (Side-A)

654321

54

LC-20B1U

H

G

F

E

D

C

B

ANALOG Unit (Side-A)

A

654321

55

LC-20B1U

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PARTS LIST

PARTS REPLACEMENT

Replacement parts which have these special safety characteristics
identified in this manual; electrical components having such features
are identified by
and Schematic Diagrams. The use of a substitute replacement part
which dose no have the same safety characteristic as the factor y
recommended replacement parts shown in this service manual may
create shock, fire or other hazards.

"HOW TO ORDER REPLACEMENT PARTS"

To have your order filled promptly and correctly, please furnish the
following informations.

1. MODEL NUMBER 2. REF. NO.

3. PART NO. 4. DESCRIPTION

in USA: Contact your nearest SHARP Parts Distributor to order.

Ref. No. Part No. ★ Description Code

PRINTED WIRING BOARD ASSEMBLIES

DUNTKA670FE24
DIGITAL UNIT

IC401 VHiBA7046F/-1 J BA7046F AF
IC402 VHiNJM2235V-1 J NJM2235V AE
IC702 VHiBA033FP/-1 J BA033FP-E2 AG
IC703 VHiPQ20VZ11-1 J PQ20VZ11 AH
IC801 VHiVPC3230D1EQ J VPC3230D-QA-B3 BD
IC901 VHiPQ1CZ21H-1Y J PQ1CZ21H2ZP AH
IC903 VHiVHC541FT-1Y J TC74VHC541FT AK
IC1101 VHiMB8346BV-1 J MB88346BPFV AN
IC1102 VHiNJM4565V-1 J NJM4565V AF
IC1103 VHiNJM2060V-1 J NJM2060V AF
IC1104 VHiNJM2060V-1 J NJM2060V AF
IC1105 VHiBU4053V/-1 J BU4053BCFV-E2 AE
IC1106 VHiNJM4580V-1 J NJM4580V AE
IC1107 VHiNJM4580V-1 J NJM4580V AE

å and shaded areas in the Replacement Parts Lists

For location of SHARP Parts Distributor, Please call Toll­Free; 1-800-BE-SHARP

★ MARK: SPARE PARTS-DELIVERY SECTION

(NOT REPLACEMENT ITEM)

DUNTKA670FE24 – DIGITAL Unit —
DUNTKB128DE06 – ANALOG Unit —
DUNTKB129DE06 – CONTROL Unit —
DUNTKB130DE06 – RC/LED Unit —
DUNTKB132DE01 – INVERTER-A Unit —
DUNTKB133DE01 – INVERTER-B Unit —
DUNTKB021CEN1 J PC CARD Unit CB

(Unit Replacement)

LCD PANEL

RLCDTA014WJZZ J 20" LCD Panel Unit DT

INTEGRATED CIRCUITS

LISTE DES PIECES

CHANGE DES PIECES

Les pi`eces de rechange qui pr élelesentent ces caract éleristiques
sp éleciales de s élecurit éle, sont identifi élees dans ce manuel : les
pi`eces élelectriques qui pr élesentent ces particularit éles, sont rep
éler élee par la marque å et sont hachur élees dans les listes de
pi`eces et dans les diagrammes sch élematiques.
La substitution d'une pi`ece de rechange par une autre qui ne pr
éLesente pas les m éoemes caract éLeristiques de s élecurit éle que
la pi`ece recommand élee parl'usine et dans ce manuel de service,
peut provoquer une éLelectrocution, un incendie ou toutautre sinistre.

"COMMENT COMMANDER LES PIECES DE RECHANGE"

Pour que votre commande soit r apidement et correctement remplie ,
veuillez fournir les renseignements suivants.

1. NUMERO DU MODELE 2. NO. DE REF

3. NO. DE PIECE 4. DESCRIPTION

in CANADA: Contact SHARP Electronics of Canada Limited

Phone [phone]

★MARQUE: SECTION LIVRAISON DES PIECES DE RECHANGE

Ref. No. Part No. ★ Description Code

IC1108 VHiNJM4580V-1 J NJM4580V AE
IC1109 VHiNJM353M/-1 J NJM353M AG
IC1110 VHiBU4053V/-1 J BU4053BCFV-E2 AE
IC1111 VHiMB8346BV-1 J MB88346BPFV AN
IC1112 VHiBU4053V/-1 J BU4053BCFV-E2 AE
IC1113 VHiBU4053V/-1 J BU4053BCFV-E2 AE
IC1114 VHiNJM4580V-1 J NJM4580V AE
IC1115 VHiNJM4580V-1 J NJM4580V AE
IC1116 VHiNJM2147M-1 J NJM2147M-TE1 AF
IC1201 RH-iX3378CEN1Q J LR38815 AY
IC1202 VHiPD485505-2 J UPD485505G-25 AY
IC1206 VHiLVX125FT-1 J TC74LVX125FT AG
IC1207 VHiTC4W66U/-1 J TC4W66FU AF
IC1208 VHiPQ1R34++-1Y J PQ1R34 AE
IC2001 RH-iXA276WJZZQ J M306V0ME-164FP BA
IC2002 VHiBD4746G+-1Y J BD4746G-TR AD
IC2003 VHiTC4W66U/-1 J TC4W66FU AF
IC2004 VHiBR2416E2-1 J BR24C16F AK
IC7001 VHiPD64082/-1 J UPD64082GF-3BA BC
IC7002 RH-iX3420CEZZ J MSM5416258B-28 AT
IC7003 VHiTK15420/-1 J TK15420MTL AG
IC7004 VHiPST600iM-1 J IC-PST600IMT AE
IC7101 VHiNJM2283F-1 J NJM2283M AF
IC7102 VHiPQ05TZ11-1 J PQ05TZ11 AH
IC7201 VHiMM1031XM-1 J MM1031XMR AF
IC7202 VHiNJM2235V-1 J NJM2235V AE
IC7701 VHiPQ20VZ11-1 J PQ20VZ11 AH

TRANSISTORS

Q401 VS2SC3928AR-1 J 2SC3928AR AB
Q402 VS2SA1037KQ-1 J 2SA1037KQ AA
Q711 VS2SA1037KQ-1 J 2SA1037KQ AA
Q712 VSDTC144EE/-1 J DTC144EE AA
Q1101 VS2SA1729//-1 J 2SA1729 AF
Q1102 VS2SC4520//-1 J 2SC4520 AE
Q1103 VS2SA1036K/-1 J 2SA1036K AC
Q1104 VS2SA1036K/-1 J 2SA1036K AC
Q1105 VS2SA1036K/-1 J 2SA1036K AC
Q1106 VSFMMT718//-1 J FMMT718 AE
Q1107 VSDTC144EE/-1 J DTC144EE AA
Q1108 VS2SC4520//-1 J 2SC4520 AE
Q1109 VS2SA1729//-1 J 2SA1729 AF
Q1201 VSDTC144EE/-1 J DTC144EE AA

56

LC-20B1U

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKA670FE24
DIGITAL UNIT (Continued)

Q1203 VSDTC144EE/-1 J DTC144EE AA
Q1204 VS2SA1037KQ-1 J 2SA1037KQ AA
Q1205 VSUMX2N++++-1Y J UMX2N++++ AB
Q2004 VSDTC114EE/-1 J DTC144EE AB
Q2007 VSDTC144EE/-1 J DTC144EE AA
Q7001 VS2SA1037KQ-1 J 2SA1037KQ AA
Q7002 VS2SC2412KQ-1 J 2SC2412KQ AA
Q7003 VS2SA1037KQ-1 J 2SA1037KQ AA
Q7004 VS2SC2412KQ-1 J 2SC2412KQ AA
Q7005 VS2SA1037KQ-1 J 2SA1037KQ AA
Q7006 VS2SA1037KQ-1 J 2SA1037KQ AA
Q7007 VS2SA1037KQ-1 J 2SA1037KQ AA
Q7008 VS2SA1037KQ-1 J 2SA1037KQ AA
Q7009 VS2SA1037KQ-1 J 2SA1037KQ AA
Q7010 VS2SA1037KQ-1 J 2SA1037KQ AA
Q7101 VS2SC3928AR-1 J 2SC3928AR AB
Q7102 VS2SC3928AR-1 J 2SC3928AR AB

DIODES

D701 VHDDAN202K/-1 J Diode AB
D901 VHDDAN222//-1 J Diode AA
D902 VHDSFPB74//2E J Diode AD
D1101 VHD1SS250//1E J Diode AB
D1106 VHDDAN222//-1 J Diode AA
D1107 VHD1SS250//1E J Diode AB
D1108 VHDDAN222//-1 J Diode AA
D1109 VHDDAN222//-1 J Diode AA
D1110 VHDDAN222//-1 J Diode AA
D1201 VHD1SS250//1E J Diode AB
D1203 VHDRB491D++-1Y J Diode AD
D1205 VHDDAN222//-1 J Diode AA
D1206 RH-EX0227CEZZY J Zener Diode AB
D1208 VHDDAN222//-1 J Diode AA
D1209 RH-EX1247CEZZY J Zener Diode AB
D1210 VHDDAN222//-1 J Diode AA
D1211 VHDDAN222//-1 J Diode AA
D1212 VHDRB481K++-1Y J Diode AD
D2002 VHDRB491D++-1Y J Diode AD
D2004 RH-DX0061GEZZ J Diode AC
D7701 VHDDAN202K/-1 J Diode AB

PACKAGED CIRCUITS

X801 RCRSC0012CEZZ J Crystal AH
X2002 RFiLZ0169TAZZY J Filter AD
X7001 RCRSB0258CEZZ J Crystal AG

FILTERS AND COILS

FL7001 RCiLF0306CEZZ J Coil AH
FL7002 RCiLV0108GEZZ J Coil AG
FL7003 RFiLN0097GEZZ J Filter AF
FL7004 RFiLN0097GEZZ J Filter AF
FL7101 RFiLN0079GEZZ J Filter AC
FL7102 RFiLN0079GEZZ J Filter AC
L801 VP-9N3R3KR46N J Peaking 3.3µH AC
L802 VP-9N3R3KR46N J Peaking 3.3µH AC
L803 VP-9N3R3KR46N J Peaking 3.3µH AC
L804 RCiLC0055CEZZ J Coil AD
L805 RCiLC0055CEZZ J Coil AD
L901 RCiLC0055CEZZ J Coil AD
L902 RCiLP0303TAZZ J Coil AG
L1201 VP-1M470J5R4N J Peaking 47µH AC
L1202 RCiLC0055CEZZ J Coil AD
L1203 VP-1M220J2R9N J Peaking 22µH AC
L1204 VP-1M220J2R9N J Peaking 22µH AC
L1205 VP-1M220J2R9N J Peaking 22µH AC
L7001 VP-1M4R7J1R2N J Peaking 4.7µH AB
L7002 VP-1M220J2R9N J Peaking 22µH AC
L7003 VP-1M220J2R9N J Peaking 22µH AC

CAPACITORS

C401 VCKYTV1AB105K J 1 10V Ceramic AD

C402 VCKYCY1HB102K J 1000p 50V Ceramic AA
C403 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C404
C405 VCKYCY1HB222K J 2200p 50V Ceramic AA
C406 VCKYTV1AB105K J 1 10V Ceramic AD
C407 VCCCCY1HH101J J 100p 50V Ceramic AA
C408 VCKYTV1AB105K J 1 10V Ceramic AD
C409 VCKYTV1AB105K J 1 10V Ceramic AD
C410 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C411 VCKYTV1AB105K J 1 10V Ceramic AD
C701 VCKYTV1CF105Z J 1 16V Ceramic AB
C702
C703 VCKYTV1CF105Z J 1 16V Ceramic AB
C705 VCKYCY1CF334Z J 0.33 16V Ceramic AA
C706 VCEASM0JN226MY J 22 6.3V Electrolytic AC
C711 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C801
C802 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C803 VCCCCY1HH7R0D J 7p 50V Ceramic AA
C804 VCCCCY1HH7R0D J 7p 50V Ceramic AA
C805 RC-KZ1025CEZZ J 1 10V Ceramic AB
C806 RC-KZ1025CEZZ J 1 10V Ceramic AB
C807 VCKYCY1HB331K J 330p 50V Ceramic AA
C808 VCKYCY1HB331K J 330p 50V Ceramic AA
C809
C810 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C811 VCKYCY1HB331K J 330p 50V Ceramic AA
C812 RC-KZ1025CEZZ J 1 10V Ceramic AB
C813 RC-KZ1025CEZZ J 1 10V Ceramic AB
C814 VCKYCY1HB102K J 1000p 50V Ceramic AA
C815 VCKYTV1CF684Z J 0.68 16V Ceramic AB
C816 VCKYTV1CF684Z J 0.68 16V Ceramic AB
C817 VCKYTV1CF684Z J 0.68 16V Ceramic AB
C818 RC-KZ1025CEZZ J 1 10V Ceramic AB
C819 RC-KZ1025CEZZ J 1 10V Ceramic AB
C820 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C821
C822 RC-KZ1025CEZZ J 1 10V Ceramic AB
C823 RC-KZ1025CEZZ J 1 10V Ceramic AB
C824 VCKYCY1AB224K J 0.22 10V Ceramic AB
C825 VCKYCY1AB224K J 0.22 10V Ceramic AB
C826
C827 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C828 VCKYCY1AB224K J 0.22 10V Ceramic AB
C830 VCKYCY1CF224Z J 0.22 16V Ceramic AA
C831 VCKYCY1CF224Z J 0.22 16V Ceramic AA
C832 VCKYCY1CF224Z J 0.22 16V Ceramic AA
C834 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C835
C836 RC-KZ1025CEZZ J 1 10V Ceramic AB
C837 RC-KZ1025CEZZ J 1 10V Ceramic AB
C838
C839 RC-KZ1025CEZZ J 1 10V Ceramic AB
C840 VCKYTV1CF684Z J 0.68 16V Ceramic AB
C901 VCAAPC1CJ826MY J 82 16V Electrolytic AH
C902 VCEASH0JN337MY J 330 6.3V Electrolytic AC
C903 VCKYCY1CF334Z J 0.33 16V Ceramic AA
C905 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C908
C909 VCKYCY1CF334Z J 0.33 16V Ceramic AA
C910 VCAAPC1CJ396MY J 39 16V Electrolytic AG
C1101 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1102 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1103 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1104 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1105 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1107 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1108 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1109 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1110 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1111 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1112 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1113 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1114 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1115 VCKYCY1EF104Z J 0.1 25V Ceramic AA

VCEASM0JW476MY

VCEASM1CN226MY

VCEASM1CN106MY

VCEASM1CN107MY

VCEASM1CN107MY

VCEASM0GW227MY

VCEASM1CW107MY

VCEASM0GW107MY

VCEASM1CW107MY

J 47 6.3V Electrolytic AC

J 22 16V Electrolytic AD

J 10 16V Electrolytic AC

J 100 16V Electrolytic AD

J 100 16V Electrolytic AD

J 220 4V Electrolytic AC

J 100 16V Electrolytic AD

J 100 4V Electrolytic AC

J 100 16V Electrolytic AD

57

LC-20B1U

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKA670FE24
DIGITAL UNIT (Continued)

C1116 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1117 VCCCCY1HH560J J 56p 50V Ceramic AA
C1118 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1119 VCKYTV1CF105Z J 1 16V Ceramic AB
C1120 VCKYTV1EF104Z J 0.1 25V Ceramic AB
C1122 VCKYTV1CF105Z J 1 16V Ceramic AB
C1123 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1124 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1125 VCEASM1CN107MY J 100 16V Electrolytic AD
C1126 RC-EZ1339CEZZ J 220 16V Electrolytic AD
C1129 RC-EZ1339CEZZ J 220 16V Electrolytic AD
C1130 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1131 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1132 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1133 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1134 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1135 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1136 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1137 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1138 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1139 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1141 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1142 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1143 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1144 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1145 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1146 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1147 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1148 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1149 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1150 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1151 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1152 VCCCCY1HH181J J 180p 50V Ceramic AA
C1153 VCKYTV1HB103K J 0.01 50V Ceramic AA
C1154 VCKYTV1HB103K J 0.01 50V Ceramic AA
C1155 VCKYTV1CB334K J 0.33 16V Ceramic AC
C1156 VCCCCY1HH560J J 56p 50V Ceramic AA
C1157 VCKYTV1CB105K J 1 16V Ceramic AC
C1202 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1203 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1204 VCCCCY1HH220J J 22p 50V Ceramic AA
C1205 VCCCCY1HH220J J 22p 50V Ceramic AA
C1206 VCEASM1HN106MY J 10 50V Electrolytic AD
C1207 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1208 VCKYTV1HF104Z J 0.1 50V Ceramic AA
C1209 VCEASH0JN227MY J 220 6.3V Electrolytic AC
C1210
C1211 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1212 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1213
C1214
C1215 RC-KZ1025CEZZ J 1 10V Ceramic AB
C1217
C1218
C1223 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1224 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1225 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C1226
C1227 VCKYTV1CB105K J 1 16V Ceramic AC
C1228 RC-KZ1025CEZZ J 1 10V Ceramic AB
C1229
C1230 VCKYTV1CB105K J 1 16V Ceramic AC
C1231
C1232 VCKYTV1HF104Z J 0.1 50V Ceramic AA
C2001 VCKYCY1HB102K J 1000p 50V Ceramic AA
C2002 VCCCCY1HH221J J 220p 50V Ceramic AA
C2003 VCKYTV1AB105K J 1 10V Ceramic AD
C2007 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C2009 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C2010 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C2015 VCKYCY1HB561K J 560p 50V Ceramic AA

VCEASM0GW107MY

VCEASM1CW107MY
VCEASM0GW107MY

VCEASM1HN475MY
VCEASM1CN106MY

VCEASM1HN106MY

VCEASM1CN226MY
VCEASM1CN107MY

J 100 4V Electrolytic AC

J 100 16V Electrolytic AD
J 100 4V Electrolytic AC

J 4.7 50V Electrolytic AD
J 10 16V Electrolytic AC

J 10 50V Electrolytic AD

J 22 16V Electrolytic AD
J 100 16V Electrolytic AD

C2016 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C2017 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C2018 VCCCCY1HH220J J 22p 50V Ceramic AA
C2020 VCKYCY1HB271K J 270p 50V Ceramic AA
C2021
C2023
C7001 VCCCCY1HH220J J 22p 50V Ceramic AA
C7002 VCCCCY1HH220J J 22p 50V Ceramic AA
C7003 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C7004 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C7005
C7006 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C7007 VCCCCY1HH1R0C J 1p 50V Ceramic AA
C7008 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C7009 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C7010 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C7012 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C7013 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C7014 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C7015
C7016 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C7017 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C7018 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C7019 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C7020 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C7021 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C7022 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C7023 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C7024 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C7025 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C7026 VCCCCY1HH471J J 470p 50V Ceramic AA
C7027 VCKYTV1CF105Z J 1 16V Ceramic AB
C7028 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C7029 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C7030
C7031
C7032 VCCCCY1HH101J J 100p 50V Ceramic AA
C7033 VCKYCY1HB103K J 0.01 50V Ceramic AA
C7035 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C7036
C7037 VCCCCY1HH100D J 10p 50V Ceramic AA
C7038 VCCCCY1HH270J J 27p 50V Ceramic AA
C7041 VCCCCY1HH120J J 12p 50V Ceramic AA
C7042 VCCCCY1HH100D J 10p 50V Ceramic AA
C7043 VCCCCY1HH270J J 27p 50V Ceramic AA
C7046
C7047
C7048 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C7050 VCCCCY1HH270J J 27p 50V Ceramic AA
C7053 VCKYCY1HB103K J 0.01 50V Ceramic AA
C7054 VCKYCY1HB103K J 0.01 50V Ceramic AA
C7055
C7056
C7058 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C7059
C7060 VCCCCY1HH391J J 390p 50V Ceramic AA
C7061 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C7062 VCCCCY1HH120J J 12p 50V Ceramic AA
C7072 VCCCCY1HH1R0C J 1p 50V Ceramic AA
C7085 VCKYCY1HB103K J 0.01 50V Ceramic AA
C7103 VCKYTV1CF105Z J 1 16V Ceramic AB
C7104
C7105 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C7106 VCKYTV1CF105Z J 1 16V Ceramic AB
C7111 VCCCCY1HH680J J 68p 50V Ceramic AA
C7112 VCCCCY1HH330J J 33p 50V Ceramic AA
C7121 VCKYTV1CF105Z J 1 16V Ceramic AB
C7122
C7123
C7124
C7201 VCKYTV1AB105K J 1 10V Ceramic AD
C7202 VCKYTV1AB105K J 1 10V Ceramic AD
C7203 VCKYTV1AB105K J 1 10V Ceramic AD
C7204 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C7205 VCKYTV1AB105K J 1 10V Ceramic AD

VCEASM1CW107MY
VCEASM1CN106MY

VCEASM1CN106MY

VCEASM1CN106MY

VCEASK1CN227MY
VCEASM1CN106MY

VCEASK1CN227MY

VCEASM1CN476MY
VCEASM0JN476MY

VCEASM1CN107MY
VCEASM1CN107MY

VCEASM1HN474MY

VCEASM1CN107MY

VCEASM1CN107MY
VCEASM1CW106MY
VCEASM1CW106MY

J 100 16V Electrolytic AD
J 10 16V Electrolytic AC

J 10 16V Electrolytic AC

J 10 16V Electrolytic AC

J 220 16V Electrolytic AC
J 10 16V Electrolytic AC

J 220 16V Electrolytic AC

J 47 16V Electrolytic AD
J 47 6.3V Electrolytic AD

J 100 16V Electrolytic AD
J 100 16V Electrolytic AD

J 0.47 50V Electrolytic AC

J 100 16V Electrolytic AD

J 100 16V Electrolytic AD
J 10 16V Electrolytic AC
J 10 16V Electrolytic AC

58

LC-20B1U

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKA670FE24
DIGITAL UNIT (Continued)

C7701 VCEASM0JN476MY J 47 6.3V Electrolytic AD
C7702 VCKYCY1EF104Z J 0.1 25V Ceramic AA

RESISTORS

R401 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA
R402 VRS-CY1JF333J J 33k 1/16W Metal Oxide AA
R403 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA
R404 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R405 VRS-CY1JF562J J 5.6k 1/16W Metal Oxide AA
R406 VRS-CY1JF332J J 3.3k 1/16W Metal Oxide AA
R408 VRS-CY1JF332J J 3.3k 1/16W Metal Oxide AA
R409 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA
R410 VRS-CY1JF474J J 470k 1/16W Metal Oxide AA
R412 VRS-CY1JF562J J 5.6k 1/16W Metal Oxide AA
R413 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R414 VRS-CY1JF105J J 1M 1/16W Metal Oxide AA
R415 VRS-CY1JF105J J 1M 1/16W Metal Oxide AA
R416 VRS-CY1JF105J J 1M 1/16W Metal Oxide AA
R417 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R418 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R419 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R420 VRS-TV1JD000J J 0 1/10W Metal Oxide AA
R421 VRS-TV1JD000J J 0 1/10W Metal Oxide AA
R423 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R705 VRS-CY1JF1R0J J 1 1/16W Metal Oxide AA
R711 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA
R712 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA
R714 VRS-CY1JF1R0J J 1 1/16W Metal Oxide AA
R715 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA
R716 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R717 VRS-CY1JF332J J 3.3k 1/16W Metal Oxide AA
R726 VRS-CY1JF1R0J J 1 1/16W Metal Oxide AA
R801 VRS-CB1JF221J J 220 1/16W Metal Oxide AC
R802 VRS-CB1JF220J J 22 1/16W Metal Oxide AC
R803 VRS-CB1JF220J J 22 1/16W Metal Oxide AC
R804 VRS-CA1JF101J J 100 1/16W Metal Oxide AA
R807 VRS-CY1JF750J J 75 1/16W Metal Oxide AA
R808 VRS-CY1JF750J J 75 1/16W Metal Oxide AA
R809 VRS-CY1JF750J J 75 1/16W Metal Oxide AA
R810 VRS-CB1JF220J J 22 1/16W Metal Oxide AC
R811 VRS-CY1JF222J J 2.2k 1/16W Metal Oxide AA
R812 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R813 VRS-CB1JF220J J 22 1/16W Metal Oxide AC
R814 VRS-CY1JF332J J 3.3k 1/16W Metal Oxide AA
R815 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R816 VRS-CY1JF470J J 47 1/16W Metal Oxide AA
R819 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R826 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R831 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R832 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R833 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R834 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R836 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R838 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R901 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R902 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R906 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R907 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R909 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA
R910 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R911 VRS-CY1JF272F J 2.7k 1/16W Metal Oxide AA
R912 VRS-CY1JF162F J 1.6k 1/16W Metal Oxide AA
R913 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R914 VRS-CY1JF222J J 2.2k 1/16W Metal Oxide AA
R915 VRS-CY1JF332J J 3.3k 1/16W Metal Oxide AA
R916 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA
R917 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA
R918 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA
R919 VRS-CY1JF333J J 33k 1/16W Metal Oxide AA
R1001 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R1002 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA

R1003 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA
R1005 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA
R1006 VRS-CY1JF243F J 24k 1/16W Metal Oxide AA
R1007 VRS-CY1JF563F J 56k 1/16W Metal Oxide AA
R1008 VRS-CY1JF822F J 8.2k 1/16W Metal Oxide AA
R1009 VRS-CY1JF682F J 6.8k 1/16W Metal Oxide AA
R1013 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R1014 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA
R1016 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA
R1017 VRS-CY1JF272J J 2.7k 1/16W Metal Oxide AA
R1019 VRS-CY1JF473J J 47k 1/16W Metal Oxide AA
R1020 VRS-CY1JF472J J 4.7k 1/16W Metal Oxide AA
R1021 VRS-TW2ED102J J 1k 1/4W Metal Oxide AA
R1022 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R1024 VRS-CY1JF123F J 12k 1/16W Metal Oxide AA
R1025 VRS-CY1JF123F J 12k 1/16W Metal Oxide AA
R1026 VRS-CY1JF123F J 12k 1/16W Metal Oxide AA
R1027 VRS-CY1JF123F J 12k 1/16W Metal Oxide AA
R1028 VRS-CY1JF123F J 12k 1/16W Metal Oxide AA
R1029 VRS-CY1JF123F J 12k 1/16W Metal Oxide AA
R1030 VRS-TW2ED150J J 15 1/4W Metal Oxide AB
R1031 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R1032 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R1033 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R1034 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R1102 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA
R1104 VRS-CA1JF333J J 33k 1/16W Metal Oxide AA
R1106 VRS-CF1JP333JY J 33k 1/16W Metal Oxide AC
R1107 VRS-CY1JF123F J 12k 1/16W Metal Oxide AA
R1108 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA
R1109 VRS-CY1JF333J J 33k 1/16W Metal Oxide AA
R1110 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA
R1111 VRS-CY1JF683J J 68k 1/16W Metal Oxide AA
R1112 VRS-CY1JF123F J 12k 1/16W Metal Oxide AA
R1114 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA
R1115 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R1116 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R1117 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R1118 VRS-CY1JF563F J 56k 1/16W Metal Oxide AA
R1119 VRS-CY1JF472F J 4.7k 1/16W Metal Oxide AA
R1120 VRS-TX2HF5R6J J 5.6 1/2W Metal Oxide AA
R1121 VRS-CY1JF181J J 180 1/16W Metal Oxide AA
R1123 VRS-CY1JF181J J 180 1/16W Metal Oxide AA
R1124 VRS-CY1JF472F J 4.7k 1/16W Metal Oxide AA
R1125 VRS-TX2HF101J J 100 1/2W Metal Oxide AA
R1126 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R1127 VRS-TX2HF1R8JY J 1.8 1/2W Metal Oxide AB
R1128 VRS-CY1JF105J J 1M 1/16W Metal Oxide AA
R1129 VRS-CY1JF363F J 36k 1/16W Metal Oxide AA
R1130 VRS-TX2HF5R6J J 5.6 1/2W Metal Oxide AA
R1131 VRS-CY1JF105J J 1M 1/16W Metal Oxide AA
R1132 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R1134 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R1140 VRS-CY1JF273F J 27k 1/16W Metal Oxide AA
R1142 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA
R1143 VRS-CY1JF391J J 390 1/16W Metal Oxide AA
R1144 VRS-CY1JF391J J 390 1/16W Metal Oxide AA
R1145 VRS-TW2ED5R6J J 5.6 1/4W Metal Oxide AA
R1146 VRS-TW2ED8R2J J 8.2 1/4W Metal Oxide AB
R1147 VRS-TX2HF000J J 0 1/2W Metal Oxide AA
R1148 VRS-TX2HF100J J 10 1/2W Metal Oxide AA
R1150 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA
R1151 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA
R1152 VRS-CY1JF391J J 390 1/16W Metal Oxide AA
R1153 VRS-CY1JF680J J 68 1/16W Metal Oxide AA
R1154 VRS-CY1JF683J J 68k 1/16W Metal Oxide AA
R1157 VRS-CY1JF683J J 68k 1/16W Metal Oxide AA
R1158 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA
R1160 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA
R1161 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA
R1162 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA
R1163 VRS-CY1JF123F J 12k 1/16W Metal Oxide AA
R1164 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R1166 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA
R1167 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA

59

LC-20B1U

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKA670FE24
DIGITAL UNIT (Continued)

R1168 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA
R1169 VRS-CF1JP333JY J 33k 1/16W Metal Oxide AC
R1170 VRS-CY1JF683J J 68k 1/16W Metal Oxide AA
R1171 VRS-CY1JF123F J 12k 1/16W Metal Oxide AA
R1172 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA
R1173 VRS-CY1JF333J J 33k 1/16W Metal Oxide AA
R1174 VRS-CY1JF683J J 68k 1/16W Metal Oxide AA
R1175 VRS-CY1JF123F J 12k 1/16W Metal Oxide AA
R1176 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA
R1177 VRS-CY1JF683J J 68k 1/16W Metal Oxide AA
R1178 VRS-CY1JF123F J 12k 1/16W Metal Oxide AA
R1179 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA
R1182 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R1183 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R1184 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R1185 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R1186 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R1187 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R1188 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R1189 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R1190 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R1193 VRS-CY1JF680J J 68 1/16W Metal Oxide AA
R1194 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R1195 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R1196 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R1198 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R1199 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R1201 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R1202 VRS-CF1JP220JY J 22 1/16W Metal Oxide AC
R1203 VRS-CF1JP220JY J 22 1/16W Metal Oxide AC
R1204 VRS-CF1JP220JY J 22 1/16W Metal Oxide AC
R1208 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R1209 VRS-CA1JF220J J 22 1/16W Metal Oxide AA
R1210 VRS-CY1JF220J J 22 1/16W Metal Oxide AA
R1211 VRS-CY1JF221J J 220 1/16W Metal Oxide AA
R1212 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R1214 VRS-CB1JF101J J 100 1/16W Metal Oxide AA
R1217 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R1218 VRS-CA1JF101J J 100 1/16W Metal Oxide AA
R1220 VRS-CY1JF472J J 4.7k 1/16W Metal Oxide AA
R1221 VRS-CB1JF332J J 3.3k 1/16W Metal Oxide AC
R1222 VRS-CB1JF000J J 0 1/16W Metal Oxide AC
R1223 VRS-CA1JF101J J 100 1/16W Metal Oxide AA
R1225 VRS-CY1JF472J J 4.7k 1/16W Metal Oxide AA
R1226 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R1228 VRS-TX2HF330J J 33 1/2W Metal Oxide AA
R1230 VRS-TV1JD562J J 5.6k 1/10W Metal Oxide AA
R1231 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R1232 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R1233 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R1234 VRS-CY1JF472J J 4.7k 1/16W Metal Oxide AA
R1235 VRS-CB1JF473J J 47k 1/16W Metal Oxide AC
R1236 VRS-CB1JF473J J 47k 1/16W Metal Oxide AC
R1237 VRS-TX2HF472J J 4.7k 1/2W Metal Oxide AA
R1238 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R1240 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R1243 VRS-CY1JF1R0J J 1 1/16W Metal Oxide AA
R1245 VRS-CY1JF272J J 2.7k 1/16W Metal Oxide AA
R1246 VRS-CY1JF272J J 2.7k 1/16W Metal Oxide AA
R1247 VRS-CY1JF682J J 6.8k 1/16W Metal Oxide AA
R1248 VRS-CY1JF562J J 5.6k 1/16W Metal Oxide AA
R1249 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA
R1250 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R1251 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R1252 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R1260 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R2001 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R2002 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R2007 VRS-CY1JF223J J 22k 1/16W Metal Oxide AA
R2009 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R2010 VRS-CY1JF101J J 100 1/16W Metal Oxide AA

R2011 VRS-CB1JF101J J 100 1/16W Metal Oxide AA
R2012 VRS-CA1JF103J J 10k 1/16W Metal Oxide AA
R2013 VRS-CA1JF223J J 22k 1/16W Metal Oxide AA
R2014 VRS-CA1JF101J J 100 1/16W Metal Oxide AA
R2015 VRS-CB1JF331J J 330 1/16W Metal Oxide AC
R2016 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA
R2017 VRS-CA1JF102J J 1k 1/16W Metal Oxide AA
R2018 VRS-CY1JF223J J 22k 1/16W Metal Oxide AA
R2019 VRS-CY1JF471J J 470 1/16W Metal Oxide AA
R2020 VRS-CY1JF105J J 1M 1/16W Metal Oxide AA
R2021 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R2022 VRS-CA1JF101J J 100 1/16W Metal Oxide AA
R2028 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R2029 VRS-CY1JF223J J 22k 1/16W Metal Oxide AA
R2030 VRS-CA1JF333J J 33k 1/16W Metal Oxide AA
R2031 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R2032 VRS-CY1JF393J J 39k 1/16W Metal Oxide AA
R2033 VRS-CB1JF101J J 100 1/16W Metal Oxide AA
R2041 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R2042 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R2043 VRS-CB1JF101J J 100 1/16W Metal Oxide AA
R2044 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA
R2045 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA
R2051 VRS-CY1JF223J J 22k 1/16W Metal Oxide AA
R2052 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R2053 VRS-CA1JF101J J 100 1/16W Metal Oxide AA
R2054 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R2055 VRS-CA1JF223J J 22k 1/16W Metal Oxide AA
R2056 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R2057 VRS-CY1JF223J J 22k 1/16W Metal Oxide AA
R2058 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R2060 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA
R2061 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R2067 VRS-CY1JF223J J 22k 1/16W Metal Oxide AA
R2068 VRS-CY1JF223J J 22k 1/16W Metal Oxide AA
R7002 VRS-CY1JF471J J 470 1/16W Metal Oxide AA
R7003 VRS-CY1JF471J J 470 1/16W Metal Oxide AA
R7004 VRS-CY1JF182J J 1.8k 1/16W Metal Oxide AA
R7005 VRS-CY1JF182J J 1.8k 1/16W Metal Oxide AA
R7006 VRS-CY1JF472J J 4.7k 1/16W Metal Oxide AA
R7007 VRS-CY1JF471J J 470 1/16W Metal Oxide AA
R7008 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R7009 VRS-CY1JF222J J 2.2k 1/16W Metal Oxide AA
R7010 VRS-CY1JF223J J 22k 1/16W Metal Oxide AA
R7011 VRS-CY1JF224J J 220k 1/16W Metal Oxide AA
R7012 VRS-CY1JF221J J 220 1/16W Metal Oxide AA
R7013 VRS-CY1JF561J J 560 1/16W Metal Oxide AA
R7014 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R7015 VRS-CY1JF391J J 390 1/16W Metal Oxide AA
R7016 VRS-CY1JF561J J 560 1/16W Metal Oxide AA
R7017 VRS-CY1JF561J J 560 1/16W Metal Oxide AA
R7018 VRS-CY1JF911J J 910 1/16W Metal Oxide AA
R7019 VRS-CY1JF561J J 560 1/16W Metal Oxide AA
R7020 VRS-CY1JF911J J 910 1/16W Metal Oxide AA
R7021 VRS-CY1JF132J J 1.3k 1/16W Metal Oxide AA
R7022 VRS-CY1JF682J J 6.8k 1/16W Metal Oxide AA
R7023 VRS-CF1JP101JY J 100 1/16W Metal Oxide AC
R7024 VRS-CF1JP101JY J 100 1/16W Metal Oxide AC
R7025 VRS-CF1JP101JY J 100 1/16W Metal Oxide AC
R7029 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R7030 VRS-CY1JF122J J 1.2k 1/16W Metal Oxide AA
R7031 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R7032 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R7033 VRS-CY1JF100J J 10 1/16W Metal Oxide AA
R7034 VRS-CY1JF471J J 470 1/16W Metal Oxide AA
R7035 VRS-CY1JF911J J 910 1/16W Metal Oxide AA
R7036 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R7037 VRS-CY1JF152J J 1.5k 1/16W Metal Oxide AA
R7038 VRS-CY1JF222J J 2.2k 1/16W Metal Oxide AA
R7039 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R7040 VRS-CY1JF911J J 910 1/16W Metal Oxide AA
R7041 VRS-CY1JF222J J 2.2k 1/16W Metal Oxide AA
R7042 VRS-CY1JF222J J 2.2k 1/16W Metal Oxide AA
R7043 VRS-CY1JF222J J 2.2k 1/16W Metal Oxide AA
R7044 VRS-CY1JF473J J 47k 1/16W Metal Oxide AA

60

LC-20B1U

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKA670FE24
DIGITAL UNIT (Continued)

R7045 VRS-CY1JF473J J 47k 1/16W Metal Oxide AA
R7046 VRS-CY1JF182J J 1.8k 1/16W Metal Oxide AA
R7047 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R7048 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R7049 VRS-CY1JF333J J 33k 1/16W Metal Oxide AA
R7050 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R7051 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R7053 VRS-CB1JF104J J 100k 1/16W Metal Oxide AA
R7103 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R7104 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R7106 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R7110 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA
R7112 VRS-TX2HF2R2J J 2.2 1/2W Metal Oxide AB
R7113 VRS-CE3AF120JY J 12 1W Metal Oxide AC
R7114 VRS-CE3AF100JY J 10 1W Metal Oxide AC
R7201 VRS-CY1JF105J J 1M 1/16W Metal Oxide AA
R7202 VRS-CY1JF105J J 1M 1/16W Metal Oxide AA
R7203 VRS-CY1JF105J J 1M 1/16W Metal Oxide AA
R7701 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA
R7702 VRS-CY1JF332J J 3.3k 1/16W Metal Oxide AA
R7703 VRS-CY1JF332J J 3.3k 1/16W Metal Oxide AA
R7704 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R7705 VRS-CE3AF4R7JY J 4.7 1W Metal Oxide AC

MISCELLANEOUS PARTS

FB801 RBLN-0090CEZZ J Ferrite Bead AD
FB802 RBLN-0090CEZZ J Ferrite Bead AD
FB901 RBLN-0090CEZZ J Ferrite Bead AD
FB902 RBLN-0090CEZZ J Ferrite Bead AD
FB903 RBLN-0090CEZZ J Ferrite Bead AD
FB1201 RBLN-0090CEZZ J Ferrite Bead AD
FB1202 RBLN-0006TAZZ J Ferrite Bead AB
FB1203 RBLN-0076TAZZ J Ferrite Bead AC
FB7001 RBLN-0061TAZZ J Ferrite Bead AD
FB7002 RBLN-0061TAZZ J Ferrite Bead AD
FB7003 RBLN-0061TAZZ J Ferrite Bead AD
FB7101 RBLN-0059CEZZ J Ferrite Bead AB
FB7102 RBLN-0059CEZZ J Ferrite Bead AB
FB7103 RBLN-0059CEZZ J Ferrite Bead AB
FB7104 RBLN-0059CEZZ J Ferrite Bead AB
FB7105 RBLN-0059CEZZ J Ferrite Bead AB
P2001 QPLGN0558REZZ J Plug, 5-pin AE
P2003 QPLGN1058REZZY J Plug, 10-pin AD
P2004 QPLGN0165FJZZ J Plug, 5-pin AD
SC901 QSOCN0464FJZZ J Socket, 50-pin AH
SC1201
SC1202 QSOCN0687FJZZY J Socket, 50-pin AF
SC1203 QSOCN0206FJZZ J Socket, 30-pin AF
SC2001 QSOCN0464FJZZ J Socket, 50-pin AH

QSOCNA002WJPZY

PSLDM4693CEFW J Shield AD
QCNW-A549WJZZ J Connecting Cord AR

J Socket, 20-pin AD

DUNTKB128DE06
ANALOG UNIT

TUNER

NOTE: THE PARTS HERE SHOWN ARE SUPPLIED AS AN

ASSEMBLY BUT NOT INDEPENDENTLY.

TU3201 VTUVT2U5UF553 J Tuner BC

INTEGRATED CIRCUITS

IC3301 VHiNJM4560M-1 J NJM4560M AG
IC3302 VHiNJM4560M-1 J NJM4560M AG
IC3303 VHiNJM4560M-1 J NJM4560M AG
IC3304 RH-iX3370CEN1Q J MSP3440G-QA-B8 AY
IC3305 VHiLA4635A+-1S J LA4635A AM
IC3501 VHiTC4053BF1E TC4053BF AF
IC3701 VHiNJM2377M-1 J NJM2377M AK
IC3702 VHiNJM2147M-1 J NJM2147M-TE1 AF

TRANSISTORS

Q3201 VS2SC3928AR-1 J 2SC3928AR AB
Q3202 VS2SC3928AR-1 J 2SC3928AR AB
Q3303 VSDTA144EE/-1 J DTA144EE AA
Q3304 VSDTC314TK/-1 J DTC314TK AC
Q3305 VSDTC314TK/-1 J DTC314TK AC
Q3306 VS2SC3928AR-1 J 2SC3928AR AB
Q3500 VSUMG4/////-1 J UMG4///// AC
Q3501 VS2SK1467//-1 J 2SK1467 AE
Q3502 VS2SK1467//-1 J 2SK1467 AE
Q3503 VS2SC3928AR-1 J 2SC3928AR AB
Q3504 VS2SC3928AR-1 J 2SC3928AR AB
Q3505 VSDTC114EE/-1 J DTC114EE AB
Q3510 VSDTC314TK/-1 J DTC314TK AC
Q3511 VSDTC314TK/-1 J DTC314TK AC
Q3512 VS2SA1037KQ-1 J 2SA1037KQ AA
Q3600 VSUPA606T//-1 J UPA606T AD
Q3601 VSUPA606T//-1 J UPA606T AD
Q3602 VSUPA606T//-1 J UPA606T AD
Q3603 VSUPA606T//-1 J UPA606T AD
Q3604 VSUPA606T//-1 J UPA606T AD
Q3700 VSFMMT718//-1 J FMMT718 AE
Q3701 VSDTC144EE/-1 J DTC114EE AA
Q3702 VS2SK2503//-1 J 2SK2503 AE
Q3704 VSFMMT619//-1 J FMMT619 AE
Q3706 VSFMY3/////-1 J FMY3///// AB
Q3707 VS2SC3928AR-1 J 2SC3928AR AB
Q3708 VSDTC114YE/-1 J DTC114YE AB
Q3709 VSFMMT718//-1 J FMMT718 AE
Q3710 VSDTC144EE/-1 J DTC114EE AA

DIODES

D3301 RH-EX1396CEZZY J Zener Diode AB
D3302 VHDDAN222//-1 J Diode AA
D3401 RH-EX1271CEZZ J Zener Diode AB
D3402 RH-EX1271CEZZ J Zener Diode AB
D3501 VHDDAN222//-1 J Diode AA
D3600 VHDiMN10///-1 J Diode AB
D3601 VHDiMN10///-1 J Diode AB
D3602 VHDiMN10///-1 J Diode AB
D3603 VHDiMN10///-1 J Diode AB
D3604 VHDiMN10///-1 J Diode AB
D3605 VHDiMN10///-1 J Diode AB
D3606 VHDiMN10///-1 J Diode AB
D3607 VHDiMN10///-1 J Diode AB
D3700 VHDDAN222//-1 J Diode AA
D3703 VHDSFPB56//2E J Diode AC
D3704 VHD1SS250//1E J Diode AB
D3705 VHD1SS250//1E J Diode AB
D3706 VHDSFPB74//2E J Diode AD
D3707 VHDSFPB74//2E J Diode AD
D3708 VHDDAN222//-1 J Diode AA
D3709 VHDDAN222//-1 J Diode AA
D3711 VHDDAN222//-1 J Diode AA

61

LC-20B1U

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKB128DE06
ANALOG UNIT (Contined)

PACKGED CIRCUIT

X3301 RCRSB0307CEZZ J Crystal AG

COILS

L3201 VP-1M220J2R9N J Peaking 22µH AC
L3202 RCiLC0141CEZZ J Coil AF
L3301 VP-1M101J7R7N J Peaking 100µH AC
L3302 VP-1M4R7J1R2N J Peaking 4.7µH AB
L3500 VP-1M101J7R7N J Peaking 100µH AC
L3700 RCiLC0130CEZZ J Coil AG
L3702 RCiLC0130CEZZ J Coil AG
L3703 RCiLC0057CEZZ J Coil AD
L3704 RCiLC0055CEZZ J Coil AD

TRANSFORMERS

T3701 RTRNW0010CEZZY J Transformer AL

CONTROL

R3760 RVR-M0111CEZZY J 1k(B) B+ Adj. AC

CAPACITORS

C3201 VCKYCY1HB102K J 1000p 50V Ceramic AA
C3202 VCCCCY1HH330J J 33p 50V Ceramic AA
C3203 VCCCCY1HH330J J 33p 50V Ceramic AA
C3204 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C3205 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C3206 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C3208 RC-EZ1351CEZZ J 3300 6.3V Electrolytic AF
C3210 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C3301 VCKYCY1HB392K J 3900p 50V Ceramic AA
C3302 VCKYCY1HB392K J 3900p 50V Ceramic AA
C3303 VCKYCY1EB822K J 8200p 25V Ceramic AA
C3304 VCKYCY1HB392K J 3900p 50V Ceramic AA
C3305 VCKYCY1HB392K J 3900p 50V Ceramic AA
C3306 VCKYCY1EB822K J 8200p 25V Ceramic AA
C3308 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C3309 VCKYCY1HB682K J 6800p 50V Ceramic AA
C3310 VCKYCY1HB682K J 6800p 50V Ceramic AA
C3311 VCKYCY1HB153K J 0.015 50V Ceramic AA
C3312 VCKYCY1HB153K J 0.015 50V Ceramic AA
C3313 VCKYCY1HB682K J 6800p 50V Ceramic AA
C3314 VCKYCY1HB682K J 6800p 50V Ceramic AA
C3315 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C3316 VCKYCY1CB273K J 0.027 16V Ceramic AA
C3317 VCKYCY1CB273K J 0.027 16V Ceramic AA
C3318 VCKYCY1CB273K J 0.027 16V Ceramic AA
C3319 VCKYCY1CB273K J 0.027 16V Ceramic AA
C3320 VCEAPF1CN476M J 47 16V Electrolytic AD
C3321 VCEAPF1HN225M J 2.2 50V Electrolytic AD
C3322 VCEAPF1HN225M J 2.2 50V Electrolytic AD
C3323 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C3324 VCEAPF1HN225M J 2.2 50V Electrolytic AD
C3325 VCEAPF1HN225M J 2.2 50V Electrolytic AD
C3328 VCEAPF1HN225M J 2.2 50V Electrolytic AD
C3329 VCEAPF1HN225M J 2.2 50V Electrolytic AD
C3330 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C3332 VCEAPF0JN107M J 100 6.3V Electrolytic AD
C3333 VCEAPF1CN107M J 100 16V Electrolytic AD
C3334 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C3335 VCKYCY1HB272K J 2700p 50V Ceramic AA
C3336 VCKYCY1HB272K J 2700p 50V Ceramic AA
C3337 VCEAPF1CN106M J 10 16V Electrolytic AD
C3338 VCEAPF1CN106M J 10 16V Electrolytic AD
C3339 VCEAPF1HN335MY J 3.3 50V Electrolytic AD
C3340 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C3341 VCCCCY1HH101J J 100p 50V Ceramic AA
C3342 VCCCCY1HH101J J 100p 50V Ceramic AA
C3343 VCCCCY1HH101J J 100p 50V Ceramic AA
C3344 VCCCCY1HH101J J 100p 50V Ceramic AA
C3345 VCCCCY1HH101J J 100p 50V Ceramic AA
C3346 VCCCCY1HH101J J 100p 50V Ceramic AA

C3349 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C3350 VCEAPF1CN106M J 10 16V Electrolytic AD
C3351 RC-KZ1025CEZZ J 1 10V Ceramic AB
C3352 VCEAPF0JN107M J 100 6.3V Electrolytic AD
C3354 VCCCCY1HH560J J 56p 50V Ceramic AA
C3355 VCCCCY1HH560J J 56p 50V Ceramic AA
C3356 VCCCCY1HH560J J 56p 50V Ceramic AA
C3357 VCCCCY1HH5R0C J 5p 50V Ceramic AA
C3358 VCCCCY1HH5R0C J 5p 50V Ceramic AA
C3359 VCEAPF1CN106M J 10 16V Electrolytic AD
C3360 VCEAPF1CN107M J 100 16V Electrolytic AD
C3361 VCEAPF1HN105M J 1 50V Electrolytic AD
C3362 VCKYCY1HB102K J 1000p 50V Ceramic AA
C3363 VCEAPF1HN225M J 2.2 50V Electrolytic AD
C3364 VCEAPF1HN105M J 1 50V Electrolytic AD
C3365 VCKYCY1HB102K J 1000p 50V Ceramic AA
C3366 VCEAPF1HN225M J 2.2 50V Electrolytic AD
C3367 VCEAPF1CN106M J 10 16V Electrolytic AD
C3368 VCEAPF1CN106M J 10 16V Electrolytic AD
C3369 RC-EZ1274CEZZ J 1000 16V Electrolytic AD
C3370 VCKYTV1CF105Z J 1 16V Ceramic AB
C3371 VCEA4A1CN228M J 2200 16V Electrolytic AF
C3372 RC-EZ1274CEZZ J 1000 16V Electrolytic AD
C3380 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C3382 VCKYCY1HB102K J 1000p 50V Ceramic AA
C3383 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C3384 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C3389 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C3401 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C3509 VCEAPF1CW107M J 100 16V Electrolytic AD
C3510 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C3512 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C3513
C3514 VCEAPF0JW336M J 33 6.3V Electrolytic AB
C3515 VCEAPF0JW226M J 22 6.3V Electrolytic AB
C3516 RC-KZ1025CEZZ J 1 10V Ceramic AB
C3517 VCKYCY1EB223K J 0.022 25V Ceramic AA
C3518 VCKYCY1EB223K J 0.022 25V Ceramic AA
C3520 VCEAPF1EW475M J 4.7 25V Electrolytic AB
C3521 VCEAPF1EW475M J 4.7 25V Electrolytic AB
C3522 VCEAPF1CW106M J 10 16V Electrolytic AB
C3600 VCKYTQ1EF105Z J 1 25V Ceramic AD
C3601 VCKYTQ1EF105Z J 1 25V Ceramic AD
C3602 VCKYTQ1EF105Z J 1 25V Ceramic AD
C3603 VCKYTQ1EF105Z J 1 25V Ceramic AD
C3604 VCKYTQ1EF105Z J 1 25V Ceramic AD
C3605 VCKYTQ1EF105Z J 1 25V Ceramic AD
C3606 VCKYTQ1EF105Z J 1 25V Ceramic AD
C3607 VCKYTQ1EF105Z J 1 25V Ceramic AD
C3608 VCKYTQ1EF105Z J 1 25V Ceramic AD
C3609 VCKYTQ1EF105Z J 1 25V Ceramic AD
C3700 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C3701 VCEAPF1EW475M J 4.7 25V Electrolytic AB
C3702 RC-KZ1025CEZZ J 1 10V Ceramic AB
C3703 VCEAPT1CN226M J 22 16V Electrolytic AC
C3704 VCCCCY1HH471J J 470p 50V Ceramic AA
C3705 VCKYCY1EB103K J 0.01 25V Ceramic AA
C3710
C3711 VCKYCY1HB562K J 5600p 50V Ceramic AA
C3712 VCAAPF1CJ826MY J 82 16V Electrolytic AG
C3713 VCKYCY1HB562K J 5600p 50V Ceramic AA
C3714
C3715 VCKYTV1HF104Z J 0.1 50V Ceramic AA
C3716
C3717 VCKYTV1CF105Z J 1 16V Ceramic AB
C3718
C3719 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C3720 VCCCCY1HH181J J 180p 50V Ceramic AA
C3721 VCKYTV1CF105Z J 1 16V Ceramic AB
C3722 VCAAPF0JJ157MY J 150 6.3V Electrolytic AG
C3724
C3725 VCKYTV1CF105Z J 1 16V Ceramic AB
C3727
C3728 VCKYTV1CF105Z J 1 16V Ceramic AB
C3730 VCKYTV1HF104Z J 0.1 50V Ceramic AA

VCEASH1CN477MY

VCEASH1CN337MY

VCEASH1HN476MY
VCEASH1EN227MY
VCEASH1CN337MY

VCEASH1CN337MY
VCEASH1CN477MY

J 470 16V Electrolytic AD

J 330 16V Electrolytic AE

J 47 50V Electrolytic AD
J 220 25V Electrolytic AE
J 330 16V Electrolytic AE

J 330 16V Electrolytic AE
J 470 16V Electrolytic AD

62

LC-20B1U

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKB128DE06
ANALOG UNIT (Contined)

C3732 RC-KZ1025CEZZ J 1 10V Ceramic AB
C3733 RC-KZ1025CEZZ J 1 10V Ceramic AB
C3734 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C3735 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C3740 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C3741 VCEAPF1HN225M J 2.2 50V Electrolytic AD
C3750 VCEA4A1CN108M J 1000 16V Electrolytic AD

RESISTORS

R3201 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R3202 VRS-CY1JF153J J 15k 1/16W Metal Oxide AA
R3203 VRS-CY1JF332J J 3.3k 1/16W Metal Oxide AA
R3204 VRS-CY1JF152J J 1.5k 1/16W Metal Oxide AA
R3205 VRS-CY1JF331J J 330 1/16W Metal Oxide AA
R3206 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R3207 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R3208 VRS-CA1JF561J J 560 1/16W Metal Oxide AA
R3303 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA
R3304 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA
R3305 VRS-CY1JF472F J 4.7k 1/16W Metal Oxide AA
R3307 VRS-CY1JF152J J 1.5k 1/16W Metal Oxide AA
R3308 VRS-CY1JF123J J 12k 1/16W Metal Oxide AA
R3309 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R3311 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA
R3312 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA
R3315 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA
R3316 VRS-CY1JF152J J 1.5k 1/16W Metal Oxide AA
R3317 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA
R3318 VRS-CY1JF152J J 1.5k 1/16W Metal Oxide AA
R3319 VRS-CY1JF472F J 4.7k 1/16W Metal Oxide AA
R3320 VRS-CY1JF472F J 4.7k 1/16W Metal Oxide AA
R3321 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA
R3322 VRS-CY1JF123J J 12k 1/16W Metal Oxide AA
R3323 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA
R3324 VRS-CY1JF123J J 12k 1/16W Metal Oxide AA
R3325 VRS-CY1JF333F J 33k 1/16W Metal Oxide AA
R3326 VRS-CY1JF333F J 33k 1/16W Metal Oxide AA
R3327 VRS-CY1JF184F J 180k 1/16W Metal Oxide AA
R3328 VRS-CY1JF184F J 180k 1/16W Metal Oxide AA
R3331 VRS-CY1JF473J J 47k 1/16W Metal Oxide AA
R3332 VRS-CY1JF473J J 47k 1/16W Metal Oxide AA
R3333 VRS-CY1JF223J J 22k 1/16W Metal Oxide AA
R3334 VRS-CY1JF223J J 22k 1/16W Metal Oxide AA
R3335 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R3336 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R3337 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA
R3338 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA
R3341 VRS-CY1JF561J J 560 1/16W Metal Oxide AA
R3342 VRS-CY1JF561J J 560 1/16W Metal Oxide AA
R3343 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA
R3344 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA
R3345 VRS-CY1JF472F J 4.7k 1/16W Metal Oxide AA
R3346 VRS-CY1JF152J J 1.5k 1/16W Metal Oxide AA
R3347 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R3348 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA
R3350 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R3351 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA
R3353 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R3354 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R3355 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R3357 VRS-CY1JF105J J 1M 1/16W Metal Oxide AA
R3358 VRS-CY1JF562J J 5.6k 1/16W Metal Oxide AA
R3359 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R3360 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R3361 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R3362 VRS-CY1JF272J J 2.7k 1/16W Metal Oxide AA
R3363 VRS-CY1JF272J J 2.7k 1/16W Metal Oxide AA
R3364 VRS-CY1JF122J J 1.2k 1/16W Metal Oxide AA
R3365 VRS-CY1JF332J J 3.3k 1/16W Metal Oxide AA
R3366 VRS-CY1JF332J J 3.3k 1/16W Metal Oxide AA
R3367 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA

R3369 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R3370 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R3371 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R3372 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R3373 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R3375 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R3377 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R3379 VRS-CY1JF822J J 8.2k 1/16W Metal Oxide AA
R3380 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA
R3381 VRS-CY1JF562J J 5.6k 1/16W Metal Oxide AA
R3382 VRS-CY1JF123J J 12k 1/16W Metal Oxide AA
R3383 VRS-CY1JF153J J 15k 1/16W Metal Oxide AA
R3384 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R3399 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R3401 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R3402 VRS-TQ2BD750J J 75 1/8W Metal Oxide AA
R3409 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R3410 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R3411 VRS-TQ2BD750J J 75 1/8W Metal Oxide AA
R3412 VRS-TQ2BD750J J 75 1/8W Metal Oxide AA
R3413 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R3428 VRS-CY1JF750J J 75 1/16W Metal Oxide AA
R3429 VRS-CY1JF750J J 75 1/16W Metal Oxide AA
R3430 VRS-CY1JF750J J 75 1/16W Metal Oxide AA
R3431 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R3432 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R3433 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R3434 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA
R3523 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA
R3524 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA
R3528 VRS-CY1JF471J J 470 1/16W Metal Oxide AA
R3529 VRS-CY1JF471J J 470 1/16W Metal Oxide AA
R3530 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA
R3531 VRS-TQ2BD680J J 68 1/8W Metal Oxide AA
R3532 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R3533 VRS-CY1JF680J J 68 1/16W Metal Oxide AA
R3534 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R3535 VRS-CY1JF223J J 22k 1/16W Metal Oxide AA
R3536 VRS-CY1JF562J J 5.6k 1/16W Metal Oxide AA
R3537 VRS-CY1JF272J J 2.7k 1/16W Metal Oxide AA
R3540 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R3542 VRS-CY1JF680J J 68 1/16W Metal Oxide AA
R3543 VRS-CY1JF562J J 5.6k 1/16W Metal Oxide AA
R3544 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA
R3545 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA
R3546 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R3547 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R3550 VRS-TX2HF221J J 220 1/2W Metal Oxide AA
R3551 VRS-TX2HF221J J 220 1/2W Metal Oxide AA
R3552 VRS-CY1JF153J J 15k 1/16W Metal Oxide AA
R3553 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R3558 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R3561 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R3562 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R3600 VRS-CB1JF222J J 2.2k 1/16W Metal Oxide AC
R3601 VRS-CB1JF222J J 2.2k 1/16W Metal Oxide AC
R3602 VRS-CA1JF222J J 2.2k 1/16W Metal Oxide AA
R3604 VRS-CB1JF824JY J 820k 1/16W Metal Oxide AC
R3605 VRS-CB1JF824JY J 820k 1/16W Metal Oxide AC
R3606 VRS-CA1JF824JY J 820k 1/16W Metal Oxide AC
R3607 VRS-CB1JF562J J 5.6k 1/16W Metal Oxide AC
R3608 VRS-CB1JF562J J 5.6k 1/16W Metal Oxide AC
R3609 VRS-CA1JF562J J 5.6k 1/16W Metal Oxide AA
R3610 VRS-CY1JF563J J 56k 1/16W Metal Oxide AA
R3700 VRS-CY1JF472J J 4.7k 1/16W Metal Oxide AA
R3701 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R3702 VRS-TW2ED102J J 1k 1/4W Metal Oxide AA
R3703 VRS-CY1JF274J J 270k 1/16W Metal Oxide AA
R3704 VRS-CY1JF133F J 13k 1/16W Metal Oxide AA
R3705 VRS-CY1JF184J J 180k 1/16W Metal Oxide AA
R3706 VRS-CY1JF100J J 10 1/16W Metal Oxide AA
R3707 VRS-CY1JF105J J 1M 1/16W Metal Oxide AA
R3708 VRS-CY1JF682J J 6.8k 1/16W Metal Oxide AA
R3710 VRS-CY1JF273F J 27k 1/16W Metal Oxide AA
R3716 VRS-TX2HF000J J 0 1/2W Metal Oxide AA

63

LC-20B1U

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKB128DE06
ANALOG UNIT (Contined)

R3718 VRS-CE3AF821JY J 820 1W Metal Oxide AC
R3721 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R3722 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R3724 VRS-CY1JF1R0J J 1 1/16W Metal Oxide AA
R3725 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R3726 VRS-TQ2BD683J J 68k 1/8W Metal Oxide AA
R3727 VRS-CY1JF000J J 0 1/16W Metal Oxide AA
R3728 VRS-CY1JF393J J 39k 1/16W Metal Oxide AA
R3730 VRS-CY1JF223J J 22k 1/16W Metal Oxide AA
R3731 VRS-CY1JF222J J 2.2k 1/16W Metal Oxide AA
R3733 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R3734 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA
R3735 VRS-CY1JF123F J 12k 1/16W Metal Oxide AA
R3736 VRS-CY1JF243F J 24k 1/16W Metal Oxide AA
R3737 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA
R3738 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA
R3739 VRS-CY1JF622F J 6.2k 1/16W Metal Oxide AA
R3740 VRS-CY1JF473F J 47k 1/16W Metal Oxide AA
R3741 VRS-CY1JF123F J 12k 1/16W Metal Oxide AA
R3742 VRS-CY1JF182F J 1.8k 1/16W Metal Oxide AA
R3743 VRS-CY1JF122F J 1.2k 1/16W Metal Oxide AA
R3745 VRS-CY1JF682F J 6.8k 1/16W Metal Oxide AA
R3746 VRS-CY1JF122F J 1.2k 1/16W Metal Oxide AA
R3749 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R3750 VRS-CY1JF391J J 390 1/16W Metal Oxide AA
R3751 VRS-TV1JD103J J 10k 1/10W Metal Oxide AA
R3752 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA
R3753 VRS-TX2HF000J J 0 1/2W Metal Oxide AA
R3754 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA
R3759 VRS-TW2ED102J J 1k 1/4W Metal Oxide AA
R3761 VRS-CY1JF272J J 2.7k 1/16W Metal Oxide AA
R3762 VRS-TW2ED561J J 560 1/4W Metal Oxide AA
R3766 VRS-CY1JF472J J 4.7k 1/16W Metal Oxide AA
R3901 VRS-TQ2BD000J J 0 1/8W Metal Oxide AA
R3902 VRS-TQ2BD000J J 0 1/8W Metal Oxide AA

MISCELLANEOUS PARTS

å F3701 QFS-B2021GEZZ J Fuse, 2A/125V AD
å F3702 QFS-B1621GEZZ J Fuse, 1.6A/125V AD

FH3701 QFSHD1002CEZZ J Fuse Holder AA
FH3702 QFSHD1002CEZZ J Fuse Holder AA
FH3703 QFSHD1002CEZZ J Fuse Holder AA
FH3704 QFSHD1002CEZZ J Fuse Holder AA
FB3301 RBLN-0006TAZZ J Ferrite Bead AB
FB3302 RBLN-0035TAZZ J Ferrite Bead AB
FB3700 RBLN-0095CEZZ J Ferrite Bead AD
FB3701 RBLN-0095CEZZ J Ferrite Bead AD
FB3704 RBLN-0051TAZZ J Ferrite Bead AC
FB3705 RBLN-0051TAZZ J Ferrite Bead AC
FB3706 RBLN-0254TAZZY J Ferrite Bead AB
FB3707 RBLN-0254TAZZY J Ferrite Bead AB
FB3708 RBLN-0051TAZZ J Ferrite Bead AC
FB3709 RBLN-0095CEZZ J Ferrite Bead AD
J3301 QJAKF0066CEZZ J Jack AE
J3401 QJAKG0085CEZZ J Jack AG
J3404 QJAKG0069CEZZ J Jack AG
J3407 QJAKG0068CEZZ J Jack AG
J3500 QJAKJ0046CEZZ J Jack AE
J3701 QJAKE0193CEZZ J Jack AK
P3502 QPLGN0478GEZZ J Plug AB
P3601 QPLGN0478GEZZ J Plug, 4-pin AB
P3602 QPLGN0678GEZZ J Plug, 6-pin AB
P3702 QPLGN0578GEZZ J Plug, 5-pin AB
P3703 QPLGN0378GEZZ J Plug, 3-pin AB
P3704 QPLGN0378GEZZ J Plug AB
SC3403 QSOCN0464FJZZ J Socket, 50-pin AH
SC3405 QSOCD0456CEZZ J Socket AE

QCNW-A267WJZZ J Connecting Cord AK
QCNW-6059CEZZ J Connecting Cord AE

DUNTKB129DE06
CONTROL UNIT

DIODES

D4008 RH-EX1283CEZZ J Zener Diode, 18V AB
D4009 RH-EX1271CEZZ J Zener Diode, 10V AB
D4010 RH-EX1271CEZZ J Zener Diode, 10V AB

RESISTORS

R4005 VRS-CY1JF123J J 12k 1/16W Metal Oxide AA
R4006 VRS-CY1JF822J J 8.2k 1/16W Metal Oxide AA
R4011 VRS-CY1JF123J J 12k 1/16W Metal Oxide AA
R4012 VRS-CY1JF822J J 8.2k 1/16W Metal Oxide AA

SWITCHES

S4701 QSW-P0035GEZZ J MAIN POWER AF
SW4002QSW-K0108CEZZ J CH(Ù)AD
SW4003QSW-K0108CEZZ J CH(ù)AD
SW4004QSW-K0108CEZZ J MENU AD
SW4006QSW-K0108CEZZ J TV/VIDEO AD
SW4007QSW-K0108CEZZ J VOL.(-) AD
SW4008QSW-K0108CEZZ J VOL.(+) AD

MISCELLANEOUS PARTS

P4004 QPLGN0564TAZZ J Plug, 5-pin AC

QCNW-A282WJZZ J Connecting Cord AH

DUNTKB130DE063
RC/LED UNIT

TRANSISTORS

Q4003 VSDTC144EE/-1 J DTC144EE AA
Q4004 VSDTC144EE/-1 J DTC144EE AA
Q4007 VSUMG4N++++-1Y J UMG4N++++ AB

DIODES

D4012 RH-EX1271CEZZ J Zener Diode, 12V AB
D4013 RH-EX1271CEZZ J Zener Diode, 12V AB
D4014 RH-PX0421CEZZ J POWER Indicator AD
D4015 RH-PX0421CEZZ J SLEEP Indicator AD
D4022 RH-EX1271CEZZ J Zener Diode, 12V AB

CAPACITOR

C4018 RC-KZ1025CEZZ J 1 10V Ceramic AB

RESISTORS

R4021 VRS-CY1JF101J J 100 1/16W Metal Oxide AA
R4023 VRS-CY1JF472J J 4.7k 1/16W Metal Oxide AA
R4024 VRS-CY1JF471J J 470 1/16W Metal Oxide AA
R4029 VRS-CY1JF472J J 4.7k 1/16W Metal Oxide AA
R4030 VRS-CY1JF472J J 4.7k 1/16W Metal Oxide AA

MISCELLANEOUS PARTS

P4005 QPLGN0564TAZZ J Plug, 5-pin AC
RMC4002

RRMCU0239CEZZ J Remote Sensor AG

64

LC-20B1U

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKB132DE01
INVERTER-A UNIT

TRANSISTORS

Q6700 VSFZT1053A/-1 J FZT1053A AG
Q6701 VSFZT1053A/-1 J FZT1053A AG
Q6702 VS2SA1530AR-1 J 2SA1530AR AB
Q6703 VSFZT1053A/-1 J FZT1053A AG
Q6704 VSFZT1053A/-1 J FZT1053A AG
Q6705 VS2SA1530AR-1 J 2SA1530AR AB
Q6706 VSFZT1053A/-1 J FZT1053A AG
Q6707 VSFZT1053A/-1 J FZT1053A AG
Q6708 VS2SA1530AR-1 J 2SA1530AR AB

DIODE

D6700 VHDiMN10///-1 J Diode AB

COILS

L6700 RCiLP0420CEZZY J Coil AF
L6702 RCiLP0420CEZZY J Coil AF
L6704 RCiLP0420CEZZY J Coil AF

TRANSFORMERS

å T6700 RTRNZ0806CEZZQ J Transformer AM
å T6701 RTRNZ0806CEZZQ J Transformer AM
å T6702 RTRNZ0806CEZZQ J Transformer AM
å T6703 RTRNZ0806CEZZQ J Transformer AM
å T6704 RTRNZ0806CEZZQ J Transformer AM
å T6705 RTRNZ0806CEZZQ J Transformer AM

CAPACITORS

[M-Poly. …Metalized Polypro Film]

C6702 VCKYCY1CB333K J 0.033 16V Ceramic AA
C6703 VCKYCY1CB333K J 0.033 16V Ceramic AA
C6704 VCEA4A1CN108M J 1000 16V Electrolytic AD
C6707 VCKYCY1CB333K J 0.033 16V Ceramic AA
C6708 VCKYCY1CB333K J 0.033 16V Ceramic AA
C6709 VCEA4A1CN108M J 1000 16V Electrolytic AD
C6712 VCKYCY1CB333K J 0.033 16V Ceramic AA
C6713 VCKYCY1CB333K J 0.033 16V Ceramic AA
C6714 VCEA4A1CN108M J 1000 16V Electrolytic AD
C6725 RC-FZA043WJZZ J 0.14 250V M-Poly. AE
C6726 RC-FZA043WJZZ J 0.14 250V M-Poly. AE
C6727 RC-FZA043WJZZ J 0.14 250V M-Poly. AE

DUNTKB133DE01
INVERTER-B UNIT

TRANSISTORS

Q6709 VSFZT1053A/-1 J FZT1053A AG
Q6710 VSFZT1053A/-1 J FZT1053A AG
Q6711 VS2SA1530AR-1 J 2SA1530AR AB
Q6712 VSFZT1053A/-1 J FZT1053A AG
Q6713 VSFZT1053A/-1 J FZT1053A AG
Q6714 VS2SA1530AR-1 J 2SA1530AR AB

DIODE

D6701 VHDiMN10///-1 J Diode AB

COILS

L6706 RCiLP0420CEZZY J Coil AF
L6708 RCiLP0420CEZZY J Coil AF

TRANSFORMERS

å T6706 RTRNZ0806CEZZQ J Transformer AM
å T6707 RTRNZ0806CEZZQ J Transformer AM
å T6708 RTRNZ0806CEZZQ J Transformer AM
å T6709 RTRNZ0806CEZZQ J Transformer AM

CAPACITORS

[M-Poly. …Metalized Polypro Film]

C6717 VCKYCY1CB333K J 0.033 16V Ceramic AA
C6718 VCKYCY1CB333K J 0.033 16V Ceramic AA
C6719 VCEA4A1CN108M J 1000 16V Electrolytic AD
C6722 VCKYCY1CB333K J 0.033 16V Ceramic AA
C6723 VCKYCY1CB333K J 0.033 16V Ceramic AA
C6724 VCEA4A1CN108M J 1000 16V Electrolytic AD
C6740 RC-FZA043WJZZ J 0.14 250V M-Poly. AE
C6741 RC-FZA043WJZZ J 0.14 250V M-Poly. AE

RESISTORS

R6712 VRS-TW2ED332J J 3.3k 1/4W Metal Oxide AB
R6713 VRS-TW2ED332J J 3.3k 1/4W Metal Oxide AB
R6714 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA
R6715 VRS-CY1JF333J J 33k 1/16W Metal Oxide AA
R6716 VRS-TW2ED332J J 3.3k 1/4W Metal Oxide AB
R6717 VRS-TW2ED332J J 3.3k 1/4W Metal Oxide AB
R6718 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA
R6719 VRS-CY1JF333J J 33k 1/16W Metal Oxide AA

R6700 VRS-TW2ED332J J 3.3k 1/4W Metal Oxide AB

RESISTORS

R6701 VRS-TW2ED332J J 3.3k 1/4W Metal Oxide AB
R6702 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA
R6703 VRS-CY1JF333J J 33k 1/16W Metal Oxide AA
R6704 VRS-TW2ED332J J 3.3k 1/4W Metal Oxide AB
R6705 VRS-TW2ED332J J 3.3k 1/4W Metal Oxide AB
R6706 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA
R6707 VRS-CY1JF333J J 33k 1/16W Metal Oxide AA
R6708 VRS-TW2ED332J J 3.3k 1/4W Metal Oxide AB
R6709 VRS-TW2ED332J J 3.3k 1/4W Metal Oxide AB
R6710 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA
R6711 VRS-CY1JF333J J 33k 1/16W Metal Oxide AA

MISCELLANEOUS PARTS

å F6700 QFS-B1021GEZZ J Fuse, 1A/125V AE
å F6701 QFS-B1021GEZZ J Fuse, 1A/125V AE
å F6702 QFS-B1021GEZZ J Fuse, 1A/125V AE

FH6700 QFSHD1002CEZZ J Fuse Holder AA
FH6701 QFSHD1002CEZZ J Fuse Holder AA
FH6702 QFSHD1002CEZZ J Fuse Holder AA
FH6703 QFSHD1002CEZZ J Fuse Holder AA
FH6704 QFSHD1002CEZZ J Fuse Holder AA
FH6705 QFSHD1002CEZZ J Fuse Holder AA
P6700 QPLGN0155FJZZ J Plug, 3-pin AE
P6701 QPLGN0155FJZZ J Plug, 3-pin AE
P6702 QPLGN0155FJZZ J Plug, 3-pin AE
P6705 QPLGN0378GEZZ J Plug, 3-pin AB

QCNW-6061CEZZ J Connecting Cord AF

å F6703 QFS-B1021GEZZ J Fuse, 1A/125V AE

MISCELLANEOUS PARTS

å F6704 QFS-B1021GEZZ J Fuse, 1A/125V AE

FH6706 QFSHD1002CEZZ J Fuse Holder AA
FH6707 QFSHD1002CEZZ J Fuse Holder AA
FH6708 QFSHD1002CEZZ J Fuse Holder AA
FH6709 QFSHD1002CEZZ J Fuse Holder AA
P6703 QPLGN0155FJZZ J Plug, 3-pin AE
P6704 QPLGN0155FJZZ J Plug, 3-pin AE
P6706 QPLGN0378GEZZ J Plug, 3-pin AB

QCNW-6061CEZZ J Connecting Cord AF

65

LC-20B1U

CABINET AND MECHANICAL PARTS

31

H

4-2

4

4-3
4-4

CONTROL UNIT

31

G

1-11

F

1-1

E

D

1

5

5-12

5-1

5-17

5-20

5-16

C

5-19

B

4-1

5-7

5-13

1-11

D

1-6

5-14

2

1-2

1-3

E

5-15

5-5

11

1-3

1-5

1-9

1-4

2-1

5-9

1-7

1-8

5-6

5-21

5-20

1-9

1-12

1-10

31

RC/LED UNIT

5-4

5-10

5-8

1-8

5-7

1-7

1-5

1-4

5-11

1-3

1-3

9

32

2-2

4-5

1-12

F

5-18

7

1-6

10

INVERTER-B
UNIT

15

5-3

5-2

5-19

17

28

12

INVERTER-A UNIT

30

DIGITAL UNIT

26

21

30

27

24

23

ANALOG UNIT

16

PC
CARD UNIT

C

G

34

14

33

22

20

F

34

34

H

D

6-1

25

E

30

C

20

H

20

35

G

31

30

31

6

6-3

6-2

13

3-2

3-7

3-11

3-17

3-8

3-18

3

3-14

3-12

19

29

3-17

3-4

3-13

3-17

3-16

3-3

3-13

3-8

3-10

3-14

3-5

32

3-1

A

8

3-9

3-19

3-15

3-6

654321

66

LC-20B1U

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

CABINET AND MECHANICAL PARTS

1 CCABAA026WJ01 J Front Cabinet Ass'y BK
1-1
1-2 GCOVA2020CEZZ J RC/LED Cover AF
1-3 PSPAG0393CEUZ J Spacer, x4 AB
1-4 PSPAG0404CEZZ J Spacer, x2 AB
1-5 PSPAG0405CEZZ J Spacer, x2 AC
1-6 PSPAG0416CEZZ J Spacer, x2 AC
1-7 PSPAH0678CEZZ J Spacer, x2 AA
1-8 PSPAH0699CEUZ J Mask Spacer(S), x2 AD
1-9 PSPAH0700CEUZ J Mask Spacer(L), x2 AD
1-10 QCNW-6062CEZZ J Connecting Cord(SP) AD
1-11 VSP0050PBP68S J Speaker, x2 AT
1-12 XEBSD40P10000 J Screw, x8 AA

2 CCABBA013WJ02 J Rear Cabinet Ass'y BC
2-1
2-2 HiNDPA025WJSA J Model Label AG
2-3 TCAUH3096CESA J Caution Label AE

3 CDAi-1122CE05 J Stand Ass'y BR
3-1 GCOVA1945CESA J Handle Grip AK
3-2 GDAi-1122CEN1 J Stand, Base BA
3-3 GDAi-1123CESA J Stand, Joint AQ
3-4 GDAi-3049CESA J Stand, Base Joint AQ
3-5 GDAi-3053CESA J Stand, Support AQ
3-6 GLEGG9093CEZZ J Leg, x6 AC
3-7 JHNDP0103CESA J Stand Handle AX
3-8 LANGG0114CEFW J Fixing Metal, x2 AE
3-9 LX-BZ3441CEFN J Screw, x1 AD
3-10 MHNG-3044CEFW J Hinge(L) AV
3-11 MHNG-3049CEFW J Hinge(R) AU
3-12 MHNG-3050CEFW J Hinge(Side) AV
3-13 PSPAT0079CEZZ J Spacer, x2 AC
3-14 PSPAZ0415CEZZ J Spacer, x2 AB
3-15 XCBSD50P25000 J Screw, x4 AB
3-16 XCSSN50P25000 J Screw, x4 AB
3-17 XESSD40P14000 J Screw, x8 AB
3-18 XESSN40P10000 J Screw, x8 AB
3-19 XWHSN50-16120 J Washer, x4 AB

Not Available

Not Available

– Front Cabinet —

– Rear Cabinet —

6-3 MSPRD0088CEFW J Spring, for Flap Door AB
7 GCOVA2028CEKA J Back Cover AL

8 GCOVA2038CEKA J Back Cover AK
9 GCOVA2103CEKA J Chassis Frame Cover AG
10 GCOVA2106CEKA J Chassis Frame AU
11 JBTN-2066CEKA J Power Button AD
12 LANGT9032CEFW J Stand Reinforcemnt Angle AR
13 LX-BZ3442CEFF J Screw, x4 AB
14 PCOVZ9002CEZZ J Card Unit Cover AC
15 PMLT-0404CEZZ J Light Shielding Spacer, x1 AD
16 PMLT-0405CEZZ J Light Shielding Spacer, x1 AD
17 PMLT-A024WJZZ J Spacer, x1 AD
18 RCORF0103CEZZ J Ferrite Core AK
19 TLABNA021WJZZ J Serial No. Label AF
20 QCNW-A548WJZZ J Connecting Cord, x3 AF
21 QCNW-6058CEZZ J Connecting Cord AE
22 QCNW-A549WJZZ J Connecting Cord AR
23 QCNW-A267WJZZ J Connecting Cord AK
24 QCNW-6059CEZZ J Connecting Cord AE
25 QCNW-A282WJZZ J Connecting Cord AH
26 QCNW-6061CEZZ J Connecting Cord(P6705) AF
27 QCNW-6061CEZZ J Connecting Cord(P6706) AF
28 XBBSD40P06000 J Screw, x4 AA
29 XBBSF30P06000 J Screw, x2 AA
30 XBPSD30P10JS0 J Screw, x8 AA
31 XEBSD30P08000 J Screw, x9 AA
32 XEBSF40P16000 J Screw, x12 AA
33 XEPSD20P08000 J Screw, x2 AA
34 XEPSD30P06000 J Screw, x3 AA
35 PSLDM4693CEFW J Shield AD

4 CCOVA2109CE01 J Top Cover Ass'y AN
4-1
4-2 GCOVA1943CEKA J Button Cover(VOL) AD
4-3 GCOVA1943CEKB J Button Cover(CH) AD
4-4 JBTN-2076CEKA J Button AE
4-5 XEBSD30P08000 J Screw, x2 AA

5
5-1 RLCDTA014WJZZ J 20" LCD Panel Unit DT
5-2 LHLDW1173CEZZ J Wire Holder, x1 AD
5-3 PMLT-0402CEZZ J Spacer, x1 AC
5-4 PSLDM4685CEFW J Back Shielding Plate AX

å 5-5 KLMP-0124CEZZ J Lamp BH
å 5-6 KLMP-0125CEZZ J Lamp BD

5-7 LHLDZ2176CEZZ J Lamp Fixing Holder, x2 AL
5-8 MSPRP1220CEFW J ITO Earth Spring AC
5-9 PCOVU0107CEZZ J Diffusion Sheet Cover AY
5-10 PMiR-0296CEZZ J Reflection Plate AX
5-11 PMLT-0377CEZZ J Spacer AD
5-12 PSHEP0286CEZZ J Reflectio/Deflection Sheet BP
5-13 PSHEP0287CEZZ J Prism Sheet BC
5-14 PSHEP0288CEZZ J Diffusion Sheet AQ
5-15 PSHEP0289CEZZ J ITO Sheet AY
5-16 QCNW-6054CEZZ J Connecting Cord AD
5-17 QCNW-6055CEZZ J Connecting Cord AD
5-18 QCNW-6056CEZZ J Connecting Cord AF
5-19 XBBSD30P08000 J Screw, x10 AA
5-20 XEBSD20P05000 J Screw, x6 AA
5-21 XEBSD30P08000 J Screw, x1 AA

6 CCOVA2031CE01 J PC Card Frame Ass'y AK
6-1
6-2 GCOVA2061CEKA J Flap Door AD

Not Availble

Not Available

Not Available

– Top Cover —

– 20" LCD Panel Ass'y —

– PC Card Frame —

67

LC-20B1U

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

SUPPLIED ACCESSORIES

LHLDW0109CESA J Cable Calmp, x2 AD

å QACCD3097CEPA J AC Cord AQ

QCNWG0003CEPA J Antenna Cable AM
RRMCGA051WJSA J Remote Control AT
TiNS-A109WJZZ J Operation Manual AY

å UADP-0243CEPZ J AC Adaptor BL

EXTENSION CABLE

(For servicing)

QCNW-A323WJZZ J FFC (P2004-P3702) AD
QCNW-A324WJZZ J FFC (SC3403-SC2001) AE

PACKING PARTS

(NOT REPLACEMENT ITEM)

SPAKCA054WJZZ – Packing Case —
SPAKPA001WJZZ – Wrapping Paper —
SPAKXA050WJZZ – Buffer Material —
SSAKA0160CEZZ – Polyethylene Bag —
TLABK0001TAZZ – Carton Label —

68

★ Packing Case
(SPAKCA054WJZZ)

★ Buffer Material
(Top and Bottom)
(SPAKXA050WJZZ)

★ Polyethylene Bag
(SPAKPA001WJZZ)

Operation Manual
(TiNS-A109WJZZ)
Cable Clamp (2 pcs.)
(LHLDW0109CESA)

★ Dry Battery (2 pcs.)

★ Buffer material

(SPAKXA050WJZZ)

★ Not Replacement Item

AC Adapter
(UADP-0243CEPZ)
AC Cord
(QACCD3097CEPA)
Antenna Cable
(QCNWG0003CEPA)

Remote Control

(RRMCGA051WJSA)

LC-20B1U

PACKING OF THE SET

69

LC-20B1U

COPYRIGHT © 2002 BY SHARP CORPORATION

ALL RIGHTS RESERVED.

No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in
any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without
prior written permission of the publisher.

D Japan P Japan TQ1318-S

May. 2002 Printed in Japan

NA. KG

SHARP CORPORATION
AV Systems Group
Quality & Reliability Control Center
Yaita, Tochigi 329-2193, Japan
