Sharp LC-19S7E, LC-26S7E, LC-32S7E Operating Manual
LC-19S7E
LC-26S7E
LC-32S7E
LCD COLOUR TELEVISION
LCD-FARBFERNSEHGERÄT
TÉLÉVISEUR COULEUR À ÉCRAN
CRISTAUX LIQUIDES (LCD)
TELEVISORE A COLORI LCD
LCD-KLEURENTELEVISIE
TELEVISIÓN EN COLOR LCD
TELEVISOR LCD A CORES
SHARP ELECTRONICS (Europe) GmbH
Sonnistraße 3, D-20097 Hamburg, Deutschland
SHARP CORPORATION
http://www.sharp-eu.com
LC-19S7E/LC-26S7E/LC-32S7E
OPERATION MANUAL / BEDIENUNGSANLEITUNG / MODE D'EMPLOI / MANUALE DI ISTRUZIONI /
GEBRUIKSAANWIJZING / MANUAL DE MANEJO / MANUAL DO UTILIZADOR
1
OPERATION MANUAL
BEDIENUNGSANLEITUNG
MODE D’EMPLOI
MANUALE DI ISTRUZIONI
GEBRUIKSAANWIJZING
MANUAL DE MANEJO
MANUAL DO UTILIZADOR
PIN
ENGLISHDEUTSCHFRANÇAIS
ITALIANO
NEDERLANDS
ESPAÑOL
PORTUGUESE
P41G7830843 9D
Printed in Poland
Gedruckt in Polen
Imprimé en Pologne
Stampato in Polonia
Afgedrukt in Polen
Impreso en Polonia
Impresso na Polónia
(
244,8)/[389,8]/[[389,8
]]
(
66,6)/[91,6]/[[99,1
]]
(
66.6)/[91.6]/[[99.1
]]
(
189.8)/[239.8]/[[239.8
]]
(
189,8)/[239,8]/[[239,8
]]
(
411,4)/[578,0]/[[700,6
]]
(
411.4)/[578.0]/[[700.6
]]
(
232,0
)
/
[
326,0
]
/
[[
395,3
]]
(
232.0
)
/
[
326.0
]
/
[[
395.3
]]
(
457,3)/[657,9]/[[790,5
]]
(
308,1
)
/
[
448,5
]
/
[[
526,8
]]
(
308.1
)
/
[
448.5
]
/
[[
526.8
]]
(
343,1
)
/
[
491,1
]
/
[[
569,8
]]
(
343.1
)
/
[
491.1
]
/
[[
569.8
]]
(
40.0
)
/
[
40.0
]
/
[[
40.0
]]
(
205.7
)
/
[
286.2
]
/
[[
325.2
]]
(
59,9)/[67,9]/[[67,9
]]
(
59.9)/[67.9]/[[67.9
]]
(
244.8)/[389.8]/[[389.8
]]
(
457.3)/[657.9]/[[790.5
]]
(
205,7
)
/
[
286,2
]
/
[[
325,2
]]
AC IN
19”
AC IN
26”
32”
[
200,0]/[[200,0
]]
[
200.0]/[[200.0
]]
[
100,0
]
/
[[
200,0
]]
[
100.0
]
/
[[
200.0
]]
(
100,0
)
(
100.0
)
(
100,0
)
(
100.0
)
( ) : 19"
[ ] : 26"
[[ ]] : 32"
SPECIAL NOTE FOR USERS IN THE U.K.
The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 5A fuse.
Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked or and of
the same rating as above, which is also indicated on the pin face of the plug, must be used.
Always refit the fuse cover after replacing the fuse. Never use the plug without the fuse cover fitted.
In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut
DANGER:
The fuse from the cut-off plug should be removed and the cut-off plug destroyed immediately and
disposed of in a safe manner.
Under no circumstances should the cut-off plug be inserted elsewhere into a 5A socket outlet, as a
serious electric shock may occur.
To fit an appropriate plug to the mains lead, follow the instructions below:
IMPORTANT:
The wires in the mains lead are coloured in accordance with the following code:
Blue: Neutral
off the mains plug and fit an appropriate type.
Brown: Live
As the colours of the wires in the mains lead of this product may not correspond with the coloured
markings identifying the terminals in your plug, proceed as follows:
• ThewirewhichiscolouredbluemustbeconnectedtotheplugterminalwhichismarkedNor
coloured black.
• ThewirewhichiscolouredbrownmustbeconnectedtotheplugterminalwhichismarkedLor
coloured red.
Ensure that neither the brown nor the blue wire is connected to the earth terminal in your three-pin plug.
Before replacing the plug cover make sure that:
• Ifthenewttedplugcontainsafuse,itsvalueisthesameasthatremovedfromthecut-offplug.
• Thecordgripisclampedoverthesheathofthemainslead,andnotsimplyovertheleadwires.
IF YOU HAVE ANY DOUBT, CONSULTAQUALIFIEDELECTRICIAN.
OPERATION MANUAL
ENGLISH
The illustrations and on-screen displays in this operation manual are for explanation purposes and may vary slightly from •
the actual operations.
Contents
Contents .................................................................. 1
Introduction ............................................................. 2
Dear SHARP customer ..................................... 2
Important Safety Precautions ............................ 2
Remote control unit .......................................... 3
Preparation.............................................................. 5
Supplied accessories ........................................ 5
Mount the TV Stand .......................................... 5
Wall mounting ................................................... 5
Bundling the cables .......................................... 5
Installation of batteries ...................................... 6
Using the remote control unit ............................ 6
Display the Menu Screen ............................ 6
Select an item by the remote control ........... 6
Exit the Menu screen .................................. 6
Quick guide ............................................................. 7
Initial installation overview.................................. 7
Watching TV ............................................................ 8

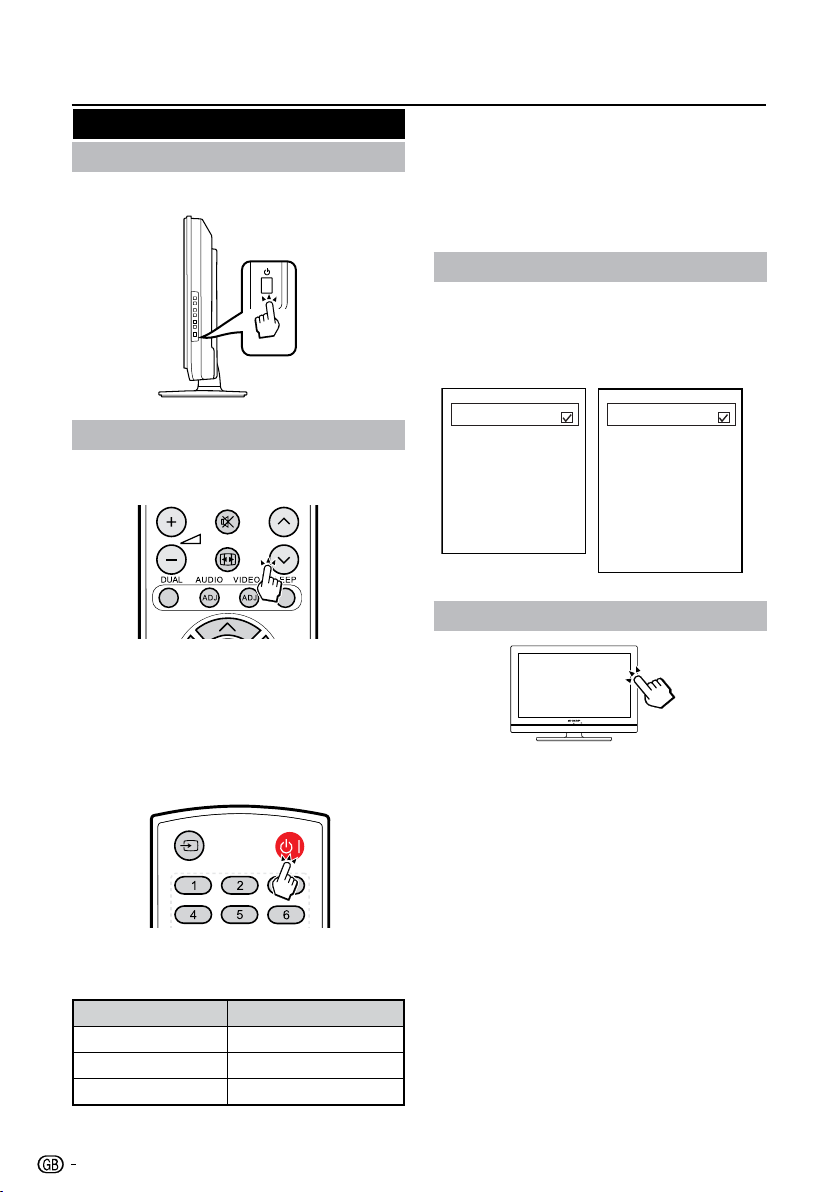

Daily operation .................................................. 8
Turning on/off the power ............................. 8
Changing channels ..................................... 8
Standby mode ...................................... 8
TV indicator status ................................ 8
Selecting external video source ................... 8
Operation without a remote control ............. 8
Teletext ............................................................. 9
TV menu ................................................................ 10
Buttons for teletext operations .............. 9

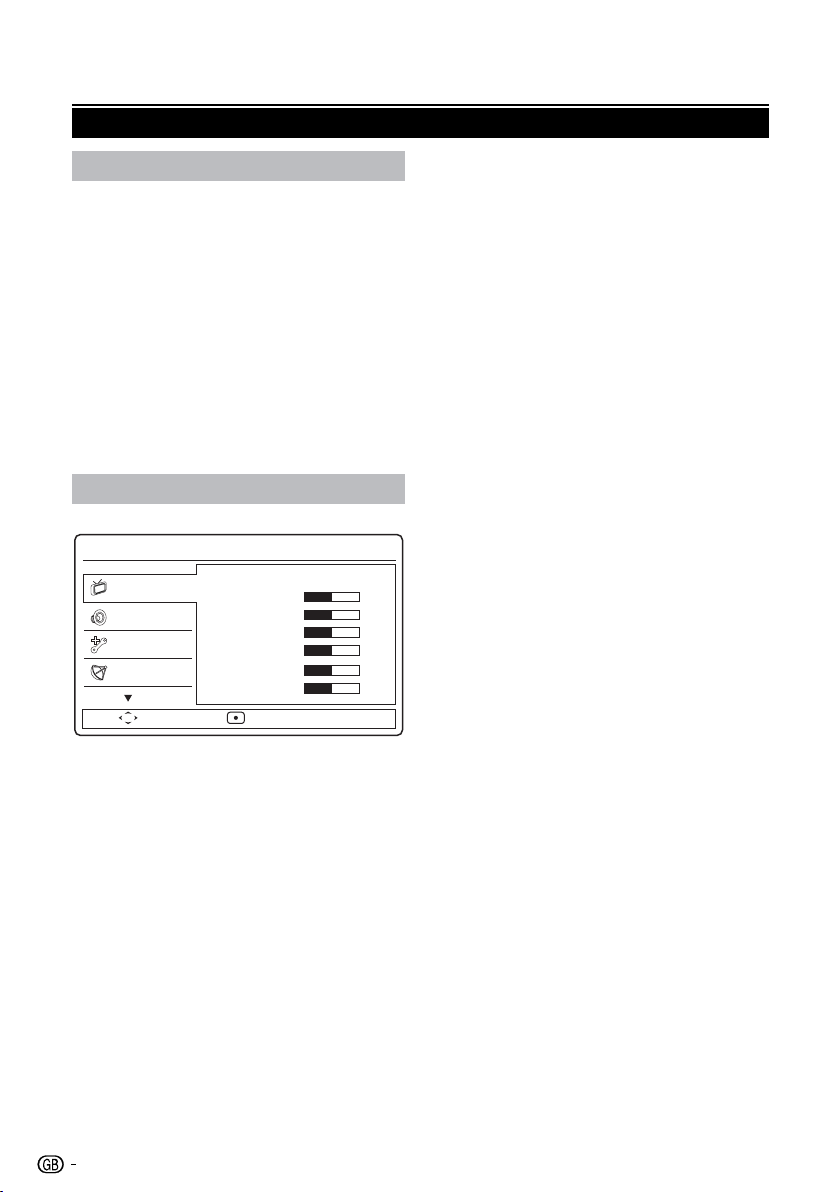

Picture ............................................................ 10
Use smart picture ...................................... 10
Adjust picture settings ............................... 10

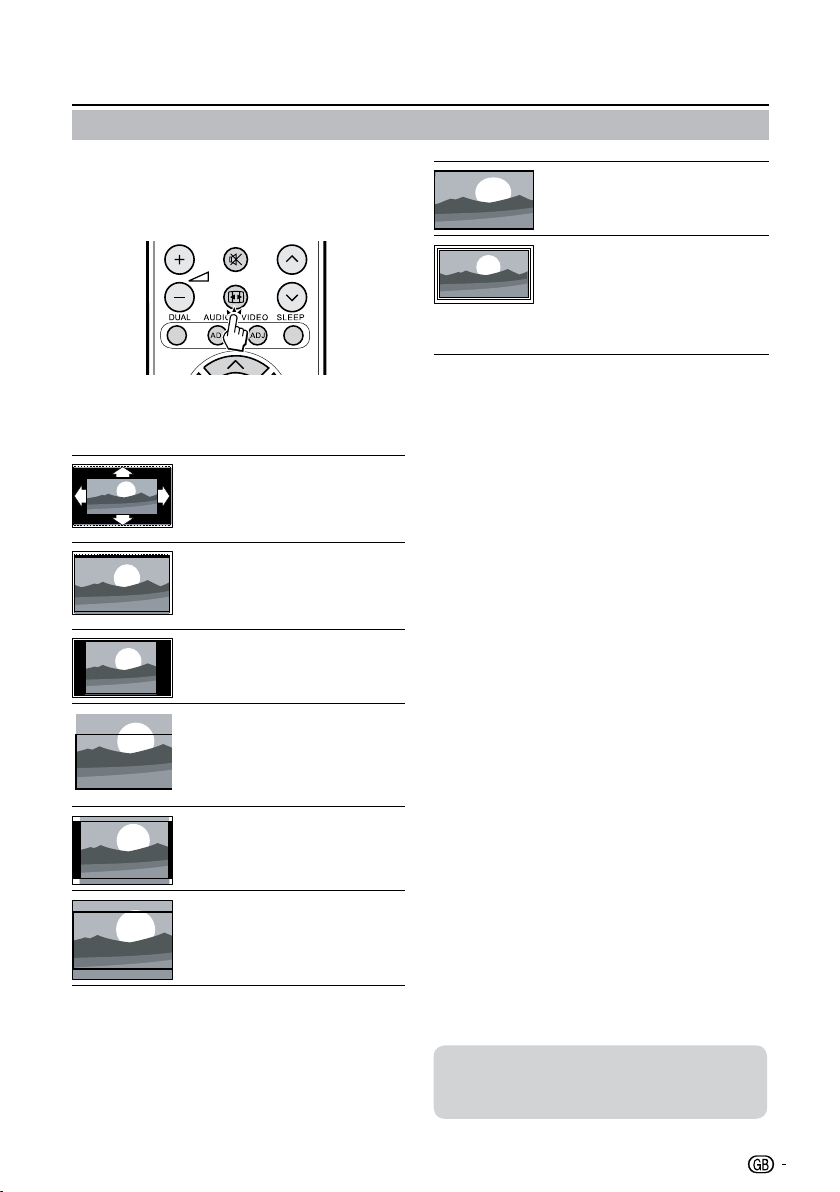

Change picture format .............................. 11
Sound ............................................................. 12
Use smart sound ...................................... 12
Adjust sound settings................................ 12
Features ......................................................... 12
Set the TV clock ........................................ 12
User timers ............................................... 12
ENGLISH
Automatically switch the TV to standby
(Sleeptimer) ...................................... 13
Automatically switch the TV on (On timer)
........................................................ 13
Use TV lock .............................................. 13
Set / change code .............................. 13
Lock or unlock all channels and
connected devices. .......................... 13
Lock or unlock one or more channels . . 14
Installation ....................................................... 15
Install channels ......................................... 15
Rename channels ..................................... 16
Rearrange channels .................................. 17
Access decoder channel ........................... 17
Set decoder channel ........................... 17
Reset the TV to factory settings ................ 17
Eco ................................................................. 17
Connecting external devices ............................... 18
HDMI connection ...................................... 18
(YPbPr) Component connection ................ 18
AV IN connection ...................................... 18
SCART connection ................................... 19
Speaker/ amplifier connection ................... 19
Connecting a PC ............................................ 20
HDMI Connection ..................................... 20
Analogue Connection ................................ 20
Supported display resolutions ................... 20
Computer formats (PC) ....................... 20
Video formats ...................................... 20
Appendix ............................................................... 21
Troubleshooting .............................................. 21
Specification ................................................... 22
Environmental specification ............................. 22
Other information ............................................ 23
Trademarks ..................................................... 23
End of life disposal .......................................... 24
1
2
Introduction
Dear SHARP customer
Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of trouble-free
operation of your product, please read the Important Safety Precautions carefully before using this product.
Important Safety Precautions
Cleaning—Unplug the AC cord from the AC outlet before cleaning the product. Use a damp cloth •
to clean the product. Do not use liquid cleaners or aerosol cleaners.
Water and moisture—Do not use the product near water, such as bathtub, washbasin, kitchen •
sink, laundry tub, swimming pool and in a wet basement.
Do not place vases or any other water-filled containers on this product. •
The water may spill onto the product causing fire or electric shock.
Stand—Do not place the product on an unstable cart, stand, tripod or table. Doing so can cause •
the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand,
tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product
on a wall, be sure to follow the manufacturer’s instructions. Use only the mounting hardware
recommended by the manufacturer.
When relocating the product placed on a cart, it must be moved with utmost care. Sudden stops, •
excessive force and uneven floor surface can cause the product to fall from the cart.
Ventilation—The vents and other openings in the cabinet are designed for ventilation. Do not cover •
or block these vents and openings since insufficient ventilation can cause overheating and/or
shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface,
since they can block ventilation openings. This product is not designed for built-in installation; do not place the
product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s
instructions are followed.
The LCD panel used in this product is made of glass. Therefore, it can break when the product is dropped or impact •
applied. If the LCD panel is broken, be careful not to be injured by broken glass.
Heat sources—Keep the product away from heat sources such as radiators, heaters, stoves and •
other heat-generating products (including amplifiers).
To prevent fire, never place any type of candle or naked flames on the top or near the TV set.•
To prevent fire or shock hazard, do not place the AC cord under the TV set or other heavy items.•
Do not display a still picture for a long time, as this could cause an afterimage to remain.•
There is power consumption always if main plug is connected.•
Servicing—Do not attempt to service the product yourself. Removing covers can expose you to high voltage and •
other dangerous conditions. Request a qualified person to perform servicing.
For ventilation, leave at least 4” to 6” free all around the TV. Do not place the TV on a carpet.•
The equipment shall not be exposed to dripping or splashing.•
The equipment shall not be exposed to rain or moisture and objects filled with liquids, such as vases, shall be placed •
on the apparatus.
The appliance coupler is used as the disconnect device of this apparatus, the disconnect device shall remain readily •
operable.
The LCD panel is a very high technology product, giving you fine picture details.
Due to the very large number of pixels, occasionally a few non-active pixels may appear on the screen as a
fixed point of blue, green or red.
This is within product specifications and does not constitute a fault.
Precautions when transporting the TV
When moving the TV, it should always be carried by two people, using both hands, be careful not to apply pressure to
the display.
Wall mounting
Installing the LCD Colour TV requires special skill that should only be performed by qualified service personnel.
Customers should not attempt to do the work themselves. SHARP bears no responsibility for improper mounting or
mounting that results in accident or injury.
3
Introduction
ECO
EPG
YPbPr
PR LIST FREEZE
MENU
/EXIT
P
PRE PR
Remote control unit
1 B POWER
Press to turn the LCD TV on or
enter standby mode.
2 b (INPUT SOURCE)
Select an input source.
3 0-9 DIGIT BUTTONS
To select a TV channel directly.
4 EPG <Not available>
5 PRE PR
To display the previous selected TV
channel.
25 SIZE
Press this button to change the
font size: Full screen, Top half and
Bottom half.
26 SUBPAGE
To select the subpage when the
current page contains subpage(s).
27 INDEX
Press this button to return to page
100 or the index page; and then
press 0 to 9. The teletext page will
be numbered and added to the
page you select or the secondary
item.
6 HDMI
Press this button you could select
HDMI, HDMI 1, HDMI 2.
28 SUBTITLE
When the Teletext and subtitle
function is activated, press this
button to find the first subtitle page.
7 YPbPr
Press this button you could select
YPbPr.
8 VIDEO
Press this button you could select
SCART, SCART1, SCART2, AV
Side.
9 PC
Press to direct to the PC mode.
10 i (+/-)
Press to adjust the volume.
17 SLEEP
Press to turn the LCD TV off within
an amount of time. (5-180 minutes.)
18 oœpπ
Press oœpπ to navigate and
confirm your selection.
19 OK
Press to activate a setting.
Press SUBTITLE repeatedly to
switch page in order.
29 HOLD
Press this button to stop the
scrolling of pages.
The text decoder stops receiving
data.
30 REVEAL
Reveal hidden information such as
answers to a quiz.
31 ECO
Press this button to set the picture
with less brightness for saving
11 e
Press to toggle audio on and off.
You can also press i (+/-) to
restore the previous volume level.
12 f
Change the aspect ratio; please
refer to Picture format section.
13 P (</>)
Press to select the channel.
14 DUAL
Select MONO, STEREO, DUAL 1
and DUAL 2 for ATV channel.
15 AUDIO (ADJ)
Press to set the LCD TV to a
predefined sound setting.
16 VIDEO (ADJ)
Press to set the LCD TV to a
predefined picture setting.
20 MENU/EXIT
Press to activate the LCD TV OSD.
Press again to exit the LCD TV
OSD.
21 p
Display programme information, if
available.
22 R/G/Y/B (COLOUR BUTTON)
Press buttons to select the pictures
with various colours of text. Different
channels display different functions.
23 TELETEXT
Press this button to activate
Teletext. Press again to turn off
Teletext.
24 MIX
Press this button to activate Teletext
with TV.
energy.
32 PR LIST
Press to display a list of channels.
33 FREEZE
To freeze the picture on the screen.
(Not available when your input
sources are PC mode and HDMI
with PC mode.)
4
Introduction
SCART
VGA AUDIO
PC IN
75Ω
L R
VIDEO
AV OUT
L RY Pb Pr
COMPONENT
AC IN
SCART
VGAAUDIO
PC IN
75Ω
L R
VIDEO
AV OUT
L RY Pb Pr
COMPONENT
AV IN
VIDEO L R
SERVICE
1
SCART 1
SCART 2
VGA AUDIO
PC IN
75Ω
L R
VIDEO
AV OUT
L RY Pb Pr
COMPONENT
4
2
3
3
5
6
8
7
10
9
12
11
AC IN
SCART 1
SCART 2
VGA AUDIO
PC IN
75Ω
L R
VIDEO
AV OUT
L RY Pb Pr
COMPONENT
2
4
6
8
7
26”
32”
19”
26”
32”
19”
TV (Front view)
TV (Rear view)
i (k/l)
Volume buttons
P (r/s)
Programme [channel] buttons
MENU button
b (INPUT SOURCE) button
a (Power) button
Remote control sensor
B (Standby/On) indicator
1 Power connector
2 HDMI /HDMI 1
3 PC IN (VGA/AUDIO)
4 SCART, SCART 1 (CVBS Tuner out)
5 SCART 2 (CVBS Monitor out)
6 Component (Video and L/R Audio input)
7 Tuner Input
8 AV VIDEO and L/R Audio Output
9 SERVICE socket
10 Earphone Output
11 Composite ( AV IN, AV/LR)
12 HDMI 2 (For 26” and 32” only)
5
3
19”
26”
32”
W
H
Operation Manual
Quick Setup Guide
ECO
EPG
YPbPr
PR LISTFREEZE
MENU
/EXIT
P
PRE PR
26”
32”
x 3
19”
x 4
Preparation
AC IN
VGAAUDIO
PC IN
75Ω
AC IN
VG
A
A
UDI
O
PC IN
75Ω
Supplied accessories
Stand unit and Screws
AC cord (x1)
Product shape varies in
some countries
Cable clamp (x1)
Attached in the back of
the TV.
Put the TV face down on a safe surface that is
1.
covered by a soft and smooth cloth.
2.
Adjust the TV stand to the bottom of the TV.
Fasten screws by using a cross-head 3.
screwdriver (Not supplied).
NOTE
To detach the TV stand, perform the steps in reverse •
order.
Wall mounting
Remote control unit (x1)
AAA battery (x2)
Mount the TV Stand
TV
screen
size
( Inches)
19” 100 x 100 mm Metric 4 x 10 mm
26” 200 x 100 mm Metric 4 x 10 mm
Quick Setup GuideOperation manual
32” 200 x 200 mm Metric 6 x 10 mm
NOTE
At the time of purchasing wall bracket, please check if •
there is enough space between the wall bracket and TV
terminals for the terminal connection.
VESA-compatible
wall bracket
(millimeters)
(W x H)
Screw type
Bundling the cables
6
Preparation
30° 30°
ECO
EPG
YPbPr
PR LISTFREEZE
MENU
/EXIT
PRE PR
P
Move Select
Sound
Menu
Features
Installation
Smart Picture
Backlight
Contrast
Brightness
Colour
Hue
Sharpness
Standard
50
50
50
50
-3
5
Insert two AAA batteries into Remote control.
1.
Make sure (k) and (l) are facing the proper
direction.
Replace the cover.2.
Using the remote control unitInstallation of batteries
Use the remote control unit by pointing it towards the
remote control sensor. Objects between the remote
control unit and sensor may prevent proper operation.
NOTE
If the remote control will not to be used for a long •
time, remove the batteries to avoid remote control
damage.
CAUTION
Improper use of batteries can result in chemical
leakage or explosion. Be sure to follow the instructions
below.
Do not mix batteries of different types. Different •
types of batteries have different characteristics.
Do not mix old and new batteries. Mixing old and •
new batteries can shorten the life of new batteries or
cause chemical leakage in old batteries.
Remove batteries as soon as they have worn out. •
Chemicals that leak from batteries can cause a rash.
If you find any chemical leakage, wipe thoroughly
with a cloth.
The batteries supplied with this product may have a •
shorter life expectancy due to storage conditions.
If you will not be using the remote control unit for •
an extended period of time, remove the batteries
from it.
Note on disposing batteries:
The batteries provided contain no harmful materials
such as cadmium, lead or mercury.
Regulations concerning used batteries stipulate
that batteries may no longer be thrown out with the
household rubbish. Deposit any used batteries free of
charge into the designated collection containers set up
at commercial businesses.
5 m
Remote control sensor
Display the Menu Screen
Press MENU/EXIT and the MENU screen displays.
Select an item by the remote control
Press 1. oœpπ to select the desired menu.
2. pπto select / adjust the item to the
Press
desired level. The setting on screen is applied
immdiately.
3. p to return to the previous layer.
Press
Exit the Menu screen
The operation will exit the menu screen if you press
MENU/EXIT before it is completed.
Loading...
