KC-F30J

“Plasmacluster” and “Device of a cluster of grapes” are trademarks of Sharp Corporation.

CLEAN ION SHOWER

AIR PURIFIER with Humidifying Function

OPERATION MANUAL

*The number in this technology mark indicates the approximate number of ions supplied into 1

of air, which is measured around the center

cm of a room (with the “High-Density Plasmacluster

7000” applicable oor area), at a height of 1.2m above the oor, at the MAX wind volume setting in air purifying mode, and when a humidier & air purier or an air purier using the high-

density plasmacluster ion evolving device is

Free standing type

KC-F30J_EN.indd 1 2018/05/24 13:24:41

placed close to a wall. This product is equipped with a device of corresponding capacity.

Before operating your new air purier, please read the following

The air purier draws in room air through the air intake, circulates it through a Pre-Filter, a Deodorizing Filter and a HEPA Filter inside the unit, and then discharges it through the air outlet. The HEPA Filter can remove 99.97% of dust particles as small as 0.3 microns that pass through the lter and also helps absorb odors. The Deodorizing Filter gradually absorbs odors as they pass through the lter.

Some odors absorbed by the lters will break down over time, causing additional odors.

Depending on usage conditions, and especially if the product is used in environments

signicantly more severe than a normal household, these odors may become noticeable sooner than expected. If these odors persist, replace the lters. (Ref. E-14)

NOTE

• The air purier is designed to remove air-suspended dust and the odors. The air purier is not designed to remove harmful gases such as carbon monoxide contained in

cigarette smoke.

The air purier may not completely remove an odor if the source of the odor is still present.

HEPA Filter

Deodorizing Filter

Pre-Filter

KC-F30J_EN.indd 2 2018/05/24 13:24:42

ENGLISH

FEATURES

A Unique Combination of Air Treatment

Technologies Triple Filtration System + Plasmacluster + Humidication

TRAPS DUST*

Pre-Filter traps dust and other large

airborne particles.

DECREASES ODORS

Deodorizing lter absorbs many common

household odors.

REDUCES POLLEN & MOLD*

HEPA lter traps 99.97% of particles as

small as 0.3 microns.

FRESHENS

By emitting a balance of positive and negative ions, Plasmacluster air treatment is a natural process.

HUMIDIFIES

Can operate up to 5 hours per lling.**

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS

PART NAMES

PREPARATION

OPERATION

USEFUL FUNCTION

CARE AND MAINTENANCE

TROUBLESHOOTING

SPECIFICATIONS

FOR CUSTOMER ASSISTANCE

...............................................

............................................

.................................................

...................................

...................

..............................

......................................

............

.....

E-2

E-4

E-6

E-8

E-9

E-11

E-16

E-17

E-18

*When air is circulated through the lter system. **Room size: up to 16 m

Sensor technology continuously monitors air quality and automatically adjusts operation based on air purity and humidity level.

Thank you for purchasing this SHARP Air Purier. Please read this manual carefully before using the air purier. After reading,

keep the manual in a convenient location for future reference.

E-1

KC-F30J_EN.indd 1 2018/05/24 13:24:42

IMPORTANT SAFETY INSTRUCTIONS

Always follow basic safety precautions when using electrical appliances, including the following:

Always observe the following to reduce the risk of electrical shock, re, or injury:

WARNING

Read all instructions before using the unit.

•

Use only a 220-240 volt outlet.

•

Do not use the unit if the power cord or plug is damaged or if the connection to the wall

•

outlet is loosened.

Periodically remove dust from the power plug

•

Do not insert ngers or foreign objects into the air intake or air outlet.

•

When removing the power plug, always hold the plug and never pull the cord.

•

Failure to do so can cause a short circuit resulting in electrical shock or re.

• Do not remove the plug when your hands are wet. Do not use this unit near gas appliances or replaces.

•

Always unplug the unit when relling the Humidifying Tray, cleaning the unit, or when the unit is not

•

in use. Failure to do so can cause a short circuit resulting in electrical shock or re.

In order to avoid safety hazards, if the power cord is damaged, it must be replaced by either

•

the manufacturer, a service agent, a Sharp authorized Service Center or a similarly qualied service provider.

Only a Sharp Authorized Service Center should service this air purier. Contact the nearest Service

•

Center for any problems, adjustments, or repairs. Do not operate the unit in rooms where aerosol insecticides are present. Do not operate the unit in

•

rooms where there is oily residue, incense, sparks from lit cigarettes, or chemical fumes in the air. Do not operate the unit in places where it may get wet, such as a bathroom. Be cautious when cleaning the unit. Strong corrosive cleansers can damage the exterior.

•

When carrying / moving the unit, rst remove the Humidifying Tray, and then hold the unit by the

•

handles on both sides.

Carrying / moving the unit when there is water in the Humidifying Tray can cause the following:

•

Electrical shock.

•

Damage to the unit caused by internal spillage.

•

Water spillage.

Do not drink the water in the Humidifying Tray.

•

Replace the water in the Humidifying Tray daily with fresh tap water, and regularly clean it

•

(Ref. E-12 and E-13). When the unit is not in use, dispose of the water in the Humidifying Tray. Leaving water in the Humidifying Tray can cause mold, bacteria, and bad odors. In rare cases, such bacteria can be a health hazard.

This appliance is not intended for use by persons (including children) with reduced physical,

•

sensory, or mental capabilities, nor by persons with insufcient experience and knowledge of how

to operate the unit, unless they are given proper supervision and instruction on how to use the unit by a person responsible for their safety. Do not allow children to play with the unit.

What to do if the unit interferes with radio or TV reception

NOTE

If the air purier interferes with radio or television reception, try one or more of the following measures:

Adjust or reposition the receiving antenna.

•

Increase the distance between the unit and the radio or TV.

•

Connect the equipment into an outlet on a circuit different from that of the radio or TV receiver.

•

Consult the dealer or an experienced radio/TV technician for help.

•

E-2

KC-F30J_EN.indd 2 2018/05/24 13:24:42

CAUTIONS CONCERNING OPERATION

• Do not operate the unit without the lters and the Humidifying Tray properly installed.

• Keep the unit away from water.

• Do not wash and reuse the HEPA lter and Deodorizing lter. Doing so will not improve lter performance and can also cause electric shock or operating

malfunctions.

• Clean the exterior with a soft cloth only. Do not use volatile liquids or detergents. Doing so can damage or crack the exterior of the unit. In addition, doing so can cause sensor malfunctions.

• The frequency of descaling maintenance will depend on the hardness of and the impurities in the water that you use; the harder the water the more often descaling will be necessary.

• Before moving the unit, make sure it is not operating, and remove the Humidifying Tray while holding the side handle of the unit.

• When removing / reattaching the Humidifying Tray, be careful not to get your ngers caught inside the

unit.

• When moving the unit, use the handles on both sides. Do not move the unit when it is in operation.

• Do not block the air intake or air outlet.

• Do not place the unit near or on hot objects, such as stoves or heaters, or where it may come into contact with steam.

• Always operate the unit in an upright position.

INSTALLATION GUIDELINES

• When using the unit, place it at least 2 meters away from equipment that emits electric waves, such

as televisions or radios, to avoid electrical interference.

• Avoid locations where the sensors are exposed to direct wind. Failure to do so can cause the unit to malfunction.

• Avoid locations where furniture, fabrics, or other objects can come in contact with the unit and

interfere with the intake and outtake of air.

• Avoid locations where the unit is exposed to condensation or drastic changes in temperature. Appropriate room temperature is between 0 – 35 ºC.

• Place the unit on a level and stable surface with sufcient air circulation.

When placed on heavy carpet, the unit may vibrate slightly. Place the unit on a level surface to avoid water leakage from the Humidifying Tray.

• Avoid locations that generate grease or oily smoke. Failure to do so can cause the unit exterior to crack and the sensors to malfunction.

• The dust collecting ability of the unit is effective even when the unit is as close to 3 cm from the wall, the surrounding walls and oor may get dirty. Please place the unit at a distance from the wall. The wall directly behind the air outlet may become dirty over time. When using the unit for an extended period of time at the same location, periodically clean the walls adjacent to it.

FILTER GUIDELINES

• Follow the instructions in this manual for proper lter care and maintenance.

E-3

KC-F30J_EN.indd 3 2018/05/24 13:24:42

PART NAMES

FRONT / BACK

FRONT

CLEAN ION

BACK

SHOWER

5 6

Operation Panel / Display (Ref.E-5)

Handle (2 Locations)

Main Unit

Air Outlet

Filter Frame

Humidifying Filter

Float (in Filter Frame)

Tray Handle

(Plug shape varies by country.)

Humidifying Tray

Float

HEPA Filter

Deodorizing Fiter

Sensor (internal)

Back Panel (Pre-Filter)

Air lnlet

Power Cord / Plug

E-4

KC-F30J_EN.indd 4 2018/05/24 13:24:43

OPERATION PANEL / DISPLAY

5 4 3 2 1

Display

Dust Sign

Indicates the air purify level 3 colors.

Clean

Green

Orange

Red

Impure

Humidify Light

Green................. Humidify ON

Green................. Unit needs water

(Flashing)

Off ...................... Humidify OFF

POWER ON/OFF Button

CLEAN ION SHOWER Button

/ Indicator Light (green)

(Press 3 sec.) LIGHT ON/OFF Button (Press 3 sec.) FILTER RESET Button

MODE Button

(Press 3 sec.) Plasmacluster Ion ON/OFF Button

Fan Speed Indicator Lights (green)

Humidity / Temperature monitor

Indicates the approximate humidity / temperature level in the room.

temperature 0 to 50ºC is displayed at 1ºC-intervals

-1ºC or less 51ºC or more

humidity 6 to 99% is displayed at 1%-intervals

OFF Timer Button

Display Select Button

Filter Indicator Light (Orange)

Plasmacluster Ion Indicator Light (blue)

OFF Timer Indicator Light (green)

E-5

KC-F30J_EN.indd 5 2018/05/24 13:24:45

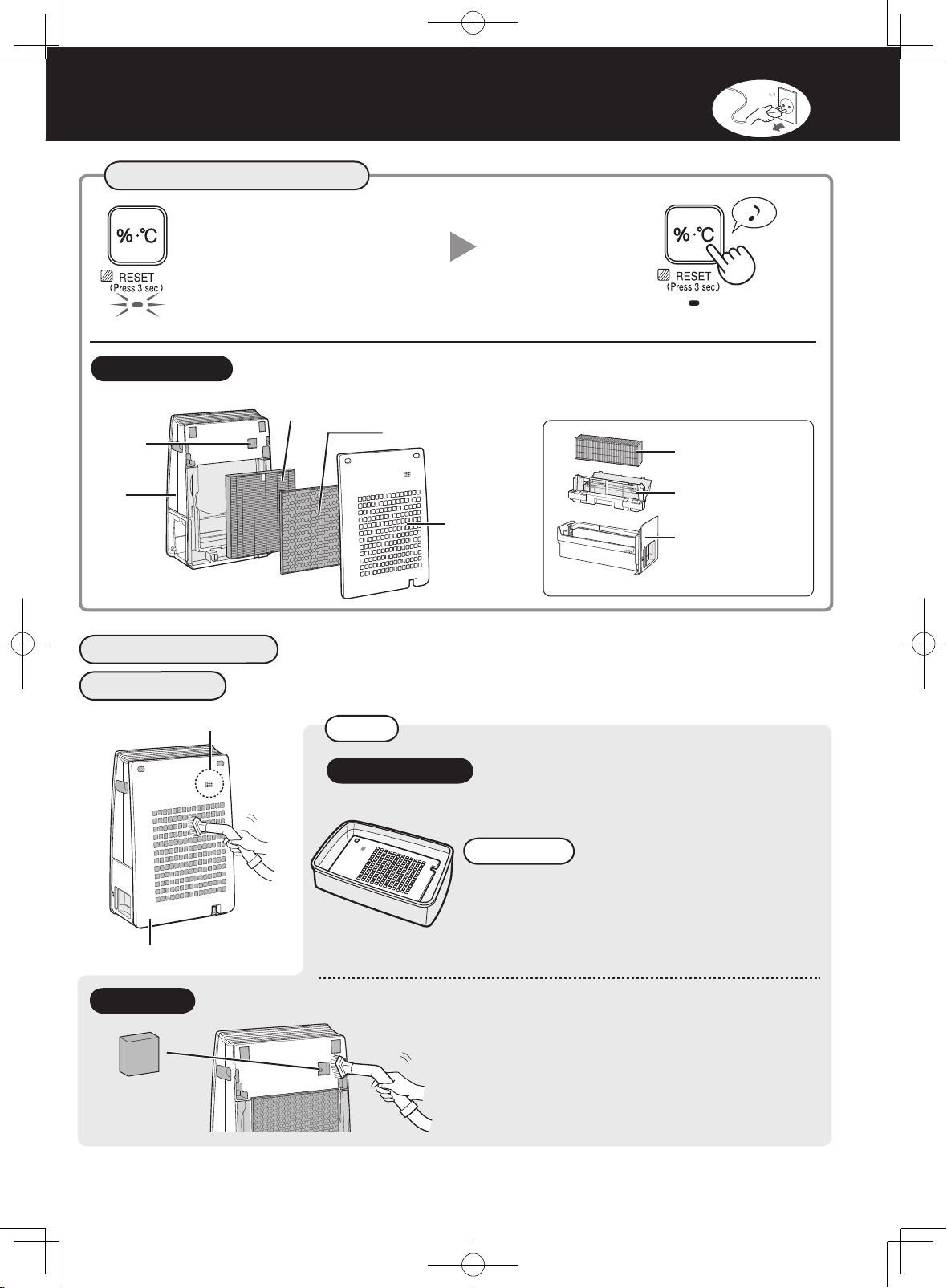

PREPARATION

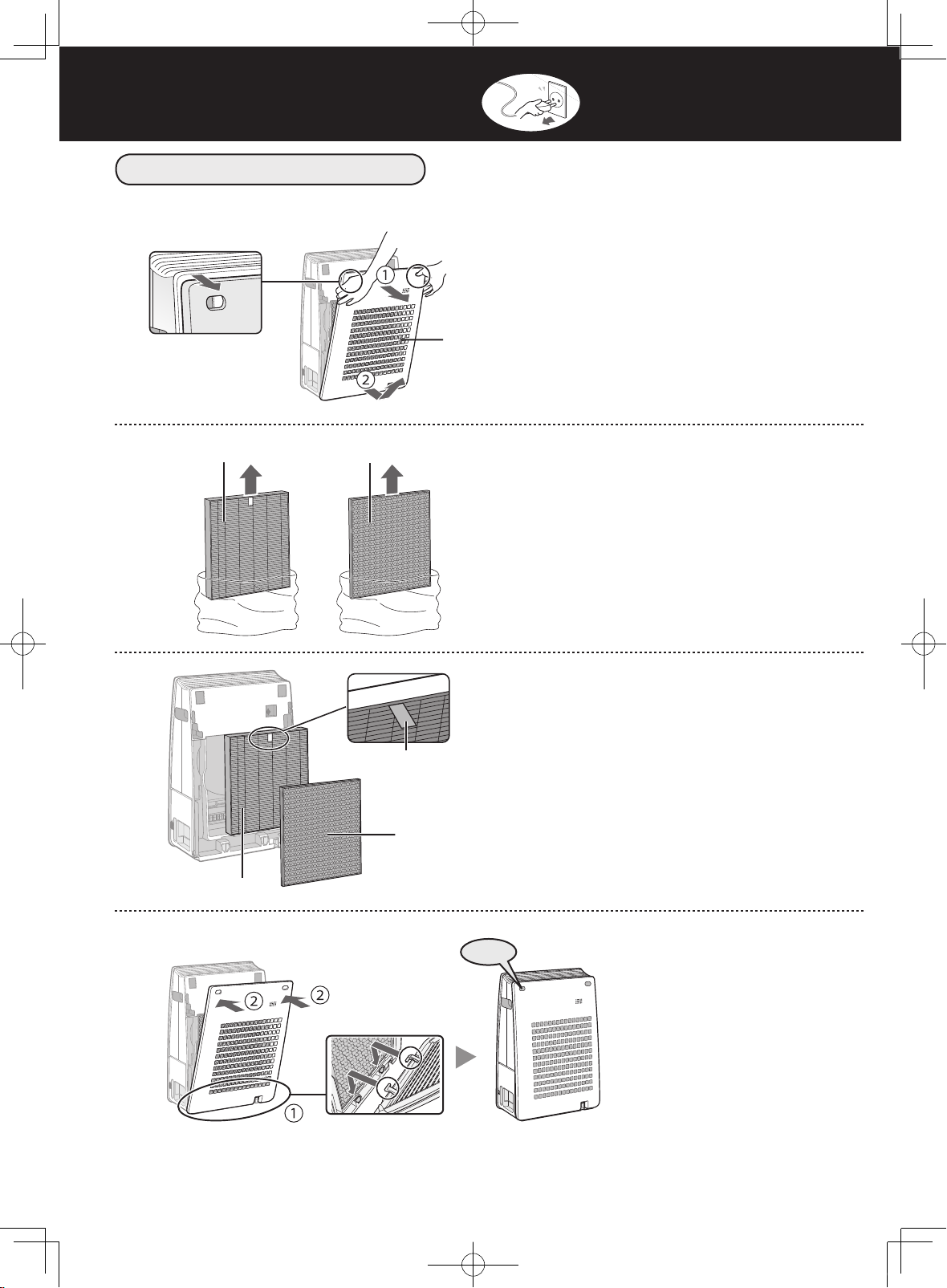

FILTER INSTALLATION

Always be sure to remove the power plug from the wall outlet.

CAUTION

REFILLING THE HUMIDIFYING TRAY

Pull out the

Humidifying Tray

Humidify air passed through by vaporizing water pumped up from Humidifying Tray. The unit can be used even without water in the Humidifying Tray.

• Do not expose the unit to water. Doing so can cause a short circuit or electrical shock.

• Use only fresh tap water. Using other water sources risks the growth of molds, fungi, or bacteria.

• Do not use hot water (40 ºC), chemical agents, aromatic substances. Doing so can deform the unit or cause it to malfunction.

• When removing and installing the Humidifiying Tray, be careful not to spill any water.

ENGLISH

• Return the Tray Handle to its original position before installing.

CAUTION

Fill the

Humidifying Tray

with

tap water by method or .

CAUTION

・The Filter Frame is floated up when water

is filled.

• When carrying the Humidifying Tray, hold it with both hands or grip the Tray Handle.

• Gently fill it with water to avoid splashing water.

• Do not fill beyond the “FULL” indicator. The Humidifying Tray will not fit into the

unit if it is filled above the ‘FULL’ indicator.

A B

Clean the Humidifying Tray if it becomes dirty or there is a noticeable odor. (Ref. E-12,E-13)

Install the

Humidifying Tray

FULL

Tray Handle

Locate the Handle in front of Separator.

Do not locate the Handle on or behind Separator.

Handle

Separator

C L EAN ION SHOWER

C L EA

N ION SHOWER

CLEAN

ION

SHOWER

FILTER INSTALLATION

Always be sure to remove the power plug from the wall outlet.

Remove the Back Panel.

Deodorizing filterHEPA filter

Back Panel

HEPA filter

Tag

Deodorizing filter (The same on both sides.)

Place the surface with tag.

Remove the Filters from the plastic bag.

Install the Filters in the correct order as shown.

KC-F30J_EN.indd 6 2018/05/24 13:24:49

Click

Install the Back Panel.

E-6

REFILLING THE HUMIDIFYING TRAY

ENGLISH

Humidify air passed through by vaporizing water pumped up from Humidifying Tray. The unit can be used even without water in the Humidifying Tray.

L EAN ION

SHOWER

C L EA

N ION SHOWER

Pull out the

Humidifying Tray

CAUTION

Clean the Humidifying Tray if it becomes dirty or there is a noticeable odor. (Ref. E-12,E-13)

Fill the tap water by method or .

Humidifying Tray

A B

with

FULL

CAUTION

Tray Handle

FULL

Install the

CLEAN ION SHOWER

CAUTION

Humidifying Tray

・The Filter Frame is floated up when water

is filled.

• When carrying the Humidifying Tray, hold it with both hands or grip the Tray Handle.

• Gently fill it with water to avoid splashing water.

• Do not fill beyond the “FULL” indicator. The Humidifying Tray will not fit into the

unit if it is filled above the ‘FULL’ indicator.

• Return the Tray Handle to its original position before installing.

Handle

Separator

CAUTION

Locate the Handle in front of Separator.

• Do not expose the unit to water. Doing so can cause a short circuit or electrical shock.

Do not locate the Handle on or behind Separator.

• Use only fresh tap water. Using other water sources risks the growth of molds, fungi, or bacteria.

• Do not use hot water (40 ºC), chemical agents, aromatic substances. Doing so can deform the unit or cause it to malfunction.

• When removing and installing the Humidifiying Tray, be careful not to spill any water.

E-7

KC-F30J_EN.indd 7 2018/05/24 13:24:49

OPERATION

Power ON / OFF

START STOP

• Select the desired fan speed by .

• Unless the power cord has been unplugged, the operation starts in the previous mode it was operated in.

CLEAN ION SHOWER

Releases high-density Plasmacluster ions and discharges strong air ow for 60 minutes.

START

NOTE

• When the operation nishes, the unit will return to the prior

operation mode. It is able to change the other mode during this mode.

FAN SPEED

Select the desired fan speed.

NOTE

SLEEP

• Front surface Indicators go off automatically.

AUTO

• The fan speed is automatically switched between HIGH and LOW depending on the humidity and the amount of impurities in the room.

E-8

KC-F30J_EN.indd 8 2018/05/24 13:24:51

USEFUL FUNCTION

LIGHT CONTROL

You can set the front surface Indicators to OFF when the Indicator is too bright.

ON OFF

Press more than 3 seconds.

Plasmacluster Ion ON/OFF

When Plasmacluster Ion is ON, the Plasmacluster Ion Indicator Light is on. (blue)

Press more than 3 seconds.

OFF

Press more than 3 seconds.

NOTE

Changing display (humidity / temperature)

You can select either humidity or temperature at the time to be displayed.

OFF

Current humidity (estimated)

Current temperature (estimated)

NOTE

Current temperature and current humidity indicate the estimated values. The values may be different from values indicated by other temperature gauge hygrometer.

• There is no function for adjusting the temperature.

• Humidity setting cannot be adjusted.

• Cannot dehumidify .

E-9

KC-F30J_EN.indd 9 2018/05/24 13:24:53

USEFUL FUNCTION

NOTE

How to clean when overly dirty

1. Add a small amount of kitchen detergent to water and soak for about 10 minutes.

• DO NOT apply excessive pressure when scrubbing the back panel.

2.Rinse off the kitchen detergent with clean water.

3.Completely dry the filter in a well-ventilated area.

Gently remove dust with an appropriate cleaning tool, such as a vacuum cleaner with the proper attachment.

1. Remove the Back Panel and remove the Sensor Filter.

2. Gently remove dust from the Sensor with an appropriate cleaning tool, such as a vacuum cleaner with the proper attachment.

3. If the Sensor Filter is overly dirty, wash it with water and dry it thoroughly.

BACK PANEL

SENSOR

CAUTION

CARE AND MAINTENANCE

The filter Indicator Light will turn on after approximately 720 hours. (30 days × 24 hours =720 hours)

FILTER INDICATOR

After performing maintenance, reset the Filter Indicator.

ENGLISH

Press more than 3 seconds.

This is a reminder to perform the maintenance described below. (Ref.E-11,E-12,E-13,E-14)

CARE INDEX

Filter Frame

Humidifying Tray

Humidifying Filter

Back Panel

Sensor

Unit

HEPA Filter

(Ref.E-12,E-13)

(Ref.E-14)

Deodorizing Filter

(Ref.E-14)

SENSOR

BACK PANEL

In case of using at the location where air pollution and odor are significant, maintain frequently even if Filter Indicator Light is not ON.

Back Panel

Sensor (internal)

Sensor Filter

Off TIMER

Select the length of time you want. The unit automatically stops once the selected time is reached.

NOTE

• Pressing displays the remaining time.

• To reset the operating time, press

Auto RESTART

If the unit is unplugged or if there is a power failure, the unit will resume operation with the previous settings after power is restored. The default setting is ON.

(with the unit OFF) (with the unit OFF)

1 hour 2 hours 4 hours 8 hours

while the remaining time is being displayed.

OFFON

CANCELLATION

Press both buttons at the same time for 3 seconds or more.

Lighting

If the indicators light up for 10 seconds, the setting is completed.

, and

KC-F30J_EN.indd 10 2018/05/24 13:24:56

E-10

CARE AND MAINTENANCE

ENGLISH

FILTER INDICATOR

The filter Indicator Light will turn

CARE INDEX

Sensor

Unit (Ref.E-14)

BACK PANEL

on after approximately 720 hours. (30 days × 24 hours =720 hours)

This is a reminder to perform the maintenance described below. (Ref.E-11,E-12,E-13,E-14)

In case of using at the location where air pollution and odor are significant, maintain frequently even if Filter Indicator Light is not ON.

HEPA Filter

(Ref.E-14)

Deodorizing Filter

Gently remove dust with an appropriate cleaning tool,

(Ref.E-14)

After performing maintenance, reset the Filter Indicator.

Back Panel

such as a vacuum cleaner with the proper attachment.

SENSOR

Press more than 3 seconds.

Humidifying Filter

Filter Frame

Humidifying Tray

(Ref.E-12,E-13)

Back Panel

SENSOR

Sensor Filter

Sensor (internal)

NOTE

How to clean when overly dirty

BACK PANEL

1. Add a small amount of kitchen detergent to water and soak for about 10 minutes.

CAUTION

• DO NOT apply excessive pressure when scrubbing the back panel.

2.Rinse off the kitchen detergent with clean water.

3.Completely dry the filter in a well-ventilated area.

1. Remove the Back Panel and remove the Sensor Filter.

2. Gently remove dust from the Sensor with an appropriate cleaning tool, such as a vacuum cleaner with the proper attachment.

3. If the Sensor Filter is overly dirty, wash it with water and dry it thoroughly.

E-11

KC-F30J_EN.indd 11 2018/05/24 13:24:57

CARE AND MAINTENANCE

Always be sure to remove the power plug from the wall outlet.

ENGLISH

NOTE

How to clean the Humidifying Tray and the Filter Frame when overly dirty

1. • Remove the Filter Frame from the Humidifying Tray and fill it with water until the “FULL” indicator.

• Put the Filter Frame in water.

2. Add a small amount of kitchen detergent to the water.

3. Soak for 30 minutes.

4. Rinse off the kitchen detergent with clean water.

• Clean any hard-to-reach parts which with a cotton swab or toothbrush.

NOTE

Soak in water with a descaling solution for about 30 minutes.

Recommended descaling solutions

• Citric acid (available at some drugstores)

• 100% bottled lemon juice with no pulp.

2 of water

3 cups of water

How to remove the water scale

stir well!

⁄

² cups

NOTE

1. • Remove the Filter Frame from the Humidifying Tray and fill it with water until the “FULL” indicator.

• Put the Filter Frame in water.

2. Add a small amount of kitchen detergent to the water.

3. Soak for 30 minutes.

4. Rinse off the kitchen detergent with clean water.

• Clean any hard-to-reach parts which with a cotton swab or toothbrush.

How to clean the Humidifying Tray and the Filter Frame when overly dirty

stir well!

3 teaspoons

⁄

⁴ cup

Soak in water with a descaling solution for about 30 minutes.

CAUTION

• When using lemon juice as your descaling solution, allow to soak for longer.

Rinse off the descaling solution with plenty of water.

After maintenance, correctly reattach the parts.

Install

Hook latches of cover (3 positions).

Align the directions.

Install the Humidifying Filter by fitting the grooves at left and right side to the guides on the Humidifying Tray.

Return the Tray Handle to its original position.

E-13

Right side

Groove

Guide

Also in the same left side.

Lift the Tray Handle.

Return it to its original position.

KC-F30J_EN.indd 13 2018/05/24 13:25:00

CARE AND MAINTENANCE

ENGLISH

•HEPA Filter About 2 years after first use

•Deodorizing Filter About 2 years after first use

•Humidifying Filter About 5 years after first use

Replacement Filter Model

Consult your dealer when purchasing a replacement filter.

AIR PURIFIER MODEL

REPLACEMENT FILTER MODEL

HEPA Filter :

1 unit

Deodorizing Filter : 1 unit

Humidifying Filter : 1 unit

KC-F30J

LIFE OF FILTERS

FILTER REPLACEMENT

NOTE

HEPA Filter

Deodorizing Filter

Use the date label to remind you when to replace the filter. There is the date label on the left side of the unit.

Disposing of filters

Filter life varies depending on the room environment, usage conditions, and location of the unit. Lifespan of HEPA filter and Deodorizing filter and replacement suggestions are based on purifying a room in which 5 cigarettes are smoked per day and the unit's dust collection and deodorizing performance has declined to half the level of a new filter.

Dispose of used filters according to local laws and regulations. HEPA Filter material :

• Filter : Polypropylene

• Frame : Polyester Deodorizing Filter material :

• Filter : Activated charcoal, Polyrthylene terephthalate, Polypropylene

• Frame : Paper Humidifying Filter material :

• Filter : Rayon, Polyester

FZ-F30MFE

FZ-F30HFE

FZ-F30DFE

We recommend replacing the filter more frequently if the unit is used in conditions significantly more severe (HAZE etc.,) than a normal household.

Humidifying Filter

Do not throw away the Filter Frame (gray)

Always be sure to remove the power plug from the wall outlet.

CARE AND MAINTENANCE

UNIT

CLEAN I ON SHOWER

Wipe with a dry, soft cloth.

CAUTION

CLEANING FILTERS

•

Do not use volatile fluids. Benzene paint thinner or polishing powder can damage the surface. Do not use detergents.

• Detergent ingredients can damage the unit.

Gently remove dust with an appropriate cleaning tool, such as a vacuum cleaner with the proper attachment. In case of using at the location where air pollution and odor are significant, maintain frequently even if Filter Indicator Light is not ON.

DEODORIZING FILTER HEPA FILTER

• Both surfaces can be maintained.

Tag

• Maintain only the tagged surface. Do not clean up the opposite surface.

Some odors absorbed by the filters will break down over time, causing additional odors. Depending on usage conditions, and especially if the product is used in environments significantly more severe than a normal household, these odors may become noticeable sooner than expected. Replace the filter in those cases or if dust is unable to be removed after maintenance.

• CAUTION Do not wash the filters. Do not expose to the sun.

E-14

KC-F30J_EN.indd 14 2018/05/24 13:25:02

ENGLISH

FILTER REPLACEMENT

Always be sure to remove the power plug from the wall outlet.

LIFE OF FILTERS

We recommend replacing the filter more frequently if the unit is used in conditions significantly more severe (HAZE etc.,) than a normal household.

•HEPA Filter About 2 years after first use

•Deodorizing Filter About 2 years after first use

•Humidifying Filter About 5 years after first use

Replacement Filter Model

Consult your dealer when purchasing a replacement filter.

AIR PURIFIER MODEL

KC-F30J

NOTE

REPLACEMENT FILTER MODEL

HEPA Filter :

1 unit

FZ-F30HFE

Deodorizing Filter : 1 unit

FZ-F30DFE

Humidifying Filter

Humidifying Filter : 1 unit

FZ-F30MFE

Use the date label to remind you when to replace the filter. There is the date label on the left side of the unit.

Disposing of filters

Dispose of used filters according to local laws and regulations. HEPA Filter material :

• Filter : Polypropylene

• Frame : Polyester Deodorizing Filter material :

• Filter : Activated charcoal, Polyrthylene terephthalate, Polypropylene

• Frame : Paper Humidifying Filter material :

• Filter : Rayon, Polyester

Do not throw away the Filter Frame (gray)

HEPA Filter

Deodorizing Filter

E-15

KC-F30J_EN.indd 15 2018/05/24 13:25:02

TROUBLESHOOTING

Power supply

Fan Speed Adjustment MAX MED SLEEP

CLEAN AIR

CLEAN AIR &HUMIDIFY

Recommended Room Size (m

High density Plasmacluster ion recommended room size (m

Humidifying Tray Capacity (L)

Sensors Dust / Temperature & Humidity

Filter type

Cord Length (m) 2.0

Dimensions (mm) 380 (W) × 197 (D) × 570 (H)

Weight (kg) 7.2

TROUBLESHOOTING

Before calling for service, review the troubleshooting chart below to make sure that the problem is not a unit malfunction.

SYMPTOM REMEDY

Odor and smoke persists.

The Dust Sign light is green even when the air is not clean.

The Dust Sign light is orange or red even when the air is clean.

The unit makes a clicking or ticking sound.

Air discharged from the unit has an odor.

The unit does not operate when cigarette smoke is in the air.

The Filter Indicator Light is on.

The Dust Sign lights are turned off.

• Check the filters. If they appear to be extremely dirty, clean or replace them. (Ref. E-11,E-12,E-13,E-14,E-15)

• The air may have been dirty when the unit was plugged in. Unplug the unit, wait one minute, and then plug the unit in again.

• Dirty or clogged dust sensor openings interfere with sensor operation. Gently clean the back panel. (Ref. E-11).

• The unit may make clicking or ticking sounds when it is generating ions.

• Check to see if the filters are extremely dirty.

• Clean or replace the filters.

• Plasmacluster Air Purifiers emit small traces of ozone that can produce an odor.

• Check to see if the unit is installed in a location that makes it difficult for the sensors to detect cigarette smoke.

• Check to see if the dust sensor openings are blocked or clogged. If they are blocked or clogged, clean the back panel. (Ref. E-11)

• Whenever replacing the filters, connect the power cord to an outlet and then press the Filter Reset Button.　

• Check to see if the Lights OFF Mode is selected. If it is selected, press the Light ON/OFF Button to turn the indicator lights on. (Ref. E-9) ・Check to see if the SLEEP mode is selected. (Ref. E-8)

(the following are not due to a malfunction)

The Humidify Light does not light off when the Humidifying Tray is empty.

The water level in the Humidifying Tray does not decrease or decreases slowly.

The Dust Sign lights change color frequently.

There is a discrepancy between the unit’s Humidity Monitor and another hygrometer in the room.

ERROR DISPLAY

DIGITAL INDICATION

Fan motor error.

Temperature-humidity sensor error.

If the error continues to occur, contact a Sharp Service Center.

ERROR DETAILS REMEDY

• Clean the Humidifying Tray. Make sure that the unit is on a level surface.

• Check to see if the Humidifying Tray is correctly installed. Check the Humidifying Filter.

• If the Humidifying Filter is extremely dirty, clean or replace it. (Ref. E-12, E-13, E-15).

• Humidification amount gets lower when humidity reaches to the proper amount (55 ~ 65%) by the actuation of humidity sensor in the case of fan speed automatic.

• The Dust Sign lights automatically change color when the dust sensor detect impurities.

• There is a difference in the humidity level within the same room.

• The sensor have different measurement parameters.

• If the monitor indicates TEMPERATURE, press the Display Select Button. (Ref. E-9)

Unplug the unit, wait one minute, then plug he unit in again.

E-16

KC-F30J_EN.indd 16 2018/05/24 13:25:03

SPECIFICATIONS

Power supply

Fan Speed Adjustment MAX MED SLEEP

Fan Speed (m

CLEAN AIR

CLEAN AIR &HUMIDIFY

Recommended Room Size (m

High density Plasmacluster ion recommended room size (m

Humidifying Tray Capacity (L)

Sensors Dust / Temperature & Humidity

Filter type

Cord Length (m) 2.0

Dimensions (mm) 380 (W) × 197 (D) × 570 (H)

Weight (kg) 7.2

Rated Power (W)

Noise Level (dBA)

Fan Speed (m

Rated Power (W)

Noise Level (dBA)

Humidication (mL/hour)*1

Dust collection HEPA *4

Deodorization Deodorizing

/hour)

)*2

180 125 52

27 12 4.1

48 38 21

180 125 52

27 12 4.1

48 38 21

350 280 140

)*3

220-240V 50-60Hz

~21

~17

1.8

*1 • The amount of humidication changes in accordance with indoor and outdoor temperature and

humidity.

The amount of humidication increases as temperatures rises or humidity decreases. The amount of humidication decreases as temperatures decrease or humidity rises.

• Measurement Conditions : 20 ºC, 30 % humidity (JEM1426)

*2 • The recommended room size is appropriate for operating the unit of maximum fan speed.

• The recommended room size is an area in which a given amount of dust particles can be removed in 30 minutes.

*3 • Room size in which approximately 7000 ions per cubic centimeter can be measured in the center of

the room when the unit is placed next to a wall, is running at maximum settings, and is at a height

of approximately 1.2 meters from the oor.

*4 • The lter removes more than 99.97% of particles at least 0.3-microns in size. (JEM1467)

Standby Power

When the unit’s power plug is inserted in a wall outlet it consumes about 0.9 watts of standby power in order to

operate electrical circuits. To conserve energy, unplug the power cord when the unit is not in use.

Information on Disposal

This product should not be disposed of in a general waste bin as it contains materials that should be recycled, which is good for the environment. If you are in doubt about the correct disposal method, contact your local counsil.

E-17

KC-F30J_EN.indd 17 2018/05/24 13:25:03

FOR CUSTOMER ASSISTANCE

WARRANTY

Consumer Electronic Products

Congratulations on Your Purchase!

This Sharp product is warranted against faults in material and manufacture for the period as stated in the table below.

If service is required during the warranty period, please contact your nearest Sharp Approved Service Centre. These repairs would be carried out at no charge to the owner, subject to the conditions specified herein.

This warranty does not extend to defects or injuries caused by or resulting from causes not attributable to faulty parts or the manufacture of the product, including but not limited to, defect or injury caused by or resulting from misuse, abuse, neglect, lack of maintenance, accidental damage, improper voltage, liquid spillage, vermin infestation, software, or any alterations made to the product which are not authorised by Sharp.

Please retain your sales documentation, as this should be produced to validate a warranty claim. This warranty is in addition to and in no way limits, varies or excludes any implied rights and remedies under any relevant legislation in the country of sale.

This warranty does not cover transportation to and from the Sharp Approved Service Centre. Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods. The repair of your goods may result in the loss of user generated data, please ensure that you have saved this data elsewhere prior to repair.

Australian customers: Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The criteria of a major failure is defined in the Australian Consumer Law. Should you require any assistance with a major failure please

contact Sharp Customer Care.

WARRANTY PERIODS Home Theatre Projector 12 months Audio/Home Theatre 12 months Microwave / Steam Oven 12 months Slow Juicer 12 months Refrigerator 24 months DVD/Blu-ray 12 months Washing Machine 24 months Ultrasonic Washer 12 months LCD Television 12 months Air Purifier 12 months Coffee Machine 12 months

(excluding lamps and air filters)

SHARP CORPORATION OF

AUSTRALIA PTY. LIMITED

ABN 40 003 039 405

2 Julius Avenue

North Ryde NSW 2113

SHARP CORPORATION OF

NEW ZEALAND LIMITED

59 Hugo Johnston Drive

Penrose, Auckland

SPform 040 (NOV 2016)

IMPORTANT NOTICE: This warranty applies only to products sold in Australia & New Zealand

E-18

KC-F30J_EN.indd 18 2018/05/24 13:25:03

FOR LOCATION ENQUIRIES WITHIN

AUSTRALIA

REGARDING YOUR LOCAL

SHARP APPROVED SERVICE CENTRE

VISIT OUR WEBSITE AT

www.sharp.net.au

OR CALL SHARP

LOCAL CALL

SHARP CORPORATION OF AUSTRALIA PTY LTD

1 300 135 022

FOR PRODUCTS PURCHASED

NEW ZEALAND

CONTACT YOUR SELLING DEALER/RETAILER

OR CALL

SHARP CUSTOMER SERVICES

TELEPHONE: 09 573 0111

FACSIMILE: 09 573 0113 WEB: www.sharpnz.co.nz

SHARP CORPORATION OF NEW ZEALAND LIMITED

SPform019(NOV 2016)

E-19

KC-F30J_EN.indd 19 2018/05/24 13:25:04

SHARP CORPORATION OF AUSTRALIA PTY.LTD.

A. B. N. 40 003 039 405

2 JULIUS AVENUE, NORTH RYDE, N.S.W. 2113

P.O.BOX 84, MACQUARIE PARK. N.S.W 2113

SHARP CORPORATION OF NEW ZEALAND LIMITED

59 HUGO JOHNSTON DRIVE PENROSE, AUCKLAND

FACTORY USE ONLY

Printed in China

TINS-A000KKRZ

18J

KC-F30J_EN.indd 20 2018/05/24 13:25:04

Sharp KC-F30J User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
