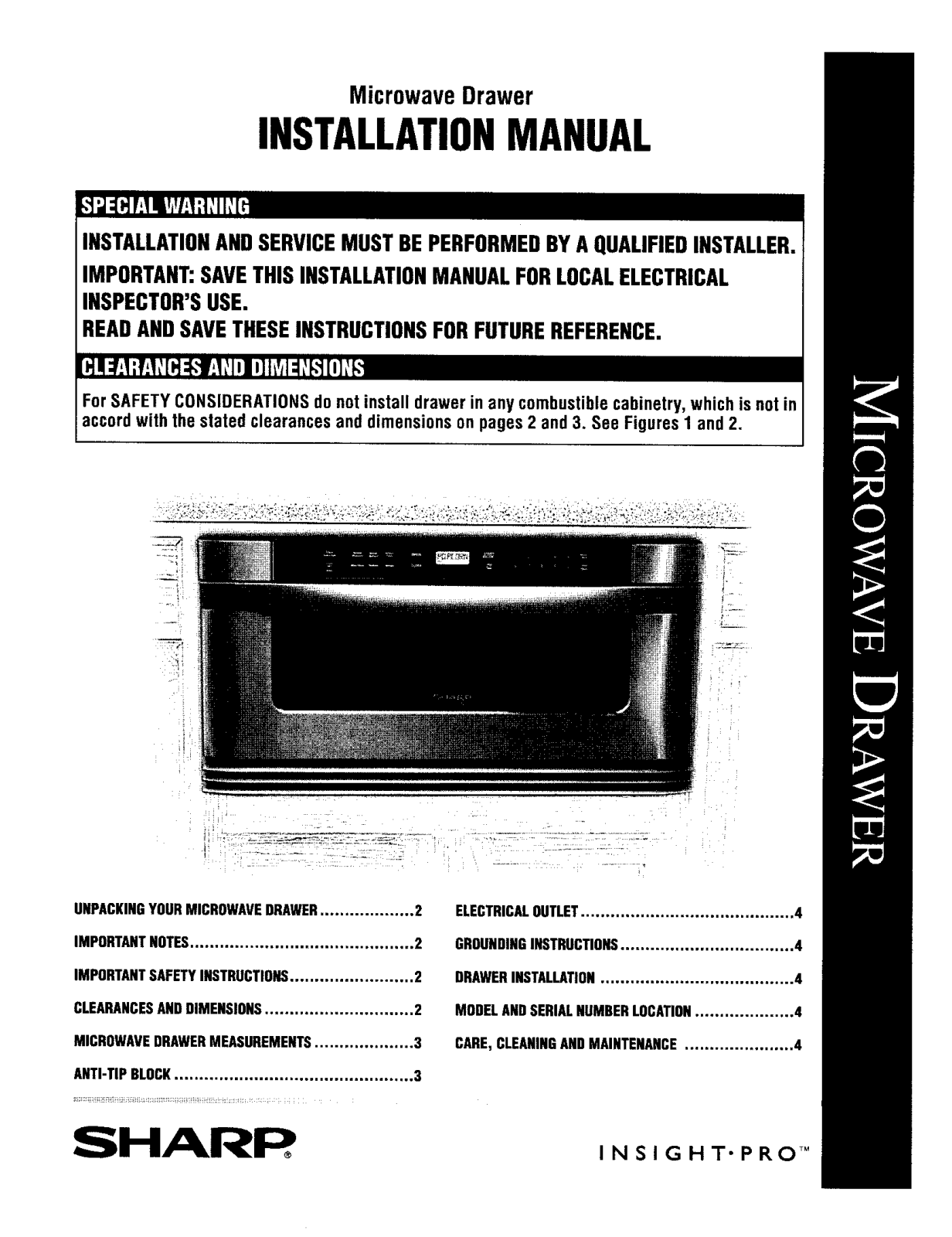

MicrowaveDrawer
INSTALLATIONMANUAL
INSTALLATIONANDSERVICEMUSTBEPERFORMEDBYA QUALIFIEDINSTALLER.
IMPORTANT:SAVETHISINSTALLATIONMANUALFORLOCALELECTRICAL
INSPECTOR'SUSE.
READANDSAVETHESEINSTRUCTIONSFORFUTUREREFERENCE.
ForSAFETYCONSIDERATIONSdonotinstall drawer in any combustiblecabinetry, which isnot in
accordwith the stated clearances and dimensionson pages2 and 3. See Figures 1 and 2.
UNPACKINGYOURMICROWAVEDRAWER................... 2
IMPORTANTNOTES............................................. 2
IMPORTANTSAFETYINSTRUCTIONS......................... 2
CLEARANCESANDDIMENSIONS.............................. 2
MICROWAVEDRAWERMEASUREMENTS.................... 3
ANTI-TIPBLOCK................................................ 3

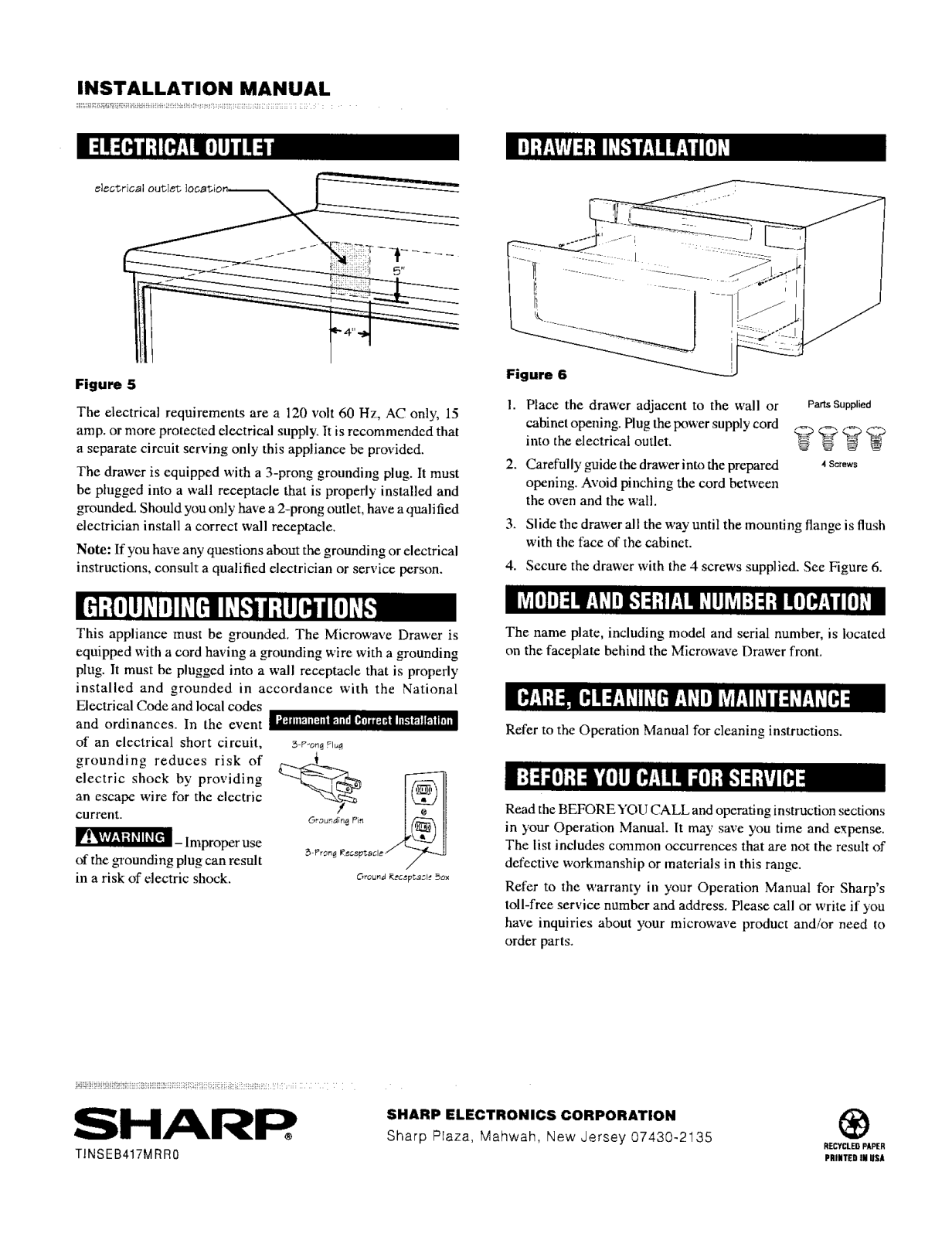

ELECTRICALOUTLET........................................... 4
GROUNDINGINSTRUCTIONS................................... 4
DRAWERINSTALLATION....................................... 4
MODELANDSERIALNUMBERLOCATION.................... 4
CARE,CLEANINGANDMAINTENANCE...................... 4
SHARP INSIGHT.PROTM
INSTALLATION MANUAL

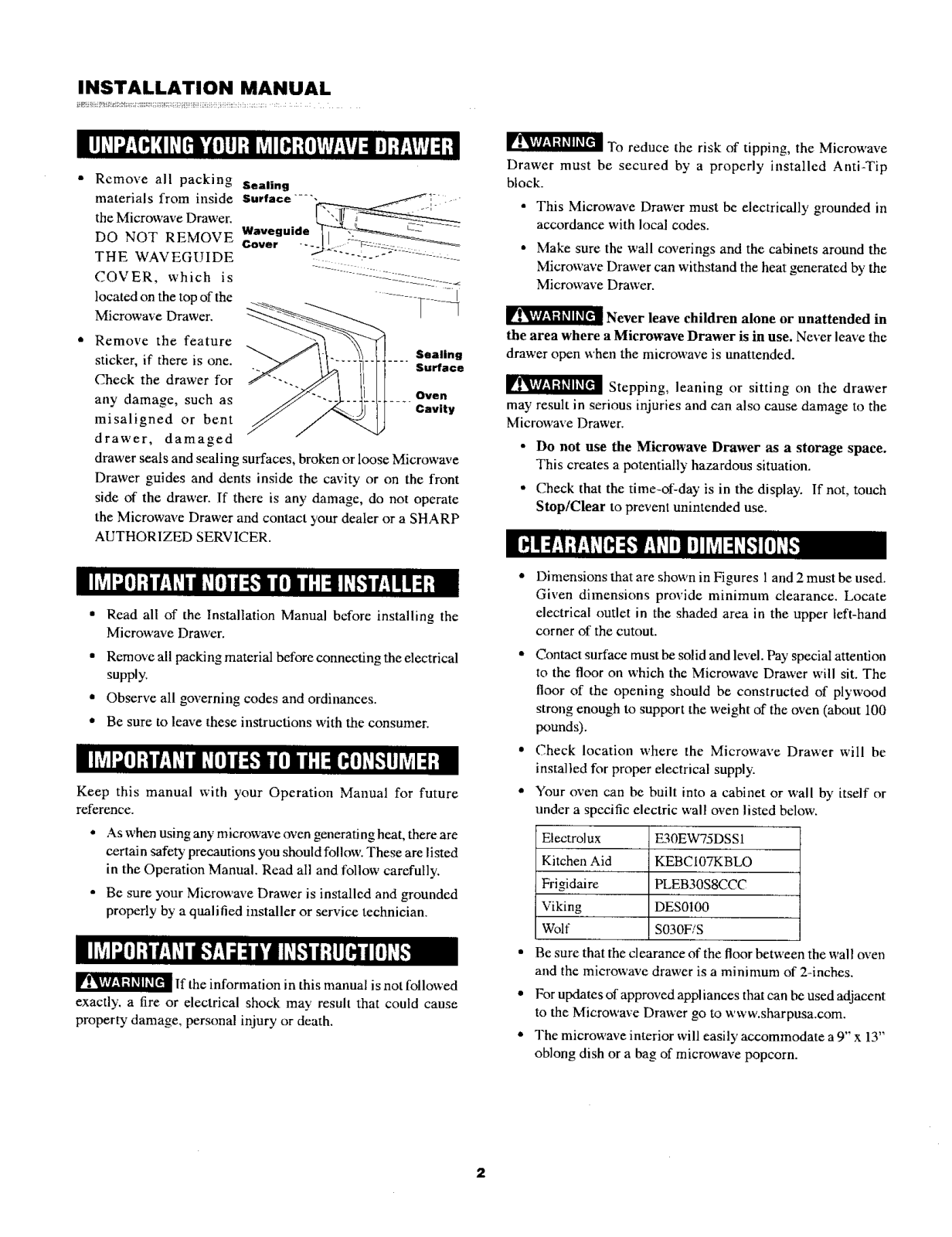

• Remove all packing Sealing
materials from inside
the Microwave Drawer.
DO NOT REMOVE
THE WAVEGUIDE
COVER, which is
located on the top of the
Microwave Drawer.
• Remove the feature
sticker, if there is one. _ Sealing
Check the drawer for
any damage, such as
misaligned or bent
drawer, damaged
drawer seals and sealing surfaces, broken or loose Microwave
Drawer guides and dents inside the cavity or on the front
side of the drawer. If there is any damage, do not operate
the Microwave Drawer and contact 3our dealer or a SHARP
AUTHORIZED SERVICER.
Surface
Oven
Cavity
_To reduce the risk of tipping, the Microwave
Drawer must be secured by a properly installed Anti-Tip
block.
• This Microwave Drawer must be electrically grounded in
accordance with local codes.
• Make sure the wall coverings and the cabinets around the
Microwave Drawer can withstand the heat generated by the
Microwave Drawer.
Never leave children alone or unattended in
the area where a Microwave Drawer is in use. Never leave the
drawer open when the microwave is unattended.
_ Stepping, leaning or sitting on the drawer
may result in serious injuries and can also cause damage to the
Microwave Drawer.
• Do not use the Microwave Drawer as a storage space.
This creates a potentially hazardous situation.
• Check that the time-ol2day is in the display. If not, touch
Stop/Clear to prevent unintended use.
• Read all of the Installation Manual before installing the
Microwave Drawer.
• Remove all packing material before connecting the electrical
supply.
• Observe all governing codes and ordinances.
• Be sure to leave these instructions with the consumer.
Keep this manual with your Operation Manual for future
reference.
• As when using any microwave oven generating heat, there are
certain safety precautions you should follow. These are listed
in the Operation Manual. Read all and tollow carefully.
• Be sure your Microwave Drawer is installed and grounded
properly by a qualified iustaller or service technician.
I_'_'_]_ If the information in this manual is not followed
exactly, a fire or electrical shock may result that could cause
property damage, personal injury or death.

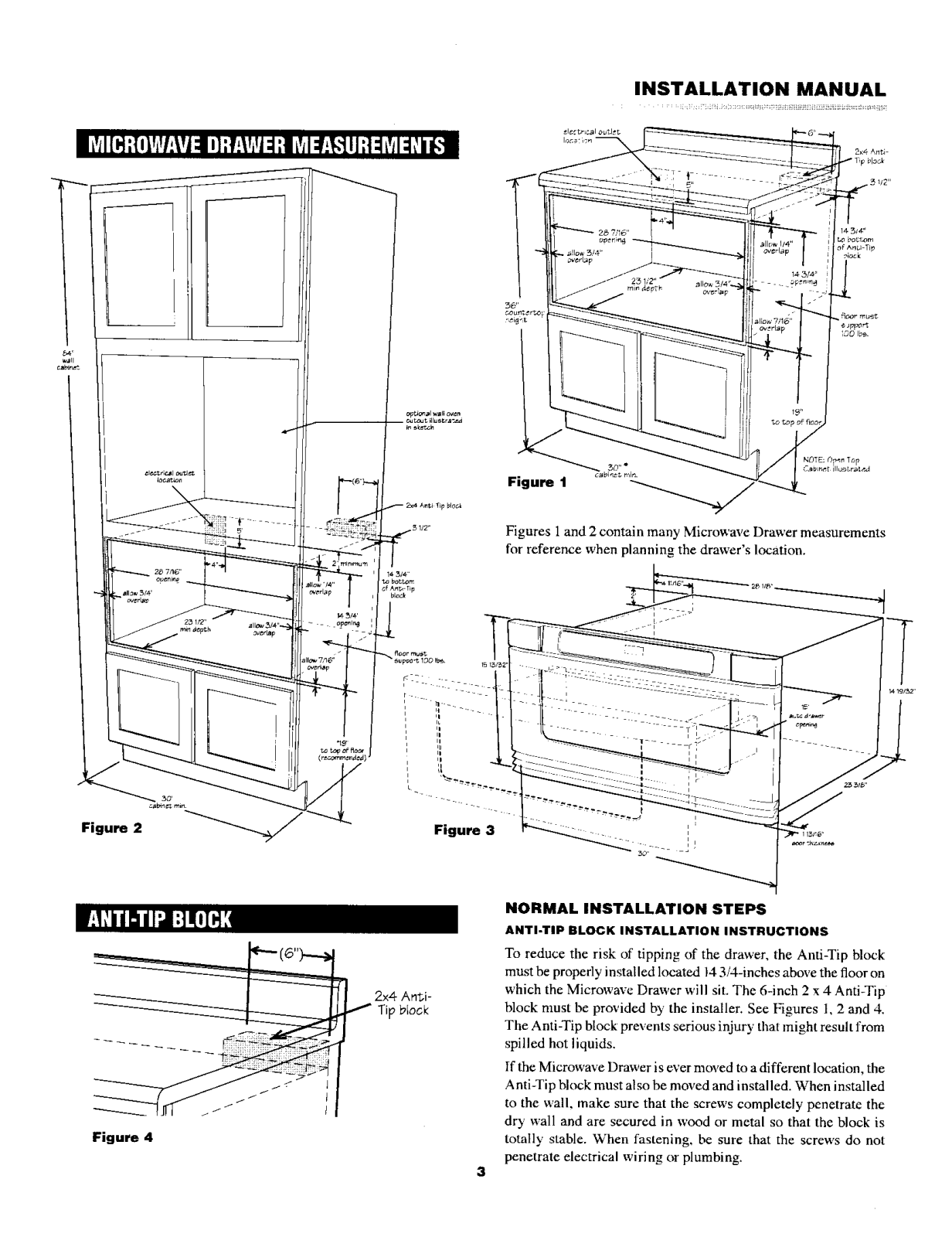

Dimensions that are shown in Figures 1and 2 must be used.
Given dimensions provide minimum clearance. Locate
electrical _mtlet in the shaded area in the upper left-hand
corner of the cutout.
Contact surface must be solid and level. Pay special attention
to the floor on which the Microwave Drawer will sit. The
floor of the opening should be constructed of plywood
strong enough to support the weight of the oven (about 100
pounds).
Check location where the Microwave Drawer will be
installed for proper electrical supply.
Your oven can be built into a cabinet or wall by itself or
under a specific electric wall oven listed below.
Electrolux E3flEW75DSSI
Kitchen Aid KEBCI07KBLO
Frigidaire PLEB3flsgccc
Viking DES0100
Wolf S030F/S
Be sure that the clearance of the floor between the wall oven
and the microwave drawer is a mininmm of 2-inches.
For updates of approved appliances that can be used adjacent
to the Microwave Drawer go to www.sharpusa.com.
The microwave interior will easily accommodate a 9" x 13"
oNong dish or a bag of microwave popcorn.
