Sharp KB-5121KS User Manual

OPERATION MANUAL

Followed by indicating color: K = black, W = white, S = stainless steel

ELECTRIC COOKTOP+MICROWAVE DRAWER

MODEL

KB-5121K

CONTENTS ......................................................... 2

CUSTOMER ASSISTANCE ......................................... 3

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE

TO EXCESSIVE MICROWAVE ENERGY .................... 3

CONSUMER LIMITED WARRANTY ............................... 4

IMPORTANT SAFETY INSTRUCTIONS ......................... 5-7

UNPACKING AND EXAMINING YOUR

COOKTOP+MICROWAVE DRAWER ......................... 7

PARTS NAME ....................................................8-9

INTRODUCTION TO TOUCHSCREEN .............................10

BEFORE OPERATING .........................................10-11

COOKTOP USE ...............................................12-13

MICROWAVE DRAWER™ COOKING ..........................14-26

OTHER FEATURES ............................................ 27-28

CLEANING AND CARE ........................................29-30

BEFORE YOU CALL FOR SERVICE .............................. 31

AUTO-TOUCH GUIDE ................................ BACK COVER

™

CONTENTS

CONTENTS .......................................................... 2

CUSTOMER ASSISTANCE ......................................... 3

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE

TO EXCESSIVE MICROWAVE ENERGY ......................... 3

CONSUMER LIMITED WARRANTY ............................... 4

PRODUCT INFORMATION CARD .................................. 4

IMPORTANT SAFETY INSTRUCTIONS ..........................5-7

IMPORTANT SAFETY NOTICE AND WARNING ....................... 5

SAFETY PRECAUTIONS ............................................................... 5

RADIANT SURFACE UNITS ....................................................... 5-6

MICROWAVE DRAWER™ ..........................................................6-7

UNPACKING AND EXAMINING YOUR

COOKTOP+MICROWAVE DRAWER ............................. 7

PARTS NAME..... ................................................ 8-9

ELECTRIC COOKTOP+MICROWAVE DRAWER ........................ 8

GLASS CERAMIC COOKTOP, CONTROL PANEL

AND KEYSHEET ........................................................................ 9

INTRODUCTION TO TOUCHSCREEN .............................10

BEFORE OPERATING ..........................................10-11

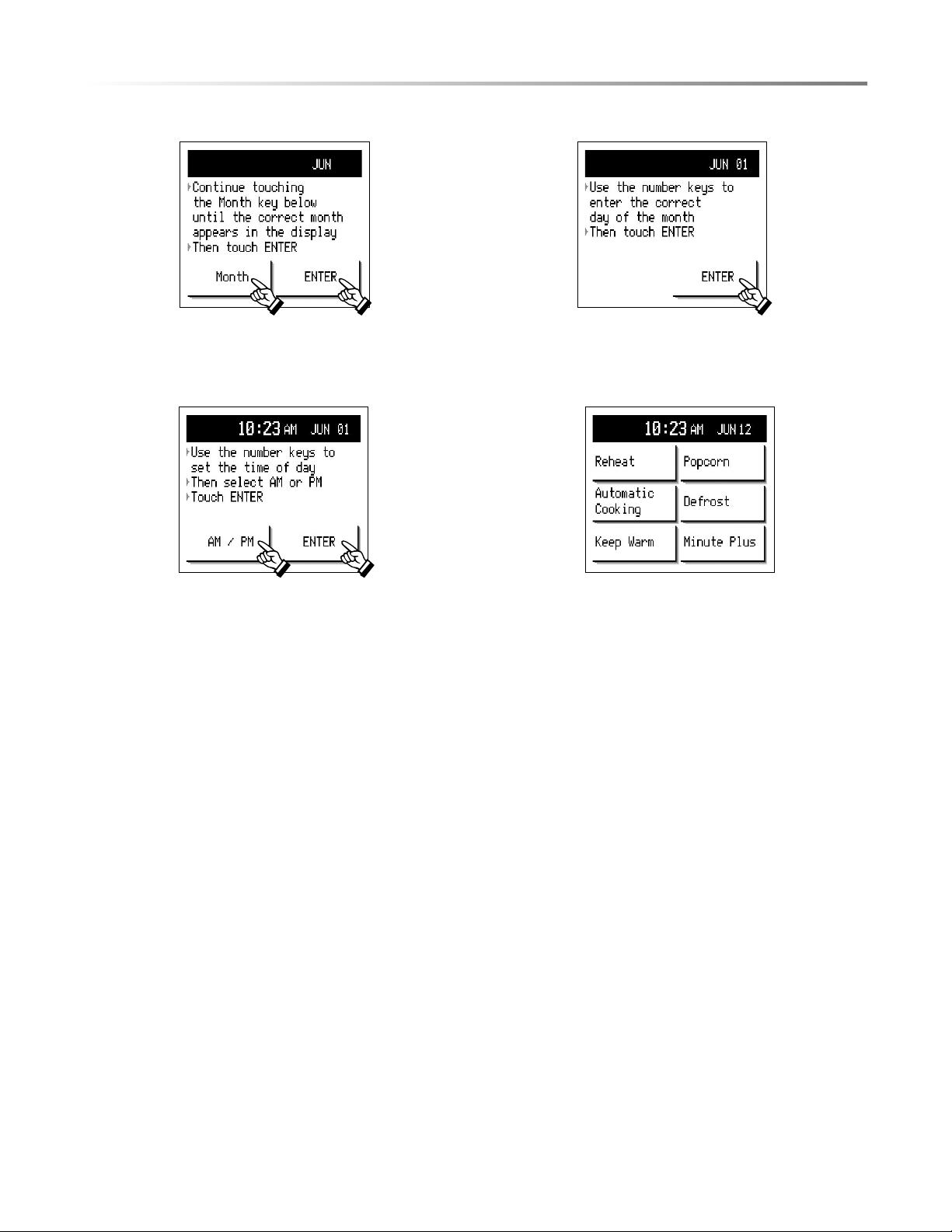

TO SET DATE AND TIME ............................................................ 11

STOP/CLEAR ................................................................................. 11

OPEN OR CLOSE MICROWAVE DRAWER ............................... 11

MICROWAVE DRAWER COOKING ............................ 14-26

INFORMATION YOU NEED TO KNOW ................................ 14-15

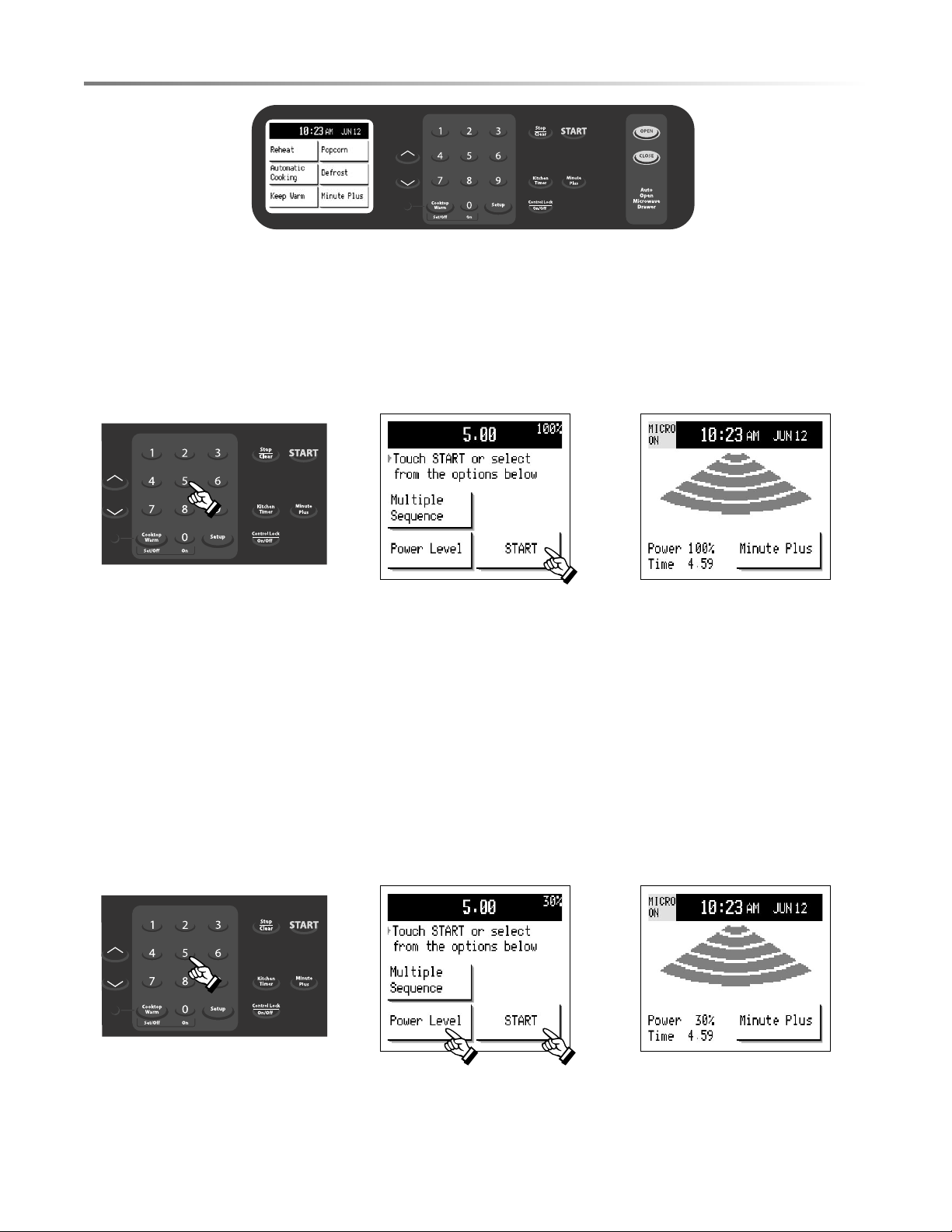

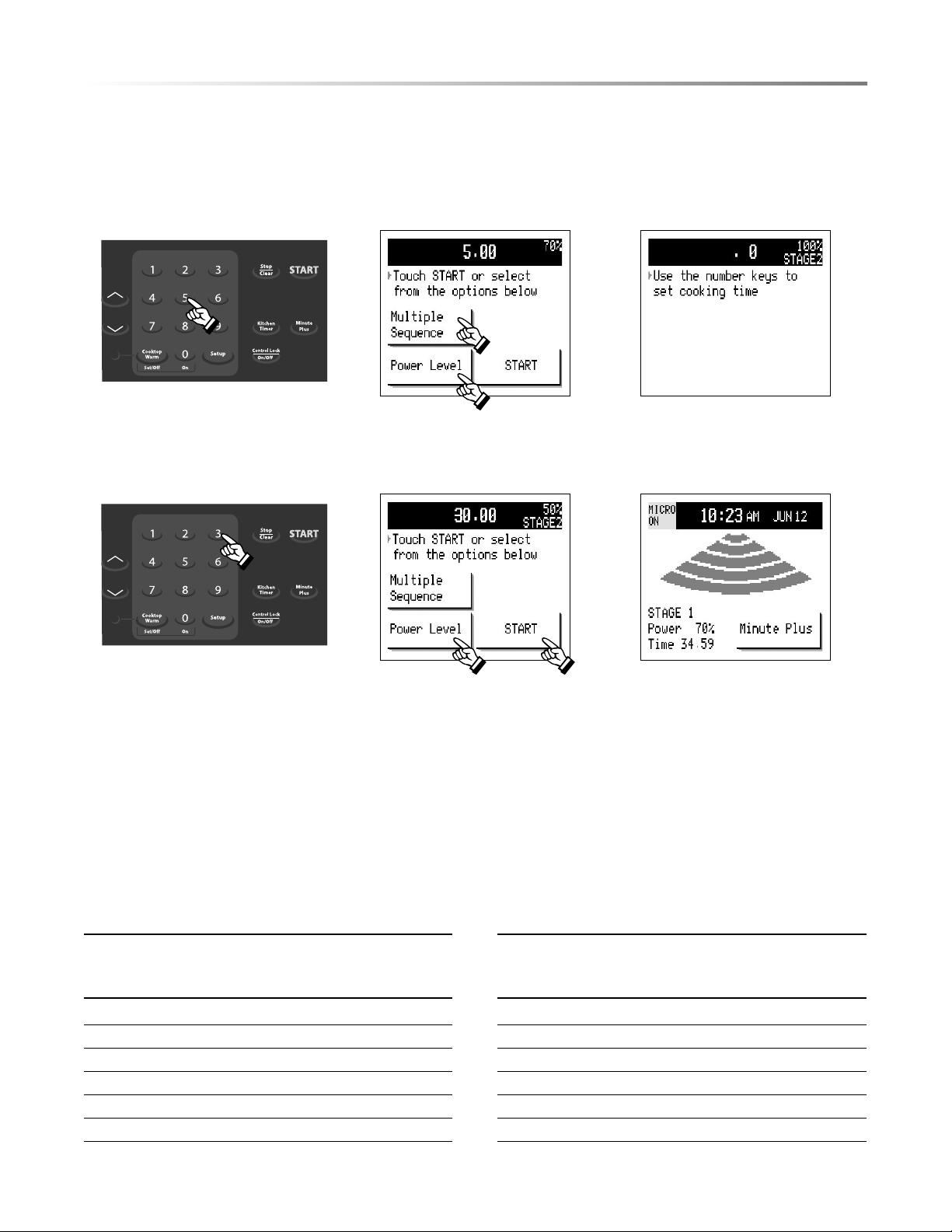

MANUAL OPERATION ................................................................ 16

TIME COOKING .................................................................... 16

TO SET POWER LEVEL ..................................................16-17

SENSOR SETTINGS .................................................................18-23

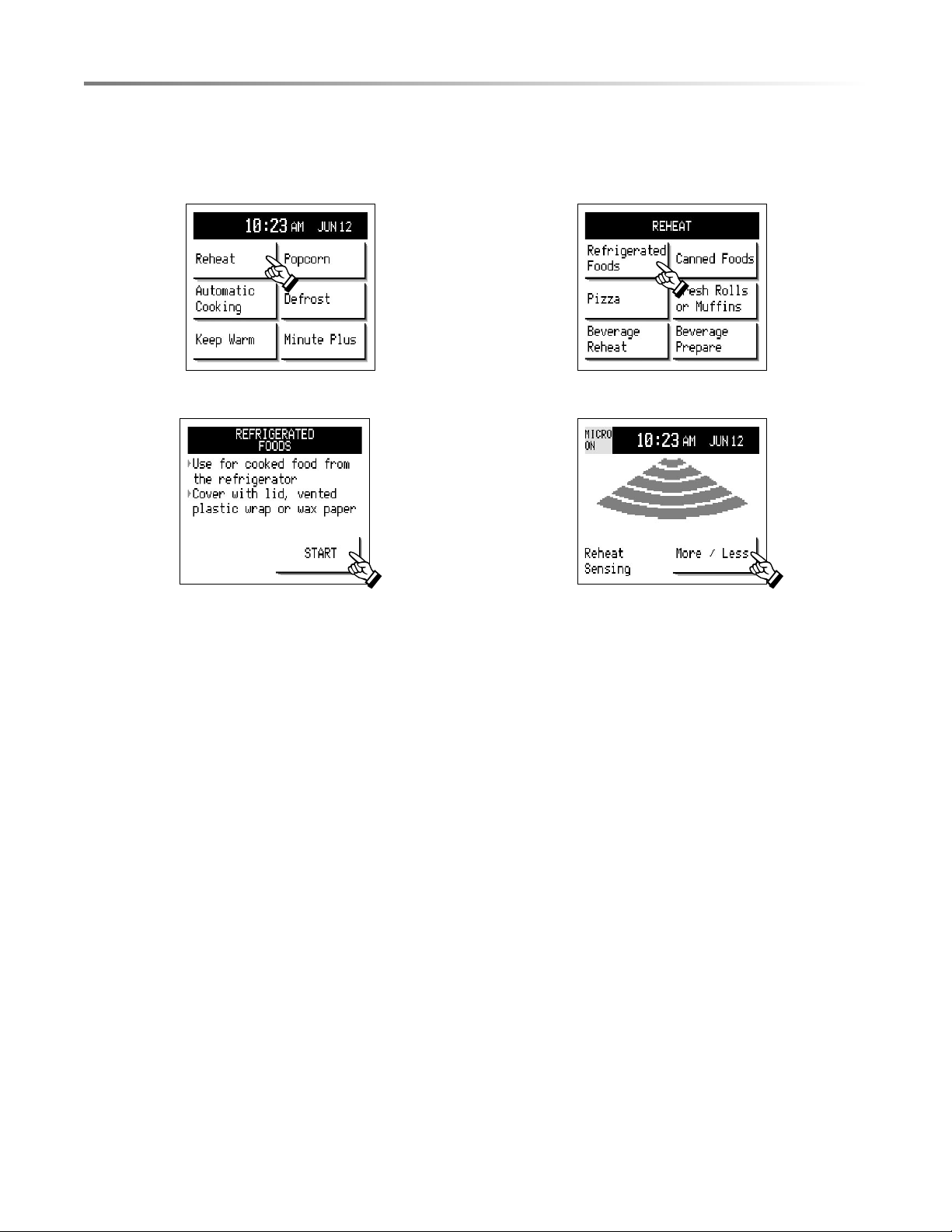

REHEAT ............................................................................. 18-19

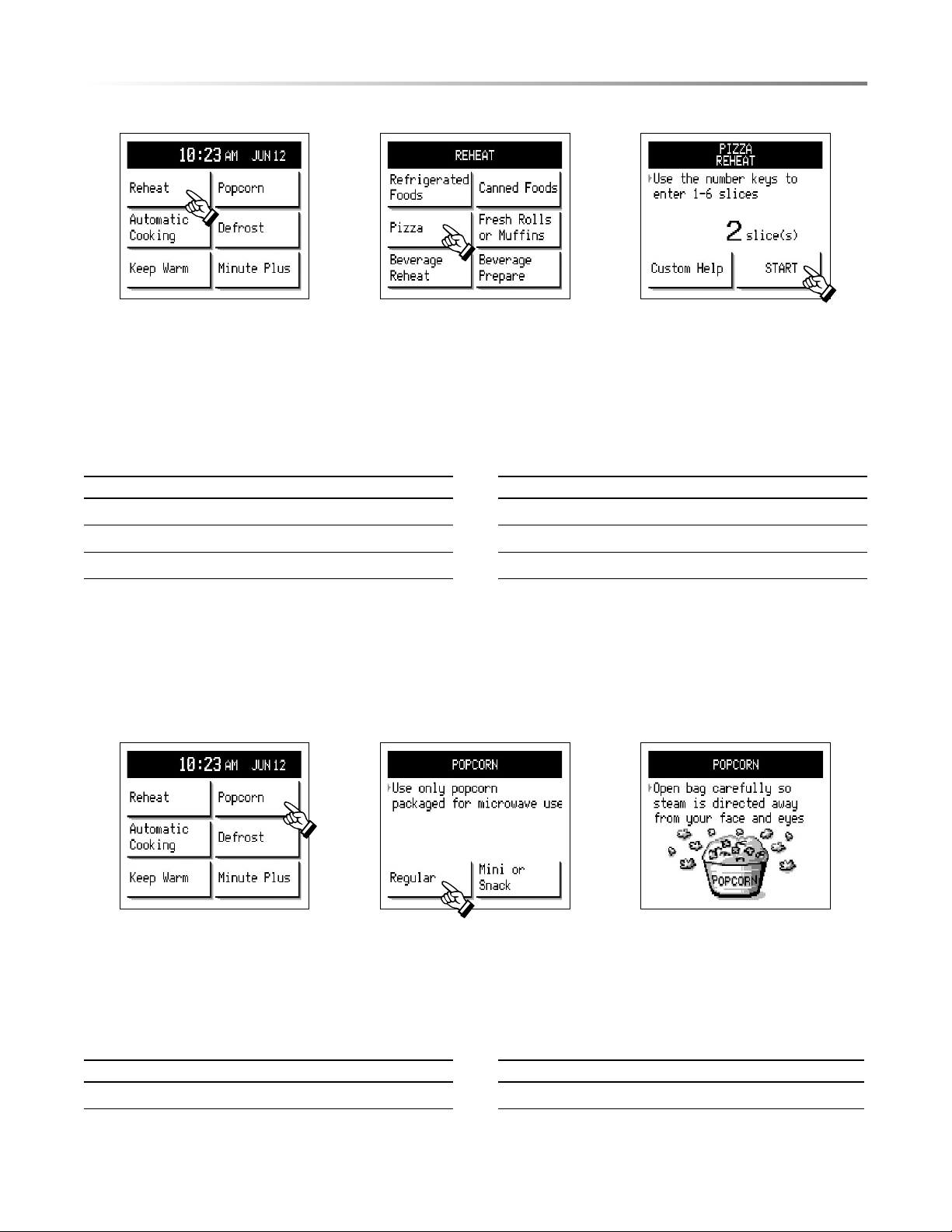

POPCORN .............................................................................. 19

AUTOMATIC COOKING .........................................................20-23

DEFROST ....................................................................................... 24

MANUAL DEFROST ..................................................................... 24

OTHER CONVENIENT FEATURES .......................................25-26

KEEP WARM .......................................................................... 25

MINUTE PLUS™ .................................................................... 25

CUSTOM HELP® ................................................................... 25

MORE / LESS TIME ADJUSTMENT ................................... 26

OTHER FEATURES ............................................27-28

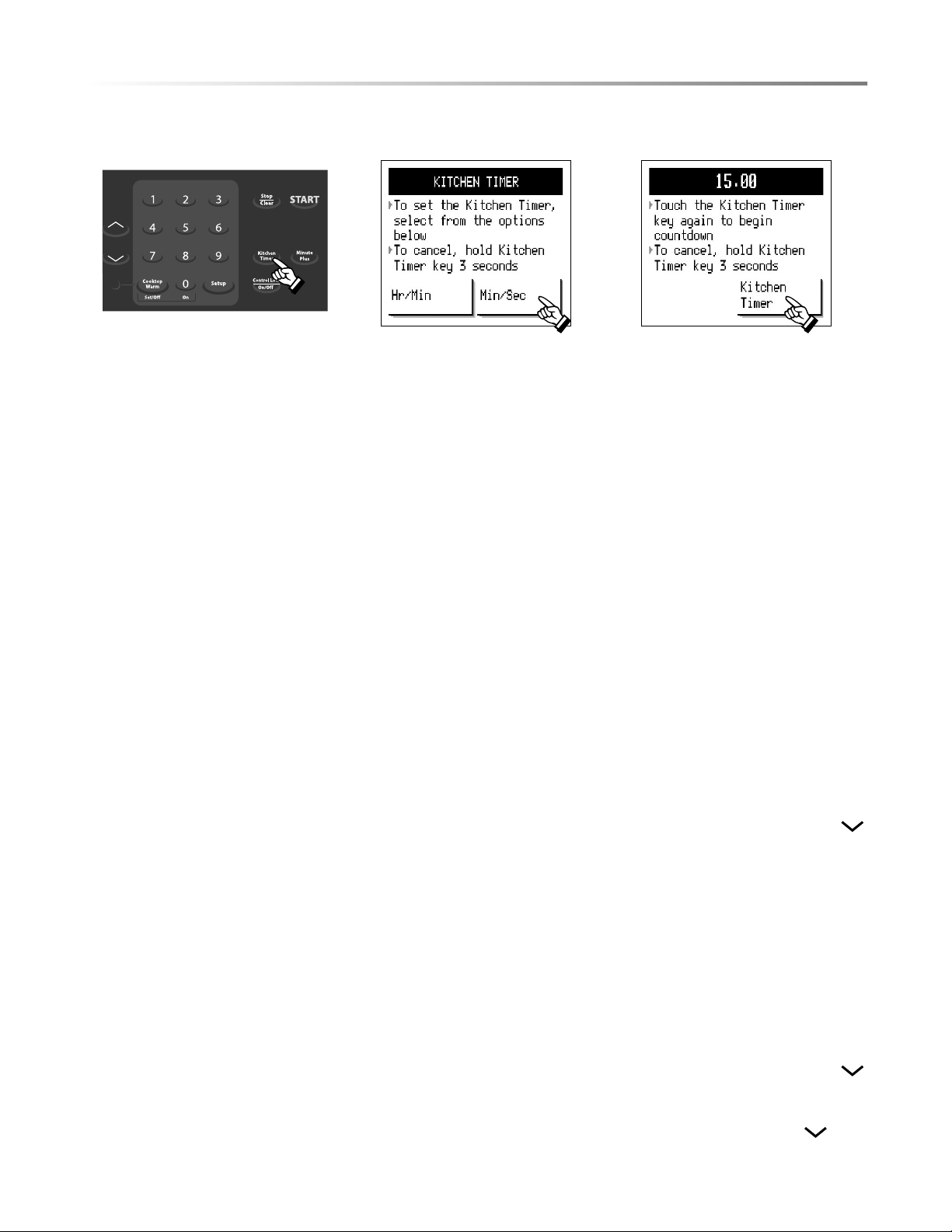

KITCHEN TIMER .......................................................................... 27

CONTROL LOCK .......................................................................... 27

SETUP ........................................................................................27-28

PAGE FORWARD AND BACKWARD .......................................... 28

CLEANING AND CARE ........................................ 29-30

NON-COOKTOP SURFACES ....................................................... 29

COOKTOP .................................................................................29-30

MICROWAVE DRAWER ............................................................... 30

BEFORE YOU CALL FOR SERVICE ............................... 31

COOKTOP USE ................................................. 12-13

INFORMATION YOU NEED TO KNOW ..................................... 12

RADIANT SURFACE UNITS ........................................................ 13

SUGGESTED HEAT SETTINGS ................................................... 13

COOKTOP WARM ZONE ............................................................. 13

AUTO-TOUCH GUIDE ............................... BACK COVER

CUSTOMER ASSISTANCE

To aid in reporting this electric Cooktop+Microwave Drawer, please record below the model number and serial number located on the unit. We also suggest you record all the information listed and retain for future reference.

MODEL NUMBER SERIAL NUMBER

DATE OF PURCHASE / /

DEALER TELEPHONE

SERVICER TELEPHONE

TO PHONE :

DIAL 1-800-BE-SHARP (237-4277) for:

SERVICE (for your nearest Sharp Authorized Servicer)

PARTS (for your authorized parts distributor)

ADDITIONAL CUSTOMER INFORMATION

TO WRITE:

Sharp Electronics Corporation

Customer Assistance Center

1300 Naperville Drive

Romeoville, IL 60446-1091

Please provide the following information when you write or call: model number, serial number, date of purchase, your complete mailing address (including zip code), your daytime telephone number (including area code) and description of the problem.

TO ACCESS INTERNET: www.sharpusa.com

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE

TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful

exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.

(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumu-

late on sealing surfaces.

that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces.

(d) The oven should not be adjusted or repaired by anyone except properly qualiﬁed service personnel.

These precautions apply to the Microwave Drawer only.

CONSUMER LIMITED WARRANTY

SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below.

This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to misuse, abnormal service or handling, or which has been altered or modified in design or construction.

In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer.

The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp.

The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incident or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

Your product model number & description

Warranty period for this product:

Additional item(s) excluded from warranty coverage (if any):

Where to obtain service: From a Sharp Authorized Servicer located in the United States. To find the location of the nearest

What to do to obtain service:

TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, CALL 1-800-BE-SHARP OR VISIT www.sharpusa.com. SAVE THE PROOF OF PURCHASE AS IT IS NEEDED SHOULD YOUR COOKTOP+MICROWAVE DRAWER EVER REQUIRE WARRANTY SERVICE.

KB-5121K Home Use Electric Cooktop+Microwave Drawer. (Be sure to have this information available when you need service for your Product.)

One (1) year parts and labor including in-home service. The warranty period continues for an additional four (4) years, for a total of five (5) years, with respect to the glass ceramic cooktop, radiant surface units and magnetron tube in the Product for parts only; labor and service are not provided free of charge for this additional period.

Non-functional accessories and light bulb.

Sharp Authorized Servicer, call Sharp toll free at 1-800-BE-SHARP (1-800-237-4277).

In-home service is provided for one year from date of purchase. In-home service can be arranged by calling 1-800-BE-SHARP. Be sure to have Proof of Purchase available.

PRODUCT INFORMATION CARD

The Product Information Card should be completed within ten days of purchase and returned. We will keep it on file and help you access the information if needed. This will also enable us to contact you in the unlikely event that any adjustments or modifications are ever required for your Cooktop+Microwave Drawer.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING

IMPORTANT SAFETY NOTICE AND WARNING

WARNING

risk of tipping of this appliance from abnormal usage by excessive loading of the Microwave Drawer, the appliance must be secured by installing the Anti-Tip device supplied. If it is not, there is a possible risk of the product tipping and causing injury if you or a child stand, sit or lean on the open drawer. Please refer to the Anti-Tip device information in the Installation Manual.

To check if the device is installed and engaged properly, open the Microwave Drawer fully and gently apply medium force in the center of the handle until movement of the appliance is detected. Continue pressing until the Anti-Tip bracket is engaged and movement stops. A small amount of movement is acceptable at the back of the appliance top, but it should be stable and not tip once the Anti-tip bracket is engaged. Stop pressing on the Microwave Drawer handle and close.

To check that the unit will not slide out, open the Microwave Drawer fully and then apply gentle outward pressure. The unit should not slide toward you. If it does, refer to the Installation Instructions.

ANTI-TIP DEVICE

To reduce the

SAFETY PRECAUTIONS

When using electrical appliances, basic safety precautions should be followed, including the following:

1 Use this appliance only for its intended purpose as

described in this manual.

2 Be sure your appliance is properly installed and

grounded by a qualified technician in accordance with the provided installation instructions.

3 Never use appliance for warming or heating the room. 4 Children should not be left alone or unattended in area

where appliance is in use. They should never be allowed to sit or stand on any part of the appliance.

5 Never wear loose-fitting or hanging garments while

using the appliance. Be careful when reaching for items stored over the Cooktop. Flammable material could be ignited if brought in contact with hot surface units and may cause severe burns.

6 Do not repair or replace any part of appliance unless

specifically recommended in this manual. All other servicing should be referred to a qualified technician.

7 Do not store flammable materials in the Microwave

Drawer or near surface units. Do not store or use combustible materials, gasoline or other flammable vapors and liquids in the vicinity of this appliance.

8 Do not use water on grease fires. Smother a flame or

use a dry chemical or foam-type extinguisher. Flaming grease outside a pan can be put out by covering it with

baking soda or, if available, by a multi-purpose dry chemical or foam-type fire extinguisher.

9 Use only dry potholders - a moist or damp potholder on

hot surfaces may result in burns from steam. Do not let potholders touch hot surfaces or radiant surface units. Do not use a towel or other bulky cloth.

CAUTION

in cabinets above a Cooktop+Microwave Drawer. Children climbing on the Cooktop+Microwave Drawer to reach items could be seriously injured.

11 Do not touch the surface units. These surfaces may be

hot even though they are dark in color. These surfaces may become hot enough to cause burns. During and after use, do not touch or let clothing or other flammable materials contact surface units until they have had sufficient time to cool. Other potentially hot surfaces include: cooktop and areas facing the cooktop.

12 Have the installer show you the location of the circuit

breaker or fuse. Mark it for easy reference.

13 Befor e performing any ser v ice, disconnect the

Cooktop+Microwave Drawer power supply at the household distribution panel by removing the fuse or switching off the circuit breaker.

14 Do not allow anyone to climb, stand or hang on

Microwave Drawer or cooktop. They could damage the Cooktop+Microwave Drawer and even tip it over, causing severe personal injury.

15 Teach children not to play with the controls or any other

part of the Cooktop+Microwave Drawer.

16 Always keep wooden and plastic utensils and canned

food a safe distance from your Cooktop+Microwave Drawer.

17 Always keep combustible wall coverings, curtains or

drapes a safe distance from your Cooktop+Microwave Drawer.

Do not store items of interest to children

RADIANT SURFACE UNITS

1 Use proper pan size — this appliance has different size

surface units. Select utensils having flat bottoms large enough to cover the surface unit heating element. The use of undersized utensils will expose a portion of surface unit heating element to direct contact and may result in ignition of clothing. Proper relationship of utensils to heating element will also improve efficiency.

2 Never leave surface units unattended at high heat

settings. Boilovers cause smoking and greasy spillovers that may catch on fire.

3 Only certain types of glass, glass/ceramic, ceramic,

earthware or other glazed utensils are suitable for cooktop service without breaking due to the sudden change in temperature.

IMPORTANT SAFETY INSTRUCTIONS

4 To reduce the risk of burns, ignition of flammable

materials and spillage due to unintentional contact with utensils, the handle of a utensil should be positioned so that it is turned inward and does not extend over adjacent surface units.

5 Do not cook on broken cooktop. If cooktop should

break, cleaning solutions and spillovers may penetrate the broken cooktop and create a risk of electric shock. Contact a qualified technician immediately.

6 Clean cooktop with caution. If a wet sponge or cloth is

used to wipe spills on a hot surface unit, be careful to avoid steam burn. Some cleaners can produce noxious fumes if applied to a hot surface. Please see cleaning the glass cooktop section.

7 Clean ventilating hoods frequently. Grease should not

be allowed to accumulate on hood or filter.

8 When flaming foods under the hood, turn the fan on. 9 Deep fat fryers - use extreme caution when moving the

grease kettle or disposing of hot grease.

10 Always turn the surface units off before removing

cookware.

11 Keep an eye on foods being fried at high or medium

high heat settings.

12 Food for frying should be as dry as possible. Frost on

frozen foods or moisture on fresh foods can cause hot fat to bubble up and over the sides of the pan.

13 Use little fat for effective shallow or deep fat frying.

Filling the pan too full of fat can cause spillovers when food is added.

If a combination of oils or fats will be used in frying,

stir together slowly before heating or as fats melt.

14 Always heat fat slowly and watch as it heats. 15 Use a deep fat thermometer whenever possible to prevent

heating fat beyond the smoking point.

16 Avoid scratching the glass cooktop. The cooktop can

be scratched with items such as sharp instruments, rings or other jewelry and rivets on clothing.

17 Large scratches or impacts to glass door or cooktop

can lead to broken or shattered glass.

18 Never use the glass cooktop surface as cutting board. 19 Do not place or store items that can melt or catch fire

on the glass cooktop, even when it is not being used.

20 Be careful when placing spoons or other stirring utensils

on glass cooktop surface when it is in use. They may become hot and could cause burns.

MICROWAVE DRAWER

When using the Microwave Drawer, basic safety precautions should be followed, including the following:

WARNING

fire, injury to persons or exposure to excessive microwave energy:

1 Read all instructions before using the appliance. 2 Read and follow the specific “PRECAUTIONS TO

AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY” on page 3.

3 This appliance must be properly grounded. See

Installation Instructions for grounding instructions.

4 Install or locate this appliance only in accordance with

the provided Installation Manual.

5 Some products such as whole eggs and sealed containers

- for example, closed glass jars—are able to explode and should not be heated in the Microwave Drawer.

6 Use this appliance only for its intended use as described

in this manual. Do not use corrosive chemicals or vapors in this appliance. This Microwave Drawer is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.

7 As with any appliance, close supervision is necessary

when used by children.

8 Do not operate this appliance if it has a damaged cord,

if it is not working properly or if it has been damaged or dropped.

9 This appliance should be serviced only by qualified

service personnel. Contact nearest Sharp Authorized Servicer for examination, repair or adjustment.

10 Do not cover or block any openings on the appliance. 11 Do not store or use this appliance outdoors. Do not use

this product near water—for example, in a wet basement, near a swimming pool or similar locations.

12 Do not immerse cord in water. Keep cord away from

heated surfaces.

13 Do not climb or sit on the Microwave Drawer. The

Cooktop+Microwave Drawer could tip and cause injuries to persons.

14 Be sure that fingers or other objects or materials are not

around the Microwave Drawer opening when the Microwave Drawer is closed.

15 Do not put fingers or clothes around the drawer guides

when the Microwave Drawer is opened or closed. They could be caught in the guides when the Microwave Drawer is closed.

16 Be sure that the food and container are shorter than the

Microwave Drawer before closing it. You can refer to the height of the side walls of the Microwave Drawer.

17 When cleaning Microwave Drawer sealing surfaces that

come together on closing the drawer, use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth. See cleaning instructions on page 30.

To reduce the risk of burns, electric shock,

IMPORTANT SAFETY INSTRUCTIONS

18 To reduce the risk of fire in the Microwave Drawer cavity: a Do not overcook food. Carefully attend appliance

when paper, plastic or other combustible materials are placed inside the Microwave Drawer to facilitate cooking.

b Remove wire twist-ties from paper or plastic bags

before placing bag in Microwave Drawer.

c If materials inside the Microwave Drawer ignite,

keep Microwave Drawer door closed, turn microwave off and shut off power at the fuse or circuit breaker panel.

d Do not use the Microwave Drawer for storage

purposes. Do not leave paper products, cooking utensils, or food in the Microwave Drawer when not in use.

19 Liquids, such as water, coffee or tea are able to be

overheated beyond the boiling point without appearing to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the container is

SAVE THESE INSTRUCTIONS

removed from the Microwave Drawer is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR OTHER UTE NSIL IS INSE RT ED INTO THE LIQUID.

To reduce the risk of injury to persons:

a Do not overheat the liquid. b Stir the liquid both before and halfway through

heating it.

c Do not use straight-sided containers with narrow

necks. Use a wide-mouthed container.

d After heating, allow the container to stand in the

Microwave Drawer at least for 20 seconds before removing the container.

e Use extreme care when inserting a spoon or other

utensil into the container.

UNPACKING AND EXAMINING YOUR COOKTOP+MICROWAVE DRAWER

1 Remove all packing materials from inside the Microwave

Drawer. DO NOT REMOVE THE WAV EGUIDE COVER, which is located on the top of the Microwave Drawer area.

2 Remove the feature sticker, if there is one, from the

outside of the Microwave Drawer. Check the drawer for any damage, such as misaligned or bent drawer, damaged drawer seals and seal ing sur faces, broken or loose Microwave Drawer guides and dents inside the cavity or on the front side of the drawer. If there is any damage, do not operate the Microwave Drawer and contact your dealer or a SHARP AUTHORIZED SERVICER.

Sealing Surface

Waveguide Cover

Sealing Surface

Microwave Drawer Cavity

PARTS NAME

ELECTRIC COOKTOP WITH MICROWAVE DRAWER

1 Hot surface indicator

2 Radiant surface units

3 Cooktop Warm Zone

4 Control panel

5 Cooktop Warm indicator

6 Cooktop-on indicator

7 Waveguide cover

DO NOT REMOVE.

8 Drawer sealing surfaces

9 Microwave Drawer guides

10 Glass ceramic cooktop

11 Control knobs

12 Drawer light

13 Microwave Drawer™

14 Vent

15 Rating plate

--Ê,Ê""/"*

*,/-Ê 

2!$)!.4

352&!#%5.)4

#/.42/,+./"3

£Î

7!2-:/.%

2!$)!.4

352&!#%5.)4

2!$)!.4 352&!#%5.)4

(/4352&!#%).$)#!4/2,)'(43

#/.42/,+./"3

" /,"Ê* 

£Î

#//+4/0

/.).$)#!4/2,)'(4

#//+4/07!2-:/.%

/.).$)#!4/2,)'(4

9-/

ÓÇ

££ ££

Ón

Numbers next to the keysheet illustration indicate pages on which

there are feature descriptions and usage information.

£Î ÓÇÓn ÓÇ Óx

#//+4/0

/.).$)#!4/2,)'(4



INTRODUCTION TO TOUCHSCREEN

This Sharp Insight Cooktop+Microwave Drawer features an LCD Touchscreen that is designed to make operation easy by providing step-by-step instructions right on the active touchscreen display.

After the time of day and date are set (instructions on next page), the Home Page will appear.

TOUCHSCREEN DISPLAY

MICROWAVE DRAWER HOME PAGE

The Microwave Drawer Home Page gives you six options: Reheat, Defrost, Automatic Cooking, Popcorn, Minute Plus and Keep Warm. By simply touching one of these pads, you will see more options and specific directions. All of these settings are automatic, but microwave cooking times and power levels can be set manually, as well (see pages 16-17).

Just read the information on the touchscreen and follow the directions. You’ll soon ﬁnd that selecting from the various cooking options is easy and fun—and the guesswork has been eliminated. Please refer to detailed programming information on the following pages for speciﬁc features.

BEFORE OPERATING

Before operating your new Cooktop+Microwave Drawer make sure you read and understand this operation manual completely.

• Before the Cooktop+Microwave Drawer can be used, follow these steps:

1 Connect power supply to the Cooktop+Microwave Drawer by following all instructions in the installation manual. You can select

either Video Demo or Set Clock.

2 Touch Set Clock and follow the instructions below.

Note:

• If no choice is made for 30 seconds, the Video Demo will begin automatically. To cancel the Video Demo, Touch the Stop/Clear pad and the display will return to the Home Page. To set the clock, touch the Setup pad, touch Clock and follow the directions on the touchscreen.

+ 22 hidden pages
