Sharp KB-5121KK Installation Manual
INSTALLATION MANUAL
SPECIAL WARNING
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE THIS INSTALLATION MANUAL FOR LOCAL ELECTRICAL
INSPECTOR’S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
CLEARANCES & DIMENSIONS
For SAFETY CONSIDERATIONS do not install a appliance in any combustible cabinetry which is not
in accord with the stated clearances and dimensions on page 2. See Figures 1 and 2.
ELECTRIC COOKTOP+MICROWAVE DRAWER
APPLIANCE MEASUREMENTS .................................2
CLEARANCES AND DIMENSIONS ..............................2
IMPORTANT NOTES .............................................
UNPACKING AND EXAMINING YOUR APPLIANCE ...........
IMPORTANT SAFETY INSTRUCTIONS .........................

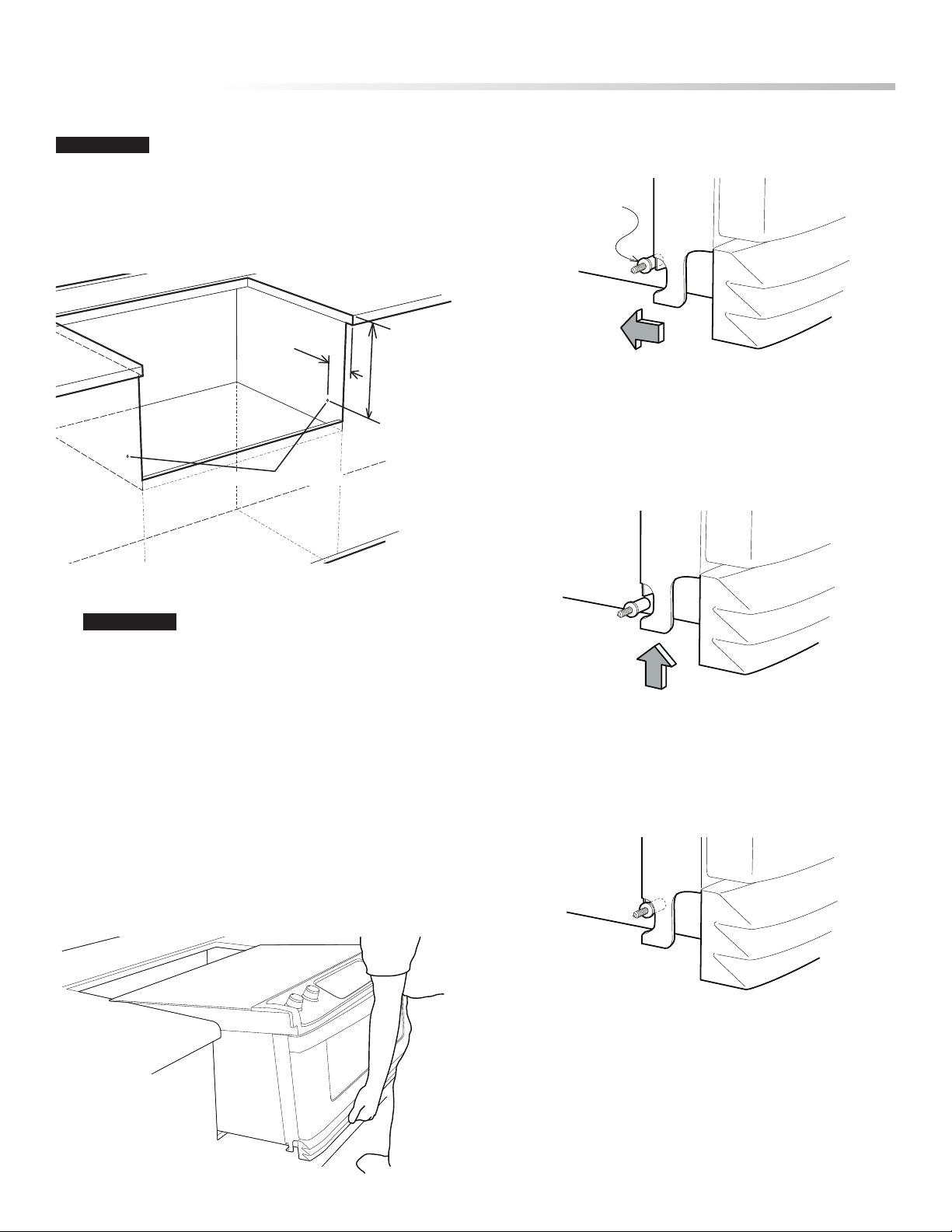

INSTALLATION, ANTI-TIP ...................................
4-6
CHECKING INSTALLATION ......................................6

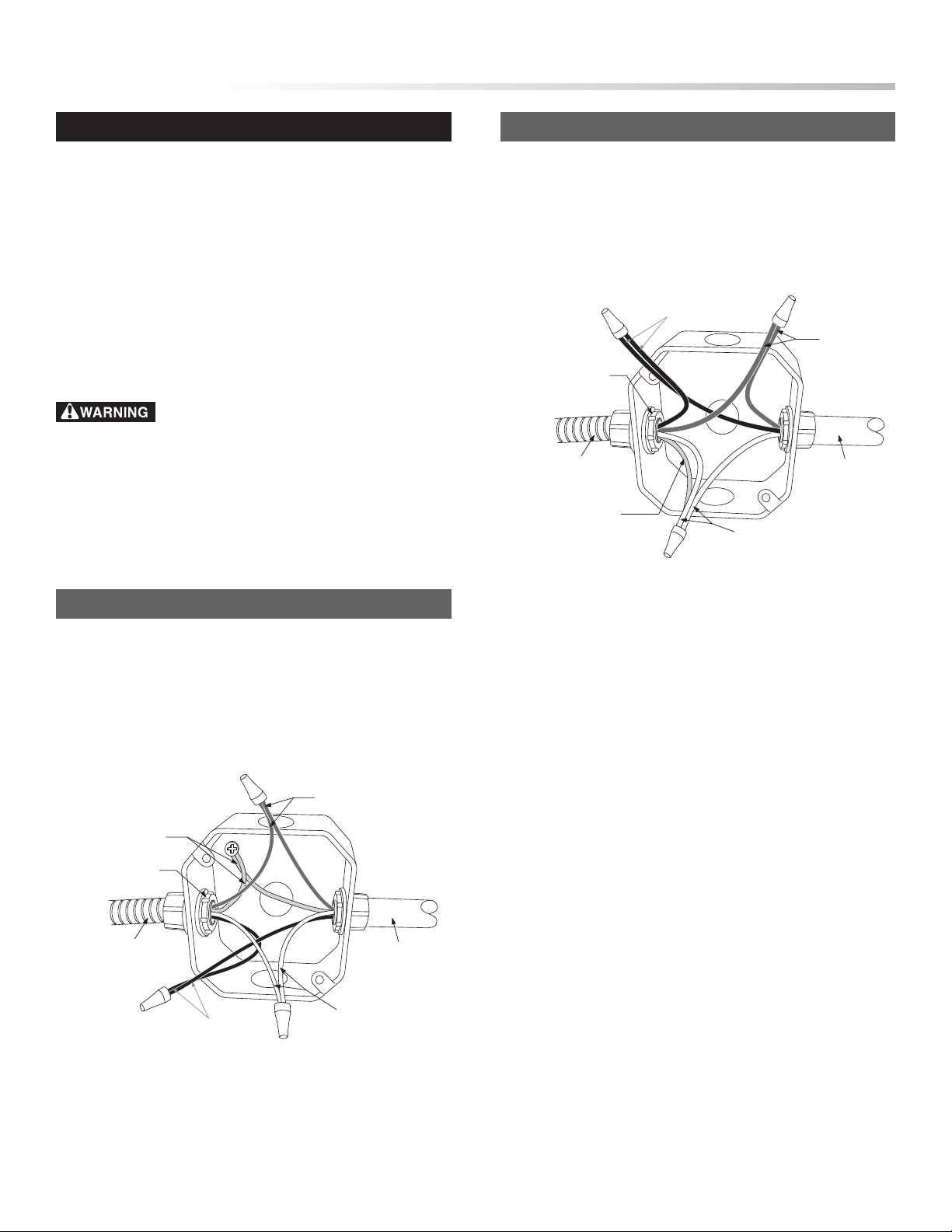

ELECTRICAL CONNECTIONS ...................................6
3
POWER CONNECTIONS .........................................7
MODEL AND SERIAL NUMBER LOCATION ....................
3
3
CARE, CLEANING AND MAINTENANCE ......................8
BEFORE YOU CALL FOR SERVICE ............................8
8
INSTALLATION MANUAL
30"
cutout
22 7/8"
cutout
3/8" minimun
flat area
31 1/2"
R
3/8" minimun
flat area
15"
auto
drawer open
31 1/2" glass and
control panel
29 7/8"
width of unit
30"
door and
louver width
23 7/16"
depth
1 11/16"
door thickness
15 5/8" from
the bottom side
of the cooktop
to the
bottom cover
36"
countertop
height
18"
to upper
cabinets
22 7/8"
6"
6"
Allow
7/16"
product
overlap
15" ±1/8"
vertical
opening
23 1/2"
min
depth
25"
countertop
depth
16 5/8"
min to any
obstruction
behind
cabinet face
30"
to bottom of
cabinet over
cooktop
30"
13"
max
30"
opening
width
Preferred
junction box
location
3/4" min.
Figure 1
Figure 1 contains many appliance measurements for reference when
planning your kitchen and/or appliance location.
CLEARANCES AND DIMENSIONS APPLIANCE MEASUREMENTS
• Provide adequate clearances between the appliance and adjacent
combustible surfaces.
• Dimensions that are shown in Figures 2 and 3 must be used.
Given dimensions provide minimum clearance. There needs
to be a 30-inch minimum clearance between the top of the
cooking surface and the bottom of upper unprotected wood or
metal cabinets or a 24-inch minimum when bottom of upper
wood or metal cabinets are protected by not less than a 1/4-inch
fl ame retardant millboard covered with not less than no. 29 msg
sheet-steel, 0.015-inch stainless steel, 0.024-inch aluminum or
0.020-inch copper. The gray shaded area in the lower part of
Figure 2 indicates the location for the electrical junction box.
• Contact surface must be solid and level. Pay special attention
to the countertop. Be sure it is solid enough for the weight of
the appliance.
• Check location where the appliance will be installed for proper
electrical supply.
If using countertop with integrated
drip edge, remove 3/4” to clear
31 1/2” width control panel as
illustrated.
Figure 2
Figure 3
To eliminate the risk of burns or fi re by reaching over the
cooktop, cabinet storage space located above the cooktop should
be avoided. If cabinet storage is to be provided, the risk can be
reduced by installing a range hood that projects horizontally a
minimum of 5” beyond the bottom of the cabinets.
2
INSTALLATION MANUAL
IMPORTANT NOTES TO THE INSTALLER
• Read all of the Installation Manual before installing the
appliance.
• Remove all packing material from the drawer and cooktop
before connecting the electrical supply to the appliance.
• Observe all governing codes and ordinances.
• Be sure to leave these instructions with the consumer.
IMPORTANT NOTES TO THE CONSUMER
Keep this manual with your Operation Manual for future reference.
• As when using any appliance generating heat, there are certain
safety precautions you should follow. These are listed in the
Operation Manual. Read all and follow carefully.
• Be sure your appliance is installed and grounded properly by
a qualifi ed installer or service technician. See page 7.
• To eliminate the need to reach over the cooktop, cabinet storage
space above the cooktop should be avoided or a range hood
installed.
UNPACKING AND EXAMINING YOUR
APPLIANCE
1 Remove all packing
materials from inside
the Microwave Drawer.
DO NOT RE MOV E
THE WAVE GU IDE
COV E R , w h ich is
located on the top of
the Microwave Drawer
cavity.
2 Remove the fe at ure
sticker, if there is one.
Check the drawer for
any damage, such as
mis ali gne d o r b ent
d r aw e r , d a mage d
drawer seals and sealing surfaces, broken or loose drawer guides
and dents inside the drawer or on the front side of the drawer. If
there is any damage, do not operate the Microwave Drawer and
contact your dealer or a SHARP AUTHORIZED SERVICER.
IMPORTANT
wave Drawer handle.
Do not lift or move this appliance by the Micro-
Sealing
Surface
Waveguide
Cover
Sealing
Surface
Microwave
Drawer
Cavity
IMPORTANT SAFETY INSTRUCTIONS
If the information in this manual is not followed
exactly, a fi re or electrical shock may result causing
property damage, personal injury or death.
• ALL APPLIANCES CAN TIP
• INJURY TO PERSONS COULD RESULT
• INSTALL ANTI-TIP BRACKET PACKED
WITH APPLIANCE
To reduce the risk of tipping the appliance, it
must be secured by the Anti-Tip bracket attached to the appliance.
See page 4 and page 6.
• This appliance must be electronically grounded in accordance
with local codes, or in their absence, with the National Electrical
Code ANSI/NFPA No. 70—latest edition in United States.
• The installation of appliances designed for manufactured
(mobile) home installation must conform with Manufactured
Home Construction and Safety Standard, title 24CFR, part
3280 [Formerly the Federal Standard for Mobile Home
Construction and Safety, title 24, HUD (part 280)] or when such
standard is not applicable, the Standard for Manufactured Home
Installation 1982 (Manufactured Home Sites, Communities and
Setups), ANSI Z225. 1/NFPA 501A- latest edition, or with local
codes in United States.
• Make sure the wall coverings and the cabinets around the
appliance can withstand the heat generated by the appliance.
Never leave children alone or unattended in the
area where an appliance is in use. As children grow, teach them
the proper, safe use of all appliances.
Stepping, leaning or sitting on the drawer of this
appliance can result in serious injuries and can also cause damage
to the appliance.
• Do not store items of interest to children in the cabinets
above the appliance. Children could be seriously burned
climbing on the appliance to reach items.
• To eliminate the need to reach over the cooktop, cabinet storage
space above the cooktop should be avoided.
• Do not use the drawer as a storage space. This creates a
potentially hazardous situation.
• Never use the applia nce for warming or heating the
room.
• Do not store or use gasoline or other fl ammable vapors and
liquids near this or any other appliance. Explosions or fi res
could result.
• Reset al l controls to the “off ” position after using a
programmable timing operation.
3
