Sharp DV-SL10H, DV-SL10SY, DV-SL10SR Service manual

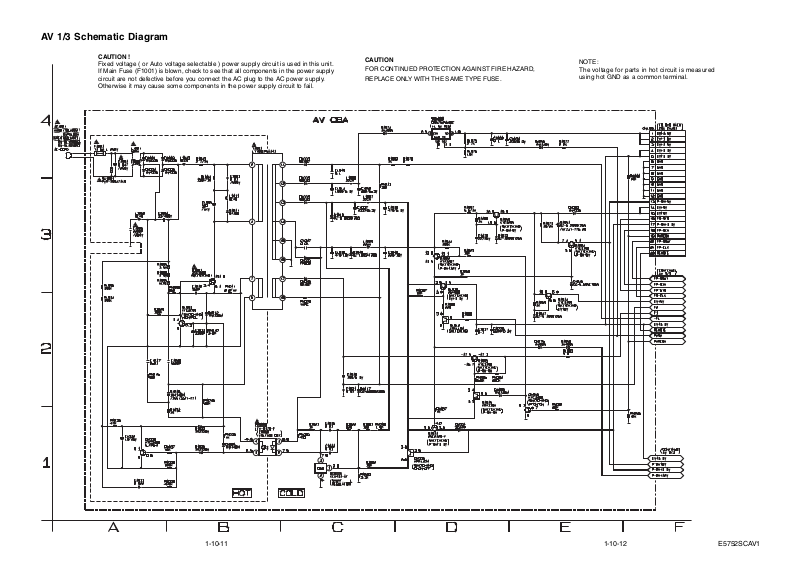

AV 1/3 Schematic Diagram

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,

REPLACE ONLY WITH THE SAME TYPE FUSE.

NOTE :
The voltage for parts in hot circuit is measured
using hot GND as a common terminal.

1-10-11 1-10-12

E5752SCAV1

AV 2/3 Schematic Diagram

1-10-13

1-10-14

E5752SCAV2

AV 3/3 & Function Schematic Diagram

7G 6G 5G 4G 3G 2G 1G

a

b

c

d

e

f

g

c

d

e

f

g

c

d

e

f

g

c

d

e

f

g

c

d

e

f

g

c

d

e

f

g

h

i

a

b

a

b

a

b

a

b

a

b

FL2001 MATRIX CHART

7G 5G 3G 1G4G6G 2G

a

cb

d

ef

g

1-10-15 1-10-16

E5752SCAV3

DVD Main CBA Top View

1-10-17

1-10-18

BE5700G04012

DVD Main CBA Bottom View

1-10-19

1-10-20

BE5700G04012

AV CBA Top View

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,

REPLACE ONLY WITH THE SAME TYPE FUSE.

NOTE :
The voltage for parts in hot circuit is measured
using hot GND as a common terminal.

1-10-21

1-10-22

BE5714F01014

AV CBA Bottom View

PIN 31 OF
IC1401

WF1

PIN 1 OF
CN1601

WF3

WF2

PIN 9 OF
CN1601

WF4

PIN 13 OF
CN1601

WF5

PIN 15 OF
CN1601

WF6

PIN 18 OF
CN1601

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,

REPLACE ONLY WITH THE SAME TYPE FUSE.

NOTE :
The voltage for parts in hot circuit is measured
using hot GND as a common terminal.

1-10-23

1-10-24

BE5714F01014

Function CBA Top View

Function CBA Bottom View

1-10-25

1-10-26

BE5714F01014

WAVEFORMS

WF1 Pin 1 of CN1601

VIDEO-Y 0.2V 20µsec

WF2 Pin 9 of CN1601

WF5

Pin 15 of CN1601

AUDIO-R

WF6

Pin 18 of CN1601

1V 0.5msec

NOTE:

Input
CD: 1kHz PLAY
(WF4~WF6)
DVD: POWER ON (STOP) MODE
(WF1~WF3)

VIDEO-C 0.2V 20µsec

WF3 Pin 31 of IC1401

VIDEO-CVBS 0.5V 20µsec

WF4

Pin 13 of CN1601

SPDIF

1V 0.1µsec

AUDIO-L

1V 0.5msec

1-11-1

1-11-2

E5752WF

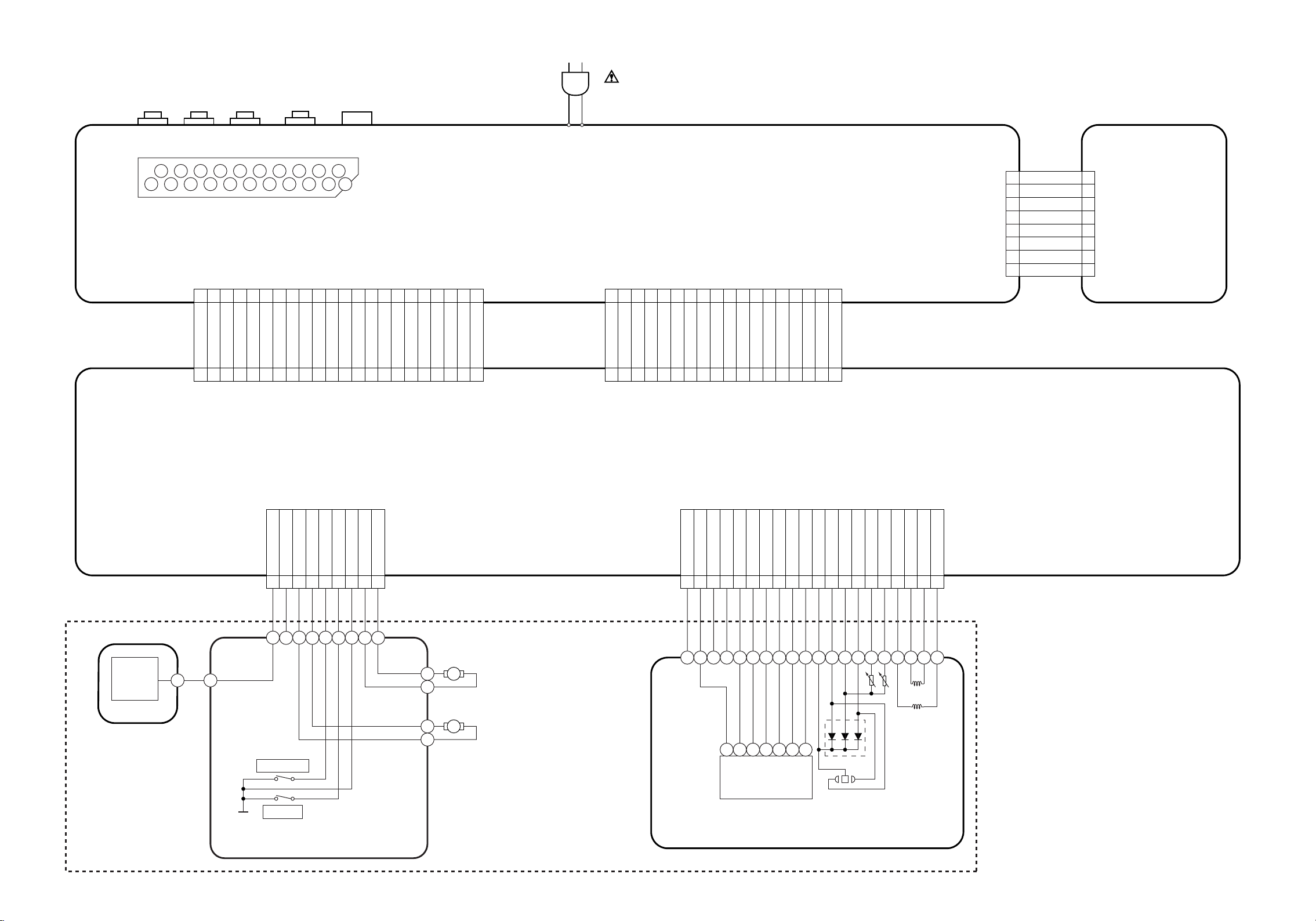

WIRING DIAGRAM

VIDEO
OUT

123456789101112131415161718192021

AUDIO-L
OUT

W1001

AUDIO-R
OUT

SCART JACK

EV+1.5V 11

EV+1.5V 22

EV+3.3V 44

EV+1.5V 33

DIGITAL
AUDIO OUT

EV+3.3V 55

GND 66

GND 77

GND 88

GND 99

GND 1010

S-VIDEO
OUT

CN1001

GND 1111

GND 1212

CN401

AC CORD

CN2101 CN2102

K2 1

1

NU 2

2

NU 3

AV CBA
(BE5714F01014)

CN1601

2222

W1601

AUDIO-L 1313

A-L-MUTE 1414

P-ON+5V 1313

EV+9V 1414

EV+9V 1515

FP-STB 1616

P-ON+3.3V 1717

FP-DIN 1818

PWRCON 1919

REMOTE

FP-DOUT 2020

FP-CLK 2121

VIDEO-Y 11

ASPECT 22

VIDEO-B 55

VIDEO-G 77

VIDEO-R 33

GND 44

GND 88

GND 66

CN601

GND 1111

VIDEO-C 99

A-MUTE 1212

GND 1010

AUDIO-R 1515

SPDIF 1818

A-R-MUTE 1616

AUDIO+5V 1717

3

GND 4

4

NU 5

5

NU 6

6

NU 7

7

K1 8

8

FUNCTION CBA
(BE5714F01014)

FG
SENSOR

FG CBA

FG-IN

P-ON+3.3V(D)

123

TRAY-OUT

DVD MAIN CBA UNIT

CN201CN301

SP(-)7SP(+)

TRAY-OUT

TRAY-IN

GND

4

5

6

8 SL(-)

9 SL(+)

SLED
MOTOR

M

SPINDLE
MOTOR

M

GND
123456789

VREF

P-ON+5VFE

CBD

A

11 2 3 5 6 4 7

DETECTOR

PD-MONI

GND(LD)

CD/DVD

101112131415161718

DVD-LD

CD-LD

GND(DVD-PD)

TS(+)

FS(-)

FS(+)

TS(-)

GND(CD-PD)

19

20

FS

TS

TRAY-IN

1-12-1

DRIVE CBA

DVD MECHA

PICK UP UNIT

1-12-2

E5752WI

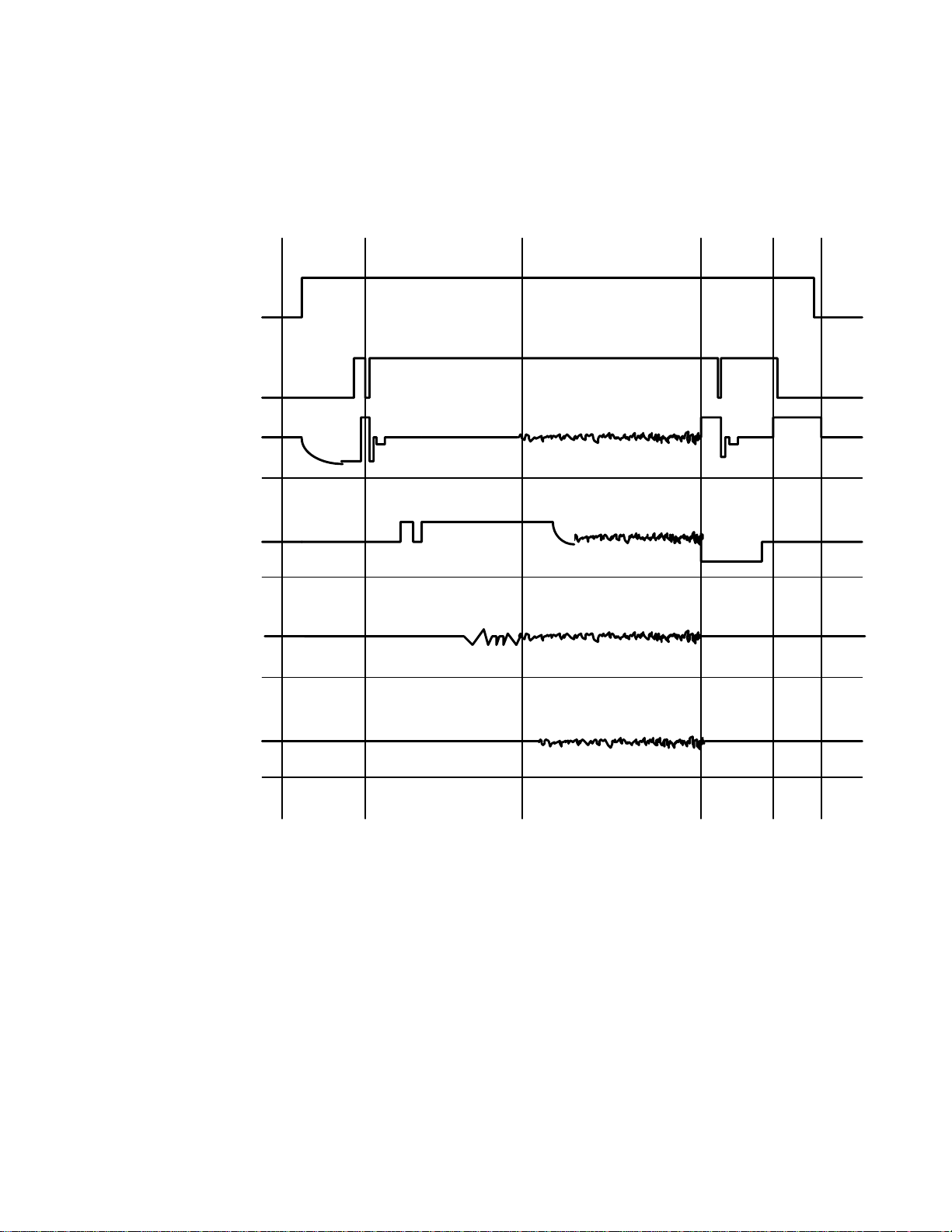

SYSTEM CONTROL TIMING CHARTS

T

T
(

ray Close ~ Play / Play ~ Tray Open

Tray
Close

Tray OUT
(TL220)

Tray IN
(TL221)

Sled Drive
(TP303)

Disc Drive
(TP301)

Focus Drive
(TP304)

3.3V
0V

3.3V
0V

1.65V
0V

1.65V

0V

1.65V
0V

Disc
Rotation

Play

Disc
Stop

Tray
Open

racking Drive

TP302)

1.65V
0V

1-13-1

DVDTI

IC PIN FUNCTION DESCRIPTIONS

IC2001 ( PT6313-S -TP )

Pin

In/Out

No.

1 In CLK
2 In STB
3 In K1
4 In K2
5 - VSS
6 - VDD

7 Out a / KEY-1

8 Out b / Key-2

9 Out c / Key-3

10 Out d / Key-4
11 Out e

12 In f
13 In g
14 Out h

15 - VEE
16 Out i

17
18 6G
19 5G

Out

20 4G
21 3G

Signal

Name

7G

Name Function

Clock Input
Serial Interface Strobe
Key Data 1 Input
Key Data 2 Input
GND
Power Supply
Segment Output / Key

Souce-1
Segment Output / Key

Souce-2
Segment Output / Key

Souce-3
Segment Output/ Key

Souce-4

Segment Output

Pull Down Level
Segment Output

Grid Output

IC2002 ( M34506M4-504FP )

Pin

In/Out

No.

1 ­2 - Vss
3 In Xin
4 Out Xout
5 - CNVSS

In/

6

Out

7 In K1
8 In K2

9 - NU
10 - NU
11 - NU
12 - NU

13 In REMOTE

14 - NU
15 - NU
16 - NU
17 - NU
18 - PWRCON
19 In/Out PWSW

20 Out

Signal

Name

VDD

RESET

REMOTE-

OUT

Name Function

Power supply
GND
Sub Clock Input
Sub Clock Output
CNVSS

Reset Input/Output Signal

Key Data 1 Input Signal
Key Data 2 Input Signal
Not Used
Not Used
Not Used
Not Used
Remote Control Input

Signal
Not Used
Not Used
Not Used
Not Used
Power Down
Data Input/Output Signal
DVD Control Key Code

Output

22 2G
23 1G
24 - VDD

25 - VSS
26 In OSC
27 Out DOUT
28 In DIN

Power Supply
GND
Oscillator Input
Serial Data Output
Serial Data Input

1-14-1

E5752PIN

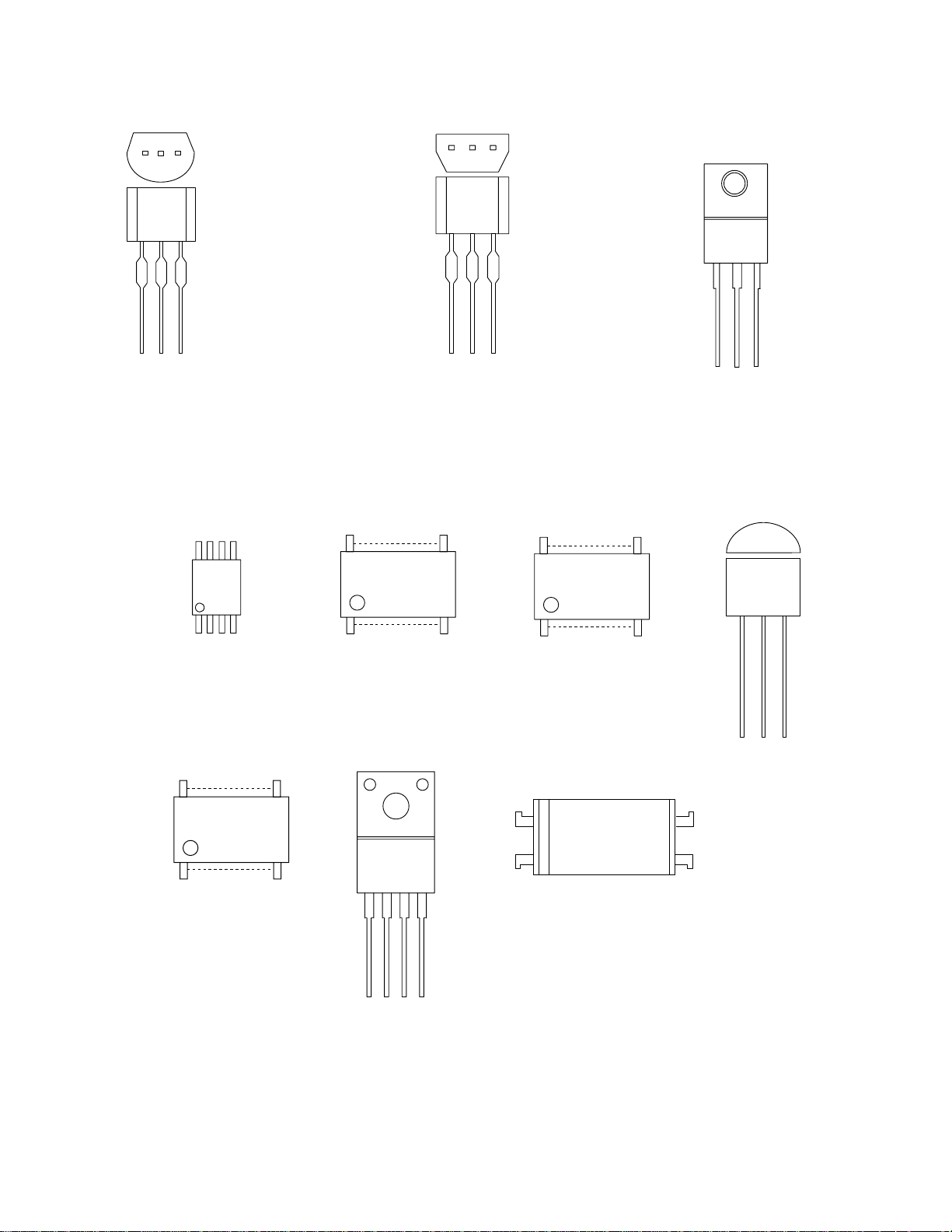

LEAD IDENTIFICATIONS

e

E C B

2SA1015-Y (TPE2)
KTA1266 (Y)
KTC3198 (Y)
2SC2120-Y(TPE2)
KTC3205 (Y)
2SC2236-Y-TPE6,C
2SA966(Y)

NJM4558D
KIA4558P

8 5

MM1567AJ

34

E C B

18

2SC2785 (H)
KTC3199 (GR)
KRA110M
KTA1267 (Y)
BN1L3Z (P)

PT6313-S-TP

28

2SK3566

G D S

KIA431-AT

15

1 4

M34506M4-504FP

20

1

11

10

1

PQ070XF01SZ

1234

17

1: Vin
2: Vo
3: GND
4: Vc

1

LTV-817(B,C)-F

A

K

14

K A R

C

E

Note:

A: Anode
K: Cathode
E: Emitter
C: Collector
B: Base
R: Referenc
G: Gate
D: Drain
S: Source

1-15-1

E5752LE

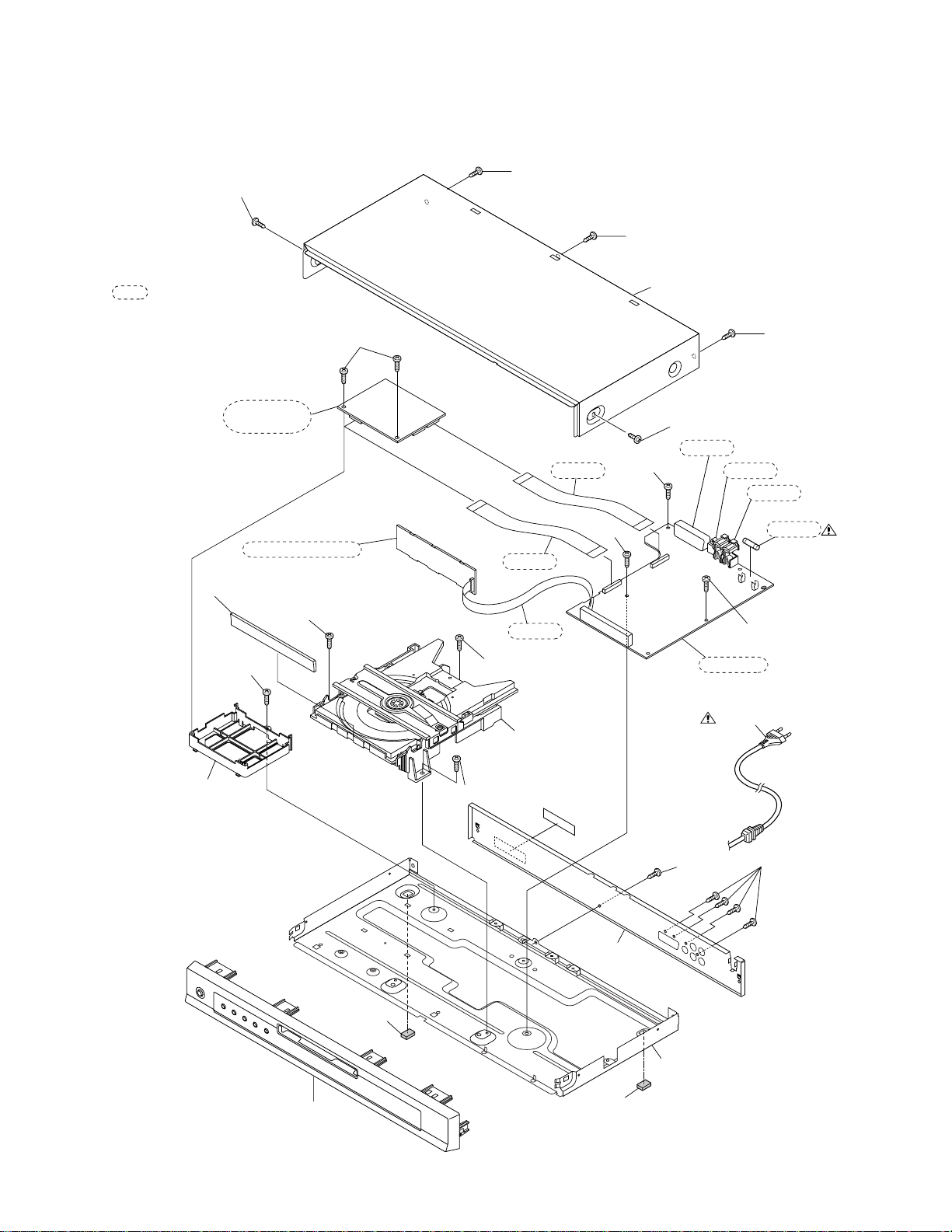

Cabinet

EXPLODED VIEWS

2L011

2L011

2L011

See Electrical Parts List
for parts with this mark.

Some Ref. Numbers are
not in sequence.

DVD Main
CBA Unit

FUNCTION CBA

A2

2L021

2L101

2L105

2L021

W1001

W2101

1B1

W1601

2L031

2L031

A16

2L011

2L011

JK1404

JK1401

JK1402

F1001

2L031

AV CBA

AC1001

2B3

A1X

A13

2L021

1-16-1

A21

A17

A13

A15

2L071

2L041

E5752EX

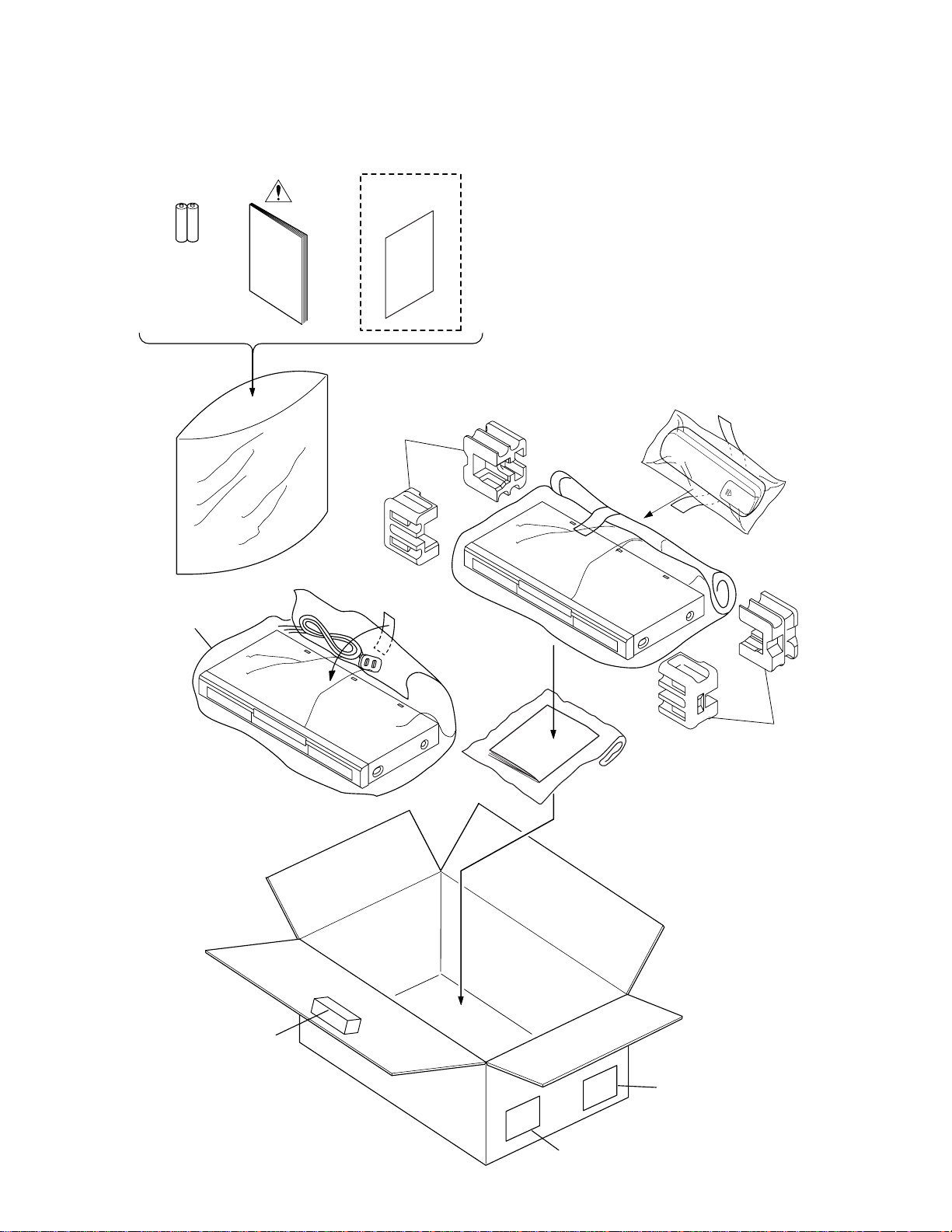

Packing

X2

X4

X10

DV-SL10H only

X17

S2

X1

S4

S2

Unit

S5

S1

1-16-2

A22

A30

E5752EX

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a ! have special characteristics important to safety. Before

replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade
the safety of the product through improper servicing.

COMPARISON OF MODELS

Model Mark

DV-SL10H
DV-SL10S(Y)
DV-SL10S(R)

Ref. No. Mark Description Part No. Code

A1X FRONT ASSEMBLY E5752BD 9HS0VM204188 AX
A2 TRAY PANEL E5751JD 9HS0VM415025 AU
A13 FOOT(REAR) E5710UD 9HS0VM415007 AC
A15 MAIN CHASSIS E57S0UD 9HS0VM101219 AN
A16 TOP COVER:SILVER E57S0UD 9HS0VM101220 AR
A17! REAR PANEL E5752BD 9HS0VM204190 AR
A21! A LABEL, RATING E5752BD ---------- AB
A21! B LABEL, RATING E57B3ED ---------- AB
A21! C LABEL, RATING E57B4ED ---------- AB
A22 A LABEL, BAR CODE E5752BD ---------- AB
A22 B LABEL, BAR CODE E57B3ED ---------- AB
A22 C LABEL, BAR CODE E57B4ED ---------- AB
A30 A CASE MARK LABEL E5752BD ---------- AB
A30 B CASE MARK LABEL E57B3ED ---------- AB
A30 C CASE MARK LABEL E57B4ED ---------- AB
1B1 DVD MECHA (THIN TYPE) 0838 VCDVM040 9HSN79F1GVM BS
2B3 HOLDER, MAIN PCB E5700UD 9HS0VM305832B AC
2L011 SCREW, C-TIGHT M3X5 BIND HEAD + 9HSGBCC3050 AA
2L021 SCREW, S-TIGHT M3X8 BIND + CHROME 9HSGBMS3080 AA
2L031 SCREW, C-TIGHT M3X6 BIND HEAD 9HSGBMC3060 AA
2L041 SCREW, B-TIGHT M3X8 BIND HEAD + 9HSGBKB3080 AA
2L071 SCREW, C-TIGHT M3X6 BIND HEAD 9HSGBMC3060 AA
2L101 SCREW, C-TIGHT M3X6 BIND HEAD 9HSGBMC3060 AA
2L105 P-TIGHT SCREW 3X8 BIND + 9HSGBMP3080 AA
S1 A GIFT BOX CARTON E5752BD 9HS0VM306276 AV
S1 B,C GIFT BOX CARTON E5753ED 9HS0VM306277 AV
S2 A STYROFOAM E5714BD 9HS0VM101289 AE
S2 B,C STYROFOAM E57S0UD 9HS0VM101231 AE
S4 UNIT, BAG E56A0UD 9HS0VM413363 AC
S5 PAD E57S0UD 9HS0VM414757 AD
S8 SHEET, PROTECTION E5756AD 9HS0VM415670 AE
X1 REMOTE CONTROL UNIT DVD 0842 VCDVR040 9HSNA522ED AY
X2 DRY BATTERY R6P/2S 9HSB0M451T0001 AE
X4 ACCESSORY BAG E56A0UD 9HS0VM413280 AB
X10! A OWNER'S MANUAL E5752BD 9HS0VMN03660 AH
X10! B OWNER'S MANUAL E57B3ED 9HS0VMN03707 AH
X10! C OWNER'S MANUAL E57B4ED 9HS0VMN03708 AH
X17 A QUICK GUIDE E5752BD 9HS0VMN03684 AD

A
B
C

1-17-1

E5752CA

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a % have special characteristics important to safety. Before

replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade
the safety of the product through improper servicing.

NOTES:

1. Parts that not assigned part numbers (---------) are not available.

2. Tolerance of Capacitors and Resistors are noted with the following symbols.

C.....±0.25% D.....±0.5% F.....±1% G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

COMPARISON OF MODELS

Model Mark

DV-SL10H
DV-SL10S(Y)
DV-SL10S(R)

DVD MAIN CBA UNIT

Ref. No. Mark Description Part No. Code

DVD MAIN CBA UNIT 9HSN79SEGEP CC
Consists of the following

CAPACITORS

C101 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C102 CHIP CERAMIC CAP.(1005) CH J 33pF/50V 9HSHB1JJ3CH330 AA
C103 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C104 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C105 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C106 CHIP CERAMIC CAP.(1005) CH D 10pF/50V 9HSHB1JD3CH100 AA
C107 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C108 CHIP CERAMIC CAP.(1005) CH J 33pF/50V 9HSHB1JJ3CH330 AA
C109 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C110 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C111 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C112 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C113 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C114 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C116 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C117 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C118 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C119 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C120 CHIP CERAMIC CAP. F Z 1µF/10V 9HSHD1AZ30F105 AB
C121 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C122 CHIP CERAMIC CAP.(1005) B K 0.1µF/10V 9HSHB1AK30B104 AA
C123 CHIP ELECTROLYTIC CAP. 330µF/6.3V UD 9HSE0KMR1GH331 AD
C123 CHIP ELECTROLYTIC CAP. 330µF/6.3V M(L•Z) 9HSA0K331SP042 AD
C124 CHIP CERAMIC CAP. B K 1µF/10V 9HSHD1AK30B105 AC
C125 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C126 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C127 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C128 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C129 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C130 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C131 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C132 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C135 CHIP ELECTROLYTIC CAP. 330µF/6.3V UD 9HSE0KMR1GH331 AD
C135 CHIP ELECTROLYTIC CAP. 330µF/6.3V M(L•Z) 9HSA0K331SP042 AD
C201 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C202 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C203 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C205 CHIP CERAMIC CAP.(1005) B K 0.01µF/25V 9HSHB1EK30B103 AA

A
B
C

1-18-1

E5752EL

Ref. No. Mark Description Part No. Code

C206 CHIP CERAMIC CAP.(1005) B K 0.1µF/10V 9HSHB1AK30B104 AA
C207 CHIP CERAMIC CAP.(1005) CH J 220pF/50V 9HSHB1JJ3CH221 AA
C208 CHIP CERAMIC CAP.(1005) B K 1500pF/50V 9HSHB1JK30B152 AA
C209 CHIP CERAMIC CAP. B K 1µF/10V 9HSHD1AK30B105 AC
C210 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C212 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C214 CHIP CERAMIC CAP.(1005) B K 560pF/50V 9HSHB1JK30B561 AA
C215 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C217 CHIP CERAMIC CAP. B K 1µF/10V 9HSHD1AK30B105 AC
C218 CHIP CERAMIC CAP. B K 1µF/10V 9HSHD1AK30B105 AC
C219 CHIP CERAMIC CAP. B K 1µF/10V 9HSHD1AK30B105 AC
C220 CHIP CERAMIC CAP. B K 1µF/10V 9HSHD1AK30B105 AC
C222 CHIP CERAMIC CAP.(1005) B K 0.1µF/10V 9HSHB1AK30B104 AA
C223 CHIP CERAMIC CAP.(1005) B K 0.033µF/16V 9HSHB1CK30B333 AA
C224 CHIP CERAMIC CAP.(1005) CH J 68pF/50V 9HSHB1JJ3CH680 AA
C225 CHIP CERAMIC CAP.(1005) B K 0.1µF/10V 9HSHB1AK30B104 AA
C226 CHIP CERAMIC CAP.(1005) B K 0.1µF/10V 9HSHB1AK30B104 AA
C227 CHIP CERAMIC CAP.(1005) B K 0.1µF/10V 9HSHB1AK30B104 AA
C228 CHIP CERAMIC CAP.(1005) B K 0.01µF/25V 9HSHB1EK30B103 AA
C229 CHIP CERAMIC CAP.(1005) CH J 100pF/50V 9HSHB1JJ3CH101 AA
C230 CHIP CERAMIC CAP.(1005) B K 0.018µF/16V 9HSHB1CK30B183 AA
C231 CHIP CERAMIC CAP.(1005) B K 5600pF/25V 9HSHB1EK30B562 AA
C232 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C234 CHIP CERAMIC CAP.(1005) B K 0.1µF/10V 9HSHB1AK30B104 AA
C253 CHIP ELECTROLYTIC CAP. 47µF/6.3V WX(WR) 9HSA0K470NC156 AC
C253 CHIP ELECTROLYTIC CAP. 47µF/6.3V M BSS 9HSA0K470SP057 AC
C255 CHIP ELECTROLYTIC CAP. 4.7µF/25V M(WX) 9HSE1EMR1CL4R7 AD
C255 CHIP ELECTROLYTIC CAP. 4.7µF/25V M 9HSA1E4R7SP012 AD
C257 CHIP CERAMIC CAP. B K 1µF/10V 9HSHD1AK30B105 AC
C259 CHIP CERAMIC CAP. B K 1µF/10V 9HSHD1AK30B105 AC
C263 CHIP ELECTROLYTIC CAP. 47µF/6.3V WX(WR) 9HSA0K470NC156 AC
C263 CHIP ELECTROLYTIC CAP. 47µF/6.3V M BSS 9HSA0K470SP057 AC
C283 CHIP CERAMIC CAP.(1005) B K 0.1µF/10V 9HSHB1AK30B104 AA
C284 CHIP CERAMIC CAP.(1005) B K 0.01µF/25V 9HSHB1EK30B103 AA
C301 CHIP CERAMIC CAP.(1005) B K 0.1µF/10V 9HSHB1AK30B104 AA
C303 CHIP CERAMIC CAP.(1005) CH J 180pF/50V 9HSHB1JJ3CH181 AA
C305 CHIP CERAMIC CAP.(1005) B K 6800pF/25V 9HSHB1EK30B682 AA
C306 CHIP CERAMIC CAP.(1005) B K 6800pF/25V 9HSHB1EK30B682 AA
C308 CHIP CERAMIC CAP.(1005) B K 0.01µF/25V 9HSHB1EK30B103 AA
C309 CHIP ELECTROLYTIC CAP. 220µF/16V UR 9HSE1CMR1FL221 AD
C309 CHIP ELECTROLYTIC CAP. 220µF/16V 9HSA1C221SP012 AD
C310 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C311 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C313 CHIP CERAMIC CAP.(1005) CH J 220pF/50V 9HSHB1JJ3CH221 AA
C314 CHIP CERAMIC CAP.(1005) B K 3300pF/50V 9HSHB1JK30B332 AA
C315 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C316 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C317 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C318 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C401 CHIP ELECTROLYTIC CAP. 330µF/6.3V UD 9HSE0KMR1GH331 AD
C401 CHIP ELECTROLYTIC CAP. 330µF/6.3V M(L•Z) 9HSA0K331SP042 AD
C402 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C403 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C404 CHIP ELECTROLYTIC CAP. 330µF/6.3V UR 9HSE0KMR1FL331 AD
C404 CHIP ELECTROLYTIC CAP. 330µF/6.3V M 9HSA0K331SP012 AD
C405 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C407 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C409 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C410 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C411 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C413 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C431 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C432 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C433 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C434 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C435 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C436 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C437 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C438 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA

1-18-2

E5752EL

Ref. No. Mark Description Part No. Code

C439 CHIP CERAMIC CAP. F Z 0.1µF/50V 9HSHD1JZ30F104 AA
C440 CHIP CERAMIC CAP. F Z 0.1µF/50V 9HSHD1JZ30F104 AA
C441 CHIP CERAMIC CAP. F Z 0.1µF/50V 9HSHD1JZ30F104 AA
C451 CHIP CERAMIC CAP.(1005) CH J 220pF/50V 9HSHB1JJ3CH221 AA
C452 CHIP CERAMIC CAP.(1005) CH J 220pF/50V 9HSHB1JJ3CH221 AA
C453 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C454 CHIP CERAMIC CAP.(1005) CH J 24pF/50V 9HSHB1JJ3CH240 AA
C455 CHIP CERAMIC CAP.(1005) CH D 8pF/50V 9HSHB1JD3CH8R0 AA
C471 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C472 CHIP CERAMIC CAP. F Z 1µF/10V 9HSHD1AZ30F105 AB
C501 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C502 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C503 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C504 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C505 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C506 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C507 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C508 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C561 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C562 CHIP CERAMIC CAP.(1005) B K 0.1µF/10V 9HSHB1AK30B104 AA
C571 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C572 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C601 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C602 CHIP ELECTROLYTIC CAP. 330µF/6.3V UR 9HSE0KMR1FL331 AD
C602 CHIP ELECTROLYTIC CAP. 330µF/6.3V M 9HSA0K331SP012 AD
C603 CHIP ELECTROLYTIC CAP. 47µF/6.3V WX(WR) 9HSA0K470NC156 AC
C603 CHIP ELECTROLYTIC CAP. 47µF/6.3V M BSS 9HSA0K470SP057 AC
C604 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C605 CHIP ELECTROLYTIC CAP. 47µF/6.3V WX(WR) 9HSA0K470NC156 AC
C605 CHIP ELECTROLYTIC CAP. 47µF/6.3V M BSS 9HSA0K470SP057 AC
C606 CHIP CERAMIC CAP.(1005) F Z 0.1µF/16V 9HSHB1CZ30F104 AA
C656 CHIP ELECTROLYTIC CAP. 47µF/6.3V WX(WR) 9HSA0K470NC156 AC
C656 CHIP ELECTROLYTIC CAP. 47µF/6.3V M BSS 9HSA0K470SP057 AC
C657 CHIP ELECTROLYTIC CAP. 330µF/6.3V UR 9HSE0KMR1FL331 AD
C657 CHIP ELECTROLYTIC CAP. 330µF/6.3V M 9HSA0K331SP012 AD
C658 CHIP ELECTROLYTIC CAP. 330µF/6.3V UR 9HSE0KMR1FL331 AD
C658 CHIP ELECTROLYTIC CAP. 330µF/6.3V M 9HSA0K331SP012 AD

CONNECTORS

CN201 FFC/FPC CONNECTOR 20P 04 6232 120 103 800 9HSC62D20TM003 AE
CN301 FFC CONNECTOR 9P 9611S-09Y901 9HSC96D09ER006 AD
CN401 FFC CONNECTOR 22P 9611S-22Y901 9HSC96D22ER006 AE
CN601 FFC/FPC CONNECTOR, 18P 04 6232 118 103 800 9HSC62D18TM003 AE
CN601 FFC/FPC CONNECTOR, 18P 10008HR-18 9HSCHRD18YEE02 AE

DIODE

D204 SWITCHING DIODE DAN202U T106 9HSD1Z0DAN202U AC

ICS

IC101 DVD 1CHIP LSI MN35101 9HSSZBA0RMS014 BL
IC102 IC(SDRM) HY57V643220CT-7 9HSSZBA0RHY050 AX
IC102 IC(64MB SDRM) HY57V643220CT-55 9HSSZBA0RHY048 AX
IC102 IC(64MB SDRM) K4S643232F-TC60 9HSSZBC0RSM025 AZ
IC102 IC(64MB SDRAM) MT48LC2M32B2TG-6 9HSSZBA0RMP015 AY
IC103 16M BIT FLASH MEMORY MBM29LV160BE90TN-K 9HSSZBA0RFJ020 AW
IC103 16M BIT FLASH MEMORY MBM29LV160B90PFTNSFK 9HSSZBA0RFJ021 AW
IC103 16M BIT FLASH MEMORY HY29LV160BT-90 9HSSZBA0RHY049 AX
IC103 16M BIT FLASH MEMORY MX29LV160BTC-90 9HSSZBA0RM0002 AX
IC103 16M BIT FLASH MEMORY HY29LV160BT-90V 9HSSZBA0RHY053 AU
IC103 16M BIT FLASH MEMORY M29W160EB70N6 9HSSZBA0RSS167 AU
IC103 16M BIT FLASH MEMORY MBM29LV160B-90PFCN 9HSSZBA0RFJ025 AU
IC103 16M BIT FLASH MEMORY MBM29LV160BE70NC 9HSSZBA0RFJ026 AU
IC104 LOW VOLTAGE OCTAL LATCH 74LVX573MTCX 9HSSZBA0TF3096 AF
IC105 LOW VOLTAGE OCTAL LATCH 74LVX573MTCX 9HSSZBA0TF3096 AF
IC201 1CIRCUIT ANALOG SWITCH NC7SB3157P6X 9HSSZBA0TF3063 AE
IC202 IC:OPERA TIONNAL AMPLIFIERKIA324F-EL 9HSSBLA0TJY044 AE
IC301 ACTUATER DRIVER SA5694 9HSSZBA0T0S002 AM
IC301 ACTUATER DRIVER BA5954FP-E2 9HSSZBA0TRM039 AM
IC451 CLOCK GENERATOR IC BU2363FV-E2 9HSSZBA0TRM041 AK
IC461 IC:RESET PST9129NR 9HSSBLA0TMM083 AE
IC461 SYSTEM RESET IC BMR-110529 9HSSZBA0TKK002 AD
IC601 AUDIO D/A CONVERTER PCM1751DBQR 9HSSZBA0TTY071 AK

1-18-3

E5752EL

Ref. No. Mark Description Part No. Code
COILS

L104 CHIP BEAD MMZ1608Y121CT 9HSL06001TE004 AB
L107 CHIP INDUCTOR LB2016T470M 9HSLC470MTU007 AC
L201 CHIP INDUCTOR LB2016T470M 9HSLC470MTU007 AC
L203 CHIP RES.(1608) 1/10W 0 Ω 9HSRXAZR5Z0000 AA
L250 CHIP INDUCTOR LB2016T2R2M 9HSLC2R2MTU007 AC
L454 CHIP RES.(1608) 1/10W J 15 Ω 9HSRXAJR5Z0150 AA
L455 CHIP INDUCTOR BK1608HM471-T 9HSLBC003TU053 AB
L501 CHIP INDUCTOR FBMH1608HM331-T 9HSLC331NTU037 AC
L561 CHIP RES.(1608) 1/10W 0 Ω 9HSRXAZR5Z0000 AA
L602 CHIP INDUCTOR BK1608LM182-T 9HSLBC003TU061 AB
L611 CHIP INDUCTOR BK1608HM471-T 9HSLBC003TU053 AB
L612 CHIP INDUCTOR BK1608HM471-T 9HSLBC003TU053 AB
L613 CHIP INDUCTOR BK1608HM471-T 9HSLBC003TU053 AB
L614 CHIP INDUCTOR BK1608HM471-T 9HSLBC003TU053 AB
L615 CHIP BEAD MMZ1608Y121CT 9HSL06001TE004 AB

TRANSISTORS

Q251 CHIP TRANSISTOR 2SC2412K T146S 9HSQ1S2SC2412K AC
Q251 CHIP TRANSISTOR KTC3875GR-RTK 9HSQ140KTC3875 AC
Q252 CHIP TRANSISTOR 2SA1037AK T146Q 9HSQ1Q2SA1037A AC
Q252 CHIP TRANSISTOR KTA1504Y-RTK 9HSQ1Y0KTA1504 AC
Q253 CHIP TRANSISTOR 2SC2412K T146S 9HSQ1S2SC2412K AC
Q253 CHIP TRANSISTOR KTC3875GR-RTK 9HSQ140KTC3875 AC
Q254 CHIP TRANSISTOR 2SA1037AK T146Q 9HSQ1Q2SA1037A AC
Q254 CHIP TRANSISTOR KTA1504Y-RTK 9HSQ1Y0KTA1504 AC

RESISTORS

R102 CHIP BEAD ACB1608L-060-T 9HSL06001TE005 AB
R106 CHIP RES.(1608) 1/10W J 220 Ω 9HSRXAJR5Z0221 AA
R107 CHIP RES.(1608) 1/10W J 220 Ω 9HSRXAJR5Z0221 AA
R108 CHIP RES.(1608) 1/10W J 220 Ω 9HSRXAJR5Z0221 AA
R109 CHIP RES.(1608) 1/10W J 220 Ω 9HSRXAJR5Z0221 AA
R111 CHIP BEAD MMZ1608R102CT 9HSL06001TE002 AB
R112 CHIP RES.(1608) 1/10W F 15k Ω 9HSRXAFR5H1502 AA
R112 CHIP RES.(100PPM) 1/16W F 15k Ω 9HSRXGFR5H1502 AA
R113 CHIP RES.(1608) 1/10W F 27k Ω 9HSRXAFR5H2702 AA
R113 CHIP RES.(100PPM) 1/16W F 27k Ω 9HSRXGFR5H2702 AA
R114 CHIP RES.(1608) 1/10W F 18k Ω 9HSRXAFR5H1802 AA
R114 CHIP RES.(100PPM) 1/16W F 18k Ω 9HSRXGFR5H1802 AA
R116 CHIP RES.(1608) 1/10W F 15k Ω 9HSRXAFR5H1502 AA
R116 CHIP RES.(100PPM) 1/16W F 15k Ω 9HSRXGFR5H1502 AA
R117 CHIP BEAD MMZ1608Y121BT 9HSL06001TE006 AB
R121 CHIP RES.(1608) 1/10W J 220 Ω 9HSRXAJR5Z0221 AA
R122 CHIP RES.(1608) 1/10W J 220 Ω 9HSRXAJR5Z0221 AA
R124 CHIP RES.(1608) 1/10W J 220 Ω 9HSRXAJR5Z0221 AA
R128 CHIP RES.(1608) 1/10W 0 Ω 9HSRXAZR5Z0000 AA
R130 CHIP RES.(1608) 1/10W J 1k Ω 9HSRXAJR5Z0102 AA
R202 CHIP RES.(1608) 1/10W 0 Ω 9HSRXAZR5Z0000 AA
R203 CHIP RES.(1608) 1/10W F 15k Ω 9HSRXAFR5H1502 AA
R203 CHIP RES.(100PPM) 1/16W F 15k Ω 9HSRXGFR5H1502 AA
R204 CHIP RES.(1608) 1/10W J 1k Ω 9HSRXAJR5Z0102 AA
R205 CHIP RES.(1608) 1/10W J 68k Ω 9HSRXAJR5Z0683 AA
R213 CHIP RES.(1608) 1/10W J 6.8k Ω 9HSRXAJR5Z0682 AA
R214 CHIP RES.(1608) 1/10W J 6.8k Ω 9HSRXAJR5Z0682 AA
R215 CHIP RES.(1608) 1/10W F 3.9k Ω 9HSRXAFR5H3901 AA
R215 CHIP RES.(100PPM) 1/16W F 3.9k Ω 9HSRXGFR5H3901 AA
R225 CHIP RES.(1608) 1/10W J 1k Ω 9HSRXAJR5Z0102 AA
R226 CHIP RES.(1608) 1/10W J 1k Ω 9HSRXAJR5Z0102 AA
R227 CHIP RES.(1608) 1/10W J 1k Ω 9HSRXAJR5Z0102 AA
R228 CHIP RES.(1608) 1/10W J 1k Ω 9HSRXAJR5Z0102 AA
R231 CHIP RES.(1608) 1/10W J 1k Ω 9HSRXAJR5Z0102 AA
R232 CHIP RES.(1608) 1/10W J 1k Ω 9HSRXAJR5Z0102 AA
R233 CHIP RES.(1608) 1/10W J 1k Ω 9HSRXAJR5Z0102 AA
R234 CHIP RES.(1608) 1/10W J 1k Ω 9HSRXAJR5Z0102 AA
R237 CHIP RES.(1608) 1/10W J 10k Ω 9HSRXAJR5Z0103 AA
R238 CHIP RES.(1608) 1/10W J 10k Ω 9HSRXAJR5Z0103 AA
R239 CHIP RES.(1608) 1/10W J 10k Ω 9HSRXAJR5Z0103 AA
R240 CHIP RES.(1608) 1/10W J 10k Ω 9HSRXAJR5Z0103 AA
R251 CHIP RES.(3216) 1/4W J 3.3 Ω 9HSRX4JR7Z03R3 AA
R252 CHIP RES.(1608) 1/10W J 2.2 Ω 9HSRXAJR5Z02R2 AA

1-18-4

E5752EL

Ref. No. Mark Description Part No. Code

R255 CHIP RES.(1608) 1/10W J 470 Ω 9HSRXAJR5Z0471 AA
R258 CHIP RES.(1608) 1/10W J 180 Ω 9HSRXAJR5Z0181 AA
R261 CHIP RES.(3216) 1/4W J 5.6 Ω 9HSRX4JR7Z05R6 AA
R262 CHIP RES.(1608) 1/10W J 2.2 Ω 9HSRXAJR5Z02R2 AA
R265 CHIP RES.(1608) 1/10W J 470 Ω 9HSRXAJR5Z0471 AA
R268 CHIP RES.(1608) 1/10W J 180 Ω 9HSRXAJR5Z0181 AA
R281 CHIP RES.(1608) 1/10W 0 Ω 9HSRXAZR5Z0000 AA
R286 CHIP RES.(1608) 1/10W 0 Ω 9HSRXAZR5Z0000 AA
R289 CHIP RES.(1608) 1/10W J 510k Ω 9HSRXAJR5Z0514 AA
R290 CHIP RES.(1608) 1/10W J 51k Ω 9HSRXAJR5Z0513 AA
R291 CHIP RES.(1608) 1/10W J 10k Ω 9HSRXAJR5Z0103 AA
R292 CHIP RES.(1608) 1/10W J 1.8k Ω 9HSRXAJR5Z0182 AA
R293 CHIP RES.(1608) 1/10W J 3.3k Ω 9HSRXAJR5Z0332 AA
R297 CHIP RES.(1608) 1/10W J 100 Ω 9HSRXAJR5Z0101 AA
R301 CHIP RES.(1608) 1/10W J 1.5k Ω 9HSRXAJR5Z0152 AA
R303 CHIP RES.(1608) 1/10W J 8.2k Ω 9HSRXAJR5Z0822 AA
R305 CHIP RES.(1608) 1/10W J 1k Ω 9HSRXAJR5Z0102 AA
R306 CHIP RES.(1608) 1/10W J 220 Ω 9HSRXAJR5Z0221 AA
R307 CHIP RES.(1608) 1/10W J 100 Ω 9HSRXAJR5Z0101 AA
R308 CHIP RES.(1608) 1/10W J 6.8k Ω 9HSRXAJR5Z0682 AA
R313 CHIP RES.(1608) 1/10W J 10k Ω 9HSRXAJR5Z0103 AA
R315 CHIP RES.(1608) 1/10W J 9.1k Ω 9HSRXAJR5Z0912 AA
R316 CHIP RES.(3216) 1/4W J 2.2 Ω 9HSRX4JR7Z02R2 AA
R317 CHIP RES.(3216) 1/4W J 2.2 Ω 9HSRX4JR7Z02R2 AA
R318 CHIP RES.(3216) 1/4W J 2.2 Ω 9HSRX4JR7Z02R2 AA
R319 CHIP RES.(3216) 1/4W J 2.2 Ω 9HSRX4JR7Z02R2 AA
R320 CHIP RES.(3216) 1/4W J 2.2 Ω 9HSRX4JR7Z02R2 AA
R321 CHIP RES.(3216) 1/4W J 2.2 Ω 9HSRX4JR7Z02R2 AA
R322 CHIP RES.(1608) 1/10W J 10k Ω 9HSRXAJR5Z0103 AA
R323 CHIP RES.(1608) 1/10W J 10k Ω 9HSRXAJR5Z0103 AA
R332 CHIP RES.(1608) 1/10W 0 Ω 9HSRXAZR5Z0000 AA
R333 CHIP RES.(1608) 1/10W 0 Ω 9HSRXAZR5Z0000 AA
R334 CHIP RES.(1608) 1/10W 0 Ω 9HSRXAZR5Z0000 AA
R422 CHIP RES.(1608) 1/10W J 4.7k Ω 9HSRXAJR5Z0472 AA
R451 CHIP BEAD MMZ1608Y121CT 9HSL06001TE004 AB
R453 CHIP INDUCTOR BK1608HM471-T 9HSLBC003TU053 AB
R454 CHIP RES.(1608) 1/10W 0 Ω 9HSRXAZR5Z0000 AA
R456 CHIP RES.(1608) 1/10W J 47 Ω 9HSRXAJR5Z0470 AA
R457 CHIP RES.(1608) 1/10W J 240 Ω 9HSRXAJR5Z0241 AA
R459 CHIP RES.(1608) 1/10W 0 Ω 9HSRXAZR5Z0000 AA
R471 CHIP RES.(1608) 1/10W J 47k Ω 9HSRXAJR5Z0473 AA
R473 CHIP RES.(1608) 1/10W J 91k Ω 9HSRXAJR5Z0913 AA
R501 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA
R502 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA
R503 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA
R504 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA
R505 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA
R506 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA
R507 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA
R508 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA
R509 CHIP RES.(1608) 1/10W 0 Ω 9HSRXAZR5Z0000 AA
R510 CHIP RES.(1608) 1/10W J 47k Ω 9HSRXAJR5Z0473 AA
R518 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA
R519 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA
R520 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA
R521 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA
R522 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA
R523 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA
R524 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA
R525 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA
R527 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA
R528 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA
R529 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA
R530 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA
R531 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA
R532 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA
R533 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA
R534 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA
R539 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA

1-18-5

E5752EL

Ref. No. Mark Description Part No. Code

R540 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA
R541 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA
R542 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA
R543 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA
R544 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA
R545 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA
R546 CHIP RES.(1608) 1/10W J 82 Ω 9HSRXAJR5Z0820 AA
R562 CHIP RES.(1608) 1/10W J 330k Ω 9HSRXAJR5Z0334 AA
R565 CHIP RES.(1608) 1/10W J 47 Ω 9HSRXAJR5Z0470 AA
R567 CHIP RES.(1608) 1/10W J 47 Ω 9HSRXAJR5Z0470 AA
R571 CHIP RES.(1608) 1/10W J 10k Ω 9HSRXAJR5Z0103 AA
R572 CHIP RES.(1608) 1/10W J 10k Ω 9HSRXAJR5Z0103 AA
R607 CHIP RES.(1608) 1/10W J 1k Ω 9HSRXAJR5Z0102 AA
R608 CHIP BEAD MMZ1608Y121CT 9HSL06001TE004 AB

MISCELLANEOUS

X451 QUARTZ CRYSTAL SMD-49 36.864MHz 9HSXC366CDS001 AH
X451 QUARTZ CRYSTAL 36.864-11AHC-49SMD C 9HSXC366CXGE01 AG
X451 QUARTZ CRYSTAL 36.864MHz(20PPM/20PP 9HSXC366CLN001 AG

AV CBA ASSEMBLY

Ref. No. Mark Description Part No. Code

A AV CBA ASSEMBLY 9HS0VSA14102 BW

B,C AV CBA ASSEMBLY 9HS0VSA14106 BW

Consists of the following
AV CBA 9HS0VSA14102A BW
FUNCTION CBA 9HS0VSA14102B AM

Consists of the following
AV CBA 9HS0VSA14106A BW
FUNCTION CBA 9HS0VSA14106B AM

AV CBA

Ref. No. Mark Description Part No. Code

A AV CBA 9HS0VSA14102A BW
B,C AV CBA 9HS0VSA14106A BW

CAPACITORS

C1001! METALLIZED FILM CAP. 0.047µF/250V K 9HST2E473DC011 AC
C1001! METALLIZED FILM CAP. 0.047µF/250V M 9HST2E473MS037 AD
C1003 CERAMIC CAP. B K 0.01µF/500V 9HSCD2JKP0B103 AD
C1004 ELECTROLYTIC CAP. 33µF/400V M(L•Z) 9HSE2HMZATH330 AL
C1004 ELECTROLYTIC CAP. 33µF/400V M 9HSA2H330S6021 AH
C1004 ELECTROLYTIC CAP. 33µF/400V M(105C) 9HSA2H330NC162 AG
C1005 CERAMIC CAP. SL K 56pF/1KV 9HSCD3AKPSL560 AC
C1006! SAFETY CAP. 2200pF/250V 9HSCN2EMP0E222 AD
C1006! SAFETY CAP. 2200pF/250V 9HSA2E222MR049 AD
C1007 ELECTROLYTIC CAP. 1000µF/6.3V M 9HSE0KMASDL102 AC
C1009 ELECTROLYTIC CAP. 2200µF/6.3V M 9HSE0KMASTL222 AC
C1010 CERAMIC CAP.(AX) CH J 560pF/50V 9HSA1J561TU008 AA
C1013 CERAMIC CAP.(AX) B K 3300pF/50V 9HSA1J332TU011 AB
C1014 ELECTOLYTIC CAP. 1000µF/6.3V M(105C) 9HSE0KMASDH102 AA
C1017 CERAMIC CAP.(AX) Y M 0.01µF/16V 9HSCA1CMT0Y103 AA
C1018 ELECTROLYTIC CAP. 100µF/6.3V M 9HSE0KMASDL101 AB
C1021 CHIP CERAMIC CAP. B K 0.01µF/50V 9HSHD1JK30B103 AA
C1022 CHIP CERAMIC CAP. B K 0.01µF/50V 9HSHD1JK30B103 AA
C1029 CERAMIC CAP.(AX) X K 5600pF/16V 9HSCA1CKT0X562 AA
C1032 ELECTROLYTIC CAP. 10µF/16V M 9HSE1CMASDL100 AB
C1033 FILM CAP.(P) 0.022µF/50V J 9HSMA1JJS00223 AB
C1033 FILM CAP.(P) 0.022µF/50V J 9HSA1J223MS029 AB
C1034 ELECTROLYTIC CAP. 470µF/6.3V M 9HSE0KMASDL471 AB
C1035 ELECTROLYTIC CAP. 470µF/16V M 9HSE1CMASDL471 AB
C1036 CHIP CERAMIC CAP. B K 0.01µF/50V 9HSHD1JK30B103 AA
C1037 CHIP CERAMIC CAP. F Z 0.1µF/50V 9HSHD1JZ30F104 AA
C1038 ELECTROLYTIC CAP. 470µF/6.3V M 9HSE0KMASDL471 AB
C1039 CHIP CERAMIC CAP. F Z 0.1µF/50V 9HSHD1JZ30F104 AA
C1047 FILM CAP.(P) 0.01µF/50V J 9HSMA1JJS00103 AB
C1047 FILM CAP.(P) 0.01µF/50V J 9HSA1J103MS029 AB
C1048 ELECTROLYTIC CAP. 220µF/16V M 9HSE1CMASDL221 AB

Consists of the following

1-18-6

E5752EL

Ref. No. Mark Description Part No. Code

C1049 CHIP CERAMIC CAP. F Z 0.1µF/50V 9HSHD1JZ30F104 AA
C1050 ELECTROLYTIC CAP. 220µF/6.3V M 9HSE0KMASDL221 AB
C1070 ELECTROLYTIC CAP. 22µF/16V M 9HSE1CMASDL220 AC
C1201 ELECTROLYTIC CAP. 10µF/16V M 9HSE1CMASDL100 AB
C1202 ELECTROLYTIC CAP. 10µF/16V M 9HSE1CMASDL100 AB
C1205 CHIP CERAMIC CAP. CH J 220pF/50V 9HSHD1JJ3CH221 AA
C1206 CHIP CERAMIC CAP. CH J 220pF/50V 9HSHD1JJ3CH221 AA
C1207 CHIP CERAMIC CAP. CH J 47pF/50V 9HSHD1JJ3CH470 AA
C1208 CHIP CERAMIC CAP. CH J 47pF/50V 9HSHD1JJ3CH470 AA
C1221 ELECTROLYTIC CAP. 10µF/16V M 9HSE1CMASDL100 AB
C1222 ELECTROLYTIC CAP. 10µF/16V M 9HSE1CMASDL100 AB
C1223 CHIP CERAMIC CAP. CH J 1000pF/50V 9HSHD1JJ3CH102 AA
C1224 CHIP CERAMIC CAP. CH J 1000pF/50V 9HSHD1JJ3CH102 AA
C1245 CHIP CERAMIC CAP. F Z 0.1µF/50V 9HSHD1JZ30F104 AA
C1246 CHIP CERAMIC CAP. F Z 0.1µF/50V 9HSHD1JZ30F104 AA
C1247 ELECTROLYTIC CAP. 470µF/6.3V M 9HSE0KMASDL471 AB
C1249 ELECTROLYTIC CAP. 47µF/16V M 9HSE1CMASDL470 AB
C1351 CHIP CERAMIC CAP. B K 0.1µF/25V 9HSHD1EK30B104 AB
C1353 CHIP CERAMIC CAP. B K 1µF/10V 9HSHD1AK30B105 AC
C1354 CHIP CERAMIC CAP. CH J 100pF/50V 9HSHD1JJ3CH101 AA
C1355 CHIP RES.(1608) 1/10W 0 Ω 9HSRXAZR5Z0000 AA
C1358 CHIP CERAMIC CAP. CH D 9pF/50V 9HSHD1JD3CH9R0 AA
C1394 ELECTROLYTIC CAP. 47µF/6.3V M 9HSE0KMASDL470 AB
C1402 ELECTROLYTIC CAP. 470µF/6.3V M 9HSE0KMASDL471 AB
C1421 CHIP CERAMIC CAP. B K 0.01µF/50V 9HSHD1JK30B103 AA
C1422 CHIP CERAMIC CAP. B K 0.1µF/25V 9HSHD1EK30B104 AB
C1441 CHIP CERAMIC CAP. B K 0.33µF/10V 9HSHD1AK30B334 AC
C1442 ELECTROLYTIC CAP. 470µF/6.3V M 9HSE0KMASDL471 AB
C1461 ELECTROLYTIC CAP. 1µF/50V M 9HSE1JMASDL010 AB
C1462 ELECTROLYTIC CAP. 470µF/6.3V M 9HSE0KMASDL471 AB
C1481 ELECTROLYTIC CAP. 1µF/50V M 9HSE1JMASDL010 AB
C1482 ELECTROLYTIC CAP. 470µF/6.3V M 9HSE0KMASDL471 AB
C1486 ELECTROLYTIC CAP. 1µF/50V M 9HSE1JMASDL010 AB
C1487 CHIP CERAMIC CAP. CH J 1000pF/50V 9HSHD1JJ3CH102 AA
C1491 ELECTROLYTIC CAP. 1µF/50V M 9HSE1JMASDL010 AB
C1492 ELECTROLYTIC CAP. 470µF/6.3V M 9HSE0KMASDL471 AB
C1521 CHIP CERAMIC CAP. CH J 100pF/50V 9HSHD1JJ3CH101 AA
C1522 ELECTROLYTIC CAP. 10µF/16V M 9HSE1CMASDL100 AB
C1523 CHIP CERAMIC CAP. CH J 100pF/50V 9HSHD1JJ3CH101 AA
C1524 ELECTROLYTIC CAP. 100µF/6.3V M 9HSE0KMASDL101 AB
C1531 CHIP CERAMIC CAP. B K 0.01µF/50V 9HSHD1JK30B103 AA
C1532 ELECTROLYTIC CAP. 22µF/6.3V M 9HSE0KMASDL220 AA
C1533 ELECTROLYTIC CAP. 1µF/50V M 9HSE1JMASDL010 AB
C1534 CHIP CERAMIC CAP. B K 1000pF/50V 9HSHD1JK30B102 AA
C1535 CHIP CERAMIC CAP. F Z 0.1µF/50V 9HSHD1JZ30F104 AA
C2001 ELECTROLYTIC CAP. 22µF/50V M 9HSE1JMASDL220 AB
C2002 ELECTROLYTIC CAP. 22µF/50V M 9HSE1JMASDL220 AB
C2004 CHIP CERAMIC CAP. F Z 0.1µF/50V 9HSHD1JZ30F104 AA
C2008 CHIP CERAMIC CAP. B K 0.1µF/25V 9HSHD1EK30B104 AB
C2009 CHIP CERAMIC CAP. F Z 0.1µF/50V 9HSHD1JZ30F104 AA
C2011 CHIP CERAMIC CAP. F Z 0.1µF/50V 9HSHD1JZ30F104 AA
C2012 ELECTROLYTIC CAP. 100µF/6.3V M 9HSE0KMASDL101 AB
C2013 CHIP CERAMIC CAP. CH J 1000pF/50V 9HSHD1JJ3CH102 AA

CONNECTORS

CN1001 FMN CONNECTOR, TOP 22P 22FMN-BTK 9HSCFNG22JG001 AE
CN1601 FMN CONNECTOR, TOP 18P 18FMN-BTK 9HSCFNG18JG001 AD
CN1601 FFC/FPC CONNECTOR 18P 00 6232 018 000 800 9HSC62G18TM009 AD
CN2101 FMN CONNECTOR, TOP 8P 08FMN-BTK 9HSCFNG08JG001 AD

DIODES

D1001 RECTIFIER DIODE 1N4005 9HSDQZ001N4005 AB
D1002 RECTIFIER DIODE 1N4005 9HSDQZ001N4005 AB
D1003 RECTIFIER DIODE BA157 9HSDQZ000BA157 AB
D1003 FAST RECOVERY DIODE ERA18-04 9HSDPZ0ERA1804 AC
D1004 RECTIFIER DIODE 1N4005 9HSDQZ001N4005 AB
D1005 RECTIFIER DIODE 1N4005 9HSDQZ001N4005 AB
D1006 SCHOTTKY BARRIER DIODE SB140 9HSDQZ000SB140 AC
D1006 SCHOTTKY BARRIER DIODE ERA81-004 9HSDPZERA81004 AB
D1008 SCHOTTKY BARRIER DIODE SB140 9HSDQZ000SB140 AC
D1008 SCHOTTKY BARRIER DIODE ERA81-004 9HSDPZERA81004 AB

1-18-7

E5752EL

Ref. No. Mark Description Part No. Code

D1011 RECTIFIER DIODE BA158 9HSDQZ000BA158 AB
D1011 RECTIFIER DIODE ERA22-10 9HSDPZ0ERA2210 AD
D1012 SWITCHING DIODE 1N4148M 9HSDTZ01N4148M AA
D1012 SWITCHING DIODE 1SS133(T-77) 9HSDTZ001SS133 AB
D1015 ZENER DIODE DZ-6.8BSBT265 9HSDTB0DZ6R8BS AB
D1015 ZENER DIODE MTZJT-776.8B 9HSDTB0MTZJ6R8 AA
D1016 RECTIFIER DIODE BA157 9HSDQZ000BA157 AB
D1016 FAST RECOVERY DIODE ERA18-04 9HSDPZ0ERA1804 AC
D1017 ZENER DIODE DZ-22BSBT265 9HSDTB00DZ22BS AB
D1017 ZENER DIODE MTZJT-7722B 9HSDTB00MTZJ22 AA
D1018 SWITCHING DIODE 1N4148M 9HSDTZ01N4148M AA
D1018 SWITCHING DIODE 1SS133(T-77) 9HSDTZ001SS133 AB
D1022 SWITCHING DIODE 1N4148M 9HSDTZ01N4148M AA
D1022 SWITCHING DIODE 1SS133(T-77) 9HSDTZ001SS133 AB
D1024 SWITCHING DIODE 1N4148M 9HSDTZ01N4148M AA
D1024 SWITCHING DIODE 1SS133(T-77) 9HSDTZ001SS133 AB
D1025 SWITCHING DIODE 1N4148M 9HSDTZ01N4148M AA
D1025 SWITCHING DIODE 1SS133(T-77) 9HSDTZ001SS133 AB
D1030 RECTIFIER DIODE FR202 9HSDQZ000FR202 AB
D1030 FAST RECOVERY DIODE ERB32-01L3 9HSDQZ0ERB3201 AD
D1046 ZENER DIODE DZ-5.6BSCT265 9HSDTC0DZ5R6BS AB
D1046 ZENER DIODE MTZJT-775.6C 9HSDTC0MTZJ5R6 AA
D1047 ZENER DIODE DZ-5.6BSBT265 9HSDTB0DZ5R6BS AB
D1047 ZENER DIODE MTZJT-775.6B 9HSDTB0MTZJ5R6 AC
D1048 ZENER DIODE DZ-15BSAT265 9HSDTA00DZ15BS AB
D1048 ZENER DIODE MTZJT-7715A 9HSDTA00MTZJ15 AB
D1051 ZENER DIODE DZ-6.2BSBT265 9HSDTB0DZ6R2BS AB
D1051 ZENER DIODE MTZJT-776.2B 9HSDTB0MTZJ6R2 AA
D1053 RECTIFIER DIODE 1N4005 9HSDQZ001N4005 AB
D1054 SCHOTTKY BARRIER DIODE SB140 9HSDQZ000SB140 AC
D1054 SCHOTTKY BARRIER DIODE ERA81-004 9HSDPZERA81004 AB
D1055 SWITCHING DIODE 1N4148M 9HSDTZ01N4148M AA
D1055 SWITCHING DIODE 1SS133(T-77) 9HSDTZ001SS133 AB
D1056 SWITCHING DIODE 1N4148M 9HSDTZ01N4148M AA
D1056 SWITCHING DIODE 1SS133(T-77) 9HSDTZ001SS133 AB
D1058 RECTIFIER DIODE 1N4005 9HSDQZ001N4005 AB
D1072 ZENER DIODE DZ-10BSBT265 9HSDTB00DZ10BS AB
D1072 ZENER DIODE MTZJT-7710B 9HSDTB00MTZJ10 AB
D1074 RECTIFIER DIODE 1N4005 9HSDQZ001N4005 AB
D1075 RECTIFIER DIODE 1N4005 9HSDQZ001N4005 AB
D1201 ZENER DIODE DZ-13BSBT265 9HSDTB00DZ13BS AB
D1201 ZENER DIODE MTZJT-7713B 9HSDTB00MTZJ13 AB
D1202 ZENER DIODE DZ-13BSBT265 9HSDTB00DZ13BS AB
D1202 ZENER DIODE MTZJT-7713B 9HSDTB00MTZJ13 AB
D1203 ZENER DIODE DZ-13BSBT265 9HSDTB00DZ13BS AB
D1203 ZENER DIODE MTZJT-7713B 9HSDTB00MTZJ13 AB
D1204 ZENER DIODE DZ-13BSBT265 9HSDTB00DZ13BS AB
D1204 ZENER DIODE MTZJT-7713B 9HSDTB00MTZJ13 AB
D1301 ZENER DIODE DZ-5.6BSBT265 9HSDTB0DZ5R6BS AB
D1301 ZENER DIODE MTZJT-775.6B 9HSDTB0MTZJ5R6 AC
D1401 ZENER DIODE DZ-13BSBT265 9HSDTB00DZ13BS AB
D1401 ZENER DIODE MTZJT-7713B 9HSDTB00MTZJ13 AB
D1402 ZENER DIODE DZ-13BSBT265 9HSDTB00DZ13BS AB
D1402 ZENER DIODE MTZJT-7713B 9HSDTB00MTZJ13 AB
D1501 ZENER DIODE DZ-13BSBT265 9HSDTB00DZ13BS AB
D1501 ZENER DIODE MTZJT-7713B 9HSDTB00MTZJ13 AB
D1502 ZENER DIODE DZ-13BSBT265 9HSDTB00DZ13BS AB
D1502 ZENER DIODE MTZJT-7713B 9HSDTB00MTZJ13 AB
D1503 ZENER DIODE DZ-13BSBT265 9HSDTB00DZ13BS AB
D1503 ZENER DIODE MTZJT-7713B 9HSDTB00MTZJ13 AB
D1504 ZENER DIODE DZ-13BSBT265 9HSDTB00DZ13BS AB
D1504 ZENER DIODE MTZJT-7713B 9HSDTB00MTZJ13 AB
D1505 ZENER DIODE DZ-13BSBT265 9HSDTB00DZ13BS AB
D1505 ZENER DIODE MTZJT-7713B 9HSDTB00MTZJ13 AB
D1506 ZENER DIODE MTZJT-7713B 9HSDTB00MTZJ13 AB
D1507 SWITCHING DIODE 1N4148M 9HSDTZ01N4148M AA
D1507 SWITCHING DIODE 1SS133(T-77) 9HSDTZ001SS133 AB
D2009 SWITCHING DIODE 1N4148M 9HSDTZ01N4148M AA
D2009 SWITCHING DIODE 1SS133(T-77) 9HSDTZ001SS133 AB

1-18-8

E5752EL

Ref. No. Mark Description Part No. Code
ICS

IC1001! PHOTOCOUPLER LTV-817B-F 9HSPEB0LTV817F AE
IC1001! PHOTOCOUPLER LTV-817C-F 9HSPEC0LTV817F AD
IC1002 VOLTAGE REGULATOR PQ070XF01SZ 9HSSZBA0SSH026 AG
IC1006 IC KIA431-AT 9HSSZLA0TJY001 AE
IC1201 IC:OP AMP KIA4558P 9HSSZBA0SJY004 AE
IC1201 IC:OP AMP NJM4558D 9HSSZBA0SJR006 AE
IC1401 DRIVER FOR DVD(6CH) MM1567AJ 9HSSZBA0SMM084 BG
IC2001 FL DRIVER IC PT6313-S-TP 9HSSZBA0TG2006 AK
IC2002 P-ON MICROCOMPUTER M34506M4-504FP 9HSSZAA0SMB170 AT

COILS

L1001! LINE FILTER 50MH LF-4Z-E503 9HSLBG00ZKQ008 AE
L1001! LINE FILTER 50MH LF-4D-E503 9HSLBG00ZKQ009 AG
L1001! LINE FILTER 56MH TLF14CB5630R2 9HSLBG00ZTU022 AE
L1007 CHOKE COIL 22µH-K 9HSLBD00PKV006 AB
L1008 CHOKE COIL 22µH-K 9HSLBD00PKV006 AB
L1009 CHOKE COIL 22µH-K 9HSLBD00PKV006 AB
L1011 BEAD CORE B16 RH 3.5X3X1.3 9HSL03003XM002 AA
L1043 BEAD CORE B16 RH 4X3X2 9HSL03003XM001 AA
L1060 BEAD CORE B16 RH 3.5X3X1.3 9HSL03003XM002 AA
L1350 INDUCTOR 100µH-K-26T 9HSLAXKATTU101 AB
L1351 INDUCTOR 0.47µH-K-26T 9HSLAXKATTUR47 AB
L1401 CHIP BEAD MMZ1608Y121CT 9HSL06001TE004 AB
L1405 CHIP BEAD MMZ1608Y121CT 9HSL06001TE004 AB
L1421 CHIP BEAD MMZ1608Y121CT 9HSL06001TE004 AB
L1442 CHIP BEAD MMZ1608Y121CT 9HSL06001TE004 AB
L1462 CHIP BEAD MMZ1608Y121CT 9HSL06001TE004 AB
L1482 CHIP BEAD MMZ1608Y121CT 9HSL06001TE004 AB
L1492 CHIP BEAD MMZ1608Y121CT 9HSL06001TE004 AB
L1521 CHOKE COIL 22µH-K 9HSLBD00PKV006 AB
L2002 INDUCTOR 100µH-K-26T 9HSLAXKATTU101 AB
L1522A CHIP BEAD MMZ1608R102CT 9HSL06001TE002 AB

TRANSISTORS

Q1001 FET 2SK3566 9HSFWZ02SK3566 AH
Q1002 TRANSISTOR KTA1267(Y) 9HSQSY0KTA1267 AC
Q1003 TRANSISTOR KTC3199(GR) 9HSQS10KTC3199 AB
Q1003 TRANSISTOR 2SC2785(H) 9HSQSH02SC2785 AB
Q1004 TRANSISTOR KTC3198(Y) 9HSQSY0KTC3198 AB
Q1005 TRANSISTOR KTC3198(Y) 9HSQSY0KTC3198 AB
Q1006 RES. BUILT-IN TRANSISTOR KRA110M 9HSQSZ0KRA110M AB
Q1006 RES. BUILT-IN TRANSISTOR BN1L3Z(P) 9HSQSP00BN1L3Z AC
Q1008 TRANSISTOR KTC3199(GR) 9HSQS10KTC3199 AB
Q1008 TRANSISTOR 2SC2785(H) 9HSQSH02SC2785 AB
Q1010 TRANSISTOR 2SA966(Y) 9HSQSY002SA966 AB
Q1011 TRANSISTOR 2SC2120-Y(TPE2) 9HSQSY02SC2120 AC
Q1012 RES. BUILT-IN TRANSISTOR KRA110M 9HSQSZ0KRA110M AB
Q1012 RES. BUILT-IN TRANSISTOR BN1L3Z(P) 9HSQSP00BN1L3Z AC
Q1014 TRANSISTOR KTC3199(GR) 9HSQS10KTC3199 AB
Q1014 TRANSISTOR 2SC2785(H) 9HSQSH02SC2785 AB
Q1015 RES. BUILT-IN TRANSISTOR KRA110M 9HSQSZ0KRA110M AB
Q1015 RES. BUILT-IN TRANSISTOR BN1L3Z(P) 9HSQSP00BN1L3Z AC
Q1016 TRANSISTOR KTC3199(GR) 9HSQS10KTC3199 AB
Q1016 TRANSISTOR 2SC2785(H) 9HSQSH02SC2785 AB
Q1050 TRANSISTOR KTC3205(Y) 9HSQSY0KTC3205 AD
Q1050 TRANSISTOR 2SC2236-Y-TPE6,C 9HSQSY02SC2236 AD
Q1201 TRANSISTOR KTC3199(GR) 9HSQS10KTC3199 AB
Q1201 TRANSISTOR 2SC2785(H) 9HSQSH02SC2785 AB
Q1202 TRANSISTOR KTC3199(GR) 9HSQS10KTC3199 AB
Q1202 TRANSISTOR 2SC2785(H) 9HSQSH02SC2785 AB
Q1203 TRANSISTOR KTA1266(Y) 9HSQSY0KTA1266 AB
Q1203 TRANSISTOR 2SA1015-Y(TPE2) 9HSQSY02SA1015 AC
Q1204 TRANSISTOR KTA1266(Y) 9HSQSY0KTA1266 AB
Q1204 TRANSISTOR 2SA1015-Y(TPE2) 9HSQSY02SA1015 AC
Q1351 TRANSISTOR KTC3199(GR) 9HSQS10KTC3199 AB
Q1351 TRANSISTOR 2SC2785(H) 9HSQSH02SC2785 AB
Q1352 TRANSISTOR KTC3199(GR) 9HSQS10KTC3199 AB
Q1352 TRANSISTOR 2SC2785(H) 9HSQSH02SC2785 AB
Q1521 TRANSISTOR KTC3199(GR) 9HSQS10KTC3199 AB
Q1521 TRANSISTOR 2SC2785(H) 9HSQSH02SC2785 AB

1-18-9

E5752EL

Ref. No. Mark Description Part No. Code

Q1522 TRANSISTOR KTA1266(Y) 9HSQSY0KTA1266 AB
Q1522 TRANSISTOR 2SA1015-Y(TPE2) 9HSQSY02SA1015 AC
Q2007 TRANSISTOR KTC3199(GR) 9HSQS10KTC3199 AB
Q2007 TRANSISTOR 2SC2785(H) 9HSQSH02SC2785 AB

RESISTORS

R1002 CHIP RES.(1608) 1/10W J 1k Ω 9HSRXAJR5Z0102 AA
R1004 METAL OXIDE FILM RES. 1W J 150k Ω 9HSN01154ZU001 AA
R1004 METAL OXIDE FILM RES. 1W J 150k Ω 9HSN01154KE009 AB
R1005 CARBON RES. 1/4W J 1.5M Ω 9HSCX4JATZ0155 AA
R1006 CARBON RES. 1/4W J 1.5M Ω 9HSCX4JATZ0155 AA
R1008 CARBON RES. 1/4W J 560 Ω 9HSCX4JATZ0561 AA
R1010 CARBON RES. 1/6W J 3.9k Ω 9HSCX6JATZ0392 AA
R1010 CARBON RES. 1/4W J 3.9k Ω 9HSCX4JATZ0392 AA
R1011 METAL OXIDE FILM RES. 1W J 2.2 Ω 9HSN012R2ZU001 AB
R1011 METAL OXIDE FILM RES. 1W J 2.2 Ω 9HSN012R2KE009 AB
R1013 CARBON RES. 1/4W J 390 Ω 9HSCX4JATZ0391 AA
R1015 CARBON RES. 1/4W J 560 Ω 9HSCX4JATZ0561 AA
R1016 CARBON RES. 1/6W J 22k Ω 9HSCX6JATZ0223 AA
R1016 CARBON RES. 1/4W J 22k Ω 9HSCX4JATZ0223 AA
R1019 CHIP RES.(1608) 1/16W F 1.6k Ω 9HSRXGFR5Z0162 AA
R1019 CHIP RES. 1/10W F 1.6k Ω 9HSRXAFR5Z1601 AA
R1020 CHIP RES.(1608) 1/10W J 470 Ω 9HSRXAJR5Z0471 AA
R1021 CHIP RES.(1608) 1/10W J 1k Ω 9HSRXAJR5Z0102 AA
R1022 CHIP RES.(1608) 1/10W J 820 Ω 9HSRXAJR5Z0821 AA
R1023 CHIP REG.(1608) 1/16W F 3.3k Ω 9HSRXGFR5Z0332 AA
R1025 CHIP RES.(1608) 1/10W J 10k Ω 9HSRXAJR5Z0103 AA
R1029 CARBON RES. 1/6W J 100k Ω 9HSCX6JATZ0104 AA
R1029 CARBON RES. 1/4W J 100k Ω 9HSCX4JATZ0104 AA
R1032 CARBON RES. 1/4W J 1k Ω 9HSCX4JATZ0102 AA
R1034 CARBON RES. 1/4W J 390k Ω 9HSCX4JATZ0394 AA
R1035 CARBON RES. 1/4W J 1k Ω 9HSCX4JATZ0102 AA
R1036 CARBON RES. 1/6W J 47k Ω 9HSCX6JATZ0473 AA
R1036 CARBON RES. 1/4W J 47k Ω 9HSCX4JATZ0473 AA
R1037 CARBON RES. 1/4W J 10k Ω 9HSCX4JATZ0103 AA
R1038 CARBON RES. 1/6W J 100k Ω 9HSCX6JATZ0104 AA
R1038 CARBON RES. 1/4W J 100k Ω 9HSCX4JATZ0104 AA
R1039 CARBON RES. 1/4W J 470k Ω 9HSCX4JATZ0474 AA
R1043 METAL OXIDE FILM RES. 1W J 2.7 Ω 9HSN012R7ZU001 AA
R1043 METAL OXIDE FILM RES. 1W J 2.7 Ω 9HSN012R7KE009 AA
R1044 CHIP RES.(1608) 1/10W J 100k Ω 9HSRXAJR5Z0104 AA
R1059 CHIP RES.(1608) 1/10W J 10k Ω 9HSRXAJR5Z0103 AA
R1067 CHIP RES.(1608) 1/10W J 1k Ω 9HSRXAJR5Z0102 AA
R1068 CARBON RES. 1/4W J 1k Ω 9HSCX4JATZ0102 AA
R1069 CARBON RES. 1/4W J 1k Ω 9HSCX4JATZ0102 AA
R1073 METAL OXIDE FILM RES. 2W J 10 Ω 9HSN02100ZU001 AB
R1073 METAL OXIDE FILM RES. 2W J 10 Ω 9HSN02100KE009 AA
R1075 CHIP RES.(1608) 1/10W J 2.7k Ω 9HSRXAJR5Z0272 AA
R1076 CHIP RES.(1608) 1/10W J 10k Ω 9HSRXAJR5Z0103 AA
R1077 CARBON RES. 1/4W J 2.2k Ω 9HSCX4JATZ0222 AA
R1078 CHIP RES.(1608) 1/10W 0 Ω 9HSRXAZR5Z0000 AA
R1080 CHIP RES.(1608) 1/10W J 22k Ω 9HSRXAJR5Z0223 AA
R1081 CHIP REG. 1/16W F 100 Ω 9HSRXGFR5Z0101 AA
R1082 CHIP RES.(1608) 1/10W J 10k Ω 9HSRXAJR5Z0103 AA
R1083 CARBON RES. 1/4W J 5.6 Ω 9HSCX4JATZ05R6 AA
R1084 CARBON RES. 1/6W J 220k Ω 9HSCX6JATZ0224 AA
R1084 CARBON RES. 1/4W J 220k Ω 9HSCX4JATZ0224 AA
R1085 CHIP RES.(1608) 1/10W J 6.8k Ω 9HSRXAJR5Z0682 AA
R1087 CHIP RES.(1608) 1/10W J 10k Ω 9HSRXAJR5Z0103 AA
R1088 CHIP RES.(1608) 1/10W J 220 Ω 9HSRXAJR5Z0221 AA
R1089 CHIP RES.(1608) 1/10W 0 Ω 9HSRXAZR5Z0000 AA
R1090 CHIP RES.(1608) 1/10W J 10k Ω 9HSRXAJR5Z0103 AA
R1096 CARBON RES. 1/4W J 390k Ω 9HSCX4JATZ0394 AA
R1097 METAL OXIDE FILM RES. 1W J 5.6 Ω 9HSN015R6ZU001 AA
R1097 METAL OXIDE FILM RES. 1W J 5.6 Ω 9HSN015R6KE009 AA
R1098 CHIP RES.(1608) 1/10W J 1k Ω 9HSRXAJR5Z0102 AA
R1203 CHIP RES.(1608) 1/10W 0 Ω 9HSRXAZR5Z0000 AA
R1204 CHIP RES.(1608) 1/10W 0 Ω 9HSRXAZR5Z0000 AA
R1205 CHIP RES.(1608) 1/16W F 20k Ω 9HSRXGFR5Z0203 AA
R1205 CHIP RES.(1608) 1/10W F 20k Ω 9HSRXAFR5Z2002 AA

1-18-10

E5752EL

Ref. No. Mark Description Part No. Code

R1206 CHIP RES.(1608) 1/16W F 20k Ω 9HSRXGFR5Z0203 AA
R1206 CHIP RES.(1608) 1/10W F 20k Ω 9HSRXAFR5Z2002 AA
R1207 CHIP RES.(1608) 1/10W J 8.2k Ω 9HSRXAJR5Z0822 AA
R1208 CHIP RES.(1608) 1/10W J 8.2k Ω 9HSRXAJR5Z0822 AA
R1209 CHIP RES. 1/16W F 30k Ω 9HSRXGFR5Z0303 AA
R1210 CHIP RES. 1/16W F 30k Ω 9HSRXGFR5Z0303 AA
R1211 CHIP RES.(1608) 1/10W 0 Ω 9HSRXAZR5Z0000 AA
R1212 CHIP RES.(1608) 1/10W 0 Ω 9HSRXAZR5Z0000 AA
R1221 CHIP RES.(1608) 1/10W J 100k Ω 9HSRXAJR5Z0104 AA
R1222 CHIP RES.(1608) 1/10W J 100k Ω 9HSRXAJR5Z0104 AA
R1223 CHIP RES.(1608) 1/10W J 470 Ω 9HSRXAJR5Z0471 AA
R1224 CHIP RES.(1608) 1/10W J 470 Ω 9HSRXAJR5Z0471 AA
R1225 CHIP RES.(1608) 1/10W J 1k Ω 9HSRXAJR5Z0102 AA
R1226 CHIP RES.(1608) 1/10W J 1k Ω 9HSRXAJR5Z0102 AA
R1227 CHIP RES.(1608) 1/10W J 220 Ω 9HSRXAJR5Z0221 AA
R1228 CHIP RES.(1608) 1/10W J 220 Ω 9HSRXAJR5Z0221 AA
R1233 CHIP RES.(1608) 1/10W 0 Ω 9HSRXAZR5Z0000 AA
R1235 CHIP RES.(1608) 1/10W J 2.2k Ω 9HSRXAJR5Z0222 AA
R1236 CHIP RES.(1608) 1/10W J 2.2k Ω 9HSRXAJR5Z0222 AA
R1237 CHIP RES.(1608) 1/10W J 2.2k Ω 9HSRXAJR5Z0222 AA
R1238 CHIP RES.(1608) 1/10W J 2.2k Ω 9HSRXAJR5Z0222 AA
R1239 CHIP RES.(1608) 1/10W J 100k Ω 9HSRXAJR5Z0104 AA
R1240 CHIP RES.(1608) 1/10W J 100k Ω 9HSRXAJR5Z0104 AA
R1245 CHIP RES.(1608) 1/10W J 10 Ω 9HSRXAJR5Z0100 AA
R1256 CHIP RES.(1608) 1/10W J 220 Ω 9HSRXAJR5Z0221 AA
R1257 CHIP RES.(1608) 1/10W J 220 Ω 9HSRXAJR5Z0221 AA
R1351 CHIP RES.(1608) 1/10W J 1.8k Ω 9HSRXAJR5Z0182 AA
R1352 CHIP RES.(1608) 1/10W J 2.2k Ω 9HSRXAJR5Z0222 AA
R1353 CHIP RES.(1608) 1/10W J 2.2k Ω 9HSRXAJR5Z0222 AA
R1354 CHIP RES.(1608) 1/10W J 220 Ω 9HSRXAJR5Z0221 AA
R1355 CHIP RES.(1608) 1/10W J 75 Ω 9HSRXAJR5Z0750 AA
R1356 CHIP RES.(1608) 1/10W J 100k Ω 9HSRXAJR5Z0104 AA
R1392 CHIP RES.(1608) 1/10W J 1k Ω 9HSRXAJR5Z0102 AA
R1396 CHIP RES.(1608) 1/10W J 1k Ω 9HSRXAJR5Z0102 AA
R1397 CHIP RES.(1608) 1/10W J 100 Ω 9HSRXAJR5Z0101 AA
R1402 CHIP RES.(1608) 1/10W J 75 Ω 9HSRXAJR5Z0750 AA
R1405 CARBON RES. 1/6W J 75 Ω 9HSCX6JATZ0750 AA
R1405 CARBON RES. 1/4W J 75 Ω 9HSCX4JATZ0750 AA
R1421 CHIP RES. 1/16W F 75 Ω 9HSRXGFR5Z0750 AA
R1422 CHIP RES.(1608) 1/10W J 75 Ω 9HSRXAJR5Z0750 AA
R1441 CHIP RES. 1/16W F 75 Ω 9HSRXGFR5Z0750 AA
R1442 CHIP RES.(1608) 1/10W J 75 Ω 9HSRXAJR5Z0750 AA
R1461 CHIP RES(1608) 1/16W F 36 Ω 9HSRXGFR5Z0360 AA
R1463 CARBON RES. 1/6W J 75 Ω 9HSCX6JATZ0750 AA
R1463 CARBON RES. 1/4W J 75 Ω 9HSCX4JATZ0750 AA
R1481 CHIP RES(1608) 1/16W F 36 Ω 9HSRXGFR5Z0360 AA
R1483 CARBON RES. 1/6W J 75 Ω 9HSCX6JATZ0750 AA
R1483 CARBON RES. 1/4W J 75 Ω 9HSCX4JATZ0750 AA
R1491 CHIP RES(1608) 1/16W F 36 Ω 9HSRXGFR5Z0360 AA
R1492 CARBON RES. 1/6W J 75 Ω 9HSCX6JATZ0750 AA
R1492 CARBON RES. 1/4W J 75 Ω 9HSCX4JATZ0750 AA
R1522 CHIP RES.(1608) 1/10W J 12k Ω 9HSRXAJR5Z0123 AA
R1523 CHIP RES.(1608) 1/10W J 1k Ω 9HSRXAJR5Z0102 AA
R1524 CHIP RES.(1608) 1/10W J 47k Ω 9HSRXAJR5Z0473 AA
R1525 CHIP RES.(1608) 1/10W J 8.2k Ω 9HSRXAJR5Z0822 AA
R1526 CHIP RES.(1608) 1/10W J 47k Ω 9HSRXAJR5Z0473 AA
R1530 CHIP BEAD MMZ1608Y121CT 9HSL06001TE004 AB
R1531 CHIP BEAD MMZ1608Y121CT 9HSL06001TE004 AB
R1558 CARBON RES. 1/6W J 56 Ω 9HSCX6JATZ0560 AA
R1558 CARBON RES. 1/4W J 56 Ω 9HSCX4JATZ0560 AA
R1614 CHIP RES.(1608) 1/10W 0 Ω 9HSRXAZR5Z0000 AA
R1701 CHIP BEAD MMZ1608Y121CT 9HSL06001TE004 AB
R2014 CHIP RES.(1608) 1/10W J 10k Ω 9HSRXAJR5Z0103 AA
R2015 CHIP RES.(1608) 1/10W J 100k Ω 9HSRXAJR5Z0104 AA
R2020 CHIP RES.(1608) 1/10W 0 Ω 9HSRXAZR5Z0000 AA
R2022 CHIP RES.(1608) 1/10W J 10k Ω 9HSRXAJR5Z0103 AA
R2025 CHIP RES.(1608) 1/10W 0 Ω 9HSRXAZR5Z0000 AA
R2026 CHIP RES.(1608) 1/10W J 6.8k Ω 9HSRXAJR5Z0682 AA
R2027 CHIP RES.(1608) 1/10W J 180k Ω 9HSRXAJR5Z0184 AA

1-18-11

E5752EL

Ref. No. Mark Description Part No. Code

R2028 CHIP RES.(1608) 1/10W J 10k Ω 9HSRXAJR5Z0103 AA
R2031 CHIP RES.(1608) 1/10W J 22k Ω 9HSRXAJR5Z0223 AA
R2033 CHIP RES.(1608) 1/10W 0 Ω 9HSRXAZR5Z0000 AA
R2037 CHIP RES.(1608) 1/10W J 10k Ω 9HSRXAJR5Z0103 AA
R2038 CHIP RES.(1608) 1/10W J 2.2k Ω 9HSRXAJR5Z0222 AA
R2039 CHIP RES.(1608) 1/10W J 10k Ω 9HSRXAJR5Z0103 AA
R2040 CHIP RES.(1608) 1/10W J 10k Ω 9HSRXAJR5Z0103 AA
R2041 CHIP RES.(1608) 1/10W 0 Ω 9HSRXAZR5Z0000 AA
R2042 CHIP RES.(1608) 1/10W J 10k Ω 9HSRXAJR5Z0103 AA
R2047 CHIP RES.(1608) 1/10W J 2k Ω 9HSRXAJR5Z0202 AA
R2050 CHIP RES.(1608) 1/10W 0 Ω 9HSRXAZR5Z0000 AA
R2053 CARBON RES. 1/4W J 10 Ω 9HSCX4JATZ0100 AB
R2054 CHIP RES.(1608) 1/10W J 1k Ω 9HSRXAJR5Z0102 AA
R2055 CHIP RES.(1608) 1/10W J 1k Ω 9HSRXAJR5Z0102 AA
R2056 CHIP RES.(1608) 1/10W J 1k Ω 9HSRXAJR5Z0102 AA

MISCELLANEOUS

AC1001! A AC CORD PE8G2V59G0A-059 9HSAB0172LW002 AG
AC1001! B,C AC CORD PE8G2CG9G0A-055 9HSAE0162LW001 AG
F1001! FUSE T1.6AL/250V 9HSAGC20BW3162 AC
F1001! FUSE T1.6AL/250V 9HS1790994 AD
FH1001 FUSE HOLDER MSF-015 9HSH01Z00LY001 AA
FH1002 FUSE HOLDER MSF-015 9HSH01Z00LY001 AA
FL2001 V.F.D. 7-BT-292GN 9HSVFD150FT010 AS
JK1401 S TYPE JACK MDC-050V-2.4 9HSXEL040LY001 AE
JK1402 4PIN JACK MSP-244V10-61 NI-FE 9HSXRL040LY077 AF
JK1404 21P RGB JACK AJ-2050*040 9HSXGL210JD002 AG
RM2001 REMOTE RECEIVER PIC-37043LU 9HSSESJRSKK039 AR
SA1001! SURGE ABSORBER PVR-10D471KB 9HSVQZ10D471KB AC
SA1001! SURGE ABSORBER CNR-10D471K 9HSVQZR10D471K AC
SW2001 TACT SWITCH KSM0614B 9HSST0101HH013 AB
SW2001 TACT SWITCH SKQSAF001A 9HSST0101AL041 AA
T1001! POWER TRANSFORMER CSA-SW0215C 9HSTT00EPSA141 AH
W1001 22P FFC AV PCB TO MAIN 9HSX1E57S0-002 AG
W1601 18P FFC 9HSX1E57S0-005 AG
W2101 8P FFC 9HSX1E5714-001 AD
X2001 CERAMIC RESONATOR ZTT4.00MGW 9HSY0405PLN003 AC

FUNCTION CBA

Ref. No. Mark Description Part No. Code

A FUNCTION CBA 9HS0VSA14102B AM
B,C FUNCTION CBA 9HS0VSA14106B AM

RESISTORS

R2011 CHIP RES.(1608) 1/10W J 4.3k Ω 9HSRXAJR5Z0432 AA
R2012 CHIP RES.(1608) 1/10W J 2.4k Ω 9HSRXAJR5Z0242 AA
R2044 CHIP RES.(1608) 1/10W J 8.2k Ω 9HSRXAJR5Z0822 AA
R2045 CHIP RES.(1608) 1/10W J 4.3k Ω 9HSRXAJR5Z0432 AA
R2046 CHIP RES.(1608) 1/10W J 2.4k Ω 9HSRXAJR5Z0242 AA

SWITCHES

SW2002 TACT SWITCH KSM0614B 9HSST0101HH013 AB
SW2002 TACT SWITCH SKQSAF001A 9HSST0101AL041 AA
SW2003 TACT SWITCH KSM0614B 9HSST0101HH013 AB
SW2003 TACT SWITCH SKQSAF001A 9HSST0101AL041 AA
SW2005 TACT SWITCH KSM0614B 9HSST0101HH013 AB
SW2005 TACT SWITCH SKQSAF001A 9HSST0101AL041 AA
SW2006 TACT SWITCH KSM0614B 9HSST0101HH013 AB
SW2006 TACT SWITCH SKQSAF001A 9HSST0101AL041 AA
SW2008 TACT SWITCH KSM0614B 9HSST0101HH013 AB
SW2008 TACT SWITCH SKQSAF001A 9HSST0101AL041 AA

Consists of the following

1-18-12

E5752EL
