Sharp DV-760H Operating Instruction
MODEL
DV-760H
DVD Video Player
OPERATION MANUAL
DIMMER
DISPLAY
DIGITAL
GAMMA
SETUP
VIRTUAL
SUBTITLE ANGLE
ON/OFF
TITLE
CLEAR
MEMORY
MC
SKIP SKIP
PLAY
STOP
TV CONTROL
OPERATE
INPUT
CH
DVD/TV REMOTE CONTROL
DIGITAL
S.PICTURE
AUDIO
A B REPEAT
PROGRAM
DIRECT
STILL
OPEN/
CLOSE
MENU
ENTER
REPEAT
PAUSE
SLOWREV FWD
VOL
MIN MAX
PHONES LEVEL
PHONES
OPERATE
GAMMA S.PICTURE
STANDBY
STILL/PAUSE STOP
NTSC/PAL
PLAYSKIPOPEN/CLOSE SKIP
OPERATE
SUBTITLE
RETURN
RESUME
If you require any advice or assistance regarding your Sharp product, please visit our web-site
www.sharp.co.uk/support. Customers without Internet access may telephone 0990 274277 during office hour.
This equipment complies with the requirements of Directives 89/336/EEC and
73/23/EEC as amended by 93/68/EEC.
Dieses Gerät entspricht den Anforderungen der EG-Richtlinien 89/336/EWG und
73/23/EWG mit Änderung 93/68/EWG.
Ce matériel répond aux exigences contenues dans les directives 89/336/CEE
et 73/23/CEE modifiées par la directive 93/68/CEE.
Dit apparaat voldoet aan de eisen van de richtlijnen 89/336/EEG en 73/23/EEG,
gewijzigd door 93/68/EEG.
Dette udstyr overholder kravene i direktiv nr. 89/336/EEC og 73/23/EEC med
tillæg nr. 93/68/EEC.
Quest’ apparecchio è conforme ai requisiti delle direttive 89/336/EEC e 73/23/
EEC, come emendata dalla direttiva 93/68/EEC.
Η εγκατάσταση αυτή ανταποκρίνεται στις απαιτήσεις των οδηγιών της
Ευρωπαϊκής Ενωσης 89/336/ΕΟΚ και 73/23/ΕΟΚ, #πως οι κανονισµοί αυτοί
συµπληρώθηκαν απ# την οδηγία 93/68/ΕΟΚ.
Este equipamento obedece às exigências das directivas 89/336/CEE e 73/23/
CEE, na sua versão corrigida pela directiva 93/68/CEE.
Este aparato satisface las exigencias de las Directivas 89/336/CEE y 73/23/
CEE, modificadas por medio de la 93/68/CEE.
Denna utrustning uppfyller kraven enligt riktlinjerna 89/336/EEC och 73/23/EEC
så som kompletteras av 93/68/EEC.
Dette produktet oppfyller betingelsene i direktivene 89/336/EEC og 73/23/EEC i
endringen 93/68/EEC.
Tämä laite täyttää direktiivien 89/336/EEC ja 73/23/EEC vaatimukset, joita on
muutettu direktiivillä 93/68/EEC.
SPECIAL NOTE FOR USERS IN THE U.K.
The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 3A fuse.
Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked or and of
the same rating as above, which is also indicated on the pin face of the plug, must be used.
Always refit the fuse cover after replacing the fuse. Never use the plug without the fuse cover fitted.
In the unlikely event of the socket outlet in your home not being compatible with the plug supplied,
cut-off the mains plug and fit an appropriate type.
DANGER: The fuse from the cut-off plug should be removed and the cut-off plug destroyed
To fit an appropriate plug to the mains lead, follow the instructions below:
IMPORTANT: The wires in the mains lead are coloured in accordance with the following code:
As the colours of the wires in the mains lead of this product may not correspond with the coloured
markings identifying the terminals in your plug, proceed as follows:
—The wire which is coloured blue must be connected to the plug terminal which is marked N or
coloured black.
—The wire which is coloured brown must be connected to the plug terminal which is marked L or
coloured red.
Ensure that neither the brown nor the blue wire is connected to the earth terminal in your three-pin
plug.
Before replacing the plug cover make sure that:
—If the new fitted plug contains a fuse, its value is the same as that removed from the cut-off plug.
—The lead grip is clamped over the sheath of the mains lead and not simply over the lead wires.
IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.
immediately and disposed of in a safe manner.
Under no circumstances should the cut-off plug be inserted elsewhere into a 13A socket
outlet, as a serious electric shock may occur.
Blue: Neutral
Brown: Live
GB
1
Contents
GENERAL INFORMATION
IMPORTANT SAFEGUARDS AND
PRECAUTIONS .......................................... 3
Features ......................................................... 5
Accessories ................................................... 5
Types of Disc that can be played on
Y our DVD Player........................................ 6
Discs recorded by PAL system, Discs
recorded by NTSC system and Type of
TV connection ........................................... 8
Main Unit of Your DVD Player ...................... 9
• Front............................................................ 9
• Front Panel Display..................................... 9
• Rear .......................................................... 10
Remote Control Unit of Your DVD Player.. 11
• DIMMER feature ....................................... 11
• Inserting the Batteries ............................... 11
• Using the Remote Control for TV
Operation .............................................. 12
SETTING UP
Basic Connection........................................ 13
Optional Audio Connection........................ 14
Turning on the TV and the DVD Player ..... 16
Setup ............................................................ 17
• When turning on your DVD player
for the first time after purchasing it........ 17
• TV MODE SET Setting.............................. 18
• SPEAKER Setting ..................................... 20
• PARENTAL Level Setting .......................... 21
• PRO LOGIC Setting .................................. 22
• OSD (On Screen Display) LANGUAGE
SETUP Setting...................................... 23
• DISC MENU LANGUAGE Setting............. 24
TEMPORARY PARENT AL Level Setting .... 26
Display Information..................................... 27

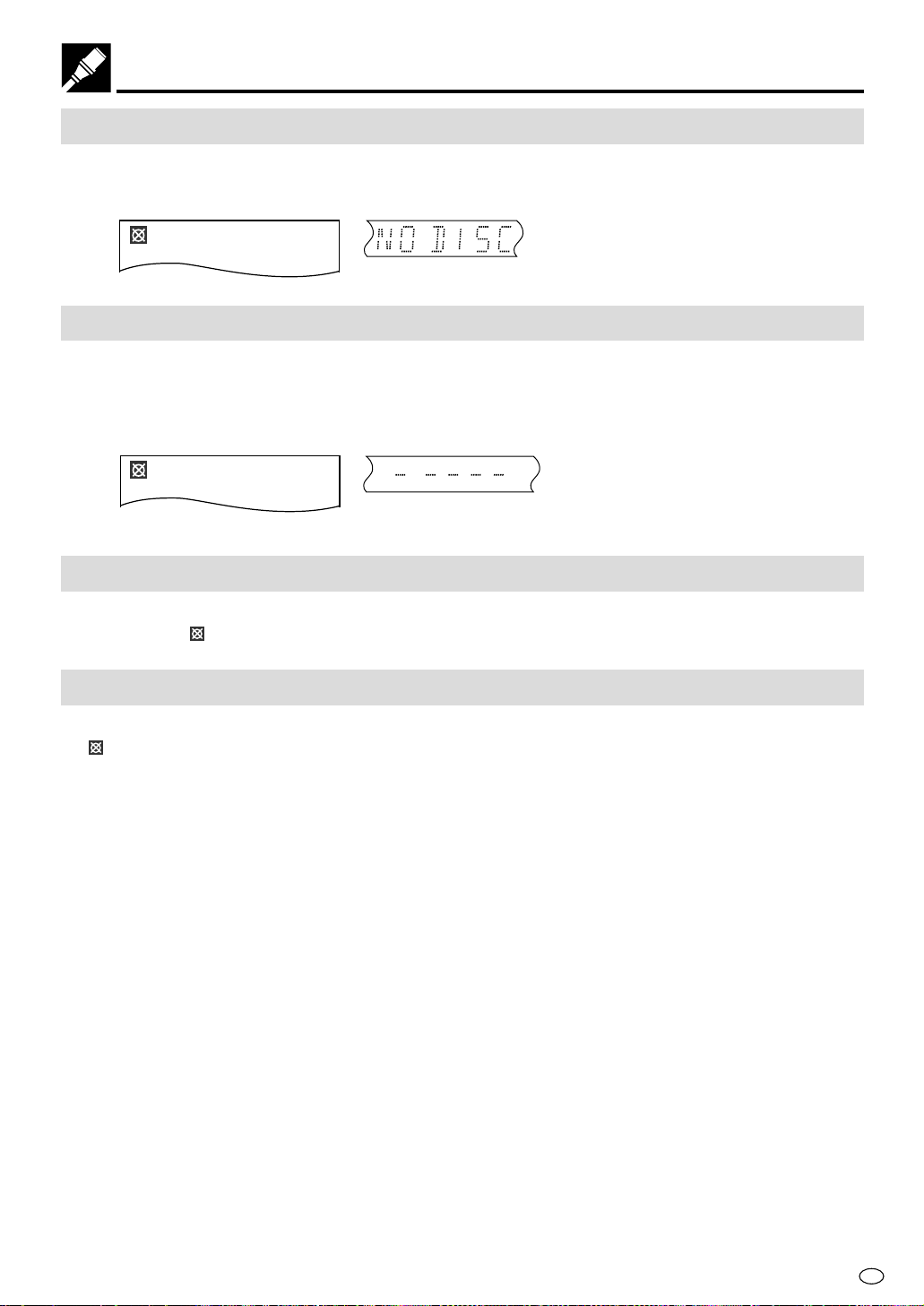

• No Disc Indicator....................................... 27
• Disc Error Indicator ................................... 27
• Region (Locale) Number Error
Indicator ................................................ 27
• Parental Level Error Indicator.................... 27
• Operation Mode Indicators........................ 28
BASIC OPERATIONS

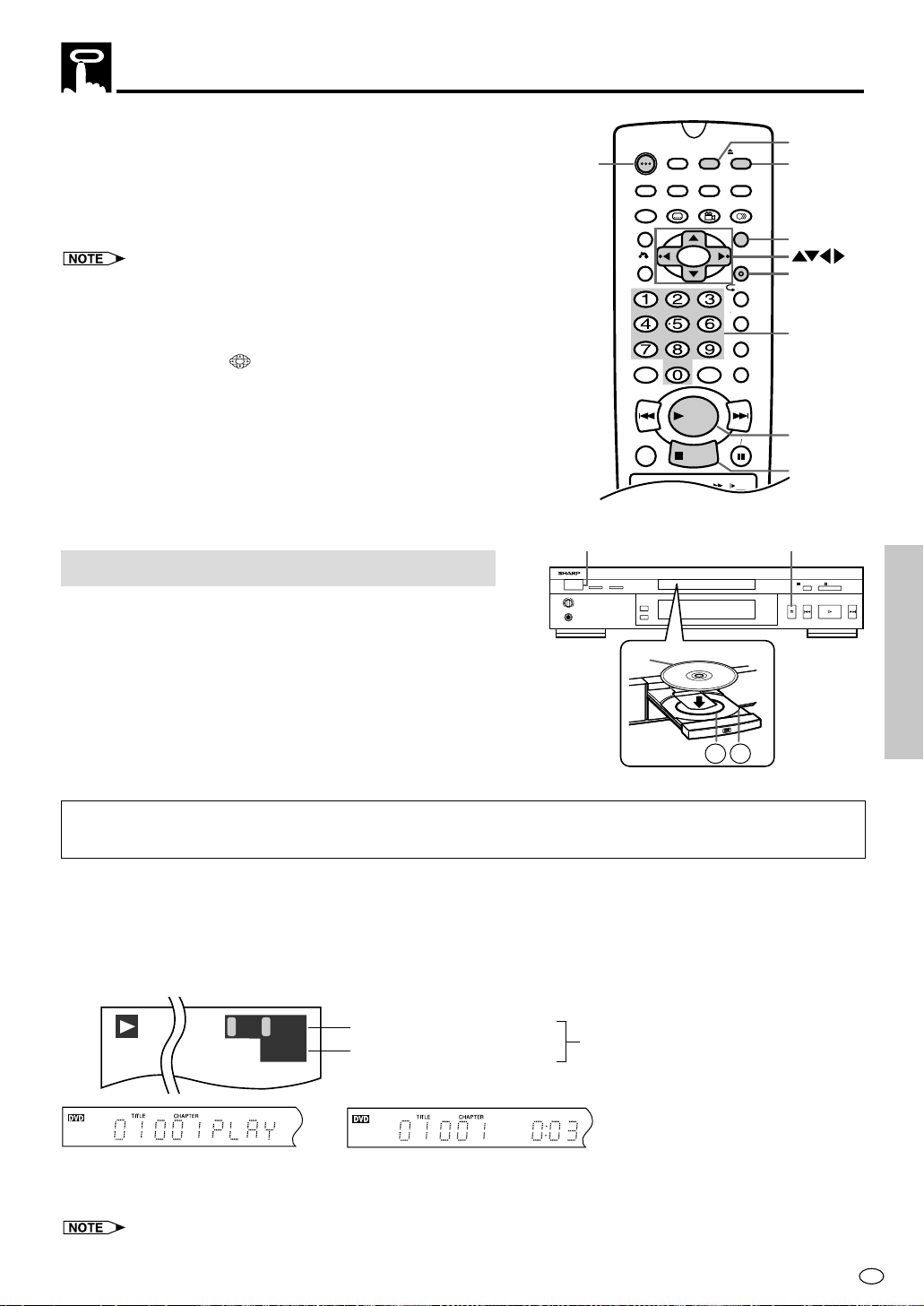

DVD Playback .............................................. 29
• Basic Play ................................................. 29
• Still Picture ................................................ 30
• Frame Advance ......................................... 31
• Slow-Motion Play ...................................... 31
• Resume Function ...................................... 31
GB
2

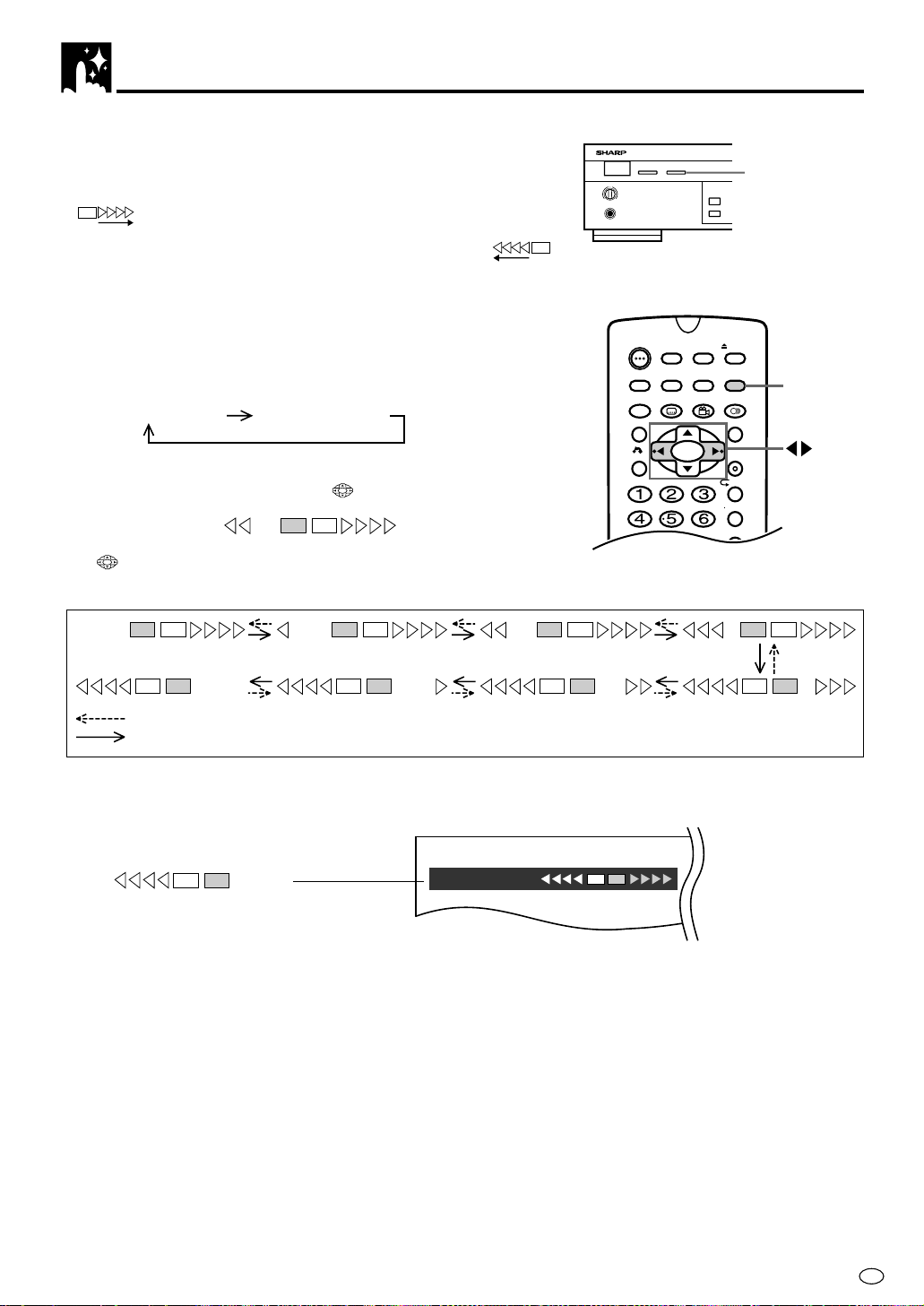

• Fast Forward ............................................. 32
• Fast Reverse............................................. 32
• Skip (Forward) .......................................... 33
• Skip (Reverse) .......................................... 33
VCD (Video CD) and CD (Audio CD)
Playback................................................... 34
• Fast Forward ............................................. 35
• Fast Reverse ............................................. 35
• Skip (Forward)........................................... 36
• Skip (Reverse) .......................................... 36
SPECIAL FUNCTIONS
Continuing Playback from where you
stopped (Continued Playback) .............. 37
Using Headphone........................................ 37
Direct Selection of Scenes ......................... 38
• Selecting Scenes by Title Number (DVD).... 38
• Moving from the Menu Screen to the
Titles/Changing the Menu Language
(DVD) .................................................... 38
• Direct Skip Function (DVD) (VCD, CD)..... 39
Programmed Playback ............................... 41
• Title Programmed Playback (DVD) ........... 41
• Chapter Programmed Playback (DVD) ..... 42
• Track Programmed Playback
(VCD, CD)............................................. 43
Repeat Playback.......................................... 44
• Chapter Repeat (DVD).............................. 44
• Title Repeat (DVD).................................... 44
• A-B Repeat (DVD) .................................... 45
• Disc Repeat (VCD, CD) ............................ 46
Angle Selection (DVD only)........................ 47
Subtitle Selection (DVD only)..................... 48
Audio Selection ........................................... 49
• DVD Discs ................................................. 49
• Video CDs and Audio CDs........................ 49
New Digital Gamma Selection
(DVD, VCD) ............................................... 50
New Digital Super Picture Selection
(DVD, VCD) ............................................... 51
VIRTUAL Surround (Audio) Selection
(DVD only) ................................................ 52
OTHERS
Language Code List on Menu Screen ....... 53
Definition of T erms...................................... 54
Specifications.............................................. 55
Before Calling Service ................................ 56

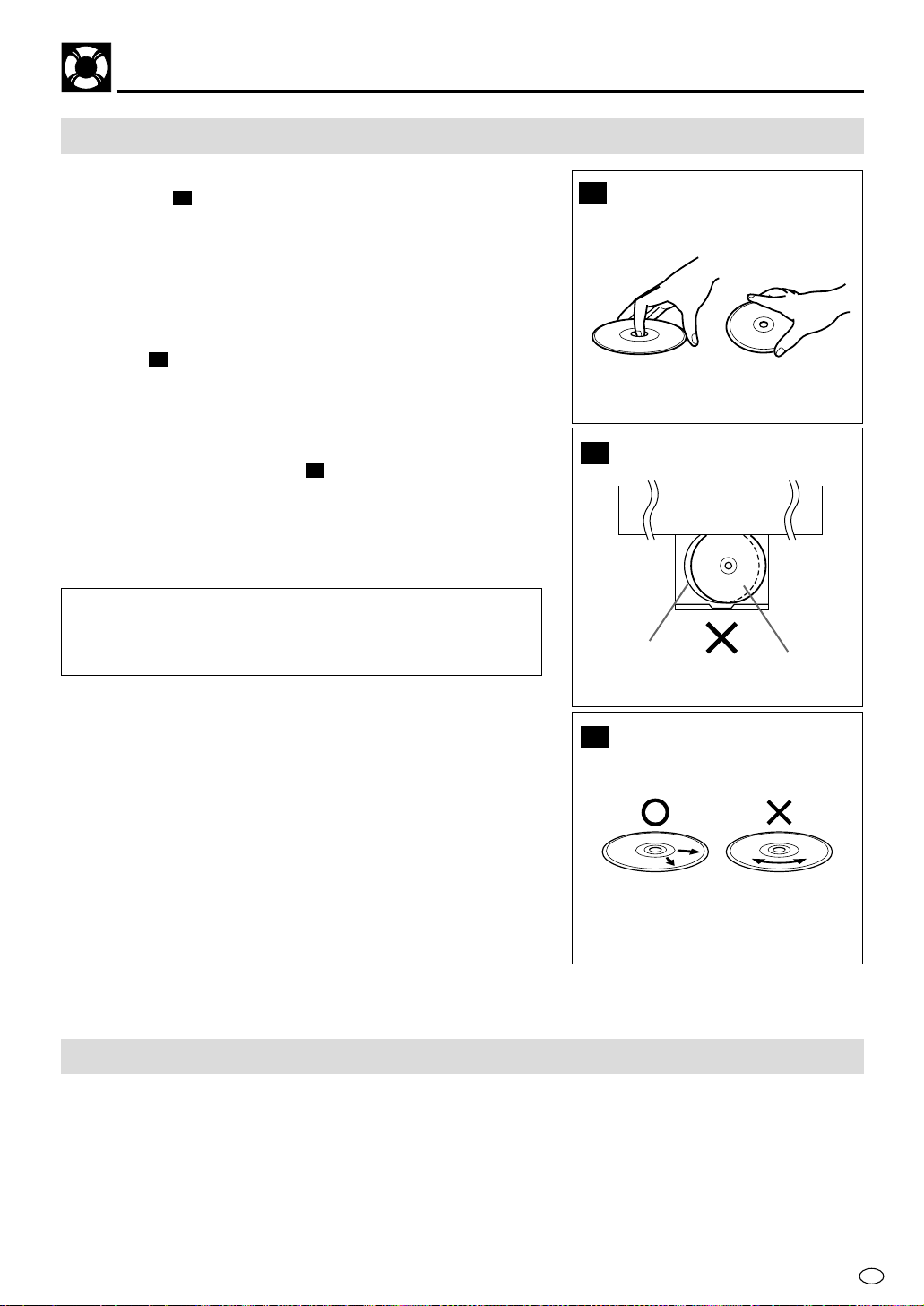

Disc Handling and Maintenance ................ 57
IMPORTANT SAFEGUARDS AND PRECAUTIONS
CAUTION
BEFORE OPERATING YOUR NEW DVD PLAYER, PLEASE READ THIS OPERATION MANUAL CAREFULLY. THE
MANUAL SHOULD THEN BE STORED FOR FUTURE REFERENCE IN CASE OF OPERATING DIFFICULTIES OR
FUNCTIONAL DESCRIPTIONS.
GENERAL INFORMATION
Note:
This unit can be used only where the power
supply is AC 220V-240V, 50/60Hz. It cannot be
used elsewhere.
CAUTION:
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
AS THE LASER BEAM USED IN THIS DVD
PLAYER IS HARMFUL TO THE EYES, DO NOT
ATTEMPT TO DISASSEMBLE THE CABINET.
REFER SERVICING TO QUALIFIED PERSONNEL ONLY .
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, AND ANNOYING INTERFERENCE, USE
THE RECOMMENDED ACCESSORIES ONLY.
Laser Diode Properties
Material: AlGaInP
Wave length: 650 nm
Emission Duration: Continuous
Laser output: Max. 0.7 mW
• This DVD player is classified as a CLASS 1
LASER product.
• The CLASS 1 LASER PRODUCT label is located
on the rear cover.
• This product contains a low power laser device.
To ensure continued safety do not remove any
cover or attempt to gain access to the inside of
the product. Refer all servicing to qualified
personnel.
CLASS 1
LASER PRODUCT
(Rear of product)
SETTING UP
BASIC OPERATIONS
SPECIAL FUNCTIONS
3
OTHERS
GB
IMPORTANT SAFEGUARDS AND PRECAUTIONS
Power Lead Protection
To avoid any malfunctions of the unit, and to protect
against electric shock, fire or personal injury, please
observe the following.
• Hold the plug firmly when connecting or disconnecting the AC power lead.
• Keep the AC power lead away from heating
appliances.
• Never put any heavy object on the AC power lead.
• Do not attempt to repair or reconstruct the AC
power lead in any way.
Location and Handling
• Air vents are provided in the DVD player cabinet to
prevent excessive temperatures inside the unit. Do
not place your DVD player in enclosed spaces,
cover it, or otherwise block the vents.
• Do not place the DVD player in direct sunlight, or
near heat sources.
• Keep the DVD player away from strong magnetic
fields, i.e. loudspeakers etc.
• Do not insert or drop anything into the DVD player
through the air vents as this could cause serious
damage, possibly resulting in fire.
• Do not place any object containing water or other
liquids on the DVD player. In the event that liquid
should enter the cabinet, unplug the DVD player
immediately and contact the retailer or service
centre approved by Sharp immediately.
• Do not remove the DVD player cabinet. T ouching
parts inside the cabinet could result in electric shock
and/or damage to the DVD player. For service and
adjustment inside the cabinet, call a qualified dealer
or service centre approved by Sharp.
If There is Noise Interference on the
TV While a Broadcast is being
Received
Depending on the reception condition of the TV,
interference may appear on the TV monitor while you
watch a TV broadcast and the unit is left on. This is
not a malfunction of the unit or the TV. To watch a TV
broadcast, turn off the unit.
Service
Do not attempt to service this DVD player yourself.
Please refer any service to the nearest service centre
approved by Sharp.
Copyright
Recording and playback of any material may require
consent.
Please refer particularly to the provisions of the
Copyright Act 1956, the Dramatic and Musical
Performers Protection Act 1958, the Performers
Protection Acts 1963 and 1972 and to any subsequent statutery enactments and orders.
Copy Protection
This DVD player supports Macrovision copy protection.
On DVD discs that include a copy protection code, if
the contents of the DVD disc are copied using a VCR,
the copy protection code prevents the videotape
copy from playing normally.
Apparatus Claims of U.S.Patent Nos. 4,631,603,
4,577,216, 4,819,098 and 4,907,093 licensed for
limited viewing uses only.
Periods of no use
When the unit is not being used, switch the unit to the
standby mode.
When left unused for a long period of time, the unit
should be unplugged from the household AC outlet.
No Fingers or Other Objects Inside
Do not put any foreign object on the disc tray.
Stacking
Place the unit in a horizontal position, and do not
place anything heavy on it.
Condensation
Moisture may form on the pickup lens in the following
conditions:
• immediately after a heater has been turned on.
• in a steamy or very humid room.
• when the unit is suddenly moved from a cold
environment to a warm one.
If moisture forms inside this unit, it may not operate
properly.
In this case, turn on the power and wait about one
hour for the moisture to evaporate.
GB
4
This product incorporates copyright protection
technology that is protected by method claims of
certain U.S. patents and other intellectual property
rights owned by Macrovision Corporation and
other rights owners. Use of this copyright protection technology must be authorized by Macrovision
Corporation, and is intended for home and other
limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Recommended Measures for
Optimum Picture Excellence
The unit is a precision device that is constructed
using extremely accurate technology.
Soiling or friction affecting the pickup lens or disc
drive can impair the image quality.
neither video or audio will be played back. To obtain
optimum picture quality, the player should be
checked (cleaning and replacement of some parts)
every 1,000 hours. Note that this period varies
depending on the environment (temperature, humidity, dust, etc.) in which the player is used. Contact
your authorized Sharp supplier for details.
Do not attempt to clean the pickup lens yourself.
In the worst case,
Features
• Plays DVD, video CD and CD (Digital Audio) discs
• Built-in Dolby Digital decoder supporting Dolby Pro Logic*1 decoding and Virtual Surround
• MPEG Audio Version 2.0 multi channel (5.1ch) DVD discs can be played back.
• New Digital Gamma correction and New Digital Super Picture functions
• Separate colour component output connectors (Y, P
• DTS*2 AUDIO DECODER (DIGITAL THEATRE SYSTEM)
*1Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are
trademarks of Dolby Laboratories. Confidential Unpublished Works. ©1992-1997 Dolby Laboratories, Inc. All
rights reserved.
2
“DTS” and “DTS Digital Surround” are trademarks of Digital Theater Systems, Inc.
*
Disc Features and this Operation Manual
• The types of functions and operations that can be used for a particular disc vary depending on the
features of that disc. In some cases, these functions and operations may differ from the descriptions given
in this Operation Manual. In this event, follow the instructions given on the screen. This Operation Manual
only covers basic disc operations.
• For some operations, the
operation described in this Operation Manual is not permitted for the current disc.
øø
ø icon may appear on the screen. This indicates that the
øø
B(CB) and PR(CR))/RGB OUT/S-VIDEO OUT
GENERAL INFORMATION
Accessories
OPEN/
OPERATE
DISPLAY
DIMMER
CLOSE
DIGITAL
DIGITAL
GAMMA
SETUP
S.PICTURE
VIRTUAL
SUBTITLE
ON/OFF
AUDIO
SUBTITLE ANGLE
MENU
TITLE
ENTER
RETURN
REPEAT
A B REPEAT
PROGRAM
DIRECT
CLEAR
MEMORY
MC
SKIP SKIP
PLAY
RESUME
PAUSE
STILL
STOP
SLOWREV FWD
TV CONTROL
OPERATE
INPUT
VOL
CH
DVD/TV REMOTE CONTROL
Remote control unit
S-video lead
Two R6 (UM/SUM-3 or AA)
batteries for the remote control unit
Video/audio lead
GB
5
Types of Disc that can be played on Your DVD Player
The unit can play back discs bearing any of the following marks:
DVD
[8 cm disc/12 cm disc]
See
See 2 (see next page)
See
See
1
3 (see next page)
2 (see next page)
Video CDs
[8 cm disc/12 cm disc] • Supports version until version 2.0.
Audio CDs
[8 cm disc/12 cm disc]
Other CDs
1) On CD-G and CD-EXTRA discs, only the sound can be played (no images).
2) Photo CD, DVD-ROM and CD-ROM discs cannot be used.
3) Discs with unusual shapes (heart-shaped or hexagonal discs) cannot be used. The use of such discs will
cause a fault.
• When the player detects an Incompatible disc, it ejects the disc tray. When this happens, check the disc
type.
1
• DVD players and discs are designed with region numbers which dictate the regions in which a disc can be played.
If the region number on the disc you want to play does not match the region number in your DVD player, you will
not be able to play the disc.
The region number for this
DVD player is
2
.
Sample disc
display:
2
21
1
.... ........
2
6
213
546
ALL
Disc playable in all regions
The list below shows the countries covered by region number 2.
Common Names Names of Nations and Areas
Albania Republic of Albania
Andorra Principality of Andorra
Austria Republic of Austria
Bahrain State of Bahrain
Belgium Kingdom of Belgium
Bosnia and Herzegovina Bosnia and Herzegovina
Bulgaria Republic of Bulgaria
Croatia Republic of Croatia
Cyprus Republic of Cyprus
Czech The Czech Republic
Denmark Kingdom of Denmark
Egypt Arab Republic of Egypt
Finland Republic of Finland
France French Republic
Germany Federal Republic of Germany
Greece Hellenic Republic
Hungary Republic of Hungary
Iceland Republic of Iceland
Iran Islamic Republic of Iran
Iraq Republic of Iraq
Ireland Ireland
Israel State of Israel
Italy Republic of Italy
Japan Japan
Jordan Hashemite Kingdom of Jordan
Kuwait State of Kuwait
Lebanon Republic of Lebanon
Lesotho Kingdom of Lesotho
Liechtenstein Principality of Liechtenstein
Luxembourg Grand Duchy of Luxembourg
Macedonia The Former Yugoslav Republic of
GB
6
Macedonia
Common Names Names of Nations and Areas
Malta Republic of Malta
Monaco Principality of Monaco
Netherlands Kingdom of the Netherlands
Norway Kingdom of Norway
Oman Sultanate of Oman
Poland Republic of Poland
Portugal Portuguese Republic
Qatar State of Qatar
Romania Romania
San Marino Republic of San Marino
Saudi Arabia Kingdom of Saudi Arabia
Slovakia The Slovak Republic
Slovenia Republic of Slovenia
South Africa Republic of South Africa
Spain Spain
Swaziland Kingdom of Swaziland
Sweden Kingdom of Sweden
Switzerland Swiss Confederation
Syrian Arab Republic Syrian Arab Republic
Turkey Republic of Turkey
United Arab Emirates United Arab Emirates
United Kingdom United Kingdom of Great Britain
Vatican City State State of the City of Vatican
Yemen Republic of Yemen
Yugoslavia Federal Republic of Yugoslavia
Channel Islands* Channel Islands
Faeroe Islands* Faeroe Islands
Gibraltar* Gibraltar
Greenland* Greenland
Isle of Man* Isle of Man
Svalbard and Jan Mayen Islands
and Northern Ireland
* Svalbard and Jan Mayen Islands
*Represents area name
Types of Disc that can be played on Your DVD Player
• The specific playback functionality for some DVD and video CD discs is determined by the disc manufacturer.
2
Because this DVD player plays disc data in accordance with the disc manufacturer’s guidelines, some functions
may not be available on some discs. Be sure to read the instructions provided with the disc.
The “Prohibited” icon
øø
ø displayed during DVD player operation indicates that manufacturer-
øø
imposed restrictions apply.
• This player supports the 2-channel (L/R) audio and 5.1-channel (Multi-channel) in MPEG Version 2.0 Audio.
• However, it does not support 7.1-channel in MPEG Version 2.0 Audio.
3
Discs that Cannot be Played
1.You cannot play illegally produced discs.
• You cannot play discs of other region number than No. 2 (refer to the list of region number 2 on page 6),
such as discs for the use in U.S.A. (region No. 1) and China (region No. 6).
2.You cannot play scratched discs.
3.You cannot play discs that are dusty, soiled or marked with fingerprints.
• If the playing surface of a disc is soiled or scratched, the player may decide that the disc is incompatible
and eject the disc tray, or it may fail to play the disc correctly.
(Refer to the Instructions on page 57 and clean discs before attempting to play them.)
While a disc is playing, soiling or scratches on the disc may disrupt the image (appearing as blocks on
the screen). When the image is disrupted, the player automatically restores the correct image after 2 or 3
seconds. If the normal screen does not reappear, press the RESUME button on the remote control. This
will bring up the normal screen again.
Icons used on DVD discs
Sample Icons
1. English
2
2. Chinese
Number of audio
tracks
Type of subtitles
recorded
2
1. English
2. Chinese
LB
16:9
Screen aspect
ratio recorded
2
Disc with
multiple
camera angles
213
546
Region code indicator
(see page 6)
Glossary of Disc Terms
Title (DVD)
For instance, the movies on a disc that contains two movies can be numbered title 1 and title 2.
Chapter (DVD)
A further subdivision within a title.
For example...
DVD
Track (video or audio CD)
For instance, the songs on a disc that contains five songs can be numbered tracks 1, 2, 3, 4 and 5.
Title 1 Chapter 1
Chapter 2
Title 2 Chapter 1
Chapter 2
Chapter 3
Video/audio CD
For example...
Track 1 Track 2 Track 3 Track 4 Track 5
GB
7
Discs recorded by PAL system, Discs recorded by NTSC system and Type of TV connection
PAL signal
NTSC signal
(
)
• The DVD player can play back discs recorded by NTSC using the modified PAL system, such as Video CD,
DVD-region 2, but cannot play back discs for the use in U.S.A. (region No. 1).
• Region numbers cannot be changed in this system.
• This DVD player also has a built-in system converter which makes it possible to view discs (Video CD, DVD-
region 2) recorded by the NTSC system using a PAL TV. (See “NTSC Disc Play Back on a PAL TV” below.)
• For selecting NTSC→PAL or NTSC, refer to “TV MODE SET setting” on page 18.
<When selecting NTSC→PAL>
DVD Disc (region 2)
or
Video CD Disc
PAL
GAMMA S.PICTURE
OPERATE
MIN MAX
PHONES LEVEL
STANDBY
PHONES
STILL/PAUSE STOP
PLAYSKIPOPEN/CLOSE SKIP
Signal is converted from NTSC
NTSC
system type to modified P AL
system type.
PAL TV
<When selecting NTSC>
DVD Disc (region 2)
or
Video CD Disc
GAMMA S.PICTURE
OPERATE
MIN MAX
PHONES LEVEL
STANDBY
PHONES
STILL/PAUSE STOP
PLAYSKIPOPEN/CLOSE SKIP
NTSC
NTSC signal outputs as is
without conversion.
NTSC TV
• When connecting this DVD player with a Multi System TV, it is possible to select and set NTSC on the NTSC
line of TV MODE SET on the SET UP screen during initial setting.
<When selecting NTSC>
DVD Disc (region 2)
or
Video CD Disc
PAL
GAMMA S.PICTURE
OPERATE
MIN MAX
PHONES LEVEL
STANDBY
PHONES
STILL/PAUSE STOP
PLAYSKIPOPEN/CLOSE SKIP
PAL signal and NTSC signal
NTSC
output as is without conversion.
Multi System TV
NTSC Disc Play Back on a PAL TV
When playing an NTSC disc with “NTSC→PAL” selected in TV MODE SET on the DVD player
using a PAL TV, please note the following:
• The picture will shrink vertically to some degree, as shown in the diagram, but this does
not indicate a malfunction in your TV or DVD Player.
• If your TV does not have a V-HOLD control, the picture may roll and be unwatchable.
However, if you use a TV with V-HOLD control, you can stop the rolling by adjusting the
V-HOLD control and watch the picture.
GB
8
Main Unit of Your DVD Player
Front
1
OPERATE
MIN MAX
PHONES LEVEL
PHONES
2 43
GAMMA S.PICTURE
tr
1 OPERATE button
(see page 16)
2 GAMMA button/LED indicator
(see page 50)
3 S.PICTURE button/LED indicator
(see page 51)
4 DISC tray (see page 29)
5 STILL/PAUSE ( ) button
(see page 30)
Front Panel Display
STANDBY
e
6 STOP ( ) button (see page 29)
7 SKIP Forward (à) button
(see page 33)
8 PLAY ( ) button (see page 29)
9 SKIP Reverse (À) button
(see page 33)
0 OPEN/CLOSE ( ) button for tray
(see page 29)
q Front panel display (see below)
q
5
STILL/PAUSE STOP
90
w STANDBY LED indicator
(see page 16)
When the unit is connected to the AC
main supply, this indicator lights up
in standby mode and goes out when
the unit is turned on.
e Remote Control receptor
r PHONES LEVEL knob
(see page 37)
t PHONES jack (see page 37)
6
PLAYSKIPOPEN/CLOSE SKIP
87w
12 345 678
The figure above shows the front panel with all the displays on.
1 Lights when a DVD is loaded
Lights when an audio CD is loaded
Lights when a Video CD is loaded
2 Shows the title number [DVD only]/Shows the track
number [Video CD and Audio CD]
3 Shows the chapter number [DVD only]
4 Shows the total time elapsed since the disc started
playing.
5 PROGRAM indicator
8 Dolby Digital indicator
9 “dts” indicator
0 “2ch” indicator
q “MULTI” indicator
w “MPEG” indicator
e PRO LOGIC indicator
r Virtual Surround indicator
t Operating mode indicator (Messages)
<Display examples>
Lights during PROGRAM play.
6 Lights during repeat play
: Repeat A B: A-B repeat
7 Lights when it is possible to switch the angle.
[DVD only] (See page 47)
qw 0 9et r
GB
9
Main Unit of Your DVD Player
OPTICAL
DIGITAL OUT
FRONT
SURROUND
CENTER
LINE1 OUT
DIGITAL
OUT
S-VIDEO
OUT
VIDEO
OUT
AUDIO
OUT
L
R
SUB
WOOFER
Y
P
B
(
C
B
)
P
R
(
C
R
)
Rear
S-VIDEO OUT
• S-VIDEO signal is always output regardless of the position
of the output mode changeover switch for LINE1 OUT
(21-pin Euro-SCART).
VIDEO output mode changeover switch for LINE1 OUT
(21-pin Euro-SCART)
• VIDEO: Position for output of Video signal
• RGB: Position for output of Video signal by RGB signal
• S-VIDEO: Position for output of S-Video out signal
VIDEO OUT
• VIDEO signal is always output regardless of the
position of the output mode changeover switch for
LINE1 OUT (21-pin Euro-SCART).
AUDIO OUT
(see pages 13 – 14)
Change the position according to the types (VIDEO/RGB/
S-VIDEO) of input terminals of the equipment with which
the 21-pin Euro-SCART is to be connected.
DIGITAL OUT
(see page 15)
RGB
S-VIDEO
VIDEO
LINE1 OUT (21-pin Euro-SCART)
(see page 14)
Colour Output Connectors (Y, PB(CB) and PR(CR)):
Some TVs and monitors are equipped with input connectors for the component colour signals (Y, P
B(CB) and PR(CR)). By
connecting these input connectors to the corresponding output connectors on the DVD player, you can enjoy higher
quality playback images.
If you are using a TV or monitor equipped with Y, P
B(CB) and PR(CR) connectors, use these connectors rather than
the VIDEO OUT or S-VIDEO OUT connector.
OPTICAL
DIGITAL OUT
(see page 15)
When the output changeover switch of LINE1 OUT (21-pin Euro-SCART) is set in “RGB” position, component colour
signals (Y, P
GB
10
B(CB), PR(CR)) are not output.
Remote Control Unit of Your DVD Player
x
z
;
l
k
j
h
g
f
u
d
s
a
p
,
m
OPERATE
SETUP
SUBTITLE
ON/OFF
TITLE
RETURN
CLEAR
DISPLAY
DIMMER
DIGITAL
GAMMA
VIRTUAL
SUBTITLE ANGLE
MEMORY
DIGITAL
S.PICTURE
AUDIO
MENU
A B REPEAT
PROGRAM
DIRECT
MC
SKIP SKIP
PLAY
RESUME
STILL
STOP
TV CONTROL
OPERATE
INPUT
CH
DVD/TV REMOTE CONTROL
OPEN/
CLOSE
ENTER
REPEAT
PAUSE
SLOWREV FWD
VOL
412 3
5
6
7
8
9
0
q
w
e
r
t
y
u
i
o
c
v
b
n
1 OPERATE button
(see page 16)
2 DIMMER button
*
(see below)
3 DISPLAY (OSD) button
(see page 28)
4 OPEN/CLOSE (î) button
(see page 29)
5 DIGITAL GAMMA button
(see page 50)
6 DIGITAL S.PICTURE button
(see page 51)
7 ANGLE ( ) button
(see page 47)
8 AUDIO ( ) button
(see page 49)
9 MENU button
(see page 29)
0'/", \/| buttons
(see page 17)
q ENTER button
(see page 17)
w REPEAT ( ) button
(see page 44)
e A-B REPEAT button
(see page 45)
r PROGRAM button
(see page 41)
t DIRECT button
(see page 39)
y MEMORY (M) button
(see page 30)
u SKIP (À/à) buttons
(Reverse/Forward)
(see page 33)
i STILL/PAUSE (â) button
(see page 30)
o SLOW ( ) button
(see page 31)
p FWD (è) button
(see page 32)
a REV (È) button
(see page 32)
s RESUME button
(see page 31)
d STOP (Ë) button
(see page 29)
f PLAY (û) button
(see page 29)
g CLEAR (C) button
(see page 41)
h Number buttons
(see page 21)
j RETURN ( ) button
(see page 41)
k TITLE button
(see page 38)
l SUBTITLE ON/OFF button
(see page 48)
; SUBTITLE ( ) button
(see page 48)
SETUP button
(see page 17)
VIRTUAL button
(see page 52)
<TV CONTROL>
(see page 12)
VOL (volume) button
VOL (volume) button
CH (channel) ' button
CH (channel) " button
INPUT button
OPERATE button
of TV CONTROL
*DIMMER feature: Use this button to set the front panel display brightness to Bright or Dark.
Inserting the Batteries
First, install the batteries as detailed below. Fit two R6 (UM/SUM-3 or AA)
1.5 volt batteries (included) or equivalent.
If the remote control stops working, insert new batteries.
Ensure the batteries are inserted correctly, matching the polarities (
indicated in the remote control.
• After changing the batteries in the remote control, the brand setting for the TV
must be re-entered. (See page 12.)
• Do not subject the remote control to shock, water or excessive humidity.
• The remote control may not function if the DVD Player sensor is in direct
sunlight or any other strong light.
• Incorrect use of batteries may cause them to leak or burst. Read the battery
warnings and use the batteries properly.
• Do not mix old and new batteries, or mix brands in use.
• Remove the batteries if you will not use the remote control for an extended
period of time.
/ )
11
GB
Remote Control Unit of Your DVD Player
Using the Remote Control for TV Operation
The provided remote control can operate the basic functions of your television. In addition to most Sharp
televisions, other manufacturers’ televisions listed below can also be controlled by setting the remote control to
the corresponding TV brand. The remote control’s default brand is “SHARP”, which enables control of most
Sharp televisions. When you replace the batteries in the remote control, the control’s TV brand setting will be
reset to SHARP.
Setting the TV brand
1 Turn on your TV.
2 From the table below select the button which corresponds with the brand of your TV. Simultaneously press
both this button and the OPERATE button (TV control) on the remote control facing toward TV. Hold them
down for about five seconds.
When setting is complete, the remote control will send a “power off” signal to the TV, and it should turn off.
• If the TV does not turn off in step 2, repeat the step 2 setting procedure and select the button for a different brand.
TV BRAND
NAME
SHARP
PHILIPS
THOMSON
GRUNDIG
FERGUSON
ITT NOKIA
SONY
TOSHIBA
PANASONIC
HITACHI
SANYO
JVC
MITSUBISHI
Corresponding
button
1
2
3 or 4
5
6
7
8
9
0 or M
REPEAT
A-B REPEAT
PROGRAM
DIRECT
TV functions to be controlled
TV function control
1 Use the following buttons on your remote
control to operate your TV set.
TV functions
• TV power: (OPERATE button (TV control))
• TV channel up/down: (CH ' ")
• TV volume up/down: (VOL
• AV-TV selector: (INPUT button)
)
(For example)
TV brand: SHARP (Corresponding button is “1”)
Number
buttons
Press these buttons
simultaneously and
hold down for about
five seconds.
OPERATE
OPERATE
SUBTITLE
RETURN
1
SKIP SKIP
RESUME
OPERATE
SETUP
ON/OFF
TITLE
CLEAR
TV CONTROL
DISPLAY
DIMMER
DIGITAL
GAMMA
VIRTUAL
SUBTITLE ANGLE
MEMORY
MC
PLAY
STOP
INPUT
CLOSE
DIGITAL
S.PICTURE
AUDIO
MENU
ENTER
A B REPEAT
PROGRAM
DIRECT
STILL
CH
(TV CONTROL)
DVD/TV REMOTE CONTROL
OPEN/
REPEAT
REPEAT
A-B
REPEAT
PROGRAM
DIRECT
MEMORY
PAUSE
SLOWREV FWD
VOL
VOL
CH '"
INPUT
IMPORTANT NOTE:
Although the provided remote control unit is compatible with most Sharp televisions, as well as many TV
models manufactured by others, it is possible that the provided remote control will not work with your TV, or will
control only some of the functions.
If the button listed in the table does not work with your TV set, you may want to try another; occasionally,
models vary within a brand.
Consequently, Sharp’s warranty does not cover all of the models under the brands listed in the table.
GB
12
5
FRONT
SURROUND
CENTER DIGITAL
OUT
S-VIDEO
OUT
VIDEO
OUT
AUDIO
OUT
L
R
Y
PB (CB)PR (CR)
SUB
WOOFER
2
4
6
1
3
Basic Connection
A
C
B
CLASS 1
LASER PRODUCT
AC IN
OPTICAL
DIGITAL OUT
FRONT
SURROUND
CENTER
LINE1 OUT
DIGITAL
OUT
S-VIDEO
OUT
VIDEO
OUT
AUDIO
OUT
L
R
SUB
WOOFER
Y
PB (CB)PR (CR)
VIDEO
S-VIDEO
RGB
FRONT
SURROUND
CENTER DIGITAL
OUT
S-VIDEO
OUT
VIDEO
OUT
AUDIO
OUT
L
R
SUB
WOOFER
Y
PB (CB)PR (CR)
2
4
567
1
8
3
9
• Set the power switch on the player and equipment to
be connected to OFF before connecting.
• Read through the Operation manual for the equipment
to be connected.
• Be sure that the colours of the connectors and plugs
match up when connecting the lead.
The connections described below are for video
connection to the S-VIDEO OUT, VIDEO OUT or LINE1
OUT (21-pin Euro-SCART) connector.
Connecting to a Stereo TV Set
A
1 TV set (sold separately)
2 DVD player
3 Video/audio lead (supplied)
4 S-video lead (supplied)
5 To audio input connectors (red, white)
6 To video input connector (yellow)
7 To S-video input connector
8 AC power lead
9 To power outlet (AC 220-240V, 50/60Hz)
• For LINE1 OUT connection, see page 14.
• Refer “VIRTUAL Surround (Audio) Selection” on page 52.
S-video Output Connector
The S-Video (separate) output connector provides access
to separate colour (C) and luminance (Y) signals before
they are combined into composite video (VIDEO OUT).
This gives a sharper picture as the TV set no longer has to
separate them.
Use the S-video lead when connecting the player to a TV
set equipped with an S-video input connector for the
best picture clarity possible.
Connecting to a Monaural TV Set
1 TV set (sold separately)
2 DVD player
3 Audio lead (not supplied)
4 Video/audio lead (supplied)
5 To audio input connector
6 To video input connector
• For LINE1 OUT connection, see page 14.
Connecting to Audio Equipment
B
C
Notes on Installation:
Bundling the lead connecting the DVD player and
television with the antenna cable can cause
electrical interference when you are watching
television programmes. Be sure to keep the DVD
player connection leads separate from the
antenna lead when you install the player.
S-VIDEO
5
6
3
AUDIO
OUT
OUT
4
FRONT
SURROUND
CENTER DIGITAL
Y
SUB
WOOFER
PB (CB)PR (CR)
OUT
2
LINE1 OUT
FRONT
SURROUND
CENTER
DIGITAL
OUT
AUDIO
L
OUT
SUB
R
WOOFER
S-VIDEO
VIDEO
OUT
OPTICAL
VIDEO
RGB
S-VIDEO
DIGITAL OUT
PB (CB)PR (CR)
Y
OUT
L
R
VIDEO
OUT
CLASS 1
LASER PRODUCT
1
SETTING UP
1 Audio equipment (sold separately)
2 TV set (sold separately)
3 DVD player
4 Audio lead (not supplied)
5 To audio input connectors (red, white)
6 Video/audio lead (supplied)
7 S-video lead (supplied) (See above
• For LINE1 OUT connection, see page 14.
• When connecting to audio equipment (2ch), set the SPEAKER
setting in the SET UP window to “2ch /DIGITAL”. See page 20.
A
)
GB
13
Optional Audio Connection
AC IN
OPTICAL
DIGITAL OUT
FRONT
SURROUND
CENTER
LINE1 OUT
DIGITAL
OUT
S-VIDEO
OUT
VIDEO
OUT
AUDIO
OUT
L
R
SUB
WOOFER
Y
PB (CB)PR (CR)
VIDEO
S-VIDEO
RGB
Connecting to an AV Amplifier
This DVD player contains a Dolby Digital, MPEG Audio 1/2 or DTS
decoder.
• When DVDs recorded in Dolby Digital, MPEG Audio 1/2 or DTS
are played back, you can use an amplifier that is not equipped
with a Dolby Digital, MPEG Audio 1/2 or DTS decoder.
1 TV set (sold separately)
2 DVD player
3 Video/audio lead (supplied)
S-video lead (supplied) (See
4 Amplifier (not supplied)
5 Audio leads (not supplied)
6 To audio input connector (CENTER)
7 To audio input connector (SUBWOOFER)
8 To audio input connectors (SURROUND L
9 To audio input connectors (FRONT L
0 Centre speaker
q Front speaker (Left)
w Front speaker (Right)
e Subwoofer
r Surround speaker (Left)
t Surround speaker (Right)
(0-t sold separately)
• For LINE1 OUT connection, see below.
• Placing the DVD player near a tuner or radio could cause interference
during AM broadcast reception. If this occurs, move the tuner or radio
further away.
• The speaker connections describe the example used here. For more
information, refer to the Operation manual for your AV amplifier.
• For the connection of “5ch”, 7 and e above are not necessary (see
page 20).
on page 13)
A
•R)
•R)
q
e
33
FRONT
AUDIO
L
OUT
R
VIDEO
OUT
S-VIDEO
OUT
555
986
SURROUND
Y
CENTER DIGITAL
WOOFER
PB (CB)PR (CR)
1
2
LINE1 OUT
FRONT
SURROUND
CENTER
DIGITAL
OUT
AUDIO
L
OUT
SUB
R
WOOFER
S-VIDEO
VIDEO
OUT
OPTICAL
VIDEO
RGB
S-VIDEO
OUT
LINE1 OUT
OUT
S-VIDEO
SUB
OPTICAL
VIDEO
RGB
DIGITAL OUT
DIGITAL OUT
Y
PB (CB)PR (CR)
7
4
0
w
• “DTS” and “DTS Digital Surround” are trademarks of Digital
r
Theater Systems, Inc.
Connecting to a Monitor or TV Equipped
with a 21-pin Euro-SCART Connector
When connecting the player to a TV set equipped with a
21-pin Euro-SCART connector, use a 21-pin Euro-SCART
cable (commercially available) connected to the LINE1
OUT connector instead of the video/audio cable supplied
with the player connected to the VIDEO OUT connector.
The output signal from the LINE1 OUT (21-pin EuroSCART) connector changes according to the position to
which the LINE1 OUT (21-pin Euro-SCART) output mode
S-VIDEO
FRONT
SURROUND
CENTER DIGITAL
AUDIO
L
OUT
R
VIDEO
OUT
Y
OUT
PB (CB)PR (CR)
LINE1 OUT
OUT
S-VIDEO
SUB
WOOFER
OPTICAL
VIDEO
RGB
DIGITAL OUT
LINE1 OUT
21-pin
Euro-SCART cable
LINE1 OUT (21-pin Euro-SCART)
output mode changeover switch
changeover switch is moved. (See page 10.)
1. If you switch the DVD player on while you are watching a TV broadcast, the TV screen automatically
switches to AV mode and starts showing the DVD image.
2. If you press the Ë STOP button and the STOP mode remains for more than 5 minutes while you are
watching a DVD disc on the TV, the DVD image disappears and the picture reverts to the original image.
If you then press the û PLAY button, the DVD image returns.
On some TVs, the above operations may not work as described.
GB
14
t
Optional Audio Connection
Connecting to a Decoder or an
Amplifier with Dolby Digital / MPEG
Audio 1/2 / DTS Processing
When DVDs recorded in Dolby Digital, MPEG Audio 1/2
or DTS are played, the bit stream of Dolby Digital,
MPEG Audio 1/2 or DTS is output from the DVD player’s
OPTICAL DIGITAL OUT connector and DIGITAL OUT
connector. When the DVD player is connected to a
Dolby Digital, MPEG Audio 1/2 or DTS decoder, you can
enjoy theatre-quality audio right in your home.
(An optional optical digital cable is required when an
optional Dolby Digital, MPEG Audio 1/2 or DTS decoder
is used. Similarly, you must purchase a separate cable
when you use the DIGITAL OUT connector.)
Preparations:
• If you are using the OPTICAL DIGITAL OUT or
DIGITAL OUT connectors, the SPEAKER setting in the
SET UP window must be set to “2ch/DIGITAL”.
1 TV set (sold separately)
2 DVD player
3 Video/audio lead (supplied)
S-video lead (supplied) (See
4 Decoder or Amplifier with Dolby Digital /
MPEG Audio 1/2 multi channel (5.1ch) / DTS
processing (not supplied)
5 Optical digital cable (not supplied)/or coaxial cable
(not supplied).
(Use the appropriate cable for your audio
system.)
6 Connector for optical digital sound input or coaxial
digital input.
(Use the appropriate connector for your audio
system.)
7 Connect the speakers. (See page 14.)
• For LINE1 OUT connection, see page 14.
on page 13)
A
3
S-VIDEO
1
2
FRONT
AUDIO
L
OUT
LINE1 OUT
OPTICAL
R
VIDEO
OUT
S-VIDEO
OUT
3
FRONT
SURROUND
CENTER DIGITAL
Y
SUB
WOOFER
PB (CB)PR (CR)
OUT
S-VIDEO
VIDEO
RGB
DIGITAL OUT
AUDIO
L
OUT
R
VIDEO
OUT
OUT
LINE1 OUT
SURROUND
CENTER
DIGITAL
OUT
SUB
WOOFER
S-VIDEO
OPTICAL
VIDEO
RGB
DIGITAL OUT
Y
PB (CB)PR (CR)
Remove the
protective cap
before connecting.
5
66
5
4
7
• This DVD player has four kinds of digital output audio streams: MPEG, Dolby Digital, LPCM and DTS.
on the front panel display lights only for Dolby Digital, and not for MPEG, LPCM and DTS.
• For DTS CD playback, audio mode should be set to “L+R”. The Digital Out signal can not be output correctly if
audio mode is set to “L” or “R”. (See page 49.)
CAUTION:
Some audio CDs and video CDs have a short silent section between musical tracks. When sound from discs such
as these is digitally recorded by connected directly to a digital recorder (such as an MD player), the music may be
recorded continuously and track numbers may be lost.
15
GB
Turning on the TV and the DVD player
1 Turn on the TV, and select the external channel to which the DVD player is
connected.
2 Turn on the DVD player by pressing the OPERATE button. When the startup
screen shown at right appears on the TV screen, the preparations are complete.
Turning the DVD player power to the
Startup Screen
Standby mode or to the Active mode.
Standby mode and Active mode
This DVD player has these two working modes. Each
time you press the OPERATE button, the power turns
to the Active mode or to the Standby mode alternately.
These two modes work as shown in the right table.
Standby
mode
Active
mode
Turning the power to the Active mode (ON).
Press the OPERATE button to turn on the DVD player.
At this time, the STANDBY LED indicator on the DVD player goes
out and the DVD player enters the Active mode.
• When pressing the îOPEN/CLOSE button in the Standby mode, the
DVD player is also turned on and it enters the Active mode.
Turning the power to the Standby mode
Press the OPERATE button to turn to the Standby mode while the DVD player is in the Active mode.
At this time, the STANDBY LED indicator on the DVD player lights and the DVD player enters the Standby
mode.
Standby Front panel VIDEO
indicator Display Output signal
On Off Off
Off On On
OPERATE
SETUP
SUBTITLE
ON/OFF
TITLE
DISPLAY
DIMMER
DIGITAL
GAMMA
VIRTUAL
SUBTITLE ANGLE
OPEN/
CLOSE
DIGITAL
S.PICTURE
AUDIO
MENU
OPERATE
OPEN/
CLOSE
Auto power-off function
• If no button is pressed within 30 minutes after the playback of a disc stopped, the DVD player automatically enters the Standby mode.
OPEN/CLOSEOPERATE
GAMMA S.PICTURE
OPERATE
MIN MAX
GB
16
PHONES LEVEL
PHONES
STANDBY
STANDBY
LED indicator
STILL/PAUSE STOP
PLAYSKIPOPEN/CLOSE SKIP
Setup
T V MO D E S E T
SPEAKER
PRO LOG I C
LEVEL:8
SET UP
PARENTAL
OFF
EN
EN

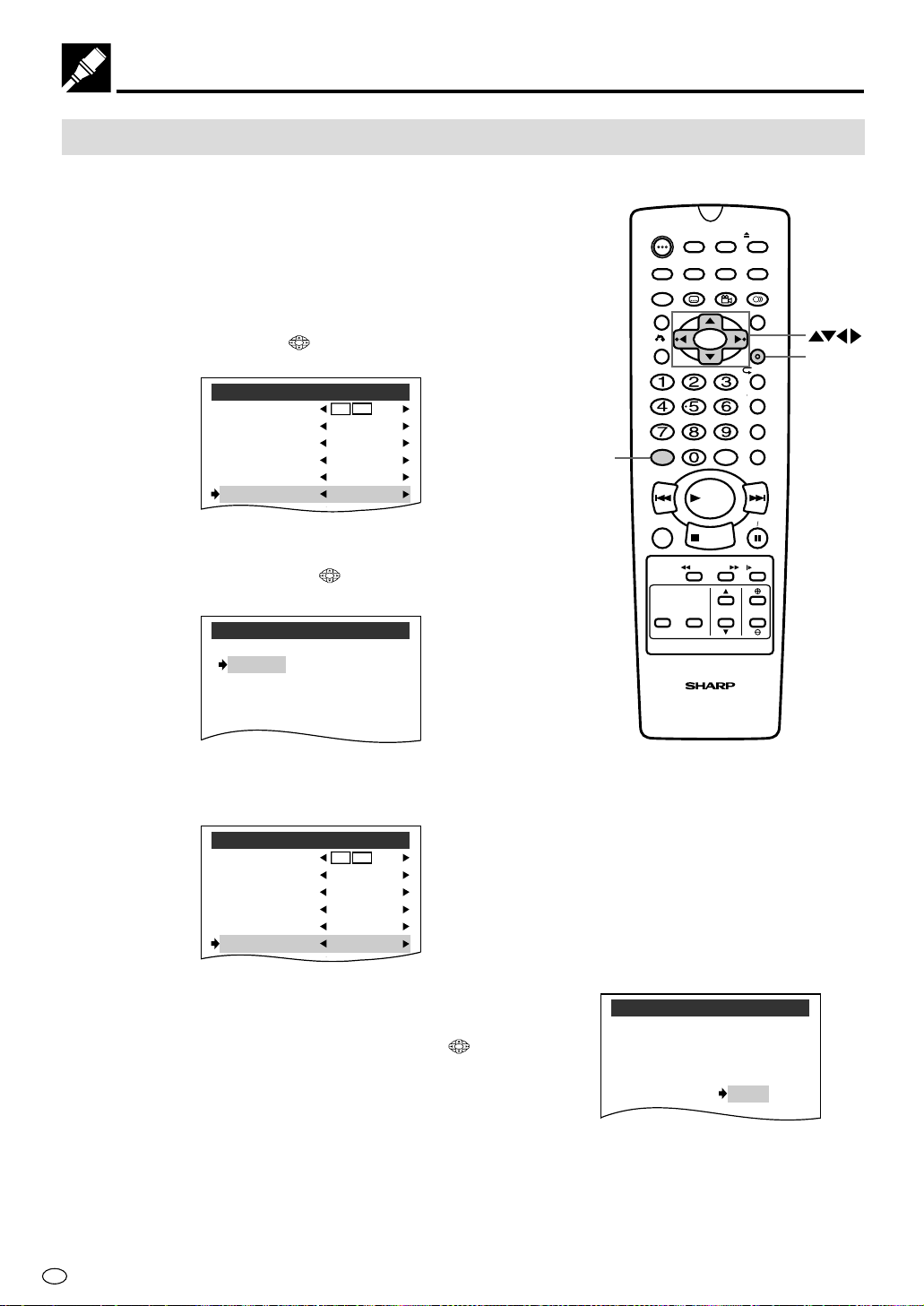

Before you use this DVD player, make the settings necessary to you of the following 6 settings.
TV MODE SET .................... Specifies the settings for the type of TV connected and the playback format for
SPEAKER ........................... Specifies the settings for the number and type of audio components and speakers
PARENTAL.......................... Use this setting for playing DVD discs on which P ARENTAL levels have been recorded.
PRO LOGIC........................ Use this setting for playing discs recorded using Dolby Pro Logic via an analogue
OSD LANGUAGE SETUP... Selects and sets a language you want to use of the 7 languages on the screen
DISC MENU LANGUAGE... Selects and sets a language you want to use of the languages recorded in the disc
• The OSD (On Screen Display) screens used in this Operation Manual are purely for the purposes of explanation. The actual displays (set displays) may differ slightly from what is shown here.
When turning on your DVD player for the first time after purchasing it
Turn on your TV and select the external channel to which the
1
DVD player is connected. Then press the OPERATE button to
turn on your DVD player.
2 Press the SETUP button on the remote control. The OSD
LANGUAGE SETUP screen appears.
This screen is for the first initial setting after purchasing your
DVD player and it is only one time that this screen appears after
pressing the SETUP button.
3 Use the ' " \ or | button in to move the screen cursor
(_) to select the language you want to use.
4 Press the ENTER button on the remote control. The SET UP
screen in your selected language appears as shown below.
wide-screen video material.
connected, and for whether the DVD is connected to a TV or a stereo system.
• Sets or changes the parental level (1 to 8).
• Sets or changes the password used to prevent the parental level from being
changed too easily.
connection.
displays.
for the disc menu. Only the languages recorded in a disc can be used.
DISPLAY
DIGITAL
GAMMA
MEMORY
PLAY
STOP
OPEN/
CLOSE
DIGITAL
S.PICTURE
AUDIO
MENU
ENTER
REPEAT
A B REPEAT
PROGRAM
DIRECT
MC
PAUSE
STILL
SLOWREV FWD
VOL
CH
O
SD LA SETUP
NGUGE
A
ENGL ISH ESPAÑOL
FRANÇA I S SVENSKA
DEUTSCH NEDERL ANDS
TALI
NOA
I
RETURN
4:3 L B
PAL
2ch/DIGITAL
(Example:
EN (English) selected)
OPERATE
DIMMER
SETUP
VIRTUAL
SUBTITLE
ON/OFF
SUBTITLE ANGLE
TITLE
RETURN
CLEAR
SKIP SKIP
RESUME
TV CONTROL
OPERATE
INPUT
OPERATE
SETUP
ENTER
CAUTIONS:
• After the second time when you press the SETUP button, this SET UP screen appears immediately.
• You can change OSD LANGUAGE whenever you want. For details, please refer to “OSD (On Screen Display)
LANGUAGE SETUP Setting” on page 23.
OSD LANGUAGE SETUP
DISC MENU LANGUAGE
RETURN
17
GB
Loading...
