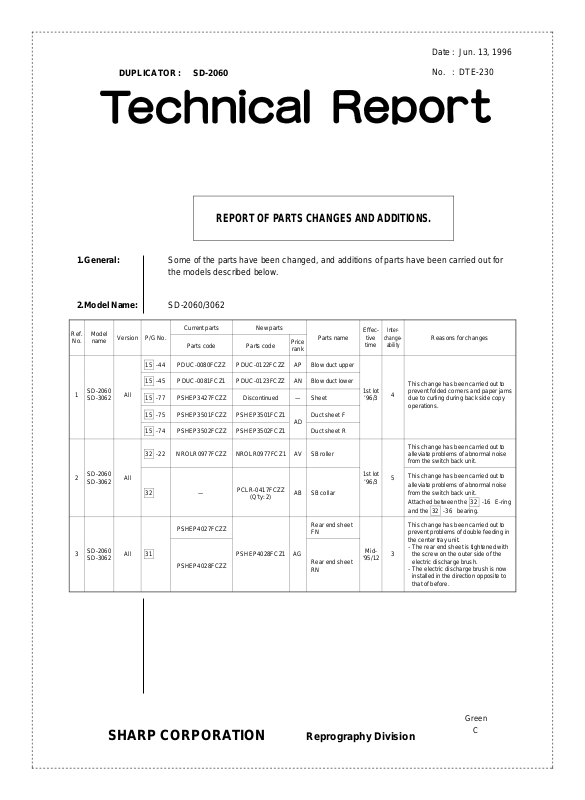

SHARP DTE230 Technical Report

Date: Jun. 13, 1996

DUPLICATOR : SD-2060

No. : DTE-230

REPORT OF PARTS CHANGES AND ADDITIONS.

1.General: Some of the parts have been changed, and additions of parts have been carried out for the models described below.

2.Model Name: SD-2060/3062

Ref.

No.

Model

name

SD-2060 SD-3062

Version P/G No.

15 -44 PDUC-0080FCZZ PDUC-0122FCZZ AP Blow duct upper

15 -45 PDUC-0081FCZ1 PDUC-0123FCZZ AN Blow duct lower

All

15 -77 PSHEP3427FCZZ Discontinued — Sheet

15 -75 PSHEP3501FCZZ PSHEP3501FCZ1

15 -74 PSHEP3502FCZZ PSHEP3502FCZ1 Duct sheet R

32 -22 NROLR0977FCZZ NROLR0977FCZ1 AV SB roller

All

32 —

All

Current parts New parts

Parts code Parts code

PCLR-0417FCZZ

(Q’ty: 2)

PSHEP4027FCZZ

PSHEP4028FCZ1 AG

PSHEP4028FCZZ

Price

Parts name

rank

Duct sheet F

AB SB collar

Rear end sheet FN

Rear end sheet RN

Effec-

tive

time

1st lot

’96/3

1st lot

’96/3

Mid-

’95/12

Inter-

change-

ability

Reasons for changes

This change has been carried out to prevent folded corners and paper jams due to curling during back side copy operations.

This change has been carried out to alleviate problems of abnormal noise from the switch back unit.

This change has been carried out to alleviate problems of abnormal noise from the switch back unit. Attached between the E-ring and the bearing.

32 -36

This change has been carried out to prevent problems of double feeding in the center tray unit.

The rear end sheet is tightened with the screw on the outer side of the electric discharge brush.

The electric discharge brush is now installed in the direction opposite to that of before.

32 -16
