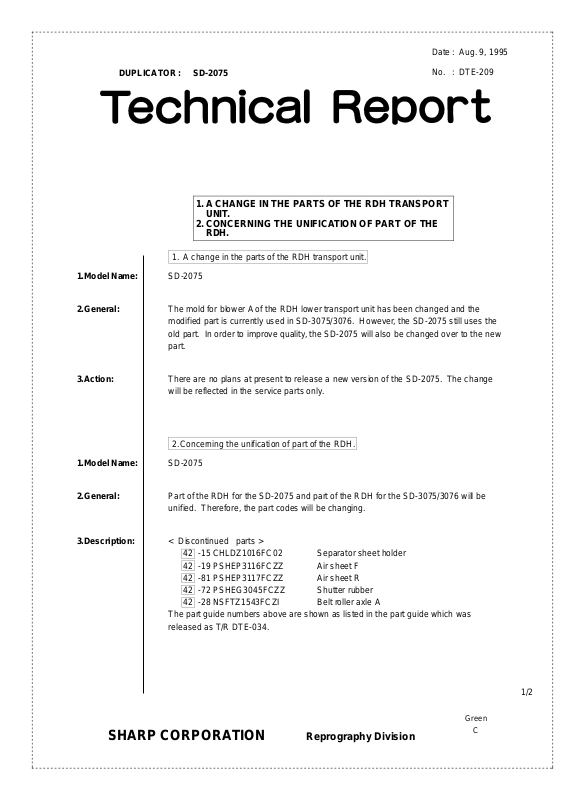

SHARP DTE209 Technical Report

Date: Aug. 9, 1995

DUPLICATOR : SD-2075

No. : DTE-209

1.A CHANGE IN THE PARTS OF THE RDH TRANSPORT UNIT.

2.CONCERNING THE UNIFICATION OF PART OF THE RDH.

1. A change in the parts of the RDH transport unit.

1.Model Name: SD-2075

2.General: The mold for blower A of the RDH lower transport unit has been changed and the

modified part is currently used in SD-3075/3076. However, the SD-2075 still uses the old part. In order to improve quality, the SD-2075 will also be changed over to the new part.

3.Action: There are no plans at present to release a new version of the SD-2075. The change will be reflected in the service parts only.

2.Concerning the unification of part of the RDH.

1.Model Name: SD-2075

2.General: Part of the RDH for the SD-2075 and part of the RDH for the SD-3075/3076 will be

unified. Therefore, the part codes will be changing.

3.Description: < Discontinued parts >

42 -15 CHLDZ1016FC02 Separator sheet holder 42 -19 PSHEP3116FCZZ Air sheet F 42 -81 PSHEP3117FCZZ Air sheet R 42 -72 PSHEG3045FCZZ Shutter rubber

42 -28 NSFTZ1543FCZI Belt roller axle A The part guide numbers above are shown as listed in the part guide which was released as T/R DTE-034.

SHARP CORPORATION Reprography Division

1/2

Green

< Additional parts >

42 -81 PSHEP2778FCZZ Blower sheet

42 -19 PSHEP3265FCZZ Sheet

42 -28 NSFTZ1820FCZZ Belt roller axle A

42 -92 PSPAZ0602FCZZ Center seal spacer

42 -89 PSEL-0519FCZZ Shutter seal S

42 -88 PSEL-0520FCZZ Shutter seal L

42 -90 LX-WZ0070FCZZ The washer for the MG roller The part guide numbers above are shown as listed in the part guide for the SD-3075/3076. Refer to the part guide for the SD-3075/3076 for information on the shape of these parts and on how to install them.

As a result of the changes listed above, the RDH blower unit and the suction unit portion for the SD-2075 will become identical with those parts for the SD-3075/3076.

4.Action: There are no plans at present to release a new version of the SD-2075. The changes will only be reflected in the service parts.

Ref.

Model

No.

SD-2075 All

1. Inte rc ha ng ea bl e. 4. Not i nt erc h an ge ab l e.

2. Current type can be used in place of new type. New type cannot be used in place of current type.

3. Current type cannot be used in place of new type. New type can be used in place of current type.

Parts marked with “ ” is important for maintaining the safety of the set. Be sure to replace these parts with

specifie d on es for mai n ta ini ng t he s a fe ty an d pe r fo rmance o f th e set.

name

Version P/G No.

42 -14 PCASZ0209FCZ2 PCASZ0209FCZ3 AR Blower AN

42 -15

42 -19

42 -81 PSHEP3117FCZZ Air sheet R

42 -72 PSHEG3045FCZZ Shutter rubber

42 -28 NSFTZ1543FCZ1 NSFTZ1820FCZZ AR Belt roller shaft A 4

42 —

Current parts New parts

rank

Parts name

Separator sheet holder

Center seal spacer

Shutter seal S

Blower sheet

Parts code Parts code

CHLDZ1016FC02

(Q’ty: 2)

PSHEP3116FCZZ Air sheet F

Discontinuance —

PSPAZ0602FCZZ AC

PSEL-0519FCZZ

PSEL-0520FCZZ Shutter seal L LX-WZ0070FCZZ AA PSHEP2778FCZZ PSHEP3265FCZZ Sheet

Price

5. Interchangeable if replaced with same types of relate d parts in use .

6. Othe rs .

Effec-

tive

time

—

Inter-

change-

ability

—

Note

2/2

* The washer for the MG roller
