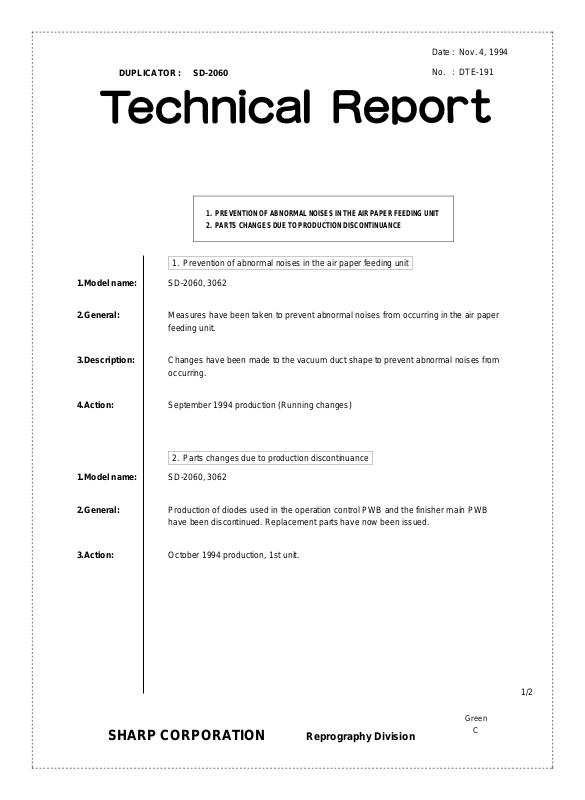

SHARP DTE191 Technical Report

Date: Nov. 4, 1994

DUPLICATOR : SD-2060

1. PREVENTION OF ABNORMAL NOISES IN THE AIR PAPER FEEDING UNIT

2. PARTS CHANGES DUE TO PRODUCTION DISCONTINUANCE

1. Prevention of abnormal noises in the air paper feeding unit

1.Model name: SD-2060, 3062

2.General: Measures have been taken to prevent abnormal noises from occurring in the air paper

feeding unit.

No. : DTE-191

3.Description: Changes have been made to the vacuum duct shape to prevent abnormal noises from occurring.

4.Action: September 1994 production (Running changes)

2. Parts changes due to production discontinuance

1.Model name: SD-2060, 3062

2.General: Production of diodes used in the operation control PWB and the finisher main PWB

have been discontinued. Replacement parts have now been issued.

3.Action: October 1994 production, 1st unit.

SHARP CORPORATION Reprography Division

1/2

Green

Ref.

No.

Model

name

Version P/G No.

Current parts New parts

Parts code Parts code

Price

rank

Parts name

Effec-

tive

time

Inter-

change-

ability

Note

SD-2060 SD-3062

1. Interc ha ng ea bl e. 4. N ot i nt er ch an ge ab l e.

2. Current type can be used in place of new type. New type cannot be used in place of current type.

3. Current type cannot be used in place of new type. New type can be used in place of current type.

Parts marked with “ ” is important for maintaining the safety of the set. Be sure to replace these parts with

speci fied ones fo r m ain ta in i ng t he s a fe ty an d pe r fo rma nc e o f th e s et .

18 -15

PDUC-0072FCZZ PDUC-0072FCZ1 AT Vacuum duct

19 -15

All

56 -30 VHDW06B////-1 VHDDSM1D1//-1 AB Diode

80 -73 VHDW06B////-1 VHDDSM1D1//-U AB Diode

5. Interchangeable if replaced with same types of relate d parts in use .

6. Others.

See text.

1st lot ’94/10
