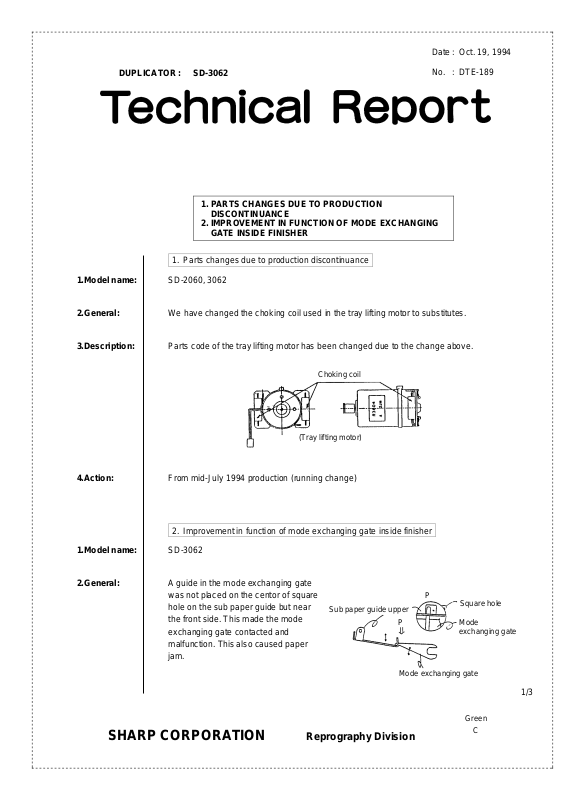

SHARP DTE189 Technical Report

Date: Oct. 19, 1994

DUPLICATOR : SD-3062

No. : DTE-189

1. PART S CHANGES DUE TO PRODUCTION
DISCONTINUANCE

2. IMPROVEMENT IN FUNCTION OF MODE EXCHANGING
GATE INSIDE FINISHER

1. Parts changes due to production discontinuance

1.Model name: SD-2060, 3062

2.General: We have changed the choking coil used in the tray lifting motor to substitutes.

3.Description: Parts code of the tray lifting motor has been changed due to the change above.

Choking coil

(Tray lifting motor)

4.Action: From mid-July 1994 production (running change)

2. Improvement in function of mode exchanging gate inside finisher

1.Model name: SD-3062

2.General: A guide in the mode exchanging gate

was not placed on the centor of square
hole on the sub paper guide but near
the front side. This made the mode
exchanging gate contacted and

Sub paper guide upper

P

P

Square hole

Mode
exchanging gate

malfunction. This also caused paper
jam.

Mode exchanging gate

SHARP CORPORATION Reprography Division

1/3

Green

C

3.Description: We have made following changes to position the mode exchanging gate guide centor.

➀ Two horizontal washers were used to attach to the sub paper guide as shown in the

Fig. 1, the current part. We have attached one of them to the front side of the guide,
and the other to the rear side, shown in the Fig. 1, the new part.

➁ We have changed the attachment method of the hinge adjusting screw as shown in

the Fig. 2.

Fig. 1

Horizontal washer
LX-WZ0019FCZZ

Horizontal washer
LX-WZ0019FCZZ

X1

Fin frame FB
LFRM-0793FCZ3

Current

X2

M4-10 screw
XBBSD40P10000

R

Sub paper guide upper
PGIDH1432FCZZ

RF

New

Hinge F adjusting screw
LX-BZ0392FCZZ

F

Horizontal washer
LX-WZ0019FCZZ

X1

Horizontal washer
XWHSD40-08100

Fig. 2

Hexagon nut
XNESD40-32000

Current New

4.Action: From the first unit of September 1994 production

2/3

Wave washer
LX-WZ0057FCZZ
