Thank you for purchasing this SHARP product.
To obtain the best performance from this product, please read this
manual carefully. It will guide you in operating your SHARP product.
The illustrations printed in this operation manual are for the model
MUSIC SYSTEM FOR iPod
MODEL
DK-AP2.
DK-AP2
DK-AP2(BK)
OPERATION MANUAL
iPod is a trademark of Apple Inc.,
registered in the U.S. and other countries.
DK-AP2
DK-AP2(BK)
Special notes
WARNINGS
When the ON/STAND-BY button is set at STAND-BY position, mains
voltage is still present inside the unit. When the ON/STAND-BY
button is set at STAND-BY position, the unit may be brought into
operation by the remote control.
This unit contains no user serviceable parts. Never remove covers
unless qualified to do so. This unit contains dangerous voltages,
always remove mains plug from the socket before any service
operation and when not in use for a long period.
The supplied AC/DC adaptor contains no user serviceable parts.
Never remove covers unless qualified to do so. It contains dangerous
voltages, always remove mains plug from the main outlet socket
before any service operation or when not in use for a long period.
The AC/DC adaptor supplied with the DK-AP2/DK-AP2(BK) must not
be used with other equipment.
Never use an AC/DC adaptor other than the one specified.
Otherwise, problems or serious hazards may be created.
To prevent fire or shock hazard, do not expose this appliance to
dripping or splashing. No objects filled with liquids, such as vases,
shall be placed on the apparatus.
Do not turn the volume on to full at switch on. Listen to music at
moderate levels.
Note for users in Australia:
Copyright may exist in material you wish to record. Copying or
broadcasting such material without permission of the relevant licensees
or owners of the copyright is prohibited by law. SHARP is not in a
position to authorise the copying or broadcasting of copyright materials
and nothing in this OPERATION MANUAL should be implied as giving
that authority.
Important Instruction
For other countries:
Audio-visual material may consist of copyrighted works which must not
be recorded without the authority of the owner of the copyright. Please
refer to the relevant laws in your country.
Accessories
Please confirm that the following accessories are included.
2
Remote control x 1 AC power lead x 1
AC power lead x 1
(for United Kingdom only)
iPod adaptor x 8 Plug adaptor x 1
Note:
The AC/DC adaptor may be different from the one in the drawing.
AC power lead x 1
(for Australia only)
(for Philipines only)
AC/DC adaptor x 1
(for United Kingdom only)
RADPAA039AWZZ (DK-AP2)
RADPAA036AWZZ (DK-AP2(BK))
(for Australia only)
RADPAA045AWZZ (DK-AP2)
RADPAA044AWZZ (DK-AP2(BK))
Contents
General Information
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 5
Preparation for Use
System connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 7
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 8
Basic Operation
General control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
iPod
Listening to the iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 11
Advanced Feature
Enhancing your system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
References
Troubleshooting chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 13
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Page
Precautions
General
Please ensure that the equipment is
positioned in a well-ventilated area and
ensure that there is at least 10 cm (4") of free
space along the sides, top and back of the
equipment.
10 cm (4")
Use the unit on a firm, level surface free from
vibration.
Keep the unit away from direct sunlight,
strong magnetic fields, excessive dust,
humidity and electronic/electrical
equipment (home computers,
facsimiles, etc.) which generate
electrical noise.
Do not place anything on top of the unit.
Do not expose the unit to moisture, to temperatures higher than
60˚C (140˚F) or to extremely low temperatures.
If your system does not work properly, disconnect the AC power
lead from the wall socket. Plug the AC power lead back in, and
then turn on your system.
In case of an electrical storm, unplug the
unit for safety.
Do not use an external power supply other
than the 6V DC supplied with this unit as it
may be damaged.
SHARP is not responsible for damage due to improper use. Refer
all servicing to a SHARP authorised service centre.
VIDEO
OUT
DC IN 6V
AUX IN
10 cm (4")
SOUND
E
Y
B
AND
ST
D
N
U
O
S
E
Y
B
D
N
A
T
S
D
O
P
I
R
O
F
M
E
T
S
Y
S
C
I
S
U
M
D
O
P
I
R
O
F
M
E
T
S
Y
S
C
I
S
U
M
Hold the AC power plug by the head when
removing it from the wall socket, as pulling
the lead can damage internal wires.
The AC power plug is used as disconnect
device and shall always remain readily
operable.
Do not remove the outer cover, as this
may result in electric shock. Refer
internal service to your local SHARP
service facility.
VIDEO
OUT
DC IN 6V
AUX IN
The ventilation should not be impeded by
covering the ventilation openings with
items, such as newspapers, tablecloths,
curtains, etc.
D
O
P
I
R
O
F
M
E
T
S
Y
S
C
I
S
U
M
No naked flame sources, such as lighted candles, should be
placed on the apparatus.
Attention should be drawn to the environmental aspects of battery
disposal.
This unit should only be used within the range of 5˚C - 35˚C
(41˚F - 95˚F).
The apparatus is designed for use in moderate climate.
Warning:
The voltage used must be the same as that specified on this unit.
Using this product with a higher voltage other than that which is
specified is dangerous and may result in a fire or other type of
accident causing damage. SHARP will not be held responsible for
any damage resulting from use of this unit with a voltage other than
that which is specified.
Volume control
The sound level at a given volume setting depends on speaker
efficiency, location, and various other factors. It is advisable to avoid
exposure to high volume levels. Do not turn the volume on to full at
switch on. Listen to music at moderate levels.
DK-AP2
DK-AP2(BK)
General Information
3
DK-AP2
DK-AP2(BK)
Controls and indicators
12
12
General Information
ESOUND
ESOUND
STAND-BY
STAND-BY
+
+
L
L
O
O
- V
- V
BY
BY
-
-
N/STAND
N/STAND
O
O
2
2
D
D
P
P
K
A
K
A
-
-
M
M
M
M
E
E
U
U
T
T
S
S
S
S
I
I
Y
Y
C
C
S
S
-
-
-
-
34 5 6 7 8 9 10
34 5 6 7 8 9 10
Top view
Reference page
1. Power Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6, 8
2. E SOUND Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3. Skip Down Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4. Play/Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 11
5. Skip Up Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6. iPod Dock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7. Volume Down Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
8. ON/STAND-BY Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
9. Volume Up Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
10. Stand-by Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Side view
Reference page
1. DC Input Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2. Auxiliary Input Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3. Video Out Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
VIDEO
OUT
DC IN 6V
AUX IN
2
1
3
4
DK-AP2
DK-AP2(BK)
The spec label (*)
MUSIC SYSTEM
DC IN 6V 2000m
3V (UM-3 / SUM-3,
[DO NOT USE UN-SPECIFIED AC ADAPTOR---]
The spec label illustration may be different from
the actual label used.
(*) Label is located at the bottom of the unit.
A
R6 / AA) X
4
DK-AP2
1
1
2
3
6
7
8
9
4
10
5
Remote control
1. Remote Control Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . 8
2. On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3. Volume Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . . 8
4. Skip Down Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5. Skip Up Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6. Dimmer Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
7. Display Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
8. Play Mode Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
9. E SOUND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
10. Play/Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 11
Note:
Before using remote control, please remove plastic shield at battery
holder.
Reference page
General Information
Bottom view
1. Battery Compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Reference page
Remote
controller
Plastic shield
Battery holder
5
DC IN 6V
AUX IN
VIDEO
OUT
DK-AP2
DK-AP2(BK)
System connections
Make sure to unplug the AC power lead before any connections.
Connecting iPod to TV
iPod photo and 5th Generation iPod with photo and video can be
viewed by connecting to TV/monitor.
If the TV/monitor has a video input, connect it to the VIDEO OUT
socket at the side of the unit.
VIDEO
OUT
DC IN 6V
AUX IN
Using with the AC/DC adaptor
Plug the AC power lead into the AC/DC adaptor.
1
Plug the AC/DC adaptor cable into the DC INPUT socket on
2
Preparation for Use
the unit.
Plug the AC power lead into a wall socket and switch on the
3
power supply. The STAND-BY indicator turns red and when
the power is on, the POWER indicator turns blue.
Video cable
(not supplied)
To video
input socket
TV
AC/DC Adaptor Cable
2
DC INPUT Socket
(DV 6V)
AC Power Lead
1
VIDEO
OUT
DC IN 6V
AUX IN
3
AC/DC Adaptor
Wall Socket
(AC 110 - 240 V, 50/60 Hz)
Notes:
Unplug the AC/DC adaptor from the wall socket if the unit will not
be used for a prolonged period of time.
Connecting the AC/DC adaptor to the unit disconnects the
batteries.
Use only the supplied AC/DC adaptor. Using other AC/DC
adaptor may cause an electric shock or fire.
6

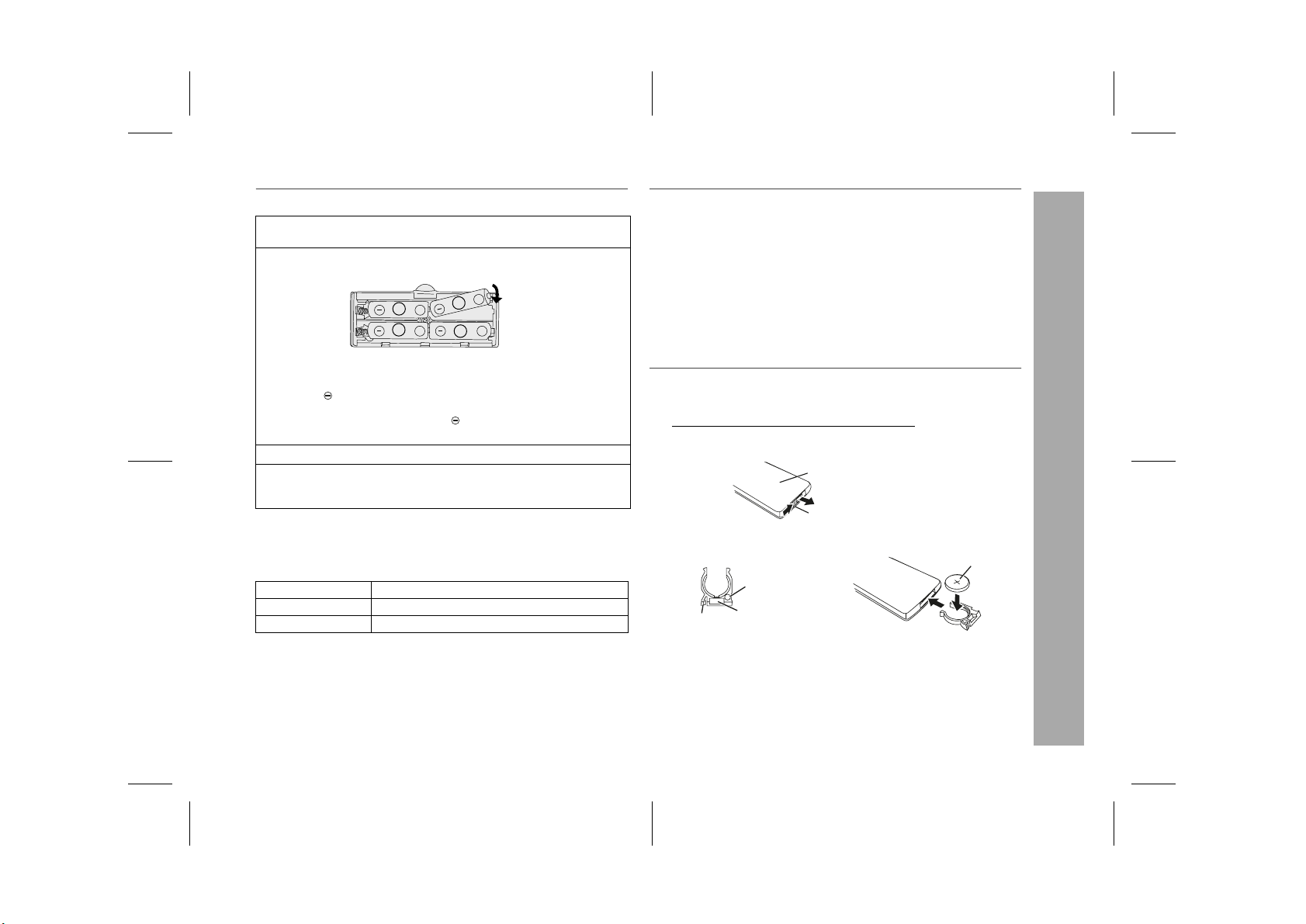

Using with the batteries
1
Disconnect the AC/DC adaptor, and open the battery
compartment.
Insert 4 “AA” size batteries (UM-3, R6 or similar) into the battery
2
compartment.
+
1
3
“AA” size batteries (UM-3, R6 or similar) are not included.
Battery Insertion:
Slide in batteries 1111 and 3333. Then push batteries 2222 and 44
towards .
Battery removal:
Push batteries 2222 and 4444 towards and remove the batteries before
sliding out batteries 1111 and 3333.
3
Close the battery compartment.
4
The STAND-BY indicator will turn red.
Remove the batteries if the unit is not to be used for long period of
time to prevent battery leakage which may cause potential damage.
Battery replacement:
When batteries are low, sound becomes distorted and indicators will be
blinking. Reduce the volume level or replace the batteries with new ones.
Battery life
Battery type ALKALINE (AA) (1.5V)
Usage time Approx. 8 hrs.
Output 74mW + 74mW
Note:
Battery life may vary depending on the temperature, battery types and
usage conditions.
Precautions for battery use:
Installing the batteries incorrectly may cause the unit to malfunction.
Insert the batteries according to the direction indicated in the battery
compartment.
Remove the batteries if the unit is not to be used for long periods of
time. This will prevent potential damage due to battery leakage.
2
+
+
+
4
44
Replace all old batteries with new ones at the same time.
Do not mix old and new batteries.
Batteries (battery pack or batteries installed) shall not be exposed to
excessive heat such as sunshine, fire or the like.
Caution:
Do not use rechargeable batteries (nickeI-cadmium battery,etc.).
Changing power source:
Turn off the unit before changing the power source. If the 6V DC power
supply is directly plugged in during power on, the unit will automatically
enter the stand-by mode. Press the ON/STAND-BY button again to turn
on the unit.
Remote control
Battery installation
This product contains a CR Coin Lithium Battery which contains
Perchlorate Material – special handling may apply. California residents,
see www.dtsc.ca.gov/hazardouswaste/perchlorate/
1 Whilst pushing the locking tab towards the centre of the remote
control, slide out the battery holder.
Back of remote control
Locking tab
2
Remove the old battery from the battery holder, insert the new battery
and then slide the battery holder back into the remote control.
Battery holder
Polarity (+) symbol
Locking tab
Precautions for battery use:
Remove the battery if the unit will not be used for long periods of time.
This will prevent potential damage due to battery leakage.
Caution:
Do not use rechargeable battery (nickel-cadmium battery, etc.).
Replace only with the same or equivalent type.
Installing the battery incorrectly may cause the unit to malfunction.
Danger of explosion if battery is incorrectly replaced.
Batteries (battery pack or batteries installed) shall not be exposed to
excessive heat such as sunshine, fire or the like.
Battery type
Positive (+) side up
DK-AP2
DK-AP2(BK)
Preparation for Use
7
DK-AP2
DK-AP2(BK)
Remote control (continued)
Notes concerning use:
Replace the battery if the operating distance is reduced or if the
operation becomes erratic. Purchase “CR 2025”, coin lithium
battery.
Periodically clean the transmitter on the remote control and the
sensor on the unit with a soft cloth.
Exposing the sensor on the unit to strong light may interfere with
operation. Change the lighting or the direction of the unit if this
occurs.
Keep the remote control away from moisture, heat, shock, and
vibrations.
Test of the remote control
Check the remote control after checking all the connections (see
pages 6 - 7).
Point the remote control directly at the remote sensor on the unit.
The remote control can be used within the range shown below:
Press the ON/STAND-BY button. Does the power turn on? Now, you
can enjoy the music.
Preparation for Use
General control
ESOUND
STAND-BY
- VOL +
Y
B
-
D
N
A
T
S
/
N
O
2
D
P
K
A
-
M
M
E
U
T
S
S
I
C
Y
S
-
-
To turn the power on
Press the ON/STAND-BY button to turn the power on. The POWER
indicator turns blue to indicate power on.
After use:
Press the ON/STAND-BY button to enter the power stand-by mode.
STAND-BY indicator turns red, and the POWER indicator goes off.
+
+
L
L
O
O
V
V
-
-
ND-BY
ND-BY
A
A
T
T
S
S
/
/
N
N
O
O
2
D
P
K
A
-
M
M
E
U
T
S
S
I
C
Y
S
Remote sensor
Volume control
Main unit and remote control operation:
Press the VOL (+ or –) button to increase or decrease the volume.
POWER indicator will be blinking when the volume reaches
maximum or minimum level.
E SOUND control
Press the E SOUND button on the remote control. The E SOUND
indicator turns yellowish orange. You are now in the E SOUND
mode, where low bass and high frequency are automatically
adjusted according to the volume input.
To turn off E SOUND, press the E SOUND button again. The E SOUND
indicator will go off.
8
Listening to the iPod
DK-AP2
DK-AP2(BK)
Supported iPod models:
iPod nano (software 1.0 above)
iPod photo (software 1.0 above)
iPod mini (software 1.2 above)
5th Generation iPod (software 1.0 above) (Dock connector
equipped Click Wheel model)
4th Generation iPod (software 3.0.2 above) (Dock connector
equipped Click Wheel model)
Caution:
Please update your iPod unit to the latest software version before
using it. Please visit Apple’s homepage to download the latest
version for your iPod.
Notes:
Once the iPod is connected to the unit it will begin charging when
AC/DC adaptor is used.
The iPod unit cannot be charged whilst the main unit is in the
stand-by mode or when batteries are used as power supply.
iPod adaptor connection
Choose the iPod adaptor that fits your iPod. Your iPod will fit snugly
into the correct adaptor. If your iPod is not mentioned below, an iPod
adaptor may have been included with your iPod unit.
The number (3 - 10)
shows which iPod fits
iPod
Adaptor
No.
3 iPod mini 4GB & 6GB
4 4G iPod & U2 iPod 20GB
5 4G iPod 40GB
6 iPod photo & colour U2 iPod 20GB & 30GB
7 iPod photo 40GB & 60GB
6 iPod with colour display 20GB
7 iPod with colour display 60GB
8 iPod nano 2GB & 4GB
9 5G iPod & U2 iPod with video 30GB
10 5G iPod with video 60GB & 80GB
Notes:
iPod nano (Second Generation) is not compatible with the original
iPod nano dock adaptor.
If you have an iPod that does not have an iPod connector, you can
use an audio cable to connect it to the AUX IN socket.
iPod Description Capacity
7
iPod
9
DK-AP2
DK-AP2(BK)
Listening to the iPod (continued)
To insert iPod adaptor
1. Insert the iPod adaptor into unit and connect your iPod.
iPod (bottom)
iPod
Dock connector
iPod adaptor
iPod
iPod dock
iPod connector
2
D
K
P
-
A
M
U
M
S
I
E
C
T
S
S
Y
- VOL +
ON/STAND-BY
To remove iPod adaptor
Insert the tip of a screwdriver (“-” type, small) into the iPod adaptor
hole as shown and lift upward to remove.
iPod playback
Note:
Do not connect the Audio cable to AUX IN socket during iPod playback. Otherwise, sound from the iPod will not be heard.
1 Press the ON/STAND-BY button to turn the power on.
2 Insert iPod unit in the iPod dock of main unit.
iPod
iPod adaptor
- VOL +
-BY
AND
ON/ST
2
D
K
P
-
A
M
U
M
S
I
E
C
T
S
S
Y
3 Press the / button to start playback.
10
To disconnect iPod
Simply remove the iPod from the iPod dock. It is safe to do so even
during playback.
DK-AP2
DK-AP2(BK)
Various iPod functions
iPod operation
The operations described below depend on the generation iPod you
are using.
Function Main unit Remote
control
Play Press in the pause
Pause Press in the playback
Skip up/
down
Fast
forward/
reverse
Display ____ iPod back light ON.
DISPLAY
Repeat ____ Press to toggle repeat
PLAY
MODE
Operation
mode.
mode.
Press in the playback
or pause mode.
If you press the button
in the pause mode,
press the / button
to start the desired
track.
Press and hold down
in the playback mode.
Release the button to
resume playback.
mode.
Caution:
Unplug all accessories for the iPod before inserting it into the iPod
dock.
iPod
Shuffle ____ Press and hold down
PLAY
MODE
to toggle shuffle mode.
11
DK-AP2
DK-AP2(BK)
Enhancing your system
The connection lead is not included. Purchase a commercially
available lead as shown below.
Portable audio
player
Computer
To the line output socket
Listening to the playback sounds from portable
Advanced Feature
audio player, computer, etc.
1 Use Audio cable to connect the portable audio player,
computer etc. to the AUX IN socket.
When using video equipment, connect the audio output to this
unit and the video output to a television.
2 Press the ON/STAND-BY button to turn the power on.
3 Play the connected equipment.
Note:
To prevent noise interference, place the unit away from the
television.
12
D
Audio cable
(not supplied)
Troubleshooting chart
Many potential problems can be resolved by the owner without
calling a service technician.
If something is wrong with this product, check the following before
calling your authorised SHARP dealer or service centre.
General
Symptom Possible cause
NI XUA
OEDIV
TUO
V6 NI C
NI X
UA
When a button is
pressed, the unit does
Set the unit to the power stand-by
mode and then turn it back on.
not respond.
No sound is heard. Is the volume level set to “0”?
Remote control
Symptom Possible cause
The remote control does
not operate.
Is the AC power lead of the unit
plugged in?
Is the battery polarity correct?
Is the battery dead?
Is the distance or angle incorrect?
Does the remote control sensor
receive strong light?
iPod
Symptom Possible cause
No sound is produced.
No image appears on
the TV/monitor.
iPod will not charge. The iPod is not making full contact
The iPod is not playing.
The iPod is not properly connected
to the unit.
Is the AC power lead of the unit
plugged in?
The video cable is not properly
connected.
The TV/monitor’s input selection is
not properly set.
with the iPod connector.
The main unit is in stand-by mode.
The main unit is using batteries as
power supply.
Specifications
DK-AP2
DK-AP2(BK)
Condensation
Sudden temperature changes, storage or operation in an extremely
humid environment may cause condensation inside the cabinet or on
the transmitter on the remote control.
Condensation can cause the unit to malfunction. If this happens,
leave the power on until normal playback is possible (about 1 hour).
Wipe off any condensation on the transmitter with a soft cloth before
operating the unit.
If trouble occurs
When this product is subjected to strong external interference
(mechanical shock, excessive static electricity, abnormal supply
voltage due to lightning, etc.) or if it is operated incorrectly, it may
malfunction.
If such a problem occurs, do the following:
1 Set the unit to the stand-by mode and turn the power on again.
2 If the unit is not restored in the previous operation, unplug and
plug in the unit, and then turn the power on.
Before transporting the unit
Remove the iPod from the unit. Then, set the unit to the power standby mode. Carrying the unit with iPod left docked might damage both
the unit and the iPod.
Maintenance
Cleaning the cabinet
Periodically wipe the cabinet with a soft cloth and a diluted soap
solution, then with a dry cloth.
Caution:
Do not use chemicals for cleaning (petrol, paint thinner, etc.). It
may damage the cabinet finish.
Do not apply oil to the inside of the unit. It may cause
malfunctions.
As part of our policy of continuous improvement, SHARP reserves
the right to make design and specification changes for product
improvement without prior notice. The performance specification
figures indicated are nominal values of production units. There may
be some deviations from these values in individual units.
General
Power source DC 6V: AC/DC Adaptor (AC 100 - 240V,
50/60Hz)
DC 3V: “AA” size (UM/SUM-3, R3 or HP-7) x 4
Power
consumption
Output power Speakers:
Speaker 1-way type speaker system
Speaker maximum
input power
Speaker rated
input power
Output terminals Video output: 1Vp-p
Input terminals Auxiliary (audio signal):
Dimensions Width: 380 mm (15")
Weight 1.2 kg (2.65 lbs)
* This power consumption value is obtained when in the power . .
stand-by mode.
Power on : 3.8 W
Power stand-by: 0.2 W*
RMS: 3.8 W (1.9 W + 1.9 W) (10% T.H.D.)
Speakers: 5 cm (2") - 6 ohms - Full Range
Speakers: 3.8 W/Channel
Speakers: 1.9 W/Channel
500 mV/47 k ohms
Height: 157 mm (6-2/5")
Depth: 221 mm (8-7/10")
References
13
MEMO
MEMO
T
SHARP CORPORATION
INSEA187AWZZ
07G R MW 1
03/11/4 DK-AP2_BACK.fm
Loading...
