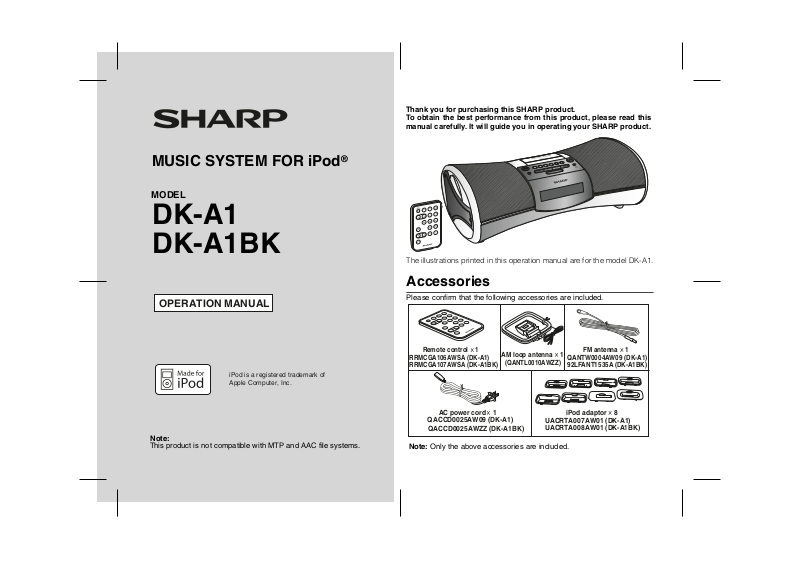

Sharp DK-A1BK, DK-A1 User Manual
MUSIC SYSTEM FOR iPod®
MODEL
DK-A1
DK-A1BK
OPERATION MANUAL
Thank you for purchasing this SHARP product.
To obtain the best performance from this product, please read this
manual carefully. It will guide you in operating your SHARP product.
SNOOZE/
DIMMER
CLOCK
FUNCTION
M
R
VOL
LA
A
P
E
LE
S
Y
A
L
P
IS
D
UND
E SO
O
/DEM
PLAY
MODE
EQ
TUNING
CLEAR
Y
OR
EM
M
The illustrations printed in this operation manual are for the model DK-A1.
Accessories
Please confirm that the following accessories are included.
iPod is a registered trademark of
Apple Computer, Inc.
Note:
This product is not compatible with MTP and AAC file systems.
Remote control 1
RRMCGA106AWSA (DK-A1)
RRMCGA107AWSA (DK-A1BK)
AC power cord 1
QACCD0025AW09 (DK-A1)
AM loop antenna 1
(QANTL0010AWZZ)
QACCD0025AWZZ (DK-A1BK)
Note:
Only the above accessories are included.
FM antenna 1
QANTW0004AW09
92LFANT1535A
(DK-A1)
(DK-A1BK)
iPod adaptor 8
UACRTA007AW01 (DK-A1)
UACRTA008AW01 (DK-A
1
BK)
DK-A1
NOTE
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
WARNING
FCC Regulations state that any unauthorized changes or modifications
to this equipment not expressly approved by the manufacturer could void
the user's authority to operate this equipment.
:etoN
,876,
4
1
2,5,484,279,
4.taP.S.Uf
oeromroenorednudesneciL
,58
9,016,
5,816,606,5,74
2
,445,5,928,935,5,556,035,5,693,323,5
.
730
,0
69,5ro080,878,5,299,777,5,713,047,5
FOR YOUR RECORDS
For your assistance in reporting this unit in case of loss or theft,
please record below the model number and serial number which
are located on the rear of the unit.
Please retain this information.
Model number .......................................................
Serial number .......................................................
Date of purchase .......................................................
Place of purchase .......................................................
DK-A1BK
SPECIAL NOTES
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Explanation of Graphical Symbols:
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
Important Instruction
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
Note to CATV system installer:
This reminder is provided to call the CATV system installer's
attention to Article 820-40 of the National Electrical Code that
provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the
grounding system of the building, as close to the point of
cable entry as practical.
2
IMPORTANT SAFETY INSTRUCTIONS
DK-A1
DK-A1BK
Electricity is used to perform many useful functions, but it can also
cause personal injuries and property damage if improperly handled.
This product has been engineered and manufactured with the
highest priority on safety. However, improper use can result in
electric shock and/or fire. In order to prevent potential danger, please
observe the following instructions when installing, operating and
cleaning the product. To ensure your safety and prolong the service
life of this product, please read the following precautions carefully
before use.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with
the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult an electrician
for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from
the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for
long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
Additional Safety Information
15) Power Sources - This product should be operated only from the
type of power source indicated on the marking label. If you are
not sure of the type of power supply to your home, consult your
product dealer or local power company. For product intended
to operate from battery power, or other sources, refer to the
operating instructions.
16) Overloading - Do not overload wall outlets, extension cords, or
integral convenience receptacles as this can result in a risk of
fire or electric shock.
17) Object and Liquid Entry - Never push objects of any kind into
this product through openings as they may touch dangerous
voltage points or short-out parts that could result in a fire or
electric shock. Never spill liquid of any kind on the product.
Important Instruction
3
DK-A1
ANTEN NA LEAD IN WIRE
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
NEC - NATIONAL ELECTRICAL CODE
S2898A
ELECTRIC
SERVICE
EQUIPMENT
GROUND
CLAMP
Example of antenna gr ounding as per
National Elec trical Code , ANSI/NFP A 70
ANTEN NA DISCHARGE UNIT
(NEC SECTION 810-20)
18) Damage Requiring Service - Unplug this product from the wall
outlet and refer servicing to qualified service personnel under
the following conditions :
a) When the AC cord or plug is damaged,
b) If liquid has been spilled, or objects have fallen into the
product,
c) If the product has been exposed to rain or water,
d) If the product does not operate normally by following
the operating instructions. Adjust only those controls
that are covered by the operating instructions as an
improper adjustment of other controls may result in
damage and will often require extensive work by a
qualified technician to restore the product to its normal
operation,
e) If the product has been dropped or damaged in
any way, and
f) When the product exhibits a distinct change in
performance - this indicates a need for service.
19) Replacement Parts - When replacement parts are required,
be sure the service technician has used replacement parts
specified by the manufacturer or have the same characteristics
as the original part. Unauthorized substitutions may result in
fire, electric shock, or other hazards.
20) Safety Check - Upon completion of any service or repairs to this
product, ask the service technician to perform safety checks to
determine that the product is in proper operating condition.
21) Wall or ceiling mounting - When mounting the product on a wall
or ceiling, be sure to install the product according to the method
recommended by the manufacturer.
22) Power Lines - An outside antenna system should not be located
in the vicinity of overhead power lines or other electric light or
power circuits, or where it can fall into such power lines or circuits.
When installing an outside antenna system, extreme care should
be taken to keep from touching such power lines or circuits as
contact with them might be fatal.
23) Outdoor Antenna Grounding - If an outside antenna or cable system
is connected to the product, be sure the antenna or cable system is
grounded so as to provide some protection against voltage surges
and built-up static charges. Article810 of the National Electrical Code,
ANSI/NFPA 70, provides information with regards to proper grounding
of the mast and supporting structure, grounding of the lead-in wire to
an antenna discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.
24) Protective Attachment Plug - The product is equipped with an attachment
plug having overload protection. This is a safety feature. See Instruction
Manual for replacement or resetting of protective device. If replacement
of the plug is required, be sure the service technician has used a replace ment plug specified by the manufacturer that has the same overload
protection as the original plug.
25) Stand - Do not place the product on an unstable cart, stand, tripod or
table. Placing the product on an unstable base can cause the product to
fall, resulting in serious personal injuries as well as damage to the product.
Use only a cart, stand, tripod, bracket or table recommended by the
manufacturer or sold with the product. When mounting the product on a
wall, be sure to follow the manufacturer's intructions. Use only the mounting
hardware recommended by the manufacturer.
DK-A1BK
IMPORTANT SAFETY INSTRUCTIONS (continued)
Important Instruction
4
ENERGY STAR® Program Information
Products that have earned
the ENERGY STAR
designed to protect the
environment through
superior energy efficiency.
To comply with the ENERGY STAR® standards mentioned above,
please cancel the demonstration mode, as described on page 10.
ENERGY STAR® is a U.S. registered mark.
®
are
Special Note
Supply of this product does not convey a license nor imply any right
to distribute content created with this product in revenue-generating
broadcast systems (terrestrial, satellite, cable and/or other distribution channels), revenue-generating streaming applications (via Internet, intranets and/or other networks), other revenue-generating
content distribution systems (pay-audio or audio-on-demand applications and the like) or on revenue-generating physical media (compact discs, digital versatile discs, semiconductor chips, hard drives,
memory cards and the like). An independent license for such use is
required. For details, please visit http://mp3licensing.com
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.
Contents
General Information
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 - 9
Preparation for Use
System connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Basic Operation
General control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
iPod
Listening to the iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 - 16
Radio
Listening to the radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 - 18
Advanced Features
Alarm and sleep operation. . . . . . . . . . . . . . . . . . . . . . . . . .19 - 20
Enhancing your system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
References
Troubleshooting chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 - 23
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
CONSUMER LIMITED WARRANTY . . . . . . . . . . . . . .Back cover
Page
DK-A1
DK-A1BK
General Information
5
DK-A1
DK-A1BK
Precautions
General
Use the unit on a firm, level surface free from
vibration.
Keep the unit away from direct sunlight,
strong magnetic fields, excessive dust,
humidity and electronic/electrical equipment (home computers, facsimiles, etc.)
which generate electrical noise.
Do not place anything on top of the unit.
Do not expose the unit to moisture, to temperatures higher than
140˚F (60˚C) or to extremely low temperatures.
If your system does not work properly, disconnect the AC power
cord from the AC outlet. Plug the AC power cord back in, and then
turn on your system.
In case of an electrical storm, unplug the
unit for safety.
Do not lift the unit by holding left or right
General Information
side panel, it may cause the unit damage or
broken.
Hold the AC power plug by the head when
removing it from the AC outlet, as pulling
the cord can damage internal wires.
The AC power plug is used as disconnect
device and shall always remain readily
operable.
Do not remove the outer cover, as
this may result in electric shock. Refer internal service to your local
SHARP service facility.
This unit should only be used within the range of 41˚F - 95˚F
(5˚C - 35˚C).
Warning:
The voltage used must be the same as that specified on this unit.
Using this product with a higher voltage other than that which is
specified is dangerous and may result in a fire or other type of
accident causing damage. SHARP will not be held responsible for
any damage resulting from use of this unit with a voltage other than
that which is specified.
Volume control
The sound level at a given volume setting depends on speaker
efficiency, location and various other factors. It is advisable to avoid
exposure to high volume levels, which occurs while turning the unit
on with the volume control setting up high, or while continually
listening at high volumes.
6
Controls and indicators
13 14 15 16 17 18
1
432 5678 910 1211
Top panel
1. iPod Dock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2. POWER ON/STAND-BY Button . . . . . . . . . . . . . . . . 12, 17, 23
3. Clock Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4. iPod Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 15
5. Alarm Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6. Auxiliary Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
7. Snooze/Dimmer Button . . . . . . . . . . . . . . . . . . . . . . 12, 19, 23
8. Tuner Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
9. Remote Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
10. Alarm Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
11. Alarm ON/OFF Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
12. E Sound Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 12, 23
13. Play/Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 16
14. Skip Down, Tuner Preset Down Button . . . . . . . . . 13, 16, 18
15. Skip Up, Tuner Preset Up Button . . . . . . . . . . . . . . 13, 16, 18
16. EQ Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
17. Volume Down Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
18. Volume Up Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Reference page
DK-A1
DK-A1BK
General Information
7
DK-A1
DK-A1BK
Controls and indicators (continued)
12 3456
The model name/serial no.label (*)
General Information
7
The iPod
rating label (*)
The spec label (*)
(*) Label is located at the bottom of the unit.
Display
1. Alarm Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2. Sleep Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3. iPod Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4. Aux Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5. FM Stereo Mode Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6. FM Stereo Receiving Indicator . . . . . . . . . . . . . . . . . . . . . . 17
7. Summer Time Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Rear panel
1. AM Loop Antenna Terminal . . . . . . . . . . . . . . . . . . . . . . . . . 10
2. AM Antenna Ground Terminal . . . . . . . . . . . . . . . . . . . . . . 10
3. FM 75 Ohms Antenna Jack . . . . . . . . . . . . . . . . . . . . . . . . . 10
4. Auxiliary Input Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5. Headphone Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6. Video Out Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7. Summer Time Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
8. AC Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Reference page
Reference page
3 4 51
2 6 7 8
8
Loading...
