Sharp de Serviço TV User Manual

29L-FG1BZ

6 – 1

29LFG1BZ

ServiceManual



Capítulo 6. Layout da Placa

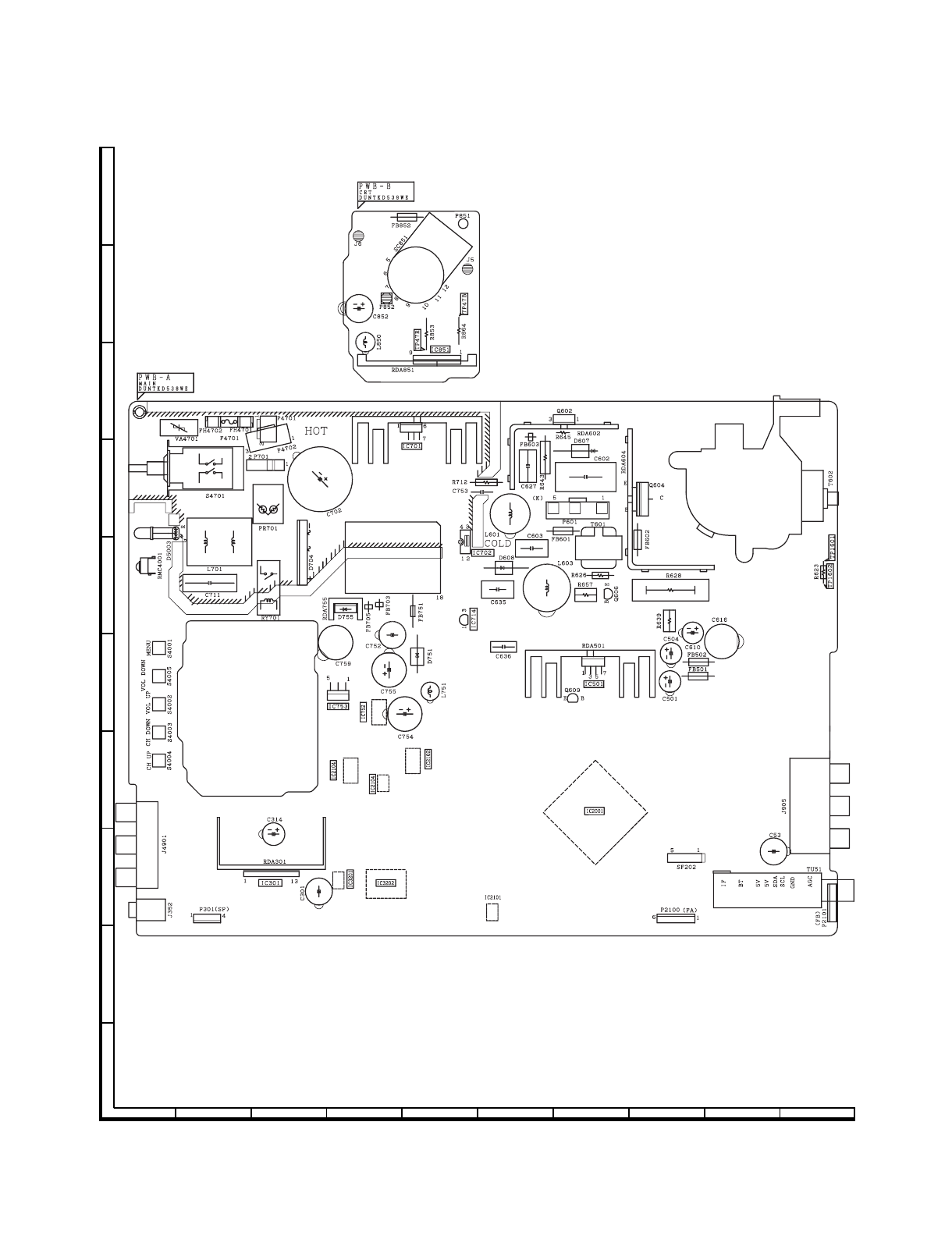

[1] Layout da Placa

123456789

A

B

C

D

E

F

G

H

I

J

10

29L-FG1BZ

8 – 1

29LFG1BZ

ServiceManual



Capítulo 8. Diagrama em Blocos

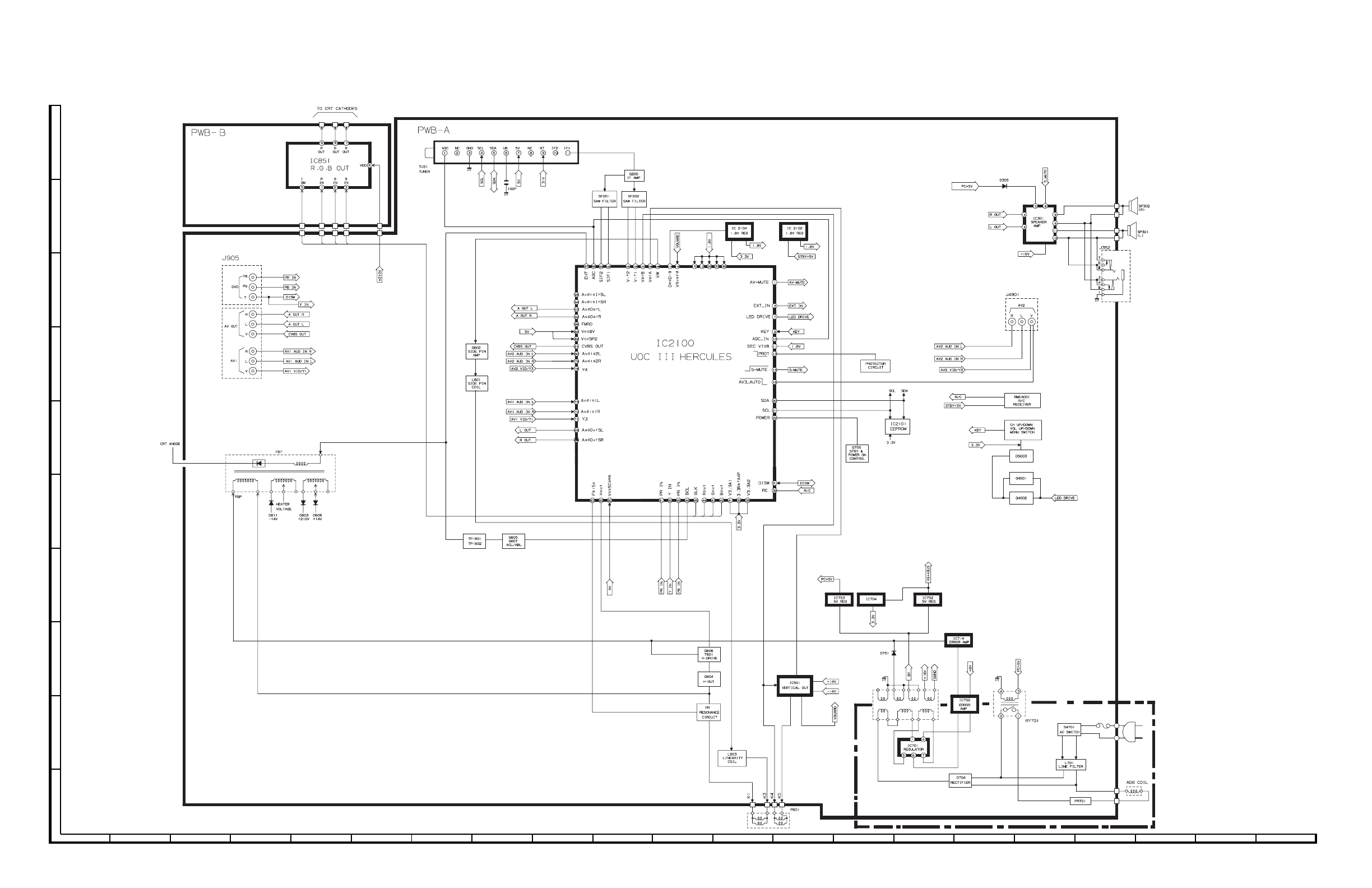

[1] Diagrama em Blocos: Unidade Main

123456789

A

B

C

D

E

F

G

H

I

J

10 11 12 13 14 15 16 17 18 19 20 21

29L-FG1BZ

8 – 2

- MEMO -

29L-FG1BZ

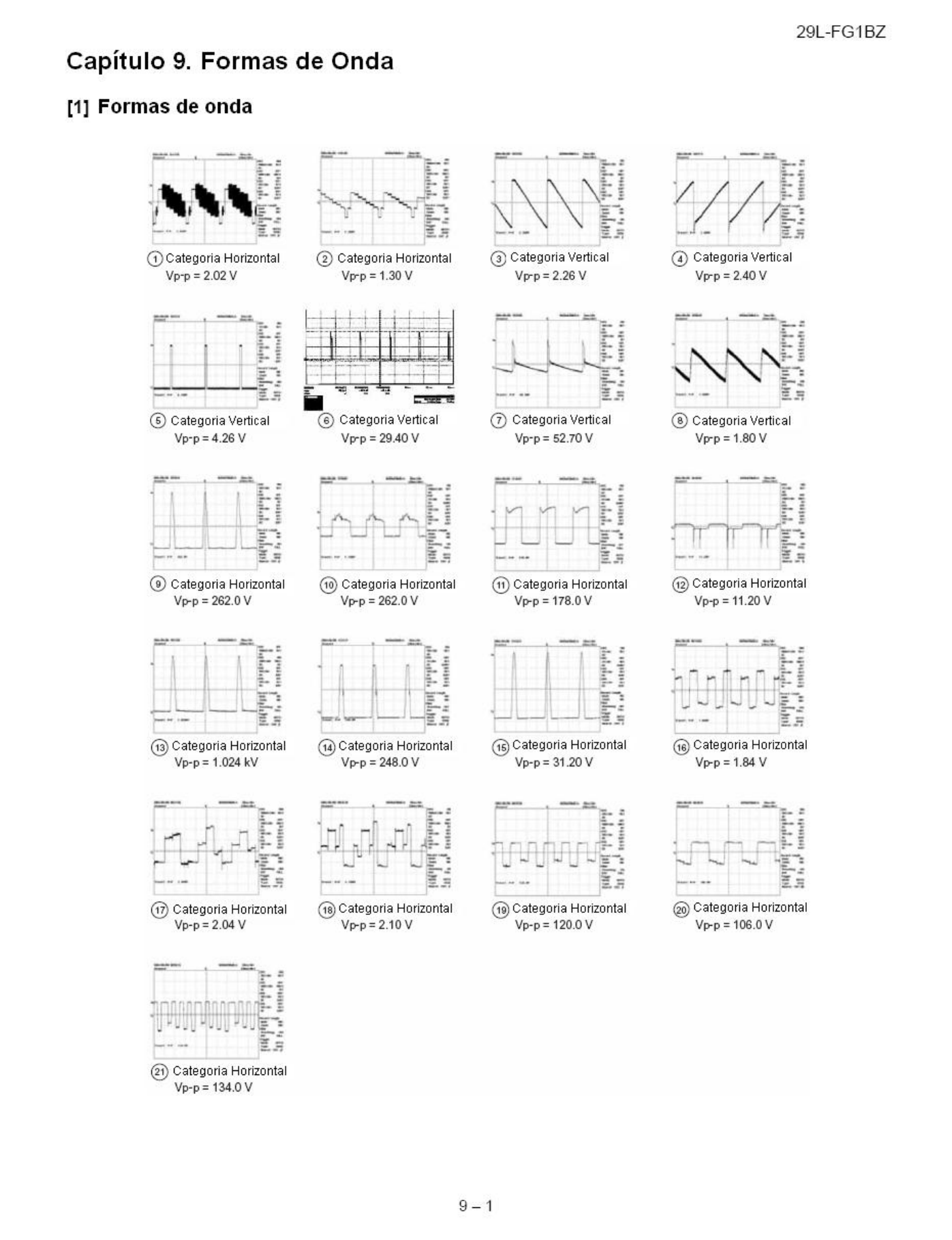

9 – 2

- MEMO -

29L-FG1BZ

10 – 1

29LFG1BZ

ServiceManual



Capítulo 10. Diagrama Esquemático

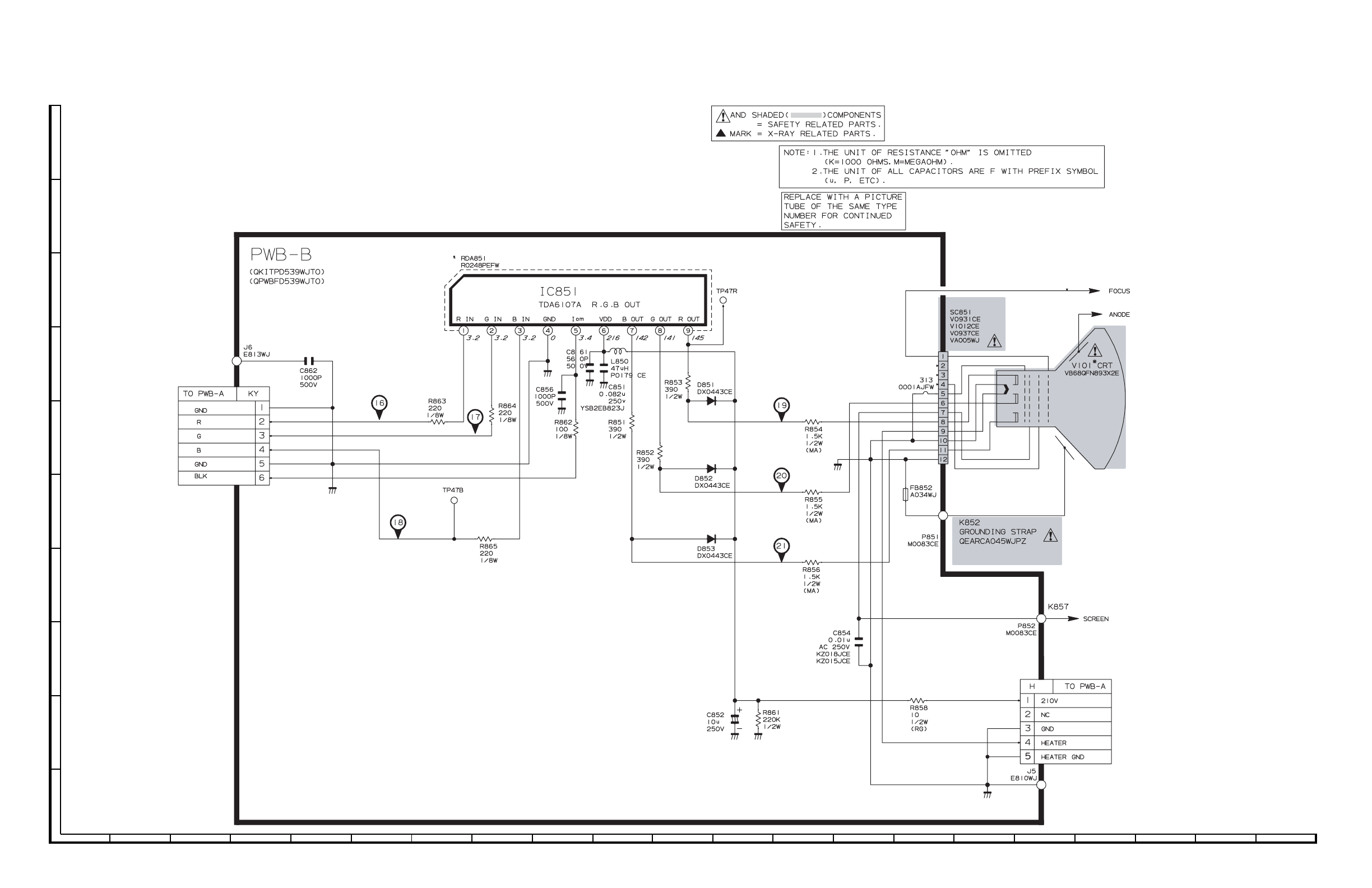

[1] Diagrama Esquemático: Unidade Tubo

123456789

A

B

C

D

E

F

G

H

I

J

10 11 12 13 14 15 16 17 18 19 20 21

29L-FG1BZ

10 – 2

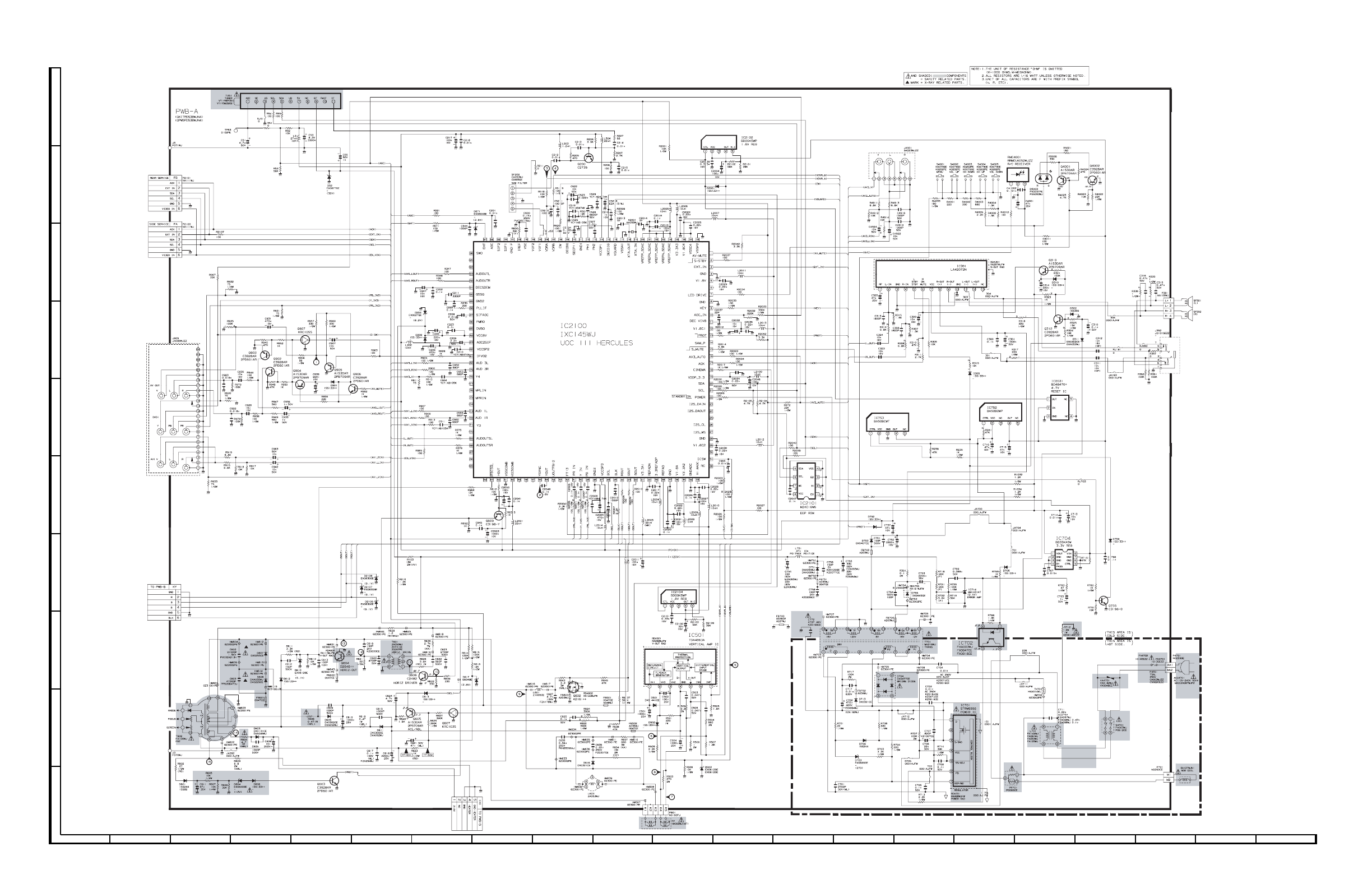

[2] Diagrama Esquemático: Unidade Main

123456789

A

B

C

D

E

F

G

H

I

J

10 11 12 13 14 15 16 17 18 19 20 21

29L-FG1BZ

11 – 1

29LFG1BZ

ServiceManual



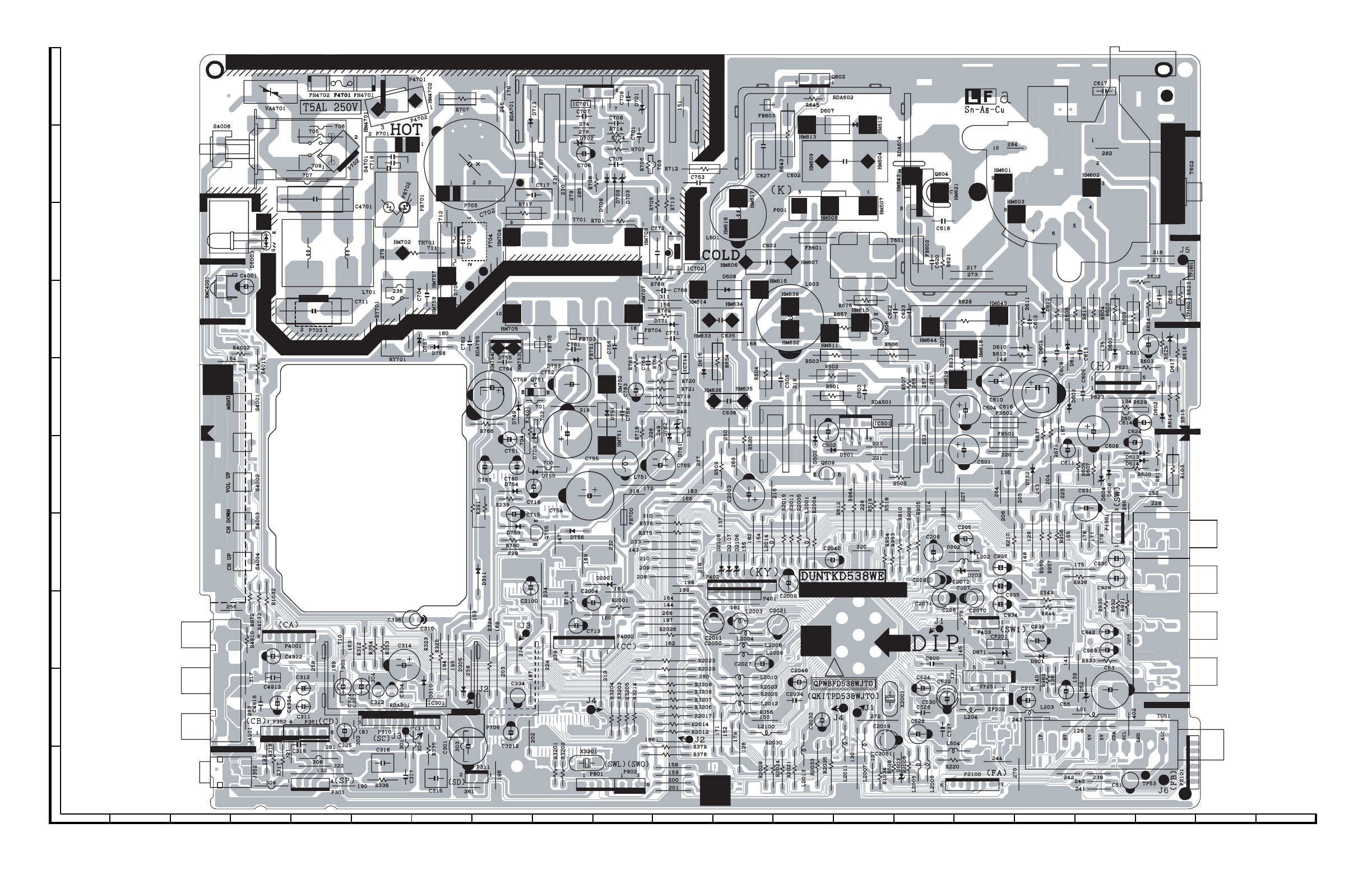

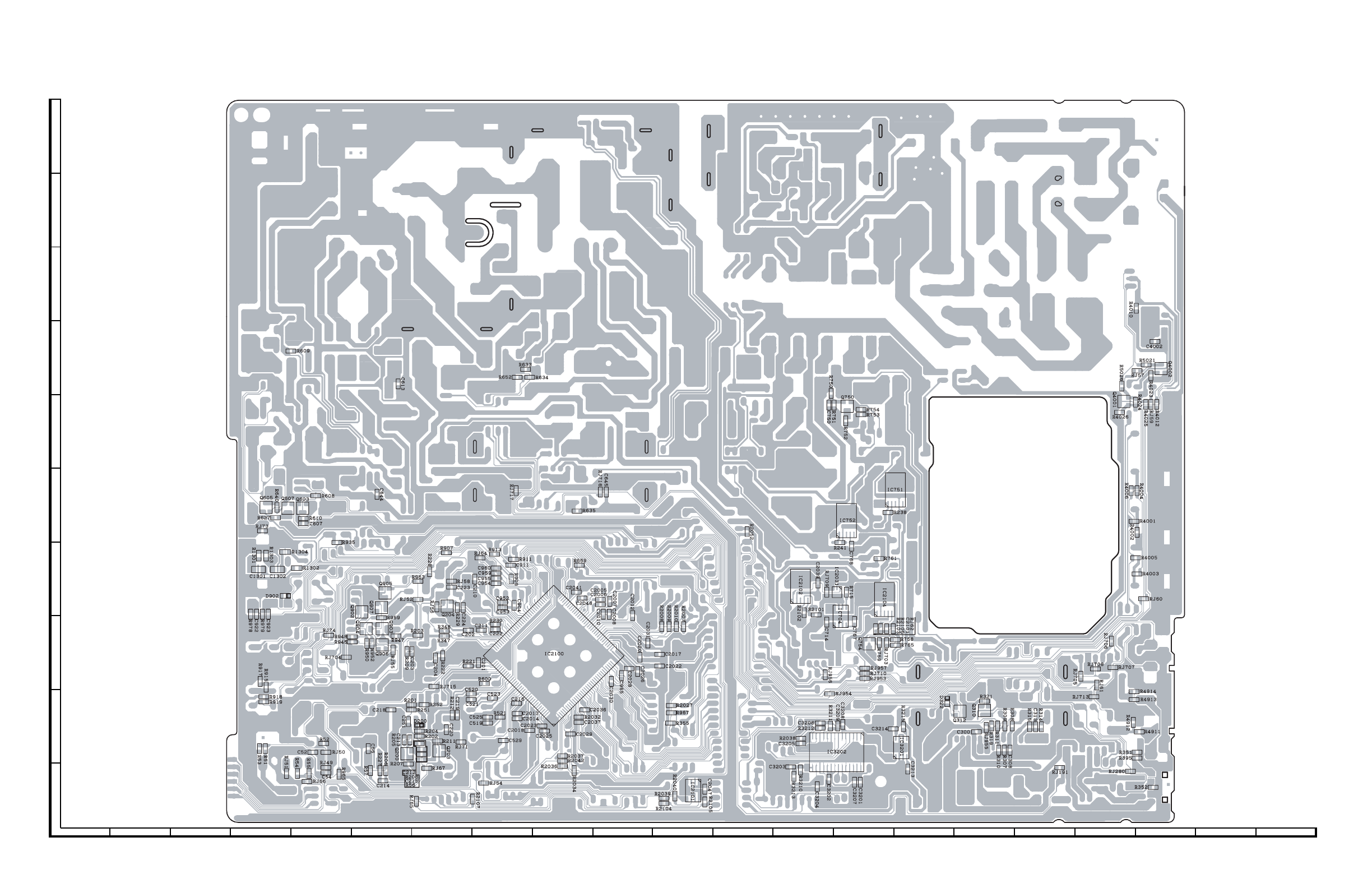

Capítulo 11. Placa de Circuito Impresso

[1] PWB-A: Unidade Main

123456789

A

B

C

D

E

F

G

H

I

J

10 11 12 13 14 15 16 17 18 19 20 21

Unidade Main

(Lado Componentes)

29L-FG1BZ

11 – 2

123456789

A

B

C

D

E

F

G

H

I

J

10 11 12 13 14 15 16 17 18 19 20 21

Unidade Main

(Lado dos Componentes)

29L-FG1BZ

11 – 3

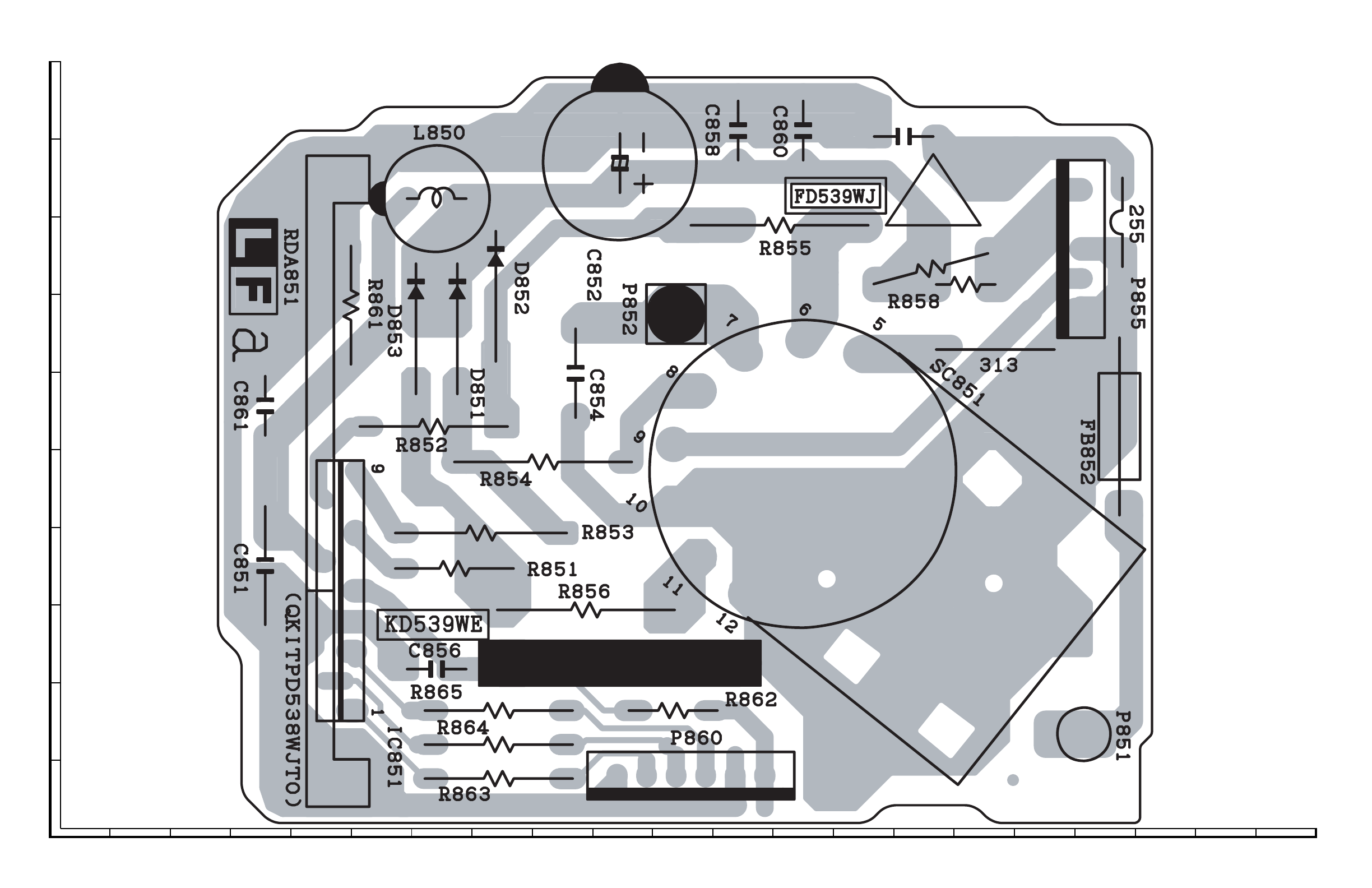

[2] PWB-B: Unidade Tubo

123456789

A

B

C

D

E

F

G

H

I

J

10 11 12 13 14 15 16 17 18 19 20 21

29L-FG1BZ

11 – 4

- MEMO -

Lista de Peças Modelo 29L-FG1BZ

Posição Código Descrição

ACC01 LHLDWA101WJZZ SUPORTE DO CABO AC

ACC02 LHLDK0024PEZZ SUPORTE DO CABO AC

BAF01 GBFL-A027WJZZ DEFLETORA

BAG01 RRMCGA561WJ19 INFRAVERMELHO R-C

BAG02 SSAKA0001PEZZ SACO PP (SACK)

BAT01 RRMCGA561WJ11 INFRAVERMELHO R-C

BAT02 RRMCGA561WJ12 INFRAVERMELHO R-C

BAT03 RRMCGA561WJ15 INFRAVERMELHO R-C

BAT04 RRMCGA561WJ18 INFRAVERMELHO R-C

BAT05 UBATU0247AJZZ BATERIA

BCOV01 RRMCGA561WJ14 INFRAVERMELHO R-C

BOA01 RRMCGA561WJ01 INFRAVERMELHO R-C

BTN02 MSPRCA040WJFW MOLA BOTÃO LIGA/DESLIGA

C06 RRMCGA561WJ10 INFRAVERMELHO R-C

C51

VCEA9M1HW475M+

4.7 50V CAPACITOR ELETROLITICO

C53

VCEA0A0JW338M

3300 6.3V CAPACITOR ELETROLITICO

C55 VCEA0A1HW105M+ 1 50V CAPACITOR ELETROLITICO

C201 VCKYCY1HB103KY 0.01 50V CAPACITOR CERAMICA

C202

VCKYCY1HB104KY

0.1 50V CAPACITOR CERAMICA

C205 VCEA0A1CW227M+ 220 16V CAPACITOR ELETROLITICO

C206

VCEA0A1AW477M+

470 10V CAPACITOR ELETROLITICO

C207

VCEA9M1CW106M+

10 16V CAPACITOR ELETROLITICO

C208

VCEA9M1HW225M+

2.2 50V CAPACITOR ELETROLITICO

C209

VCEA9M1HW225M+

2.2 50V CAPACITOR ELETROLITICO

C210

VCKYCY1AB474KY

0.47 10V CAPACITOR CERAMICA

C211

VCKYCY1HB332KY

3300p 50V CAPACITOR CERAMICA

C212 VCKYCY1HB103KY 0.01 50V CAPACITOR CERAMICA

C213 VCKYCY1HB103KY 0.01 50V CAPACITOR CERAMICA

C214 VCKYCY1HB103KY 0.01 50V CAPACITOR CERAMICA

C215 VCKYCY1HB103KY 0.01 50V CAPACITOR CERAMICA

C216

VCKYCY1AB105KY

1 10V CAPACITOR CERAMICA

C217

VCEA0A1CW107M+

100 16V CAPACITOR ELETROLITICO

C218 VCKYCY1HB103KY 0.01 50V CAPACITOR CERAMICA

C222

VCKYCY1HB104KY

0.1 50V CAPACITOR CERAMICA

C223

VCKYCY1HB104KY

0.1 50V CAPACITOR CERAMICA

C300

VCKYCY1HB104KY

0.1 50V CAPACITOR CERAMICA

C301

VCEA0A1HW108M

1000 50V CAPACITOR ELETROLITICO

C308

VCKYCY1HB182KY

1800p 50V CAPACITOR CERAMICA

C310

VCEA9M1HW104M+

0.1 50V CAPACITOR ELETROLITICO

C311

VCE9GA1CW106M+

10 16V CAPACITOR ELETROLITICO(N.P)

C312

VCE9GA1CW106M+

10 16V CAPACITOR ELETROLITICO(N.P)

C313

VCKYCY1HB182KY

1800p 50V CAPACITOR CERAMICA

C314 VCEA0A1CW227M+ 220 16V CAPACITOR ELETROLITICO

C315

VCFYFA1HA474J+

0.47 50V CAPACITOR CERAMICA

C316

VCFYFA1HA474J+

0.47 50V CAPACITOR CERAMICA

C322

VCEA9M1CW106M+

10 16V CAPACITOR ELETROLITICO

C323

VCE9GA1CW106M+

10 16V CAPACITOR ELETROLITICO(N.P)

C324

VCE9GA1CW106M+

10 16V CAPACITOR ELETROLITICO(N.P)

C325 VCEA0A1EW476M+ 47 25V CAPACITOR ELETROLITICO

C501

VCEA0A1EW108M+

1000 25V CAPACITOR ELETROLITICO

C502

VCEA0A1VW107M+

100 35V CAPACITOR ELETROLITICO

C503

VCQYTA1HM473J+

0.047 50V CAPACITOR MYLAR

C504

VCEA0A1EW108M+

1000 25V CAPACITOR ELETROLITICO

Lista de Peças Modelo 29L-FG1BZ

Posição Código Descrição

C505

VCQYTA1HM473J+

0.047 50V CAPACITOR MYLAR

C519

VCKYCY1AB474KY

0.47 10V CAPACITOR CERAMICA

C520

VCCCCY1HH102JY

1000p 50V CAPACITOR CERAMICA

C521

VCCCCY1HH102JY

1000p 50V CAPACITOR CERAMICA

C522

VCEA9M1HW106M+

10 50V CAPACITOR ELETROLITICO

C523

VCKYCY1HB223KY

0.022 50V CAPACITOR CERAMICA

C524 VCEA0A1HW224M+ 0.22 50V CAPACITOR ELETROLITICO

C525

VCKYCY1AB105KY

1 10V CAPACITOR CERAMICA

C526

VCQYTA1HM682K+

6800p 50V CAPACITOR MYLAR

C527

VCQYTA1HM103J+

0.01 50V CAPACITOR MYLAR

C528

RC-EZA151WJZZ+

CAPACITOR CERAMICA

C529

VCKYCY1AB474KY

0.47 10V CAPACITOR CERAMICA

C600

VCFPVC2EC154J

0.15 250V CAPACITOR METAL

C602

VCFPVC3ZA213H

0.021 1800V CAPACITOR METAL

C603

VCQPPB2GB473J

0.047 400V CAPACITOR METAL

C605 VCKYPA2HB102K+ 1000p 500V CAPACITOR CERAMICA

C608

VCEA4A2EN106M+

10 250V CAPACITOR ELETROLITICO

C609 VCKYPA2HB102K+ 1000p 500V CAPACITOR CERAMICA

C610

VCEA0A1EW108M+

1000 25V CAPACITOR ELETROLITICO

C611

VCEA0A1VW476M+

47 35V CAPACITOR ELETROLITICO

C612

VCKYPA2HB151K+

150p 500V CAPACITOR CERAMICA

C613 VCCCCY1HH101JY 100p 50V CAPACITOR CERAMICA

C615 VCKYPA2HB102K+ 1000p 500V CAPACITOR CERAMICA

C616

VCEA0A1EW228M

2200 25V CAPACITOR ELETROLITICO

C617

RC-FZA294WJZZ+

CAPACITOR CERAMICA

C620

VCKYPA1HB472K+

4700p 50V CAPACITOR CERAMICA

C621 VCEA0A1HW476M+ 47 50V CAPACITOR ELETROLITICO

C622

VCKYPA2HB561K+

560p 500V CAPACITOR CERAMICA

C623

VCKYPA2HB272K+

2700p 500V CAPACITOR CERAMICA

C624 VCEA0A1HW475M+ 4.7 50V CAPACITOR ELETROLITICO

C625

VCQYTA1HM104K+

0.1 50V CAPACITOR MYLAR

C627

RC-FZA178WJZZ

CAPACITOR CERAMICA

C635

VCFPKH2ED564J

0.56 250V CAPACITOR METAL

C636

RC-FZ0357CEN1

CAPACITOR CERAMICA

C644

VCCCCY1HH102JY

1000p 50V CAPACITOR CERAMICA

C645

VCKYCY1HB104KY

0.1 50V CAPACITOR CERAMICA

C701

VCQYTA1HM272J+

2700p 50V CAPACITOR MYLAR

C702

RC-EZA994WJZZ

CAPACITOR CERAMICA

C703

RC-KZ018JCEZZ

CAPACITOR CERAMICA

C704

RC-KZ018JCEZZ

CAPACITOR CERAMICA

C705 VCFYFA1HA104J+ 0.1 50V CAPACITOR

C706 VCEA0A1HW226M+ 22 50V CAPACITOR ELETROLITICO

C707

RC-KZ1007CEZZ+

CAPACITOR CERAMICA

C708

VCQYTA1HM104J+

0.1 50V CAPACITOR MYLAR

C711

RC-FZA097WJZZ

CAPACITOR CERAMICA

C713

VCEA0A1CW106M+

10 16V CAPACITOR ELETROLITICO

C714 VCKYCY1HB103KY 0.01 50V CAPACITOR CERAMICA

C715 VCEA0A1CW476M+ 47 16V CAPACITOR ELETROLITICO

C716 VCEA0A1CW476M+ 47 16V CAPACITOR ELETROLITICO

C717

VCFYAA2JA103K+

0.01 630V CAPACITOR

C752

VCEA0A1CW338M

3300 16V CAPACITOR ELETROLITICO

C754

RC-EZA065WJZZ

CAPACITOR CERAMICA

C755

RC-EZA065WJZZ

CAPACITOR CERAMICA

VCKYCY1CF224ZY

Lista de Peças Modelo 29L-FG1BZ

Posição Código Descrição

C756

RC-KZ0226CEZZ+

CAPACITOR CERAMICA

C757 VCEA0A1CW476M+ 47 16V CAPACITOR ELETROLITICO

C758

RC-KZ0120GEZZ

CAPACITOR CERAMICA

C759

VCEA0A1VW228M

2200 35V CAPACITOR ELETROLITICO

C761

VCKYPA2HB101K+

100p 500V CAPACITOR CERAMICA

C763 VCEA0A1HW105M+ 1 50V CAPACITOR ELETROLITICO

C764

VCKYPA2HB101K+

100p 500V CAPACITOR CERAMICA

C767 VCKYCY1HB153KY 0.015 50V CAPACITOR CERAMICA

C768

VCKYCY1HB104KY

0.1 50V CAPACITOR CERAMICA

C769

VCQYTA1HM683J+

0.068 50V CAPACITOR MYLAR

C772

RC-KZ016SCEZZ

CAPACITOR 470p 4kV

C851

VCFYSB2EB823J

0.082 250V CAPACITOR

C852

VCEA0A2EW106M+

10 250V CAPACITOR ELETROLITICO

C854

RC-KZ018JCEZZ

CAPACITOR CERAMICA

C856 VCKYPA2HB102K+ 1000p 500V CAPACITOR CERAMICA

C861

VCKYPA2HB561K+

560p 500V CAPACITOR CERAMICA

C862 VCKYPA2HB102K+ 1000p 500V CAPACITOR CERAMICA

C904

VCKYCY1AB105KY

1 10V CAPACITOR CERAMICA

C907

VCEA0A1HW106M+

10 50V CAPACITOR ELETROLITICO

C911

VCKYCY1AB105KY

1 10V CAPACITOR CERAMICA

C922

VCKYCY1HB183KY

0.018 50V CAPACITOR CERAMICA

C923

VCKYCY1HB183KY

0.018 50V CAPACITOR CERAMICA

C928

VCE9GA1CW106M+

10 16V CAPACITOR ELETROLITICO(N.P)

C930

VCE9GA1CW106M+

10 16V CAPACITOR ELETROLITICO(N.P)

C931 VCEA0A1CW477M+ 470 16V CAPACITOR ELETROLITICO

C934 VCEA0A1HW105M+ 1 50V CAPACITOR ELETROLITICO

C935 VCEA0A1HW105M+ 1 50V CAPACITOR ELETROLITICO

C939 VCEA0A1CW227M+ 220 16V CAPACITOR ELETROLITICO

C942

VCEA0A1HW106M+

10 50V CAPACITOR ELETROLITICO

C952

VCCCCY1HH681JY

680p 50V CAPACITOR CERAMICA

C953

VCCCCY1HH681JY

680p 50V CAPACITOR CERAMICA

C959

VCCCCY1HH681JY

680p 50V CAPACITOR CERAMICA

C960

VCCCCY1HH681JY

680p 50V CAPACITOR CERAMICA

C963

VCEA0A1HW106M+

10 50V CAPACITOR ELETROLITICO

C965 VCKYCY1HB103KY 0.01 50V CAPACITOR CERAMICA

C2003 VCEA0A1AW108M+ 1000 10V CAPACITOR ELETROLITICO

C2004 VCEA0A1AW107M+ 100 10V CAPACITOR ELETROLITICO

C2005

VCKYCY1CB104KY

0.1 16V CAPACITOR CERAMICA

C2006

VCKYCY1CB104KY

0.1 16V CAPACITOR CERAMICA

C2007

VCKYCY1CB104KY

0.1 16V CAPACITOR CERAMICA

C2008

VCKYCY1AB474KY

0.47 10V CAPACITOR CERAMICA

C2009

VCEA0A1AW477M+

470 10V CAPACITOR ELETROLITICO

C2010

VCKYCY1HB104KY

0.1 50V CAPACITOR CERAMICA

C2011

VCEA9M1CW107M+

100 16V CAPACITOR ELETROLITICO

C2012 VCKYCY1HB102KY 1000p 50V CAPACITOR CERAMICA

C2013

VCCCCY1HH7R0DY

70p 50V CAPACITOR CERAMICA

C2014

VCCCCY1HH7R0DY

70p 50V CAPACITOR CERAMICA

C2017

VCKYCY1CF224ZY

0.22 16V CAPACITOR CERAMICA

C2018

VCKYCY1HB104KY

0.1 50V CAPACITOR CERAMICA

C2019

VCEA9M1CW107M+

100 16V CAPACITOR ELETROLITICO

C2020

VCKYCY1HB104KY

0.1 50V CAPACITOR CERAMICA

C2021

VCEA9M1CW107M+

100 16V CAPACITOR ELETROLITICO

C2022 0.22 16V CAPACITOR CERAMICA

D322

VHD1SS355//-1Y

1SS355

Lista de Peças Modelo 29L-FG1BZ

Posição Código Descrição

C2023

VCKYCY1CF224ZY

0.22 16V CAPACITOR CERAMICA

C2025

VCKYCY1CF224ZY

0.22 16V CAPACITOR CERAMICA

C2026

VCKYCY1HB104KY

0.1 50V CAPACITOR CERAMICA

C2027

VCEA0A1CW107M+

100 16V CAPACITOR ELETROLITICO

C2028

VCKYCY1CF224ZY

0.22 16V CAPACITOR CERAMICA

C2029

VCKYCY1CF224ZY

0.22 16V CAPACITOR CERAMICA

C2030

VCKYCY1CF224ZY

0.22 16V CAPACITOR CERAMICA

C2032

VCEA0A1CW106M+

10 16V CAPACITOR ELETROLITICO

C2034

VCFYFA1HA224J+

0.22 50V CAPACITOR

C2036

VCKYCY1CF224ZY

0.22 16V CAPACITOR CERAMICA

C2037 VCCCCY1HH220JY 22p 50V CAPACITOR CERAMICA

C2039

VCKYCY1CF334ZY

0.33 16V CAPACITOR CERAMICA

C2040

VCEA0A1CW107M+

100 16V CAPACITOR ELETROLITICO

C2041

VCKYCY1HB104KY

0.1 50V CAPACITOR CERAMICA

C2046 VCEA0A1AW107M+ 100 10V CAPACITOR ELETROLITICO

C2047

VCKYCY1HB104KY

0.1 50V CAPACITOR CERAMICA

C2048

VCKYCY1CB104KY

0.1 16V CAPACITOR CERAMICA

C2100

VCEA0A1CW226M+

22 16V CAPACITOR ELETROLITICO

C2101

VCKYCY1CF334ZY

0.33 16V CAPACITOR CERAMICA

C4001

VCEA0A1VW476M+

47 35V CAPACITOR ELETROLITICO

C4002 VCKYCY1HB103KY 0.01 50V CAPACITOR CERAMICA

C4913 VCKYPA1HB102K+ 1000p 50V CAPACITOR CERAMICA

C4916 VCKYPA1HB102K+ 1000p 50V CAPACITOR CERAMICA

C4922

VCEA0A1HW106M+

10 50V CAPACITOR ELETROLITICO

C4924

VCEA0A1HW106M+

10 50V CAPACITOR ELETROLITICO

CA10

XTAS740P20000

CAB A/B PARAFUSO, x4

CAB01

XTAS740P20000

CAB A/B PARAFUSO, x4

CAB02

XTAS740P20000

CAB A/B PARAFUSO, x4

CAB03

XTAS740P20000

CAB A/B PARAFUSO, x4

CAB04

XTAS740P20000

CAB A/B PARAFUSO, x4

CAB05

XTAS740P20000

CAB A/B PARAFUSO, x4

CAB06

XTAS740P20000

CAB A/B PARAFUSO, x4

CAB07

XTAS740P20000

CAB A/B PARAFUSO, x4

CAB08

XTAS740P20000

CAB A/B PARAFUSO, x4

CAB09

XTAS740P20000

CAB A/B PARAFUSO, x4

CAS01 SPAKCD869WJZZ EMBALAGEM 29"

CLA01

LHLDZ0133PEZZ

HV SUPORTE

CLA02

LHLDZ0133PEZZ

HV SUPORTE

COR01 QACCZA087WJPZ CABO AC

CUS01 PSPAG0031PEZZ ESPAÇADOR

CUS02 PSPAG0031PEZZ ESPAÇADOR

CUS03 PSPAG0031PEZZ ESPAÇADOR

CUS04 PSPAG0031PEZZ ESPAÇADOR

CVR01

XEBS730P12000 PARAFUSO

CVR02 XEBS730P12000 PARAFUSO

D05 RRMCGA561WJ08 INFRAVERMELHO R-C

D52

RH-EX0677GEZZY

DIODO Zener,32V

D202

VHD1SS133++-1Y

1SS133

D203

RH-EX0627GEZZY

DIODO Zener, 8.2V

D305

VHD1SS133++-1Y

1SS133

D310

VHD1SS133++-1Y

1SS133

D311

RH-DX0302CEZZY

DX0302CE

FIX13 LX-TZ3011CEF7 PARAFUSO

Lista de Peças Modelo 29L-FG1BZ

Posição Código Descrição

D501

RH-DX0441CEZZY

DX0441CE

D502

VHD1SS133++-1Y

1SS133

D503

RH-EX0612GEZZY

DIODO Zener,5.1V

D601

VHD1SS244//-1Y

1SS244

D603

RH-DX0131CEZZY

DXO131CE

D604

RH-EX0640GEZZY

DIODO Zener, 12V

D605

RH-DX0302CEZZY

DX0302CE

D606

VHD1SS133++-1Y

1SS133

D607

RH-DX0255CEZZ

DX0255CE

D608

RH-DXA055WJZZ

DXA055WJ

D610

RH-EX0612GEZZY

DIODO Zener,5.1V

D611

RH-DX0302CEZZY

DX0302CE

D612

VHD1SS133++-1Y

1SS133

D613

VHD1SS133++-1Y

1SS133

D616

RH-DX0321CEZZY

DX0321CE

D617

RH-EX0604GEZZY

DIODO Zener, 3.9V

D671

RH-EX0604GEZZY

DIODO Zener, 3.9V

D703

RH-EX0669GEZZY

DIODO Zener,27D

D704

RH-DX0477CEZZ

DX0477CE

D705

VHD1SS133++-1Y

1SS133

D708

VHD1SS244//-1Y

1SS244

D713

RH-DX0321CEZZY

DX0321CE

D751

RH-DXA055WJZZ

DXA055WJ

D752

VHD1SS133++-1Y

1SS133

D753

RH-DX0407CEZZY

DX0407CE

D755

RH-DX0445CEZZ

DX0445CE

D759

VHD1SS133++-1Y

1SS133

D851

RH-DX0443CEZZY

DX0443CE

D852

RH-DX0443CEZZY

DX0443CE

D853

RH-DX0443CEZZY

DX0443CE

D901

VHD1SS133++-1Y

1SS133

D2001

VHD1SS133++-1Y

1SS133

D2106

RH-EX0630GEZZY

DIODO Zener,9.1V

D2107

RH-EX0630GEZZY

DIODO Zener,9.1V

D2108

RH-EX0630GEZZY

DIODO Zener,9.1V

D5003

RH-PX0037PEZZ

LED (2COLOR)

DSPR01 MSPRPA031WJFW PORTA MOLA

F4701

QFS-CA003WJZZ

FUSIVEL 5A 250V

FB501

RBLN-0047CEZZY

FERRITE

FB502

RBLN-0047CEZZY

FERRITE

FB601

RBLN-0047CEZZY

FERRITE

FB602

RBLN-0047CEZZY

FERRITE

FB603

RBLN-A203WJZZ+

FERRITE

FB700

RBLN-0036CEZZY

FERRITE

FB703

RBLN-A203WJZZ+

FERRITE

FB705

RBLN-A203WJZZ+

FERRITE

FB751

RBLN-0047CEZZY

FERRITE

FB752

RBLN-A034WJZZY

FERRITE

FB852

RBLN-A034WJZZY

FERRITE

FH4701 QFSHD1013CEZZ+ SUPORTE DO FUSIVEL

FH4702 QFSHD1014CEZZ+ SUPORTE DO FUSIVEL

FIX12 LX-TZ3011CEF7 PARAFUSO

IC301

VHILA42072N-1

LA42072N-E

Lista de Peças Modelo 29L-FG1BZ

Posição Código Descrição

FIX14 LX-TZ3011CEF7 PARAFUSO

FIX15 LX-TZ3011CEF7 PARAFUSO

FOA01 SPAKXB689WJZZ CALÇO SUPERIOR 29" (L/R) (COM AMORTIZAÇÃO)

FOA02 SPAKXB690WJZZ CALÇO INFERIOR 29" (L/R) (COM AMORTIZAÇÃO)

HIM01 PSPAH0065PE00 ESPAÇADOR

HIM02 PSPAH0065PE00 ESPAÇADOR

HIM03 PSPAH0066PE00 ESPAÇADOR

HIM04 PSPAH0066PE00 ESPAÇADOR

HIM05 PSPAH0192PE00 ESPAÇADOR

HIM06 PSPAH0192PE00 ESPAÇADOR

HIM07 PSPAHA802WJ00 ESPAÇADOR

HM507

LX-GZ3001PEZZ

PARAFUSO

HM508

LX-GZ3001PEZZ

PARAFUSO

HM601

LX-GZ3001PEZZ

PARAFUSO

HM602

LX-GZ3001PEZZ

PARAFUSO

HM603

LX-GZ3001PEZZ

PARAFUSO

HM604

LX-GZ3002PEZZ

PARAFUSO

HM609

LX-GZ3002PEZZ

PARAFUSO

HM610

LX-GZ3001PEZZ

PARAFUSO

HM611

LX-GZ3001PEZZ

PARAFUSO

HM612

LX-GZ3001PEZZ

PARAFUSO

HM613

LX-GZ3001PEZZ

PARAFUSO

HM614

LX-GZ3001PEZZ

PARAFUSO

HM615

LX-GZ3001PEZZ

PARAFUSO

HM616

LX-GZ3001PEZZ

PARAFUSO

HM617

LX-GZ3001PEZZ

PARAFUSO

HM618

LX-GZ3001PEZZ

PARAFUSO

HM619

LX-GZ3001PEZZ

PARAFUSO

HM621

LX-GZ3001PEZZ

PARAFUSO

HM632

LX-GZ3001PEZZ

PARAFUSO

HM633

LX-GZ3002PEZZ

PARAFUSO

HM634

LX-GZ3002PEZZ

PARAFUSO

HM635

LX-GZ3002PEZZ

PARAFUSO

HM636

LX-GZ3002PEZZ

PARAFUSO

HM639

LX-GZ3001PEZZ

PARAFUSO

HM643

LX-GZ3001PEZZ

PARAFUSO

HM644

LX-GZ3001PEZZ

PARAFUSO

HM645

LX-GZ3001PEZZ

PARAFUSO

HM702

LX-GZ3002PEZZ

PARAFUSO

HM703

LX-GZ3001PEZZ

PARAFUSO

HM704

LX-GZ3001PEZZ

PARAFUSO

HM705

LX-GZ3001PEZZ

PARAFUSO

HM707

LX-GZ3001PEZZ

PARAFUSO

HM708

LX-GZ3001PEZZ

PARAFUSO

HM709

LX-GZ3001PEZZ

PARAFUSO

HM751

LX-GZ3001PEZZ

PARAFUSO

HM752

LX-GZ3001PEZZ

PARAFUSO

HM753

LX-GZ3002PEZZ

PARAFUSO

HM754

LX-GZ3002PEZZ

PARAFUSO

HOL01 LHLDP1066PE00 SUPORTE

HOL02 LHLDW1060PEZZ SUPORTE WH, x3

IC01 RRMCGA561WJ02 INFRAVERMELHO R-C

P401 QCNW-F148WJPZ CABO KY

Lista de Peças Modelo 29L-FG1BZ

Posição Código Descrição

IC501

VHITDA4863AJ1

TDA4863AJ1

IC701

VHISTRW6556-1

STRW6556

IC702

RH-FXA003WJZZ

PC123Y82

IC704

VHIBD33KA5W-1Y

BD33KA5WF-E2

IC714

VHIMM1431AT-1+

MM1431ATT

IC752

VHIBA50B0WP-1Y

BA50BCOWFP-E2

IC753

VHIBA50BCWT-1

BA50BCOWT-V5

IC851

VHITDA6107A-1

TDA6107AJF/N1

IC2031

VHIBD4847G+-1Y

BD4847G-TR

IC2100 RH-IXC145WJZZQ XC145

IC2101

VHIM24C16W6-1Y

M24C16-WMN6T

IC2102

VHIBD00K5WP-1Y

BD00KA5WFP-E2

IC2104

VHIBD00K5WP-1Y

BD00KA5WFP-E3

IDOOR01 HINDPC462WJZZ PLACA INDICAÇÃO

ITC01 VB68QFN893X2E CINESCOPIO 29"

J1

VW7UGB6-060KK

JUMPER

J4 RRMCGA561WJ07 INFRAVERMELHO R-C

J5 QCNW-F070WJPZ CONECTOR

J6 QCNW-F071WJPZ CONECTOR

J352

QJAKJ0101SEZZ

HP-JACK

J905

QTANJA088WJZZ

TERMINAL

J4901

QJAKGA023WJZZ

FRONTAVINJACK

JA126 QJUM-0001AJFWY JUMPER

L17 RCILGA127WJN1 BOBINA ADG

L51

VP-CF270K0000Y

BOBINA 27µH

L202 VP-DF100K0000Y Bobina 10µH

L203 VP-XF1R2K0000Y Bobina 1.2µH

L504

VP-XF220K0000Y

BOBINA 22µH

L601

RCILZ1005CEZZ

BOBINA

L603

RCILZA053WJZZ

BOBINA

L701

RCILFA144WJZZ

BOBINA

L751 RCILP0179CEZZ+ BOBINA

L850 RCILP0179CEZZ+ BOBINA

L2001

VP-XF220K0000Y

BOBINA 22µH

L2003

VP-MK560K0000+

BOBINA 56µH

L2004 VP-DF100K0000Y Bobina 10µH

L2005 VP-DF100K0000Y Bobina 10µH

L2006 VP-DF100K0000Y Bobina 10µH

L2007 VP-DF100K0000Y Bobina 10µH

L2008 VP-DF100K0000Y Bobina 10µH

L2009 VP-DF100K0000Y Bobina 10µH

L2010 VP-DF100K0000Y Bobina 10µH

L2011 VP-DF100K0000Y Bobina 10µH

L2012

VP-DF100K0000Y Bobina 10µH

L2013 VP-DF100K0000Y Bobina 10µH

L2014 VP-DF100K0000Y Bobina 10µH

L2100 VP-DF100K0000Y Bobina 10µH

LAB01 TLABMC799WJZZ ETIQUETA MODELO 29"

MAN01 TINS-D396WJZZ MANUAL DE INSTRUÇÃO 29"

MOLT01 PMLT-A317WJZZ ABSORVEDOR

MOLT02 PMLT-A317WJZZ ABSORVEDOR

P301

QPLGNA109WJZZ

PLUGUE

R307

VRS-CY1JF152JY

1.5k 1/16W RESISTOR METAL

Lista de Peças Modelo 29L-FG1BZ

Posição Código Descrição

P601

QPLGN0160FJZZ

PLUGUE

P622 QCNW-F147WJPZ CABO H

P701 QPLGN0260CEZZ PLUGUE

P851

QTIPM0083CEZZ

TIP

P852

QTIPM0083CEZZ

TIP

P2100

QPLGNA111WJZZ

PLUGUE

P2101

QPLGNA111WJZZ

PLUGUE

P4701 QPLGN0269GEZZ PLUGUE

PLA01 RRMCGA561WJ16 INFRAVERMELHO R-C

PR701

RMPTP0085CEZZ

PACKAGED CIRCUIT

Q1 RRMCGA561WJ03 INFRAVERMELHO R-C

Q200 VS2SC2735//1EY 2SC2735

Q310 VS2SA1530AR-1Y 2SA1530AR

Q312 VS2SC3928AR-1Y 2SC3928AR

Q602

VS2SK2161++-1

2SK2161

Q603 VS2SC3928AR-1Y 2SC3928AR

Q604

VS2SD2646++1E

2SD2646++

Q605 VS2SA1530AR-1Y 2SA1530AR

Q606

VS2SC2482//-1+

2SC2482

Q607

VSKRC103S//-1Y

KRC103S

Q609

VS2SC3198-Y-1+

2SC3198

Q755 VS2SC3198-G-1+ 2SC3198

Q902 VS2SC3928AR-1Y 2SC3928AR

Q903 VS2SC3928AR-1Y 2SC3928AR

Q904 VS2SA1530AR-1Y 2SA1530AR

Q905 VS2SA1530AR-1Y 2SA1530AR

Q906 VS2SC3928AR-1Y 2SC3928AR

Q907

VSKRC105S//-1Y

KRC105S

Q4001 VS2SA1530AR-1Y 2SA1530AR

Q4002 VS2SC3928AR-1Y 2SC3928AR

R1 RRMCGA561WJ04 INFRAVERMELHO R-C

R2 RRMCGA561WJ05 INFRAVERMELHO R-C

R3 RRMCGA561WJ06 INFRAVERMELHO R-C

R51 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

R52

VRS-CY1JF103JY

10k 1/16W RESISTOR METAL

R53

VRS-CY1JF563JY

56k 1/16W RESISTOR METAL

R54

VRS-CY1JF101JY

100 1/16W RESISTOR METAL

R55

VRS-CY1JF101JY

100 1/16W RESISTOR METAL

R103

VRS-VV3DB183J

18k 2W RESISTOR METAL

R205 VRS-CY1JF471JY 470 1/16W RESISTOR METAL

R206

VRS-CY1JF392JY

3.9k 1/16W RESISTOR METAL

R207 VRS-CY1JF272JY 2.7k 1/16W RESISTOR METAL

R208

VRS-CY1JF101JY

100 1/16W RESISTOR METAL

R210 VRD-RA2BE122JY 1.2k 1/8W RESISTOR CARBONO

R211 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

R221

VRS-CY1JF181JY

180 1/16W RESISTOR METAL

R227 VRS-CY1JF680JY 68 1116W RESISTOR METAL

R228

VRS-CY1JF102JY

1k 1/16W RESISTOR METAL

R230

VRS-CY1JF391JY

390 1/16W RESISTOR METAL

R238

VRS-CY1JF473JY

47k 1/16W RESISTOR METAL

R239 VRD-RA2BE102JY 1k 1/8W RESISTOR CARBONO

R241

VRS-CY1JF473JY

47k 1/16W RESISTOR METAL

R622

VRD-RA2BE394JY

390k 1/8W RESISTOR CARBONO

Lista de Peças Modelo 29L-FG1BZ

Posição Código Descrição

R308

VRS-CY1JF682JY

6.8k 1/16W RESISTOR METAL

R309

VRS-CY1JF123JY

12k 1/16W RESISTOR METAL

R310

VRS-CY1JF473JY

47k 1/16W RESISTOR METAL

R311 VRS-CY1JF272JY 2.7k 1/16W RESISTOR METAL

R314

VRS-CY1JF682JY

6.8k 1/16W RESISTOR METAL

R315

VRS-CY1JF152JY

1.5k 1/16W RESISTOR METAL

R317 VRD-RA2BE221JY 220 1/8W RESISTOR CARBONO

R318 VRD-RA2BE221JY 220 1/8W RESISTOR CARBONO

R319

VRS-CY1JF103JY

10k 1/16W RESISTOR METAL

R321

VRS-CY1JF104JY

100k 1/16W RESISTOR METAL

R323 VRD-RA2BE102JY 1k 1/8W RESISTOR CARBONO

R324

VRD-RA2BE183JY

18k 1/8W RESISTOR CARBONO

R325 VRD-RA2BE153JY 15k 1/8W RESISTOR CARBONO

R335 VRD-RM2HD1R0JY 1 1/2W RESISTOR CARBONO

R336 VRD-RM2HD1R0JY 1 1/2W RESISTOR CARBONO

R347

VRS-CY1JF101JY

100 1/16W RESISTOR METAL

R348

VRS-CY1JF101JY

100 1/16W RESISTOR METAL

R351

VRS-CY1JF104JY

100k 1/16W RESISTOR METAL

R352

VRS-CY1JF104JY

100k 1/16W RESISTOR METAL

R357 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

R375 VRD-RA2BE102JY 1k 1/8W RESISTOR CARBONO

R376 VRD-RA2BE102JY 1k 1/8W RESISTOR CARBONO

R391

VRN-VV3DBR10J

0.1 2W RESISTOR METAL

R501

VRS-VV3AB221J

220 1W RESISTOR METAL

R502

VRN-VV3DB5R6J

5.6 2W RESISTOR METAL

R503

VRS-VV3DB271J

270 2W RESISTOR METAL

R504

VRS-VV3DB561J

560 2W RESISTOR METAL

R505

VRN-RA2BK182FY

1.8k 1/8W RESISTOR METAL

R506 VRN-VV3DB1R0J 1 2W RESISTOR METAL

R507

VRN-RA2BK182FY

1.8k 1/8W RESISTOR METAL

R508 VRD-RA2BE103JY 10k 1/8W RESISTOR CARBONO

R509

VRD-RA2BE222JY

2.2k 1/8W RESISTOR CARBONO

R518 VRD-RA2BE101JY 100 1/8W RESISTOR CARBONO

R519 VRD-RA2BE101JY 100 1/8W RESISTOR CARBONO

R520 VRD-RA2BE101JY 100 1/8W RESISTOR CARBONO

R521

VRS-CY1JF123JY

12k 1/16W RESISTOR METAL

R600

VRS-CY1JF393FY

39k 1116W RESISTOR METAL

R602

VRS-SV2HC270J

27 1/2W RESISTOR METAL

R604

VRN-VV3AB4R7J

4.7 1W RESISTOR METAL

R605

VRD-RA2EE103JY

10k 1/4W RESISTOR CARBONO

R606

VRN-VV3ABR47J

0.47 1W RESISTOR METAL

R607

VRD-RA2EE103JY

10k 1/4W RESISTOR CARBONO

R608

VRS-CY1JF393JY

39k 1/16W RESISTOR METAL

R609

VRN-VV3DB6R8J

6.8 2W RESISTOR METAL

R611 VRD-RM2HD332JY 3.3k 1/2W RESISTOR CARBONO

R612 VRD-RA2BE101JY 100 1/8W RESISTOR CARBONO

R613 VRD-RA2BE103JY 10k 1/8W RESISTOR CARBONO

R614 VRD-RM2HD124JY 120k 1/2W RESISTOR CARBONO

R615 VRD-RM2HD124JY 120k 1/2W RESISTOR CARBONO

R616

VRD-RM2HD123JY

12k 112W RESISTOR CARBONO

R618

VRN-VV3ABR47J

0.47 1W RESISTOR METAL

R621

VRD-RM2HD220JY

22 1/2W RESISTOR CARBONO

R905 VRD-RA2BE101JY 100 1/8W RESISTOR CARBONO

R906 VRD-RA2BE101JY 100 1/8W RESISTOR CARBONO

Lista de Peças Modelo 29L-FG1BZ

Posição Código Descrição

R623

VRS-SV2HC102J

1k 1/2W RESISTOR METAL

R624 390k 1/8W RESISTOR CARBONO

R625

VRD-RA2BE394JY

390k 1/8W RESISTOR CARBONO

R626

VRD-RA2BE394JY

5.6k 1W RESISTOR METAL

R627

VRS-VV3AB562J

390k 1/16W RESISTOR METAL

R628

VRS-CY1JF394JY

1.2 7.0W Cement

R633

VRW-KQ3NC1R2K

VRS-CY1JF331JY

330 1/16W RESISTOR METAL

VRS-CY1JF331JY

R634 330 1/16W RESISTOR METAL

R635

VRS-CY1JF102JY

1k 1/16W RESISTOR METAL

R637 VRD-RA2BE563JY

VRS-CY1JF473JY

56k 1/8W RESISTOR CARBONO

R638 47k 1/16W RESISTOR METAL

R639

VRS-KA3NG272J

VRS-CY1JF182JY

2.7k 7.0W RESISTOR METAL

R640 1.8k 1116W RESISTOR METAL

R643

VRN-VV3LB3R3J

3.3 3.0W RESISTOR METAL

R645

VRN-RA2BK473FY

47k 1/8W RESISTOR METAL

R652

VRS-CY1JF102JY

1k 1/16W RESISTOR METAL

R654

VRS-VV3DB103J

10k 2W RESISTOR METAL

R657

VRS-KA3HG681J

680 5W RESISTOR METAL

R671 VRD-RA2BE101JY 100 1/8W RESISTOR CARBONO

R701

VRD-RA2BE220JY

22 118W RESISTOR CARBONO

R703 VRD-RA2BE332JY 3.3k 1/8W RESISTOR CARBONO

R704 VRD-RA2BE221JY 220 1/8W RESISTOR CARBONO

R707

VRS-VV3DB104J

100k 2W RESISTOR METAL

R708 VRD-RA2BE683JY 68k 1/8W RESISTOR CARBONO

R712

RR-HZ0014GEZZY

12M1W

R713

VRD-RA2BE222JY

2.2k 1/8W RESISTOR CARBONO

R714 VRD-RA2BE393JY 39k 1/8W RESISTOR CARBONO

R715

VRS-CY1JF473JY

47k 1/16W RESISTOR METAL

R717

VRS-VV3DB104J

100k 2W RESISTOR METAL

R718

VRN-RA2BK124FY

120k 1/8W RESISTOR METAL

R719

VRN-RA2BK563FY

56k 1/8W RESISTOR METAL

R720

VRD-RA2BE104JY

100k 1/8W RESISTOR CARBONO

R721

VRN-RA2BK124FY

120k 1/8W RESISTOR METAL

R722

VRN-RA2BK562FY

5.6k 1/8W RESISTOR METAL

R760 VRD-RA2BE102JY 1k 1/8W RESISTOR CARBONO

R761

VRS-CY1JF103JY

10k 1/16W RESISTOR METAL

R763 VRD-RA2BE470JY 47 1/8W RESISTOR CARBONO

R768

VRD-RA2EE182JY

1.8k 1/4W RESISTOR CARBONO

R769 VRD-RA2BE102JY 1k 1/8W RESISTOR CARBONO

R851

VRD-RM2HD391JY

390 1/2W CAPACITOR CARBONO

R852

VRD-RM2HD391JY

390 1/2W CAPACITOR CARBONO

R853

VRD-RM2HD391JY

390 1/2W CAPACITOR CARBONO

R854

VRC-MA2HG152KY

1.5k 1/2W SOLID

R855

VRC-MA2HG152KY

1.5k 1/2W SOLID

R856

VRC-MA2HG152KY

1.5k 1/2W SOLID

R858

VRS-SV2HC100J

10 1/2W CAPACITOR METAL

R861

VRD-RM2HD224JY

220k 1/2W CAPACITOR METAL

R862 VRD-RA2BE101JY 100 1/8W RESISTOR CARBONO

R863 VRD-RA2BE221JY 220 1/8W RESISTOR CARBONO

R864 VRD-RA2BE221JY 220 1/8W RESISTOR CARBONO

R865 VRD-RA2BE221JY 220 1/8W RESISTOR CARBONO

R2024 VRD-RA2BE101JY 100 1/8W RESISTOR CARBONO

R2025 VRD-RA2BE101JY 100 1/8W RESISTOR CARBONO

Lista de Peças Modelo 29L-FG1BZ

Posição Código Descrição

R907

VRS-CY1JF101JY

100 1/16W RESISTOR METAL

R909

VRS-CY1JF101JY

100 1/16W RESISTOR METAL

R910 VRD-RA2BE101JY 100 1/8W RESISTOR CARBONO

R911 VRS-CY1JF750JY 75 1/16W RESISTOR METAL

R913

VRS-CY1JF101JY

100 1/16W RESISTOR METAL

R915

VRS-CY1JF682JY

6.8k 1/16W RESISTOR METAL

R917

VRS-CY1JF103JY

10k 1/16W RESISTOR METAL

R918

VRS-CY1JF103JY

10k 1/16W RESISTOR METAL

R919

VRS-CY1JF682JY

6.8k 1/16W RESISTOR METAL

R930

VRD-RA2BE750JY

75 1/8W RESISTOR CARBONO

R931

VRD-RA2BE750JY

75 1/8W RESISTOR CARBONO

R932

VRD-RA2BE750JY

75 1/8W RESISTOR CARBONO

R933

VRD-RA2BE750JY

75 1/8W RESISTOR CARBONO

R935

VRS-CY1JF104JY

100k 1/16W RESISTOR METAL

R938 VRD-RA2BE101JY 100 1/8W RESISTOR CARBONO

R944 VRD-RA2BE101JY 100 1/8W RESISTOR CARBONO

R945

VRS-CY1JF473JY

47k 1/16W RESISTOR METAL

R947

VRS-CY1JF561JY

560 1/16W RESISTOR METAL

R948

VRS-CY1JF473JY

47k 1/16W RESISTOR METAL

R949 VRD-RA2BE561JY 560 1/8W RESISTOR CARBONO

R950

VRS-CY1JF102JY

1k 1/16W RESISTOR METAL

R952

VRS-CY1JF102JY

1k 1/16W RESISTOR METAL

R956

VRD-RA2BE560JY

56 118W RESISTOR CARBONO

R957 VRD-RA2BE331JY 330 1/8W RESISTOR CARBONO

R959

VRS-CY1JF223JY

22k 1116W RESISTOR METAL

R960 VRD-RA2BE331JY 330 1/8W RESISTOR CARBONO

R962 VRD-RA2BE102JY 1k 1/8W RESISTOR CARBONO

R963

VRS-CY1JF101JY

100 1/16W RESISTOR METAL

R964 VRD-RA2BE123JY 12k 1/8W RESISTOR CARBONO

R965

VRS-CY1JF101JY

100 1/16W RESISTOR METAL

R967

VRS-CY1JF333JY

33k 1/16W RESISTOR METAL

R972

VRD-RA2BE333JY

33k 1/8W RESISTOR CARBONO

R978

VRS-CY1JF104JY

100k 1/16W RESISTOR METAL

R979

VRS-CY1JF104JY

100k 1/16W RESISTOR METAL

R1032 VRD-RA2BE122JY 1.2k 1/8W RESISTOR CARBONO

R1034 VRD-RA2BE122JY 1.2k 1/8W RESISTOR CARBONO

R2001 VRD-RA2BE103JY 10k 1/8W RESISTOR CARBONO

R2003 VRD-RA2BE101JY 100 1/8W RESISTOR CARBONO

R2004 VRD-RA2BE332JY 3.3k 1/8W RESISTOR CARBONO

R2005 VRD-RA2BE101JY 100 1/8W RESISTOR CARBONO

R2006 VRD-RA2BE101JY 100 1/8W RESISTOR CARBONO

R2007

VRS-CY1JF222JY

2.2k 1/16W RESISTOR METAL

R2008

VRS-CY1JF101JY

100 1/16W RESISTOR METAL

R2009

VRS-CY1JF101JY

100 1/16W RESISTOR METAL

R2010

VRS-CY1JF101JY

100 1/16W RESISTOR METAL

R2011 VRD-RA2BE101JY 100 1/8W RESISTOR CARBONO

R2012 VRD-RA2BE101JY 100 1/8W RESISTOR CARBONO

R2014

VRD-RA2BE562JY

5.6k 1/8W RESISTOR CARBONO

R2017 VRD-RA2BE102JY 1k 1/8W RESISTOR CARBONO

R2019 VRD-RA2BE101JY 100 1/8W RESISTOR CARBONO

R2023 VRD-RA2BE101JY 100 1/8W RESISTOR CARBONO

RJ52 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

RJ53 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

Lista de Peças Modelo 29L-FG1BZ

Posição Código Descrição

R2026 VRD-RA2BE101JY 100 1/8W RESISTOR CARBONO

R2027

VRS-CY1JF103JY

10k 1/16W RESISTOR METAL

R2028 VRD-RA2BE101JY 100 1/8W RESISTOR CARBONO

R2029 VRD-RA2BE101JY 100 1/8W RESISTOR CARBONO

R2030 VRD-RA2BE101JY 100 1/8W RESISTOR CARBONO

R2032

VRS-CY1JF824JY

820k 1/16W RESISTOR METAL

R2033

VRD-RA2BE334JY

330k 1/8W RESISTOR CARBONO

R2034

VRS-CY1JF101JY

100 1/16W RESISTOR METAL

R2035 VRD-RA2BE101JY 100 1/8W RESISTOR CARBONO

R2037

VRS-CY1JF101JY

100 1/16W RESISTOR METAL

R2039

VRS-CY1JF101JY

100 1/16W RESISTOR METAL

R2040

VRS-CY1JF101JY

100 1/16W RESISTOR METAL

R2042

VRS-CY1JF332JY

3.3k 1/16W RESISTOR METAL

R2052

VRS-CY1JF332JY

3.3k 1/16W RESISTOR METAL

R2101

VRS-CY1JF393JY

39k 1/16W RESISTOR METAL

R2102

VRS-CY1JF563JY

56k 1/16W RESISTOR METAL

R2103

VRS-CY1JF563JY

56k 1/16W RESISTOR METAL

R2104

VRS-CY1JF472JY

4.7k1/16W RESISTOR METAL

R2105

VRS-CY1JF472JY

4.7k1/16W RESISTOR METAL

R2106

VRS-CY1JF393JY

39k 1/16W RESISTOR METAL

R2107

VRS-CY1JF101JY

100 1/16W RESISTOR METAL

R4001

VRS-CY1JF221JY

220 1/16W RESISTOR METAL

R4002

VRS-CY1JF331JY

330 1/16W RESISTOR METAL

R4003

VRS-CY1JF681JY

680 1/16W RESISTOR METAL

R4004

VRS-CY1JF152JY

1.5k 1/16W RESISTOR METAL

R4005

VRS-CY1JF222JY

2.2k 1/16W RESISTOR METAL

R4006

VRS-CY1JF152JY

1.5k 1/16W RESISTOR METAL

R4011 VRD-RA2BE101JY 100 1/8W RESISTOR CARBONO

R4012

VRS-CY1JF101JY

100 1/16W RESISTOR METAL

R4022

VRD-RA2BE223JY

22k 1/8W RESISTOR CARBONO

R4023

VRS-CY1JF103JY

10k 1/16W RESISTOR METAL

R4024

VRS-CY1JF473JY

47k 1/16W RESISTOR METAL

R4025

VRS-CY1JF472JY

4.7k1/16W RESISTOR METAL

R4033 VRD-RA2BE181JY 180 1/8W RESISTOR CARBONO

R4911

VRS-CY1JF682JY

6.8k 1/16W RESISTOR METAL

R4912

VRS-CY1JF103JY

10k 1/16W RESISTOR METAL

R4913

VRS-CY1JF682JY

6.8k 1/16W RESISTOR METAL

R4914

VRS-CY1JF103JY

10k 1/16W RESISTOR METAL

R5021

VRS-CY1JF181JY

180 1/16W RESISTOR METAL

R5026

VRS-CY1JF331JY

330 1/16W RESISTOR METAL

RCC01 GCOVAB487WJSA TAMPA

RDA0301

PRDARA287WJFW

FOR S-OUT

RDA0501

PRDARA288WJFW

FOR V-OUT

RDA0602

PRDARA123WJPW

FOR EW-AMP

RDA0604

PRDARA113WJPW

FORH-OUT

RDA0701

PRDARA286WJFW

FOR POWER

RDA0755

PRDARA181WJFW

D755 RADIATOR

RDA0851

PRDAR0248PEFW

RESISTOR METAL

REA01 GCABBB192WJKA GABINETE TRASEIRO 29"

RES01 RRMCGA561WJ09 INFRAVERMELHO R-C

RJ51 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

SCR12

XTAS730P12001

PARAFUSO AV

SCR13 XTAS740P12000 PARAFUSO

Lista de Peças Modelo 29L-FG1BZ

Posição Código Descrição

RJ54 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

RJ55 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

RJ56 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

RJ58 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

RJ59 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

RJ60 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

RJ61 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

RJ62 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

RJ64 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

RJ65 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

RJ66 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

RJ67 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

RJ74 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

RJ191 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

RJ280 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

RJ703 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

RJ704 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

RJ707 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

RJ708 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

RJ709 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

RJ710 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

RJ713 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

RJ715 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

RJ716 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

RJ717 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

RJ956 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

RJ957 VRS-CY1JF000JY 0 1/16W RESISTOR METAL

RMC4001

RRMCUA052WJZZ

RECEPTOR REMOTO

RUB01 RRMCGA561WJ17 INFRAVERMELHO R-C

RUB02

PSPAGA150WJZZ

RUBBERCRTHLD

S4001

QSW-K0079GEZZ+

BOTÃO

S4002

QSW-K0079GEZZ+

BOTÃO

S4003

QSW-K0079GEZZ+

BOTÃO

S4004

QSW-K0079GEZZ+

BOTÃO

S4005

QSW-K0079GEZZ+

BOTÃO

SBAD01 HBDGB3141CESA LOGO SHARP

SC851

QSOCV0931CEZZ

SOQUETE

SCR001

LX-BZ3049GEF8

PARAFUSO

SCR002

LX-BZ3100CEF7

PARAFUSO

SCR003

LX-BZ3100CEF7

PARAFUSO

SCR01

LX-BZ3049GEF7

PARAFUSO

SCR02

LX-BZ3100CEF7

PARAFUSO

SCR03

LX-BZ3100CEF7

PARAFUSO

SCR04

LX-BZ3100CEF7

PARAFUSO

SCR05

LX-TZA003WJF7

CRT PARAFUSO

SCR06

LX-TZA003WJF7

CRT PARAFUSO

SCR07

LX-TZA003WJF7

CRT PARAFUSO

SCR08

LX-TZA003WJF7

CRT PARAFUSO

SCR09

XTAS730P12000

PARAFUSO AV

SCR10

LX-TZA015WJFW

PARAFUSO

SCR11

LX-TZA015WJFW

PARAFUSO

WIR11

QEARCA045WJPZ

ATERRAMENTO DO TUBO 29''

X2001

RCRSAA058WJZZ

CRYSTAL

Lista de Peças Modelo 29L-FG1BZ

Posição Código Descrição

SCR14 XTAS740P12000 PARAFUSO

SCR15 XTAS740P12000 PARAFUSO

SCR16 XTAS740P12000 PARAFUSO

SCR17 XTAS740P12000 PARAFUSO

SCR18 XTAS740P12000 PARAFUSO

SCR19 XTAS740P12000 PARAFUSO

SCR20 XTAS740P12000 PARAFUSO

SF202

RFILCA053WJZZ

FILTRO

SPA01 PSPAGA026WJZZ PORTA BORRACHA

SPA02 PSPAGA026WJZZ PORTA BORRACHA

SPK01 VSP0080PA018A ALTO-FALANTE

SPK02 VSP0080PA018A ALTO-FALANTE

SUBCR CRMCGA561FMA1 UNIDADE INFRARED CONTROLE REMOTO

SUBP 20000370 GABINETE FRONTAL MONTADO 29"

SUP01

LHLDZA691WJZZ

CRT SUPORTE

T601

RTRNZA050WJZZ

TRANSFORMADOR

T602

RTRNFA100WJN1

TRANSFORMADOR DE ALTA VOLTAGEM

T701

RTRNWA218WJZZ

TRANSFORMADOR

TCOV01 RRMCGA561WJ13 INFRAVERMELHO R-C

TH701

RH-HXA014WJZZ+

B57237-SO479-A004

TIE01 LHLDW0003PEKZ SUPORTE

TIE02 LHLDW0003PEKZ SUPORTE

TIE03 LHLDW0003PEKZ SUPORTE

TIE04 LHLDW0003PEKZ SUPORTE

TP53

QLUGP0102PEZZ

PLUGUE

TU51

VTUVT1Y5EF201

VHF SINTONIZADOR

VA4701 RH-VXA182WJZZ B72210S2421K102V57

WAS01

LX-WZ0003PEF7

ARRUELA(T=1.6)

WAS02

LX-WZ0003PEF7

ARRUELA(T=1.6)

WAS03

LX-WZ0003PEF7

ARRUELA(T=1.6)

WAS04

LX-WZ0003PEF7

ARRUELA(T=1.6)

WAS05

LX-WZ0012PEF7

ARRUELA(KIKU)

WAS06

LX-WZ0012PEF7

ARRUELA(KIKU)

WAS07

LX-WZ0012PEF7

ARRUELA(KIKU)

WAS08

LX-WZ0012PEF7

ARRUELA(KIKU)

WAS09

LX-WZ0013PEF7

ARRUELA

WAS10

LX-WZ0013PEF7

ARRUELA

WAS11

LX-WZ0013PEF7

ARRUELA

WAS12

LX-WZ0013PEF7

ARRUELA

WIR01 LHLDW1003PEZZ SUPORTE WH

WIR02 LHLDW1003PEZZ SUPORTE WH

WIR03 LHLDW1009PEZZ SUPORTE WH, x2

WIR04 LHLDW1075PEKZ SUPORTE

WIR05

LHLDW1062PEKZ

SP+DY+ADG

WIR06

LHLDW1062PEKZ

SP+DY+ADG

WIR07 QCNW-E040WJPZ CABO SP

WIR08

LHLDW1062PEKZ

SP+DY+ADG
