IB=R9H94
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
(a) Do not attempt to operate th'isoven with the door open since open-door operation can result in harmful exposure to
microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on
sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there
is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.
FOR CUSTOMER ASSISTANCE
To aid in reporting this microwave oven in case of loss or theft, please record below the model number and serial number
located on the unit. We also suggest you record all the information listed and retain for future reference.
MODEL NUMBER
DATE OF PURCHASE
:k
TO PHONE:
SERVICE .................................................................................... 800-447-4700
(for your nearest Sharp Authorized Service Station)
PARTS ........................................................................................ 800-447-4700
(for your authorized parts distributor)
ACCESSORIES .......................................................................... 800-642-2122
ADDITIONAL
CUSTOMER INFORMATION ..................................................... 201-512-0055
COOKING ASSISTANCE .................................. ._....................... 201-529-8703
TO WRITE:
For cooking and operation questions:
Dealer
Service Station
Susan Edwards/Test Kitchen
Sharp Electronics Corporation
Sharp Plaza, Box 650
Mahwah, NJ 07430-2135
SERIAL NUMBER
Telephone
Telephone
For service problems, warranty information, missing items and other assistance:
Sharp Electronics Corporation
Customer Information Center
Sharp Plaza, Box 650
Mahwah, NJ 07430-2135
Please provide the following information when you write or call: model number, serial number, date of purchase, your
complete mailing address (including zip code), your daytime telephone number (including area code) and description of
the problem.
Precautions to Avoid Possible Exposure to Excessive
Microwave Energy ........................... Inside front cover
For Customer Assistance .................. Inside front cover
Contents ........................................................................... 1
Limited Warranty ............................................................. 2
Product Information Card ............................................... 2
Important Safety Instructions ........................................ 3
Unpacking and Installation Instructions ....................... 4
Grounding Instructions .................................................. 4
Information You Need to Know ...................................... 5
About Your Oven ........................................................... 5
About Food .................................................................... 5
About Utensils and Coverings ....................................... 6
About Microwave cooking .............................................. 7
About Safety .................................................................. 7
About Children and the Microwave ................................ 7
Part Names ...................................................................... 8
Before Operating ............................................................. 9
To Set the Clock ............................................................ 9
Stop/Clear ...................................................................... 9
Manual Operation ............................................................ 9
Microwave Cooking ....................................................... 9
Time Cooking ............................................................. 9
Convection and Automatic Mix Cooking ...................... 10
Convection Cooking ................................................. 10
Automatic Mix Cooking ............................................. 10
To Preheat and then Cook with Convection ............. 11
To Preheat with Automatic Mix ................................. 11

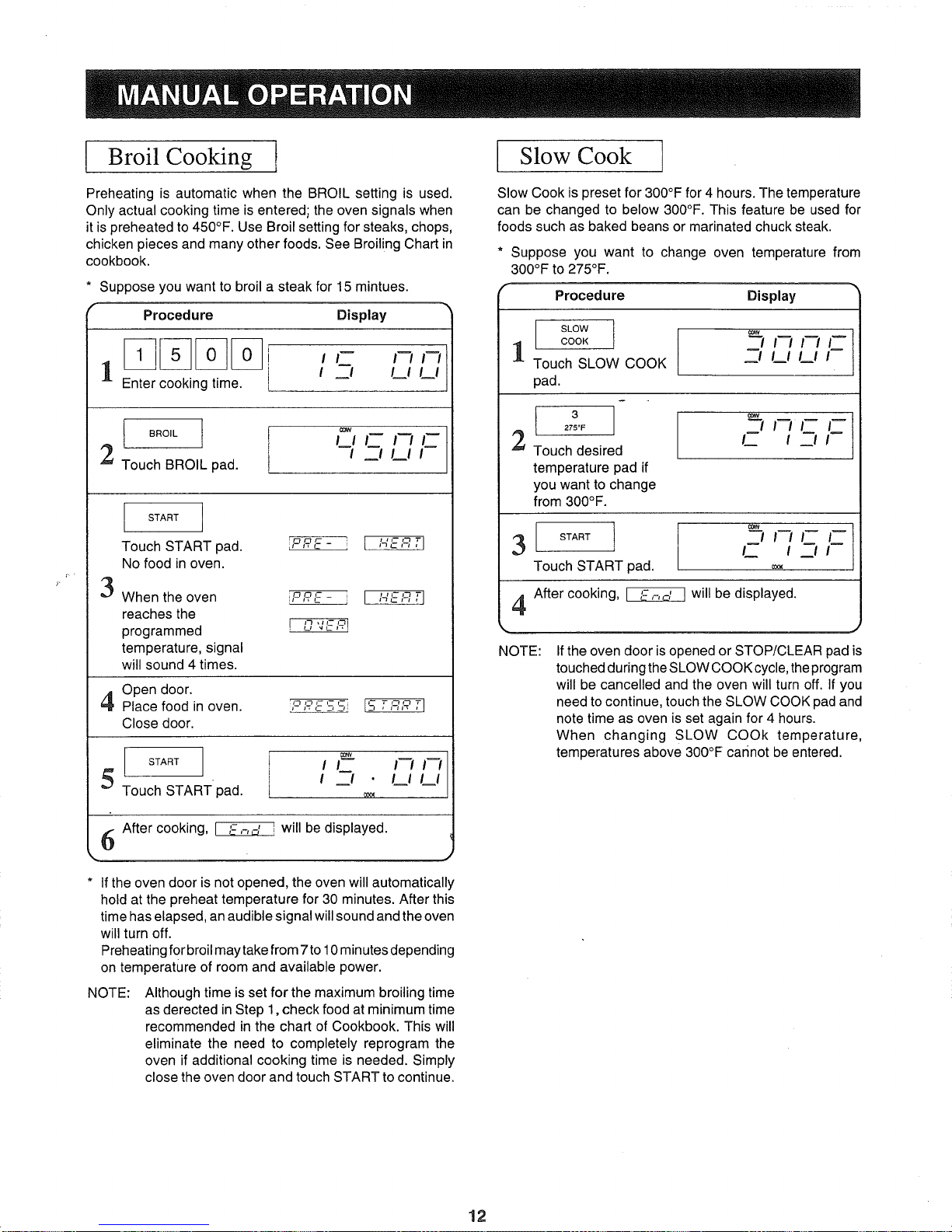

Broil Cooking ............................................................... 12
Slow Cook .................................................................... 12
Special Features ............................................................ 13
CompuDefrost .............................................................. 13
CompuDefrost Chart .................................................... 13
Manual Defrost ............................................................ 14
Beverage Reheat ......................................................... 14
Sensor Cooking ........................................................... 14
Dinner Plate Sensor ..................................................... 15
Popcorn Sensor ........................................................... 15
Sensor Reheat ............................................................. 15
To Cook with Sensor ................................................... 15
Sensor Reheat and Instant Sensor Chart .................... 16
Sensor Cook Chart ...................................................... 16
Sensor Cook Recipes .................................................. 17
CompuCook ................................................................. 19
CompuCook Chart ....................................................... 19
Cook & Simmer ............................................................ 20
Other Convenient Features .......................................... 20
Multiple Sequence Cooking ......................................... 20
More or Less Time Adjustment .................................... 20
Minute Timer/Pause/Minute Plus/Auto Start ................ 21
Memory Plus/Safety Lock ........................................... 22
Audible Signal Elimination/Demonstration Mode ........ 22
Service Call Check ........................................................ 22
Cleaning and Care ......................................................... 23
Specifications ................................................................ 23
Auto-Touch Guide .......................................... Back Cover
f
SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the"
"Product"), when shipped in its original container, will be free from defective workmanship and materials, and agrees that
it will, at its option, either repair the defect or replace the defective Product or part thereof at no charge to the purchaser
for parts or labor for the time period(s) set forth below.
This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below
nor to any Product the exterior of which has been damaged or defaced, which has been subjected to misuse, abnormal
service or handling or which has been altered or modified in design or construction.
In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide
proof of purchase to the servicer.
The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law.
ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE
LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow
limitations on how long an implied warranty lasts, so the above limitation may not-apply to you.
Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those
described herein or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp.
The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and
exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described
herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the
Product and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise.
In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused
by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable, or in any
way responsible, for any incidental or consequential economic or property damage. Some states do not allow the exclusion
of incidental or consequential damages, so the above exclusion may not apply to you.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY
FROM STATE TO STATE.
Your Product model number: R-9H84 and R-9H94 Home Use Carousel Microwave Oven
(Be sure to have this information available when you need service for your
Product.)
Warranty period for this Product:
Additional items excluded from
warranty coverage:
Where to obtain service:
What to do to obtain service:
SAVE THESE
one (1) year parts and labor. The warranty period continues for an additional
four (4) years, for a total of five (5) years, with respect to the magnetron tube
in the Product for parts only: Labor is not provided free of charge for this
additional period.
accessories, rubber or plastic parts, the turntable, light bulbs, glass parts or any
printed materials.
at a Sharp Authorized Service Station or Sharp Authorized Service Dealer
located in the United States. To find out the location of the nearest Sharp
Authorized Service Station or Dealer, call Sharp toll free at 800-447-4700.
ship (prepaid) or carry in your Product to a Sharp Authorized Service Station
or Dealer. Be sure to have proof of purchase available.If you ship or mail the
Product, be sure it is packaged carefully.
iNSTRUCTiONS
The product information card which is on the inside ofthe microwave oven carton should be completed within ten days of purchase
and returned. We will keep it on file and help you access the information in case of loss, damage or theft. This will also enable
us to contact you in the unlikely event that any adjustments or modifications are ever required for your oven.
2
Whenusingelectricalappliancesbasicsafetyprecautionsshouldbefollowed,includingthefollowing:
WARNING - To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:
1. Read al! instructions before using the appliance.
2. Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY" oninside front cover.
3. This appliance must be grounded. Connect only to properly grounded outlet. See "GROUNDING
INSTRUCTIONS" on page 4.
4. Install or locate this appliance only in accordance with the provided installation instructions.
5. Some products such as whole eggs and sealed containers -- for example, closed glass jars -- may explode and should not
be heated in this oven.
6. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this
appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory
use.
7. As with any appliance, close supervision is necessary when used by children.
8. Do not ope rate this appliance if ithas adamaged cord or plug, if itis not working properly or if ithas been damaged or dropped.
9. This appliance should be serviced only by qualified service personnel. Contact nearest Sharp Authorized Service Station
or Dealer for examination, repair or adjustment.
10. Do not cover or block any openings on the appliance.
11. Do not store or use this appliance outdoors. Do not use this product near water--for example, near a kitchen sink, in a wet
basement, or near a swimming pool, and the like.
12. Do not immerse cord or plug in water.
13. Keep cord away from heated surfaces.
14. Do not let cord hang over edge of table or counter.
15. See door surface cleaning instructions on page 23.
16. To reduce the risk of fire in the oven cavity:
a. Do not overcook food. Carefully attend appliance if paper, plastic or other combustible materials are placed inside the
oven to facilitate cooking.
b. Removewire twist-ties from paper or plastic bags before placing bag in oven.
c. If materials inside the oven should ignite, keep oven door closed, turn oven off, and disconnect the power cord
or shut off power at the fuse or circuit breaker panel.
d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when
not in use.
17. Do not operate any heating or cooking appliance beneath this appliance.
18. Do not mount unit over or near any portion of a heating or cooking appliance.
19. Do not mount over a sink.
20. Do not store anything directly on top of the appliance surface when the appliance is in operation.
SAVE THESE INSTRUCTIONS
3
Unpacking and Examining Your Oven
Remove:
1. all packing materials from inside the oven cavity. Read enclosures and SAVE the
Operation Manual,
2. the feature sticker from the outside of the door, if there is one.
Check the oven for any damage, such as misaligned or bent door, damaged door seals
and sealing surfaces, broken or loose door hinges and latches and dents inside the cavity
or on the door. If there is any damage, do not operate the oven and contact your dealer
or SHARP AUTHORIZED SERVICE STATION.
Choosing a Location for Your Oven
You willuse your oven frequently so plan its locationfor ease of use. The ovenmust be placed on a countertopwhichis a minimum of
36 inches from the floor. Allow at least2 inches on thesides, top and at the rear of the oven for air circulation.Be sure to positionoven
so that the rear cannot be touched inadvertently.
Do not place or install the oven in any area where heat and steam are generated; for example, next to or above a conventional gas or
electric range or above a conventional wall oven. Heat and steam may damage the electrOnicS or the mechanical parts of the oven.
Built-in Kit
Your oven can be built into a cabinet or wall--not near or above a heat source--using Sharp's Built-in Kit, Model RK-90 and RK-90W.
Model RK-90 is for R-9H84 oven, and Model RK-90W is for R-9H94 oven. Ifyour dealer does not stock the kit, it can be ordered directly
from the Sharp Accessories and Supplies Center. Have your credit card number available and call toll-free:
1-800-642-2122 for ordering the kit to be sent to your address.
The kit includes ducts and finish trim strips and easy-to-follow instructions for installation as well as the location of the power supply.
Latches
Hinges-
It is important that all instructions for electrical connection and grounding be followed to eliminate any hazard or chance of
electrical short circuit. Grounding reduces the risk of electric shock by providing an escape wire for the electric current.
All electrical work must be in accordance with the National Electrical Code and all
local codes and ordinances.
WARNING - Improper use of the grounding plug can result in a risk of electric
shock.
3-Prong Plug
Electrical Requirements
The electrical requirements are a 120 volt 60 Hz, AC only, 15 amp. or more fused
electrical supply. It is recommended that a separate circuit serving only the oven be
provided.
The oven is equipped with a 3 prong grounding plug. It must be plugged into a wall
receptacle that is properly installed and grounded. Should you only have a 2 prong
outlet, have a qualified electrician install a correct wall receptacle.
A 3 prong adapter may be purchased and used temporarily if local codes allow.
Follow package directions.
A short power-supply cord is provided to reduce risk of becoming entangled in or
/
Grounded
Receptacle Box
tripping over a longer cord.
Extension Cord
If it is necessary to use an extension cord, use only a 3-wire extension cord that has
a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the
microwave oven. The marked rating ofthe extension cord should beAC 115-120 volt,
15 amp. or more.
Permanent and Correct Installation
Grounding Receplacle Box
Adaptor
Grounded
Be careful not to drape the cord over the countertop or table where it can be pulled
on by children or tripped over accidentally.
Note:
1. If you have any questions about the grounding or electrical instructions, consult
a qualified electrician or serviceman.
2. Neither Sharp nor the dealer can accept any liability for damage to the oven or
personal injury resulting from failure to observe the correct electrical connection
procedures.
so
Tab for
Grounding Screw
Temporary Use
Radio or TV Interference
Should there be any interference caused by the microwave oven to your radio orTV,
check that the microwave oven is on a different electrical circuit, relocate the radio
or TV as far away from theoven as feasible or check position and signal of receiving
antenna.
4
About Your Oven
This Operation Manual is valuable: read itcarefully and always save it for reference.
The Sharp Carousel II Convection Microwave Cookbook is a valuable asset. Check if frequently for cooking principles,
techniques, hints and recipes.
NEVER use the oven without the turntable and support nor turn the turntable over so that a large dish could be placed in the oven.
The turntable will turn both clockwise and counterclockwise.
ALWAYS have food in the oven when it is on to absorb the microwave energy.
When using the oven at power levels below 100%, you may hear the magnetron cycling on and off.
Condensation is a normal part of microwave cooking. Room humidity and the moisture infood will influence the amount of moisture
that condenses in the oven. Generally, covered foods will not cause as much condensation as uncovered ones. Vents on the oven
back must not be blocked.
After using convection, automatic mix or broil, you will hear the sound of the cooling fan. The fan may operate as long as 5
minutes, depending on the oven temperature.
Be aware that, unlike microwave-only ovens, convection microwave ovens have a tendency to become hot during convection,
automatic mix and broil cooking.
The oven is for food preparation only. It should not be used to dry clothes or newspapers.
Your oven is rated 900 watts using the IEC 705-1988 method. In using recipes or package directions, check food at the minimum
time and add time accordingly.
About Food
f
Eggs, fruits & vegetables
Popcorn
Baby food
General
DO
Puncture egg yolks before cooking to
prevent "explosion".
Pierce skins of potatoes, apples, squash,
hot dogs and sausages so that steam
escapes.
* Use specially bagged popcorn for the
microwave oven.
* Listen while popping corn for the popping
to slow to ! or 2 seconds or use Sensor
Popcorn for "no-guess" popping.
* Use an overturned 9 or 10 inch oven
glass pie plate on top of the turntable
when popping bagged microwave
popcorn.
* Transfer baby food to small dish and
heat carefully, stirring often. Check
temperature before serving.
* Put nipples on bottles after heating and
shake thoroughly. "Wrist" test before
feeding.
* Cut baked goods with filling after heating
to release steam and avoid burns.
* Stir liquid briskly before and after heating
to avoid "eruption".
* Use deep bowl, when cooking liquid or
cereal to prevent boilovers.
DON'T
* Cook eggs in shells.
* Reheat whole eggs.
* Pop popcorn in regular brown bags or glass
bowls.
* Exceed maximum time on popcorn package.
* Heat disposable bottles.
* Heat bottles with nipples on.
* Heat baby food in original jars.
* Heat or cook in closed glass jars or air tight
containers.
* Can in the microwave as harmful bacteria
may not be destroyed.
* Deep fat fry.
* Dry wood, gourds, herbs or wet papers.
5
About Utensils and Coverings
Itisnot necessary to buy all new cookware. Many pieces already in your kitchen can be used successfully in your new microwave
convection oven. Check your cookbook in the section titled "Convection Microwave Utensils" for details. The chart below will help
you decide what utensils and coverings should be used in each mode.
r Utensils and
Coverings
Aluminum foil
Microwave Only
IYesl Small flat pieces of aluminum foil placed smoothly on food
can be used tb shield areas from cooking or defrosting too quickly.
Keep foil at least 1 inch from walls of oven.
Convection
Broil, Slow Cook
Yesl For shielding
High Mix/Roast
Low Mix/Bake
YL_ For shielding
Aluminum containers
Browning dish
Glass ceramic
(Pyroceram._)
Glass, oven
Glass,non heat resistant
IYesl Can be used if 3/4 filled with food. Keep 1 inch away from
walls and do not cover with foil.
IYes] Do not exceed recommended preheating time. Follow
manufacturer's directions.
IYesl Excellent
IYesl Excellent. Turned over pie plate necessary for popping
popcorn.
INol
Lids, glass
Lids, metal
Metal cookware
Metal, misc: dishes with
metallic trim, screws,
bands, handles. Metal
twist ties
Oven cooking bags
Paper plates
Paper towels
Paper, ovenable
Microwave safe
plastic containers
Plastic, Thermoset ®
Plastic wrap
Pottery, Porcelain IYesl Check manufacturer's recommendation for being microwave
Stoneware safe.
Styrofoam IYesl For reheating r-_ I-_
IYes] Good for large meats or foods that need tenderizing. DO NOT
use metal twist ties.
IYesl For reheating
To cover for reheating and cooking. Do not use recycled
paper towels which may contain metal filings.
IYesl Use for reheating and defrosting. Follow manufacturer's
directions,
IYesl Use brands specially marked for microwave use. DO NOT
allow plastic wrap to touch food. Vent so steam can escape.
INol
NL_E£J
INol
IYes!
IYesl
Broil-No
cover
Excellent
YeLY.._J-Excellent
I Nol
IYesJ Broi!-No
cover
IYesl Broil-No
cover
IYesl
INol
IYesl Broil-No
IYesl For
temperatures up
to 400 °, Do not
use for broiling.
YeL_ Are heat
resistant up to
425 °. Do not use
for broiling.
[3_3
Can be used if 3/4
filled with food. Keep 1 inch
away from walls and do not
cover with foil.
Excellent
Excellent
IYesl Do not use metal
covering
IYesl DO NOT use metal
twist ties.
IYesl For temperatures up
to 4000.
F_ Must be microwave
safe AND ovenable.
wax paper IYesl Good covering for cooking and reheating _ I-_
Wicker, wood, straw IYesl May be used for short periods of time. Do not use with high _ [-_
fat or high sugar content foods. Could char.
DISH CHECK. If you wish to check if a dish is safe for microwaving, place the empty dish in the oven and microwave on HIGH
for 30 seconds. If the dish becomes very hot, do NOT use it for microwaving.
ACCESSORIES. There are many microwave accessories available for purchase such as popcorn poppers and thermometers.
Evaluate carefully before purchasing. A microwave safe or dual safe microwave/conventional thermometer will assist you in
determining doneness and assure you that foods have been cooked to a safe temperature. The dual safe thermometer can be
used with mix cooking.
6
About Microwave Cooking
* Arrange food carefully. Place thickest areas toward outside of dish.
* Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Foods severely overcooked
can smoke or ignite.
* Cover foods while cooking. Check recipe or cookbook for suggestions: paper towels, wax paper, microwave plastic wrap
or a lid. Covers prevent spattering and help foods to cook evenly.
* Shield with small flat pieces of aluminum foil any areas of meat or poultry to prevent overcooking or over defrosting.
* Stir foods from outside to center of dish once or twice during cooking, if possible.
* Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburgers. Large items like roasts
or turkey breasts must be turned over at least once.
* Rearrange foods like meatballs halfway through cooking both from top to bottom and from the center of the dish to the
outside.
* Add standing time. Remove food from oven and stir, if possible. Cover for standing time which allows the food to finish
cooking without overcooking.
* Check for doneness. Look for signs indicating that cooking temperatures have been reached.
Doneness signs include:
- Food steams throughout, not just at edge.
- Center bottom of dish is very hot to the touch.
- Poultry thigh joints move easily.
- Meat and poultry show no pinkness.
- Fish is opaque and flakes easily with a fork.
About Safety
* Check foods to see that they are cooked to the United States Department of Agriculture's recommended temperatures:
- 165°F. for leftover, ready-to-heat refrigerated, and deli and carry-out "fresh" food.
- 170°F. white meat of poultry.
I - 160°F. for fresh pork, boneless white poultry, fish, seafood, egg dishes and frozen prepared food. |
- 180°F. dark meat of poultry.
To test for doneness, insert a meat thermometer in a thick or dense area away from fat or bone. NEVER leave the thermometer
in food during cooking, unless it is approved for microwave oven use.
* Always use potholders to prevent burns when handling utensils that are in contact with hot food.
Enough heat from the food can transfer through utensils to cause skin burns.
* Avoid steam burns by directing steam away from the face and hands. Slowly lift the farthest edge of a dish's covering and
carefully open popcorn and oven cooking bags away from the face.
* Stay near the oven while it's in use and check cooking progress frequently so that there is no chance of overcooking food.
* NEVER use the cavity for storing cookbooks or other items.
* Select, store and handle food carefully to preserve its high quality and minimize the spread of foodborne bacteria.
* Keep wave guide cover clean. Food residue can cause arcing and/or fires.
* Keep aluminum foil used for shielding at least 1 inch away from walls, ceiling and door.
* Use potholders and be careful when using convection, mix or broil cooking as cabinet, interior and door may be too hot to
touch.
About Children and the Microwave
Children below the age of 7 should use the microwave oven with a supervising person very near to them. Between the ages of
7 and 12, the supervising person should be in the same room.
The child must be able to reach the oven comfortably; if not, he/she should stand on a sturdy stool.
At no time should anyone be allowed to lean or swing on the oven door.
Children should be taught all safety precautions: use potholders, remove coverings carefully, pay special attention to packages
that crisp food because they may be extra hot.
Don't assume that because a child has mastered one cooking skill he/she can cook everything.
J
7
Loading...
