MODEL

AR-M257 AR-M317

DIGITAL MULTIFUNCTIONAL SYSTEM

KEY OPERATOR'S GUIDE

Page

• PURPOSE OF THE KEY OPERATOR PROGRAMS

• PROGRAMMING A KEY OPERATOR CODE

USING THE KEY

• OPERATOR PROGRAMS

• KEY OPERATOR PROGRAM LIST

• GENERAL PROGRAMS

• PROGRAMS FOR COPY MODE

• PROGRAMS FOR PRINT MODE

PROGRAMS FOR NETWORK

•

4 8

SCANNER MODE

The key operator code is initially set to "00000" at the factory.

PURPOSE OF THE KEY OPERATOR PROGRAMS

The key operator programs are used by the key operator (administrator of the machine) to customize certain features of the machine to better meet the needs of users. This guide explains key operator programs that are common to all functions of the multifunction system (copy function, fax function, printer function, and network scanner function), as well as programs that are specific to the copy function, printer function, and network scanner function. Programs that are specific to the fax function are explained in the following manual:

• Fax function ............."AR-FX7 Operation manual" (Chapter 8)

In order to access the key operator programs, the key operator code must be entered.

PROGRAMMING A KEY OPERATOR CODE

The key operator code is a 5-digit number that must be entered in order to access the key operator programs. The key operator (administrator of the machine) should change the default key operator code that was set at the factory to a new 5-digit number. Be sure to remember the new key operator code, as it must be entered each time the key operator programs are subsequently used. (Only one key operator code can be programmed.) To change the key operator code, see "USING THE KEY OPERATOR PROGRAMS" on the following page.

The key operator code is initially set to "00000" at the factory.

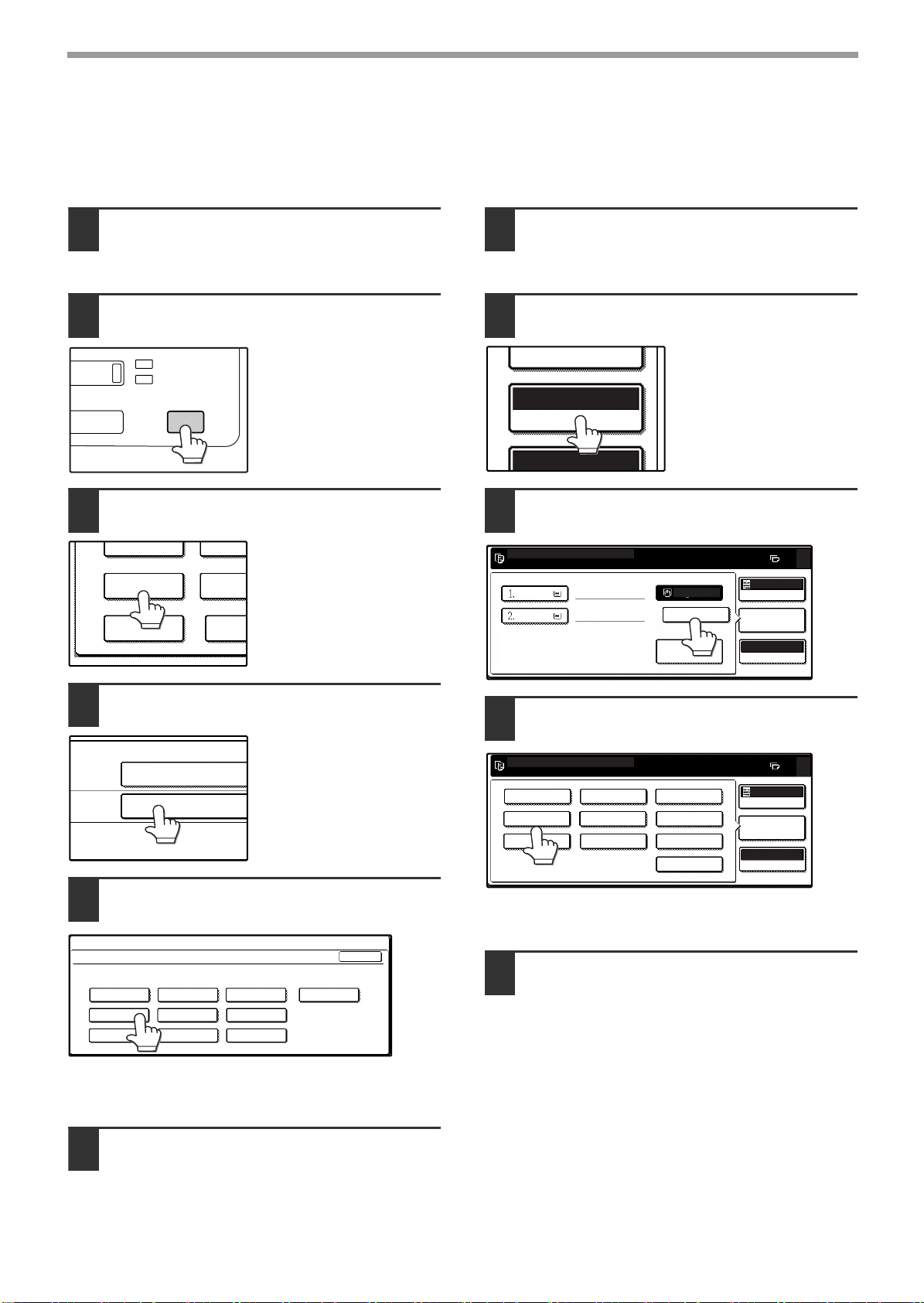

USING THE KEY OPERATOR PROGRAMS

KEY OPERATOR CODE

Note

Press the [CUSTOM SETTINGS] key.

STATUS

Touch the [KEY OPERATOR

When using the key operator programs for the first time, change the factory default key operator code to a new code. (Step 3 to step 5)

LINE DATA

CUSTOM SETTINGS

PROGRAMS] key.

CUSTOM SETTINGS

TOTAL COUNT

TRAY SETTINGS

KEYBOARD

SELECT

Use the numeric keys to enter the

DISPLAY

CONTRAST

ADDRESS CONTROL

KEY OPERATOR PROGRAMS

LIST PRINT

RECEIVE MODE

CLOCK

FAX DATA

FORWARD

five-digit key operater code.

Each time a digit is entered, the dash (-) that indicates the digit will change to an asterisk ( ). The factory default setting for the key operator code is 00000.

EXIT

Use the numeric keys to enter the new

5-digit key operator code.

Use a number for the key operator code that has not been programmed as an

00000

-----

account number for auditing mode (a number that has been programmed as an

account number cannot be used). The entered number will be the new key operator code. Be sure to remember this number.

Touch the [OK] key. You will return to

the screen of step 4.

This completes the

procedure for changing

the key operator code. If

you wish to configure

another program, touch

the key of the desired

program in the screen of

step 4.

Press the [CLEAR ALL] key ( ) to

exit the program.

Touch a key to select the desired

category of key operator programs.

KEY OPERATOR PROGRAMS

ACCOUNT CONTROL

COPY SETTINGS PRINT SETTINGS

LIST PRINT

ENERGY SAVE

KEY OPERATOR

CODE CHANGE

OPERATION

SETTINGS

SCANNER

SETTINGS

PRODUCT KEY

Example:

To change the key operator code, touch the [KEY OPERATOR CODE CHANGE] key.

• Each time you need to configure a program, use this procedure to select the program.

• In the following steps, the setting screen for the selected program appears. Refer to the explanation of the program to select the desired setting (the explanations of the programs begin on page 8).

EXIT

DEVICE CONTROL

FAX SETTINGS

KEYS USED IN KEY OPERATOR PROGRAMS

Example: Auditing mode

KEY OPERATOR PROGRAMS ACCOUNT CONTROL

USING THE KEY OPERATOR PROGRAMS

The following keys appear in screens that require the entry of numerical values.

(1 999)

AUDITING MODE

TOTAL PAGES PER ACCOUNT

RESETTING ACCOUNT

1/3

4 5

When a checkbox ( ) appears in front of a setting, a checkmark ( ) will appear when the checkbox is touched. This indicates that the setting is enabled. If a checkbox with a checkmark ( ) is touched, the checkmark is cleared ( ) and the setting is disabled.

When a key that appears in the form is touched, the setting screen of that key will appear.

If the settings continue on the following screen(s), touch the and keys to move back and forth through the

X X X

screens. To return to the category selection screen, touch the [OK] key.

The currently set numerical value is displayed.

Numerical values can be set by touching the and keys.

KEY OPERATOR PROGRAM LIST

Note

The key operator programs that can be accessed depend on the optional equipment that is installed.

GENERAL PROGRAMS

Program name

ACCOUNT CONTROL

AUDITING MODE Disabled 8

TOTAL PAGES PER ACCOUNT

RESETTING ACCOUNT — 8

ACCOUNT NUMBER CONTROL

ACCOUNT LIMIT SETTING

ACCOUNT NUMBER SECURITY

CANCEL JOBS OF INVALID ACCOUNTS

ENERGY SAVE

AUTO POWER SHUT-OFF Enabled 10

AUTO POWER SHUT-OFF TIMER

PREHEAT MODE SETTING

TONER SAVE MODE

OPERATION SETTINGS

AUTO CLEAR SETTING 60 (sec) 11

MESSAGE TIME SETTING 6 (sec) 11

KEYS TOUCH SOUND • KEYS TOUCH

TOUCH KEY OPERATION SETTING

DISABLE INTERRUPT PRINT JOB

STREAM FEEDING MODE Disabled 12

DISPLAY LANGUAGE SETTING

DISABLE DISPLAY TIMEOUT

DISABLING OF TRAY SETTINGS

DISABLING OF CLOCK ADJUSTMENT

Factory default settings

—8

—9

Disabled 9

60 (min.) 10

15 (min.) 10

Disabled 10

SOUND: Short

• KEYS TOUCH SOUND AT INITIAL POINT: Disabled

• Time to entry:

0.0 (sec)

• DISABLE AUTO KEY REPEAT: Disabled

Disabled 11

AMERICAN ENGLISH

Disabled 12

Page

Program name

DEVICE CONTROL

DISABLING OF DOCUMENT FEEDER

DISABLING OF DUPLEX Disabled 12

DISABLING OF STAPLER

OUTPUT TRAYS

OFFSET FUNCTION SETTING

MEMORY FOR PRINTER

DISABLING OF CENTER TRAY COUNTING

RETURN FROM COPY MODE TIMING

MIX SIZE ORIGINAL FEEDING MODE

SECURITY SETTINGS — 13

KEY OPERATOR CODE CHANGE

PRODUCT KEY

PS3 EXPANSION KIT

NETWORK SCANNER EXPANSION KIT

E-MAIL ALERT AND STATUS

SERIAL NUMBER — 14

Factory default settings

Disabled 12

PATT ER N 1 13

Enabled 13

• 50%

• MEMORY AREA FOR PRINT

HOLD

Disabled 13

60 (sec) 13

Disabled 13

00000 14

—14

: 30%

PROGRAMS FOR COPY MODE

Program name

COPY SETTINGS

INITIAL STATUS SETTINGS — 15

ROTATION COPY SETTING Enabled 15

EXPOSURE ADJUSTMENT • Document

AUTO PAPER SELECTION SETTING

SETTING A MAXIMUM NUMBER OF COPIES

SORT AUTO SELECT Enabled 15

DISABLING DELETION OF JOB PROGRAMS

CARD SHOT SETTINGS — 15

Factory default settings

glass: 3

• Document

feeder: 3

PLAIN PAPER 15

999 15

Disabled 15

Page

KEY OPERATOR PROGRAM LIST

PROGRAMS FOR PRINT MODE

Program name

PRINT SETTINGS

DEFAULT SETTINGS

PROHIBIT NOTICE PAGE PRINTING

PRINT DENSITY LEVEL 3 16

PROHIBIT TEST PAGE PRINTING

ROTATED PRINT Enabled 16

FORCED OUTPUT OF PRINT

EXCLUDE BYPASS-TRAY FROM ATS

DISABLE DEFAULT SETTING CHANGES

INTERFACE SETTINGS

HEXADECIMAL DUMP MODE

I/O TIMEOUT 180 (sec)

PARALLEL PORT EMULATION SWITCHING

USB PORT EMULATION SWITCHING

NETWORK PORT EMULATION SWITCHING

PORT SWITCHING METHOD

ENABLE PARALLEL PORT

ENABLE USB PORT

ENABLE NETWORK PORT

ENABLE ECP

NETWORK SETTINGS

IP ADDRESS SETTING

ENABLE TCP/IP Enabled 18

ENABLE NetWare Enabled 18

ENABLE EtherTalk Enabled 19

ENABLE NetBEUI Enabled 19

RESET THE NIC — 19

INITIALIZE AND/OR STORE SETTINGS

RESTORE FACTORY DEFAULTS

STORE CURRENT CONFIGURATION

RESTORE CONFIGURATION

Factory default settings

Disabled 16

Enabled 16

Disabled 16

Disabled 17

60 (sec)

AUTO 17

PCL 17

AUTO 17

SWITCH AT END OF JOB

Enabled 18

Disabled 18

DHCP: Enabled

—19

Page

PROGRAMS FOR NETWORK SCANNER MODE

Program name

SCANNER SETTINGS

INITIAL FILE FORMAT SETTING

INITIAL QUALITY SETTING

INITIAL RESOLUTION SETTING

DEFAULT DISPLAY SETTINGS

THE NUMBER OF DIRECT ADDRESS / SENDER KEYS DISPLAYED SETTING

*1 Appears when the scanner function is enabled. *2 Appears when a FINISHER is installed. *3 Can be enabled when the printer or fax function is

enabled and a JOB SEPARATOR TRAY KIT or FINISHER is installed.

*4 Appears when the PRINTER EXPANSION KIT is

installed.

*5 Appears when the PRINTER EXPANSION KIT and

EXPANSION MEMORY are installed.

Factory default settings

• File type: TIFF

• Compression mode: G4

• Number of pages per file: All

• Original image type: Text/Photo

• Exposure: Auto

300 dpi 20

CONDITION SETTINGS

8 (keys) 20

Page

KEY OPERATOR PROGRAM LIST

KEY OPERATOR PROGRAM MENU

The key operator programs are arranged in the following menu. Refer to this menu when enabling or disabling the settings that are explained beginning on page 8. * Some programs contain an additional level of settings (setting screen).

Level 1 Level 2 Level 3

ACCOUNT CONTROL AUDITING MODE

TOTAL PAGES PER ACCOUNT RESETTING ACCOUNT ACCOUNT NUMBER CONTROL ACCOUNT LIMIT SETTING ACCOUNT NUMBER SECURITY CANCEL JOBS OF INVALID ACCOUNTS

ENERGY SAVE AUTO POWER SHUT-OFF

AUTO POWER SHUT-OFF TIMER PREHEAT MODE SETTING TONER SAVE MODE

OPERATION SETTINGS AUTO CLEAR SETTING

MESSAGE TIME SETTING KEYS TOUCH SOUND TOUCH KEY OPERATION SETTING DISABLE INTERRUPT PRINT JOB STREAM FEEDING MODE DISPLAY LANGUAGE SETTING DISABLE DISPLAY TIMEOUT DISABLING OF TRAY SETTINGS DISABLING OF CLOCK ADJUSTMENT

DEVICE CONTROL

Enter Key Operator Code

KEY OPERATOR CODE CHANGE

DISABLING OF DOCUMENT FEEDER DISABLING OF DUPLEX DISABLING OF STAPLER OUTPUT TRAYS OFFSET FUNCTION SETTING MEMORY FOR PRINTER DISABLING OF CENTER TRAY COUNTING RETURN FROM COPY MODE TIMING MIX SIZE ORIGINAL FEEDING MODE SECURITY SETTINGS SSL SETTINGS

PRODUCT KEY PS3 EXPANSION KIT

NETWORK SCANNER EXPANSION KIT E-MAIL ALERT AND STATUS SERIAL NUMBER

COPY SETTINGS INITIAL STATUS SETTINGS

ROTATION COPY SETTING EXPOSURE ADJUSTMENT AUTO PAPER SELECTION SETTING SETTING A MAXIMUM NUMBER OF COPIES SORT AUTO SELECT DISABLING DELETION OF JOB PROGRAMS CARD SHOT SETTINGS

KEY OPERATOR PROGRAM LIST

Level 1 Level 2 Level 3

PRINT SETTINGS DEFAULT SETTINGS

INTERFACE SETTINGS HEXADECIMAL DUMP MODE

Enter Key Operator Code

NETWORK SETTINGS IP ADDRESS SETTING

PROHIBIT NOTICE PAGE PRINTING PRINT DENSITY LEVEL PROHIBIT TEST PAGE PRINTING ROTATED PRINT FORCED OUTPUT OF PRINT EXCLUDE BYPASS-TRAY FROM ATS DISABLE DEFAULT SETTING

CHANGES

I/O TIMEOUT PARALLEL PORT EMULATION

SWITCHING USB PORT EMULATION

SWITCHING NETWORK PORT EMULATION

SWITCHING PORT SWITCHING METHOD ENABLE PARALLEL PORT ENABLE USB PORT ENABLE NETWORK PORT ENABLE ECP

ENABLE TCP/IP ENABLE NetWare ENABLE EtherTalk ENABLE NetBEUI RESET THE NIC

INITIALIZE AND/OR STORE SETTINGS

SCANNER SETTINGS INITIAL FILE FORMAT SETTING

INITIAL QUALITY SETTING INITIAL RESOLUTION SETTING DEFAULT DISPLAY SETTINGS THE NUMBER OF DIRECT ADDRESS /

SENDER KEYS DISPLAYED SETTING

RESTORE FACTORY DEFAULTS STORE CURRENT

CONFIGURATION RESTORE CONFIGURATION

GENERAL PROGRAMS

This chapter explains key operator programs that are common to all functions of the multifunction system (copy function, fax function, printer function, and network scanner function).

ACCOUNT CONTROL

KEY OPERATOR PROGRAMS

ACCOUNT CONTROL

AUDITING MODE

TOTAL PAGES PER ACCOUNT

RESETTING ACCOUNT

"ACCOUNT CONTROL" consists of the following programs.

● AUDITING MODE

● TOTAL PAGES PER ACCOUNT

● RESETTING ACCOUNT

● ACCOUNT NUMBER CONTROL

● ACCOUNT LIMIT SETTING

● ACCOUNT NUMBER SECURITY

● CANCEL JOBS OF INVALID ACCOUNTS *

* Appears when the PRINTER EXPANSION KIT is

installed.

AUDITING MODE

When AUDITING MODE is enabled, a count is kept of the pages printed by each account (up to 100 accounts can be established). The page counts can be viewed in the display. This program is initially disabled (factory default setting).

Note

When using the copy function, fax function, or network scanner function, an account number must be entered to scan an original.

After enabling "AUDITING MODE", program account numbers using "ACCOUNT NUMBER CONTROL".

1/3

TOTAL PAGES PER ACCOUNT

This program is used to display the page counts of each account. Misfed pages are not included in the page counts. When the fax and network scanner functions are used, the fax and network scanner page counts show the number of pages transmitted.

Touch the [TOTAL PAGES PER ACCOUNT] key to display the page count screen.

KEY OPERATOR PROGRAMS

TOTAL PAGES PER ACCOUNT

ACCOUNT

NUMBER

11111

22222

33333

44444

COPIES

(LIMIT)

123,456

(150,000)

123,456

(150,000)

123,456

(150,000)

123,456

(150,000)

PRINTS SCAN FAX SEND

123,456

1/2

RESETTING ACCOUNT

This program is used to reset the page counts of each account to zero. When the fax and network scanner functions are used, this program resets the fax and network scanner page counts to zero.

Touch the [RESETTING ACCOUNT] key to display the account reset screen.

KEY OPERATOR PROGRAMS

RESETTING ACCOUNT

ACCOUNT

NUMBER

11111

22222

33333

44444

COPIES

(LIMIT)

123,456

(150,000)

123,456

(150,000)

123,456

(150,000)

123,456

(150,000)

PRINTS SCAN FAX SEND

123,456

1/2

● Resetting a single account

Touch the key of the account that you wish to reset, and then select [YES] in the confirmation screen. If the account that you wish to reset does not appear, touch the key or key until the account appears. When finished, touch the [OK] key.

ALL ACCOUNTS

RESET

● Resetting all accounts

Touch the [RESET] key and then select [YES]. When finished, touch the [OK] key.

GENERAL PROGRAMS

ACCOUNT NUMBER CONTROL

This program is used to store, delete, and change account numbers for AUDITING MODE. A maximum of 100 account numbers can be stored.

● Storing a new account number

To store a new account number, touch the [ENTER] key and then use the numeric keys to enter a 5-digit account number. Touch the [ENTER] key to store the number. After storing the account number, you can continue storing other account numbers. Note that the same number as the key operator code cannot be stored.

● Deleting an account number

To delete an account number, touch the [DELETE] key and then select whether you wish to delete a single account number or all account numbers. To delete a single account number, use the numeric keys to enter the account number that you wish to delete and then touch the [ENTER] key. To delete all account numbers, touch the [DELETE] key and then touch [YES] in the screen that appears to confirm the deletion.

● Changing an account number

To change an account number, touch the [CHANGE] key and use the numeric keys to enter the account number that you wish to change. Enter the new account number and then touch the [ENTER] key. After changing the account number, you can continue changing other account numbers. If you make a mistake while entering the account number that you wish to change and enter a number that is not in use, an alarm will sound and the display will change to hyphens (-).

ACCOUNT LIMIT SETTING

A limit for the number of copies that can be made can be set for a single account or for all accounts at once. The maximum limit that can be entered is 999,999. Touch the [ACCOUNT LIMIT SETTING] key to display the account limit setting screen.

KEY OPERATOR PROGRAMS

ACCOUNT LIMIT SETTING

INPUT ACCOUNT NUMBER TO BE LIMITED.

ACCOUNT

NUMBER

-----

LIMIT ENTER

NUMBER OF

COPIES MADE

123,456

MAXIMUM

---,---

● Setting a limit for a single account

Use the numeric keys to enter the number of the account for which you wish to set a limit, and then enter the limit. When finished, touch the [ENTER] key. If you enter an account number that already has a limit, the limit will appear in the display. To change the limit, press the [CLEAR] key ( ) (the display will change to hyphens (-)) and then enter the new limit. If you touch the [ENTER] key while the display shows hyphens (-) for the limit, the limit set for the account will be canceled. When you have finished setting a limit for one account, you can continue setting limits for other accounts. When finished, touch the [OK] key to exit.

● Setting a limit for all accounts

Touch the [LIMIT] key. [ALL] will appear in the account number entry screen. Enter a limit for all acounts in the same way as explained above for a single account. When finished, touch the [OK] key to exit.

ACCOUNT NUMBER SECURITY

This program is used to display an alarm and prohibit entry of account numbers for one minute if an incorrect acount number is entered three times in a row when "AUDITING MODE" is enabled. (This prevents unauthorized people from attempting to guess an account number.) This program is initially disabled (factory default setting).

CANCEL JOBS OF INVALID ACCOUNTS

This program is used to control use of the printer function when "AUDITING MODE" is enabled. When this program is enabled, the machine will not print a print job if the operator enters an invalid account number at the computer or fails to enter an account number. When the program is disabled, print jobs received without the entry of a valid account number will be printed and the number of pages will be included in the [OTHERS] count. This program is initially disabled (factory default setting).

GENERAL PROGRAMS

ENERGY SAVE

KEY OPERATOR PROGRAMS

ENERGY SAVE

AUTO POWER SHUT-OFF

AUTO POWER SHUT-OFF TIMER

PREHEAT MODE SETTING

60min

15min

"ENERGY SAVE" provides the following four programs to reduce your power costs. From an environmental perspective, this also helps conserve natural resources and reduce pollution.

● AUTO POWER SHUT-OFF

● AUTO POWER SHUT-OFF TIMER

● PREHEAT MODE SETTING

● TONER SAVE MODE

AUTO POWER SHUT-OFF

If the machine is not used for the amount of time set in "AUTO POWER SHUT-OFF TIMER", AUTO POWER SHUT-OFF will activate and switch the machine to a standby state that conserves the maximum amount of energy. This program can be used to prevent AUTO POWER SHUT-OFF from operating. When this is done, the "AUTO POWER SHUT-OFF TIMER" setting is disabled. Use this program when circumstances require that AUTO POWER SHUT-OFF be disabled. This program is initially enabled (factory default setting).

PREHEAT MODE SETTING

If the printer is not used for the length of time set with this program after printing is finished, it will enter preheat mode. This function reduces your power costs, and at the same time helps conserve natural resources and reduce pollution. Select the most suitable setting to match your pattern of use of the printer. The time can be set to as long as 240 minutes in increments of one minute. (Preheat mode cannot be disabled.) The factory default setting is "15" (min.).

TONER SAVE MODE

The toner save mode will reduce toner consumption by approximately 10% in the automatic, text, and text/photo exposure modes. Copies will be lighter but still adequate for general use. Selection of this mode has no effect on the photo and super photo modes. This program is initially disabled (factory default setting).

Caution

shut-off feature, we suggest that you first try lengthening the time set in "AUTO POWER SHUT-OFF TIMER" In most cases a suitable timer setting will allow work to proceed with minimal delay and still enable you to enjoy the benefits of power conservation.

AUTO POWER SHUT-OFF TIMER

This program is used to set the amount of time after which "AUTO POWER SHUT-OFF" activates when the machine is not used. This function allows you to reduce power costs, and at the same time helps conserve natural resources and reduce pollution. The time can be set to as long as 240 minutes in increments of one minute. The factory default setting is "60" (min.).

Rather than disabling the auto power

Note

• Select a suitable time according to your pattern of use of the machine.

• If "AUTO POWER SHUT-OFF" is disabled, the time setting is also disabled.

GENERAL PROGRAMS

OPERATION SETTINGS

KEY OPERATOR PROGRAMS

OPERATION SETTINGS

AUTO CLEAR SETTING

MESSAGE TIME SETTING

KEYS TOUCH SOUND

60sec

6sec

The "OPERATION SETTINGS" are related to basic operation of the machine and consist of the following programs:

● AUTO CLEAR SETTING

● MESSAGE TIME SETTING

● KEYS TOUCH SOUND

● TOUCH KEY OPERATION SETTING

● DISABLE INTERRUPT PRINT JOB

● STREAM FEEDING MODE

● DISPLAY LANGUAGE SETTING

● DISABLE DISPLAY TIMEOUT

● DISABLING OF TRAY SETTINGS

● DISABLING OF CLOCK ADJUSTMENT

AUTO CLEAR SETTING

If no action is taken for a certain length of time when viewing information on finished jobs, jobs in progress, or stored jobs, the auto clear function activates and returns the display to the initial screen of copy mode or the job status screen. AUTO CLEAR SETTING is used to set the amount of time that must elapse for the auto clear function to activate. The time can be set from 10 seconds to 240 seconds in increments of 10 seconds, or the auto clear function can be disabled. (This setting only operates in copy mode and network scanner mode.) The factory default setting is "60" (sec.).

MESSAGE TIME SETTING

This program is used to set the length of time that messages appear in the display (this applies to messages that appear for a certain length of time and then automatically disappear.) The time can be set to as long as 12 seconds in increments of one second. The factory default setting is "6" (sec.).

1/3

KEYS TOUCH SOUND

This program is used to select whether or not a beep is sounded when a key is touched, and if sounded, what type of beep. The program is also use to select whether or not a special key touch beep is sounded at the initial point of a setting. The factory default settings are as follows:

• KEYS TOUCH SOUND: Short

• KEYS TOUCH SOUND AT INITIAL POINT: Disabled

KEY OPERATOR PROGRAMS

KEYS TOUCH SOUND

KEYS TOUCH SOUND AT INITIAL POINT

key.... Touch this key to select a

volume. A single

short

valid key, and a double

beep indicates a

short

beep

beep indicates

an invalid key.

key.... Touch this key to select a long beep

volume. A single long beep indicates a valid key, and a double long beep indicates an invalid key.

key .... Touch this key to disable key touch beeps.

Select the [KEYS TOUCH SOUND AT INITIAL POINT] checkbox to have three long beeps sound (when the beep volume is set to (when the beep volume is set to

long

) or three short beeps sound

short

) when the initial point of a setting is reached while selecting basic settings. The initial point settings are as follows:

Mode

Initial point (set from initial screen)

Copy mode Ratio: 100%

Exposure: 3

Fax mode Exposure: 3

Network scanner

Exposure setting: 3

mode

TOUCH KEY OPERATION SETTING

These programs are used to set the length of time that must elapse until a setting is entered after a key is touched, and to disable key repeat. The setting entry time can be set from 0.0 seconds to

2.0 seconds in increments of 0.5 seconds. When [DISABLE AUTO KEY REPEAT] is enabled, only one touch is registered if key is touched continuously. The factory default settings are as follows:

• Time to entry: 0.0 (sec.)

• DISABLE AUTO KEY REPEAT: Disabled

DISABLE INTERRUPT PRINT JOB

(When the printer function is enabled)

Enable this program if you wish to prevent pausing of printing for interrupt copy jobs. This program is initially disabled (factory default setting).

GENERAL PROGRAMS

STREAM FEEDING MODE

Use this program to enable stream feeding mode. When this mode is enabled and originals are scanned from the REVERSING SINGLE PASS FEEDER, an original can be added to the REVERSING SINGLE PASS FEEDER within 5 seconds after the previous original is fed, and be automatically scanned using the settings of the previous original. This function can be used with the copy function and the scanner function. This program is initially disabled (factory default setting).

DISPLAY LANGUAGE SETTING

This program is used to change the language used in the display. The factory default setting is "AMERICAN ENGLISH".

DISABLE DISPLAY TIMEOUT

When this program is disabled, the display will close the screen that is currently open and return to the initial screen if no keys are touched for 60 seconds. When the program is enabled, the display will not close the screen that is currently open. This program is initially disabled (factory default setting).

DEVICE CONTROL

KEY OPERATOR PROGRAMS

DEVICE CONTROL

DISABLING OF DOCUMENT FEEDER

DISABLING OF DUPLEX

DISABLING OF STAPLER

Use these programs when a peripheral device on the machine has failed or when you wish to temporarily disable a device. The programs can also be used to change the function setting of a device as required by your conditions of use. "DEVICE CONTROL" consists of the following programs:

● DISABLING OF DOCUMENT FEEDER

● DISABLING OF DUPLEX

● DISABLING OF STAPLER

● OUTPUT TRAYS

● OFFSET FUNCTION SETTING

● MEMORY FOR PRINTER

● DISABLING OF CENTER TRAY COUNTING

● RETURN FROM COPY MODE TIMING

● MIX SIZE ORIGINAL FEEDING MODE

● SECURITY SETTINGS

1/3

DISABLING OF TRAY SETTINGS

This program can be enabled to prohibit changes to the paper tray settings in the user settings. Note that bypass tray settings will still be possible. This program is initially disabled (factory default setting).

DISABLING OF CLOCK ADJUSTMENT

This program can be enabled to prohibit adjustment of the "CLOCK" setting in the custom settings. This program is initially disabled (factory default setting).

DISABLING OF DOCUMENT FEEDER

Use this program when the RSPF is not operational or you wish to disable the automatic feeding function. (Originals can still be scanned using the document glass.) This program is initially disabled (factory default setting).

DISABLING OF DUPLEX

Use this program when you wish to disable the two-sided printing function or the function has failed. When this program is enabled, only one-sided printing is possible.This program is initially disabled (factory default setting).

DISABLING OF STAPLER

(When a FINISHER is installed)

Use this program to disable stapling. When this program is enabled, stapling does not take place.This program is initially disabled (factory default setting).

GENERAL PROGRAMS

OUTPUT TRAYS

(When the printer or fax function is enabled and a JOB SEPARATOR TRAY KIT or FINISHER is installed)

This program is used to select the respective output trays for the copy, printer, and fax functions. The factory default setting is "PATTERN 1". Example: When a FINISHER is installed * Settings that can be selected vary depending on the

options that are installed.

Settings Description

PATTERN 1 Copy: Offset tray

Printer: Center tray Fax: Top tray

PATTERN 2 Copy: Center tray

Printer: Offset tray Fax: Top tray

PATTERN 3 (When the fax function is enabled)

PATTERN 4 (When the fax function is enabled)

Copy: Center tray Printer: Offset tray Fax: Center tray

Copy: Offset tray Printer: Center tray Fax: Center tray

OFFSET FUNCTION SETTING

This program is used to enable or disable the offset functions of the center tray and offset tray (when a FINISHER is installed). This program is initially enabled (factory default setting).

RETURN FROM COPY MODE TIMING

(When the printer function or fax function is enabled)

This program is used to set the amount of time that must elapse after a copy job is finished before the printer or fax function resumes operation. The amount of time can be set from 1 second to 60 seconds in increments of 1 second. The factory default setting is "60" (sec.).

MIX SIZE ORIGINAL FEEDING MODE

When this program is enabled, originals of mixed length (the widths must be the same) can be scanned in copy mode and each original copied onto the corresponding length of paper. This program is initially disabled (factory default setting).

SECURITY SETTINGS

The following settings are related to security. Touch the [SECURITY SETTINGS] key to configure the settings.

● SSL SETTINGS

SSL can be used for data transmission over a network. SSL is a protocol that enables the encryption of information communicated over a network. Encrypting data makes it possible to transmit and receive sensitive information safely.

•

HTTPS: Apply SSL encryption to HTTP

communication.

•

PP-SSL: Apply SSL encryption to IPP communication.

MEMORY FOR PRINTER

This program is used to set the amount of IMC memory that is allocated to the printer function. The amount of memory can be set from 30% to 70% in increments of 10%. The factory default settings are as follows:

•50 (%)

• THE MEMORY AREA FOR PRINT HOLD: 30 (%)

● Memory allocated to print hold (When the PRINTER EXPANSION KIT is installed)

To set the amount of memory allocated to print hold, touch the [THE MEMORY AREA FOR PRINT HOLD] key. The amount of memory can be set from 30% to 70% in increments of 10%. If 0% is selected, the print hold function cannot be used.

DISABLING OF CENTER TRAY COUNTING

This program is used to disable counting of pages delivered to the center tray. When this program is enabled, center tray full detection does not take place. This program is initially disabled (factory default setting).

GENERAL PROGRAMS

KEY OPERATOR CODE CHANGE

This program is used to change the key operator code that must be entered to configure the key operator programs. When the machine is first used, the key operator (adminstrator of the machine) should change the key operator code that was set at the factory to the desired 5-digit code. (A number that has been programmed as an account number cannot be used.) Only one key operator code can be programmed. The factory default setting for the key operator code is

00000.

PRODUCT KEY

(When the PRINTER EXPANSION KIT is installed)

KEY OPERATOR PROGRAMS

PRODUCT KEY

PS3 EXPANSION KIT

E-MAIL ALERT AND STATUS

Use these programs to enter the product keys for the following options.

NETWORK SCANNER EXPANSION KIT

SERIAL NUMBER

PS3 EXPANSION KIT

(When the PRINTER EXPANSION KIT is installed)

This program is used to enter the product key that enables the machine to be used as a PostScript printer. Ask your dealer for the product key.

NETWORK SCANNER EXPANSION KIT

(When the EXPANSION MEMORY are installed)

This program is used to enter the product key for the network scanner function. Ask your dealer for the product key.

PRINTER EXPANSION KIT

and

E-MAIL ALERT AND STATUS

(When the PRINTER EXPANSION KIT is installed)

This program is used to enter the product key for E-MAIL ALERT AND STATUS, which enables customer product support via a network system. Ask your dealer for the product key.

SERIAL NUMBER

Use this program to display the serial number of the machine. The serial number is required when obtaining product keys for PS3 EXPANSION KIT, NETWORK SCANNER EXPANSION KIT and the E-MAIL ALERT AND STATUS.

PROGRAMS FOR COPY MODE

This chapter explains the key operator programs that are used for copy mode.

COPY SETTINGS

KEY OPERATOR PROGRAMS

COPY FUNCTION SETTINGS

INITIAL STATUS SETTINGS

ROTATION COPY SETTING

EXPOSURE ADJUSTMENT

"COPY SETTINGS" consists of the following programs:

● INITIAL STATUS SETTINGS

● ROTATION COPY SETTING

● EXPOSURE ADJUSTMENT

● AUTO PAPER SELECTION SETTING

● SETTING A MAXIMUM NUMBER OF COPIES

● SORT AUTO SELECT

● DISABLING DELETION OF JOB PROGRAMS

● CARD SHOT SETTINGS

AE:3 AE:3

INITIAL STATUS SETTINGS

The copy settings revert to the default settings when the power switch is turned on, when the [CLEAR ALL] key ( ) is pressed, or when the auto clear time elapses. This program is used to change the default settings, or return changed default settings to the initial factory default settings. Defaults for the following copy settings can be changed:

• Paper tray • Exposure mode

• Copy ratio • Duplex function

• Post-processing functions* (non-sort, sort, staple sort, and group) *Settings for the post-processing functions vary

depending on whether or not a FINISHER is installed.

Note

If this program is used to change the default setting for the duplex function to other than "one-sided" "one-sided" and the RSPF fails or is disabled, the setting will revert to "one-sided" "one-sided". * DISABLING OF DOCUMENT FEEDER (p.12)

DISABLING OF DUPLEX (p.12)

1/3

EXPOSURE ADJUSTMENT

This program is used to adjust the exposure level when "Auto" is used for the copy exposure. The auto exposure level can be set separately for the document glass and RSPF. [1] is the lightest level and [5] is the darkest level. The factory default settings are as follows:

• Document glass: 3

• Document feeder: 3

AUTO PAPER SELECTION SETTING

This program is used to select the paper type* that is used when the automatic paper selection function operates. "PLAIN PAPER" or "PLAIN AND RECYCLE PAPER" can be selected. Auto paper selection can also be disabled with this program. The factory default setting is "PLAIN PAPER". * The paper type set for each tray in the tray settings of

the user settings. (See "CUSTOM SETTINGS" in the operation manual for copier.)

SETTING A MAXIMUM NUMBER OF COPIES

This program is used to set the maximum number of copies that are allowed per original. Any number from 1 to 999 can be set for the maximum. The factory default setting is "999".

SORT AUTO SELECT

This program can be used to disable automatic selection of the sort function. This program is initially enabled (factory default setting).

DISABLING DELETION OF JOB PROGRAMS

This program is used to prevent copy settings stored in job programs from being changed or deleted. This program is initially disabled (factory default setting).

ROTATION COPY SETTING

When this program is enabled, the original image is automatically rotated 90 degrees in the event that the original and the paper are in different orientations. (Rotation can only take place when auto paper selection and automatic ratio selection are used.) This program is initially enabled (factory default setting).

CARD SHOT SETTINGS

This program is used to set the initial original card size for the card shot function. Entry of the X dimension (width) is initially selected. Touch the keys to enter the Y dimension (length) in the same way. To have "FIT TO PAGE" be initially selected when the card shot screen is opened, touch the [FIT TO PAGE] key.

PROGRAMS FOR PRINT MODE

This chapter explains key operator programs that are used for the printer function. These programs can only be configured on models that have the printer function.

PRINT SETTINGS

KEY OPERATOR PROGRAMS

PRINT SETTINGS

DEFAULT SETTINGS

NETWORK SETTINGS

INTERFACE SETTINGS

INITIALIZE AND/OR STORE

SETTINGS

DEFAULT SETTINGS

These programs allow you to change certain default settings for the printer function. The "DEFAULT SETTINGS" consist of the following programs:

● PROHIBIT NOTICE PAGE PRINTING

● PRINT DENSITY LEVEL

● PROHIBIT TEST PAGE PRINTING

● ROTATED PRINT

● FORCED OUTPUT OF PRINT

● EXCLUDE BYPASS-TRAY FROM ATS

● DISABLE DEFAULT SETTING CHANGES

FORCED OUTPUT OF PRINT

This program is used to enable or disable automatic printing on a different size of paper when no paper trays have the selected size of paper. This program is initially disabled (factory default setting).

EXCLUDE BYPASS-TRAY FROM ATS

This program is used to exclude paper in the bypass tray when automatic paper selection is used. This program is initially enabled (factory default setting).

DISABLE DEFAULT SETTING CHANGES

(When the PRINTER EXPANSION KIT is installed)

This program is used to prevent the configuration setting defaults from being changed. This program is initially disabled (factory default setting).

PROHIBIT NOTICE PAGE PRINTING

This program is used to prohibit the printing of notice pages. For an explanation of notice pages, see "If a Notice Page is printed" in the online manual for printer. This program is initially disabled (factory default setting).

PRINT DENSITY LEVEL

The print density can be set to one of five different levels. [1] is the lightest level and [5] is the darkest level. The factory default setting is "3".

PROHIBIT TEST PAGE PRINTING

(When the PRINTER EXPANSION KIT is installed)

This program is used to prohibit the printing of test pages. When the program is enabled, a test page cannot be printed from the user settings. (See the operation manual for copier) This program is initially disabled (factory default setting).

ROTATED PRINT

This program is used to enable or disable rotation of the print image when an A4R, B5R, or 8-1/2 x 11R (Letter R) document is being printed but there is no paper loaded in that orientation. This program is initially enabled (factory default setting).

PROGRAMS FOR PRINT MODE

INTERFACE SETTINGS

The "INTERFACE SETTINGS" are used to monitor and set limits for the data that is sent to the machine’s parallel port, USB port, or network port. The settings consist of the following programs:

● HEXADECIMAL DUMP MODE

● I/O TIMEOUT

● PARALLEL PORT EMULATION SWITCHING

● USB PORT EMULATION SWITCHING

● NETWORK PORT EMULATION SWITCHING

● PORT SWITCHING METHOD

● ENABLE PARALLEL PORT

● ENABLE USB PORT

● ENABLE NETWORK PORT

● ENABLE ECP

HEXADECIMAL DUMP MODE

(When the PRINTER EXPANSION KIT is installed)

This program is used to print out the print data from the computer in hexadecimal and in the corresponding text characters (based on ASCII code). This allows you to check whether or not print data is being correctly sent from the computer. This program is initially disabled (factory default setting).

Example of output in hexadecimal dump mode (A4 portrait)

PARALLEL PORT EMULATION SWITCHING

(When the PRINTER EXPANSION KIT is installed)

This program is used to set the printer language when the machine is connected using the parallel port. The factory default setting is "AUTO".

Unless printing errors occur frequently, it is recommended that the setting be kept at "AUTO".

Selections Description

AUTO The printer language is

automatically changed to match the data received from the computer.

PostScript (When the PS3 EXPANSION KIT is installed)

PCL The data received from the

The data received from the computer is printed using PostScript.

computer is printed using PCL.

USB PORT EMULATION SWITCHING

(When the PRINTER EXPANSION KIT is installed)

This program is used to set the printer language when the machine is connected using the USB port. The selections are the same as for "PARALLEL PORT EMULATION SWITCHING". The factory default setting is "PCL*". * When the PS3 expansion kit is installed, the setting is

"AUTO".

I/O TIMEOUT

This program is used to set the amount of time until I/O timeout when waiting for print data. In the event that the set amount of time elapses without the port receiving any print data, the I/O timeout function temporarily breaks the port connection and intiates automatic port selection or makes the port begin waiting for the next set of print data. The factory default settings are as follows:

• 180 (sec.)

• When the PRINTER EXPANSION KIT is installed: 60 (sec.)

Unless printing errors occur frequently, it is recommended that the setting be kept at "AUTO".

NETWORK PORT EMULATION SWITCHING

(When the PRINTER EXPANSION KIT is installed)

Unless printing errors occur frequently, it is recommended that the setting be kept at "AUTO".

PROGRAMS FOR PRINT MODE

PORT SWITCHING METHOD

(When the PRINTER EXPANSION KIT is installed)

This program is used to set the method for switching printer ports. The machine can use the following three printer ports:

• Parallel port

•USB port

• Network port

The factory default setting is "SWITCH AT END OF JOB".

Selections Description

SWITCH AT END OF JOB

SWITCH AFTER I/O TIMEOUT

Automatic printer port selection at the end of each print job.

Automatic printer port selection if the time set in "I/O TIMEOUT" elapses.

ENABLE PARALLEL PORT

(When the PRINTER EXPANSION KIT is installed)

This program is used to enable or disable printing via the parallel port. This program is initially enabled (factory default setting).

NETWORK SETTINGS

(When the PRINTER EXPANSION KIT is installed)

The NETWORK SETTINGS are used when the machine is used as a network printer. The "NETWORK SETTINGS" consist of the following programs:

● IP ADDRESS SETTING

● ENABLE TCP/IP

● ENABLE NetWare

● ENABLE EtherTalk

● ENABLE NetBEUI

● RESET THE NIC

Caution

Note

Consult your network administrator before configuring the NETWORK SETTINGS.

• After changing the settings, you must turn off the machine’s power switch, wait briefly, and then turn the switch back on in order to make the changes take effect.

• Some programs in the following are marked by "*1". This indicates that a message will appear at the end of the setting procedure asking you to confirm execution of the new setting. If needed, you can cancel the new setting by touching the [NO] key.

ENABLE USB PORT

(When the PRINTER EXPANSION KIT is installed)

This program is used to enable or disable printing via the USB port. This program is initially enabled (factory default setting).

ENABLE NETWORK PORT

(When the PRINTER EXPANSION KIT is installed)

This program is used to enable or disable printing via the network port. This program is initially enabled (factory default setting).

ENABLE ECP

(When the PRINTER EXPANSION KIT is installed)

Enable this program when you wish to use ECP mode on the parallel port. This program is initially disabled (factory default setting).

IP ADDRESS SETTING

This program is used to set the IP address (IP address, Subnet Mask, and Gateway) of the machine when TCP/IP protocol is used on the network. When "DHCP" is selected, the machine will obtain an IP address automatically. This is the factory default setting. When the machine is used on a TCP/IP network, be sure to enable the "ENABLE TCP/IP" program.

Caution

Note

When DHCP is used, the IP address assigned to the machine may automatically be changed on occasion. If this happens, printing will not be possible.

This setting is only effective in a network environment that uses Ipv4 TCP/IP protocol. To set an IP address on a Ipv6 TCP/IP network, use the Web pages. In an IPv6 environment, the machine can use LPD or IPP protocol.

ENABLE TCP/IP

This program must be enabled to use the machine on a TCP/IP network. "IP ADDRESS SETTING" must also be configured. This program is initially enabled (factory default setting).

ENABLE NetWare

This program must be enabled to use the machine on a network that uses NetWare protocol. This program is initially enabled (factory default setting).

PROGRAMS FOR PRINT MODE

ENABLE EtherTalk

This program must be enabled to use the machine on a network that uses EtherTalk protocol. This program is initially enabled (factory default setting).

ENABLE NetBEUI

This program must be enabled to use the machine on a network that uses NetBEUI protocol. This program is initially enabled (factory default setting).

RESET THE NIC

This program is used to restore all network settings to the factory default settings.

INITIALIZE AND/OR STORE SETTINGS

(When the PRINTER EXPANSION KIT is installed)

These programs are used to return the configuration settings (See the online manual for network printer) and the "PRINT SETTINGS" (p.16) to the factory default settings. The programs are also used to store the current settings and to restore stored settings. "INITIALIZE AND/OR STORE SETTINGS" consists of the following programs:

● RESTORE FACTORY DEFAULTS

● STORE CURRENT CONFIGURATION

● RESTORE CONFIGURATION

Note

RESTORE FACTORY DEFAULTS

This program is used to return the configuration settings (see the online manual for network printer) and the "PRINT SETTINGS" (p.16) to the factory default settings. If you need a record of the current settings before restoring the factory defaults, use "Data list print" in the user settings to print a list of the current settings. (See "CUSTOM SETTINGS" in the operation manual for copier.)

Some programs in the following are marked by "*1". This indicates that a message will appear at the end of the setting procedure asking you to confirm execution of the new setting. If needed, you can cancel the new setting by touching the [NO] key.

STORE CURRENT CONFIGURATION

This program is used to store the current configuration settings (see online manual for network printer) and "PRINT SETTINGS" (p.16). The stored settings will not be erased even if the power is turned off. To restore the stored settings, use the "RESTORE CONFIGURATION" program.

RESTORE CONFIGURATION

This program is used to restore settings that were stored using the "STORE CURRENT CONFIGURATION" program. The current settings will change to the restored settings.

Note

If any of the "NETWORK SETTINGS" (p.18) were changed before execution of this program, you must turn off the machine’s power switch, wait briefly, and then turn the switch back on in order to make the settings take effect.

PROGRAMS FOR NETWORK SCANNER MODE

This chapter explains key operator programs that are used for the network scanner function. These programs can only be configured on models that have the network scanner function.

SCANNER SETTINGS

KEY OPERATOR PROGRAMS

SCANNER SETTINGS

INITIAL FILE FORMAT SETTING

INITIAL QUALITY SETTING

INITIAL RESOLUTION SETTING

The "SCANNER SETTINGS" consist of the following programs:

● INITIAL FILE FORMAT SETTING

● INITIAL QUALITY SETTING

● INITIAL RESOLUTION SETTING

● DEFAULT DISPLAY SETTINGS

● THE NUMBER OF DIRECT ADDRESS / SENDER

KEYS DISPLAYED SETTING

INITIAL FILE FORMAT SETTING

Use this program to change the default file format (file type, compression mode, and number of pages per file) that is used when sending an image by Scan to E-mail, Scan to Desktop, or Scan to FTP. The factory default settings are as follows:

• File type: TIFF

• Compression mode: G4

• Number of pages per file: All

1/2

THE NUMBER OF DIRECT ADDRESS / SENDER KEYS DISPLAYED SETTING

This program is used to select the number of one-touch keys that are displayed in the address book screen and sender selection screen. Selections are [6], [8], and [12]. The factory default setting is "8" (keys).

Note

Each displayed one-touch key name can be up to 18 characters long when the number of displayed one-touch keys is 6 or 8. Each name can only be 10 characters long when the number of displayed one-touch keys is

12.

INITIAL QUALITY SETTING

This program is used to set the default original type and exposure level for network scanner mode. For informatin on these settings, see the operation manual for network scanner. The factory default settings are as follows:

• Original image type: Text/Photo

• Exposure: Auto

INITIAL RESOLUTION SETTING

This program is used to set the default resolution for network scanner mode. The factory default setting is "300" (dpi).

DEFAULT DISPLAY SETTINGS

Use this program to select the initial screen that appears when the [SCAN] key is pressed to switch to network scanner mode, or when the [CLEAR ALL] key ( ) is pressed in scanner mode. Three selections are available for the initial screen:

• CONDITION SETTINGS

• ADDRESS BOOK (ABC)

• ADDRESS BOOK (GROUP)

The factory default setting is "CONDITION SETTINGS".

AR-M257/AR-M317

AR-M257/AR-M317 KEY OPERATOR'S GUIDE

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430-2135.

www.sharpusa.com

SHARP ELECTRONICS OF CANADA LTD.

335 Britannia Road East, Mississauga, Ontario, L4Z 1W9

This manual has been printed using a vegetable-based soy oil ink to help protect the environment. Printed on 100% post-consumer recycled paper

PRINTED IN CHINA

2007B KS1

TINSE1679QSZZ

MODEL

AR-M257 AR-M317

DIGITAL MULTIFUNCTIONAL SYSTEM

OPERATION MANUAL

(for copier)

• BEFORE USING THE MACHINE

• COPY FUNCTIONS

• CONVENIENT COPY

FUNCTIONS

• USER SETTINGS

• TROUBLESHOOTING

AND MAINTENANCE

• PERIPHERAL DEVICES AND SUPPLIES

• APPENDIX

Page

35 53

78 82

➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣

➣

➢

FOR YOUR RECORDS ...

To protect against loss or theft, record and retain for reference the copier’s serial number located on the back of the unit.

Model Number

Serial Number

Date of Purchase

Place of Purchase Authorized Sharp Copier

Service Department Number

➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣

➢

For users in the USA

➢

➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣

➢

➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

WARNING:

FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Shielded interface cables must be used with this equipment to maintain compliance with EMC regulations.

Do not make copies of anything which is prohibited from copying by law. The following items are normally prohibited from copying by national law. Other items may be prohibited by local law.

● Money ● Stamps ● Bonds ● Stocks ● Bank drafts

● Checks ● Passports ● Driver's licenses

CONTENTS

CAUTIONS................................................................................................................................................. 3

● CAUTIONS ON USING THE MACHINE ........................................................................................................... 3

● IMPORTANT POINTS WHEN SELECTING AN INSTALLATION SITE ........................................................... 3

● CAUTIONS ON HANDLING THE MACHINE.................................................................................................... 4

● ENVIRONMENTAL INFORMATION ................................................................................................................. 5

USING THE MANUAL ............................................................................................................................... 5

● ABOUT THE OPERATION MANUALS ............................................................................................................. 5

● THE MEANING OF "R" IN ORIGINAL AND PAPER SIZE INDICATIONS ....................................................... 6

● CONVENTIONS USED IN THIS MANUAL ....................................................................................................... 6

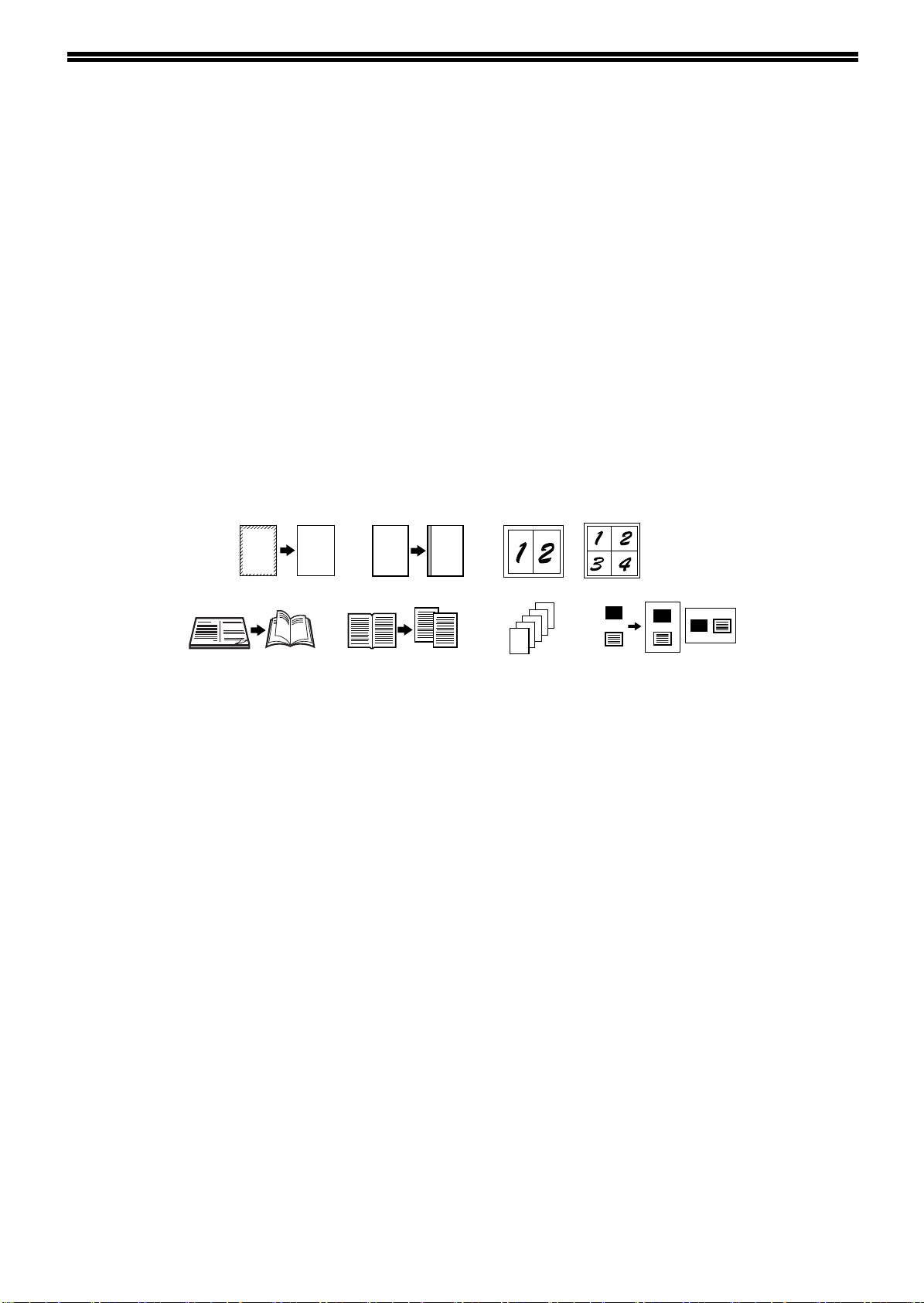

MAIN FEATURES ...................................................................................................................................... 7

1 BEFORE USING THE MACHINE

PART NAMES AND FUNCTIONS ..................... 8

● OPERATION PANEL ......................................10

● TOUCH PANEL ..............................................11

POWER ON AND OFF..................................... 13

● POWER ON ....................................................13

● POWER OFF ..................................................13

● INITIAL SETTINGS.........................................14

● POWER SAVE MODES..................................14

LOADING PAPER............................................ 15

● PAPER ............................................................15

● LOADING PAPER...........................................17

● CHANGING A TRAY’S PAPER TYPE AND

PAPER SIZE SETTINGS................................19

2 COPY FUNCTIONS

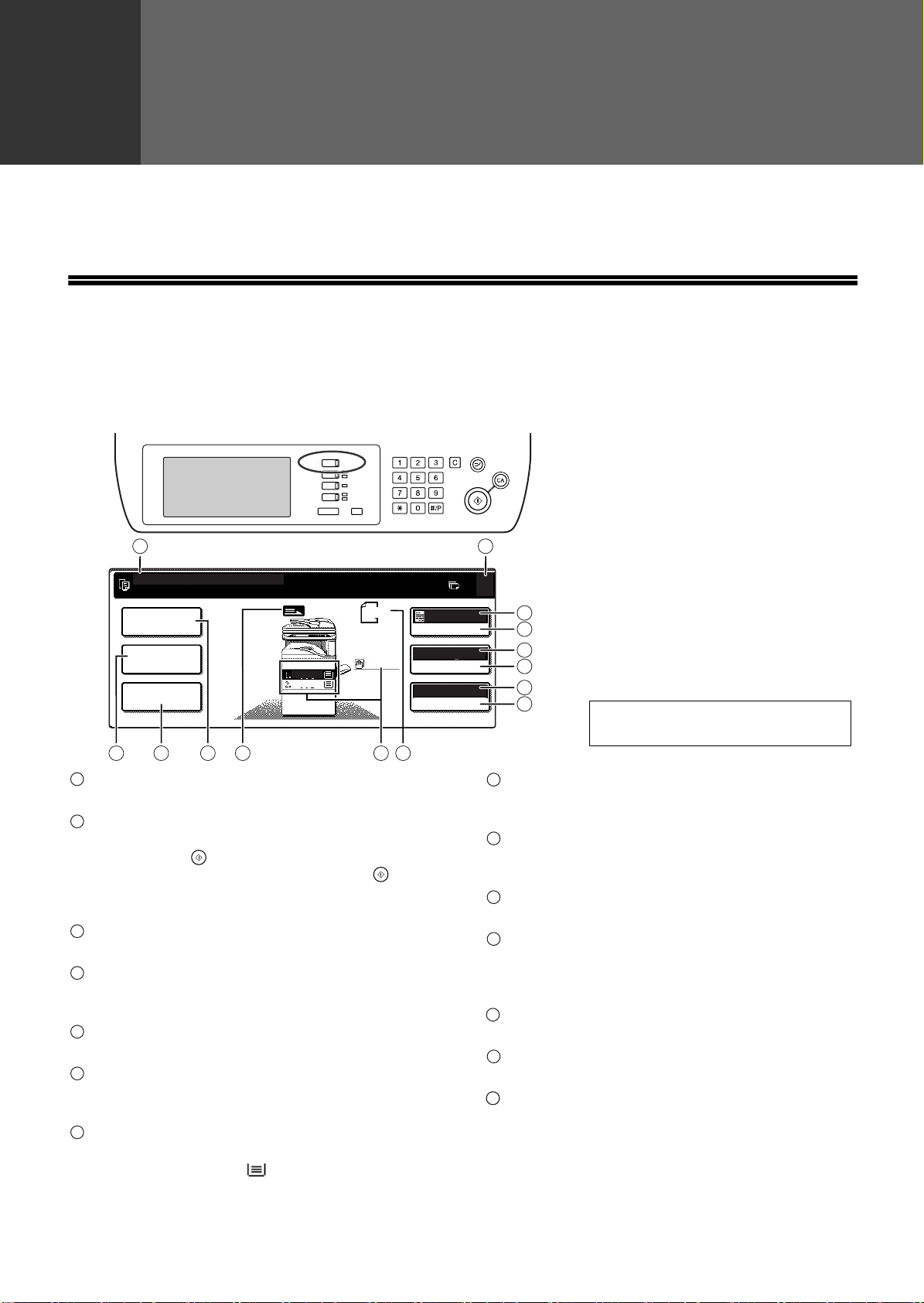

MAIN SCREEN OF COPY MODE ................... 21

NORMAL COPYING ........................................ 22

●

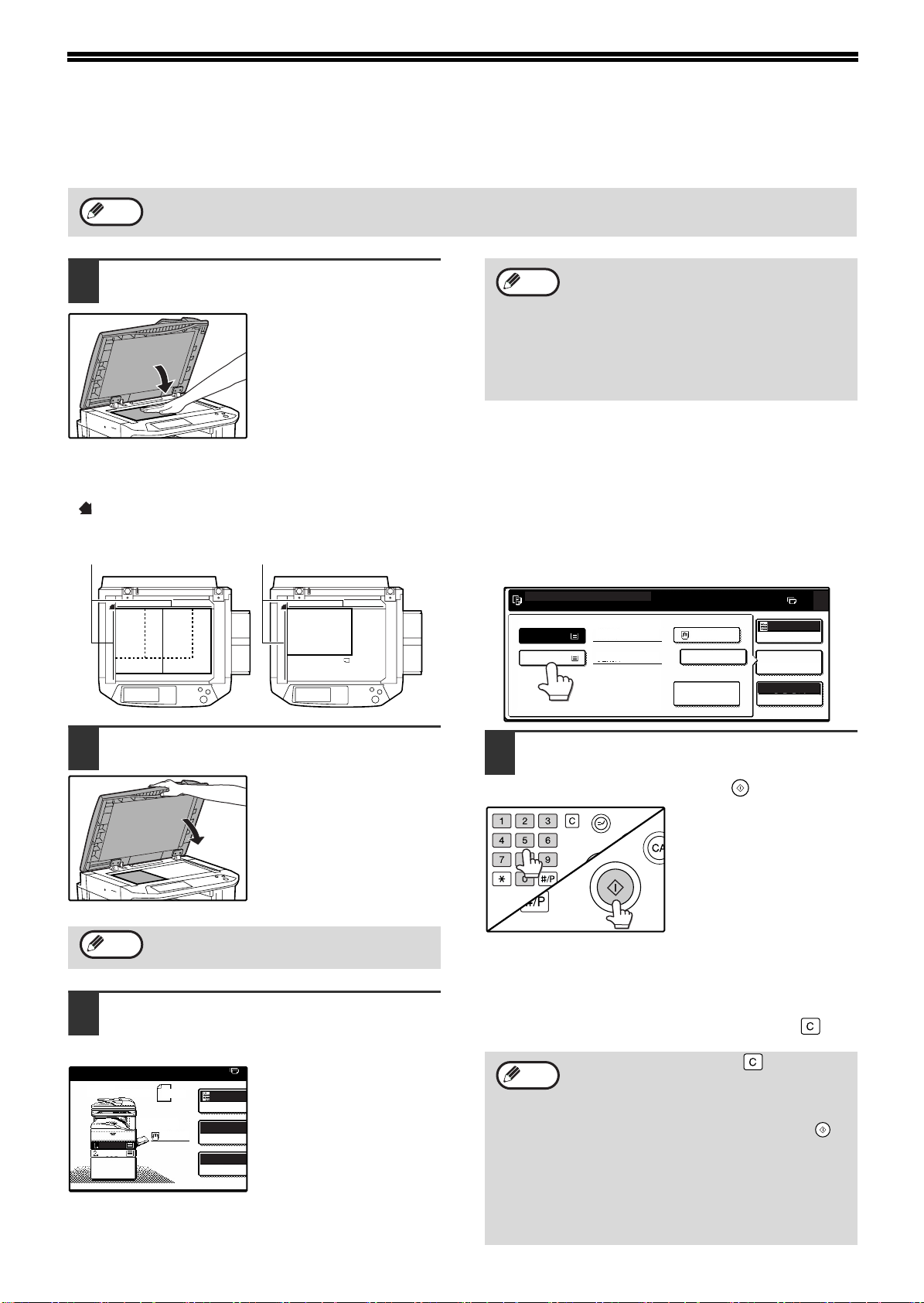

COPYING FROM THE DOCUMENT GLASS

● COPYING FROM THE RSPF .........................23

●

POINTS TO NOTE WHEN MAKING COPIES

● BYPASS FEED (special paper) ......................26

AUTOMATIC TWO-SIDED COPYING............. 27

● USING THE DOCUMENT GLASS..................27

● USING THE RSPF..........................................28

EXPOSURE ADJUSTMENT ............................ 29

●

SELECTING THE ORIGINAL IMAGE TYPE AND MANUALLY ADJUSTING THE EXPOSURE

REDUCTION/ENLARGEMENT/ZOOM............ 30

● AUTOMATIC RATIO SELECTION .................30

● MANUAL RATIO SELECTION........................31

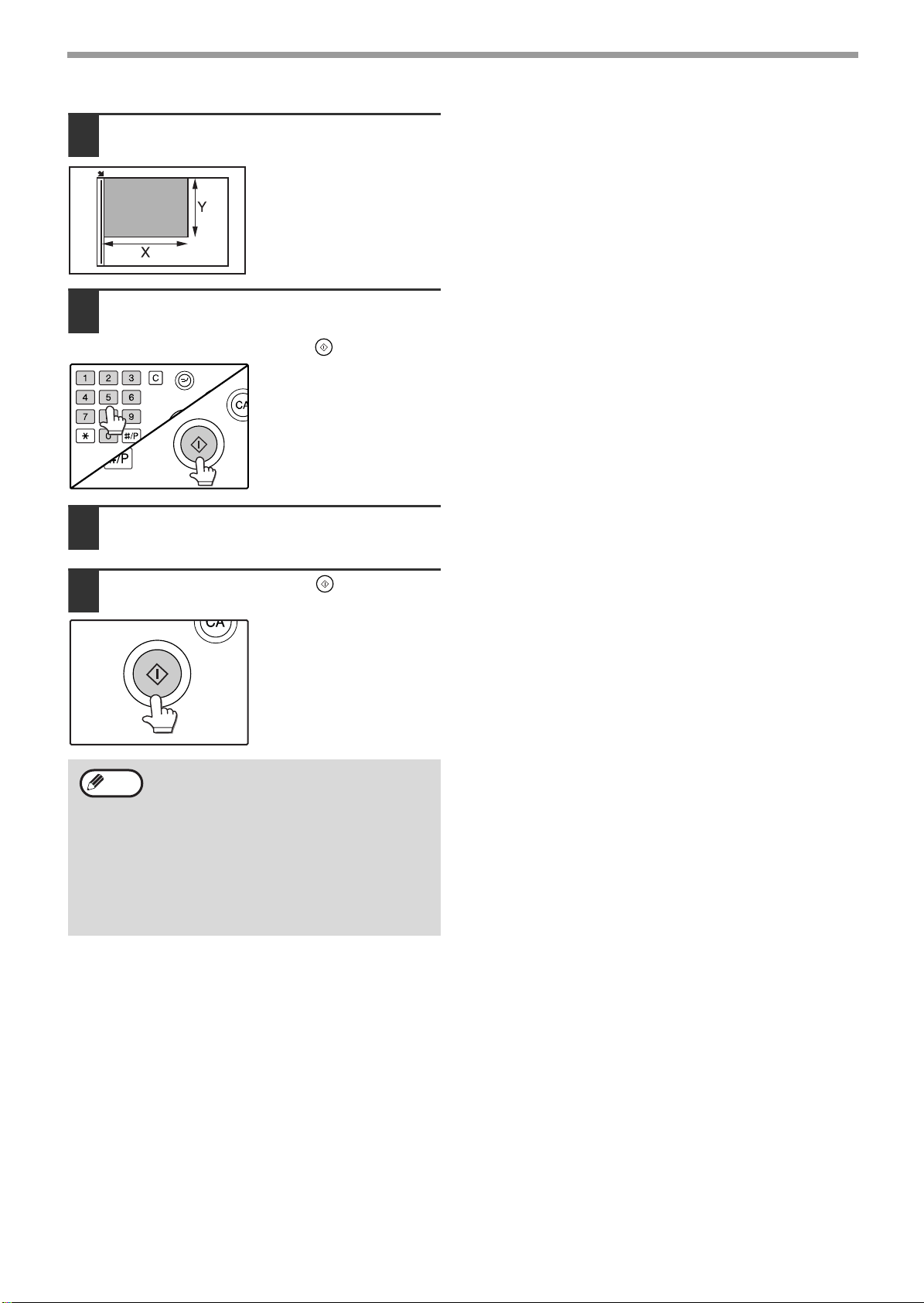

● SELECTING THE VERTICAL AND

HORIZONTAL COPY RATIOS SEPARATELY

(XY ZOOM copying)........................................32

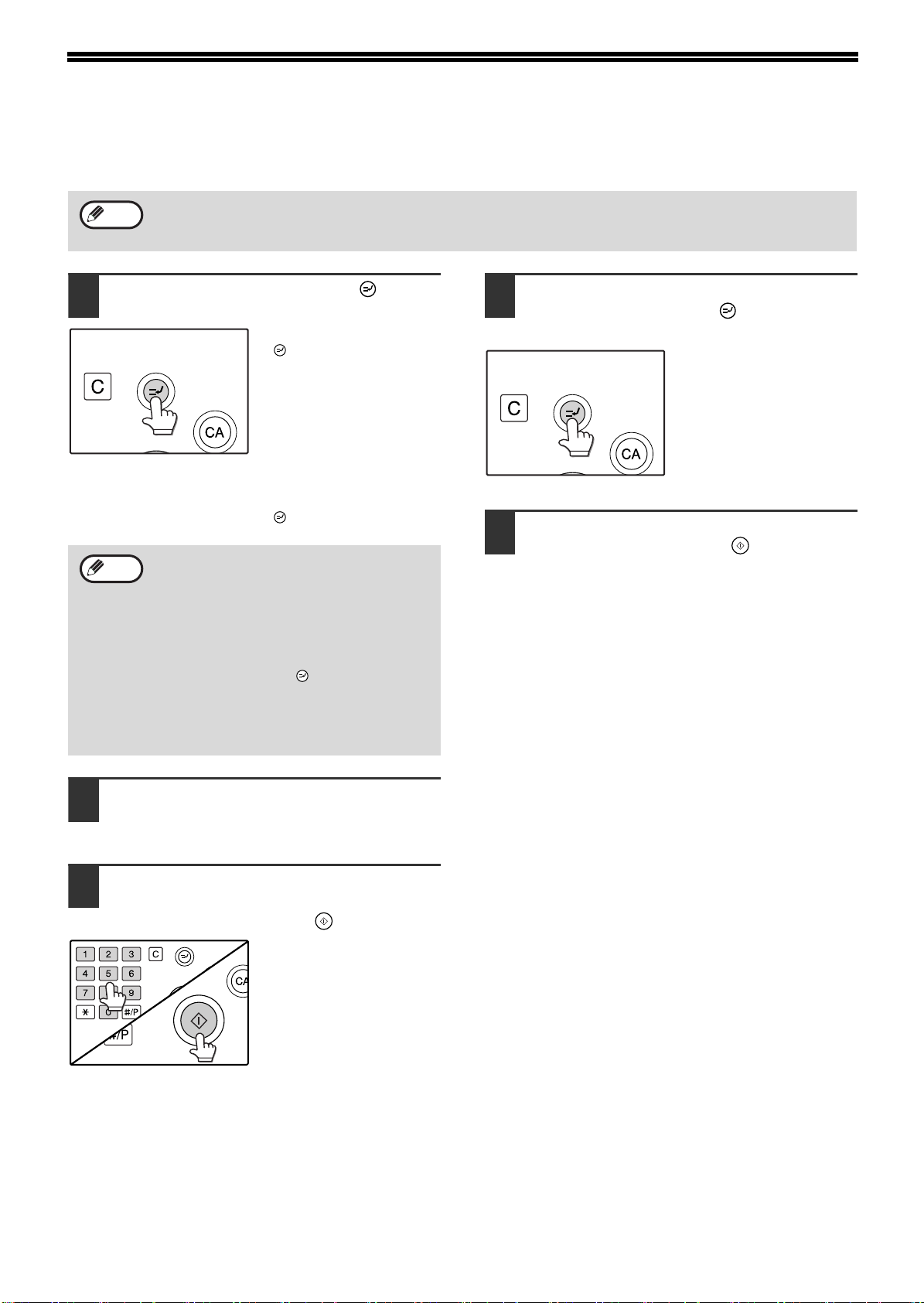

INTERRUPTING A COPY RUN ....................... 34

....22

...24

......29

3 CONVENIENT COPY FUNCTIONS

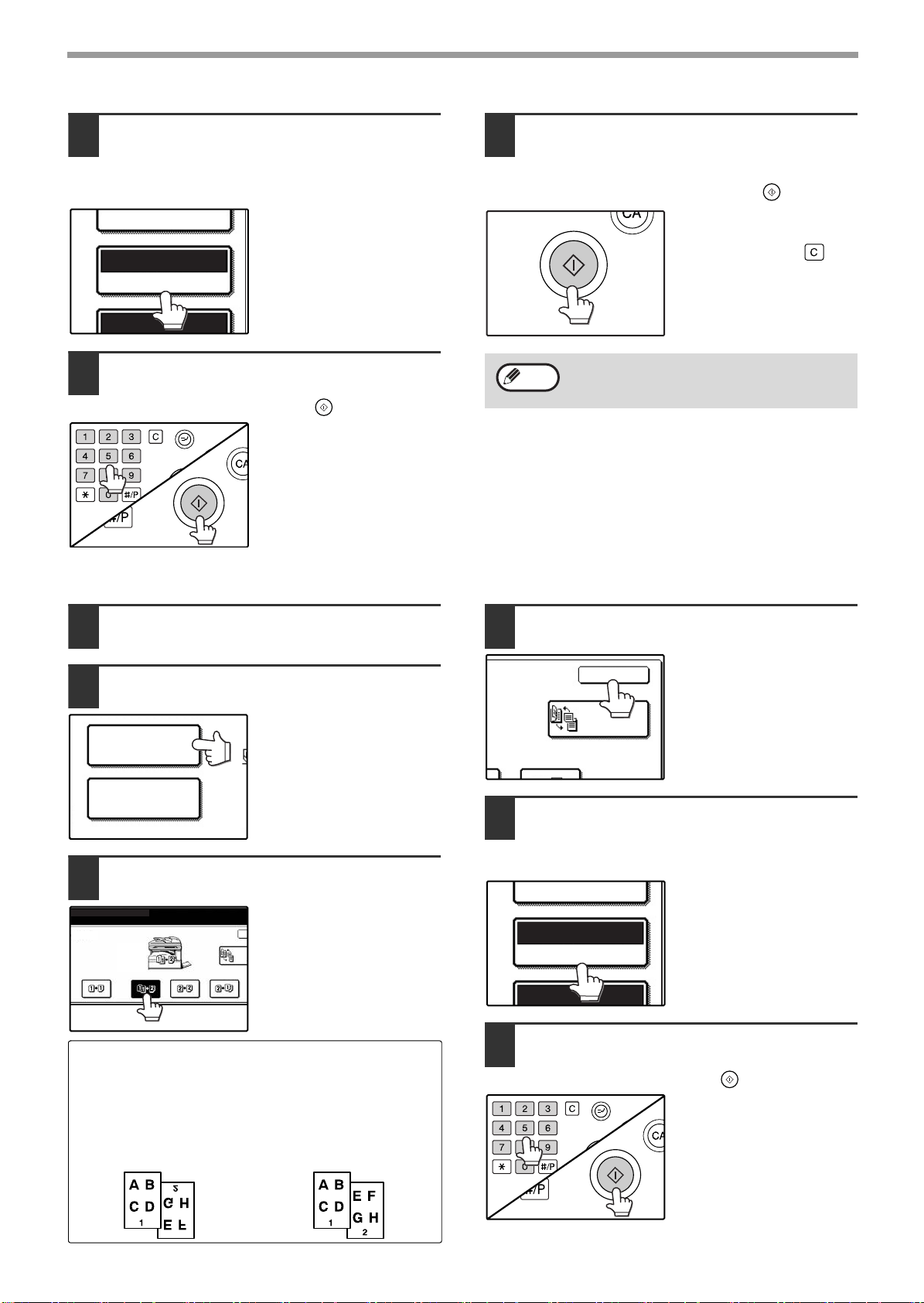

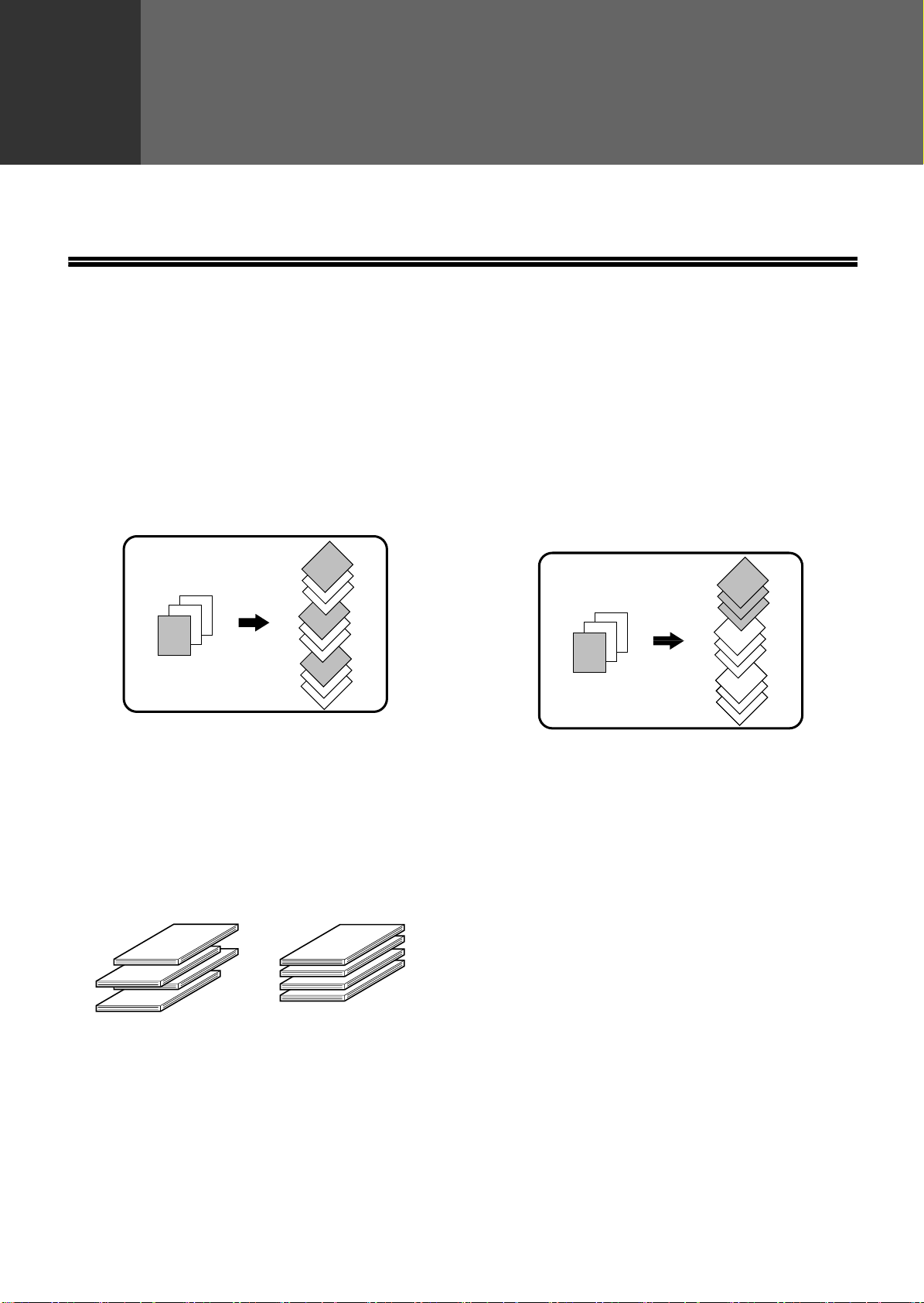

COPY FINISHING FUNCTIONS ...................... 35

● SORT COPY.................................................. 35

● GROUP COPY............................................... 35

● OFFSET FUNCTION ..................................... 35

● STAPLE SORT (when the finisher

(AR-FN5A) is installed) .................................. 37

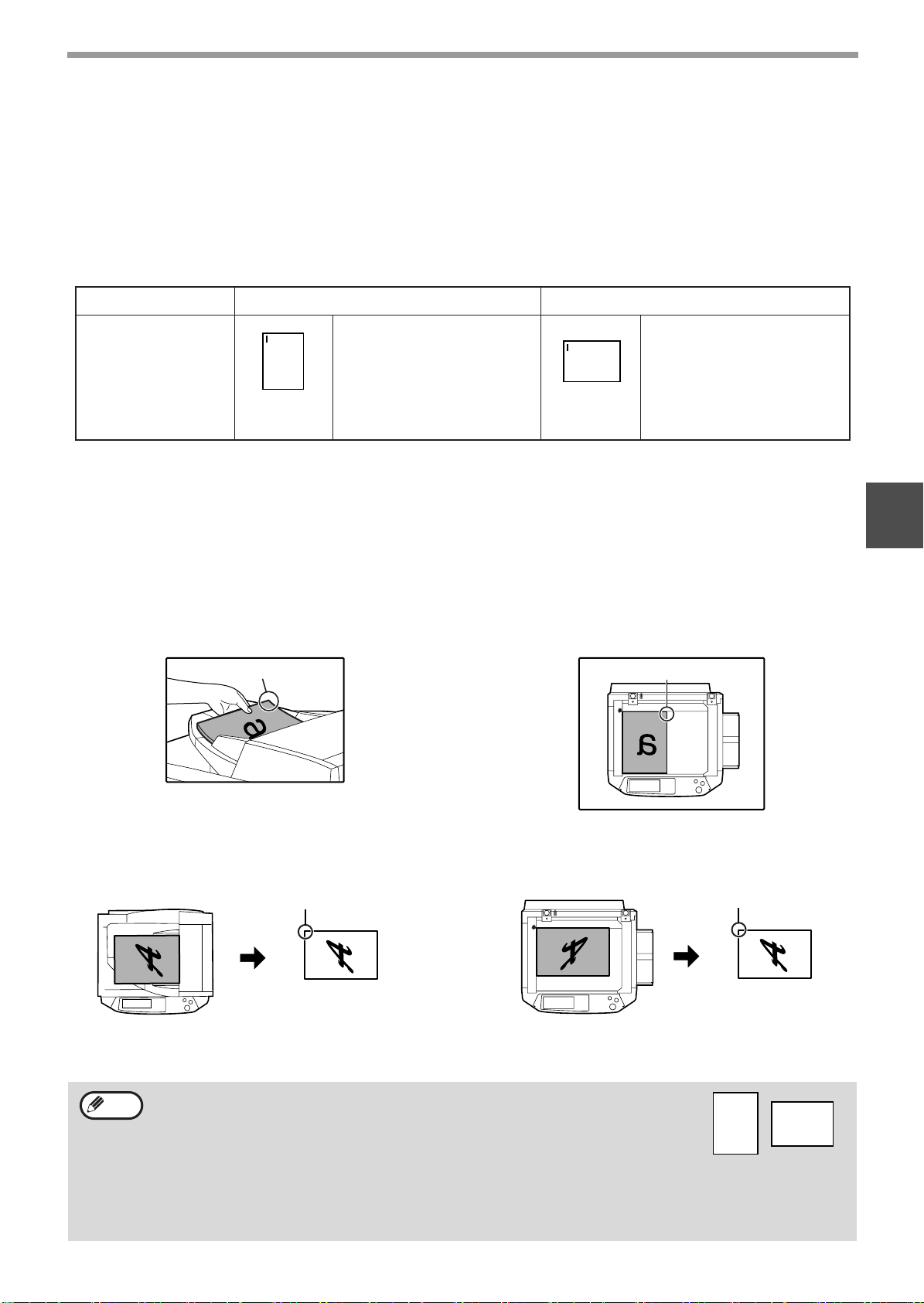

● ORIENTATION OF THE ORIGINAL AND

STAPLING POSITIONS................................. 37

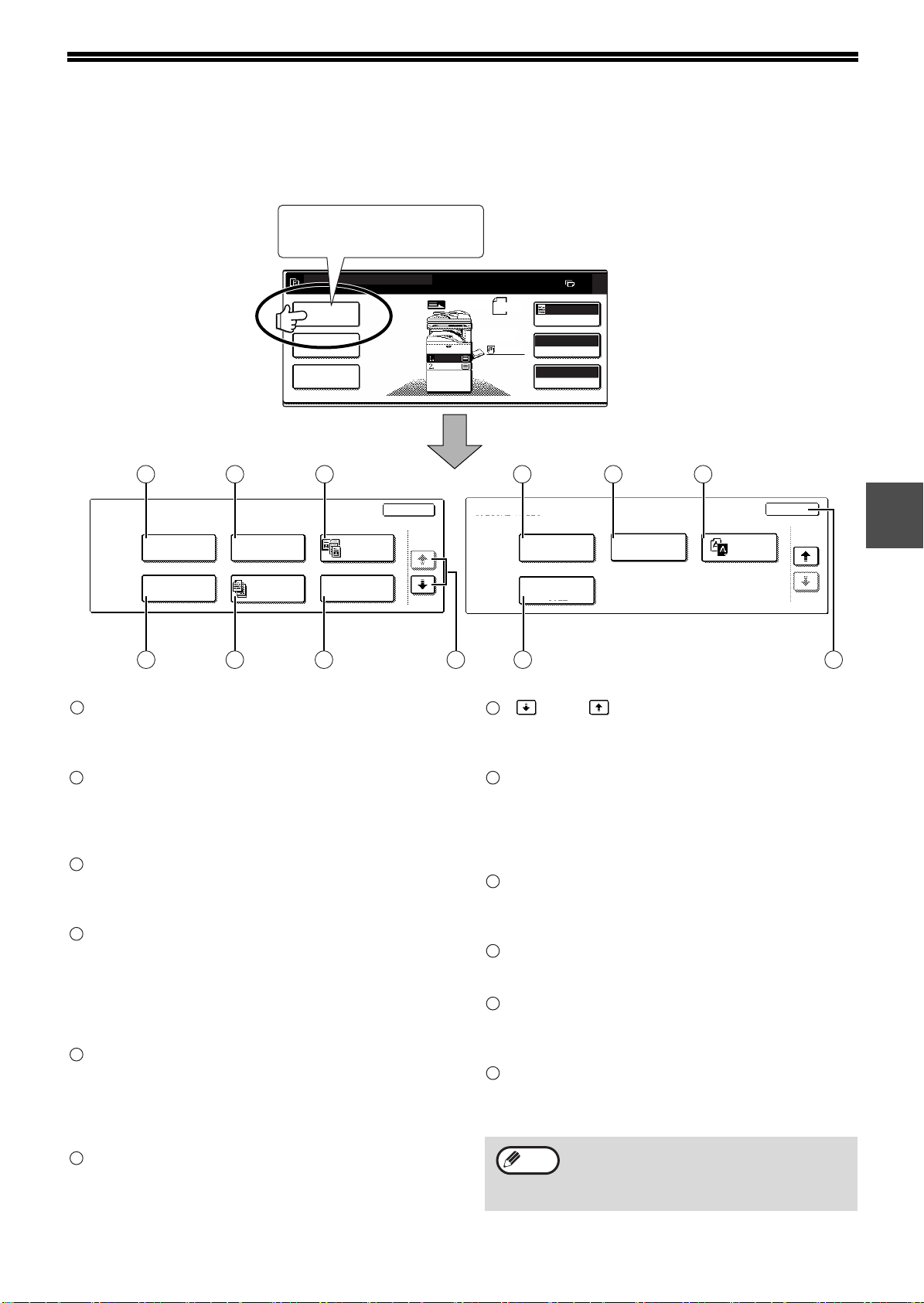

SPECIAL MODES............................................ 39

● GENERAL PROCEDURE FOR USING THE

SPECIAL FUNCTIONS .................................. 40

● MARGIN SHIFT COPY .................................. 41

● ERASE COPY................................................ 42

● DUAL PAGE COPY ....................................... 43

● PAMPHLET COPY ........................................ 44

● JOB BUILD MODE......................................... 45

● MULTI SHOT COPY ...................................... 46

● ORIGINAL SIZE............................................. 47

● COVER COPY ............................................... 48

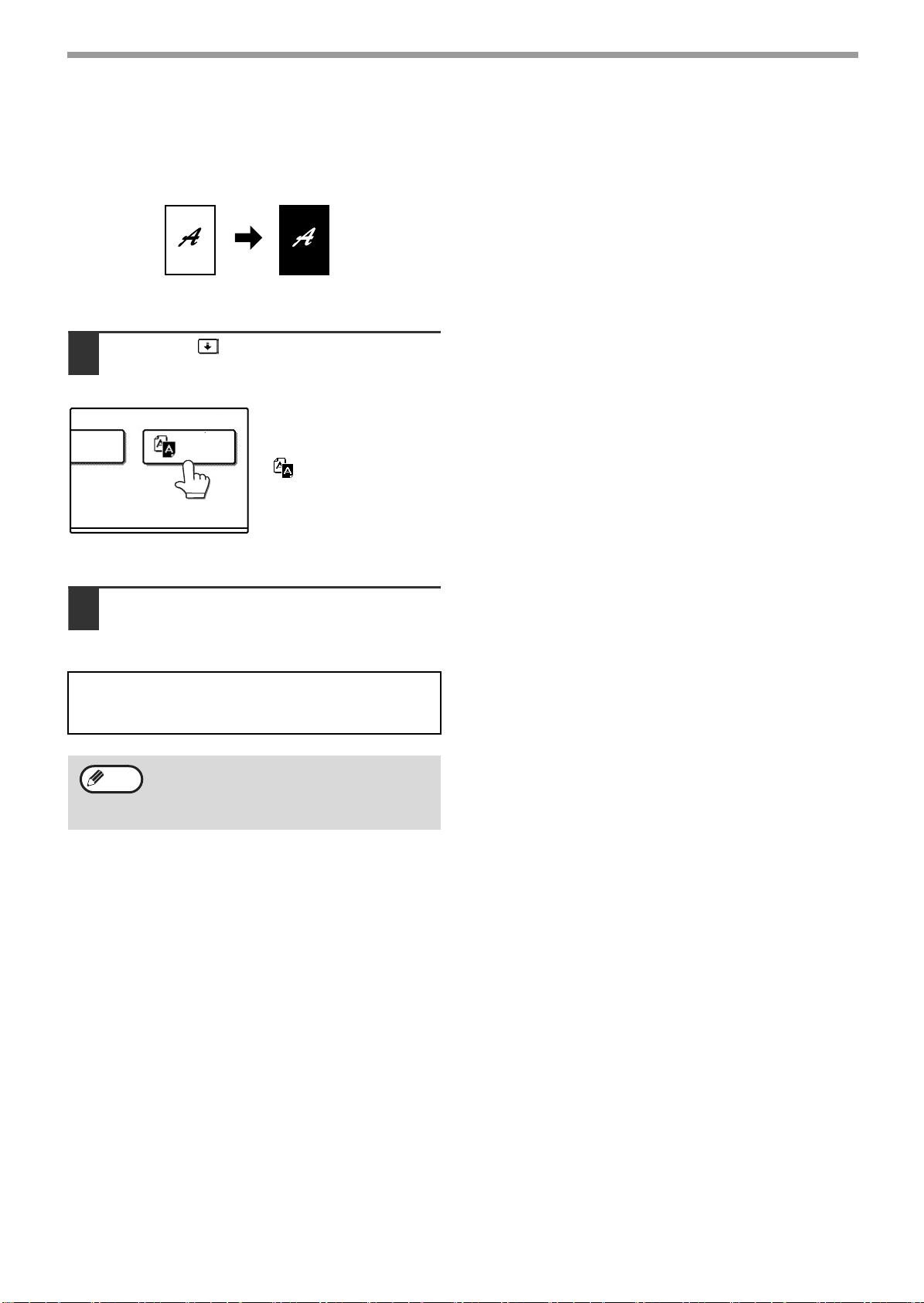

● B/W REVERSE COPY................................... 50

● CARD SHOT .................................................. 51

4 USER SETTINGS

CUSTOM SETTINGS....................................... 53

● GENERAL PROCEDURE FOR CUSTOM

SETTINGS ..................................................... 54

● SETTINGS ..................................................... 55

JOB PROGRAM MEMORY ............................. 56

● STORING A JOB PROGRAM........................ 56

● EXECUTING A JOB PROGRAM ................... 57

● DELETING A STORED JOB PROGRAM ...... 57

AUDITING MODE ............................................ 58

● COPYING WHEN AUDITING MODE IS

ENABLED ...................................................... 58

DISPLAY MESSAGES..................................... 60

TROUBLESHOOTING ..................................... 62

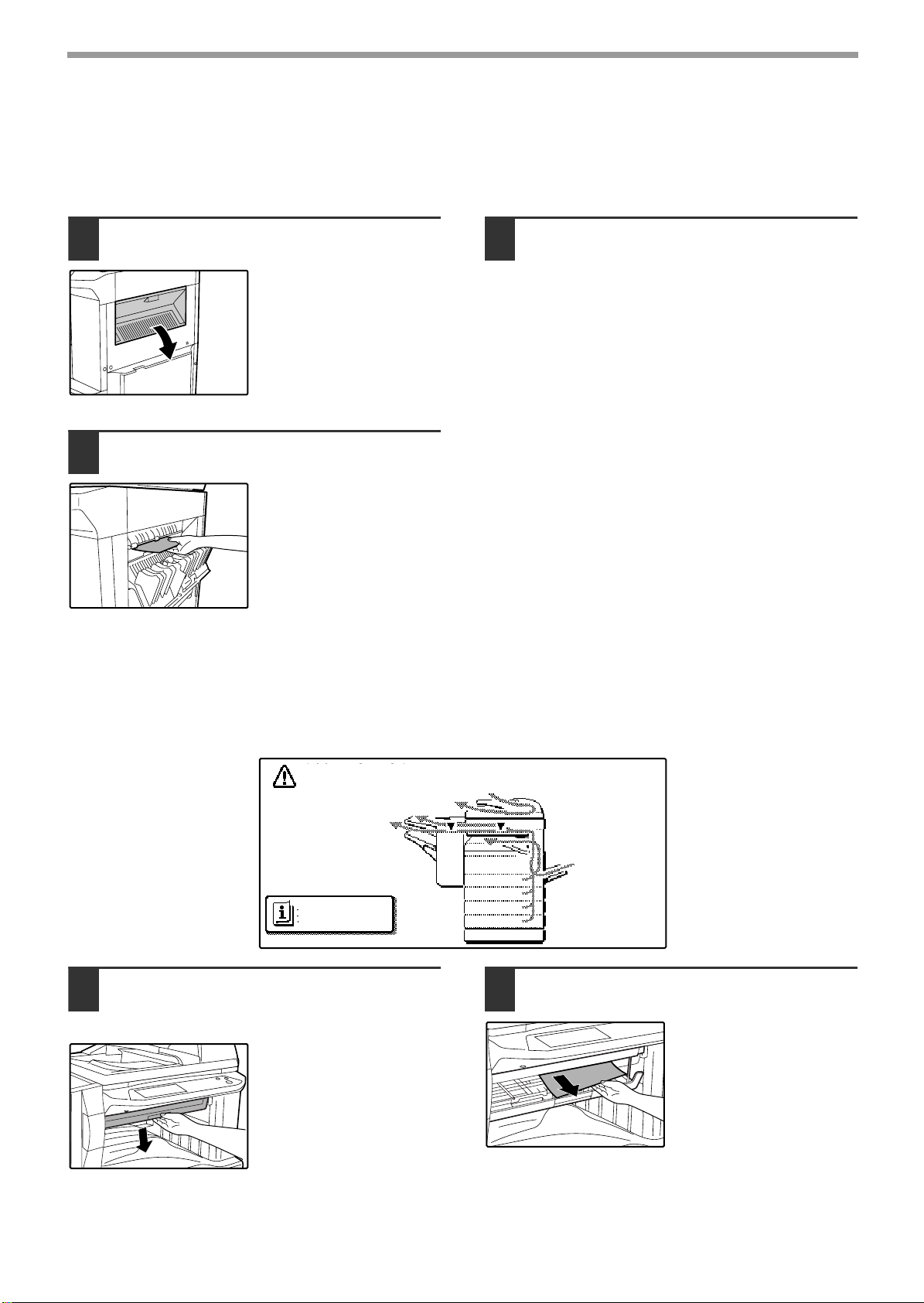

MISFEED REMOVAL....................................... 66

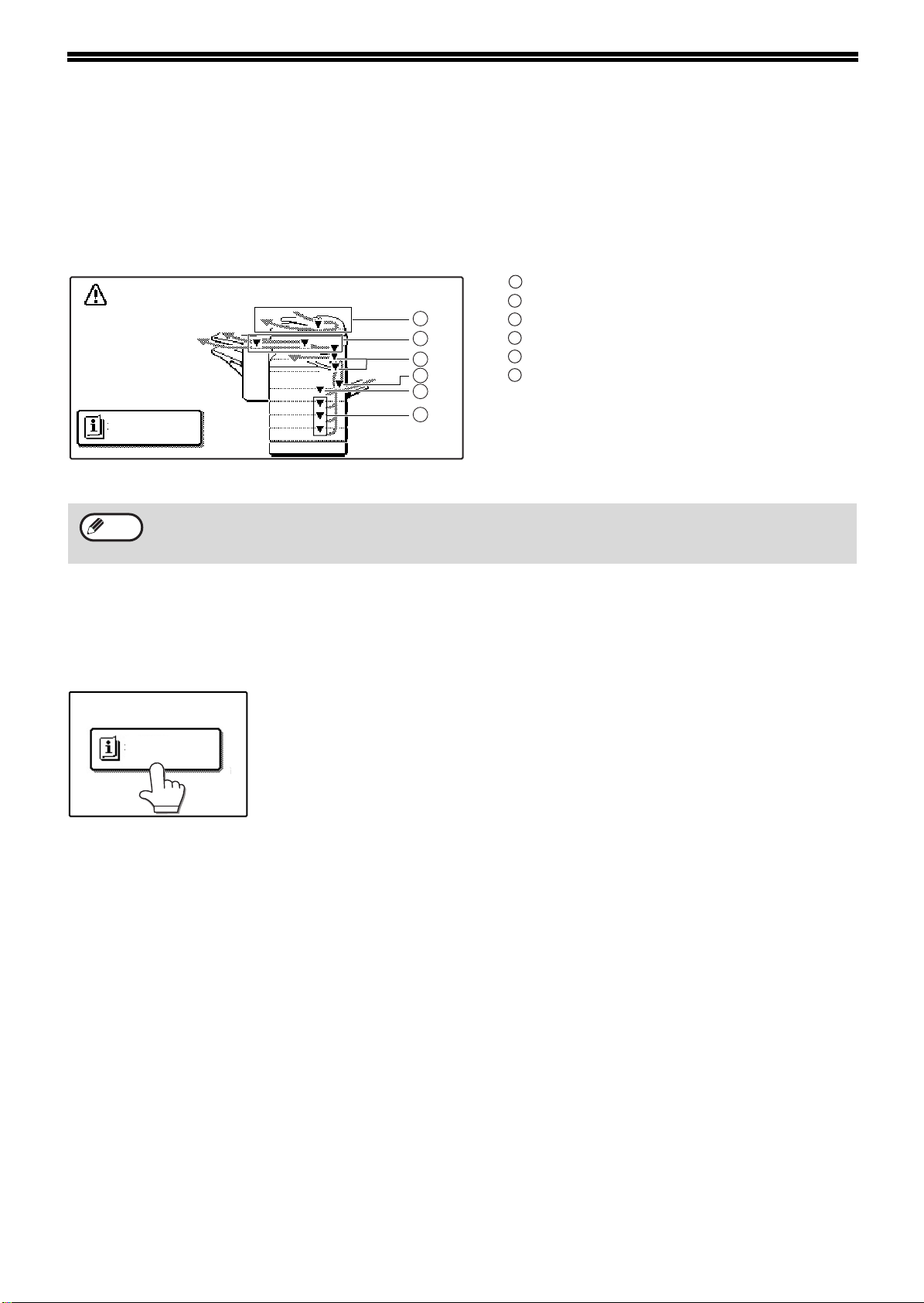

● MISFEED REMOVAL GUIDANCE .................66

● MISFEED IN THE RSPF.................................67

● MISFEED IN THE BYPASS TRAY .................68

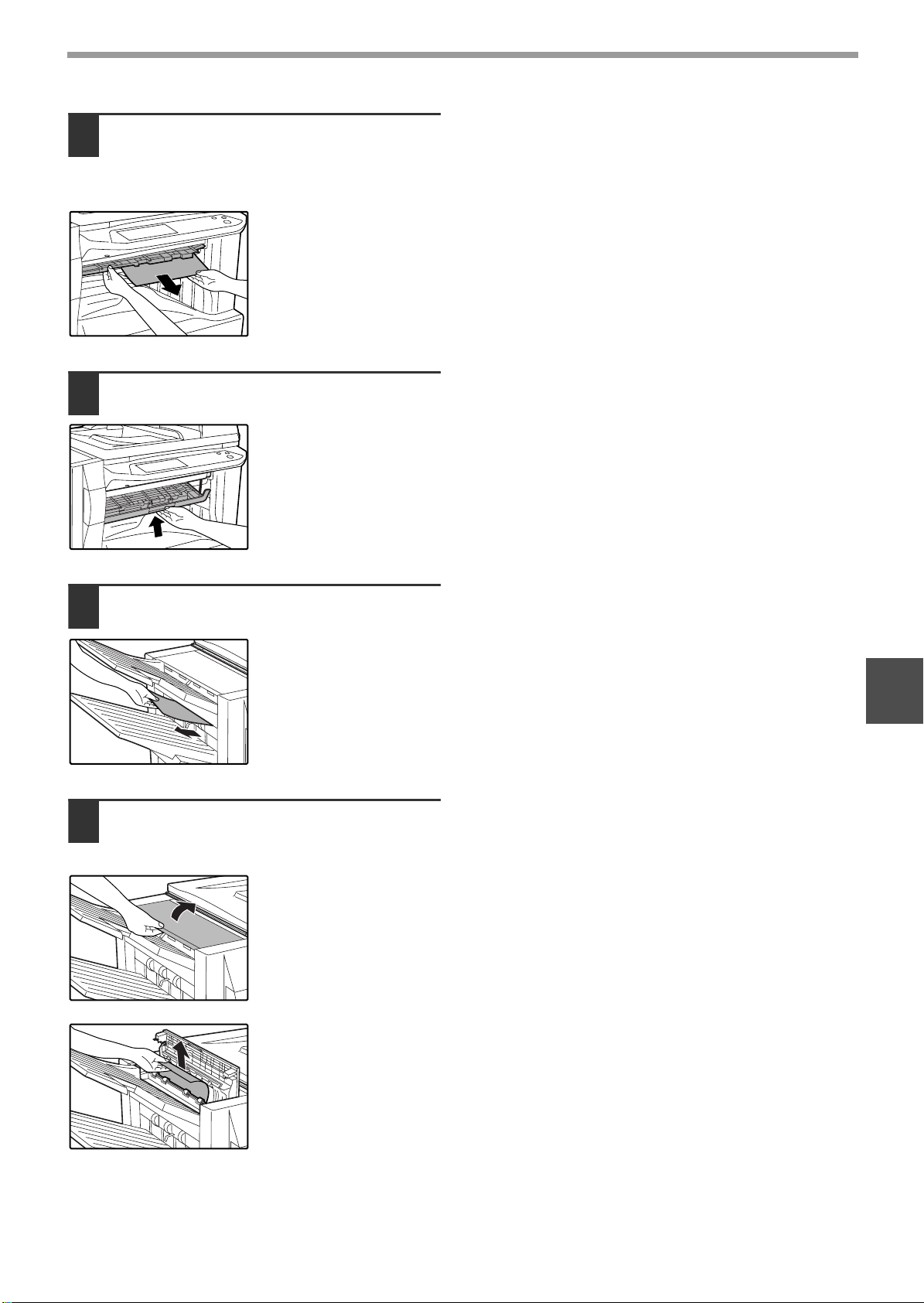

● MISFEED IN THE MACHINE..........................68

● MISFEED IN THE CENTER TRAY.................70

● MISFEED IN THE UPPER PAPER TRAY ......70

● MISFEED IN THE LOWER PAPER TRAY .....71

● MISFEED IN THE UPPER EXIT AREA

● MISFEED IN AN OUTPUT TRAY

REPLACING THE TONER CARTRIDGE ........ 74

STAPLE CARTRIDGE REPLACEMENT......... 75

● STAPLE JAM REMOVAL ...............................76

CHECKING THE TONER QUANTITY AND

TOTAL COUNT................................................ 76

CLEANING THE MACHINE............................. 77

● DOCUMENT GLASS AND RSPF ...................77

● THE BYPASS TRAY PAPER

TROUBLESHOOTING AND MAINTENANCE

(when a job separator tray kit or finisher

(AR-FN5A) is installed) ...................................72

(when a finisher (AR-FN5A) is installed).........72

FEED ROLLER ...............................................77

PERIPHERAL DEVICES.................................. 78

● FINISHER (AR-FN5A) ....................................79

● 500-SHEET PAPER FEED UNIT/

STORAGE OF SUPPLIES ............................... 81

● PROPER STORAGE ......................................81

PERIPHERAL DEVICES AND SUPPLIES

2 x 500-SHEET PAPER FEED UNIT..............80

7 APPENDIX

SPECIFICATIONS ........................................... 82

MATERIAL SAFETY DATA SHEET................ 84

INDEX............................................................... 92

● INDEX BY PURPOSE.....................................95

CAUTIONS

Follow the cautions below when using this machine.

CAUTIONS ON USING THE MACHINE

Warning:

• The fusing area is hot. Exercise care in this area when removing misfed paper.

• Do not look directly at the light source. Doing so may damage your eyes.

Caution:

• Do not switch the machine rapidly on and off. After turning the machine off, wait 10 to 15 seconds before turning it back on.

• Machine power must be turned off before installing any supplies.

• Place the machine on a firm, level surface.

• Do not install the machine in a humid or dusty location.

• When the machine is not used for a long time, for example, during prolonged holidays, turn the power switch off and remove the power cord from the outlet.

• When moving the machine, be sure to turn the power switch off and remove the power cord from the outlet.

• Do not cover the machine with a dust cover, cloth or plastic film while the power is on. Doing so may prevent heat dissipation, damaging the machine.

• Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous laser radiation exposure.

• The socket-outlet should be installed near the machine and should be easily accessible.

IMPORTANT POINTS WHEN SELECTING AN INSTALLATION SITE

Improper installation may damage the machine. Please note the following during initial installation and whenever the machine is moved.

Caution

Do not install your machine in areas that are:

• damp, humid, or very

dusty

• poorly

ventilated

If the machine is moved from a cool place to a warm place, condensation may form inside the machine. Operation in this condition will cause poor copy quality and malfunctions. Leave the machine at room temperature for at least 2 hours before use.

• exposed to direct sunlight

• subject to extreme

temperature or humidity changes, e.g., near an air conditioner or heater.

The machine should be installed near an accessible power outlet for easy connection and disconnection.

Be sure to connect the power cord only to a power outlet that meets the specified voltage and current requirements. Also make certain the outlet is properly grounded.

Note

Be sure to allow the required space around the

Connect the machine to a power outlet which is not used for other electric appliances. If a lighting fixture is connected to the same outlet, the light may flicker.

12" (30cm)

machine for servicing and proper ventilation.

12"

(30cm)

A small amount of ozone is produced within the machine during operation. The emission level is insufficient to cause any health hazard.

Note:

The present recommended long term exposure limit for ozone is 0.1 ppm (0.2 mg/m weighted average concentration. However, since the small amount that is emitted may have an objectionable odor, it is advisable to place the machine in a ventilated area.

) calculated as an 8 hr. time-

CAUTIONS ON HANDLING THE MACHINE

12"

(30cm)

Observe the following precautions when handling the machine to maintain top performance.

Do not drop the machine, subject it to shock or strike it against any object. Store spare toner cartridges in a cool dry place without removing from the package before use.

• If they are exposed to direct sunlight or excessive heat, poor copies may result.

Do not touch the photoconductive drum (green portion).

• Scratches or smudges on the drum will cause dirty copies.

Safety precautions:

This Digital Copier is rated Class I and complies with 21 CFR 1040.10 and 1040.11 of the CDRH standards. This means that the machine does not produce hazardous laser radiation. For your safety, observe the precautions below.

• Do not remove the cabinet, operation panel or any other covers.

• The machine’s exterior covers contain several safety interlock switches. Do not bypass any safety interlock by inserting wedges or other items into switch slots.

This product utilizes a CR coin Lithium battery which contains a Perchlorate material. Special handling for this material may apply, California residents, See www.dtsc.ca.gov/hazardouswaste/perchlorate/ Others, consult local environmental officers.

ENVIRONMENTAL INFORMATION

Products that have earned the ENERGY STAR through superior energy efficiency.

The Environmental Choice Program guidelines are applied to the products only in Canada. The products that meet the Environmental Choice Program guidelines carry the logo shown to the left. The products without the logo may not meet the Environmental Choice Program guidelines.

"BATTERY DISPOSAL"

THIS PRODUCT CONTAINS A LITHIUM PRIMARY MEMORY BACK-UP BATTERY THAT MUST BE DISPOSED OF PROPERLY. PLEASE CONTACT YOUR LOCAL SHARP DEALER OR AUTHORIZED SERVICE REPRESENTATIVE FOR ASSISTANCE IN DISPOSING OF THIS BATTERY.

This product utilizes tin-lead solder, and a fluorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronics Industries Alliance: www.eia.org

are designed to protect the environment

USING THE MANUAL

This machine has been designed to provide convenient copying features in a minimum amount of office space and with maximum operational ease. To get full use of all machine features, be sure to familiarize yourself with this manual and the machine. For quick reference during machine use, keep this manual in a handy location.

ABOUT THE OPERATION MANUALS

The operation manuals for the machine are as follows:

Operation Manual for copier (this manual)

This manual contains explanations of the product and procedures for using the machine as a copier.

Online manual (for printer)

This manual is on the CD-ROM, and explains the procedures for using the machine as a printer, network printer, and network scanner.

Software setup guide (for printer)

This manual contains instructions for installing the software that allows the machine to be used with your computer and procedures for establishing initial printer settings.

Operation manual (for network scanner) (When the network scanner is installed.)

This manual contains explanations of the product and procedures for using the machine as a network scanner.

Key operator's guide

This explains key operator programs for machine management and copier related functions. Key operator programs for the fax functions are explained in the operation manual for facsimile.

THE MEANING OF "R" IN ORIGINAL AND PAPER SIZE INDICATIONS

An "R" appearing at the end of an original or paper size (5-1/2" x 8-1/2"R, 8-1/2" x 11"R, etc.) indicates that the original or paper is oriented horizontally as shown below.

Sizes that can be placed only in the horizontal (landscape) orientation (8-1/2" x 14", 11" x 17"), do not contain the "R" in their size indication.

CONVENTIONS USED IN THIS MANUAL

Warning

Caution

Note

Warns that injury may result if the contents of the warning are not properly followed.

Cautions that damage to the machine or one of its components may result if the contents of the caution are not properly followed.

Notes provide useful information on the specifications, functions, performance, and operation of the machine.

Explanation of words and illustration

• This operation manual refers to the Reversing Single Pass Feeder as the "RSPF".

• The illustrations in this manual show the AR-M257/AR-M317 with the optional job separator tray kit (AR-TR3) installed. The appearance of your machine may be different depending on the model and options installed, however, the basic operations are the same.

RSPF

• For peripheral devices that can be installed, see "PERIPHERAL DEVICES" (p.78).

MAIN FEATURES

High-speed laser copying

• First-copy time*1 at 600 dpi*2 is only 4.8 seconds.

• Copying speed is 25 copies/min. (AR-M257) or 31 copies/min. (AR-M317) at 600 dpi . This is ideal for business use and provides a big boost to workplace productivity.

*1First-Copy time may vary depending on the power-supply voltage, ambient temperature, and other operating conditions.

"dpi" ("dots per inch") is unit that is used to measure resolution. Resolution indicates how much detail can be reproduced in

a printed or scanned image.

High-quality digital image

• In addition to automatic exposure adjustment, three original type modes are available: "TEXT mode" for text-only originals, "TEXT/PHOTO mode" for mixed text and photo originals, and "PHOTO mode" for photos. The exposure can be manually adjusted to 5 levels in each mode.

Enhanced copying features

• Zoom copies can be made from 25% to 400% in increments of 1%.

• Continuous copying of up to 999 copies is possible.

• Automatic two-sided copying can be performed.

• Useful special features such as erase, margin shift, 2 in 1 and 4 in 1, pamphlet copy, dual page copy and cover copy are available.

Erase copy Margin shift copy 2in1 copy 4in1 copy

• Key operator programs allow the setting or modification of functions to meet your specific needs. The key operator programs can also be used to enable audit mode, which allows the machine administrator to control use of the machine.

Dual page copyPamphlet copy

SHARP

Cover copy

Card shot

Black and white LCD touch panel makes it easy to operate the machine

• Employing a backlit black and white LCD display, the touch panel provides step-by-step guidance for each function of the machine. The touch panel even provides instructions for removing paper misfeeds and other problems that occur.

Environment and people friendly design

• Preheat and auto power shut-off modes are provided to reduce power consumption when the machine is not in use.

• A universal design has been implemented in the product whereby the height of the operation panel and shape of the keys are designed to be usable by as many people as possible.

This chapter contains basic information that should be read before using the machine.

PART NAMES AND FUNCTIONS

Exterior

Chapter 1

BEFORE USING THE MACHINE

Document feeder tray

Place the original(s) that you wish to scan face up here. (p.23)

Original guides

Adjust to the size of the originals.

Document feeder cover

Open to remove misfed originals. (p.67)

Reversing tray

Pull out to remove misfed originals. (p.67)

Exit area

Originals exit the machine here after copying.

Document transport cover

Open to remove misfed originals. (p.67)

Document transport cover knob

Pull to open the document transport cover (p.67)

Document glass

Place an original that you wish to scan face down here. (p.22)

4 5

Power switch

Press to turn the machine power on and off. (p.13)

Handles

Use to move the machine.

Operation panel

Contains operation keys and the touch panel. (p.10)

Job separator tray (Upper tray) (optional)

Print jobs and received faxes are delivered to this tray.

Center tray

Finished copies are delivered to the center tray.

Front cover

Open to remove paper misfeeds and perform machine maintenance. (p.68)

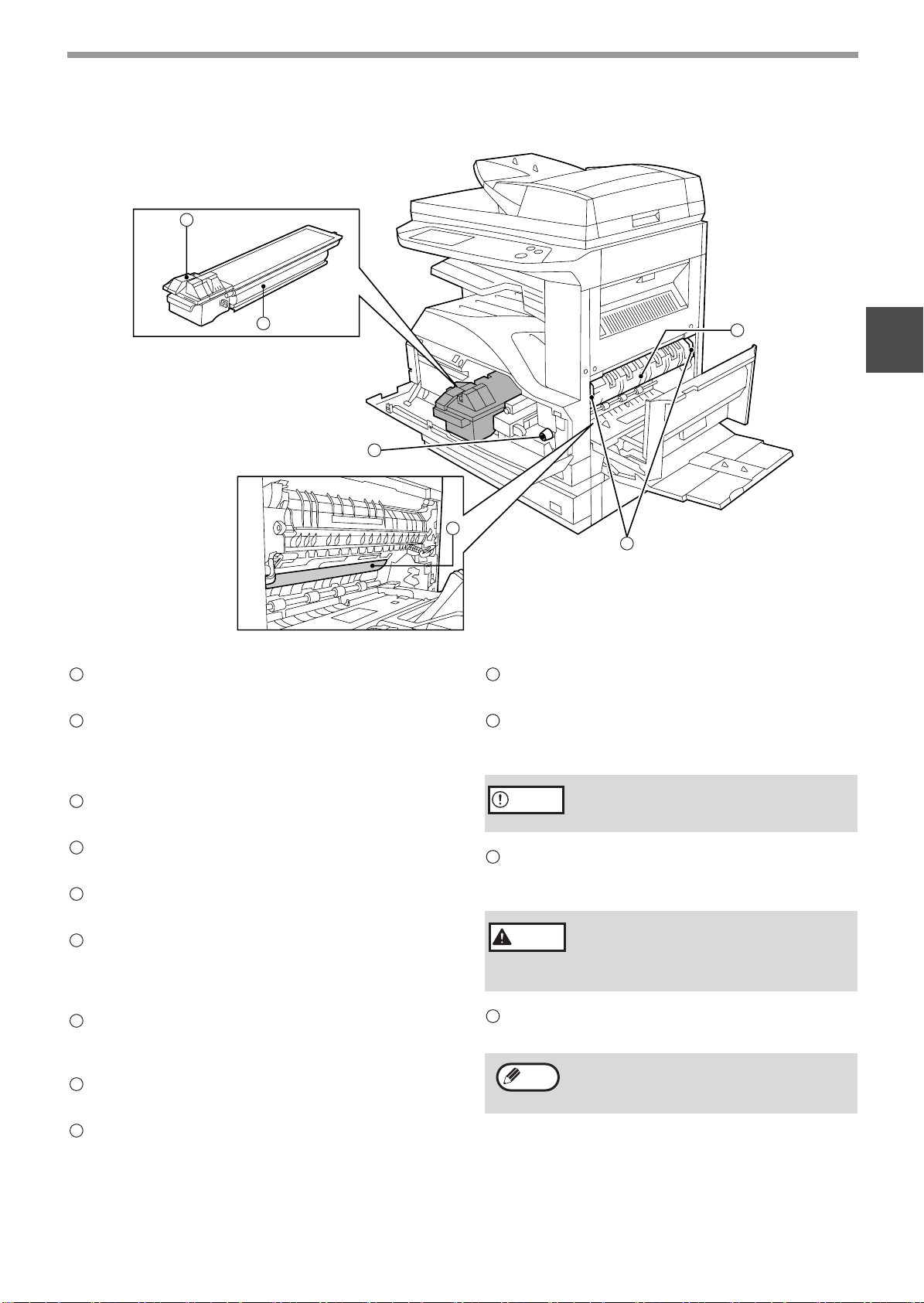

Interior

BEFORE USING THE MACHINE

Paper trays

Each tray holds 500 sheets of copy paper. (p.15)

Upper right side cover

Open to remove misfeeds when an optional job separator tray kit or a optional finisher is installed. (p.72)

Side cover

Open to remove misfeeds. (p.68)

Side cover handle

Pull to open the side cover. (p.68)

Bypass tray paper guides

Adjust to the width of the paper. (p.18)

Bypass tray

Regular paper and special paper (such as transparency film) can be fed from the bypass tray. (p.18)

Bypass tray extension

Pull out the bypass tray extension before placing paper in the bypass tray. (p.18)

Toner cartridge lock release lever

Use to unlock the toner cartridge. (p.74)

Toner cartridge

Contains toner. (p.74)

Roller rotating knob

Turn to remove misfed paper. (p.68)

Photoconductive drum

Copy images are formed on the photoconductive drum.

Caution

Fusing unit release levers

Do not touch the photoconductive drum (green portion). Doing so may damage the drum and cause smudges on copies.

To remove a paper misfeed in the fusing unit, push up on these levers and remove the paper. (p.69)

The fusing unit is hot. Do not touch

Warning

the fusing unit when removing misfed paper. Doing so may cause a burn or injury.

Fusing unit paper guide

Open to remove misfed paper. (p.69)

Note

The model name is on the front cover of the machine.

BEFORE USING THE MACHINE

OPERATION PANEL

COPY

SCAN

FAX

JOB STATUS

ON LINE DATA

DATA

LINE DATA

CUSTOM SETTINGS

ACC.#-C

Touch panel

The machine status, messages and touch keys are displayed on the panel. The display will show the status of printing, copying or network scanning according to the mode that is selected. For details see the next page.

Mode select keys and indicators

Use to change modes and the corresponding display on the touch panel.

[COPY] key

Press to select copy mode.

[PRINT] key/ONLINE indicator/ DATA indicator

Press to select print mode.

• ONLINE indicator Print jobs can be received when this indicator is lit.

• DATA indicator A print job is in memory. The indicator lights

steadily while the job is held in memory, and blinks while the job is printed.

[SCAN] key/DATA indicator (When the network scanner option is installed.)

Press to select network scan mode when the network scanner option is installed.

• DATA indicator Lights steadily or blinks while a scanned image is being sent.

(See "Operation manual (for network scanner)".)

[FAX] key/LINE indicator/DATA indicator (When the fax option is installed.)

Press to select fax mode when the fax option is installed.

• LINE indicator this lights up while faxes are being sent or received.

• DATA indicator Blinks when a fax has been received to memory and lights steadily when a fax is waiting in

memory for transmission. (See operation manual for facsimile.)

2 3 4 5 6 7 8

[JOB STATUS] key

Press to display the current job status. (p.12)

[CUSTOM SETTINGS] key

Use to adjust various settings of the machine including the contrast of the touch panel and key operator programs. (p.54)

Numeric keys

Use to enter numeric values for various settings.

[ACC.#-C] key ( )

When auditing mode is enabled, press this key after finishing a job to return the machine to account number entry standby.

[#/P] key ( )

Use this key to execute a job program in copy mode. The key is also used to dial in fax mode.

[CLEAR] key ( )

Press to clear a copy number setting or cancel a job.

[START] key ( )

Press in copy mode, scanner mode, or fax mode to begin copying, network scanning, or faxing.

This key blinks when auto power shut mode has activated. Press the key to return to normal operation.

[INTERRUPT] key ( )

Use to perform an interrupt copy job. (p.34)

[CLEAR ALL] key ( )

Resets the settings to the initial settings.

10 11

TOUCH PANEL

JOB QUEUE

COPY

SHARP001

003 / 000

SETS / PROG

1/13

COMPLETE

CANCEL

RIGHT

BINDING

LEFT

BINDING

MULTI SHOT

DUAL PAGE

COPY

MULTI SHOT

DUAL PAGE

COPY

SPECIAL MODES

OUTPUT

2-SIDED COPY

READY TO COPY.

ORIGINA

8½x11

8½x14

BEFORE USING THE MACHINE

Using the touch panel

[Example 1]

Items on the touch panel are selected by touching the key associated with the item. A beep will sound to confirm that the item was selected and

Beep

tone

[Example 2]

the key will be highlighted. * A double-beep is

sounded when an invalid key is touched.

Keys which are grayed out cannot be selected.

Selecting a function

[Example 1]

Items which are highlighted at the time a screen appears are already selected and will take effect when the [OK] key is touched.

[Example 2]

If you need to cancel a selection, simply press the key once again so that it is not highlighted.

The confirmation beeps can be disabled in the key operator programs. (See "Key operator's guide".)

The touch panel screens shown in this manual are printed images and may differ from the actual screens.

The key is no longer highlighted and the selection is canceled.

[Example 3]

When the machine is used in copy mode or fax mode and a special mode is selected, a icon representing the feature will appear on the touch panel. If this icon is touched, the setting screen of the function (or a menu screen) will appear, allowing the settings to be checked, adjusted, or canceled.

BEFORE USING THE MACHINE

Job status screen (common to copy, print, network scan and fax)

This screen appears when the [JOB STATUS] key on the operation panel is pressed. A job list showing the current job and the stored jobs or a list showing completed jobs can be displayed. The contents of jobs can be viewed and jobs can be deleted from the queue. The following screen shows the job queue for print jobs.

JOB QUEUE

COPY

SHARP001

0666211221

PRINT JOB SCAN FAX JOB

SETS / PROGRESS

003 / 000

010 / 000

4 5 6 7 8

Job list

Shows stored jobs and the job currently being executed. Touch one of keys to in the above

3 5

illustration to select the type of job. The icon next to each job name indicates the mode of the job as follows:

Copy mode Printer mode

Network scanner mode

Fax mode (Send jobs)

Fax mode (Receive jobs)

The jobs in the job list appear in the form of keys. To give priority to a job or pause or delete a job, touch the key of the job and then use the key described in or .

*1:"PAPER EMPTY" in the job status display

7 8

"PAPER EMPTY" in the job status display indicates that the machine is out of the specified size of paper. Add the specified size of paper. If the specified size of paper is not available and you are in printer mode, another size of paper can be loaded in the bypass tray to allow printing to take place. (See the "Online manual".)

Mode switching keys

Use to select the job list mode: "JOB QUEUE" (Stored/currently executing jobs) or "COMPLETE" (Finished jobs).

"JOB QUEUE": Shows jobs that have been stored and the job that is currently being executed.

"COMPLETE": Shows the jobs that have been finished. Note that copy jobs do not appear in this list. If the power is turned off, or if auto power shut-off mode activates when there are no jobs, the jobs in the "COMPLETE" list will be erased.

STATUS

PAPER EMPTY

WAITING

[PRINT JOB] key

Use to view the list of output jobs for all modes (print, copy, and fax).

[SCAN] key

Displays a network scanner job (When the network scanner function is installed.).

[FAX JOB] key

This displays stored fax jobs and the fax job currently being executed (When the fax option is installed.).

Display switching keys

Use to change the page of the displayed job list.

[STOP/DELETE] key

Use to pause or delete a job currently being executed, or to delete a stored job. Copy jobs and received faxes cannot be paused or deleted with this key. Copy jobs can be canceled by pressing the [CLEAR] key ( ) or [CLEAR ALL] key ( ).

[PRIORITY] key

Touch this key after selecting a stored job in this [JOB QUEUE] list to print the job ahead of the other jobs.

[DETAIL] key

Shows information on the selected job. This cannot be used for a received fax.

JOB QUEUE

1/1

COMPLETE

DETAIL

PRIORITY

STOP/DELETE

POWER ON AND OFF

The power switch is located on the left side of the machine.

Note

When the power switch is turned on, the machine starts up in the previously used mode. The following explanations assume that the previously used mode was copy mode.

POWER ON

Turn the power switch to the "ON" position.

•

When the power switch is turned to the "ON" position, the message "WARMING UP. A COPYING JOB CAN BE SET NOW." will appear in the message display and the machine will start warming up. When "READY TO COPY." appears, the machine is ready to copy. Copy settings can be selected during warm-up.

• If auditing mode is enabled, "ENTER YOUR ACCOUNT NUMBER." will appear. When a valid account number is entered, the account status will appear on the main screen for several seconds. Then copying can be performed. (See "Key operator’s guide".)

POWER OFF

When the machine is not used for a long time, be sure to turn it off.

Make sure that the machine is not in operation and then turn the power switch to the "OFF" position.

OFF

If the power switch is turned off while the machine is in operation, a misfeed may occur and the job that was in progress will be canceled.

Note

If the fax option is installed, be sure to keep the power turned on. Faxes cannot be received when the power is turned off.

BEFORE USING THE MACHINE

INITIAL SETTINGS

The machine reverts to the initial settings when it is first turned on, when the [CLEAR ALL] key ( ) is pressed, or the preset "auto clear time" elapses after the last copy is made in any mode. When the machine reverts to the initial settings, all settings and functions selected to that point are canceled. The auto clear time can be changed in the key operator programs. (See the "Key operator’s guide".) The initial settings that appear in the display are shown below.

READY TO COPY.

SPECIAL MODES

2-SIDED COPY

OUTPUT

8½x11

8½x14

8½x11

AUTO 8½x11

PAPER SELECT

COPY RATIO

AUTO

EXPOSURE

100%

Functions and settings are explained based on the above screen as applicable.

Copy ratio: 100%, Exposure: Automatic, Copy quantity: 0, Automatic two-sided: One side to One side, Auto paper selection: On, Paper tray: Upper paper tray

Note

The initial settings can be changed in the key operator programs. (See the "Key operator’s guide".) For the initial settings (initial screen) of printer, fax, and scanner modes, see the operation manuals of those modes.

POWER SAVE MODES

The machine has two power save modes to reduce overall power consumption and thereby reduce the cost of operation. These modes help conserve natural resources and reduce environmental pollution. The two power save modes are "Preheat mode" and "Auto power shut-off mode". The time settings for each mode can be changed in the key operator programs. (See the "Key operator’s guide".)

Preheat mode

When the set time elapses, the temperature of the fusing unit is automatically lowered to reduce power consumption while on standby. The factory default setting is 15 minutes. To return to normal operation, touch any key on the operation panel. To make a copy when the machine is in this mode, simply select the desired copy selections and then press the [START] key ( ).

Auto power shut-off mode

When the set time elapses, the power to the fusing unit automatically turns off to reduce power consumption (This is based on the guidelines of the International Energy Star Program.). The factory default setting is 60 minutes. When the machine enters this mode, the touch panel screen turns off and only the [START] key ( ) blinks. To return to normal operation, press the [START] key ( ). To copy after warm-up starts, make desired copy selections and press the [START] key ( ). When the machine receives a fax or a print job, Auto power shut-off mode automatically deactivates and the machine returns to normal operation.

LOADING PAPER

When a tray runs out of paper, a message appears in the touch panel. Load paper in the tray.

OPEN TRAY 1 AND ADD PAPER.

SPECIAL MODES

2-SIDED COPY

OUTPUT

8½x11

8½x14

ORIGINAL

8½x11

AUTO 8½x11

PAPER SELECT

COPY RATIO

AUTO

EXPOSURE

100%

PAPER

The specifications for the types and sizes of paper that can be loaded in the paper trays are shown below. For best results, use only SHARP recommended paper.

Tray

No.

1 Upper paper tray

2 Lower paper tray

3 500-sheet paper

Paper tray type Paper type Size Weight

Plain paper Letterhead paper

Recycled paper

5-1/2" x 8-1/2" to 11" x 17" (A5 to A3)

15 lbs. to 28 lbs. (56 g/m2 to 105 g/m2)

Color paper feed unit/ Upper paper tray of 2 x 500-sheet paper feed unit

500 sheets*

Capacity

4 Lower paper tray of

2 x 500-sheet paper feed unit

Bypass tray Plain paper

Letterhead paper

Recycled paper

5-1/2" x 8-1/2" to 11" x 17" (A6 to A3)

15 lbs. to 34.5 lbs. (56 g/m2 to 128 g/m2)

Color paper

Thin paper 14 lbs. to 15 lbs.

(52 g/m

to 56 g/m2)

Heavy paper Max. 54 lbs.

(200 g/m

)

Labels 40 sheets

Transparency film 40 sheets

Envelope

International DL (110 x 220 mm) International C5 (162 x 229 mm) Commercial 10 (4-1/8" x 9-1/2")

*15-1/2" x 8-1/2" (A5) size paper can only be loaded in tray 1 and the bypass tray.

B5 size paper cannot be loaded in tray 2 (However, B5R paper can be loaded.).

* *3When loading paper larger than 8-1/2" x 11" (A4) size, do not use paper of weight greater than 28 lbs. (105 g/m *4The number of sheets of paper which can be loaded varies depending on the weight of the paper.

100 sheets*

100 sheets

30 sheets

5 sheets

BEFORE USING THE MACHINE

Special papers

Follow these guidelines when using special papers.

Envelopes

Do not use the following envelopes (Misfeeds will occur.).

• Envelopes with metal tabs, clasps, strings, holes, or windows.

• Envelopes with rough fibers, carbon paper, or glossy surfaces.

• Envelopes with two or more flaps.

• Envelopes with tape, film, or paper attached to the flap.

• Envelopes with a fold in the flap.

• Envelopes with glue on the flap to be moistened for sealing.

• Envelopes with labels or stamps.

• Envelopes that are slightly inflated with air.

• Envelopes with glue protruding from the seal area.

• Envelopes with part of the seal area peeled off.

Letterhead paper

Letterhead paper is paper with information pre-printed at the top such as a company name and address.

SHARP

• Use SHARP recommended transparency film and label sheets. Using other than SHARP recommended paper may result in misfeeds or smudges on the output. If other than SHARP recommended media must be used, feed each sheet one at a time using the bypass tray (Do not attempt continuous copying or printing.).

• There are many varieties of special paper available on the market, and some cannot be used with this machine. Before using special paper, contact a SHARP service center.

• Before using other than SHARP recommended paper, make a test copy to see if the paper is suitable.

BEFORE USING THE MACHINE

LOADING PAPER

Make sure that the machine is not copying, printing, or printing a received fax, and then follow these steps to load paper.

Loading the paper in the paper tray

Pull out the paper tray until it stops.

If you are loading the same size of paper as was loaded previously, go to step 4. If you are loading a different size of paper, continue with the following step.

Squeeze the lock lever of the front

guide and slide the front guide to match the width of the paper.

Front guide

Left guide

Move the left guide to the appropriate

slot as marked on the tray.

When using 11" x 17" copy paper, store the left guide in the slot at the left front of the paper tray.

Load paper in the tray.

Maximum height line

•

Note

Push the paper tray firmly back into

Load the paper with the print side facing up.

• Insert the paper along the guides.

• The tray holds up to 500 sheets of 21 lb.

• Do not load paper above the maximum

• When adding paper, first remove any

(80g/m

height line.

paper remaining in the tray, combine it with the paper to be added, and then reload as a single stack.

) bond paper.

the machine.

Fan the copy paper.

If you loaded a different size of paper that was loaded previously, place the appropriate paper size card in the front of the paper tray to indicate the new paper size.

Paper size card

Note

If you loaded a different size of paper that was loaded previously, go to "CHANGING A TRAY’S PAPER TYPE AND PAPER SIZE SETTINGS" (p.19).

BEFORE USING THE MACHINE

Loading paper in the bypass tray

Unfold the bypass tray.

To enable correct detection of the paper size, be sure to pull out the bypass tray extension.

Set the paper guides to the copy

paper width.

Insert the copy paper (print side

down) all the way into the bypass tray.

Important points when inserting paper in the bypass tray

• Be sure to place envelopes horizontally as shown in the following diagram.

• Load the paper with the print side facing down.

Landscape orientation

• When loading envelopes, make sure that they are straight and flat and do not have loosely glued construction flaps (not the closure flap).

• When adding paper, first remove any paper remaining in the bypass tray, combine it with the paper to be added, and then reload as a single stack. The paper to be added must be the same size and type as the paper already in the bypass tray.

• Do not use paper that is smaller than the original image. This may cause smudges or unclean images.

• Do not use paper that has already been printed on by a laser printer or plain paper fax machine. This may cause smudges or unclean images.

Portrait orientation

BEFORE USING THE MACHINE

D ATA

LINE

CUSTOM SETTINGS

TOTAL COUNT

TRAY SETTINGS

ADDRES CONTRO

KEYBOARD

SELECT

KEY

CONTRA

TRAY 1

TRAY 2

TRAY 3

PLAIN / 8½x14

PLAIN / 11x17

TYPE / SIZE

PLAIN / 8½x11

CHANGING A TRAY’S PAPER TYPE AND PAPER SIZE SETTINGS

When you change the paper in a tray, follow the steps below to change the tray’s paper type and paper size settings. The settings cannot be changed when operation has stopped because the paper ran out or a misfeed occurred, or when an interrupt copy job is being performed. Even in copy mode, the settings cannot be changed while a print job or received fax is being printed.

Note

Load paper in the tray as explained in

• 5-1/2" x 8-1/2" (A5) size paper can only be set for tray 1.

• B5 size paper cannot be set for tray 2 (However, B5R size paper can be set.).

• Tray settings for trays other than the bypass tray can be prohibited in the key operator programs. (See the "Key operator's guide".)

"Loading the paper in the paper tray" (p.17).

Press the [CUSTOM SETTINGS] key.

The custom settings menu screen will appear.

Touch the [TRAY SETTINGS] key.

The tray settings screen will appear.

Select the size and type of paper that

is loaded in the tray.

CUSTOM SETTINGS

TRAY 1 TYPE/SIZE SETTING

TYPE

PLAIN

RECYCLED

The currently selected paper type will be highlighted.

• To change the paper type selection, touch the appropriate type key.

• To change the paper size selection, touch the appropriate size key.

•

To change the displayed size selections to AB sizes, touch [AB INCH].

Touch the [OK] key.

LETTER HEAD 11x17

COLOR

8½x11

SIZE AB INCH

8½x14

8½x11R 5½x8½

8½x13

Select the tray in which you loaded

paper.

For the tray numbers, see "PAPER" (p.15). If the desired tray does not appear in the display, use the key or key to scroll until it appears.

A message appears prompting you to

check the paper in the tray. Check the paper and then touch the [OK] key.

You will return to the tray settings screen.

BEFORE USING THE MACHINE

D ATA

LINE

CUSTOM SETTINGS

TOTAL COUNT

TRAY SETTINGS

ADDRES CONTRO

KEYBOARD

SELECT

KEY

CONTRA

TRAY 4

BYPASS TRAY

TYPE / SIZE

PLAIN

PLAIN / 11x17

EXPOSURE

AUTO 8½x11

PAPER SELECT

100%

Setting the paper type in the bypass tray

Use either of the following two methods to set the bypass tray's paper type setting.

From the [CUSTOM SETTINGS] key

Load paper in the bypass tray as

explained in "Loading paper in the bypass tray" (p.18).

Press the [CUSTOM SETTINGS] key.

The custom settings menu screen will appear.

Touch the [TRAY SETTINGS] key.

The tray settings screen will appear.

From the [PAPER SELECT] key

Load paper in the bypass tray as

explained in "Loading paper in the bypass tray" (p.18).

Touch the [PAPER SELECT] key.

Touch the paper type selection key.

READY TO COPY.

8½x11

8½x14

PLAIN

RECYCLED PLAIN

11x17

EXTRA IMAGE

ADJUST

AUTO

EXPOSURE

PAPER SELECT

100%

COPY RATIO

Touch the [BYPASS TRAY] key.

Select the type of paper that is loaded

in the tray.

CUSTOM SETTINGS

BYPASS TRAY TYPE SETTING

SELECT THE PAPER TYPE.

PLAIN

RECYCLED

HEAVY PAPER THIN PAPER

LETTER HEAD

COLOR

ENVELOPE JAPANESE P/C

LABELS

TRANSPARENCY

"JAPANESE P/C" refers to official postcards used in Japan.

Touch the [OK] key.

Select the paper type.

READY TO COPY.

PLAIN

RECYCLED

HEAVY PAPER THIN PAPER

LETTER HEAD

COLOR

ENVELOPE

LABELS

TRANSPARENCY

JAPANESE P/C

PAPER SELECT

COPY RATIO

AUTO

EXPOSURE

100%

"JAPANESE P/C" refers to official postcards used in Japan.

Touch the [PAPER SELECT] key.

You will return to the main screen of copy mode.

You will return to the tray settings screen.

This chapter explains basic copying functions such as normal copying, reduction or enlargement, and exposure adjustment.

MAIN SCREEN OF COPY MODE

The main screen of copy mode shows messages, keys, and settings that are used for copying. Touch a key to make a selection. The main screen of copy mode appears when the [COPY] key is pressed (Except when the custom settings screen appears.).

Chapter 2

COPY FUNCTIONS

COPY

ON LINE

DATA

SCAN

DATA

LINE

FAX

DATA

CUSTOM SETTINGS

JOB STATUS

ACC.#-C

READY TO COPY.

8½x11

8½x14

ORIGINAL

8½x11

SPECIAL MODES

2-SIDED COPY

OUTPUT

4 7

Message display

5 8

Status messages are displayed here.

Copy number display

Displays the selected number of copies before the [START] key ( ) is pressed or the number of remaining copies after the [START] key ( ) is pressed. A single copy can be made when "0" is displayed.

[2-SIDED COPY] key (p.27)

Touch to open the duplex copy mode setting screen.

[OUTPUT] key (p.35)

Touch to select sort, group, staple sort, and other output settings.

[SPECIAL MODES] key (p.39)

Touch to open the special modes selection screen.

Original feed display

This appears when an original is placed in the RSPF.

Paper size display

This shows the location of the paper trays, the size of the paper in the trays. " " indicates whether or not there is paper. A paper tray can be touched to change the paper tray selection.

AUTO

EXPOSURE

AUTO 8½x11

PAPER SELECT

100%

COPY RATIO

11 12

13 14

Original size display

Displays the original size only when an original is placed for copying.

Exposure display

Displays the icon of the selected exposure type and the exposure scale.

[EXPOSURE] key (p.29)

Use this key to adjust the copy exposure.

Paper select display

Displays the selected paper size. When auto paper select mode is selected, "AUTO" appears when auto paper select mode is selected.

[PAPER SELECT] key (p.22, p.26)

Use this key to select the paper size.

Copy ratio display

Displays the selected copy ratio.

[COPY RATIO] key (p.31)

Use this key to select the copy ratio.

The screen will vary depending on the equipment installed.

NORMAL COPYING

AUTO

EXPOSURE

AUTO 8½x

PAPER SELE

100%

COPY RATI

8½x11

ORIGINAL

8½x11

8½x14

ACC.#-C

COPYING FROM THE DOCUMENT GLASS

Note

Open the RSPF and place the original

If "AUDITING MODE" (p.58) has been enabled, enter your 5-digit account number.

face down on the document glass.

[How to place the original]

Align the corner or the original with the tip of the arrow ( ) at the left rear corner of the glass as shown in the illustration.

Original scale Original scale

5-1/2" x 8-1/2"

8-1/2" x 14"

8-1/2" x 11" 11" x 17"

8-1/2" x 11"

•

Note

To load paper, see "LOADING PAPER" (p.15). If you change the paper size in the tray, you will also need to change the tray's paper size and paper type settings. (p.19)

•

The paper types for the auto paper selection function can be selected, or the function disabled, in the key operator programs. (See the "Key operator's guide".)

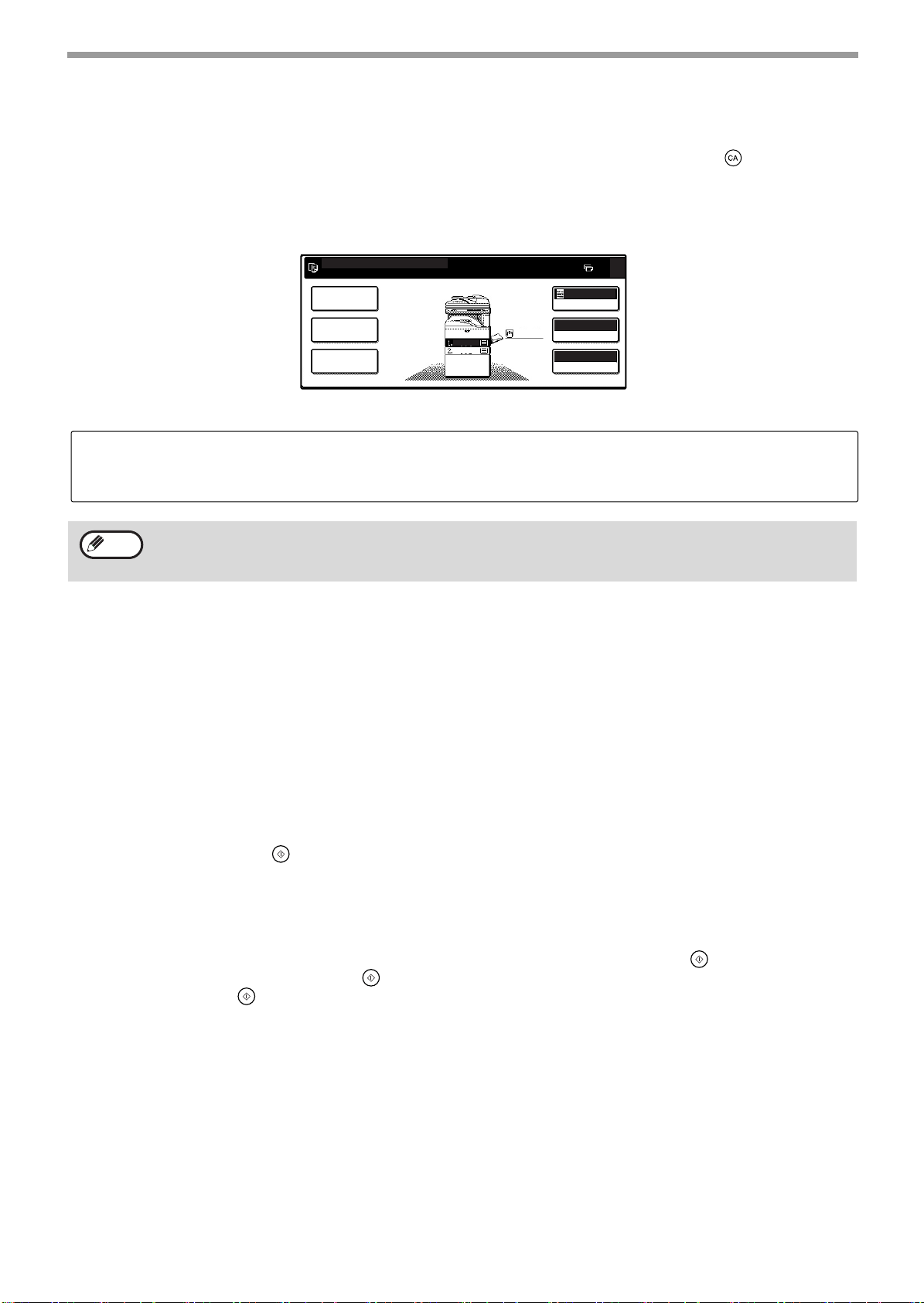

Manually selecting the paper size (paper tray)

If auto paper selection is disabled in the key operator programs, or if you wish to use a different size of paper than the original, touch the [PAPER SELECT] key and select the paper tray with the desired paper size. (The selected paper will be highlighted and the paper selecting screen will close.) To close the screen without selecting a paper size, touch the [PAPER SELECT] key again.

READY TO COPY.

1.8½x11

2.8½x14

PLAIN

RECYCLED PLAIN

11x17

EXTRA IMAGE

ADJUST

PAPER SELECT

COPY RATIO

AUTO

EXPOSURE

100%

Close the RSPF.

The original size appears in the touch panel.

Note

Make sure that the same size of paper

If the original size is not automatically detected, manually set the original size. (p.47)

as the original is automatically selected.

The selected tray is highlighted. If the tray contains a different size of paper than the original, "LOAD xxxx PAPER." will appear.

Even if the message above is displayed, copying can be performed using the selected paper tray.

Select the number of copies and any

other desired copy settings, and then press the [START] key ( ).

• The number in the copy quantity display will decrease by 1 each time a copy is made.

• If you are only making a single copy, the copy can be made with the copy number display showing "0".

• To clear a mistake, press the [CLEAR] key ( ).

Note

• Press the [CLEAR] key ( ) to stop copying in the middle of a run.

• To repeat the same copy sequence for a different original, simply replace the original and press the [START] key ( ).

• If copying stops because the tray has run out of paper, you can resume copying by touching the [PAPER SELECT] key and selecting the bypass tray or a paper tray that has the same size and type of paper loaded in the same orientation.

COPYING FROM THE RSPF

AUTO

EXPOSURE

AUTO 8½x

PAPER SELE

100%

COPY RATI

8½x11

ORIGINAL

8½x11

8½x14

ACC.#-C

COPY FUNCTIONS

Note

Make sure that an original has not

• If "AUDITING MODE" (p.58) is enabled, enter your 5-digit account number.

• If the RSPF is disabled in the key operator programs, the RSPF cannot be used. See the "Key operator's guide".

been left on the document glass and then close the RSPF.

If an original remains on the document glass after a copy was made, "REMOVE THE ORIGINAL FROM THE DOCUMENT GLASS." will appear in the touch panel.

Adjust the original guides to the size

of the original.

Note

Select the number of copies and any

• To load paper, see "LOADING PAPER" (p.15). If you change the paper size in the tray, you will also need to change the tray's paper size and paper type settings. (p.19)

• If needed, manually select the paper tray that has the desired size of paper as explained on page 22. The paper types for the auto paper selection

• function can be selected, or the function disabled, in the key operator programs. (See the "Key operator's guide".)

• If the original size is larger than the paper size, the result of copying from the document glass may differ from the result of copying from the RSPF. (p.22)

other desired copy settings, and then press the [START] key ( ).

Place the originals face up in the

document feeder tray.

Insert the originals all the way into the feed slot. The original size appears in the touch panel.

Note

Make sure that the same size of paper

• Up to 100 pages (24 lbs. (90 g/m2)) can be inserted at once.

• If the original size is not automatically detected, manually set the original size. (p.47)

as the original is selected.

The selected tray is highlighted. If none of the trays have the same size of paper as the original, "LOAD xxxx PAPER." will appear.

Even if the message above is displayed, copying can be performed using the selected paper tray.

• The number in the copy quantity display will decrease by 1 each time a copy is made.

• If you are only making a single copy, the copy can be made with the copy number display showing "0".

• To clear a mistake, press the [CLEAR] key ( ).

Note

• Press the [CLEAR] key ( ) to stop copying in the middle of a run.

Stream feeding mode

If stream feeding mode is enabled in the key operator programs, "SET ORIGINALS FOR STREAM FEEDING." will appear in the touch panel for approximately 5 seconds after the originals are fed. Any new originals placed in the RSPF while this message appears will be fed and copied automatically.

Copying a large number of originals

Job Build mode is useful when you need to copy more originals that can be placed in the RSPF at once. For information on Job Build mode, see "JOB BUILD MODE" (p.45).

COPY FUNCTIONS

POINTS TO NOTE WHEN MAKING COPIES

Document glass and RSPF

• Paper in a different orientation from the original can be selected if the auto paper select or auto image function has been selected. In this case, the image of the original will be rotated.

• When copying a book or an original that has been folded or crumpled, press down gently on the RSPF. This will reduce shadow lines caused by uneven contact between the original and the document glass.

• When the center tray counter function is enabled, the number of pages that can be delivered to the output tray is limited to 500 (A4 and 8-1/2" x 14" sizes only; the limit for all other sizes is 300 pages.). When the offset function is used, the limit is approximately 300 pages. When the limit is reached, copying stops and the [START] key ( ) light turns off. Remove the copies from the center tray and then press the [START] key ( ) to resume copying. The center tray counter function can be disabled in the key operator programs. (See the "Key operator’s guide".)

Originals that can be used in the RSPF

A maximum of 100 sheet originals of equal size (8-1/2" x 11", 24 lbs. (90g/m2)) can be placed in the RSPF. Originals of different length can be placed together in the RSPF as long the widths are equal; however, some copy functions may not operate correctly.

Acceptable originals

Originals of size 5-1/2" x 8-1/2" to 11" x 17" having a weight of 9 lbs. to 34 lbs. (35g/m2 to 128g/m2) or 14 lbs. to 28 lbs. (52g/m

to 105g/m2) for two-sided originals can be used.

Other considerations

• Use originals that are within the specified size and weight ranges. Originals outside the specified ranges may cause misfeeds.

• Make sure that there are no paper clips or staples on the original.

• If an original has damp spots from correction fluid or ink, or glue from pasteups, be sure it has dried completely before using it to make a copy. Otherwise the interior of the RSPF or the document glass may become soiled.

• The following originals cannot be used. These may cause misfeeds, smudging, and unclear images.

• Transparencies, tracing paper, other transparent or translucent paper, photographs

• Carbon paper

• Thermal paper

• Originals that are creased, folded, or torn

• Glued originals, cut-out originals

• Originals with binder holes

• Originals printed using an ink ribbon (thermal transfer printing), originals printed on thermal transfer paper

COPY FUNCTIONS

2-SIDED COPY

SPECIAL MODES

ORIGINAL

SIZE

MANUAL

ORIGINAL SIZE

AUTO

MIX SIZE ORIGINAL FEEDING MODE

Copying originals of mixed length (Mixed feeding)

When using the RSPF, originals of mixed length can be fed together as long as the width of the originals is the same. To copy originals of mixed length, follow these steps:

Touch the [SPECIAL MODES] key.

Touch the key and then the

[ORIGINAL SIZE] key.

Select the "MIX SIZE ORIGINAL

FEEDING MODE" checkbox.

Touch the [OK] key.

Note

When copying is started in mixed feeding mode, all originals are scanned before copying begins.

The setting is entered and you return to the main screen. The original size icon changes to that mixed feeding is selected.

8½x11

() to indicate

Automatic copy image rotation (Rotation copying)

If the originals are placed in a different orientation than the copy paper, the original image will be automatically rotated 90 rotation, such as enlarging the copy to greater than 8-1/2" x 11" (A4) size or margin shift copy, rotation will not be possible.

[Example]

• This function operates in both the auto paper select and auto image modes. Rotation copying can be disabled in the key operator programs. (See the "Key operator's guide".)

°. (When an image is rotated, a message will be displayed.) If a function is selected that is not suitable for

Orientation of

the placed original

Face down Face down

Orientation of

the loaded paper

Copy after rotation

COPY FUNCTIONS

EXPOSURE

AUTO 8½x11

PAPER SELECT

100%

ACC.#-C

READY TO COPY.

EXTRA IMAGE ADJUST

TO FRONT TO REAR

BYPASS FEED (special paper)

The bypass tray must be used to feed special papers such as transparency film and labels. The bypass tray can also be used to feed standard copy paper.

Place the original(s). (p.22, p.23)

Insert the paper (print face down) all

the way into the bypass tray.

For paper that can be used in the bypass tray, see "PAPER" (p.15). To load paper, see "Loading paper in the bypass tray" (p.18).

Touch the [PAPER SELECT] key or

the tray in the image of the machine in the touch panel, and select the bypass tray.

Set the type of paper that you loaded in the bypass tray. (p.20)

Select the number of copies and any

other desired copy settings, and then press the [START] key ( ).

Shifting the starting position of copying

When copying on a special size of paper in the bypass tray, the starting position of printing can be shifted vertically for fine adjustment of the image position. To adjust the starting position of printing, follow the steps below. This function can only be used when feeding special sizes of paper from the bypass tray.

1 Touch the [PAPER SELECT] key and then touch the [EXTRA

IMAGE ADJUST] key on the bypass tray.

2 Use the key or key to adjust the printing position, and

then touch the [OK] key.

• The position can be adjusted from -0.5 inch to +0.5 inch in 0.02 inch increments.

•

When a setting from -0.5 inch to -0.02 inch is selected, the starting position of printing is moved to front from the standard position. When a setting from +0.02 inch to +0.5 inch is selected, the starting position of printing is moved to rear.

0.00

(-0.5 0.5) inch

AUTOMATIC TWO-SIDED COPYING

OUTPUT

2-SIDED COPY

BINDING

CHANGE

Two originals can be automatically copied onto both sides of a single sheet of paper. When the RSPF is used, two-sided copies of two-sided originals can easily be made.

Original → Paper

One-sided original

Document glass

Two-sided original

→ Two sides

Note

One-sided original

→ Two sides

()

RSPF

• Paper sizes that can be used are 8-1/2" x 11", 8-1/2" x 11"R, 8-1/2" x 13", 8-1/2" x 14" and 11" x 17" (A5, B5, B5R, A4, A4R, B4, and A3).

• When making two-sided copies on letterhead paper, place the side with the letterhead face down if using a tray, or face up if using the bypass tray (This is the opposite of normal.). Automatic two-sided copying is not possible on thick paper, thin paper, labels, transparency film, envelopes, and

• other special types of paper.

• Automatic two-sided copying can be disabled in the key operator programs. (See the "Key operator’s guide".) When dual page copy (p.43) is selected, two-sided original to two sides or two-sided original to one side cannot be used.

•

USING THE DOCUMENT GLASS

→ Two s i d es ( )

()

Two-sided original

→ One side

()

Place the original on the document

glass. (p.22)

Touch the [2-SIDED COPY] key.

Touch the [One-sided to two-sided

copy] key.

Touch the [BINDING CHANGE] key when making the tablet binding, or when making automatic two-sided copies of a one-sided 11" x 17" or 8-1/2" x 14" size portrait original, touch the [BINDING CHANGE] key.

Portrait-oriented original

(11" x 17" or 8-1/2" x 14" size)

Before [BINDING CHANGE] After [BINDING CHANGE]

Touch the [OK] key.

COPY FUNCTIONS

EXPOSURE

AUTO 8½x11

PAPER SELECT

100%

ACC.#-C

OUTPUT

2-SIDED COPY

BIN

CHA

BINDING

CHANGE

EXPOSURE

AUTO 8½x11

PAPER SELECT

100%

ACC.#-C

Make sure that a suitable paper size is

automatically selected, or select another size using the [PAPER SELECT] key.

Select the number of copies and any

other desired copy settings, and then press the [START] key ( ).

The original for the front side is scanned.

Remove the first original and then place

the original for the back side on the document glass. Close the RSPF and then press the [START] key ( ).

To cancel automatic two-sided copying, press the [CLEAR] key ( ).

Note

When making two-sided copies of an odd number of originals, touch the [READ-END] key after scanning the last original.

USING THE RSPF

Place the original(s) in the document

feeder tray. (p.23)

Touch the [2-SIDED COPY] key.

Touch the desired copy mode.

Touch the [OK] key.

Make sure that a suitable paper size is

automatically selected, or select another size using the [PAPER SELECT] key.

Portrait-oriented original

(11" x 17" or 8-1/2" x 14" size)

Before [BINDING CHANGE] After [BINDING CHANGE]

Select the number of copies and any

other desired copy settings, and then press the [START] key ( ).

EXPOSURE ADJUSTMENT

AUTO

EXPOSURE

AUTO 8½x11

AUTO

ORIGINAL IMAGE TYPE


TEXT/PHOTO

TEXT

1 3

AUTO

MANUAL

1 3 5

ACC.#-C

SELECTING THE ORIGINAL IMAGE TYPE AND MANUALLY ADJUSTING THE EXPOSURE

[AUTO] is selected by default for automatic adjustment of the image according to the original. If you wish to specify the original image type or manually adjust the exposure, place the original in the RSPF or on the document glass, check the paper size, and then perform the following steps.

Touch the [EXPOSURE] key.

Select [TEXT], [TEXT/PHOTO], or

[PHOTO] as appropriate for the original.

Selecting the original image type

• Four original image type selections are available.

TEXT

TEXT/PHOTO


Use for regular text, blueprints, and light pencil writing.

Use for mixed text/photo originals and printed photos.

Use for photos and when you desire clearer halftones.

Manually adjust the copy exposure.

If [TEXT] was selected for the original image type, touch the [AUTO

MANUAL] key to select [MANUAL] and then adjust the copy exposure.

Touch the key to make darker copies. Touch the key to make lighter copies.

Note

To change back to automatic exposure adjustment, follow these steps:

1 Touch the [EXPOSURE] key. 2 Touch the [TEXT] key.

The [AUTO MANUAL] key appears when [TEXT] is selected.

3 Touch the [AUTO MANUAL] key so that

[AUTO] is highlighted.

4 Touch the [OK] key.

Touch the [OK] key.

You will return to the main screen of copy mode.

Exposure value guidelines

1 - 2 Dark originals like newspapers 3 Normal originals 4 - 5 Light colored text or text written in

pencil

• Automatic exposure adjustment can only be selected when [TEXT] is selected for the original image type.

Check the paper size, select the

number of copies and any other desired copy settings, and then press the [START] key ( ).

REDUCTION/ENLARGEMENT/ZOOM

8½x14

8½x11

PLAIN

RECYCLED

AUTO


AUTO

PAPER

COPY

ACC.#-C

There are three ways to enlarge and reduce copies:

● Automatic ratio selection according to the paper size ........................... AUTOMATIC RATIO SELECTION (below)

● Specifying a ratio with the reduce key, enlarge key, or zoom key ..................MANUAL RATIO SELECTION (p.31)

● Separately selecting vertical and horizontal ratios ........................................................... XY ZOOM copying (p.32)

Ratios that can be selected vary depending on the following conditions:

Original position Selectable ratios

Document glass 25 to 400%

RSPF 50 to 200%

AUTOMATIC RATIO SELECTION

The ratio is automatically selected based on the original size and paper size.

Place the original(s). (p.22, p.23)

The original size appears in the touch panel.

Note

Touch the [PAPER SELECT] key and

• If the original size does not appear in the touch panel, specify the original size manually. (p.47)

• Automatic ratio selection is not possible if the original or paper is a non-standard size.

then select the desired paper size.

The selected key is highlighted and the paper selection screen closes.

Note

If paper of the desired size is not loaded in any of the trays, load paper of the required size in a paper tray or in the bypass tray. (p.19)

Note

Select the number of copies and any

• When automatic ratio selection is selected, the [AUTO IMAGE] key is highlighted in the main screen. If the original and paper are in different

• orientations, the image is automatically rotated to match the paper orientation (for paper sizes 8-1/2" x 11" (A4) or less).

• Rotation of the image can be disabled in the key operator programs. (See the "Key operator’s guide".)

• If "IMAGE IS LARGER THAN THE COPY PAPER." appears in the touch panel, part of the image will be cut off in the copy.

other desired settings, and then press the [START] key ( ).

Touch the [AUTO IMAGE] key.

A suitable ratio is selected based on the original size and selected paper size. (The ratio appears in the touch panel.)

Note

To cancel automatic ratio selection, touch the [AUTO IMAGE] key. Automatic ratio selection also turns off automatically when the enlargement key, the reduction key, or a [ZOOM] key the ratio to be selected.

(/)

is touched to allow

MANUAL RATIO SELECTION

PAPER SELECT

100%

COPY RATIO

ZOOM

XY ZOOM

AUTO IMAGE

EXPOSURE

PAPER SELECT

COPY RATIO

READY TO COPY.

AUTO

AUTO 8½x11

100

11x17

8½x11

5½x8½

8½x14 11x17

64%

11x17

8½x14

8½x11

77%

8½x11

11x17

5½x8½

8½x11

129%

121%

100%

ZOOM

100

8½x11 5½x8½

11x17

64%

11x17

8½x14

8½x11

77%

8½x11

11x17

5½x8½

8½x11

129%

121%

ZOOM

XY ZOOM

1x17

8½x11

½x11

5½x8½

½x14 11x17

64%

11x17

8½x14

8½x11

11x17

5½x8½

8½x11

129

121%

AUTO IMAGE

PAPE

COP

AUTO

x17

8½x14 8½x11

77%

11x17 8½x11

129%

100%

There are four preset reduction ratios and four preset enlargement ratios. In addition, the [ZOOM] keys ( , ) can be pressed to select the ratio in increments of 1%.

COPY FUNCTIONS

Place the original(s). (p.22, p.23)

Touch the [COPY RATIO] key.

Use the [MENU] key to select menu

[ ] or menu [ ] for copy ratio selection.

•

Preset reduction keys :

•

Preset enlargement keys :

• [100%] key 100%

64%, 77% 121%, 129%

Use the enlargement key or reduction

key, or the [ZOOM] key ( / ) to set the desired copy ratio.

The [ZOOM] keys ( / ) can be used to change the ratio in increments of 1% Touch the key to increase the ratio or the

key to decrease the ratio. Continuing to touch a [ZOOM] key ( / ) makes the ratio change faster.

Note

• Touch a reduction or enlargement key to set the approximate ratio, then touch the [ ] key to decrease the ratio or the [ ] key to increase the ratio.

• If "IMAGE IS LARGER THAN THE COPY PAPER." appears, the selected copy ratio is too large for the paper size. However, if you press the [START] key ( ), a copy will be made.

READY TO COPY.

100

ZOOM

25%

50%

200%

400%

XY ZOOM

•

Preset reduction keys :

•

Preset enlargement keys :

• [100%] key 100%

100%

AUTO IMAGE

AUTO 8½x11

PAPER SELECT

COPY RATIO

25%, 50% 200%, 400%

AUTO

EXPOSURE

Touch the [OK] key.

COPY FUNCTIONS

EXPOSURE

AUTO 8½x11

PAPER SELECT

77%

ACC.#-C

PAPER SELECT

100%

COPY RATIO

XY ZOOM

11x17

8½x11

5½x8½

8½x14 11x17

64%

11x1 8½x1

8½x1 5½x8

121%

Make sure that a suitable paper size is

automatically selected, or select another size using the [PAPER

Select the number of copies and any

other desired copy settings, and then press the [START] key ( ).

SELECT] key.

If AUTO PAPER SELECT is enabled, the appropriate copy paper size is automatically selected based on the original size and selected copy ratios.

Note

To return the ratio setting to 100%, touch the [COPY RATIO] key to display the ratio menu and then touch the [100%] key. (p.31, step

SELECTING THE VERTICAL AND HORIZONTAL COPY RATIOS SEPARATELY (XY ZOOM copying)

The XY ZOOM feature allows the horizontal and vertical copy ratios to be changed independently.

Example: Vertical ratio set to 100% and horizontal ratio set to 50%.

Note

Place the original(s). (p.22, p.23)

Touch the [COPY RATIO] key.

• The AUTO IMAGE/MULTI SHOT/PAMPHLET COPY feature cannot be used in combination with the XY ZOOM function.

• To use the XY ZOOM feature with the DUAL PAGE COPY feature (p.43), set the DUAL PAGE COPY feature first and then the XY ZOOM feature.

Original

Copy

Touch the [XY ZOOM] key.

COPY FUNCTIONS

ZOOM

100

64%

50%

XY ZOOM

CANCEL

ZOOM

100

ZOOM

100

64%

50%

77%

ZOOM

CANCEL

ZOOM

129%

200%

400%

100%

PAP

EXPOSURE

AUTO 8½x11

PAPER SELECT

X-50% Y-70%

Touch the [X] key.

The [X] key is selected

Use the reduction, enlargement, and

(highlighted) by default, so there is normally no need to perform this step (Go to step 5.). If the [X] key is not highlighted, perform this step.

[ZOOM] keys ( / ) to change the copy ratio in the horizontal (X) direction.

A fixed ratio key will not become highlighted when touched.

Use the reduction, enlargement, and

[ZOOM] keys ( / ) to change the copy ratio in the vertical (Y) direction.

A fixed ratio key will not become highlighted when touched.

If you need to readjust the horizontal ratio, touch the [X] key again.

Touch the [OK] key.

Note

Touch the [Y] key.

Touch a reduction or enlargement key to set the approximate ratio, then touch the [ ] key to decrease the ratio or the [ ] key to increase the ratio.

The [ZOOM] keys ( / ) can be used to change the ratio in increments of 1% Touch the key to increase the ratio, or the

key to decrease the ratio. Continuing to touch a [ZOOM] key ( / ) makes the ratio change faster.

Make sure that a suitable paper size is

automatically selected, or select another size using the [PAPER SELECT] key.

If AUTO PAPER SELECT is enabled, the appropriate copy paper size is automatically selected based on the original size and selected copy ratios.

Select the number of copies and any

other desired copy settings, and then press the [START] key ( ).

Note

To cancel this function, touch the [CANCEL] key in the XY ZOOM screen.

INTERRUPTING A COPY RUN

ACC.#-C

A copy run can be temporarily interrupted to allow another copy job to be performed. When the other job is finished, the copy run will resume using the original copy settings.

Note

Press the [INTERRUPT] key ( ) to

Automatic two-sided copying, sort/group copying, staple sort, pamphlet copy, job build, cover copy, job build, job programs, or multi shot copying cannot be used for interrupt copying.

interrupt the copy run.

The [INTERRUPT] key ( ) blinks until the machine is ready for the interrupt job, after which it lights steadily.

If you decide to cancel the interrupt job while selecting settings, press the [INTERRUPT] key ().

Note

• If audit mode is enabled, a message will appear prompting you to enter your account number. Enter your account number with the numeric keys. The copies that you make will be added to your account’s count.

• If an original is being scanned when the [INTERRUPT] key ( ) is pressed, the interrupt job will begin after the original is scanned. If a copy is being printed, the interrupt job will begin after the copy is printed.

When the copy job is finished, press

the [INTERRUPT] key ( ) and remove the original(s).

Replace the previous original(s) and

press the [START] key ( ) to resume copying.

Replace only the originals that have not yet been scanned.

Remove the previous original(s) and

place the original(s) of the interrupt copy job. (p.22, p.23)

Select the number of copies and any

other desired copy settings, and then press the [START] key ( ).

The interrupt copies will be offset from the previous copies. (Offset function, p.35)

This chapter explains special finishing functions and other convenient functions.

COPY FINISHING FUNCTIONS

This section explains the sort, group, and offset functions, as well as the staple sort function which is used to staple output collated with the sort function when a finisher is installed.

Chapter 3

CONVENIENT COPY FUNCTIONS

SORT COPY

This function is used to collate sets of copies. The copies are delivered to the center tray, and to other trays when a job separator tray or finisher is installed.

1 2 3

OFFSET FUNCTION

Each set of copies is offset from the previous set in the output tray, making it easy to distinguish one set from another. (The offset function can be used in the center tray or in the offset tray of the finisher.)

GROUP COPY

This function is used to group sets of copies by page. The copies are delivered to the center tray, and to other trays when a job separator tray or finisher is installed.

1 1

3 3 3

Offset function "ON" Offset function "OFF"

Enabling the offset function

The offset function operates when a checkmark appears in the [OFFSET] checkbox, which is displayed by touching the [OUTPUT] key. (If a checkmark does not appear, touch the checkbox.)

CONVENIENT COPY FUNCTIONS

2-SIDED COPY

OUTPUT

UPPER TRAY

CENTER TRAY

SORT

GROUP

UPPER TRAY

CENTER TRAY

OFFSET

ACC.#-C

READ-END

PLACE NEXT ORIGINAL. PRESS [START]. WHEN FINISHED, PRESS [READ-END].

Place the originals in the RSPF or on

the document glass. (p.22, p.23)

If originals are placed in the RSPF, the sort function is automatically selected. (To disable this function, see the "Key operator’s guide".)

Example: 5 sets of copies or 5 copies per page of 3

originals

Originals

Touch the [OUTPUT] key.

Touch the [SORT] or [GROUP] key.

Touch the [OK] key.

Select the number of copies and any

other desired copy settings, and then press the [START] key ( ).

[When using the RSPF:]

Copying will start after all the originals are scanned.

[When using the document glass:]

Replace the original with the next original and press the [START] key ( ). Repeat this step until all originals have been scanned, and then touch the [READ-END] key.

Touch the output tray that you wish to

use.

Note

The output tray can only be selected when a job separator or finisher is installed.

To enable the offset function (p.35), touch the [OFFSET] checkbox so that a checkmark appears. To disable the offset function, touch the [OFFSET] checkbox again to clear the checkmark.

The copies are grouped as follows:

Sort Group

Copy

5 sets of copies 5 copies per page

If the memory becomes full while scanning the originals, "MEMORY IS FULL. PRESS [START] TO BEGIN COPYING OR [CA] TO CANCEL." will appear. To copy only the originals that have been scanned, press the [START] key ( ) . To cancel the job, press the [CLEAR ALL] key ( ).

Note

The number of originals that can be scanned into memory can be increased by increasing the memory allocation in the key operator programs, or by installing more memory. the "Key operator’s guide".)

Copy

(See

CONVENIENT COPY FUNCTIONS

Stapling position

STAPLE SORT (when the finisher (AR-FN5A) is installed)

This function collates the copies, staples each set, and delivers the sets to the offset tray. The staple sort function can only be used when a finisher is installed. In addition to the staple sort function, other functions such as the pamphlet staple function can be used when the saddle stitch finisher (AR-F14N) is installed. For detailed information, see the manual that accompanies the saddle stitch finisher.

Stapling position

Top left corner

Portrait orientation

Available paper sizes: 8-1/2" x 11" (A4 and B5) Stapling capacity: For each size, up to 30 sheets can be stapled.

Landscape orientation

Available paper sizes: 11" x 17", 8-1/2" x 14", 8-1/2" x 13", 8-1/2" x 11" R, (A3, B4 and A4R) Stapling capacity: For each size, up to 30 sheets can be stapled.

ORIENTATION OF THE ORIGINAL AND STAPLING POSITIONS

If the orientation of the originals does not match that of the copy paper, the images will be rotated. The stapling position varies with the orientation of the original.

Using the RSPF

Insert the originals face up.

Using the document glass

Place each original face down.

Stapling position

When copying 8-1/2" x 14" or 11" x 17" (B4 or A3) vertically oriented originals, the copies will be stapled at the position shown below.

Stapling position

SHARP

Note

Stapling position

RSPF

• When using letterhead paper in the staple sort, load the paper with the letterhead to the front or to the right as shown in the diagram.

• Different sized originals cannot be copied on the corresponding sizes of paper.

• The staple sort function cannot be used if disabled in the key operator programs. (See the "Key operator’s guide".)

• The offset function (p.35) cannot be used.

Document glass

SHARP

CONVENIENT COPY FUNCTIONS

2-SIDED COPY

OUTPUT

TOP TRAY

OFFSET TRAY

STAPLE

SORT

GROUP

CENTER TRAY

OFFSET

READ-END

PLACE NEXT ORIGINAL. PRESS [START]. WHEN FINISHED, PRESS [READ-END].

Place the original(s). (p.22, p.23)

Touch the [OUTPUT] key.

Touch the [STAPLE SORT] key.

When the [STAPLE SORT] key is selected, the offset tray is automatically selected as the output tray. The top tray and center tray cannot be used.

Touch the [OK] key.

[When using the RSPF:]

Copying will start after all originals have been scanned.

[When using the document glass:]

Replace the original with the next original and press the [START] key ( ). Repeat this step until all originals have been scanned, and then touch the [READ-END] key.

If the memory becomes full while scanning the originals, "MEMORY IS FULL. PRESS [START] TO BEGIN COPYING OR [CA] TO CANCEL." will appear. To copy only the originals that have been scanned, press the [START] key ( ). To cancel the job, press the [CLEAR ALL] key ( ).

Note

The number of originals that can be scanned into memory can be increased by increasing the memory allocation in the key operator programs, or by installing more memory. the "Key operator’s guide".)

(See

Select the number of copies and other

copy settings, and then press the [START] key ( ).

SPECIAL MODES

2-SIDED COPY

OUTPUT

READY TO COPY.

AUTO

EXPOSURE

AUTO 8½x11

PAPER SELECT

100%

COPY RATIO

8½x11

ORIGINAL

8½x11

8½x14

When the [SPECIAL MODES] key in the main screen of copy mode is touched, the special modes screen will appear. This screen contains the following special function keys.

Touch the [SPECIAL MODES] key in the main screen

SPECIAL MODES

PAMPHLET COPY

2 3

ERASEMARGIN SHIFT

JOB

BUILD

DUAL PAGE

COPY

MULTI SHOT

4 5 6

[MARGIN SHIFT] key (p.41)

Use this to shift the image on the copy paper to create binding margins.

[ERASE] key (p.42)

Use this to erase peripheral shadows that occur when making copies of books and other thick originals.

[DUAL PAGE COPY] key (p.43)

Use this to make separate copies of the left and right pages of bound documents.

[PAMPHLET COPY] key (p.44)

The pamphlet copy function is used to arrange copies in the proper order for center-stapling and folding into a booklet. Two original pages are copied onto each side of the paper, such that a total of four pages are copied onto one sheet.

[JOB BUILD] key (p.45)

Use this when you need to copy more originals than can be placed in the RSPF at once. This allows you to divide the originals into sets and scan them sequentially in the RSPF.

[MULTI SHOT] key (p.46)

The multi shot copy function is used to copy two or four originals onto one sheet of copy paper in any of four layout patterns.

1/2

SPECIAL MODES

ORIGINAL

SIZE

CARD SHOT

( ) key, ( ) key

COVER

B/W

REVERSE

2/2

Use these to change pages in the special functions screen.

[ORIGINAL SIZE] key (p.47)

Use to manually select the original size. When the original size is selected, the auto ratio select function will automatically select an appropriate ratio based on the paper size.

[COVER] key (p.48)

Press this to use a different type of paper for front and back covers (When the RSPF is used.).

[B/W REVERSE] key (p.50)

Use to reverse black and white areas.

[CARD SHOT] key (p.51)

The front and reverse sides of a card can be copied onto one sheet of paper.

[OK] key

Touch to return to the main screen of the copy mode.

Note

Some functions cannot be used in combination with each other. If a prohibited combination of functions has been selected, a message will appear in the touch panel.

CONVENIENT COPY FUNCTIONS

SPECIAL MODES

2-SIDED COPY

MARGIN SHIFT

PAMPHLET COPY

GENERAL PROCEDURE FOR USING THE SPECIAL FUNCTIONS

Touch the [SPECIAL MODES] key.

Touch the key of the desired special

mode.

Example: Selecting the margin shift function

Procedures for modes that require further settings are explained starting on the next page.

CONVENIENT COPY FUNCTIONS

MARGIN SHIFT

PAMPHLET COPY

RIGHT LEFT DOWN

SIDE 1

(0 1) inch

SIDE 2

OKCANCEL

1/2 1/2

MARGIN SHIFT COPY

The margin shift function is used to automatically shift the text or image on the copy paper approximately 1/2" in its initial setting.

One-sided copying

Two-sided copying

Image shifted to the right

Margin

Image shifted to the right

Margin

Image shifted to the left

Margin

Image shifted to the left

Margin

Image shifted down

Margin

• Right, left or down can be selected for the shift direction as shown in the illustration.

• The shift width (margin) can be set from 0" to 1" in increments of 1/8".

• If [DOWN] key is selected, set the original(s) so that the margin to be increased is set to the rear side of the RSPF or the document glass.

Touch the [MARGIN SHIFT] key in the

special modes screen.

The margin shift setting screen will appear. The margin shift icon ( , etc.) will also appear in the screen to indicate that the function is turned on.

Select the shift direction.

Touch the [RIGHT], [LEFT], or [DOWN] key. The selected key will be highlighted.

Adjust the shift width as needed and

touch the [OK] key.

Use the and keys to set the shift width. The shift amount can be set from 0" to 1" in increments of 1/8".

Touch the [OK] key in the special

modes screen.

You will return to the main screen of copy mode.

About the steps that follow

If you are using the document glass, see page 22. If you are using the RSPF, see page 23.

Note

• When margin shift is selected, rotation copying will not function.

• This feature cannot be used with paper that is not a standard size.

• To cancel the margin shift function, touch the [CANCEL] key in the margin shift setting screen. (See the screen of step 3.)

CONVENIENT COPY FUNCTIONS

ERASEFT

JOB

BUILD

ERASE

CENTER

ERASE

EDGE+CENTER

ERASE

EDGE

ERASE

EDGE

CANCEL OK

1/2

(0 1) inch

ERASE COPY

The erase function is used to erase the shadow lines on copies that are produced when copying thick originals or books. The erase modes that can be selected are shown below. The erase width is initially set to 1/2".

EDGE ERASE

Eliminates shadow lines around the edges of copies caused when heavy paper or a book is copied.

CENTER ERASE

Eliminates shadow lines produced by the bindings of bound documents.

EDGE + CENTER ERASE

Eliminates both the shadow lines around the edges of copies and the shadow at the center.

Touch the [ERASE] key in the special

modes screen.

The erase setting screen will appear. The erase icon ( , etc.) will also appear in the screen to indicate that the function is turned on.

Select the desired erase mode.

Select one of the three erase modes. The selected key will be highlighted.

Adjust the erase width as needed and

touch the [OK] key.

Use the and keys to adjust the erase width. The erase width can be set from 0" to 1" in increments of 1/8".

Touch the [OK] key in the special

modes screen.

You will return to the main screen of copy mode.

About the steps that follow

If the document glass is being used, see page 22. If the RSPF is being used, see page 23.

Note

• This feature cannot be used with non-standard size originals.

• This feature cannot be selected when mixed feeding (p.25) is used.

• To cancel the erase copy function, touch the [CANCEL] key in the erase setting screen. (See the screen of step 3.)

CONVENIENT COPY FUNCTIONS

MULTI SHOT

1/2

DUAL PAGE

COPY

1/2

DUAL PAGE

COPY

PAPER SELECT

AUTO 8½x11

100%

ACC.#-C

DUAL PAGE COPY

The dual page copy function produces separate copies of two adjoining pages on the document glass. It is especially useful when copying books and other bound documents.

[Example] Copying the right and left pages of a book

Book original Dual page copy

Touch the [DUAL PAGE COPY] key in

the special modes screen.

The [DUAL PAGE COPY] key is highlighted to indicate that the function is enabled, and the dual page copy icon ( ) will appear in the screen.

Touch the [OK] key in the special

modes screen.

You will return to the main screen of copy mode.

• A reduction setting can be selected when using the dual page copy function, however, an enlargement setting cannot be selected.

• The dual page copy function can only be used when copying from the document glass. The RSPF cannot be used.

• Only 8-1/2" x 11" paper can be used.

When copying book originals:

When copying a thick book, press down gently on the book to flatten it against the document glass.

Make sure that 8-1/2" x 11" size paper

is selected.

If 8-1/2" x 11" size paper is not selected, touch the [PAPER SELECT] key to select 8-1/2" x 11" paper.

Place the originals on the document

glass. (p.22)

Index

/2x11

This page is copied first.

Center line of original

Select the number of copies and any

other desired copy settings, and then press the [START] key ( ).

Note

• To cancel the dual page copy function, touch the [DUAL PAGE COPY] key in the special modes screen. (The key will no longer be highlighted.) (See the screen of step 1.)

• To erase shadows caused by the document binding, use the edge erase function (p.42). (Center Erase and Edge + Center Erase cannot be used with the dual page copy function.)

CONVENIENT COPY FUNCTIONS

MARGIN SHIFT

PAMPHLET COPY

CANCEL

PAMPHLET COPY

ORIGINAL

2-SIDED1-SIDED

RIGHT

BINDING

LEFT

BINDING

CANCEL OK

RIGHT

BINDING

LEFT

BINDING

PAPER SELECT

AUTO 11x17

100%

PAMPHLET COPY

The pamphlet copy function is used to arrange copies in the proper order for center-stapling and folding into a booklet. Two original pages are copied onto each side of the copy paper, such that a total of four pages are copied onto each sheet. This function is convenient for arranging copies into an attractive booklet or pamphlet.

[Example]: Copying 8 originals with pamphlet copy

Originals (one-sided)

Originals (two-sided)

The finished copies can be folded.

First page

• Scan the originals in order from the first page to the last page. The order of copying will be automatically adjusted by the machine.

• Either left binding (opening from right to left) or right binding (opening from left to right) can be selected.

• Four originals will be copied onto one sheet. Blank pages may be automatically added at the end, depending on the number of the originals.

Touch the [PAMPHLET COPY] key in

the special modes menu screen.

The pamphlet copy setting screen will appear. The pamphlet copy icon ( , etc.) will also appear in the upper left corner of the screen to indicate that the function is enabled.

Specify whether 1-sided or 2-sided

originals will be copied.

Select the binding position ([LEFT

BINDING] or [RIGHT BINDING]) and then touch the [OK] key in the pamphlet copy setting screen.

You will return to the special modes menu screen.

Touch the [OK] key in the special

modes screen.

You will return to the main screen of copy mode.

Place the original(s). (p.22, p.23)

Make sure that a suitable paper size

has been automatically selected.

If the desired copy paper size is not selected, use the [PAPER SELECT] key to select the paper size. After the paper size is selected, touch the [AUTO IMAGE] key. A suitable ratio will be automatically selected.

Select the number of copies and any

other desired copy settings, and then press the [START] key ( ).

[When using the RSPF:]

Copying will start after all originals have been scanned.

[When using the document glass:]

Replace the original with the next original and press the [START] key ( ). Repeat this step until all originals have been scanned, and then touch the [READ-END] key.

When the pamphlet copy function is selected, two-sided copying will be automatically enabled.

Note

To cancel the pamphlet copy function, touch the [CANCEL] key in the pamphlet copy setting screen. (See the screen of step 2.)

CONVENIENT COPY FUNCTIONS

ERASET

MUL

ERASE

JOB

BUILD

JOB

BUILD

MULTI SHOT

ERASE

1/2

JOB

BUILD

DUAL PAGE

COPY

ACC.#-C

READ-END

PLACE NEXT ORIGINAL. PRESS [START]. WHEN FINISHED, PRESS [READ-END].

JOB BUILD MODE

Use this function when you need to copy more originals than can be placed in the RSPF at once. (The maximum number of originals that can be placed in the RSPF at once is 100.)

Note

Example: Copying 130 sheets (8-1/2" x 11" size originals)

* Divide the originals into sets so that each set is no more than

100 pages. Scan the sets in order beginning from the first page of set A.

Touch the [JOB BUILD] key in the

• If the memory becomes full while scanning the originals, "MEMORY IS FULL. PRESS [START] TO BEGIN COPYING OR [CA] TO CANCEL." will appear. To copy only the originals that have been scanned, press the [START] key ( ) . To cancel the job, press the [CLEAR ALL] key ( ). Depending on the content of the originals, the memory may become full before 100 originals have been scanned. In

• this case, press the [START] key ( ) to copy the originals that have been scanned, and then place the originals that weren’t scanned in the RSPF once again and repeat the copy procedure.

• To increase the number of originals that can be scanned, install more memory or increase the memory allocation in the key operator programs. (See the "Key operator’s guide".)

Originals

page 1 page 101

100 sheets 30 sheets

special modes menu screen.

The [JOB BUILD] key is highlighted. The job build copy icon ( ) will also appear in the screen to indicate that the function is enabled.

Touch the [OK] key in the special

modes screen.

You will return to the main screen of copy mode.

Make sure that a suitable paper size is

selected, select the number of copies and any other desired copy settings, and then press the [START] key ( ) .

Scanning begins. When scanning of the first set of originals (A in the above example) is finished, insert the second set and press the [START] key ( ).

Repeat this step until all the remaining originals (B in the above example) have been scanned. Remove each scanned set of originals before inserting the next set.

Place the original(s) in the RSPF.

(p.23)

Touch the [READ-END] key.

Copying begins.

Note

To cancel the job build mode function, touch the [JOB BUILD] key in the special modes screen so that it is no longer highlighted. (See the screen of step 1.)

CONVENIENT COPY FUNCTIONS

MULTI SHOT

1/2

DUAL PAGE

COPY

CANCEL

LAYOUT

BORDER

CANCEL

LAYOUT

BORDER

MULTI SHOT COPY

The multi shot copy function is used to copy two or four originals onto one sheet of copy paper in a specified order.

Example: Copying four originals onto one sheet of paper (Page number: 4 in 1 ( ), layout: ( ))

One-sided copy of one-sided original

Copy

One-sided copy of two-sided original

• When using the multi shot copy function, place the originals, select the desired paper size, and select the copy mode before selecting the multi shot copy function in the special modes screen.

•

When using the appropriate copy ratio will be automatically set based on the original size, paper size, and the number of originals to be copied onto one sheet. The minimum reduction ratio is 25%. (The minimum ratio is 50% when the RSPF is used.) Depending on the original size, paper size, and the number of originals to be copied onto one sheet, portions of original images may be cut off.

multi shot copy

function, the

Touch the [MULTI SHOT] key in the

SPECIAL MODES menu screen.

The multi shot copy setting screen will appear. The multi shot copy icon ( , etc.) will also appear in the screen to indicate that the function is enabled.

Select the number of originals to be

copied onto one sheet in the multi shot copy selection screen.

SPECIAL MODES

MULTI SHOT

2in1 4in1

Select the layout.

CANCEL

LAYOUT

Select the order in which the originals will appear on the copy.

BORDER

Select a borderline setting.

Select [ ], [ ], or [].

Touch the [OK] key in the multi shot

setting screen.

You will return to the special modes menu screen.

Touch the [OK] key in the special

modes menu screen.

You will return to the main screen of copy mode.

Select the number of copies and any

other desired copy settings, and then press the [START] key ( ).

[When using the RSPF:]

Copying will start after all originals have been scanned.

[When using the document glass:]

Replace the original with the next original and press the [START] key ( ). Repeat this step until all originals have been scanned, and then touch the [READ-END] key if necessary.

Note

• The images may be rotated depending on the number of originals and the orientation of the originals and copy paper.

• To cancel the multi shot copy function, touch the [CANCEL] key in the multi shot setting screen (the screen of step 2) .

CONVENIENT COPY FUNCTIONS

ORIGINAL

SIZE

COV

MANUAL

AUTO

MIX SIZE ORIGINAL FEEDING MOD

INCH

AUTO MANUAL

ORIGINAL SIZE

5½x8½ 8½x11 8½x11R 8½x13

8½x14 11x17

ORIGINAL SIZE

If you wish to use the paper other than the automatically selected original size, original size setting is specified by the special modes. The mix feeding setting (p.25) is also selected here.

Touch the key and then touch the

[ORIGINAL SIZE] key in the special modes menu screen.

The original size setting screen will appear.

Touch the [MANUAL] key.

Select the original size.

Touch the [OK] key in the special

modes menu screen.

You will return to the main screen of the copy mode.

Note

To select mixed feeding, select the "MIX SIZE ORIGINAL FEEDING MODE" checkbox. Mixed feeding is explained on page 25.

[MANUAL] key is highlighted and the selected paper size is displayed.

Note

Touch the inside [OK] key.

You will return to the special modes menu screen.

To select an AB size original, touch the [AB INCH] key. AB sizes will appear.

CONVENIENT COPY FUNCTIONS

COVER COPY

Cover copy mode is used to add a cover to the front or back, or both the front and back, of a multipage document. To use cover copy mode, the RSPF must be used.

Copying onto a cover Not copying onto a cover

One-sided copies from one-sided or two-sided originals

One-sided originals

SHARP

Cover original

Two-sided originals

SHARP

Cover original

One-sided copies (copying onto a cover)

SHARP

Front cover (can copy onto front side)

SHARP

Front cover (can copy onto front side)

Back cover (no copying)

Two-sided copies from one-sided or two-sided originals

One-sided originals Two-sided copies

SHARP

Cover original

Two-sided originals

SHARP

Cover original

(copying onto a cover)

Back cover (no copying)

SHARP

Front cover (can copy onto front side) (Back side of cover is blank.)

One-sided copies from one-sided or two-sided originals

One-sided originals

Two-sided originals

One-sided copies (not copying onto a cover)

Back cover

Front cover

(not copying onto a cover)

Two-sided copies from one-sided or two-sided originals

One-sided originals

Two-sided originals

One-sided copies (not copying onto a cover)

Back cover

Front cover

• A front cover, back cover, or both a front and a back cover can be selected.

• You can specify whether or not the front cover is copied on.

• Copying is not possible on either side of a back cover.

CONVENIENT COPY FUNCTIONS

COVER

SPECIAL MODES

FRONT

BACK FRONT+BACK

PRINT ON FRONT COVER?

YES

CANCEL

PRINT ON FRONT COVER?

YES

CANCEL

Touch the key and then touch the

[COVER] key in the special modes menu screen.

The cover setting screen will appear. The cover icon ( , etc.) will also appear in the screen to indicate that the function is turned on.

Select the cover(s) that you wish to

add.

To add only a front cover, touch the [FRONT] key. To add only a back cover, touch the [BACK] key. To add both a front and back cover, touch the [FRONT+BACK] key.

Load the cover paper to be used into

the bypass tray.

Load the same size of paper as the paper to be used for the copy job.

About the steps that follow

See page 23.

Note

• It is not possible to copy on the inside of a front cover, nor on either side of a back cover.

• Be sure to place the originals in the RSPF. The document glass cannot be used for this function.

• During cover copying, stream feeding mode will not function even if enabled in the key operator programs. (See the "Key operator’s guide".)

• To cancel the cover copy function, select the cover copy function again and touch the [CANCEL] key. (See the screen of step 2.)

Specify whether or not the front cover

is to be copied on.

Select [YES] or [NO] in the touch panel. If [YES] is selected, the first page of the document will be copied onto the front cover sheet.

Touch the [OK] key in the cover

setting screen.

Return to the special modes screen.

Touch the [OK] key in the special

modes screen.

You will return to the main screen of copy mode.

CONVENIENT COPY FUNCTIONS

OVER

B/W

REVERSE

B/W REVERSE COPY

The B/W REVERSE feature is used to reverse black and white in a copy to create a negative image.

original B/W reverse copy

Touch the key and then touch the

[B/W REVERSE] key in the special modes menu screen.

The [B/W REVERSE] key is highlighted. The B/W reverse icon ( ) will also appear in the screen to indicate that the function is enabled.

Touch the [OK] key in the special

modes screen.

You will return to the main screen of copy mode.

When the B/W reverse function is selected, the exposure mode will be automatically set to TEXT mode. Other exposure modes cannot be selected. If B/W reverse is canceled, TEXT mode will not automatically be canceled.

About the steps that follow

If the document glass is being used, see page 22. If the RSPF is being used, see page 23.

Note

To cancel the B/W reverse copy function, touch the [B/W REVERSE] key in the special modes screen. (The key will no longer be highlighted.) (See the screen of step 1.)

CONVENIENT COPY FUNCTIONS

EXPOSURE

AUTO 8½x11

PAPER SELECT

100%

COVER

ORIGINAL

SIZE

CARD SHOT

SIZE RESET

CANCEL OK

FIT TO

PAGE

SIZE RESET

CANCEL OK

FIT TO

PAGE

CARD SHOT

The front and back of a card can be copied onto one sheet of paper. This function is convenient for making copies for certification purposes and helps save paper.

• Copying is only possible on standard size paper.

• The image cannot be rotated when using this

Original

Copy

function.

CARD

Front of

card

Back of

card

Make sure that a suitable paper size is

CARD

Example: Portrait 8-1/2" x 11" (A4) size

CARD

Example: Landscape 8-1/2" x 11" (A4) size

selected, or select another size using the [PAPER SELECT] key.

Touch the key and then touch the

[CARD SHOT] key in the special modes screen.

The CARD SHOT setting screen will appear. A card shot icon ( ) will also appear in the upper left corner of the screen to indicate that the function is turned on.

Enter the X dimension (width) and Y

dimension (length) of the original card with the keys.

• X (width) is initially selected. Enter X dimension and then touch the Y ( ) key to enter Y dimension.

• To change the X or Y value back to the default value, touch the [SIZE RESET] key. The default values can be changed in the key operator programs. (See "CARD SHOT SETTINGS" on page 5 of this manual.)

• To have the images enlarged or reduced by a suitable ratio based on the entered original size so that the front and back sides fit into the selected paper size, touch the [FIT TO PAGE] key.

Touch the outer [OK] key.

You will return to the main screen of copy mode.

CONVENIENT COPY FUNCTIONS

ACC.#-C

Place the original on the document

glass.

Place the front side of the original face down and close the document cover/RSPF.

Select the number of copies and any

other desired copy settings, and then press the [START] key ( ).

The front side of the card is scanned.

Place the back side of the original

face down on the document glass.

Press the [START] key ( ).

The back side of the card is scanned and copying begins.

Note

• The original must be placed on the document glass. The RSPF cannot be used.

• Even when [FIT TO PAGE] is selected, you can touch the [COPY RATIO] key in the main screen of copy mode to manually select the ratio.

• To cancel the card shot function, touch the [CANCEL] key in the card shot setting screen (the screen of step 4).

CUSTOM SETTINGS

The custom settings let you adjust certain features of the machine to better suit your needs. The custom settings include the following settings:

●TOTAL COUNT ........................... This displays the number of pages output by the machine. (p.55)

●DISPLAY CONTRAST ................This is used to adjust the contrast of the touch panel. (p.55)

●LIST PRINT*

●CLOCK ........................................ This is used to set the date and time of the machine’s built-in clock. (p.55)

●TRAY SETTINGS........................ This is used to configure the paper type and paper size settings for each

Chapter 4

USER SETTINGS

.............................. This is used to print a setting list or a font list. (p.55)

tray, and select whether or not automatic switch over to another tray with the same size and type of paper will take place if the paper runs out during continuous printing. (p.55)

The following settings are explained in detail in the operation manual for facsimile.

●ADDRESS CONTROL*

●RECEIVE MODE*

●FAX DATA FORWARD*

●KEYBOARD SELECT*

●KEY OPERATOR PROGRAMS .. Settings for key operators (administrators of this machine). A key appears for

The fax option or network printer function must be installed.

The fax option must be installed.

The fax option or network scanner function must be installed.

............. If your machine has the fax option, this setting is used to store fax numbers

for automatic dialing. Group keys and user indexes can also be

...................... This is used to select the fax receive mode (automatic or manual).

............ This is used to forward faxes received in memory to another destination.

...............When using the fax or network scanner function, use this setting to change the

programmed.

layout of the keyboard in the letter entry screen. (p.55)

these settings in the custom settings menu screen. For explanations of the settings, see the Key operator’s guide. (For explanations of key operator programs for the fax option, see the operation manual for facsimile.)

USER SETTINGS

D ATA

LINE

CUSTOM SETTINGS

GENERAL PROCEDURE FOR CUSTOM SETTINGS

Press the [CUSTOM SETTINGS] key.

Touch the key of the desired setting.

The setting screen will appear.

Each of the custom settings is explained on the following pages. The [TRAY SETTINGS] key is selected in the following example.

CUSTOM SETTINGS

TOTAL COUNT

TRAY SETTINGS

KEYBOARD

SELECT

DISPLAY

CONTRAST

ADDRESS CONTROL

KEY OPERATOR PROGRAMS

RECEIVE MODE

LIST PRINT

CLOCK

FAX DATA

FORWARD

EXIT

Touch the [OK] key in the setting

screen to close it.

When you are ready to exit the custom

settings, touch the [EXIT] key.

CUSTOM SETTINGS

TOTAL COUNT

TRAY SETTINGS

KEYBOARD

SELECT

DISPLAY

CONTRAST

ADDRESS CONTROL

KEY OPERATOR PROGRAMS

RECEIVE MODE

LIST PRINT

CLOCK

FAX DATA FORWARD

EXIT

When the [TRAY SETTINGS] key is selected, the following screen appears.

CUSTOM SETTINGS

TRAY SETTINGS

TRAY 1

TRAY 2 PLAIN / 8½x14

TRAY 3

TYPE / SIZE

PLAIN / 8½x11

PLAIN / 11x17

• When a checkbox appears next to an item

Note

in a screen, touch the checkbox ( ) to select the item. A checkmark ( ) will appear to indicate that the item is selected. In the above settings, tray 1 can be used for printer, copy, and fax mode. Tray 2 and tray 3 can only be used for copy mode.

• For a detailed explanation of the trays, see "CHANGING A TRAY’S PAPER TYPE AND PAPER SIZE SETTINGS" (p.19).

COPY

PRINT FAX

1/3

SETTINGS

USER SETTINGS

Total count

The total page count display shows the following counts:

• The total count shows the combined output total of the copy, fax, and printer functions.

• Total number of copies and printed pages

• Number of pages fed through the RSPF

• Number of two-sided copies

• Number of times the stapler was used

• Number of pages sent using the network scanner function

• Number of sent and received fax pages

The counts that appear will vary depending on the peripheral equipment installed.

• Each sheet of paper that is 11" x 17" (A3) size is counted as two sheets.

• Each sheet of paper used for automatic two-sided copying is counted as two sheets (11" x 17" (A3) paper is counted as four sheets.).

Display contrast

Screen contrast adjustment is used to make the touch panel easier to view under various lighting conditions. Touch the [LIGHTER] key to make the screen lighter, or the [DARKER] key to make the screen darker.

Keyboard select

When using the fax or network scanner function, you can change the layout of the keyboard that appears in the letter entry screen. Select the layout that you find easiest to use.

The following three keyboard configurations are available:

• Keyboard 1 (QWERTY configuration)*

• Keyboard 2 (AZERTY configuration)

• Keyboard 3 (ABCDEF configuration) *

The default setting is "Keyboard 1".

(Example: Letter entry screen when Keyboard 3 is selected.)

NAME

aa c d g h i j

k l m n o p q

t u v w x y z

feb

SPACE

CANCEL

r s @

AB/ab 12#$

ABC

ÀÄÂ/àäâ

abc

List print

Use this to print the PRINTER TEST PAGE, the FAX REPORT, or the SENDING ADDRESS LIST.

Clock

Use this to set the date and time of the machine’s built-in clock. The date and time are used for functions that require date and time information.

Tray settings

The paper type, paper size, and enabled modes can be set for each tray. Auto tray switching and disabling of two-sided printing on letterhead paper can also be set. See page 19 and 20 for details on setting the paper type and paper size.

• To select which trays can be used in each of copy, printer, and fax modes, select the checkboxes ( ) of the desired trays in each mode.

• When a tray runs out of paper in the middle of a job, the auto tray switching function automatically switches the paper source to another tray that has the same paper size and paper type settings. (The auto tray switching function cannot be set for the bypass tray.)

JOB PROGRAM MEMORY

ACC.#-C

NUMBER.

ROGRAMS

SS PROGRAM NUMBER.

RECALL STORE

8½x11

8½x14

SPECIAL MODES

2-SIDED COPY

OUTPUT

TO STORE, MAKE SELECTIONS AND PRESS [OK], TO DELETE, PRESS [CANCEL].

8½x11

AUTO

EXPOSURE

AUTO 8½x11

PAPER SELECT

100%

COPY RATIO

D PRESS EL].

CANCEL

8½x11

8½x14

If you frequently use the same settings for copy jobs, you can store in the settings in a job program. Up to 10 job programs can be stored, and the programs are retained even when the power is turned off. By storing frequently used copy settings in a program, you can eliminate the bother of selecting the settings each time you use them for a copy job.

● After a job program is stored, if any settings of the key operator programs related to the stored job program are prohibited, the related settings in the job program will not be recalled.

● If the overwriting of job programs is prohibited in the key operator programs, it will not be possible to overwrite or delete a job program.

● To exit job program memory mode, press the [CLEAR ALL] key ( ) on the operation panel or touch the [EXIT] key on the touch panel.

STORING A JOB PROGRAM

Press the [ ] key.

Touch the [STORE/DELETE] key.

Touch a program number from 1 to 10

in the storage register screen.

Select the copy settings that you wish

to store in the program.

The number of copies cannot be stored.

Touch the [OK] key.

The selected settings will be stored under the program number selected in step 3.

Note

If a numeric key is selected that has already been programmed, a confirmation screen will appear. To replace the existing program with the new program, touch the [STORE] key and continue from step 4. If you do not wish to replace the existing program, touch the [CANCEL] key to return to the above screen and select a different numeric key.

EXECUTING A JOB PROGRAM

ACC.#-C

JOB PROGRAMS

PRESS PROGRAM NUMBER.

RECALL

ACC.#-C

NUMBER.

EXIT

STORE/DELETE

RECALL STORE/DELET

A JOB PROGRAM HAS BEEN ALREADY STORED. STORE ANOTHER PROGRAM?

CANCEL DELETE STORE

USER SETTINGS

Press the [ ] key.

Touch the program number key of the

desired program.

The job program will be executed. A number for which no job program has been stored cannot be selected.

Place the original, check the original

size, and then set the number of copies and any other desired copy settings not stored in the program. When finished, press the [START] key ().

DELETING A STORED JOB PROGRAM

Press the [ ] key.

Touch the [STORE/DELETE] key.

Select the program number of the

program to be deleted.

Touch the [DELETE] key.

If a number key for which no job program has been stored is selected, the proceed to step 4 on the previous page (for storing a job program).

The selected program will be deleted and you will return to the screen of step

3. If the [CANCEL] key is touched, you will return to the screen of step 3 without deleting the program.

If you are finished deleting programs, touch the [EXIT] key in the screen of step 3 to exit.

AUDITING MODE

ACC.#-C

ON LINE DATA

DATA

LINE

CUSTOM SETTINGS

PLEASE SEE YOUR KEY OPERATOR FOR ASSISTANCE.

When auditing mode is enabled, a count is kept of the number of pages printed or copied by each account (maximum of 100 accounts). The counts can be viewed whenever necessary.

Note

in the key operator programs. (See the "Key operator’s guide".)

• To print in printer mode when auditing mode is enabled, enter your account number in the printer driver setup screen on your computer.

COPYING WHEN AUDITING MODE IS ENABLED

When auditing mode is enabled, the following account number entry screen appears.

ENTER YOUR ACCOUNT NUMBER.

-----

• Auditing mode can be enabled for all modes (copy mode, fax mode, network scanner mode, and printer mode)

Enter your account number (5 digits)

with the numeric keys.

Each digit is indicated by an asterisk " ".

When the copy job is finished, press

the [ACC.#-C] key ( ).

The screen reverts to the account number entry screen.

READY TO COPY.

SPECIAL MODES:

2-SIDED COPY:

OUTPUT

• When a valid account number is entered, the number of copies already made by that account appears for several seconds on the initial screen.

• If a limit has been set in the key operator programs for the number of copies that can be made by the account, the remaining number that can be made is displayed in the message display together with the number of copies already made. (See the "Key operator’s guide".)

ORIGINAL

ACCOUNT STATUS: COPIES MADE 000,000 COPIES REMAINING 999,999

8½x11

AUTO

EXPOSURE

AUTO 8½x11

PAPER SELECT

100%

COPY RATIO

Note

• To perform an interrupt job when auditing mode is enabled, press the [INTERRUPT] key ( ) . The account number entry screen will appear. Enter your account number. When the interrupt job is finished, be sure to press the [INTERRUPT] key ( ) or the [CLEAR ALL] key ( ) to end interrupt mode.

• If an invalid account number is entered in step 1, the account number entry screen reappears. When ACCOUNT NUMBER SECURITY in

• the key operator programs is enabled (See the "Key operator’s guide".) , the following message will appear and operation will not be permitted for 1 minute if an invalid account number is entered 3 times in a row.

This chapter describes troubleshooting and maintenance such as misfeed removal, replacing the toner cartridge and cleaning the machine.

DISPLAY MESSAGES.................................................................................................................... 60

TROUBLESHOOTING .................................................................................................................... 62

Problems related to machine operation

The machine does not operate. The power is on but copying is not possible. Two-sided copying is not possible. Wrong paper size is displayed for paper in the bypass tray. A copy job stops before it is finished. The contrast of the touch panel is too high or too low. Image cannot be rotated. Original size is not selected automatically, or copying does not take place on paper that matches the original size. Paper size for a paper tray cannot be set. Order of copies is incorrect. The job is canceled after the originals were being scanned. Not all pages are copied. The RSPF cannot be used. Lighting fixture flickers.

Paper feeding problems

When using paper fed from the bypass tray, the copied image is skewed. Paper from the bypass tray misfeeds. Paper misfeeds.

Image quality problems

Copies are too dark or too light. Text is not clear in a copy. Part of the copied image is cut off. Blank copies. Paper is wrinkled or the copied image comes off when the paper surface is rubbed. Copies are smudged or dirty. White or black lines appear copies.

Chapter 5

TROUBLESHOOTING AND MAINTENANCE

Tro uble Page

MISFEED REMOVAL...................................................................................................................... 66

REPLACING THE TONER CARTRIDGE ....................................................................................... 74

STAPLE CARTRIDGE REPLACEMENT........................................................................................ 75

STAPLE JAM REMOVAL .............................................................................................................................................. 76

CHECKING THE TONER QUANTITY AND TOTAL COUNT......................................................... 76

CLEANING THE MACHINE............................................................................................................77

DOCUMENT GLASS AND RSPF................................................................................................................................. 77

THE BYPASS TRAY PAPER FEED ROLLER............................................................................................................... 77

DISPLAY MESSAGES

If one of the following messages appears in the display, take prompt action as instructed by the message.

Message Cause and solution Page

ENTER YOUR ACCOUNT NUMBER.

A MISFEED HAS OCCURRED. Remove the misfeed as explained in "MISFEED REMOVAL". 66

2-SIDED COPIES CANNOT BE MADE ON THIS PAPER TYPE.

REMOVE PAPER FROM THE <*>TRAY.

CLOSE THE <**> COVER.

PLEASE EXTEND BYPASS-TRAY.

COVER SHEETS MUST BE THE SAME SIZE AS THE COPY PAPER USED.

TONER SUPPLY IS LOW. The toner cartridge must be replaced soon. 74

CHANGE THE TONER CARTRIDGE.

CHECK THE TONER CARTRIDGE.

THE DOCUMENT FEEDER IS DISABLED.

SELECTED PAPER TRAY IS PROHIBITED. PLEASE SELECT ANOTHER PAPER TRAY.

PLEASE CHECK THE PAPER SIZE OF TRAY <***>.

ADD STAPLES. The finisher is out of staples. Replace the staple cartridge as

PLEASE REMOVE PAPER FROM THE STAPLER COMPILER.

MEMORY IS FULL. PRESS [START] TO BEGIN COPYING OR [CA] TO CANCEL.

Auditing mode is enabled. Enter your account number.

This appears when you attempt to make two-sided copies on special paper that cannot be used for two-sided copying. Cancel two-sided copying or change the paper.

The indicated output tray is full. Remove the output from the tray. (<*> indicates the tray that is full.)

The indicated cover is open. Close the cover. (<**> indicates the cover that is open.)

When copying from the bypass tray, be sure to pull out the bypass tray extension.

When adding a cover, load paper in the bypass tray that is the same size as the paper in the tray selected for copying. 48

The toner cartridge is out of toner. Replace the toner cartridge. 74

Make sure that the toner cartridge is installed correctly. 74

The RSPF has been disabled in the key operator programs. Use the document glass.

This appears when a tray is selected that has been prohibited in "TRAY SETTINGS" in the custom settings. 55

The tray's paper size setting is different from the actual paper size. Load the correct size of paper. The tray is indicated in <***>.

explained in "STAPLE CARTRIDGE REPLACEMENT".

Paper remains in the stapler compiler. Remove the paper.

The memory becomes full while scanning originals. Press the [START] key ( ) to copy only the originals that have been scanned, or press the [CLEAR ALL] key ( ) to cancel the job.

15, 27

TROUBLESHOOTING AND MAINTENANCE

Message Cause and solution Page

SELECTED PAPER TRAY IS OUT OF SERVICE.

CHECK STAPLER POSITION OR STAPLE JAM.

(CALL FOR SERVICE SOON.) It will soon be time for regular maintenance. Contact your SHARP

(MAINTENANCE REQUIRED.) It is time for regular maintenance. Contact your SHARP service

CALL FOR SERVICE. CODE:

PLEASE CHECK THE ORIGINAL SIZE. JOB IS CANCELED.

Contact your SHARP service center.

Staples are jammed in the finisher or the staple case is not attached correctly. Check the staple case. If the message still appears after removing the jammed staples, disable the stapler using "DISABLING OF STAPLER" in the key operator programs (See the "Key operator’s guide.), and contact your SHARP service center.

service center.

center.

Turn off the power and then turn it back on. If this does not clear the message, write down the 2-digit main code and 2-digit sub-code and promptly contact your SHARP service center.

The original in the RSPF is longer than the size that was detected. Reinsert the original, make sure that the size indicated in the touch panel is the same as the actual size, and begin copying. You can also select mixed feeding to copy onto paper that matches each original size after all originals have been scanned.

TROUBLESHOOTING

If you experience difficulty using the machine, check the following troubleshooting guide before calling for service. Many problems can be easily resolved by the user. If you are unable to solve the problem using the troubleshooting guide, turn off the power switch, unplug the machine, and contact your SHARP service center. The following problems are related to the general operation of the machine and copying. For problems related to the printer, fax, and network scanner functions, see the corresponding operation manuals.

Problems related to machine operation

Problem Cause and solution Page

The machine does not operate.

The power is on but copying is not possible.

Two-sided copying is not possible.

Wrong paper size is displayed for paper in the bypass tray.

A copy job stops before it is finished.

The contrast of the touch panel is too high or too low.

Image cannot be rotated.

Power switch OFF.

→ Turn the power switch ON.

The machine is warming up.

→ The machine requires about 23 seconds to warm up after the

power switch is turned on. While the machine is warming up, copy settings can be selected but copying is not possible. Wait until "READY TO COPY." appears.

Out of paper.

→ Load paper.

Out of toner.

→ Replace the toner cartridge.

Misfeed occurs.

→ Remove the misfed paper.

The machine is in auto power shut-off mode.

→ If only the [START] key ( ) blinks, auto power shut-off mode

has activated. Press the [START] key ( ) to return the machine to normal operation.

Copy mode is not selected.

→ Press the [COPY] key to select copy mode.

Automatic two-sided copying was attempted on paper that is not suitable for automatic two-sided copying.

→ Two-sided copying is not possible on special paper. Use paper

that is suitable for automatic two-sided copying.

Two-sided copying is prohibited in the key operator programs.

→ Change the setting in the key operator programs to permit

two-sided copying.

The bypass tray extension is not pulled out.

→ To detect the paper size correctly, the bypass tray extension

must be pulled out when the paper is loaded.

Too many pages have accumulated in the output tray, causing the tray full sensor to activate. Further copying is not possible until the pages are removed.

→ Remove the pages from the output tray.

The display contrast has not been adjusted.

→ Adjust the contrast using "DISPLAY CONTRAST" in the custom

settings.

Neither auto paper selection nor auto image mode are selected.

→ Rotation copy functions only if auto paper select mode or auto

image mode is selected.

Rotation copy is prohibited in the key operator programs.

→ Change the setting in the key operator programs to permit

rotation copying.

Key

operator’s

guide

25, 30

Key

operator’s

guide

Problem Cause and solution Page

Original size is not selected automatically, or copying does not take place on paper that matches the original size.

Paper size for a paper tray cannot be set.

Order of copies is incorrect.

The job is canceled after the originals were being scanned.

Not all pages are copied.

The RSPF cannot be used.

Lighting fixture flickers.

TROUBLESHOOTING AND MAINTENANCE

The RSPF was not opened completely when the original was placed on the document glass.

→ Open the RSPF completely, place the original on the document

glass, and close the RSPF.

The original contains large black solid areas.

→ If the original contains any large black solid areas, the original

size may not be detected automatically. Use the [SPECIAL MODES] key to select the original size.

The original is smaller than 5-1/2" x 8-1/2" size.

→ When the original is smaller than 5-1/2" x 8-1/2" size, the size

cannot be detected. Use the [PAPER SELECT] key to select the desired paper size.

The original is not a standard size.

→ When the original is not a standard size, the size cannot be

detected. Manually select the closest standard original size, or use the [PAPER SELECT] key to select the desired paper size.

A copy, print job, or received fax is being printed.

→ Set the correct paper size after printing is finished.

Operation has temporarily stopped because the tray is out of paper or a misfeed occurred.

→ Load paper or remove the misfeed, finish the copy job, and then

set the paper size.

During an interrupt copy job.

→ Set the correct paper size after the interrupt copy job is finished.

Misfeed occurs.

→ Remove the misfed paper.

Paper tray settings are prohibited in the key operator programs.

→ Change the setting in the key operator programs to permit paper

tray settings.

The originals were placed in the wrong order.

→ When using the document glass, scan the originals one sheet at

a time beginning from the first page. When using the RSPF, insert the originals with the first page on top and facing up.

The memory become full while the originals were being scanned.

→ When using a function such as pamphlet copy or multi shot copy

where all original pages are scanned into memory before copying begins, scanning will stop and copying will not take place if the memory becomes full. The number of pages that can be scanned into memory can be increased by installing more memory.

The memory become full while the originals were being scanned.

→ When the memory becomes full while the originals are being

scanned, you can select whether you want to continue the job and print only those originals that were scanned, or cancel the job. If you continue the job, copies will only be made of the originals that were scanned, and thus all originals cannot be copied at once.

Use of the RSPF has been prohibited in the key operator programs.

→ Enable use of the RSPF in the key operator programs.

The same power outlet is used for the lighting fixture and the machine.

→ Connect the machine to a power outlet which is not used for other

electric appliances.

22, 47

19, 66

Key

operator’s

guide

Key

operator’s

guide

TROUBLESHOOTING AND MAINTENANCE

Paper feeding problems

Problem Cause and solution Page

The number of sheets placed on the bypass tray

When using paper fed from the bypass tray, the copied image is skewed.

Paper from the bypass tray misfeeds.

Paper misfeeds.

exceeds the maximum number.

→ Do not place more than the maximum number of sheets.

The bypass guide is not adjusted to the size of the loaded paper.

→ Adjust the bypass guide to the size of the loaded paper.

The paper type setting is not correct.

→ When using a special paper, be sure to set the correct paper

type.

The number of sheets placed on the bypass tray exceeds the maximum number.

→ Do not place more than the maximum number of sheets.

The bypass guide is not adjusted to the size of the loaded paper.

→ Adjust the bypass guide to the size of the loaded paper.

The paper is outside of the specified size and weight range.

→ Use copy paper within the specified range.

Paper is curled or damp.

→ Do not use curled or crimped paper. Replace with dry copy paper.

During periods when the machine is not used for a long time, remove the paper from the tray and store it in a dark place in a bag to prevent moisture absorption.

Paper is not loaded properly.

→ Make sure the paper is properly loaded.

Pieces of paper remain inside machine.

→ Remove all pieces of misfed paper.

Sheets of paper stick together.

→ Fan the paper well before loading it.

Image quality problems

Problem Cause and solution Page

Copies are too dark or too light.

Text is not clear in a copy.

Part of the copied image is cut off.

Blank copies.

Paper is wrinkled or the copied image comes off when the paper surface is rubbed.

Copies are smudged or dirty.

White or black lines appear copies.

TROUBLESHOOTING AND MAINTENANCE

The image of the original is too light or too dark.

→ Select the correct original image type in the exposure setting and

adjust the copying exposure.

The copying exposure is set to "AUTO".

→ The "EXPOSURE ADJUSTMENT" key operator program can be

used to adjust the exposure level used for "AUTO" exposure. Consult the administrator of the machine.

The original type that is most suitable for the original has not been selected in the copy exposure setting screen.

→ Change the original type selection to "AUTO", or manually select

the most suitable original type setting.

The correct original type has not been selected in the copy exposure setting screen.

→ Change the original type setting to "TEXT".

The original was placed in the wrong position.

→ Place the original in the correct position. When using the

document glass, place the original against the far left side.

A suitable ratio for the original size and paper size has not been selected.

→ Use auto ratio selection to obtain the correct ratio for the copy.

The tray’s paper size setting was not changed when a different size of paper was loaded in the tray.

→ Be sure to change the tray’s paper size setting when loading a

different size of paper in the tray.

An AB paper size is being used.

→ When using copy paper that is an AB size, set the original size

manually.

The original is not placed face up in the RSPF or face down on the document glass.

→ Place the original face up in the RSPF or face down on the

document glass.

The paper is outside of the specified size and weight range.

→ Use copy paper within the specified range.

The paper type setting is not correct.

→ Set the correct paper type. To set the paper type for a tray, see

"CHANGING A TRAY’S PAPER TYPE AND PAPER SIZE SETTINGS".

Paper is curled or damp.

→ Do not use curled or wrinkled paper. Replace with dry copy

paper. During periods when the machine is not used for a long time, remove the paper from the tray and store it in a dark place in a bag to prevent moisture absorption.

The document glass or the underside of the RSPF is dirty.

→ Clean regularly.

The original is smudged or blotchy.

→ Use a clean original.

The scanner glass for the RSPF is dirty.

→ Clean the long, narrow scanning glass.

Key

operator’s

guide

22, 23

19, 20

MISFEED REMOVAL

A MISFEED HAS OCCURRED.

INFORMATION

When a misfeed occurs during copying, the message "MISFEED HAS OCCURRED." will appear in the touch panel and printing will stop.

● If the misfed paper tears during removal, remove the torn pieces. Take care not to touch the photoconductive drum while removing the pieces. Nicks and scratches on the drum will cause dirty copies.

First, locate the misfeed

Misfeed in the RSPF (p.67)

Misfeed in the finisher (p.72)

3 4 5

Misfeed in the machine (p.68)

Misfeed in the bypass tray (p.68)

Misfeed in the upper paper tray (p.70)

Misfeed in the lower paper tray (p.71)

Note

If the fax option is installed, all received faxes are stored in memory. The faxes are automatically printed after the misfeed is removed.

MISFEED REMOVAL GUIDANCE

Misfeed removal guidance can be displayed by touching the [INFORMATION] key on the touch panel after a misfeed has occurred.

INFORMATION

MISFEED IN THE RSPF

Document feeder cover

Document transport cover

Document transport cover knob

Moveable

part

Reversing tray

TROUBLESHOOTING AND MAINTENANCE

Remove the misfed original.

Check sections A, B, and

C in the illustration at left and remove the misfed original.

Section A

Open the document feeder cover and carefully remove the misfed original from the document feeder tray. Close the document feeder cover.

Section B

Open the RSPF and rotate the release roller in the direction of the arrow to feed the original out. Close the RSPF and then

Roller

If a small original (5-1/2" x 8-1/2", etc.) is misfed, or if an original misfeed occurs in the reversing tray of the RSPF, lift the document transport cover knob, open the document transport cover, and remove the original.

carefully remove the original.

If the misfed original cannot be removed, open the document transport cover (below), and rotate the release roller again.

Section C

Carefully remove the misfed original from the exit area.

If the misfed original cannot be easily removed from the exit area, open the moveable part of the document feeder tray and remove the reversing tray, and then remove the original.

Note

Open and close the RSPF to clear the

After removing a misfed original from the exit area, be sure to attach the reversing tray securely to the exit area (When the RSPF is installed.).

misfeed message from the touch panel.

The message can also be cleared by opening and closing the document feeder cover or the document transport cover.

After the misfeed is removed and the misfeed message is cleared, a message will appear indicating the number of originals that must be reinserted in the RSPF.

Reinsert the originals that still must

be scanned (Including the original that was being scanned when the misfeed occurred.), and press the [START] key( ).

Copying of the remaining originals will resume.

TROUBLESHOOTING AND MAINTENANCE

MISFEED IN THE BYPASS TRAY

Carefully pull the misfed paper out.

Open and close the side cover.

MISFEED IN THE MACHINE

Determine the location of the misfeed and remove it appropriately as indicated below.

If paper is misfed, go to "B. Misfeed in the fusing area" (p.67).

Make sure that the misfeed message is cleared. The message can also be cleared by opening and closing the front cover. If the message is not cleared, see "A. Misfeed in the paper feed area".

If paper is misfed here, go to "A. Misfeed in the paper feed area" (below).

A. Misfeed in the paper feed area

Open the bypass tray and the side

cover.

Press gently on both sides of the front

cover and pull it open.

Carefully remove the misfed paper.

Turn the roller rotating knob in the direction of the arrow to assist in removing it.

Roller rotating knob

Warning

The fusing unit is hot. Do not touch the fusing unit when removing misfed paper. Doing so may cause a burn or injury.

Be careful not to tear the misfed paper during removal.

Caution

Do not touch the photoconductive drum (green portion) when removing the misfed paper. Doing so may damage the drum and cause smudges on copies.

Close the front cover and side cover.

Roller rotating knob

Make sure that the misfeed message is cleared.

B: Misfeed in the fusing area

TROUBLESHOOTING AND MAINTENANCE

Open the bypass tray and the side

cover.

Press and pull it open gently on both

sides of the front cover.

Turn the roller rotating knob in the

direction of the arrow.

If you were unable to remove the

misfeed in step 4, press down on the fusing unit paper guide knob to open the paper guide, and carefully remove the misfed paper.

Caution

Close the fusing

press down on the fusing unit release levers.

• Do not touch the photoconductive drum (green portion) when removing the misfed paper. Doing so may damage the drum and cause smudges on copies.

• Take care not to let unfixed toner on the misfed paper soil your hands or clothes.

unit

paper guide and

Lift the fusing unit release levers and

carefully remove the misfed paper.

Fusing unit release levers

Warning

The fusing unit is hot. Do not touch the fusing unit when removing misfed paper. Doing so may cause a burn or injury.

Close the front cover and side cover.

Make sure that the misfeed message is cleared.

TROUBLESHOOTING AND MAINTENANCE

MISFEED IN THE CENTER TRAY

Remove the paper by pulling it into the center tray.

MISFEED IN THE UPPER PAPER TRAY

Make sure that there is no misfed paper in the machine before pulling the tray out. (p.68)

Lift and pull out the upper paper tray

and then remove the misfed paper.

Be careful not to tear the misfed paper during removal.

Replace the upper paper tray.

Push the upper paper tray in completely.

Open and close the side cover.

Make sure that the misfeed message is cleared. The message can also be cleared by opening and closing the front cover.

TROUBLESHOOTING AND MAINTENANCE

MISFEED IN THE LOWER PAPER TRAY

● Make sure that there is no misfed paper in the machine before pulling the tray out. (p.68)

●

Use the following procedure to remove misfeeds that occur in the 500-sheet paper feed unit or 2 x 500-sheet paper feed unit.

Open the lower side cover.

Remove the misfed paper.

Be careful not to tear the misfed paper during removal.

If the misfed paper is not visible in

step 2, lift and pull out the lower paper tray and remove the misfed paper.

Be careful not to tear the misfed paper during removal.

Replace the lower paper tray.

Push the lower paper tray in completely.

Close the lower side cover.

Make sure that the misfeed message is cleared.

TROUBLESHOOTING AND MAINTENANCE

A MISFEED HAS OCCURRED.

MISFEED IN THE UPPER EXIT AREA (

when a job separator tray kit or finisher (AR-FN5A) is installed

If a job separator tray kit or a finisher is installed, a misfeed may occur in the upper exit area.

)

Open the upper right side cover.

Gently pull the misfed paper out.

Be careful not to tear the misfed paper during removal.

Close the upper right side cover.

Make sure that the misfeed message is cleared.

MISFEED IN AN OUTPUT TRAY (when a finisher (AR-FN5A) is installed)

INFORMATION

Grasp the handle of the stapler

compiler cover and pull to open the cover.

Remove any misfed paper from the

transport area.

If staple sort copying is being

performed, open the paper guide and remove any misfed paper from the stapler compiler.

Close the stapler compiler cover.

TROUBLESHOOTING AND MAINTENANCE

If the offset tray is being used, remove

any misfed paper from the offset tray.

If the top tray is being used, open the

top cover, remove any misfed paper, and close the top cover.

Make sure that the misfeed message is cleared.

REPLACING THE TONER CARTRIDGE

Handle

Toner cartridge lock release lever

To check how much toner remains in the toner cartridge (p.76), hold down the [COPY] key. The amount of toner remaining will appear in the display. When less than 25% of the toner remains, obtain a new toner cartridge as soon as possible. When "TONER SUPPLY IS LOW." appears in the display, be sure to have a new cartridge on hand for replacement at any time as little toner remains. When "CHANGE THE TONER CARTRIDGE." appears in the touch panel, the toner cartridge must be replaced. Follow these steps to replace the cartridge.

Note

Press gently on both sides of the front

When running long copy jobs or copying originals with many areas of solid black, "TONER REPLENISHMENT IN PROGRESS." may appear in the touch panel and copying may stop even though the cartridge still has toner. When this occurs, the toner is being replenished. Replenishment will last about two minutes. When the [START] key ( ) illuminates, press the [START] key ( ) to resume copying.

cover and pull it open.

Pull the toner cartridge out while

pressing the lock release lever.

When pulling out the toner cartridge, place your other hand on the green part of the cartridge.

While pushing the lock release lever,

gently insert the toner cartridge along the guides until it clicks into place.

Note

Remove the new toner cartridge from

• After removing the toner cartridge, do not shake it or tap it. Doing so may cause toner to leak from the cartridge. Put the old cartridge immediately in the bag provided with the new cartridge.

• Dispose of the old toner cartridge in accordance with local regulations.

the bag. Grasp both ends of the cartridge and shake it horizontally about 20 times. After shaking the cartridge, remove the tape.

About 20 times

Shutter

Tape

Grasp the hand grip to hold the cartridge. Do not hold the cartridge by the shutter. Be sure to only shake the cartridge before the tape is removed.

Note

Remove the tape from the shutter. Pull

If dirt or dust adheres to the toner cartridge, remove it before installing the cartridge.

the shutter out of the toner cartridge as shown in the illustration.

Discard the shutter.

Close the front cover.

Sharp AR-M317 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

The key operator code is initially set to "00000" at the factory.

In order to access the key operator programs, the key operator code must be entered.

The key operator code is initially set to "00000" at the factory.

Press the [CUSTOM SETTINGS] key.

KEYS USED IN KEY OPERATOR PROGRAMS

Example: Auditing mode

The following keys appear in screens that require the entry of numerical values.

When a key that appears in the form is touched, the setting screen of that key will appear.

The currently set numerical value is displayed.

Numerical values can be set by touching the and keys.

KEY OPERATOR PROGRAM MENU

This chapter explains key operator programs that are common to all functions of the multifunction system (copy function, fax function, printer function, and network scanner function).

ACCOUNT CONTROL

AUDITING MODE

TOTAL PAGES PER ACCOUNT

RESETTING ACCOUNT

● Resetting a single account

● Resetting all accounts

ACCOUNT NUMBER CONTROL

● Storing a new account number

● Deleting an account number

● Changing an account number

ACCOUNT LIMIT SETTING

● Setting a limit for a single account

● Setting a limit for all accounts

ACCOUNT NUMBER SECURITY

CANCEL JOBS OF INVALID ACCOUNTS

ENERGY SAVE

AUTO POWER SHUT-OFF

AUTO POWER SHUT-OFF TIMER

PREHEAT MODE SETTING

TONER SAVE MODE

OPERATION SETTINGS

AUTO CLEAR SETTING

MESSAGE TIME SETTING

KEYS TOUCH SOUND

TOUCH KEY OPERATION SETTING

DISABLE INTERRUPT PRINT JOB

STREAM FEEDING MODE

DISPLAY LANGUAGE SETTING

DISABLE DISPLAY TIMEOUT

DEVICE CONTROL

DISABLING OF DOCUMENT FEEDER

DISABLING OF DUPLEX

DISABLING OF STAPLER

DISABLING OF TRAY SETTINGS

DISABLING OF CLOCK ADJUSTMENT

OUTPUT TRAYS

OFFSET FUNCTION SETTING

RETURN FROM COPY MODE TIMING

MIX SIZE ORIGINAL FEEDING MODE

SECURITY SETTINGS

● SSL SETTINGS

MEMORY FOR PRINTER

DISABLING OF CENTER TRAY COUNTING

KEY OPERATOR CODE CHANGE

PRODUCT KEY

(When the PRINTER EXPANSION KIT is installed)

PS3 EXPANSION KIT

E-MAIL ALERT AND STATUS

NETWORK SCANNER EXPANSION KIT

SERIAL NUMBER

This chapter explains the key operator programs that are used for copy mode.

COPY SETTINGS

INITIAL STATUS SETTINGS

ROTATION COPY SETTING

EXPOSURE ADJUSTMENT

AUTO PAPER SELECTION SETTING

SETTING A MAXIMUM NUMBER OF COPIES

SORT AUTO SELECT

DISABLING DELETION OF JOB PROGRAMS

CARD SHOT SETTINGS

This chapter explains key operator programs that are used for the printer function. These programs can only be configured on models that have the printer function.

PRINT SETTINGS

DEFAULT SETTINGS

FORCED OUTPUT OF PRINT
