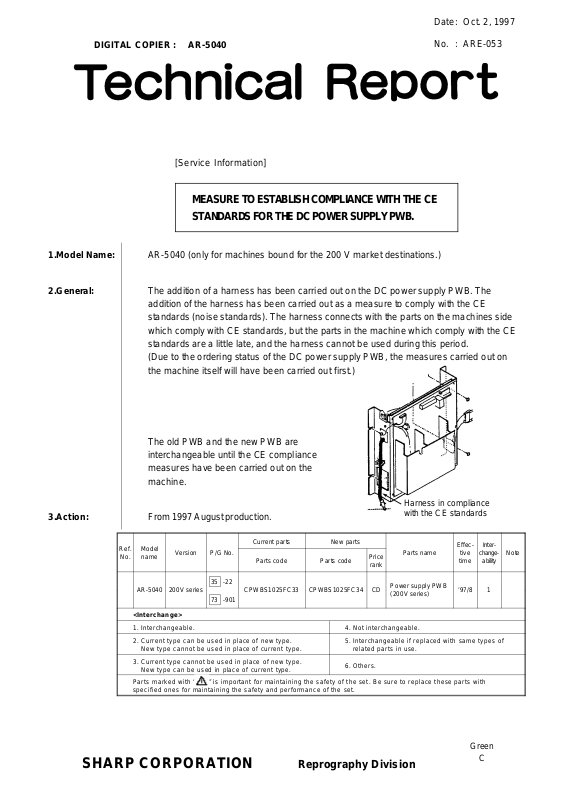

SHARP ARE053 Technical Report

DIGITAL COPIER : AR-5040

Date

Oct. 2, 1997

No. : ARE-053

[Service Information]

MEASURE TO ESTABLISH COMPLIANCE WITH THE CE STANDARDS FOR THE DC POWER SUPPLY PWB.

1.Model Name: AR-5040 (only for machines bound for the 200 V market destinations.)

2.General: The addition of a harness has been carried out on the DC power supply PWB. The

addition of the harness has been carried out as a measure to comply with the CE standards (noise standards). The harness connects with the parts on the machines side which comply with CE standards, but the parts in the machine which comply with the CE standards are a little late, and the harness cannot be used during this period. (Due to the ordering status of the DC power supply PWB, the measures carried out on the machine itself will have been carried out first.)

The old PWB and the new PWB are interchangeable until the CE compliance measures have been carried out on the machine.

3.Action: From 1997 August production.

Ref.

Model

No.

name

AR-5040 200V series

1. Interchangeable. 4. Not interchangeable.

2. Current type can be used in place of new type. New type cannot be used in place of current type.

3. Current type cannot be used in place of new type. New type can be used in place of current type.

Parts marked with ‘‘ ’’ is important for maintaining the safety of the set. Be sure to replace these parts with

specified ones for maintaining the safety and performance of the set.

Version P/G No.

35 -22

73 -901

Current parts New parts

Parts code Parts code

CPWBS1025FC33 CPWBS1025FC34 CD

Harness in compliance with the CE standards

Effec-

Price

rank

5. Interchangeable if replaced with same types of related parts in use.

6. Others.

Parts name

Power supply PWB (200V series)

Inter-

tive

change-

time

ability

’97/8 1

Note

SHARP CORPORATION Reprography Division
