SHARP 36US650 Service Manual

36US650

SERVICE MANUAL

COLOR TELEVISION

Chassis No. GB-1

MODELS

In the interests of user-safety (Required by safety regulations in some countries ) the set should be restored to its original condition and only parts identical to those specified should be used.

36US650

CONTENTS

Page

» ELECTRICAL SPECIFICATIONS .........................................................................................................1

» IMPORTANT SERVICE SAFETY PRECAUTION .................................................................................2

» LOCATION OF USER'S CONTROL .....................................................................................................4

» INSTALLATION AND SERVICE INSTRUCTIONS ................................................................................5

» SERVICE ADJUSTMENT ....................................................................................................................9

» CHASSIS LAYOUT .............................................................................................................................12

» SCHEMATIC DIAGRAMS ...................................................................................................................14

» PRINTED WIRING BOARD ASSEMBLIES ........................................................................................24

» REPLACEMENT PARTS LIST ............................................................................................................28

» PACKING OF THE SET ......................................................................................................................39

ELECTRICAL SPECIFICATIONS

POWER INPUT..................................................... 120V AC 60 Hz

POWER RATING .................................................................. 167W

PICTURE SIZE ........................................... 3,905cm2 (605sq inch)

CONVERGENCE ............................................................. Magnetic

SWEEP DEFLECTION .................................................... Magnetic

FOCUS ............................................... Hi-Bi-Potential Electrostatic

INTERMEDIATE FREQUENCIES

Picture IF Carrier Frequency..................................... 45.75 MHz

Sound IF Carrier Frequency...................................... 41.25 MHz

Color Sub-Carrier Frequency .................................... 42.17 MHz

(Nominal)

AUDIO POWER

OUTPUT RATING ..............3.0W + 3.0W (at 10% distortion and

Dual CH Operate)

SPEAKER

SIZE ........................................................12 x 6 cm oval (2 pcs.)

VOICE COIL IMPEDANCE............................... 8 ohm at 400 Hz

ANTENNA INPUT IMPEDANCE

VHF/UHF.....................................................75 ohm Unbalanced

TUNING RANGES

VHF-Channels...............................................................2 thru 13

UHF-Channels ............................................................14 thru 69

CATV Channels ...........................................................1 thru 125

(EIA, Channel Plan U.S.A.)

Specifications are subject to change without prior notice.

SHARP CORPORATION

This document has been published to be used for after sales service only. The contents are subject to change without notice.

36US650

IMPORTANT SERVICE SAFETY PRECAUTION

Service work should be performed only b y qualified service technicians who are thoroughly familiar with all safety checks and the servicing guidelines which follow:

WARNING

1. For continued safety, no modification of any circuit should be attempted.

2. Disconnect AC power before servicing.

3. Semiconductor heat sinks are potential shock hazards when the chassis is operating.

4. The chassis in this receiver has two ground systems which are separated by insulating material. The nonisolated (hot) ground system is for the B+ voltage regulator circuit. The isolated ground system is for the low B+ DC voltages and the secondary circuit of the high voltage transformer. To prevent electrical shock use an isolation transformer between the line cord and power receptacle, when servicing this chassis.

CAUTION: FOR CONTINUED PROTECTION AGAINST A RISK OF FIRE, REPLACE

4A 125V

ONLY WITH SAME TYPE 4A125V FUSE.

SERVICING OF HIGH VOLTAGE SYSTEM AND PICTURE TUBE

When servicing the high voltage system, remove the static charge by connecting a 10k ohm resistor in series with an insulated wire (such as a test probe) between the picture tube ground and the anode lead. (AC line cord should be disconnected from AC outlet.)

1. Picture tube in this receiver employs integral implosion protection.

2. Replace with tube of the same type number for continued safety.

3. Do not lift picture tube by the neck.

4. Handle the picture tube only when wearing shatterproof goggles and after discharging the high voltage anode completely.

X-RADIATION AND HIGH VOLTAGE LIMITS

1. Be sure all service personnel are aware of the procedures and instructions covering X-radiation. The only potential source of X-ray in current solid state TV receivers is the picture tube. However , the picture tube does not emit measurable X-Ray radiation, if the high voltage is as specified in the "High Voltage Check" instructions. It is only when high voltage is excessive that Xradiation is capable of penetrating the shell of the picture tube including the lead in the glass material. The important precaution is to keep the high voltage below the maximum level specified.

2. It is essential that servicemen have available at all times an accurate high voltage meter. The calibration of this meter should be checked periodically.

3. High voltage should always be kept at the rated v alue

−no higher. Operation at higher voltages may cause a failure of the picture tube or high voltage circuitry and;also, under certain conditions, may produce radiation in exceeding of desirable levels.

4. When the high voltage regulator is operating properly there is no possibility of an X-radiation problem. Every time a color chassis is serviced, the brightness should be tested while monitoring the high voltage with a meter to be certain that the high voltage does not exceed the specified value and that it is regulating correctly.

5. Do not use a picture tube other than that specified or make unrecommended circuit modifications to the high voltage circuitry.

6. When trouble shooting and taking test measurements on a receiver with excessiv e high voltage , av oid being unnecessarily close to the receiver. Do not operate the receiver longer than is necessary to locate the cause of excessive voltage.

IMPORTANT SERVICE SAFETY PRECAUTION

2 2

(Continued)

36US650

BEFORE RETURNING THE RECEIVER (Fire & Shock Hazard)

Before returning the receiver to the user, perform the following safety checks.

1. Inspect all lead dress to make certain that leads are not pinched or that hardware is not lodged between the chassis and other metal parts in the receiver.

2. Inspect all protective devices such as non-metallic control knobs, insulating materials, cabinet backs, adjustment and compartment covers or shields, isolation resistor-capacity networks, mechanical insulators, etc.

3. To be sure that no shock hazard exists, check for leakage current in the following manner.

• Plug the AC cord directly into a 120 volt AC outlet, (Do not use an isolation transformer for this test).

• Using two clip leads, connect a 1.5k ohm, 10 watt resistor paralleled by a 0.15µF capacitor in series with all exposed metal cabinet parts and a known earth ground, such as electrical conduit or electrical ground connected to earth ground.

• Use an AC voltmeter having with 5000 ohm per volt, or higher, sensitivity to measure the A C voltage drop across the resistor.

• Connect the resistor connection to all exposed metal parts having a return to the chassis (antenna, metal cabinet, screw heads, knobs and control shafts, escutcheon, etc.) and measure the AC voltage drop across the resistor. AII checks must be repeated with the AC line cord plug connection reversed. (If necessary, a nonpolarized adapter plug must be used only for the purpose of completing these check.) Any current measured must not exceed 0.5 milliamp. Any measurements not within the limits outlined above indicate of a potential shock hazard and corrective action must be taken before returning the instrument to the customer.

1.5k ohm 10W

0.15µF

TEST PROBE

TO EXPOSED

TAL PARTS

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

CONNECT TO KNOWN EARTH GROUND

SAFETY NOTICE

Many electrical and mechanical parts in television receivers have special safety-related characteristics. These characteristics are often not evident from visual inspection, nor can protection afforded by them be necessarily increased by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this manual; electrical components having such features are identified b y "å" and shaded areas in the Replacement Parts Lists and Schematic Diagrams.

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

For continued protection, replacement parts must be identical to those used in the original circuit. The use of substitute replacement parts which do not have the same safety characteristics as the factory recommended replacement parts shown in this service manual, may create shock, fire, X-radiation or other hazards.

LOCATION OF USER'S CONTROL

Front Panel

POWER

Press On.

Press again Off.

SENSOR AREA FOR REMOTE CONTROL

Press Accesses MAIN MENU. Press again Exits MAIN MENU.

Basic Remote Control Functions

POWER

Press → On. Press again → Off.

REMOTE KEYPAD

Accesses any channel from keypad.

FLASHBACK

Returns to previous channel.

PERSONAL PREFERENCE

With the Personal Pref erence buttons, you can program your favorite programs by using the 4 categories A, B, C and D. The channels can be accessed quickly by using these buttons.

VOLUME UP/DOWN

(+) Increases sound. (–) Decreases sound.

• In menu mode, changes or selects the TV adjustments.

Press → Accesses MAIN MENU. Press again → Exits MAIN MENU.

CATV/DVD-TV/VCR MODE SELECT SWITCH

In TV/VCR position, sends power and channel select commands (Channel up/down and Random Access buttons) to the TV and VCR control. In CATV/DVD position, sends power and channel select commands to a cable TV converter and DVD control.

DVD/VCR CONTROL

POWER

DVD VCR

DISPLAY

FLASHBACK

PERSONAL PREFERENCE

VOL

—

REW PLAY

PAUSE

STOP

REC

PIP

SWAP

FREEZE

MOVE

TV • CATV • VCR • DVD

VOLUME UP/DOWN

(+) Increases sound. (–) Decreases sound.

INPUT

ENTER

100

VOL

MUTE

CATV TV

DVD VCR

CH/SKIP

SELECT

VIDEO L-AUDIO-R

IN 2

(INSIDE DOOR)

CHANNEL UP/DOWN (

) Selects next higher

channel.

( ) Selects next lower

channel.

• Press both at the same

time to access the MAIN MENU screen.

Infrared T ransmitter Windo w

DISPLAY

Press → Displa ys receiving channel for four seconds. Press again → Removes display.

• Temporarily displays receiving channel when in Closed Caption mode.

INPUT

Press → Switch to external video INPUT 1 mode. Press 2 times → Switch to external video INPUT 2 mode. Press 3 times → Switch to external video INPUT 3 mode or COMPONENT mode. Press 4 times → Switch back to the original TV mode.

ENTER

Used in some instances where a Cable Converter Box requires an “enter” command after selecting channels, when using the REMOTE KEYPAD button.

CHANNEL UP/DOWN

(') Selects next higher channel. (") Selects next lower channel.

•

Moves the “

” mark of the MENU

screens.

MUTE

Press → Mutes sound. Press again → Restores sound.

• CLOSED CAPTION appears when sound is muted.

PIP FUNCTION

With the VIDEO inputs, y ou can w atch two pictures at the same time.

36US650

Note:

• The above shaded buttons on the Remote Control glow in the dark. To use the glow-in-the-dark display on the remote control, place it under a fluorescent light or other lighting.

• The phosphorescent material contains no radioactive or toxic material, so it is safe to use.

• The degree of illumination will vary depending on the strength of lighting used.

• The degree of illumination will decrease with time and depending on the temperature.

• The time needed to charge the phosphorescent display will vary depending on the surrounding lighting.

• Sunlight and fluorescent lighting are the most effective when charging the display.

36US650

INSTALLATION AND SERVICE INSTRUCTIONS

Note: (1)When performing any adjustments to resistor controls and transformers use non-metallic

screwdrivers or TV alignment tools.

(2)Before performing adjustments, the TV set must be on at least 15 minutes.

CIRCUIT PROTECTION

The receiver is protected by a 4.0A fuse (F701), mounted on PWB-A, wired into one side of the AC line input.

X-RADIATION PROTECT OR CIRCUIT TEST

After service has been performed on the horizontal deflection system, high voltage system, B+ system, test the X-Radiation protection circuit to ascertain proper operation as follows:

1. Apply 120V AC using a variac transformer for accurate input voltage.

2. Allow for warm up and adjust all customer controls for normal picture and sound.

3. Receive a good local channel.

4. Connect a digital voltmeter to TP651 and mak e sure that the voltmeter reads 13.2 ±0.7V.

5. Apply external 16.3V DC at TP651 by using an external DC supply, TV must be shut off.

6. To reset the protector, unplug the AC cord and plug the AC cord power on. Now make sure that normal picture appears on the screen.

7. If the operation of the horizontal oscillator does not stop in step 5, the circuit must be repaired before the set is returned to the customer.

HIGH VOLT A GE CHECK

High voltage is not adjustable b ut must be checked to verify that the receiver is operating within safe and efficient design limitations as specified checks should be as follows:

1. Connect an accurate high voltage meter between ground and anode of picture tube.

2. Operate receiver for at least 15 minutes at 120V AC line voltage, with a strong air signal or a properly tuned in test signal.

3. Enter the service mode and select the service adjustment "V18" and Bus data "01" (Y-mute on, CRT Cut Off).

4. The voltage should be approximately 33.0kV (at zero beam). If a correct reading cannot be obtained, check circuitry for malfunctioning components. After the v oltage test, make Y-mute off to the normal mode.

36US650

For adjustments of this model, the bus data is converted to various analog signals by the D/A converter circuit.

Note: There are still a few analog adjustments in this series such as focus and master screen voltage.

Follow the steps below whenever the service adjustment is required. See "Table-B" to determine, if service adjustments are required.

1. Service mode

Before putting unit into the service mode, check that customer adjustments are in the normal mode. Use the reset function in the video adjustment menu to ensure customer controls are in their proper (reset) position.

2. Service number selection

Once in the service mode, press the Ch-up or Chdown button on the remote controller or at the set. The service adjustment number will vary in increments of one, from "V01" to "P08". Select the item you wish to adjust.

3. Data number selection

Press the Vol-up or V ol-do wn button to adjust the data number.

DATA NUMBER

SERVICE ADJUSTMENT NUMBER

To enter the ser vice mode and exit service mode.

To enter the service mode manually just press and hold the Vol-down and Ch-up buttons at the same time, plug the AC cord into a wall socket. Now the TV set is switched on and enters the service mode. To exit the service mode, turn the television off by pressing the power button.

CHANNEL

V01

Figure A.

55(085)

36US650

SERVICE

NUMBER

V01 PICTURE 03 0-15(00h-0Fh) V02 TINT 3E 0-127(00h-7Fh) V03 COLOR 2D 0-127(00h-7Fh) V04 SUB-COLOR 10 0-31(00h-1Fh) Must be set to "10" V05 BRIGHT 4D 0-127(00h-7Fh) V06 R CUT-OFF 40 64-255(40h-FFh) V07 G CUT-OFF 40 64-255(40h-FFh) V08 B CUT-OFF 40 64-255(40h-FFh) V09 G DRIVE 40 0-127(00h-7Fh) V10 B DRIVE 40 0-127(00h-7Fh) V11 SHARP 14 0-63(00h-3Fh) Must be set to "1E" V12 N PHASE 01 0-3(00h-03h) Must be set to "01" V13 DC RESTORATION 00 0-3(00h-03h) Must be set to "03" V14 BLACK STRETCH 03 0-3(00h-03h) Must be set to "03" V15 ABL START POINT 03 0-3(00h-03h) Must be set to "03" V16 ABL GAIN 02 0-3(00h-03h) Must be set to "02" V17 Y.POINT 00 0-3(00h-03h) Must be set to "02" V18 Y-MUTE/V-STOP 00 0-2 "00"=Normal, "01"=No-Y, "02"=No-Y & No-Vertical V19 ENERGY SAVE 28 0-63(00h-3Fh) Must be set to "28" V24 LOW-G F7 0-255(00h-FFh) Must be set to "F7" V25 LOW-B E8 0-255(00h-FFh) Must be set to "E8" V26 ML-G 00 0-255(00h-FFh) Must be set to "00" V27 ML-B F9 0-255(00h-FFh) Must be set to "F9" V28 HIGH-G 03 0-255(00h-FFh) Must be set to "03" V29 HIGH-B 06 0-255(00h-FFh) Must be set to "06" V30 WPS 01 0-1 Must be set to "01" V31 RGB CONTRAST 20 0-63(00h-3Fh) Must be set to "2A" V32 Y-DL 02 0-7(00h-07h) Must be set to "02" V33 Y-DL-INPUT 01 0-7(00h-07h) Must be set to "01" V34 VSM GAIN 07 0-7(00h-07h) Must be set to "07" V35 N COMB 01 0-1 Must be set to "01" V36 BPF/TOF-INPUT 00 0-1 Must be set to "01" V37 CORING 00 0-1 Must be set to "00" V38 VSM PHASE 00 0-1 Must be set to "00" V39 COLOR γ 00 0-1 Must be set to "01" V40 SHARP-INPUT 14 0-63(00h-3Fh) Must be set to "1E" V41 TINT-INPUT 3E 0-127(00h-7Fh) V42 PICTURE-COMPONENT 03 0-15(00h-0Fh) V43 TINT-COMPONENT 10 0-31(00h-1Fh) Must be set to "10" V44 COLOR-COMPONENT 30 0-127(00h-7Fh) Must be set to "44" V45 BRIGHT-COMPONENT 4A 0-127(00h-7Fh) V46 R CUT OFF-COMPONENT 40 64-255(40h-FFh) V47 G CUT OFF-COMPONENT 40 64-255(40h-FFh) V48 B CUT OFF-COMPONENT 40 64-255(40h-FFh) V49 G DRIVE-COMPONENT 40 0-127(00h-7Fh) V50 B DRIVR-COMPONENT 40 0-127(00h-7Fh) V51 SHARP COMPONENT 14 0-63(00h-3Fh) Must be set to "1E" V52 N PHASE-COMPONENT 01 0-3(00h-03h) Must be set to "01" V53 C-TRAP 00 0-1 Must be set to "00"

ADJUSTMENT ITEM

INITIAL V ALUE

DA TA

ADJUSTMENT CONTENTS

RANGE

R01 RF-AGC 24 0-63(00h-3Fh) R02 PIF VCO coil – R03 RF-AGC REF 5C 0-255(00h-FFh) Must be set to "5C"

D01 V POSITION 00 0-7(00h-07h) D02 H POSITION 10 0-31(00h-1Fh) D03 V SIZE 12 0-63(00h-3Fh) D04 H SIZE 1F 0-63(00h-3Fh) Must be set to "1E" D05 V-LINEARITY 07 0-15(00h-0Fh)

D06 V-S CORRECTION 08 0-15(00h-0Fh) Must be set to "09"

—

Table - A

36US650

SERVICE

NUMBER

D07 EW PARABOLA 21 0-63(00h-3Fh) Must be set to "27" D08 EW TRAPEZIUM 0E 0-31(00h-1Fh) Must be set to "0B" D09 EW CORNER 0C 0-15(00h-0Fh) Must be set to "08" D10 AFC GAIN 02 0-3(00h-03h) Must be set to "02" D11 V EHT 07 0-7(00h-07h) Must be set to "04" D12 H EHT 03 0-7(00h-07h) Must be set to "03"

EX1 FAO VOLUME 24 0-50(00h-32h) Must be set to "24" EX2 CC-POSITION 21 0-127(00h-7Fh) EX3 INT 7A 0-255(00h-FFh) Must be set to "7A" EX4 A-ATT 5A 0-127 EX5 TUNER data 00 0-3(00h-03h) Must be to "00" EX6 SYNC SLICE LEVEL 36 0-255(00h-FFh) Must be to "36"

OP1 OPTION1 F7 0-255(00h-FFh) Must be set to "F7" OP2 OPTION2 F9 0-7(00h-07h) OP3 OPTION3 0F 0-255(00h-FFh)

M01 INPUT LEVEL 09 0-15(00h-0Fh) Must be set to "09" M02 MTS VCO 24 0-63(00h-3Fh) M03 FILTER 1F 0-63(00h-3Fh) M04 WIDEBAND 18 0-63(00h-3Fh) M05 SPECTRAL 10 0-63(00h-3Fh)

ADJUSTMENT ITEM

INITIAL VALUE

DA T A

ADJUSTMENT CONTENTS

RANGE

Table - A

Holding down both the VOL-up and CH-up buttons on the TV set at ser vice mode for more than 2 seconds will automatically write the above initial values into IC2102.

PART REPLACED

IC2001 IC201

IC2102

CRT IC3001

IC1801

NECESSARY UNNECESSARY

ADJUSTMENT

X X X

NOTES

Data is stored in IC2102. The adjustment is needed to compensate for characteristics of parts

including IC201 and MTS level (M01). Holding down both the VOL-up and CH-up buttons on the TV set in

the service mode for more than 2 seconds will automatically write the above initial values into IC2102. Then perf orm a complete adjustment.

Adjust items related to picture tube only. Adjust items related to MTS only (M01~M20).

Adjust items related to P-IN-P only (P01~P08).

Table - B

36US650

SERVICE ADJUSTMENT

RF AGC Adjustment

1. Receive a good local channel.

2. Enter the service mode and select the service adjustment "R01".

3. Set the data value to point where no noise or beat appears.

4. Select another channel to confirm that no noise or beat appears. Note 1 : You will have to come out of the service

mode to select another channel.

Note 2 : Setting the data to "00" will produce a black

raster.

Screen Adjustment

1. Receive a good local channel.

2. Enter the service mode and select the service adjustment "V03" and set the data value to "00" to set the color level to minimum. (Record original data code under adjustment "V03" before changing) You may skip this step, if you selected a B/W picture or monoscope pattern.

3. Select the service adjustment "V18" and adjust the data value to "01", this turn off the luminance signal (Y-mute).

4. Adjust the master screen control until the raster darkens to the point where raster is barely seen.

5. Adjust the service adjustments "V06" red, "V07" green and "V08" blue to obtain a good grey scale with normal whites at low brightness level.

6. Select the service adjustment "V18" and reset data to "00". Select the service adjustment "V03" and reset data to obtain normal color level.

7. For component input, the data value of "V46" red, "V47" green and "V48" blue is adjusted to follow the data value of "V06", "V07" and "V08" respectively.

8. Reset the master screen control to obtain normal brightness range.

Sub-picture and Sub-Bright Adjustments

1. Receive the window pattern signal.

• RF INPUT (TU51)

2. Get into service adjustment data "V01" and "V05" and set the luminance as shown in figure "A" and "B" as below respectively.

• COMPONENT INPUT

3. Get in service adjustment data "V42" and "V45" and set the luminance as shown in figure "A" and "B" as below respectively.

A B

VOLTAGE CONFIRMATION

A: 92±10cd/m B:1.1±0.5cd/m2

Sub-Tint Adjustment

1. Receive the half color bar signal.

• RF INPUT (TU51)

2. Get into Y-Mute by R/C, or by setting the "V18" bus

data to "01".

3. Vary the "V02" bus data until the waveform becomes

as stated below.

LEVEL

B-AMP Base waveform in step (TP47B)

White Balance Adjustment

1. Receive a good local channel.

2. Enter the service mode and select the service adjustment "V03" and set to "00" (minimum color)(Record original data code under adjustment "V03" before changing). "V03" does not have to be adjusted, if you selected a B/W picture or monoscope pattern.

3. Alternately adjust the service adjustment data of "V09" and "V10" until a good grey scale with normal whites is obtained. (RF Input)

4. For component input, the data value of "V49" and "V50" is adjusted to follow the data value of "V09" and "V10" respectively.

5. Select the service adjustment "V03" and reset data to obtain normal color level.

• AV INPUT

4. Input data of "V41" to minus 5 step from "V02" data.

Sub-Color Adjustment

1. Receive a good local channel.

2. Make sure the customer color control is set to center position .

• RF INPUT (TU51)

3. Enter the service mode and select service adjustment "V03".

4. Adjust "V03" data value to obtain a normal color level.

36US650

Vertical-Size and Linearity Adjustments

1. Receive a good local channel.

2. Enter the service mode and select the service adjustment "D03" for V-size.

3. Adjust the "D03" bus data to get the proper V-size.

4. For V-linearity adjustment, select data bus "D05" and adjust to get the proper vertical linearity. Note: Aging for 10 min before adjustment. After the

adjustment of V-center and V-size, readjustment for this V-line.

Vertical Phase Adjustment

1. Enter the service mode and select the service adjustment "D01".

2. Adjust "D01" data value so that picture is centered.

Horizontal Position Adjustment

1. Receive a good local channel.

2. Enter the service mode and select the service adjustment "D02".

3. Adjust "D02" data value so that picture is centered.

EW-Corner

1. Receive a good local channel.

2. Enter the service mode and select the service adjustment "D09" for EW-Corner.

3. Adjust the "D09" bus data to get the best linearity for 4 corner points.

Other Adjustments

1. Enter the service mode.

2. Adjust the following data values as listed below.

SERVICE ADJUST DATA(Hex)

POSITION ITEM

OP1 OPTION1 E7 OP2 OPTION2 B9 OP3 OPTION3 0E

Caption Position Adjustment (Horizontal)

1. Receive a good local channel.

2. Enter the service mode and select the service adjustment "EX2".

3. A black text bo x appears on the screen. (see

below)

4. Adjust "EX2" data value so that text box is positioned in the center of the screen.

Figure

Horizontal-Size Adjustment

1. Receive a good local channel.

2. Enter the service mode and select the service adjustment "D04" for H-size.

3. Adjust the "D04" bus data to get the proper H-size.

EW-Parabola

1. Receive a good local channel.

2. Enter the service mode and select the service adjustment "D07" for EW parabola.

3. Adjust the "D07" bus data to get the proper vertical straight line for both left and right side.

EW-Trapezium

Figure B.

1. Receive a good local channel.

2. Enter the service mode and select the service adjustment "D08" for EW-Trapezium.

3. Adjust the "D08" bus data to get the best position display.

Ë MTS ADJUSTMENT

36US650

MTS Level Adjustment

1. Receive the following composite signal. Monaural signal: 400Hz, 100% modulation

2. Set the sound volume above 1.

3. Connect the rms voltmeter to pin (39) of IC3001.

4. Enter the service mode and select the service adjustment "M01" and set to "09".

5. Enter the service mode and select the service adjustment "EX4".

6. Adjust the data so that rms voltmeter reads 490±10mVrms.

7. For 2nd Tuner, adjust the "M06" until the voltage of pin (36) of IC3001 becomes 490±10mVrms.

MTS VCO Adjustment

1. Keep the unit in no-signal state.

2. Connect the frequency counter to pin (39) of IC3001.

3. Connect a capacitor (100µF, 50V) in between positive(+) side of C3005 and ground.

4. Enter the service mode and select the service adjustment "M02"

5. Adjust the data so that the frequency counter reads

62.94 ±0.75kHz.

Separation Adjustment

1. Input "SIGNAL 1" (TU51and TU52) and vary the "M04" and "M07" bus data to get the minimun AC voltage to pin (39) of IC3001.

2. Input "SIGNAL 2" (TU51and TU52) and vary the "M05" and "M08" bus data to get the minimun AC voltage to pin (39) of IC3001. SIGNAL 1: SIGNAL 2: 3kHz, 30% modulation, Lch only, NR-ON Check the output of the speaker at the maximum volume as stated below. Confirmation spec:

ADJ spec: above 25 dB CHK spec: above 20 dB

300Hz, 30% modulation, Lch only, NR-ON

Filter Adjustment

1. Feed the following stereo pilot signal to pin (14) of IC3001 . Stereo pilot signal: 9.4kHz, 600mVrms.

2. Enter the service mode and select the service adjustment "M03".

3. Adjust the data until "OK" appears in position on the screen. Make sure the "OK" is displayed almost at the center of the data range.

CHASSIS LAYOUT

36US650

654321

36US650

DESCRIPTION OF SCHEMATIC DIAGRAM

NOTES:

1. The unit of resistance "ohm" is omitted. (K=kΩ=1000Ω, M=MΩ)

2. All resistors are 1/16 watt, unless otherwise noted.

3. All capacitors are µ F, unless otherwise noted. (P=pF=µµF)

4. (G) indicates ±2% tolerance may be used.

5. indicates line isolated ground.

VOLTAGE MEASUREMENT CONDITIONS:

1. All DC voltages are measured with DVM connected between points indicated and chassis ground, line voltage set at 120V AC and all controls set f or normal picture unless otherwise indicated.

2. All voltages measured with 1000µ V B & W or Color signal.

WAVEFORMS

WAVEFORM MEASUREMENT CONDITIONS:

1. Photographs taken on a standard gated color bar signal, the tint setting adjusted for proper color. The wave shapes at the red, g reen and b lue cathodes of the picture tube depend on the tint, color level and picture control.

2. indicates waveform check points (See chart, waveforms are measured from point indicated to chassis ground.)

AND SHADED ( ) COMPONENTS

= SAFETY RELATED PARTS.

MARK= X-RAY RELATED PARTS.

This circuit diagram is a standard one, printed circuits may be subject to change for product improvement without prior notice.

1 1.2 Vp-p 2 2.3 Vp-p 3 1.0 Vp-p 4 0.5 Vp-p 5 5 Vp-p 6 5 Vp-p

7 1.1 Vp-p 8 1.5 Vp-p 9 30 Vp-p 0 53 Vp-p q 5.4 Vp-p w 0.8 Vp-p

e 190 Vp-p r 15 Vp-p t 1050 Vp-p y 900 Vp-p u 220 Vp-p i 27 Vp-p

o 3.0 Vp-p p 3.0 Vp-p a 3.0 Vp-p s 140 Vp-p d 130 Vp-p f 130 Vp-p

MODELSCHEMATIC DIAGRAM: MAIN-1 Unit

(DUNTKA526WEF9)

36US650

121110987654321

1514

MODEL SCHEMATIC DIAGRAM: MAIN-2 Unit

(DUNTKA526WEF9)

CU36S65

121110987654321

1716

36US650

VB90AKB50X/1E

MODEL SCHEMATIC DIAGRAM: CRT Unit

654321

MODEL SCHEMATIC DIAGRAM: AV Unit

36US650

121110987654321

2019

36US650

MODEL SCHEMATIC DIAGRAM: MTS MODULE

Unit

654321

36US650

MODEL

SCHEMATIC DIAGRAM: CONTROL Unit

36US650

IFA526GJN4

PWB-A: MAIN Unit (Wiring Side)

654321

36US650

PWB-A: MAIN Unit (Chip Parts Side)

654321

36US650

PWB-C: AV Unit (Wiring Side)

PWB-C: AV Unit (Chip Parts Side)

654321

32US650

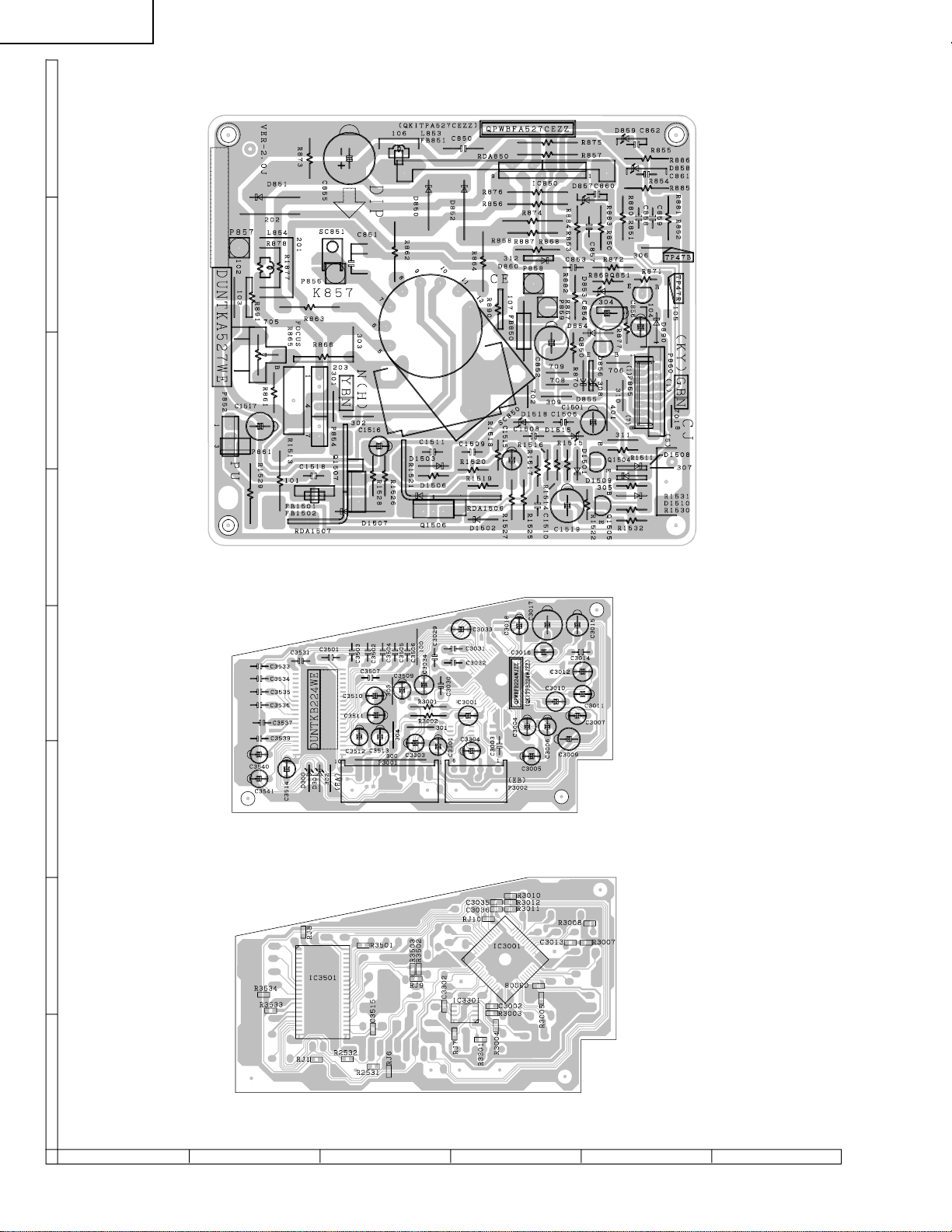

PWB-B: CRT Unit (Wiring Side)

PWB-S: MTS MODULE Unit (Wiring Side)

PWB-S: MTS MODULE Unit (Chip Parts Side)

654321

36US650

PWB-F: CONTROL Unit (Wiring Side) PWB-F: CONTROL Unit (Component Side)

36US650

Q459 VS2PB709AR/-1 J 2PB709AR AB

Q460 VS2PB709AR/-1 J 2PB709AR AB

PWB-F DUNTKB207WEA3 -- CONTROL Unit --

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PARTS LIST

PWB-A: DUNTKA526WEF9

PARTS REPLACEMENT

Replacement parts which have these special safety characteristics identified in this manual ; electrical components having such features are identified by å and shaded areas in the Replacement Parts Lists and Schematic Diagrams. The use of a substitute replacement part which does no have the same safety characteristic as the factory recommended replacement parts shown in this service manual may create shock, fire or other hazards.

"HOW TO ORDER REPLACEMENT PARTS"

To have your order filled promptly and correctly, please furnish the following informations.

1. MODEL NUMBER 2. REF. NO.

3. PART NO. 4. DESCRIPTION

in USA: Contact your nearest SHARP Parts Distributor to order. For

location of SHARP Parts Distributor, Please call Toll-Free; 1800-BE-SHARP

★ MARK: SPARE PARTS-DELIVERY SECTION

' MARK: X-RAY RELATED PARTS

Ref. No. Part No. ★ Description Code

PICTURE TUBE

'åV101 VB90AKB50X/1E Picture Tube DB

å L703 RCiLGA024WJZZ Degaussing Coil AN

LHLDW0102GJKZ Wire Holder, x5 AC MSPRT0002MEZZ Spring AE

å QEARC3502MEZZ Grounding Strap

PRINTED WIRING BOARD ASSEMBLIES

(NOT REPLACEMENT ITEM)

PWB-A DUNTKA526WEF9 – MAIN Unit — PWB-B DUNTKA527WEA3 – CRT Unit — PWB-C DUNTKA602WEA0 – AV Unit —

PWB-S DUNTKB224WEA2 – MTS MODULE Unit —

NOTE: THE PARTS HERES SHOWN ARE SUPPLIED AS AN

ASSEMBLY BUT NOT INDEPENDENTLY.

å TU51 VTUVTST5UF740 X Tuner AX

å IC201 RH-iX3395CEN2 J TB1252CN AY

IC361 VHiAN5276//-1 J AN5276 AR IC501 VHiTA8427K/-1 J TA8427K AL IC680 VHiKiA358P+-1 R KIA358P AD

or VHiiR9358//-1 or

VHiUPC358C/-1 IC701 VHiTEA1507/-1 J TEA1507P/N1 AL IC702 RH-FX0008GEZZ J PC123FY8 AE IC703 VHiSE135N//-1 X SE135N AE IC751 VHiSTV8164+-1 J I.C. AL IC2001 RH-iXA192WJZZQ TMPA8700CSF AP

RH-iXA192WJN1

IC2040 VHiKiA7045A-1 J KIA7045AP AE

VHiKiA7045P-1

IC2102 VHiBR2416E2-1 J R2416E2-1

Q201 VS2SC2735//1E J 2SC2735 AC Q205 VS2PD601AR/-1 J 2PD601AR AB Q206 VS2PD601AR/-1 J 2PD601AR AB Q361 VS2PB709AR/-1 J 2PB709AR AB

Q402 VS2PB709AR/-1 J 2PB709AR AB Q405 VS2PD601AR/-1 J 2PD601AR AB

Q471 VS2PD601AR/-1 J 2PD601AR AB Q472 VS2PD601AR/-1 J 2PD601AR AB Q473 VS2PD601AR/-1 J 2PD601AR AB Q474 VS2PD601AR/-1 J 2PD601AR AB Q601 VS2SC2482//-1 J 2SC2482 AD

å Q602 VS2SD2581++2E J 2SD2581++ AM

Q616 VS2PD601AR/-1 J 2PD601AR AB Q634 VS2SC3198-G-1 J 2SC3198-G AA Q650 VS2SA1266-Y-1 J 2SA1266-Y AA Q672 VS2SA1266-Y-1 J 2SA1266-Y AA Q673 VS2SD2045//-1 J 2SD2045 AL

å Q701 VSST9NC60FP1E ST9NC60FP AP

VSST10NK60F

Q727 VS2SC3333//-1 J 2SC3333 AG Q728 VS2SA1091-01A J 2SA1091-01 AA Q729 VS2SA1266-Y-1 J 2SA1266-Y AA Q730 VS2SC3198-G-1 J 2SC3198-G AA Q751 VS2SC3198-G-1 J 2SC3198-G AA Q752 VS2PD601AR/-1 J 2PD601AR AB

VS2SC1623L61E

Q753 VS2SC3198-G-1 J 2SC3198-G AA Q801 VS2PD601AR/-1 J 2PD601AR AB

VS2SC1623L61E

Q901 VSiMX1C/C//-1 J IMX1C/C// AB Q902 VSiMX1C/C//-1 J IMX1C/C// AB Q903 VSiMX1C/C//-1 J IMX1C/C// AB Q908 VS2PD601AR/-1 J 2PD601AR AB

VS2SC1623L61E

Q2002 VS2SA1266-Y-1 J 2SA1266-Y AA

MAIN UNIT

TUNER

INTEGRATED CIRCUITS

TRANSISTORS

Q2059 VS2SC3198-G-1 J 2SC3198-G AA Q2060 VS2PD601AR/-1 J 2PD601AR AB

Q2201 VS2PD601AR/-1 J 2PD601AR AB

D52 RH-EX0676GEZZ J Zener Diode, 32V AA D53 RH-EX0619GEZZ J Zener Diode, 6.2V AA

D510 RH-DX0441CEZZ J Diode AC D511 RH-EX0654CEZZ J Zener Diode, 75V AD D603 RH-EX0631GEZZ J Zener Diode, 9.1V AA

D615 RH-EX0665GEZZ J Zener Diode, 25V AA D621 RH-EX0631GEZZ J Zener Diode, 9.1V AA

D650 RH-EX0628GEZZ J Zener Diode, 8.2V AC

D657 VHD1SS119//-1 J Diode AB D706 RH-EX0644GEZZ J Zener Diode, 13V AB

D707 VHD1SS119//-1 J Diode AB

D708 VHD1SS119//-1 J Diode AB

D713 RH-DX0477CEZZ J Diode AF D716 VHD1SS119//-1 J Diode AB D717 RH-EX0650GEZZ J Zener Diode, 16V AB D721 VHD1SS119//-1 J Diode AB

D725 RH-DX0407CEN1 Diode

D755 VHD1SS119//-1 J Diode AB D801 RH-EX0631GEZZ J Zener Diode, 9.1V AA D802 RH-EX0631GEZZ J Zener Diode, 0.0475V AA D2402 RH-EX0619GEZZ J Zener Diode, 6.2V AA D2403 RH-EX0619GEZZ J Zener Diode, 6.2V AA

36US650

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-A: DUNTKA526WEF9

MAIN UNIT

Q2059 VS2SC3198-G-1 J 2SC3198-G AA Q2060 VS2PD601AR/-1 J 2PD601AR AB

or VS2SC1623L61E

Q2201 VS2PD601AR/-1 J 2PD601AR AB

or VS2SC1623L61E

Q2211 VS2PD601AR/-1 J 2PD601AR AB

or VS2SC1623L61E

DIODES

D52 RH-EX0676GEZZ J Zener Diode, 32V AA D53 RH-EX0619GEZZ J Zener Diode, 6.2V AA D361 VHD1SS119//-1 J Diode AB D362 VHD1SS119//-1 J Diode AB

å D501 RH-DX0302CEZZ J Diode AC

D510 RH-DX0441CEZZ J Diode AC D511 RH-EX0654CEZZ J Zener Diode, 75V AD D603 RH-EX0631GEZZ J Zener Diode, 9.1V AA

å D605 RH-DX0255CEZZ J Diode AC

D615 RH-EX0665GEZZ J Zener Diode, 25V AA D621 RH-EX0631GEZZ J Zener Diode, 9.1V AA

å D622 RH-DX0131CEZZ J Diode AC

D650 RH-EX0628GEZZ J Zener Diode, 8.2V AC

'åD651 VHD1SS244//-1 J Diode AB

or VHD1SS82///-1

'åD652 RH-EX0641GEZZ J Zener Diode, 8.2V AA 'åD653 VHD1SS119//-1 J Diode AB

D657 VHD1SS119//-1 J Diode AB

å D673 RH-DX0229CEZZ J Diode AF

D706 RH-EX0644GEZZ J Zener Diode, 13V AB D707 VHD1SS119//-1 J Diode AB

or VHD1SS244//-1

D708 VHD1SS119//-1 J Diode AB

or VHD1SS244//-1

å D709 RH-DX0229CEZZ J Diode AF å D712 RH-DX0468CEZZ J Diode AE

D713 RH-DX0477CEZZ J Diode AF D716 VHD1SS119//-1 J Diode AB D717 RH-EX0650GEZZ J Zener Diode, 16V AB D721 VHD1SS119//-1 J Diode AB

or VHD1SS244//-1

D725 RH-DX0407CEN1 Diode

RH-DX0473CE D755 VHD1SS119//-1 J Diode AB D801 RH-EX0631GEZZ J Zener Diode, 9.1V AA D802 RH-EX0631GEZZ J Zener Diode, 0.0475V AA D2402 RH-EX0619GEZZ J Zener Diode, 6.2V AA D2403 RH-EX0619GEZZ J Zener Diode, 6.2V AA

å VA701 RH-VX0019CEZZ J Varistor AC

RH-VX0048CEZZ

RH-VX0035CEZZ

PACKAGED CIRCUITS

å PR701 RMPTP0072CEZZ J Packaged Circuit AH

RMPTP0059CEZZ

X801 RCRSAA011WJZZ X Crystal AG

or RCRSB0278CEZZ

FILTERS AND COILS

CF202 RFiLC0447CEZZ J Ceramic Filter AD

CF403 RFiLC0013CEZZ J Ceramic Filter CF2040

RFiLA0099CEZZ J Ceramic Filter SF201 RFiLC0405CEZZ J SAW Filter AH L51 VP-CF100K0000 J Peaking 10µH L201 VP-XF1R2K0000 J Peaking 1.2µH AB L203 VP-DF100K0000 J Peaking 10µH AB L401 VP-XF100K0000 J Peaking 10µH AB L642 RCiLZ1027CEZZ Coil

RCiLZ0798CEZZ L671 RCiLZ1005CEZZ J Coil AH

å L701 RCiLFA010WJZZ Coil AK

RCiLF0313CEZZ

RCiLF0273CEZZ

RCiLF0345CEZZ

å L702 RCiLF0313CEZZ J Coil AH

RCiLFA010WJZZ

RCiLF0273CEZZ

RCiLF0345CEZZ L705 RCiLP0179CEZZ J Coil AD L729 RCiLP0179CEZZ J Coil AD L801 VP-DF100K0000 J Peaking 10µH AB L802 VP-DF6R8K0000 J Peaking 6.8µH AB L2040 RCiLB0159CEZZ J Oscillation Coil AE

RCiLB0131CEZZ

TRANSFORMERS

T201 RCiLi0636CEZZ X IF Coil AH

å T601 RTRNZ0057PEZZ R Transformer AK

'åT602 RTRNFA007WJZZ H-Volt Transformer AY

å T702 RTRNW0005GJZZ Transformer AP

RTRNW0005GJN1

CAPACITORS

[EL.··· Electrolytic, M-Poly.··· Metalized Polypro Film]

C53 VCEA0A1HW105M J 1 50V EL. AB C54 VCEA0A1HW475M J 4.7 50V EL. AB C55 VCEA0A0JW338M J 3300 6.3V EL. AD C201 VCKYCY1HB102K J 1000p 50V Ceramic AA C202 VCKYCY1HB103K J 0.01 50V Ceramic AA C203 VCKYCY1HB102K J 1000p 50V Ceramic AA C204 VCKYCY1HB103K J 0.01 50V Ceramic AA C223 VCKYCY1CF104Z J 0.1 16V Ceramic AA C224 VCEA0A1HW475M J 4.7 50V EL. AB C225 VCKYCY1HB102K J 1000p 50V Ceramic AA C226 VCEA0A1HW224M J 0.22 50V EL. AB C227 VCEA0A1CW226M J 22 16V EL. AB C228 VCKYCY1CF474Z J 0.47 16V Ceramic AB C229 VCEA0A1AW228M J 2200 10V EL. AD C230 VCEA0A1HW225M J 2.2 50V EL. AB C231 VCKYCY1CF104Z J 0.1 16V Ceramic AA C232 VCEA0A1HW474M J 0.47 50V EL. AB C233 VCKYCY1CF104Z J 0.1 16V Ceramic AA C361 VCEA0A1HW105M J 1 50V EL. AB C362 VCQYTA1HM123J J 0.012 50V Mylar AA C363 VCQYTA1HM123J J 0.012 50V Mylar AA C364 VCEA0A1EW227M J 220 25V EL. AB C365 VCEA0A1HW105M J 1 50V EL. AB C366 VCEA0A1CW106M J 10 16V EL. AB C367 VCEA0A1VW108M J 1000 35V EL. AD C368 VCKYPA1HF103Z J 0.01 50V Ceramic AA

36US650

C425 VCEA0A1HW105M J 1 50V EL. AB

C426 VCKYCY1HB682K J 6800p 50V Ceramic AA

C462 VCKYCY1CB473K J 0.047 16V Ceramic AA

C2006 VRD-RA2BE104J J 100p 50V Ceramic AA

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-A: DUNTKA526WEF9

MAIN UNIT(Continued)

C369 VCEA0A1CW227M J 220 16V EL. AC C370 VCEA0A1CW227M J 220 16V EL. AC C371 VCEA0A1EW108M J 1000 25V EL. AD C372 VCEA0A1EW108M J 1000 25V EL. AD C373 VCKYCY1CF104Z J 0.1 16V Ceramic AA C374 VCEA0A1HW225M J 2.2 50V EL. AB C375 VCEA0A1HW225M J 2.2 50V EL. AB C410 VCQYTA1HM104J J 0.1 50V Mylar AA C419 VCKYCY1CF224Z J 0.22 16V Ceramic AA C420 VCEA0A1CW476M J 47 16V EL. AB

C429 VCQYTA1HM103J J 0.01 50V Mylar AA C433 VCKYCY1HB103K J 0.01 50V Ceramic AA

C434 VCEA0A1HW105M J 1 50V EL. AB C435 VCQYTA1HM104J J 0.1 50V Mylar AA

C471 VCKYCY1HB822K J 8200p 50V Ceramic AB C473 VCCCCY1HH561J J 560p 50V Ceramic AB

C475 VCKYCY1CF104Z J 0.1 16V Ceramic AA C476 VCKYCY1HB103K J 0.01 50V Ceramic AA C484 VCKYCY1HB103K J 0.01 50V Ceramic AA

C501 VCKYPA2HB102K J 1000p 500V Ceramic AA C502 VCEA0A1VW108M J 1000 35V EL. AD

C510 VCFYSA1JB564J J 0.56 63V Mylar AE C511 VCKYPA2HB391K J 390p 500V Ceramic AA C512 VCQYTA1HM683J J 0.068 50V Mylar AB C513 VCQYTA1HM472J J 4700p 50V Mylar C514 VCEA0A1VW107M J 100 35V EL. AC C515 VCEACA1HC225J J 2.2 50V EL. AC C516 VCEACA1HC225J J 2.2 50V EL. AC C517 VCEA0A1VW108M J 1000 35V EL. AD C519 VCFYSA1JB473J J 0.047 63V Mylar AC C551 VCFYFA1HA474J J 0.47 50V EL. AB C552 VCKYCY1HB392K J 3900p 50V Ceramic AA C553 VCKYCY1HB392K J 3900p 50V Ceramic AA C605 VCKYCY1HB102K J 1000p 50V Ceramic AA C606 VCKYPA2HB561K J 560p 500V Ceramic AA C607 VCKYPA1HB472K J 4700p 50V Ceramic AA C608 VCKYPH3DB271K J 270p 200V Ceamic

'åC609 VCFPFD3ZA912H J 9100p 1.8kV M-Poly. AD 'åC610 VCFPVC3ZA822H J 8200p 1.8kV M-Poly. AE

C614 VCKYPA2HB272K J 2700p 500V Ceramic AA C615 VCKYCY1CF104Z J 0.1 16V Ceramic AA C616 VCEA9M1HW224M J 0.22 50V EL. C617 VCEA0A1HW474M J 0.47 50V EL. AB C618 VCKYCY1HB822K J 8200p 50V Ceramic AB C619 VCKYCY1HB103K J 0.01 50V Ceramic AA C620 VCEA0A1CW227M J 470 16V EL. AC C623 VCEA4A2EN106M J 10 250V EL. AD C624 VCKYPA2HB102K J 1000p 500V Ceramic AA C627 VCEA0A1HW106M J 10 50V EL. AB C631 VCKYPA1HB331K J 330p 50V Ceramic AA C632 VCEA0A1VW107M J 100 35V EL. C633 VCKYPA1HB102K J 1000p 50V Ceramic AA C644 VCFPVC2DB684J 0.68 200V M-Poly. AG C647 VCKYPA2HB102K J 1000p 500V Ceramic AA C650 VCEA0A1HW105M J 1 50V EL. AB C651 VCQYTA2AA104K J 0.1 100V Mylar AB C652 VCEA0A1VW476M J 47 35V EL. AB C653 VCEA0A1HW336M J 33 50V EL. AB C654 VCFYFA1HA334J J 0.33 50V Mylar AB C674 VCCCCY1HH391J J 0.1 16V Ceramic AB C677 RC-FZ0377CEZZ J 4.7 50V Plastic AF

'åC678 VCQPPC2GB473J J 0.047 400V Plastic AB

C683 VRS-CY1JF000J J 0 1/16W M-Ox. AA C684 VCEA0A1VW106M J 10 35V EL. AB C685 VCQYTA1HM333J J 0.033p 50V Mylar C686 VCQYTA1HM104J J 0.1 50V Mylar AA

å C701 RC-FZ038SCEZZ J 4700p

or RC-FZ030SCEZZ or RC-FZ022SCEZZ

AC125V

Plastic AE

C702 RC-KZ0029CEZZ J 0.01 250V Ceramic AC C703 RC-KZ0029CEZZ J 0.01 250V Ceramic AC

å C705 RC-EZ0722CEZZ J 820 200V EL. AN

C706 RC-KZ021SCEZZ J 3300p 400V Ceramic AE C710 RC-KZ0040CEZZ J 820p 2000V Ceramic AD C711 RC-KZ021SCEZZ J 3300p 400V Ceramic C712 VCKYCY1HB103K J 0.01 50V Ceramic AA C717 RC-KZ0029CEZZ J 0.01 250V Ceramic AC C722 VCQYTA1HM104J J 0.1 50V Mylar AA C723 RC-EZ0724CEZZ J 100 160V EL. AG C725 RC-EZ0810CEZZ J 330 160V EL. AH

RC-EZ1171CEZZ C726 RC-KZ0338CEZZ J 560p 2kV Ceramic AC C727 RC-KZ0338CEZZ J 560p 2kV Ceramic AC C730 VCEA4A1VN108M J 1000 35V EL. AD C731 RC-EZ0385CEZZ J 1000 16V EL. AE C732 VCKYPA2HB102K J 1000p 500V Ceramic AA C735 VCEA0A1CW106M J 10 16V EL. AB C736 VCEA0A1CW106M J 10 16V EL. AB C737 VCEA0A1CW107M J 100 16V EL. AC C738 VCFPVC3CA722H J 7200p 1.6kV M-Poly. AF C740 VCEA0A1EW476M J 47 25V EL. AB C741 VCKYPA2HB102K J 1000p 500V Ceramic AA C742 VCKYPA2HB102K J 1000p 500V Ceramic AA

C756 VCEA0A1CW476M J 47 16V EL. AB C757 VCEA0A1CW476M J 47 16V EL. AB C780 VCEA9M1EW226M J 22 25V EL. AB C781 VCFYFA1HA334J J 0.33 50V Mylar AB C784 VCKYCY1HF103Z J 0.01 50V Ceramic AA C787 VCKYCY1HF103Z J 0.01 50V Ceramic AA

C2005 VCEA0A1CW106M J 10 16V EL. AB C2040 VCKYCY1CF104Z J 0.1 16V Ceramic AA

C801 VCCCCY1HH110J J 11p 50V Ceramic AA C802 VCKYCY1HB222K J 2200p 50V Ceramic AA C803 VCEA0A1HW224M J 0.22 50V EL. AB C804 VCKYCY1CF104Z J 0.1 16V Ceramic AA C805 VCEA0A1CW337M J 330 16V EL. AC C806 VCKYCY1CF104Z J 0.1 16V Ceramic AA C807 VCKYCY1CF104Z J 0.1 16V Ceramic AA C808 VCKYCY1CF104Z J 0.1 16V Ceramic AA C809 VCEA0A1CW106M J 10 16V EL. AB C810 VCEA0A1CW106M J 10 16V EL. AB C811 VCKYCY1HB103K J 0.01 50V Ceramic AA C812 VCKYCY1HB103K J 0.01 50V Ceramic AA C813 VCEA0A1CW107M J 100 16V EL. AC C814 VCKYCY1HB103K J 0.01 50V Ceramic AA C815 VCKYCY1HB103K J 0.01 50V Ceramic AA C816 VCEA0A1CW107M J 100 16V EL. AC C817 VCKYCY1HB103K J 0.01 50V Ceramic AA C930 VCEA0A1HW335M J 3.3 50V EL. AB C931 VCQYTA1HM183J J 0.018 50V Mylar AB C932 VCQYTA1HM183J J 0.018 50V Mylar AB C933 VCEA0A1HW335M J 3.3 50V EL. AB C934 VCEA0A1CW476M J 47 16V EL. AB C935 VCEA0A1HW335M J 3.3 50V EL. AB C936 VCEA0A1HW335M J 3.3 50V EL. AB C945 VCKYCY1HB102K J 1000p 50V Ceramic AA C946 VCEA0A1HW225M J 2.2 50V EL. AB C948 VCEA0A1HW225M J 2.2 50V EL. AB C956 VCEA0A1CW337M J 330 16V EL. AC C960 VCE9GA1HW475M J 4.7 50V EL. (N.P) AB C961 VCE9GA1HW475M J 4.7 50V EL. (N.P) AB C962 VCKYCY1CF104Z J 0.1 16V Ceramic AA C2001 VCCCCY1HH331J J 330p 50V Ceramic AA C2003 VCEA0A1HW106M J 10 50V EL. AB C2004 VCEA0A1CW476M J 47 16V EL. AB C2602 VCCCCY1HH101J J 100p 50V Ceramic AA

C2041 VCEA0A1HW105M J 1 50V EL. AB C2044 VCQYTA1HM104J J 0.1 50V Mylar AA C2060 VCKYCY1CF104Z J 0.1 16V Ceramic AA C2061 VCCCCY1HH101J J 100p 50V Ceramic AA C2062 VCEA0A1AW107M J 100 10V EL. AB

C2063 VCKYCY1CF104Z J 0.1 16V Ceramic AA C2064 VCKYCY1CF104Z J 0.1 16V Ceramic AA C2201 VCKYCY1HB681K J 680p 50V Ceramic AA C2202 VCCCCY1HH390J J 39p 50V Ceramic AA

36US650

RJ34 VRS-CY1JF000J J 0 1/16W M-Ox. AA

RJ31 VRS-CY1JF000J J 0 1/16W M-Ox. AA

RJ16 VRS-CY1JF000J J 0 1/16W M-Ox. AA

R57 VRS-CY1JF392J J 3.9K 1/16W M-Ox. AA

RJ15 VRS-CY1JF000J J 0 1/16W M-Ox. AA

RJ28 VRS-CY1JF000J J 0 1/16W M-Ox. AA

R676 VCKYCY1CB104K* J 0.1 50V EL

R625 VRD-RA2BE102J J 1K 1/8W Carbon AA

R726 VRD-RM2HD102J J 1K 1/2W Carbon

R459 VRS-CY1JF102J J 1k 1/16W M-Ox. AA

R460 VRS-CY1JF102J J 1k 1/16W M-Ox. AA

R461 VRS-CY1JF151J J 150 1/16W M-Ox. AA

R462 VRS-CY1JF122J J 1.2k 1/16W M-Ox. AA

R463 VRS-CY1JF474J J 470k 1/16W M-Ox. AA

R464 VRS-CY1JF122J J 1.2k 1/16W M-Ox. AA

R465 VRS-CY1JF101J J 100 1/16W M-Ox. AA

R2009 VRS-CY1JF103J J 10k 1/16W M-Ox. AA

R2010 VRS-CY1JF102J J 1k 1/16W M-Ox. AA

R2011 VRD-RA2BE561J J 560 1/8W M-Ox. AA

R2013 VRD-RA2BE822J J 8.2K 1/8W M-Ox. AA

R2016 VRS-CY1JF104J J 100k 1/16W M-Ox. AA

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-A: DUNTKA526WEF9

MAIN UNIT(Continued)

RESISTORS

[M-Ox.··· Metal Oxide, M-Film··· Metal Film]

RJ13 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ14 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ17 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ20 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ25 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ27 VRS-CY1JF000J J 0 1/16W M-Ox. AA

RJ32 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ33 VRS-CY1JF000J J 0 1/16W M-Ox. AA

RJ35 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ39 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ40 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ41 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ46 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ47 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ52 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ53 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ54 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ55 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ56 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ60 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ65 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ66 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ68 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ73 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ74 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ78 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ79 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ80 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ81 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ84 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ86 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ87 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ88 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ90 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ94 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ95 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ97 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ98 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ101 VRS-CY1JF000J J 0 1/16W M-Ox. AA R201 VRS-CY1JF151J J 150 1/16W M-Ox. AA R202 VRS-CY1JF122J J 1.2k 1/16W M-Ox. AA R203 VRS-CY1JF122J J 1.2k 1/16W M-Ox. AA R204 VRS-CY1JF101J J 100 1/16W M-Ox. AA R211 VRS-CY1JF331J J 330 1/16W M-Ox. AA R212 VRS-CY1JF000J J 0 1/16W M-Ox. AA

R236 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R307 VRS-CY1JF333J J 33k 1/16W M-Ox. AA R361 VRS-CY1JF224J J 220k 1/16W M-Ox. AA R362 VRD-RA2BE222J J 2.2k 1/8W Carbon AA R363 VRD-RA2BE222J J 2.2k 1/8W Carbon AA

R364 VRS-CY1JF561J J 560 1/16W M-Ox. AA R365 VRS-CY1JF561J J 560 1/16W M-Ox. AA R367 VRN-RL3DBR56J+ X 0.56 2W M-Film AE R368 VRD-RA2BE222J J 2.2k 1/8W Carbon AA R369 VRD-RA2BE822J J 8.2k 1/8W Carbon AA R371 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R372 VRS-CY1JF223J J 22k 1/16W M-Ox. AA R415 VRS-CY1JF101J J 100 1/16W M-Ox. AA

R430 VRD-RA2BE331J J 330 1/8W Carbon AA R431 VRS-CY1JF331J J 330 1/16W M-Ox. AA R432 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R440 VRS-CY1JF000J J 0 1/16W M-Ox. AA R453 VRS-CY1JF103J J 10k 1/16W M-Ox. AA

R454 VRD-RA2BE101J J 100 1/8W Carbon AB

R471 VRS-CY1JF223J J 22k 1/16W M-Ox. AA R472 VRS-CY1JF821J J 820 1/16W M-Ox. AA

R473 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R474 VRS-CY1JF471J J 470 1/16W M-Ox. AA

R475 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R476 VRS-CY1JF393J J 39k 1/16W M-Ox. AA

R477 VRS-CY1JF182J J 1.8k 1/16W M-Ox. AA R478 VRS-CY1JF151J J 150 1/16W M-Ox. AA

R479 VRS-CY1JF393J J 39k 1/16W M-Ox. AA R480 VRS-CY1JF273J J 27k 1/16W M-Ox. AA R481 VRS-CY1JF152J J 1.5k 1/16W M-Ox. AA R482 VRD-RA2BE101J J 100 1/8W Carbon AB R483 VRS-CY1JF471J J 470 1/16W M-Ox. AA

å R502 VRN-VV3LB2R2J 2.2 3W M-Film

R510 VRD-RA2BE471J J 470 1/8W Carbon AA R511 VRD-RA2BE473J J 47k 1/8W Carbon

R512 VRD-RA2BE683J J 68k 1/8W Carbon AA R513 VRS-CY1JF273J J 27k 1/16W M-Ox. AA R514 VRS-CY1JF101J J 100 1/16W M-Ox. AA R520 VRS-CY1JF184J J 180k 1/16W M-Ox. AA R523 VRN-RL3DB1R0J+ X 1 2W M-Film AE R524 VRS-RG3AB391J X 390 1W M-Ox. AE R534 VRD-RA2BE181J J 180 1/8W Carbon AA R551 VRS-CY1JF562F J 5.6k 1/16W M-Ox. AA R578 VRD-RA2BE123J J 12k 1/8W Carbon AA R601 VRD-RM2HD220J J 22 1/2W Carbon AA

å R604 VRS-KA3NG102J J 1k 7W M-Ox. AD

R605 VRD-RM2HD331J J 330 1/2W Carbon AA R606 VRD-RM2HD271J J 270 1/2W Carbon AA R609 VRS-RG3AB562J X 5.6k 1W M-Ox. AE

å R611 VRW-KQ41C3R3K J 3.3 15W Cement AG

R612 VRS-CY1JF472J J 4.7k 1/16W M-Ox. AA R613 VRS-CY1JF474J J 470k 1/16W M-Ox. AA R614 VRS-CY1JF125J J 1.2M 1/16W M-Ox. AA

'åR616 VRD-RA2BE103J J 10k 1/8W Carbon AA

R215 VRS-CY1JF222J J 2.2k 1/16W M-Ox. AA R217 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R219 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R220 VRS-CY1JF392J J 3.9k 1/16W M-Ox. AA R225 VRD-RA2BE680J J 68 1/8W Carbon AA R226 VRD-RA2BE101J J 100 1/8W Carbon AB R227 VRS-CY1JF333J J 33k 1/16W M-Ox. AA R228 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R229 VRS-CY1JF221J J 220 1/16W M-Ox. AA R233 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R234 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R235 VRS-CY1JF103J J 10k 1/16W M-Ox. AA

36US650

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-A: DUNTKA526WEF9

MAIN UNIT(Continued)

'åR617 VRS-CY1JF103J J 10k 1/16W M-Ox. AA 'åR618 VRS-CY1JF473J J 47k 1/16W M-Ox. AA

å R621 VRN-RL3AB5R6J+ X 5.6 1W M-Film å R622 VRN-RL2HCR56J X 0.56 1/2W M-Film AE

or VRN-SV2HCR47J

å R623 VRN-RL3AB1R0J X 1 1W M-Film AE

R624 VRS-RG3DB332J X 3.3k 2W M-Ox. AE R627 VRS-KT3LB471J J 470 3W M-Ox. AD R631 VRS-RG3AB103J J 10k 1W M-Ox. AB R633 VRD-RA2EE562J J 5.6k 1/4W Carbon AA R635 VRD-RM2HD683J J 68k 1/2W Carbon AA R638 VRS-CY1JF822J J 8.2k 1/16W M-Ox. AA R639 VRD-RA2BE561J J 560 1/8W Carbon AA R640 VRD-RA2BE473J J 47k 1/8W Carbon AA R641 VRD-RA2BE151J J 150 1/8W Carbon R647 VRD-RM2HD220J J 22 1/2W Carbon AA

'åR651 VRN-RL2HC1R0J X 1 1/2W M-Film AE 'åR652 VRD-RA2EE822G J 8.2k 1/4W Carbon 'åR653 VRD-RA2EE682G J 6.8k 1/4W Carbon 'åR654 VRD-RA2EE333G~ X 33k 1/4W Carbon AE

R655 VRS-CY1JF562J J 5.6k 1/16W M-Ox. AA R656 VRS-CY1JF474J J 470k 1/16W M-Ox. AA

å R658 VRS-RG3DB153J J 15k 2W M-Ox.

R659 VRS-CY1JF471J J 470 1/16W M-Ox. AA R662 VRS-CY1JF000J J 0 1/16W M-Ox. AA R663 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R664 VRS-CY1JF471J J 470 1/16W M-Ox. AA R666 VRS-CY1JF223J J 22k 1/16W M-Ox. AA R667 VRS-CY1JF562J J 5.6k 1/16W M-Ox. AA R668 VRD-RA2BE680J J 68 1/8W Carbon AA R669 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R670 VRD-RM2HD563J J 56k 1/2W Carbon AA

å R671 VRS-RG2HC102J J 1k 1/2W M-Ox. AA

R672 VRD-RM2HD393J J 39k 1/2W Carbon AA R674 VRD-RA2BE103J J 10k 1/8W Carbon AA

å R675 VRN-RL3DB3R3J+ X 3.3 2W M-Film AE

R677 VRD-RA2EE103J J 10k 1/4W Carbon AA R678 VRD-RA2BE472J J 4.7k 1/8W Carbon AA R679 VRD-RM2HD103J J 10k 1/2W Carbon AA R686 VRS-CY1JF473J J 47k 1/16W M-Ox. AA R688 VRS-CY1JF223J J 22k 1/16W M-Ox. AA R689 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R690 VRS-CY1JF683J J 68k 1/16W M-Ox. AA R698 VRS-CY1JF101J J 100 1/16W M-Ox. AA R699 VRS-CY1JF822J J 8.2k 1/16W M-Ox. AA

å R702 VRW-KQ4AC1R2K J 1.2 10W Cement AE å R703 VRS-RG3LB101J J 100 3W M-Ox.

R705 VRN-VV3DBR15J J 0.15 2W M-Film AB R706 VRN-VV3DBR15J J 0.15 2W M-Film AB R707 VRD-RM2HD270J J 27 1/2W Carbon AA R709 VRD-RA2BE223J J 22k 1/8W Carbon AA R710 VRS-RG2HC103J J 10k 1/2W M-Ox. AA R712 VRD-RA2BE100J J 10 1/8W Carbon AA R713 VRS-RG2HC122J+ X 1.2k 1/2W M-Ox. AE R714 VRD-RM2HD100J J 10 1/2W Carbon AA R715 VRD-RA2BE391J J 390 1/8W Carbon AA R718 VRD-RA2BE102J J 1k 1/8W Carbon AA R723 VRN-RL3DBR22J J 0.22 2W M-Film AA

å R725 VRD-RM2HD821J J 820 1/2W Carbon AA å R737 VRN-RL3DBR56J X 0.56 2W M-Film AE

R744 VRS-CY1JF272J J 2.7k 1/16W M-Ox. AA R745 VRS-CY1JF472J J 4.7k 1/16W M-Ox. AA R746 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R747 VRS-CY1JF103J J 10k 1/16W M-Ox. AA

å R750 RR-DZ0049CEZZ J 3.9M 1/2W Solid AB

RR-DZ0048CEZZ R751 VRS-CY1JF473J J 47k 1/16W M-Ox. AA R766 VRS-CY1JF333J J 33k 1/16W M-Ox. AA R767 VRS-CY1JF273J J 27k 1/16W M-Ox. AA R768 VRS-CY1JF332J J 3.3k 1/16W M-Ox. AA R769 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R770 VRD-RM2HD823J J 82k 1/2W Carbon AA

R771 VRD-RA2BE272J J 2.7k 1/8W Carbon AA R772 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R774 VRS-CY1JF393J J 39k 1/16W M-Ox. AA R775 VRS-CY1JF563J J 56k 1/16W M-Ox. AA R776 VRN-VV3DB1R0J J 1 2W M-Film AB R777 VRS-KA3HG8R2K J 8.2 5W M-Ox. AD R778 VRS-RG3AB101J J 100 1W M-Ox. R779 VRS-CY1JF273J J 27k 1/16W M-Ox. AA

å R789 VRS-CY1JF474J J 470k 1/16W M-Ox. AA

R801 VRS-CY1JF333J J 33k 1/16W M-Ox. AA R802 VRS-CY1JF101J J 100 1/16W M-Ox. AA R804 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R805 VRS-CY1JF272J J 2.7k 1/16W M-Ox. AA R806 VRS-CY1JF681J J 680 1/16W M-Ox. AA R807 VRS-CY1JF681J J 680 1/16W M-Ox. AA R808 VRS-CY1JF681J J 680 1/16W M-Ox. AA R809 VRS-CY1JF471J J 470 1/16W M-Ox. AA R810 VRD-RA2BE101J J 100 1/8W Carbon AB R811 VRD-RA2BE101J J 100 1/8W Carbon AB R812 VRS-CY1JF224J J 220k 1/16W M-Ox. AA R813 VRD-RA2BE271J J 270 1/8W Carbon AA R814 VRD-RA2BE101J J 100 1/8W Carbon AB R815 VRD-RA2BE101J J 100 1/8W Carbon AB R816 VRS-CY1JF272J J 2.7k 1/16W M-Ox. AA R817 VRS-CY1JF272J J 2.7k 1/16W M-Ox. AA R818 VRS-CY1JF272J J 2.7k 1/16W M-Ox. AA R819 VRS-CY1JF101J J 100 1/16W M-Ox. AA R820 VRS-CY1JF101J J 100 1/16W M-Ox. AA R821 VRS-CY1JF101J J 100 1/16W M-Ox. AA R822 VRD-RA2BE101J J 100 1/8W Carbon AB R830 VRD-RA2BE102J J 1k 1/8W Carbon AA R901 VRS-CY1JF104J J 100k 1/16W M-Ox. AA R902 VRS-CY1JF104J J 100k 1/16W M-Ox. AA R903 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R904 VRS-CY1JF683J J 68k 1/16W M-Ox. AA R905 VRS-CY1JF223J J 22k 1/16W M-Ox. AA

R906 VRS-CY1JF392J J 3.9k 1/16W M-Ox. AA R907 VRS-CY1JF182J J 1.8k 1/16W M-Ox. AA

R909 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R910 VRD-RA2BE102J J 1k 1/8W Carbon AA R911 VRS-CY1JF683J J 68k 1/16W M-Ox. AA

R912 VRS-CY1JF223J J 22k 1/16W M-Ox. AA R913 VRS-CY1JF392J J 3.9k 1/16W M-Ox. AA

R914 VRS-CY1JF182J J 1.8k 1/16W M-Ox. AA R915 VRS-CY1JF102J J 1k 1/16W M-Ox. AA

R916 VRS-CY1JF683J J 68k 1/16W M-Ox. AA R917 VRS-CY1JF000J J 0 1/16W M-Ox. AA R918 VRS-CY1JF000J J 0 1/16W M-Ox. AA R922 VRD-RA2BE102J J 1k 1/8W Carbon AA R923 VRD-RA2BE102J J 1k 1/8W Carbon AA R924 VRS-CY1JF750J J 75 1/16W M-Ox. AA R925 VRS-CY1JF750J J 75 1/16W M-Ox. AA R926 VRS-CY1JF750J J 75 1/16W M-Ox. AA R927 VRS-CY1JF750J J 75 1/16W M-Ox. AA R928 VRS-CY1JF750J J 75 1/16W M-Ox. AA R940 VRS-CY1JF221J J 220 1/16W M-Ox. AA R950 VRS-CY1JF750J J 75 1/16W M-Ox. AA R951 VRS-CY1JF750J J 75 1/16W M-Ox. AA R952 VRD-RA2BE333J J 33k 1/8W Carbon AA R961 VRS-CY1JF221J J 220 1/16W M-Ox. AA R962 VRS-CY1JF221J J 220 1/16W M-Ox. AA R963 VRD-RA2BE331J J 330 1/8W Carbon AA R969 VRS-CY1JF221J J 220 1/16W M-Ox. AA R989 VRS-CY1JF750J J 75 1/16W M-Ox. AA R991 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R992 VRS-CY1JF122J J 1.2k 1/16W M-Ox. AA

å R2001 VRS-CY1JF562J J 5.6k 1/16W M-Ox. AA

R2002 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R2004 VRD-RA2BE101J J 100 1/8W Carbon AB

'åR2007 VRS-CY1JF562J J 5.6k 1/16W M-Ox. AA

R2008 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R2022 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R2024 VRS-CY1JF472J J 4.7k 1/16W M-Ox. AA R2025 VRS-CY1JF472J J 4.7k 1/16W M-Ox. AA R2026 VRS-CY1JF472J J 4.7k 1/16W M-Ox. AA R2027 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R2028 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R2029 VRS-CY1JF103J J 10k 1/16W M-Ox. AA

36US650

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-A: DUNTKA526WEF9

MAIN UNIT(Continued)

R2029 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R2040 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R2041 VRS-CY1JF333J J 33k 1/16W M-Ox. AA R2042 VRS-CY1JF101J J 100 1/16W M-Ox. AA R2043 VRS-CY1JF333J J 33k 1/16W M-Ox. AA R2044 VRS-CY1JF153J J 15k 1/16W M-Ox. AA R2045 VRS-CY1JF101J J 100 1/16W M-Ox. AA R2047 VRS-CY1JF221J J 220 1/16W M-Ox. AA R2048 VRS-CY1JF562J J 5.6k 1/16W M-Ox. AA R2051 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R2052 VRD-RA2BE101J J 100 1/8W Carbon AB R2054 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R2055 VRS-CY1JF682J J 6.8k 1/16W M-Ox. AA R2060 VRS-CY1JF221J J 220 1/16W M-Ox. AA R2061 VRS-CY1JF562J J 5.6k 1/16W M-Ox. AA R2063 VRS-CY1JF222J J 2.2k 1/16W M-Ox. AA R2064 VRS-CY1JF332J J 3.3k 1/16W M-Ox. AA R2066 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R2067 VRD-RA2BE222J J 2.2k 1/8W Carbon AA R2081 VRS-CY1JF101J J 100 1/16W M-Ox. AA R2084 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R2101 VRS-CY1JF101J J 100 1/16W M-Ox. AA R2102 VRS-CY1JF101J J 100 1/16W M-Ox. AA R2201 VRS-CY1JF222J J 2.2k 1/16W M-Ox. AA

R2202 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R2203 VRS-CY1JF184J J 180k 1/16W M-Ox. AA

R2211 VRS-CY1JF222J J 2.2k 1/16W M-Ox. AA R2212 VRS-CY1JF682J J 6.8k 1/16W M-Ox. AA R2213 VRS-CY1JF333J J 33k 1/16W M-Ox. AA R2401 VRS-CY1JF101J J 100 1/16W M-Ox. AA

R2402 VRD-RA2BE101J J 100 1/8W Carbon AB

R2403 VRD-RA2BE101J J 100 1/8W Carbon AB R2404 VRS-CY1JF101J J 100 1/16W M-Ox. AA R2501 VRS-CY1JF183J J 18k 1/16W M-Ox. AA R2502 VRS-CY1JF183J J 18k 1/16W M-Ox. AA R2503 VRS-CY1JF103J J 10k 1/16W M-Ox. AA

R2504 VRS-CY1JF103J J 10k 1/16W M-Ox. AA

å RY701 RRLYJ0081CEZZ J Relay AL

å F701 QFS-B4023CEZZ J Fuse, 4A/AC125V AC

or RRLYJ0094CEZZ

FH701 QFSHD1013CEZZ J Fuse Holder AC FH702 QFSHD1014CEZZ J Fuse Holder AC FB601 RBLN-0037CEZZ J Ferrite Bead AB FB671 RBLN-0037CEZZ J Ferrite Bead AB FB702 RBLN-0020CEZZ J Ferrite Bead AB FB706 RBLN-0037CEZZ J Ferrite Bead AB FB707 RBLN-0037CEZZ J Ferrite Bead AB J901 QTANJ0540CEZZ X Terminal AH J902 QTANJ0655CEZZ J Terminal AK J921 QSOCD0430CEZZ J Socket AE P361 QPLGN0461CEZZ J Plug, 4-pin(S) AB P401 QPLGN0861CEZZ J Plug, 8-pin(GBN) AC

P601 QPLGN0161FJZZ J Plug, 6-pin(K) AE P621 QPLGN0761CEZZ J Plug, 7-pin(YBN) AD P651 QPLGN0361CEZZ J Plug, 3-pin(P651-3) AB P701 QPLGN0460CEZZ J Plug, 4-pin(M) AC P703 QPLGN0269GEZZ J Plug, 2-pin(P) AB P705 QPLGN0160CEZZ J Plug, 1-pin(SG) AB

P2003 QPLGN0561CEZZ J Plug, 5-pin(EJ) AB P1901 QPLGN1559REZZ J Plug, 15-pin(VA) AC

P1902 QPLGN1559REZZ J Plug, 15-pin(VB) AC P1903 QPLGN1059REZZ J Plug, 10-pin(VB) AC P2401 QPLGN0561CEZZ J Plug, 5-pin AB SC3001

QSOCN0259FJ00 J Socket, 10-pin(EA) AE

P52

QPLGN0160CEZZ J Plug AB

RDA361

PRDAR0108GJFW Heat Sink, for IC361 AC

RDA501

PRDAR0113GJFW J Heat Sink, for IC501 AH

RDA602

PRDAR0114GJFW J Heat Sink, for Q602 AH

RDA673

PRDAR1007MEFW J Heat Sink, for Q673 AH

RDA701

PRDAR0117GJFW J Heat Sink, for Q701 AL

RDA751

PRDAR0111GJFW J Heat Sink, for IC751 AF LHLDW1002PEZZ R Holder AB LX-BZ3049GEFD J Screw AA LX-BZ3100CEFD J Screw AA MSPRK0034BMFW J Spring AC

MISCELLANEOUS PARTS

36US650

R861 VRD-RM2HD104J J 100K 1/2W Carbon

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-C: DUNTKA527WEA3

CRT UNIT

å IC850 VHiTDA6103Q-1 J TDA6103Q/N3 AL

Q850 VS2SA1266-Y-1 J 2SA1266-Y AA Q851 VS2SC3198-G-1 J 2SC3198-G AA Q1504 VS2SC3198-G-1 J 2SC3198-G AA Q1505 VS2SA1266-Y-1 J 2SA1266-Y AA Q1506 VS2SA1964E/-1 J 2SA1964E AF Q1507 VS2SC5248E/-1 J 2SC5248E AE

D850 RH-DX0220CEZZ J Diode AB D851 RH-DX0220CEZZ J Diode AB D852 RH-DX0220CEZZ J Diode AB D853 RH-EX0647GEZZ J Zener Diode, 15V AA

D854 VHD1SS119//-1 J Diode AB D855 VHD1SS119//-1 J Diode AB D897 RH-DX0220CEZZ J Diode AB D898 RH-DX0220CEZZ J Diode AB D899 RH-DX0220CEZZ J Diode AB D1502 VHD1SS119//-1 J Diode AB D1503 VHD1SS119//-1 J Diode AB D1506 RH-DX0487CEZZ J Diode AC D1507 RH-DX0487CEZZ J Diode AC D1510 VHD1SS119//-1 J Diode AB

C850 VCFYSB2EB823J J 0.082 250V Mylar AD C851 RC-KZ018JCEZZ J 0.01

C852 VCEA0A1CW227M J 220 16V EL. AC C853 VCFYFA1HA224J J 0.22 50V Mylar AB C854 VCEA0A1CW227M J 220 16V EL. AC C855 VCEA0A2EW106M J 10 250V EL. AD C856 VCEA0A1CW106M J 10 16V C1501 VCEA0A1EW476M J 47 C1506 VCKYPA1HF103Z J 0.01 50V Ceramic AA C1508 VCKYPA2HB472K J 4700p 500V Ceramic AB C1509 VCKYPA1HB472K J 4700p 50V Ceramic AA C1510 VCKYPA1HF103Z J 0.01 50V Ceramic AA C1511 VCKYPA1HF103Z J 0.01 50V Ceramic AA C1515 VCEA0A1EW476M J 47 25V EL. AB C1516 VCEA0A1EW476M J 47 25V EL. AB C1517 VCEA0A2AW106M J 10 100V EL. AC C1518 VCCSPA2HL560K J 56p 500V Ceramic AA C1519 VCEA0A2CW106M J 10 160V EL. AD

INTEGRATED CIRCUIT

TRANSISTORS

DIODES

or RH-EX0417GEZZ

CAPACITORS

[EL.··· Electrolytic]

or RC-KZ0150CEZZ

AC250V

Ceramic AC

25V EL. AB

EL. AB

R871 VRD-RA2BE223J J 22k 1/8W Carbon AA R872 VRD-RA2EE680J J 68 1/4W Carbon AA R873 VRD-RM2HD224J J 220k 1/2W Carbon AA R874 VRD-RM2HD184J J 180k 1/2W Carbon AA R875 VRD-RM2HD184J J 180k 1/2W Carbon AA R876 VRD-RM2HD184J J 180k 1/2W Carbon AA R877 VRD-RA2BE103J J 10k 1/8W Carbon AA

å R878 VRS-SV2HC120J J 12 1/2W M-Ox. AA

R1511 VRD-RA2BE101J J 100 1/8W Carbon AB

å R1513 VRS-VV3DB561J J 560 2W M-Ox. AA

R1514 VRD-RA2BE100J J 10 1/8W Carbon AA R1515 VRD-RA2BE820J J 82 1/8W Carbon AA R1516 VRD-RA2BE820J J 82 1/8W Carbon AA R1517 VRD-RA2BE122J J 1.2k 1/8W Carbon AA R1518 VRD-RA2BE683J J 68k 1/8W Carbon AA R1519 VRD-RA2BE123J J 12k 1/8W Carbon AA R1520 VRD-RA2BE683J J 68k 1/8W Carbon AA R1521 VRD-RA2BE122J J 1.2k 1/8W Carbon AA R1522 VRD-RA2EE471J J 470 1/4W Carbon AA R1525 VRD-RA2EE560J J 56 1/4W Carbon AA R1526 VRD-RA2EE560J J 56 1/4W Carbon AA R1527 VRD-RM2HD1R5J J 1.5 1/2W Carbon AA R1528 VRD-RM2HD1R5J J 1.5 1/2W Carbon AA R1529 VRS-VV3DB221J J 220 2W M-Ox. AA R1530 VRD-RA2BE122J J 1.2k 1/8W Carbon AA

MISCELLANEOUS PARTS

FB1501

RBLN-0020CEZZ J Ferrite Bead AB P852 QPLGN0341CEZZ J Plug, 3-pin(PU) AA P854 QPLGN0741CEZZ J Plug, 7-pin(YBN) AC P860 QPLGN0841CEZZ J Plug, 8-pin(GBN) AB SC850 QSOCV0937CEZZ J CRT Socket AL

QSOCV1011CEZZ RDA850

PRDAR0248PEFW R Heat Sink, for IC850 AF RDA1506

PRDAR5072CEFW J Heat Sink, for Q1506 AC RDA1507

PRDAR5072CEFW J Heat Sink, for Q1507 AC

LX-BZ3100CEFD J Screw AA

RESISTORS

[M-Ox.··· Metal Oxide]

R850 VRS-SV2HC152J J 1.5k 1/2W M-Ox. AA R851 VRS-SV2HC152J J 1.5k 1/2W M-Ox. AA R852 VRS-SV2HC152J J 1.5k 1/2W M-Ox. AA

å R853 VRS-SV2HC272J J 2.7k 1/2W M-Ox. AA å R854 VRS-SV2HC272J J 2.7k 1/2W M-Ox. AA å R855 VRS-SV2HC272J J 2.7k 1/2W M-Ox. AA

R856 VRD-RM2HD224J J 220k 1/2W Carbon AA R857 VRD-RM2HD224J J 220k 1/2W Carbon AA

R858 VRD-RM2HD224J J 220k 1/2W Carbon AA R862 VRC-MA2HG152K J 1.5k 1/2W Solid AA

R863 VRC-MA2HG152K J 1.5k 1/2W Solid AA R864 VRC-MA2HG152K J 1.5k 1/2W Solid AA R867 VRS-SV2HC392J J 3.9k 1/2W M-Ox. AA

R868 VRS-SV2HC222J J 2.2k 1/2W M-Ox. AA R870 VRD-RA2BE223J J 22k 1/8W Carbon AA

36US650

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-B: DUNTKA602WEA0

AV UNIT

INTEGRATED CIRCUITS

IC1401 VHiTC90A53F-1 I.C. AV IC1900 VHiCXA2089Q-1 J CXA2089Q AN

Q1401 VS2PD601AR/-1 J 2PD601AR AB Q1404 VS2PD601AR/-1 J 2PD601AR AB

or VS2SC1623L61E

Q1405 VS2PD601AR/-1 J 2PD601AR AB

or VS2SC1623L61E

Q1406 VS2PB709AR/-1 J 2PB709AR AB

VS2SA812-M51E Q1407 VS2PD601AR/-1 J 2PD601AR AB Q1408 VS2PB709AR/-1 J 2PB709AR A B

VS2SA812-M51E Q1409 VS2PD601AR/-1 J 2PD601AR AB

VS2SC1623L61E Q1907 VS2PD601AR/-1 J 2PD601AR AB

or Q1909 VS2PB709AR/-1 J 2PB709AR AB

VS2SA812-M51E

L1401 VP-XF100K0000 J Peaking 10µH AB L1402 VP-XF100K0000 J Peaking 10µH AB L1403 VP-DF151K0000 J Peaking 150µH AB L1406 VP-XF330K0000 J Peaking 33µH AB L1407 VP-XF220K0000 J Peaking 22µH AB L1408 VP-XF100K0000 J Peaking 10µH AB L1410 VP-XF100K0000 J Peaking 10µH AB L1411 VP-XF100K0000 J Peaking 10µH AB L1413 VP-XF330K0000 J Peaking 33µH AB L1414 VP-XF330K0000 J Peaking 33µH AB

C1412 VCEA0A1CW106M J 10 16V EL. AB C1415 VCCCCY1HH220J J 22p 50V Ceramic AA C1416 VCEA0A1CW477M J 470 16V EL. AC C1420 VCCCCY1HH120J J 12p 50V Ceramic AA C1421 VCCCCY1HH120J J 12p 50V Ceramic AA C1424 VCCCCY1HH270J J 27p 50V Ceramic AA C1428 VCKYCY1HF103Z J 0.01 50V Ceramic AA C1429 VCKYCY1HF103Z J 0.01 50V Ceramic AA C1430 VCE9GA1CW106M J 10 16V EL. (N.P) AB

C1435 VCKYCY1HF103Z J 0.01 50V Ceramic AA

C1436 VCKYCY1CF104Z J 0.1 16V Ceramic AA

C1439 VCE9GA1CW106M J 10 16V EL. (N.P) AB

C1440 VCEA0A1CW106M J 10 16V EL. AB C1441 VCKYCY1HF103Z J 0.01 50V Ceramic AA C1442 VCFYFA1HA474J J 0.47 50V Mylar AC

C1443 VCKYCY1HF103Z J 0.01 50V Ceramic AA

C1444 VCKYCY1HB472K J 4700p 50V Ceramic AA

C1445 VCKYCY1HF103Z J 0.01 50V Ceramic AA

C1446 VCCCCY1HH181J J 180p 50V Ceramic AA

C1447 VCKYCY1HF103Z J 0.01 50V Ceramic AA

C1448 VCKYCY1CF104Z J 0.1 16V Ceramic AA C1449 VCKYCY1CF104Z J 0.1 16V Ceramic AA

C1451 VCEA0A1CW107M J 100 16V EL. AC

C1452 VCKYCY1CF104Z J 0.1 16V Ceramic AA

TRANSISTORS

COILS

CAPACITORS

[EL.··· Electrolytic]

C1453 VCKYCY1HF103Z J 0.01 50V Ceramic AA C1454 VCKYCY1HF103Z J 0.01 50V Ceramic AA C1455 VCKYCY1HF103Z J 0.01 50V Ceramic AA C1456 VCKYCY1CF104Z J 0.1 16V Ceramic AA C1457 VCEA0A1CW106M J 10 16V EL. AB C1458 VCEA0A1CW106M J 10 16V EL. AB C1460 VCKYCY1HF103Z J 0.01 50V Ceramic AA C1470 VCCCCY1HH100D J 10p 50V Ceramic AA C1473 VCCCCY1HH100D J 10p 50V Ceramic AA C1474 VCCCCY1HH150J J 15p 50V Ceramic AA C1900 VCKYCY1HB681K J 680p 50V Ceramic AA C1901 VCKYCY1HB681K J 680p 50V Ceramic AA C1903 VCKYCY1HB681K J 680p 50V Ceramic AA C1904 VCEA0A1HW105M J 1 50V EL. AB C1905 VCEA0A1HW105M J 1 50V EL. AB C1906 VCKYCY1HB681K J 680p 50V Ceramic AA C1907 VCEA0A1HW105M J 1 50V EL. AB C1908 VCKYCY1HF103Z J 0.01 50V Ceramic AA C1909 VCEA0A1HW105M J 1 50V EL. AB C1910 VCEA0A1HW105M J 1 50V EL AB C1911 VCEA0A1HW105M J 1 50V EL. AB C1912 VCEA0A1HW105M J 1 50V EL. AB C1913 VCEA0A1HW105M J 1 50V EL. AB C1914 VCKYCY1HB681K J 680p 50V Ceramic AA C1915 VCKYCY1HF103Z J 0.01 50V Ceramic AA C1916 VCKYCY1HF103Z J 0.01 50V Ceramic AA C1919 VCEA0A1HW105M J 1 50V EL. AB C1921 VCKYCY1HB681K J 680p 50V Ceramic AA C1922 VCKYCY1CF104Z J 0.1 16V Ceramic AA C1923 VCEA0A1CW477M J 470 16V EL. AC C1926 VCEA0A1CW226M J 22 16V EL. AB C1927 VCKYCY1HB681K J 680p 50V Ceramic AA C1928 VCEA0A1HW105M J 1 50V EL. AB C1929 VCKYCY1HB681K J 680p 50V Ceramic AA C1937 VCEA0A1HW105M J 1 50V EL. AB C1938 VCEA0A1HW105M J 1 50V EL. AB C1939 VCEA0A1HW105M J 1 50V EL. AB C1951 VCKYCY1HB681K J 680p 50V Ceramic AA

RESISTORS

[M-Ox.··· Metal Oxide]

RJ12 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ13 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ14 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ15 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ16 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ18 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ19 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ20 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ21 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ22 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ23 VRS-CY1JF000J J 0 1/16W M-Ox. AA R1401 VRS-CY1JF101J J 100 1/16W M-Ox. AA R1402 VRS-CY1JF681J J 680 1/16W M-Ox. AA R1403 VRS-CY1JF332J J 3.3k 1/16W M-Ox. AA R1404 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R1405 VRS-CY1JF471J J 470 1/16W M-Ox. AA R1406 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R1407 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R1420 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R1422 VRS-CY1JF473J J 47k 1/16W M-Ox. AA R1423 VRS-CY1JF223J J 22k 1/16W M-Ox. AA R1424 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R1425 VRS-CY1JF221J J 220 1/16W M-Ox. AA R1426 VRS-CY1JF391J J 390 1/16W M-Ox. AA R1427 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R1428 VRS-CY1JF473J J 47k 1/16W M-Ox. AA R1429 VRS-CY1JF223J J 22k 1/16W M-Ox. AA R1430 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R1431 VRS-CY1JF122J J 1.2k 1/16W M-Ox. AA R1432 VRS-CY1JF331J J 330 1/16W M-Ox. AA

36US650

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-B: DUNTKA602WEA0

AV UNIT

R1433 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R1434 VRS-CY1JF471J J 470 1/16W M-Ox. AA R1435 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R1456 VRS-CY1JF564J J 560k 1/16W M-Ox. AA R1457 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R1458 VRD-RA2BE103J J 10k 1/8W Carbon AA R1459 VRS-CY1JF821J J 820 1/16W M-Ox. AA R1466 VRS-CY1JF123J J 12k 1/16W M-Ox. AA R1467 VRS-CY1JF822J J 8.2k 1/16W M-Ox. AA

R1473 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R1475 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R1900 VRS-CY1JF101J J 100 1/16W M-Ox. AA R1930 VRS-CY1JF223J J 22k 1/16W M-Ox. AA

R1932 VRS-CY1JF223J J 22k 1/16W M-Ox. AA R1935 VRS-CY1JF101J J 100 1/16W M-Ox. AA R1936 VRS-CY1JF223J J 22k 1/16W M-Ox. AA R1937 VRS-CY1JF101J J 100 1/16W M-Ox. AA R1938 VRS-CY1JF223J J 22k 1/16W M-Ox. AA R1941 VRS-CY1JF101J J 100 1/16W M-Ox. AA

R1942 VRS-CY1JF223J J 22k 1/16W M-Ox. AA

R1943 VRS-CY1JF101J J 100 1/16W M-Ox. AA

R1944 VRS-CY1JF223J J 22k 1/16W M-Ox. AA

R1945 VRS-CY1JF101J J 100 1/16W M-Ox. AA R1946 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R1948 VRS-CY1JF101J J 100 1/16W M-Ox. AA

R1954 VRD-RA2BE221J J 220 1/8W Carbon AA R1955 VRD-RA2BE221J J 220 1/8W Carbon AA R1956 VRS-CY1JF222J J 2.2k 1/16W M-Ox. AA R1957 VRD-RA2BE101J J 100 1/8W Carbon AB R1958 VRS-CY1JF101J J 100 1/16W M-Ox. AA R1959 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R1960 VRD-RA2BE101J J 100 1/8W Carbon AB R1962 VRD-RA2BE101J J 100 1/8W Carbon AB R1964 VRD-RA2BE101J J 100 1/8W Carbon AB R1965 VRS-CY1JF222J J 2.2k 1/16W M-Ox. AA R1966 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R1971 VRD-RA2BE101J J 100 1/8W Carbon AB R1972 VRD-RA2BE101J J 100 1/8W Carbon AB

MISCELLANEOUS PARTS

P1904 QPLGN0641CEZZ J Plug, 6-pin(EJ) AB SC1901

QSOCN1598REZZ J Socket, 15-pin(VA) AD

SC1902

QSOCN1598REZZ J Socket, 15-pin(VB) AD

SC1903

QSOCN1098REZZ J Socket, 10-pin(VC) AC

SLD1901

PSLDM0102GJFW J Shield AD

PWB-D: DUNTKB224WEA2

MTS MODULE UNIT

INTEGRATED CIRCUITS

IC3001 VHiCXA2074Q-1 J CXA2074Q AY

CAPACITORS

[EL.··· Electrolytic]

C3001 VCE9GA1HW475M J 4.7 50V EL. (N.P) AB C3002 VCKYCY1HB562K J 5600p 50V Ceramic AA C3003 VCQYTA1HM123J J 0.012 50V Mylar AA C3004 VCEA0A1HW105M J 1 50V EL. AB C3005 VCE9GA1HW475M J 4.7 50V EL. (N.P) AB C3006 VCEA0A1HW106M J 10 50V EL. AB C3007 VCEA0A1HW475M J 4.7 50V EL. AB C3008 VCKYCY1HF103Z J 0.01 50V Ceramic AA C3009 VCEA0A1CW227M J 220 16V EL. AC C3010 VCE9GA1HW475M J 4.7 50V EL. (N.P) AB C3011 VCEA0A1HW475M J 4.7 50V EL. AB C3012 VCE9GA1HW475M J 4.7 50V EL. (N.P) AB C3013 VCKYCY1HB272K J 2700p 50V Ceramic AA C3014 VCQYTA1HM473J J 0.047 50V Mylar AA C3015 VCEACA1HC335K J 3.3 50V EL. AC C3016 VCE9GA1HW475M J 4.7 50V EL. (N.P) AB C3017 VCEACA1CC106K J 10 16V EL. AC C3018 VCEA0A1HW105M J 1 50V EL. AB C3029 VCQYTA1HM682J J 6800p 50V Mylar AB C3030 VCQYTA1HM682J J 6800p 50V Mylar AB C3031 VCQYTA1HM473J J 0.047 50V Mylar AA C3032 VCQYTA1HM473J J 0.047 50V Mylar AA

RESISTORS

[M-Ox.··· Metal Oxide]

R3001 VRD-RA2BE221J J 220 1/8W Carbon AA R3002 VRD-RA2BE221J J 220 1/8W Carbon AA

R3003 VRS-CY1JF105J J 1M 1/16W M-Ox. AA R3004 VRS-CY1JF104J J 100k 1/16W M-Ox. AA R3005 VRS-CY1JF623J J 62k 1/16W M-Ox. AA

R3007 VRS-CY1JF332J J 3.3k 1/16W M-Ox. AA

R3008 VRS-CY1JF302J J 3k 1/16W M-Ox. AA

R3010 VRS-CY1JF392J J 3.9k 1/16W M-Ox. AA R3011 VRS-CY1JF102J J 1k 1/16W M-Ox. AA

R3012 VRS-CY1JF102J J 1k 1/16W M-Ox. AA

MISCELLANEOUS PARTS

P3001 QPLGN0242FJ00 J Plug, 10-pin(EA) AE

36US650

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PWB-F:DUNTKB207WEA3

CONTROL UNIT

CAPACITORS

C4001 VCEA0A1HW476M J 47 50V EL. AB

R4001 VRD-RA2BE470J J 47 1/8W Carbon AA R4006 VRD-RA2BE822J J 8.2k 1/8W Carbon AA R4007 VRD-RA2BE822J J 8.2k 1/8W Carbon AA R4009 VRD-RA2BE183J J 18k 1/8W Carbon AA R4011 VRD-RA2BE183J J 18k 1/8W Carbon AA R4020 VRD-RA2BE750J J 75 1/8W Carbon AA

[EL.··· Electrolytic

RESISTORS

[M-Ox.··· Metal Oxide]

S4001 QSW-K0003AJZZ J Power AB

or QSW-K0079GEZZ or QSW-K0202PEZZ

S4002 QSW-K0003AJZZ J Menu AB

or QSW-K0079GEZZ or QSW-K0202PEZZ

S4003 QSW-K0003AJZZ J VOL-Down AB

or QSW-K0079GEZZ or QSW-K0202PEZZ

S4004 QSW-K0003AJZZ J VOL-Up AB

or QSW-K0079GEZZ or QSW-K0202PEZZ

S4005 QSW-K0003AJZZ J CH-Down AB

or QSW-K0079GEZZ or QSW-K0202PEZZ

S4006 QSW-K0003AJZZ J CH-Up AB

or QSW-K0079GEZZ or QSW-K0202PEZZ

MISCELLANEOUS PARTS

J4001 QJAKG0091CEZZ Terminal, Input-2 AH P4001 QPLGN0641CEZZ J Plug, 6-pin(EJ) AB P4004 QPLGN0541CEZZ J Plug, 5-pin(KA) AB

RMC4001

RRMCU0222CEZZ J R/C Receiver AL or RRMCU0235CEZZ QCNW-A389WJZZ Connecting Cord QCNW-A390WJZZ Connecting Cord

SWITCHES

36US650

1-1 Not Available- Frront Cabinet

1-5

1-1

1-2

1-7

1-6

1-8

1-3

QCNW-A382WJZZ Thunder Wire

QCNW-0163GJZZ Connecting Cord(PU)

LHLDW1074PEKZ R Wire Holder

LHLDW0102GJKZ R Wire Holder

LHLDW1047PEZZ R Wire Holder

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

MISCELLANEOUS PARTS

AACC701

QACCD3065CESA J AC Cord AN

SP1 VSP1206PB648A Speaker(L), 8 ohm AN

or VSP1206PB598A

SP2 VSP1206PB648A Speaker(R), 8 ohm AN

or VSP1206PB598A

LHLDFA002WJZZ Wire Holder LHLDK0014PEZZ R AC Cord Holder AD LHLDW1002PEZZ R Wire Holder,x3 AB LHLDW1003PEZZ R Wire Holder AA

LHLDW1033PEZZ R Wire Holder AA LHLDW1037PEZZ R Wire Holder,x2 AB LHLDW1060CEZZ J Wire Holder, x5 AB LHLDW1062PEKZ R Wire Holder AD LHLDZ1004GJZZ X Wire Holder AC LHLDZ1037MEZZ X Anode Clamp Holder, x2 AD LX-TZ0104GJFD X CRT Screw, x4 AF LX-TZ3004CEFD J Screw, x4 AA LX-WZ0104GJFD CRT Washer, x4 QCNW-A316GJZZ Connecting Cord(KA) QCNW-A780GJZ Connecting Cord(EJ) QCNW-0148GJZZ Connecting Cord(SP) QCNW-0149GJZZ Connecting Cord(YBN) QCNW-0134GJZZ Connecting Cord(GBN)

TCAUH3048GJZZ Caution Card AB TLABM0002GJZZ X Model Label AB TLABZ0152GJZZ X Feature Label AD TLABZA062WJZZ No. Label XTASD30P12000 J Screw, x2 AA XTASD30P12000 J Screw, x4 AA XTASD40P25000 J Screw, x8 AA

PACKING PARTS

(NOT REPLACEMENT ITEM)

CABINET PARTS

1 CCABAA062WEH0 Front Cabinet Ass'y BK

1-2 GCOVA0119GJKA Cover, RC, LED AF 1-3 GDORFA004WJKA Door 1-4 GCOVA0116GJZZ Door Cover AD 1-5 HBDGB1009MESB Badge, "SHARP" AC 1-6 HiNDP0105GJKZ Indication Plate AC 1-7 JBTN-0119GJKB Button, Power AC 1-8 JBTN-0120GJKB Button, CH-Up/Down,

VOL-Up/Down, Menu

2 GCABB0135GJKA Rear Cabinet BF

CABINET PARTS LOCATION

SPAKCA105WJZZ – Packing Case — SPAKP0113GJZZ – Wrapping Paper AL SPAKX0129GJZZ – Buffer Material — SSAKA0101GJZZ – Polyethylene Bag AF

SUPPLIED ACCESSORIES

RRMCGA035WJSB Infrared R/C Unit AV TiNS-A180WJZZ Operation Manual AH

★ Polyethylene Sheet

★ Polyethylene Bag

Operation Manual Infrared R/C Unit Batteries

★

36US650

FRONT

★Buffer Material

★ Packing Case

Use tape to fix the top side of packing case.

★ MARK : Not replacement items.

REAR

Use 12 staples to fix the bottom side of packing case.

36US650

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission of the publisher.

D SEM P SEMEX TQ0000-S

June. 2002 Printed in Japan

MI. KG

SHARP ELECTRONICA MEXICO S. A. DE C. V. Blvd. SHARP No. 3510 Parque Industrial Rosarito, Playas de Rosarito, B. C. 22710

SHARP 36US650 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
