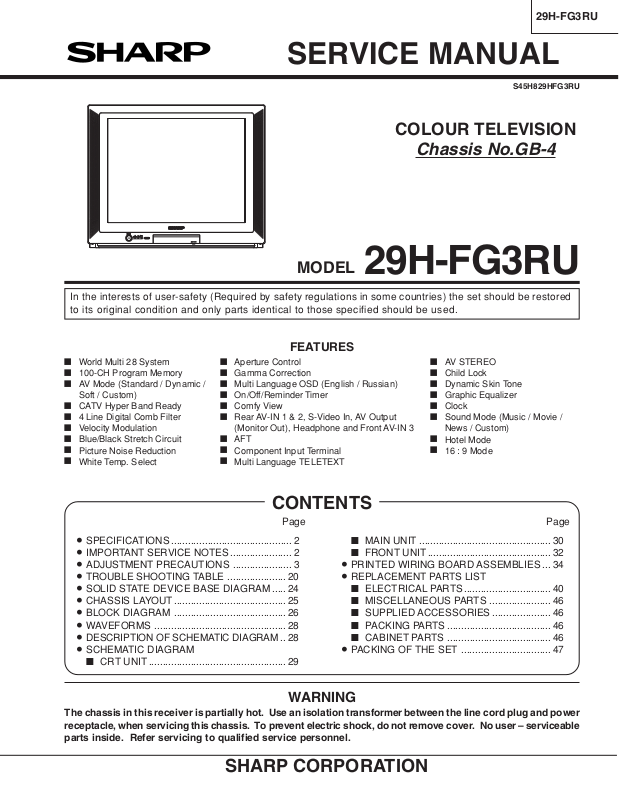

Sharp 29H-FG3RU Schematic

29H-FG3RU

SERVICE MANUAL

S45H829HFG3RU

COLOUR TELEVISION

Chassis No.GB-4

1-2

MODEL

In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its original condition and only parts identical to those specified should be used.

29H-FG3RU

FEATURES

World Multi 28 System

100-CH Program Memory

AV Mode (Standard / Dynamic / Soft / Custom)

CATV Hyper Band Ready

4 Line Digital Comb Filter

Velocity Modulation

Blue/Black Stretch Circuit

Picture Noise Reduction

White Temp. Select

Aperture Control

Gamma Correction

Multi Language OSD (English / Russian)

On/Off/Reminder Timer

Comfy View

Rear AV-IN 1 & 2, S-Video In, AV Output (Monitor Out), Headphone and Front AV-IN 3

AFT

Component Input Terminal

Multi Language TELETEXT

AV STEREO

Child Lock

Dynamic Skin Tone

Graphic Equalizer

Clock

Sound Mode (Music / Movie / News / Custom)

Hotel Mode

16 : 9 Mode

CONTENTS

Page Page

» SPECIFICATIONS ........................................... 2

» IMPORTANT SERVICE NOTES...................... 2

» ADJUSTMENT PRECAUTIONS ..................... 3

» TROUBLE SHOOTING TABLE ..................... 20

» SOLID STATE DEVICE BASE DIAGRAM ..... 24

» CHASSIS LAYOUT ........................................ 25

» BLOCK DIAGRAM ........................................ 26

» WAVEFORMS ............................................... 28

» DESCRIPTION OF SCHEMATIC DIAGRAM .. 28 » SCHEMATIC DIAGRAM

■ CRT UNIT ................................................. 29

■ MAIN UNIT ............................................... 30

■ FRONT UNIT ............................................ 32

» PRINTED WIRING BOARD ASSEMBLIES ... 34 » REPLACEMENT PARTS LIST

■ ELECTRICAL PARTS ............................... 40

■ MISCELLANEOUS PARTS ...................... 46

■ SUPPLIED ACCESSORIES ..................... 46

■ PACKING PARTS ..................................... 46

■ CABINET PARTS ..................................... 46

» PACKING OF THE SET ................................ 47

1-1

WARNING

The chassis in this receiver is partially hot. Use an isolation transformer between the line cord plug and power receptacle, when servicing this chassis. To prevent electric shock, do not remove cover. No user – serviceable parts inside. Refer servicing to qualified service personnel.

SHARP CORPORATION

29H-FG3RU

IMPORTANT SERVICE NOTES

Maintenance and repair of this receiver should be done by qualified

service personnel only.

SERVICE OF HIGH VOLTAGE SYSTEM AND PIC-

TURE TUBE

When servicing the high voltage system, remove static charge from it by

connecting a 10K ohm resistor in series with an insulated wire (such as a

test probe) between picture tube dag and 2nd anode lead. (AC line cord

should be disconnected from AC outlet.)

1. Picture tube in this receiver employs integral implosion protection.

2. Replace with the same type number of picture tube for continued safety.

3. Do not lift picture tube by the neck.

4. Handle the picture tube only when wearing shatterproof goggles and after discharging

the high voltage completely.

X-RAY

This receiver is designed so that any X-Ray radiation is kept to an absolute

minimum. Since certain malfunctions or servicing may produce potentially

hazardous radiation with prolonged exposure at close range, the followin

precautions should be observed:

1. When repairing the circuit, please make sure do not increase the high voltage of the set

to more than 34.0kV (at beam 0

A).

2. To keep the set in a normal operation , please make sure it's function at 30.0kV

1.5kV

(at beam 1,700

A). The set has been factory - adjusted to the above-mentioned high

voltage.

∴∴

∴ If there is a possibility that the high voltage fluctuates as a result of the repaires,

never forget to check for such high voltage after the work.

3. Do not substitute a picture tube with unauthorizerd types and/or brands which may

cause excessive X-ray radiation.

BEFORE RETURNING THE RECEIVER

Before returning the receiver to the user, perform the following safety checks.

1. Inspect all lead dress to make certain that leads are not pinched or that hardware is not

lodged between the chassis and other metal parts in the receiver.

2. Inspect all protective devices such as non-metal control knobs, insulating fishpapers,

cabinet backs, adjustment and compartment covers or shields, isolation resistor- ca-

pacity networks, mechanical insulators etc.

SPECIFICATIONS

Convergence ................................................................. Self Convergence System

Focus .........................................................Bi-Potential, Uni-Potential Electrostatic

Sweep Deflection ...................................................................................... Magnetic

Intermediate Frequencies

Picture IF Carrier .................................................................................. 38.9MHz

Sound IF Carrier Frequency

6.5MHz .............................................................................................. 32.4MHz

6.0MHz .............................................................................................. 32.9MHz

5.5MHz .............................................................................................. 33.4MHz

4.5MHz .............................................................................................. 34.4MHz

Colour Sub-Carrier Frequency

PAL ..................................................................................................34.47MHz

SECAM ................................................................................ 34.494/34.65MHz

NTSC ............................................................................................... 35.32MHz

Power Input ..................................................................... 220 ~ 240V AC 50/60 Hz

Power Consumption ...................................................................................... 135W

Audio Power Output Rating .......................................................

Speaker

Size ....................................................................................

Aerial Input Impedance

VHF/UHF .......................................................................... 75 ohms Unbalanced

Receiving Channel

PAL-B/G, SECAM-B/G

VHF-Channels .............................................................................. E2 thru E12

UHF-Channels ............................................................................. E21thru E69

CATV ........................................................................ X thru Z +2, S1 thru S41

PAL-D/K, SECAM-D/K

VHF-Channels ........................................................ R1 thru R12, C1 thru C12

UHF-Channels ........................................................... 21thru 69, C21 thru C57

PAL-I, SECAM-I

VHF-Channels .................................................................. (IRELAND) B thru J

UHF-Channels ............................................................ (U.K. & H.K.) 21thru 69

NTSC-M

VHF-Channels ...........................................................................2 thru 13 (US)

1 thru 12 (Japan)

UHF-Channels ......................................................................... 14 thru 69 (US)

13 thru 62 (Japan)

CATV .............................................................. A-6 thru A-1, A thru W+29 (US)

C13 thru C63 (Japan)

Receiving Frequency ................................................. 44.25 MHz thru 863.25 MHz

Dimensions ...................................................................................... Width: 722mm

Height: 582mm

Depth: 495mm

Weight(approx): 45.0 kg

Specifications are subject to change without prior notice.

5W X 2 +10W (at Max.)

4.3 x 21.8 cm X 2pcs(front)

+10cm round (rear woofer) x 1pc

+ 32mm round (tweeter) x2pcs

2-2

2-1

29H-FG3RU

ADJUSTMENT PRECAUTIONS

This model's setting are adjusted in two different ways: through the I2C bus control and

in the conventional analog manner. The adjustments via the I2C bus control include preset-

only items and variable data.

1. Setting the service mode by the microprocessor.

1 Press and hold the local key "VOL DOWN" & "CH UP" when power on the main

switch,TV will enter into the SERVICE MODE. (The initial values of EEPROM are

2 Press the CH DOWN / UP key on the remote controller to get ready to select the

mode one by one.

3 Press the CH DOWN / UP key on the remote controller to select the modes

reversibly one by one.

4 Using the VOLUME UP/ DOWN key on the remote controller, the data can be modi-

fied.

5 Use the MENU Key on the remote controller to select the mode as shown in the

next page.

6 When press the local key "VOL DOWN" & "CH UP" at the same time, it will be

released from the service mode.

2. Factory Presetting.

1 After enter into the SERVICE MODE, at "INIT EEPROM" SERVICE ITEM

(which is under "CHECK MODE" section) press REMOTE CONTROLLER key of

code "ED" the initial values are automatically preset.

2 The initial data are preset as listed in page 4-2 to 5-1.

3 Make sure whether the data need to modify or not (Initial data).

Note: Once the chassis has been assembly together and in ready condition, please make sure it's go

through initialize process (see sect 2-(1) above)

Precaution: If haven't done this initialization, malfunction might be happen.

automatically preset when new EEPROM is used.)

SERVICE MODE

(1) In the Service Mode, Key is used to select the mode in the following order.

3-2

3-1

29H-FG3RU

SREC/SRAC/SYI/STTM SREC-SCA (SKD)

R/C CODE

MCL 1 (R/C CODE 117h) MCL 2 (R/C CODE 169h)

TV-CH. CH-No. Fv (MHz) S-SYSTEM CH-No. Fv (MHz) S-SYSTEM

0 SKIP OFF FREE 590.25 5.5 B/G

1 E-2 48.25 5.5 B/G AU-0 46.25 5.5 B/G

2 E-4/B-3 62.25 5.5 B/G AU-2 64.25 5.5 B/G

3OIR-3 77.25 6.5 D/K AU-3 86.25 5.5 B/G

4 E-5 175.25 5.5 B/G AU-4 95.25 5.5 B/G

5 E-6/B-5 182.25 5.5 B/G AU-5A 138.25 5.5 B/G

6OIR-7 183.25 6.5 D/K AU-6 175.25 5.5 B/G

7OIR-8 191.25 6.5 D/K AU-7 182.25 5.5 B/G

8 E-8/B-7 196.25 5.5 B/G AU-8 189.25 5.5 B/G

9 J-9 199.25 4.5 M AU-9 196.25 5.5 B/G

10 E-10/B-9 210.25 5.5 B/G AU-10 209.25 5.5 B/G

11 E-12/B-1 224.25 5.5 B/G AU-11 216.25 5.5 B/G

12 E-21 471.25 5.5 B/G SKIP OFF FREE

13 I-23 487.25 6.0 I SKIP OFF FREE

14 E-25 503.25 5.5 B/G SKIP OFF FREE

15 E-34 575.25 5.5 B/G SKIP OFF FREE

16 E-35 583.25 5.5 B/G SKIP OFF FREE

17 E-37 599.25 5.5 B/G SKIP OFF FREE

18 J-38 621.25 4.5 M SKIP OFF FREE

19 OIR-42 639.25 6.5 D/K SKIP OFF FREE

20 B-50 703.25 5.5 B/G SKIP OFF FREE

21 I-54 735.25 6.0 I SKIP OFF FREE

22 E-58 767.25 5.5 B/G SKIP OFF FREE

23 E-64 815.25 5.5 B/G SKIP OFF FREE

24 I-69 855.25 6.0 I SKIP OFF FREE

25 E-69 855.25 5.5 B/G SKIP OFF FREE

26 US-2 55.25 4.5 M SKIP OFF FREE

27 A-6 83.25 4.5 M SKIP OFF FREE

28 JA-6 183.25 4.5 M WE-28 527.25 5.5 B/G

29 JA-8 193.25 4.5 M SKIP OFF FREE

30 JA-12 217.25 4.5 M SKIP OFF FREE

31 US-14 471.25 4.5 M SKIP OFF FREE

32 JA-14 477.25 4.5 M SKIP OFF FREE

33 JA-50 693.25 4.5 M SKIP OFF FREE

34 US-83 885.25 4.5 M SKIP OFF FREE

35 S-2 112.25 5.5 B/G SKIP OFF FREE

36 S-10 168.25 5.5 B/G SKIP OFF FREE

37 SKIP OFF FREE 590.25 5.5 B/G

38 S-20 294.25 5.5 B/G SKIP OFF FREE

39 S-41 463.25 5.5 B/G SKIP OFF FREE

40 SKIP OFF FREE SKIP OFF FREE

41 B-43 647.25 5.5 B/G E-2 48.25 5.5 B/G

42 B-45 663.25 5.5 B/G WE-4 62.25 5.5 B/G

43 B-47 679.25 5.5 B/G OI-3 77.25 6.5 D/K

44 E-5 174.95 5.5 B/G E-5 175.25 5.5 B/G

45 E-5 175.55 5.5 B/G OIR-7 183.25 6.5 D/K

46 SKIP OFF FREE OIR-8 191.25 6.5 D/K

47 SKIP OFF FREE E-10 210.25 5.5 B/G

48 SKIP OFF FREE E-12 224.25 5.5 B/G

49 SKIP OFF FREE I-23 487.25 6.0 I

50 SKIP OFF FREE WE-25 503.25 5.5 B/G

51 SKIP OFF FREE E-34 575.25 5.5 B/G

INITIAL SETTING

(1) Execute MCL 1/2 key to set the following data in EEPROM.

4-2

4-1

29H-FG3RU

(1) The following default data has been factory-setting for the EEPROM.

Model-Set: The data in table below (1.1), Model set overview is updated to the respective EEPROM location base on

RC key input Model Set 1~10.

MODEL-SET KEY

Default Settings:

Note : The CHILD LOCK PASSWORD and

VIEW TIMER PASSWORD are common use.

Refer to next page for setting of each destination.

Refer to next page for (*1) ~ (*4)

SHIPPING SETTING & CHECKING

OSD LANGUAGE SOUND SYSTEM

Chinese (AUTO)

English (AUTO)

Arabic

(AUTO)

Russian (AUTO)

Malay

(AUTO)

French (AUTO)

English

Thai

(AUTO)

Iranian (AUTO)

Table 1.1

Items

Default Settings

Items Default Settings

GENERAL

EQUALIZER menu

Last power

MODE

MOVIE

Last TV/AV mode

TV mode

INSET menu (for PIP model)

Last position-TV

Program 1

BRIGHTNESS

Last position-RADIO

Program 1

TINT

Flashback Program-TV

Program 1

FEATURE menu

Flashback Program-RADIO

Program 1

BLUE BACK

OFF

Favorite Program A

Program 10

AUTO SELECT

Favorite Program B

Program 20

POWER SAVE (*1)

OFF

Favorite Program C

Program 30

COMFY VIEW (*2)

OFF

Favorite Program D

Program 40

SAFETY MODE (*3)

OFF

1 / 2 digit entry

2 digit entry

ROTATION

Volume

16:9 MODE

OFF

GAME Volume

DEMO

OFF

PIP

OFF

PIP location

Lower-Right

Last position-PIP

Program 1

CHILD LOCK menu

AFT

All Programs ON

LOCK TV

OFF

NICAM STEREO mode

All Programs STEREO

LOCK STATUS

OFF

NICAM BILINGUAL mode

All Programs M1

LOCK GAME (*4)

OFF

NICAM MONO mode

All Programs MONO

PASSWORD

0000

A2 STEREO mode

All Programs STEREO

TIMER menu

A2 BILINGUAL mode

All Programs MAIN

CLOCK

_ _:_ _

PICTURE menu

DAY

SUN

VIDEO MODE

DYNAMIC ON TIMER

_ _:_ _

CONTRAST

STATUS

ONCE

COLOUR

POSITION

_ _

BRIGHNESS

VOLUME

_ _ TINT

OFF TIMER

_ _:_ _

SHARPNESS

REMINDER

_ _:_ _

PICTURE NR

OFF

BEEP REMINDER

OFF

WHITE TEMP

0 (CENTER)

VIEW TIMER menu

SOUND menu

VIEWING TIME

_ _:_ _

SURROUND

OFF

LOCK

OFF BBE

PASSWORD

0000

BALANCE

CH SETTING menu

AVL

POSITION NAME

BLANK (For all position) SUPER BASS/BASS+

COLOUR All Programs AUTO

SOUND All Programs AUTO

SKIP All Programs OFF

FM RADIO menu

SKIP All Programs OFF

For model Set 8 processing only,

the respective EEPROM position

is updated again with MCL2 data

SREC/SRAC/SYI/STTM SREC-SCA (SKD)

R/C CODE

MCL 1 (R/C CODE 117h) MCL 2 (R/C CODE 169h)

TV-CH. CH-No. Fv (MHz) S-SYSTEM CH-No. Fv (MHz) S-SYSTEM

52 SKIP OFF FREE E-37 599.25 5.5 B/G

53 SKIP OFF FREE JPN-38 621.25 4.5 M

54 SKIP OFF FREE OI-42 639.25 6.5 D/K

55 SKIP OFF FREE I-54 735.25 6.0 I

56 SKIP OFF FREE E-58 767.25 5.5 B/G

57 SKIP OFF FREE WE-64 815.25 5.5 B/G

58 SKIP OFF FREE I-69 855.25 6.0 I

59 SKIP OFF FREE JA-1 91.25 4.5 M

60 SKIP OFF FREE JA-6 183.25 4.5 M

61 SKIP OFF FREE JA-8 193.25 4.5 M

62 SKIP OFF FREE JA-12 217.25 4.5 M

63 SKIP OFF FREE US-14 471.25 4.5 M

64 SKIP OFF FREE JA-50 693.25 4.5 M

65 SKIP OFF FREE S-2 112.25 5.5 B/G

66 SKIP OFF FREE S-10 168.25 5.5 B/G

67 SKIP OFF FREE S-20 294.25 5.5 B/G

68 SKIP OFF FREE S-41 463.25 5.5 B/G

69 SKIP OFF FREE E-5 174.95 5.5 B/G

70 SKIP OFF FREE E-5 175.55 5.5 B/G

99 SKIP OFF FREE SKIP OFF FREE

5-2

5-1

29H-FG3RU

MODE DYNAMIC STANDARD SOFT

CONTRAST 60 60 50

COLOUR +6 +1 -5

BRIGHTNESS 0 0 0

TINT 0 0 0

SHARPNESS +6 1 - 4

PEICTURE NR OFF OFF OFF

WHITE TEMP 0 (center) 0 (center) 0 (center)

MODEL MAGNETIC FIELD (V.H) nT BACKGROUND LANGUAGE S-SYS FACTORY SET

HONG KONG 20,000 40,000 17,000K CHINESE AUTO SET 2

SINGAPORE -10,000 40,000 12,300K ENGLISH AUTO SET 3

MIDDLE EAST 30,000 20,000 18,000K ARABIC AUTO SET 4

AUSTRALIA -50,000 20,000 12.300K ENGLISH AUTO SET 8

RUSSIA 45,000 20,000 7,500K RUSSIAN AUTO SET 5

(1) Refer to below table (2.1) for setting of each destination.

Table 2.1

Table 2.2

(2) Refer to below table (2.2) for NORMAL setting of each AV mode.

(3) Refer to below note for *1 ~ *4.

(*1) : Only available for model with POWER SAVE function.

(*2) : Only available for model with COMFY VIEW function.

(*3) : Only available for model with SAFETY MODE function.

(*4) : Only available for model with GAME function.

OPTION MODE MENU

0001 Option Mode Picture Tube Used Type TUBE-TYPE

0002 PIF Frequency Setting PIF

0003 Sound M SND-M

0004 Sound DK SND-DK

0005 Sound I SND-I

0006 Sound BG SND-BG

0007 Colour System SECAM SECAM

0008 Colour System NTSC358 NTSC358

0009 Colour System NTSC443 NTSC443

0010 Game IC GAME-IC

0011 Picture In Picture PIP

0012 Headphone HEADPHONE

0013 Equalizer EQUALIZER

0014 Sub Woofer WOOFER

0015 BBE BBE

0016 SRS SRS

0017 DOLBY DOLBY

0018 Audio Confi

uration AUDIO-CFG

0019 Mono Bilingual BILINGUAL

0020 Hotel Mode HOTEL

0021 Hotel Volume HTL-VOL

0022 Hotel Program Number HTL-PRG

0023 HTL-USE-LAST HTL-USE-LAST

0024 OPC OPC

0025 Rotation Functionality ROTATION

0026 Childlock CHILD

0027 Wide Screen Signalling WSS

0028 Golden SCART GLD-SCART

0029 Thailand OSD Language THAI

0030 Arabic OSD Language ARABIC

0031 Iranian OSD Language IRANIAN

0032 Malay OSD Language MALAY

0033 Chinese OSD Language CHINESE

0034 French OSD Language FRENCH

0035 Russian OSD Language RUSSIAN

0036 Power On Last Status PW-LAST

0037 Background BACK-GND

0038 Tuner 2 TUNER2

0039 FM Radio FM-RADIO

0040 Curtain Effect CURTAIN

0041 Curtain Colour CURT-COLOUR

0042 AV1-IN AV1-IN

0043 AV1S-IN AV1S-IN

0044 AV2-IN AV2-IN

0045 Component Input DVD1-IN

0046 AV3-IN AV3-IN

0047 AV3S-IN AV3S-IN

0048 INCL-AV INCL-AV

0049 Reminder Timer TIM-REMINDER

0050 View Timer TIM-VIEW

0051 Switch Timer TIM-SWITCH

0052 Time Format TIME-FORMAT

0053 Off Timer TIM-OFF

0054 Commercial Skip Timer TIM-SKIP

0055 Teletext Pan-european TXT-EURO

0056 Teletext Western TXT-WEST

0057 Teletext On TXT-ON

0058 Teletext Split TXT-SPLIT

0059 Virgin Mode VIRGIN MODE

0060 ERR-1-8-SUP ERR-1-8-SUP

0061 ERR-XRAY ERR-XRAY

0062 ERR-SUPVOL ERR-SUPVOL

0063 ERR-VERTG ERR-VERTG

0064 LOGO ERR-VERTG

SETTING DATAITEM SERVICE MODE EEPROM ITEM OSD DATA INITIAL DATA

00/1 0

0/1

0..2

0/1

0..2

0..60

0..99

0/1

0..7

0/1

0..4

0/1

0..7

0/1

6-2

6-1

29H-FG3RU

Adjustment Mode Items

A001 RF-AGC 0

...

63 UOC-TV RF-AGC 32 19

A002 RF AGC PIP 0

...

63 PIP-IF RF AGC PIP 0 0

A003 V SLOPE 0

...

63 UOC-TV V SLOPE 40 35

A004 VER-AMP-N50 0

...

63 UOC-TV VER-AMP-N50 32 21

A005 VER-SHI-N50 0

...

63 UOC-TV VER-SHI-N50 25 25

A006 HOR-SHI-N50 0

...

63 UOC-TV HOR-SHI-N50 45 44

A007 EW-W-N50 0

...

63 UOC-TV EW-W-N50 40 40

A008 V-LIN 0

...

63 UOC-TV V-LIN 32 32

A009 S-COR 0

...

63 UOC-TV S-COR 30 32

A010 V SCROLL 0

...

63 UOC-TV V SCROLL 32 32

A011 VX-NORMAL 0

...

63 UOC-TV VX-NORMAL 32 32

A012 H-PAR 0

...

63 UOC-TV H-PAR 35 24

A013 H-BOW 0

...

63 UOC-TV H-BOW 25 28

A014 E/W-PAR 0

...

63 UOC-TV E/W-PAR 35 42

A015 UPCOR-PAR 0

...

63 UOC-TV UPCOR-PAR 45 47

A016 LOCOR-PAR 0

...

63 UOC-TV LOCOR-PAR 42 44

A017 E/W-TRAP 0

...

63 UOC-TV E/W-TRAP 32 32

A018 VER-AMP-N60 0

...

63 UOC-TV VER-AMP-N60 32 22

A019 VER-SHI-N60 0

...

63 UOC-TV VER-SHI-N60 25 24

A020 HOR-SHI-N60 0

...

63 UOC-TV HOR-SHI-N60 45 49

A021 EW-W-N60 0

...

63 UOC-TV EW-W-N60 40 41

A022 VER-AMP-P50 0

...

63 UOC-TV VER-AMP-P50 32 21

A023 VER-SHI-P50 0

...

63 UOC-TV VER-SHI-P50 32 25

A024 HOR-SHI-P50 0

...

63 UOC-TV HOR-SHI-P50 32 44

A025 EW-W-P50 0

...

63 UOC-TV EW-W-P50 32 40

A026 VX-43-COMPRESS 0

...

63 UOC-TV VX-43-COMPRESS 32 5

A027 VER-AMP-F50 0

...

63 UOC-TV VER-AMP-F50 32 32

A028 VER-SHI-F50 0

...

63 UOC-TV VER-SHI-F50 32 32

A029 HOR-SHI-F50 0

...

63 UOC-TV HOR-SHI-F50 32 32

A030 EW-W-F50 0

...

63 UOC-TV EW-W-F50 32 32

A031 VER-AMP-S50 0

...

63 UOC-TV VER-AMP-S50 32 32

A032 VER-SHI-S50 0

...

63 UOC-TV VER-SHI-S50 32 32

A033 HOR-SHI-S50 0

...

63 UOC-TV HOR-SHI-S50 32 32

SETTING DATA

OSD INITIAL DATAITEM EEPROM SETTING DATA RANGE

A034 EW-W-S50 0

...

63 UOC-TV EW-W-S50 32 32

A035 SUB-SLOPE-S 0

...

63 UOC-TV SUB-SLOPE-S 32 32

A036 SUB-VX-S 0

...

63 UOC-TV SUB-VX-S 32 32

A037 VER-AMP-C50 0

...

63 UOC-TV VER-AMP-C50 32 32

A038 VER-SHI-C50 0

...

63 UOC-TV VER-SHI-C50 32 32

A039 HOR-SHI-C50 0

...

63 UOC-TV HOR-SHI-C50 34 34

A040 EW-W-C50 0

...

63 UOC-TV EW-W-C50 32 32

A041 SUB-SLOPE-C 0

...

63 UOC-TV SUB-SLOPE-C 32 32

A042 SUB-VX-C 0

...

63 UOC-TV SUB-VX-C 32 32

A043 VER-AMP-P60 0

...

63 UOC-TV VER-AMP-P60 32 22

A044 VER-SHI-P60 0

...

63 UOC-TV VER-SHI-P60 32 24

A045 HOR-SHI-P60 0

...

63 UOC-TV HOR-SHI-P60 32 49

A046 EW-W-P60 0

...

63 UOC-TV EW-W-P60 32 41

A047 VER-AMP-F60 0

...

63 UOC-TV VER-AMP-F60 32 32

A048 VER-SHI-F60 0

...

63 UOC-TV VER-SHI-F60 32 32

A049 HOR-SHI-F60 0

...

63 UOC-TV HOR-SHI-F60 32 32

A050 EW-W-F60 0

...

63 UOC-TV EW-W-F60 32 32

A051 VER-AMP-S60 0

...

63 UOC-TV VER-AMP-S60 32 32

A052 VER-SHI-S60 0

...

63 UOC-TV VER-SHI-S60 32 32

A053 HOR-SHI-S60 0

...

63 UOC-TV HOR-SHI-S60 32 32

A054 EW-W-S60 0

...

63 UOC-TV EW-W-S60 32 32

A055 VER-AMP-C60 0

...

63 UOC-TV VER-AMP-C60 32 32

A056 VER-SHI-C60 0

...

63 UOC-TV VER-SHI-C60 32 32

A057 HOR-SHI-C60 0

...

63 UOC-TV HOR-SHI-C60 32 32

A058 EW-W-C60 0

...

63 UOC-TV EW-W-C60 32 32

A059 OF-ROTATE 0

...

127 UOC-TV OF-ROTATE 63 0

A060 DRI-RS 0

...

63 UOC-TV DRI-RS 32 32

A061 DRI-GS 0

...

63 UOC-TV DRI-GS 32 32

A062 DRI-BS 0

...

63 UOC-TV DRI-BS 32 32

A063 CUT-RS 0

...

63 UOC-TV CUT-RS 32 32

A064 CUT-GS 0

...

63 UOC-TV CUT-GS 32 32

A065 DRI-RC 0

...

63 UOC-TV DRI-RC 32 32

A066 DRI-GC 0

...

63 UOC-TV DRI-GC 32 32

A067 DRI-BC 0

...

63 UOC-TV DRI-BC 32 32

A068 CUT-RC 0

...

63 UOC-TV CUT-RC 32 32

A069 CUT-GC 0

...

63 UOC-TV CUT-GC 32 32

SETTING DATA

OSD INITIAL DATAITEM EEPROM SETTING DATA RANGE

A070 DRI-RW 0

...

63 UOC-TV DRI-RW 32 32

A071 DRI-GW 0

...

63 UOC-TV DRI-GW 32 32

A072 DRI-BW 0

...

63 UOC-TV DRI-BW 32 32

7-2

7-1

29H-FG3RU

A073 CUT-RW 0

...

63 UOC-TV CUT-RW 32 32

A074 CUT-GW 0

...

63 UOC-TV CUT-GW 32 32

A075 DRI-RS-DVD 0

...

63 UOC-TV DRI-RS-DVD 32 32

A076 DRI-GS-DVD 0

...

63 UOC-TV DRI-GS-DVD 32 32

A077 DRI-BS-DVD 0

...

63 UOC-TV DRI-BS-DVD 32 32

A078 CUT-RS-DVD 0

...

63 UOC-TV CUT-RS-DVD 32 32

A079 CUT-GS-DVD 0

...

63 UOC-TV CUT-GS-DVD 32 32

A080 DRI-RC-DVD 0

...

63 UOC-TV DRI-RC-DVD 32 32

A081 DRI-GC-DVD 0

...

63 UOC-TV DRI-GC-DVD 32 32

A082 DRI-BC-DVD 0

...

63 UOC-TV DRI-BC-DVD 32 32

A083 CUT-RC-DVD 0

...

63 UOC-TV CUT-RC-DVD 32 32

A084 CUT-GC-DVD 0

...

63 UOC-TV CUT-GC-DVD 32 32

A085 DRI-RW-DVD 0

...

63 UOC-TV DRI-RW-DVD 32 32

A086 DRI-GW-DVD 0

...

63 UOC-TV DRI-GW-DVD 32 32

A087 DRI-BW-DVD 0

...

63 UOC-TV DRI-BW-DVD 32 32

A088 CUT-RW-DVD 0

...

63 UOC-TV CUT-RW-DVD 32 32

A089 CUT-GW-DVD 0

...

63 UOC-TV CUT-GW-DVD 32 32

A090 SUB-BRI 0

...

63 UOC-TV SUB-BRI 32 39

A091 SUB-BRI-DVD 0

...

63 UOC-TV SUB-BRI-DVD 32 38

A092 SUB-COL 0

...

63 UOC-TV SUB-COL 32 34

A093 SUB-CON 0

...

63 UOC-TV SUB-CON 32 48

A094 SUB-CON-DVD 0

...

63 UOC-TV SUB-CON-DVD 32 49

A095 SUB-TINT-DVD 0

...

63 UOC-TV SUB-TINT-DVD 32 34

A096 SUB-TINT 0

...

63 UOC-TV SUB-TINT 32 34

A097 SUB-SHARP 0

...

63 UOC-TV SUB-SHARP 32 12

A098 P-POSOFH-50 0

...

31 PIP P-POSOFH-50 0 15

A099 P-POSOFV-50 0

...

7 PIP P-POSOFV-50 0 4

A100 P-POSOFH-60 0

...

31 PIP P-POSOFH-60 0 16

A101 P-POSOFV-60 0

...

7 PIP P-POSOFV-60 0 4

A102 P-SUB-TINT 0

...

63 PIP P-SUB-TINT 0 38

A103 P-CON-CTM 0

...

15 PIP P-CON-CTM 0 4

A104 P-CON-DYN 0

...

15 PIP P-CON-DYN 0 9

A105 P-CON-STD 0

...

15 PIP P-CON-STD 0 4

SETTING DATA

ITEM EEPROM SETTING DATA RANGE

OSD INITIAL DATA

A106 P-CON-SOFT 0

...

15 PIP P-CON-SOFT 0 4

A107 P-SUB-BRI 0

...

15 PIP P-SUB-BRI 0 2

A108 P-BKGD-R 0

...

15 PIP P-BKGD-R 0 0

A109 P-BKGD-G 0

...

15 PIP P-BKGD-G 0 0

A110 P-BKGD-B 0

...

15 PIP P-BKGD-B 0 0

A111 P-SUB-COL 0

...

15 PIP P-SUB-COL 0 8

A112 P-SHP-MAIN-TV 0

...

7 PIP P-SHP-MAIN-TV 73

A113 VSD 0/1 UOC-TV VSD 0 0

A114 CUT OFF 0

...

63 UOC-TV CUT OFF 6 6

A115 VG2 0/1 UOC-TV VG2 0 1

A116 DCXO 0

...

127 UOC-TV DCXO 79 57

A117 DCXO-AUTO 0/1 UOC-TV DCXO-AUTO 0 0

SETTING DATA

OSD INITIAL DATAITEM EEPROM SETTING DATA RANGE

8-2

8-1

29H-FG3RU

Setting Mode 1-1

ITEM

INITIAL DATA SETTING DATA

S001

UOC-TV

S002 UOC-TV 32 32

S003 UOC-TV 0 1

S004 UOC-TV 0 12

S005 UOC-TV 1 1

S006 UOC-TV 1 1

S007 UOC-TV 0 0

S008 UOC-TV 0 0

S009 UOC-TV 7 11

S010 UOC-TV 7 11

S011 UOC-TV 7 9

S012 UOC-TV 7 7

S013 UOC-TV 7 7

S014 UOC-TV 7 7

S015 UOC-TV 7 7

S016 UOC-TV 7 7

S017 UOC-TV 7 7

S018 UOC-TV 7 7

S019 UOC-TV 7 7

S020 UOC-TV 7 7

S021 UOC-TV 7 7

S022 UOC-TV 7 7

S023 UOC-TV 7 7

S024 UOC-TV 7 7

S025 UOC-TV 1 1

S026 UOC-TV 2 1

S027 UOC-TV 0 0

S028 UOC-TV 1 1

S029 UOC-TV 1 1

S030 UOC-TV 1 1

S031 UOC-TV 1 1

S032 UOC-TV 1 1

S033 UOC-TV 0 0

S034 UOC-TV 1 1

S035 UOC-TV 7 7

S036 UOC-TV 1 1

S037 UOC-TV 0 1

S038 UOC-TV 0 0

S039 UOC-TV 1 1

S040 UOC-TV 0 1

S041 UOC-TV 1 1

S042 UOC-TV 1 1

S043 UOC-TV 0 1

EEPROM SETTING

V-LINCTRL

IFPLL

SOC1-0

YD N443

WHITE LMT

AGC0-1

FFI

CFA0

YD PAL

YD SECAM

YD N358

YD AV-PAL

YD AV-SECAM

YD AV-N358

YD COMP-PAL

YD SAV-N443

YD AV-N443

YD SAV-PAL

YD SAV-SECAM

YD SAV-N358

YD COMP-SECAM

YD COMP-N358

YD COMP-N443

SBO1-0

CHSE1-0

FCO

OSO

DFL

EVG

HCO

SVMA

FBC

SLG1-0

CL3-0

GAM

TFR

BSD

CLD

BKS

AAS

DSK-EXT

BLS

DATA RANGE

...

0/1

...

0/1

V-LINCTRL

IFPLL

SOC1-0

WHITE LMT

AGC0-1

FFI

CFA0

YD PAL

YD SECAM

YD N358

YD N443

YD AV-PAL

YD AV-SECAM

YD AV-N358

YD AV-N443

YD SAV-PAL

YD SAV-SECAM

YD SAV-N358

YD SAV-N443

YD COMP-PAL

YD COMP-SECAM

YD COMP-N358

YD COMP-N443

SBO1-0

CHSE1-0

FCO

OSO

CL3-0

GAM

DFL

EVG

HCO

SVMA

AAS

DSK-EXT (DSK)

BLS

OSD

TFR

CLD

BKS

BSD

FBC

SLG1-0

0/1

...

0/1

...

0/1

S044 UOC-TV 0 0

S045 UOC-TV 0 1

S046 UOC-TV 0 2

S047 UOC-TV 3 3

LLB

DSA

RPA1-0

RPO1-0

0/1

...

LLB

DSA

RPA1-0

RPO1-0

ITEM

INITIAL DATA SETTING DATA

S048 UOC-TV 2 1

S049 UOC-TV 0 0

S050 UOC-TV 0 5

S051 UOC-TV 5 3

S052 UOC-TV 3 3

S053 UOC-TV 0 1

S054 UOC-TV 0 0

S055 UOC-TV 0 0

S056 UOC-TV 0 1

S057 UOC-TV 0 0

S058 UOC-TV 0 0

S059 UOC-TV 0 3

S060 UOC-TV 31 45

S061 UOC-TV 31 46

S062 UOC-TV 31 45

S063 UOC-TV 31 40

S064 UOC-TV 31 31

S065 UOC-TV 31 31

S066 UOC-TV 31 46

S067 UOC-TV 36 23

S068 UOC-TV 36 49

S069 UOC-TV 31 35

S070 UOC-TV 31 35

S071 UOC-TV 31 31

S072 UOC-TV 31 31

S073 UOC-TV 31 40

S074 UOC-TV 31 31

S075 UOC-TV 31 34

S076 UOC-TV 31 32

S077 UOC-TV 31 31

S078 UOC-TV 32 32

S079 UOC-TV 0 0

S080 UOC-TV 0 1

S081 UOC-TV 1 1

S082 UOC-TV 1 1

S083 UOC-TV 3 2

S084 UOC-TV 3 1

S085 UOC-TV 2 2

S086 UOC-TV 2 1

S087 UOC-TV 26 25

S088 UOC-TV 31 31

S089 UOC-TV 36 36

EEPROM SETTING

COR1-0

CRA0

SPR2-0

SVM2-0

SMD1-0

PEAKFREQPAL443

PEAKFREQPALM

PEAKFREQPALN

PEAKFREQNTSC443

PEAKFREQNTSCM

PEAKFREQSECAM

PEAKFREQAV

OF-COL-TV

OF-COL-AV

OF-COL-DVD

OF-COL-P

OF-COL-S

OF-COL-N4

OF-COL-N3

OF-SHP-TV

OF-SHP-AV

OF-SHP-DVD

OF-SHP-P

OF-SHP-S

OF-SHP-N4

OF-SHP-N3

OF-TINT-TV

OF-TINT-AV

OF-TINT-DVD

OF-TINT-ADJ

BB-TINT

VMA-SOFT

WS-SOFT

VMA-STD

WS-STD

VMA-DYN

U-COL-STD

WS-DYN

VMA-CTM

WS-CTM

U-COL-SOFT

U-COL-DYN

0/1

...

COR1-0

CRA0

SPR2-0

SVM2-0

SMD1-0

PEAKFREQPAL443

PEAKFREQPALM

PEAKFREQPALN

PEAKFREQNTSC443

PEAKFREQNTSCM

PEAKFREQSECAM

PEAKFREQAV

OF-COL-TV

OF-COL-AV

OF-COL-DVD

OF-COL-P

OF-COL-S

OF-COL-N4

OF-COL-N3

OF-SHP-TV

OF-SHP-AV

OF-SHP-DVD

OF-SHP-P

OF-SHP-S

OF-SHP-N4

OF-SHP-N3

OF-TINT-TV

OF-TINT-AV

VMA-DYN

OF-TINT-DVD

OF-TINT-ADJ

BB-TINT

VMA-SOFT

U-COL-STD

OSDDATA RANGE

WS-DYN

VMA-CTM

WS-CTM

U-COL-SOFT

WS-SOFT

VMA-STD

WS-STD

...

62 U-COL-DYN

Setting Mode 1-2

S090 UOC-TV 50 50

S091 UOC-TV 60 60

S092 UOC-TV 60 60

S093 UOC-TV 26 26

S094 UOC-TV 31 31

U-CON-SOFT

U-CON-STD

U-CON-DYN

U-SHP-SOFT

U-SHP-STD

...

U-CON-SOFT

U-CON-STD

U-CON-DYN

U-SHP-SOFT

U-SHP-STD

9-2

9-1

29H-FG3RU

ITEM

INITIAL DATA SETTING DATA

S095 UOC-TV 36 36

S096 UOC-TV 32 35

S097 UOC-TV 2 0

S098 UOC-TV 10 10

S099 UOC-TV 23 23

S100 UOC-TV 16 25

S101 UOC-TV 63 3

S102 UOC-TV 63 63

S103 UOC-TV 1 1

S104 UOC-TV 2 2

S105 UOC-TV 73 73

S106 UOC-TV 32 32

S107 UOC-TV 0 0

S108 UOC-TV 0 0

S109 UOC-TV 1 0

S110 UOC-TV 1 1

S111 UOC-TV 1 1

S112 UOC-TV 0 3

S113 UOC-TV 0 0

S114 GAME IC 6 10

S115 GAME IC 23 27

S116 GAME IC 0 0

S117 GAME IC 192 192

S118 GAME IC 1 1

S119 UOC-TV 1 1

S120 UOC-TV 3 3

S121 UOC-TV 0 0

S122 UOC-TV 0 0

S123 UOC-TV 1 1

S124 UOC-TV 0 1

S125 UOC-TV 1 0

S126 UOC-TV 3 3

S127 UOC-TV 2 2

S128 UOC-TV 0 1

S129 UOC-TV 1 1

S130 UOC-TV 10 6

S131 UOC-TV 8 13

S132 UOC-TV 0 0

S133 UOC-TV 0 0

S134 UOC-TV 20 20

S135 UOC-TV 0 1

S136 UOC-TV 20 20

S137 UOC-TV 20 20

S138 UOC-TV 20 20

EEPROM SETTING

U-SHP-DYN

VOL5-0

HOP1-0

TAS5-0-NORM

TAS5-0-A

BRI3-0

HSD6-0

VSD6-0

HOPB1-0

TASB5-0

PGB5-0

VOLB5-0

SMTHB

SMTH

RANGE1-0

RANGEB1-0

PWR-SAVING

PWR-TIME

I-TIME

GAME-HON

GAME-VERT-1

GAME-VERT-2

GAME-ORIV

GAME-MODE

PHI FORCE

PHI

BPD

E2D

ACL

MUS

CUR_VPOS

HP2

WBR

SVM-OSD-PW

SMD-OSD-TM

XDT

HBL

WBF

FSL

DATA RANGE

...

127

...

127

...

127

0/1

...

255

...

255

...

255

...

255

...

255

...

0..63

0/1

...

0/1

U-SHP-DYN

VOL5-0

HOP1-0

TAS5-0-NORM

TAS5-0-A

BRI3-0

HSD6-0

VSD6-0

HOPB1-0

TASB5-0

PGB5-0

VOLB5-0

SMTHB

SMTH

RANGE1-0

RANGEB1-0

PWR-SAVING

PWR-TIME

I-TIME

GAME-HON

GAME-VERT-1

GAME-VERT-2

GAME-ORIV

GAME-MODE

PHI FORCE

PHI

BPD

E2D

ACL

MUS

HP2

SVM-OSD-PW

SMD-OSD-TM

XDT

HBL

OSVE 0/1 OSVE

CUR_VPOS

OSD

WBF

WBR

FSL

GAIN-BLUE 0

...

127 GAIN-BLUE

GAIN-RED 0

...

127 GAIN-RED

GAIN-GREEN 0

...

127 GAIN-GREEN

Setting Mode 1-3

ITEM EEPROM SETTING DATA RANGE IC

OSD INITIAL DATA SETTING DATA

S201 P-POSHOR 0

...

255 PIP P-POSHOR 2C 28

S202 P-POSVER-50 0

...

255 PIP P-POSVER-50 1E 22

S203 P-POSVER-60 0

...

255 PIP P-POSVER-60 1A 23

S204 P-HFP 0

...

15 PIP P-HFP 0 7

S205 P-VFP 0

...

15 PIP P-VFP 0 8

S206 P-VSPDEL-50 0

...

31 PIP P-VSPDEL-50 0D 13

S207 P-VSPDEL-60 0

...

31 PIP P-VSPDEL-60 0D 13

S208 P-VERBLK 0/1 PIP P-VERBLK 0 0

S209 P-SELDEL 0

...

15 PIP P-SELDEL 8 8

S210 P-CLPDEL 0

...

31 PIP P-CLPDEL 6 6

S211 P-AGCMD 0

...

3PIP P-AGCMD 3 3

S212 P-AGCVAL 0

...

15 PIP P-AGCVAL 8 8

S213 P-CLMPID 0

...

3PIP P-CLMPID 3 3

S214 P-BLKVCHYS 0/1 PIP P-BLKVCHYS 0 0

S215 P-BLKCVAL 0/1 PIP P-BLKCVAL 0 0

S216 P-LMOFST 0

...

3PIP P-LMOFST 0 0

S217 P-PLLITC-TV 0

...

3PIP P-PLLITC-TV 2 2

S218 P-PLLITC-AV 0

...

3PIP P-PLLITC-AV 1 1

S219 P-BLKVCFIL 0/1 PIP P-BLKVCFIL 0 0

S220 P-YCD-TV-P 0

...

15 PIP P-YCD-TV-P 8 8

S221 P-YCD-TV-N3 0

...

15 PIP P-YCD-TV-N3 8 8

S222 P-YCD-TV-N4 0

...

15 PIP P-YCD-TV-N4 8 8

S223 P-YCD-TV-S 0

...

15 PIP P-YCD-TV-S 8 8

S224 P-YCD-AV-P 0

...

15 PIP P-YCD-AV-P 8 8

S225 P-YCD-AV-N3 0

...

15 PIP P-YCD-AV-N3 8 8

S226 P-YCD-AV-N4 0

...

15 PIP P-YCD-AV-N4 8 8

S227 P-YCD-AV-S 0

...

15 PIP P-YCD-AV-S 8 8

S228 P-LOCKSP 0/1 PIP P-LOCKSP 0 0

S229 P-CKILL 0

...

3PIP P-CKILL 0 0

S230 P-BGPOS 0/1 PIP P-BGPOS 1 1

S231 P-DEEMP 0

...

3PIP P-DEEMP 0 0

S232 P-COLON 0/1 PIP P-COLON 0 0

S233 P-CHRBW 0

...

3PIP P-CHRBW 0 0

S234 P-IFCOMP 0

...

3PIP P-IFCOMP 2 2

S235 P-SATNR 0/1 PIP P-SATNR 1 1

S236 P-SCADJ-P 0

...

31 PIP P-SCADJ-P 7 7

S237 P-SCADJ-N3 0

...

31 PIP P-SCADJ-N3 7 7

Setting Mode 2-1

10-2

10-1

29H-FG3RU

ITEM EEPROM SETTING DATA RANGE IC

OSD INITIAL DATA SETTING DATA

S238 P-SCADJ-N4 0

...

31 PIP P-SCADJ-N4 7 7

S239 P-SCADJ-S 0

...

31 PIP P-SCADJ-S 7 7

S240 P-PKLR 0

...

255 PIP P-PKLR 80 190

S241 P-PKLG 0

...

255 PIP P-PKLG 80 190

S242 P-PKLB 0

...

255 PIP P-PKLB 80 190

S243 P-YCOR 0/1 PIP P-YCOR 1 1

S244 P-PALIDL2 0/1 PIP P-PALIDL2 0 0

S245 P-PALIDL1 0

...

3PIP P-PALIDL1 1 1

S246 P-PALIDL0 0/1 PIP P-PALIDL0 0 0

S247 P-PKBOOST 0/1 PIP P-PKBOOST 1 1

S248 P-CLPLEN 0

...

3PIP P-CLPLEN 0 0

S249 P-SCMREL 0

...

3PIP P-SCMREL 2 2

S250 P-SCMIDL 0

...

7PIP P-SCMIDL 5 5

S251 P-SECDIV 0/1 PIP P-SECDIV 1 1

S252 P-BELLIIR 0/1 PIP P-BELLIIR 1 1

S253 P-PALINC1 0/1 PIP P-PALINC1 0 0

S254 P-PALINC2 0/1 PIP P-PALINC2 0 0

S255 P-LOCKSP 0

...

3PIP P-LOCKSP 3 3

S256 P-SECACCL 0

...

7PIP P-SECACCL 5 5

S257 P-SECACC 0/1 PIP P-SECACC 1 1

S258 P-ADLCK 0/1 PIP P-ADLCK 1 1

S259 P-ADLCKSEL 0/1 PIP P-ADLCKSEL 1 1

S260 P-ADLCKCC 0/1 PIP P-ADLCKCC 1 1

S261 P-CLRANGE 0

...

3PIP P-CLRANGE 1 1

S262 P-NADJ 0

...

7PIP P-NADJ 3 3

S263 P-NSRED 0

...

7PIP P-NSRED 6 6

S264 P-SLLTHD 0

...

3PIP P-SLLTHD 0 0

S265 P-ISHFT 0

...

3PIP P-ISHFT 3 3

S266 P-ENLIM 0/1 PIP P-ENLIM 1 1

S267 P-DTECT5060 0/1 PIP P-DTECT5060 1 1

S268 P-VTHRL50 0

...

127 PIP P-VTHRL50 41 41

S269 P-BCOROFF 0/1 PIP P-BCOROFF 0 0

S270 P-VTHRL60 0

...

127 PIP P-VTHRL60 60 60

S271 P-VTHRH50 0

...

15 PIP P-VTHRH50 8 8

S272 P-VTHRH60 0

...

15 PIP P-VTHRH60 13 13

S273 P-CLMSTGY 0/1 PIP P-CLMSTGY 0 0

S274 P-SLLTHDV 0

...

7PIP P-SLLTHDV 0 0

S275 P-VFLYWHLM 0

...

3PIP P-VFLYWHLM 1 1

S276 P-VFLYWHL 0/1 PIP P-VFLYWHL 1 1

Setting Mode 2-2

ITEM EEPROM SETTING DATA RANGE

OSD INITIAL DATA SETTING DATA

S277 P-CLMPCHRY 0

...

3PIP P-CLMPCHRY 0 0

S278 P-VDETIFS 0/1 PIP P-VDETIFS 1 1

S279 P-VDETITC 0/1 PIP P-VDETITC 0 0

S280 P-VLP 0

...

3PIP P-VLP 1 1

S281 P-LATENCY 0

...

3PIP P-LATENCY 3 3

S282 P-FILTBRST 0/1 PIP P-FILTBRST 1 1

S283 P-CLMPIST 0

...

31 PIP P-CLMPIST 26 26

S284 P-UVSEQ 0/1 PIP P-UVSEQ 0 0

S285 P-ABRTHD 0

...

15 PIP P-ABRTHD 0 0

S286 P-ABRSPD 0

...

7PIP P-ABRSPD 0 0

S287 P-CZMEN 0/1 PIP P-CZMEN 0 0

S288 P-CZMSP 0

...

3PIP P-CZMSP 0 0

S289 P-U-COL-DYN 0..60 PIP P-U-COL-DYN 0 30

S290 P-U-COL-STD 0..60 PIP P-U-COL-STD 0 30

S291 P-U-COL-SOFT 0..60 PIP P-U-COL-SOFT 0 30

S292 P-U-SHP-DYN 0..60 PIP P-U-SHP-DYN 0 30

S293 P-U-SHP-STD 0..60 PIP P-U-SHP-STD 0 30

S294 P-U-SHP-SOFT 0..60 PIP P-U-SHP-SOFT 0 30

S295 P-SHP-MAIN-AV 0

...

3 PIP P-SHP-MAIN-AV 2 3

S296 P-MAT 0

...

3PIP P-MAT 0 0

Setting Mode 2-3

11-2

11-1

29H-FG3RU

ITEM EEPROM SETTING DATA RANGE IC OSD

INITIAL

DATA

SETTING

DATA #2

S301 FMI 0/1 DSP FMI 0 0

S302 BPB 0/1 DSP BPB 0 0

S303 BPB2 0/1 DSP BPB2 1 1

S304 FILTBW-M 0

...

DSP

FILTBW-M 0 0

S305 ID-BYBPF 0/1

DSP

ID-BYBPF 0 0

S306 ID-PGAIN 0/1

DSP

ID-PGAIN 0 0

S307 MPX-P-BW 0/1

DSP

MPX-P-BW 0 0

S308 FMSUB-BW 0/1

DSP

FMSUB-BW 0 0

S309 EIAJ-DEL 0

...

DSP

EIAJ-DEL 0 0

S310 NDETPB 0/1

DSP

NDETPB 0 0

S311 NICDEEM 0/1 DSP NICDEEM 0 0

S312 NLOERLIM 0

...

255 DSP NLOERLIM 100 100

S313 NUPERLIM 0

...

255 DSP NUPERLIM 200 200

S314 FILTBW DSP FILTBW 0 0

S315

OVMTHR 0

...

3 DSP OVMTHR 1 1

S316 DECLEV 0

...

31 DSP DECLEV 16 7

S317 MONOLEV 0

...

31 DSP MONOLEV 16 5

S318 NICLEV 0

...

31 DSP NICLEV 16 18

S319 SAPLEV 0

...

31 DSP SAPLEV 16 6

S320 ADCLEV 0

...

31 DSP ADCLEV 16 13

S321 IISLEV 0

...

31 DSP IISLEV 16 0

S322 BBEC-ON 0

...

15 DSP BBEC-ON 0 15

S323 BBEP-ON 0

...

15 DSP BBEC-OFF 0 8

S324 BBEC-OFF 0

...

15 DSP BBEP-ON 0 5

S325 BBEP-OFF 0

...

15 DSP BBEP-OFF 0 7

S326 MAINLOUD 0/1 DSP MAINLOUD 0 0

S327 MAINLONA 0

...

7 DSP MAINLONA 3 0

S328 MAINLOCH 0

...

3 DSP MAINLOCH 0 0

S329 INSOEF 0

...

7 DSP INSOEF 3 4

S330 AVLMOD 0

...

7 DSP AVLMOD 0 5

S331 AVLWGT 0/1 DSP AVLWGT 1 1

S332 AVLLE 0

...

15 DSP AVLLE 7 10

S333 SRS3DCEN 0

...

15 DSP SRS3DCEN 1 7

S334 SRS3DSP 0

...

15 DSP SRS3DSP 0 0

S335 SRS3DBYP 0/1 DSP SRS3DBYP 0 0

S336 CLIPMANAGE 0

...

4 DSP CLIPMANAGE 0 4

S337 VDSMIXLEV 0

...

5 DSP VDSMIXLEV 3 5

S338 DBEADR 0

...

63 DSP DBEADR 0 0

S339 DBECOEF-LBS 0

...

255 DSP DBECOEF-LBS 0 0

S340 DBECOEF-MBS 0

...

15 DSP DBECOEF-MBS 0 0

Setting Mode 3-1

ITEM EEPROM SETTING DATA RANGE IC OSD

INITIAL

DATA

SETTING

DATA #2

S341 DUBADR 0

...

255 DSP DUBADR 0 0

S342 DUBCOEF-LSB 0

...

255 DSP DUBCOEF-LBS 0 0

S343 DUBCOEF-MSB 0

...

15 DSP DUBCOEF-MBS 0 0

S344 BAMAMO 0

...

3 DSP BAMAMO 0 1

S345 BAMASUB 0/1 DSP BAMASUB 0 0

S346 BAMAFC 0

...

15 DSP BAMAFC 0 12

S347 BASS-MV 0

...

31 DSP BASS-MV 16 31

S348 TREB-MV 0

...

31 DSP TREB-MV 16 25

S349 EQ100-MV 0

...

31 DSP EQ100-MV 12 20

S350 EQ300-MV 0

...

31 DSP EQ300-MV 12 16

S351 EQ1K-MV 0

...

31 DSP EQ1K-MV 12 19

S352 EQ3K-MV 0

...

31 DSP EQ3K-MV 12 16

S353 EQ8K-MV 0

...

31 DSP EQ8K-MV 12 20

S354 BASS-MS 0

...

31 DSP BASS-MS 16 31

S355 TREB-MS 0

...

31 DSP TREB-MS 16 25

S356 EQ100-MS 0

...

31 DSP EQ100-MS 12 20

S357 EQ300-MS 0

...

31 DSP EQ300-MS 12 17

S358 EQ1K-MS 0

...

31 DSP EQ1K-MS 12 13

S359 EQ3K-MS 0

...

31 DSP EQ3K-MS 12 17

S360 EQ8K-MS 0

...

31 DSP EQ8K-MS 12 20

S361 BASS-NW 0

...

31 DSP BASS-NW 16 31

S362 TREB-NW 0

...

31 DSP TREB-NW 16 25

S363 EQ100-NW 0

...

31 DSP EQ100-NW 12 13

S364 EQ300-NW 0

...

31 DSP EQ300-NW 12 16

S365 EQ1K-NW 0

...

31 DSP EQ1K-NW 12 19

S366 EQ3K-NW 0

...

31 DSP EQ3K-NW 12 16

S367 EQ8K-NW 0

...

31 DSP EQ8K-NW 12 13

S368 BASS-CT 0

...

31 DSP BASS-CT 16 31

S369 TREB-CT 0

...

31 DSP TREB-CT 16 25

S370 IDMOD-SE 0

...

3 DSP IDMOD-SE 0 0

S371 BPR-VOL 0

...

60 DSP BPR-VOL 20 30

S372 DEMUT-DLAY 0

...

16 DSP DEMUT-DLAY 8 8

S373 AV-OUT LV 0

...

255 DSP AV-OUT LV 16 18

Setting Mode 3-2

12-2

12-1

29H-FG3RU

PIF ADJUSTMENT

No.

Adjustment point

Adjustment condition/procedureWaveform or remarks

RF-AGC

TAKE OVER

POINT AD-

JUSTMENT

C BUS

CONTROL)

1. Receive "PAL COLOR BAR" signal.

Signal Strength: 54 ± 1dBµV (75 ohm termination)

2. Connect the oscilloscope to TP53 (Tuner's AGC

Te rminal) as shown in figure 3-1.

3. Select "RF-AGC" item in the Adjustment Mode.

Adjust the "RF-AGC" bus data to obtain the Tuner

output pin drop 0.1V ~ 1.0V below maximum volt-

age.

4. Change the antenna input signal to 63 ~ 67dBµV,

and make sure there is no noise.

5. Set the RF AGC to 0 - 6 V with no saturation with

the waveform.

6. Turn up the input signal to 90 ~ 95 dBµV to be sure

that there is no cross modulation beat.

Fig. 3

PURITY ADJUSTMENT

No.

Adjustment point

Adjustment conditions/procedure Waveform or remarks

PURITY ADJ.

1. Select the green monocolor screen with remote

contoller, and set the beam current of 1.7mA

with the contrast control.

2. Degauss the CRT enough with the degausing coil.

Note: Follow the job instruction manual to

adjust the magnetic field.

3. The purity magnet must be previously set at the

0 magnetic field, and the convergence must be

adjusted to be rough.

With P-MAG, adjust it to the center - rank A.

4. Observe the points a,b, as shown in Fig.1-1

through the microscope.

Move DY fore and aft to set the landing at the

point (Rank A).

5. If the a/b balance is poor, compensate it to the

center "Rank AB".

6. Aline it to zero, keeping the raster rotation in the

east direction.

6. Tighten the deflection coil fastening screws.

» Tightening torque : 108N ± 20N (11Kgf ± 2Kgf)

8. Checking the CRT corner area, bond the mag-

netic sheet to set the landing at rank A for com-

pensation.

Note: Apply the adjustment after aging with

the beam current 1700

A or more

for 30 minutes or more.

Note: Select the service mode, and press the

monocolor key of R/C for process, and

the monocolor screen (green) will be

selected.

90mm 90mm

A = B

Fig.1-1

Fig. 1-2

Rank "A"

(on the right of the CRT)

Fig. 1-3

Rank "A"

(on the left of the CRT)

* Continuosly press the mono-

colour key 1 second or more,

and the monocolour mode will

be selected without the service

mode.

*Even with TEXT key or "R/G/B"

key, it can be directly switched to

each monocolor screen.

Monocolour

screen release

Monocolour

GREEN

screen

Monocolour

BLUE

screen

Monocolour

RED

screen

*Adjustment for uniformity is change to another

content. Please refer to the following page.

*Every push of the monocolour key changes the

screen as follows.

13-2

13-1

29H-FG3RU

PURITY ADJUSTMENT

No.

Adjustment point

Adjustment conditions/procedure Waveform or remarks

Uniformity

adjustment (To

perform after

the purity and

convergence

adjustment.)

2 Before adjustment begin,Horizontal magnetic field

= 0G

Vertical magnetic field = Each destination's adjust-

ment magnetic field.

Make sure to degauss it.

(North direction Red uniformity)

1. Horizontal mf = Set to monocolor screen red and

adjust to +0.25G.

2. Pay attention to the edge of CRT,if the landing is

poor adjust by attaching the the compensation

magnet at the back of CRT.

(refer to Fig-1)

(South direction Red uniformity)

1. Horizontal mf = Set to monocolor screen red and

adjust to -0.25G.

2. Pay attention to the edge of CRT ,if the landing is

poor adjust by attaching the compensation mag-

net at the back of CRT.

(The same method is applied for adjustment of

monocolor screen blue for blue uniformity ,and

changing both the magnetic field for north and south

direction.)

* During the pasting of compensation magnet , use

the crosshatch pattern .

Make sure there is no blur or bendlines occur.

If the blur or bend are serious,adjust the location

of compensation magnet to make it better.

(CRT surface)

(CRT back)

Miss landing

Compensation magnet

Fig. 1

BRRB

X axis

Y axis

CONVERGENCE ADJUSTMENT

No.

Adjustment point

Adjustment conditions/procedure Waveform or remarks

CONVERGENC

ADJ.

( To be done

after the purity

adjustment.)

1. Receive the " Crosshatch Pattern" signal.

2. Using the remote controller, call NORMAL mode.

( Static convergence )

1. Overlap blue and red with the open-/closing an-

gle and rotation of the 4 pole magnet.

2. Overlap green on blue and red with the open-/

closing angle and rotation of the 6 pole magnet.

( Dynamic convergence )

1. Fix the wedges in a position so that the deflection

york neck is at the center of top bottom and left

right. ( Straight line and without any blur horizon-

tal / vertical line).

2. Adjust the Red, Blue, upper and lower of the cen-

tre y axis on the screen by using the Volume (VR2,

VR1)at the deflection york.

(Refer to fig.1 and fig.2)

3. If the Horizontal Red, Blue(XV) on the screen

centre X axisis shifted, correct the Red, Blue (XV)

by adjusting the balance coil on the deflection

york. (Refer to Fig. 3)

4. After confirm that there is no problems on the

entire screen ,bond each wedge on CRT and

glass tape on it. Fastening the screws of DY and

magnet unit (purity , 4 - pole and 6 - pole), then

coat the lacquer paint on DY fastening screw and

magnet unit fastening screw.

Note:

In case of poor convergence adjustmet on the

top and bottom and of the screen, adjust DY

by swing rightward and leftward.

(Refer to Fig-4)

Fig. 1

Adjust by VR1

Fig. 2

Adjust by VR2

Fig. 3

Adjust by Balance Coil

CRT NECK

Lacquer

Purity Magnet

4-Pole Magnet

6-Pole Magnet

25mm ±

0.5mm

Balance Coil

Fig. 4

Adjust by Swing DY

14-2

14-1

29H-FG3RU

FOCUS ADJUSTMENT

No.

Adjustment point

Adjustment conditions/procedure Waveform or remarks

FOCUS

ADJUSTMENT

1. Receive E-5CH (Monoscop pattern).

2. With the remote controller, make the image nor-

mal.

3. Adjust the focus VR to make the character"575"

on left bottom of monoscope as fine as possible.

CUT-OFF, BACKGROUND AND SUB-CONTRAST ADJUSTMENT

No.

Adjustment point

Adjustment conditions/procedureWaveform or remarks

CRT CUTOFF

ADJUSTMENT

C BUS

CONTROL)

Note :

1. Before CRT cutoff adjustment, make sure fol-

lowing items are in INITIAL DATA.

a) A063 CUT-RS = 32

b) A064 CUT-GS = 32

c) A114 CUT OFF = 6

1. Switch TV to video mode , blue back off , with no

video signal and Press R/C to set picture into

normal condition.

2. Go to service mode at adjustment mode item A115

(VG2).

3. Adjust screen voltage until retrace line appear,

the following OSD will appear at bottom of screen.

UNSTABLE

OUT

ABOVE

4. Finally , slowly decrease the screen variable re-

sistor until following OSD appear.

STABLE

ABOVE / BELOW *

* The last OSD row is the indication of the screen

voltage value. If it show "BELOW", please in-

crease the screen voltage and vice versa until

"STABLE" AND "IN" OSD appear.

Note :No matter the indication of last row's OSD is

indicate "ABOVE" or "BELOW", the important

thing is OSD change to "STABLE" and "IN".

WHITE BAL-

ANCE BACK-

GROUND

C BUS

ADJUSTMENT

(AV-IN

SIGNAL)

1. Receive the internal RF monoscope pattern.

2. Make the picture normal with the remote controller.

3. Connect the beam ammeter between terminal of

R623.

4. Coarsely confirm the beam current to approx. 1.7mA.

5. Receive the window pattern with AV input.

6. With the data of DRI-GS and DRI-BS, adjust the

color temperature of the 50% white.

7. Adjust the right dark area of the window to 12300K

with CUT-RS and CUT-GS.

8. Go back to 50% white area to check colour tem-

perature, if out of range, please go back to step (6).

Note 1: Apply this adjustment after aging 30 min

or more with the beam current 1700

50µA.

(On the white or green monocolor screen)

2:The colour temperature is based on the

shipment destination as shown in Table

2.1 at page 6-1. 3: Adjust DRI-GC/GW, DRI-BC/BW , CUT-RW/C

and CUT-GW/C as following DATA, after finis-

hing DRI-BS and DRI-GS DATA adjustment.

CUT-RW/C = CUT-RS

CUT-GW/C = CUT-GS

DRI-RW = 32 (FIXED), DRI-RS = 32 (FIXED)

DRI-BC = "DRI-BS"

(For 7500°K, 12300°K, 17000°K and

18000°K Condition)

2 7500K X : 0.300 Y : 0.310

18000K X : 0.255 Y : 0.255

17000K X : 0.261 Y : 0.261

12300K X : 0.272 Y : 0.275

( With Monolta color thermometer

CA-100)

* 12300°K

DRI-GW = "DRI-GS" - 7

DRI-BW = "DRI-BS" - 7

DRI-GC = "DRI-GS" - 7

DRI-RC = 25

* 17000°K & 18000°K

DRI-GW = "DRI-GS" - 7

DRI-BW = "DRI-BS" - 7

DRI-GC = "DRI-GS" - 5

DRI-RC = 27

* 7500°K

DRI-GW = "DRI-GS" - 5

DRI-BW = "DRI-BS" - 5

DRI-GC = "DRI-GS" - 7

DRI-RC = 25

15-2

15-1

+ 33 hidden pages
