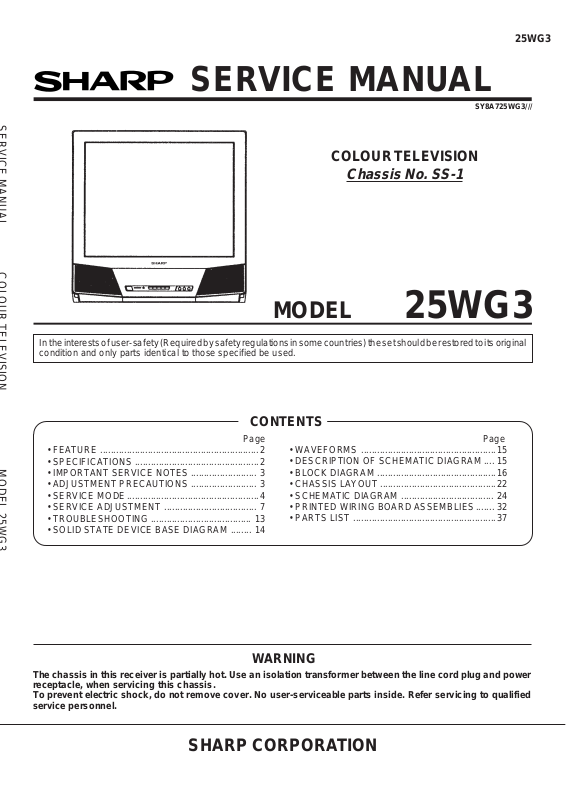

SERVICE MANUAL

SY8A725WG3///

COLOUR TELEVISION

Chassis No. SS-1

25WG3

MODEL

In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its original condition and only parts identical to those specified be used.

25WG3

CONTENTS

Page

• FEATURE ............................................................2

• SPECIFICATIONS ...............................................2

• IMPORTANT SERVICE NOTES ......................... 3

• ADJUSTMENT PRECAUTIONS ......................... 3

• SERVICE MODE..................................................4

• SERVICE ADJUSTMENT ................................... 7

• TROUBLESHOOTING ...................................... 13

• SOLID STATE DEVICE BASE DIAGRAM ........ 14

• WAVEFORMS ...................................................15

• DESCRIPTION OF SCHEMATIC DIAGRAM.... 15

• BLOCK DIAGRAM .............................................16

• CHASSIS LAYOUT ............................................22

• SCHEMATIC DIAGRAM ................................... 24

• PRINTED WIRING BOARD ASSEMBLIES....... 32

• PARTS LIST ......................................................37

Page

W ARNING

The chassis in this receiver is partially hot. Use an isolation transformer between the line cord plug and power receptacle, when servicing this chassis. To prevent electric shock, do not remove cover. No user-serviceable parts inside. Refer servicing to qualified service personnel.

SHARP CORPORATION

25WG3

SPECIFICATIONS

Convergence........................................................................Self Convergence System

FEATURE

Focus ...............................................................Bi-Potential, Uni-Potential Electrostatic

Sweep Deflection ............................................................................................Magnetic

Intermediate Frequency

Picture IF Carrier........................................................................................38.9 MHz

Sound IF Carrier ..............................................................................33.16/33.4 MHz

Colour Sub-Carrier ...................................................................................34.47 MHz

Power Input .................................................................... AC 110-240V, 50/60Hz (Auto)

Power Consumption ............................................................................................. 130W

Audio Power Output Rating ..................................................................7.5 W x 2(Max)

Speaker

Size ......................................................................................... 10 cm Round x 2pcs.

Voice Coil Impedance...................................................................... 8 ohm at 400 Hz

Aerial Input Impedance ................................................................. 75 ohm Unbalanced

Receiving Channels

PAL-B/G

VHF .......................................................... E2(44.25MHz) thru E12(463.25 MHz)

UHF..................................................... E21(471.25 MHz) thru E69(863.25 MHz)

Dimensions (Approx.)........................................574.0 (W) x 564.5 (H) x 499.0 (D) mm

Weight (Approx.) .................................................................................................. 28 kg

Cabinet Material ................................................................................................Plastics

Specifications are subject to change without notice.

• PAL B/G, AV NTSC System

• Auto Search Tuning System

• 100-CH Program Memory

• AV Stereo sound

• High Contrast Picture (Black Stretch Circuit)

• CATV (Hyper Band) Ready<Used Frequency Synthesizer Tuner>

• 7 Mode Surround system

• Picture Signal Improvement Circuit

• 2 Language OSD

• On Timer/ Sleep Timer/ Reminder Timer

• Picture Noise Reduction Circuit

• Blue Back Noise Mute

• Front AV-In & Rear AV-In/Out Terminals

25WG3

C bus

ADJUSTMENT PRECAUTIONS

PROM is

C bus control)

put service mode. (Adjustment through the I

one by one.

data can be modified.

essor is put out of the service mode.

(1) Set the switch S1006 to the service mode position, and the microprocessor is

(2) Press the CH UP key on the remote controller to get ready to select the mode

(3) Press the CH DOWN key on the remote controller to select the modes re versely

(4) Using the VOLUME UP/ VOLUME DOWN key on the remote controller, the

(5) Set the switch S1006 to the normal mode (OFF) position, and the microproc-

switch. Initial values are automatically preset only when a new E

used (judgement with the first 4 bytes).

(1) Set the switch S1006 to the service mode position and turn on the main power

(2) The initial data are preset as listed in page 5~6.

(3) Make sure the data need modify or not (Initial data).

FIRST TIME, make sure to set the switch S1006 to the service mode position

first and then turn on the main power switch (See 2-(1) above).

This model’s setting are adjusted in two different ways: through the I

control and in the conventional analog manner. The adjustments via the I

control include preset-only items and variable data.

1. Calling the service mode by the microprocessor.

2. Factory Presettings.

IMPORTANT

Note: Once the chassis has been put together and ready to be POWER ON for the

IMPORTANT SERVICE NOTES

Maintenance and repair of this receiver should be done by quali-

fied service personnel only.

discharging the high voltage completely.

1. Picture tube in this receiver employs integral implosion protection.

2. Replace with tube of the same type number for continued safety.

3. Do not lift picture tube by the neck.

SERVICING OF HIGH VOL TAGE SYSTEM AND PICTURE

TUBE

When servicing the high voltage system, remove static charge from it by con-

necting a 10k ohm Resistor in series with an insulated wire (such as a test

probe) between picture tube dag and 2nd anode lead. (AC line cord should be

disconnected from AC outlet.)

4. Handle the picture tube only when wearing shatterproof goggles and after

X-RAY

than 32.0 kV (at beam 0µA) for the set.

This receiver is designed so that any X-Ray radiation is kept to an absolute

minimum. Since certain malfunctions or servicing many produce potentially

hazardous radiation with prolonged exposure at close range, the f ollowing pre-

cautions should be observed:

1. When repairing the circuit, be sure not to increase the high voltage to more

2. To keep the set in a normal operation, be sure to make it function on 29.0 ±

1.5kV (at beam 1300µA) in the case of the set. The set has been factory-

may cause excess X-Ray radiation.

Adjusted to the above mentioned high voltage.

3. Do not substitute a picture tube with unauthorized types and/or brands which

BEFORE RETURNING THE RECEIVER

Before returning the receiver to the user, perform the following safety

checks.

hardware is not lodged between the chassis and other metal parts in the

receiver.

fishpapers, cabinet backs, adjustment and compartment covers or

shields, isolation resistor- capacity networks, mechanical insulators etc.

1. Inspect all lead dress to make certain that the leads are not pinched or that

2. Inspect all protective device such as non-metallic control knobs, insulating

25WG3

1.) In the Service Mode, Key is used to select the mode in the following order.

AKB/BKGD

MODE

50Hz ADJ

MODE

EAST-WEST

MODE

VERTICAL

MODE

NVM

MODE

60Hz ADJ

MODE

OPTION ADJ

MODE

AV/IGR

MODE

SUB ADJ

MODE

AGC/VCO

MODE

FORWARD: CH UP

REVERSE: CH DOWN

AKB/BKGD MODE

. WHITE POINT (G)

. WHITE POINT (B)

. AKB ON/OFF

KEY

WHITE-POINT(G)

WHITE-POINT(B)

AKB

2 KEY

3 KEY

8 KEY

DOWN

5 KEY

6 KEY

ON/OFF

In the direction of arrow: CH UP key

In the opposite direction : CH DOWN key

* The character in parentheses appear on the on-screen display.

50Hz ADJ MODE

V-SLOPE (V-SLOPE)

H-SHIFT 50Hz (H-SIFT50)

V-SHIFT 50Hz (V-SIFT50)

EAST-WEST ADJ MODE

WIDTH (WIDTH)

PARABORA/WIDTH (PARA)

CORNER PARABORA (CORNER)

TRAPEZIUM (TRAPE)

In the direction of arrow: CH UP key

In the opposite direction: CH DOWN key

* The character in parentheses appear on the on-screen display.

VERTICAL ADJ MODE

V-AMP (V-AMP)

S-CORRECTION

(S-COR)

SUB ADJ MODE

SUB CONTRAST

(SUB CON)

SUB COLOUR

(SUB COL)

SUB BRIGHTNESS

(SUB BRI)

SUB TINT (SUB TIN)

60Hz ADJ MODE

H-SHIFT 60 (H-SIFT60)

V-SHIFT 60 (V-SIFT60)

AV/IGR ADJ MODE

RF SUB VOLUME

(RF SUB VOL)

SP SUB VOLUME

(SP SUB VOL)

AV TINT (AV TINT)

AV SHARPNESS

(AV SHARP)

IGR BALANCE

(IGR LEVEL)

IGR SEPARATION

(IGR STEREO)

AGC/VCO ADJ MODE

AGC (AGC)

AUTO VCO (AUTO VCO)

MANUAL VCO (MANUAL VCO)

OPTION ADJ MODE

SECAM ON/OFF(SECAM)

M ON/OFF (M)

NICAM AUTO / I / B/G (NICAM)

PSI ON/OFF (PSI)

Y-DELAY (Y-DELAY)

PIP ON/OFF (PIP)

TUNER SHARP/MURATA(TUNER)

TEMP (TEMP)

LANGUAGE (LANG)

TDA7429 ON /OFF (TDA7429)

MONOBILIGUA ON/OFF(MONOBI)

AV2 ON/OFF (AV2)

S-SYSTEM (S-SYS)

C-SYSTEM (C-SYS)

FAVOURITE CH (FAVOURITE)

SERVICE MODE

25WG3

MCL1 (R/C CODE =117) MCL2 (R/C CODE=169)

PROM.

MCL1 & MCL2 CHANNEL SETTING

1). In service mode, After execute select POS 1, setting the following data in

PROM

1 48.25 AUTO 1 46.25 AUTO

2 62.25 AUTO 2 64.25 AUTO

3 77.25 AUTO 3 86.25 AUTO

CH-NO Fv (MHz) SOUND SYS CH-NO Fv (MHz) SOUND SYS

4 175.25 AUTO 4 95.25 AUTO

5 182.25 AUTO 5 138.25 AUTO

6 183.25 AUTO 6 175.25 AUTO

7 191.25 AUTO 7 182.25 AUTO

8 196.25 AUTO 8 189.25 AUTO

9 210.25 AUTO 9 196.25 AUTO

10 224.25 AUTO 10 209.25 AUTO

11 471.25 AUTO 11 216.25 AUTO

12 487.25 AUTO 12 SKIP OFF FREE

13 503.25 AUTO 13 SKIP OFF FREE

14 575.25 AUTO 14 SKIP OFF FREE

15 599.25 AUTO 15 SKIP OFF FREE

16 621.25 4.5 M 16 SKIP OFF FREE

17 639.25 AUTO 17 SKIP OFF FREE

18 703.25 AUTO 18 527.25 AUTO

19 735.25 AUTO 19 847.25 AUTO

20 767.25 AUTO 20 48.25 AUTO

21 815.25 AUTO 21 175.25 AUTO

22 855.25 AUTO 22 210.25 AUTO

23 855.25 AUTO 23 224.25 AUTO

24 55.25 4.5 M 24 575.25 AUTO

25 83.25 4.5 M 25 599.25 AUTO

26 183.25 4.5 M 26 767.25 AUTO

27 193.25 4.5 M 27 183.25 4.5 M

28 217.25 4.5 M 28 193.25 4.5 M

29 471.25 4.5 M 29 112.25 AUTO

30 477.25 4.5 M 30 168.25 AUTO

31 693.25 4.5 M 31 SKIP OFF FREE

32 SKIP OFF FREE 32 294.25 AUTO

33 112.25 AUTO 33 463.25 AUTO

34 169.25 AUTO 34 174.95 AUTO

35 SKIP OFF FREE 35 175.55 AUTO

36 294.25 AUTO 36 SKIP OFF FREE

37 463.25 AUTO 37 SKIP OFF FREE

38 SKIP OFF FREE 38 SKIP OFF FREE

39 647.25 AUTO 39 SKIP OFF FREE

PROM ITEMS DATA LENGTH INITIAL DATA REMARK

AKB ON/OFF ON

WHITE POINT (R) 0~ 63 32

WHITE POINT (G) 0~ 63 32

WHITE POINT (B) 0~ 63 32

V-SLOPE 0~ 63 25

H-SHIFT 50Hz 0~ 63 25(TV)

V-SHIFT 50Hz 0~ 63 32 (TV)

WIDTH 0~ 63 48

INITIAL SETTING OF E

PARA 0~ 63 36

CORNER 0~ 63 28

TRAP 0~ 63 32

V-AMP 0~ 63 17

S-COR 0~ 63 15

H-SHIFT 60Hz 0~ 63 31(TV)

V-SHIFT 60Hz 0~ 63 26(TV)

AGC 0~ 63 15

AUTO VCO 0~127 NG 55

MANUAL VCO 0~127 55

SUB-CONTRAST 0~ 63 63

SUB COLOUR 0~ 63 19

SUB BRIGHT 0~ 63 31

SUB TINT 0~ 63 27

RF SUB VOLUME 0~ 63 35

SP SUB VOLUME 0~ 63 55

AV TINT 0~ 63 00

AV SHARP 0~ 63 00

IGR LEVEL 0~10 05

IGR STEREO 0~ 31 24

SECAM ON/OFF ON

M ON/OFF ON

NICAM AUTO/BG/I AUTO

PSI ON/OFF ON

Y-DELAY 0~ 15 09(TV), 09(AV)

PIP ON/OFF OFF

TUNER SHARP/MURATA SHARP

TEMP 0~1 0

LANG ON/OFF ON

TDA7429 ON/OFF ON

MONOBI ON/OFF ON

AV2 ON/OFF ON

S-SYS ON/OFF ON

C-SYS ON/OFF ON

FAVOURITE CH ON/OFF ON

NVM - -

25WG3

1 SKIP POS 0 ON ->

2 SKIP POS 1 ~99 OFF ->

3 AFT ON ->

4 COLOUR SYSTEM AUTO ->

5 SOUND SYSTEM BG BG

6 IGR FORCE FM OFF ->

7 IGR STEREO STEREO ->

8 IGR BILINGUAL MAIN ->

9 NICAM FORCE FM OFF ->

10 NICAM BILINGUAL M1 ->

11 LAST POWER ON ->

12 LAST TV/AV TV ->

13 DIGIT 2 DIGIT ->

14 LANGUAGE ENGLISH THAI

NO ITEMS SETTING 1 SETTING 2

SHIPPING SETTING IX3097CEN2

15 BLUE BACK ON ->

16 AV SELECT ON/OFF OFF ->

17 AV SELECT STD/GAME STD ->

18 LAST POSITION 1 ->

19 LAST FB POSITION 1 ->

20 VOLUME 0 (MIN) ->

21 BALANCE 0 (L,R) ->

22 BASS 0 ->

23 MIDDLE 0 ->

24 TREBLE 0 ->

25 SURROUND OFF ->

26 CONTRAST 63 ->

27 COLOUR 31 ->

28 BRIGHTNESS 31 ->

29 TINT 31 ->

30 SHARPNESS 31 ->

31 TIMER CLEAR ->

32 SAVE OFF ->

33 PICTURE NR OFF ->

34 INSET TINT 31 ->

35 PIP DISPLAY POS SE ->

36 PIP SIZE L ->

37 PIP LAST POS 1 ->

38 PIP LAST TV/AV TV ->

39 FREEZE OFF ->

40 MONORAL BILINGUAL S 1 ->

MCL1 (R/C CODE =117) MCL2 (R/C CODE=169)

40 663.25 AUTO 40 SKIP OFF FREE

41 679.25 AUTO 41 SKIP OFF FREE

42 174.95 AUTO 42 SKIP OFF FREE

43 175.55 AUTO 43 SKIP OFF FREE

CH-NO Fv (MHz) SOUND SYS CH-NO Fv (MHz) SOUND SYS

44 SKIP OFF FREE 44 SKIP OFF FREE

SKIP OFF FREE SKIP OFF FREE

45 SKIP OFF FREE 45 SKIP OFF FREE

99 SKIP OFF FREE 99 SKIP OFF FREE

25WG3

OSCILLOSCOPE

TV SET

BIAS BOX : ABOUT 4.5V

P201

to get 7.75 ±

0.1Vrms.

WAVEFORM OR OTHERS

Audio signal: 400 Hz, 100% modulated

(50kHz dev.)

Out (L or R) terminal. (Terminate with

10k ohm impendence).

mode.

using Volume UP/DOWN key, so that

the 400Hz sine wave be 1.76Vp-p.

ADJUSTMENT CONDITION/PROCEDURE

1.Receive "PAL COLOUR BAR" signal.

2.Connect the Oscilloscope to the Audio

3.Call the "RF SUB VOL" in SERVICE

4.Increase or decrease "RF SUB VOL" by

C BUS CONTROL)

ADJUSTMENT POINT

1 RF SUB VOLUME

*Note : Terminated 8 ohm

Tolerence: 1.76 Vp-p ± 0.10 Vp-p.

5.Receive "COLOUR BAR" signal.

2 SP SUB VOLUME

(L Channel)

Audio signal: 400Hz, 100%modulation.

(50kHz dev.)

(1 R, 2 GND, 3 GND, 4 L, 5 NIL, 6 NIL

6.Connect Dummy load* to P3304.

7.Connect VTVM’s probe to the P3304.

C BUS CONTROL) (I

7 NIL 8 NIL)

mode.

8.Call the "SP SUB VOL" in the SERVICE

9.Increase or decrease "SP SUB VOL" by

using Volume UP/DOWN key, so that

the VTVM should read the value*.

and make sure the sound is heard from

the speakers. Then put the unit in the

no-signal state.

10. Receive the 400Hz modulated signal.

11. Turn up the volume control to Maximum

CHECKING

3 NOISE MUTE

minimum.

12. Be sure that the sound mute is effective.

13. Finally turn down the volume control to

Signal Strength: 60 ~ 70 dB

WAVEFORM OR OTHERS

COLOUR BAR" signal.

the Channel frequency displays on

screen is 210.20MHz, skip (3), (4) & (5)

steps.

"DIRECT FREQ IN".

ADJUSTMENT CONDITION/PROCEDURE

1. Receive E-10CH (210.25MHz) "PAL

SERVICE ADJUSTMENT

ADJUSTMENT POINT

VCO, AND AGC ADJUSTMENT SOUND ADJUSTMENT

2.Call "AUTO VCO" in SERVICE mode. If

C BUS CONTROL)

VCO ADJUSTMENT

3. Press FUNCTION button to call

Once finishing, "OK" message display

on screen.

Receive E-12CH (PAL COLOR BAR) signal.

Signal strength : 57 ± 1 dB ( 75ohm open)

(Tuner’s AGC Terminal) as shown in

4. Push "2", "1", "0", "2", "0".

5. Then Press FUNCTION again.

6. Press Volume UP to run "AUTO VCO".

8.Connect the oscilloscope to P201

C BUS CONTROL)

AGC ADJUSTMENT

Figure 1.

Figure 1

9. Call "AGC" in SERVICE mode.

Volume so that obtain the highest

Voltage.

direction until the voltage drops 0.1V ~

0.3V lower than the highest level.

~ 67dBµV, and make sure there is no

noise.

10. Increase or decrease "AGC" by using

11. Press Volume slowly in the opposite

12. Change the antenna input signal to 63

13. Turn up the input signal to 90 ~ 95 dBµV

to be sure that there is no cross

modulation beat.

25WG3

4-pole Magnet

6-pole Magnet

CRT NECK

Lacquer

Purity Magnet NECK

BGR

RGB

BGR

BG R

RGB

Wedge "a"

Wedge "b"

Lacquer

Wedge "c"

About 100˚

Figure a

WAVEFORM OR OTHERS

PATTERN" signal.

NORMAL mode.

opening angle in order to superpose the

blue and red colours.

opening angle in order to superpose the

green colour over the blue and red

colours.

the screen in the following steps.

ADJUSTMENT CONDITION/PROCEDURE

1. Receive the "CROSSHATCH

2. Using the remote controller, call

(Static convergence)

1. Turn the 4 - pole magnet to a proper

2. Turn the 6 - pole magnet to a proper

CONVERGENCE ADJ.

(To be done after the

ADJUSTMENT POINT

CONVERGENCE ADJUSTMENT

purity adjustment.)

(Dynamic convergence)

1. Adjust the convergence on the fringes of

Figure b

and swing the deflection coil

upward.

and "b" and swing the

deflection coil downward.

a) Fig. a :Drive the wedge at point "a"

b) Fig. b :Drive the wedge at point "a"

c) Fig. c : Drive the "c" wedge deeper

Figure c

and swing the deflection coil

rightward.

and swing the deflection coil

leftward.

d) Fig. d :Drive the "b" wedge deeper

glass tape over them.

2. Fix all the wedges on the CRT and apply

3. Apply lacquer to the deflection yoke loc k

screw, magnet unit ( purity 4 - pole, 6 -

Figure d

pole magnets ) and magnet unit lock

screw.

Finally received the Red - only and Blue

- only signals to make sure there is no

other colours on the screen.

Figure 3

Figure 4

Figure 2-1

WAVEFORM OR OTHERS

Adjust the beam current to ~800µA.

degausing coil.

magnetic field and keep the static

convergence roughly adjusted.

Fig.2-1 through the microscope. Adjust

ADJUSTMENT CONDITION/PROCEDURE

1. Receive the GREEN -ONLY signal.

2. Orient the raster rotation to 0 eastward.

3. Degauss the CRT enough with the

4. Maintain the purity magnet at the zero

5. Observe the points a, b, as shown in

ADJUSTMENT POINT

PURITY ADJUSTMENT

1 PURITY ADJ.

Figure 2-2

the landings to A rank requirement.

Tightening torque : 108N ± 20N

(11Kgf ± 2Kgf)

meet the A rank requirements. If not,

6. Tighten up the deflection coil screws.

7. Make sure the CRT corners landing

Figure 2-3

Rank A (On the right of CRT)

after warming up the unit for 30

minutes or longer with a beam

current over 1000µA.

switch ( S 1006) then press

factory process R/C RGB key to

stick the magnet sheet to correct it.

Note: This adjustment must be done

Note: Set the service mode by service

Rank A (On the left of CRT)

Text Key "R.G.Cy" Key

can be directly use to

change to other colours

screen.

change to green only.

to change.

* For the following colour press colour key

25WG3

1 2 3 4 5

WAVEFORM OR OTHERS

SPEC: ± 1

SCANNING LINE

signal.

using Volume key so that the center line

ADJUSTMENT CONDITION/PROCEDURE

1.Receive the "MONOSCOPE PATTERN"

2.Call the "V-SLOPE" in SERVICE mode.

3.Increase or decrease "V-SLOPE" by

C BUS CONTROL)

ADJUSTMENT POINT

HORIZONTAL, VERTICAL, DEFLECTION LOOP ADJUSTMENT.

1 V-SLOPE ADJ.

SPEC: ± 2mm

of picture matches with the edge of

PATTERN" signal.

blanking line.

1.Receive the 50Hz "MONOSCOPE

2.Call the "V-SIFT 50" in SERVICE mode.

C BUS CONTROL)

2 V-SHIFT 50

by using Volume UP/DOWN key to

adjust or align the screen center with

the CRT’s geometrical center.

PATTERN" signal.

by using Volume UP/DOWN key to

adjust or align the screen center with

the CRT’s geometrical center.

3.Increase or decrease the "V-SIFT 50"

4.Receive the 60 Hz "MONOSCOPE

5.Call the "V-SIFT 60" in SERVICE mode.

6.Increase or decrease the "V-SIFT 60"

C BUS CONTROL)

V-SHIFT 60

OVER SCAN: 8.5% ± 1.5 %

signal.

1. Receive the "MONOSCOPE PATTERN"

2. Call the "V-AMP" in SERVICE mode.

C BUS CONTROL)

3 V-AMP

using the volume UP/DOWN key to

adjust the Vertical size until it is 8.5%

3. Increase or decrease the "V-AMP" by

SPEC: ± 2mm

PATTERN" signal.

using the V olume UP/DO WN key to adjust

or align the left, and right sides of screen

overscan.

1. Receive the 50Hz "MONOSCOPE

2. Call the "H-SIFT 50" IN SERVICE MODE.

C BUS CONTROL)

are equal overscan size.

3.Increase or decrease the "H-SIFT 50" by

4 H-SHIFT 50

PATTERN" signal.

using the V olume UP/DO WN key to adjust

or align the left and right sides of screen

are equal overscan size.

4. Receive the 60Hz "MONOSCOPE

5. Call the "H-SIFT 60" IN SERVICE MODE.

6.Increase or decrease the "H-SIFT 60" by

C BUS CONTROL)

H-SHIFT 60

sure that this adjustment

with the initial bus data

"White Point (G)" &

WAVEFORM OR OTHERS

*Before adjustment , make

ADJUSTMENT CONDITION/PROCEDURE

1.Switch TV to VIDEO MODE, Blue Back:

CRT Cut - OFF ADJ.

ADJUSTMENT POINT

CUT OFF , WHITE BALANCE, SUB - BRIGHT, & FOCUS ADJUSTMENT.

"White Point (B)" are 32.

OFF, Without Video Signal.

(Use a 10:1 probe)

Range: 500mV/div

Sweep Time: 5ms/div

2.Connect the oscilloscope to TP851.

C BUS CONTROL) (I

Press "DC" mode

NORMAL mode.

signal reach 2.5Vdc ± 0.1Vdc.

3.Using the remote controller, call

4.Adjust Screen VR so that the tip of

Figure 5

Note : White Point (G)

UP " 2 " KEY

DOWN " 5 " KEY

White Point (B)

signal.

5.Receive the MONOSCOPE PATTERN

6.Call the "BKGD" in SERVICE mode.

7.Adjust "White Point (G)", "White Point

C BUS CONTROL)

2 White Balance ADJ.

y=275

UP " 3 " KEY

DOWN " 6 " KEY

As the above data can be

UP / DOWN.

*12300k x=272

(Minolta Colour Analyzer

(B)" data to have a colour temperature

of 12300k (White) Note.

CA-100)

8.Receive the "CROSSHATCH

3 SUB- BRIGHT ADJ.

PATTERN" Signal.

the No. 2 line inside the window area

will disappear.

9.Call the "SUB BRI" in SERVICE mode.

10.Adjust the "SUB-BRI" bus data, so that

C BUS CONTROL) (I

Figure 6

warm up the unit for 30 minutes or

longer at a beam current of 1200 ~

1300µA.

Signal.

TP601 (-) and TP602 (+). (Full Scale:

3.0 mA Range).

11.Receive the "MONOSCOPE PATTERN"

12.Press P-NORMAL key.

Note: Before starting this adjustment,

13.Connect the DC Milliammeter between

CHECK

4 BEAM CURRENT

14.Beam current Must be 1200 ± 100µA.

Figure 7

Receive the "MONOSCOPE PATTERN"

signal.

Using the remote control, call NORMAL

mode.

Adjust the FOCUS control so that the shaded

area of screen be in optimal focus.

5 FOCUS ADJ.

25WG3

RMg100% WWY

Same level

same distance

Figure 10

WAVEFORM OR OTHERS

signal.

Switch on service mode then press

channel up/down key to select Y DELAY

mode.

suitable number so that luminance delay

similar to color delay, shown as fig. 10.

ADJUSTMENT CONDITION/PROCEDURE

(1) Receive the PAL B/G PHILIPS pattern

(2)

(3) Press volume up/down key to select a

(4)The Y DELAY data is between 6~8.

(5) Switch off the service mode.

C DATA)

ADJUSTMENT POINT

Y DELAY ADJUSTMENT

1 Y DELAY

WAVEFORM OR OTHERS

Volume UP/DOWN key to "OFF".

ADJUSTMENT CONDITION/PROCEDURE

1. Call "SECAM" in SERVICE mode.

2. Switch the "SECAM" by using the

ADJUSTMENT POINT

OPTION ADJUSTMENT

1 SECAM SETTING

UP/DOWN key to "OFF".

1. Call "M" in SERVICE mode.

2. Switch the "M" by using theVolume

2 M SETTING

Volume UP/DOWN key to "OFF".

1. Call "S-SYS" in SERVICE mode.

2. Switch the "S-SYS" by using the

3 S-SYS SETTING

Volume UP/DOWN key to "OFF".

1. Call "C-SYS" in SERVICE mode.

2. Switch the "C-SYS" by using the

4 C-SYS SETTING

Figure 8

WAVEFORM OR OTHERS

V-LINEARITY: ± 5% Max

signal.

using the Volume UP/DOWN key to get

the best LINEARITY.

VERTICAL LINEARITY.

overscan 8.5%. Readjust or align "V-

SIFT" to match the screen center with the

CRT’s geometrical center.

ADJUSTMENT CONDITION/PROCEDURE

1. Receive the "CROSSHA TCH PATTERN"

2. Call the "S-COR" IN SERVICE mode.

3. Increase or decrease the "S-COR" by

4.Adjustment with S-COR: OVERALL

5. Readjust the "V-AMP" to make the

C BUS CONTROL)

ADJUSTMENT POINT

HORIZONTAL, VERTICAL, DEFLECTION LOOP ADJUSTMENT.

5 S-COR

WAVEFORM OR OTHERS

mode.

(Red cathode).

Range: 20 V/Div (Using 10:1 Probe)

Sweep: 20 µ sec/Div

adjustment mode. Adj SUB-COL bus

data, so that the 75% White & Red

portions of PAL Color Bar be at the

ADJUSTMENT CONDITION/PROCEDURE

1. Receive the "PAL Color Bar" signal.

2. Using remote controller, call NORMAL

3. Connect the oscilloscope to TP852

C BUS CONTROL)

ADJUSTMENT POINT

PAL CHROMA ADJUSTMENT

1 SUB COLOUR ADJ.

4. Using the R/C call "SUB COL"

same level.

5.Clear the adjustment mode.

WAVEFORM OR OTHERS

signal.

ADJUSTMENT CONDITION/PROCEDURE

1. Receive the AV NTSC 3.58 Colour Bar

2. Connect the oscilloscope to TP853.

C BUS CONTROL)

ADJUSTMENT POINT

NTSC CHROMA ADJUSTMENT

1 AV-TINT

Figure 9

TINT set to 00 at

SERVICE mode.

Note: Be sure that AV

Range: 500mV/Div

Sweep time: 20 µ sec/Div

Adjust the "SUB TIN" bus data so that

the FIRST AND SECOND portions of

the colour Bar are SAME level shown

in Figure 9.

3. Set the "SUB-TIN" mode at service mode.

WAVEFORM OR OTHERS

SETTING CONDITION

signal.

PICTURE control setting with R/C,

select the CONTRAST.

by using the VOLUME UP / DOWN key.

or not.

1. Receive the "MONOSCOPE PATTERN"

2. Press the CH UP/DOWN key for

3. Increase or decrease the CONTRAST

4. Check whether the CONTRAST is OK

signal.

1. Receive the "COLOUR BAR PATTERN"

2. Press the CH UP / DOWN key for

PICTURE control setting with the R/C,

select the COLOUR.

using the VOLUME UP / DOWN key.

not.

3. Increase or decrease the COLOUR by

4. Check whether the COLOUR is OK or

signal.

1.Receive the "MONOSCOPE PATTERN"

2.Press the CH UP / DOWN key for

PICTURE control setting with the R/C,

select the BRIGHTNESS .

BRIGHTNESS by using the VOLUME

UP / DOWN key.

or not.

3.Increase or decrease the

1. Receive the "MONOSCOPE PATTERN"

4.Check whether the BRIGHTNESS is OK

signal.

2. Press the CH UP / DOWN key for

signal.

PICTURE control setting with the R/C,

select the SHARPNESS.

by using the VOLUME UP / DOWN key.

or not.

3. Increase or decrease the SHARPNESS

1. Receive the "MONOSCOPE PATTERN"

4. Check whether the SHARPNESS is OK

select WHITE TEMP.

2. Press the CH UP / DOWN key for

3. Increase or decrease the WHITE TEMP

by using the VOLUME UP / DOWN key.

or not.

4. Check whether the WHITE TEMP is OK

25WG3

CHECKING POINT

CHECKING OPERATION (VIDEO & AUDIO)

1 CONTRAST

WAVEFORM OR OTHERS

signal (100% White Color Bar Sound

400 Hz 100% Modulation)

ohm impendence. Make sure the output

is as specified (1.0 Vp-p ± 3 dB)

ADJUSTMENT CONDITION/PROCEDURE

1. Receive the "PAL COLOUR BAR"

2. Terminate the Video output with a 75

3. Terminate the Audio output with a 10

2 COLOUR

Kohm impendence. Make sure the O/P

is as specified (1.76 Vp-p ± 3 dB).

controller, make sure that the modes

1. Using the TV/AV key on the remote

3 BRIGHTNESS

WAVEFORM OR OTHERS

(AV2).

change in order of TV, AV1, AV2 & TV

again and that the video & audio output

are according to the input terminal for

each mode.

channel to AV2 automatically.

1. Connect Video signal to FRONT AV

2. Make sure Channel switch from other

ADJUSTMENT CONDITION/PROCEDURE

4 SHARPNESS

signal.

1. Receive the "MONOSCOPE PATTERN"

ground, make sure the protector ON

2. Set CONTRAST MAX.

3. Set BRIGHT MAX.

4. While the R or B or G Cathode short to

5 WHITE TEMP

WAVEFORM OR OTHERS

Capacitor short testing in + B line,

check all possible damaged

signal.

cathode (D608).

2. Connect output of Bias Box to D601

3. Set voltage of Bias Box to 20V and

make sure the protector is work.

and switch to standby mode.

ADJUSTMENT CONDITION/PROCEDURE

1. Receive the "MONOSCOPE PATTERN"

components on +B line.

1. Once finish rectified Electrolytic

A/V INPUT/OUTPUT CHECKING

1 VIDEO & AUDIO

OUTPUT CHECKING

ADJUSTMENT POINT

INPUT CHECKING

2 VIDEO & AUDIO

3 AUTO SELECT

PROTECTOR OPERATION CHECKING

BEAM PROTECTOR

ADJUSTMENT POINT

PROTECTOR OPERATION CHECKING

2 H, V PROTECTOR

OTHER PROTECTOR 3

25WG3

WAVEFORM OR OTHERS

If nothing is display mean

contrast, colour, bright, tint,

sharpness are all in normal

setting.

SETTING CONDITION

BASS: CENTER

MIDDLE: CENTER

TREBLE: CENTER

BALANCE: CENTER

condition to normal . When the

NORMAL key is pressed, all the initial

sound control settings will be preset to

normal setting as listed below:

1. Receive the MUSIC SOUND SIGNAL.

2. Press NORMAL key to set the sound

SURROUND control setting with the R/C.

Mode as follows, MOVIE/DISCO/POP/

ROCK/CLASSIC/SPORTS/SIMULATED/

OFF.

1. Receive the MUSIC SOUND SIGNAL.

2. Press the CH UP / DOWN key for

3. Press Volume Up to switch Surround

PATTERN" signal. Press the SYSTEM

key to set the COLOUR SYSTEM

MODE to AUTO mode. Check whether

1. Receive the "PAL COLOUR BAR

4. Make sure each mode is working properly.

the colour of the PAL Colour Bar signal

is OK or not.

Receive the "NTSC 4.43 COLOUR BAR"

signal. Press the SYSTEM key to set the

COLOUR SYSTEM mode to AUTO mode.

Check whether the colour of the N4.43

Colour Bar signal is OK or not.

Receive the "NTSC 3.58 COLOUR BAR"

signal. Press the SYSTEM key to set the

COLOUR SYSTEM mode to AUTO

mode. Check whether the colour of the

N3.58 Colour Bar signal is OK or not.

mode as follows, SA VE/ A V SELECT/ NR/

BLUE BACK/OSD.

make sure each mode is working

properly.

1.Press FUNCTION key to select each

2.Press Volume Up to switch each mode,

make sure the sound is heard from the

speakers. Then put the unit in no signal

state.

1. Receive "PAL COLOUR BAR" signal.

2. Turn up the volume control to maximum,

3. Be sure that the sound mute is effective.

4. Finally turn down the volume of CTV to

control setting with the R/C, select

minimum.

1. Receive "DUAL SOUND" signal.

2. Press CH UP/DOWN key for SOUND

BILINGUAL.

SOUND 1 & SOUND 2.

are okay separately or not.

3. Press VOLUME UP/DOWN to select

4. Check whether SOUND 1 & SOUND 2

CHECKING POINT

12 NORMAL

WAVEFORM OR OTHERS

If nothing is display mean

contrast, colour, bright, tint,

sharpness are all in normal

setting.

SETTING CONDITION

signal.

condition to normal . When the

NORMAL key is pressed, all the initial

1. Receive the "COLOUR BAR PATTERN"

2. Press NORMAL key to set the picture

13 SURROUND

Contrast: MAX.

Colour: CENTER

Brightness: CENTER

Tint: CENTER

Sharpness: CENTER

picture control settings will be preset to

normal setting as listed below:

14 COLOUR SYSTEM

SOUND control setting with the R/C,

All Ch (1~99) will have an OSD display of

the channel number in green colour under

AFT ON condition.

1. Receive the MUSIC SOUND SIGNAL.

2. Press the CH UP / DOWN key for

CHECKING

15 FUNCTION

select the BASS.

using the VOLUME UP / DOWN key.

frequency) is OK or not.

3. Increase or decrease the BASS by

4. Check whether the BASS (low

control setting with the R/C, select the

MIDDLE.

using the VOLUME UP / DOWN key.

frequency) is OK or not.

1.Receive the MUSIC SOUND SIGNAL.

2. Press the CH UP / DOWN ke y for SOUND

3.Increase or decrease the MIDDLE by

4.Check whether the MIDDLE (MIDDLE

16 NOISE MUTE

control setting with the R/C, select the

TREBLE.

using the VOLUME UP / DOWN key.

1.Receive the MUSIC SOUND SIGNAL.

2. Press the CH UP / DOWN ke y for SOUND

3.Increase or decrease the TREBLE by

4.Check whether the TREBLE (HIGH

17 BILINGUAL

control setting with the R/C, select the

BALANCE.

speaker BALANCE by using the

frequency) is OK or not.

1.Receive the MUSIC SOUND SIGNAL.

2. Press the CH UP / DOWN ke y for SOUND

VOLUME UP / DOWN key.

3.Increase or decrease the left or right

4.Check whether the BALANCE of left and

right speakers is OK or not.

CHECKING POINT

CHECKING OPERATION (VIDEO & AUDIO)

6 NORMAL

DISPLAY

7 CH COLOUR

8 BASS

9 MIDDLE

10 TREBLE

11 BALANCE

25WG3

If bus error happen, the LED RED (pin (30) of IC1001 low) indicator starts flashing and the power is turned off.

The power key is still effective.

E PROM (S24C04A)

IC1002

1 chip IC (TDA8375)

IC201

Sound processor IC (TDA7429S)

IC302

PSI IC (TDA4671)

IC401

PLL (ST6HD64)

TU201

Check F750.

Blown out.

Replace the fuse.

The fuse is again

blown out.

Check T701 pin(1)

voltage (approx. 310V

at 220VAC).

Check D704, and

IC701, C730, C731.

Check R701, R703 and

D703.

Check D708 and D714.

Check IC703.

Check secondary main + B

(approx. 120V).

D1101 (power LED

green) turn ON ?

Check CRT connector

K1-K5 bias.

Check IC851

and peripheral

parts.

Check (K) wire

and plug.

Horizontal circuit oscillate?

Check IC201,

Q603, IC202

and Q601.

D1101 (power LED red)

turns on or turns

ON/OFF ?

Check the protector

circuit.

Bus error mode.

See Figure 1.

NO RASTER

Normal

Abnormal

YES

ON/OFF

Does the snow noise appear on

the picture tube at max contrast

and brightness control?

Snow noise increase.

Check the TUNER 33V.

Check IC203,

R227.

Check the tuner AGC.

Check IC201.

Check the

tuner circuit.

NO PICTURE

Normal

Abnormal

No snow noise.

Check the voltage of

S-convertor (12V).

Check IC301, Q202, Q204

and its related parts.

Check IC201 and

peripheral circuit.

Check R318, C303.

Does noise or signal appear at pin (27) of IC201?

Does noise or signal appear at pins (29), (30)

of IC302?

Does noise or signal appear at pins (2), (5)

of IC3301?

Check (FS) connector, IC3301 and their

peripheral circuit.

Check IC302 and peripheral circuit.

Does noise or signal appear at

pin (16) of IC201?

Check PIF circuit and

its related parts.

Does noise or signal

appear at pin (24) of

IC201?

YES

Normal

Abnormal

NO SOUND

Check IC201, IC301, IC302 and peripheral circuit.

Check IC706, C355, IC302 and peripheral circuit.

Check IC201, C603, C604, C609 and R605.

NEITHER VERTICAL NOR

HORIZONTAL SYNCHRONIZATION

TROUBLESHOOTING

Figure 1

25WG3

Readjust vertical size.

Vertical size is abnormal/non linearity.

Check R503, R504 and R505.

Check IC501 bias.

DEFECTIVE VERTICAL AMP.

AND VERTICAL LINEARITY

NO VERTICAL SCAN

Normal

Abnormal

Check R503, C502, R501, C503 and C501.

Check R638,R620 and R512.

Is some colour produced in B/W

broadcast reception?

Check IC201 and bias control circuit.

Correct and change the wrong parts.

Check IC801,IC401,

X801, X802, C802,

C803 and C804.

(PAL/NTSC)

(SECAM)

Check IC901 and its

related parts.

NO SPECIFIC COLOUR

YES

NO SPECIFIC COLOUR

(NO COLOUR SYNCHRONIZATION)

Normal

Abnormal

Check IC201, R802,

R803, R804 and R412.

Is the white balance

properly adjusted?

Readjust the white

balance.

The picture colour is yellow.

The picture colour is magenta.

The picture colour is cyan.

Check pins (2), (8) of IC851

and its adjacent circuit.

Check pins (7), (3) of IC851

and its adjacent circuit.

Check pins (1), (9) of IC851

and its adjacent circuit.

2SC3808

2SC1906

PX0003PE

TDA8351

SOLID STATE DEVICE BASE DIAGRAM

TOP VIEW

IX3097CE

TDA4671

TDA8375

S24C04A1

FX0024CE

TDA4665

TDA7429

2SK5832SK30AGKIA7045P

2SA1015

RC102M

2SA1037

SIDE VIEW

2SC2412

2SC1815

PX0274CE

2SC3886

PQ12RD

PQ09RD

PQ05RD

KIA7812P

KIA7805P

KIA7808P

DX0355CE

2SA1837

2SC4793

AN5275

STR6656

TDA6107

M51497L

WAVEFORMS

25WG3

DESCRIPTION OF SCHEMATIC DIAGRAM

SAFETY NOTES:

1. DISCONNECT THE AC PLUG FROM THE AC OUTLET BEFORE REPLACING PARTS.

2. SEMICONDUCTOR HEAT SINKS SHOULD BE REGARDED AS POTENTIAL SHOCK HAZARDS WHEN THE CHASSIS IS OPERATING.

IMPORTANT SAFETY NOTICE:

PARTS MARKED WITH " " ( )ARE IMPORTANT FOR MAINTANING THE SAFETY OF THE SET. BE SURE TO REPLACE THESE PARTS WITH SPECIFIED ONES FOR MAINTAINING THE SAFETY AND PERFORMANCE OF THE SET.

SERVICE PRECAUTION:

THE AREA ENCLOSED BY THIS LINE ( ) IS DIRECTLY CONNECTED WITH AC MAINS VOLTAGE. WHEN SERVICING THE AREA, CONNECT AN ISOLATING TRANSFORMER BETWEEN TV RECEIVER AND AC LINE TO ELIMINATE HAZARD OF ELECTRIC SHOCK.

NOTES:

1. The unit of resistance "ohm" is omitted (K: 1000 ohms M = Meg ohm).

All resistors are 1/8 watt, unless otherwise noted.

3. All capacitors µF, unless otherwise noted. (P =

µµ

VOLTAGE MEASUREMENT CONDITIONS:

Voltage in parenthesis measured with no Signal.

2. Voltages without parenthesis measured with 3mV B & W or colour-Signal.

3. All the voltages in each point are measured with VTVM.

WAVEFORM MEASUREMENT CONDITIONS:

1. Colour bar generator signal of 1.0V peak to peak applied pin (24) of IC201.

2. Approximately 4.0 V AGC bias.

25WG3

BLOCK DIAGRAM

MAIN 1 UNIT BLOCK DIAGRAM

1234567

25WG3

78910111213

25WG3

MAIN 2 UNIT BLOCK DIAGRAM

1234567

25WG3

78910111213

25WG3

CRT/FRONT/S-OUT UNIT BLOCK DIAGRAM

1234567

25WG3

78910111213

25WG3

CHASSIS LAYOUT

1234567

25WG3

78910111213

25WG3

SCHEMATIC DIAGRAM

MAIN 1 UNIT SCHEMATIC DIAGRAM

1234567

25WG3

78910111213

25WG3

MAIN 2 UNIT SCHEMATIC DIAGRAM

1234567

25WG3

78910111213

25WG3

CRT/FRONT/S-OUT UNIT SCHEMATIC DIAGRAM

1234567

123456

25WG3

78910111213

7 8 9 10 11 12

25WG3

TUNER SCHEMATIC DIAGRAM

NOTE: The parts here shown are supplied as an assembly but not independently.

VTUVTST6HD64/

REMOTE CONTROL UNIT SCHEMATIC DIAGRAM

NOTE: The parts here shown are supplied as an assembly but not independently.

1234567

- M E M O -

25WG3

78910111213

25WG3

PRINTED WIRING BOARD ASSEMBLIES

MAIN 1 UNIT

1234567

25WG3

78910111213

25WG3

MAIN 2 UNIT (SIDE A)

MAIN 2 UNIT (SIDE B)

CRT UNIT

1234567

123456

FRONT UNIT

25WG3

S-OUT UNIT

78910111213

7 8 9 10 11 12

25WG3

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

- M E M O -

25WG3

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PARTS LIST

R1110 VRD-RA2BE223J R 22k 1/8W Carbon AA

PARTS REPLACEMENT

SWITCHES

Replacement parts which have these special safety characteristics are identified this manual; electrical components having such features are identified by "å" in the Replacement Parts Lists. The use a substitute replacement part which does not have the same safety characteristics as the factory recommended replacement parts shown in this service manual may create shock, fire or other hazards.

" HOW TO ORDER REPLACEMENT PARTS"

To have your order filled promptly and correctly, please furnish the following informations.

1. MODEL NUMBER 2. REF. NO.

3. PART NO. 4. DESCRIPTION

MARK★: SAFETY PARTS-DELIVERY SECTION.

Ref. No. Part No. ★ Description Code

å S750 QSW-P0588CEZZ R Switch, Power AP

S1101 QSW-K0079GEZZ R Switch, CH-Up AB S1102 QSW-K0079GEZZ R Switch, CH-Down AB S1103 QSW-K0079GEZZ R Switch, VOL-Up AB S1104 QSW-K0079GEZZ R Switch, VOL-Down AB S1105 QSW-K0079GEZZ R Switch, Preset AB

MISCELLANEOUS PARTS

J303 QTANJ0336CEZZ Jack P402 QPLGN0561CEZZ R Plug, 5 Pin AB P752 QPLGN0304CEZZ R Plug, 3 Pin AB P753 QPLGN0304CEZZ R Plug, 3 Pin AB P754 QPLGN0207CEZZ R Plug, 2 Pin AA P1101 QPLGN0761CEZZ R Plug, 7 Pin AD RMC1101

RRMCU0227CEZZ R Remote Control Sensor AK

Unit

DUNTK9481WET3 S-OUT UNIT

IC3301 VHiAN5275//-1 R AN5275 AP

INTEGRATED CIRCUIT

PICTURE TUBE

å V1 VB59LGV10X/1E R Picture Tube CR å RCiLG0044PEZZ R Degaussing Coil AX å RCiLH0166PEZZ R Deflection Yoke BQ

PMAGF3003CEZZ R P-Magnet AK PMAGG3002CEZZ R Magnet, x2 AC PSPAG0003PEZZ R Wedge(Gum), x3 AD QEARC2501KJZZ Ground Strap LHLDW0003PEKZ R ADG Coil Holder, x4 AB

PRINTED WIRING BOARD ASSEMBLIES

(NOT REPLACEMENT ITEM)

DUNTK9809WET0 - Front Unit — DUNTK9481WET3 - S-Out Unit — DUNTK9482WET9 - Main 1 Unit — DUNTK9483WEW4 - Main 2 Unit — DUNTK9486WET4 - CRT Unit —

DUNTK9809WET0 FRONT UNIT

TRANSISTOR

Q1101 VS2SC1815GW-1 R 2SC1815GW AB

DIODES

D1101 RH-PX0003PEZZ R LED, Power ON/OFF AF D1102 RH-PX0274CEZZ R LED, ON Timer AC PR750 RMPTP0084CEZZ R Packaged Circuit AM

CAPACITORS

C752 VCFYSB2EB224K R 0.22 250V AD C1101 VCEAGA1HW475M R 4.7 50V Electrolytic AB

RESISTORS

R751 VRD-RM2HD391J R 390 1/2W Carbon AA R752 VRW-KP41CR82K R 0.82 15W Cement AG R753 VRW-KP41CR82K R 0.82 15W Cement AG R1101 VRD-RA2BE273J R 27k 1/8W Carbon AA R1102 VRD-RA2BE822J R 8.2k 1/8W Carbon AA R1103 VRD-RA2BE472J R 4.7k 1/8W Carbon AA R1104 VRD-RA2BE222J R 2.2k 1/8W Carbon AA R1105 VRD-RA2BE391J R 390 1/8W Carbon AA R1106 VRD-RA2BE122J R 1.2k 1/8W Carbon AA R1108 VRD-RA2BE331J R 330 1/8W Carbon AA R1109 VRD-RA2BE103J R 10k 1/8W Carbon AA

Q3301 VS2SC1815GW-1 R 2SC1815GW AB Q3302 VS2SC1815GW-1 R 2SC1815GW AB Q3303 VSKRC102M//-1 R KRC102M AA Q3304 VSKRC102M//-1 R KRC102M AA

D3301 RH-DX0475CEZZ R DX0475CE AB D3302 RH-DX0475CEZZ R DX0475CE AB D3303 RH-DX0475CEZZ R DX0475CE AB D3304 RH-DX0475CEZZ R DX0475CE AB

å VA750 RH-VX0048CEZZ R Varistor, VX0048CE AE

å L751 RCiLF0031PEZZ R Coil AR

å C750 RC-FZ012SGEZZ R 0.22 AC250V AE å C751 RC-FZ008SCEZZ R 0.1 AC250V AE

C3301 VCEAGA1HW107M R 100 50V Electrolytic AC C3302 VCEAGA1HW105M R 1 50V Electrolytic AC C3303 VCEAGA1HW336M R 33 50V Electrolytic AB C3304 VCEAGA1HW105M R 1 50V Electrolytic AC C3305 VCEAGA1HW107M R 100 50V Electrolytic AC C3307 VCKYPA1HB562K R 5600p 50V Ceramic AA C3309 VCKYPA1HB562K R 5600p 50V Ceramic AA C3310 VCEAGH1HW108M R 1000 50V Electrolytic AE C3311 VCQYTA1HM104J R 0.1 50V Mylar AA C3312 VCEAGH1HW108M R 1000 50V Electrolytic AE C3313 VCQYTA1HM104J R 0.1 50V Mylar AA C3314 VCEAGH1HW108M R 1000 50V Electrolytic AE C3315 VCEAGA1HW107M R 100 50V Electrolytic AC C3316 VCEAGA1HW225M R 2.2 50V Electrolytic AB C3319 VCEAGA1HW335M R 3.3 50V Electrolytic AB C3333 VCEAGA1HW225M R 2.2 50V Electrolytic AB C3334 VCEAGA1HW225M R 2.2 50V Electrolytic AB C3336 VCEAGA1HW225M R 2.2 50V Electrolytic AB

å R750 VRC-UA2HG395K R 3.9M 1/2W Solid AA å R754 VRW-KQ41C1R8K R 1.8 15W Cement AG

R3301 VRD-RA2BE102J R 1k 1/8W Carbon AA R3302 VRD-RA2BE103J R 10k 1/8W Carbon AA R3303 VRD-RA2BE102J R 1k 1/8W Carbon AA R3304 VRD-RA2BE103J R 10k 1/8W Carbon AA R3305 VRD-RA2EE2R2J R 2.2 1/4W Carbon AA R3306 VRD-RA2EE2R2J R 2.2 1/4W Carbon AA R3308 VRD-RA2BE223J R 22k 1/8W Carbon AA

TRANSISTORS

DIODES AND VARISTOR

COIL

CAPACITORS

RESISTORS

25WG3

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTK9481WET3 S-OUT UNIT (Continude)

R3309 VRD-RA2BE103J R 10k 1/8W Carbon AA R3310 VRD-RA2BE103J R 10k 1/8W Carbon AA R3335 VRD-RA2BE681J R 680 1/8W Carbon AA R3336 VRD-RA2BE472J R 4.7k 1/8W Carbon AA R3337 VRD-RA2BE472J R 4.7k 1/8W Carbon AA R3339 VRD-RA2EE103J R 10k 1/4W Carbon AA R3342 VRD-RA2BE101J R 100 1/8W Carbon AB

MISCELLANEOUS PARTS

å ACC701 QACCZ3008PEZZ R AC Power Cord AN å FH751 QFSHD1013CEZZ R Fuse Holder AC å FH752 QFSHD1014CEZZ R Fuse Holder AC å F750 QFS-C5026CEZZ R Fuse, T5A 250V AE

P750 QPLGN0269GEZZ R Plug, 2 Pin AB P751 QPLGN0304CEZZ R Plug, 3 Pin AB P3302 QPLGN0269GEZZ R Plug, 2 Pin AB P3304 QPLGN0861CEZZ R Plug, 8 Pin AC P3306 QPLGN0561CEZZ R Plug, 5 Pin AB SP1 VSP0010PBX18A Speaker SP2 VSP0010PBX18A Speaker

PRDAR0266PEFW Heat Sink, for IC3301

DUNTK9482WET9 MAIN 1 UNIT

TUNER

NOTE: THE PARTS HERE SHOWN ARE SUPPLIED AS AN

ASSEMBLY BUT INDEPENDENTLY.

å TU201 VTUVTST6HD64/ R Tuner BF

INTEGRATED CIRCUITS

IC203 RH-iX0249CEZZ R IX0249CE AE IC302 VHiTDA7429S-1 R TDA7429S AG IC402 VHiM51497L/-1 R M51497L AL IC501 VHiTDA8351A-1 R TDA8351A AT IC701 VHiSTR6656/-1 R STR6656 AZ IC703 VHiSE120N//-1 R SE120N AG IC704 VHiKA7812Pi-1 R KA7812PI AE IC705 VHiPQ12RD11-1 R PQ12RD11 AG IC706 VHiPQ09RD11-1 R PQ09RD11 AG IC707 VHiPQ05RD11-1 R PQ05RD11 AG

D604 RH-DX0475CEZZ R DX0475CE AB D605 RH-DX0302CEZZ R DX0302CE AC D607 RH-DX0255CEZZ R DX0255CE AC D608 RH-DX0475CEZZ R DX0475CE AB D609 RH-DX0127CEZZ R DX0127CE AC D610 RH-DX0279CEZZ R DX0279CE AB D611 RH-DX0475CEZZ R DX0475CE AB D616 RH-DX0475CEZZ R DX0475CE AB D701 RH-DX0474CEZZ R DX0474CE AE D702 RH-DX0475CEZZ R DX0475CE AB D703 RH-EX0619GEZZ R Zener, EX0619GE AA D704 RH-DX0478CEZZ R DX0478CE AL D708 RH-EX0641GEZZ R Zener, EX0641GE AA D709 RH-DX0471CEZZ R DX0471CE AE D710 RH-DX0471CEZZ R DX0471CE AE D711 RH-DX0471CEZZ R DX0471CE AE D712 RH-EX0622GEZZ R Zener, EX0622GE AA D713 RH-DX0130CEZZ R DX0130CE AE D714 RH-DX0229CEZZ R DX0229CE AF D715 RH-DX0355CEZZ R DX0355CE AF D716 VHDRL3Z////-1 R RL3Z AE D717 VHDRL3Z////-1 R RL3Z AE D718 RH-DX0475CEZZ R DX0475CE AB D719 RH-DX0475CEZZ R DX0475CE AB D720 RH-DX0475CEZZ R DX0475CE AB D721 RH-DX0475CEZZ R DX0475CE AB D1050 RH-DX0475CEZZ R DX0475CE AB D1051 RH-DX0475CEZZ R DX0475CE AB D1052 RH-EX0628GEZZ R Zener, EX0628GE AC

å IC702 RH-FX0024CEZZ R PC113L AG

COILS AND TRANSFORMERS

CF401 RFiLA0020CEZZ R Filter AD JA406 VP-XF180K0000 R Peaking 18µHAB L202 VP-XF1R2K0000 R Peaking 1.2µHAB L203 VP-XF150K0000 R Peaking 15µHAB L204 VP-MK100K0000 R Peaking 10µHAB L601 RCiLZ0015PEZZ R Coil AL L603 RCiLZ0013PEZZ R Coil AM L604 VP-CF390K0000 R Peaking 39µHAB L701 RCiLP0226CEZZ R Coil AD

å T601 RTRNF0160PEZZ R H-Volt Transformer BE å T602 RTRNZ0343CEZZ R Transformer AG å T701 RTRNZ0128PEZZ R Transformer AX

Q210 VS2SC1906//1E R 2SC1906 AC

TRANSISTORS

Q303 VS2SC1815GW-1 R 2SC1815 AB Q304 VS2SC1815GW-1 R 2SC1815 AB Q404 VS2SA1015Y/1E R 2SA1015Y AC Q405 VS2SC1815GW-1 R 2SC1815 AB Q406 VS2SC1815GW-1 R 2SC1815 AB Q407 VS2SK583///-1 R 2SK583 AE Q502 VS2SA1015Y/1E R 2SA1015Y AC

å Q605 VS2SC3886A/1E R 2SC3886A AP

Q606 VS2SC3808//-1 R 2SC3808 AH Q701 VS2SA1015Y/1E R 2SA1015Y AC Q702 VS2SC1815GW-1 R 2SC1815 AB Q703 VS2SC1815GW-1 R 2SC1815 AB Q1005 VS2SA1015Y/1E R 2SA1015Y AC

DIODES

D202 RH-EX0619GEZZ R Zener, EX0619GE AA D203 RH-EX0619GEZZ R Zener, EX0619GE AA D310 RH-EX0628GEZZ R Zener, EX0628GE AC D311 RH-EX0628GEZZ R Zener, EX0628GE AC D312 RH-EX0628GEZZ R Zener, EX0628GE AC D313 RH-EX0628GEZZ R Zener, EX0628GE AC D401 RH-EX0628GEZZ R Zener, EX0628GE AC D402 RH-EX0628GEZZ R Zener, EX0628GE AC D403 RH-EX0628GEZZ R Zener, EX0628GE AC D503 RH-DX0475CEZZ R DX0475CE AB D601 RH-EX0651GEZZ R Zener, EX0651GE AB D602 RH-DX0127CEZZ R DX0127CE AC D603 RH-EX0628GEZZ R Zener, EX0628GE AC

(M-Poly.Film : Metalized Polypro Film)

CAPACITORS

C220 VCEAGA1CW226M R 22 16V Electrolytic AB C221 VCEAGA1CW107M R 100 16V Electrolytic AB C222 VCEAGA1HW106M R 10 50V Electrolytic AC C223 VCEAGA1CW107M R 100 16V Electrolytic AB C224 VCKYPA1HB102K R 1000p 50V Ceramic AA C225 VCEAGA1CW337M R 330 16V Electrolytic AC C227 VCKYPA1HF103Z R 0.01 50V Ceramic AA C228 VCKYPA1HF103Z R 0.01 50V Ceramic AA C229 VCKYPA1HF103Z R 0.01 50V Ceramic AA C230 VCQYTA1HM182J R 1800p 50V Mylar AA C231 VCKYD41HB102K R 1000p 50V Ceramic AA C320 VCQYTA1HM223J R 0.022 50V Mylar AA C321 VCQYTA1HM223J R 0.022 50V Mylar AA C322 VCQYTA1HM472J R 4700p 50V Mylar AB C323 VCFYFA1HA104J R 0.1 50V M. Polypro AA C324 VCQYTA1HM122J R 1200p 50V Mylar AA C325 VCQYTA1HM562J R 5600p 50V Mylar AA C326 VCFYFA1HA684J R 0.68 50V M. Polypro AD C327 VCEAGA1HW225M R 2.2 50V Electrolytic AB C328 VCEAGA1HW225M R 2.2 50V Electrolytic AB C329 VCEAGA1HW225M R 2.2 50V Electrolytic AB C330 VCFYFA1HA104J R 0.1 50V M. Polypro AA C331 VCFYFA1HA104J R 0.1 50V M. Polypro AA C332 VCFYFA1HA104J R 0.1 50V M. Polypro AA C333 VCFYFA1HA104J R 0.1 50V M. Polypro AA C334 VCQYTA1HM223J R 0.022 50V Mylar AA C335 VCQYTA1HM183J R 0.018 50V Mylar AB C336 VCQYTA1HM223J R 0.022 50V Mylar AA

25WG3

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTK9482WET9 MAIN 1 UNIT (Continude)

C337 VCQYTA1HM183J R 0.018 50V Mylar AB C338 VCQYTA1HM562J R 5600p 50V Mylar AA C339 VCQYTA1HM562J R 5600p 50V Mylar AA C340 VCEAGA1HW225M R 2.2 50V Electrolytic AB C341 VCKYPA1HB102K R 1000p 50V Ceramic AA C342 VCKYPA1HB102K R 1000p 50V Ceramic AA C343 VCEAGA1CW106M R 10 16V Electrolytic AA C344 VCEAGA1CW106M R 10 16V Electrolytic AA C345 VCEAGA1HW225M R 2.2 50V Electrolytic AB C346 VCEAGA1HW225M R 2.2 50V Electrolytic AB C347 VCEAGA1HW225M R 2.2 50V Electrolytic AB C348 VCFYFA1HA474J R 0.47 50V M. Polypro AC C349 VCFYFA1HA474J R 0.47 50V M. Polypro AC C350 VCFYFA1HA474J R 0.47 50V M. Polypro AC C351 VCFYFA1HA474J R 0.47 50V M. Polypro AC C352 VCFYFA1HA474J R 0.47 50V M. Polypro AC C353 VCFYFA1HA474J R 0.47 50V M. Polypro AC C354 VCEAGA1CW226M R 22 16V Electrolytic AB C355 VCEAGA1CW106M R 10 16V Electrolytic AA C356 VCFYFA1HA104J R 0.1 50V M. Polypro AA C417 VCEAGA1AW477M R 470 10V Electrolytic AC C418 VCEAGA1CW106M R 10 16V Electrolytic AA C419 VCEAGA1HW475M R 4.7 50V Electrolytic AB C420 VCKYPA1HB331K R 330p 50V Ceramic AA C421 VCKYPA1HB182K R 1800p 50V Ceramic AA C422 VCEAGA1HW224M R 0.22 50V Electrolytic AA C423 VCFYFA1HA104J R 0.1 50V M. Polypro AA C424 VCEAGA1CW106M R 10 16V Electrolytic AA C425 VCKYPA1HF103Z R 0.01 50V Ceramic AA C504 VCKYPA1HB102K R 1000p 50V Ceramic AA C505 VCFYFA1HA104J R 0.1 50V M. Polypro AA C506 VCEAGA1EW108M R 1000 25V Electrolytic AD C508 VCEAGA1HW106M R 10 50V Electrolytic AC C511 VCFYFA1HA104J R 0.1 50V M. Polypro AA C512 VCQYSG2AA473K R 0.047 100V Mylar AC C513 VCKYPA1HB102K R 1000p 50V Ceramic AA C514 VCKYPA1HB102K R 1000p 50V Ceramic AA C515 VCQYTA1HM103J R 0.01 50V Mylar AA C516 VCFYAA2AA103J R 0.01 100V AF C518 VCCCPA1HH560J R 56p 50V Ceramic AA C610 VCFPPC2DB184J R 0.18 200V M-Poly.Film AD C612 RC-KZ0039CEZZ R 680p 2kV Ceramic AB C613 VCFPPD3CA622H R 6200p 1600V M-Poly.Film AE C614 VCFPPD3CA682H R 6800p 1600V M-Poly.Film AE C615 VCFYFA1HA104J R 0.1 50V M. Polypro AA C616 VCKYPA1HB472K R 4700p 50V Ceramic AA C617 VCFPPD2DB474J R 0.47 200V M-Poly.Film AE C618 VCFYSB2EB224K R 0.22 250V AD C619 VCKYPA2HB102K R 1000p 500V Ceramic AA C620 VCEAGA2AW106M R 10 100V Electrolytic AC C621 VCEAGA1HW106M R 10 50V Electrolytic AC C622 VCKYPA1HB102K R 1000p 50V Ceramic AA C623 VCEAGA1EW227M R 220 25V Electrolytic AC C624 VCQYTA1HM273J R 0.027 50V Mylar AB C625 VCKYPA2HB102K R 1000p 500V Ceramic AA C626 VCEAGH1EW228M R 2200 25V Electrolytic AE C627 RC-KZ0039CEZZ R 680p 2kV Ceramic AB C628 VCFPPD3CA472J R 4700p 1600V M-Poly.Film AD C629 VCFYAB2AA335J R 3.3 100V AL C630 VCEAGA1HW335M R 3.3 50V Electrolytic AB C631 VCKYPA1HB102K R 1000p 50V Ceramic AA C632 VCKYPA2HB102K R 1000p 500V Ceramic AA C633 VCEAGA2EW336M R 33 250V Electrolytic AD C634 VCKYPA2HB561K R 560p 500V Ceramic AA C635 VCFPPD2DB394J R 0.39 200V M-Poly.Film AE C636 VCFYFA1HA104J R 0.1 50V M. Polypro AA C703 VCQPSC2JA333K R 0.033 630V AB C704 RC-KZ0035CEZZ R 220p 2kV Ceramic AB C705 VCKYPA1HB222K R 2200p 50V Ceramic AA C706 VCKYPH3DB561K R 560p 2000V Ceramic AC C707 VCKYPA1HB471K R 470p 50V Ceramic AA C708 VCEAGA1VW107M R 100 35V Electrolytic AC C709 RC-KZ0035CEZZ R 220p 2kV Ceramic AB

C710 RC-KZ0016CEZZ R 0.01 1.5kVCeramic AC C711 RC-KZ0016CEZZ R 0.01 1.5kVCeramic AC C712 RC-KZ0016CEZZ R 0.01 1.5kVCeramic AC C713 RC-KZ0016CEZZ R 0.01 1.5kVCeramic AC C714 VCFYFA1HA104J R 0.1 50V M. Polypro AA C715 VCFYFA1HA104J R 0.1 50V M. Polypro AA C716 VCEAGA1CW477M R 470 16V Electrolytic AC C717 VCEAGA1CW477M R 470 16V Electrolytic AC C718 VCEAGA1CW477M R 470 16V Electrolytic AC

å C719 RC-KZ017SCEZZ R 680p 4kV Special AD

C720 VCEAGA1CW477M R 470 16V Electrolytic AC C721 VCKYPA2HB102K R 1000p 500V Ceramic AA C722 RC-KZ0024CEZZ R 1000p 2kV Ceramic AC C723 RC-KZ0037CEZZ R 390p 2kV Ceramic AB C724 VCEAGA1EW108M R 1000 25V Electrolytic AD C725 VCEAGH1HW228M R 2200 50V Electrolytic AG C726 VCEAGA1CW227M R 220 16V Electrolytic AC C727 RC-EZ0400CEZZ R 270 200V Electrolytic AM C728 VCEAGW2CW227MR 220 160V Electrolytic AK C730 RC-EZ0695CEZZ R 330 450V Electrolytic AW C731 RC-EZ0695CEZZ R 330 450V Electrolytic AW C733 VCKYD41HB102K R 1000p 50V Ceramic AA C734 VCKYPA1HB102K R 1000p 50V Ceramic AA C735 VCEAGA1HW475M R 4.7 50V Electrolytic AB C738 VCFYFA1HA474J R 0.47 50V M. Polypro AC C739 VCKYPA2HB222K R 2200p 500V Ceramic AA C1001 VCEAGA1AW227M R 220 10V Electrolytic AB C1002 VCEAGA1CW476M R 47 16V Electrolytic AB C1426 VCQYTA1HM223J R 0.022 50V Mylar AA

RESISTORS

R15 VRD-RA2BE270J R 27 1/8W Carbon AA R221 VRD-RA2BE151J R 150 1/8W Carbon AA R222 VRD-RA2BE101J R 100 1/8W Carbon AB R224 VRD-RA2BE472J R 4.7k 1/8W Carbon AA R226 VRD-RA2BE122J R 1.2k 1/8W Carbon AA R227 VRS-VV3DB153J R 15k 2W Metal Oxide AA R228 VRD-RA2BE273J R 27k 1/8W Carbon AA R229 VRD-RA2BE223J R 22k 1/8W Carbon AA R230 VRD-RA2BE181J R 180 1/8W Carbon AA R320 VRD-RA2BE222J R 2.2k 1/8W Carbon AA R321 VRD-RA2BE682J R 6.8k 1/8W Carbon AA R322 VRD-RA2BE562J R 5.6k 1/8W Carbon AA R323 VRD-RA2BE562J R 5.6k 1/8W Carbon AA R324 VRD-RA2BE272J R 2.7k 1/8W Carbon AA R325 VRD-RA2BE101J R 100 1/8W Carbon AB R326 VRD-RA2BE564J R 560k 1/8W Carbon AA R327 VRD-RA2BE102J R 1k 1/8W Carbon AA R328 VRD-RA2BE564J R 560k 1/8W Carbon AA R329 VRD-RA2BE102J R 1k 1/8W Carbon AA R330 VRD-RA2BE272J R 2.7k 1/8W Carbon AA R331 VRD-RA2BE564J R 560k 1/8W Carbon AA R332 VRD-RA2BE102J R 1k 1/8W Carbon AA R333 VRD-RA2BE331J R 330 1/8W Carbon AA R334 VRD-RA2BE331J R 330 1/8W Carbon AA R335 VRD-RA2BE104J R 100k 1/8W Carbon AA R336 VRD-RA2BE104J R 100k 1/8W Carbon AA R337 VRD-RA2BE331J R 330 1/8W Carbon AA R338 VRD-RA2BE331J R 330 1/8W Carbon AA R339 VRD-RA2BE473J R 47k 1/8W Carbon AA R340 VRD-RA2BE472J R 4.7k 1/8W Carbon AA R341 VRD-RA2BE473J R 47k 1/8W Carbon AA R342 VRD-RA2BE472J R 4.7k 1/8W Carbon AA R343 VRD-RA2BE102J R 1k 1/8W Carbon AA R344 VRD-RA2BE564J R 560k 1/8W Carbon AA R345 VRD-RA2BE101J R 100 1/8W Carbon AB R347 VRD-RA2BE102J R 1k 1/8W Carbon AA R348 VRD-RA2BE681J R 680 1/8W Carbon AA R421 VRD-RA2EE680J R 68 1/4W Carbon AA R422 VRD-RA2BE104J R 100k 1/8W Carbon AA R427 VRD-RA2BE103J R 10k 1/8W Carbon AA R428 VRD-RA2BE103J R 10k 1/8W Carbon AA R429 VRD-RA2BE471J R 470 1/8W Carbon AA R430 VRD-RA2BE184J R 180k 1/8W Carbon AA R431 VRD-RA2BE471J R 470 1/8W Carbon AA

25WG3

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTK9482WET9 MAIN 1 UNIT (Continude)

R432 VRD-RA2BE271J R 270 1/8W Carbon AA R433 VRD-RA2BE562J R 5.6k 1/8W Carbon AA R435 VRD-RA2BE684J R 680k 1/8W Carbon AA R440 VRD-RA2BE472J R 4.7k 1/8W Carbon AA R441 VRD-RA2BE222J R 2.2k 1/8W Carbon AA R442 VRD-RA2BE392J R 3.9k 1/8W Carbon AA R443 VRD-RA2BE472J R 4.7k 1/8W Carbon AA R444 VRD-RA2BE223J R 22k 1/8W Carbon AA R445 VRD-RA2BE223J R 22k 1/8W Carbon AA R446 VRD-RA2BE333J R 33k 1/8W Carbon AA R447 VRD-RA2EE750J R 75 1/4W Carbon AA R448 VRD-RA2EE750J R 75 1/4W Carbon AA R503 VRD-RA2BE332J R 3.3k 1/8W Carbon AA R504 VRN-VV3AB2R2J R 2.2 1W Metal Film AA R505 VRN-VV3AB2R2J R 2.2 1W Metal Film AA R508 VRD-RA2BE103J R 10k 1/8W Carbon AA R509 VRS-VV3DB151J R 150 2W Metal Oxide AA R510 VRD-RA2BE180J R 18 1/8W Carbon AA R511 VRD-RA2BE562J R 5.6k 1/8W Carbon AA

å R512 RR-XZ0020CEZZ R 39 1/4W Fuse Resistor AB

R612 VRD-RA2BE275J R 2.7M 1/8W Carbon AA R613 VRS-VV3DB561J R 560 2W Metal Oxide AA R614 VRW-KQ41C3R3K R 3.3 15W Cement AG R615 VRD-RA2BE563J R 56k 1/8W Carbon AA R616 VRN-RV3DB2R2J R 2.2 2W Metal Film AB R617 VRD-RA2EE101J R 100 1/4W Carbon AA R618 VRD-RA2EE101J R 100 1/4W Carbon AA R619 VRD-RA2BE104J R 100k 1/8W Carbon AA

å R620 RR-XZ0016CEZZ R 1 1/2W Fuse Resistor AB

R621 VRD-RA2BE104J R 100k 1/8W Carbon AA R622 VRS-SU2HB102J R 1k 1/2W Metal Oxide AA R623 VRD-RA2BE223J R 22k 1/8W Carbon AA R624 VRD-RA2BE103J R 10k 1/8W Carbon AA R625 VRD-RA2EE125J R 1.2M 1/4W Carbon AA R626 VRD-RA2BE274J R 270k 1/8W Carbon AA R627 VRD-RA2BE563J R 56k 1/8W Carbon AA R628 VRD-RA2BE474J R 470k 1/8W Carbon AA R629 VRS-VV3AB472J R 4.7k 1W Metal Oxide AA R630 VRD-RA2EE102J R 1k 1/4W Carbon AA R632 VRD-RM2HD820J R 82 1/2W Carbon AA R633 VRD-RM2HD470J R 47 1/2W Carbon AA

å R636 RR-XZ0029CEZZ R 3.3 1/2W Fuse Resistor AB

R637 VRW-KX3HC180J R 18 5W Cement AE

å R638 RR-XZ0071CEZZ R 1 1W Fuse Resistor AC

R643 VRS-KT3LB101J R 100 3W Metal Oxide AC R644 VRD-RA2BE391J R 390 1/8W Carbon AA R701 VRS-KT3LB103J R 10k 3W Metal Oxide AF R702 VRN-SV2HBR27J R 0.27 1/2W Metal Film AB R703 VRD-RM2HD684J R 680k 1/2W Carbon AA R704 VRD-RA2BE333J R 33k 1/8W Carbon AA R705 VRN-SV2HBR27J R 0.27 1/2W Metal Film AB R706 VRN-SV2HBR27J R 0.27 1/2W Metal Film AB R707 VRD-RA2BE681J R 680 1/8W Carbon AA R708 VRD-RA2BE152J R 1.5k 1/8W Carbon AA R709 VRD-RA2BE152J R 1.5k 1/8W Carbon AA R710 VRD-RA2BE103J R 10k 1/8W Carbon AA R712 VRD-RA2BE102J R 1k 1/8W Carbon AA R713 VRN-KT3LB4R7J R 4.7 3W Metal Film AG R714 VRD-RA2BE562J R 5.6k 1/8W Carbon AA R715 VRD-RA2BE123J R 12k 1/8W Carbon AA

å R716 VRC-UA2HG825K R 8.2M 1/2W Solid AA å R717 VRC-UA2HG825K R 8.2M 1/2W Solid AA

R718 VRD-RA2BE102J R 1k 1/8W Carbon AA R719 VRD-RA2BE332J R 3.3k 1/8W Carbon AA R720 VRN-VV3DB6R8J R 6.8 2W Metal Film AB R721 VRD-RA2BE102J R 1k 1/8W Carbon AA R722 VRS-SV3AB683J R 68k 1W Metal Oxide AA R723 VRD-RA2BE472J R 4.7k 1/8W Carbon AA R724 VRD-RA2BE472J R 4.7k 1/8W Carbon AA R725 VRN-KT3LB2R2J R 2.2 3W Metal Film AF R726 VRD-RA2BE102J R 1k 1/8W Carbon AA R732 VRN-KT3LB6R8J R 6.8 3W Metal Film AG R1001 VRD-RA2BE561J R 560 1/8W Carbon AA

R1002 VRD-RA2BE103J R 10k 1/8W Carbon AA R1003 VRD-RA2BE562J R 5.6k 1/8W Carbon AA R1004 VRD-RA2BE103J R 10k 1/8W Carbon AA R1005 VRD-RA2BE103J R 10k 1/8W Carbon AA R1020 VRD-RM2HD330J R 33 1/2W Carbon AA R1021 VRD-RA2BE101J R 100 1/8W Carbon AB R1022 VRD-RA2BE101J R 100 1/8W Carbon AB R1445 VRD-RA2BE223J R 22k 1/8W Carbon AA R1446 VRD-RA2BE223J R 22k 1/8W Carbon AA

MISCELLANEOUS PARTS

FB601 RBLN-0037CEZZ R Balun AB FB602 RBLN-0037CEZZ R Balun AB FB701 RBLN-0037CEZZ R Balun AB FB702 RBLN-0037CEZZ R Balun AB FB703 RBLN-0037CEZZ R Balun AB FB704 RBLN-0037CEZZ R Balun AB FB705 RBLN-0037CEZZ R Balun AB FB706 RBLN-0037CEZZ R Balun AB J402 QTANJ0639CEZZ R Terminal, Audio/Video AL P201 QPLGN0261CEZZ R Plug, 2 Pin AB P202 QPLGN2059REZZ R Plug, 20 Pin AE P203 QPLGN2059REZZ R Plug, 20 Pin AE P204 QPLGZ0360GEZZ R Plug, 3 Pin AB P205 QPLGN2059REZZ R Plug, 20 Pin AE P303 QPLGN0561CEZZ R Plug, 5 Pin AB P401 QPLGN0561CEZZ R Plug, 5 Pin AB P601 QPLGN0160FJZZ R Plug, 5 Pin AD P602 QPLGN0361CEZZ R Plug, 3 Pin AB P701 QPLGN0269GEZZ R Plug, 2 Pin AB P702 QPLGN0304CEZZ R Plug, 3 Pin AB P1001 QPLGN0761CEZZ R Plug, 7 Pin AD P1002 QPLGN0461CEZZ R Plug, 4 Pin AB S1006 QSW-B0015CEZZ R Switch, Normal/Service AC SC601 QTiPM0083CEZZ R Tip AB

PRDAR0244PEFW R Heat Sink, for IC501 AN PRDAR0245PEFW R Heat Sink, for Q605 AH PRDAR0246PEFW R Heat Sink, for IC701 AN PRDAR0250PEFW R Heat Sink, AM

for IC704/705/706/707

PRDAR0253PEFW R Heat Sink, for D715 AE

DUNTK9483WEW4 MAIN 2 UNIT

INTEGRATED CIRCUITS

IC201 VHiTDA8375A-3 R TDA8375 BA IC202 VHiKA7808Pi-1 R KA7808PI AF IC401 VHiTDA4671/-1 R TDA4671 AZ IC801 VHiTDA4665T-1 R TDA4665T AN IC1001 RH-iX3097CEN2 R IX3097CE BA IC1002 VHiS24C04A/-1 R S24C04A AL IC1003 VHiKiA7045P-1 R KIA7045P AD IC1004 VHiKA7805Pi-1 R KA7805PI AE

TRANSISTORS

Q202 VS2SC2412KQ-1 R 2SC2412KQ AA Q203 VS2SC2412KQ-1 R 2SC2412KQ AA Q204 VS2SC2412KQ-1 R 2SC2412KQ AA Q301 VS2SC2412KQ-1 R 2SC2412KQ AA Q401 VS2SC2412KQ-1 R 2SC2412KQ AA Q402 VS2SC2412KQ-1 R 2SC2412KQ AA Q403 VS2SC2412KQ-1 R 2SC2412KQ AA Q601 VS2SC2412KQ-1 R 2SC2412KQ AA Q602 VS2SC2412KQ-1 R 2SC2412KQ AA Q603 VS2SC2412KQ-1 R 2SC2412KQ AA Q1001 VS2SA1037KQ-1 R 2SA1037KQ AA Q1002 VS2SC2412KQ-1 R 2SC2412KQ AA Q1004 VS2SC2412KQ-1 R 2SC2412KQ AA

DIODES

D204 RH-DX0475CEZZ R DX0475CE AB D301 RH-DX0475CEZZ R DX0475CE AB D302 RH-DX0475CEZZ R DX0475CE AB

25WG3

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTK9483WEW4 MAIN 2 UNIT (Continude)

D1005 RH-EX0633GEZZ R Zener, EX0633GE AA D1006 RH-EX0633GEZZ R Zener, EX0633GE AA D1009 RH-EX0619GEZZ R Zener, EX0619GE AA D1010 RH-EX0619GEZZ R Zener, EX0619GE AA D1011 RH-EX0619GEZZ R Zener, EX0619GE AA D1012 RH-EX0619GEZZ R Zener, EX0619GE AA D1013 RH-EX0619GEZZ R Zener, EX0619GE AA D1014 RH-EX0619GEZZ R Zener, EX0619GE AA D1016 RH-EX0619GEZZ R Zener, EX0619GE AA D1017 RH-EX0619GEZZ R Zener, EX0619GE AA D1020 RH-DX0475CEZZ R DX0475CE AB D1023 RH-EX0619GEZZ R Zener, EX0619GE AA D1024 RH-EX0619GEZZ R Zener, EX0619GE AA D1025 RH-EX0619GEZZ R Zener, EX0619GE AA D1026 RH-EX0619GEZZ R Zener, EX0619GE AA D1027 RH-EX0619GEZZ R Zener, EX0619GE AA D1028 RH-EX0619GEZZ R Zener, EX0619GE AA D1031 RH-DX0475CEZZ R DX0475CE AB D1033 RH-EX0619GEZZ R Zener, EX0619GE AA D1034 RH-EX0619GEZZ R Zener, EX0619GE AA D1035 RH-EX0619GEZZ R Zener, EX0619GE AA D1038 RH-DX0475CEZZ R DX0475CE AB D1039 RH-EX0619GEZZ R Zener, EX0619GE AA D1040 RH-EX0619GEZZ R Zener, EX0619GE AA D1041 RH-DX0475CEZZ R DX0475CE AB D1043 RH-EX0619GEZZ R Zener, EX0619GE AA

PACKAGED CIRCUITS

X801 RCRSB0008PEZZ R Crystal AH X802 RCRSB0009PEZZ R Crystal AL

COILS AND TRANSFORMER

CF202 RFiLC0005PEZZ R Filter AF CF204 RFiLC0228CEZZ R Filter AF CF305 RFiLC0008PEZZ R Filter AF CF306 RFiLC0338CEZZ R Filter AG CF1001 RFiLA0084CEZZ R Filter AE L201 VP-XF6R8K0000 R Peaking 6.8µHAB L801 VP-XF1R8K0000 R Peaking 1.8µHAB L802 VP-XF1R8K0000 R Peaking 1.8µHAB L803 VP-XF1R8K0000 R Peaking 1.8µHAB L1001 VP-XF1R0K0000 R Peaking 1µHAB SF201 RFiLC0018PEZZ R Filter AL T201 RCiLD0004PEZZ R Detection Coil AF

CAPACITORS

C201 VCKYCY1HF103Z R 0.01 50V Ceramic AA C202 VCKYCY1HF223Z R 0.022 50V Ceramic AB C203 VCEAGA1HW225M R 2.2 50V Electrolytic AB C204 VCKYCY1EF104Z R 0.1 25V Ceramic AA C205 VCCCCY1HH100D R 10p 50V Ceramic AA C206 VCEAGA1CW106M R 10 16V Electrolytic AA C207 VCKYCY1HF103Z R 0.01 50V Ceramic AA C208 VCEAGA1CW106M R 10 16V Electrolytic AA C209 VCKYCY1HF103Z R 0.01 50V Ceramic AA C210 VCFYFA1HA474J R 0.47 50V M. Polypro AC C211 VCKYCY1HF223Z R 0.022 50V Ceramic AB C212 VCEAGA1CW107M R 100 16V Electrolytic AB C213 VCFYFA1HA104J R 0.1 50V M. Polypro AA C214 VCEAGA1HW225M R 2.2 50V Electrolytic AB C215 VCKYCY1HF223Z R 0.022 50V Ceramic AB C216 VCFYFA1HA334J R 0.33 50V M. Polypro AB C217 VCKYCY1EF104Z R 0.1 25V Ceramic AA C218 VCEAGA1AW477M R 470 10V Electrolytic AC C219 VCEAGA1CW106M R 10 16V Electrolytic AA C301 VCKYCY1HB332K R 3300p 50V Ceramic AA C302 VCEAGA1CW106M R 10 16V Electrolytic AA C311 VCKYCY1HF103Z R 0.01 50V Ceramic AA C312 VCCCCY1HH680J R 68p 50V Ceramic AA C317 VCEAGA1HW225M R 2.2 50V Electrolytic AB C401 VCKYCY1HF473Z R 0.047 50V Ceramic AA C402 VCKYCY1HF473Z R 0.047 50V Ceramic AA C403 VCEAGA1CW106M R 10 16V Electrolytic AA

C404 VCEAGA1AW107M R 100 10V Electrolytic AB C405 VCEAGA1CW476M R 47 16V Electrolytic AB C406 VCEAGA1AW477M R 470 10V Electrolytic AC C407 VCEAGA1HW475M R 4.7 50V Electrolytic AB C408 VCEAGA1CW476M R 47 16V Electrolytic AB C409 VCKYCY1EF104Z R 0.1 25V Ceramic AA C410 VCKYCY1HF103Z R 0.01 50V Ceramic AA C411 VCKYCY1HF103Z R 0.01 50V Ceramic AA C412 VCKYCY1EF104Z R 0.1 25V Ceramic AA C413 VCKYCY1EF104Z R 0.1 25V Ceramic AA C414 VCKYCY1EF104Z R 0.1 25V Ceramic AA C415 VCKYCY1EF104Z R 0.1 25V Ceramic AA C416 VCKYCY1EF104Z R 0.1 25V Ceramic AA C501 VCFYFA1HA104J R 0.1 50V M. Polypro AA C502 VCKYCY1HB102K R 1000p 50V Ceramic AA C503 VCKYCY1HB102K R 1000p 50V Ceramic AA C601 VCEAGA1CW107M R 100 16V Electrolytic AB C602 VCKYCY1HF223Z R 0.022 50V Ceramic AB C603 VCKYCY1HB222K R 2200p 50V Ceramic AA C604 VCKYCY1HB472K R 4700p 50V Ceramic AA C605 VCEAGA1HW105M R 1 50V Electrolytic AC C606 VCKYCY1EF104Z R 0.1 25V Ceramic AA C607 VCKYCY1EF104Z R 0.1 25V Ceramic AA C608 VCKYCY1HB102K R 1000p 50V Ceramic AA C609 VCCCCY1HH180J R 18p 50V Ceramic AA C801 VCKYCY1EF104Z R 0.1 25V Ceramic AA C802 VCKYCY1HB472K R 4700p 50V Ceramic AA C803 VCCCCY1HH180J R 18p 50V Ceramic AA C804 VCCCCY1HH180J R 18p 50V Ceramic AA C805 VCKYCY1EF104Z R 0.1 25V Ceramic AA C806 VCKYCY1EF104Z R 0.1 25V Ceramic AA C807 VCKYCY1EF104Z R 0.1 25V Ceramic AA C808 VCEAGA1CW476M R 47 16V Electrolytic AB C809 VCKYCY1HB102K R 1000p 50V Ceramic AA C810 VCKYCY1HB102K R 1000p 50V Ceramic AA C811 VCKYCY1HF223Z R 0.022 50V Ceramic AB C812 VCKYCY1HF223Z R 0.022 50V Ceramic AB C813 VCKYCY1HF223Z R 0.022 50V Ceramic AB C1003 VCKYCY1HF103Z R 0.01 50V Ceramic AA C1004 VCKYCY1HB221K R 220p 50V Ceramic AA C1005 VCKYCY1HF103Z R 0.01 50V Ceramic AA C1006 VCEAGA1CW106M R 10 16V Electrolytic AA C1007 VCEAGA1HW105M R 1 50V Electrolytic AC C1008 VCEAGA1HW105M R 1 50V Electrolytic AC C1010 VCCCCY1HH220J R 22p 50V Ceramic AA C1011 VCCCCY1HH220J R 22p 50V Ceramic AA C1012 VCCCCY1HH220J R 22p 50V Ceramic AA C1013 VCCCCY1HH220J R 22p 50V Ceramic AA C1015 VCFYFA1HA334J R 0.33 50V M. Polypro AB C1016 VCKYCY1EF104Z R 0.1 25V Ceramic AA C1017 VCEAGA1AW477M R 470 10V Electrolytic AC C1018 VCEAGA1HW105M R 1 50V Electrolytic AC C1019 VCEAGA1CW106M R 10 16V Electrolytic AA C1042 VCCCCY1HH101J R 100p 50V Ceramic AA C1043 VCCCCY1HH100D R 10p 50V Ceramic AA

RESISTORS

R2 VRS-CY1JF000J R 0 1/16WMetal Oxide AA R5 VRS-CY1JF000J R 0 1/16WMetal Oxide AA R7 VRS-CY1JF000J R 0 1/16WMetal Oxide AA R17 VRS-CY1JF000J R 0 1/16WMetal Oxide AA R206 VRS-CY1JF122J R 1.2k 1/16W Metal Oxide AA R207 VRS-CY1JF391J R 390 1/16W Metal Oxide AA R208 VRS-CY1JF102J R 1k 1/16W Metal Oxide AA R209 VRS-CY1JF181J R 180 1/16W Metal Oxide AA R210 VRD-RA2BE4R7J R 4.7 1/8W Carbon AA R211 VRS-CY1JF560J R 56 1/16W Metal Oxide AA R212 VRS-CY1JF182J R 1.8k 1/16W Metal Oxide AA R213 VRS-CY1JF181J R 180 1/16W Metal Oxide AA R214 VRS-CY1JF221J R 220 1/16W Metal Oxide AA R215 VRS-CY1JF470J R 47 1/16W Metal Oxide AA R217 VRD-RA2BE2R2J R 2.2 1/8W Carbon AA

å R218 RR-XZ0080CEZZ R 4.7 1/2W Fuse Resistor AB

R219 VRS-CY1JF820J R 82 1/16W Metal Oxide AA R220 VRS-CY1JF181J R 180 1/16W Metal Oxide AA

25WG3

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTK9483WEW4 MAIN 2 UNIT (Continude)

R310 VRS-CY1JF332J R 3.3k 1/16W Metal Oxide AA R311 VRS-CY1JF102J R 1k 1/16W Metal Oxide AA R312 VRS-CY1JF221J R 220 1/16W Metal Oxide AA R313 VRS-CY1JF221J R 220 1/16W Metal Oxide AA R314 VRS-CY1JF153J R 15k 1/16W Metal Oxide AA R315 VRD-RA2BE472J R 4.7k 1/8W Carbon AA R316 VRS-CY1JF223J R 22k 1/16W Metal Oxide AA R317 VRS-CY1JF102J R 1k 1/16W Metal Oxide AA R401 VRS-CY1JF470J R 47 1/16W Metal Oxide AA R402 VRS-CY1JF331J R 330 1/16W Metal Oxide AA R403 VRS-CY1JF471J R 470 1/16W Metal Oxide AA R404 VRS-CY1JF471J R 470 1/16W Metal Oxide AA R406 VRS-CY1JF222J R 2.2k 1/16W Metal Oxide AA R407 VRS-CY1JF122J R 1.2k 1/16W Metal Oxide AA R408 VRS-CY1JF392J R 3.9k 1/16W Metal Oxide AA R409 VRS-CY1JF000J R 0 1/16WMetal Oxide AA R410 VRD-RM2HD151J R 150 1/2W Carbon AA R411 VRS-CY1JF104J R 100k 1/16WMetal Oxide AA R412 VRS-CY1JF102J R 1k 1/16W Metal Oxide AA R413 VRS-CY1JF394J R 390k 1/16WMetal Oxide AA R414 VRS-CY1JF101J R 100 1/16W Metal Oxide AA R415 VRS-CY1JF5R6J R 5.6 1/16W Metal Oxide AA R416 VRS-CY1JF100J R 10 1/16W Metal Oxide AA R417 VRS-CY1JF223J R 22k 1/16W Metal Oxide AA R418 VRS-CY1JF153J R 15k 1/16W Metal Oxide AA R419 VRS-CY1JF101J R 100 1/16W Metal Oxide AA R420 VRS-CY1JF101J R 100 1/16W Metal Oxide AA R501 VRS-CY1JF393F R 39k 1/16W Metal Oxide AA R601 VRS-CY1JF103J R 10k 1/16W Metal Oxide AA R602 VRS-CY1JF101J R 100 1/16W Metal Oxide AA R603 VRD-RM2HD151J R 150 1/2W Carbon AA R604 VRS-CY1JF330J R 33 1/16W Metal Oxide AA R605 VRS-CY1JF273J R 27k 1/16W Metal Oxide AA R606 VRS-CY1JF153J R 15k 1/16W Metal Oxide AA R607 VRS-CY1JF101J R 100 1/16W Metal Oxide AA R608 VRS-CY1JF182J R 1.8k 1/16W Metal Oxide AA R609 VRS-CY1JF1R0J R 1 1/16W Metal Oxide AA R611 VRS-CY1JF103J R 10k 1/16W Metal Oxide AA R801 VRS-CY1JF104J R 100k 1/16WMetal Oxide AA R802 VRS-CY1JF101J R 100 1/16W Metal Oxide AA R803 VRS-CY1JF101J R 100 1/16W Metal Oxide AA R804 VRS-CY1JF101J R 100 1/16W Metal Oxide AA R805 VRS-CY1JF100J R 10 1/16W Metal Oxide AA R1007 VRS-CY1JF563J R 56k 1/16W Metal Oxide AA R1012 VRS-CY1JF562J R 5.6k 1/16W Metal Oxide AA R1013 VRS-CY1JF101J R 100 1/16WMetal Oxide AA R1014 VRD-RA2BE103J R 10k 1/8W Carbon AA R1015 VRS-CY1JF103J R 10k 1/16W Metal Oxide AA R1016 VRS-CY1JF103J R 10k 1/16W Metal Oxide AA R1017 VRS-CY1JF472J R 4.7k 1/16W Metal Oxide AA R1018 VRS-CY1JF222J R 2.2k 1/16W Metal Oxide AA R1023 VRS-CY1JF562J R 5.6k 1/16W Metal Oxide AA R1024 VRS-CY1JF101J R 100 1/16WMetal Oxide AA R1025 VRS-CY1JF103J R 10k 1/16W Metal Oxide AA R1026 VRS-CY1JF102J R 1k 1/16W Metal Oxide AA R1029 VRS-CY1JF562J R 5.6k 1/16W Metal Oxide AA R1030 VRS-CY1JF562J R 5.6k 1/16W Metal Oxide AA R1031 VRS-CY1JF562J R 5.6k 1/16W Metal Oxide AA R1032 VRS-CY1JF563J R 56k 1/16W Metal Oxide AA R1033 VRS-CY1JF101J R 100 1/16WMetal Oxide AA R1034 VRS-CY1JF563J R 56k 1/16W Metal Oxide AA R1036 VRS-CY1JF101J R 100 1/16WMetal Oxide AA R1037 VRS-CY1JF561J R 560 1/16WMetal Oxide AA R1041 VRS-CY1JF103J R 10k 1/16W Metal Oxide AA R1042 VRS-CY1JF562J R 5.6k 1/16W Metal Oxide AA R1043 VRS-CY1JF101J R 100 1/16WMetal Oxide AA R1044 VRS-CY1JF472J R 4.7k 1/16W Metal Oxide AA R1045 VRS-CY1JF103J R 10k 1/16W Metal Oxide AA R1046 VRS-CY1JF102J R 1k 1/16W Metal Oxide AA R1048 VRS-CY1JF153J R 15k 1/16W Metal Oxide AA R1049 VRS-CY1JF822J R 8.2k 1/16W Metal Oxide AA R1050 VRS-CY1JF103J R 10k 1/16W Metal Oxide AA R1051 VRS-CY1JF561J R 560 1/16WMetal Oxide AA

R1052 VRS-CY1JF561J R 560 1/16WMetal Oxide AA R1053 VRS-CY1JF561J R 560 1/16WMetal Oxide AA R1054 VRS-CY1JF472J R 4.7k 1/16W Metal Oxide AA R1055 VRS-CY1JF472J R 4.7k 1/16W Metal Oxide AA R1056 VRS-CY1JF472J R 4.7k 1/16W Metal Oxide AA R1057 VRS-CY1JF472J R 4.7k 1/16W Metal Oxide AA R1058 VRS-CY1JF562J R 5.6k 1/16W Metal Oxide AA R1059 VRS-CY1JF392J R 3.9k 1/16W Metal Oxide AA R1061 VRS-CY1JF101J R 100 1/16WMetal Oxide AA R1062 VRS-CY1JF103J R 10k 1/16W Metal Oxide AA R1063 VRS-CY1JF101J R 100 1/16WMetal Oxide AA R1064 VRS-CY1JF101J R 100 1/16WMetal Oxide AA R1065 VRS-CY1JF392J R 3.9k 1/16W Metal Oxide AA R1066 VRS-CY1JF101J R 100 1/16WMetal Oxide AA R1067 VRS-CY1JF682J R 6.8k 1/16W Metal Oxide AA R1068 VRS-CY1JF101J R 100 1/16WMetal Oxide AA R1069 VRS-CY1JF392J R 3.9k 1/16W Metal Oxide AA R1070 VRS-CY1JF101J R 100 1/16WMetal Oxide AA R1071 VRS-CY1JF682J R 6.8k 1/16W Metal Oxide AA R1072 VRS-CY1JF102J R 1k 1/16W Metal Oxide AA R1073 VRS-CY1JF102J R 1k 1/16W Metal Oxide AA R1076 VRS-CY1JF101J R 100 1/16WMetal Oxide AA R1077 VRD-RM2HD470J R 47 1/2W Carbon AA R1078 VRS-CY1JF333J R 33k 1/16W Metal Oxide AA R1079 VRS-CY1JF332J R 3.3k 1/16W Metal Oxide AA R1086 VRS-CY1JF101J R 100 1/16WMetal Oxide AA R1087 VRS-CY1JF101J R 100 1/16WMetal Oxide AA R1089 VRS-CY1JF102J R 1k 1/16W Metal Oxide AA R1090 VRD-RA2BE102J R 1k 1/8W Carbon AA R1092 VRS-CY1JF682J R 6.8k 1/16W Metal Oxide AA R1094 VRD-RM2HD1R5J R 1.5 1/2W Carbon AA R1095 VRS-CY1JF101J R 100 1/16WMetal Oxide AA R1096 VRS-CY1JF101J R 100 1/16WMetal Oxide AA R1099 VRS-CY1JF102J R 1k 1/16W Metal Oxide AA

MISCELLANEOUS PARTS

P801 QPLGN0542CEZZ R Plug, 5 Pin AB SC202 QSOCZ2050CEZZ R Socket, 20 Pin AF SC203 QSOCZ2050CEZZ R Socket, 20 Pin AF SC204 QSOCZ0360GEZZ R Socket, 20 Pin AC SC205 QSOCZ2050CEZZ R Socket, 3 Pin AF SLD201 PSLDM0254PEFW R Shield AE SLD202 PSLDM0255PEFW R Shield AD SLD1001PSLDM0244PEFW R Shield AD SLD1002PSLDM0245PEFW R Shield AD

DUNTK9486WET4 CRT UNIT

INTEGRATED CIRCUIT

IC851 VHiTDA6107Q-1 R TDA6107Q AP

DIODES AND VARISTORS

D851 RH-EX0623GEZZ R Zener, EX0623GE AA D852 VHD1SS244//-1 R 1SS244 AB D853 VHD1SS244//-1 R 1SS244 AB D854 VHD1SS244//-1 R 1SS244 AB VA851 RH-VX0050CEZZ R Varistor, VX0050CE AE VA852 RH-VX0050CEZZ R Varistor, VX0050CE AE

COIL

L851 VP-CF681K0000 R Peaking 680µHAB

CAPACITORS

C852 VCFYSB2EB224K R 0.22 250V AD

å C854 RC-KZ0153CEZZ R 0.001 1.5kV AB

C855 VCEAGA2EW106M R 10 250V Electrolytic AC C857 VCKYPA1HB391K R 390p 50V Ceramic AA C858 VCKYPA1HB391K R 390p 50V Ceramic AA C859 VCKYPA1HB391K R 390p 50V Ceramic AA C866 VCEAGA2EW106M R 10 250V Electrolytic AC

25WG3

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTK9486WET4 CRT UNIT (Continude)

R851 VRD-RA2BE101J R 100 1/8W Carbon AB

RESISTORS

R852 VRD-RA2BE101J R 100 1/8W Carbon AB R853 VRD-RA2BE101J R 100 1/8W Carbon AB R855 VRD-RM2HD272J R 2.7k 1/2W Carbon AA R861 VRD-RM2HD272J R 2.7k 1/2W Carbon AA R867 VRD-RM2HD272J R 2.7k 1/2W Carbon AA R875 VRD-RA2BE560J R 56 1/8W Carbon AA R876 VRD-RA2BE560J R 56 1/8W Carbon AA R877 VRD-RA2BE560J R 56 1/8W Carbon AA

P851 QPLGN0361CEZZ R Plug, 3 Pin AB

MISCELLANEOUS PARTS

P852 QPLGN0561CEZZ R Plug, 5 Pin AB

å SC851 QSOCV0919CEZZ R Socket, 9 Pin AH

TP851 QTiPM0083CEZZ R Tip AB TP852 QTiPM0083CEZZ R Tip AB TP853 QTiPM0083CEZZ R Tip AB

PRDAR0248PEFW R Heat Sink, for IC851 AF

MISCELLANEOUS PARTS

CN402 QCNW-0024PEZZ Connecting Cord CN752 QCNW-0022PEZZ Connecting Cord CN753 QCNW-0023PEZZ Connecting Cord CN851 QCNW-2187PEZZ R Connecting Cord AG CN852 QCNW-0020PEZZ Connecting Cord CN1101 QCNW-0025PEZZ R Connecting Cord AF CN3302 QCNW-2222PEZZ R Connecting Cord AK CN3306 QCNW-2224PEZZ R Connecting Cord AH

SUPPLIED ACCESSORIES

QACCZ3008PEZZ R AC Cord AN QCNW-2193PEZZ R Connecting Cord AK RRMCG1399PESA Infrared R-C TiNS-0096KJZZ Instruction Book

PACKING PARTS

(NOT REPLACEMENT ITEM)

1-4

1-2

1-3

1-5

SPAKC0090KJZZ - Packing Case — SPAKP0008KJZZ - Wrapping Paper — SPAKX0061KJZZ - Packing Add. — SPAKX0062KJZZ - Packing Add. — SSAKA0230CEZZ - Polyethylene Bag —

CABINET PARTS

1 CCABA0060WEA0 Front Cabinet Ass'y 1-1

1-2 HBDGB3119CESA R Badge, SHARP AG 1-3 HDECQ0025KJSA LED Cover, R/C 1-4 JBTN-0032KJSA Power Button 1-5 JBTN-0033KJSA Control Button 2 CCABB0039WEA0 Rear Cabinet Ass'y 2-1

2-2 HiNDP0014KJZZ A/V Indicator

Not Available

- Front Cabinet — (Not Replacement Item)

- Rear Cabinet — (Not Replacement Item)

25WG3

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission of the publisher.

TQ0580-S

Dec. 1998 Printed in JAPAN

NA. NS

SHARP CORPORATION AV Systems Group Quality & Reliability Control Center Yaita, Tochigi 329-2193, Japan

Sharp 25WG3 Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual
