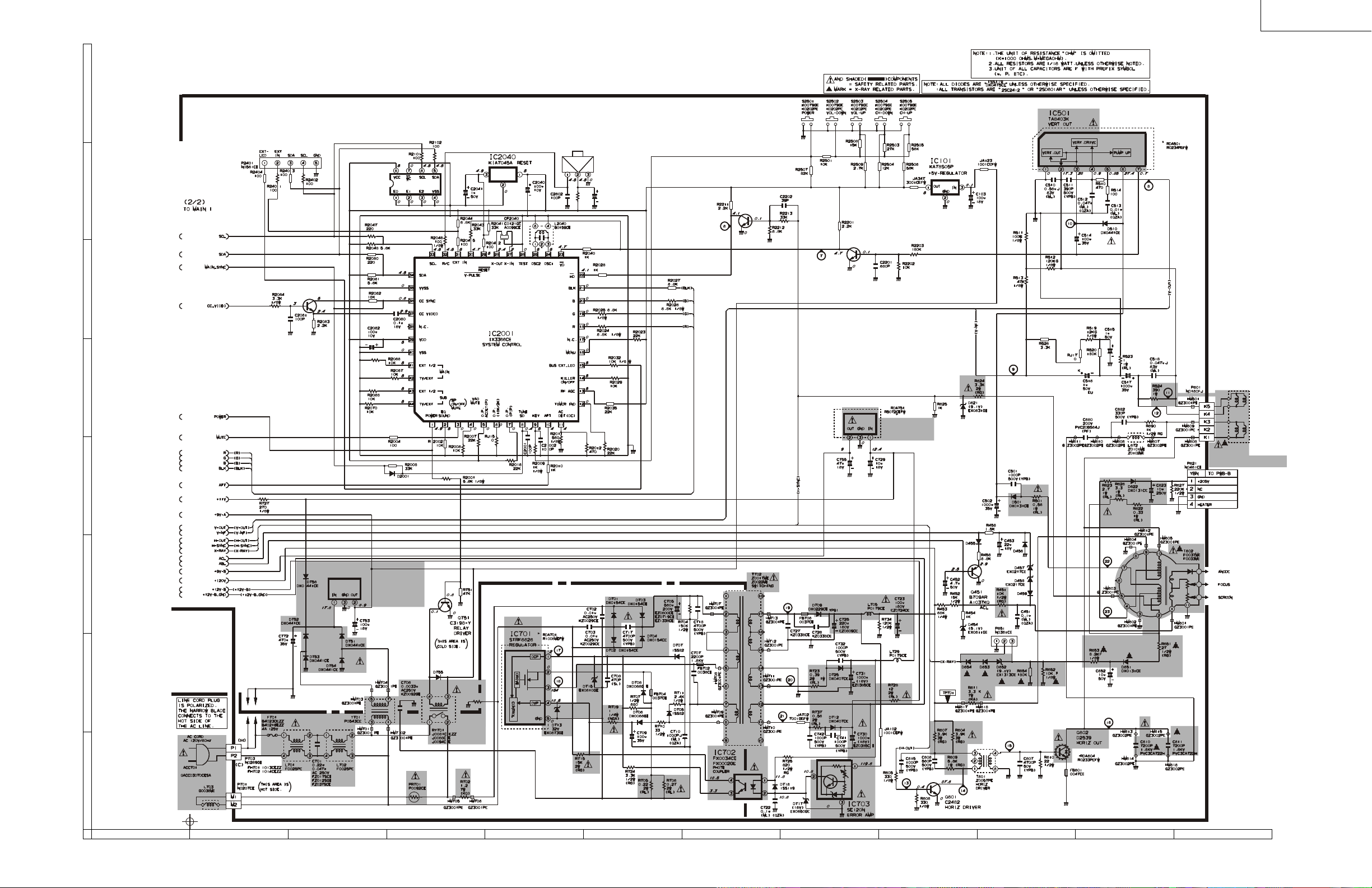

Sharp 25rm100n schematic

Download

SERVICE MANUAL

S40Y525RM100N

COLOR TELEVISION

Chassis No. SN-91

25RM100N

MODEL

In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its original condition and only parts identical to those specified should be used.

25RM100N

CONTENTS

Page

ELECTRICAL SPECIFICATIONS ........................................................................................................1

IMPORTANT SERVICE SAFETY PRECAUTION................................................................................2

LOCATION OF USER'S CONTROL ....................................................................................................4

INSTALLATION AND SERVICE INSTRUCTIONS...............................................................................5

CHASSIS LAYOUT ............................................................................................................................10

BLOCK DIAGRAM .............................................................................................................................11

SCHEMATIC DIAGRAMS .................................................................................................................. 12

PRINTED WIRING BOARD ASSEMBLIES ....................................................................................... 18

REPLACEMENT PARTS LIST...........................................................................................................21

PACKING OF THE SET.....................................................................................................................28

ELECTRICAL SPECIFICATIONS

POWER INPUT..................................................... 120 V AC 60 Hz

POWER RATING

PICTURE SIZE ........................................... 2,032cm2 (315sq inch)

CONVERGENCE ............................................................. Magnetic

SWEEP DEFLECTION .................................................... Magnetic

FOCUS ............................................... Hi-Bi-Potential Electrostatic

INTERMEDIATE FREQUENCIES

Picture IF Carrier Frequency ..................................... 45.75 MHz

Sound IF Carrier Frequency...................................... 41.25 MHz

Color Sub-Carrier Frequency .................................... 42.17 MHz

AUDIO POWER

......................................................................

...............................

1.3W (at 10% distortion and Dual CH Operate)

105 W

(Nominal)

SPEAKER

SIZE ...................................................................... 8 cm (Round)

VOICE COIL IMPEDANCE ............................ 32 ohm at 400 Hz

ANTENNA INPUT IMPEDANCE

VHF/UHF.....................................................75 ohm Unbalanced

TUNING RANGES

VHF-Channels...............................................................2 thru 13

UHF-Channels ............................................................ 14 thru 69

CATV Channels...........................................................1 thru 125

(EIA, Channel Plan U.S.A.)

SHARP CORPORATION

Specifications are subject to change without prior notice.

This document has been published to be used for after sales service only. The contents are subject to change without notice.

25RM100N

Service work should be performed only by qualified service technicians who are thoroughly familiar with all safety checks and the servicing guidelines which follow:

IMPORTANT SERVICE SAFETY PRECAUTION

WARNING

1. For continued safety , no modification of any circuit should be attempted.

2. Disconnect AC power before servicing.

3. Semiconductor heat sinks are potential shock hazards when the chassis is operating.

4. The chassis in this receiver has two ground systems which are separated by insulating material. The nonisolated (hot) ground system is for the B+ voltage regulator circuit and the horizontal output circuit. The isolated ground system is for the low B+ DC voltages and the secondary circuit of the high voltage transformer. To prevent electrical shock use an isolation transformer between the line cord and power receptacle, when servicing this chassis.

CAUTION: FOR CONTINUED PROTECTION AGAINST A RISK OF FIRE, REPLACE

4A 125V

ONLY WITH SAME TYPE 4A125V FUSE.

SERVICING OF HIGH VOLTAGE SYSTEM AND PICTURE TUBE

When servicing the high voltage system, remove the static charge by connecting a 10k ohm resistor in series with an insulated wire (such as a test probe) between the picture tube ground and the anode lead. (AC line cord should be disconnected from AC outlet.)

1. Picture tube in this receiver employs integral implosion protection.

2. Replace with tube of the same type number for continued safety.

3. Do not lift picture tube by the neck.

4. Handle the picture tube only when wearing shatterproof goggles and after discharging the high voltage anode completely.

X-RADIATION AND HIGH VOLTAGE LIMITS

1. Be sure all service personnel are aware of the procedures and instructions covering X-radiation. The only potential source of X-ray in current solid state TV receivers is the picture tube. However, the picture tube does not emit measurable X-Ray radiation, if the high voltage is as specified in the "High Voltage Check" instructions. It is only when high voltage is excessive that Xradiation is capable of penetrating the shell of the picture tube including the lead in the glass material. The important precaution is to keep the high voltage below the maximum level specified.

2. It is essential that servicemen have available at all times an accurate high voltage meter. The calibration of this meter should be checked periodically.

3. High voltage should always be kept at the rated value

no higher. Operation at higher voltages may cause a failure of the picture tube or high voltage circuitry and;also, under certain conditions, may produce radiation in exceeding of desirable levels.

4. When the high voltage regulator is operating properly there is no possibility of an X-radiation problem. Every time a color chassis is serviced, the brightness should be tested while monitoring the high voltage with a meter to be certain that the high voltage does not exceed the specified value and that it is regulating correctly.

5. Do not use a picture tube other than that specified or make unrecommended circuit modifications to the high voltage circuitry.

6. When trouble shooting and taking test measurements on a receiver with excessive high voltage, avoid being unnecessarily close to the receiver. Do not operate the receiver longer than is necessary to locate the cause of excessive voltage.

IMPORTANT SER VICE SAFETY PRECAUTION

(Continued)

25RM100N

BEFORE RETURNING THE RECEIVER (Fire & Shock Hazard)

Before returning the receiver to the user, perform the following safety checks.

1. Inspect all lead dress to make certain that leads are not pinched or that hardware is not lodged between the chassis and other metal parts in the receiver.

2. Inspect all protective devices such as non-metallic control knobs, insulating materials, cabinet backs, adjustment and compartment covers or shields, isolation resistor-capacity networks, mechanical insulators and etc.

3. To be sure that no shock hazard exists, check for leakage current in the following manner. Plug the AC cord directly into a 120 volt AC outlet, (Do not use an isolation transformer for this test). Using two clip leads, connect a 1.5k ohm, 10 watt resistor paralleled by a 0.15 F capacitor in series with all exposed metal cabinet parts and a known earth ground, such as electrical conduit or electrical ground connected to earth ground. Use an AC voltmeter having with 5000 ohm per volt, or higher, sensitivity to measure the AC voltage drop across the resistor .

Connect the resistor connection to all exposed metal parts having a return to the chassis (antenna, metal cabinet, screw heads, knobs and control shafts, escutcheon and etc.) and measure the AC voltage drop across the resistor. AII checks must be repeated with the AC line cord plug connection reversed. (If necessary, a nonpolarized adapter plug must be used only for the purpose of completing these check.) Any current measured must not exceed 0.5 milliamp. Any measurements not within the limits outlined above indicate of a potential shock hazard and corrective action must be taken before returning the instrument to the customer.

VOLTMETER

1.5k ohm 10W

TO EXPOSED METAL PARTS

////////////////////////////////////////////////////////////////////////////

SAFETY NOTICE

Many electrical and mechanical parts in television receivers have special safety-related characteristics. These characteristics are often not evident from visual inspection, nor can protection afforded by them be necessarily increased by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this manual; electrical components having such features are identified by " "

and shaded areas in the Replacement Parts Lists and Schematic Diagrams.

////////////////////////////////////////////////////////////////////////////

For continued protection, replacement parts must be identical to those used in the original circuit. The use of substitute replacement parts which do not have the same safety characteristics as the factory recommended replacement parts shown in this service manual, may create shock, fire, X-radiation or other hazards.

0.15 F

TEST PROBE

CONNECT TO KNOWN EARTH GROUND

25RM100N

LOCATION OF USER'S CONTROL

Front Panel

POWER

Press Press again Off.

On.

VIDEO/AUDIO IN TERMINALS

VOLUME UP/DOWN

(+) Increases sound. (–) Decreases sound.

Basic Remote Control Functions

POWER

Press On. Press again

REMOTE KEYPAD

Accesses any channel from keypad.

FLASHBACK

Returns to previous channel.

VOLUME UP/DOWN

(+) Increases sound. (–) Decreases sound.

• In menu mode, changes or selects the TV adjustments.

MUTE

Press Mutes sound. Press again Restores sound.

• CLOSED CAPTION appears when

sound is muted.

Off.

SENSOR AREA FOR REMOTE CONTROL

CHANNEL UP/DOWN

( ) Selects next higher channel. (

) Selects next lower channel.

• Press both at same time to

access MAIN MENU screen.

Infrared Transmitter Window

INPUT

Press Switch to external video input mode. Press again Switch to TV mode.

CHANNEL UP/DOWN

) Selects next higher channel.

( (

) Selects next lower channel.

• Moves the “ screen.

Press Accesses MAIN MENU. Press again Exits MAIN MENU.

DISPLAY

Press Displays receiving channel for four seconds. Press again Removes display.

• Temporarily displa ys receiving channel when in Closed Caption mode.

” mark of the MENU

INSTALLATION AND SERVICE INSTRUCTIONS

Note: (1) When performing any adjustments to resistor controls and transformers use non-metallic

screwdrivers or TV alignment tools.

(2)Before performing adjustments, the TV set must be on at least 15 minutes.

25RM100N

CIRCUIT PROTECTION

The receiver is protected by a 4.0A fuse (F701), mounted on PWB-A, wired into one side of the AC line input.

X-RADIATION PROTECTOR CIRCUIT TEST

After service has been performed on the horizontal deflection system, high voltage system, B+ system, test the X-Radiation protection circuit to ascertain proper operation as follows:

1. Apply 120V AC using a variac transformer for accurate input voltage.

2. Allow for warm up and adjust all customer controls for normal picture and sound.

3. Receive a good local channel.

4. Connect a digital voltmeter to TP653 and make sure that the voltmeter reads 11.2 ±0.6V .

5. Apply external 13.8V DC at TP653 by using an external DC supply, TV must shut off.

6. To reset the protector, unplug the AC cord and make a short circuit between TP651 and TP652. Now make sure that normal picture appears on the screen.

7. If the operation of the horizontal oscillator does not stop in step 5, the circuit must be repaired before the set is returned to the customer.

HIGH VOLT AGE CHECK

High voltage is not adjustable but must be checked to verify that the receiver is operating within safe and efficient design limitations as specified checks should be as follows:

1. Connect an accurate high voltage meter between ground and anode of picture tube.

2. Operate receiver for at least 15 minutes at 120V AC line voltage, with a strong air signal or a properly tuned in test signal.

3. Enter the service mode and select the service adjustment "S19" and Bus data "01" (Y-mute on).

4. The voltage should be approximately, 28.7kV (at zero beam). If a correct reading cannot be obtained, check circuitry for malfunctioning components. After the voltage test, make Y-mute off to the normal mode.

25RM100N

For adjustments of this model, the bus data is converted to various analog signals by the D/A converter circuit.

Note: There are still a few analog adjustments in this series such as focus and master screen voltage.

Follow the steps below whenever the service adjustment is required. See "Table-B" to determine, if service adjustments are required.

1. Service mode

Before putting unit into the service mode, check that customer adjustments are in the normal mode. Use the reset function in the video adjustment menu to ensure customer controls are in their proper (reset) position.

2. Service number selection

Once in the service mode, press the Ch-up or Chdown button on the remote controller or at the set. The service adjustment number will vary in increments of one, from "S01" to

"OP2.

3. Data number selection

Press the V ol-up or down button to adjust the data number.

DATA NUMBER

SERVICE ADJUSTMENT NUMBER

To enter the service mode and exit service mode.

While pressing the Vol-up and Ch-up buttons at the sametime, plug the AC cord into a wall socket. Now the TV set is switched on and enters the service mode. To exit the service mode, turn the television off by pressing the power button.

CHANNEL

S01

Figure A.

55(085)

25RM100N

SERVICE

NUMBER

S01 PICTURE 55 00-7F S02 TINT 46 00-7F S03 COLOR 32 00-7F S04 BRIGHTNESS 40 00-7F S05 SHARPNESS 24 00-3F Must be set to "28" S06 VERTICAL PHASE 00 00-07 Must be set to "00" S07 HORIZONTAL PHASE 12 00-1F S08 RF-AGC 23 00-3F S09 VERTICAL AMP 20 00-3F S10 VCO 2C 00-7F S11 R CUT-OFF 00 00-FF S12 G CUT -OFF 00 00-FF S13 B CUT-OFF 00 00-FF S14 G GAIN 7F 00-FF S15 B GAIN 7F 00-FF S16 TRAP(3.58MHz) 00 00 or 01 Must be set to "00" S17 BALANCE 20 00-3F Must be set to "20" S18 C.C.POSITION 17 00-7F S19 Y-MUTE 00 00,01,03 00= NORMAL, 01= No Y, 03= No VERTICAL S20 ENERGY SAVE OFFSET 20 00-3F Must be set to "23" S21 D.D.E. OFFSET 03 00-1F Must be set to "03" S22 OSD SETUP 00 00-03 Must be set to "00" S23 TUNER SETUP 00 00,01 Must be set to "00" OP1 OPTION 1 00 00-FF OP2 OPTION 2 00 00-FF

ADJUSTMENT ITEM

INITIAL VALUE

DATA

RANGE

ADJUSTMENT CONTENTS

Must be set to Must be set to

"B0" "04"

T able - A

Holding down both the Vol-up/CH-down buttons on the TV set at service mode for more than 2 seconds will automatically write the above initial values into IC2101.

PART REPLACED

IC2001

IC201

IC2101

CRT

ADJUSTMENT

NECESSARY

UNNECESSARY

Data is stored in IC2101. The adjustment is needed to compensate for characteristics

of parts including IC201 and MTS level (M01).

Holding down both the Vol-up/CH-down buttons on the TV set in the service mode for more than 2 seconds will automatically write the above initial values into IC2101. Then perform a complete adjustment.

Adjust items related to picture tube only .

NOTES

T able - B

25RM100N

SERVICE ADJUSTMENT

VCO Adjustment

1. Connect a digital voltmeter between pin (44) of IC201 and ground.

2. Receive a good local channel.

3. Enter the service mode and select the service adjustment "S10".

4. Adjust the data so that digital voltmeter reads 2.2V .

5. Adjustment is completed, remove the voltmeter, return to "normal" mode.

RF AGC Adjustment

1. Receive a good local channel.

2. Enter the service mode and select the service adjustment "S08".

3. Set the data value to point where no noise or beat appears.

4. Select another channel to confirm that no noise or beat appears.

Note 1 : You will have to come out of the service mode

to select another channel.

Note 2 : Setting the data to "00" will produce a black

raster.

White Balance Adjustment

1. Receive a good local channel.

2. Enter the service mode and select the service adjustment "S03" and set to "00" (minimum color)(Record original data code under adjustment "S03" before changing). "S03" does not have to be adjusted, if you selected a B/W picture or monoscope pattern.

3. Alternately adjust service adjustment data of "S14" and "S15" until a good grey scale with normal whites is obtained.

4. Select the service adjustment "S03" and adjust data to obtain normal color level.

Sub-Picture Adjustment

1. Receive a good local channel.

2. Make sure the customer picture control is set to maximum.

3. Enter the service mode and select the service adjustment "S01".

4. Adjust the data value to achieve normal contrast range.

Screen Adjustment

1. Connect a oscilloscope between TP854 and GND on the CRT Unit.

2. Receive a good local channel.

3. Enter the service mode and select the service adjustment "S03" and set the data value to "00" to set the color level to minimum. (Record original data code under adjustment "S03" before changing) You may skip this step, if you selected a B/W picture or monoscope pattern.

4. Select the service adjustment "S19" and adjust the data value to "01", this turn off the luminance signal (Y-mute).

5. Select the service adjustment "S04" and adjust data value to obtain 2.35 volts on the oscilloscope screen.

2.35 0.15VDC GND

Figure B.

6. Adjust the master screen control until the raster darkens to the point where raster is barely seen.

7. Adjust the service adjustments "S11" red, "S12" green and "S13" blue to obtain a good grey scale with normal whites at low brightness level.

8. Select the service adjustment "S19" and reset data to "00". Select the service adjustment "S03" and reset data to obtain normal color level.

9. Remove oscilloscope, and reset the master screen control to obtain normal brightness range.

Sub-Tint Adjustment

1. Receive a good local channel.

2. Set customer tint control to center of it's range.

3. Enter the service mode and select the service adjustment "S02".

4. Adjust "S02" data value to obtain normal flesh tones.

Sub-Color Adjustment

1. Receive a good local channel.

2. Make sure the customer color control is set to center position .

3. Enter the service mode and select service adjustment "S03".

4. Adjust "S03" data value to obtain normal color level.

25RM100N

Sub-Brightness Adjustment

1. Receive a good local channel.

2. Make sure the customer brightness control is set to center position.

3. Enter the service mode and select the service adjustment "S04".

4. Adjust "S04" data value to obtain normal brightness level.

Vertical-Size Adjustments

1. Receive a good local channel.

2. Enter the service mode and select the service adjustment "S09".

3. While observing the top and bottom of the screen, adjust "S09" data value to proper vertical size.

Vertical Phase Adjustment

1. Enter the service mode and select the service adjustment "S06".

2. Adjust data value to "00".

Note: This must be set "00" when changed data retrace

line will appear.

Horizontal Position Adjustment

1. Receive a good local channel.

2. Enter the service mode and select the service adjustment "S07".

3. Adjust "S07" data value so that picture is centered.

3.58MHz Trap Adjustment

1. Receive a good local channel.

2. Enter the service mode and select the service adjustment "S16".

3. This is a two position adjustment, "00" is ON, "01" is OFF .

4. For this Model should be adjusted as "00"

Sharpness and Audio Balance Adjustments

1. Receive a good local channel.

2. Enter the service mode and select the service adjustments "S05" for sharpness and "S17" for balance.

Sharpness adjustment

3. Adjust data value to "28"(center of data range) for sharpness adjustment.

Audio balance adjustment

4. Adjust data value to "20"(center of data range) for Audio balance adjustment.

Energy save offset Adjustment

1. Enter the service mode and select the service adjustment "S20".

2. Adjust data value to "23".

Note : This position is used to preset the level for the

energy save function.

Other Adjustments

Caption Position Adjustment (Horizontal)

1. Receive a good local channel.

2. Enter the service mode and select the service adjustment "S18".

3. A black text box appears on the screen. (see Figure C below)

4. Adjust "S18" data value so that text box is positioned in the center of the screen.

1. Enter the service mode.

2. Adjust the following data values as listed below.

S21 "03" DDE OFFSET S22 "00" OSD SETUP S23 "00" TUNER SETUP

Figure C.

CHASSIS LAYOUT

25RM100N

PWB-B

PWB-H

PWB-A

654321

25RM100N

BLOCK DIAGRAM

654321

DESCRIPTION OF SCHEMATIC DIAGRAM

25RM100N

NOTES:

1. The unit of resistance "ohm" is omitted. (K=k =1000 , M=M )

2. All resistors are 1/16 watt, unless otherwise noted.

3. All capacitors are µ F, unless otherwise noted. (P=pF=µµF)

4. (G) indicates ±2% tolerance may be used.

5. indicates line isolated ground.

VOLTAGE MEASUREMENT CONDITIONS:

1. All DC voltages are measured with DVM connected between points indicated and chassis ground, line voltage set at 120V AC and all controls set for normal picture unless otherwise indicated.

2. All voltages measured with 1000µ V B & W or Color signal.

WAVE FORMS

WAVEFORM MEASUREMENT CONDITIONS:

1. Photographs taken on a standard gated color bar signal, the tint setting adjusted for proper color. The wave shapes at the red, green and blue cathodes of the picture tube depend on the tint, color level and picture control.

indicates waveform check points (See chart, waveforms are measured from point indicated to chassis ground.)

AND SHADED ( ) COMPONENTS = SAFETY RELATED PARTS. MARK= X-RAY RELATED PARTS.

DRGANNES MARQUES ET HACHRES ( ):

PIECES RELATIVES A LA SECURITE. MARQUE : PIECS RELATIVE AUX RAYONS X.

This circuit diagram is a standard one, printed circuits may be subject to change for product improvement without prior notice.

654321

25RM100N

25R-M100N

PWB - A

MAIN 1 (DUNTKA126WEP9)

TU51 115B8035AH VTST5UF78/ VTST5UF670 TUNER

1211109876543

25RM100N

25R-M100N

MAIN 2 (DUNTKA126WEP9)

PWB - A

RMC2601

U0235CEZZ

R2601

47 1/8W

U0222CEZZ R/C RECEIVER

C2601

47uF 16V

Q2211

C3875 H-REVERSE AMP

Q2201

C3875 H-REVERSE AMP

IC2101

BR24C16 AT24C16

Q2060

C3875 BUFFER

M24C16B EEPROM

IC751

KA7809PI KA7809AP +9V-B REGULATOR

DY601 H0117ME/H0118ME/H0123ME H0120ME/HA013WJ/H0103GJ

IC750

KA7809PI KA7809AP +9V-A REGULATOR

R701

3.9M 1/2 W HZ0048CEZZ DZ0049CEZZ

1211109876543

25RM100N

SCHEMATIC DIAGRAM: CRT and FRONT A

25R-M100N

PWB - B

CRT (DUNTK9510WEV1)

Units

V101 CRT A63AFW36X A63QDB891X A63AFW32X A63AHC26X

OPTION CRT DY R626 R622 R621 MAIN A63QDB891X RCILH0120MEZZ 3.3/1W 0.33/1W ~ ALT A63AFW 32X RCILH0117MEZZ 3.3/1W 0.33/1W ~ ALT A63AFW 32X RCILH0123MEZZ 3.3/1W 0.33/1W ~ ALT A63AFW 36X RCILH0117MEZZ 3.3/1W 0.33/1W ~ ALT A63AFW 36X RCILH0123MEZZ 3.3/1W 0.33/1W ~ ALT A63AHC26X RCILH0103GJZZ ~ 0.33/1W 1.2/2W ALT A63AHC26X RCILH0118MEZZ ~ 0.33/1W 1.2/2W ALT A63QDB891X RCILH0117MEZZ 3.3/1W 0.33/1W ~ ALT A63QDB891X RCILHA013WJZZ 3.3/1W 0.33/1W ~

(DUNTK9310WEV2)

654321

PRINTED WIRING BOARD ASSEMBLIES

25RM100N

PWB-B: CRT Unit (Wiring Side)

PWB-H: FRONT AV Unit (Wiring Side)

654321

25RM100N

654321

PWB-A: MAIN Unit (Wiring Side)

25RM100N

654321

PWB-A: MAIN Unit (Chip Parts Side)

25RM100N

PARTS LIST

PARTS REPLACEMENT

Replacement parts which have these special safety characteristics identified in this manual; electrical components having such features are identified by and shaded areas in the Replacement Parts Lists and Schematic Diagrams. The use of a substitute replacement part which dose no have the same safety characteristic as the factory recommended replacement parts shown in this service manual may create shock, fire or other hazards.

"HOW TO ORDER REPLACEMENT PARTS"

To have your order filled promptly and correctly, please furnish the following informations.

1. MODEL NUMBER 2. REF. NO.

3. PART NO. 4. DESCRIPTION

in USA: Contact your nearest SHARP Parts Distributor to order.

Ref. No. Part No. Description Code

V101 VB63AFW32X/*S M CRT (DY601:H0117ME) CK

DY601 RCiLH0117MEZZ M DY (CRT:A63AFW32X) BA

For location of SHARP Parts Distributor, Please call TollFree; 1-800-BE-SHARP

MARK: SPARE PARTS-DELIVERY SECTION

MARK: X- RAY RELATED PARTS

PICTURE TUBE

or VB63AHC26X/*S CRT (DY601:H0118ME) or VB63AFW36031E CRT (I.T.C.)

or RCiLH0118MEZZ DY (CRT:A63AHC26X)

Ref. No. Part No. Description Code

PRINTED WIRING BOARD ASSEMBLIES

(NOT REPLACEMENT ITEM)

PWB-A DUNTKA126WEP9 – MAIN Unit — PWB-B DUNTK9510WEK1 – CRT Unit — PWB-H DUNTK9310WEK0 – FRONT AV Unit

—

PWB-A: DUNTKA126WEP9

MAIN UNIT

TUNER

NOTE: THE PARTS HERES SHOWN ARE SUPPLIED

TU51 VTU115B8035AH M Tuner AU

IC101 VHiKA78S05P-1 J KA78S05P AD

IC201 RH-iX3253CEZZ J TA1268AN AV IC352 VHiAN7511//-1 J I.C. AK

IC501 VHiTA8403K/-1 J TA8403K AL

IC701 VHiSTRF66261E J STR-F6626 AX

IC702 RH-FX0034CEZZ J PC817 AE

IC703 VHiSE120N//-1 J SE120N AG

IC750 VHiKA7809Pi-1 M KA7809PI AE

IC751 VHiKA7809Pi-1 M KA7809PI AE IC2001 RH-iX3366CEZZ M TMPA8700CPF-164 AT IC2040 VHiKiA7045A-1 J KIA7045A AD IC2101 VHiM24C16B/-1 J M24C16-BN6 AG

AS AN ASSEMBLY BUT NOT INDEPENEDENTLY.

or VTUVTST5UF78S

INTEGRATED CIRCUITS

or RH-FX0002GEZZ

L703 RCiLG0036MEZZ M Degaussing Coil BB

MSPRT0002MEZZ M Spring for CRT AA PMAGF3003CEZZ M Magnet Ass'y AK QEARC2508MEZZ M Grounding Part AF

25RM100N

Ref. No. Part No. Description Code Ref. No. Part No. Description Code

PWB-A: DUNTKA126WEP9

MAIN UNIT (Continued)

You can substitute "VS2SC2412-C-1" for "VS2SD601AR/-1". Q201 VS2SC2735//1E J 2SC2735 AC Q401 VS2SD601AR/-1 J 2SD601AR AC Q402 VS2SB709AR/-1 J 2SB709AR AC

VS2SA1037KR-1 Q403 VS2SD601AR/-1 J 2SD601AR AC Q421 VS2SB709AR/-1 J 2SB709AR AC

VS2SA1037KR-1 Q451 VS2SB709AR/-1 J 2SB709AR AC

VS2SA1037KQ-1 Q601 VS2SC2482//-1 J 2SC2482 AD

Q602 VS2SD2539//1E J 2SD2539 AP Q751 VS2SC3198-Y-1 J 2SC3198 (Y) AA Q2060 VS2SD601AR/-1 J 2SD601AR AC Q2201 VS2SD601AR/-1 J 2SD601AR AC Q2211 VS2SD601AR/-1 J 2SD601AR AC

You can substitute "RH-DX0475CEZZ" for "VHD1SS119//-1". D51 RH-EX0611GEZZ J Zener Diode, 5.1V AA D52 RH-EX0673GEZZ J Zener Diode, 32V AB D53 RH-EX0611GEZZ J Zener Diode, 5.1V AA

D401 VHD1SS119//-1 J Diode AB D402 RH-EX0604GEZZ J Zener Diode, 3.9V AB D454 RH-EX0611GEZZ J Zener Diode, 5.1V AA D455 VHD1SS119//-1 J Diode AB D456 VHD1SS119//-1 J Diode AB D457 RH-EX0217CEZZ J Zener Diode AB D458 RH-EX0217CEZZ J Zener Diode AB D459 VHD1SS119//-1 J Diode AB

D501 RH-DX0131CEZZ J Diode AC

D510 RH-DX0441CEZZ J Diode AC D621 RH-EX0631GEZZ J Zener Diode, 9.1V AA

D622 RH-DX0131CEZZ J Diode AC

D651 RH-DX0131CEZZ J Diode AC

D652 RH-EX1313CEZZ M Zener Diode, 9.1V AB

D653 VHD1SS119//-1 J Diode AB

D654 VHD1SS119//-1 J Diode AB

D701 RH-DX0154CEZZ J Diode AC

D702 RH-DX0154CEZZ J Diode AC

D703 RH-DX0154CEZZ J Diode AC

D704 RH-DX0154CEZZ J Diode AC D705 VHD1SS82///1A J Diode AC D706 RH-DX0066GEZZ J Diode AB D707 VHD1SS82///1A J Diode AC D708 RH-DX0066GEZZ J Diode AB

D709 RH-DX0229CEZZ J Diode AF

D712 RH-DX0407CEZZ J Diode AD

D713 RH-EX0673GEZZ J Zener Diode, 32V AB

D715 RH-EX0610GEZZ J Zener Diode AA D716 VHD1SS119//-1 J Diode AB D717 RH-EX0650GEZZ J Zener Diode, 16V AB

D725 RH-DX0407CEZZ J Diode AD

D751 RH-DX0441CEZZ J Diode AC

D752 RH-DX0441CEZZ J Diode AC

D753 RH-DX0441CEZZ J Diode AC

D754 RH-DX0441CEZZ J Diode AC D755 VHD1SS119//-1 J Diode AB

D756 RH-DX0441CEZZ J Diode AC D2001 VHD1SS119//-1 J Diode AB

TRANSISTORS

DIODES

PR701 RMPTP0092CEZZ J Packaged Circuit AH X801 RCRSB0205CEZZ J Crystal AF

or RCRSB0001PEZZ

FILTERS

PACKAGED CIRCUITS

CF301 RFiLC0029TAZZ J Ceramic Filter AD CF401 RFiLC0013CEZZ J Ceramic Filter AE CF631 RFiLA0034CEZZ J Ceramic Filter AD

CF2040 RFiLC0121GEZZ J Ceramic Filter AD

or RFiLA0099CEZZ

SF201 RFiLC0405CEZZ J SAW Filter AH

COILS

L201 VP-XF1R2K0000 J Peaking 1.2µH AB L202 RCiLi0588CEZZ J VCO Coil AF L301 VP-XF8R2K0000 J Peaking 8.2µH AB L302 RCiLi0613CEZZ J IF Coil AE

RCiLi0605CEZZ L401 VP-XF6R8K0000 J Peaking 6.8µH AB L402 VP-XF3R3K0000 J Peaking 3.3µH AB L403 VP-XF8R2K0000 J Peaking 8.2µH AB L404 VP-XF8R2K0000 J Peaking 8.2µH AB L421 VP-XF680K0000 J Peaking 68µH AB L672 RCiLZ0101MEZZ M Coil AE

! ! !

RCiLZ0102MEZZ L701 RCiLF0025PEZZ M Coil AK L702 RCiLF0025PEZZ M Coil AK L705 RCiLP0179CEZZ J Coil AD L729 RCiLP0179CEZZ J Coil AD L2040 RCiLB0131CEZZ J Oscillation Coil AE

TRANSFORMERS

T601 RTRNZ0057PEZZ R Transformer AK T602 RTRNF0037MEZZ M H-Volt Transformer AY

RTRNF0033MEZZ

T701 RTRNP0543CEZZ J Power Transformer AM

T702 RTRNZ0017MEZZ M Transformer AM

RTRNZ0022MEZZ

CAPACITORS

[EL.··· Electrolytic, M-Poly.··· Metalized Polypro Film]

C51 VCEA0A1CW476M J 47 16V EL. AB C53 VCEA0A1HW105M J 1 50V EL. AB C54 VCEA0A1HW475M J 4.7 50V EL. AB

25RM100N

Ref. No. Part No. Description Code Ref. No. Part No. Description Code

PWB-A: DUNTKA126WEP9

MAIN UNIT (Continued)

C55 VCEA0A1CW108M J 1000 16V EL. AD C56 VCKYCY1CB104K J 0.1 16V Ceramic AB C103 VCEA0A1CW107M J 100 16V EL. AC C201 VCKYMN1HB102K J 1000p 50V Ceramic AA C202 VCKYCY1HF103Z J 0.01 50V Ceramic AA C203 VCKYCY1HB102K J 1000p 50V Ceramic AA C204 VCKYCY1HF103Z J 0.01 50V Ceramic AA C205 VCEA0A1HW474M J 0.47 50V EL. AB C206 VCEA0A1CW337M J 330 16V EL. AC C207 VCKYCY1HF103Z J 0.01 50V Ceramic AA C208 VCEA0A1HW474M J 0.47 50V EL. AB C209 VCKYCY1HB222K J 2200p 50V Ceramic AA C210 VCKYCY1HB102K J 1000p 50V Ceramic AA

C301 VCCCCY1HH330J J 33p 50V Ceramic AA C302 VCCCCY1HH151J J 150p 50V Ceramic AA

C303 VCKYCY1HB472K J 4700p 50V Ceramic AA C304 VCEA0A1HW225M J 2.2 50V EL. AB C307 VCCCCY1HH1R5C J 1.5p 50V Ceramic AD C308 VCKYCY1HB102K J 1000p 50V Ceramic AA C309 VCEA0A1CW337M J 330 16V EL. AC C313 VCEA0A1CW476M J 47 16V EL. AB C355 VCKYCY1HB332K J 3300p 50V Ceramic AA C356 VCEA0A1HW106M J 10 50V EL. AB C358 VCEA0A1CW477M J 470 16V EL. AC C359 VCEA0A1HW106M J 10 50V EL. AB C401 VCKYCY1HB331K J 330p 50V Ceramic AA C402 VCCCCY1HH101J J 100p 50V Ceramic AA C403 VCKYCY1CB104K J 0.1 16V Ceramic AB C404 VCEA0A1HW106M J 10 50V EL. AB C405 VCEA0A1HW335M J 3.3 50V EL. AB C406 VCEA0A1HW225M J 2.2 50V EL. AB C408 VCEA0A1HW106M J 10 50V EL. AB C409 VCEA0A1HW105M J 1 50V EL. AB C410 VCQYTA1HM104K J 0.1 50V Mylar AC C411 VCEA0A1CW337M J 330 16V EL. AC C412 VCKYCY1HB103K J 0.01 50V Ceramic AA C413 VCKYCY1HB103K J 0.01 50V Ceramic AA C414 VCKYCY1CB104K J 0.1 16V Ceramic AB

C421 VCCCCY1HH330J J 33p 50V Ceramic AA C422 VCEA0A1CW476M J 47 16V EL. AB C451 VCQYTA1HM104K J 0.1 50V Mylar AC C452 VCEA0A1HW475M J 4.7 50V EL. AB C453 VCEA0A1CW226M J 22 16V EL. AB C501 VCKYPA2HB102K J 1000p 500V Ceramic AA C502 VCEA0A1VW108M J 1000 35V EL. AD C510 VCFYSA1JB564J M 0.56 63V Mylar AB C511 VCKYPA2HB391K J 390p 500V Ceramic AA C512 VCQYTA1HM473K J 0.047 50V Mylar AB C513 VCQYTA1HM103K J 0.01 50V Mylar AB C514 VCEA0A1VW107M J 100 35V EL. AC C515 VCEA0A1HW105M J 1 50V EL. AB C516 VCEACA1HC105K J 1 50V EL. AC C517 VCEA0A1VW108M J 1000 35V EL. AD C518 VCFYSA1JB473J M 0.047 63V Mylar AA C551 VCSATA1CE225K J 2.2 16V Tantalum AB C552 VCEA0A1HW225M J 2.2 50V EL. AB C606 VCKYPA2HB561K J 560p 500V Ceramic AA C607 VCKYPA1HB472K J 4700p 50V Ceramic AA

C610 VCFPVC3CA722H J 7200p 1.6kV M-Poly. AF

C611 VCFPVC3CA722H J 7200p 1.6kV M-Poly. AF C615 VCKYPA2HB102K J

1000p

500V Ceramic AA

C623 VCEA4A2EN106M J 10 250V EL. AD C631 VCEA0A1HW335M J 3.3 50V EL. AB C632 VCQYTA1HM103K J 0.01 50V Mylar AB C633 VCEA0A1CW477M J 470 16V EL. AC C652 VCEA0A1HW106M J 10 50V EL. AB C653 VCEA0A1HW106M J 10 50V EL. AB C680 VCFPVC2DB564J J 0.56 200V M-Poly. AF C682 VCKYPA2HB331K J 330p 500V Ceramic AA

C701 RC-FZ012SCEZZ J 0.22

AC250V

Plastic AD or RC-FZ012SGEZZ or RC-FZ037SCEZZ or RC-FZ017SCEZZ

C702 RC-KZ0029CEZZ J 0.01 C703 RC-KZ0029CEZZ J 0.01

C705 RC-EZ0800CEZZ J 560 200V EL. AQ

AC250V

Ceramic AC

AC250V

Ceramic AC or

RC-EZ0719CEZZ or

RC-EZ1336CEZZ

C706 RC-KZ0092GEZZ J

0.0033 AC250V

Ceramic AC

C707 VCFPVC3CA222H J 2200p 1.6kV M-Poly. AE C708 VCCSPA1HL471J J 470p 50V Ceramic AA C709 VCEA0A1VW107M J 100 35V EL. AC C710 VCQYTA1HM102J J 1000p 50V Mylar AA C717 VCKYPA2HB472K J 4700p 500V Ceramic AB C718 VCKYPA2HB472K J 4700p 500V Ceramic AB C722 VCQYTA1HM104K J 0.1 50V Mylar AC

C723 RC-EZ0724CEZZ J 100 160V EL. AG

C725 RC-EZ0809CEZZ J 220 160V EL. AL C726 RC-KZ0338CEZZ J 560p 2kV Ceramic AD C727 RC-KZ0338CEZZ J 560p 2kV Ceramic AD C729 VCEA0A1CW106M J 10 16V EL. AB

C730 RC-EZ0385CEZZ J 1000 16V EL. AE

C731 RC-EZ0385CEZZ J 1000 16V EL. AE C732 VCKYPA2HB102K J 1000p 500V Ceramic AA C741 VCKYPA2HB102K J 1000p 500V Ceramic AA C742 VCKYPA2HB102K J 1000p 500V Ceramic AA C753 VCEA0A1CW107M J 100 16V EL. AC C755 VCEA0A1CW476M J 47 16V EL. AB C772 VCEA0A1VW477M J 470 35V EL. AB C801 VCQYTA1HM223K J 0.022 50V Mylar AB C802 VCEA0A1HW474M J 0.47 50V EL. AB C803 VCCCCY1HH110J J 11p 50V Ceramic AA C804 VCKYCY1CB104K J 0.1 16V Ceramic AB C805 VCKYCY1CB104K J 0.1 16V Ceramic AB C806 VCKYCY1CB104K J 0.1 16V Ceramic AB C807 VCCCCY1HH221J J 220p 50V Ceramic AA C808 VCKYCY1HB102K J 1000p 50V Ceramic AA C909 VCEA0A1HW225M J 2.2 50V EL. AB C2001 VCCCCY1HH101J J 100p 50V Ceramic AA C2002 VCCCCY1HH101J J 100p 50V Ceramic AA C2040 VCEA0A1AW107M J 100 10V EL. AB C2041 VCEA0A1HW105M J 1 50V EL. AB C2060 VCKYCY1CB104K J 0.1 16V Ceramic AB C2061 VCCCCY1HH101J J 100p 50V Ceramic AA C2062 VCEA0A1AW107M J 100 10V EL. AB C2201 VCKYCY1HB681K J 680p 50V Ceramic AA C2202 VCCCCY1HH390J J 39p 50V Ceramic AA C2601 VCEA0A1HW475M J 4.7 50V EL. AB C2602 VCCCCY1HH101J J 100p 50V Ceramic AA

25RM100N

Ref. No. Part No. Description Code Ref. No. Part No. Description Code

PWB-A: DUNTKA126WEP9

MAIN UNIT (Continued)

RJ1 VRD-MN2BE000J J 0 1/8W Carbon AA

[M-Ox.··· Metal Oxide, M-Film··· Metal Film]

RJ5 VRD-MN2BE000J J 0 1/8W Carbon AA RJ6 VRD-MN2BE000J J 0 1/8W Carbon AA RJ10 VRD-MN2BE000J J 0 1/8W Carbon AA RJ11 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ12 VRD-MN2BE000J J 0 1/8W Carbon AA RJ13 VRD-MN2BE000J J 0 1/8W Carbon AA

RJ15 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ17 VRD-MN2BE000J J 0 1/8W Carbon AA RJ18 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ19 VRD-MN2BE000J J 0 1/8W Carbon AA RJ20 VRD-MN2BE000J J 0 1/8W Carbon AA RJ21 VRD-MN2BE000J J 0 1/8W Carbon AA RJ22 VRD-MN2BE000J J 0 1/8W Carbon AA RJ25 VRD-MN2BE000J J 0 1/8W Carbon AA RJ26 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ28 VRD-MN2BE000J J 0 1/8W Carbon AA RJ29 VRD-MN2BE000J J 0 1/8W Carbon AA RJ30 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ31 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ33 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ35 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ36 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ37 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ38 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ39 VRD-MN2BE000J J 0 1/8W Carbon AA RJ40 VRD-MN2BE000J J 0 1/8W Carbon AA RJ41 VRD-MN2BE000J J 0 1/8W Carbon AA RJ42 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ43 VRD-MN2BE000J J 0 1/8W Carbon AA RJ46 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ48 VRD-MN2BE000J J 0 1/8W Carbon AA RJ49 VRD-MN2BE000J J 0 1/8W Carbon AA RJ50 VRD-MN2BE000J J 0 1/8W Carbon AA RJ51 VRD-MN2BE000J J 0 1/8W Carbon AA RJ52 VRS-CY1JF000J J 0 1/16W M-Ox. AA

RJ54 VRD-MN2BE000J J 0 1/8W Carbon AA RJ55 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ57 VRD-MN2BE000J J 0 1/8W Carbon AA RJ58 VRD-MN2BE000J J 0 1/8W Carbon AA RJ60 VRD-MN2BE000J J 0 1/8W Carbon AA

RJ61 VRS-CY1JF000J J 0 1/16W M-Ox. AA RJ63 VRD-MN2BE000J J 0 1/8W Carbon AA RJ64 VRD-MN2BE000J J 0 1/8W Carbon AA RJ67 VRS-CY1JF000J J 0 1/16W M-Ox. AA

R51 VRS-RG3AB151J M 150 1W M-Ox. AA

R52 VRS-RG3DB123J J 12k 2W M-Ox. AA

R53 VRS-RG3AB470J J 47 1W M-Ox. AA R54 VRD-MN2BE101J J 100 1/8W Carbon AA R55 VRD-MN2BE101J J 100 1/8W Carbon AA R56 VRD-MN2BE823J J 82k 1/8W Carbon AA R57 VRD-MN2BE392J J 3.9k 1/8W Carbon AA R201 VRD-MN2BE151J J 150 1/8W Carbon AA R202 VRD-MN2BE122J J 1.2k 1/8W Carbon AA R203 VRD-MN2BE682J J 6.8k 1/8W Carbon AA R204 VRD-MN2BE270J J 27 1/8W Carbon AA R205 VRS-CY1JF331J J 330 1/16W M-Ox. AA R206 VRD-MN2BE121J J 120 1/8W Carbon AA R207 VRD-MN2BE4R7J J 4.7 1/8W Carbon AA R208 VRD-MN2BE331J J 330 1/8W Carbon AA R301 VRD-MN2BE222J J 2.2k 1/8W Carbon AA R302 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R303 VRD-MN2BE153J J 15k 1/8W Carbon AA R355 VRD-MN2BE683J J 68k 1/8W Carbon AA R356 VRD-MN2BE103J J 10k 1/8W Carbon AA R357 VRD-MN2BE822J J 8.2k 1/8W Carbon AA R358 VRD-MN2BE223J J 22k 1/8W Carbon AA R401 VRS-CY1JF682J J 6.8k 1/16W M-Ox. AA R402 VRS-CY1JF331J J 330 1/16W M-Ox. AA

RESISTORS

R403 VRS-CY1JF391J J 390 1/16W M-Ox. AA R404 VRD-MN2BE102J J 1k 1/8W Carbon AA R405 VRS-CY1JF470J J 47 1/16W M-Ox. AA R406 VRS-CY1JF680J J 68 1/16W M-Ox. AA R407 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R408 VRS-CY1JF471J J 470 1/16W M-Ox. AA R409 VRD-MN2BE562J J 5.6k 1/8W Carbon AA R410 VRD-RA2BE124J J 120k 1/8W Carbon AA R411 VRD-MN2BE153J J 15k 1/8W Carbon AA R412 VRD-RA2BE561J J 560 1/8W Carbon AA R413 VRS-CY1JF101J J 100 1/16W M-Ox. AA R414 VRS-CY1JF101J J 100 1/16W M-Ox. AA R415 VRS-CY1JF101J J 100 1/16W M-Ox. AA R421 VRD-MN2BE152J J 1.5k 1/8W Carbon AA R422 VRS-CY1JF472J J 4.7k 1/16W M-Ox. AA R423 VRS-CY1JF152J J 1.5k 1/16W M-Ox. AA R424 VRS-CY1JF102J J 1k 1/16W M-Ox. AA

R451 VRS-RG2HC103J J 10k 1/2W M-Ox. AA R452 VRD-RM2HD153J J 15k 1/2W Carbon AA R453 VRD-RA2EE683J J 68k 1/4W Carbon AA R454 VRD-MN2BE102J J 1k 1/8W Carbon AA R456 VRD-MN2BE682J J 6.8k 1/8W Carbon AA R458 VRD-MN2BE152J J 1.5k 1/8W Carbon AA

R501 VRN-RL3ABR56J J 0.56 1W M-Film AA R510 VRD-MN2BE471J J 470 1/8W Carbon AA R511 VRD-RA2BE104G J 100k 1/8W Carbon AA R512 VRD-RA2BE124G J 120k 1/8W Carbon AA R513 VRD-RA2BE473J J 47k 1/8W Carbon AA R514 VRD-MN2BE101J J 100 1/8W Carbon AA R519 VRD-RA2BE123G J 12k 1/8W Carbon AA R520 VRD-MN2BE184J J 180k 1/8W Carbon AA R523 VRN-RL3AB1R0J M 1 1W M-Film AA

R524 VRS-RG3AB391J J 390 1W M-Ox. AA R526 VRD-MN2BE332J J 3.3k 1/8W Carbon AA R551 VRS-CY1JF472J J 4.7k 1/16W M-Ox. AA R552 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R553 VRD-MN2BE223J J 22k 1/8W Carbon AA R554 VRD-MN2BE184J J 180k 1/8W Carbon AA

R604 VRS-RG3LB392J M 3.9k 3W M-Ox. AB R605 VRD-RA2BE331J J 330 1/8W Carbon AA R606 VRD-RA2BE331J J 330 1/8W Carbon AA

R607 VRS-RG3LB392J M 3.9k 3W M-Ox. AB

R609 VRS-RG3AB562J M 5.6k 1W M-Ox. AA R610 VRD-RM2HD220J J 22 1/2W Carbon AA

R611 VRS-KA3NG3R3K J 3.3 7W M-Ox. AD

R621 VRN-VV3DB1R2J J 1.2 2W M-Film AA

R622 VRN-RL3ABR33J M 0.33 1W M-Film AA

R623 VRN-RL3AB2R7J M 2.7 1W M-Film AA

R624 VRS-RG3DB332J M 3.3k 2W M-Ox. AA R625 VRD-MN2BE102J J 1k 1/8W Carbon AA

R626 VRN-RL3AB3R3J M 3.3 1W M-Film AA R627 VRD-RM2HD224J J 220k 1/2W Carbon AA R631 VRS-CY1JF391J J 390 1/16W M-Ox. AA R632 VRS-CY1JF152J J 1.5k 1/16W M-Ox. AA R633 VRD-MN2BE472J J 4.7k 1/8W Carbon AA R634 VRD-RA2BE4R7J J 4.7 1/8W Carbon AA

R651 VRS-RG2HC270J M 27 1/2W M-Ox. AA

R652 VRN-RA2BK103F J 10k 1/8W M-Film AA

R653 VRN-RA2BK822F J 8.2k 1/8W M-Film AA

R654 VRD-MN2BE184J J 180k 1/8W Carbon AA

R655 VRS-CY1JF104J J 100k 1/16W M-Ox. AA R690 VRS-RG2HC102J J 1k 1/2W M-Ox. AA

R701 RR-HZ0048CEZZ J 3.9M 1/2W Solid AB

R702 VRW-KQ3NC1R2K J 1.2 7W Cement AE R704 VRD-RM2HD154J J 150k 1/2W Carbon AA

R705 VRN-RL3DBR22J J 0.22 2W M-Film AA

R706 VRN-RL3DBR27J M 0.27 2W M-Film AA R707 VRS-RG2HC681J J 680 1/2W M-Ox. AA

R709 VRN-GA2EB1R0J J 1 1/4W M-Film AA R710 VRD-RM2HD330J J 33 1/2W Carbon AA R711 VRD-RA2BE242J J 2.4k 1/8W Carbon AA

R715 VRS-RG3DB153J J 15k 2W M-Ox. AA

R723 VRN-RL3DBR39J M 0.39 2W M-Film AA R724 VRS-RG2HC332J J 3.3k 1/2W M-Ox. AA R725 VRS-RG2HC821J M 820 1/2W M-Ox. AA R727 VRD-RA2BE271J J 270 1/8W Carbon AA

25RM100N

Ref. No. Part No. Description Code Ref. No. Part No. Description Code

PWB-A: DUNTKA126WEP9

MAIN UNIT (Continued)

R728 VRS-RG3DB120J M 12 2W M-Ox. AA

R734 VRD-RM2HD124J J 120k 1/2W Carbon AA

R737 VRN-RL3DBR56J M 0.56 2W M-Film AA

R751 VRD-MN2BE473J J 47k 1/8W Carbon AA

R801 VRD-MN2BE332J J 3.3k 1/8W Carbon AA

R802 VRS-CY1JF332J J 3.3k 1/16W M-Ox. AA

R803 VRS-CY1JF222J J 2.2k 1/16W M-Ox. AA

R804 VRS-CY1JF222J J 2.2k 1/16W M-Ox. AA

R805 VRS-CY1JF222J J 2.2k 1/16W M-Ox. AA

R806 VRS-CY1JF333J J 33k 1/16W M-Ox. AA

R807 VRS-CY1JF152J J 1.5k 1/16W M-Ox. AA

R808 VRD-RA2BE102J J 1k 1/8W Carbon AA

R961 VRD-RA2BE101J J 100 1/8W Carbon AB

R962 VRD-RA2BE101J J 100 1/8W Carbon AB

R2001 VRD-RA2BE562J J 5.6k 1/8W Carbon AA

R2002 VRD-MN2BE103J J 10k 1/8W Carbon AA

R2004 VRD-MN2BE101J J 100 1/8W Carbon AA

R2006 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R2007 VRS-CY1JF223J J 22k 1/16W M-Ox. AA

R2008 VRD-MN2BE333J J 33k 1/8W Carbon AA R2009 VRD-RA2BE102J J 1k 1/8W Carbon AA R2010 VRD-MN2BE102J J 1k 1/8W Carbon AA R2011 VRD-RA2BE561J J 560 1/8W Carbon AA R2012 VRS-CY1JF561J J 560 1/16W M-Ox. AA

R2016 VRS-CY1JF223J J 22k 1/16W M-Ox. AA R2020 VRS-CY1JF223J J 22k 1/16W M-Ox. AA R2023 VRS-CY1JF223J J 22k 1/16W M-Ox. AA R2024 VRD-RA2BE682J J 6.8k 1/8W Carbon AA R2025 VRD-RA2BE682J J 6.8k 1/8W Carbon AA R2026 VRD-RA2BE682J J 6.8k 1/8W Carbon AA R2027 VRD-MN2BE682J J 6.8k 1/8W Carbon AA R2028 VRD-MN2BE102J J 1k 1/8W Carbon AA R2029 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R2032 VRD-RA2BE103J J 10k 1/8W Carbon AA

R2035 VRD-MN2BE223J J 22k 1/8W Carbon AA R2040 VRD-MN2BE102J J 1k 1/8W Carbon AA

R2041 VRD-MN2BE333J J 33k 1/8W Carbon AA R2042 VRD-MN2BE101J J 100 1/8W Carbon AA R2043 VRS-CY1JF333J J 33k 1/16W M-Ox. AA R2044 VRD-MN2BE682J J 6.8k 1/8W Carbon AA R2045 VRD-MN2BE101J J 100 1/8W Carbon AA R2046 VRD-RA2BE101J J 100 1/8W Carbon AB R2047 VRS-CY1JF221J J 220 1/16W M-Ox. AA R2048 VRS-CY1JF562J J 5.6k 1/16W M-Ox. AA R2060 VRD-MN2BE221J J 220 1/8W Carbon AA R2061 VRD-MN2BE562J J 5.6k 1/8W Carbon AA R2062 VRD-MN2BE183J J 18k 1/8W Carbon AA R2063 VRD-MN2BE222J J 2.2k 1/8W Carbon AA R2064 VRD-RA2BE332J J 3.3k 1/8W Carbon AA R2066 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R2067 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R2068 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R2070 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R2101 VRS-CY1JF101J J 100 1/16W M-Ox. AA R2102 VRS-CY1JF101J J 100 1/16W M-Ox. AA R2201 VRD-MN2BE222J J 2.2k 1/8W Carbon AA R2202 VRS-CY1JF103J J 10k 1/16W M-Ox. AA R2203 VRS-CY1JF184J J 180k 1/16W M-Ox. AA R2211 VRD-MN2BE222J J 2.2k 1/8W Carbon AA R2212 VRS-CY1JF682J J 6.8k 1/16W M-Ox. AA R2213 VRS-CY1JF333J J 33k 1/16W M-Ox. AA R2401 VRS-CY1JF101J J 100 1/16W M-Ox. AA R2402 VRS-CY1JF101J J 100 1/16W M-Ox. AA R2403 VRD-MN2BE101J J 100 1/8W Carbon AA R2404 VRD-MN2BE101J J 100 1/8W Carbon AA R2501 VRD-MN2BE103J J 10k 1/8W Carbon AA R2503 VRD-MN2BE273J J 27k 1/8W Carbon AA

R2504 VRD-MN2BE123J J 12k 1/8W Carbon AA R2505 VRD-MN2BE563J J 56k 1/8W Carbon AA R2506 VRD-MN2BE563J J 56k 1/8W Carbon AA R2507 VRD-MN2BE823J J 82k 1/8W Carbon AA R2508 VRD-MN2BE153J J 15k 1/8W Carbon AA R2509 VRD-MN2BE272J J 2.7k 1/8W Carbon AA R2601 VRD-RA2BE331J J 330 1/8W Carbon AA R3012 VRS-CY1JF102J J 1k 1/16W M-Ox. AA R3014 VRD-MN2BE104J J 100k 1/8W Carbon AA R3015 VRD-RA2BE101J J 100 1/8W Carbon AB R3016 VRD-MN2BE750J J 75 1/8W Carbon AA

SWITCHES

S2501 QSW-K0079GEZZ J Power AB

or QSW-K0202PEZZ

S2502 QSW-K0079GEZZ J VOL-Down AB

or QSW-K0202PEZZ

S2503 QSW-K0079GEZZ J VOL-Up AB

or QSW-K0202PEZZ

S2504 QSW-K0079GEZZ J CH-Down AB

or QSW-K0202PEZZ

S2505 QSW-K0079GEZZ J CH-Up AB

or QSW-K0202PEZZ

MISCELLANEOUS PARTS

RY701 RRLYJ0081CEZZ J Relay AL

or RRLYJ0088CEZZ or

RRLYJ0094CEZZ

F701 QFS-B4023CEZZ J Fuse 4A 125V AC

QFS-B4021GEZZ FB601 RBLN-0047CEZZ J Ferrite Bead AB FB702 RBLN-0036CEZZ J Ferrite Bead AB FB704 RBLN-0037CEZZ J Ferrite Bead AB FB706 RBLN-0037CEZZ J Ferrite Bead AB FH701 QFSHD1013CEZZ J Fuse Holder AC FH702 QFSHD1014CEZZ J Fuse Holder AC P351 QPLGN0361CEZZ J Plug, 3-pin (S) AB P601 QPLGN0160FJZZ J Plug, 5-pin (K) AD P621 QPLGN0461CEZZ J Plug, 4-pin (YBN) AB P651 QPLGN0361CEZZ J Plug, 3-pin AB P701 QPLGN0207CEZZ J Plug, 2-pin (M) AA P703 QPLGN0269GEZZ J Plug, 2-pin (P) AB P901 QPLGN0561CEZZ J Plug, 5-pin (HA) AB P903 QPLGN0561CEZZ J Plug, 5-pin (GBN) AB P2401 QPLGN0561CEZZ J Plug, 5-pin AB

RMC2601 RRMCU0235CEZZ J R/C Receiver AK RDA501 PRDAR0234PEFW R Heat Sink, for IC501 AH RDA604 PRDAR0233PEFW R Heat Sink, for Q602 AK RDA701 PRDAR1008MEFW M Heat Sink, for IC701 AH RDA751 PRDAR5072CEFW J Heat Sink, for IC751 AC

LX-BZ3049GEFD J Screw AA

LX-HZ3007MEFD M Screw AA

25RM100N

Ref. No. Part No. Description Code Ref. No. Part No. Description Code

PWB-B: DUNTK9510WEK1

CRT UNIT

TRANSISTORS

Q851 VS2SC3198-Y-1 J 2SC3198 AA Q852 VS2SC3789//2E M 2SC3789 AA

VS2SC3619LB1E Q853 VS2SC3198-Y-1 J 2SC3198 AA Q854 VS2SC3789//2E M 2SC3789 AA

VS2SC3619LB1E Q855 VS2SC3198-Y-1 J 2SC3198 AA Q856 VS2SC3789//2E M 2SC3789 AA

VS2SC3619LB1E Q881 VS2SA1266-Y-1 J 2SA1266 AA

DIODES

You can substitute "RH-DX0475CEZZ" for "VHD1SS119//-1". D881 VHD1SS119//-1 J Diode AB D882 VHD1SS119//-1 J Diode AB D884 VHD1SS119//-1 J Diode AB

COIL

L851 VP-MK820K0000 J Peaking 82µH AB

CAPACITORS

C851 VCCSPA1HL391J J 390p 50V Ceramic AA C852 VCCSPA1HL331J J 330p 50V Ceramic AA C853 VCCSPA1HL391J J 390p 50V Ceramic AA C854 RC-KZ0024CEZZ J 0.001 2kV Ceramic AC

VCKYPB3DE472Z 0.00472kV Ceramic C883 VCEA0A1HW106M J 10 50V EL. AB

R851 VRD-RA2BE470J J 47 1/8W Carbon AA R852 VRD-RA2BE181J J 180 1/8W Carbon AA R853 VRD-RA2BE121J J 120 1/8W Carbon AA R855 VRD-RA2BE471J J 470 1/8W Carbon AA R856 VRD-RA2BE221J J 220 1/8W Carbon AA

R857 VRS-VV3LB123J J 12k 3W M-Ox. AB R858 VRD-RM2HD222J J 2.2k 1/2W Carbon AA R859 VRD-RA2BE470J J 47 1/8W Carbon AA R860 VRD-RA2BE181J J 180 1/8W Carbon AA R861 VRD-RA2BE121J J 120 1/8W Carbon AA R863 VRD-RA2BE471J J 470 1/8W Carbon AA R864 VRD-RA2BE221J J 220 1/8W Carbon AA

R865 VRS-VV3LB123J J 12k 3W M-Ox. AB R866 VRD-RM2HD222J J 2.2k 1/2W Carbon AA R867 VRD-RA2BE470J J 47 1/8W Carbon AA R868 VRD-RA2BE181J J 180 1/8W Carbon AA R869 VRD-RA2BE121J J 120 1/8W Carbon AA R871 VRD-RA2BE471J J 470 1/8W Carbon AA R872 VRD-RA2BE221J J 220 1/8W Carbon AA

R873 VRS-VV3LB123J J 12k 3W M-Ox. AB R874 VRD-RM2HD222J J 2.2k 1/2W Carbon AA R881 VRD-RA2BE102J J 1k 1/8W Carbon AA R882 VRD-RA2BE331J J 330 1/8W Carbon AA R883 VRD-RA2BE561J J 560 1/8W Carbon AA R884 VRD-RA2BE152J J 1.5k 1/8W Carbon AA R895 VRD-RA2BE470J J 47 1/8W Carbon AA

[EL.··· Electrolytic]

RESISTORS

[M-Ox.··· Metal Oxide]

PWB-H: DUNTK9310WEK0

FRONT AV UNIT

J1001 QJAKE0053GEZZ J Jack, Video in AD J1003 QJAKE0055GEZZ J Jack, Audio in AD P1001 QPLGN0541CEZZ J Plug, 5-pin (HA) AB

MISCELLANEOUS PARTS

ACC701 QACCD3070CESA M AC Cord AH

QCNW-0133MEZZ M Connecting Cord AC QCNW-0135MEZZ M Connecting Cord AF

QCNW-0166MEZZ M Connecting Cord AD QCNW-0167MEZZ M Connecting Cord AC

SP1 VSP0080PBL4YS M Speaker, 32 ohm AG

or VSP0080PBK9YA

SUPPLIED ACCESORRIES

TiNS-7600GJZZ M Operation Manual AD RRMCG1324CESA M Infrared R/C Unit AQ

ARTS

ACKING

(NOT

REPLACEMENT

AKC0147GJZZ

AKX0120GJZZ

SP SSAKA0101GJZZ

AKP0108GJZZ

Packing

–

fer

Buf

–

Polyethylene

–

Polyethylene

–

ITEM)

Case

Material

Bag Sheet

— —

MISCELLANEOUS PARTS

P851 QPLGN0541CEZZ J Plug, 5-pin(GBN) AB P852 QPLGN0441CEZZ J Plug, 4-pin(YBN) AB SC851 QSOCV0937CEZZ M CRT Socket AF

25RM100N

Ref. No. Part No. Description Code

CABINET PARTS

1 CCABA0116WEH2 M Front Cabinet Ass'y BE

1-1 1-2 HBDGB1008MESB M Badge, "SHARP" AA 1-3 JBTN-0108MEKA M Button, Power, Vol-up/down AD 1-4 JBTN-0107MEKA M Button, CH-up/down AD 1-5 GCOVA0108GJKA M Cover for R/C AD 2 GCABB0108GJKA M Rear Cabinet AZ

Not Available

– Front Cabinet —

CABINET PARTS LOCATION

1-3

1 1-1

1-2

1-5

1-4

25RM100N

Ref. No. Part No. Description Code Ref. No. Part No. Description Code

Polyethylene Sheet

PACKING OF THE SET

Polyethylene Bag

Operation Manual Infrared R/C Unit

Batteries

Buffer Material

Bar Code Label

MARK : Not replacement items.

FRONT

Packing Case

Use tapes to fix the packing case.

REAR

25RM100N

Ref. No. Part No. Description Code Ref. No. Part No. Description Code

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission of the publisher.

D JAPAN P SEMEX

TQ0880-S

Sep. 2001 Printed in Japan

MK. KG

SHARP ELECTRONICA MEXICO S. A. DE C. V. Blvd. SHARP No. 3510 Parque Industrial Rosarito, Playas de Rosarito, B. C. 22710

Sharp 25rm100n schematic

Specifications and Main Features

Frequently Asked Questions

User Manual
