21K-FD5RU

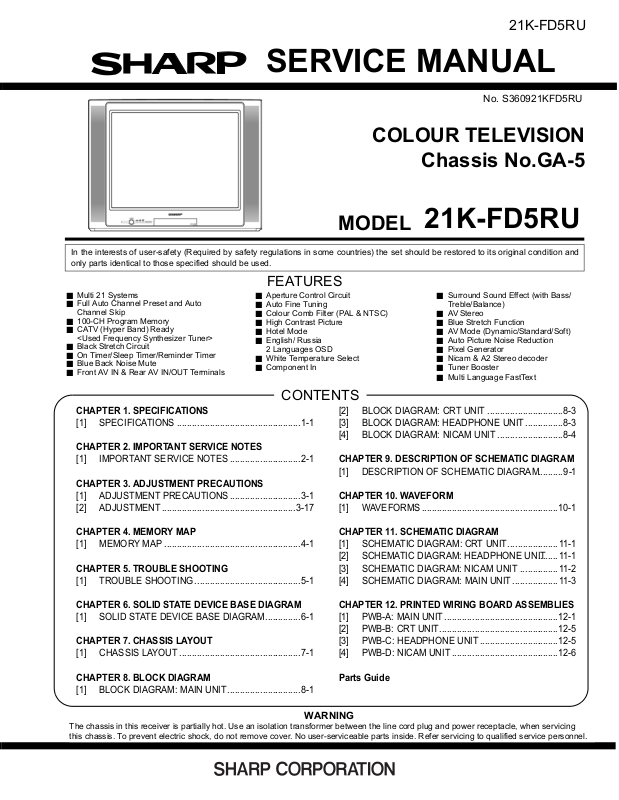

SERVICE MANUAL
No. S360921KFD5RU
COLOUR TELEVISION
Chassis No.GA-5
MODEL
In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its original condition and only parts identical to those specified should be used.
FEATURES
Multi 21 Systems
Full Auto Channel Preset and Auto
Channel Skip
100-CH Program Memory
CATV (Hyper Band) Ready
<Used Frequency Synthesizer Tuner>
Black Stretch Circuit
On Timer/Sleep Timer/Reminder Timer
Blue Back Noise Mute
Front AV IN & Rear AV IN/OUT Terminals
CHAPTER 1. SPECIFICATIONS
[1] SPECIFICATIONS ..................................................1-1
CHAPTER 2. IMPORTANT SERVICE NOTES
[1] IMPORTANT SERVICE NOTES .............................2-1
CHAPTER 3. ADJUSTMENT PRECAUTIONS
[1] ADJUSTMENT PRECAUTIONS .............................3-1
[2] ADJUSTMENT......................................................3-17
Aperture Control Circuit
Auto Fine Tuning
Colour Comb Filter (PAL & NTSC)
High Contrast Picture
Hotel Mode
English/ Russia
White Temperature Select
Component In
CONTENTS
[2] BLOCK DIAGRAM: CRT UNIT ...............................8-3
[3] BLOCK DIAGRAM: HEADPHONE UNIT ................8-3
[4] BLOCK DIAGRAM: NICAM UNIT ...........................8-4
CHAPTER 9. DESCRIPTION OF SCHEMATIC DIAGRAM
[1] DESCRIPTION OF SCHEMATIC DIAGRAM..........9-1
CHAPTER 10. WAVEFORM
[1] WAVEFORMS.......................................................10-1
21K-FD5RU
Surround Sound Effect (with Bass/
Treble/Balance)
AV Ste reo
Blue Stretch Function
AV Mode (Dynamic/Standard/Soft)
Auto Picture Noise Reduction
Pixel Generator
Nicam & A2 Stereo decoder
Tuner Booster
Multi Language FastText
CHAPTER 4. MEMORY MAP
[1] MEMORY MAP .......................................................4-1
CHAPTER 5. TROUBLE SHOOTING
[1] TROUBLE SHOOTING ...........................................5-1
CHAPTER 6. SOLID STATE DEVICE BASE DIAGRAM
[1] SOLID STATE DEVICE BASE DIAGRAM...............6-1
CHAPTER 7. CHASSIS LAYOUT
[1] CHASSIS LAYOUT .................................................7-1
CHAPTER 8. BLOCK DIAGRAM
[1] BLOCK DIAGRAM: MAIN UNIT..............................8-1
WARNING
The chassis in this receiver is partially hot. Use an isolation transformer between the line cord plug and power receptacle, when servicing this chassis. To prevent electric shock, do not remove cover. No user-serviceable parts inside. Refer servicing to qualified service personnel.
CHAPTER 11. SCHEMATIC DIAGRAM
[1] SCHEMATIC DIAGRAM: CRT UNIT.....................11-1
[2] SCHEMATIC DIAGRAM: HEADPHONE UNIT........11-1
[3] SCHEMATIC DIAGRAM: NICAM UNIT ................11-2
[4] SCHEMATIC DIAGRAM: MAIN UNIT ...................11-3
CHAPTER 12. PRINTED WIRING BOARD ASSEMBLIES
[1] PWB-A: MAIN UNIT..............................................12-1
[2] PWB-B: CRT UNIT................................................12-5
[3] PWB-C: HEADPHONE UNIT ................................12-5
[4] PWB-D: NICAM UNIT ...........................................12-6
Parts Guide
21K-FD5RU

CHAPTER 1. SPECIFICATIONS

[1] SPECIFICATIONS

Convergence ................................................................................................................ Self Convergence System
............................................................................................................................
Focus
Sweep Deflection ..................................................................................................................................... Magnetic
Intermediate Frequencies
Picture IF Carrier ................................................................................................................................. 38.9MHz
Sound IF Carrier Frequency
6.5MHz ............................................................................................................................................. 32.4MHz
6.0MHz ............................................................................................................................................. 32.9MHz
5.5MHz ............................................................................................................................................. 33.4MHz
4.5MHz ............................................................................................................................................. 34.4MHz
Colour Sub-Carrier Frequency........................................................................................................... 34.47MHz
Power Input .......................................................................................................................... 220 ~ 240V AC 50 Hz
Power Consumption Audio Power Output Rating
.................................................................................................................................
....................................................................................................... 7.5W(rms) x 2pcs
UNI-BI Focusing
.....
115W
Speaker
Size
.........................................................................................................................................
Voice Coil Impedance
Aerial Input Impedance
VHF/UHF .......................................................................................................................... 75 ohms Unbalanced
Receiving System ......................................................................
Receiving Channel
VHF-Channels ......................................................................................... E2(48.25MHz) thru E12(224.25MHz)
UHF-Channels ..................................................................................... E21(471.25MHz) thru E69(855.25MHz)
Dimensions
Cabinet materrial..................................................................................................................................... All Plastics
.....................................................................................................................................
.............................................................................................................
PAL I, B/G, D/K SECAM B/G, D/K, K1, NTSC-M
C1(49.75MHz) thru C12(216.25MHz)
S1(105.25MHz) thru S41(463.25MHz)
C13(471.25MHz) thru C57(863.25MHz)
Specifications are subject to change without prior notice
12 x 6 cm (2pcs)
16 ohms at 400 Hz
Width: 605mm
Height: 468mm
Depth: 487.5mm
Weight(approx): 22.5kg
1 – 1
21K-FD5RU
TV21K-FD5RUService Manual21K-FD5RUMarketE

CHAPTER 2. IMPORTANT SERVICE NOTES

[1] IMPORTANT SERVICE NOTES

Maintenance and repair of this receiver should be done by qualified service personnel only.

1. SERVICE OF HIGH VOLTAGE SYSTEM AND PICTURE TUBE

When servicing the high voltage system, remove static charge from it by connecting a 10K ohm resistor in series with an insulated wire ( such as a test probe ) between picture tube dag and 2nd anode lead. ( AC line cord should be disconnected from AC outlet. )
1) Picture tube in this receiver employs integral implosion protection.
2) Replace with the same type number of picture tube for continued safety.
3) Do not lift picture tube by the neck.
4) Handle the picture tube only when wearing shatterproof goggles and after discharging the high voltage completrly.

2. X-RAY

This receiver is designed so that any X-Ray radiation is kept to an absolute minimum. Since certainmalfunctions or servicing may produce potentially hazardous radiation with prolonged exposure at close range, the following precautions should be observed :
1) When repairing the circuit, please make sure do not increase the high voltage of the set to more that 30.0kV ( at beam 0µA ).
2) To keep the set in a normal operation, please make sure it’s function at 26.2kV±1.0kV ( at beam 1150µA ). The set has been factory - adjusted to the above -mentioned high voltage.
* If there is a possibility that the hig voltage fluctuates as a result of the repairs,never forget to checkfor such high voltage after the work.
3) Do not substitute a picture tube with unauthorized types and/or brands which may cause excessive X-ray radiation.

3. BEFORE RETURNING THE RECEIVER

Before returning the receiver to the user , perform the following safety checks.
1) Inspect all lead dress to make certain that leads are not pinched or that hardware is not lodged between the chassis and other metal parts in the receiver.
2) Inspect all protective devices such as non-mental control knobs, insulating materials,cabinet backs,adjustment and compartment cover or shields,isolation resistor-capacity networks,mechanical insulators etc.
2 – 1
21K-FD5RU
TV21K-FD5RUService Manual21K-FD5RUMarketE

CHAPTER 3. ADJUSTMENT PRECAUTIONS

[1] ADJUSTMENT PRECAUTIONS

This model's setting are adjusted in two different ways: through the I2C bus control and in the conventional analog manner. The adjustments via the I2C bus control include preset-only items and variable data.
CAUTION: MAKE SURE TV SET IN "NORMAL CONDITION" BEFORE SWITCH TO SERVICE MODE FOR ADJUSTMENT.
1. Setting the service mode by the microprocessor.
1) Press SERVICE key on the remote controller to set the TV set to SERVICE mode position, and the microprocessor is in
input mode. (Adjustment through the I2C bus control).
2) Press the MENU key on the remote controller to get ready to select the mode. (Adjustment mode, Setting mode, Check
mode and Option mode) one by one.
3) Press the CH DOWN / UP key on the remote controller to select the item in Adjustment mode, Setting mode or Option
mode.
4) Using the VOLUME UP / DOWN key on the remote controller, the data can be modified. Please wait approximately 200
msec for data storage in EEPROM before select to another mode.
5) In Check mode the data cannot be changed.
6) Press the SERVICE key again, it will switch to the NORMAL mode position, and the microprocessor is out of the SERVICE
mode.
2. Factory Presetting.
1) Power ON the TV set, press the SERVICE key on the remote controller, then press both the CH UP and VOL UP button on
the set simultaniously for 5 secs. Initial values are automatically preset, only when a new EEPROM is used.
2) The initial data are preset as listed in page 3.7 ~ 3.16.
3) Make sure the data need modification or not (Initial data).
Precaution: If haven’t done this initialization, it may possibly generate excessive Beam current.
3. For reference please check with memory map RH-IXB584WJXX (See attachment).
3 – 1

1. ADJUSTMENT ITEM

***Below are the adjustment items that should be done, PLS FOLLOW THE PROCEDURE. Otherwise some adjustment items will not be accurate.
NO *** ADJUSTMENT ITEM EFFECTIVE MODEL REVISION
1 BUS SET UP 2 OPTION SET UP 3H-VCO 4VIF-VCO 5 S-TRAP fo 6RF-AGC 7 PURITY ADJ 8 CONVERGENCE ADJ
9 FOCUS ADJ 10 V-SHIFT (50 Hz) ALL MODEL 11 H-SHIFT (50 Hz) 12 V-SIZE (50 Hz) 13 SCREEN 14 SECAM-OFFSET 15 SUB-COLOR 16 SUB-TINT 17 WHITE BALANCE 18 SUB-BRIGHTNESS 19 SUB-CONTRAST 20 SIF VCO ADJ Only for Nicam model 21 BEAM CURRENT CHECK 22 BEAM PROTECTOR CHECK 23 HV PROTECTOR CHECK 24 OTHER PROTECTOR CHECK 25 AV OUT CHECK 26 AV IN CHECK 27 COMPONENT IN CHECK 28 CONTRAST CONTROL CHECK 29 COLOR CONTROL CHECK 30 BRIGHTNESS CONTROL CHECK 31 TINT CONTROL CHECK 32 SHARPNESS CONTROL CHECK 33 CH DISPLAY COLOR CHECK ALL MODEL 34 NORMAL DISPLAY CHECK 35 WHITE TEMP CONTROL CHECK 36 COLOR SYSTEM CHECK 37 SURROUND CHECK 38 TREBLE CHECK 39 BASS CHECK 40 BALANCE CHECK 41 SOUND SYSTEM CHECK 42 NOISE MUTE CHECK 43 OSD LANGUAGE QUANTITY CHECK 44 HEAD PHONE CHECK 45 SHOCK TEST CHECK
21K-FD5RU
3 – 2
21K-FD5RU

2. USER DATA IN SERVICE MODE

1). While SERVICE mode ON, EEPROM DATA will switch to the service data. Also, once SERVICE mode OFF, EEPROM will switch back to previous USER DATA.
2). In the service mode, the user data establish as below.
USER DATA CONTRAST MAX 60 COLOUR CENT 0 BRIGHTNESS CENT 0 TINT CENT 0 SHARPNESS CENT 0 WHITE TEMP STANDARD S-VOLUME MIN SURROUND OFF TREBLE CENT 0 BASS CENT 0 BALANCE CENT 0 BLUE BACK OFF C SYSTEM AUTO S SYSTEM *1 *1: For each CH, data is same as before switch to Service mode.
The flow of Mode list as following, * Direct Key-in Mode for Service Items in Service Mode
RC CODE (HEX) R/C KEY NAME SERVICE-ITEM
01 POS 1 R-C UP (IN SERVICE MODE V00) 02 POS 2 G-C UP (IN SERVICE MODE V00) 03 POS 3 B-C UP (IN SERVICE MODE V00) 04 POS 4 R-C DOWN (IN SERVICE MODE V00) 05 POS 5 G-C DOWN (IN SERVICE MODE V00) 06 POS 6 B-C DOWN (IN SERVICE MODE V00) 07 POS 7 R-D UP (IN SERVICE MODE V00) 08 POS 8 B-D UP (IN SERVICE MODE V00) 0A POS 0 B-D DOWN (IN SERVICE MODE V00) 09 FLASHBACK R-D DOWN (IN SERVICE MODE V00)
27 FLASHBACK Y-MUTE (BESIDES OF SERVICE MODE V00) AE WHITE TEMP UP RF-AGC (V01) AF WHITE TEMP DOWN VIF-VC0 (V02)
43 TUNE DOWN H-VCO (V03) B1 SHARPNESS DOWN SUB-CON (V04) 6B BALANCE LEFT SUB-COL (V05) B0 SHARPNESS UP SUB-BRIGHT (V06) 6C BALANCE RIGHT SUB-TINT (V07)
62 TREBLE UP SUB-SHP (V08)
63 TREBLE DOWN SUB-COL-YUV (V09)
64 BASS UP SUB-TINT-YUV (V10)
24 COLOUR UP V-SIZE (V11), V-SIZE60 (V17) 2A BRIGHTNESS DOWN V-SHIFT (V12), V-SHIFT60 (V18) 2E TINT DOWN H-SHIFT (V13), H-SHIFT60 (V19)
66 SURROUND UP SCM-BR (V14)
67 SURROUND DOWN SCM-BB (V15)
23 CONTRAST DOWN SUB-VOL (V16)
32 PICTURE S-TRAP-BG (V20)
33 HOLD S-TRAP-I (V21)
34 TEXT S-TRAP-DK (V22)
35 CANCEL S-TRAP-M (V23)
37 SIZE S-TRAP-574 (V24)
01 POS 1 R-C UP YUV (IN SERVICE MODE V25)
02 POS 2 G-C UP YUV (IN SERVICE MODE V25)
03 POS 3 B-C UP YUV (IN SERVICE MODE V25)
04 POS 4 R-C DOWN YUV (IN SERVICE MODE V25)
05 POS 5 G-C DOWN YUV (IN SERVICE MODE V25)
06 POS 6 B-C DOWN YUV (IN SERVICE MODE V25)
3 – 3
21K-FD5RU
RC CODE (HEX) R/C KEY NAME SERVICE-ITEM
07 POS 7 R-D UP YUV (IN SERVICE MODE V25)
08 POS 8 B-D UP YUV (IN SERVICE MODE V25) 0A POS 0 B-D DOWN YUV (IN SERVICE MODE V25)
09 FLASHBACK R-D DOWN YUV (IN SERVICE MODE V25)
83 AUTO ADJ FOR V01, V02, V03, V20, V21, V22, V23, V24
53 T-SET
81 SERVICE MODE
1.) Please set the MCL according to the specific models. MCL1 : 21K-FD5RU MCL2 : MCL3 : MCL4 :
2.) After set the MCL, please set the INITIAL SETTING for each models. INITIAL 1 : For China ( All Channel Sound System are set to D/K ) INITIAL 2 : For Hong Kong ( All Channel Sound System are set to I ) INITIAL 3 : For Singapore, Africa and Australia ( All Channel Sound System are set to B/G ) INITIAL 4 : For Middle-East ( All Channel Sound System are set to B/G ) INITIAL 5: For Russia (All Channel Sound System are set to D/K)
MCL1 (HEX AE) MCL2 (HEX 95) MCL3 (HEX 55) MCL4 (HEX D5)
CH-No Fv (MHz) Sound Sys CH-No Fv (MHz) Sound Sys CH-No Fv (MHz) Sound Sys CH-No Fv (MHz) Sound Sys
0 0 590.25 B/G 0 0 1 48.25 B/G 1 46.25 B/G 1 48.25 B/G 1 55.25 B/G 2 62.25 B/G 2 64.25 B/G 2 59.25 D/K 2 175.25 B/G 3 77.25 D/K 3 86.25 B/G 3 65.75 D/K 3 189.25 B/G 4 175.25 B/G 4 95.25 B/G 4 77.25 D/K 4 203.25 B/G 5 182.25 B/G 5 138.25 B/G 5 85.25 D/K 5 217.25 B/G 6 183.25 D/K 6 175.25 B/G 6 93.25 D/K 6 535.25 B/G 7 191.25 D/K 7 182.25 B/G 7 175.25 B/G 7 8 196.25 B/G 8 189.25 B/G 8 184.25 D/K 8
9 199.25 M 9 196.25 B/G 9 199.25 D/K 9 10 210.25 B/G 10 209.25 B/G 10 210.25 B/G 10 11 224.25 B/G 11 216.25 B/G 11 224.25 B/G 11 48.25 B/G 12 471.25 B/G 12 12 487.25 I 12 62.25 B/G 13 487.25 I 13 13 503.25 I 13 196.25 B/G 14 503.25 B/G 14 14 575.25 B/G 14 210.25 B/G 15 575.25 B/G 15 15 639.25 D/K 15 224.25 B/G 16 583.25 B/G 16 16 767.25 D/K 16 471.25 B/G 17 599.25 B/G 17 17 831.25 D/K 17 855.25 B/G 18 621.25 M 18 18 855.25 I 18 19 639.25 D/K 19 19 97.25 M 19 20 703.25 B/G 20 20 183.25 M 20 21 735.25 I 21 21 193.25 M 21 223.95 B/G 22 767.25 B/G 22 22 211.25 M 22 224.55 B/G 23 815.25 B/G 23 23 217.25 M 23 223.85 B/G 24 855.25 I 24 24 477.25 M 24 224.65 B/G 25 855.25 B/G 25 25 693.25 M 25 223.75 B/G 26 55.25 M 26 26 62.25 B/G 26 224.75 B/G 27 83.25 M 27 27 503.25 B/G 27 28 183.25 M 28 527.25 B/G 28 527.25 B/G 28 29 193.25 M 29 29 599.25 B/G 29 30 217.25 M 30 30 621.25 M 30 31 471.25 M 31 31 815.25 B/G 31 91.25 M 32 477.25 M 32 32 112.25 B/G 32 103.25 M 33 693.25 M 33 33 168.25 B/G 33 171.25 M 34 885.25 M 34 34 91.25 M 34 183.25 M 35 112.25 B/G 35 35 294.25 B/G 35 193.25 M 36 168.25 B/G 36 36 463.25 B/G 36 205.25 M 37 37 590.25 B/G 37 174.95 B/G 37 217.25 M 38 294.25 B/G 38 38 174.55 B/G 38 621.25 M 39 463.25 B/G 39 39 39 40 40 40 40
3 – 4
21K-FD5RU
MCL1 (HEX AE) MCL2 (HEX 95) MCL3 (HEX 55) MCL4 (HEX D5)
CH-No Fv (MHz) Sound Sys CH-No Fv (MHz) Sound Sys CH-No Fv (MHz) Sound Sys CH-No Fv (MHz) Sound Sys
41 647.25 B/G 41 48.25 B/G 41 41 42 663.25 B/G 42 62.25 B/G 42 42 43 679.25 B/G 43 77.25 D/K 43 43 44 174.95 B/G 44 175.25 B/G 44 44 45 175.55 B/G 45 183.25 D/K 45 45 46 46 191.25 D/K 46 46 47 47 210.25 B/G 47 47 48 48 224.25 B/G 48 48 49 49 487.25 I 49 49 50 50 503.25 B/G 50 50 51 51 575.25 B/G 51 51 52 52 599.25 B/G 52 52 53 53 621.25 M 53 53 54 54 639.25 D/K 54 54 55 55 735.25 I 55 55 56 56 767.25 B/G 56 56 57 57 815.25 B/G 57 57 58 58 855.25 I 58 58 59 59 91.25 M 59 59 60 60 183.25 M 60 60 61 61 193.25 M 61 61 62 62 217.25 M 62 62 63 63 471.25 M 63 63 64 64 693.25 M 64 64 65 65 112.25 B/G 65 65 66 66 168.25 B/G 66 66 67 67 294.25 B/G 67 67 68 68 463.25 B/G 68 68 69 69 174.25 B/G 69 69 70 70 175.25 B/G 70 70
3 – 5

3. SHIPPING SETTING & CHECKING

(1) The following default data has been factory-set for the E2PROM follow by INITIAL DATA selected.
ITEMS DATA SETTING LAST POWER ON LAST TV/AV MODE TV MODE LAST POSITION CH 1 FLASHBACK CHANNEL CH 1 1/2 DIGIT ENTRY 2 DIGIT ENTRY VOLUME 0 (Min) BLUE BACK OFF OFF TIMER --:-­ON TIMER --:-­ON TIMER POSITION -­ON TIMER VOLUME -­REMINDER --:-­AFT ALL CH ON COLOR SYSTEM ALL CH AUTO SKIP ALL CH OFF NICAM ON/OFF ALL CH ON NICAM STEREO MODE ALL CH STEREO NICAM BILINGUAL MODE ALL CH MAIN NICAM MONO MODE ALL CH MONO A2 ON/OFF ALL CH ON A2 STEREO MODE ALL CH STEREO A2 BILINGUAL MODE ALL CH MAIN CONTRAST 60 COLOR 0 BRIGHTNESS 0 TINT 0 SHARPNESS 0 WHITE TEMP 0 SURROUND OFF TREBLE 0 BASS 0 BALANCE 0 (CENTER)
21K-FD5RU
INITIAL LANGUAGE SOUND SYSTEM 1 (HEX 14) CHINESE D/K 2 (HEX 15) CHINESE I 3 (HEX 17) ENGLISH B/G 4 (HEX 97) ARABIC B/G 5 (HEX 57) RUSSIAN D/K
6 (HEX D7) MALAY B/G
7 (HEX 37) FRENCH D/K
FACTORY SETTING BY MODEL
(Reference: Geomagnetism Adjustment)
MODEL MAGNETIC FIELD(V, H) nT BACKGROUND LANG. S-SYS LANG QTY CHINA 30000 20000 12300K CHINESE D/K 5 HONG KONG 20000 40000 12300K CHINESE I 5 SINGAPORE -10000 40000 12300K ENGLISH B/G 5 AFRICA -10000 40000 12300K ENGLISH B/G 5 MID-EAST 30000 20000 18000K ARABIC B/G 6 RUSSIA 45000 20000 7500K RUSSIAN D/K 2 AUSTRALIA -50000 20000 12300K ENGLISH B/G 5
*NOTE FOR OSD TYPE:
2: ENGLISH/RUSSIA 5: ENGLISH/CHINESE/FRENCH/ARABIC/MALAY 6: ENGLISH/CHINESE/FRENCH/ARABIC/MALAY/RUSSIAN
3 – 6
21K-FD5RU
**AFTER INITIALIZED THE EEPROM (REFER TO FACTORY PRESETTING), READ DATA FROM EEPROM ADDRESS 00H ~ 03H,AND COMPARE TO THE LIST BELOW, IF DIFFERENT, INITIALIZE THE EEPROM.
ADDRESS DATA ADDRESS DATA
00H: 7BH 02H: 78H
01H: 75H 03H: 74H
*** There are five stages of service mode data. First stage data from V00~V31 (Adjustment Mode). To go into second stage of service mode data, press MENU key.Second stage data from F01~F298 (Setting Mode). To go into third stage of service mode data, press MENU key. Third stage data is Pixel mode setting. To go into fourth stage of service mode data, press MENU key.Fourth stage data is Check Mode. To go into fifth stage of service mode data, press MENU key.Fifth stage data from O01~O29 (Option Mode).
ADJUSTMENT MODE (FIRST STAGE) EEPROM ITEMS OSD DATA LENGTH INITIAL DATA FIX/ADJ/AUTO REMARK R-DRIVE V00 0...127 31 FIX PLS REFER TO B-DRIVE V00 0...127 31 FIX ADJ ITEM FOR R-CUT V00 0...511 95 FIX SCREEN AND G-CUT V00 0...511 95 FIX WHITE BALANCE B-CUT V00 0...511 95 FIX RF-AGC V01 0...127 50 ADJ VIF-VCO V02 0...127 63 ADJ H-VCO V03 0...15 7 ADJ SUB-CONTRAST V04 0...127 65 ADJ SUB-COLOR V05 0...127 63 ADJ SUB-BRIGHT V06 0..255 75 ADJ SUB-TINT V07 0...127 63 ADJ SUB-SHARPNESS V08 0...63 44 FIX SUB-COLOR -YUV V09 0...127 55 *FIX BUS SET UP SUB-TINT-YUV V10 0...127 63 *FIX BUS SET UP V-SIZE 50 Hz V11 0...63 38 ADJ V-SHIFT 50 Hz V12 0...15 7 ADJ H-SHIFT 50 Hz V13 0...127 63 ADJ SECAM-BR V14 0...255 127 ADJ SECAM-BB V15 0...255 127 ADJ SUB-VOL V16 0...60 60 FIX V-SIZE 60 Hz V17 -31...0...+31 + 3 FIX IF NECESSARY, ADJ V-SHIFT 60 Hz V18 -7...0...+7 - 3 FIX IF NECESSARY, ADJ H-SHIFT 60 Hz V19 -15...0...+15 - 4 *FIX BUS SET UP S-TRAP (BG) V20 0...31 15 ADJ S-TRAP (I) V21 0...31 15 ADJ S-TRAP (DK) V22 0...31 15 ADJ S-TRAP (M) V23 0...31 15 ADJ S-TRAP (5.74) V24 0...31 15 ADJ CUTOFF/BKGD YUV V25 FIX R-DRI YUV V25 0...127 31 FIX B-DRI YUV V25 0...127 31 FIX R-CUT YUV V25 0...511 95 FIX G-CUT YUV V25 0...511 95 FIX B-CUT YUV V25 0...511 95 FIX SUB-CON YUV V26 0...127 65 FIX SUB-BRGHT YUV V27 0...255 75 FIX VS-CORRECT V28 0...63 31 FIX VC-CORRECT OFFSET V29 -13...+13 + 2 FIX V LINEARITY V30 0...63 31 *FIX BUS SET UP V LINEARITY OFFSET V31 -13...+13 + 2 FIX
3 – 7
21K-FD5RU
SETTING MODE (SECOND STAGE)
EEPROM ITEMS FUNCTION OSD IC DATA LENGTH INITIAL
DATA
FIX/ADJ/
AUTO
SIF-PAL F01 iDREAMA 0/1 0 FIX SBPF WIDE F02 iDREAMA 0..3 0 FIX STRAP OFF F03 iDREAMA 0/1 0 FIX OM-DET F04 iDREAMA 0/1 0 FIX SIF M GAIN F05 iDREAMA 0/1 0 FIX TV Audio ATT [S-OUT-LVL] F06 iDREAMA 0..127 95 FIX VIF-G F07 iDREAMA 0..7 4 FIX AMF ON F08 iDREAMA 0/1 0 FIX AMF VTH F09 iDREAMA 0/1 0 FIX 2DYCS BPF F10 iDREAMA 0..3 0 FIX YDL Y SIGNAL DELAY F11 iDREAMA 0..15 7 FIX YDL-P Y SIGNAL DELAY PAL F12 iDREAMA 0..15 3 FIX
YDL-S
Y SIGNAL DELAY SECAM
F13 iDREAMA 0..15 7 FIX
YDL-N4 Y SIGNAL DELAY N443 F14 iDREAMA 0..15 6 FIX YDL-N3 Y SIGNAL DELAY N358 F15 iDREAMA 0..15 4 *FIX BUS SET UP YDL-AV Y SIGNAL DELAY AV F16 iDREAMA 0..15 7 FIX
YDL-AV-P
YDL-AV-S
YDL-AV-N4
YDL-AV-N3
Y SIGNAL DELAY PAL (AV) Y SIGNAL DELAY SECAM (AV) Y SIGNAL DELAY N443 (AV) Y SIGNAL DELAY N358 (AV)
F17 iDREAMA 0..15 3 FIX
F18 iDREAMA 0..15 5 FIX
F19 iDREAMA 0..15 5 FIX
F20 iDREAMA 0..15 5 *FIX BUS SET UP
YDL-YUV Y SIGNAL DELAY YUV F21 iDREAMA 0..15 7 FIX AP FREQ F22 iDREAMA 0..3 0 FIX CORH LH F23 iDREAMA 0..15 8 FIX SHP OV-P F24 iDREAMA -31..0..+31 0 FIX SHP OV-S F25 iDREAMA -31..0..+31 -5 FIX SHP OV-N4 F26 iDREAMA -31..0..+31 0 FIX SHP OV-N3 F27 iDREAMA -31..0..+31 0 FIX SHP OV-AV F28 iDREAMA -31..0..+31 +5 FIX SHP OV-YUV F29 iDREAMA -31..0..+31 +5 FIX SHP PRE-P F30 iDREAMA -31..0..+31 -10 FIX SHP PRE-S F31 iDREAMA -31..0..+31 -15 FIX SHP PRE-N4 F32 iDREAMA -31..0..+31 -10 FIX SHP PRE-N3 F33 iDREAMA -31..0..+31 -10 FIX SHP PRE-AV F34 iDREAMA -31..0..+31 +5 FIX SHP PRE-YUV F35 iDREAMA -31..0..+31 -5 FIX SHP ANT-ONII OFFSET F36 iDREAMA -31..0..+31 0 *FIX BUS SET UP BS SW [BS] F37 iDREAMA 0/1 1 FIX BS ST PNT F38 iDREAMA 0..3 3 FIX BS D F39 iDREAMA 0..7 0 FIX BS ATK T F40 iDREAMA 0..15 7 FIX BS RCV T F41 iDREAMA 0..15 7 FIX ACC AMP ON F42 iDREAMA 0/1 0 FIX Take-Off-TV F43 iDREAMA 0 (BPF)/ 1(TOF) 1 FIX Take-Off-AV F44 iDREAMA 0 (BPF)/ 1(TOF) 0 FIX Take-Off-YUV F45 iDREAMA 0 (BPF)/ 1(TOF) 0 FIX BGP SEL F46 iDREAMA 0/1 0 FIX P/N BGP SHIFT F47 iDREAMA 0..3 0 FIX SCM BGP SHIFT F48 iDREAMA 0..3 0 *FIX BUS SET UP BGP WIDTH F49 iDREAMA 0..31 22 FIX BGP FRT POS F50 iDREAMA 0..31 14 FIX AUTO-SCM-KIL-TV F51 iDREAMA 0..3 1 FIX AUTO-SCM-KIL-AV-YUV F52 iDREAMA 0..3 1 FIX Forced-SCM-KIL-TV F53 iDREAMA 0..3 2 FIX Forced-SCM-KIL-AV-YUV F54 iDREAMA 0..3 2 FIX SCM FO COL F55 iDREAMA 0/1 0 FIX PAL ID F56 iDREAMA 0..127 15 FIX NTSC ID F57 iDREAMA 0..127 15 *FIX BUS SET UP
REMARK
3 – 8
21K-FD5RU
SETTING MODE (SECOND STAGE)
EEPROM ITEMS FUNCTION OSD IC DATA
ID ATK TIME F58 iDREAMA 0..3 0 FIX ID RCV TIME F59 iDREAMA 0..3 3 FIX KILLER LEVEL F60 iDREAMA 0..127 28 *FIX BUS SET UP KILLER ATK TIME F61 iDREAMA 0..3 2 *FIX BUS SET UP KILLER RCV TIME F62 iDREAMA 0..3 1 FIX 443 50 NT F63 iDREAMA 0/1 0 FIX COL-AV F64 iDREAMA -31..0..+31 +20 *FIX BUS SET UP COL-P F65 iDREAMA -31..0..+31 0 FIX COL-S F66 iDREAMA -31..0..+31 - 25 FIX COL-N4 F67 iDREAMA -31..0..+31 -7 *FIX BUS SET UP COL-N3 F68 iDREAMA -31..0..+31 -7 *FIX BUS SET UP COL-ADJ F69 iDREAMA -31..0..+31 + 15 FIX TINT-AV F70 iDREAMA -63..0..+63 0 *FIX BUS SET UP TINT-ADJ F71 iDREAMA -63..0..+63 + 12 *FIX BUS SET UP TINT-YUV-ADJ F72 iDREAMA -63..0..+63 0 FIX CTI F73 iDREAMA 0/1 1 FIX R-Y PHASE OFFSET F74 iDREAMA 0..63 21 *FIX BUS SET UP U OFFSET
[Black <FmSdata>[amp ]
F75 iDREAMA 0..255 127 FIX White signal or YUV] V OFFSET [Black <FmSdata>[amp ]
F76 iDREAMA 0..255 127 FIX White signal or YUV] G-DRI F77 iDREAMA 0..127 31 *FIX BUS SET UP G-Y GAIN F78 iDREAMA 0..3 3 *FIX BUS SET UP
GAMMA F79 iDREAMA 0..3 2 *FIX BUS SET UP BLUE ST F80 iDREAMA 0..3 1 FIX OSD BRT LIMIT F81 iDREAMA 0..3 0 FIX OSD CONT LIMIT F82 iDREAMA 0..3 2 FIX ABL TH F83 iDREAMA 0..7 0 FIX ABL GAIN F84 iDREAMA 0..7 0 FIX DC TRAN SEL F85 iDREAMA 0/1 0 FIX DC TRAN GAIN F86 iDREAMA 0..15 0 FIX DC TRAN TH F87 iDREAMA 0..127 0 FIX AUTO SLICE LVL-TV F88 iDREAMA 0..15 3 FIX AUTO SLICE LVL-AV F89 iDREAMA 0..15 3 FIX AUTO SLICE LVL-YUV F90 iDREAMA 0..15 3 FIX AS GAIN-TV F91 iDREAMA 0..3 0 FIX AS GAIN-AV F92 iDREAMA 0..3 0 FIX AS GAIN-YUV F93 iDREAMA 0..3 0 FIX V SYNC DET-TV F94 iDREAMA 0..7 0 *FIX BUS SET UP V SYNC DET-AV F95 iDREAMA 0..7 0 FIX V SYNC DET-YUV F96 iDREAMA 0..7 0 FIX S DET ON-TV F97 iDREAMA 0/1 1 FIX S DET ON-AV F98 iDREAMA 0/1 1 FIX S DET ON-YUV F99 iDREAMA 0/1 1 FIX V STD DET-TV F100 iDREAMA 0/1 0 FIX V STD DET-AV F101 iDREAMA 0/1 0 FIX V STD DET-YUV F102 iDREAMA 0/1 0 FIX C SYNC LPF F103 iDREAMA 0..3 0 FIX V SYNC LPF1 F104 iDREAMA 0..3 0 FIX V SYNC LPF2 F105 iDREAMA 0..3 3 FIX AFC1 GAIN-TV F106 iDREAMA 0..7 4 *FIX BUS SET UP AFC1 GAIN-AV F107 iDREAMA 0..7 4 FIX AFC1 GAIN-YUV F108 iDREAMA 0..7 4 FIX AFC2 GAIN UP-TV F109 iDREAMA 0..3 0 FIX AFC2 GAIN UP-AV F110 iDREAMA 0..3 0 FIX AFC2 GAIN UP-YUV F111 iDREAMA 0..3 0 FIX V PULLIN WIDE F112 iDREAMA 0/1 0 FIX H PULLIN UP F113 iDREAMA 0/1 0 FIX DBL COIN F114 iDREAMA 0/1 0 FIX V-FREE(NO SYNC) F115 iDREAMA 1 (off)/ 1(free-run) 1 FIX V-FREE2(H-FREE) F116 iDREAMA 1 (off)/ 1(free-run) 1 FIX
LENGTH INITIAL
DATA
FIX/ADJ/
AUTO
REMARK
3 – 9
21K-FD5RU
SETTING MODE (SECOND STAGE)
EEPROM ITEMS FUNCTION OSD IC DATA
RDRV-R F117 iDREAMA -63..0..+63 +8 *FIX BUS SET UP BDRV-R F118 iDREAMA -63..0..+63 -10 *FIX BUS SET UP RDRV-B F119 iDREAMA -63..0..+63 -3 *FIX BUS SET UP BDRV-B F120 iDREAMA -63..0..+63 +13 *FIX BUS SET UP R-DRI YUV OFFSET F121 iDREAMA -63..0..+63 0 FIX VRAMP LPF ADJ F122 iDREAMA 0..7 0 FIX B-DRI YUV OFFSET F123 iDREAMA -63..0..+63 0 FIX R-CUT YUV OFFSET F124 iDREAMA -63..0..+63 0 FIX G-CUT YUV OFFSET F125 iDREAMA -63..0..+63 + 17 *FIX BUS SET UP B-CUT YUV OFFSET F126 iDREAMA -63..0..+63 + 5 *FIX BUS SET UP CON YUV OFFSET F127 iDREAMA -63..0..+63 + 1 FIX BRT YUV OFFSET F128 iDREAMA -63..0..+63 - 5 FIX Contrast OFFSET F129 iDREAMA -63..0..+63 0 FIX Bright OFFSET F130 iDREAMA -63..0..+63 0 *FIX BUS SET UP AV2 Brigtness OFFSET F131 iDREAMA -15..0..+15 0 FIX V-Demute-Delay F132 iDREAMA 0..255 0 FIX S-Demute-Delay F133 iDREAMA 0..255 0 FIX
Pow-Storage F134 iDREAMA
OSD-POS F135 iDREAMA 0Ö127 0 FIX CP F136 iDREAMA 0/1 1 FIX SMALL-SURR F137 iDREAMA 0/1 0 FIX
SUB BASS CONTROL
SUB-BASS
F138 iDREAMA
SUB TREBLE CONTROL
SUB-TREB
F139 iDREAMA
AGC LEVEL ADJUST
AGC-ADJ
AGC-Sw-Off
NICAM AGC SWITCH OFF
F140 iDREAMA
F141 iDREAMA
AGC-Gain-Adjust F142 iDREAMA 0...31 16 FIX
FM-Level-Adjust F143 iDREAMA
IGR-Level-Adjust F144 iDREAMA
NICAM-BG-Level-Adjust F145 iDREAMA
NICAM-I-Level-Adjust F146 iDREAMA
NICAM-DK-Level-Adjust F147 iDREAMA
NICAM-Lower-Error-Limit F148 iDREAMA 0..55 35 FIX NICAM-Upper-Error-Limit F149 iDREAMA 0..255 70 FIX
IGR-Gain-Adjust F150 iDREAMA
A2-ID-Response F151 iDREAMA 0 (normal)/ 1(fast) 1 FIX FM-ID-Speed F152 iDREAMA 0..3 1 FIX NICAM-Auto-Mute F153 iDREAMA 0/1 0 FIX
S-BOOSTER FREQ.
MER
CHARACTERISTIC CON-
F154 iDREAMA 0..255 70 FIX
TROL MEL1 S-BOOSTER LEVEL1 F155 iDREAMA 0..255 150 FIX MEL2 S-BOOSTER LEVEL2 F156 iDREAMA 0..255 156 FIX MEL3 S-BOOSTER LEVEL3 F157 iDREAMA 0..255 163 FIX MEL4 S-BOOSTER LEVEL4 F158 iDREAMA 0..255 165 FIX MEL5 S-BOOSTER LEVEL5 F159 iDREAMA 0..255 170 FIX MEL6 S-BOOSTER LEVEL6 F160 iDREAMA 0..255 180 FIX
LENGTH INITIAL
0 (disable)/
1(enable)
0(0dB), 1(-1dB), 2(-2dB), 3(-3dB), 4(0dB), 5(+1dB), 6(+2dB), 7(+3dB)
0(0dB), 1(-1dB), 2(-2dB), 3(-3dB), 4(0dB), 5(+1dB),
6(+2dB), 7(+3dB)
0(AGC Off), 1(300mVrms), 2(400mVrms),
3(500Vrms),
4(600mVrms)
0(Disable, fix gain),
1(Enable AGC)
-15..0..+15 (please
refer to Appendix A)
-15..0..+15 (please
refer to Appendix A)
-15..0..+15 (please
refer to Appendix A)
-15..0..+15 (please
refer to Appendix A)
-15..0..+15 (please
refer to Appendix A)
-6..0..+7 (please
refer to Appendix B)
DATA
FIX/ADJ/
AUTO
REMARK
1FIX
6 *FIX BUS SET UP
3 *FIX BUS SET UP
3 *FIX BUS SET UP
1FIX
0FIX
+1 FIX
-2 FIX
+3 FIX
-1 FIX
0FIX
3 – 10
21K-FD5RU
SETTING MODE (SECOND STAGE)
EEPROM ITEMS FUNCTION OSD IC DATA
S-St-Point
S-Sp-Point
S-BOOSTER START POINT
S-BOOSTER STOP POINT
F161 iDREAMA 0..60 21 FIX
F162 iDREAMA 0..60 60 FIX
S-Step S-BOOSTER STEP F163 iDREAMA 0..60 7 FIX
S-BOOSTER BASS LIM-
S-B-BASS
ITER (WHEN S-
F164 iDREAMA -30..0..+30 +15 FIX
BOOSTER ON) S-BOOSTER TREBLE
S-B-TREB
LIMITER (WHEN S-
F165 iDREAMA -30..0..+30 +15 FIX
BOOSTER ON) S-BOOSTER BASS LIM-
S-BASS
ITER (WHEN S-
F166 iDREAMA -30..0..+30 +30 FIX BOOSTER OFF) S-BOOSTER TREBLE
S-TREB
LIMITER (WHEN S-
F167 iDREAMA -30..0..+30 +30 FIX BOOSTER OFF)
COREL YNR1 F168 iDREAMA 0..15 5 *FIX BUS SET UP COREL YNR2 F169 iDREAMA 0..15 12 FIX COREL YNR3 F170 iDREAMA 0..15 15 FIX H COEF1 TV F171 iDREAMA 0..7 3 FIX H COEF2 TV F172 iDREAMA 0..7 2 FIX H COEF3 TV F173 iDREAMA 0..7 1 FIX SF COEF1 TV F174 iDREAMA 0..7 6 *FIX BUS SET UP SF COEF2 TV F175 iDREAMA 0..7 4 *FIX BUS SET UP SF COEF3 TV F176 iDREAMA 0..7 3 *FIX BUS SET UP SG COEF1 TV F177 iDREAMA 0..7 1 FIX SG COEF2 TV F178 iDREAMA 0..7 3 FIX SG COEF3 TV F179 iDREAMA 0..7 4 FIX VC COEF1 TV F180 iDREAMA 0..7 2 *FIX BUS SET UP VC COEF2 TV F181 iDREAMA 0..7 2 *FIX BUS SET UP VC COEF3 TV F182 iDREAMA 0..7 2 *FIX BUS SET UP VD COEF1 TV F183 iDREAMA 0..7 5 *FIX BUS SET UP VD COEF2 TV F184 iDREAMA 0..7 5 *FIX BUS SET UP VD COEF3 TV F185 iDREAMA 0..7 5 *FIX BUS SET UP H COEF1 AV F186 iDREAMA 0..7 6 FIX H COEF2 AV F187 iDREAMA 0..7 4 FIX H COEF3 AV F188 iDREAMA 0..7 2 FIX SF COEF1 AV F189 iDREAMA 0..7 6 FIX SF COEF2 AV F190 iDREAMA 0..7 4 FIX SF COEF3 AV F191 iDREAMA 0..7 3 FIX SG COEF1 AV F192 iDREAMA 0..7 1 FIX SG COEF2 AV F193 iDREAMA 0..7 3 FIX SG COEF3 AV F194 iDREAMA 0..7 4 FIX VC COEF1 AV F195 iDREAMA 0..7 3 FIX VC COEF2 AV F196 iDREAMA 0..7 3 FIX VC COEF3 AV F197 iDREAMA 0..7 3 FIX VD COEF1 AV F198 iDREAMA 0..7 4 FIX VD COEF2 AV F199 iDREAMA 0..7 4 FIX VD COEF3 AV F200 iDREAMA 0..7 4 FIX H COEF1 YUV F201 iDREAMA 0..7 6 FIX H COEF2 YUV F202 iDREAMA 0..7 4 FIX H COEF3 YUV F203 iDREAMA 0..7 2 FIX SF COEF1 YUV F204 iDREAMA 0..7 6 *FIX BUS SET UP SF COEF2 YUV F205 iDREAMA 0..7 4 *FIX BUS SET UP SF COEF3 YUV F206 iDREAMA 0..7 3 *FIX BUS SET UP SG COEF1 YUV F207 iDREAMA 0..7 1 FIX SG COEF2 YUV F208 iDREAMA 0..7 3 FIX SG COEF3 YUV F209 iDREAMA 0..7 4 FIX VC COEF1 YUV F210 iDREAMA 0..7 3 *FIX BUS SET UP VC COEF2 YUV F211 iDREAMA 0..7 4 *FIX BUS SET UP VC COEF3 YUV F212 iDREAMA 0..7 3 *FIX BUS SET UP VD COEF1 YUV F213 iDREAMA 0..7 4 FIX
LENGTH INITIAL
DATA
FIX/ADJ/
AUTO
REMARK
3 – 11
21K-FD5RU
SETTING MODE (SECOND STAGE)
EEPROM ITEMS FUNCTION OSD IC DATA
VD COEF2 YUV F214 iDREAMA 0..7 3 *FIX BUS SET UP VD COEF3 YUV F215 iDREAMA 0..7 4 FIX NOISE BPF SEL F216 iDREAMA 0..3 1 FIX NOISE DET SENSE F217 iDREAMA 0..3 0 FIX NOISE DET LINE F218 iDREAMA 0..3 0 FIX SIG BPF SEL F219 iDREAMA 0..3 0 FIX SIG DET SENSE F220 iDREAMA 0..3 0 FIX CONT SOFT F221 iDREAMA 0..60 30 *FIX BUS SET UP CONT STD F222 iDREAMA 0..60 50 FIX CONT DYM F223 iDREAMA 0..60 60 FIX BRIGHT SOFT F224 iDREAMA -30..0..+30 0 FIX BRIGHT STD F225 iDREAMA -30..0..+30 0 FIX BRIGHT DYM F226 iDREAMA -30..0..+30 0 FIX COL SOFT F227 iDREAMA -30..0..+30 0 FIX COL STD F228 iDREAMA -30..0..+30 0 FIX COL DYM F229 iDREAMA -30..0..+30 +10 *FIX BUS SET UP SHARP SOFT F230 iDREAMA -30..0..+30 -10 FIX SHARP STD F231 iDREAMA -30..0..+30 0 FIX SHARP DYM F232 iDREAMA -30..0..+30 +5 FIX
SURR SOFT F233 iDREAMA
SURR STD F234 iDREAMA
SURR DYM F235 iDREAMA
TREBLE SOFT F236 iDREAMA -30..0..+30 -10 FIX TREBLE STD F237 iDREAMA -30..0..+30 0 FIX TREBLE DYM F238 iDREAMA -30..0..+30 +5 FIX BASS SOFT F239 iDREAMA -30..0..+30 -5 FIX BASS STD F240 iDREAMA -30..0..+30 0 FIX BASS DYM F241 iDREAMA -30..0..+30 +10 *FIX BUS SET UP S-BOOST SOFT F242 iDREAMA 0(OFF) / 1(ON) 0 FIX S-BOOST STD F243 iDREAMA 0(OFF) / 1(ON) 1 FIX S-BOOST DYM F244 iDREAMA 0(OFF) / 1(ON) 1 FIX AC-Fail-WO-Bright F245 iDREAMA 0..255 255 FIX WO-Bright-after-WO-TIME F246 iDREAMA 0..255 255 FIX WO-Contrast-after-WO-TIME F247 iDREAMA 0..127 127 FIX WO-Bright-before-WO-TIME F248 iDREAMA 0..255 255 FIX WO-Contrast-before-WO-TIME F249 iDREAMA 0..127 127 FIX WO-TIME F250 iDREAMA 0..31 0 FIX BASS OFFSET F251 iDREAMA -30..0..+30 0 FIX TREBLE OFFSET F252 iDREAMA -30..0..+30 0 FIX PM500 F253 iDREAMA 0 (250) / 1 (500) 0 FIX OSDCLK_NCEN F254 iDREAMA 0 (OFF) / 1 (ON) 0 FIX PXG_HDDLY F255 iDREAMA 0..15 0 *FIX BUS SET UP FPB_FIX F256 iDREAMA 0 (OFF) / 1 (ON) 0 FIX FH_JUDGE F257 iDREAMA 0..3 0 FIX RC_DLY_SEL F258 iDREAMA 0..3 0 FIX RC_RESET_SEL F259 iDREAMA 0..3 0 FIX RC_REST0 F260 iDREAMA 0/1 0 FIX LBVLATCH F261 iDREAMA 0/1 1 FIX S BPF WIDE (574 MHZ) F262 iDREAMA 0..3 0 FIX U OFFSET-PAL F263 iDREAMA 0..255 127 *FIX BUS SET UP V OFFSET-PAL F264 iDREAMA 0..255 127 *FIX BUS SET UP U OFFSET-N358 F265 iDREAMA 0..255 127 *FIX BUS SET UP V OFFSET-N358 F266 iDREAMA 0..255 127 *FIX BUS SET UP U OFFSET-N443 F267 iDREAMA 0..255 127 *FIX BUS SET UP V OFFSET-N443 F268 iDREAMA 0..255 127 FIX U OFFSET-SECAM F269 iDREAMA 0..255 127 *FIX BUS SET UP V OFFSET-SECAM F270 iDREAMA 0..255 127 *FIX BUS SET UP YCDETVTH F271 iDREAMA 0/1 1 FIX AS SPEED UP F272 iDREAMA 0/1 1 FIX SECAM FSC FREE F273 iDREAMA 0/1 1 FIX
LENGTH INITIAL
0(OFF) / 1(ONI)
/ 2(ONII)
0(OFF) / 1(ONI)
/ 2(ONII)
0(OFF) / 1(ONI)
/ 2(ONII)
DATA
FIX/ADJ/
AUTO
0FIX
0FIX
0FIX
REMARK
3 – 12
21K-FD5RU
SETTING MODE (SECOND STAGE)
EEPROM ITEMS FUNCTION OSD IC DATA
AFC1 GAIN-NOSYNC F274 iDREAMA 00..07 0 FIX RF-AGC WAIT TIME F275 iDREAMA 00..127 0 FIX PAL/SECAM TINT F276 iDREAMA 00..127 63 *FIX BUS SET UP TELETEXT LEVEL F277 iDREAMA 0..255 8 *FIX BUS SET UP CLK LINE AUTO ADJ F278 iDREAMA 0..255 1 FIX CLK LINE KILLER LEVEL F279 iDREAMA 0..255 0 FIX CSYNC SLICE LEVEL F280 iDREAMA 0..255 112 FIX AFC COMPRESSION LIMIT F281 iDREAMA 0..255 19 FIX F SPECIAL ADJ F282 iDREAMA 0..255 164 FIX AD OFFSET (EPG) F283 iDREAMA 0..255 212 FIX AD GAIN (EPG) F284 iDREAMA 0..255 193 FIX CLK GATE, LOW POWER
RESET, CLK LINE LIMIT, VPS COMPARE MASK, WSS COM-
F285 iDREAMA 0..127 59 FIX
PARE MASK REG. SETTING VALUE F286 iDREAMA 0..255 132 FIX REG. SETTING VALUE F287 iDREAMA 0..255 132 FIX FRAMING GATE START POS F288 iDREAMA 0..255 116 FIX FRAMING GATE END POS F289 iDREAMA 0..255 170 FIX CLK GATE START POS F290 iDREAMA 0..255 108 FIX CLK GATE END POS F291 iDREAMA 0..255 128 FIX AD OFFSET (TELETEXT) F292 iDREAMA 0..255 207 FIX AD GAIN (TELETEXT) F293 iDREAMA 0..255 140 FIX CCD (N) DATA REG. 1 F294 iDREAMA 0..255 148 FIX VPS DATA REG. 1 F295 iDREAMA 0..255 3 FIX OSD_HS F296 iDREAMA 0..1 0 *FIX BUS SET UP TEXT_MD F297 iDREAMA 0..1 0 FIX V-BLK TOP SHIFT F298 iDREAMA 0..15 3 FIX
LENGTH INITIAL
DATA
FIX/ADJ/
AUTO
REMARK
OPTION MODE (FIFTH STAGE) EEPROM ITEMS OSD DATA LENGTH INITIAL DATA REMARK
HTL O01 0/1 0 OPTION SET UP HTL-POS O02 0...99,-- -- OPTION SET UP HTL-VOL O03 0...60,-- -- OPTION SET UP
SECAM O04 0/1 1 OPTION SET UP N443(RF) O05 0/1 1 OPTION SET UP N358(RF) O06 0/1 1 OPTION SET UP Force-Col O07 0/1 0 OPTION SET UP
S-SYS O08 1...15 15 OPTION SET UP
AV O09 0/1 1 OPTION SET UP
AV2 O10 0/1 1 OPTION SET UP
YUV O11 0/1 1 OPTION SET UP
S-CTRL O12 0/1 1 OPTION SET UP
NICAM O13 0/1 0 OPTION SET UP
A2 O14 0/1 0 OPTION SET UP
TEXT O15 0/1 0 OPTION SET UP
BIL O16 0/1 0 OPTION SET UP
LANG O17 1...65 63 OPTION SET UP SERCH-SP O18 1...5 3 OPTION SET UP LED-CONT O19 0/1 0 OPTION SET UP
S-BOOSTER O20 0/1 0 OPTION SET UP
SHARP-LOGO O21 0/1 0 OPTION SET UP
YUV BKGD ADJ O22 0/1 0 OPTION SET UP
WHITE BACK O23 0/1 0 OPTION SET UP
BOOSTER
O24 0/1 1
OPTION SET UP
MESSAGE O25 0/1 0 OPTION SET UP
LNA TUNER O26 0...2 0 OPTION SET UP
GAME O27 0/1 0 OPTION SET UP
CHILD LOCK O28 0/1 1 OPTION SET UP
Idreama IC O29 0/1 0 OPTION SET UP
3 – 13
Setting below only applicable to Thai Model
LANG O17 1...65 65 OPTION SET UP
Remark for O08 (S-SYS) When O08=1 (B/G only), SOUND item in CH-SETTING OSD MENU will not be appeared, and there is no showing of sound system B/G in AUTO PRESET and MANUAL PRESET OSD Menu
*** HOTEL MODE OPERATION OF HOTEL MODE: WHEN CHANGE SERVICE DATA O01 TO 1, HOTEL MODE IS ON WHEN HOTEL MODE IS ON,
1. Max volume data is determined by option setting HTL-VOL (O03)
2. Channel position after POWER ON is determined by option setting HOTEL-POS (O02) (if option setting HOTEL-POS is not set, processing is according to last position data).
3. User data updates of EEPROM regarding the video and audio control is not allowed.
4. Preset mode is disable.
5. CH SETTING menu is not available.
21K-FD5RU
3 – 14
21K-FD5RU
gy
pt
r
PXG-2 Demo Mode
PXG-2 DEMO MODE
SHARP 21K-FD series TV that adopt high features is a step up model that first implement Pixel Generator (PXG-2) technology. SHARP has made a step ahead by producing high resolution picture in 21K-FD series and this make 21K-FD series model stands out among SHARP and other
㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷
competitors 21" flat TV. With this attractive PXG-2 feature, it is believe that it will helps to increase SHARP 21" flat TV market share .
PXG-2 DEMO mode is integrated into 21K-FD series to let customer to understand PXG-2 more easily and the differences within PXG OFF and ON will give customer more clear image about PXG-2. PXG-2 DEMO mode will also ease the sales person in explaining PXG-2 as the selling point to the customer.
a) AUTO DEMO
PXG OFF
Pixel Generator (PXG-2)
Conce
PXG ON
5s
PXG OFF
PXG ON
b) FULL SCREEN DEMO
PXG OFF
c) HALF SCREEN DEMO
PXG ON
5s
5s
PXG ON
5s
PXG OFF
PXG ON
5s
PXG ONPXG OFF
PXG OFF
5s
1)To enter PXG DEMO mode, press / (on TV set) at the same time for more than 3 seconds during TV broadcast or AV input program.
2)Once enter to PXG DEMO mode, the AUTO DEMO mode will run automatically in 4 type of display screen (each at 5 seconds interval time).
3)At any DEMO mode, Press FULL SCREEN DEMO
HALF SCREEN DEMO
AUTO DEMO
4)From any mode, press (on TV set) or
(on remote control) to change to the
respectively PAUSE mode. To release it, press
or again.
5)During PAUSE mode, press or to change to other display screen.
6)During any mode or PAUSE mode, press
/ (on TV set) at the same time for
more than 3 seconds to cancel the PXG DEMO
mode.
Procedu
PXG-2 Technolo
Generate imaginary data from 3 line real
input signal data.
Double digital sampling increase the vertical
pixel resolution.
Input signal pixels/resolution
Output signal pixels/resolution
With PXG-2 technology, it helps to improve picture resolution thus increase picture sharpness and achieve a truly lifelike TV image.
PXG-2 Output Effect
㪧㪯㪞㩷㪦㪝㪝
㪧㪯㪞㩷㪦㪥
3 – 15

4. ADJ ITEM: BUS SET UP (1ST & 2ND STAGE SERVICE DATA)

SERVICE ITEMS 21K-FD5RU
V09 SUB-COLOR -YUV 70 V10 SUB-TINT-YUV 55 V19 H-SHIFT 60 Hz -5 V30 V LINEARITY 33 F15 YDL-N3 5 F20 YDL-AV-N3 9 F36 SHP ANT-ONII OFFSET -15 F48 SCM BGP SHIFT 1 F57 NTSC ID 33 F60 KILLER LEVEL 20 F61 KILLER ATK TIME 1 F64 COL-AV +10 F67 COL-N4 +3 F68 COL-N3 +3 F70 TINT-AV -3 F71 TINT-ADJ +14 F74 R-Y PHASE OFFSET 21 F77 G-DRI 63 F78 G-Y GAIN 3 F79 GAMMA 3
F94 V SYNC DET-TV 3 F106 AFC1 GAIN-TV 0 F117 RDRV-R +8 F118 BDRV-R -10 F119 RDRV-B -6 F120 BDRV-B +30 F125 G-CUT YUV OFFSET -3 F126 B-CUT YUV OFFSET 0 F130 Bright OFFSET 0 F138 SUB-BASS 0 F139 SUB-TREB 3 F140 AGC LEVEL ADJUST 4 F168 COREL YNR1 5 F174 SF COEF1 TV 7 F175 SF COEF2 TV 5 F176 SF COEF3 TV 4 F180 VC COEF1 TV 1 F181 VC COEF2 TV 1 F182 VC COEF3 TV 1 F183 VD COEF1 TV 7 F184 VD COEF2 TV 7 F185 VD COEF3 TV 7 F204 SF COEF1 YUV 7 F205 SF COEF2 YUV 5 F206 SF COEF3 YUV 4 F210 VC COEF1 YUV 2 F211 VC COEF2 YUV 2 F212 VC COEF3 YUV 2 F214 VD COEF2 YUV 4 F221 CONT SOFT 40 F229 COL DYM +5 F241 BASS DYM +5 F255 PXG_HDDLY +10 F263 U OFFSET-PAL 130 F264 V OFFSET-PAL 130 F265 U OFFSET-N358 133 F266 V OFFSET-N358 131 F267 U OFFSET-N443 131 F269 U OFFSET-SECAM 129 F270 V OFFSET-SECAM 129 F276 PAL/SECAM TINT 73 F277 TELETEXT LEVEL 11 F296 OSD_HS 1
21K-FD5RU
3 – 16
21K-FD5RU

5. ADJ ITEM: OPTION SET UP (5TH STAGE SERVICE DATA)

SERVICE ITEMS 21K-FD5RU
O01 HTL 0 O02 HTL-POS -­O03 HTL-VOL -­O04 SECAM 1 O05 N443(RF) 1 O06 N358(RF) 1 O07 Force-Col 0 O08 S-SYS 15 O09 AV 1 O10 AV2 1 O11 YUV 1 O12 S-CTRL 1 O13 NICAM 1 O14 A2 1 O15 TEXT 1 O16 BIL 0 O17 LANG 9 O18 SERCH-SP 3 O19 LED-CONT 0 O20 S-BOOSTER 0 O21 SHARP-LOGO 0 O22 YUV BKGD ADJ 0 O23 WHITE BACK 0
O24 BOOSTER 1 O25 MESSAGE 0 O26 LNA TUNER 0 O27 GAME 0 O28 CHILD LOCK 1 O29 Idreama IC 0
3 – 17

[2] ADJUSTMENT

1. PIF ADJUSTMENT CHECKING

21K-FD5RU

2. PURITY ADJUSMENT

3 – 18
21K-FD5RU

3. CONVERGENCE ADJUSTMENT

4. H-VCO, VIF-VCO & S-TRAP for ADJUSTMENT

3 – 19

5. HORIZONTAL, VERTICAL, DEFLECTION LOOP and FOCUS ADJUSTMENT

21K-FD5RU

6. SCREEN, WHITE BALANCE, SUB-BRIGHTNESS & SUB-CONTRAST (1) ADJUSTMENT

ADJUSTMENT POINT
NO
SCREEN
1
ADJUSTMENT (I2C BUS CONTROL)
WHITE BALANCE ADJ (1)WH
2
(tobedoneafterscreen For
adj)
(I2C BUS CONTROL) (as drawing attac
(1)Inwi
(2) Go to serv
(3) Bypressing R/C key S-Mute (He
R-C auto s Sub-brightness V06
Y-mute & Vertic
(4) Adjust the Screen so that cut-off line a
the cut-off line appe G-C&B-C,fixthedataoft dat
5)Turn the sc
(
by pressing ke appea
( 6 )After screen Adjustment, adjust R-D to 63 and B-D to 63 forWhite Balance Adj.
First use Minolta Color A
the gun point at White position (a become: 200 cd/m2. White
dj
A
X=300, Y=310 7500
D
(2)
Let the gun point a the data adjusted in s
appears in Sc
xis as above.
a
** R
ndow pattern signal condition
a (Note 1) so that cut-off
r in normal mode.
ITE (HIGH BEA
-FD5RU
21K
the R
KWHI
R
A
at ste
epe
ADJUSTMENT CONDITION / PROCEDURE WAVEFOR
de, then select V00
ce mo
i
hto95, G-C auto s
witc
a
off, scre
al
ar in Red or Green or Blue color, in this condition bet
Rof
V
n
e
e
r
y S-Mute (Hex E8) to disab
.
-D auto switch to 31
xE8), R
, B-C auto switch to 95
uto switch to 75.
witch to 95
en will be in vertical cut-off condition
ppear in low bright, the
he color appe
line color become white.
FBT so that cut-off line just
ar in cut-off line
le the Y-mute & V-cut so that picture
M) ( In Window Pattern Signa
nalyzer CA100, let the gun point atDark White position
h), Adj V06 until LUMIN
ANCE Y become
sdrawing at
ta
h), Adj
c
, B-D auto switch to 31,
n judge
nd adj the other two cut-off
a
us
arand
e
p
disap
l)
5cd/m2 , then let
V04 until LUMIN
,
that whe
een R-C &
w
e R/C
ANCE Y W
ther
Note 1 R-CUTOFF (R-C) UP
-CUTOFF (R-C) DOWN
R G-CUTOFF (G-C) UP G-CUTOFF (G-C) DOWN B-CUTOFF (B-C)
-CUT
B R-DRIVE (R-D) UP
-DRIVE (R-D)
R B-DRIVE (B-D) UP
-DRIVE (B-D)
B
hite Dark
5.5% IRE
-D & B-D until the axis of
TE (LOW BEAM) (In Window Patte
ark White
t D
tep 1,adjust R-C, G-C & B-C but between the
tem1)-4isfixe
en adj i
e
r
p1&2togetareg
color temperature becom
o
K (21K-FD5RU )
position, if the c
lated pos
u
d,ad
olor temperatu
j the other two so
ition
e *Note : Signal
ignal)
rn S
re da
that to obtain the si
way from
ta shift a
m, first color
r
la
i
m
:
UP
OFF (B-C) DOWN
DOWN
DOWN
WIN
SX-1006 (IWATSU Window Pattern are as a
D
50% IRE
using W/B Pa
ove:
b
ROTHERS
MO
RC key "1" (HEX 80) RC key "4" (HEX 20) RC key "2" (HEX 40) RC key "5" (HEX A0) RC key "3" (HEX C0) RC key "6" (HEX 60) RC key "7" (HEX E0) RC key "Flashback" (HEX E4) RC key "8" (HEX 10) RC key "0" (HEX 50)
OW PATTERN SIG
NAL
9.5% IRE
ttern Gener
equivalent.
r
)o
output level
l
Signa
tor
a
3 – 20
21K-FD5RU

7. SCREEN, WHITE BALANCE, SUB-BRIGHTNESS & SUB-CONTRAST (2) ADJUSTMENT

NO
AD
JUSTMENT POI
3 SUB-BRIGHTNE
(
to be done after screen,
white balance adj)
(
I2C BUS CONTROL)
N
T
SS
(
1) In
Window Pattern
(2) Using
Minolta Co
(as attach drawing), adjust
LUMINANCE Y = 3
ADJUSTMENT CONDITION / PROCEDURE
Signal cond
l
o
r Analyze
ition.
r CA-100
,le
V06
B
±0.2 cd/m2 (21K-FD5RU )
tthegunpo
us data until LUMINANCE Y as below,
int at
Dark White
position
WAVEFORM OR OTHERS
WINDOW PATTERN SIGNAL
Dark
White
4SUB-CON T
(to be don whi sub-br
(I2C BUS CONTROL)
R
AST
e
a
fter screen, (2) Usin
t
ebalance adj,
ig
htne
ss a
(1
) In Win
d
j
) (3) Repea
attac
(4) After adjustment , if V04 ≤ 66 . please re-adjust from Screen adjustment.
g
h drawing),
This is to avoid low control range for user contrast adjustment.
LUMINANCE Y
5 Beam Cur
ren
t Check (
1
)R
e
ceiv
(2) Pre
ss
R/C
(3) Conn
e
(Full Scale: 3mA R
(
4
)B
e
am c

8. PAL CHROMA ADJUSTMENT

dow Patte
r
Minol
tSUB-BRIGHTNESS a
ct th
n Signal con
ta Color An
eth
e
"Mono to set Picture NORMAL con eDC
urre
n
tmust be wit
a
lyzer CA-10
a
d
j
u
st V04 Bus dataun
=200
± 10 cd/m2 (21
scopePa
ttern
mi
l
i
ammeter betw
ange).
h
i
n:
d
i
tion.
0,
l
e
t the gun p
oint a
til
LUMINANCE Y as b
nd SUB -CONTRAST adj. unti
K-FD5RU )
"sig
nal,
SET AS Dynamic
d
ition
.
e
e
nTP6
03 ( +
1000
±1
0
0
µA.
t
) & TP 602 ( - )
(21K-FD5RU )
White
M
o
positi
e
l
o
w
,
l all in spec.
d
e
.
o
n
(
a
s
WI
NDOW PATTERN SIGNAL
White

9. NTSC CHROMA ADJUSTMENT

3 – 21

10. SECAM CHROMA ADJUSTMENT

21K-FD5RU

11. SIF (NICAM / IGB) ADJUSTMENT (NICAM OR IGB MODEL ONLY)

NO
ADJUSTMENT POI
1VC
O
C
OIL (1) Rec
T2300
N
T
e
ive "PAL COLOUR BAR"s
(2) Conne
ct
(3) Check a
** UNIT BOAR
Vc IF Input Freq 38.9 M
Adjust T2300 until
Che
Preca
nd
t
hen turn it c
After tha
2.5 ± 0.1 V
c
ck after assembly NICAM BOAR
ution:
T
ADJUSTMENTCO
DC Voltmete
t,t
Test Pre Chec
he Vcc, fo
1.0 V tolerance whic
r
to M
turn T2300 count
l
ockwise (Right) so that
urn
T2300 counter-c
d
c
D ADJUSTMENT
5±0.1 Vdc
TP 230
0
(NICAM Bo
po
int: Ma
set sel
e
cte
d
recep
k
V
oltage 2.5
and other factors are c
ND
ITI
O
igna
ain
B
oard
er-cl
o
ckwise (Left)
l
o
ckw
Hz ± 10 KHz
D
in Board socket SC304 pin 1
tion fr
eq (AFT
±
0.1 Vdc
h differ fro
N/PROCEDURE WAVEFOR
l.
socket SC304 pin
so tha
DC volt
meter appear 5V.
ise (Left) until
ar
d Test Point)
O
FF)
onsi
dered
m
t
he adjustment a
1.
t
DC voltmeter appear 0V,
DC voltmeter a
b
e
c
ome 2.5 ±0
in
the unit boa
ccuracy
ppe
.1 Vdc
rd of the
ar
MOROT
HERS
.
3 – 22
21K-FD5RU

12. PROTECTOR OPERATION CHECKING

13. A/V INPUT, OUTPUT & COMPONENT IN CHECKING

14. FUNCTION OPERATION CHECKING (1) (VIDEO & AUDIO)

3 – 23

15. FUNCTION OPERATION CHECKING (2) (VIDEO & AUDIO) CONTINUED

21K-FD5RU
3 – 24
21K-FD5RU
2
21K-FD5RU

16. FUNCTION OPERATION CHECKING (3) (VIDEO & AUDIO) CONTINUED

17. FUNCTION OPERATION CHECKING (3) (VIDEO & AUDIO) CONTINUED

21K-FD5RU
2
-
-
-

18. HEADPHONE JACK CHECKING

-
3 – 25

19. SHOCK TEST CHECKING

2
21K-FD5RU
2
21K-FD5RU

20. ROM CORRECTION CHECKING

21K-FD5RU
584
0.90
N O
0.90
3 – 26
Loading...
+ 66 hidden pages
