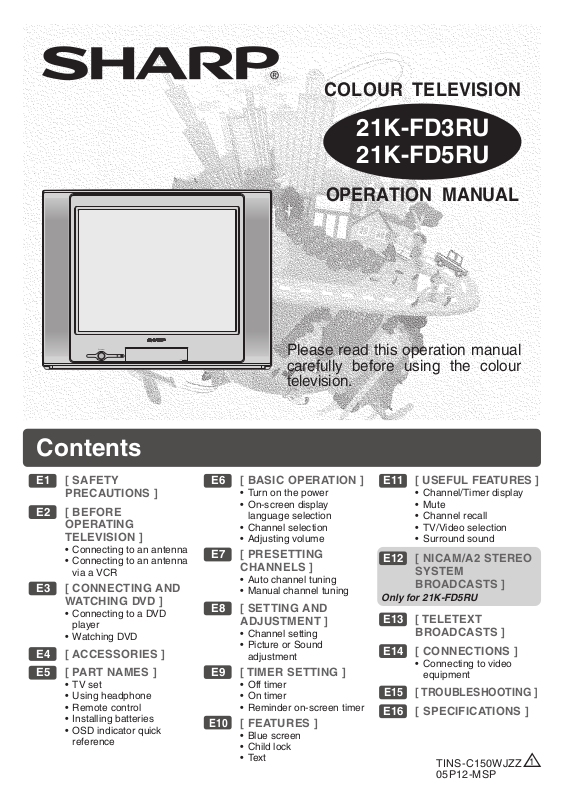

Sharp 21K-FD3RU, 21K-FD5RU Owner Manual

Contents

COLOUR TELEVISION

21K-FD3RU 21K-FD5RU

OPERATION MANUAL

Please read this operation manual carefully before using the colour television.

E1 [ SAFETY

PRECAUTIONS ]

E2 [ BEFORE

OPERATING TELEVISION ]

• Connecting to an antenna

• Connecting to an antenna via a VCR

E3 [ CONNECTING AND

WATCHING DVD ]

• Connecting to a DVD player

• Watching DVD

E4 [ ACCESSORIES ]

E5 [ PART NAMES ]

• TV set

• Using headphone

• Remote control

• Installing batteries

• OSD indicator quick reference

E6 [ BASIC OPERATION ]

• Turn on the power

• On-screen display language selection

• Channel selection

• Adjusting volume

E7 [ PRESETTING

CHANNELS ]

• Auto channel tuning

• Manual channel tuning

E8 [ SETTING AND

ADJUSTMENT ]

• Channel setting

• Picture or Sound adjustment

E9 [ TIMER SETTING ]

• Off timer

• On timer

• Reminder on-screen timer

E10

[ FEATURES ]

• Blue screen

• Child lock

•Text

E11 [ USEFUL FEATURES ]

• Channel/Timer display

• Mute

• Channel recall

• TV/Video selection

• Surround sound

E12 [ NICAM/A2 STEREO

SYSTEM BROADCASTS ]

Only for 21K-FD5RU

E13 [ TELETEXT

BROADCASTS ]

E14 [ CONNECTIONS ]

• Connecting to video equipment

E15 [ TROUBLESHOOTING ]

E16 [ SPECIFICATIONS ]

TINS-C150WJZZ%

05P12-MSP

E1 SAFETY PRECAUTIONS

Damage

Turn off the power and unplug the power cord from the wall outlet immediately if the TV set begins to make any unusual noises or gives off smoke or an unusual smell. Then call your dealer for service.

Unstable surface and shocks

Do not place this TV set on an unstable cart, stand, shelf, or table. The TV set may fall, causing serious injury to a child or adult, and serious damage to the set. Sharp recommends securing the TV set to a stable surface or wall to prevent the set from falling due to sudden shocks or impact.

Moisture

To prevent electrical shock, do not use the TV set in an excessively damp place.

Liquid entry

Do not place a flower vase or anything else containing liquid on the TV set, as liquid spilt on the TV set can cause electrical shock or failure.

Servicing

To reduce the risk of electric shock, do not remove the back of the cabinet. This TV set contains dangerous voltage.

Power-cord protection

To prevent electrical shock, do not subject the AC power cord to damage by bending or twisting it, or by placing heavy items on top of it and do not place the AC power cord under the TV set. If the AC power cord becomes damaged, unplug it from the wall outlet immediately and call your dealer for service.

Water

To prevent fire or electrical shock, do not place the TV set near a bathroom, swimming pool or other area where it may become wet.

Object entry

Never insert or drop any metallic or inflammable objects into the ventilation openings of the TV set, as this can cause fire, electrical shock, or electrical failure.

TV Set position

Do place the TV set onto an even stand, table or rack which size is bigger than the TV set. If the TV set is put onto a smaller size or uneven stand, table or rack may cause the TV cabinet to distort. Do not put or insert anything between TV set and the stand, table or rack.

Ventilation

Do not place this TV set in a confined area, such as on a bookshelf or in a built-in case. Leave adequate space behind the TV for proper ventilation.

Uneven surface and excessive force

Television equipment and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the equipment and cart combination to overturn.

Fire prevention

To prevent fire, never place any type of candle or naked flames on the top or near the TV set.

E2 BEFORE OPERATING TELEVISION

LANGUAGE

TV/VIDEO

SURROUND

NORMAL

123

456

BACD

MPX

TV/VIDEO

Connecting to an antenna

300-ohm twin-lead flat feeder (not supplied)

coaxial cable (round cable)

(not supplied)

Standard DIN45325

plug (IEC169-2)

If your outdoor antenna uses a 75-ohm coaxial cable with a standard DIN45325 plug (IEC 169-2), plug it into the antenna jack at the rear of the set.

75-ohm

75-ohm impedance converter (not supplied)

Antenna in

Connecting to an antenna via a VCR

VCR

To RF out

To antenna in terminal

If your outdoor antenna uses a 300-ohm twin-lead flat feeder, connect a 300-ohm to 75-ohm impedance converter and plug it into the antenna

terminal

Antenna in

jack at the rear of the set.

E3 CONNECTING AND WATCHING DVD

Connecting to a DVD player

The DVD input terminals (COMPONENT-IN) on the rear of the TV can be used to input highquality images from a DVD player.

DVD input terminals

Green : To Y

B (CB)

Blue : To P Red : To PR (CR)

To colour-difference (component video) out terminals

DVD player

Red : To AUDIO IN (R) White : To AUDIO IN (L)

To audio out

(L/R) terminals

Connecting the video terminals

DVD input terminals DVD player

Y Y or Y/Y

COMPONENT-IN

VIDEO

B(CB)

R(CR)

PB(CB) or

PR(CR) or

B-Y/Pb

R-Y/Pr

Watching DVD

! Press

TV/VIDEO

to select “COMPONENT”, DVD

input screen.

@ Turn on the DVD player and begin playback.

• When connecting the TV to a DVD player via the COMPONENT-IN terminals, the video and audio from the DVD player cannot be output through the Audio/Video out terminals on the TV.

• When using the RF terminal connection, set the TV to channel zero to make initial adjustments for the VCR.

COMPONENT

E4 ACCESSORIES

The following accessories are included with this television.

Remote Control

E5 PART NAMES

TV set

Door

Bottom

POWER

Turns on and off the main power.

Power indicator

Power can be turned on by the remote control when the indicator is dimly lit.

Infrared sensor window

Receives the infrared wave from the remote control.

MENU/PRESET

Tunes the channels. Used for MENU setup.

POWER switch

MENU/PRESET button

Size-AA batteries

Operation manual

To open the door

Using the projection located under the “ PULL-OPEN” indication, pull and lift the door open.

To close the door

Using the projection, lower the door until closed.

Caution:

• When opening or closing the door, do not insert your fingers into the gap between the door and front panel. This may result in an injury.

$%^@# & * (

(

Adjusts the volume. Makes adjustments in PRESET.

Selects the channels. Tunes or sets the channels.

Video input terminal (AV-2 IN)

Connects to a camcorder, video game, etc.

Audio input terminals (AV-2 IN) Connects to a camcorder, video game, etc.

Headphone jack

Use to listen to the audio with headphone.

Volume up/down buttons

Channel up/down buttons

Using headphone

[ Behind the door ]

Insert headphone plug into headphone jack to listen to audio with headphone.

• The audio from the speakers is turned off.

• To avoid injuring your hearing, do not put on the headphone before plugging them into the headphone jack and

before the power is turned on.

E5 PART NAMES (Continued)

Remote control

Turns the TV on or to Standby mode.

Mutes the sound and restores sound

Switches between main and sub

sound,and stereo and monaural

Produces a more spacious sound.

Operate the Favourite Channel

Only for 21K-FD3RU

VIDEO 1

VIDEO 2

to previous level.

MPX

sound.

SURROUND

Calls the TIMER screen.

Colour buttons

and Teletext functions.

Adjusts the volume.

Used for MENU setup.

To enter AV1 (or COMPONENT) directly.

To enter AV2 directly.

Infrared transmitter window

Aim this window at the infrared sensor window on your TV set.

LANGUAGE

MPX

SURROUND

123

456

TV/VIDEO

BACD

NORMAL

TV/TEXT

LANGUAGE

Changes the on-screen display language.

TV/VIDEO

Switches between TV broadcasts and A/V input programmes.

Displays the channel and timer settings on the screen.

Number buttons

Switches between one- or two-digit mode channel selection.

Returns to previously viewed channel.

Selects the channel. Used for MENU setup.

Calls the MENU screen.

Teletext buttons Operate the Teletext functions.

NORMAL

Resets all settings.

OSD indicator quick reference

OSD

indicator

Remote

control

OperationTV set

Used to select items.

Used to adjust or enter the selected items.

Used to return to previous screen or exit Menu screen.

Installing batteries

Pull up or replace

back the battery cover.

Insert two batteries

(size AA). Be sure to match the battery j/k terminals.

• OSD: On-Screen Display

• Please refer to this table for all the OSD operation in this manual.

E6 BASIC OPERATION

Turn on the power

• When the power indicator is off, press

• When the power indicator lights up dimly, press on the remote control. The power indicator changes to bright and a picture appears.

POWER

On-screen display language selection

Remote Control

ENGLISH

LANGUAGE

to select desired language.

LANGUAGE

changes the language as shown below.

RUSSKIJ

ENGLISH

• Press

• Pressing

TV set

• Press

MENU/PRESET

for more than two seconds, the language

select mode appears.

• Press

• Pressing

Language MANUAL

• Press

MENU/PRESET

changes the screen as shown below.

AUTO

until normal screen appears.

to select desired language.

Normal screen

ENGLISH

RUSSKI J

Channel selection

! Using

• Press

1 / 2 / ... / 98 / 99 / AV1 (or COMPONENT) / AV2 / 0 / 1 / 2 ...

• Press

1 / 0 / AV2 / AV1 (or COMPONENT) / 99 / 98 / ... / 2 / 1 / 0 ...

@ With the number buttons (on remote control)

• To select a one-digit channel, such as 5, press If “5-” is indicated, press to select one-digit input, and then press

• To select a two-digit channel, such as 15, press

to select the two-digit input. Press

then press

and channels change as shown below.

again.

, and

[ TV Set (Bottom) ]

POWER

[ Behind the door ]

MENU/PRESET

MPX

SURROUND

NORMAL

MACES

D/K

Power indicator

LANGUAGE

TV/VIDEO

1 23

4 5 6

BACD

TV/TEXT

LANGUAGE

Adjusting volume

! Adjust volume using / .

• The volume bar disappears approximately three seconds after the volume has been adjusted.

VOLUME 10

• When the power indicator lights up dimly, either

• Channels that have been skipped cannot be selected by

• The AV1 (or COMPONENT), AV2 input channels cannot be selected using

TV/VIDEO

Use

to select these channels.

on the TV can be pressed to turn on the power.

on the remote control.

E7 PRESETTING CHANNELS

Auto channel tuning

Automatically tunes in and presets receivable TV stations.

! Press @ Press

MENU/PRESET

for more than two seconds.

MENU/PRESET

again to display AUTO mode

screen.

• Pressing

Language MANUAL

MENU/PRESET

changes the screen as shown below.

AUTO

Normal screen

# Press / on TV set.

• All the TV stations in your area that can be received by the TV set are automatically preset between channels 1 to 99.

• The screen shows whatever is on channel 1 when auto channel preset is finished.

Manual channel tuning

Enables manual channel tuning to a desired TV station.

! Press @ Press

# Press

MENU/PRESET

for more than two seconds.

MENU/PRESET

twice to display MANUAL mode

screen.

• Pressing

Language MANUAL

MENU/PRESET

changes the screen as shown below.

AUTO

or number buttons to

select channel position.

Normal screen

AUTO(D/K) VHF 1

48.25MHz

MANUAL(D/K) VHF 1

48.25MHz

[ Behind the door ]

SECAM

D/K

MENU/PRESET

MPX

SURROUND

NORMAL

LANGUAGE

TV/VIDEO

123

456

7809

BACD

TV/TEXT

Number

buttons

$ Press / on TV set to locate channel you wish to preset to current

channel position.

• Search is initiated and when a TV signal is received during the search, the search stops.

% Repeat steps 3 and 4 above, to preset channel positions for other broadcasts. ^ Press

• SOUND SYSTEM may not have been set correctly, if noise can be heard or if there is no sound. In such cases, adjust the SOUND SYSTEM using the

• AUTO PRESET stores all receivable channels including those which may be very weak and not clearly visible. To preset only those channels designated for the local viewing region, use MANUAL PRESET.

MENU/PRESET

again to display normal screen.

on the remote control.
