SGS Thomson Microelectronics TSM112CN, TSM112CDT, TSM112CD, TSM112 Datasheet

1/7

■ OVER VOLTAGE PROTECTION FOR 3.3V

5V AND 12V WITHOUT EXTERNAL COM­PONENTS

■ UNDER VOLTAGE PROTECTION FOR 3.3V

5V AND 12V WITHOUT EXTERNAL COM­PONENTS

■ OVER VOLTAGE PROTECTION FOR -12V

OR -5V W I T H EX TERNAL COMPON E N TS

■ EXTERNALLY ADJUSTABLE UNDER VOLT-

AGE BLANKING DURING POWER UP

■ POWER GOOD I N PUT / OU TP U T

■ EXTERNALLY ADJUSTABLE PG DELAY

■ F AULT OUTPUT

■ REMOTE OUTPUT

■ EXTERNALLY ADJUSTABLE REMOTE

DELAY

■ PRECISION VOLTAGE REFERENCE

■ 2kV ESD PROTECTION

DESCRIPTION

The TSM112 integrated circuit incorporates all
sensing circuitry to regulate and protect from over
voltage and under voltage a multiple output power
supply (3.3V, 5V and 12V).
TSM112 incorporat es all the nec essary functions
for Housekeeping features whi ch allow s afe oper­ation in all conditions, and very hi gh system inte­gration.
TSM112 integrates a precise voltage reference.

APPLICATION

■ PC SMPS Triple Power Line Housekeeping

IC (3.3V 5V 12V)

ORDER CODE

N = Dual in Line Package (DIP)
D = Small Outline Package (SO) - also available in Tape & Reel (DT)

PIN CONNECTIONS (top view)

Part

Number

Temperature

Range

Package

Marking

ND

TSM112CN 0 to 85°C

•

TSM112C

TSM112CD 0 to 85°C

•

M112

N

DIP14

(Plastic Package)

D

SO14

(Plastic Micropackage)

VCC

REM

TREM

TPG

PG

VS33

VS5

VS12

PI

TUV

EP

GND VREF

10

9
87

6

5

4

3

2

1

11

12

1314FAUL

T

January 2001

TSM112

3.3V 5V 12V HOUSEKEEPING IC

TSM112

2/7

PIN DESCRIPTION

ABSOLUTE MAXIMUM RATINGS

OPERATING CONDITIONS

Name Pin # Type Function

Vcc 14 Power Supply Positive Power Supply Line

Gnd 7 Power Supply Ground Line. 0V Reference For All Voltages

Vs12 3 Analog Input

Over and Under voltage Sense Input Dedicated to the 12V Line

1)

Vs5 2 Analog Input

Over and Under voltage Sense Input Dedicated to the 5V Line

1)

Vs33 1 Analog Input

Over and Under voltage Sense Input Dedicated to the 3.3V Line

1)

Tuv 6 Timing Capacitor Adjustable Under voltage Blanking Delay at Power Up (Setting Capacitor)

Fault 13 Open Collector Fault Output. Fault is high when Over or Under Voltage has been Detected

PI 5 Analog Input Power Good Input. Detection of the Power Conditions

PG 12 Open Collector Power Good Output. PG output is High when the Power Conditions are

OK

Tpg 11 Timing Capacitor Adjustable Power Good Delay (Setting Capacitor)

REM 9 Logic Input Input Remote Control of the Complete System by the Motherboard

(µController). Remote is active high. Switch OFF/ON of the Power Supply.
Reset of the Complete System after a FAULT Activation.

Trem 10 Timing Capacitor Adjustable Remote Delay (Setting Capacitor).

Vref 8 Voltage Reference 2.5V Reference for all Voltages

EP 4 Analog Input Extra Protection Circuit. Can be used for -12V or -5V Over Voltage

Protection.

1. Over and Under Voltage Inputs can go higher than Vcc within the allowed Max Rating range

Symbol DC Supply Voltage Value Unit

Vcc

DC Supply Voltage

1)

25 V

Iout Output Current Power Good 30 mA

Io Output current for the Voltage reference 20 mA

VFault Fault Ouput 5 V

Top Operating Free Air Temperature Range -55 to 125 °C

Pd Power Dissipation 0.7 W

Tstg Storage Temperature -55 to 150 °C

ESD Electrostatic Discharge 2 kV

Tuv Adjustable Under voltage Blanking At Power UP 5 V

EP Extra Protection 5 V

PI Power Good Input 5 V

PG Power Good Output 5 V

Tpg Adjustable Power Good Delay 5 V
REM Remote Control 5 V
Trem Adjustable Remote Delay 5 V

1. All voltage values, except differential voltage are with respect to network ground terminal.

Symbol Parameter Value Unit

Vcc DC Supply Conditions 4.5 to 24 V

Toper Operating Free Air Temperature Range 0 to 85 °C

TSM112

3/7

ELECTRICAL CHARACTERISTICS
Tamb = 25°C and Vcc = 17V (unless otherwise specified)

Symbol Parameter Test Condition Min Typ Max Unit

Total Current Consumption

Icc Total Supply Current 3 5 mA

Over Voltage and Under Voltage Protection

Vov33 Over Voltage Sense 3.3V Input can go higher than

Vcc

3.8 4 4.2 V

Vov5 Over Voltage Sense 5V Input can go higher than

Vcc

5.8 6.1 6.4 V

Vov12 Over Voltage Sense12V Input can go higher than

Vcc

13.4 14.2 15 V

Vuv33 Under Voltage Sense 3.3V 2.1 2.3 2.5 V

Vuv5 Under Voltage Sense 5V 3.7 4 4.3 V

Vuv12 Under Voltage Sense 12V 9.2 10 10.8 V

Vep Extra Over voltage Protection Threshold 1.28 V

Tfault Fault Delay Before Latching Internally Fixed Delay 100

µ

s

Under Voltage Blanking During Power Up

Tuv Under Voltage Blanking During Power

Up (Vcc rising)

Cuv = 2.2µF
Adjustable Blanking

100 300 500 ms

Thuv Blanking Threshold 1.28 V

Power Good (PG)

Vpgth Power Good Voltage Threshold 1.28 V

Vpghyst Power Good Voltage Threshold

Hysteresis

70 mV

Vpgol Low Output Open Collector Saturation

Voltage

Collector Current = 15mA 0.4 V

Ipgoh High Output Open Collector Leakage

Current

PG Output = 5V 1

µ

A

Tpgr Power Good Output Rise Time Load Capacitor = 100pF 1

µ

s

Tpgf Power Good Output Fall Time Load Capacitor = 100pF 1

µ

s
Tpg Power Good Adjustable Delay Load Capacitor Cpg=2.2µF 100 300 500 ms
PIth Power Input Detection Threshold 1.28 V

Fault

Vfaultol Fault Output Saturation Voltage Level IFault = 1mA 1 V
Ifaultoh Fault Output Leakage Current Level Vfault = 5V 1 µA

Remote Control (REM)

Vremth Remote ON/OFF Input Voltage

Threshold

0.7 0.8 1 V

Vremih High Input Remote Voltage 3.3 3.4 V

Iremil Low Input Remote Saturation Current 0.5 mA

Trem1 Remote Adjustable Delay ON to OFF Load Capacitor

Crem=0.1µF

40 50 60 ms

Trem2 Remote Adjustable Delay OFF to ON Load Capacitor

Crem=0.1µF

40 50 60 ms

Voltage Refer ence

Vref Internal Voltage Reference Io = 0mA 2.46 2.5 2.54 V

Regline Line regulation Io = 0mA

4.5V<Vcc<24V

410mV

Regline Line regulation Io = 10mA

4.5V<Vcc<24V

15 mV

Regload

Load regulation

1)

0<Io<10mA 25 mV

1. Do not short circuit the Vref Pin

TSM112

4/7

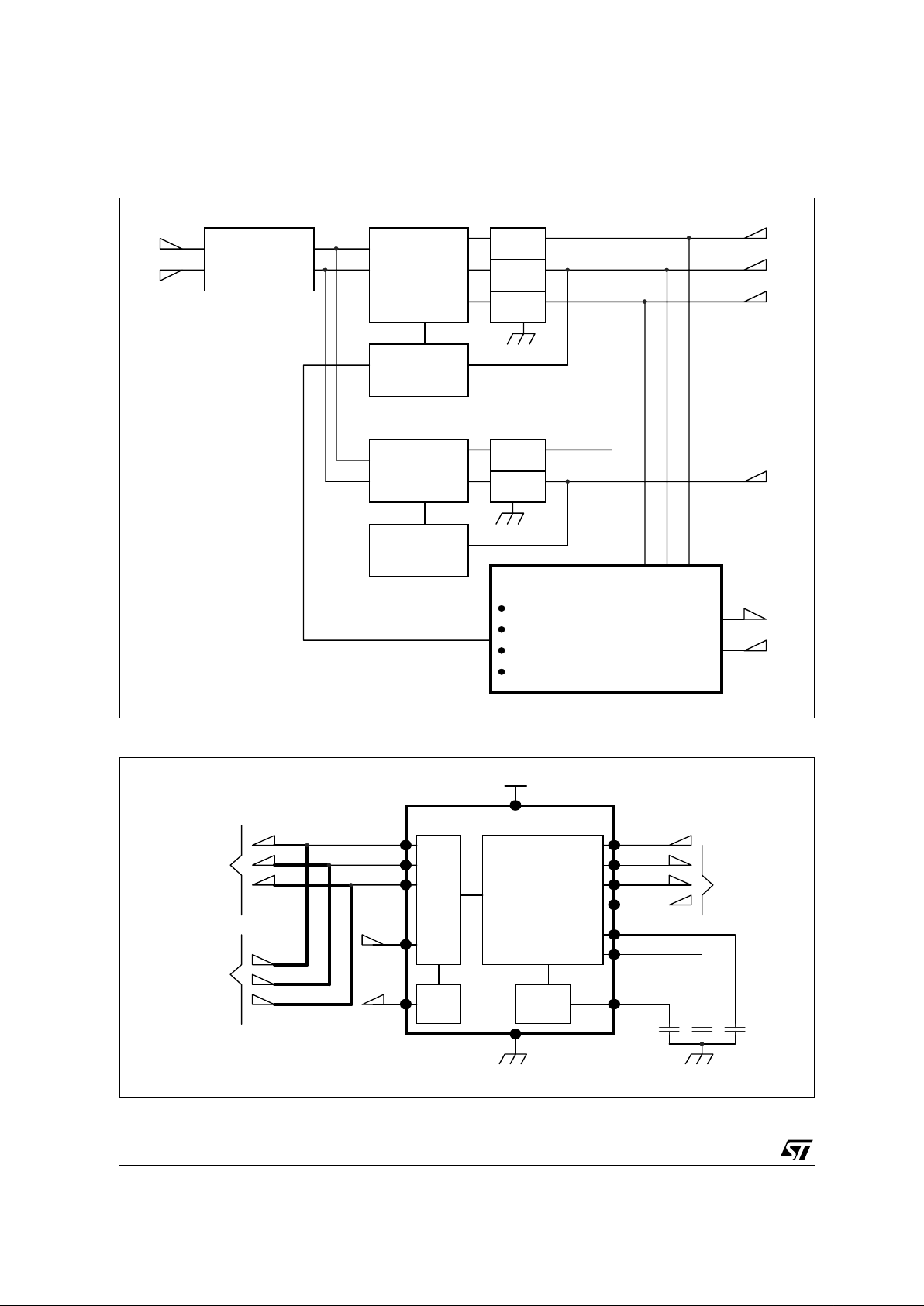

Figure 1 : Figure 1: Application Sche mat ic

Figure 2 : Internal Schematic

PRIMARY
RECT.

MAIN
CONV.

12V
5V

3.3V

AUX.
CONV.

5Vstby

Vcc

~

TSM112

Over & Undervoltage Protection
Reference
Logic
Sequencer

12V
5V

3.3V

5Vstby

PG
REM

FAULT

PWM + OPTO

PWM + OPTO

+ Vref

+ Vref

OVP

Vref

HOUSEKEEPING

LOGIC

SECONDARY

Vcc

Vs12
Vs5
Vs33

PG

REM

to MOTHERBOARD

FROM
MAIN
CONV.

POWER
SUPPLY
OUTPUT

12V
5V

3.3V

12V
5V

3.3V

PI

TO

UVP

Trem
Tpg

UV

BLANK

Tuv

FAULT

Gnd

TSM112

Vref

Ep

TSM112

5/7

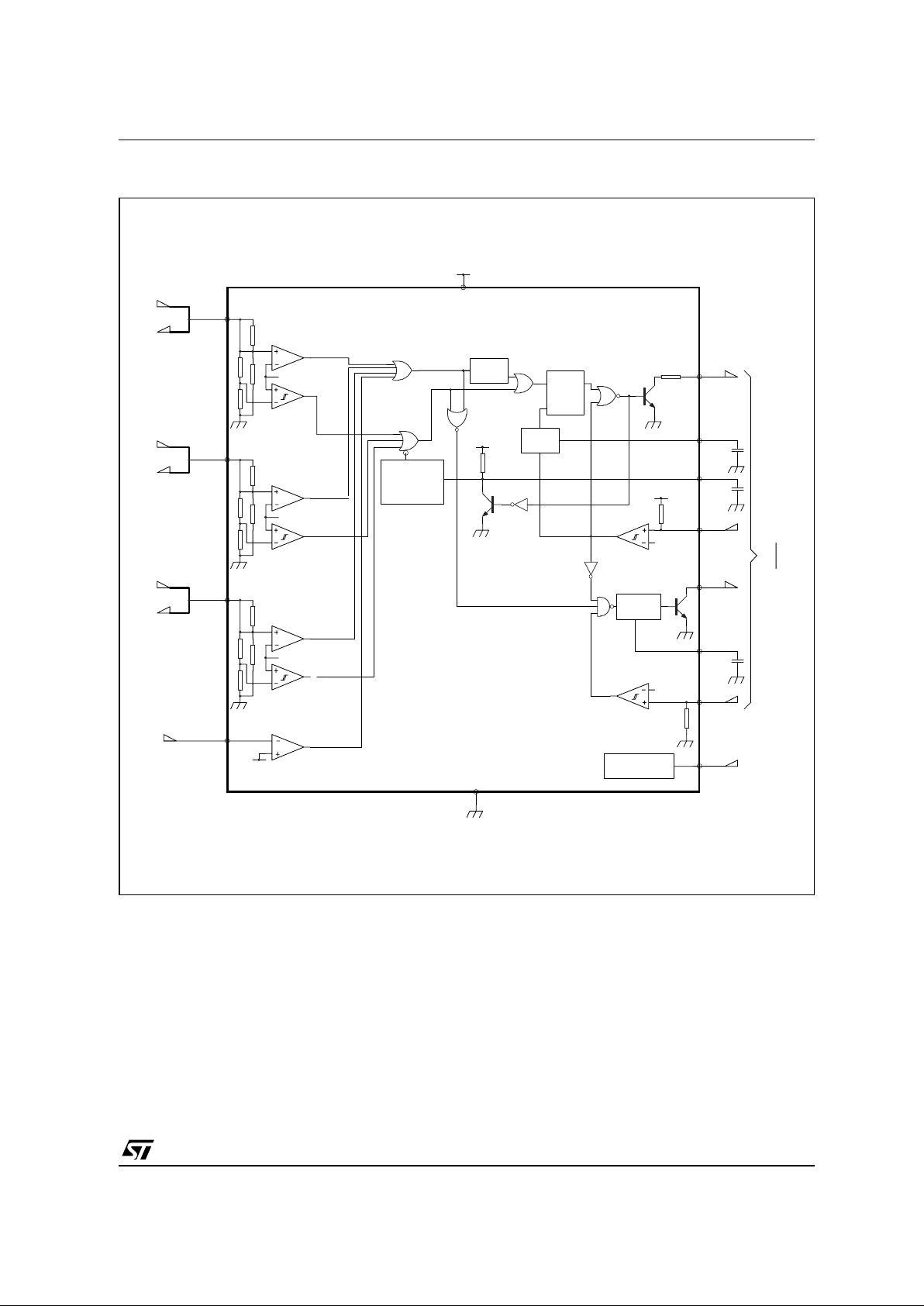

Figure 3 : Figure 3 : Detailed Internal Schematic

Vref

OVP

Vov12

VS12

VS5

VS33

0.8V

FAULT

Rem

Pg

3.47V

SRQ

Vcc

1.25V
PI

VREF

IN 12V

OUT 12V

IN 5V

OUT 5V

IN 3.3V

OUT 3.3V

TO MOTHERBOARD

UVP

Vuv12

Tfault

Tpg

Tpg

Cpg

Trem

Cuv

Tuv

Vref

OVP

Vov5

UVP

Vuv5

Vref

OVP

Vov33

UVP

Vuv33

OVP

UVP

TSM112

Crem

Trem

Tuv

Vcc

Power Up

UV blanking

Gnd

Vref

1.25V

OVP

EP

1k

6/7

TSM112: Housekeeping IC.

TSM112 is a one chip solution for all PC SMPS: it
integrates on one chip the Housekeeping Circuitry
(Over Voltage and Under Voltage protections, with
adequate sequencing).

Triple Power Line Protection.

The TSM112 Housekeeping Circuit is dedicated to

3.3V, 5V and 12V power lines protection. It inte­grates a Precision Voltage Reference, a Triple
Over Voltage Protection Circuit and a Triple Under
Voltage Protection Circuit as well as all the neces­sary logic and transient timing management cir­cuits for optimal and secure communication with
the motherboard, du ring start up, switch off and
stabilized conditions.

Over Voltage Protection

The Over Voltage Protection Circuit is made of
three comparators with internal voltage thresholds
(Vov33, Vov5, Vov12) which do not require any
external components for proper operation. The
outputs of these three comparators are ORed.

Under Voltage Protection

The Under Voltage Protection Circuit is made of
three comparators with internal voltage thresholds
(Vuv33, Vuv5, Vuv12) which do not require any
external components for proper operation. The
outputs of these three comparators are ORed, and
blanked by an internal delay circuitry (Power Up
Blanking - Tuv) which can be adjusted with an ex­ternal capacitor (Cuv). This allows that during
power up, the under voltage protection circuit is in­hibited.

Latch OFF

The Over Voltage and Under Voltage Circuits out­puts are again ORed before activating a latch.
When activated, this latch commands the full
switch OFF of the three main power lines (3.3V,
5V, 12V) by an ex ternal link between the house­keeping and the primary PWM circuits via the
main optocoupler or any other device . Note that
the Under Voltage Circuit, after Power Up UV
blanking, bears no other delay to the latch setting

input whereas the Over Voltage circuit bears an
additional Tfault delay time. This allows an effi­cient protection against Output Short Circuit c on­ditions.

Power Good

The Over Voltage and Under Voltage Circuits are
Ored to switch the Power Good output active (PG)
to warn the motherboard that the voltage of at
least one of the three power li nes is out of range.
The PG activation bears an internal Tpg delay cir­cuitry which can be adjusted with an ex ternal ca­pacitor (Cpg).

Remote Control

Thanks to this information link to the motherboard,
a resetting signal to the latch is achievable with
the Remote pin (REM). When the Remote pin is
active, the external Fault link between House­keeping circuit and the PWM generator is active
(high = PWM OFF) and the PG pin is active (high).
Note that to reset effectively the latch, a minimum
width Remote pulse should be app lied thanks to
an internal delay circuitry (Trem) which can be ad­justed with an external capacitor (Crem).

TSM112

PRINCIPLE OF OPERATION AND APPLICATION HINTS

TSM112

7/7

Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences
of use of su ch i n for mat i on n or f or a ny in fr ing em ent o f pa te nts or ot her r igh ts of th ir d pa r tie s w hic h may res ul t f rom i ts us e. No license is granted
by impl i cation or othe rwise under any patent or patent rights of STMicroelectronics. Specificati ons mentione d i n t hi s publication are subject
to change without notice. Thi s publication supersedes and replaces all informat i on previously supplied. STMicr oel ectronics pro ducts are not
authori zed for use as critical components i n l i fe support devices or systems without express w ritten approva l of ST M i croelectronics.

© The ST logo is a registered trademark of STMicroelectronics

© 2001 STMicroelectronics - Printed in Italy - All Rights Reserved

STMicr oelectronics GROUP OF COMPANIE S

Australi a - Brazil - China - F i nl and - France - Ger m any - Hong Kong - I ndi a - Italy - Japan - Ma l aysia - Malta - Mo rocco

Singapo re - Spain - Sweden - Switzerland - United Kingdom

© http://www.st.com

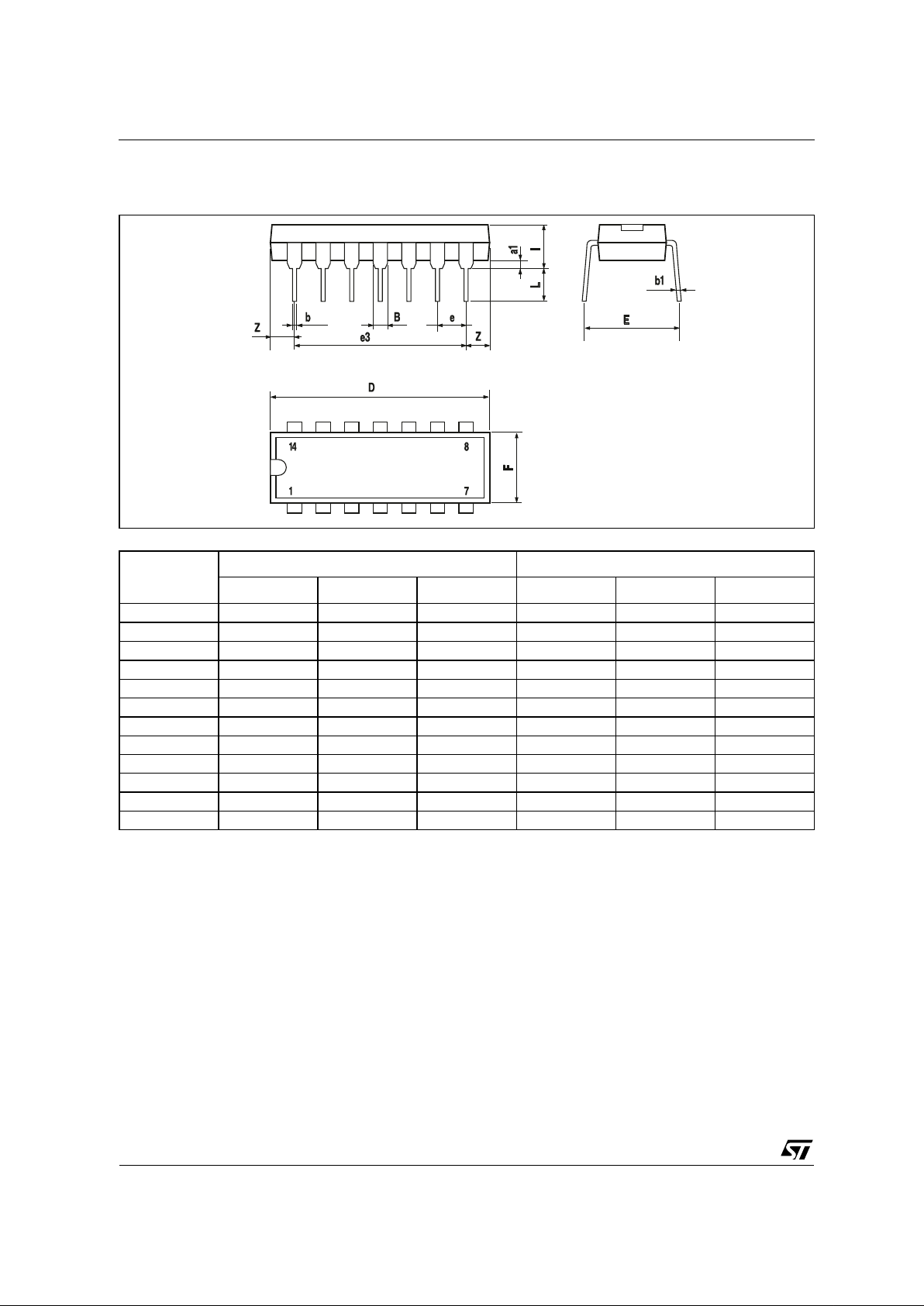

PACKAGE MECHANICAL DATA
14 PINS - PLASTIC PACKAGE

Dim.

Millimeters Inches

Min. Typ. Max. Min. Typ. Max.

a1 0.51 0.020

B 1.39 1.65 0.055 0.065

b 0.5 0.020

b1 0.25 0.010

D 20 0.787
E 8.5 0.335

e 2.54 0.100

e3 15.24 0.600

F 7.1 0.280

i 5.1 0.201
L 3.3 0.130
Z 1.27 2.54 0.050 0.100
