SGS Thomson Microelectronics TS864IPT, TS864IP, TS864IN, TS864IDT, TS862AIN Datasheet

1/15

■ ULTRA LOW CURRENT CONSUMPTION

(6µA/comp at Vcc=2.7V)

■ RAIL TO RAIL CMOS INPUTS

■ PUSH PULL OUTPUTS

■ SUPPLY OPERATION FROM 2.7V TO 10V

■ LOW PROPAGATION DELAY

■ LOW FALL AND RISE TIME: 20ns

■ ESD PROTECTION (2kV)

■ LATCH-UP IMMUNITY (Class A)

■ AV AILABLE IN SOT23-5 MICROPACKAGE

DESCRIPTION

The TS86x (Single, Dua l & Quad) is a Rail to Rail
comparator characterized for 2.7V to 10V opera-

tion over -40°C to +85°C temperature range. It ex­hibits an excellent speed to power ratio, fe aturing
a current consumption of 6µA per comparator and
a response time of 500ns at 2.7V for 100mV over­drive.

Due to its ultra low power consumption and its
availability in tiny package, the TS86x comparator
family is perfectly suited to battery powered sys­tems. The output st age is designed with a push
pull structure allowing a direct connection to m i­crocontroler without additionnal pull-up resistor.

APPLICATION

■ Battery-powered systems (eg: Alarm)

■ Portable communication systems

■ Smoke/gas/fire detectors

■ Portable computers

ORDER CODE

N = Dual in Line Package (DIP)
D = Small Outline Package (SO) - also available in Tape & Reel (DT)
P = Thin Shrink Small Outline Package (TSSOP) - only available

in Tape & Reel (PT)

L = Tiny Package (SOT23-5) - only available in Tape & Reel (LT)

PIN CONNECTIONS (top view)

Part

Number

Temperature

Range

Package

SOT23

Marking

NDPL

TS861I
TS861AI

-40, +85°C

•••

•

•

•

K501
K502

TS862I
TS862AI

-40, +85°C

•••••

•

TS864I
TS864AI

-40, +85°C

•••••

•

1

2

3

4

5

Inverting input

Non-inverting input

Output

V

DD

V

CC

1

2

3

4

5

6

7

8

-

+

Inverting Input 1

N.C.

Non-inverting Input 1

V

DD

V

CC

Output 2

N.C.

N.C.

1
2
3
45

6

7

8

-

+

-

+

Inverting Input 1

Output 1

Non-inverting Input 1

V

DD

V

CC
Output 2
Inverting Input 2

Non-inverting Input 2

TS861ILT

TS864IN-TS864ID-TS864IDT-TS864IPT

TS861ID-TS861IDT

TS862IN-TS862ID-TS862IDT-TS862IPT

Inverting Input 2

Output 2

Non-inverting Input 2

Output 1

Inverting Input 1

Non-inverting Input 1

CC

V

-

CC

V

1

2

3

4

8

5

6

7

9

10

11

12

13

14

+

Output 3

Output 4

Non-inverting Input 4

Inverting Input 4

Non-inverting Input 3

Inverting Input 3

-

+

-

+

-

+

-

+

TS861
TS862
TS864

RAIL TO RAIL

MICROPOWER BICMOS COMPARATORS

February 2002

TS861-TS862-TS864

2/15

ABSOLUTE MAXIMUM RATINGS

OPERATING CONDITIONS

Symbol Parameter Value Unit

V

CC

Supply voltage

1)

12 V

V

id

Differential Input Voltage

2)

±12 V

V

in

Input Voltage Range

3)

-0.3 to 12.3 V

T

std

Storage Temperature Range -65 to +150 °C

T

j

Maximum Junction Temperature 150 °C

P

D

Power dissipation

4)

SOT23-5
DIP8
DIP14
SO8
SO14
TSSOP8
TSSOP14

500
1250
1560

710

830

625

710

mW

ESD

Human Body Model
Machine Model

2

200

kV

V
Latch-up Immunity Class A
Lead Temperature (soldering, 10 sec) 250 °C

1. All voltages values, except differential voltage are with respect to network terminal.

2. Differential voltages are non-inverting input terminal with respect to the inverting input terminal.

3. The magnitude of input and output voltages must never exceed V

CC

+0.3V.

4. Short-circuits can cause excessive heating and destructive dissipation. P

D

is calculated with T

amb

= +25°C, Tj = +150°C and

R

thja

= 250°C/W for SOT23-5 package

=100°C/W for DIP8 package
= 80°C/W for DIP14 package
=175°C/W for SO8 package
=150°C/W for SO14 package
= 200°C/W for TSSOP8 package
=175°C/W for TSSOP14 package

Symbol Parameter Value Unit

V

CC

Supply Voltage 2.7 to 10 V

V

icm

Common Mode Input Voltage Range

V

CC

-

- 0.3 to V

CC

+

+ 0.3

V

T

oper

Operating Free Air Temperature Range -40 to + 85 °C

TS861-TS862-TS864

3/15

ELECTRICAL CHARACTERISTICS
V

CC

= +2.7V

T

amb

= 25°C (unless otherwise specified)

Symbol Parameter Min. Typ. Max. Unit

V

io

Input Offset Voltage

TS861/2/4
Tmin<T<Tmax

TS861/2/4A
Tmin<T<Tmax

3

3

15
18

7

10

mV

∆

V

io

Input Offset Voltage Drift 6

µ

V/°C

I

io

Input Offset Current

1)

Tmin<T<Tmax

1. Maximum values including unavoidable inaccurates of the industrial test.

1 150

300

pA

I

ib

Input Bias Current

1)

Tmin<T<Tmax

1 300

600

pA

V

OH

High Level Output Voltage

Isource=2.5mA

Tmin<T<Tmax

2.35

2.15

2.45 V

V

OL

Low Level Output Voltage

Isink=2.5mA

Tmin<T<Tmax

0.2 0.35

0.45

V

A

vd

Large Signal Voltage Gain

2)

2. Design evaluation

3. Limits are 100% production tested at 25°C. Limits over temperature are guaranteed through correlation and by design.

240 dB

CMR

Common Mode Rejection Ratio
0 < V

ICM

< 2.7V

65

dB

SVR Supply Voltage Rejection Ratio

0 < Vcc < 10V 80

dB

I

CC

Supply current per comparator

no load, output low
no load, output high

6
8

12
14

µ

A

Tplh

Propagation delay from output low to output high
V

ICM

=1.35V, f=10kHz, CL=50pF

overdrive = 10mV
overdrive = 100mV

1.5

0.6

µs

Tphl

Propagation delay from output high to output low
V

ICM

=1.35V, f=10kHz, CL=50pF

overdrive = 10mV
overdrive = 100mV

1.5

0.5

µs

Tf

Fall time
f=10kHz, C

L

=50pF, overdrive=100mV

20 ns

Tr

Rise time
f=10kHz, C

L

=50pF, overdrive=100mV

20 ns

TS861-TS862-TS864

4/15

ELECTRICAL CHARACTERISTICS
V

CC

= +5V

T

amb

= 25°C (unless otherwise specified)

Symbol Parameter Min. Typ. Max. Unit

V

io

Input Offset Voltage

TS861/2/4
Tmin<T<Tmax

TS861/2/4A
Tmin<T<Tmax

3

3

15
18

7

10

mV

∆

V

io

Input Offset Voltage Drift 6

µ

V/°C

I

io

Input Offset Current

1)

Tmin<T<Tmax

1. Maximum values including unavoidable inaccurates of the industrial test..

1150

300

pA

I

ib

Input Bias Current

1)

Tmin<T<Tmax

1300

600

pA

V

OH

High Level Output Voltage

Isource=5mA

Tmin<T<Tmax

4.6

4.45

4.8 V

V

OL

Low Level Output Voltage

Isink=5mA

Tmin<T<Tmax

0.2 0.4

0.55

V

A

vd

Large Signal Voltage Gain

2)

2. Design evaluation

3. Limits are 100% production tested at 25°C. Limits over temperature are guaranteed through correlation and by design

240 dB

CMR

Common Mode Rejection Ratio
0 < V

ICM

< 5V

70

dB

SVR Supply Voltage Rejection Ratio

2.7 < Vcc < 10V 80

dB

I

CC

Supply current per comparator

no load, output low
no load, output high

6
8

12
14

µ

A

Tplh

Propagation delay from output low to output high
V

ICM

=2.5V, f=10kHz, CL=50pF

overdrive = 10mV
overdrive = 100mV

2

0.5

µs

Tphl

Propagation delay from output high to output low
V

ICM

=2.5V, f=10kHz, CL=50pF

overdrive = 10mV
overdrive = 100mV

2

0.4

µs

Tf

Fall time
f=10kHz, C

L

=50pF, overdrive=100mV

20 ns

Tr

Rise time
f=10kHz, C

L

=50pF, overdrive=100mV

20 ns

TS861-TS862-TS864

5/15

ELECTRICAL CHARACTERISTICS
V

CC

= +10V

T

amb

= 25°C (unless otherwise specified)

Symbol Parameter Min. Typ. Max. Unit

V

io

Input Offset Voltage (V

ICM

= VCC / 2 )

TS861/2/4
Tmin<T<Tmax

31518mV

∆

V

io

Input Offset Voltage Drift 6

µ

V/°C

I

io

Input Offset Current

1)

Tmin<T<Tmax

1. Maximum values including unavoidable inaccurates of the industrial test.

1150

300

pA

I

ib

Input Bias Current

1)

Tmin<T<Tmax

1300

600

pA

V

OH

High Level Output Voltage

Isource=5mA

Tmin<T<Tmax

9.6

9.45

9.8 V

V

OL

Low Level Output Voltage

Isink=5mA

Tmin<T<Tmax

0.2 0.4

0.55

V

A

vd

Large Signal Voltage Gain

2)

2. Design evaluation

3. Limits are 100% production tested at 25°C. Limits over temperature are guaranteed through correlation and by design.

240 dB

CMR

Common Mode Rejection Ratio
0 < V

ICM

< 10V

75

dB

SVR Supply Voltage Rejection Ratio

2.7 < Vcc < 10V 80

dB

I

CC

Supply current per comparator

no load, output low
no load, output high

7

10

14
16

µ

A

Tplh

Propagation delay from output low to output high
V

ICM

=5V, f=10kHz, CL=50pF

overdrive = 10mV
overdrive = 100mV

3

0.5

µs

Tphl

Propagation delay from output high to output low
V

ICM

=5V, f=10kHz, CL=50pF

overdrive = 10mV
overdrive = 100mV

2.6

0.4

µs

Tf

Fall time
f=10kHz, C

L

=50pF, overdrive=100mV

20 ns

Tr

Rise time
f=10kHz, C

L

=50pF, overdrive=100mV

20 ns

TS861-TS862-TS864

6/15

VIO versus V

ICM

at VCC= 2.7V

VIO versus V

ICM

at VCC= 5V

VIO versus V

ICM

at VCC= 10V

VIO versus V

ICM

and temperature at VCC= 2.7V

VIO versus V

ICM

and temperature at VCC= 5V

VIO versus V

ICM

and temperature at VCC= 10V

0 0.5 1 1.5 2 2.5 3

Common mode voltage (V)

-4

-2

0

2

4

6

Voltage input offset (mV)

TS861

TS862/4

T=25°C

012345

Common m ode voltage (V)

-4

-2

0

2

4

6

Voltage input offset (mV)

TS861

TS862/4

T=25°C

0246810

Common mode voltage (V)

-2

0

2

4

6

Voltage input offset (mV)

TS861

TS862/4

T=25°C

0123

Common mode voltage (V)

0

2

4

6

Vio Voltage input offset (mV)

T=+85°C

T=+25°C

T=-40°C

TS862/4

012345

Common m ode voltage (V)

0

2

4

6

Vio Voltage input offset (mV)

T=+85°C

T=+25°C

T=-40°C

TS862/4

0246810

Common mode voltage (V)

-2

0

2

4

6

Vio Voltage input offset (mV)

T=+85°C

T=+25°C

T=-40°C

TS862/4

TS861-TS862-TS864

7/15

VIO versus V

CC

at V

ICM

= VCC / 2

Supply Current (ICC) vs Supply Voltage (VCC)

Supply Current (ICC) vs Temperature

VIO versus temperature at VCC =5V

Supply Current (ICC) vs Supply Voltage (VCC)

Supply Current (ICC) vs Temperature

246810

Supply voltage (V)

3

4

5

6

7

Voltage input offset (mV)

TS861

TS862/4

246810

Supply voltage Vcc (V)

4

5

6

7

8

9

Supply current per oper ator (µA)

-40°C

+25°C

+85°C

+

-

Vid

-1V

Output

Low

Gnd

Vcc

TS862 / 864

All out p uts low

-40-200 20406080

Temperature (°C)

4

6

8

Supply current Icc (µA)

Vcc=5V

Vcc=2.7V

Vcc=+10V

+

-

Vid

-1V

Output

Low

Gnd

Vcc

TS861

TS861

-40-200 20406080

Temperature (°C)

-6

-4

-2

0

2

4

6

8

Voltage input offset (mV)

Vicm = -0.3V

Vicm =5.3V

Vicm =2.5V

TS861

246810

Supply voltage Vcc (V)

4

5

6

7

8

9

Supply current per oper ator (µA)

-40°C

+25°C

+85°C

+

-

Vid

1V

Output

High

Gnd

Vcc

TS862 / 864

All outputs high

-40-200 20406080

Temperature (°C)

6

8

10

Supply current Icc (µA)

Vcc=5V

Vcc=2.7V

Vcc=+10V

+

-

Vid

1V

Output

High

Gnd

Vcc

TS861

TS861

TS861-TS862-TS864

8/15

VOL versus I

SINK

and temperature at VCC=5V

Response time T

PHL

at VCC= 2.7V

Response time T

PHL

at VCC= 5V

VOH vs I

SOURCE

and temperature at VCC=5V

Response time T

PLH

at VCC= 2.7V

Response time T

PLH

at VCC= 5V

0 1020304050

Current sink (mA)

0

1

2

3

4

5

Volt age outpu t l ow (V)

T=+85°C

T=+25°C

T=-40°C

TS861

0 0.1 0.2 0 .3 0.4 0 .5

Time (µs)

Ouput

Input

Vcc = 2.7 V
Vicm = Vcc/2
Overdrive = 100 mV
f = 10 kHz, C

L

= 50 pF

T=25°C

Tphl = 0.4 µs

0 0.1 0.2 0.3 0.4 0.5

Time (µs)

Ouput

Input

Vcc = 5 V
Vicm = Vcc/2
Overdrive = 100 mV
f = 10 kHz, C

L

= 50 pF

T=25°C

Tphl = 0.35 µs

0 1020304050

Current source (mA)

0

1

2

3

4

5

Voltage output high (V)

T=+85°C

T=+25°C

T=-40°C

TS861

00.20.40.60.81
Time (µs)

Ouput

Input

Vcc = 2.7 V
Vicm = Vcc/2
Overdrive = 100 mV
f = 10 kHz, C

L = 50 pF

T=25°C

Tplh = 0.5 µs

00.20.40.60.81
Time (µs)

Ouput

Input

Vcc = 5 V
Vicm = Vcc/2
Overdrive = 100 mV
f = 10 kHz, C

L

= 50 pF

T=25°C

Tplh = 0.4 µs

TS861-TS862-TS864

9/15

TS861IN - TS862IN

PACKAGE MECHANICAL DATA
8 PINS - PLASTIC PACKAGE

Dimensions

Millimeters Inches

Min. Typ. Max. Min. Typ. Max.

A 3.32 0.131

a1 0.51 0.020

B 1.15 1.65 0.045 0.065
b 0.356 0.55 0.014 0.022

b1 0.204 0.304 0.008 0.012

D 10.92 0.430
E 7.95 9.75 0.313 0.384

e 2.54 0.100
e3 7.62 0.300
e4 7.62 0.300

F 6.6 0260

i 5.08 0.200
L 3.18 3.81 0.125 0.150
Z 1.52 0.060

TS861-TS862-TS864

10/15

TS861ID - TS862ID

PACKAGE MECHANICAL DATA
8 PINS - PLASTIC MICROPACKAGE (SO)

Dimensions

Millimeters Inches

Min. Typ. Max. Min. Typ. Max.

A 1.75 0.069

a1 0.1 0.25 0.004 0.010
a2 1.65 0.065
a3 0.65 0.85 0.026 0.033

b 0.35 0.48 0.014 0.019

b1 0.19 0.25 0.007 0.010

C 0.25 0.5 0.010 0.020

c1 45° (typ.)

D 4.8 5.0 0.189 0.197
E 5.8 6.2 0.228 0.244
e 1.27 0.050

e3 3.81 0.150

F 3.8 4.0 0.150 0.157
L 0.4 1.27 0.016 0.050

M 0.6 0.024

S 8° (max.)

b

e3

A

a2

s

L

C

E

c1

a3

b1

a1

D

M

8

5

1

4

F

TS861-TS862-TS864

11/15

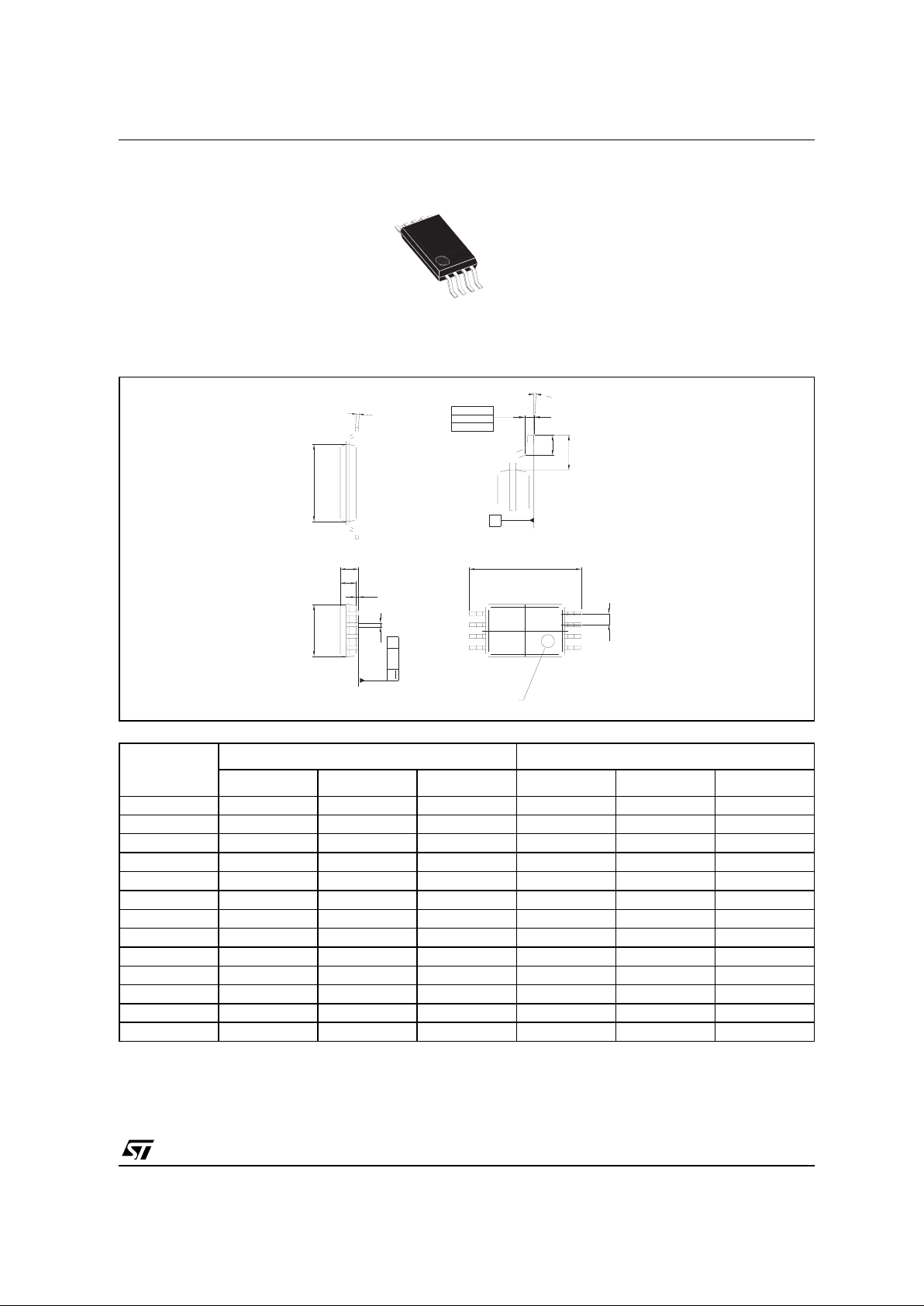

TS862IPT

PACKAGE MECHANICAL DATA
8 PINS - THIN SHRINK SMALL OUTLIN E PAC KAGE

Dimensions

Millimeters Inches

Min. Typ. Max. Min. Typ. Max.

A 1.20 0.05

A1 0.05 0.15 0.01 0.006
A2 0.80 1.00 1.05 0.031 0.039 0.041

b 0.19 0.30 0.007 0.15

c 0.09 0.20 0.003 0.012
D 2.90 3.00 3.10 0.114 0.118 0.122
E 6.40 0.252

E1 4.30 4.40 4.50 0.169 0.173 0.177

e 0.65 0.025

k 0° 8° 0° 8°

l 0.50 0.60 0.75 0.09 0.0236 0.030

L 0.45 0.600 0.75 0.018 0.024 0.030

L1 1.000 0.039

C

L

14

8

5

L1

c

0.25mm

.010 inch

GAGE PLANE

E1

k

L

L1

E

SEATING

PLANE

A

A2

D

A1

b

5

8

4

1

PIN 1 IDENTIFICATION

e

TS861-TS862-TS864

12/15

TS864IN

PACKAGE MECHANICAL DATA
14 PINS - PLASTIC PACKAGE

Dimensions

Millimeters Inches

Min. Typ. Max. Min. Typ. Max.

a1 0.51 0.020

B 1.39 1.65 0.055 0.065
b 0.5 0.020

b1 0.25 0.010

D 20 0.787
E 8.5 0.335
e 2.54 0.100

e3 15.24 0.600

F 7.1 0.280

i 5.1 0.201
L 3.3 0.130
Z 1.27 2.54 0.050 0.100

TS861-TS862-TS864

13/15

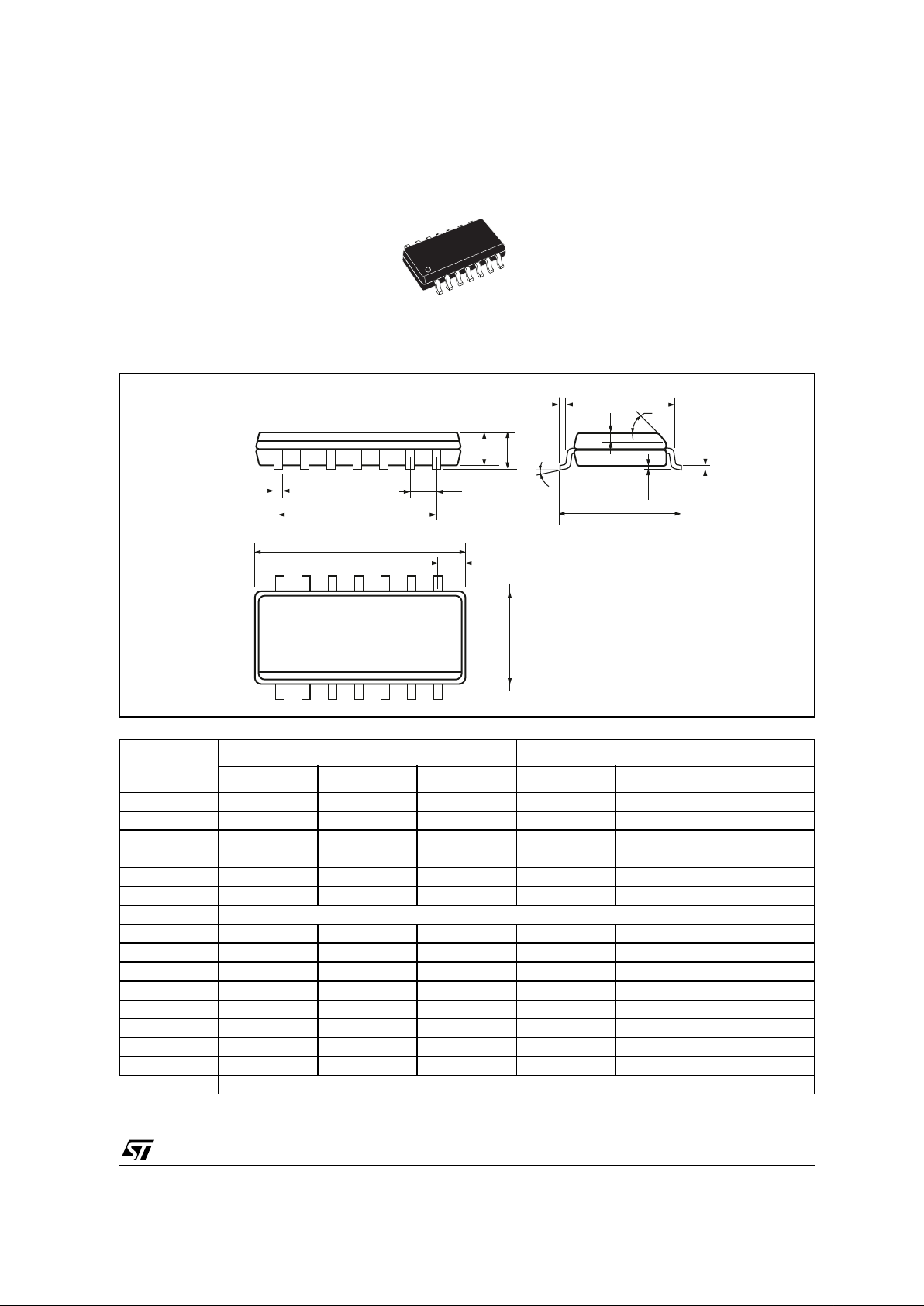

TS864ID

PACKAGE MECHANICAL DATA
14 PINS - PLASTIC MICROPACKAGE (SO)

Dimensions

Millimeters Inches

Min. Typ. Max. Min. Typ. Max.

A 1.75 0.069

a1 0.1 0.2 0.004 0.008
a2 1.6 0.063

b 0.35 0.46 0.014 0.018

b1 0.19 0.25 0.007 0.010

C 0.5 0.020

c1 45° (typ.)

D (1) 8.55 8.75 0.336 0.344

E 5.8 6.2 0.228 0.244
e 1.27 0.050

e3 7.62 0.300

F (1) 3.8 4.0 0.150 0.157

G 4.6 5.3 0.181 0.208

L 0.5 1.27 0.020 0.050

M 0.68 0.027

S 8° (max.)

Note : (1) D and F do not include mold flash or protrusions - Mold flash or protrusions shall not exceed 0.15mm (.066 inc) ONLY FOR DATA BOOK.

D

M

F

14

1

7

8

b

e3

e

E

LG

C

c1

A

a2

a1

b1

s

TS861-TS862-TS864

14/15

TS864IPT

PACKAGE MECHANICAL DATA
14 PINS - THIN SHRINK SMALL OUTL IN E PAC KAG E

Dimensions

Millimeters Inches

Min. Typ. Max. Min. Typ. Max.

A 1.20 0.05

A1 0.05 0.15 0.01 0.006
A2 0.80 1.00 1.05 0.031 0.039 0.041

b 0.19 0.30 0.007 0.15

c 0.09 0.20 0.003 0.012
D 4.90 5.00 5.10 0.192 0.196 0.20
E 6.40 0.252

E1 4.30 4.40 4.50 0.169 0.173 0.177

e 0.65 0.025

k 0° 8° 0° 8°

L 0.450 0.600 0.750 0.018 0.024 0.030

L1 1.00 0.039

aaa 0.100 0.004

c

E1

k

L

E

e

b

D

PIN 1 IDENTIFICATION

1

78

14

SEATING

PLANE

C

aaa

C

0,25 mm
.010 inch

GAGE PLANE

L1

A

A2

A1

TS861-TS862-TS864

15/15

Information furnished is beli eved to be accurate and reliable. However, STMicroe lectronics assumes no responsibility for the
consequences of use of such information nor for any infringement of patents or other rights of third parties which may result from
its use. No licens e is granted by implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications
mentioned in this publication ar e subject to change without notice. This publication supersedes and replaces all information
previously supplied. S TMicroelectronics products are not authorized for use as critica l components in life suppo rt devices or
systems without express written approval of STMicroelectronics.

© The ST logo is a registered trademark of STMicroelectronics

© 2002 STM i cr o electronics - Printed in It aly - All Rights Reserved

STMicr oelectronics GROUP OF COMPANIE S

Australi a - Brazil - Can ada - China - Finland - France - Ge rm any - Hong Kong - India - Israel - I taly - Japan - Malaysia

Malta - Mor occo - Singapore - Spain - Sweden - Switzerland - United Ki ngdom - United States

© http://www.st.com

TS861ILT

PACKAGE MECHANICAL DATA
5 PINS - TINY PACKAGE (SOT23)

Dimensions

Millimeters Inches

Min. Typ. Max. Min. Typ. Max.

A 0.90 1.20 1.45 0.035 0.047 0.057

A1 0 0.15 0.006
A2 0.90 1.05 1.30 0.035 0.041 0.051

B 0.35 0.40 0.50 0.014 0.016 0.020
C 0.09 0.15 0.20 0.004 0.006 0.008
D 2.80 2.90 3.00 0.110 0.114 0.118

D1 1.90 0.075

e 0.95 0.037
E 2.60 2.80 3.00 0.102 0.110 0.118
F 1.50 1.60 1.75 0.059 0.063 0.069
L 0.3 0.5 0.60 0.012 0.014 0.024
K 0d 10d 0d 10d

L

C

F

A2

A

A1

B

E

D D1

E
