SGS Thomson Microelectronics TDA8160 Datasheet
INFRAREDREMOTE CONTROLRECEIVER
.
LOW SUPPLYVOLTAGE(VS= 5V)
.
LOW CURRENT CONSUMPTION (IS= 6mA)
.
INTERNAL 5.5 V SHUNTREGULATOR
.
PHOTODIODE DIRECTLY COUPLED WITH
THE I.C.
.
INPUT STAGE WITH GOOD REJECTION AT
LOW FREQUENCY
.
LARGEINPUTDYNAMICRANGE
.
FEWEXTERNALCOMPONENTS
TDA8160
DIP8
(Plastic Package)
ORDER CODE : TDA 8160
PIN CONNECTIONS
DESCRIPTION
The TDA8160 is a monolithic integrated circuit
in-leadminidipplastic package speciallydesigned
to amplifythe infrared signals inremote controlled
TV, Radio or VCR sets. It can be used in flash
transmission mode in conjunction with dedicated

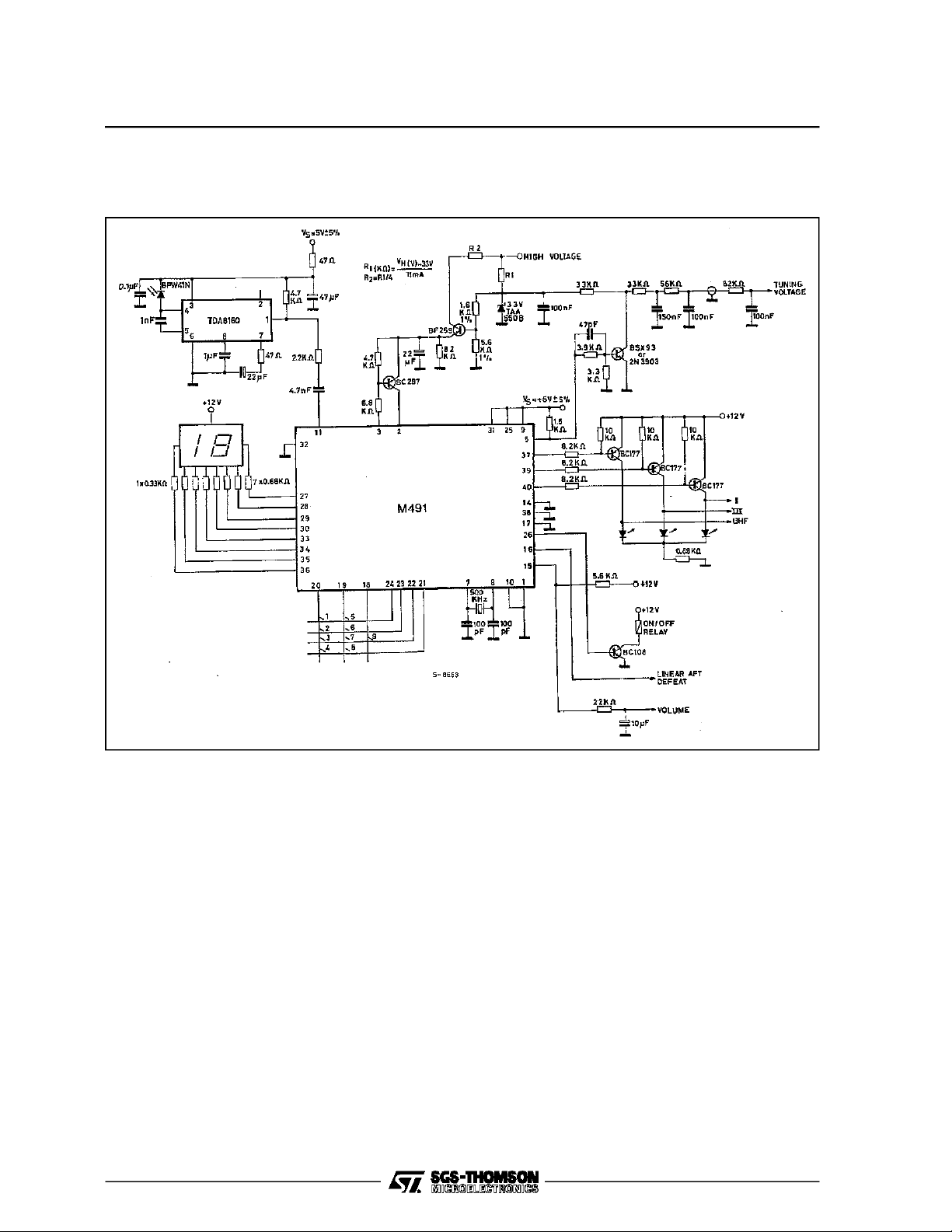

remote control circuits (for example : M491-494).
BLOCK DIAGRAM
OUTPUT
OPEN
SUPPLY
VOLTAGE
D1 DC BIAS
1
2
3
4
8
7
6
5
PEAK
DETECTOR
DECOUPLING
GROUND
INPUT
8160-01.EPS
August 1992
8160-02.EPS
1/4
TDA8160
ABSOLUTE MAXIMUM RATINGS
Symbol Parameter Value Unit
V
T
P
THERMALDATA
Symbol Parameter Value Unit
R
th (j-a)
ELECTRICAL CHARACTERISTICS
(Refer to the testcircuit ; V
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
V
G
V
g
m
V
IINInput Current Sensitivity (Pin 5) For FullSwing at the OutputPin 1 10 nA
R
L
SupplyVoltage 16 V
s
Storage and Junction Temperature – 40, +150 °C
stg–j
TotalPower Dissipation at T
tot
=70°C 400 mW
amb
Thermal Resistance Junction-ambient Max 200 °C/W
=5V,fO=10kHz, T
S
Supply Voltage Applied between Pins 3and 6 4 5 5.25 V
S
I
Supply Current (Pin3) 6 mA
S
Stabilized Voltage at Pin3 I3= 8mA 5.5 V
3
=25oC, unless otherwise specified)
amb
1st Voltage Gain (1st stage) 28 dB
2nd Transconductance(2nd stage) 15 mA/V
Input Voltage Sensitivity(Pin 5) For Full Swing at the OutputPin 1
IN
Input Impedance 200 kΩ
IN
R Low Frequency Rejection at the Input
f
Stage
= 600Ω
R
gen
C1 = 100pF , f = 100HZ 30 dB
2mV
N Noise Signal atPin 7 C4 Missing 200 mV
8160-01.TBL
8160-02.TBL
P
P
PP
8160-03.TBL
CIRCUIT DESCRIPTION(see the blockdiagram)
The infrared light received from D1 generates an
AC signalthatcomes into the deviceat pin5. The
capacitor C1 and the integrated 10kΩ resistor
(pin 4) filterout the low frequency noise.
TEST CIRCUIT
Thefirststageshowsa voltagegainofabout28dB;
the secondstage is a voltageto current converter
of 50mA/V (R
= Zero). A sensitive peak detector
2
detects the amplifier signal ; one open collector
output (pin 1) givesout the recoveredpulses.
8160-03.EPS
2/4
