L4941
April1994
VERY LOW DROP 1A REGULATOR
.LOWDROPOUTVOLTAGE (450mV typ
at1A)
.VERYLOW QUIESCENT CURRENT
.THERMALSHUTDOWN
.SHORTCIRCUITPROTECTION
.REVERSE POLARITY PROTECTION
DESCRIPTION
The L4941is a threeterminal 5 V positive regulator
available in TO-220,SOT-82, SOT-194 and DPAK
packages, making it useful in a wide range of the
industrial and consumer applications. Thanks to its
very low input/output voltage drop, this device is
particularlysuitable forbatterypoweredequipment,
reducing consumptionand prolonging batterylife.It
employs internal current limiting, antisaturation
circuit,thermal shut-downand safeareaprotection.
TO-220 DPAK (TO-252)
BLOCK DIAGRAM
SOT-82 SOT-194
1
3
1/13
ABSOLUTE MAXIMUM RATINGS
Symbol Paramet e r Valu e Unit
V
i
Forward Input Voltage 30 V
V
iR
Reverse Input Voltage (RO= 100 Ω)–15V
I
O
Output Current Internally Limited
P
tot
Power Dissipation Internally Limited
T
j,Tstg
Junction and Storage Temperature – 40 to 150 °C
PIN CON NEC TIONS AND ORDERI NG NUMBER (top view)
THERMAL DATA
SOT-82
SOT-194
DPAK
TO-220
R
thj-case
Thermal Resistance Junction-case Max 8 3
o
C/W
R
thj-amb
Termalresistance Junction-ambient Max 100 50
o
C/W
TO-220 SOT-82/SOT-194
ORDERING NUMBERS OUTPUT VOLTAGE PACKAGE
L4941BV 5V TO-220
L4941BX 5V SOT-82
L4941BS 5V SOT-194
L4941BDT 5V DPAK
DPAK
L4941
2/13
Figure 2 : LoadRegulation.
Figure 3 : RippleRejection.
Figure 1 : DCParameters.
TEST CIRCUITS
L4941
3/13
ELECTRICAL CHARACTERISTICS (refer to the test circuits Tj=25°C,Ci= 0.1 µF, Co=22µF,
unless otherwise specified)
Symbol P arameter Test Conditions Min. Typ. Max. Unit
Output Voltage 5
Input Voltage (unless otherwise specified) 7
V
o
Output Voltage Io= 5 mA to 1 A
Vi=6Vto14V
4.8 5 5.2 V
V
i
Operating Input Voltage Io= 5 mA 16 V
∆V
o
Line Regulation Vi=6Vto16V
Io=5mA
520mV
∆V
o
Load Regulation Io= 5 mA to 1 A
Io= 0.5 A to 1 A
8
5
20
15
mV
I
Q
Quiescent Current Io=5mA 4 8
V
i
=6V
I
o
=1A 20 40
mA
∆I
Q
Quiescent Current
Change
Io= 5 mA 3
V
i
=6Vto14V
I
o
=1A –10
mA
V
d
Dropout Voltage Io= 0.5 A 250 450
I
o
= 1 A 450 700
mV
∆V
o
____
∆T
Output Voltage Drift 0.6 mV/°C
SVR Supply Voltage
Rejection
f = 120 Hz
I
o
= 0.5 A
58 68 dB
I
sc
Short Circuit Current
Limit
Vi= 14 V 1.6 2.0
V
i
= 6 V 1.8 2.2
A
Z
o
Output Impedance f = 1 kHz
I
o
= 0.5 A
30 mΩ
e
N
Output Noise Voltage B = 100 Hz to 100 kHz 30 µV/V
o
Figure 4 : Dropoutvoltage vs.Output Current. Figure5 : Dropout Voltage vs. Temperature.
L4941
4/13
Figure 6 : Outputvoltage vs. Temperature. Figure7 : Quiescent Current vs. Temperature
Figure 8 : Quiescent Current vs.InputVoltage. Figure9 : Quiescent Current vs.Output Current.
Figure 10: Short-circuit Current vs. Temperature. Figure11 : Peak Output Current vs. Input/Output
DifferentialVoltage.
L4941
5/13
Figure 12: LowVoltage Behavior. Figure13 : Supply Voltage Rejection vs.
Frequency
Figure 14: Supply Voltage Rejection vs.Output
Current.
Figure15 : Load DumpCharacteristics.
Figure 16: LineTransientResponse. Figure17 : Load Transunt Response.
L4941
6/13
Figure 18: TotalPowerDissipation (TO-220).
Figure 19: Distribued Supply with On-card L4940 and L4941 Low-drop Regulators.
ADVANTAGES OF THESE APPLICATIONS ARE :
-
On card regulation with short-circuit and thermal protection oneach output.
-
Very hightotalsystemefficiencydueto the switchingpreregulation and verylow-drop postregulations.
L4941
7/13

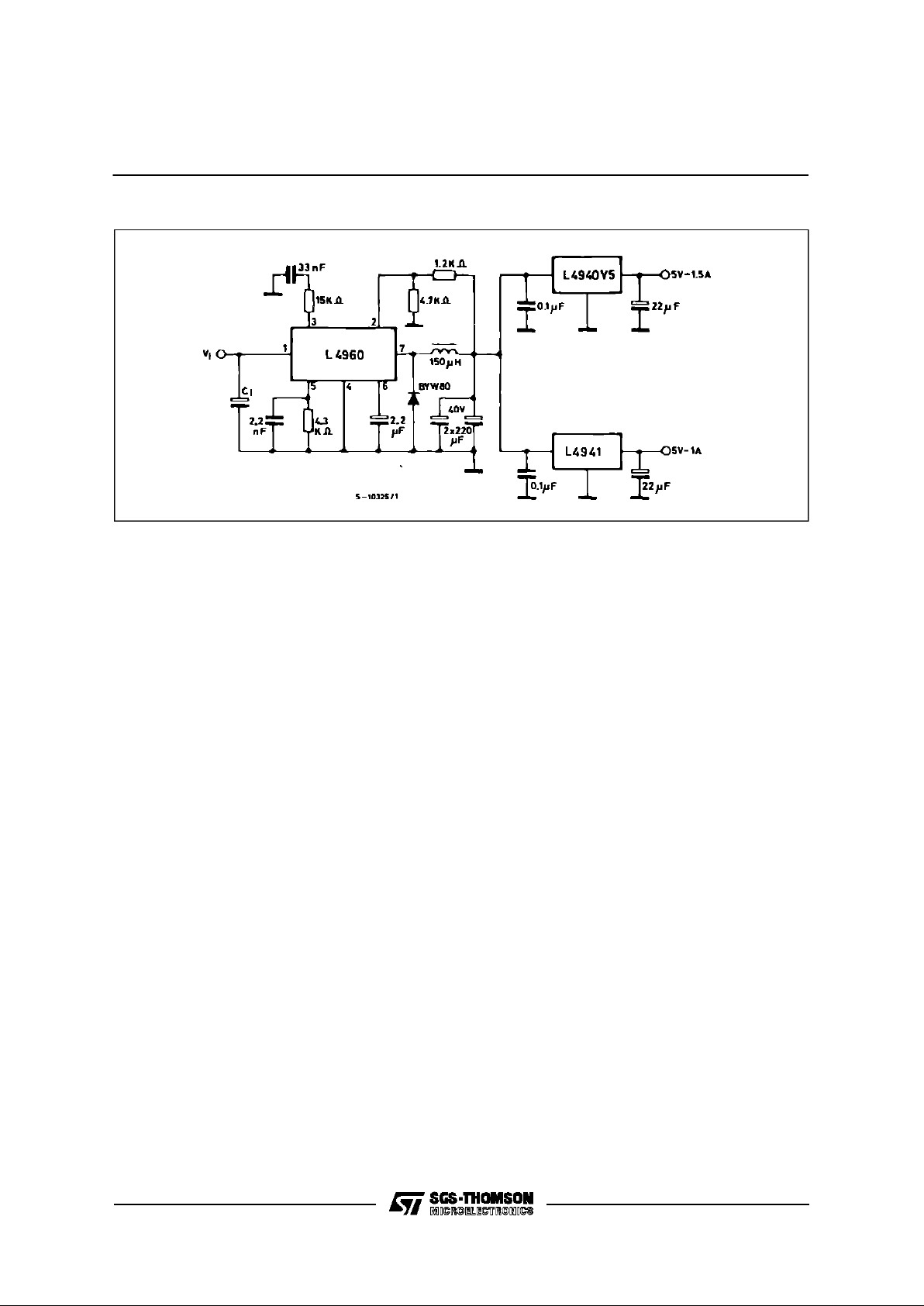

Figure 20 : Distribued Supply with On-card L4940 and L4941 Low-drop Regulators.
L4941
8/13
DIM.
mm inch
MIN. TYP. MAX. MIN. TYP. MAX.
A 4.8 0.189
C 1.37 0.054
D 2.4 2.8 0.094 0.110
D1 1.2 1.35 0.047 0.053
E 0.35 0.55 0.014 0.022
F 0.8 1.05 0.031 0.041
F2 1.15 1.4 0.045 0.055
G 4.95 5.08 5.21 0.195 0.200 0.205
H2 10.4 0.409
H3 10.05 10.4 0.396 0.409
L2 16.2 0.638
L3 26.3 26.7 27.1 1.035 1.051 1.067
L5 2.6 3 0.102 0.118
L6 15.1 15.8 0.594 0.622
L7 6 6.6 0.236 0.260
Dia. 3.65 3.85 0.144 0.152

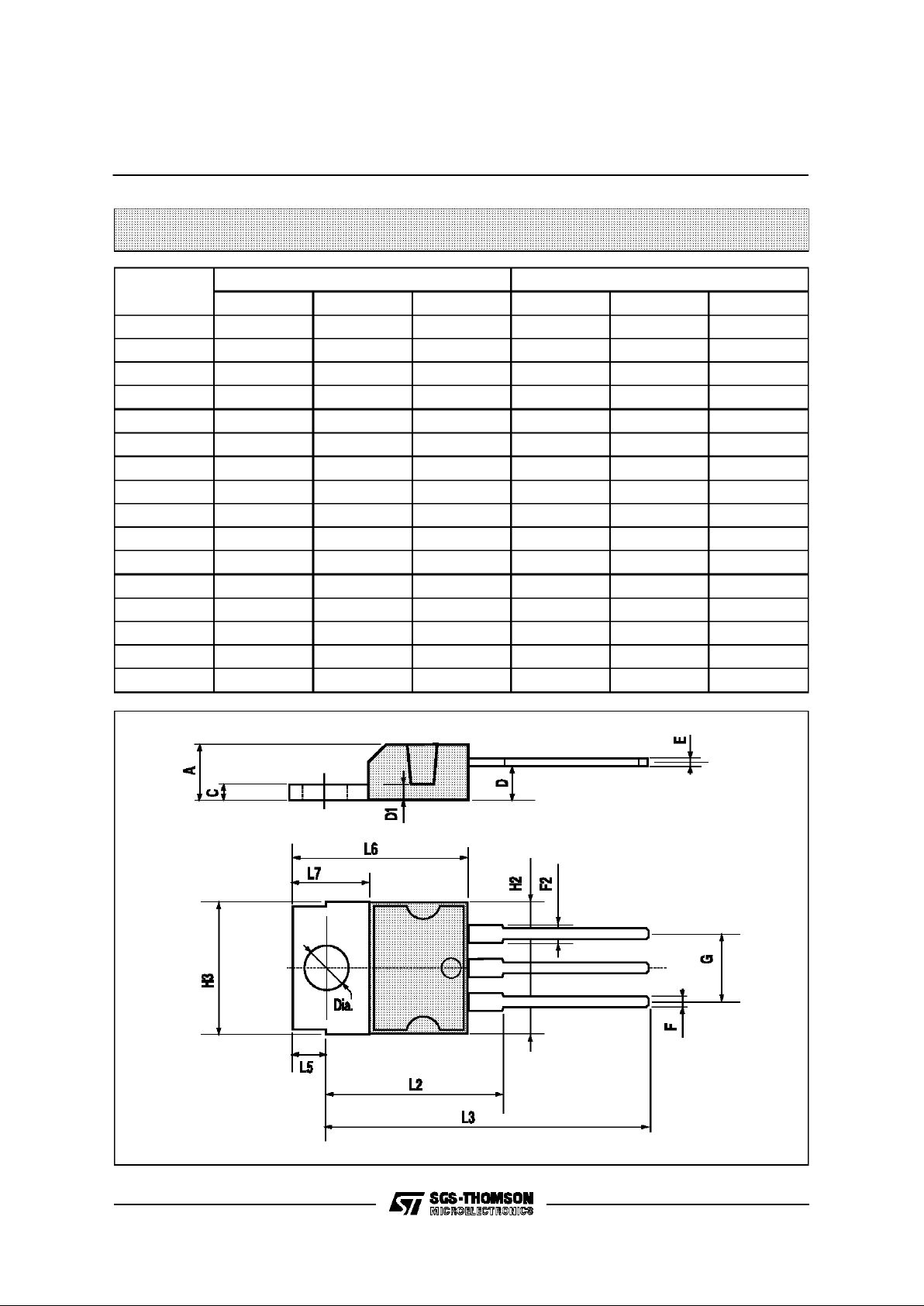

TO-220 MECHANICAL DATA
P011D
L4941
9/13
DIM.
mm inch
MIN. TYP. MAX. MIN. TYP. MAX.
A 7.4 7.8 0.291 0.307
B 10.5 11.3 0.413 0.445
b 0.7 0.9 0.028 0.035
b1 0.49 0.75 0.019 0.030
C 2.4 2.7 0.04 0.106
c1 1.2 0.047
D 15.7 0.618
e 2.2 0.087
e3 4.4 0.173
F 3.8 0.150
H 2.54 0.100
F
A
H
BD
e3
e
b1
c1
C
b

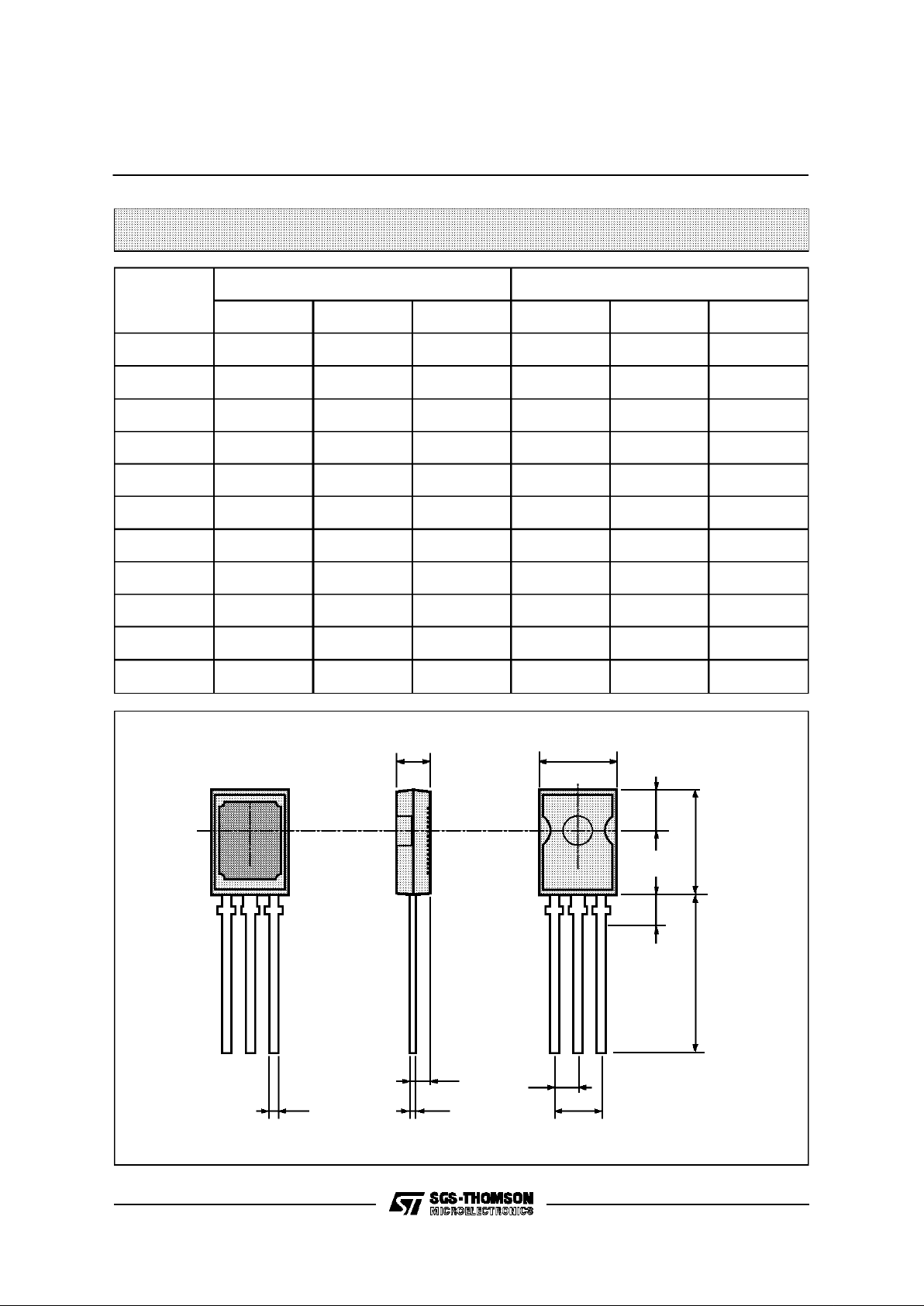

SOT-82 MECHANICALDATA
P032A
L4941
10/13
DIM.
mm inch
MIN. TYP. MAX. MIN. TYP. MAX.
A 7.4 7.8 0.291 0.307
B 10.5 11.3 0.413 0.445
b 0.7 0.9 0.028 0.035
b1 0.49 0.75 0.019 0.030
C 2.4 2.7 0.094 0.106
c1 1.2 0.047
c2 1.3 0.051
D 6 0.236
e 2.2 0.087
e3 4.4 0.173
F 3.8 0.150
H 2.54 0.100
P45°(typ.)
S 4 0.157
S1 2 0.079
T 0.1 0.004
F
A
H
B
D
e3
e
b1
c2
C
b
P
T
C1
SS1
SOT-194 MECHANICALDATA
P032B
L4941
11/13
DIM.
mm inch
MIN. TYP. MAX. MIN. TYP. MAX.
A 2.2 2.4 0.086 0.094
A1 0.9 1.1 0.035 0.043
B 0.64 0.8 0.025 0.031
B1 3.4 3.6 0.133 0.141
B2 5.2 5.4 0.204 0.212
B3 0.9 0.035
B4 1.9 2.1 0.074 0.082
C 0.48 0.6 0.018 0.023
C1 0.45 0.6 0.017 0.023
D 6 6.2 0.236 0.244
E 6.4 6.6 0.252 0.260
G 4.4 4.6 0.173 0.181
H 9.35 10.1 0.368 0.397
L 2.55 3.05 0.100 0.120
L1 0.6 1 0.023 0.039
L2 0.8 0.031
L3 0.8 1.2 0.031 0.047
L4 0.3 0.45 0.012 0.017
D
A
C
C1
L
L2
= G =
L1
L4
H
A1
L3
123
==
==
==
==
B
B3
B2EB1
B4

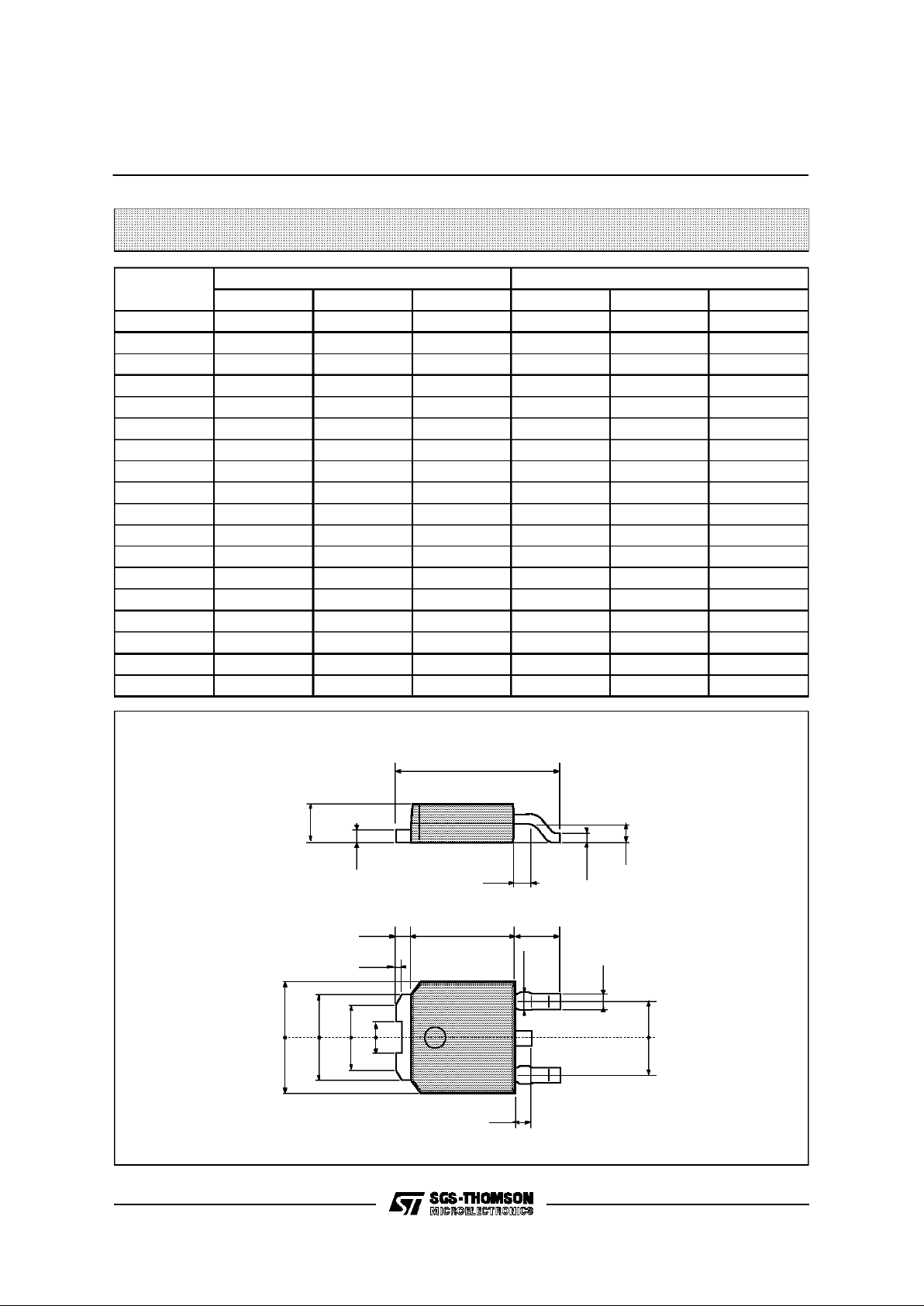

TO-252 (DPAK) MECHANICAL DATA
L4941
12/13
