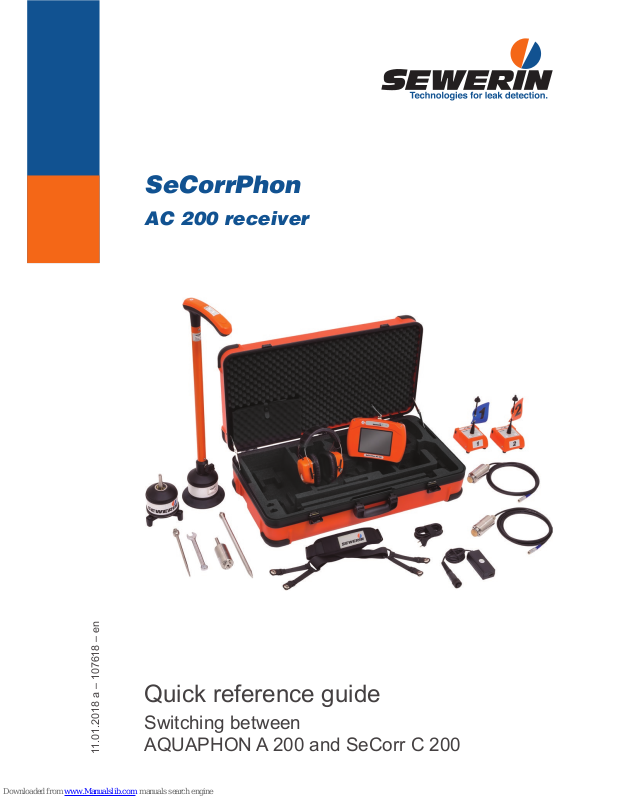

Page 1
11.01.2018 a – 107618 – en
SeCorrPhon
AC 200 receiver
Quick reference guide
Switching between
AQUAPHON A 200 and SeCorr C 200
Page 2
1 Purpose
SeCorrPhon is a system for locating water leaks and water pipes.
The SeCorrPhon system can be used for:
● Acoustic leak detection
● Acoustic pipeline location
● Correlative leak detection
2 Intended use
The SeCorrPhon system is intended for professional industrial and commercial use. The appropriate specialist knowledge is required to operate
the system.
The system must only be used for the applications specied in Section 1.
3 Functional areas
The AC 200 receiver has two functional areas. Acoustic location is carried
out in the AQUAPHON A 200 functional area; correlative location in the
SeCorr C 200 functional area.
Note:
The following documents explain how to use the system and operate the
receiver in the dierent functional areas:
● AQUAPHON A 200 operating instructions
● SeCorr C 200 operating instructions
The receiver is used to toggle between the two functional areas.
The AC 200 receiver will remain in the last functional area when you switch
it o and back on again.
Settings in the dierent functional areas are independent of one another.
Page 3
3.1 Switching from AQUAPHON to SeCorr
Starting point:
● The system is ready for use.
● The receiver is in the AQUAPHON A 200 functional area.
The main view is open.
1. Tap the Settings button. The Settings menu appears.
2. Tap the Application button. The Application menu appears.
3.
Tap the Correlation button. The receiver switches to the SeCorr C 200
functional area.
3.2 Switching from SeCorr to AQUAPHON
Starting point:
● The system is ready for use.
● The receiver is in the SeCorr C 200 functional area.
The main view is open.
1. Tap the Settings button. The Settings menu appears.
2. Tap the Application button. The Application menu appears.
3.
Select the desired application. The receiver switches to the AQUAPHON
A 200 functional area.
