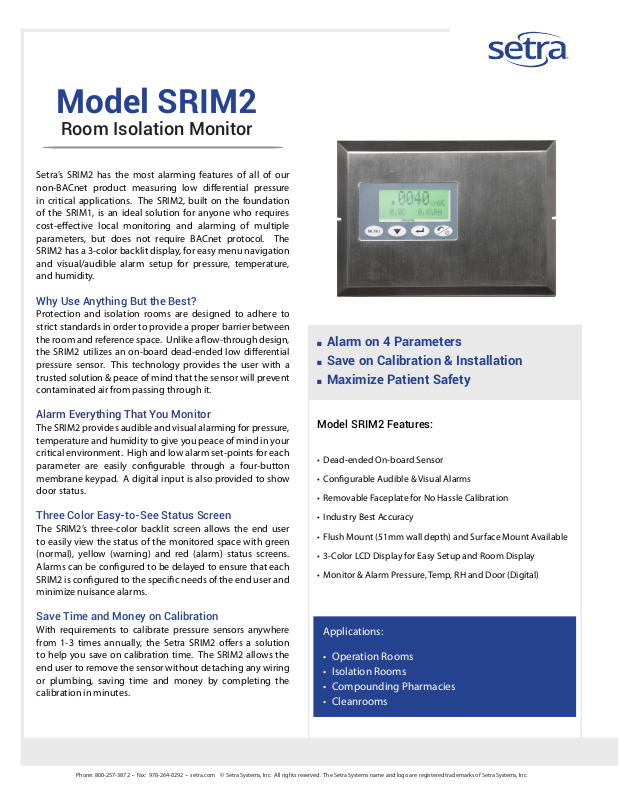

Setra SRIM2 Specifications

Model SRIM2

Room Isolation Monitor

Setra’s SRIM2 has the most alarming features of all of our
non-BACnet product measuring low dierential pressure
in critical applications. The SRIM2, built on the foundation
of the SRIM1, is an ideal solution for anyone who requires
cost-eective local monitoring and alarming of multiple
parameters, but does not require BACnet protocol. The
SRIM2 has a 3-color backlit display, for easy menu navigation
and visual/audible alarm setup for pressure, temperature,
and humidity.

Why Use Anything But the Best?

Protection and isolation rooms are designed to adhere to
strict standards in order to provide a proper barrier between
the room and reference space. Unlike a ow-through design,
the SRIM2 utilizes an on-board dead-ended low dierential
pressure sensor. This technology provides the user with a
trusted solution & peace of mind that the sensor will prevent
contaminated air from passing through it.

n Alarm on 4 Parameters
n Save on Calibration & Installation
n Maximize Patient Safety

Alarm Everything That You Monitor

The SRIM2 provides audible and visual alarming for pressure,
temperature and humidity to give you peace of mind in your
critical environment. High and low alarm set-points for each
parameter are easily congurable through a four-button
membrane keypad. A digital input is also provided to show
door status.

Three Color Easy-to-See Status Screen

The SRIM2’s three-color backlit screen allows the end user
to easily view the status of the monitored space with green
(normal), yellow (warning) and red (alarm) status screens.
Alarms can be congured to be delayed to ensure that each
SRIM2 is congured to the specic needs of the end user and
minimize nuisance alarms.

Save Time and Money on Calibration

With requirements to calibrate pressure sensors anywhere
from 1-3 times annually, the Setra SRIM2 oers a solution
to help you save on calibration time. The SRIM2 allows the
end user to remove the sensor without detaching any wiring
or plumbing, saving time and money by completing the
calibration in minutes.

Model SRIM2 Features:

• Dead-ended On-board Sensor

• Congurable Audible & Visual Alarms

• Removable Faceplate for No Hassle Calibration

• Industry Best Accuracy

• Flush Mount (51mm wall depth) and Surface Mount Available

• 3-Color LCD Display for Easy Setup and Room Display

• Monitor & Alarm Pressure, Temp, RH and Door (Digital)

Applications:

• Operation Rooms

• Isolation Rooms

• Compounding Pharmacies

• Cleanrooms

Phone: [phone] • Fax: [phone] • setra.com © Setra Systems, Inc. All rights reserved. The Setra Systems name and logo are registered trademarks of Setra Systems, Inc.

Model SRIM2

74

2.9

144

5.67

[ mm ]
in.

144

5.67

[ mm ]
in.

74

2.9

144

5.67

112.8

4.44

157.2

6.19

6.9

0.27

4.7

0.19

43.4

1.71

[ mm ]
in.

Room Isolation Monitor

ORDERING INFORMATION

S R I M

Model Pressure Ranges Type

SRIM2 = SRIM2

2

(“W.C.) (Pascals)

R05W10 to 0.05 ±0.05 Z02L 0 to 12.5 ±12.5

0R1W 0 to 0.1 ±0.1 025L 0 to 25 ±25

R25W 0 to 0.25 ±0.25 050L 0 to 50 ±50

OR5W 0 to 0.5 ±0.5 100L 0 to 100 ±100

001W 0 to 1.0 ±1.0 250L 0 to 250 ±250

2R5W 0 to 2.5 ±2.5 500L 0 to 500 ±500

2

Output

2

Mounting/Logo Accuracy Pressure Snubber

D Unidirectional 11 4 to 20mA WL Wall Mount w/ Logo C ±1.0% FS N None

B Bidirectional 2B 0 to 5 VDC DL Duct Mount w/ Logo F ±0.25% FS w/ cal. cert 1 Q uantity 1

2C 0 to 10 VDC WN Wall Mount, No Logo H ±.05% FS w/ cal. cert 2 Quantity 2

DN Duct Mount, No Logo G ±1.0% FS w/ cal. cert

1

Wall Mount, Stainless

SN

Steel Bezel

Wall Mount, Stainless

SL

Steel Bezel, w/ Logo

Available in unidirectional only

2

Field congurable but factory congured for calibration

certicate.

005W 0 to 5.0 ±5.0 10CL 10CL 10CL

25CL 0 to 2500 ±2500

Example: Part No. SRIM2R05WD11SNC1 = Model SRIM2, 0 to 0.05 in. W.C. Pressure Range, Unidirectional, 4 to 20 mA Output, Wall Mount with Stainless Steel Bezel, ±1.0% FS Accuracy, 1 Snubber

DIMENSIONS GENERAL SPECIFICATIONS

Performance Data Environmental Data

Code F Code H Code C/G O perating Temp.3 °F (°C) 22 to +140 (-6 to +60)

Accuracy RSS* ±0.25% FS ±0.5% FS ±1.0% FS

Non-Linearity (BFSL) ±0.22% FS ±0.49% FS ±0.98% FS Circuit 3-Wire (Exc, Out, Com)

Hysteresis ±0.1% FS ±0.1% FS ±0.1% FS Output (Field Selectable) 0 to 5 VDC, 0 to 10 VDC, 4 to 20 mA

Non-Repeatability ±0.05% FS ±0.05% FS ±0.05% FS Po wer 18 to 30 VDC oR 24 VAC ±10%

Zero/Span Setting Tol. ±0.5% FS ±0.5% FS ±1.0% FS Power Consumption 4 W. MAX (24 VDC) 8 W. MAX (25 VAC)

Thermal Eects

Compensated Range

40 to 120 (4.5 to 50) Electrical Connection Screw Terminal

°F (°C)

Zero/Span Shift %FS ±0.02% FS/deg

C

Typ. Dimensions See reverse side

Overpressure Up to 10 PSI (Range dependent) Weight 10.7 oz.

Pressure Media

Clean air or similar non-conducting gases. Pressure Fittings Barbed Fittings for 1/4” Tubing

Certications

CE

RoHS

EN61326-1 & EN61326-2-3 BASIC Immunity &
Class B Emission

Electrical Data

Physical Description

Display Custom 2-Line Character LCD

Case Fire Retardant Plastic UL94V-0

1

RSS of Non-Linearity, Hystereis, and Non-Repeatability.

Specications subject to change.

WALL MOUNT

157.2

6.19

112.8

4.44

4.7

0.19

43.4

1.71

DUCT MOUNT

144

5.67

74

2.9

[ mm ]
in.

43.4

1.71

1/2" CONDUIT

KNOCKOUT

PG9

KNOCKOUT

Phone: [phone] • Fax: [phone] • setra.com © Setra Systems, Inc. All rights reserved. The Setra Systems name and logo are registered trademarks of Setra Systems, Inc.

PRESSURE FITTING
FOR 3/16 I.D. / (4.4mm)
TUBING

SSP-SRIM2 REV. B 07/17
