Variety Valve

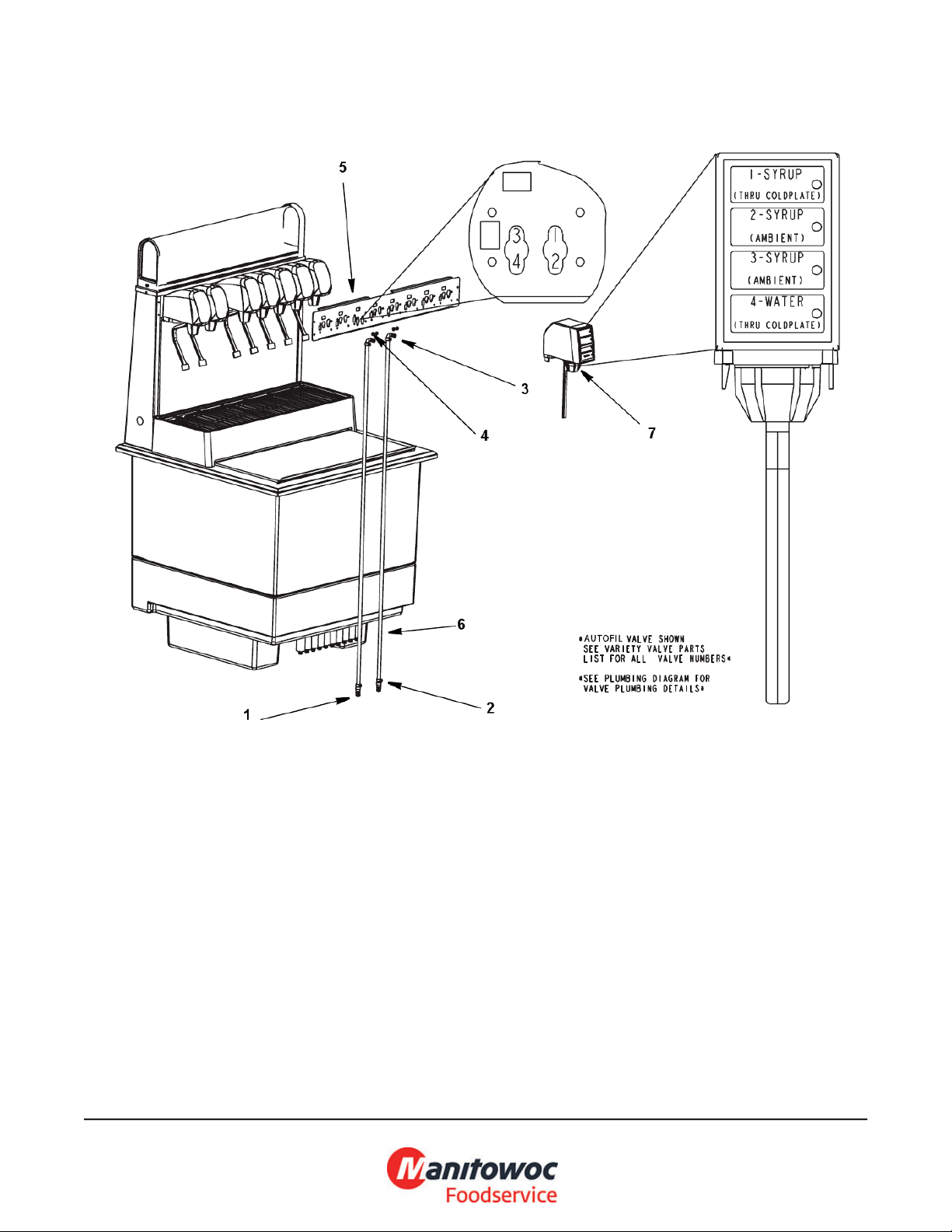

SV/SVi VARIETY VALVE PARTS
SV/SVi VARIETY VALVE PARTS
variety_valve_10.pdf
Variety Valve
SV/SVi VARIETY VALVE PARTS
# PART # DESCRIPTION QTY Note
1 13.3-706R Clamp - 0.5" SS
2 00861302 Splicer - 0.25" x 0.375"
3 5006468 Elbow - 0.25" Barbed Inlet
4 5009080 O-ring - 0.239" x 0.07"
5 Plumbing Label
5a 5028014 Plumbing Label - 3-1-1-1-2 (SV-200/250)
5b 5029871 Plumbing Label - 3-1-1-1-2 (SV-175)
5c 020000254 Plumbing Label - 2-1-1-2 (SV-150)
6 5030920 12" Syrup Tube
7 030000070 Sanitary Lever Variety Valve
8 5031084 Valve Mount Cap - 8 Valve with Variety Valve
9 020000911 Valve Mount Cap - 8 Valve
10 020000909 Valve Mount Cap - 6 Valve
SV/SVi VARIETY VALVE PARTS
variety_valve_10.pdf
Variety Valve
AUTOFILL VALVE
AUTOFILL VALVE
variety_valve_2.pdf
Variety Valve
AUTOFILL VALVE
# PART # DESCRIPTION QTY Note
1 15-2895 Front Cover Assembly
2 01-1831 Rear Cover
3 030000067 O-ring 1.174 X .103
4 030000090 Screw, M4
5 10-0020 O-ring .489 X .07
6 05-1711 Solenoid
7 16-1588 Water Flow Control Kit
8 030000068 Flow Control Stem
9 10-0921 O-ring .206 X .103
10 10-1150 Screw, 8-16
11 030000088 Flatwasher
12 01-0295 Flow Control Housing
13 10-0010 O-ring .487 X .103
14 16-1589 Syrup Flow Control Kit
15 030000065 Mounting Block
16 15-2894 Electronic Module
17 01-1832 Bottom Plate
18 10-0007 O-ring .989 X .07
19 01-1822 Diffuser
20 01-1833 Nozzle
21 030000073 Switch
22 14-5164 Lever Spring
23 030000135 Screw, 3-24
24 14-5169 Lever
25 14-5263 Nozzle Terminal
AUTOFILL VALVE
variety_valve_2.pdf
Variety Valve
SANITARY LEVER VALVE
SANITARY LEVER VALVE
variety_valve_3.pdf
Variety Valve
SANITARY LEVER VALVE
# PART # DESCRIPTION QTY Note
030000070 Sanitary Lever Variety Valve
1 15-2895 Front Cover Assembly
2 01-1831 Rear Cover
3 030000067 O-ring 1.174 X .103
4 030000090 Screw, M4
5 10-0020 O-ring .489 X .07
6 05-1711 Solenoid
7 16-1588 Water Flow Control Kit
8 030000068 Flow Control Stem
9 10-0921 O-ring .206 X .103
10 10-1150 Screw, 8-16
11 030000088 Flatwasher
12 01-0295 Flow Control Housing
13 10-0010 O-ring .487 X .103
14 16-1589 Syrup Flow Control Kit
15 030000065 Mounting Block
16 15-2924 Electronic Module
17 01-1832 Bottom Plate
18 10-0007 O-ring .989 X .07
19 01-1822 Diffuser
20 01-1833 Nozzle
21 030000073 Switch
22 14-5164 Lever Spring
23 030000135 Screw, 3-24
24 14-5222 Lever
SANITARY LEVER VALVE
variety_valve_3.pdf
Variety Valve
PUSH BUTTON VALVE
PUSH BUTTON VALVE
variety_valve_4.pdf
Variety Valve
PUSH BUTTON VALVE
# PART # DESCRIPTION QTY Note
030000071 Push Button Valve Full Assembly
1 15-2895 Front Cover Assembly
2 01-1831 Rear Cover
3 030000067 O-ring 1.174 X .103
4 030000090 Screw, M4
5 10-0020 O-ring .489 X .07
6 05-1711 Solenoid
7 16-1588 Water Flow Control Kit
8 030000068 Flow Control Stem
9 10-0921 O-ring .206 X .103
10 10-1150 Screw, 8-16
11 030000088 Flatwasher
12 01-0295 Flow Control Housing
13 10-0010 O-ring .487 X .103
14 16-1589 Syrup Flow Control Kit
15 030000065 Mounting Block
16 15-2892 Electronic Module
17 01-1832 Bottom Plate
18 10-0007 O-ring .989 X .07
19 01-1822 Diffuser
20 01-1833 Nozzle
PUSH BUTTON VALVE
variety_valve_4.pdf
Variety Valve
PORTION CONTROL VALVE
PORTION CONTROL VALVE
variety_valve_5.pdf
Variety Valve
PORTION CONTROL VALVE
# PART # DESCRIPTION QTY Note
030000072 Portion Control Valve Full Assembly
1 15-2896 Front Cover
2 01-1831 Rear Cover
3 030000067 O-ring 1.174 X .103
4 030000090 Screw, M4
5 10-0020 O-ring .489 X .07
6 05-1711 Solenoid
7 16-1588 Water Flow Control Kit
8 030000068 Flow Control Stem
9 10-0921 O-ring .206 X .103
10 10-1150 Screw, 8-16
11 030000088 Flatwasher
12 01-0295 Flow Control Housing
13 10-0010 O-ring .487 X .103
14 16-1589 Syrup Flow Control Kit
15 030000065 Mounting Block
16 15-2893 Electronic Module
17 01-1832 Bottom Plate
18 10-0007 O-ring .989 X .07
19 01-1822 Diffuser
20 01-1833 Nozzle
PORTION CONTROL VALVE
variety_valve_5.pdf
Variety Valve
DI/DIL2323 VARIETY VALVE PARTS
DI/DIL2323 VARIETY VALVE PARTS
variety_valve_7.pdf
Variety Valve
DI/DIL2323 VARIETY VALVE PARTS
# PART # DESCRIPTION QTY Note
1 133-706R SS Stepless Clamp
2 030000070 Sanitary Lever Variety Valve
3 00861302 Splicer - 0.25" x 0.375"
4 5006468 Elbow - 0.25" Barbed Inlet
5 5009080 O-ring - 0.239" x 0.07"
6 5031242 60" Syrup Tube
7 020001226 Plumbing Label
8 5011906 Valve Mount Cap - 6 Valve
DI/DIL2323 VARIETY VALVE PARTS
variety_valve_7.pdf
Variety Valve
CEV VARIETY VALVE PARTS
CEV VARIETY VALVE PARTS
variety_valve_6.pdf
Variety Valve
CEV VARIETY VALVE PARTS
# PART # DESCRIPTION QTY Note
1 13.3-706R Clamp - 0.5" SS
2 15-2895 Front Cover Assembly
3 00861302 Splicer - 0.25" x 0.375"
4 5006468 Elbow - 0.25" Barbed Inlet
5 5009080 O-ring - 0.239" x 0.07"
6 5011906 Valve Mount Cap - 6 Valve
7 5030920 12" Syrup Tube
8 030000070 Sanitary Lever Variety Valve
9 020001206 Tube, Number 3 Water Variety Valve
10 020001226 Plumbing Label
CEV VARIETY VALVE PARTS
variety_valve_6.pdf
Variety Valve
IC2323 VARIETY VALVE PARTS
IC2323 VARIETY VALVE PARTS
variety_valve_8.pdf
Variety Valve
IC2323 VARIETY VALVE PARTS
# PART # DESCRIPTION QTY Note
1 00861302 Splicer - 0.25" x 0.375"
2 13.3-706R Clamp - 0.5" SS
3 5006468 Elbow - 0.25" Barbed Inlet
4 5009080 O-ring - 0.239" x 0.07"
5 5031070 Valve Mount Cap - 8 Valve
6 5031212 40" Syrup Tube
7 030000069 Autofil Variety Valve
IC2323 VARIETY VALVE PARTS
variety_valve_8.pdf
Variety Valve
MDH SERIES VARIETY VALVE PARTS
MDH SERIES VARIETY VALVE PARTS
variety_valve_9.pdf
Variety Valve
MDH SERIES VARIETY VALVE PARTS
# PART # DESCRIPTION QTY Note
1 13.3-706R Clamp - 0.5" SS
2 00861302 Splicer - 0.25" x 0.375"
3 5006468 Elbow - 0.25" Barbed Inlet
4 5009080 O-ring - 0.239" x 0.07"
5 5011803 Plumbing Label - 2112 Right
6 5030920 12" Syrup Tube
7 030000070 Sanitary Lever Variety Valve
8 020001426 Valve Mount Cap - 12 Valve
MDH SERIES VARIETY VALVE PARTS
variety_valve_9.pdf
