Servend is a leading brand of ice and
beverage dispensing equipment for the
foodservice industry. Servend grew from
a small manufacturing facility in the early
1980's where three employees spent one
day building a single ice/beverage unit,
to a 150,000 square foot of world class
manufacturing and research facility
area employing over 200 employees who
build hundreds of units per day that are distributed
throughout the world. Servend revolutionized
the ice dispensing industry with innovations such as
the patented “U-Shape” bin liner and “paddle wheel”
that maximizes ice storage, ice delivery
and efficiency, and the “rocking chute”
ice dispense mechanism which helps
eliminate ice waste and spillage.
Additional innovations include a
manual-fill area for top-mounted ice
machine applications, giant lightbox
merchandisers for better graphic
display, and hard-plumbed drink lines
to significantly reduce leak points. The Servend product line
includes ice, ice/beverage and juice countertop dispensers,
drop-in and countertop electric beverage dispensers, ice
chests, and numerous dispenser accessories.
Servend provides a
parts-and-labor
warranty to repair or replace any
defective part or assembly under
normal use and care. For complete details, refer to the
warranty statements that accompany our products.
Dispensers
• 2-year limited parts warranty
• 1-year limited labor warranty
Servend
Servend is manufactured by Manitowoc Beverage
is a part of The Manitowoc Company, Inc.
2100 Future Drive • Sellersburg, IN 47172, USA
Ph: 812-246-7000 • Fax: 812-246-7024
Visit us online at www.manitowocbeverage.com
Visit us at
www.manitowocbeverage.com
Servend’s website is an informative
and interactive site that is continually
updated. Some of the navigation pathways include;
Product Sizing Guide, Sales and Service Locator, Sales
and Service Literature Downloads, Trade Show Calendar,
What’s New, and additional links which help educate the
visitor on the many facets associated with the selection of
a beverage dispensing system.
Certification guarantees internal
control of the company’s quality
system and ensures consistency
in every process. In addition,
continuous improvement and
corrective action requirements
assure that the company meets
customer’s needs and delivers the
highest quality product at the most cost
effective price. Servend’s registration is applicable under
Quality System Standard 9001, the most comprehensive
standard in the international community and it includes
the design, manufacture and support of all products.
2
The Servend Product Line Includes:
SV Series 6
SV200/250 Selectable icepic® Ice Crusher 6
MDH 302/402 8
MDH 302/402 icepic® Ice Crusher 8
FLAV’R PICTM 10
SV250 quickdrawTM 12
Flavor MagicTM 13
FlexTowerTM 14
CT Series Tower 15
Flavor Shot Tower 16
4-in-1 Non-carb Tower 17
DI 1522/2323 18
Ice Chests 18
CS 1522/2323 Stands 18
CEV 20
CEVj 21
S Series 22
M 45/90 23
424 24
464GP 25
26
3
Servend’s innovative rocking
chute door mechanism has
a simple, non electrical
injection molded design.
• 60% fewer parts than
industry norm – no solenoids,
springs, or counter weights to fail.
• On-site “push button” / “push lever” conversion.
• Reduces equipment and parts inventory.
• Reduces ice waste and build-up of ice in drain pan.
• Eliminates “ghost ice” dispensing.
• Reduces “in-flight” ice and ice spillage.
Patented paddle-wheel design maximizes ice
storage, delivery, and efficiency and enables
all potable ice to be dispensed.
Industry's only built-in ice crusher provides two
types of ice (cube and crushed) from a single
ice maker/ice dispenser combination.
Flex manifold makes
carbonated or noncarbonated flavor changes
possible in minutes. Great
for seasonal promotions!
4
Features of Servend’s SV Series Ice/Beverage Dispensers
Front serviceability of
all major components.
Optional top-mounted
Manitowoc ice beverage
ice machine offers
enhanced cleanability
and improved sanitation
procedures for the ice
storage area.
Accessible front bin
extension allows for
easier manual ice filling.
Flomatic 464 beverage
valves improve drink
quality and presentation.
Fewer parts simplify
cleaning.
SV-250 Ice/Beverage Dispenser
with Manitowoc IB ice machine
Features of Servend’s Drop-In Series Beverage Dispensers
Large “attention grabbing”
fountain graphics.
Maximum beverage
cooling, “Hard Plumbed”
syrup and water lines.
Durable stainless steel
construction exterior,
bin and bin liner.
Patented technology
Rocking Chute
TM ice
dispense reduces
ice spillage.
Flex Manifold makes
carbonated or noncarbonated flavor
changes possible
in minutes.
Dual-view merchandiser
with high impact graphics.
High capacity ice
storage. Large
amount of ice storage60 lbs. (27.2kgs.),
80 lbs. (36.4kgs.) and
100 lbs. (45.5 kgs.).
Accessible splash
panel, drain pan, and
ice bin door can be
easily removed
without tools.
Quick, easy install
cold plate inlets and
drain connections
simplify pre-plumbing
and installation.
Flex Manifold
makes carbonated or
non-carbonated flavor
changes possible
in minutes.
DI-2323 Drop-In
Beverage Dispenser
5
Servend's new
SV Series features
a no-hassle onepiece structural
base, recessed
cold plate inlets
for more line
space behind the
splash panel, and a
modular design; all
resulting in a more
durable machine
dispensing
consistent,
quality
drinks.
SV-250
Up to 250 lbs. (114
kgs.) ice storage
capacity
8 or 10 valves
30" (76.20 cm) wide
SV-200
Up to 200 lbs. (91 kgs.)
ice storage capacity
8 or 10 valves
30" (76.20 cm) wide
SV-150
Up to 150 lbs. (68 kgs.)
SV-175
Up to 175 lbs. (80 kgs.)
ice storage capacity
8 valves
25" (63.50 cm) wide
6
ice storage capacity
6 valves
23" (58.42 cm) wide
Height
DepthWidth
Standard Features
Ice Storage Capacity
Electrical Requirements
Number of Valves
Ice Machine Compatibility
Options
Specifications
SV-150 SV-175 SV-200 SV-250
Lighted merchandiser, Quench graphics, key switch, leg kit, and drain kit.
p to 150 lbs. / 68 kgs. Up to 175 lbs. / 80 kgs. Up to 200 lbs. / 91 kgs. Up to 250 lbs. / 114 kgs.
U
Dispenser: 120V/60Hz/2.8FLA. 220V/50Hz/1 also available.
68 8 or 10
Manual fill or top-mount with compatible ice machines. Contact factory for
adapter kit requirements for top-mounted ice machine applications.
Flomatic 464 beverage valves. Both 424 and 464 available in sanitary lever, push button, portion control, and autofill valve.
Other valves available. Contact MBE for details. Other options: regulators, installation kits, and side splash panels.
Unit Width Depth Height
SV-150
SV-175
SV-200
SV-250
23.00" 31.13" 34.88"
58.42 cm 79.07 cm 88.60 cm
25.00" 31.13" 34.88"
63.50 cm 79.07 cm 88.60 cm
30.00" 31.13" 34.88"
76.20 cm 79.07 cm 88.60 cm
30.00" 31.16" 40.88"
76.20 cm 79.15 cm 103.82 cm
Servend’s patented
icepic
TM feature is the
industry's only built-in
ice crusher providing
selectable crushed
and cubed types of
ice from a single ice
maker/ice-beverage
dispenser combination.
*Height dimension without full lid.
Add 0.50" (1.27 cm) for full lid.
SV-200 Selectable
Up to 200 lbs.
(91 kgs.) ice
storage capacity
8 or 10 valves
30" wide
(76.20 cm)
SV-250 Selectable
Up to 250 lbs.
(114 kgs.) ice
storage capacity
8 or 10 valves
30" wide
(76.20 cm)
7
Servend’s MDH Series features durable
stainless steel ice bin and exterior construction
and provides up to 20 valves with 400 lbs.
(182 kgs.) of ice storage for your
highest volume accounts.
MDH-402
MDH-302
MDH-302
Industry's only built-in ice crusher provides two types of ice
(cubed and crushed) from a single ice maker/ice dispenser
combination. Increased beverage cooling efficiency vs.
nugget-style ice. Saves: 25% on equipment acquisitions,
30% on equipment installation, and 45% on maintenance.
8
MDH-402
Width
Depth
Height
Standard Features
Ice Storage Capacity
Electrical Requirements
Ice Machine Compatibility
Graphic Area Dimensions
Options
Specifications
MDH-302 MDH-402
Key Switch, Drain Kits, 12.00" tall lighted merchandiser, timed agitation, Flomatic 424 Beverage Valves
p to 300 lbs. / 136 kgs. Up to 400 lbs. / 181 kgs.
U
Dispenser: 120V/60Hz/3.5FLA
Front or side manual fill or top mount Front or side manual fill or top mount
Top mounted ice machines may reduce storage capacity. Top mounted ice machines may reduce storage capacity.
Contact distributor for baffle and ice maker lid requirements Contact distributor for baffle and ice maker lid requirements
12T: 41.75" W x 10.00" H / 106.05 W x 25.40 H (cm) 12T: 59.13" W x 10.38" H / 150.19 W x 26.37 H (cm)
24T: 41.62" W x 22.88" H / 105.71 W x 58.12 H (cm) 24T: 59.13" W x 23.19" H / 150.19 W x 58.90 H (cm)
34T: 41.88" W x 33.19" H / 106.38 W x 84.30 H (cm) 34T: 59.13" W x 32.81" H / 150.19 W x 83.34 H (cm)
with compatible ice machine. with compatible ice machine.
for top mounted ice machine applications. for top mounted ice machine applications
Visual area Visual area
Other options include; water lever, carbonator, regulator and installation kits. Ice machine adaptor kits,
24.00" (60.96 cm) and 34.00" (86.36 cm) extended merchandiser, black merchandiser and splash panel.
Unit Width Depth Height*
MDH-302
MDH-402
*Add 1" (2.54 cm) for full lid.
42.75" 30.50" 33.25"
108.59 cm 77.47 cm 81.92 cm
60.00" 30.50" 32.25"
152.40 cm 77.47 cm 81.92 cm
9

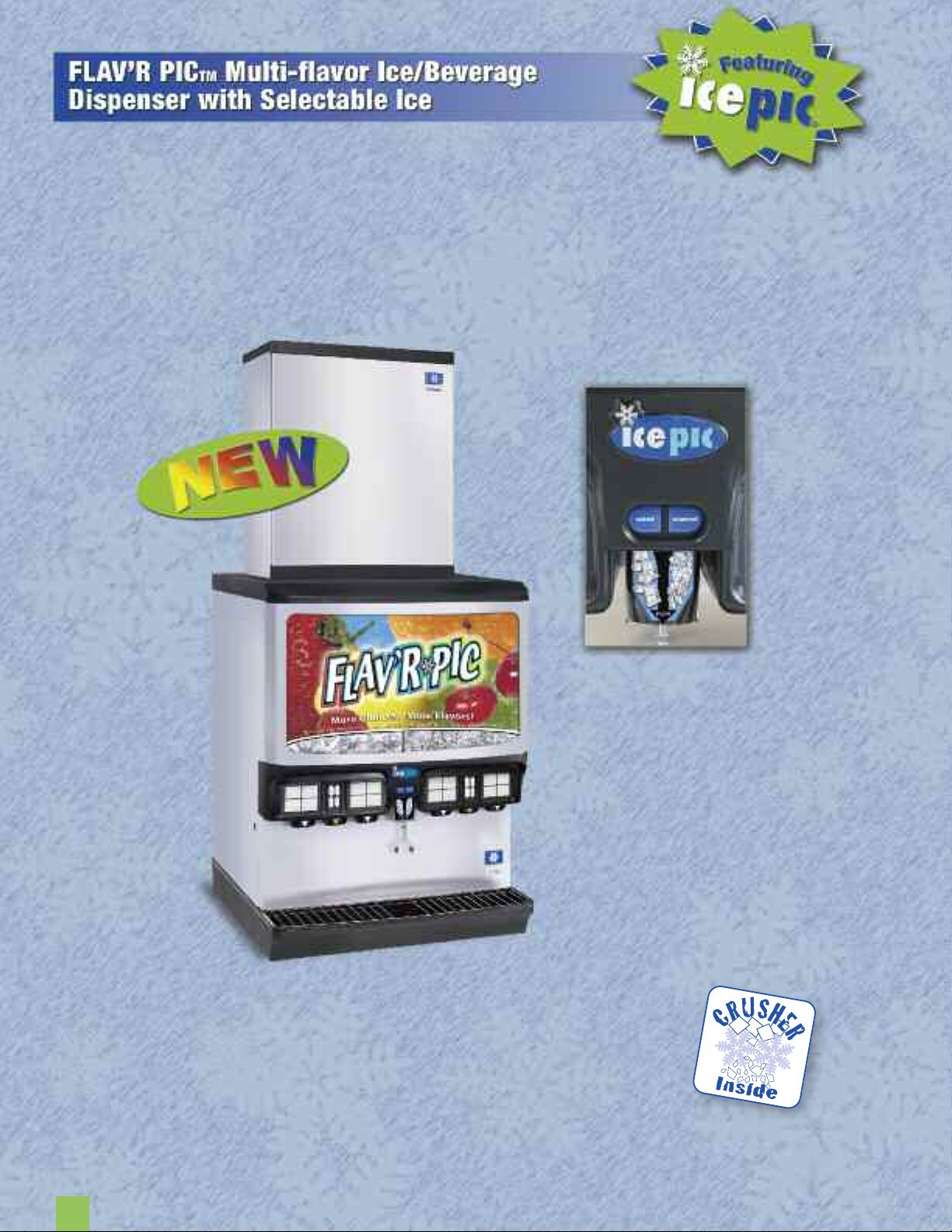

Servend’s new Flav'RPic ice/beverage dispenser gives your
customer multiple options to customize their drink to their
taste…16 beverage selections, up to 8 flavor enhancements
and a choice of cube or crushed ice. Beverage options that
customers appreciate and drive repeat business. All in a
30" footprint which maximizes use of counter space while
providing 250 lbs. of ice storage.
FRP-250 Ice/Beverage Dispenser
with IB800 Ice Machine
16 carbonated or non-carbonated
beverage selections and a choice
of 4 to 8 flavor enhancements–
imagine the beverage
combination possibilities.
Industry's only built-in ice crusher provides two types of ice
(cubed and crushed) from a single ice maker/ice dispenser
combination. One ice/beverage dispenser reduces your
equipment expense, installation costs, and maintenance.
10
Width Depth
Height
Specifications
Standard Features
Approximate Shipping Weight
Approx. Countertop Weight (w/o ice)
Ice Storage Capacity
Electrical Requirements
Drain
Number of Valves
Ice Machine Compatibility
Manifold
Options
Selectable icepic® feature, internal carbonation, lighted merchandiser, Flav'rpic graphics, key switch, and drain kit.
378 lbs. / 172 kgs.
43 lbs. / 156 kgs.
3
Up to 250 lbs. / 114 kgs.
Dispenser: 120V/60Hz/3.0FLA
Single 0.75 (1.91 cm) PVC (N.P.T.) drain fitting extends from drain pan.
Dispenser can be drained from the bottom or back of unit.
16 flavor capable (all syrups chilled) with 4 dispense points, 4 or 8 flavor shots/enhancements, with 2 dispense points.
Manual fill or top-mount with compatible ice machines.
ontact factory for adapter kit requirements for top-mounted ice machine applications.
C
arb/Non-carb flexibility across all dispense points.
C
Dispenser also available with cube only dispense options.
Extended front splash panel, side splash panels, installation and backroom packages/kits.
Unit Width Depth Height*
FRP-250
30.00" 31.13" 40.88"
76.20 cm 79.07 cm 103.80 cm
*Height dimemsion without full lid.
Add .050" (1.27 cm) for full lid.
11
Specifications
Width Depth
Height
Volumetric-ice, portion control
dispenser features one-touch,
portion controlled ice dispense to
increase your speed of service.
Concave cup locator provides easy
ice dispense positioning. Visual
graphic display eases programming
and diagnostics.
Standard Features
Ice Storage Capacity
Electrical Requirements
Valves
Ice Machine
Compatibility
Options
Unit Width Depth Height*
SV-250QD
*Height includes lid.
Quickdraw volumetric-ice portioning system, integrated
lid/straw holder, key switch, leg kit and drain kit.
Up to 250 lbs. / 114 kgs.
Dispenser: 120V/60Hz/2.8FLA.
220V/50Hz/1 also available.
8 auto-fill valves standard (other valve options available)
Manual fill or top-mount with compatible ice machines.
Contact MBE for adapter kit requirements for
top-mounted ice machine applications.
Side splash guards
(used for counter integrated drain rail).
30.00" 31.16" 40.88"
76.20 cm 79.15 cm 103.82 cm
12
Standard Features
Flavor Magic Module
Kit Contents
Back Room
Kit Contents
BIB Rack Dimensions
W x H x D
Electrical
Flavors Dispensed
Flow Rate
Dspense Time
Inlet Pressure Range
Specifications
Portion control through adjustable dispense
time, built-in dispense counter to track
individual flavor sales, POP static cling
instruction sheet, easy-to-install
pre-assembled valve/control board module.
Switch cover with nozzle, ice chute bracket, cover
ounting bracket, internal nozzle tubing mount, control
m
board and valve solenoid assembly.
BIB rack, BIB syrup pumps (1 for each flavor),
low pressure CO2 regulator (0-100 PSI),
50 feet of bundled tubing (1 tube for each flavor)
1 X 3 rack: 20" x 36" x 19";
1 X 4 rack: 20" x 48" x 19";
2 X 3 rack: 32" x 36" x 19";
2 X 4 rack: 32" x 48" x 19"
24VAC, 0.5 AMP, powered by existing
valve transformer on dispenser
3 or 4 per module
Variable, 0.5 oz/sec nominal
0.2 - 10 seconds, adjustable in 0.2 second increments
10 - 40 PSI
Flomatic’s Flavor MagicTM Drink
Enhancement System allows
you to offer your fountain beverage
customers more flavor choices
without using any additional
counter space.
13
36.00"
(
91.44 cm)
14.00"
(35.56 cm)
17.00"
(43.18 cm)
Specifications

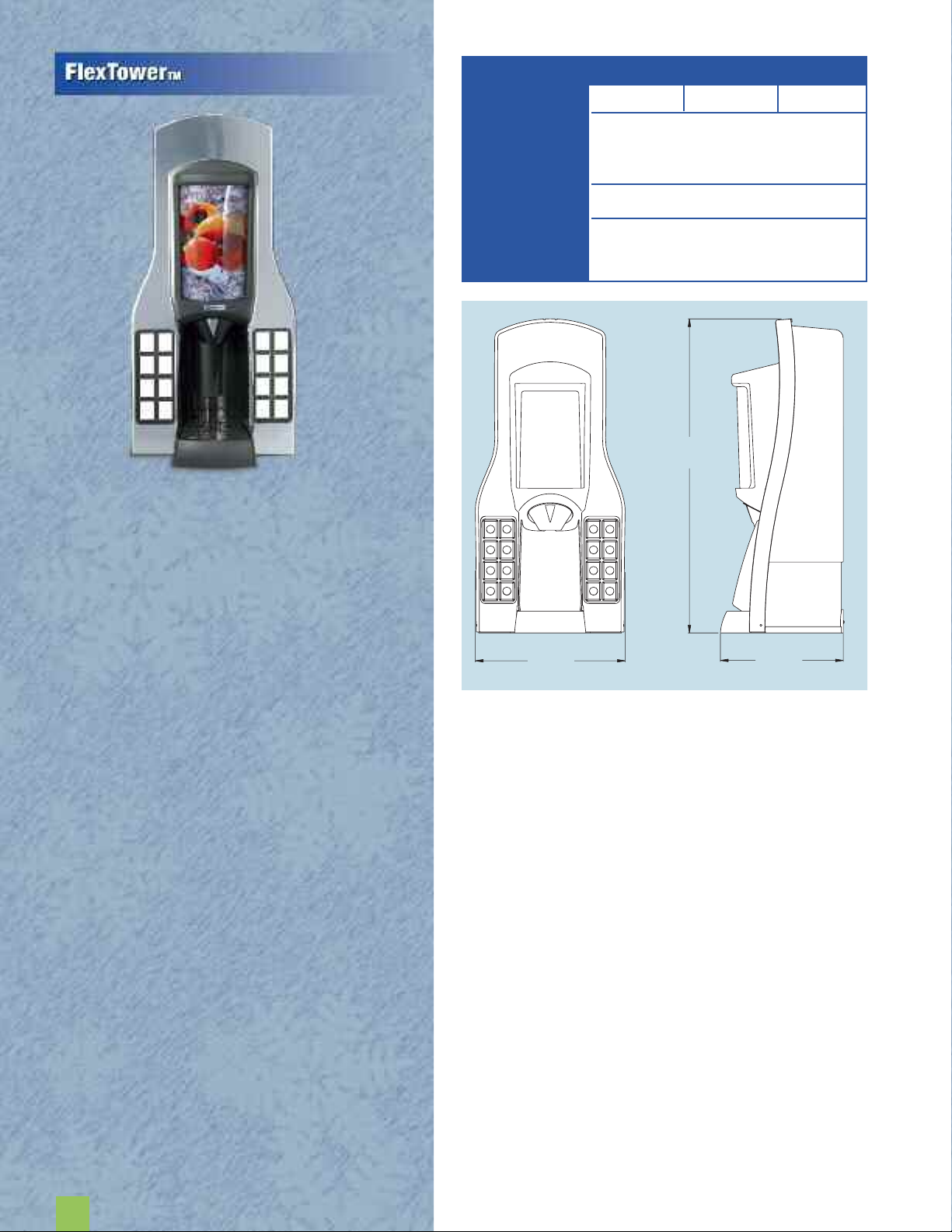

FT-8 FT-12 FT-16
FlexTowerTMmulti-flavor beverage
dispenser capitalizes on current
flavor enhancement trend with
customized fountain flavors
and products. Small footprint
maximizes valuable counterspace.
Dispenses either all noncarbonated post-mix beverages
or a combination of beverages and
flavor enhancements. Backlighted
merchandiser and flashing keypad
lights create visual appeal.
Standard Features
Electrical Requirements
Options
Lighted merchandiser, flashing programmable
touchpad LED's; integrated drain pan;
removable splash shield.
120 Volts/60Hz/2.5 FLA
Servend Ice Beverage dispenser cooling coil
options and remote refrigeration cooling
options available.
14
Width Depth
Height
Standard Features
Electrical Requirements
Options
Specifications
CT-6 CT-8
Flomatic 464 GP beverage valves.
Lighted dual-view merchandiser,
“Quench Your Thirst” graphics and key switch.
120V/60Hz / 2.4 FLA 120V/60Hz / 3.2 FLA
Drop-in lightbox, splash guards
and other beverage valves available.
Unit Width Depth Height
CT-6
CT-8
17" 14.25" 22.50"
43.18 cm 36.19 cm 57.15 cm
25" 15.50" 22.85"
63.50 cm 39.37 cm 58.04 cm
CT Series countertop tower
allows easy addition of fountain
beverages to limited-space
applications. Lighted, dual-view
merchandiser promotes sales.
Tower is perfect for individual
specialty beverage applications
such as non-carbonated drinks.
Stainless steel construction makes
this unit durable, attractive, and
easy to clean.
15
8.94"
(22.71 cm)
2.38"
(6.05 cm)
16.88"
(42.88 cm)
7.19"
(18.26 cm)
8.38"
(21.29 cm)
17.70"
(44.96 cm)
Specifications
Dimensions
Electrical
Requirements
Cup Clearance
Product Flavors
Material
Valve Options
7.19" W x 8.94" D x 17.70" H
18.26 W x 22.71 D x 44.96 H (cm)
24V AC / 2.4 Amps / Remote mount
8.38" (21.29 cm)
2
Stainless steel
Valve type must be specified
Push Lever Valve: Item #2703329
Push Button Valve: Item #2703315
Catch the current trend in beverage
dispensing–customized fountain
flavors and products. Compact size
of Flavor Shot Tower works great
in limited space areas, providing
multiple placement opportunities,
and simplifying integration with
current fountain equipment. Non-tip
base design for either permanent or
portable installation. Push lever or
push button option.
16
18.625"
16.875"
8
.5625"
7.176"
9.9375"
8
.57"
21.75 cm
7.19"
18.26 cm
16.89"
42.86 cm
18.61"
47.31 cm
3.05"
7.62 cm
8.94"
22.71 cm
Specifications
Standard Features
Electrical
Requirements
Cup Clearance
Product Flavors
2 McCann dual flavor valves (at 1.5-3 oz/sec),
key switch, pre-installed water and syrup lines
with 1/4" barbed fittings, 6' drain kit
24V / 2.4 Amps
8.5" (21.6 cm)
Two valve, four flavor push button or two valve,
two flavor Flomatic lever valves
Servend’s two valve, four flavor
beverage tower has a flexible
design to provide convenient
non-carb flavor options. The tower
is also front and top serviceable.
Two valve, two flavor option is
also available. The tower’s
compact size works great in
limited space areas, providing
multiple placement opportunities.
17
DI-1522-6SL
Servend Drop-in Series offers
maximum beverage cooling capacity
in post-mix and pre-mix models.
Quick, easy install cold plate inlets
and drain connections simplify
pre-plumbing and
installation. Includes
dual-view merchandiser
light kit.
DI-2323-8SL
Stainless steel drop-in cabinet
stands are designed to provide
versatility and flexibility in the
placement of DI-1522, DI-2323,
and DIL-2323 drop-in dispensers.
CS-2323
with DI-2323
CS-2323
Freestanding
Ice Chest
Drop-in
Ice Chest
Stainless steel construction
ensures long life and durability.
Base cutouts simplify plumbing
and electrical routing. Includes
6" (15.24 cm) leg set.
18
C
B
D
A
CS-1522
C
B
D
A
CS-2323
Height With
M
erchandiser
Under
Countertop
Height
Without
Merchandiser
D
epth
a
t
Bezel
Width
at Bezel
W
idth
Under Counter
D
epth
Under Counter
F
G
H
I
Standard Features
Ice Storage Capacity
Electrical
Requirements
Valves
Options
Specifications
DI-1522 DI-2323 DIL-2323
Dual-view merchandiser, light kit.
“Quench Your Thirst” graphics, key switch and drain kit.
Up to 65 lbs. Up to 77 lbs. Up to 97 lbs.
29 kgs. 35 kgs. 44.1 kgs.
120V/60Hz/2.4FLA 120V/60Hz/3.2FLA
220V/50Hz/1 220V/50Hz/1
lso available also available
a
Flomatic 464GP valves are available in sanitary lever,
push button, portion control and automatic fill valves.
Valve lockout switch on ice bin door available.
Other valves available, contact factory for details.
Drop-in tower light box and splash guards.
Specifications
DI-1522 DI-2323 DIL-2323
Width 15.00" 23.00" 23.00"
(Under counter) 38.10 cm 58.40 cm 58.40 cm
Depth 22.00" 23.00" 23.00"
(Under counter) 55.88 cm 58.40 cm 58.40 cm
Height without 16.38" 16.875" 16.875"
merchandiser 41.61 cm 42.86 cm 42.86 cm
Height with 22.38" 22.75" 22.75"
merchandiser 56.85 cm 57.79 cm 57.79 cm
Under 23.54" 18.00" 21.50"
countertop 59.79 cm 45.72 cm 54.61 cm
Unit
CS-1522
CS-2323
Width Depth Height Height
(A) (D) (B) (C)
17.25" 24.25" 30" 36"
43.82cm 62.23 cm 76.20cm 91.44cm
25" 25" 30" 36"
63.50cm 63.50 cm 76.20cm 91.44cm
Ice Storage Capacity
Cold Plate Fittings
Options
Ice Storage Capacity
Cold Plate Fittings
Options
Model 1522 Freestanding or Drop-in Ice Chest
60 lbs. / 27.27 kgs.
3/8" (.95 cm) barbed (all)
Available with seven circuit pre-mix cold plate;
or eight circuit post-mix cold plate.
Specifications
Model 2123 Freestanding or Drop-in Ice Chest
80 lbs. / 36.36 kgs.
3/8" (.95 cm) barbed (all)
Available with seven circuit pre-mix cold plate;
or with nine circuit post-mix cold plate.
Model 1522
60 Lb. (27.2 kg) Capacity
A 24.29" (61.80 cm)
B 17.25" (43.89 cm)
C 14.25" (36.2 cm)
D 22.00" (55.88 cm)
E 15.00" (38.1 cm)
Model 2123
80 Lb. (36.28 kg) Capacity
A 25.303" (64.38 cm)
B 23.30" (59.29 cm)
C 14.25" (36.2 cm)
D 23.00" (58.42 cm)
E 21.00" (53.34 cm)
Drop-in
Freestanding
Model 1522
60 Lb. (27.2 kg) Capacity
F 22.00" (55.88 cm)
G 15.00" (38.1 cm)
H 14.25" (36.2 cm)
I 19.43" (49.45 cm)
Model 2123
80 Lb. (36.28 kg) Capacity
F 23.00" (58.42 cm)
G 21.00" (53.34 cm)
H 14.25" (36.2 cm)
I 19.43" (49.45 cm)
19
These post-mix countertop
Width
Depth
Height
Drain Pan to
Valve Height
electric beverage dispensers offer
maximum beverage cooling and
customer-satisfying quality. The
CEV Series is designed for quick,
easy installation with front and top
access to all major components.
Standard Features
Dimensions
Cup Clearance
Exterior Body
Exterior Bonnet
Water Tank
Valves
Electrical
Requirements
Ice Bank Control
Compressor
Refrigerant
Refrigerant Deck
Carbonation Deck
Ice Bank Size (Nominal)
Options
Specifications
CEV-30 CEV-40
with internal with internal
carbonation system carbonation system
Key switch, 3/8" (0.95 cm) barbed fittings,
Flomatic 424 beverage valves, 4" (10.16 cm) adjustable
legs, drain kits and integral cold carbonator
CEV-30: 20.50" W x 28.16" D x 29.88" H
52.07 W x 71.54 D x 75.90 H (cm)
CEV-40: 25.75" W x 28.16" D x 29.88" H
65.41 W x 71.54 D x 75.90 H (cm)
11.77" (29.88 cm) height from grid to valve nozzle
Replaceable stainless steel panels
Replaceable injection molded ABS plastic
Polyethylene double wall rotocast, foam-filled
6 Flomatic post-mix valves 8 Flomatic post-mix valves
120V/60Hz/8.2FLA • 208-230V/60Hz/1 (export).
Consult factory for options
Consolidated circuit board with pump and compressor
protection capabilities
Tecumseh 1/3 HP
R-134a
Independent lift out
Independent lift out
30-32 lbs. / 13.61-14.51 kgs.
Flomatic valves are available in sanitary lever, push button,
and portion control. Other valves available. Lighted
merchandiser, external carbonator configuration available.
20
Drain Pan
Unit Width Depth Height Height
CEV30
CEV40
20.50" 28.16" 29.88" 11.77"
52.07 cm 71.54 cm 75.90 cm 29.88 cm
25.75" 28.16" 29.88" 11.77"
65.41 cm 71.54 cm 75.90 cm 29.88 cm
to Valve
Width
Depth
Height
Drain Pan to
Valve Height
Specifications
Standard Features
Exterior Body
Exterior Bonnet
Water Tank
Valves
Electrical
Requirements
Ice Bank Control
Compressor
Refrigerant
Refrigerant Deck
Ice Bank Size (Nominal)
Options
Key switch, 3/8" (0.95 cm) barbed fittings,
Flomatic 424 juice valves, 4" (10.16 cm) black metal
adjustable legs, drain kits and lighted merchandiser
Replaceable stainless steel panels
Injection molded ABS plastic
Double wall rotocast, foamed in place polyethylene
6 Flomatic 424 post-mix juice valves
120V/60Hz/1ph (domestic) • 208-230V/60Hz/1
export) • 220-240V/50Hz/1ph (export)
(
Consolidated circuit board with
compressor protection capabilities
Tecumseh 1/3 HP
R-134a
Lift out
30-32 lbs. / 13.61-14.51 kgs.
Flomatic 424 valves are available in
sanitary lever and push button.
The CEVj-30 post-mix countertop
electric juice dispenser has
enhanced design aesthetics
with modular assembly including
angled wrap-around illuminated
merchandiser. Easy to service
with quick access to air filter for
cleaning. Also features easy slide
on/off drain pan.
Drain Pan
Unit Width Depth Height Height
CEV30
20.50" 28.16" 29.88" 11.77"
52.07 cm 71.54 cm 75.90 cm 29.88 cm
to Valve
21
Height
DepthWidth
S-150 with
water valve
option
S-200
Standard Features
Ice Storage Capacity
Electrical
Requirements
Ice Machine
Compatibility
Options
Specifications
S-150 S-200 S-250
Lighted merchandiser, Ice graphics, leg kit, and drain
kit.
Up to 150 lbs. Up to 200 lbs. Up to 250 lbs.
68 kgs. 91 kgs. 114 kgs.
Dispenser: 120V/60Hz/2.8FLA.
220V/50Hz/1 also available.
Manual fill or top-mount with compatible ice machines.
Contact MBE for adapter kit requirements for
top-mounted ice machine applications.
Flomatic water valve. Side splash panels. Flomatic 424
and 464 beverage valves, available in sanitary lever,
push button, portion control and autofill valve.
S-250 with
water valve
option and
Manitowoc
S450 ice
machine
Servend's S-Series ice dispensers
feature a no-hassle one-piece
structural base, strengthened
drive train, and modular design,
all resulting in a more durable
ice dispenser. Surround view
TM
merchandiser with attractive “ice”
graphics draws customer attention.
Unit Width Depth Height
S-150
S-200
S-250
Height dimension without full lid.
Add .50" (1.27 cm) for full lid.
23.00" 31.13" 34.88"
58.42 cm 79.07 cm 88.6 cm
30.00" 31.13" 34.88"
76.2 cm 79.07 cm 88.6 cm
30.00" 31.13" 40.88"
76.2 cm 79.07 cm 103.8 cm
22
Width
Height
Depth
Specifications
M-45 M-90
Standard Features
Ice Storage Capacity
Electrical
Requirements
Ice Cube Compatibility
Service
Options
M-45 and M-90 ice dispensers will not accommodate a top-mounted ice
machine. Manual fill only. Beverage valves are not available on M-45 and
M-90 ice dispensers.
Stainless steel exterior cabinet with merchandiser and
“Ice” sign, push lever ice dispense.
Up to 45 lbs. / 20 kgs. Up to 90 lbs. / 41 kgs.
120V/60Hz/2.5 FLA,
220V/50Hz/1 also available
Dispenses any size cube ice up to one inch
square and some compacted flake forms.
Flake ice is not recommended.
Motor, drain, and electrical connections
are front serviceable.
Lighted merchandiser, 4" (10.17 cm) leg kit, extended
splash panel and push button ice dispense.
M-45
Unit Width Depth Height
M-45
M-90
15.00" 28.00" 24.25"
38.10 cm 71.10 cm 61.60 cm
15.00" 28.00" 32.00"
38.10 cm 71.10 cm 81.30 cm
M-90
Servend’s ice dispenser's simple
design, upfront serviceability and
quality construction, ensures
long equipment life. Patented
paddle- wheel ice dispenser
technology maximizes counter
space and allows more ice to be
dispensed from the bin. Push
lever or push button ice dispense
available.
23
424
Portion
Control
424
Push Button
Model Number
Dimensions
Mounting Blocks
Shipping
Options
Model Number
Dimensions
Mounting Blocks
Shipping
Options
Specifications
Sanitary Push Lever
424-CF-E36-1521
2.5" W x 4.5" D x 9" H
6.35 x 11.43 x 22.86 cm
380-Q / 372-Q
32 valves per box.
Mounting blocks sold and packed separately.
Add-a-Lever; field conversion
options available for push button,
portion control and automatic fill
lever; manual option available.
Push Button
424-CF-S36-1525
2.5" W x 4.5" D x 4.75" H
6.35 x 11.43 x 12.07 cm
380-Q / 372-Q
32 valves per box.
Mounting blocks sold and packed separately.
Add-a-Lever; field conversion options
available for sanitary push lever,
portion control and automatic fill lever.
424
Sanitary
Push
Lever
Proven Design Delivers
Consistent Drink Quality
1.5 - 3.0 ounce per second flow rate
424
Automatic
Fill Lever
Model Number
Dimensions
Mounting Blocks
Shipping
Options
Model Number
Dimensions
Mounting Blocks
Shipping
Options
Portion Control
424-CF-P36-1500
2.5" W x 5" D x 5.125" H
6.35 x 12.7 x 13.02 cm
380-Q / 372-Q
32 valves per box.
Mounting blocks sold and packed separately.
Add-a-Lever; field conversion options
available for sanitary push lever, push
button, automatic fill lever.
Automatic Fill Lever
424-CF-A36-1521
2.5" W x 4.5" D x 10.5" H
6.35 x 11.43 x 26.04 cm
380-Q / 372-Q
32 valves per box.
Mounting blocks sold and packed separately.
Add-a-Lever; field conversion
options available for sanitary
push lever, push button and
portion control.
24
Flomatic Valve Warranty
2-year parts only.
Model Number
Dimensions
Mounting Blocks
Shipping
Options
Model Number
Dimensions
Mounting Blocks
Shipping
Options
Specifications
Sanitary Push Lever
464-CF-E36-1621
2.5" W x 5.625" D x 9" H
6.35 x 11.49 x 22.86 cm
380-Q
32 valves per box.
Mounting blocks sold and packed separately.
Add-a-Lever; field conversion
options available for push button,
portion control and automatic fill
lever; manual option available.
Push Button
464-CF-S36-1625
2.5" W x 5.625" D x 9" H
6.35 x 11.49 x 22.86 cm
380-Q
32 valves per box.
Mounting blocks sold and packed separately.
Add-a-Lever; field conversion options
available for sanitary push lever,
portion control and automatic fill lever.
464-GP
Push Button
464-GP
Portion
Control
Model Number
Dimensions
Mounting Blocks
Shipping
Options
Model Number
Dimensions
Mounting Blocks
Shipping
Options
Portion Control
464-CF-P36-1600
2.5" W x 5.625" D x 9" H
6.35 x 11.49 x 22.86 cm
380-Q
32 valves per box.
Mounting blocks sold and packed separately.
Add-a-Lever; field conversion options
available for sanitary push lever, push
button, automatic fill lever.
Automatic Fill Lever
464-CF-A36-1621
2.5" W x 5.625" D x 12.375" H
6.35 x 11.49 x 30.48 cm
380-Q
32 valves per box.
Mounting blocks sold and packed separately.
Add-a-Lever; field conversion
options available for sanitary
push lever, push button and
portion control.
464-GP
Automatic
Fill Lever
464-GP
Sanitary
Push
Lever
Global Performance For
All Dispensing Applications
2.0 - 4.0 ounce per second flow rate
25
Stainless Steel & Black
6
"
(15. 2)
22.5"
(57 .2)
23"
(58.4)
6"
(15. 2)
2
1"
(
53.3)
24 "
(
61)
6"
(15.2)
26.5"
(67.3)
24"
(61)
14 "
(35.6)
22.5"
(5 7. 2)
24"
(61)
23"
(58.4)
25.125"
(63.8)
14 "
(35.6)
33"
(82.3)
13.125"
(33.3)
22.5"
(57.1)
CD4U Cup Dispensers
CD4U-L CD4U-R
CD2A-C
CD2X-C
Projecting a clean, high quality
image is part of any successful
foodservice program. Servend cup
dispensers help keep your hot or
cold drink serving area organized
by giving a uniform appearance
to the storage of cups and drink
accessory items.
CD3A-C
CD4A-C
CD4X-C
26
Manitowoc’s S-Series ice machines are the most
technologically advanced ice machines in the
market today. Innovations have been made in
sanitation, energy savings, reduction in noise
levels and ease of serviceability. No matter
what your ice volume needs are, there’s a
Manitowoc machine that will get the job
done. Manitowoc’s line of commercial ice
cube machines range in daily output from 45
lbs. (21 kgs.) up to 2,000 (908 kgs.) pounds.
Choose air, water, or remote air-cooled
condenser models producing dice,
and half dice size ice cube. Visit our website at
www.manitowocice.com to see why Manitowoc
is America’s number one selling ice machine.
w ww . m a n i t o w o c i c e . c o m
27
High quality, innovative solutions that fulfill all your “cold-side” needs.
Manitowoc Foodservice is comprised of eight brand names.
For beverage products – Servend, Multiplex, and McCann's;
for ice products – Manitowoc Ice;
and for refrigeration products – Kolpak, McCall, Harford, and Koolaire.
Visit us today at www.manitowocfoodservice.com
We are committed to protecting the
environment and its resources. For
up-to-date product data always view
an electronic version on our web site.
3954E ©2009 Manitowoc 11/09 Continuing productimprovement may necessitate change of specifications without notice.
MANITOWOC BEVERAGE
2100 Future Drive
Ph: 812-246-7000 • Fax: 812-246-7024
Sellersburg, IN 47172, USA
www.manitowocbeverage.com
Visit us online at
Loading...
