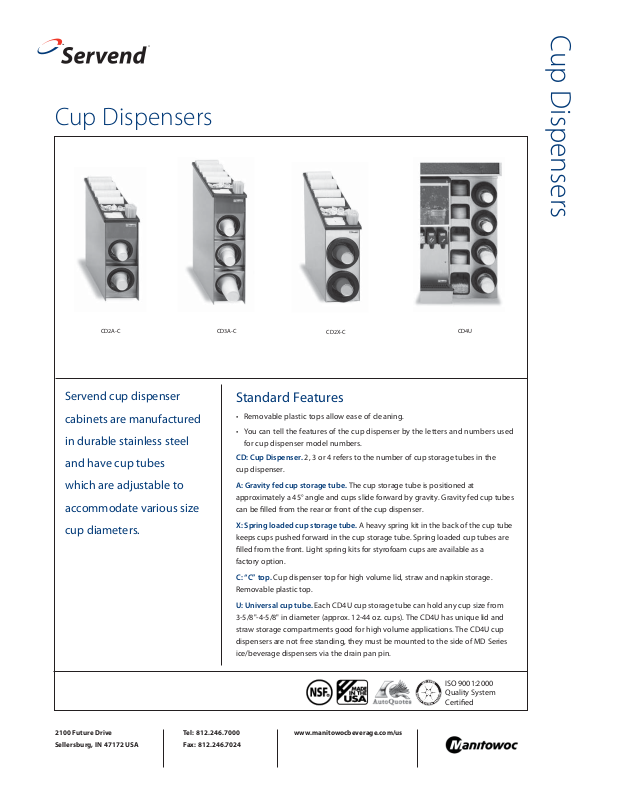

Servend CD2A-C User Manual

Cup Dispensers

CD2A-C

Servend cup dispenser

cabinets are manufactured

in durable stainless steel

and have cup tubes

which are adjustable to

accommodate various size

cup diameters.

CD3A-C

CD2X-C

CD4U

Standard Features

• Removable plastic tops allow ease of cleaning.

• You can tell the features of the cup dispenser by the letters and numbers used

for cup dispenser model numbers.

CD: Cup Dispenser. 2, 3 or 4 refers to the number of cup storage tubes in the

cup dispenser.

A: Gravity fed cup storage tube. The cup storage tube is positioned at

approximately a 45° angle and cups slide forward by gravity. Gravity fed cup tubes

can be  lled from the rear or front of the cup dispenser.

X: Spring loaded cup storage tube. A heavy spring kit in the back of the cup tube

keeps cups pushed forward in the cup storage tube. Spring loaded cup tubes are

 lled from the front. Light spring kits for styrofoam cups are available as a

factory option.

C: “C” top. Cup dispenser top for high volume lid, straw and napkin storage.

Removable plastic top.

U: Universal cup tube. Each CD4U cup storage tube can hold any cup size from

3-5/8"-4-5/8" in diameter (approx. 12-44 oz. cups). The CD4U has unique lid and

straw storage compartments good for high volume applications. The CD4U cup

dispensers are not free standing, they must be mounted to the side of MD Series

ice/beverage dispensers via the drain pan pin.

2100 Future Drive

Sellersburg, IN 47172 USA

Tel: 812.246.7000

Fax: 812.246.7024

ISO 9001:2000 Quality System Certi ed

www.manitowocbeverage.com/us

Cup Dispensers

(15.2)

21"

(53.3)

24"

(61)

Speci cations

Storage areas for lids, sugar, cream stirs and one 3.25"-3.625"

cup diameter, gravity cup tube (approx. 12-24 oz. cup) and one

CD2A-C

4"-4.75" cup diameter, gravity cup tube (approx. 20-46 oz. cup).

6" W x 24" D x 21" H / 15.2 W x 61 D x 53.3 H (cm)

Shipping weight: 21 lbs. / 9.5 kgs.

Storage areas for lids, sugar, cream stirs and one 2.75"-3.625"

cup diameter, heavy spring loaded cup tube (approx. 12-24 oz.

CD2X-C

cup) and one 3.25"-3.625" cup diameter, heavy spring

loaded cup tube (approx. 20-46 oz. cup).

6" W x 23" D x 22.50" H / 5.2 W x 58.4 D x 57.2 H (cm)

Shipping weight: 23 lbs. / 10 kgs.

Storage areas for lids, sugar, cream stirs and two 3.25"-3.625"

cup diameter, gravity cup tubes (approx. 12-24 oz. cup) and one

CD3A-C

4"-4.75" cup diameter, gravity cup tube (approx. 20-46 oz. cup).

6" W x 24" D x 26.50" H / 15.2 W x 61 D x 67.3 H (cm)

Shipping Wt: 27 lbs. / 12 kgs.

High volume lid, straw, napkin storage and four cup tubes (approx.

12-44 oz. cups 3.375"-4.625" cup diameter). Maximum 3.875"

CD4U

diameter for styrofoam cup. No special cup tube sizes available.

12.75" W x 22.50" D x 32" H / 32.4 W x 57.1 D x 81.3 H (cm)

Shipping weight: 38 lbs. / 17 kgs.

Light spring kit for gravity cup tubes (per tube).

Options

01-012-01LT

(Gravity

Feed Only)

01-012-01HY

Note: Cup diameters must be speci ed - measure diameter of top of cups. An additional charge applies to any

order placed with a non-standard cup tube set. Contact factory for details. Nonstandard, “special” cup dispensers

are NOT subject to cancellation.

Cup Tube Sizing Guide: To determine which cup dispenser tubes  t your cup sizes, measure the diameter

of the top of your cups. Because of various cup heights, cup ounce size is not an accurate sizing guide for cup

dispenser tubes.

For styrofoam cups.

Shipping weight: 2 lbs. / 1 kg.

Heavy spring kit for gravity cup tubes (per tube).

For paper cups and plastic cups.

Shipping weight: 2 lbs. / 1 kg.

CD4U-L

CD2A-C

CD2X-C

(15.2 cm)

CD3A-C

6.00"

(15.2 cm)

6.00"

23.00"

(58.4 cm)

24.00"

(61 cm)

(32.4 cm)

CD4U-R

12.75"

22.50"

(57.2 c

26.50"

(67.3 cm

32.00"

(81.3 cm

22.50"

(57.1 cm)
