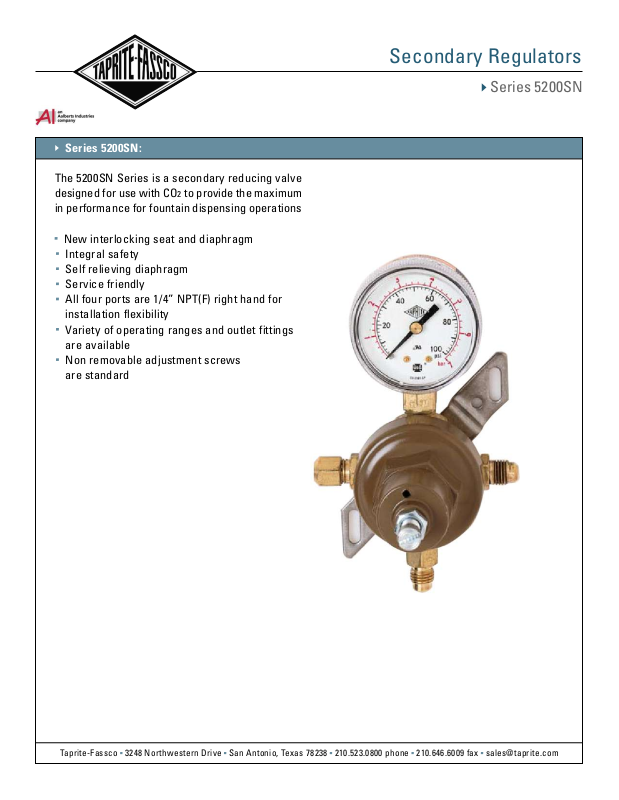

Series 5200SN:
The 5200SN Series is a secondary reducing valve
designed for use with CO2 to provide the maximum
in performance for fountain dispensing operations
New interlocking seat and diaphragm
Integral safety
Self relieving diaphragm
Service friendly
All four ports are 1/4” NPT(F) right hand for
installation flexibility
Variety of operating ranges and outlet fittings
are available
Non removable adjustment screws
are standard
Secondary Regulators
Series 5200SN
Taprite-Fassco 3248 Northwestern Drive San Antonio, Texas 78238 210.523.0800 phone 210.646.6009 fax sales@taprite.com
Front View
Side View
6”
(152.4mm)
4 1/4”
(108.0mm)
3 3/4”
(95.2mm)
Side View
6”
(152.4mm)
4 1/4”
(108.0mm)
Specifications - Regulator:
Secondary Regulators
Operating Ranges:
Series 5200SN
Test Pressure: 3300 psig (227.59 bar.)
Maximum Inlet Pressure: 3000 psig (206.90 bar.)
Operating Range: 0-100 psig (0-6.90 bar.)
Temperature Range: -40°F / +200°F (-40°C / 93°C)
Safety: Preset 130 psig (8.97 bar.)
Mounting: Wall Mount
HP Ports: 1/4” FPT - Right
LP Ports: 1/4” FPT - Right
0-30 psig (0-2.07 bar.)
0-60 psig (0-4.14 bar.)
0-100 psig (0-6.90 bar.)
0-130 psig (0-8.97 bar.)
Note: Adjustment range of regulator is determined by the
downstream pressure guage installed.
Available in a variety of operating ranges and configurations
Taprite-Fassco 3248 Northwestern Drive San Antonio, Texas 78238 210.523.0800 phone 210.646.6009 fax sales@taprite.com
5200SN
A
y
)
)
g
y
g
y
y
g
g
y
Index Item Description
1 440-2PA Gold Reg. Bonnet S/A
2 440-8C Spring Retainer
3 440-7H Spring High Pressure Red
4 440-9N
5 7700-6E Diaphragm Assemb
6 624-1 0-100# Air Guage
7 5153B (2
8 2104 Flare Washer
9 5232B Brass 1/4" FAE Cap
10 5217-3850-6212 5/16" Locking Washer
11 1690-3S Bolt Hex Head 5/16 x 18 3/8
12 1690-2N-1 Mountin
13 440SN-2N Safety Cap
14 440SN-4N HP Safet
15 5740-1902 HP Safety Retainer
16 440-1901A Safet
17 5436 1/4" Outlet Sitting with Check
18 1690SN-1 Re
19 440-5 Stem Sprin
20 7700-3C Seat Assemb
cetal Bonnet Gasket
Fitting 1/4" SAE(M) x1/4 NPT (M
Bracket
Sprin
Stem Assembl
ulator Body Machined
