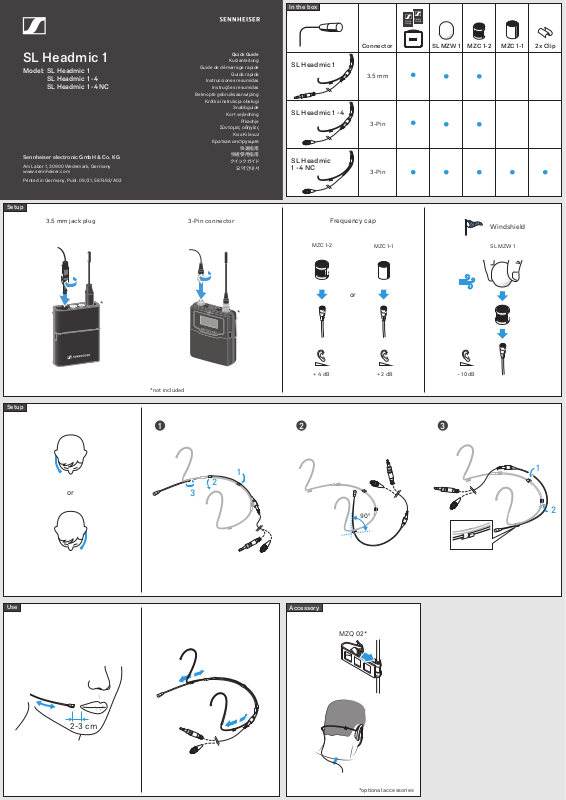

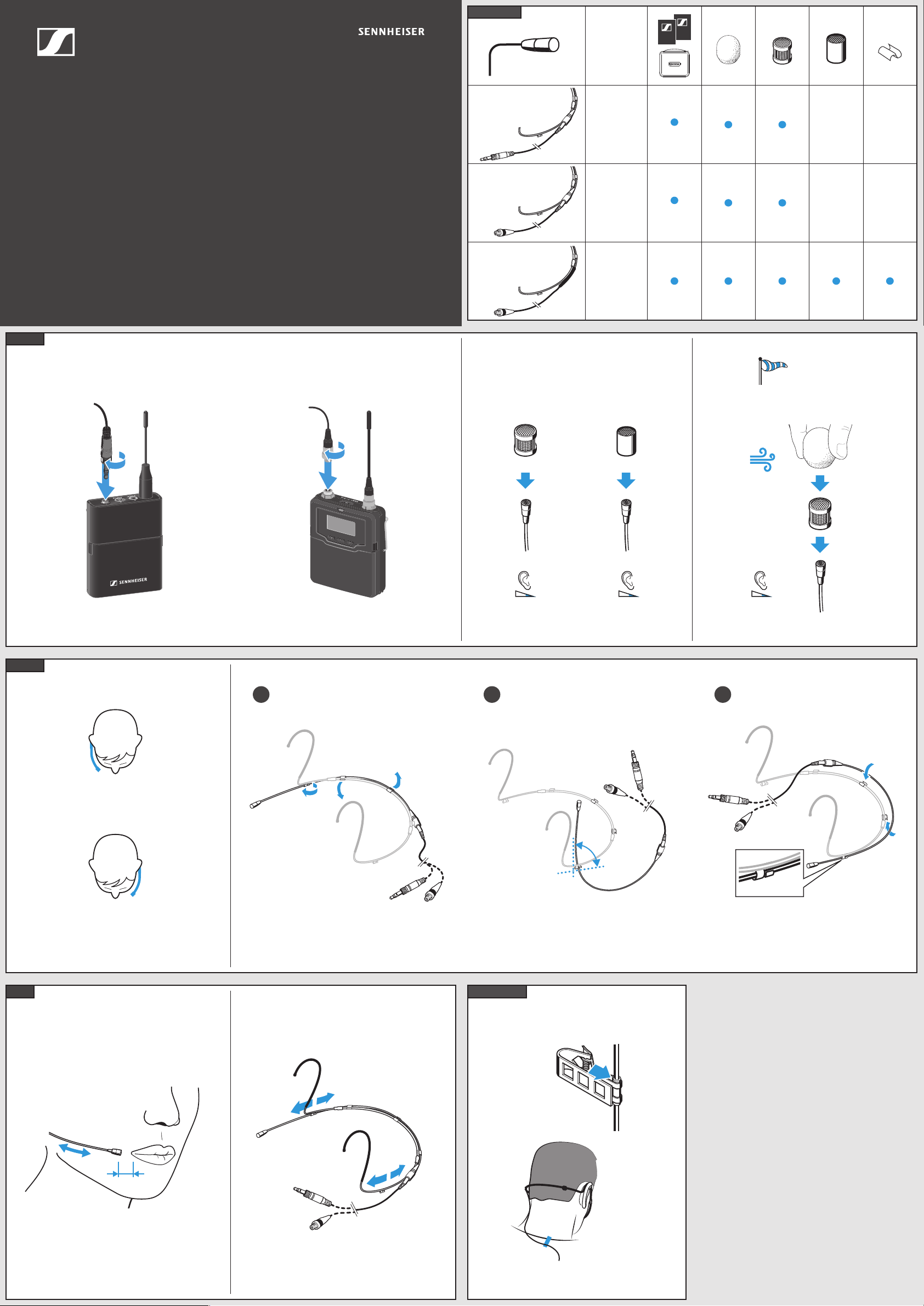

Page 1
In the box
Quick
Guide
Safety
Guide
SL Headmic 1
Model: SL Headmic 1
SL Headmic 1 -4
SL Headmic 1 -4 NC
Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com
Printed in Germany, Publ. 09/21, 587492/A02
Setup
Quick Guide
Kurzanleitung
Guide de démarrage rapide
Guida rapida
Instrucciones resumidas
Instruções resumidas
Beknopte gebruiksaanwijzing
Krótka instrukcja obsługi
Snabbguide
Kort vejledning
Σύντομες οδηγίες
Kısa Kılavuz
Краткая инструкция
快速使用指南
クイック ガ イド
요약 안내서
3-Pin connector 3.5 mm jack plug
Pikaohje
快速指南
SL Headmic 1
SL Headmic 1 -4
SL Headmic
1 -4 NC
Frequency cap
Connector
3.5 mm
3-Pin
3-Pin
MZC 1-1MZC 1-2SL MZW 1 2x Clip
Windshield
Setup
MZC 1-2
MZC 1-1
SL MZW 1
or
*
*
+ 2 dB+ 4 dB
*not included
– 10 dB
1 2 3
Use
or
1
1
2
3
90°
Accessory
MZQ 02*
2
2-3 cm
*optional accessories

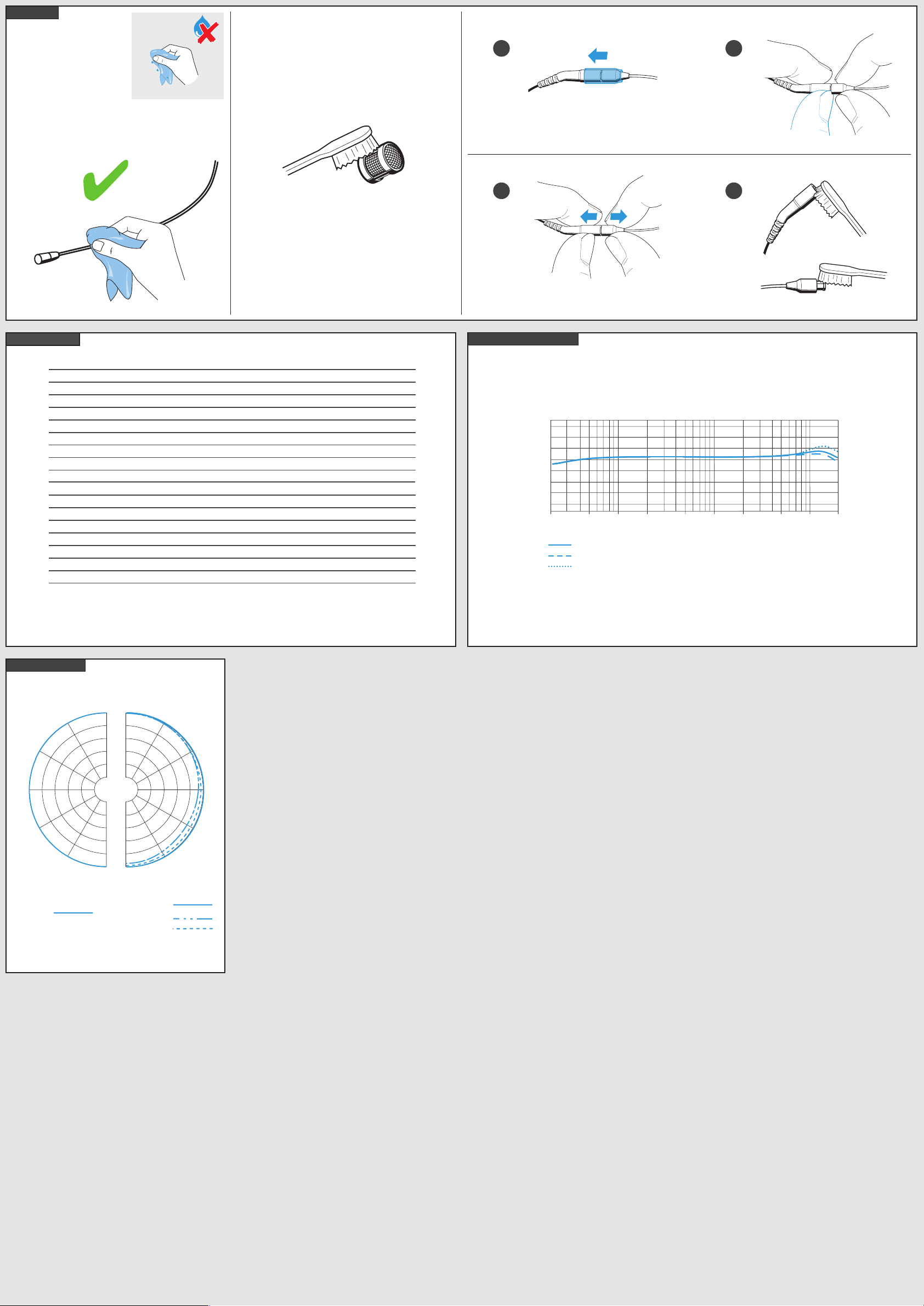

Page 2
Cleaning
Specifications
1
3
Frequency response
2
4
Frequency response
Pick-up pattern
Nominal impedance
Min. terminating impedance
Sensitivity
Diameter of mic capsule
Max. sound pressure level
Equivalent noise level
Supply current
Power supply
Operating temperature
Storage temperature
Relative humidity
Cable length
Diameter of boom arm
Weight (without cable)
Connector
Polar pattern
20 – 20,000 Hz ±3 dB
omni-directional
1 kΩ
4.7 kΩ
5 mV/Pa ±3 dB
3.3 mm
143 dB
27 dB(A)
approx. 240 µA
4.5 – 15 V
-10 °C to +50 °C
-20 °C to +70 °C
max. 95 %
1.6 m
1.1 mm
7 g
3.5 mm jack plug or 3-Pin connector
dBv
-35
-40
-45
-50
-55
-60
-65
-70
20
50
100
200
0°
90°
with MZC 2 fequency cap
500
1,000
2,000
5,000
10,000
Hz
20,000
60°
90°
120°
125 Hz
250 Hz
500 Hz
1000 Hz
30°
150°
0°
180°
0
5
10
15
20
25
dB
0°
30°
60°
90°
120°
150°
180°
2000 Hz
4000 Hz
8000 Hz
16000 Hz
