Sennheiser SKP 500 G4 User Manual
Instruction Manual
evolution wireless G4
500 P series
Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany, www.sennheiser.com
ew 500 P G4 - v1.1
Overview 6
ew 500 P G4 series products 7
EK 500 G4 diversity receiver 8
SKM 500 G4 handheld transmitter 9
SK 500 G4 bodypack transmitter 10
SKP 500 G4 plug-on transmitter 11
Accessories 12
Microphones and cables 12
Microphone modules 12
Headset and Lavalier microphones 13
Line connecting cable 13
Rechargeable battery and charger 14
BA 2015 rechargeable battery 14
L 2015 charger 14
Accessories for camera mounting 15
CA 2 camera adapter 15
Additional accessories 16
Color labeling set 16
Microphone clamp 16
The frequency bank system 17
Installing ew 500 P G4 series devices 18
Installing the EK 500 G4 19
Inserting and removing the batteries/rechargeable batteries 19
Battery status 20
Connecting headphones to the EK 500 G4 21
Attaching the diversity receiver to a camera 22
Connecting the diversity receiver to a camera 24
Installing the SKM 500 G4 25
Inserting and removing the batteries/rechargeable batteries 25
Battery status 26
Replacing the microphone module 27
Changing the colored ring 28
Installing the SK 500 G4 29
Inserting and removing the batteries/rechargeable batteries 29
Battery status 30
Connecting a microphone to the SK 500 G4 31
Connecting an instrument or line source to the
SK 500 G4 32

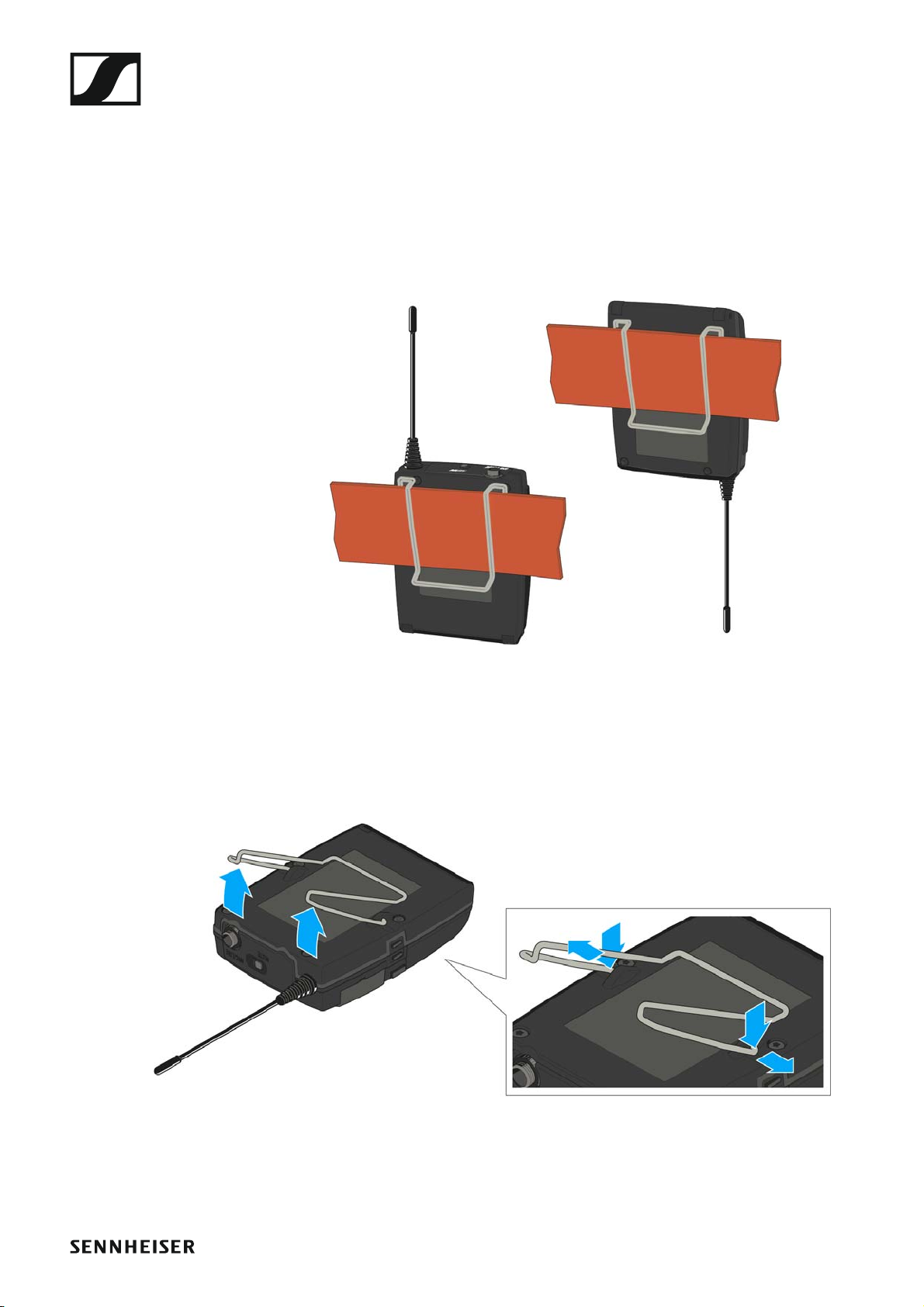

Attaching the bodypack transmitter to clothing 33
Installing the SKP 500 G4 34
Inserting and removing the batteries/rechargeable batteries 34
Battery status 35
Attaching the plug-on transmitter to the microphone 36
Using ew 500 P G4 series devices 37
Using the EK 500 G4 39
Operating elements of the EK 500 G4 diversity receiver
1
39
Switching the EK 500 G4 on and off 41
Volume control of the PHONES socket 42
Lock-off function 43
Displays on the EK 500 G4 display panel 44
Buttons for navigating through the menu 44
Home screen 46
Frequency/Name standard display 46
Frequency Bank/Channel/Name standard display 47
Setting options in the menu 48
Menu structure 50
Sync menu item 51
Phones Volume menu item 51
Squelch menu item 52
Easy Setup menu item 54
Frequency Preset menu item 55
Name menu item 55
AF Out menu item 56
Auto Lock menu item 57
Advanced menu item 58
Advanced -> Tune menu item 59
Only adjusting the frequency 59
Setting the channel and frequency 59
Advanced -> Sync Settings menu item 60
Advanced -> Pilot Tone menu item 61
Advanced -> LCD Contrast menu item 61
Advanced -> Reset menu item 62
Advanced -> Software Revision menu item 62
Using the SKM 500 G4 63

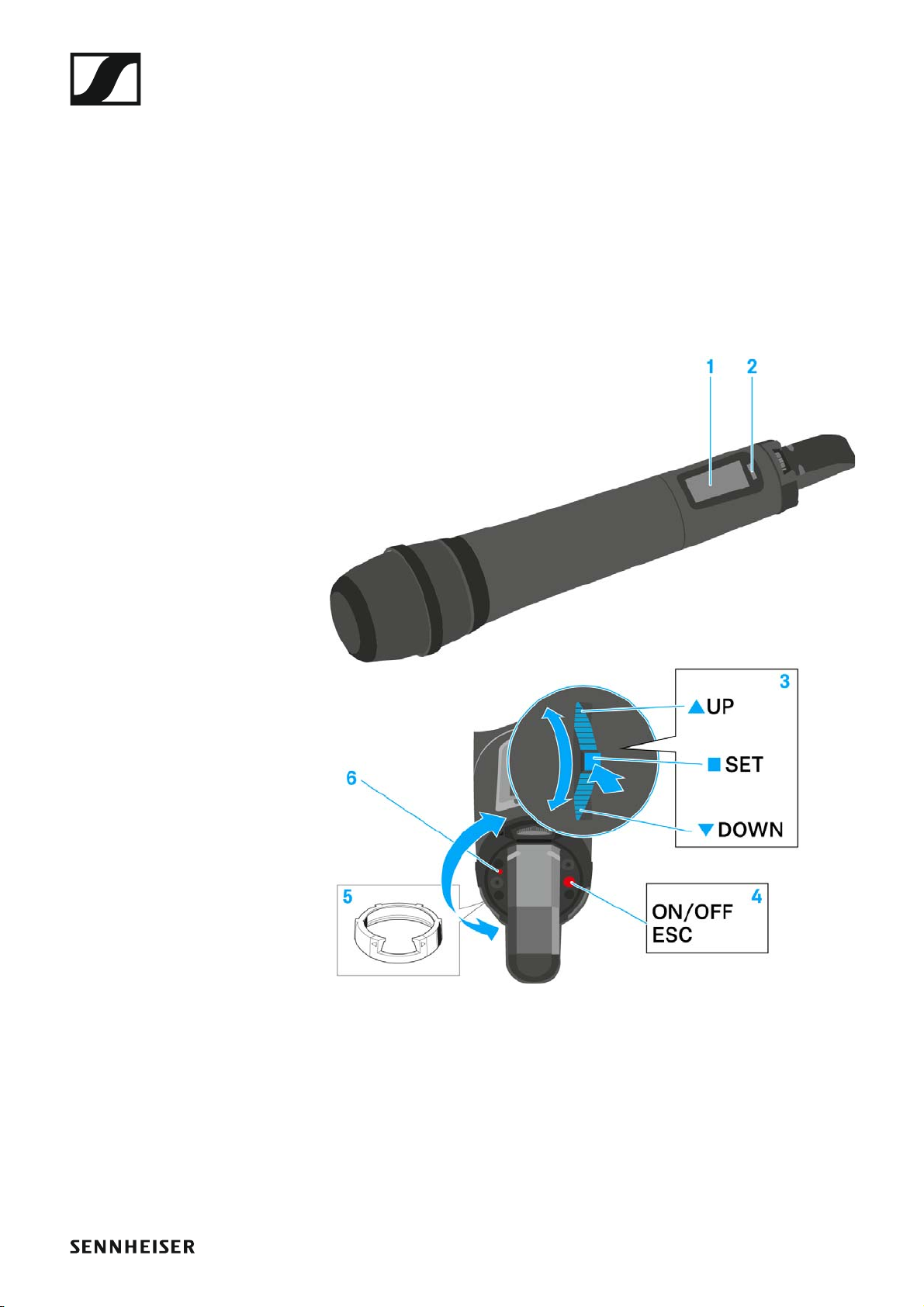

Operating elements of the SKM 500 G4 handheld transmitter 63
Switching the SKM 500 G4 handheld transmitter on and
off 64
Muting the handheld transmitter (AF mute) 65
Deactivating the RF signal (RF mute) 65
Lock-off function 66
Displays on the SKM 500 G4 handheld transmitter display panel 67
Select a standard display 68
Buttons for navigating the SKM 500 G4 menu 69
Navigating through the menu 69
Making changes in a menu item 69
Setting options in the menu 70
Sensitivity menu item 71
Frequency Preset menu item 71
Name menu item 72
Auto Lock menu item 72
Advanced menu item 73
Advanced > Tune menu item 74
Only adjusting the frequency 74
Setting the channel and frequency 74
Advanced > RF Power menu item 75
2
Advanced > Pilot Tone menu item 75
Advanced > LCD Contrast menu item 76

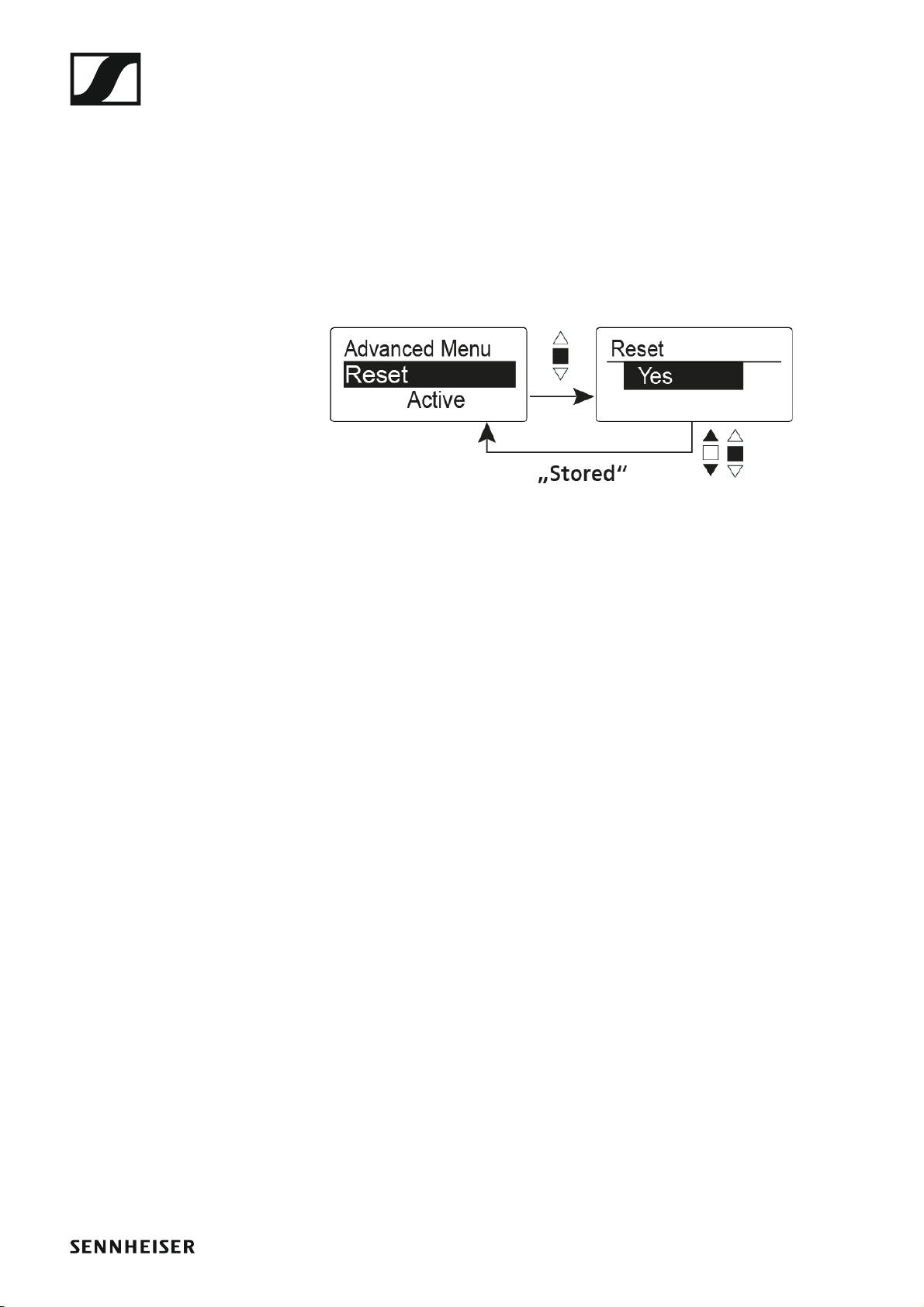

Advanced > Reset menu item 76
Advanced > Software Revision menu item 76
Using the SK 500 G4 77
Operating elements of the SK 500 G4 bodypack transmitter 77
Switching the SK 500 G4 bodypack transmitter on and
off 79
Muting the bodypack transmitter (AF mute) 80
Deactivating the RF signal (RF mute) 81
Deactivating the RF signal with the MUTE switch 81
Deactivating the RF signal with the ON/OFF button 82
Lock-off function 83
Displays on the SK 500 G4 bodypack transmitter display
panel 84
Select a standard display 85
Buttons for navigating the SK 500 G4 menu 86
Navigating through the menu 86
Making changes in a menu item 86
Setting options in the menu 87
Sensitivity menu item 88
Frequency Preset menu item 88
Name menu item 89
Auto Lock menu item 89
Advanced menu item 90
Advanced > Tune menu item 91
Only adjusting the frequency 91
Setting the channel and frequency 91
Advanced > Mute Mode menu item 92
Advanced > RF Power menu item 92
Advanced > Pilot Tone menu item 93
Advanced > LCD Contrast menu item 93
Advanced > Reset menu item 93
Advanced > Software Revision menu item 93
Using the SKP 500 G4 94
Operating elements of the SKP 500 G4 plug-on transmitter 94
Switching the SKP 500 G4 plug-on transmitter on and off
95
Muting the plug-on transmitter (AF mute) 96
Deactivating the RF signal (RF mute) 97
Deactivating the RF signal with the MUTE switch 97
Deactivating the RF signal with the ON/OFF button 98
Lock-off function 99
Displays on the SKP 500 G4 plug-on transmitter display
panel 100
Select a standard display 101
Buttons for navigating the SKP 500 G4 menu 102
Navigating through the menu 102
Making changes in a menu item 102
3
Setting options in the menu 103
Sensitivity menu item 104
Frequency Preset menu item 104
Name menu item 105
Auto Lock menu item 105
Advanced menu item 106
Advanced > Tune menu item 107
Only adjusting the frequency 107
Setting the channel and frequency 107
Advanced > Mute Mode menu item 108
Advanced > RF Power menu item 108
Advanced > Phantom Power 48V menu item 109
Advanced > Pilot Tone menu item 109
Advanced > LCD Contrast menu item 109
Advanced > Reset menu item 109
Advanced > Software Revision menu item 109
Establishing a radio link 110
Setting notes 110

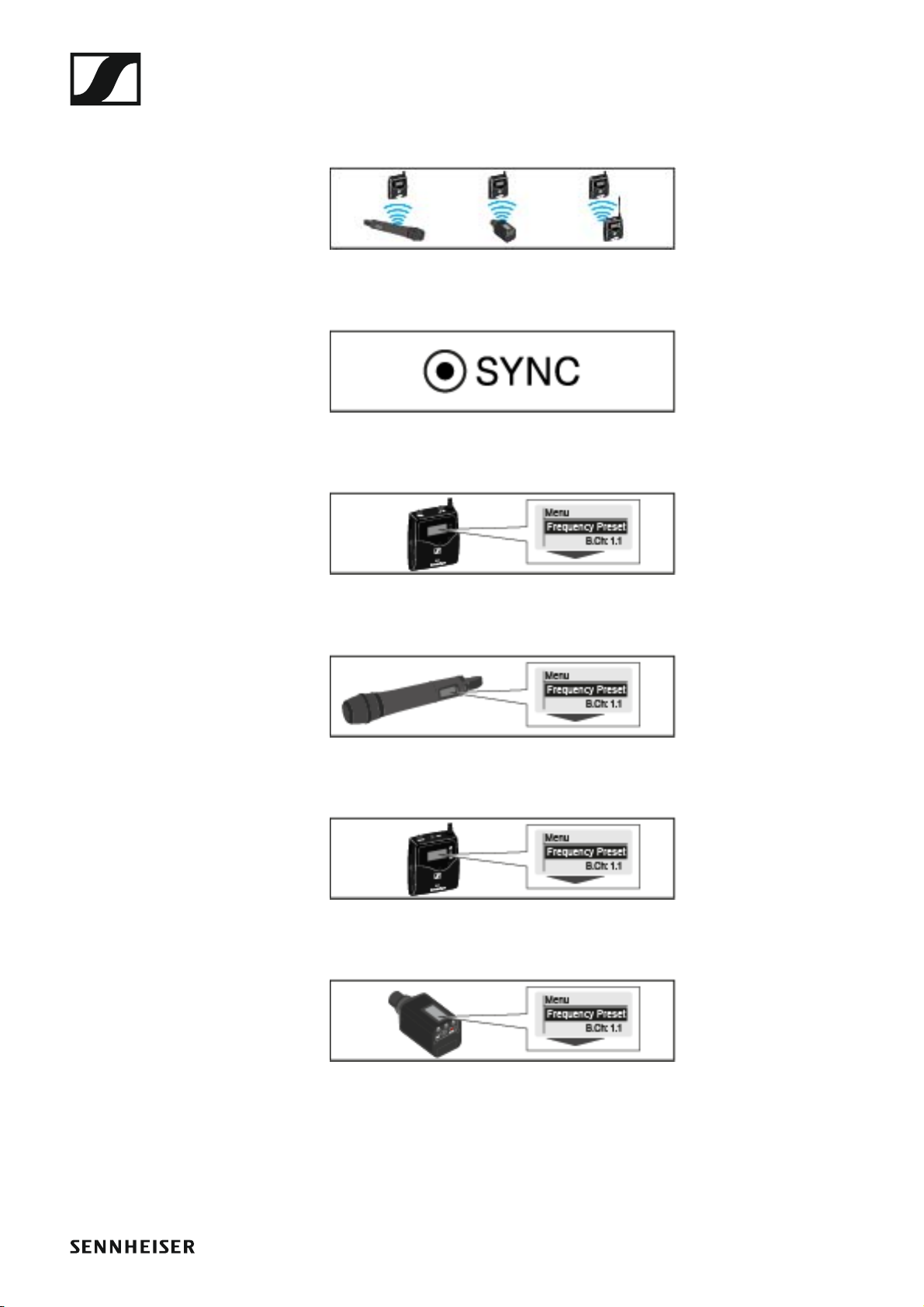

Synchronizing devices 111
Overview 112
Product variants 113
EK 500 G4 product variants 113
Made in Germany 113
Assembled in the USA 113
SKM 500 G4 product variants 114
Made in Germany 114
Assembled in the USA 114
SK 500 G4 product variants 115
Made in Germany 115
Assembled in the USA 115
SKP 500 G4 product variants 116
Made in Germany 116
Assembled in the USA 116
Frequency tables 117
Specifications 118
EK 500 G4 119
RF characteristics 119
AF characteristics 120
Overall device 120
SKM 500 G4 121
RF characteristics 121
AF characteristics 122
Overall device 122
SK 500 G4 123
RF characteristics 123
AF characteristics 124
Overall device 124
SKP 500 G4 125
RF characteristics 125
AF characteristics 126
Overall device 126
4
Pin assignment 127
3.5 mm stereo jack plug 127
3.5 mm mic jack plug 127
3.5 mm line jack plug 127
6.3 mm stereo jack plug, balanced (audio in/loop out)
127
6.3 mm mono jack plug, unbalanced 128
6.3 mm stereo jack plug for headphone jack 128
XLR-3 plug, balanced 128
Hollow jack plug for power supply 128
Cleaning and maintenance 129
Cleaning the sound inlet basket of the microphone mo-
dule 129
Contact 131
Instruction manual as a PDF 131
Customer service 131
Feedback 131
5
PRODUCT INFORMATION
Overview
Overview
You can find information about the individual products in the ew 500 P G4
series under “ew 500 P G4 series products”.
For information about the available accessories, see “Accessories”.
You can find information about the ew 500 P G4 series frequency bank
system under “The frequency bank system”.
6
ew 500 P G4 series products
ew 500 P G4 series products
Click the name of the particular product to learn more about it.
You can also find more information here:
• A variety of frequency variants are available from the individual products. You can find more information under “Product variants”.
• You can find technical specifications about the individual products under “Specifications”.
• You can find information about installing the products under “Installing
ew 500 P G4 series devices”.
• You can find information about operating the products under “Using
ew 500 P G4 series devices”.
7
EK 500 G4 diversity receiver
►
You can find more detailed information about the EK 500 G4 in the following sections:
• Installation and Startup: “Installing the EK 500 G4”
• Operation: “Using the EK 500 G4”
• Technical Data: “EK 500 G4”
8
SKM 500 G4 handheld transmitter
►
►
You can find more detailed information about the SKM 500 G4 in the following sections:
• Installation and Startup: “Installing the SKM 500 G4”
• Operation: “Using the SKM 500 G4”
• Technical Data: “SKM 500 G4”
9
SK 500 G4 bodypack transmitter
►
You can find more detailed information about the SK 500 G4 in the following sections:
• Installation and Startup: “Installing the SK 500 G4”
• Operation: “Using the SK 500 G4”
• Technical Data: “SK 500 G4”
10
SKP 500 G4 plug-on transmitter
►
You can find more detailed information about the SKP 500 G4 in the following sections:
• Installation and Startup: “Installing the SKP 500 G4”
• Operation: “Using the SKP 500 G4”
• Technical Data: “SKP 500 G4”
11
Accessories
Accessories
A variety of accessories are available for the ew 500 P G4 series.
Microphones and cables
Microphone modules
We recommend using the following microphone modules with the
SKM 500 G4 handheld transmitter.
►
Module Features Article
no.
MMD 835-1 BK Dynamic, cardioid, black 502575
MMD 845-1 BK Dynamic, super-cardioid, black 502576
MME 865-1 BK Capacitor, super-cardioid, black 502581
MMD 935-1 BK Dynamic, cardioid, black 502577
MMD 945-1 BK Dynamic, super-cardioid, black 502579
MMK 965-1 BK Capacitor, switchable
Cardioid/super-cardioid, black
MMK 965-1 NI Capacitor, switchable
Cardioid/super-cardioid, nickel
MMD 42-1 Dynamic, omni-directional, black 506772
MD 9235 BK Dynamic, cardioid, black 502585
MD 9235 NI Dynamic, cardioid, black 502586
MD 9235 NI/BK Dynamic, cardioid, nickel/black 502591
Neumann
KK 204
Neumann
KK 204 BK
Neumann
KK 205
Neumann
KK 205 BK
Capacitor, cardioid, nickel 008651
Capacitor, cardioid, black 008652
Capacitor, super-cardioid, nickel 008653
Capacitor, super-cardioid, black 008654
502582
502584
You can find more information about the individual microphone modules on their respective product pages at www.sennheiser.com.
12
Accessories
Headset and Lavalier microphones
We recommend using the following Lavalier microphones and headset microphones with the SK 500 G4 bodypack transmitter.
►
Microphone Features Article
no.
ME 2-II Lavalier microphone, omni-direc-
tional, black
ME 3-II Headset microphone, cardioid,
black
ME 4-N Lavalier microphone, cardioid,
black
MKE 1-ew Lavalier microphone, omni-direc-
tional, black
MKE 1-ew-3 Lavalier microphone, omni-direc-
tional, beige
MKE 2-ew Gold Lavalier microphone, omni-direc-
tional, black
MKE 40-ew Lavalier microphone, cardioid,
black
SL Headmic 1 BE Headband microphone, omni-di-
rectional,
beige
SL Headmic 1 BK Headband microphone, omni-di-
rectional,
black
507437
506295
005020
502876
502879
009831
500527
506272
506271
SL Headmic 1 SB Headband microphone, omni-di-
506904
rectional,
silver
You can find more information about the individual microphones on
their respective product pages at www.sennheiser.com.
Line connecting cable
The following cables can be used to connect cameras to the EK 500 G4 diversity receiver:
• CL 1
3.5 mm jack plug on lockable 3.5 mm jack plugs
Article no. 005022
• CL 500
XLR-3 on a 3.5 mm jack plug
Article no.
13
Accessories
Rechargeable battery and charger
BA 2015 rechargeable battery
The BA 2015 rechargeable battery is designed for use with evolution wireless G4 series handheld transmitters, bodypack transmitters and
bodypack receivers.
Article no. 009950
►
L2015 charger
The BA 2015 rechargeable battery can be charged in the L 2015 charger on
its own or inside of the bodypack transmitter/bodypack receiver.
Article no. 009828
►
14
Accessories
Accessories for camera mounting
CA 2 camera adapter
Camera adapter with hot shoe for portable receivers from the ew 100 P G4
and ew 500 PG4 series.
Article no. 009986
►
15
Additional accessories
Color labeling set
• KEN 2, color labeling set for SKM handheld transmitters
Article no. 530195
►
Accessories
Microphone clamp
• MZQ 1, microphone clamp for SKM handheld transmitters
Article no. 076670
►
16
The frequency bank system
The frequency bank system
There are different frequency ranges in the UHF band available for transmission.
The following frequency ranges are available for the ew 500 P G4 series:
• Aw+ range: 470 – 558 MHz
• AS range: 520 – 558 MHz
• Gw1 range: 558 – 608 MHz
• Gw range: 558 – 626 MHz
• GBw range: 606 – 678 MHz
• Bw range: 526 – 698 MHz
• Cw range: 718 – 790 MHz
• Dw range: 790 – 865 MHz
• JB range: 806 – 810 MHz
• K+ range: 925 – 937.5 MHz
Every frequency range has 26 frequency banks with up to 32 channels:
►
You can find information about the frequency presets in the frequency tables of the respective frequency ranges under “Frequency tables”.
17
Installing ew 500 P G4 series devices
INSTALLATION
Installing ew 500 P G4 series devices
You can find information about installing and connecting
ew 500 P G4 series devices in the following sections.
• EK 500 G4 diversity receiver >> “Installing the EK 500 G4”
• SKM 500 G4 handheld transmitter >> “Installing the SKM 500 G4”
• SK 500 G4 bodypack transmitter >> “Installing the SK 500 G4”
• SKP 500 G4 plug-on transmitter >> “Installing the SKP 500 G4”
You can find information about operating the products under “Installing ew 500 P G4 series devices”.
18
Installing the EK 500 G4
Installing the EK 500 G4
These sections contain detailed information about installing the
EK 500 G4.
You can find information about operating the EK 500 G4 under “Using the
EK 500 G4”.
Inserting and removing the batteries/rechargeable batteries
You can operate the diversity receiver either with batteries (AA, 1.5 V) or
with the rechargeable Sennheiser BA 2015 battery.
▷ Press the two catches and open the battery compartment cover.
▷ Insert the batteries or the rechargeable battery as shown below. Please
observe correct polarity when inserting the batteries.
►
▷ Close the battery compartment.
▷ The cover locks into place with an audible click.
19
Battery status
Charge status of the batteries:
►
Charge status is critical (LOW BATT):
►
Installing the EK 500 G4
20
Installing the EK 500 G4
Connecting headphones to the EK 500 G4
ATTENTION
Danger due to high volume levels
Volume levels that are too high may damage your hearing.
▷ Turn down the volume of the headphone output before you put on the
headphone.
To connect the headphones to the receiver:
▷ Insert the cable’s 3.5 mm jack plug into the PHONES socket on the re-
ceiver as shown in the diagram.
▷ Screw the plug’s coupling ring onto the audio socket thread of the re-
ceiver if needed.
21
Installing the EK 500 G4
Attaching the diversity receiver to a camera
You can attach the diversity receiver on the hot shoe of the camera with the
included CA 2 camera kit.
To attach the EK 500 G4 diversity receiver to a camera:
▷ Determine where on the perforated plate you need to attach the hot
shoe adapter so that the diversity receiver can be optimally attached to
the camera.
▷ Place a square nut under the perforated plate at this position.
▷ Affix the hot shoe adapter to the perforated plate with the square nut.
▷ Lift the belt clip.
▷ Press one side of the clip downward on the fixing hole and pull it out of
the housing.
▷ Do the same thing on the other side.
22
Installing the EK 500 G4
▷ Place the perforated plate on the rear side of the diversity receiver.
▷ Reattach the clip.
▷ Slide the receiver onto a camera.
23
Installing the EK 500 G4
Connecting the diversity receiver to a camera
To connect the diversity receiver to a camera:
▷ Attach the line input of the camera to the jack socket of the receiver us-
ing one of the enclosed line connecting cables.
▷ Adjust the level of the AF Out audio output in the operating menu of the
diversity receiver based on the input level of the camera (see “AF Out
menu item”).
The shielding of the line cable acts as an antenna for the second diversity branch. For details on the pin assignment, see “Pin assignment”.
24
Installing the SKM 500 G4
Installing the SKM 500 G4
These sections contain detailed information about installing and starting
up the SKM 500 G4.
You can find information about operating the SKM 500 G4 under “Using the
SKM 500 G4”.
Inserting and removing the batteries/rechargeable batteries
You can operate the wireless microphone either with batteries (AA, 1.5 V)
or with the rechargeable Sennheiser BA 2015 battery.
▷ Screw the rear part of the wireless microphone in the direction of the
arrow (counter-clockwise) off of the handle of the wireless microphone.
When you remove the wireless microphone during operation, mute is
automatically activated. MUTE appears in the display panel. When
you screw the microphone back together, mute is deactivated.
▷ Pull the rear part of the wireless microphone all the way out.
▷ Open the cover of the battery compartment.
▷ Place the batteries or the BA 2015 rechargeable battery in the battery
compartment as shown on the cover. Please observe correct polarity
when inserting the batteries/accupack.
▷ Close the cover.
▷ Push the battery compartment into the handle of the wireless micro-
phone.
▷ Screw the rear part of the wireless microphone back onto the handle.
25
Battery status
Charge status of the batteries:
►
Installing the SKM 500 G4
Charge status is critical (LOW BATT):
►
26
Installing the SKM 500 G4
Replacing the microphone module
You can find a list of the recommended microphone modules for the handheld transmitter under “Microphones and cables”.
To change the microphone module:
▷ Unscrew the microphone module.
▷ Screw the desired microphone module on.
►
Do not touch the wireless microphone contacts or the microphone
module contacts. If you touch the contacts, they may become dirty or
bent.
When you unscrew the microphone module during operation, mute is automatically activated. MUTE appears in the display panel. When you screw
the microphone module back on, mute is deactivated.
27
Installing the SKM 500 G4
Changing the colored ring
To change the colored ring:
▷ Pull the colored ring off as shown in the diagram.
►
▷ Attached a colored ring in the color you want as shown in the diagram.
►
28
Installing the SK 500 G4
Installing the SK 500 G4
These sections contain detailed information about installing and starting
up the SK 500 G4.
You can find information about operating the SK 500 G4 under “Using the
SK 500 G4”.
Inserting and removing the batteries/rechargeable batteries
You can operate the bodypack transmitter either with batteries (AA, 1.5 V)
or with the rechargeable Sennheiser BA 2015 battery.
▷ Press the two catches and open the battery compartment cover.
▷ Insert the batteries or the rechargeable battery as shown below. Please
observe correct polarity when inserting the batteries.
►
▷ Close the battery compartment.
The cover locks into place with an audible click.
29
