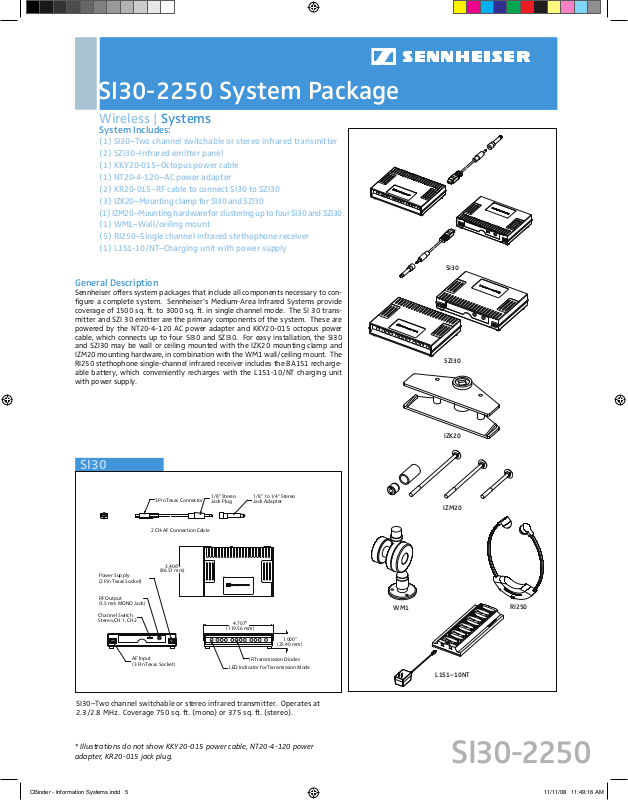

General Description
Sennheiser offers system packages that include all components necessary to configure a complete system. Sennheiser’s Medium-Area Infrared Systems provide
coverage of 1500 sq. ft. to 3000 sq. ft. in single channel mode. The SI 30 transmitter and SZI 30 emitter are the primary components of the system. These are
powered by the NT20-4-120 AC power adapter and KKY20-015 octopus power
cable, which connects up to four SI30 and SZI30. For easy installation, the SI30
and SZI30 may be wall or ceiling mounted with the IZK20 mounting clamp and
IZM20 mounting hardware, in combination with the WM1 wall/ceiling mount. The
RI250 stethophone single-channel infrared receiver includes the BA151 rechargeable battery, which conveniently recharges with the L151-10/NT charging unit
with power supply.
Wireless | Systems
System Includes:
(1) SI30–Two channel switchable or stereo infrared transmitter
(2) SZI30–Infrared emitter panel
(1) KKY20-015–Octopus power cable
(1) NT20-4-120–AC power adapter
(2) KR20-015–RF cable to connect SI30 to SZI30
(3) IZK20–Mounting clamp for SI30 and SZI30
(1) IZM20–Mounting hardware for clustering up to four SI30 and SZI30.
(1) WM1–Wall/ceiling mount
(5) RI250–Single channel infrared stethophone receiver
(1) L151-10/NT–Charging unit with power supply
SI30-2250 System Package
* Illustrations do not show KKY20-015 power cable, NT20-4-120 power
adapter, KR20-015 jack plug.
74.000"
(1879.60 mm)
13.000"
(330.20 mm)
2 Pin Texas Connector
NT92–120 Power Supply
LED Indicator
Trickle Charge
(Green)
Button:
Press to begin
10 HR charge cycle
LED Indicator
Charge (Red)
Charging for
RI250, HDI302
Infrared Receivers
(Up to ten)
1.500"
(38.10 mm)
LED Indicators
Bright=Normal charge
Dim=Trickle charge
Charging for
BA151 Battery
(Up to ten)
5.450"
(138.43 mm)
SI30
SZI30
IZK20
IZM20
WM1
L151–10NT
RI250
SI30–Two channel switchable or stereo infrared transmitter. Operates at
2.3/2.8 MHz. Coverage 750 sq. ft. (mono) or 375 sq. ft. (stereo).
SI30
3.406"
(86.51 mm)
4.707"
(119.56 mm)
1.000"
(25.40 mm)
IR Transmission Diodes
LED Indicator for Transmission Mode
AF Input
(3 Pin Texas Socket)
Channel Switch
Stereo, CH 1, CH 2
RF Output
(3.5 mm MONO Jack)
Power Supply
(2 Pin Texas Socket)
2 CH-AF Connection Cable
3 Pin Texas Connector
1/8" Stereo
Jack Plug
1/8" to 1/4" Stereo
Jack Adapter
SI30-2250
SZI30–Infrared emitter panel. Coverage 750 sq. ft. (mono) or 375 sq. ft.
(stereo).
SIZ30
3.406"
(86.51 mm)
Power Supply
(2 Pin Texas Socket)
RF Output
(3.5 mm MONO Jack)
AF Input
(3.5 mm MONO Jack)
4.707"
(119.56 mm)
1.000"
(25.40 mm)
IR Transmission Diodes
LED Indicator for Transmission Mode
SI30-2250 System Package
IZK20–Mounting clamp for SI30 and SZI30. Each transmitter or emitter must have separate IZK20
mounting clamp.
IZK20
3/8" Internal Thread
Far Side
1.333"
(33.86 mm)
3.364"
(85.45 mm)
.978"
(24.84 mm)
1.194"
(30.33 mm)
IZM20–Mounting hardware for clustering up to four SI30 and SZI30.
IZM20
.574"
(14.58 mm)
1.347"
(34.21 mm)
34.21"
(79.25 mm)
3/8"
Thread
4.350"
(7110.49 mm)
3/8"
Thread
3/8"
Thread
5.433"
(138.00 mm)
ø.640"
(16.26 mm)
ø.640"
(16.26 mm)
ø.640"
(16.26 mm)
ø.740"
(18.80 mm)
5/8" Internal Thread
3/8" Internal Thread
ø.584"
(14.83 mm)
