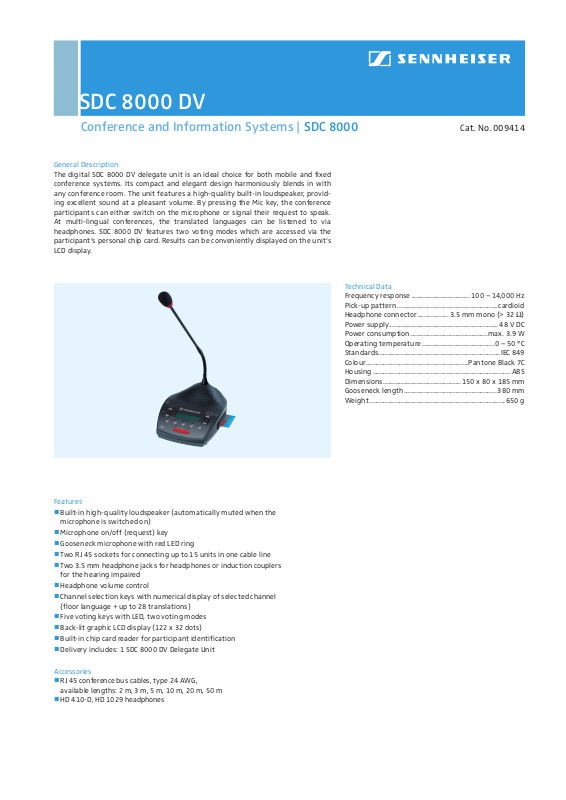

SDC 8000 DV

Conference and Information Systems | SDC 8000

General Description

The digital SDC 8000 DV delegate unit is an ideal choice for both mobile and fixed
conference systems. Its compact and elegant design harmoniously blends in with
any conference room. The unit features a high-quality built-in loudspeaker, provid­ing excellent sound at a pleasant volume. By pressing the Mic key, the conference
participants can either switch on the microphone or signal their request to speak.
At multi- lingual conferences, the translated languages can be listened to via
headphones. SDC 8000 DV features two voting modes which are accessed via the
participant‘s personal chip card. Results can be conveniently displayed on the unit‘s
LCD display.

Cat. No. 009414

Tec hni c al D ata

Frequency response ................................. 100 – 14,000 Hz

Pick-up pattern .........................................................cardioid

Headphone connector.................. 3.5 mm mono (> 32 Ω)

Power supply.............................................................. 48 V DC

Power consumption............................................ max. 3.9 W

Operating temperature .........................................0 – 50 °C

Standards..................................................................... IEC 849

Colour..........................................................Pantone Black 7C

Housing ..............................................................................ABS

Dimensions............................................ 150 x 80 x 185 mm

Gooseneck length ....................................................380 mm

Weight............................................................................. 650 g

Features

j

Built-in high-quality loudspeaker (automatically muted when the

microphone is switched on)

j

Microphone on/off (request) key

j

Gooseneck microphone with red LED ring

j

Two RJ 45 sockets for connecting up to 15 units in one cable line

j

Two 3.5 mm headphone jacks for headphones or induction couplers

for the hearing impaired

j

Headphone volume control

j

Channel selection keys with numerical display of selected channel

(floor language + up to 28 translations)

j

Five voting keys with LED, two voting modes

j

Back-lit graphic LCD display (122 x 32 dots)

j

Built-in chip card reader for participant identification

j

Delivery includes: 1 SDC 8000 DV Delegate Unit

Accessories

j

RJ 45 conference bus cables, type 24 AWG,

available lengths: 2 m, 3 m, 5 m, 10 m, 20 m, 50 m

j

HD 410-D, HD 1029 headphones
