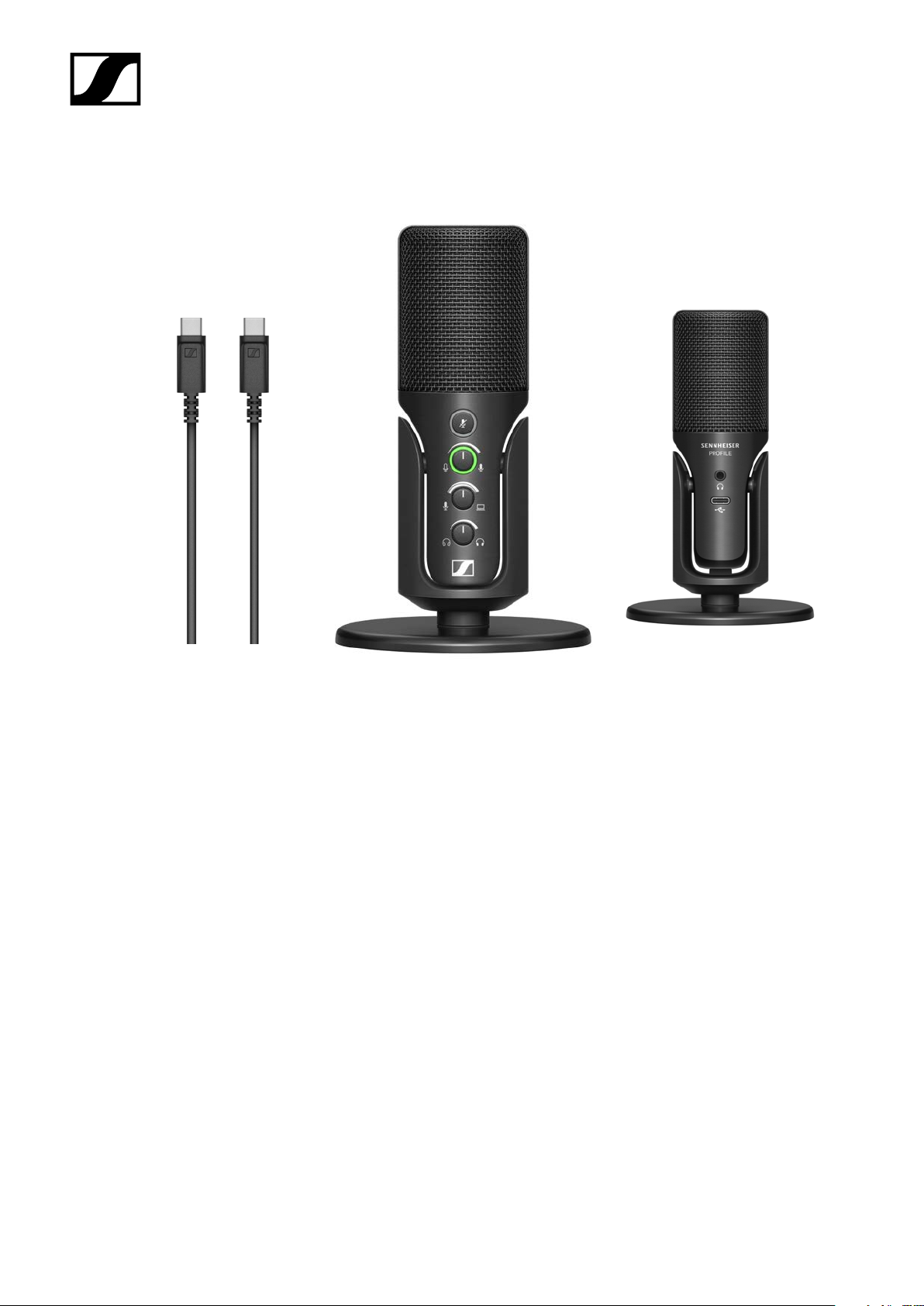

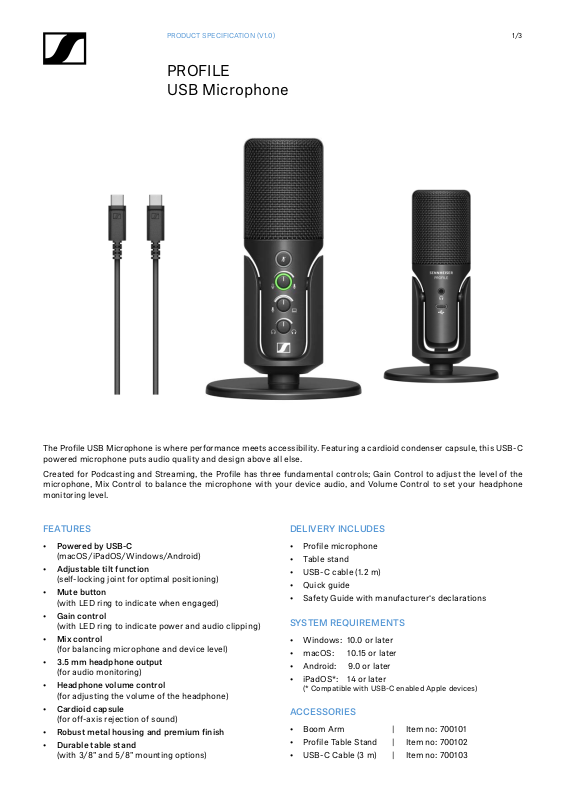

Page 1
PROFILE
USB Microphone
1/3PRODUCT SPECIFICATION (V1.0)
The Profile USB Microphone is where performance meets accessibility. Featuring a cardioid condenser capsule, this USB-C
powered microphone puts audio quality and design above all else.
Created for Podcasting and Streaming, the Profile has three fundamental controls; Gain Control to adjust the level of the
microphone, Mix Control to balance the microphone with your device audio, and Volume Control to set your headphone
monitoring level.
FEATURES
• Powered by USB-C
(macOS/iPadOS/Windows/Android)
• Adjustable tilt function
(self-locking joint for optimal positioning)
• Mute button
(with LED ring to indicate when engaged)
• Gain control
(with LED ring to indicate power and audio clipping)
• Mix control
(for balancing microphone and device level)
• 3.5 mm headphone output
(for audio monitoring)
• Headphone volume control
(for adjusting the volume of the headphone)
• Cardioid capsule
(for off-axis rejection of sound)
• Robust metal housing and premium finish
• Durable table stand
(with 3/8" and 5/8" mounting options)
DELIVERY INCLUDES
• Profile microphone
• Table stand
• USB-C cable (1.2 m)
• Quick guide
• Safety Guide with manufacturer‘s declarations
SYSTEM REQUIREMENTS
• Windows: 10.0 or later
• macOS: 10.15 or later
• Android: 9.0 or later
• iPadOS*: 14 or later
(* Compatible with USB-C enabled Apple devices)
ACCESSORIES
• Boom Arm | Item no: 700101
• Profile Table Stand | Item no: 700102
• USB-C Cable (3 m) | Item no: 700103
Page 2
SPECIFICATIONS
Hz
100 1.000 10.000
0
50 100 200 500 1k 2k 5k 10k 20k
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
5dB/DIV
5dB/DIV
125Hz
1 kHz
2 kHz
16 kHz
2/3PRODUCT SPECIFICATION (V1.0)
PROFILE
USB Microphone
Overall device
Operating temperature
Storage
0 °C to +40 °C
(32 °F to 104 °F)
-20 °C to +70 °C
(-4 °F to 158 °F)
10 to 95 %, non-condensing
Dimensions Microphone: Ø 50 x 152 mm
Table stand: Ø 98 x 18 mm
Connectors
USB Type-C
(USB 2.0 Full-Speed)
3.5 mm TRS
Cable length 1.2 m (Profile)
Power supply 5 V $, max. 200 mA
Weight
Microphone: 350 g
Table stand: 60 g
Microphone
Transducer principle
Pre-polarized condenser
microphone
Pick-up pattern Cardioid
Sensitivity at max. gain
Sensitivity at min. gain
-10 dBFS at 80 dB SPL
-50 dBFS at 80 dB SPL
Max SPL
Min. gain
Max. gain
125 dB SPL
85 dB SPL
Frequency range 20 to 20,000 Hz
Equivalent noise level
Min. gain
Max. gain
34 dB(A) SPL
28 dB(A) SPL
Sampling rates 44.1, 48 kHz
Sampling resolution 16, 24 Bit
Headphone output
Connector 3.5 mm TRS
Min. output impedance 16 Ω
Frequency range 20 to 18,500 Hz
OS Interoperability
Windows 10.0 or higher
macOS 10.15 or higher
Android 9.0 or higher
iPadOS * 14 or higher
(* Compatible with USB-C enabled Apple devices)
250 Hz
500 Hz
Polar Pattern
4 kHz
8 kHz
-5
-10
-15
-20
-25
0
dBFS
-30
-35
-40
-45
-50
50
0° and 90° frequency response @ 80 dB SPL
100 1.000 10.000
100 200 500 1k 2k 5k 10k 20k
Hz
Page 3
DIMENSIONS
C
D
E
F
G
H
6
21.5
12.91
H
I J K
1
PROFILE
USB Microphone
50
3/3PRODUCT SPECIFICATION (V1.0)
50
8
147.2
159.7
20
63.583.7
21.5
12.91
5.5
6
97.5
Sennheiser electronic GmbH & Co. KG · Am Labor 1 · 30900 Wedemark · Germany · www.sennheiser.com
