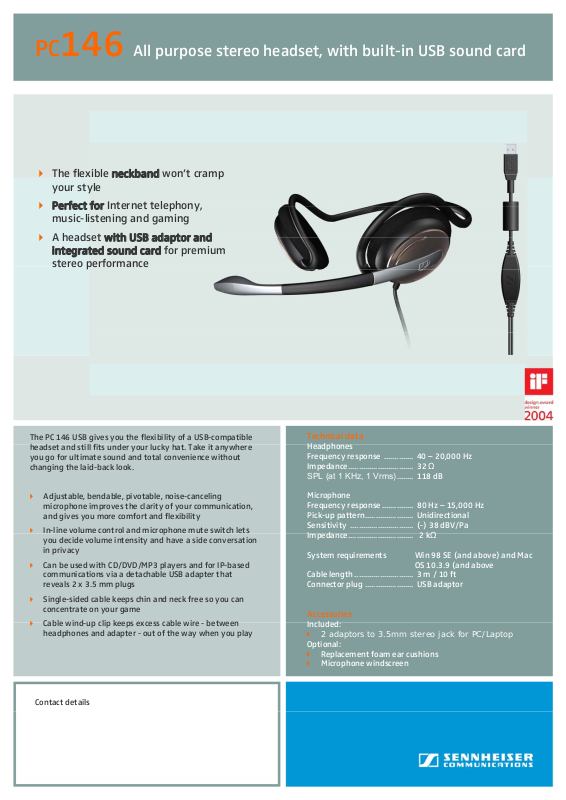

Sennheiser PC 146 User Manual

PC146 All purpose stereo headset, with built-in USB sound card

 The flexible neckband won’t cramp

your style

 Perfect for Internet telephony,

music-listening and gaming

 A headset with USB adaptor and

integrated sound card for premium
stereo performance

The PC 146 USB gives you the flexibility of a USB-compatible
headset and still fits under your lucky hat. Take it anywhere
you go for ultimate sound and total convenience without
changing the laid-back look.

 Adjustable, bendable, pivotable, noise-canceling

microphone improves the clarity of your communication,
and gives you more comfort and flexibility

 In-line volume control and microphone mute switch lets

you decide volume intensity and have a side conversation
in privacy

 Can be used with CD/DVD/MP3 players and for IP-based

communications via a detachable USB adapter that
reveals 2 x 3.5 mm plugs

 Single-sided cable keeps chin and neck free so you can

concentrate on your game

 Cable wind-up clip keeps excess cable wire - between

headphones and adapter - out of the way when you play

Technical data

Headphones

Frequency response .............. 40 – 20,000 Hz

Impedance............................... 32 Ω

SPL (at 1 KHz, 1 Vrms)........ 118 dB

Microphone

Frequency response ............... 80 Hz – 15,000 Hz

Pick-up pattern....................... Unidirectional

Sensitivity .............................. (-) 38 dBV/Pa

Impedance............................... 2 kΩ

System requirements Win 98 SE (and above) and Mac

OS 10.3.9 (and above

Cable length ............................ 3 m / 10 ft

Connector plug ....................... USB adaptor

Accessories

Included:

2 adaptors to 3.5mm stereo jack for PC/Laptop



Optional:

 Replacement foam ear cushions
 Microphone windscreen
