Page 1
MKH 8060
Bedienungsanleitung
Instruction manual
Notice d‘emploi
Istruzioni per l‘uso
Instrucciones de manejo
Manual de instruções
Gebruiksaanwijzing
Инструкция по эксплуатации
使用说明书
Page 2
Important safety instructions
Important safety instructions
1. Read these safety instructions and the instruction manual of the product.
2. Keep these safety instructions and the instruction manual of the product.
Always include all instructions when passing the product on to third parties.
3. Only use attachments, accessories and spare parts specified by the manufacturer.
4. Caution: The protective basket and pop shield must be completely dry when
you mount them on the microphone. Moisture can cause malfunctions or
damage to the capsule.
5. Connect the microphone only to microphone inputs and supply units that
provide 48V phantom powering in accordance with IEC 61938.
6. Do not attempt to open the product housing on your own. The warranty is
voided for products opened by the customer.
7. Refer all servicing to qualified service personnel. Servicing is required
when the product has been damaged in any way, liquid has been spilled or
objects have fallen into the product, when the product has been exposed to
rain or moisture, does not operate normally, or has been dropped.
8. Use the product only under the conditions of use listed in the specifications.
9. Let the product come to ambient temperature before switching it on.
10. Do not operate the product if it was damaged during transportation.
11. Always run cables so that no one can trip over them.
12. Keep the product and its connections away from liquids and electrically
conductive objects that are not necessary for operating the product.
13. Do not use any solvents or aggressive cleaning agents to clean the product.
14. Caution: Very high signal levels can damage your hearing and your loudspeakers. Reduce the volume on the connected audio devices before
switching on the product; this will also help prevent acoustic feedback.
EN DEFRITESPTNLRUZH
COMPLIANCE
Intended use
The product is designed for indoor use.
It is considered improper use when the product is used for any application not
named in the corresponding instruction manual.
Sennheiser does not accept liability for damage arising from improper use or
misuse of this product and its attachments/accessories.
Before putting the products into operation, please observe the respective
country-specific regulations!
MKH 8060 | 13
Page 3
Delivery includes
Delivery includes
• Microphone, consisting of the MKH 8060 microphone head and the
MZX 8000 XLR module
• MZQ 8060 microphone clamp
• MZW 8060 foam windshield
• Instruction manual
• Frequency response sheet
• Threaded transport tube
Product overview
1
2
3
4
1 Foam windshield
2 Microphone head
3 XLR module
4 Microphone clamp (thread adaptor included for 3/8" and 5/8" threads)
14 | MKH 8060
Page 4
Putting the MKH 8060 into operation
Putting the MKH 8060 into operation
Connecting the microphone
Connection data of the MKH 8060:
• 48 V ± 4 V phantom powering (P48, as per IEC 61938)
• XLR-3 connector, balanced
To connect the MKH 8060 to a mixing console or recording device:
Connect the socket of the microphone cable to the microphone.
Connect the connector of the microphone cable to the mixing console or
recording device.
Attaching the microphone
Select the suitable mounting thread:
• Without thread insert: 5/8" thread
• Thread insert: 3/8" thread
Screw the microphone clamp 4 to a stand.
Place the microphone with its back end into the microphone clamp: Make
sure that the lateral slots are not covered.
Orient the microphone together with the microphone clamp and fix them by
screwing the wing screw tight.
EN DEFRITESPTNLRUZH
COMPLIANCE
4
MKH 8060 | 15
Page 5
Using optional modules
1

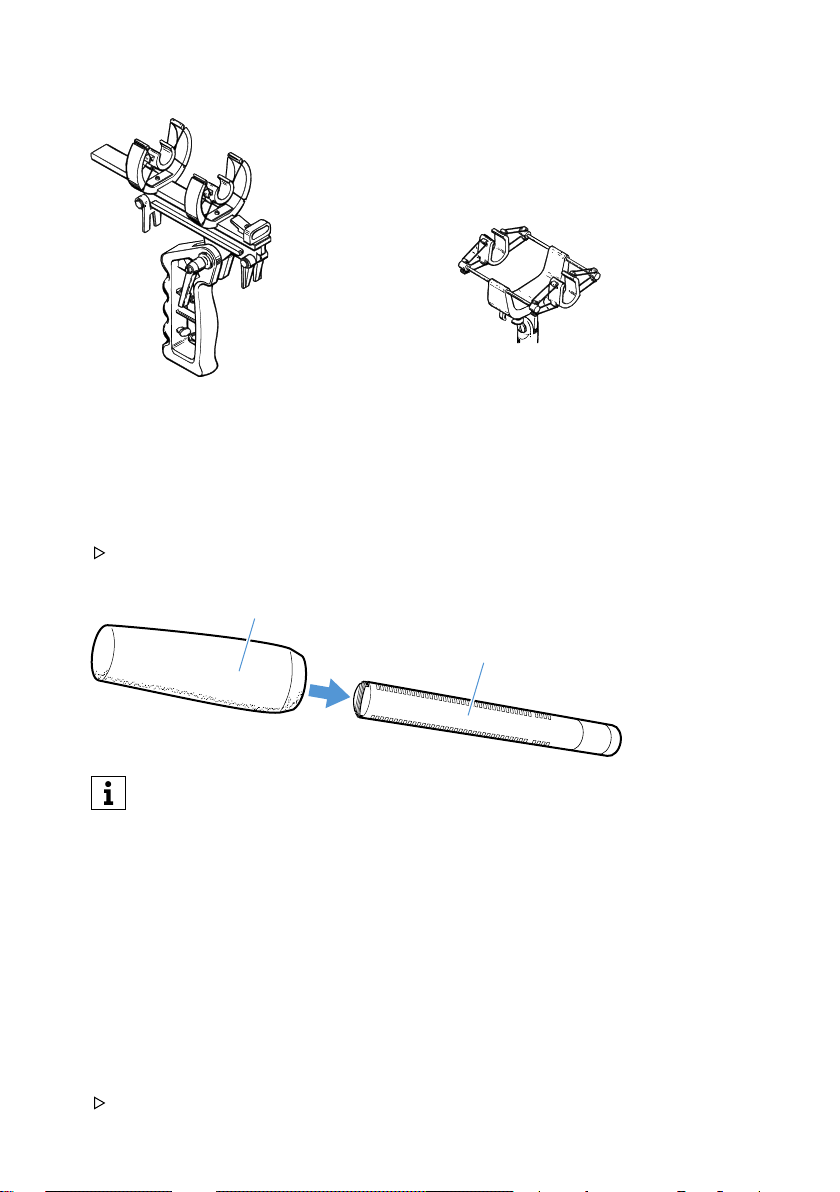

To suppress structure-borne noise, you can use one of the optional shock
mounts.
Sennheiser MZS 20-1 Sennheiser MZS 40
Using the windshield
The windshield changes the sound only slightly, but attenuates wind noise by
approx. 25 dB.
Place the MZW 8060 foam windshield 1 over the microphone head 2 so that
all lateral slots are covered.
2
Alternative windshields are available as accessories and can be found on
the MKH 8060 product page at www.sennheiser.com.
Using optional modules
You can retrofit and extend the microphones of the modular MKH 8000 microphone series by using optional modules.
The MZF 8000 filter module
The MZF 8000 filter module has been specially designed for broadcast and film
applications. It effectively filters out interference caused by infrasound, such a
lowfrequency wind and handling noise.
16 | MKH 8060
If necessary, disconnect a connected XLR cable in order to not distort the
Page 6
Using optional modules
2
cable and to avoid short-circuits.
Unscrew the microphone head 2 from the XLR module 3.
Screw the MZF 8000 filter module 4 at a suitable place in the audio signal
chain between microphone head and XLR module.
4
3
The MZD 8000 digital module
The MZD 8000 digital module is an A/D converter for all microphone heads of
the MKH 8000 series. The sound of the MKH 8000 series is converted to digital
directly at the microphone head, ensuring that the warm, natural, yet clear and
powerful sound of the microphones is maintained in full quality along the entire
signal chain. The MZD 8000 digital module eliminates cable losses and, most
importantly, features a converter and surrounding circuitry that have been optimally matched to the microphone.
If necessary, disconnect a connected XLR cable in order to not distort the
cable and to avoid short-circuits.
Unscrew the microphone head 2 from the XLR module 3.
Screw the MZD 8000 digital module 5 to the microphone head.
EN DEFRITESPTNLRUZH
COMPLIANCE
MKH 8060 | 17
Page 7
Transporting the microphone
2
5
Transporting the microphone
Let the microphone dry if you used it under extreme climatic conditions.
If necessary, remove the windshield or take the microphone out of the basket
windshield.
Slide the microphone into the transport tube.
Cleaning and maintaining the microphone
CAUTION
DAMAGE TO THE PRODUCT DUE TO LIQUIDS!
Liquids entering the product can short-circuit the electronics or damage the
mechanics. Solvents or cleansing agents can damage the surface of the product.
Keep all liquids away from the product.
Only use a soft, slightly damp cloth to clean the product.
18 | MKH 8060
Page 8
Specifications
0°
1,000 Hz
16,000 Hz
Specifications
Pick-up pattern super-cardioid/lobar
Frequency response 50 Hz to 25,000 Hz
Sensitivity -24 dBV/Pa (63 mV/Pa)
Max. sound pressure level 129 dB SPL
Equivalent noise level 11 dB(A) (DIN-IEC 651)
23 dB (CCIR 268-3)
Nominal impedance 25 Ω
Min. terminating impedance 2 kΩ
Phantom powering 48 V ± 4 V (P48, IEC 61938)
Current consumption 3,3 mA
Diameter 19 mm
Length
with MZX 8000 XLR module
Weight
with MZX 8000 XLR module
Operating temperature -10 °C to +60 °C
145 mm
178 m
80 g
112 g
EN DEFRITESPTNLRUZH
Polar pattern
30°
60°
90°
120°
125 Hz
250 Hz
500 Hz
150°
Frequency response
0
5
10
15
20
25
dB
180°
30°
150°
COMPLIANCE
60°
90°
120°
2,000 Hz
4,000 Hz
8,000 Hz
MKH 8060 | 19
Page 9
Manufacturer declarations
-2
-3
-4
-5
-6
dB
90°
0°
20 kHz
-10
0
0
0
0
0
50 Hz
100 Hz
200 Hz
500 Hz
1 kHz
2 kHz
5 kHz
10 kHz
Manufacturer declarations
Warranty
Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on these
products.
For the current warranty conditions, please visit our website at
www.sennheiser.com or contact your Sennheiser partner.
FOR AUSTRALIA ONLY
Sennheiser goods come with guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to a replacement or refund for a
major failure and compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not amount to a
major failure.
This warranty is in addition to other rights or remedies under law. Nothing in
this warranty excludes, limits or modifies any liability of Sennheiser which is
imposed by law, or limits or modifies any remedy available to the consumer
which is granted by law.
To make a claim under this warranty, contact
Sennheiser Technical Services and Spare Parts Sales
c/o Linfox, Gate 3, 1 Fox Lane, Erskine Park, 2759, NSW
Australia
Phone: (02) 9910 6700, email: au-service@sennheiser.com
All expenses of claiming the warranty will be borne by the person making the
20 | MKH 8060
Page 10
Manufacturer declarations
claim.
The Sennheiser International Warranty is provided by Sennheiser Australia
Pty Ltd (ABN 68 165 388 312), Unit 3, 31 Gibbes Street Chatswood NSW 2067
Australia.
In compliance with the following requirements
• WEEE Directive (2012/19/EU)
Notes on disposal
The symbol of the crossed-out wheeled bin on the product, the battery/rechargeable battery (if applicable) and/or the packaging indicates that these
products must not be disposed of with normal household waste, but must be
disposed of separately at the end of their operational lifetime. For packaging
disposal, please observe the legal regulations on waste segregation applicable
in your country.
Further information on the recycling of theses products can be obtained from
your municipal administration, from the municipal collection points, or from
your Sennheiser partner.
The separate collection of waste electrical and electronic equipment, batteries/rechargeable batteries (if applicable) and packagings is used to promote
the reuse and recycling and to prevent negative effects caused by e.g. potentially hazardous substances contained in these products. Herewith you make
an important contribution to the protection of the environment and public
health.
EN DEFRITESPTNLRUZH
EU Declaration of conformity
• RoHS Directive (2011/65/EU)
• EMC Directive (2014/30/EU)
The full text of the EU declaration of conformity is available at the following
internet address: www.sennheiser.com/download.
Statements regarding the FCC and Industry Canada rules
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause undesired operation.
MKH 8060 | 21
COMPLIANCE
Page 11

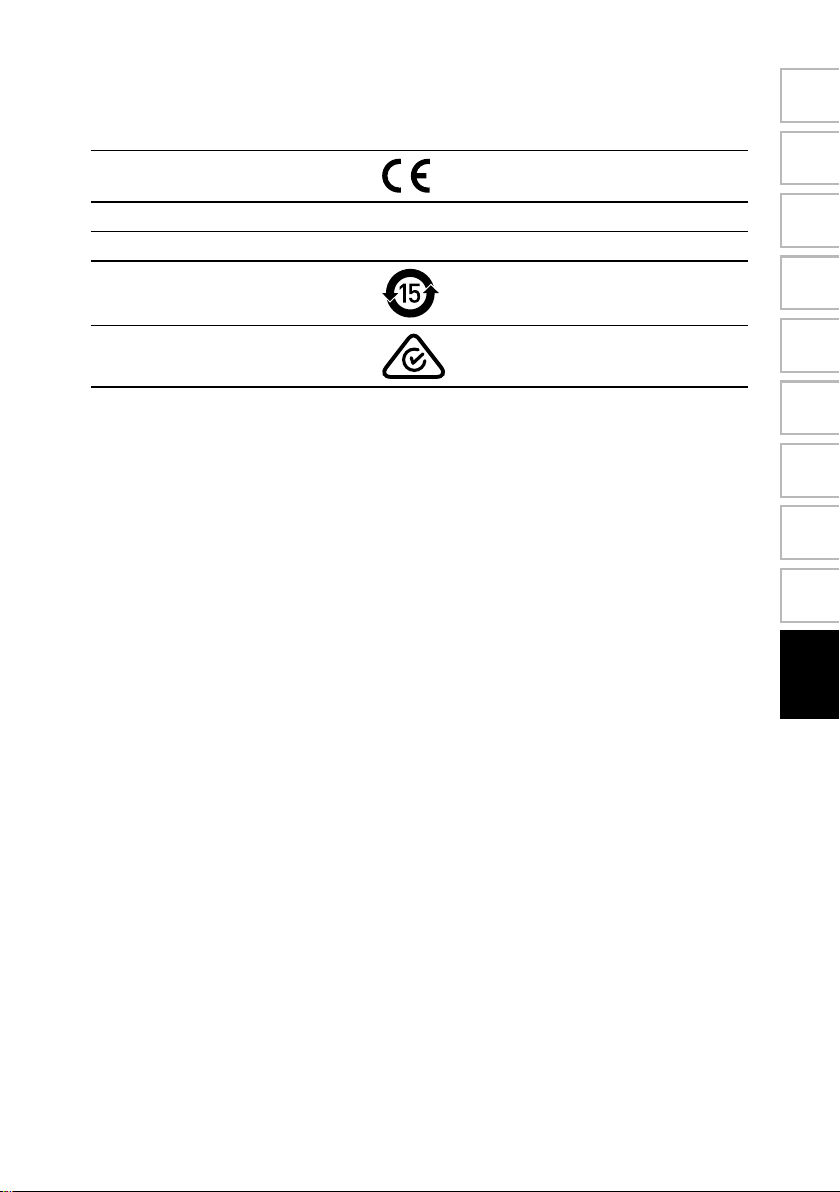

Compliance
Compliance
Europe EN 55032
EN 55035
USA FCC 47 CFR 15 subpart B
Canada Industry Canada ICES_003
China
Australia/New Zealand
EN DEFRITESPTNLRUZH
COMPLIANCE
MKH 8060 | 93
Page 12
Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany, www.sennheiser.com
Printed in Germany, Publ. 12/18, 581394/A01
