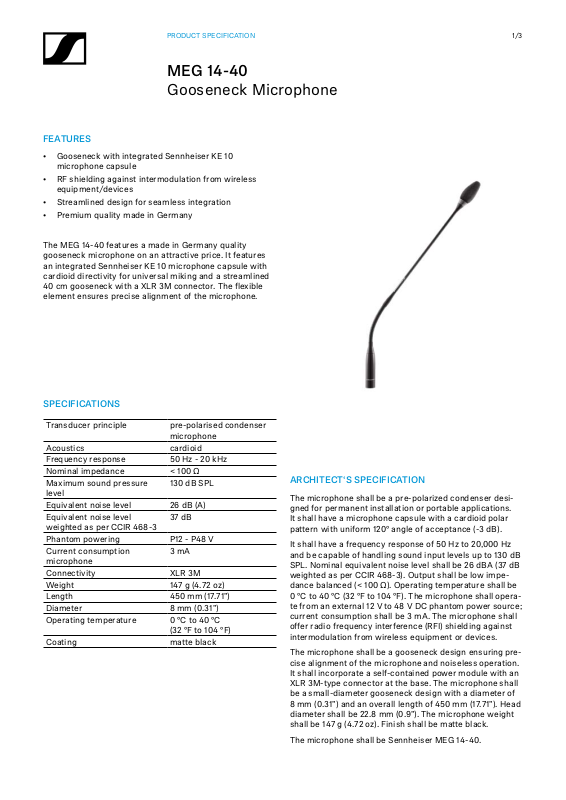

PRODUCT SPECIFICATION
MEG 14-40
Gooseneck Microphone
FEATURES
• Gooseneck with integrated Sennheiser KE 10
microphone capsule
• RF shielding against intermodulation from wireless
equipment/devices
• Streamlined design for seamless integration
• Premium quality made in Germany
The MEG 14-40 features a made in Germany quality
gooseneck microphone on an attractive price. It features
an integrated Sennheiser KE 10 microphone capsule with
cardioid directivity for universal miking and a streamlined
40 cm gooseneck with a XLR 3M connector. The flexible
element ensures precise alignment of the microphone.
1/3
SPECIFICATIONS
Transducer principle pre-polarised condenser
microphone
Acoustics cardioid
Frequency response 50 Hz - 20 kHz
Nominal impedance < 100 Ω
Maximum sound pressure
level
Equivalent noise level 26 dB (A)
Equivalent noise level
weighted as per CCIR 468-3
Phantom powering P12 - P48 V
Current consumption
microphone
Connectivity XLR 3M
Weight 147 g (4.72 oz)
Length 450 mm (17.71")
Diameter 8 mm (0.31")
Operating temperature 0 °C to 40 °C
Coating matte black
130 dB SPL
37 dB
3 mA
(32 °F to 104 °F)
ARCHITECT‘S SPECIFICATION
The microphone shall be a pre-polarized condenser designed for permanent installation or portable applications.
It shall have a microphone capsule with a cardioid polar
pattern with uniform 120° angle of acceptance (-3 dB).
It shall have a frequency response of 50 Hz to 20,000 Hz
and be capable of handling sound input levels up to 130 dB
SPL. Nominal equivalent noise level shall be 26 dBA (37 dB
weighted as per CCIR 468-3). Output shall be low impedance balanced (< 100 Ω). Operating temperature shall be
0 °C to 40 °C (32 °F to 104 °F). The microphone shall operate from an external 12 V to 48 V DC phantom power source;
current consumption shall be 3 mA. The microphone shall
offer radio frequency interference (RFI) shielding against
intermodulation from wireless equipment or devices.
The microphone shall be a gooseneck design ensuring precise alignment of the microphone and noiseless operation.
It shall incorporate a self-contained power module with an
XLR 3M-type connector at the base. The microphone shall
be a small-diameter gooseneck design with a diameter of
8 mm (0.31") and an overall length of 450 mm (17.71"). Head
diameter shall be 22.8 mm (0.9"). The microphone weight
shall be 147 g (4.72 oz). Finish shall be matte black.
The microphone shall be Sennheiser MEG 14-40.
DIMENSIONS
⌀ 0.9"
[22,8 mm]
XLR 3
18"
[450 mm]
⌀ 0.73"
[19 mm]
PRODUCT SPECIFICATION
MEG 14-40
Gooseneck Microphone
2/3
POLAR PATTERN
30°
60°
90°
120°
150°
0°
180°
FREQUENCY RESPONSE
-20
-30
-40
330°
210°
300°
240°
270°
PIN ASSIGNMENT
1
2
3
1 Ground
2 Microphone +
3 Microphone –
dBV
-50
-60
50 100 200 500 1k 2k 5k 10k 20k
Hz
