PRODUCT SPECIFICATION
Digital 6000
L 6000 | network-enabled charger
1/5
FEATURES
• Practical charging station for 19 inch racks
• Modular design, charging modules can be fitted as
needed
• Status display with multicolored LED
• Detailed information/conditions can be monitored via
the Wireless Systems Manager
Practical, central, intelligent: The 19 inch 1 RU L 6000 charging station delivers power centrally and directly in the rack.
Up to four freely selectable charging modules can accommodate two bodypack or handheld battery packs each (a total of
8 charging ports for battery packs BA 60, BA 61 or BA 62). Three-color LEDs give a quick overview of the charging status.
The intelligent control system prevents heat buildup and also offers a mode that optimally charges the batteries for extended storage periods.
The charging station L 6000 has a modular construction and is futureproof: Charging stations for future battery pack
types can simply be retrofitted.
Extensive details regarding temperature, remaining charging time, run times, charging cycles and battery quality can be
retrieved via the Wireless Systems Manager (WSM).
DELIVERY INCLUDES
• 1 L 6000 charger
• 1 mains cable (EU, UK or US plug)
• 4 dummy covers incl. screws
• quick guide
• booklet with safety instructions
• booklet with specifications and manufacturer
declarations
• 4 Rubber feet
• 2 stickers
Page 2
PRODUCT SPECIFICATION
Digital 6000
L 6000 | network-enabled charger
2/5
SPECIFICATIONS
Charging capacity Up to 8 battery packs
(BA 60, BA 61, BA 62) via
4 exchangeable charging modules (LM 6060,
LM 6061, LM 6062)
Charging time BA 60
(at 20 °C)
Charging time BA 61
(at 20 °C)
Charging time BA 62
(at 20 °C)
Charging temperature
range
Charging status display Multi-colored
Network IEEE 802.3-2002
Power supply 100 to 240 V AC, 50/60 Hz
Maximum power
consumption
Minimum power
consumption
Power plug 3-pin, protection class I as
Dimensions (H × W × D)
with mounting elements
Weight 5.1 kg
Ambient temperature −10 to 55 °C
Relative humidity Max. 90 % at 40 °C
Dripping and splashing
liquids
80 %: approx. 1:15 h
100 %: approx. 2:30 h
80 %: approx. 1:45 h
100 %: approx. 3:15 h
80 %: approx. 1:15 h
100 %: approx. 2:45 h
0 to 50 °C
(10/100 Mbit/s), shielded
RJ-45 connection
85 W
1 W
per IEC/EN 60320-1
44 × 483 × 373 mm
The product must not be
exposed to dripping and
splashing (IP2X)
PRODUCT VARIANTS
L 6000 EU Art. no. 507300
L 6000 UK Art. no. 507301
L 6000 US Art. no. 507302
ACCESSORIES
LM 6060 Charging module for two
BA 60 battery packs
LM 6061 Charging module for two
BA 61 battery packs
LM 6062 Charging module for two
BA 62 battery packs
Art. no. 507198
Art. no. 507199
Art. no. 508516
COMPATIBLE WITH
• BA 60 rechargeable battery pack for
SKM 6000 and SKM 9000
• BA 61 rechargeable battery pack for
SK 6000 and SK 9000
• BA 62 rechargeable battery pack for SK 6212
SYSTEM COMPONENTS
• EM 6000
• SKM 6000
• SK 6000
• SK 6212
• L 60
Page 3

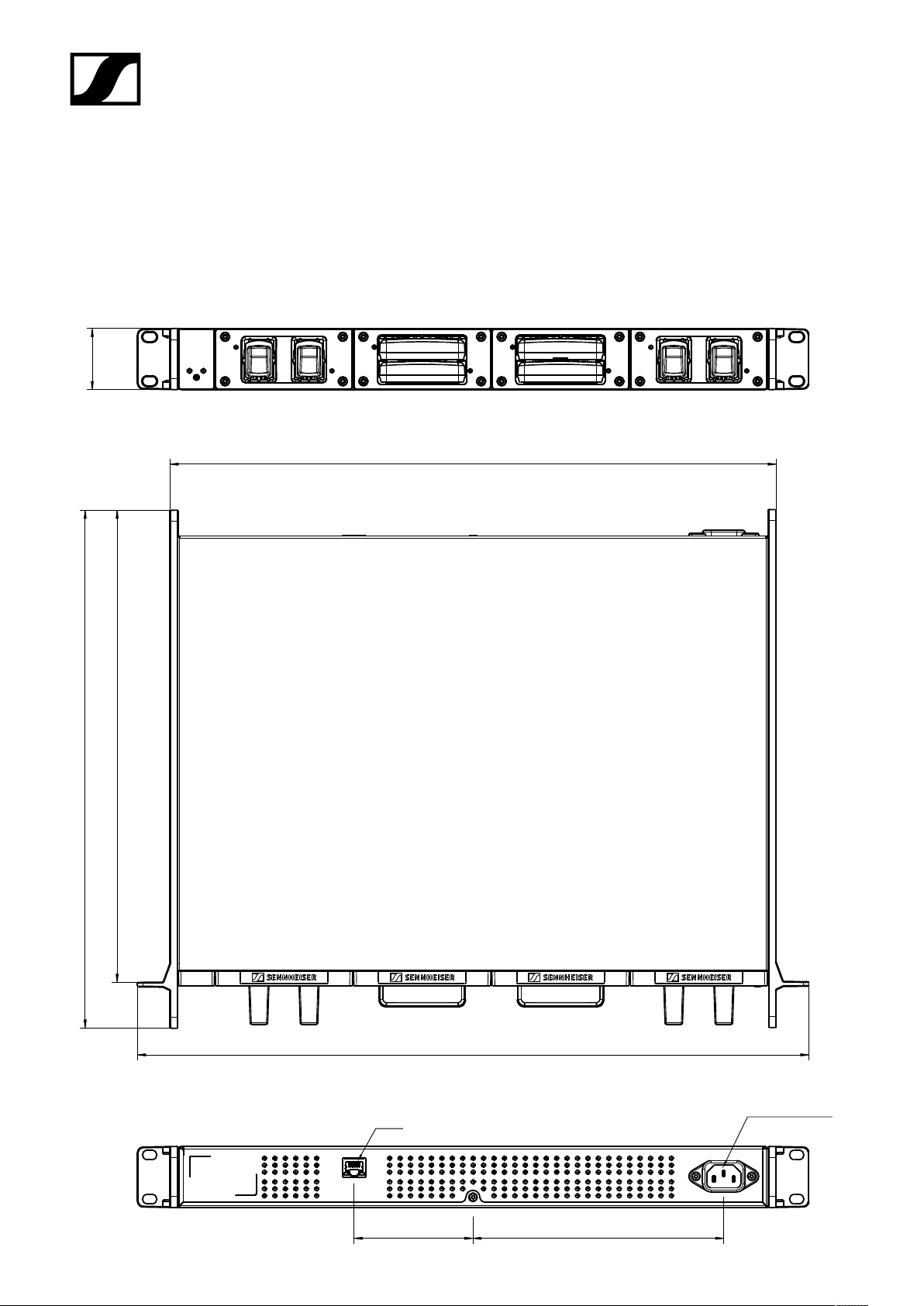

DIMENSIONS
44
1.73"
PRODUCT SPECIFICATION
Digital 6000
L 6000 | network-enabled charger
Bestückung mit Ladeschächten LM6060 und LM6061 ist nur ein Anwendungsbeispiel
Equipping of charging module LM6060 and LM6061 are only an application example
435.8
17.16"
3/5
13.36"
339.41
372.4
14.66"
482.6
19"
RJ 45
DIN IEC 60320-C14
85.35
3.36"
180.35
7.1"
Page 4

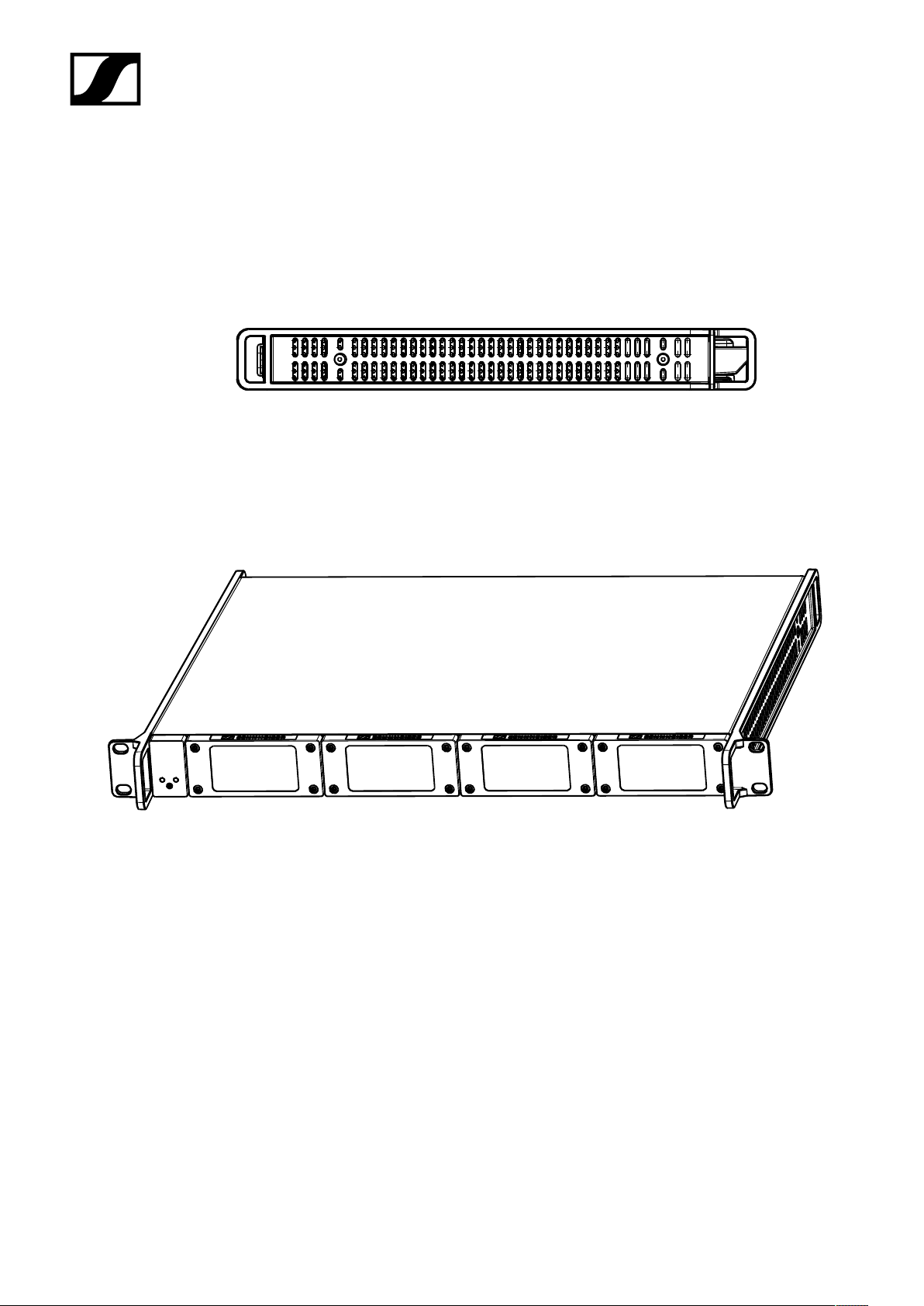

DIMENSIONS
PRODUCT SPECIFICATION
Digital 6000
L 6000 | network-enabled charger
4/5
Page 5
PRODUCT SPECIFICATION
5/5
Digital 6000
L 6000 | network-enabled charger
ARCHITECT‘S SPECIFICATION
The rack-mountable charger shall be network-enabled and shall be capable of simultaneously charging up to eight BA 60,
BA 61 and BA 62 rechargeable battery packs used for transmitters of the Sennheiser Digital 6000 series. Three different
charging modules with two charging bays each are available for the three different types of battery packs. These modules
shall be mountable by the user into the mainframe in any configuration. A colored LED at each charging bay shall indicate
the charge status of the respective battery pack and warnings.
The charger shall feature a power status LED indicating the power status or information on booting and firmware updates. An additional LED shall indicate if an error has occurred. The charger shall be equipped with a reset button to
restore the factory settings.
The charger shall have an RJ-45 network socket and shall be controllable via the Sennheiser Wireless Systems Manager
software. In addition, the charger shall support the Media Control Protocol to provide for remote control via a media control system. Via network control, the charger shall feature a storage mode which allows the battery packs to be charged or
discharged to 70 % for storage. Also via network control, the charger shall provide further battery information like estimated operating time, charging cycles, voltage and battery health.
The charger shall operate on 100 to 240 V~, power consumption shall be max. 85 W. Charging time for a full charge shall
be between 2 and 3 hours, depending on the battery pack. Battery charging temperature shall range from 0 °C to 50 °C.
Operating temperature shall range from 0 °C to 45 °C. Dimensions shall be 44 x 483 x 373 mm. Weight (unequipped) shall
be approximately 5.1 kg.
The charger shall be the Sennheiser L 6000.
