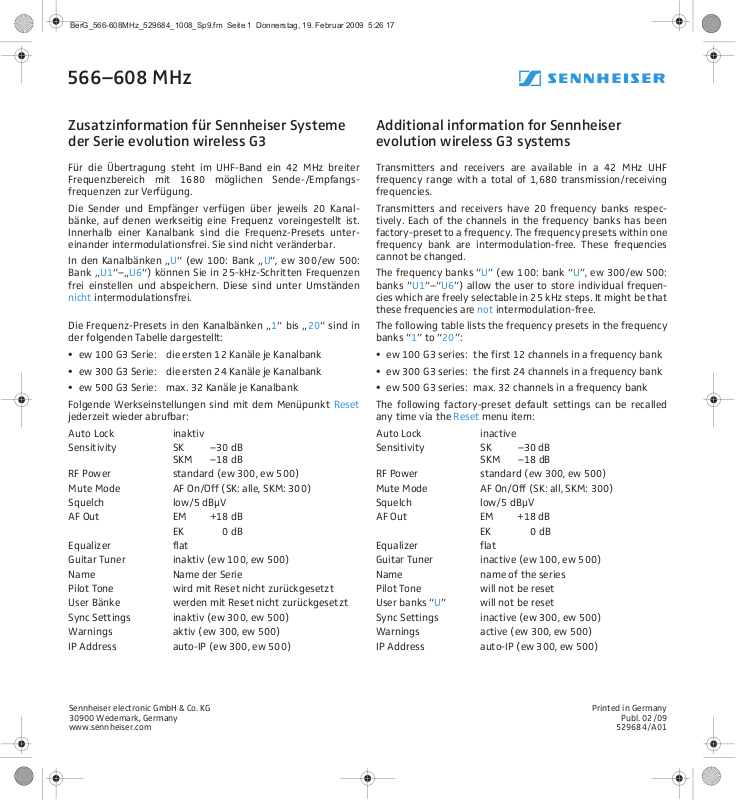

SENNHEISER EW G3 User Manual
566–608 MHz
Zusatzinformation für Sennheiser Systeme
der Serie evolution wireless G3
Für die Übertragung steht im UHF-Band ein 42 MHz breiter
Frequenzbereich mit 1680 möglichen Sende-/Empfangsfrequenzen zur Verfügung.
Die Sender und Empfänger verfügen über jeweils 20 Kanalbänke, auf denen werkseitig eine Frequenz voreingestellt ist.
Innerhalb einer Kanalbank sind die Frequenz-Presets untereinander intermodulationsfrei. Sie sind nicht veränderbar.
In den Kanalbänken „U“ (ew 100: Bank „U“, ew 300/ew 500:
Bank „U1“–„U6“) können Sie in 25-kHz-Schritten Frequenzen
frei einstellen und abspeichern. Diese sind unter Umständen
nicht intermodulationsfrei.
Die Frequenz-Presets in den Kanalbänken „1“ bis „20“ sind in
der folgenden Tabelle dargestellt:
• ew 100 G3 Serie: die ersten 12 Kanäle je Kanalbank
• ew 300 G3 Serie: die ersten 24 Kanäle je Kanalbank
• ew 500 G3 Serie: max. 32 Kanäle je Kanalbank
Folgende Werkseinstellungen sind mit dem Menüpunkt Reset
jederzeit wieder abrufbar:
Auto Lock inaktiv
Sensitivity SK –30 dB
SKM –18 dB
RF Power standard (ew 300, ew 500)
Mute Mode AF On/Off (SK: alle, SKM: 300)
Squelch low/5 dBμV
AF Out EM +18 dB
EK 0 dB
Equalizer flat
Guitar Tuner inaktiv (ew 100, ew 500)
Name Name der Serie
Pilot Tone wird mit Reset nicht zurückgesetzt
User Bänke werden mit Reset nicht zurückgesetzt
Sync Settings inaktiv (ew 300, ew 500)
Warnings aktiv (ew 300, ew 500)
IP Address auto-IP (ew 300, ew 500)
Additional information for Sennheiser
evolution wireless G3 systems
Transmitters and receivers are available in a 42 MHz UHF
frequency range with a total of 1,680 transmission/receiving
frequencies.
Transmitters and receivers have 20 frequency banks respectively. Each of the channels in the frequency banks has been
factory-preset to a frequency. The frequency presets within one
frequency bank are intermodulation-free. These frequencies
cannot be changed.
The frequency banks “U” (ew 100: bank “U”, ew 300/ew 500:
banks “U1”–“U6”) allow the user to store individual frequencies which are freely selectable in 25 kHz steps. It might be that
these frequencies are not intermodulation-free.
The following table lists the frequency presets in the frequency
banks “1” to “20”:
• ew 100 G3 series: the first 12 channels in a frequency bank
• ew 300 G3 series: the first 24 channels in a frequency bank
• ew 500 G3 series: max. 32 channels in a frequency bank
The following factory-preset default settings can be recalled
any time via the Reset menu item:
Auto Lock inactive
Sensitivity SK –30 dB
SKM –18 dB
RF Power standard (ew 300, ew 500)
Mute Mode AF On/Off (SK: all, SKM: 300)
Squelch low/5 dBμV
AF Out EM +18 dB
EK 0 dB
Equalizer flat
Guitar Tuner inactive (ew 100, ew 500)
Name name of the series
Pilot Tone will not be reset
User banks “U”will not be reset
Sync Settings inactive (ew 300, ew 500)
Warnings active (ew 300, ew 500)
IP Address auto-IP (ew 300, ew 500)
Sennheiser electronic GmbH & Co. KG Printed in Germany
30900 Wedemark, Germany Publ. 02/09
www.sennheiser.com 529684/A01
Frequenzbereich / Frequency Range / Bande de fréquence / Rango de frecuencia G
566–608 MHz
US TV-channel EBU TV-channel
Ch. 30 (566–572 MHz) Ch. 34 (590–596 MHz) Ch. 33 (566–574 MHz) Ch. 36 (590–598 MHz)
Ch. 31 (572–578 MHz) Ch. 35 (596–602 MHz) Ch. 34 (574–582 MHz) Ch. 37 (598–606 MHz)
Ch. 32 (578–584 MHz) Ch. 36 (602–608 MHz) Ch. 35 (582–590 MHz) Ch. 38 (606–614 MHz)
Ch. 33 (584–590 MHz)
Channel Bank 1 Bank 2 Bank 3 Bank 4 Bank 5 Bank 6 Bank 7 Bank 8 Bank 9 Bank 10
1 566,450 572,400 578,400 584,400 590,700 596,400 602,250 566,000 566,000 566,100
2 566,950 573,100 579,300 584,900 591,550 596,800 602,800 566,875 566,400 566,500
3 567,900 574,100 579,700 585,550 592,600 597,500 603,200 567,500 567,000 567,100
ew 100
ew 300
ew 500
4 568,350 574,950 580,750 586,000 593,400 598,000 604,300 570,175 567,800 567,900
5 569,500 576,150 581,200 586,850 593,950 599,400 605,100 572,625 569,000 569,100
6 570,050 576,550 582,400 587,400 594,700 600,050 605,550 574,800 570,600 570,700
7 570,850 577,200 583,250 588,600 595,100 601,050 606,550 579,625 572,800 572,900
8 571,250 577,650 583,800 589,500 595,700 601,600 607,700 580,825 576,000 576,100
9 584,300 567,900 568,100 567,250 571,100 570,200 568,250 590,525 578,400 578,500
10 591,550 581,850 568,700 574,450 578,450 575,900 574,850 601,700 583,200 583,300
11 604,250 597,000 592,250 598,000 584,450 581,750 580,700 603,625 587,200 587,300
12 606,450 607,750 603,500 601,150 605,600 585,050 587,900 608,000 591,600 591,700
13 572,800 566,150 573,800 567,850 566,450 566,450 566,300 566,375 599,000 599,100
14 577,900 566,950 575,150 568,900 567,650 567,800 567,350 567,900 602,400 602,500
15 580,150 580,900 587,450 571,600 568,100 568,250 571,700 568,425 607,600 607,700
16 586,550 586,700 597,200 572,200 569,900 569,600 572,450 569,125 568,175 568,275
17 589,750 590,300 597,950 573,850 571,550 571,700 574,100 569,575 569,475 569,575
18 593,550 593,100 600,200 580,750 572,750 573,500 575,900 570,975 571,300 571,400
19 595,050 595,250 600,950 582,100 576,800 577,850 578,900 571,525 573,850 573,950
20 596,700 601,300 602,750 595,750 583,550 578,600 582,800 573,350 577,625 577,725
21 599,550 602,100 604,100 598,600 586,100 589,550 591,350 576,375 580,150 580,250
22 601,050 602,650 605,900 601,750 600,050 594,650 593,450 581,400 581,175 581,275
23 603,250 606,000 606,500 603,550 603,950 605,000 597,500 582,250 589,950 590,050
24 607,750 606,950 607,850 606,100 605,150 606,050 598,550 583,975 594,975 595,075
25 574,900 569,350 569,900 566,500 566,900 572,900 568,850 584,725 597,675 597,775
26 582,650 570,250 571,550 570,400 573,500 574,250 570,500 586,200 600,975 601,075
27 593,150 583,350 572,750 574,900 574,700 576,500 571,250 593,875 601,900 602,000
28 594,200 583,900 575,750 590,800 577,700 580,400 576,800 595,050 604,625 604,725
29 596,200 590,800 584,600 591,850 600,950 580,850 582,200 600,625 605,250 605,350
30 597,550 594,500 594,650 593,200 602,150 590,300 583,850 601,275 604,125 604,225
31 603,850 603,550 598,550 600,100 606,500 602,900 596,300 607,050 603,375 603,475
32 607,200 604,600 607,400 607,900 607,700 607,250 601,100 583,375
Bemerkung
- Land
- Benutzergruppe
- sonstiges
Note
- country
- user group
- other
Remarque
- pays
- grp. d’utilisateurs
- divers
Nota
- country
- grupo de
usuarios
- otros
USA TV-
Kanal 30
und andere
US TV-Ch. 30
+
more
Etats-Unis
canal TV 30
et autres
EE.UU.
canal TV 30
y otros
USA TV-
Kanal 31
und andere
US TV-Ch. 31
+
more
Etats-Unis
canal TV 31
et autres
EE.UU.
canal TV 31
y otros
USA TV-
Kanal 32
und andere
US TV-Ch. 32
+
more
Etats-Unis
canal TV 32
et autres
EE.UU.
canal TV 32
y otros
USA TV-
Kanal 33
und andere
US TV-Ch. 33
+
more
Etats-Unis
canal TV 33
et autres
EE.UU.
canal TV 33
y otros
USA TV-
Kanal 34
und andere
US TV-Ch. 34
+
more
Etats-Unis
canal TV 34
et autres
EE.UU.
canal TV 34
y otros
USA TV-
Kanal 35
und andere
US TV-Ch. 35
+
more
Etats-Unis
canal TV 35
et autres
EE.UU.
canal TV 35
y otros
USA TV-
Kanal 36
und andere
US TV-Ch. 36
+
more
Etats-Unis
canal TV 36
et autres
EE.UU.
canal TV 36
y otros
kompletter
Arbeits-
bereich (1)
Full range (1) Full range (2) Full range (3)
Pleine bande
(1)
Rango de
trabajo
completo (1)
kompletter
Arbeits-
bereich (2)
Pleine bande
(2)
Rango de
trabajo
completo (2)
kompletter
Arbeits-
bereich (3)
Pleine bande
(3)
Rango de
trabajo
completo (3)
Channel Bank 11 Bank 12 Bank 13 Bank 14 Bank 15 Bank 16 Bank 17 Bank 18 Bank 19 Bank 20
1 566,200 566,000 566,125 566,275 566,375 566,150 607,850 566,100 568,100 567,500
2 566,600 566,400 566,525 566,675 566,775 566,525 607,475 566,975 568,475 567,875
3 567,200 566,900 567,025 567,175 567,275 566,975 607,025 567,600 568,975 568,375
ew 100
ew 300
ew 500
4 568,000 567,500 567,625 567,775 567,875 567,500 606,500 570,275 569,600 569,000
5 569,200 567,950 568,075 568,225 568,325 568,100 605,900 572,725 570,350 569,750
6 570,800 568,500 568,625 568,775 568,875 568,775 605,225 574,900 571,350 570,750
7 573,000 569,150 569,275 569,425 569,525 569,525 604,475 579,725 572,975 572,375
8 576,200 570,500 570,625 570,775 570,875 570,425 603,575 580,925 574,975 574,375
9 578,600 571,200 571,325 571,475 571,575 571,625 602,375 590,625 577,100 576,500
10 583,400 572,650 572,775 572,925 573,025 573,125 600,875 601,800 580,100 579,500
11 587,400 573,400 573,525 573,675 573,775 574,850 599,150 603,725 581,350 580,750
12 591,800 575,100 575,225 575,375 575,475 577,325 596,675 566,475 584,475 583,875
13 599,200 576,500 576,625 576,775 576,875 580,400 593,600 568,000 587,975 587,375
14 602,600 579,100 579,225 579,375 579,475 582,575 591,425 568,525 592,725 590,125
15 607,800 580,900 581,025 581,175 581,275 585,350 588,650 569,225 598,350 598,125
16 568,375 582,050 582,175 582,325 582,425 589,025 584,975 569,675 603,350 602,000
17 569,675 583,950 584,075 584,225 584,325 592,175 581,825 571,075 606,100 607,000
18 571,500 588,600 588,725 588,875 588,975 596,675 577,325 571,625 571,850 571,250
19 574,050 593,150 593,275 593,425 593,525 598,550 575,450 573,450 572,475 571,875
20 577,825 593,950 594,075 594,225 594,325 601,850 572,150 576,475 573,850 573,750
21 580,350 597,900 598,025 598,175 598,275 605,675 568,325 581,500 574,350 575,500
22 581,375 600,250 600,375 600,525 600,625 606,725 567,275 582,350 577,725 577,000
23 590,150 601,200 601,325 601,475 601,575 607,900 566,100 584,075 578,975 577,375
24 595,175 606,300 606,425 606,575 606,675 607,275 566,725 584,825 579,475 578,375
25 597,875 607,550 607,675 607,825 607,925 603,300 570,700 586,300 582,225 578,750
26 601,175 602,500 571,500 593,975 582,725 581,375
27 602,100 595,725 578,275 595,150 588,475 581,875
28 604,825 589,725 584,275 600,725 589,100 583,375
29 605,450 584,575 589,425 601,375 589,600 588,125
30 604,325 579,000 595,000 607,150 590,975 588,625
31 603,575 575,275 598,725 583,475 592,225 590,500
32 569,925 604,075 593,850 592,625
Bemerkung
- Land
- Benutzergruppe
- sonstiges
Note
- country
- user group
- other
Remarque
- pays
- grp. d’utilisateurs
- divers
Nota
- country
- grupo de
usuarios
- otros
*
ew 100 – frei wählbare Frequenzen / freely selectable frequencies / fréquences au choix / frecuencias de libre elección
**
ew 300/ew 500 – frei wählbare Frequenzen / freely selectable frequencies / fréquences au choix / frecuencias de libre elección
kompletter
Arbeits-
bereich (4)
Full range
(4)
Pleine
bande
(4)
Rango de
trabajo
completo
(4)
kompletter
Arbeits-
bereich (5)
Full range
(5)
Pleine
bande
(5)
Rango de
trabajo
completo
(5)
kompletter
Arbeits-
bereich (6)
Full range
(6)
Pleine
bande
(6)
Rango de
trabajo
completo
(6)
kompletter
Arbeits-
bereich (7)
Full range
(7)
Pleine
bande
(7)
Rango de
trabajo
completo
(7)
kompletter
Arbeits-
bereich (8)
Full range
(8)
Pleine
bande
(8)
Rango de
trabajo
completo
(8)
kompletter
Arbeits-
bereich (9)
Full range
(9)
Pleine
bande
(9)
Rango de
trabajo
completo
(9)
kompletter
Arbeits-
bereich (10)
Full range
(10)
Pleine
bande
(10)
Rango de
trabajo
completo
(10)
kompletter
Arbeits-
bereich (11)
Full range
(11)
Pleine
bande
(11)
Rango de
trabajo
completo
(11)
kompletter
Arbeits-
bereich (12)
Full range
(12)
Pleine
bande
(12)
Rango de
trabajo
completo
(12)
kompletter
Arbeits-
bereich (13)
Full range
(13)
Pleine
bande
(13)
Rango de
trabajo
completo
(13)
Bank U*
Bank U1–U6**
